USER MANUAL KDV 4Z 6000 KING D HOME

Please read the following instructions carefully before using this device.

Please keep these instructions for future reference.

m = 311

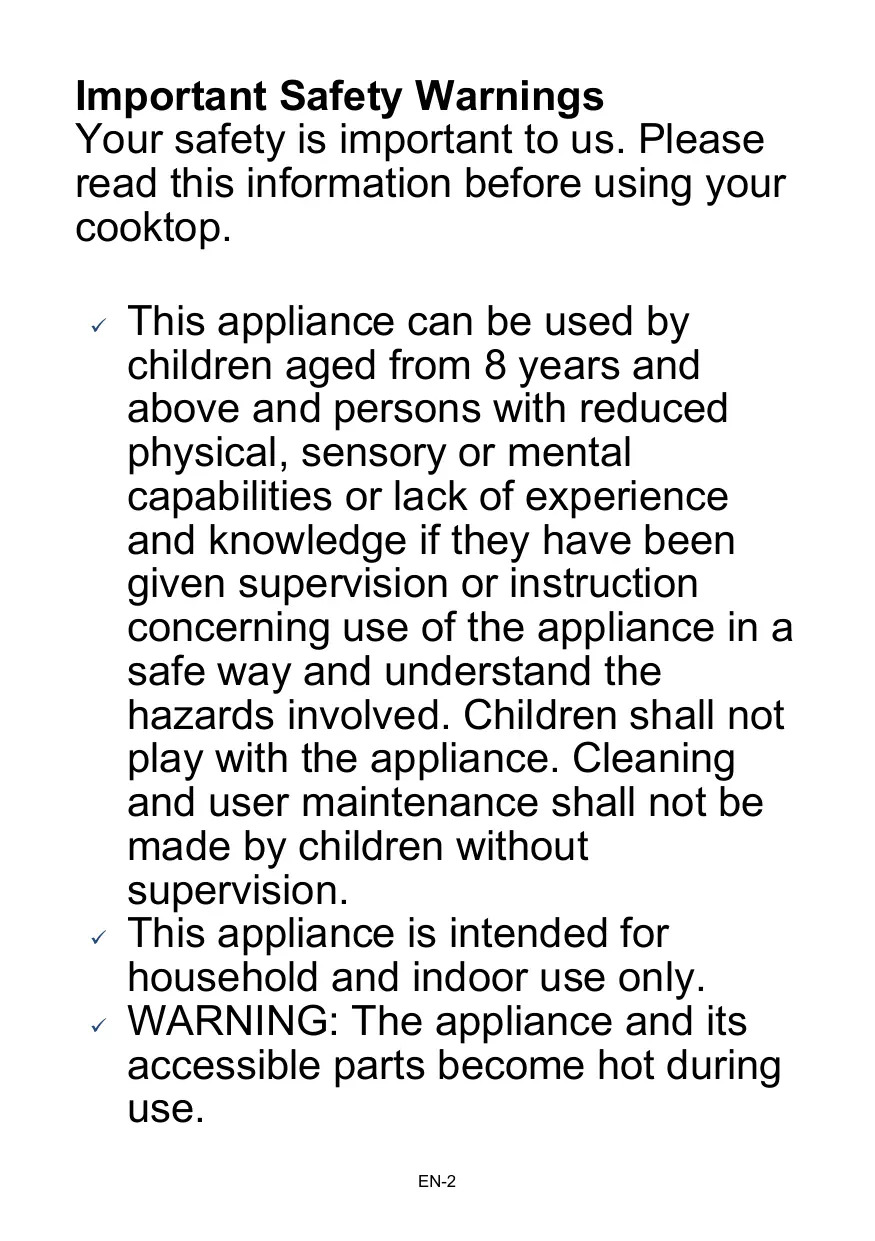

Your safety is important to us. Please read this information before using your cooktop.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
  This appliance is intended for household and indoor use only.
  WARNING: The appliance and its accessible parts become hot during use.

Care should be taken to avoid touching heating elements.
Children less than 8 years of age shall be kept away unless continuously supervised.
Warning: If the surface is cracked, please switch off the appliance to avoid the possibility of electric shock or damages on hob surfaces and internal parts.
Warning: Do not use a steam cleaner for this device.
This device is not intended to be operated by external timer or separated remote-control system.
- Metallic objects such as knives, forks, spoons and lids should not be placed on the hob surface since they can get hot.
CAUTION: The cooking process must be supervised. A short-term cooking process must be supervised continuously.

WARNING: Unattended cooking on a hob with fat or oil can be dangerous and may result in a fire.
- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard.
- Do not use any high-pressure cleaners or steam cleaners, which can result in an electric shock.
- Never try to extinguish a fire with water, switch off the device and then cover flame e.g. with a lid or a fire blanket.
WARNING: Danger of fire: do not store items on the cooking surfaces.
WARNING: Use only hob guards designed by the manufacturer of the cooking appliance or indicated by the manufacturer of the appliance in the instructions for use as suitable or hob guards incorporated in the

appliance. The use of inappropriate guards can cause accidents.

Power cord can't accessible after installation.
- Disconnection may be by incorporating a circuit breaker switch in the fixed wiring in accordance with the wiring rules.
✓ Saucepans may suddenly jump due to liquid between the pan base and the hotplate. Always keep the hotplate and saucepan bases dry.

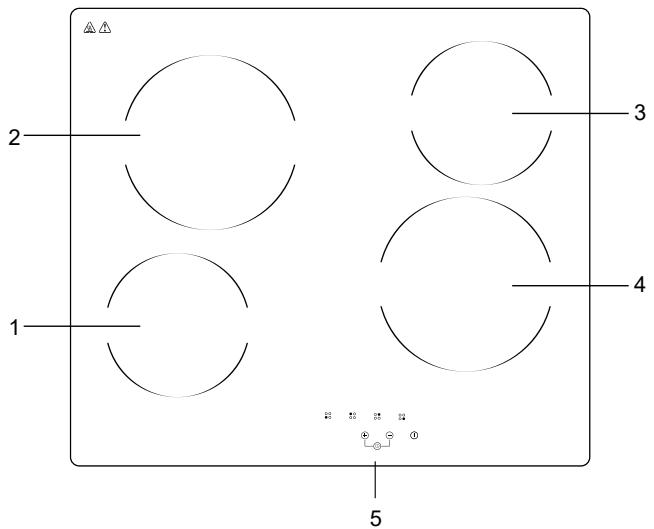

Product Overview

Top View

1. Power max. 1200 W
2. Power max. 1800 W
3. Power max. 1200 W
4. Power max. 1800 W
5. Control Panel

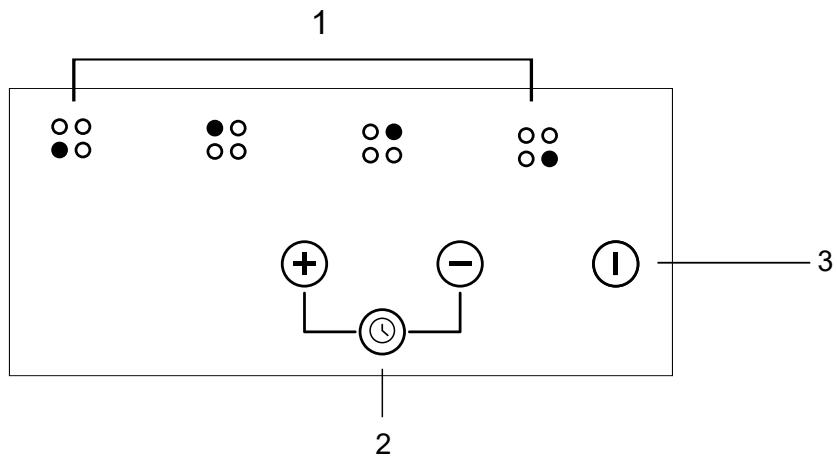

User interface

Reference	Description
1	Cooking Zone selection
2	Power/ Timer selection Key
3	ON/OFF key

Product functions

The ceramic hob caters for all kind of cooking, with its radiant heat cooking zones and its electronic touch controls and multi-functions, making it the ideal choice for the modern family.

The ceramic hob is extremely user-friendly, durable and safe.

Special functions

Protection from over-heating

A sensor monitors the temperature in the cooking zones. When the temperature exceeds a safe level, the cooking zone is automatically switched off.

Residual heat indicator

When the ceramic hob has been operating for some time, there will be some residual heat. The letter "H" appears to give you a warning that the ceramic hob is very hot on the glass-top surface.

Auto Shutdown Protection

Auto shutdown is a safety protection function for your ceramic hob. It will shutdown automatically if you forget to turn off you're the device. The default working times for various power levels are shown in the below table:

Power level	1-2	3-4	5	6-9
Default working timer (min)	360	300	240	90

Protection against unintended operation.

If the electronic control detects a button being held down for approximately 10 seconds, it will switch off automatically. The control sends out an audible error signal to warn the sensors have detected the presence of an object. The display will indicate an error code "ER03". If the hob is still hot, the display will show "H" and ER03 flash alternatively.

Before using your New Ceramic Hob

• Read this guide, taking special note of the 'SafetyWarnings' section.
• Remove any protective film that may still be on your Ceramic hob.

Using the Touch Controls

• Gentle finger touch to activate any functions, do not press the control keys hardly.
• Please use finger to touch the control panel and never use fingertip
• You will hear a "beep" sound each time when a touch is recognized.
• Make sure the controls are always clean, dry, and no other objects such as an utensil or a piece of small cloth is masked on the control keys. A thin film of water drops may affect the operation of control keys.

Choosing the right Cookware

Do not use cookware with jagged edges or a curved base.

Make sure that the base of cooking pan is smooth and flat before placing on ceramic hob, make sure the cooking pan is same size or slightly larger than the cooking zone. If using a larger size of pan it will apply maximum energy efficiency. If you use a smaller pot it may also downgrade the heating efficiency. Always put the pan at center of cooking zone.

Always lift the pan off the ceramic hob, do not slide as it may scratch the glass top.

Using your Ceramic Hob

To start cooking

1. Place a suitable pan on the cooking zone that you wish to use.

2. Make sure the bottom of the pan and the surface Of the cooking zone are clean and dry.

3. Touch the ON/OFF key for 1 second.

After power on, the buzzer beeps once, all displays show “0”, indicating that the ceramic hob has entered the state of standby mode.

1. According to the heating zone where the pan is placed, select a relevant cooking zone by pressing key “+” and “-” The symbol 0. is selected and will be flashing.
2. Choosing the power level by pressing the "+" or -

1. The power level will start at 0. Pressing the "+" will count up the power levels from 0 to 9 in numerical order. Pressing the "-" key will take the power straight from 9 to 0.

2. If you don't choose a heat setting within 20 seconds, the ceramic hob will automatically switch off. You will need to start again at step 2.

3. You can modify the heat setting at any time during cooking.

Using Child Lock Function

• You can lock the controls to prevent unintended use (for example children accidentally turning the cooking zones on).
• When the controls are locked, all the controls except the switch OFF function is disabled.

To lock the controls

Press the " - " and the furthest right zone simultaneously. The indicator will show "Lo ".

To unlock the controls

1. Make sure the hob is turned on.
2. Press the " - " and the furthest right zone selection key simultaneously
3. You can now start using your ceramic hob.

When the hob is in the lock mode, all the controls are disable except the switch OFF function, you can always turn the hob off with the OFF control in an emergency, but you shall unlock the hob first in the next operation.

Using the Timer

• You can set it to turn one cooking zone off after the set time is up.
• You can set the timer for up to 99 minutes.

1. Select the relevant cooking zone by touching the zone selection key you want.
2. Press the "+" key and the "-" key simultaneously, on the right side of two indicators will show "00".

1. Using the "+" or "-" buttons, you can realize the setting of timing from 1 to 99 minutes.
2. When the time is set, it will begin to countdown immediately. The indicator will return to show power level after 5 seconds. The red dot next to power level indicator will illuminate indicating that zone has set timer.

1. If you need to check the remaining time, you can operate step 1 and step 2 again.
2. When cooking timer is due, the corresponding cooking zone will be switch off automatically. Other cooking zone will keep operating if they are turned on previously.

Care and maintenance

Warning

Always switch off the electricity supply before performing maintenance work. In the event of a fault, contact customer services.

Damaged power cables should be replaced by a competent person or qualified electrician.

For domestic use only.

Never place an empty pan on the hob as this will cause an error message to appear on the control panel.

When a cooking zone has been on for a long time, the surface remains hot for some time afterwards so do not touch the ceramic surface.

For sealed foods, please do not heat them before opening or removing the lid to avoid any dangers of explosion due to heating expansion.

If the surface of the hob is cracked, disconnect from power supply to avoid any possibility of electric shocks.

Do not place rough or uneven pans on the hob, as they could damage the ceramic surface.

Avoid banging pots and pans down on the hob. The ceramic surface is tough but it is not unbreakable.

Do not put detergents or flammable materials under the hob.

Appliance cleanliness

Caution

• Avoid rubbing with any abrasive or with the base of the pans, etc., as this will wear the markings on the top of the ceramic hob over time.

• Clean the ceramic hob on a regular basis to prevent the build up of food residue.

• Clean the hob after each use. This will prevent spills from burning onto the ceramic.

• Only clean the hob when it has cooled down sufficiently.
• Use only cleaning agents which are suitable for glass ceramic.
• The surface of the ceramic hob may be easily cleaned in the following way:

Type of dirt	Cleaning method	Cleaning materials
Lime scale	Apply white vinegar to the surface, then wipe it dry with soft cloth	Special ceramic cleaner
Burnt-on stains	Clean with damp cloth and dry it with a soft cloth	Special ceramic cleaner
Light stains	Clean with damp cloth and dry it with a soft cloth	Cleaning sponge
Melted plastics	Use a scraper suitable for ceramic glass to remove residue	Special ceramic cleaner

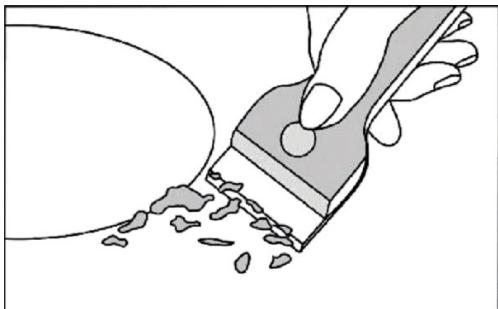

By means of a scraper immediately remove any aluminum foil bits, food spills, grease splashes, sugar marks and other high sugar content food from the surface in order to avoid damaging the hob. Subsequently clean the surface with some towel and appropriate product, rinse with water and dry by means of a clean cloth. Under no circumstance should sponges or abrasive cloths be used, also avoid using aggressive chemical detergents such as oven sprays and spot removers.

Trouble shooting

Before calling the customer services, please check that the appliance is correctly connected, any of the following cases are not covered by the guarantee

Damage caused by improper use, storage or maintenance.
Damage caused by unauthorized disassembly and repair.
Damage caused by misuse.
Using the ceramic hob for commercial purposes.

If an abnormality comes up, the ceramic hob will enter the protective state automatically and display corresponding protective codes:

Error Message	Possible Cause	What to do
ER03	Water or pot on the glass over the control	Clean the user interface
E	The thermocouple was loose or broken	Please contact the supplier to reconnect the
ER21	The temperature inside this device was too high	thermocouple. The device must be stopped and cooling.

The above are the judgment and inspection of common failures.

Please do not disassemble the unit by yourself to avoid any dangers and damages to the ceramic hob and please contact the supplier.

Technical Specification

Cooking Hob	KDV4Z6000
Cooking Zones	4 Zones
Supply Voltage	220-240V~
Installed Electric Power	6000W (230V)
Product Size: L×W×H(mm)	590X520X52
Building-in Dimensions A×B (mm)	560X490

Weight and Dimensions are approximate. Because we continually strive to improve our products we may change specifications and designs without prior notice.

Installation

Selection of installation equipment

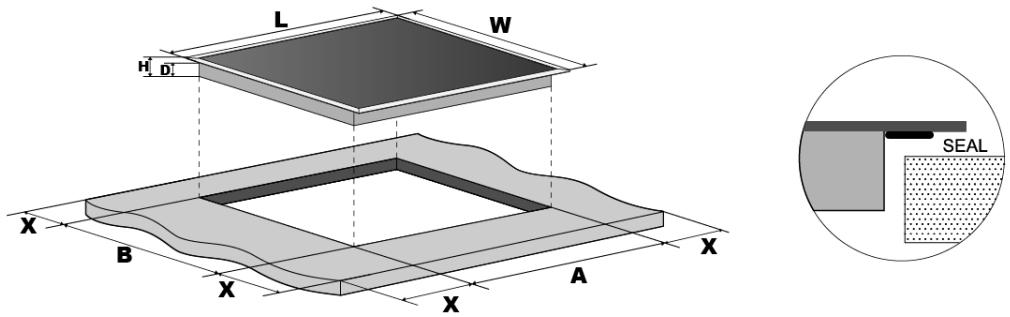

Cut out the work surface according to the sizes shown in the drawing.

For the purpose of installation and use, a minimum of 5 cm space shall be preserved around the hole.

Be sure the thickness of the work surface is at least 30~mm . Please select heat-resistant work surface material to avoid larger deformation caused by the heat radiation from the hotplate. As shown below:

L(mm)	W(mm)	H(mm)	D(mm)	A(mm)	B(mm)	X(mm)
590	520	52	48	560	490	50 mini

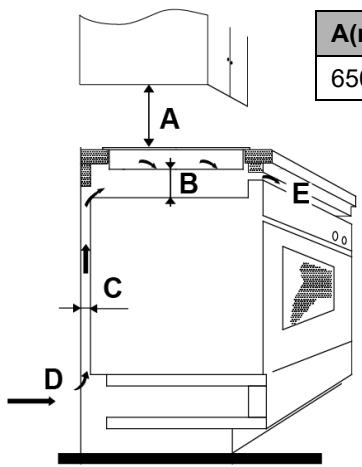

Under any circumstances, make sure the ceramic cooker hob is well ventilated and the air inlet and outlet are not blocked. Ensure the ceramic cooker hob is in good work state. As shown below

Note: The safety distance between the hotplate and the cupboard above the hotplate should be at least 650 mm.

• The work surface is square and level, and no structural members interfere with space requirements.
• The work surface is made of a heat-resistant material.
• If the hob is installed above an oven, the oven has a built-in cooling fan.
• The installation will comply with all clearance requirements and applicable standards and regulations.
• A suitable isolating switch providing full disconnection from the mains power supply is incorporated in the permanent wiring, mounted and positioned to comply with the local wiring rules and regulations.

The isolating switch must be of an approved type and provide a 3 mm air gap contact separation in all poles (or in all active [phase] conductors if the local wiring rules allow for this variation of the requirements).

• The isolating switch will be easily accessible to the customer with the hob installed.
• You consult local building authorities and by-laws if in doubt regarding installation.
• You use heat-resistant and easy-to-clean finishes (such as ceramic tiles) for the wall surfaces surrounding the hob.

After the hob is installed

• The power supply cable is not accessible through cupboard doors or drawers.
• There is adequate flow of fresh air from outside the cabinetry to the base of the hob.
• If the hob is installed above a drawer or cupboard space, a thermal protection barrier is installed below the base of the hob.
• The isolating switch is easily accessible by the customer.

Installation

fig.1

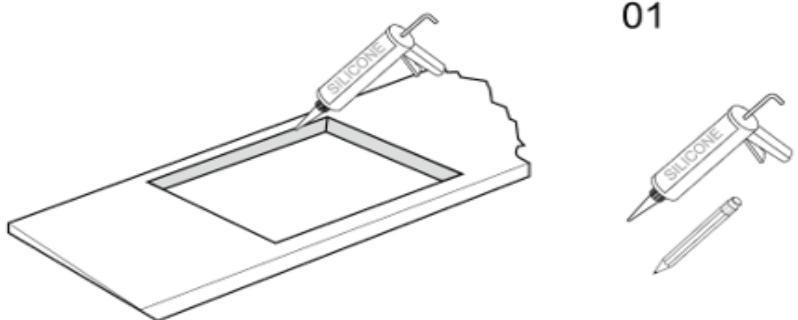

Cut out worktop to supplied dimensions shown (fig. 1) with suitable equipment. Seal the cut edge of the worktop using Silicone or PTFE and allow to dry prior to fitting the hob.

fig. 2

02

[04] × 1

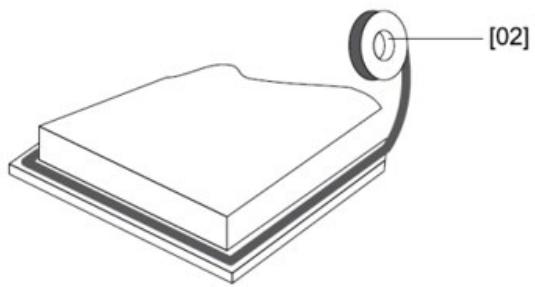

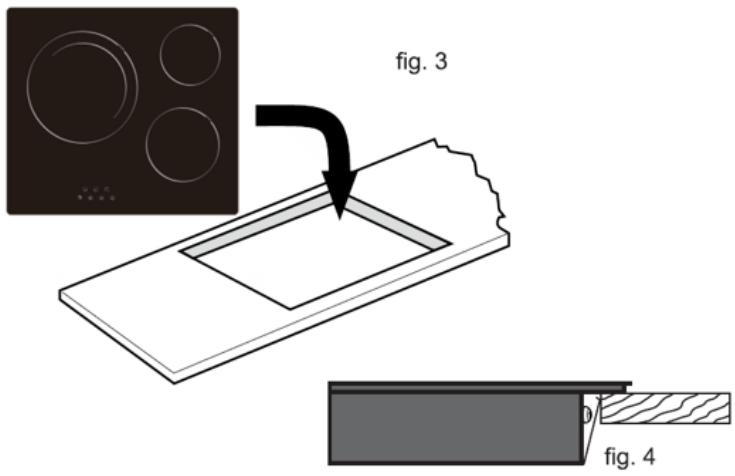

Stretch out the supplied seal along the underside edge of the hob, ensuring the ends overlap.

03

Do not use adhesive to fix the hob into the worktop. Once the seal is fitted position the hob into the cutout in the worktop. Apply gentle downwards pressure onto the hob to push it into the worktop ensuring a good seal around the outer edge (fig. 4)

Cautions

1. The ceramic hotplate must be installed by qualified personnel or technicians. We have professionals at your service. Please never conduct the operation by yourself.
2. The hob will not be installed directly above a dishwasher, fridge, freezer, washing machine or clothes dryer, as the humidity may damage the hob electronics.
3. The ceramic hotplate shall be installed such that better heat radiation can be ensured to enhance its reliability.
4. The wall and induced heating zone above the table surface shall withstand heat.

Connecting the hob to the mains power supply

All installation work must be carried out by a competent person or qualified electrician. Before connecting the mains supply ensure that the mains voltage corresponds to the voltage on the rating plate inside the cooker hood.

Warning: THIS APPLIANCE MUST BE ARTHED.

This hob must be connected to the mains power supply only by a suitably qualified person.

Before connecting the hob to the mains power supply, check that:

1. The domestic wiring system is suitable for the power drawn by the hob.
2. The voltage corresponds to the value given in the rating plate
3. The power supply cable sections can withstand the load specified on the rating plate.

To connect the hob to the mains power supply, do not use adapters, reducers or branching devices, as they can cause overheating and fire.

The power supply cable must not touch any hot parts and must be positioned so that its temperature will not exceed 90^ at any point.

Check with an electrician whether the domestic wiring system is suitable without alterations. Any alterations must only be made by a qualified electrician.

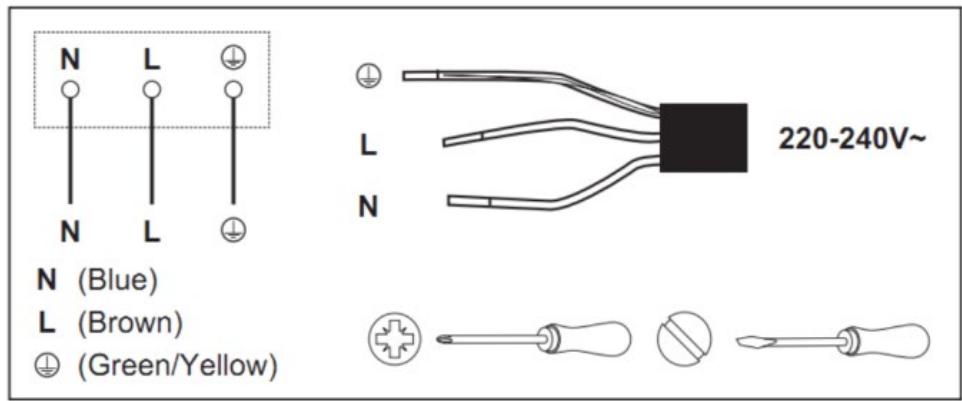

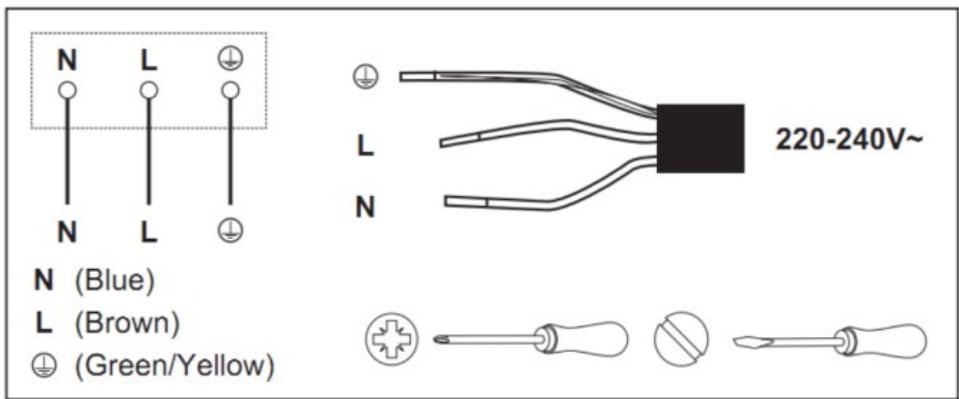

This appliance is supplied with 3 core mains cable colored as follows:

Brown = L or Live

Blue = N or Neutral

Green and Yellow = E or Earth

This appliance requires a 32 Amp Miniature Circuit Breaker.

• If the cable is damaged or to be replaced, the operation must be carried out by after-sale agent with dedicated tools to avoid any accidents.
• If the appliance is being connected directly to the mains an omni polar circuit-breaker must be installed with a minimum opening of 3mm between contacts.
• The installer must ensure that the correct electrical connection has been made and that it is compliant with safety regulations.
• The cable must not be bent or compressed.
• The cable must be checked regularly and replaced by authorized technicians only.

DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection of such waste separately for special treatment is necessary.

This appliance is labeled in compliance with European directive 2011/65/EU for Waste Electrical and Electronic Equipment (WEEE). By ensuring that this appliance is disposed of correctly, you will help prevent any possible damage to the environment and to human health, which might otherwise be caused if it were disposed of in the wrong way.

The symbol on the product indicates that it may not be treated as normal household waste. It should be taken to a collection point for the recycling of electrical and electronic goods.

This appliance requires specialist waste disposal. For further information regarding the treatment, recover and recycling of this product please contact your local council, your household waste disposal service, or the shop where you purchased it.

For more detailed information about treatment, recovery and recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Information concerning domestic electric cooking hobs

	Symbol	Value	Unit
Identification of model		KDV4Z6000
Type of hob		Ceramic
Number of zones and/or cooking zones		4
Heating technology (zones and induction cooking zones, conventional cooking zones, electric hobs)		Ceramic cooking zones
For circular cooking zones: diameter of the useful surface by electric cooking zone rounded to the nearest 5 mm	∅		cm
For non-circular cooking zones: diameter of the useful surface by electric cooking zone rounded to the nearest 5 mm	L W	--	cm
		--
Energy consumption by cooking zone calculated in kg	EC electric cooking		Wh/kg
Energy consumption of cooking hob calculated in kg	EC electric hob	190.3 %	Wh/kg

GUARANTEE

The warranty does not cover wearing parts of the product, nor problems or damages resulting from:

(1) surface deterioration due to normal wear and tear of the product;
(2) defects or deterioration due to contact of the product with liquids and due to corrosion caused by rust or the presence of insects;
(3) any incident, abuse, improper use, modification, unauthorized disassembly or repair;
(4) any improper maintenance operation, use not in accordance with the instructions concerning the product or the connection To incorrect voltage;
(5) any use of accessories not supplied or approved by the manufacturer.

The warranty will be void if the nameplate euor the serial number of the product is removed.

DISPOSAL

The European Directive 2012/19 / EU on Waste Electrical and Electronic Equipment (WEEE), requires that used household appliances not be thrown into the normal stream of municipal waste. Used devices must be collected separately in order to optimize the recovery rate and recycling of the materials they are made of and reduce the impact on human health and the environment.

The crossed-out wheeled bin symbol is affixed to all products to remind you of the obligations of separate collection. Consumers should contact the local authorities or their dealer regarding the procedure to follow for the removal of their device.

Information on the meaning of the conformity mark C E

Marking CC indicates that the product meets the main requirements of European Directives 2014/35/EU (Low Voltage), 2014/30/UE (Electromagnetic Compatibility), 2011/65/EU (Reduction of the use of certain hazardous substances in EEE).

Blauw = N of neutral

Groen en geel = E of aarding

Marrón = L (Live) o conductor

Azul = N o Neutro

Verde y amarillo = E (Earth) o tierra
