Casque sans fil Harry Potter - Electronics LEXIBOOK - Free user manual and instructions

USER MANUAL Casque sans fil Harry Potter LEXIBOOK

EMPLACEMENT DES TOUCHES

FONCTION SANS FIL (BLUETOOTH®)

© 2020 Bluetooth SIG, Inc.

UTILISATION

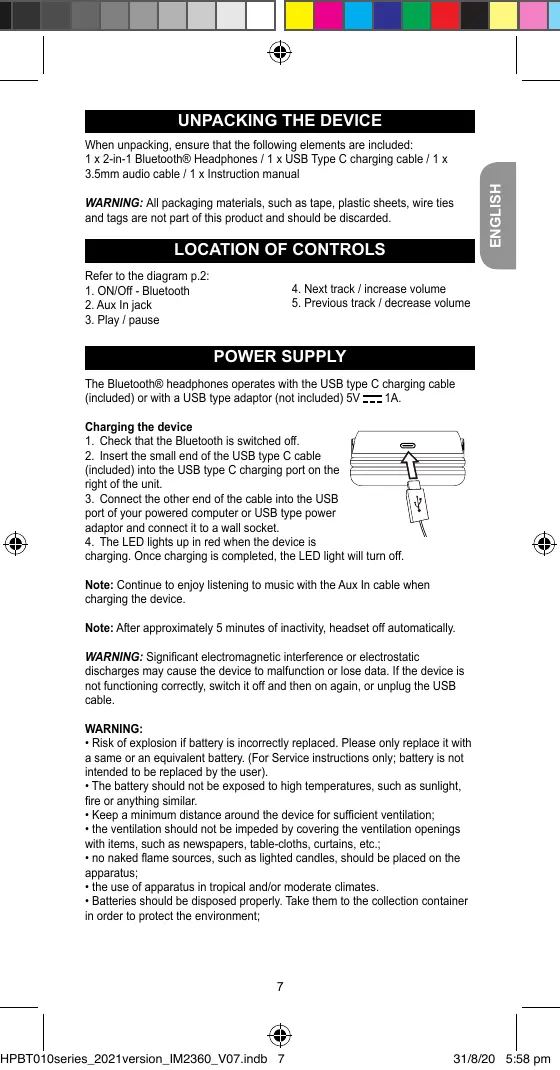

UNPACKING THE DEVICE

When unpacking, ensure that the following elements are included:

1 x 2-in-1 Bluetooth® Headphones / 1 x USB Type C charging cable / 1 x

3.5mm audio cable / 1 x Instruction manual

WARNING: All packaging materials, such as tape, plastic sheets, wire ties and tags are not part of this product and should be discarded.

LOCATION OF CONTROLS

Refer to the diagram p.2:

1. ON/Off - Bluetooth

2. Next track / increase volume

3. Aux In jack

4. Previous track / decrease volume

5. Play / pause

POWER SUPPLY

The Bluetooth® headphones operates with the USB type C charging cable (included) or with a USB type adaptor (not included) 5V —— 1A.

Charging the device

1. Check that the Bluetooth is switched off.
2. Insert the small end of the USB type C cable (included) into the USB type C charging port on the right of the unit.
3. Connect the other end of the cable into the USB port of your powered computer or USB type power adaptor and connect it to a wall socket.
4. The LED lights up in red when the device is charging. Once charging is completed, the LED light will turn off.

Note: Continue to enjoy listening to music with the Aux In cable when charging the device.

Note: After approximately 5 minutes of inactivity, headset off automatically.

WARNING: Significant electromagnetic interference or electrostatic discharges may cause the device to malfunction or lose data. If the device is not functioning correctly, switch it off and then on again, or unplug the USB cable.

WARNING:

• Risk of explosion if battery is incorrectly replaced. Please only replace it with a same or an equivalent battery. (For Service instructions only; battery is not intended to be replaced by the user).
• The battery should not be exposed to high temperatures, such as sunlight, fire or anything similar.
• Keep a minimum distance around the device for sufficient ventilation;
• the ventilation should not be impeded by covering the ventilation openings with items, such as newspapers, table-cloths, curtains, etc.;
• no naked flame sources, such as lighted candles, should be placed on the apparatus;
• the use of apparatus in tropical and/or moderate climates.
• Batteries should be disposed properly. Take them to the collection container in order to protect the environment;

WIRELESS FUNCTION (BLUETOOTH®)

1. Long press the Bluetooth button (1) on the headphones. The LED indicator will flash.
2. Activate the Bluetooth® function on your personal device (smartphone, MP3 player, etc.) and make sure it is in discoverable mode.
3. Confirm pairing or select the Bluetooth® name "HPBT010" to connect your player to the headphones.
4. If pairing is successful, the Bluetooth® light will stop flashing. You can play an audio or a video file.
5. To stop the connection with the headphones, disconnect the Bluetooth on your audio player.

Notes:

• When turned on, the headphones automatically search for a device that has previously synchronized with.
• If your Bluetooth® device requires a password, the default password is 0000.

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such trademark may not be reproduced or used without the owner's prior license. Other trademarks and trade names are those of their respective owners. © 2020 Bluetooth SIG, Inc.

SETTINGS

The headphones include 2 modes: wireless with Bluetooth connexion and wired via the AUX-IN cable (included).

• In wired mode, connect the AUX-IN cable to the AUX-IN jack (2). Previous/ decrease volume (5), Play/Pause (3) and next/increase volume (4) buttons are disabled. Please use the control buttons on your music player.

• In Bluetooth®:

• Press Play/Pause (3) to start or pause the audio track.

• Short press Previous and Next buttons (4, 5) to change of audio track.
• Long press Previous and Next buttons (4, 5) to control the volume

• The headphones are equipped with a microphone that you can use for your calls. Press the call button (3) once to answer calls. To end a call, press the call button (3) again.

• To change mode, disconnect the AUX-IN cable on the headphones or the Bluetooth in your music player.

SPECIFICATIONS

• Bluetooth® 5.0 Technology
• Bluetooth® frequency range: 2402 - 2480 MHz
  Power transmitted: 5.4dBm
  Built-in rechargeable battery, 250mAh/3.7V, Li-ion Polymer
• With 3.5mm audio in jack
• Charging current: DC5V, 1000mA
• Charging time: around 2 hours
• Playing time: up to 4-6 hours
• Effective distance: 10m (straight line without obstacle)

SIMPLIFIED EU DECLARATION OF CONFORMITY

Lexibook® S.A.

6 avenue des Andes

Bâtiment 11

91940 Les Ulis - France

Kind of product: Bluetooth® Stereo Headphones

Type designation: HPBT010series

Hereby, Lexibook Limited declares that the radio equipment type

HPBT010series is in compliance with Directive 2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address: http://www.lexbook.com/doc/hpbt010/hpbt010_2.pdf

x_k s , m - k = 1

Yiu Wai Man
Product Development Manager
Hong Kong

MAINTENANCE AND WARRANTY

Ensure that you switch off the device and unplug the power cable before cleaning. Wipe the device with a soft, dry cloth. If the surfaces are particularly dirty, clean them with a cloth that has been soaked in soapy water and then wrung out thoroughly. Wipe again with a dry cloth. Never use alcohol, petrol, solvents, cleaning products or other chemical products. And do not use compressed air to remove dust. At least charge the Bluetooth® Stereo Headphones once every 3 months in order to maintain the battery life.

This product is covered by our 2 years warranty program, except for the integrated battery which is covered by a 6-month warranty.

For any claim under the warranty or after sale service, please contact your distributor and present a valid proof of purchase. Our warranty covers any manufacturing material and workmanship defect, with the exception of any deterioration arising from the non-observation of the instruction manual or from any careless action implemented on this item (such as dismantling, exposition to heat and humidity, etc.). It is recommended to keep the packaging for any further reference.

In a bid to keep improving our services, we could implement modification on the colours and the details of the product shown on the packaging.

NOTE: Please keep this instruction manual, it contains important information.

Reference: HPBT010series

Designed and developed in Europe - Made in China

念 Lexibook®

United Kingdom & Ireland For after-sales service, please contact us at

[e-mail]

www.lexibook.com

This product is not a toy.

Environmental Protection:

Unwanted electrical appliances can be recycled and should not be discarded along with regular household waste! Please actively support the conservation of resources and help protect the environment by returning this appliance to a collection centre (if available).

Correct disposal of batteries in this product

(Applicable in countries with separate collection systems) This symbol means that the product contains a built-in rechargeable battery covered by European Directive 2013/56/EU which cannot be disposed of with normal household waste. All batteries should be disposed separately from the municipal waste stream via designated collection facilities appointed by the government or the local authorities. The correct disposal of your old batteries will help to prevent

potential negative consequences for the environment, animal and human health.

We strongly advise you to take your product to an official collection point or service center to have a professional remove the rechargeable battery. Inform yourself about the local separate collection system for electrical and electronic products and rechargeable batteries. Follow local rules and never dispose of the product and rechargeable batteries with normal household waste. For more detailed information about disposal of your old batteries, please contact your city office or waste disposal service centre.

DESEMBALAJE DEL PRODUCTO

FUNÇA OSEM FIOS (BLUETOOTH®)

© 2020 Bluetooth SIG, Inc.

DEFINICOES

Volume

FUNZIONE WIRELESS (BLUETOOTH®)

WIRESLESS-FUNKTION (BLUETOOTH®)

© 2020 Bluetooth SIG, Inc.

EINSTELLUNGEN

Lautstärke

DRAADLOZE FUNCIE (BLUETOOTH®)

Unpacking the device

© 2020 Bluetooth SIG, Inc.

SPECIFICATIONER

Input power

USB DC 5V---1A

Batteri

lithium battery 3.7V, 1200mAh

© 2020 Bluetooth SIG, Inc.

Product Development Manager

Hong Kong

HUOLTO JA TAKUUT

This product is not a toy.

© 2020 Bluetooth SIG, Inc.

lithium battery 3.7V, 1200mAh ---

© 2020 Bluetooth SIG, Inc.

Product Development Manager

Hong Kong

HUOLTO JA TAKUUT

Forskire deg om at dl slar av ehenten og kobler fra strmukabelen forr renjargirng. Torken enthen med en myk, tarr klut. Hvis overfliante er speiselt skitne, renjgir du dem med en klut som er dynket i sapevann og deretter vrenges grundig ut. Tork i jgen med en tarr klut. Bruk aldi alkaloh, bensen, lemisdern, renjorginsprodukder et alle andre jemiske生产商. Og违法犯罪tryklkufd a farnst. Lad minst Bluetooth stereohodetelefner en gang herv trejd maned for a aprophythole batteriens levidet.

Dette produit dekkes av vart 2-ars garantiprogram, bortsett fra det integrente batteriet som er dekket en 6-maneders garanti. Kontakt forhanderen din og frevmis et gyldig kjopsbevis for ethvert krav under garantien er enter salgtjenesten. Garantien var dekker ethvert produitsjonsmateriale og utfurlesdesfekt, med unntak var forringelse som falgve ar manglende overholdelse av bruskanvisingen etller fra uforsiktig handling som er utfort pa dette elementet (for eksempel demontering, eksponering for varme og faktighet, etc.). Den abgefales a opbebene emballasjen forytiligere referanse. I et forsok pa a fortsette a forbedre tjenestene vare, kan vi implementere endringer pa fargene og detailjene i produitet som vises pa emballasjen.

This product is not a toy.

Miljøvern:
