USER MANUAL ZBS-20 CAMTECH

Exterior view of a Camtech ice cream maker with control panel and product photo inset (no text or symbols on main body)

180W

1.8L

Glaçons cubiques

Line drawing of a rectangular device with a handle, internal components, and mounting holes (no text or symbols)

Schéma étape 1

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

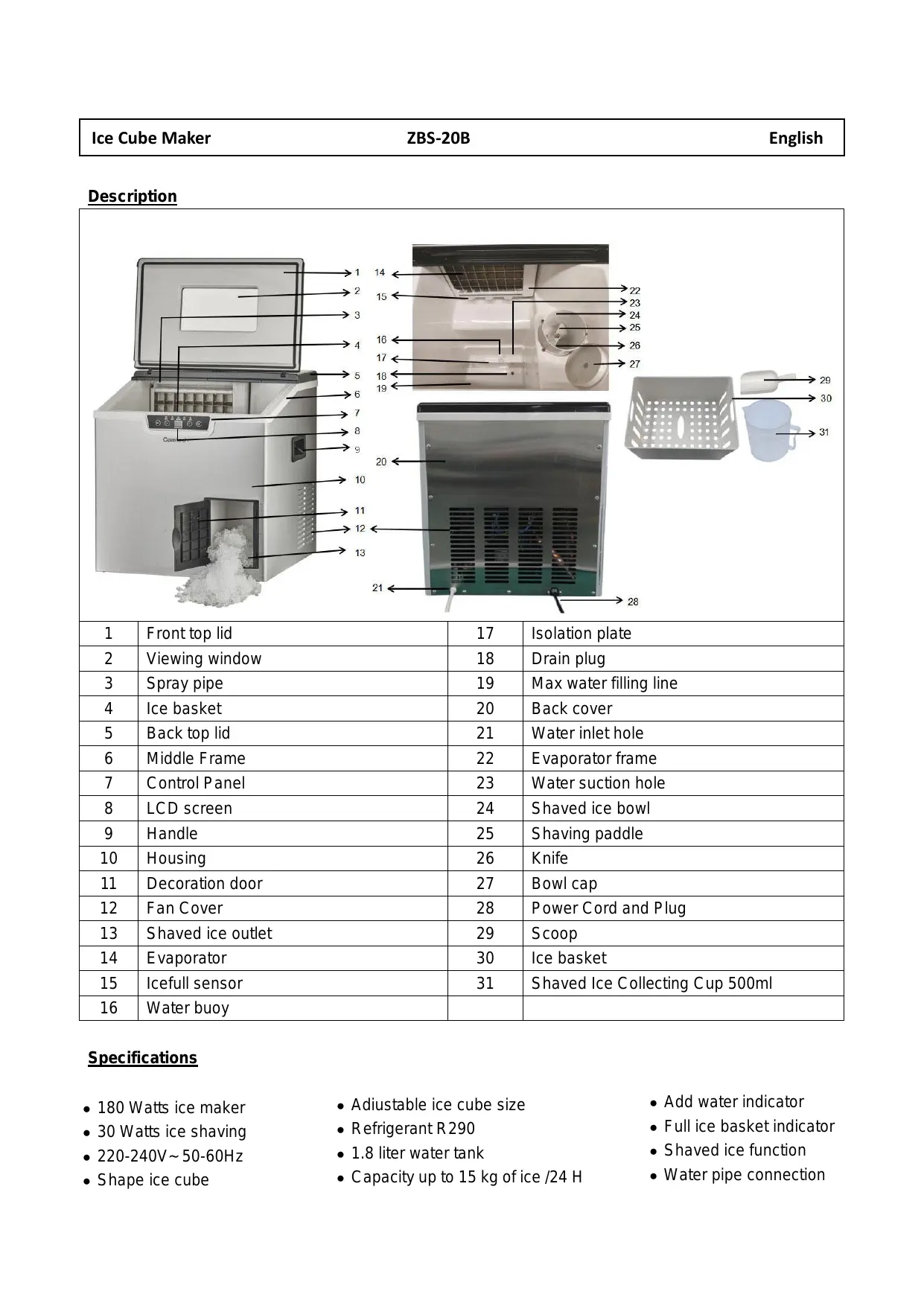

1	Front top lid	17	Isolation plate
2	Viewing window	18	Drain plug
3	Spray pipe	19	Max water filling line
4	Ice basket	20	Back cover
5	Back top lid	21	Water inlet hole
6	Middle Frame	22	Evaporator frame
7	Control Panel	23	Water suction hole
8	LCD screen	24	Shaved ice bowl
9	Handle	25	Shaving paddle
10	Housing	26	Knife
11	Decoration door	27	Bowl cap
12	Fan Cover	28	Power Cord and Plug
13	Shaved ice outlet	29	Scoop
14	Evaporator	30	Ice basket
15	Icefull sensor	31	Shaved Ice Collecting Cup 500ml
16	Water buoy

Specifications

• 180 Watts ice maker
• 30 Watts ice shaving
- 220-240V\~50-60Hz
- Shape ice cube

• Adjustable ice cube size

• Refrigerant R290
  • 1.8 liter water tank
  • Capacity up to 15 kg of ice /24 H

• Add water indicator
  • Full ice basket indicator

• Shaved ice function
  • Water pipe connection

Before/First Use of Your Ice Maker

1. During transportation, the incline angle of the cabinet should not be over 45^ . Do not turn the Ice maker upside down. As this may damage the compressor and sealed system.
2. Remove all packing material and carefully check your ice maker to ensure it is in good condition and that there is no damage to the ice maker or power cord and plug.
3. The Ice maker should be placed horizontally on a level surface. To ensure proper ventilation for your ice maker allow 150mm of space at the top, the back and on each side. Do not install the ice maker near an oven, radiator, or any other heat source.
4. Before using the Ice maker for the first time, please wait 2 hours after positioning it, and keep the front lid open for at least 2 hours
5. Ensure that the voltage indicated on the ice maker corresponds with the voltage in your home.
6. Pure water is not allowed to be used on this unit, spring water is recommended.
7. Please always keep the viewing window close during ice making.

Control Panel Operation

SHAVED ICE ADD WATER ICE FULL CLEANING
SHAVED ICE + ON/OFF
Button/Indicator	Explanation
SHAVED ICE	Press this button to shaved ice. Before the press of this button,please put enough ice into the bowl and covers the bowl cover well.
+	Press this button to increase the ice making time,it will be valid from next cycle.
-	Press this button to decrease the ice making time,it will be valid from next cycle.
ON/OFF	Press it to start or stop the ice making.
SHAVED ICE	It lights up if the machine is under ice shaving process.
ADD WATER	It lights up when the water in water tank is not enough
ICE	It lights up when ice is on makingIt lights up when the ice basket is full
	It lights up when the unit is on auto cleaning process.

Operating Instructions

Step 1.

Shaved ice may melt, so it is strongly recommended to connect the drain pipe at bottom of the unit to pool

Line drawing of a rectangular device with a vertical panel and a handle, showing internal components (no text or symbols)

A B Water filling pipe

Sketch for step 1
Sketch for step 2

Step 2.

Open the lid, take out of the ice basket and fill the water reservoir with water.

Note: Make sure the water is not over the bottom of the ice basket.

If you prefer to fill the water automatically, then insert the water pipe into the socket at back of the unit as sketch above.

Step 3.

Connect to the power.

Step 4.

Press

button to turn unit on. The ice maker begins to work.

Note: For the first three cycles, the ice may be small and irregular in size, or even no ice.

Step 5.

If indicator ADD WATER lights up, please take out the basket, then add water as per step 1, then press

twice to restart the ice maker

Step 6.

If indicator

lights up, please take out the ice with the scoop.

Note: When the ice basket is full, it is better to remove the ice immediately

Step 7.

Press

button to shave ice.

Note: Before the press of this button, please put enough ice into the shaved ice bowl and cover the bowl cap well.

Step 8.

Press + to increase the ice making time, and press - to decrease the time. Different ice making time, thickness of ice will be different

Step 9.

Press

button to stop the machine.

Step 10.

Pull the unit a little forward and put a tank below the unit, then pull the drain plug at middle of the tank to drain water.

Step 11.

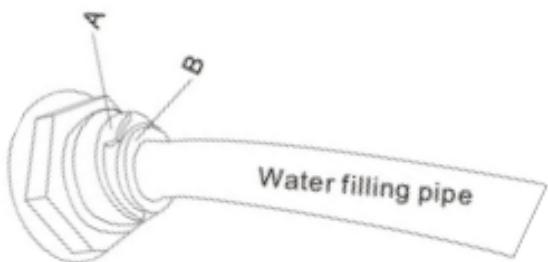

If you want to take off the pipe, sketch as below, firstly take off the blue ring named as A(if any), then press the white ring(lock) at the outer side named as B, At last take out the pipe

Water filling pipe

Caring

1. Clean the water tank, ice basket and evaporator frequently. When cleaning, unplug the unit and remove the ice cubes. Use a diluted solution of water and vinegar to clean the inside and the outside surface of the Ice maker. Do not spray Ice maker with chemicals or diluted agents such as acids, gasoline or oil. Rinse thoroughly before starting.
2. Keep ventilation openings in the appliance enclosure, or in the built-in structure, clear of obstruction. Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
3. To ensure the cleanliness of the ice cubes, water in the water reservoir is suggested to be replaced every 24 hours.
4. If the compressor stops for any reason such as water shortage, too much ice, power off, etc... Do not start the system right away, wait 3 minutes, and then re-start the Ice maker.
5. Always use fresh water before starting ice production either at initial installation or after a long shut-off period.
6. This unit is for home use only, not for outdoor use, if it is necessary for use outside, please make sure the view window is closed.

Safety Notice

In order to avoid any accidents, please refer to following operation:

1. Disconnect power before servicing.
2. Do not pull directly on wire when plugging or unplugging the unit.

3. If ice is abnormal, please call the seller.

4. It is normal for the compressor and condenser surface to reach temperatures between 70^ C and 90^ C

during operation and surrounding areas may be hot. Please don't touch it.

1. Due to fast freezing, ice cubes may appear "Cloudy". This is trapped air in the water and it will not affect quality or taste of ice.
2. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
3. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
4. Children shall not play with the appliance.

Cleaning and user maintenance shall not be made by children without supervision

1. WARNING: fill with bottled or good quality tap water only. (Do not fill with fruit juices or other drink types).

2. WARNING – Keep the air vents on the sides of the machine unblocked at all times.

3. WARNING – Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
4. WARNING – Do not damage the refrigerant circuit.
5. WARNING – Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

Troubleshooting

The compressor works abnormally with a Buzzing noise	Reasons	The voltage is lower than recommended
	Solutions	Stop the Ice maker and do not restart until the voltage is normal.
Conditions for Ice making Cycle are right but no ice is made.	Reasons	3.Refrigerant leaks.4.Compressor is broken
	Solutions	call for service
It makes ice for first cycle,after that no ice is made. Restart it hours later,the same	Reasons	Fan motor is not working
	Solutions	Replace fan motor
Evaporater is freezing,but no water flows over the evaporater	Reasons	3.Water pump or diffusing pipe is blocked4.Water pump is broken
	Solutions	3.After take off the backcover,find the pump,take off the 3 screws,clean the surface of the hole and shaft,and then assemble it.4.Replace the pump
Machine keeps running,but the water is warmer than the normal water.	Reasons	The magnetic valve is broken.
	Solutions	Replace the magnetic valve.

The symbol above and on the product means that the product is classed as Electrical or Electronic equipment and should not be disposed with other household or commercial waste at the end of its useful life.

The Waste of Electrical and Electronic Equipment(WEEE)Directive (2002/96/EC)has been put in place to recycle products using best available recovery and recycling techniques to minimise the impact on the environment, treat any hazardous substances and avoid the increasing landfill. Contact local authorities for information on the correct disposal of Electrical or Electronic equipment.

Beschrijving

Line drawing of a rectangular device with a handle, internal components, and mounting holes (no text or symbols)

Diagram stap 1

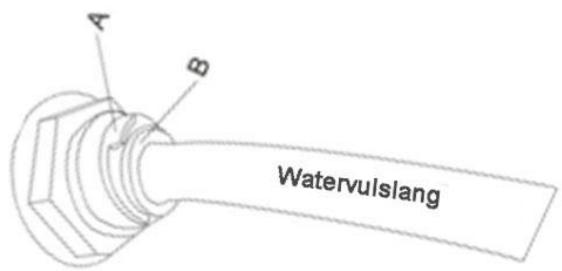

A B Watervulslang
