FG-113R - Rice cooker FAGOR - Free user manual and instructions

USER MANUAL FG-113R FAGOR

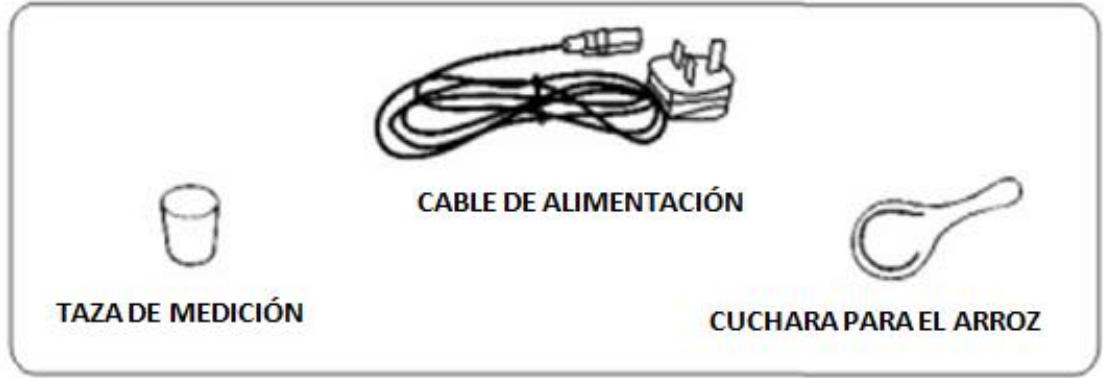

E Power cord ed Measuring Cup Rice Scoop

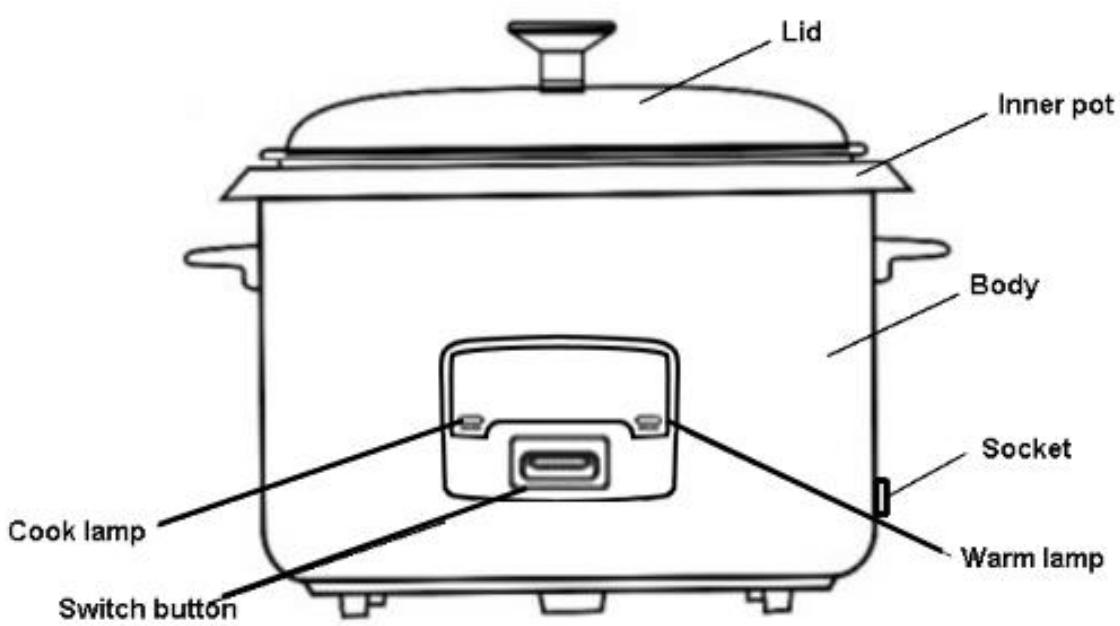

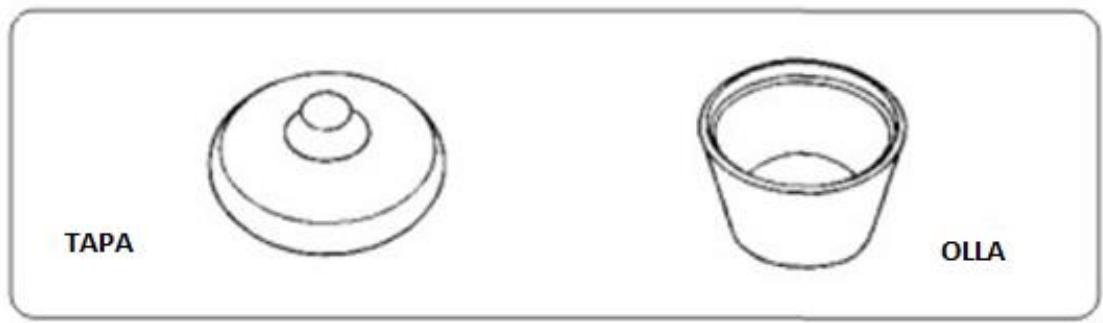

Lid Inner pot ee Body Socket Cook lamp Switch button = ==, J

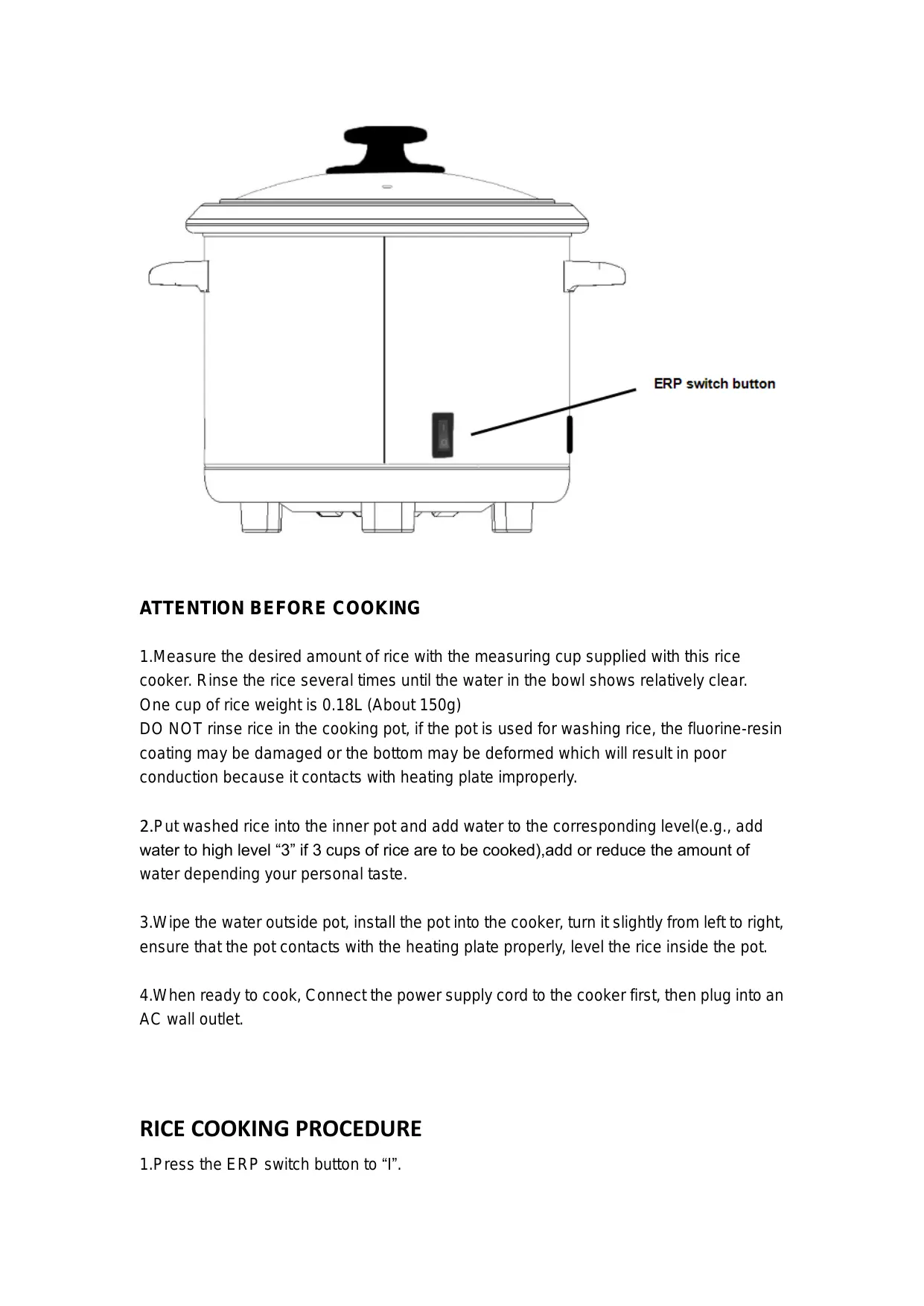

1.Measure the desired amount of rice with the measuring cup supplied with this rice cooker. Rinse the rice several times until the water in the bowl shows relatively clear. One cup of rice weight is 0.18L (About 150g) DO NOT rinse rice in the cooking pot, if the pot is used for washing rice, the fluorine-resin coating may be damaged or the bottom may be deformed which will result in poor conduction because it contacts with heating plate improperly. 2.P ut washed rice into the inner pot and add water to the corresponding level(e.g., add water to high level “3” if 3 cups of rice are to be cooked),add or reduce the amount of water depending your personal taste. 3.Wipe the water outside pot, install the pot into the cooker, turn it slightly from left to right, ensure that the pot contacts with the heating plate properly, level the rice inside the pot. 4.When ready to cook, Connectthe power supply cord to the cooker first, then plug into an AC wall outlet.

2.When the cook is on ,then press down the “switch button” . The rice is starting to cook. 3.When the cooking is finished, the “cooking” switch will pop up and a click will be heard. Atthe same time, the cooking will go out and the keep warm light will go on. After the cooking cycle ends, keep the lid closed for about 15 minutes. The rice can be cooked and vapoed completely, it is more fluffy and tasty. After the rice is steamed, be sure to open the outer lid and to stir the rice well, the cooked rice is to be served immediately or to be kept warm automatically. 4.Unplug the cord before serving. 5.0nly use the spoon supplied with this cooker . Do not use a metal scoop so as to avoid scratching non-stick coated. 6.Putthe rice to the inner pot after washing, and then add some suitable water into ittabout 1:8,according to the personal favor) Wipe the water outside pot, install the pot into the cooker. Connect the power, push the switch to the porridge function, and then push down the button. PRECAUTIONS 1.The inside pot cannot be heated on any furnace, otherwise it can be deformed easily. 2.The cooked rice start to keep warm, itis not suitable for eating immediately and it will more soft and delicious if let it stewing for 15 minutes. 3.The time of keeping warm don't exceed 12 hours in order to avoid the cooked rice off flavor. 4..When cooking, the outer shell temperature will be raise high, and very hot. please don't touch. CLEANING METHOD Take the inside pot out of the electric rice cooker, wash it with domestic liquefied detergent and rinse with fresh water and then wipe it dry with soft cloth. Do not use metal brush or other harsh tool to wash inner pot in order to avoid damaging the non-sticking coating on its surface. SAFETY NOTE: 1.The earthed wall socket should be used and the plug must be inserted reliably. Do not use multipurpose socket while using other electric appliance atthe same time. 2.If you do not use it, please pull the power cord out of the socket. 3.After insert the power cord into socket, it must be inserted tightly otherwise the element may be burnt out by poor connection. 4.The electric rice cooker can not placed on unstable, wet place near fire otherwise it will

be damaged or go wrong. 5.The body and cover of electric rice cooker cannot be washed with water or in water, otherwise the insulator will be damaged and become dangerous. 6..f the power is damaged, it must be changed with new power cord produced by the manufacture. 7.Do not let a child operate the product alone. Put it out of the reach of babies to avoid electric shock, scald and other dangerous accident.

REMOVAL OF APPLIANCES USED

Directive 2002/96/EC on waste electrical and electronic Equipment (WEEE) TT requires that the appliance uses are not disposed of using the normal municipal waste. Old appliances must be collected separately in order to LT optimize the recovery and recycling of materials they contain and reduce the impact on human health and the environment. The symbol of the dustbin is used on all products to remind the obligations for separate collection. Consumers should contact their local authorities or dealer regarding the steps to follow for the removal of their old appliance. If you proceed with the scrapping of old equipment, be sure to render useless what could be dangerous: disconnectthe power cable flush with the device.

Never attempt to use your appliance, ifitshows signs of damage or the power cord or plug is damaged. Ifthe power cord is defective it is important to have it replaced with the after sales service to eliminate any danger. Only qualified and authorized persons are authorized to carry out repairs to your appliance. Any repairs not in accordance with standards could significantly increase the level of risk for the user! Defect resulting from improper handling, degradation or attempted repairs by third parties voids the warranty on the product. This also applies in case of normal wear and accessories from the appliance. Important! We recommend that you keep the packaging of your device at least for the duration of the warranty. The guarantee does not apply without the original packaging. Warranty: Your device has one year warranty. The warranty does not cover wear and breakage following à wrong use of the product.
