Brand	Indesit
Model	EDPA 745 A1 ECO (EU)
Product type	Condenser tumble dryer with heat pump
Rated capacity (standard cotton)	7 kg
Energy efficiency class	A
Weighted annual energy consumption	354 kWh
Energy consumption at full load	2.96 kWh
Energy consumption at half load	1.63 kWh
Duration of standard cotton program (full load)	215 min
Duration of standard cotton program (half load)	125 min
Condensation efficiency class	C
Average condensation rate	71 % (full load), 72 % (half load)
Noise level	69 dB(A)
Refrigerant	R134a (0.29 kg)
Power supply	See rating plate (maximum voltage and power indicated on the appliance)
Programs	Fast & Easy, Quick 45', Mix, Cotton Iron Dry, Synthetics Iron Dry, Standard Cotton, Cotton Ready to Wear, Synthetics, Jeans, Baby & Delicates, Wool, Down Jacket, Sneakers, 60 min, 120 min, Easy Iron, Refreshing
Options	Extra Care, Energy Saver, Anti-crease, Delayed start (up to 9h)
Filter maintenance	Clean after each cycle (rinse under water or vacuum)
Draining the water tank	After each cycle
Cleaning the heat pump filter	Every 5 cycles (recommended after each cycle)
Safety	Child lock (function present according to manual), automatic shutdown in case of problem
Spare parts and repairability	Contact an authorized technician; original parts available via after-sales service

Frequently Asked Questions - EDPA 745 A1 ECO (EU) INDESIT

How to clean the filter after each cycle?

Pull the plastic filter handle upwards to remove it. Clean it under running water or with a vacuum cleaner, then put it back making sure it is properly inserted into the seal.

How to empty the water tank?

Take the tank out of the dryer, empty it into a sink, then put it back correctly. Always check it is empty before starting a new cycle.

What to do if the dryer does not start?

Check that the plug is properly connected, the door is closed, the program is selected, and the START/PAUSE button has been pressed. If a delayed start is programmed, wait for the delay.

Why is the laundry still damp at the end of the cycle?

This may be due to a clogged filter, a full water tank, a dirty heat pump filter, overloading, or insufficient spin. Clean the filters and empty the tank before each cycle.

How to clean the heat pump filter?

Unplug the appliance, open the door, remove the filter cover by turning the 4 clips, take out the filter assembly, separate the two parts, clean the lint with water or vacuum, then reassemble and replace.

Which programs to use for cotton?

For standard drying, use 'Standard Cotton' (cupboard dry). For more thorough drying, use 'Cotton Ready to Wear'. These programs are the most energy efficient.

Can I dry sports shoes?

Yes, use the 'Sneakers' program with the provided shoe rack. The shoes must be washed and spun at at least 400 rpm. Do not dry shoes with Gel inserts or lights.

What does the flashing 'Empty water' indicator mean?

It indicates that the water tank is full. Empty it immediately. The dryer stops automatically; after emptying, press START/PAUSE to resume the cycle.

How to use the 'Delayed start' option?

Select the program, then press the 'Delayed start' button several times until the desired delay (up to 9h). Ensure the water tank is empty and the filter clean before starting.

What to do in case of a power failure?

Unplug the appliance. Once power is restored, plug it back in, press and hold the ON/OFF button until it turns on, then press START/PAUSE to resume the cycle.

USER MANUAL EDPA 745 A1 ECO (EU) INDESIT

! This symbol reminds you to read this instruction manual.
! Keep this manual at hand for immediate reference whenever necessary. Always store this manual close to the tumble dryer and remember to pass it on to any new owners when selling or transferring the appliance, so they may familiarise with the warnings and suggestions herein contained.
! Read these instructions carefully: the following pages contain important information on installation and useful suggestions for operating the appliance.

Contents

Installation, 2

Where to install the tumble dryer

Ventilation

Electrical connections

Preliminary information

Warnings, 4

General safety

Saving energy and respecting the environment

Care and maintenance, 6

Disconnecting the power supply

Cleaning the filter after each cycle

Checking the drum after each cycle

Emptying the water container after each cycle

Cleaning the condenser unit

Cleaning the tumble dryer

Description of the tumble dryer, 8

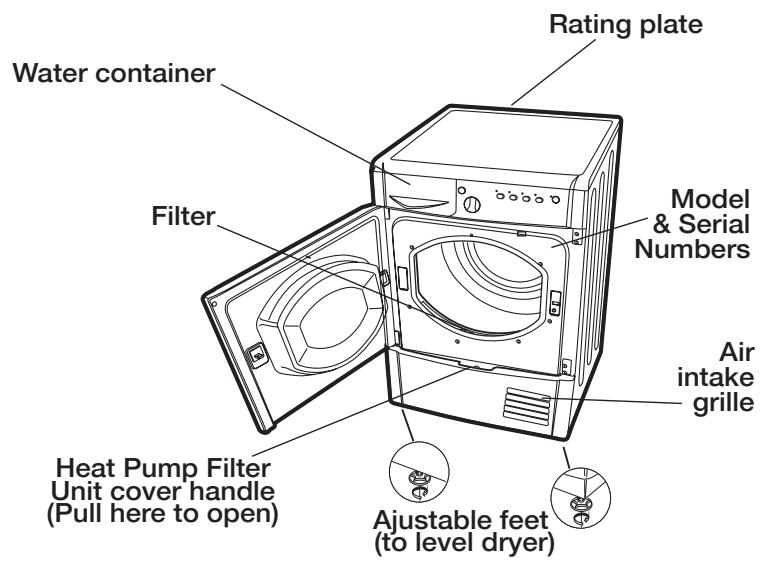

Features

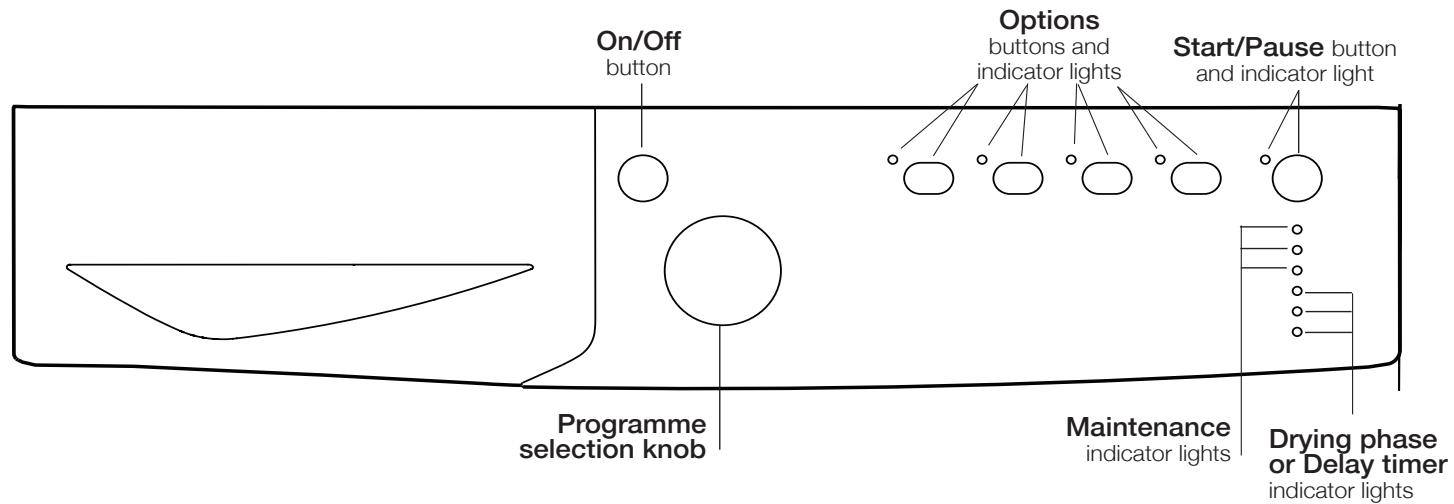

Control panel

How to carry out a drying cycle, 10

Starting and selecting a programme

Programmes and options, 11

Programme chart

Special programmes

Options

Opening the door

Laundry, 14

Sorting laundry

Care labels

Drying times

Troubleshooting, 15

Assistance and Guarantee, 16

Spare parts

Product guarantee and repair information

Information on recycling and disposal

Where to put your dryer

• Place your dryer at a distance from gas ranges, stoves, heaters, or cooktops because flames can damage the appliance. The dryer should be installed in an ambient room temperature of between 20 to 23^ C for optimum performance.

But will function if the room is between 14 and 30^ . If you are going to install the appliance under a work counter, be sure to leave a 10mm space between the top and any other objects on or above the machine and a 15mm space between the sides and lateral furnishings or walls. This is to ensure proper air circulation. The appliance must be installed with the rear surface placed against a wall.

Ventilation

• When the dryer is in use, there has to be adequate ventilation. Make sure you put your dryer in an environment that is not damp and has proper air circulation throughout. Airflow around the dryer is essential to condense the water produced during the washing, the dryer will not operate efficiently in an enclosed space or cupboard. ! If using the dryer in a small or cold room some condensation will be experienced.

!We do not recommend that the dryer is installed in a cupboard but the dryer must never be installed behind a lockable door, a sliding door or a door with a hinge on the opposite side to that of the dryer door.

Fig. A

Fig. B

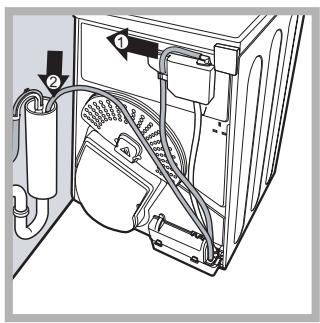

Water Drain

If the machine is positioned close to a drain it is possible to drain the condensed water directly without using the waterbottle. In which case it is no longer necessary to empty the water bottle at the end of each cycle. If the Dryer is positioned above or close to a Washing Machine the same drainage can be used. Just remove the tube indicated in figure A and connect it to the drainage. If the drainage is further away than the length of the tube it is possible to buy and connect a tube of the same diameter and the necessary length in order to reach the drain. To install the new tube just substitute the

existing one as indicated in figure B inserting it in the same place.

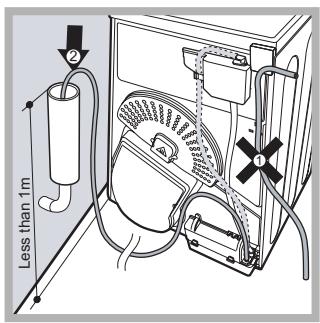

! The drain tube has to be below 1 m from the bottom of the Dryer.

! Once the Dryer has been installed please assure that the drain tube is not bent or kinked.

Electrical connections

Before plugging the appliance into the socket, check the following:

• Make sure your hands are dry.

• The socket must have an earth connection.

• The socket must be able to withstand the machine's maximum power output as indicated on the rating plate (see Description of the tumble dryer)

• The power supply voltage must fall within the values indicated on the data plate (see Description of the tumble dryer).

• The socket must be compatible with the dryer's plug. Should this not be the case, replace the plug or the socket.

!DO NOT USE EXTENSION CORDS.

! The dryer must not be installed outdoors, even if the space is sheltered. It can be very dangerous if exposed to rain or storms.

! Once installed, the dryer's electrical wire and plug must be within reach.

! The power cord must not be bent or squashed.

! If the plug being replaced is a nonrenewable type, then the cut-off plug must be disposed of safely. DO NOT leave it where it can be inserted into a socket and create a shock hazard.

The power must be regularly checked. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. (see Assistance). New or longer electric cords are supplied by authorised dealers at a supplementary cost.

! The manufacturer denies any responsibility should any of these rules not be followed.

! If in doubt about any of the above consult a qualified electrician.

Levelling the tumble dryer

The dryer must be installed level for correct operation.

When you have installed your dryer in its final location check that it is level first side-to-side,

then front to back. If the dryer is not level, adjust the two legs up or down until your dryer is level.

Preliminary information

Once you've installed your dryer and before you use it, clean the inside of the drum to remove any dust that could have accumulated during transportation.

Warning! Before you use your dryer ensure that its has been in a upright position for at least 6 hours.

Maximum load sizes: 7 kg

GB

Product Data - Regulation 392/2012.
Brand Indesit
Model EDPA 745 A ECO (EU)
Rated capacity of cotton laundry for the "standard cotton programme" at full load - kg	7.0
This household tumble drier is a	Condenser
Energy efficiency class on a scale from A+++ (low consumption) to D (high consumption)	A
The weighted Annual Energy Consumption (AEc)* kWh 1)	354.0
This household tumble drier is a	Automatic
Energy consumption full load; Edry - kWh 2)	2.96
Energy consumption partial load; Edry1½ - kWh 2)	1.63
Power consumption: off-mode (Po) - Watts	0.14
Power consumption: left-on mode (Pi) - Watts	1.79
Duration of the 'left-on mode' for power management system - minutes	30
Prog. Time - weighted (Tt) full & partial load - minutes 3)	164
Full load (Tdry) - minutes	215
Partial load (Tdry1½) - minutes	125
Condensation efficiency class on a scale from G (least efficient) to A (most efficient)	C
Average condensation efficiency - %
weighted (Ct) full & partial load 3)	71
full load (Cdry)	71
partial load (Cdry1½)	72
Airborne acoustical noise emissions - dB(A) re 1 pW	69.0
1) "Standard cotton" at full and partial load is the standard programme to which the information in the label and the fiche relates. The standard cotton program is suitable to dry at cupboard level (0%) cotton laundry and is the most efficient programme in terms of energy consumption. Partial load is half the rated load.
2) based on 160 drying cycles of the standard cotton programme at full and partial load, and the consumption of the low-power modes. Actual energy consumption will depend on how the appliance is used.
3) Weighted average of 3 cycles at full load and 4 cycles at half load.
Regulation 932/2012.
Energy consumption in kWh, for program "Synthetics" full load	0.92
Programme time in minute, for program "Synthetics" full load	90
Partial load for program "Synthetics" N/A

GB

! This appliance has been designed and built according to international safety standards. These warnings are given for safety reasons and must be followed carefully.

General safety

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• This tumble dryer has been designed for home, and not professional, use.
• Do not touch the appliance while barefoot or with wet hands or feet.
• Unplug the machine by pulling on the plug, not the cord.
• After using the dryer, turn it off and unplug it. Keep the door closed to make sure that children do not use it as a toy.
• Children should be supervised to ensure that they do not play with the dryer.
• Cleaning and user maintenance shall not be made by children without supervision.
  Children of less than 3 years should be kept away from the appliance unless continuously supervised.
• The appliance must be installed correctly and have proper ventilation. The air intake at the front of the dryer should never be obstructed (see Installation).
• Never use the dryer on carpeting where the pile height would prevent air from entering the dryer from the base.
• Check to see if the dryer is empty before loading it.
  The back of the dryer could become very hot. Never touch it while in use.
• Do not use liquid fabric softeners in the dryer; add it to the final rinse of your wash.
• Do not overload the dryer (see Laundry for maximum loads).
• Do not load items that are dripping wet.
• Carefully check all instructions on clothing labels (see Laundry).
• Do not tumble dry large, very bulky items.

• Do not tumble dry acrylic fibres at high temperatures.

• Do not turn off the dryer when there are still warm items inside.

• Clean the filter after each use (see Maintenance).
• Empty the Water Container after each use (see Maintenance).
• Clean the Heat Pump filter unit at regular intervals (see Maintenance).
• Do not allow lint to collect around the dryer.
• Never climb on top of the dryer. It could result in damage.
• Always follow electrical standards and requirements (see Installation).
• Always buy original spare parts and accessories (see Service).

To minimise the risk of fire in your tumble dryer, the following should be observed:

• Tumble dry items only if they have been washed with detergent and water, rinsed and been through the spin cycle. It is a fire hazard to dry items that HAVE NOT been washed with water.
• Do not dry garments that have been treated with chemical products.
• Do not tumble dry items that have been spotted or soaked with vegetable or cooking oils, this constitutes a fire hazard. Oil-affected items can ignite spontaneously, especially when exposed to heat sources such as a tumble dryer. The items become warm, causing an oxidisation reaction with the oil, Oxidisation creates heat. If the heat cannot escape, items can become hot enough to catch fire. Piling, stacking or storing oil-effected items can prevent heat from escaping and so create a fire hazard. If it is unavoidable that fabrics containing vegetable or cooking oil or those that have been contaminated with hair care products be placed in a tumble dryer they should first be washed with extra detergent - this will reduce, but not eliminate the hazard. They should not be removed from the dryer and piled or stacked while hot.
• Do not tumble dry items that have previously been cleaned in or washed in, soaked in or soiled with petrol/gasoline, dry cleaning solvents or other flammable or explosive substances. Highly flammable substances commonly used in domestic environments including cooking oil, acetone, denatured alcohol, kerosene, spot removers, turpentine,

waxes and wax removers. Ensure these items have been washed in hot water with an extra amount of detergent before being dried in the tumble dryer.

• Do not tumble dry items containing foam rubber (also known as latex foam), or similarly textured rubber like materials. Foam rubber materials can, when heated, produce fire by spontaneous combustion.
• Fabric softener or similar products should not be used in a tumble dryer to eliminate the effects of static electricity unless the practice is specifically recommended by the manufacturer of the fabric softener product.
• Do not tumble dry undergarments that contain metal reinforcements eg. bras with metal reinforcing wires. Damage to the tumble dryer can result if the metal reinforcements come loose during drying.
• Do not tumble dry rubber, plastic articles such as shower caps or babies waterproof covers, polythene or paper.
• Do not tumble dry rubber backed articles, clothes fitted with foam rubber pads, pillows, galoshes and rubber coated tennis shoes.
• Remove all objects from pockets such as lighters and matches.

! WARNING: Never stop the dryer before the end of the drying cycle unless all items are quickly removed and spread out so that the heat is dissipated.

Save energy and respect the environment

• Wring out all items to eliminate excess water before tumble drying (if you use a washing machine first, select a high spin cycle). Doing this will save time and energy during drying.
• Always dry full loads - you save energy: single items or small loads take longer to dry.
• Clean the filter after each use to contain energy consumption costs (see Maintenance).

Disconnecting the power supply

! Disconnect the dryer when not in use or during cleaning and maintenance operations.

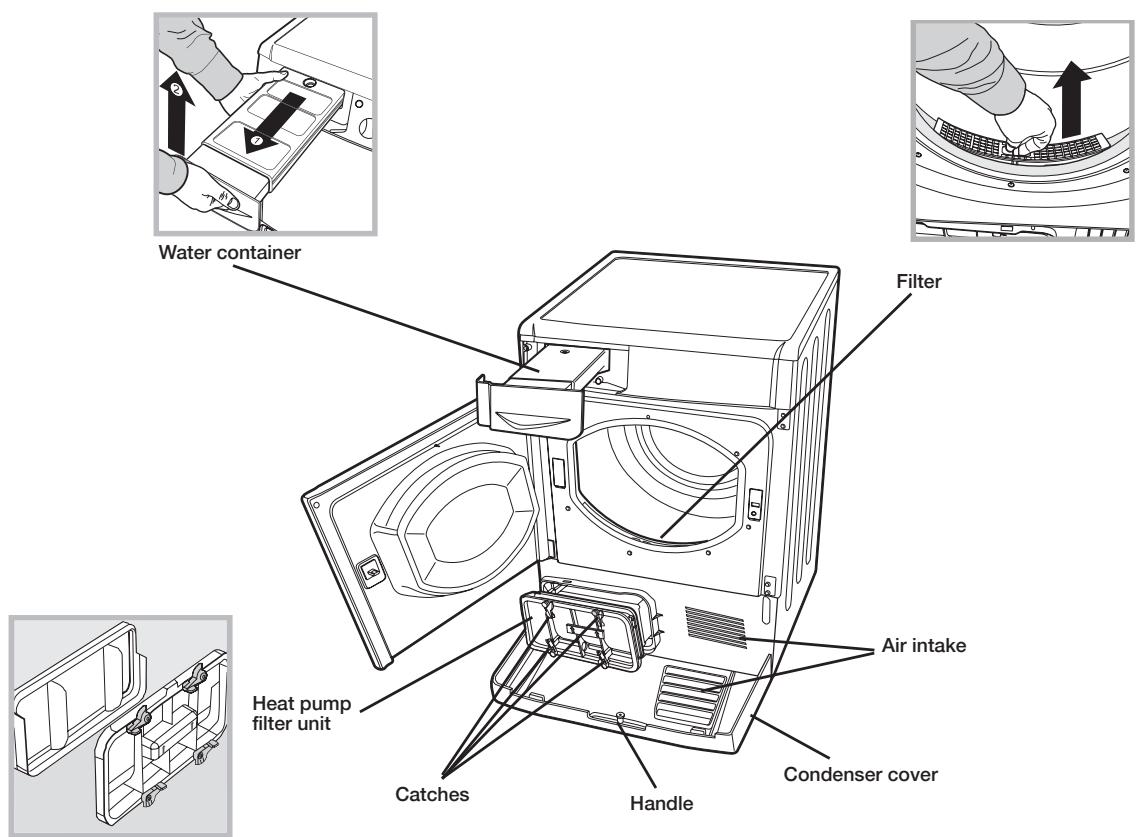

Cleaning the filter after each cycle

The filter is a fundamental component of the dryer: its function is to collect lint and fluff that form during drying.

Clean the filter once drying is completed, by rinsing it under running water or cleaning it with a vacuum cleaner. Should the filter become clogged, the flow of air inside the dryer will be seriously

hampered: drying times becomes longer and more energy is consumed. Moreover, the dryer may become damaged.

The filter is located in front of the dryer seal (see Picture).

Removing the filter:

1. Pull the filter's plastic handle upwards (see Picture).
2. Clean the fluff off the

filter and replace it correctly. Ensure that the filter is pushed fully home.

! Do not use the dryer unless the filter has been replaced in its holder.

Checking the drum after each cycle

Rotate the drum manually to remove smaller items (handkerchiefs) that could have been left inside the dryer.

Cleaning the drum

Avoid using abrasives, steel wool or stainless steel cleaning agents to clean the drum. A coloured film may appear on the stainless steel drum surface: it may be caused by a combination of water and/or cleaning agents such as wash-softeners. This coloured film does not affect the dryer's performance.

Emptying the water container after each cycle

Remove the water container and empty it into a sink or other suitable drain outlet, then replace it correctly.

Always check the water container and empty it before starting a new drying cycle.

-Failure to empty the water container may cause the following:

• The dryer stops heating (thus the load may still be damp at the end of the drying cycle).
• The "Empty water container" LED activates to show that the water container is full.

Priming the Water Collection System

When your dryer is new, the Water Container will not collect Water until the system is primed, this will take 1 or 2 drying cycles. Once primed it will collect Water during every cycle.

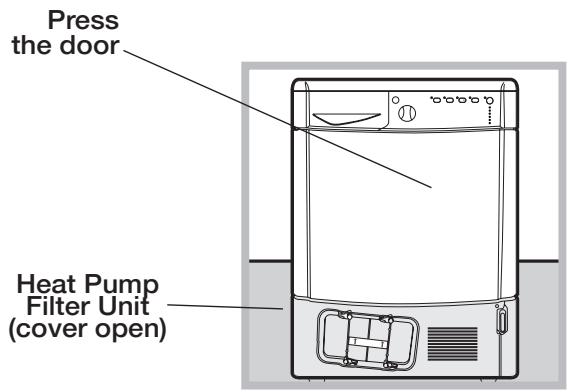

Cleaning the Heat Pump Filter Unit

• Periodically (every 5 drying cycles) remove Heat pump filter unit and clean any build up of fluff from the surface of the filter by rinsing it under running water or with your vacuum cleaner.

We however recommend that you clean this filter after every drying cycle to optimize the dryers performance.

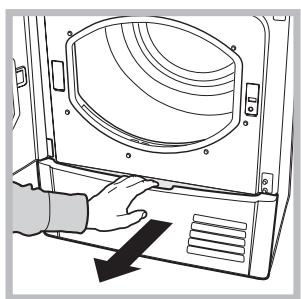

To remove Heat pump filter unit:

1. Unplug the dryer and open the door.
2. Remove the filter unit by rotating the 4 clips to the vertical position then pulling the filter unit towards you.
3. Separate the two parts of the filter unit and clean the surface of the filter.

! Warning: The front of the heat pump is made from thin metal plates.

Take care that you do not damage these or cut yourself when cleaning, removing or replacing the filter unit.

1. Whenever you clean the Heat pump filter unit always clean any build up of fluff from the surface of the metal plates. Carefully clean this fluff off with a damp cloth,sponge or vacuum cleaner. Never use your

Fingers.

1. Assemble the two parts of the filter clean the surface of the seals and replace with the 4 clips into the horizontal position, sure that the catches have been secured.

Cleaning the tumble dryer

• The external metal, plastic and rubber parts can be cleaned with a damp cloth.
• Clean the front air intake grille regularly (every 6 months) with a vacuum cleaner to remove any lint, fluff or dust deposits. Furthermore, remove any lint deposits from the front part of the condenser and from the filter area, using a vacuum cleaner every so often.
  ! Do not use solvents or abrasives.
  ! Have the dryer checked regularly by authorised technical personnel in order to ensure that the electrical and mechanical parts work safely (see Assistance).

Quick Tips

!Remember to clean your filter and Heat Pump filter unit after each load.

! Remember to empty your water container after each load.
! Doing this will keep your machine working at its BEST!

GB
Opening the door

Features

Control panel

ON/OFF/Reset button

Pressing the button normally will cause the machine to switch on or off. If the button is pressed for 3 seconds while the dryer is in function, the machine will switch off and the running cycle will reset.

Programme selection knob

Allows for setting the programme: turn until the indicator points towards the desired programme (see Starting and selecting a programme).

Options buttons

Allow for selecting the options available for the selected programme. The relative indicator lights turn on when the option has been selected (see Programmes and options).

START/PAUSE button and indicator light

When the green light flashes slowly, press the button to start the programme. When the cycle is under way, the indicator light remains on. To put the programme into pause mode, press the button again; the indicator light will turn orange and start flashing again. To resume the programme from the point it was interrupted, press the button again (see Start and programme selection).

Indicator lights

"Maintenance" indicator lights

The indicator lights provide important information. They indicate the following:

The "Empty water container" indicator light _3 signals that the water container must be emptied.

If the water container fills during the course of the programme, the LED lights up. The dryer automatically starts a cool tumble cycle and the START/PAUSE LED flashes orange. Press the START/PAUSE button to resume the cycle from the point it was interrupted.

In order to avoid this procedure, always empty the water container after using the tumble dryer (see Care and maintenance).

Before each programme, the "Clean filter" indicator light signals that it is essential to clean the filter each time before using the tumble dryer (see Care and maintenance).

The "Clean Heat Pump filter unit" indicator light signals that it is essential to clean the condenser regularly (see Care and maintenance).

"Drying phases" indicator lights

The indicator light signals that the drying phase is running.

The indicator light signals that the cooling phase is running.

The END indicator light signals that the programme has ended.

"Delay timer" indicator light

If the "Delay timer" option has been activated (see "Programmes and options"), after the programme has started, the indicator light corresponding to the chosen delay time will start flashing:

3h

6h

As time passes, the remaining delay will be displayed and the corresponding indicator light will flash:

Once the set delay time ends, the flashing LED will turn off and the set programme will start.

Starting and selecting a programme

1. After consulting the programme chart and the indications for each type of fabric (see Laundry), turn the Programme selection knob towards the programme corresponding to the type of laundry to be dried (see Programmes and options).

2. Plug the dryer into the power supply socket.

3. Select the programme according to the type of laundry (see Laundry).
4. Open the door, ensure that the filter is clean and securely placed and that the water container is empty and correctly slotted (see Care and maintenance).
5. Load the machine, making sure that no piece of laundry gets between the door and the door seal. Close the door.
6. Press the ON/OFF button to start the machine.

! Warning: If the position of the programme selection knob changes after pressing the START/PAUSE button, the selected programme will NOT be modified. To modify the programme, press the START/PAUSE button to put the programme in pause mode (the indicator light flashes orange), then select a new programme and the relative options. Press the START/PAUSE button to start the new programme.

1. If necessary, set the time of the delayed start and any other options (see Programmes and options).
2. Press the START/PAUSE button to start the drying cycle.

Laundry can be checked while the drying programme runs and any garments already dry can be removed, while drying continues for the remaining items. After closing the door, press the START/PAUSE button to resume machine operation.

1. The final COOL TUMBLE phase (i.e. the fabrics are cooled) activates during the last few minutes of the drying programme; always allow this phase to terminate.
2. When the END indicator light turns on, the programme has ended. The buzzer will beep 3 times to let you know that your programme is complete. Open the door, remove the laundry then clean the filter and replace it. Empty the water container and put it back in its slot (see Care and maintenance).

If the "Anti Crease" option was selected and laundry is not removed immediately, the drum will rotate garments at intervals for 10 hours or until the door is opened.

1. Disconnect the dryer from the power supply.

Standby mode

This tumble dryer, in compliance with new energy saving regulations, is fitted with an automatic standby system which is enabled after about 30 minutes if no activity is detected. Press and hold the ON/OFF button until the dryer reactivates.

Programme chart

	Programme	Max. load (kg)	Compatible options	Cycle3 duration
Fast & Easy
1	Fast 45'	1	Anti Crease - Delay Timer.	45'
2	Easy mix	3	Anti Crease - Delay Timer.	100'
3	Cotton fast Iron	Max.	Extra Care - Anti Crease - Delay Timer.	170'
4	Synthetic fast Iron	4	Anti Crease - Delay Timer.	65'
Essentials
5	Standard Cotton2	Max.	Extra Care - Energy Saver1 - Anti Crease - Delay Timer.	195'
6	Cotton ready to wear	Max.	Anti Crease - Delay Timer.	205'
7	Synthetics	4	Energy Saver1 - Anti Crease - Delay Timer.	95'
8	Jeans	3	Anti Crease - Delay Timer.	135'
Special Care
9	Baby&Delicates	2	Anti Crease - Delay Timer.	80'
10	Wool	1	-	60'
11	Duvet	1,5	Anti Crease - Delay Timer.	100'
12	Special Shoes	1 pair	-	100'
Timed & Post Dry
13	60 minutes	-	Extra Care - Anti Crease - Delay Timer.	-
14	120 minutes	-	Extra Care - Anti Crease - Delay Timer.	-
15	Crease Relax	-	-	10'
16	Freshen Up	2,5	-	20'

NOTES: 1 with this option the maximum load size is modified. Refer to the option description. 2 Standard Cotton is the most efficient program in terms of energy consumption (EU 392/2012). 3 The duration of these programs will depend on the size of the load, types of textiles, the spin speed used in your washer and any extra options selected.

Special/Sport/Partial Programmes

Fast 45' C

This is a quick timed programme, ideal for drying garments spun at high speed in the washing machine, for example shirts used in a working week.

Easy Mix

This programme is ideal for drying cotton and synthetic fabrics together.

Standard Cotton: Dries your items to a dryness level that allows you to put your clothes away straight from the dryer.

Cotton Ready to Wear: Dries your items to the maximum possible dryness level. Even drier than Standard Cotton.

Jeans

This is a programme for jeans made from denim cotton. Before drying your jeans turn the front pockets inside out.

Do not mix dark and light coloured items.

It can also be used on other garments made from the same material, such as jackets.

Loads dried using this programme are usually ready to wear, the edges or seams may be slightly damp. If this is the case, try turning the jeans inside out and running the programme again for a short period.

! We do not recommend that you use this programme if your jeans have elastic waist bands, studs or embroidery.

Baby&Delicates

A programme appropriately designed to dry clothing and linen of new-born babies (cotton and chenille) and delicate clothes. Do not dry articles which have plastic covering.

Wool Programme

This programme is specific for items that withstand tumble drying and are labelled with the symbol. It is suitable for loads of up to 1 kg (about 3 jeans). We recommend turning the garments inside out before drying them. Garments dried with this programme are usually ready to be worn, although the edges of heavier garments may be slightly damp. Leave them to dry naturally, as an additional drying process may damage them.

Unlike other materials, the shrinking process in wool is irreversible, i.e. the garment does not resume its original dimension and shape. This programme is not suited for acrylic items.

Duvet

A cycle intended to dry down jackets, giving their natural softness back (2 jackets).

Special Shoes Programme

This programme is specific for drying sports shoes. The shoes must have been previously washed and spun at a minimum spin speed of 400 revolutions.

A specific shoe rack is provided and must be used, otherwise the dryer will be damaged if shoes are dried in the drum. Remove the filter from its holder on the front part of the dryer and position the shoe rack.

Place shoelaces inside the shoes then load with the tips of the shoes facing downwards and the soles frontwards.

Drying times vary according to the shape and type of the shoe. If the shoes are not completely dry at the end of the programme, restart the programme.

! Do not dry shoes that have gel or flashing lights inside them. Only dry shoes made of synthetic material or rope. Once the programme ends, remove the shoe rack and replace the filter into its holder.

Crease Relax

A short 10-minute programme that relaxes the garment's fibres in order to facilitate ironing and folding.

This programme is particularly recommended for cotton or mixed cotton fabrics.

For optimal results, do not overload the drum (the following values refer to the weight of dry garments):

Fabric: maximum load

Cotton and mixed cotton: 2.5kg

Synthetic garments: 2 kg

Jeans: 2 kg

Empty the dryer as soon as the programme ends; hang, fold or iron garments then place them in the wardrobe. If this is not possible, repeat the programme.

As this is not a drying programme, it is not to be used for garments that are still wet.

The effect produced by the programme varies according to the characteristics of the each fabric: fabrics such as acrylic fibres or

Tencel® do not give the same results as traditional fibres (e.g. cotton).

Freshen Up

A short programme suitable for refreshing fibres and garments. It lasts about 20 minutes.

!As this is not a drying programme, it is not to be used for garments that are still wet.

It can be used on any load size but is more effective on smaller loads.

Fabric	Load
	1 kg	2 kg	3 kg	- kg	- kg
Cotton - high heat	60 minutes	60 or 120 minutes	120 minutes	-	-
Synthetics - low heat	60 minutes	60 minutes	60 or 120 minutes	-	-
Acrylics - low heat	60 minutes	120 minutes	-	-	-

Options

The options allow for customising the selected programme according to one's own needs.

Extra Care

This is a special option designed to gentle dry delicate clothes.

Press this button to select the low temperature setting; the light next to the button will switch on. Activating this option will increase the duration of the cycles.

Energy Saver

An option designed to optimise the results when drying small loads (cotton loaded to a max. of 2 kgs. and synthetic load to a max. of 1 kg.) thereby minimising consumption and drying times.

Anti Crease

The Anti-crease option automatically activates a pre and post crease treatment. The Anti-crease by alternating rotation of the drum prevents the formation of wrinkles by rotating repeatedly the garments. The option includes a pre Anti-crease phase, which is activated only when the delay time has been selected, and a post Anti-crease at the end of the drying cycle.

The Anti-crease is therefore the best solution to avoid the formation of wrinkles when the delayed start has been activated and when you aren't available to remove the load immediately the end of the cycle.

Delay timer

The start of some programmes (see Programmes and options) may be delayed up to 9 hours. Press the button repeatedly to enter the desired delay time. Before setting a delayed start, make sure that the water container is empty and that the filter is clean. The drum will rotate occasionally before the drying programme starts to prevent the formation of creases.

! Not all options are available on all programmes (see Programmes and options).

Opening the door

If the door is opened (or the START/PAUSE button is pressed) while a programme is running, the dryer stops and the following may occur:

• The START/PAUSE button flashes orange.
• When a delayed start is running, the delay countdown continues. It is necessary to press the START/PAUSE button to resume the "Delay timer" programme. One of the "Delay timer" indicator light flashes to signal the delay time entered.
• It is necessary to press the START/PAUSE button to resume the programme. The progress indicator lights signal the running phase and the START/PAUSE indicator light stops flashing and turns green.
• During the post care phase, the programme ends. Pressing the START/PAUSE button reactivates a new programme from the beginning.
• By turning the Programme selection knob, a new programme is selected and the START/PAUSE indicator light flashes green. This procedure can be used to select the Cold drying programme to cool garments if they are judged to be dry enough. Press the START/PAUSE button to start the new programme.

Heat Pump Protection System

The heat pump sytem has a compressor protection feature, that operates if you open the door or there is a power disruption or you turn off the dryer. This system will prevent the heat pump compressor from starting for 5 minutes after the door is closed and the programme started.

Note: If you have a power cut, switch off the power or remove the plug. When power is restored, plug in the machine, press and hold the ON/OFF button until the dryer reactivates, then press Start/Pause button.

Sorting laundry

• Check the symbols on the care labels of the various garments to verify whether the garments can be safely tumble dried.
• Sort laundry according to the type of fabric.
• Empty all pockets and check for loose buttons.
• Close zips and hooks and fasten belts and strings without tightening them.
• Wring out garments to remove the maximum amount of water possible.

! Do not load the dryer when garments are dripping wet.

Maximum load sizes

Do not overload the drum.

The following values indicate the weight of dry garments: Natural fibres: maximum 7 kg

Synthetic fibres: maximum 4 kg

! Do not overload the dryer as this may result is reduced drying performance.

Care labels

Always check the care labels, especially when placing garments in the tumble dryer for the first time. Below are the most commonly used symbols:

May be tumble dried.

图

Do not tumble dry.

Tumble dry - high heat.

Tumble dry - low heat.

Drying times

Drying times are approximate and may vary depending on the following:

• Amount of water retained by items after the spin cycle: towels and delicate items retain a lot of water.
• Fabrics: items of the same fabric, but with different texture and thickness may have different drying times.
• Amount of laundry: single items and small loads may take longer to dry.
• Drying: if items are to be ironed, they can be removed from the dryer while still slightly damp. Items that require complete drying can be left longer.
• Heat setting.
• Temperature of the room: the lower the temperature of the room, the longer it will take for the dryer to dry clothing.
• Bulk: certain bulky items require special care during the drying process. We suggest removing these items and replacing them in the dryer once they have been shaken out: repeat this procedure several times during the course of the drying cycle.

! Do not over-dry items.

All fabrics contain natural dampness which helps to keep them soft and fluffy.

The drying times provided refer to the automatic Cupboard dry programmes.

The Timed drying settings are also indicated to enable you to select the most suitable timed option.

The weight refers to dry items.

Automatic drying times

Cotton High Heat
Drying times after 800-1000 rpm wash cycles
1 kg	2 kg	3 kg	4 kg	5 kg	6 kg	7 kg
60 - 90 minutes	80 - 100 minutes	100 - 130 minutes	120-140 minutes	140 - 180 minutes	150 - 190 minutes	170 - 200 minutes
Synthetics Low Heat
Drying times after wash cycles at lower speeds
1 kg		2 kg		3 kg		4 kg
40 - 50 minutes		50 - 60 minutes		60 - 90 minutes		90 - 110 minutes
Acrylics Low Heat
Drying times after wash cycles at lower speeds
1 kg				2 kg
40 - 80 minutes				80 - 140 minutes

If you feel that the dryer is not working properly, consult the following troubleshooting suggestions before contacting the Technical Assistance Centre (see Assistance).

The dryer does not start.

• The plug has not been inserted far enough into the socket to make contact.
• There has been a power cut.
• The fuse has burned out. Try connecting another appliance to the same socket.
• If an extension cord is used, try connecting the dryer plug directly into the socket.
• The door has not been closed properly.
• The programme has not been set correctly (see How to carry out a drying cycle).
• The START/PAUSE button has not been pressed (see How to carry out a drying cycle).
• On machines equipped with "Locked" function, check the option is not enabled (see Programmes and options).

The drying cycle does not start.

• A delayed start time has been set (see Programmes and options).
• The START/PAUSE button has been pressed; a short delay follows before the dryer starts running. Wait for the drying cycle to start; do not press the START/PAUSE button otherwise the dryer switches to the pause mode and the drying cycle will not start.

Drying times are too long.

• The filter has not been cleaned (see Care and maintenance).
• The water container must be emptied? The "Empty water container" indicator light flashes (see Care and maintenance).
• The Heat Pump Filter Unit needs to be cleaned (see Care and maintenance).
• The heat setting is not suited to the type of fabric to be dried (see Programmes and options).
• An incorrect drying time was selected for the type of load (see Laundry).
• The air intake grille or the rear air vents are clogged up (see Installation, and Care and maintenance).
• The items are too wet (see Laundry).
• The dryer is overloaded (see Laundry).

The "Empty water container" indicator light flashes.

• The water bottle was not emptied before starting the programme. Always empty it before starting a new drying programme (see Description of the tumble dryer) - do not wait for the bottle full signal (buzzer beeps once every 5 seconds and the indicator light flashes) before emptying the water container.

The programme is finished but the items are damper than expected.

! For safety reasons, the dryer programmes last a maximum of 5 hours. If an automatic programme has not detected the final dampness level required in this interval, the dryer completes the programme and stops. Check the above points and repeat the programme; if the items are still damp, contact the Technical Assistance Centre (see Assistance).

The "Options" and "START/PAUSE" indicator lights flash and one of the "Maintenance" or "Drying phases" indicator lights turns on without flashing.

• Switch the appliance off and unplug it, then clean the filter and Heat Pump Filter Unit (see "Care and Maintenance"). Reinsert the plug, switch the appliance on and start another programme. If the problem persists, contact the Technical Assistance Service.

The dryer is noisy during the first few minutes of operation.

• This is normal, especially if the dryer has not been used for a long time. If the noise persists during the entire cycle, contact the Technical Assistance Centre.

The lights on the dryer control panel are off although the dryer is switched on.

The dryer has gone into standby mode to save power. This occurs if you have left the dryer on or have had a power cut. It occurs after 30 minutes:

• if you leave the dryer without starting a programme;

• after your drying programme has finished.

Press and hold the ON/OFF button until the dryer reactivates

Heat Pump System

This dryer is fitted with a sealed heat pump system to dry your clothes. To operate, the heat pump contains fluorinated greenhouse gases ( F gases) which are covered by the Kyoto Protocol. These F gases are contained in a hermetically sealed unit. This sealed unit contains 0.29 kg of the F gas R134a which acts as a refrigerant.

If the sealed unit fails then it must be replaced by a new sealed unit. Contact your nearest service centre for advise.

Note: The gases contained in the sealed unit are not hazardous to health, but if they escape they will have an impact on global warming.

Spare Parts

This dryer is a complex machine. Repairing it yourself or having a nonauthorised person try to repair it could cause harm to one or more persons and to the machine, and could invalidate the spare parts warranty.

Call an authorised technician if you experience problems while using the machine.

Please note that it is an offence for an unqualified person to undertake any servicing or repair work that involves breaking into the sealed heat pump unit.

Product Guarantee And Repair Information

Guarantee

12 Months Parts and Labour Guarantee

Your appliance has the benefit of our manufacturer's guarantee, which covers the cost of breakdown repairs for twelve months from the date of purchase.

This gives you the reassurance that if, within that time, your appliance is proven to be defective because of either workmanship or materials, we will, at our discretion, either repair or replace the appliance at no cost to you:

This guarantee is subject to the following conditions:

• The appliance has been installed and operated correctly and in accordance with our operating and maintenance instructions.

• The appliance is used only on the electricity or gas supply printed on the rating plate.

• The appliance has been used for normal domestic purposes only.

• The appliance has not been altered, serviced, maintained, dismantled, or otherwise interfered with by any person not authorised by us.

• Any repair work must be undertaken by us or our appointed agent.

• Any parts removed during repair work or any appliance that is replaced become our property.

• The appliance is used in the United Kingdom or Republic of Ireland.

The guarantee does not cover:

• Damage resulting from transportation, improper use, neglect or interference or as a result of improper installation.

• Replacement of any consumable item or accessory. These include but are not limited to: plugs, cables, batteries, light bulbs, fluorescent tubes and starters, covers and filters.

• Replacement of any removable parts made of glass or plastic.

THIS GUARANTEE WILL NOT APPLY IF THE APPLIANCE HAS BEEN USED IN COMMERCIAL OR NON-DOMESTIC PREMISES.

Repairs and After Sales

For product help and advice, repairs, spare parts or accessories, we're here to help.

For local repair engineers - 03448 111 606 ROI - 0818 313 413 UK standard local rate applies ROI local Irish rate applies

For Parts and Accessories visit: parts.ingesit.co.uk/shop

Please remember to register your appliance at www.indesitservice.co.uk to activate your 10 year parts guarantee.

Please note, our advisors will require the following information: model number, serial number.

This information can be found on the data plate located behind the door.

Information on recycling and disposal

As part of our continual commitment towards environmental protection, we reserve the right to use recycled quality components to reduce costs for our customers and to minimise materials wastage.

• Disposing of the packaging materials: follow local regulations to allow for recycling of packaging materials.
• In order to minimise the risk of injury to children, remove the door and plug, then cut the power supply cord flush with the appliance. Dispos of these parts separately to prevent the appliance from being connected to a power supply socket.

Disposal of old household appliances

The European Directive 2012/19/EC on Waste Electrical and Electronic Equipment (WEEE), requires that oldhousehold electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimise the recovery and recycling of the materialsthey contain and reduce the impact on human health and the environment. This dryer has a sealed heat pump unit containing Fgases which should be recovered destroyed. The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of appliance it must beseparately collected. Consumers should contact their local authority orretailer for information concerthe correct disposal of their old appliance.

This appliance conforms to the following EU directives:

• 2006/95/EC (Low Voltage Directive)
• 2004/108/EC (Electromagnetic Compatibility Directive).

SECHE-LINGE

Français

Table des matieres

Installation, 18
