| Product type | Integrated column service wine cellar |
| Model reference | AVI60CDZF |
| Total net volume | 83 L |
| Bottle capacity (75 cl) | Approximately 30 bottles (depending on type) |
| Power supply | 220-240 V AC, 50 Hz |
| Rated current | 1 A |
| Maximum power | 90 W |
| Climate class | N/SN (ambient temperature +10°C to +32°C) |
| Annual energy consumption | 142 kWh/year |
| Refrigerant | R600a (21 g) |
| Insulating agent | Cyclopentane |
| Number of temperature zones | 2 independent zones |
| Upper zone temperature range | +5°C to +12°C |
| Lower zone temperature range | +12°C to +20°C |
| Temperature adjustment | Electronic with + and - buttons |
| Temperature display | LED digital |
| Interior lighting | LED with temporary and permanent modes |
| Alarms | Temperature and door open alarm |
| Anti-vibration system | Compressor on silent blocks, polyurethane insulation |
| Anti-UV filter | UV-treated glass door |
| Defrosting | Automatic |
| Door reversibility | Yes |

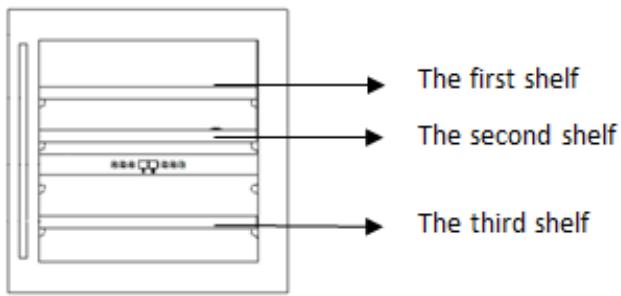

| Humidity tray | Yes, to be placed on the upper shelf |
| Cleaning | Warm water and mild detergent |
| Availability of spare parts | 7 years for aesthetic and functional parts, 10 years for others (according to EU regulation) |
Frequently Asked Questions - AVINTAGECAVE_A_VINAVI60CDZ AVINTAGE
How to set the temperature of the wine cellar?

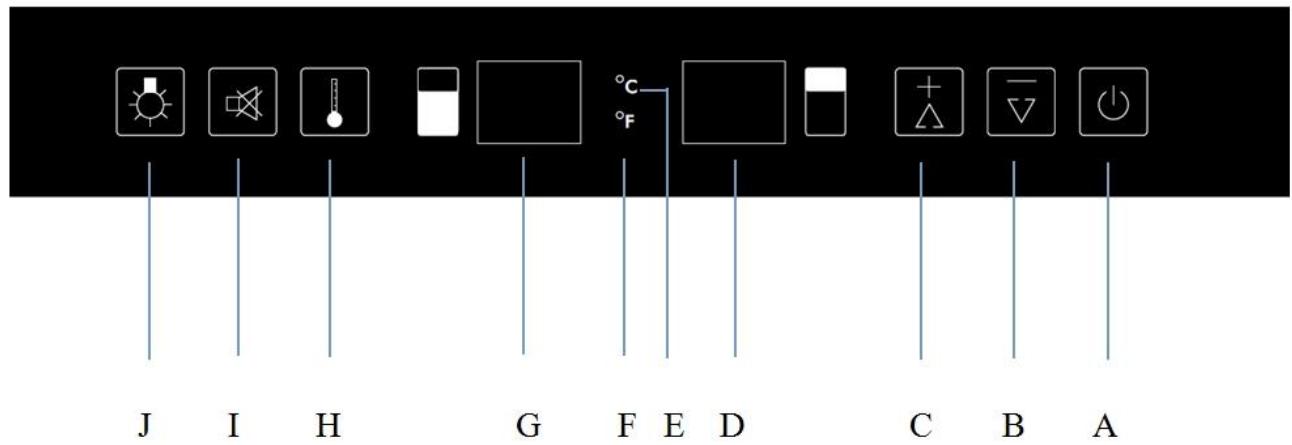

Use the + (C) and - (B) buttons on the control panel. First select the desired zone with the H button, then adjust the temperature in 1°C increments. The upper zone can be set between +5°C and +12°C, the lower zone between +12°C and +20°C.
Why does the audible alarm sound?
The alarm triggers if the internal temperature deviates from the set range by more than 4°C for 7 hours, or if the door remains open for more than 60 seconds. To silence the alarm, press the I button. The alarm reactivates automatically after the issue is resolved.

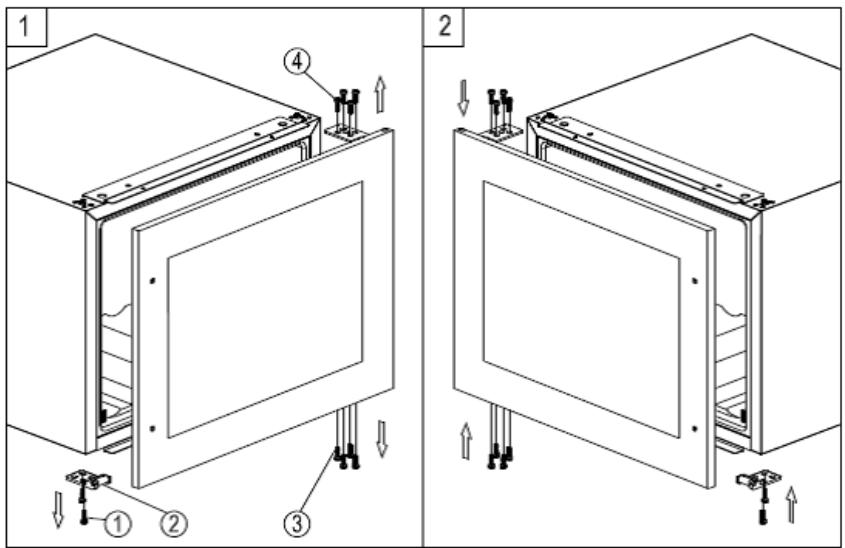

How to reverse the door opening direction?
Unscrew the 8 nuts holding the door, carefully remove it, then reposition the door bracket (mark 2) on the opposite side. Rotate the door 180° and retighten the nuts. Keep all parts.
What regular maintenance is required?
Unplug the appliance before cleaning. Clean the interior and exterior with a soft cloth dampened with warm water and mild detergent. Rinse with clean water and dry. Never use solvents or abrasives. Check the water level in the humidity tray.
How does defrosting work?
Defrosting is automatic. When the compressor stops, the refrigerated surfaces thaw and water is drained to an evaporation tray at the back, near the compressor. The compressor's heat evaporates the water.
What are the installation precautions?

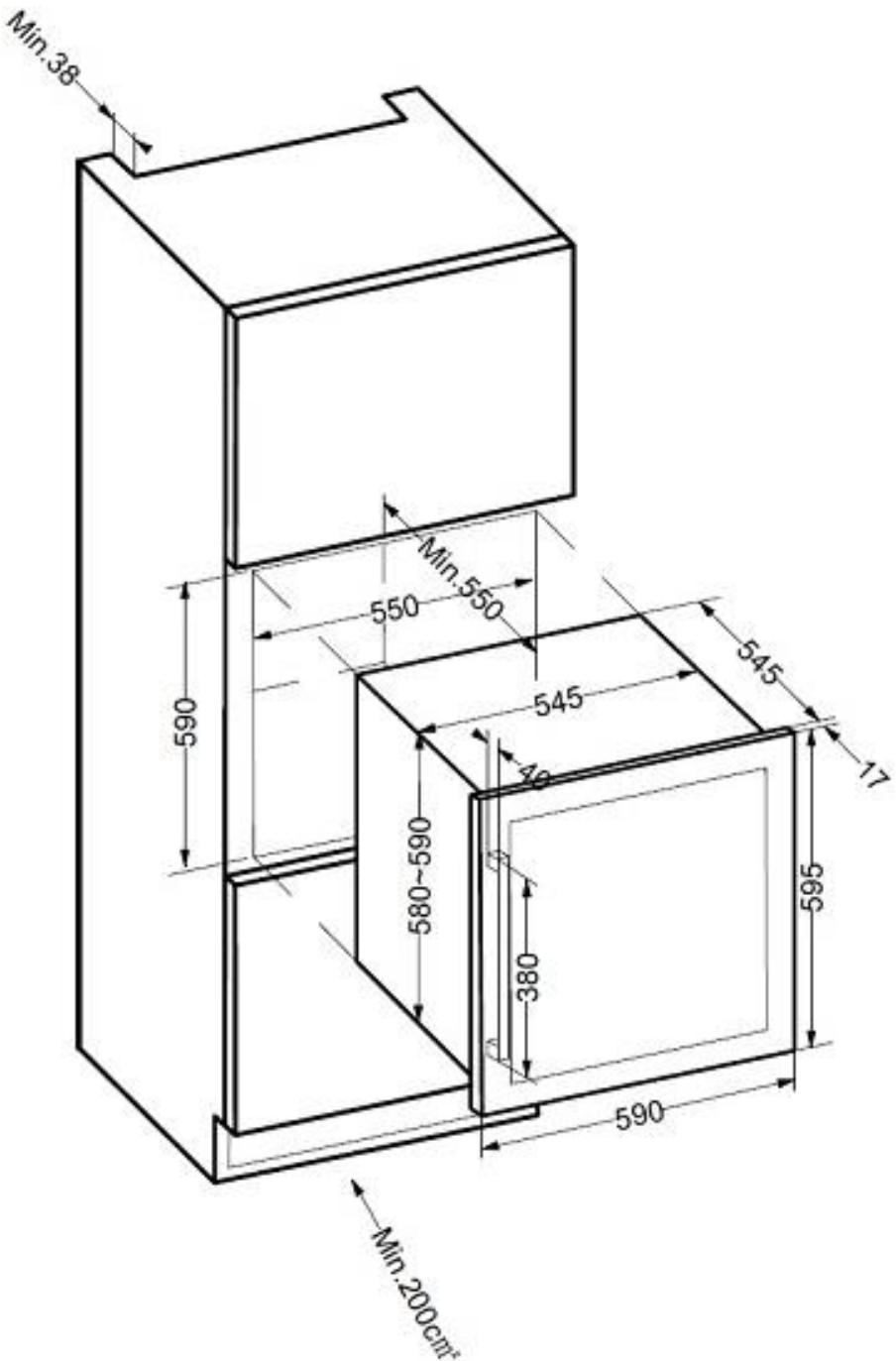

Wait 24 hours before starting up to allow the compressor oil to stabilize. Place the cellar on a flat, sturdy surface. Ensure adequate ventilation (ventilation grilles not blocked). Use a grounded wall outlet. Do not install near a heat source or in direct sunlight.
What is the maximum bottle capacity?

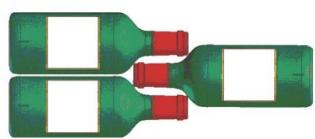

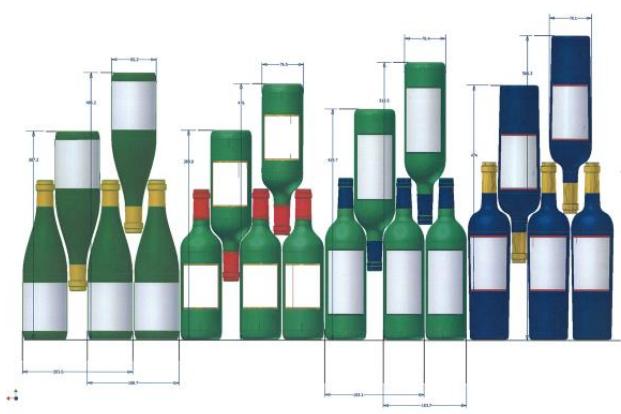

The stated maximum capacity is approximately 30 bottles of 75 cl traditional Bordeaux type, according to EN62552. In reality, the number may vary depending on bottle sizes and shelf arrangement. Do not overload to avoid damaging the door and shelves.
Where to find spare parts?
Spare parts are available through the website www.interfroidservices.fr or by mail to FRIO - Interfroid Services, 143 Bd Pierre Lefauchex, 72230 ARNAGE (France). Aesthetic and functional parts are guaranteed available for 7 to 10 years according to EU regulation.
How to save energy with this cellar?
Place the cellar in a cool, ventilated area away from heat sources and direct sunlight. Open the door as infrequently as possible. Set the temperature to 12°C for a good conservation/consumption compromise. Periodically clean the condenser.
What to do in case of a breakdown?
First check that the plug is connected and the fuse has not blown. If the cellar does not cool, check the set temperature and door closure. Consult the troubleshooting table in the manual. If the problem persists, contact the after-sales service of your retailer.
