Product Type	Compact digital camera, fully automatic with built-in zoom
Dimensions (W x H x D)	119 x 89 x 97.5 mm
Weight	539 g (without battery and memory card), 567 g (with battery and memory card)
Power Supply	Rechargeable lithium-ion battery LB-060, AC adapter 100-240 V
Image Sensor	1/2.3-inch CMOS, 16 effective megapixels
Lens	52x optical zoom (24-1248 mm equivalent 35 mm), aperture F2.8-F5.6, 4x digital zoom (total 208x)
Screen and Viewfinder	3.0-inch LCD screen (460,000 dots), electronic viewfinder (200,000 dots)
Shooting Modes	Auto, Program AE, Aperture/Shutter Priority, Manual, Scene (11 modes), Movie, Face Enhancer, Handheld Night, Custom Settings, HDR
Built-in Flash	Modes: forced off, auto, forced, slow sync, red-eye reduction; range 0.5-7.5 m (wide) / 1.2-3.7 m (tele)
Storage	Internal memory ~15.4 MB, SD/SDHC card (up to 2 GB tested), Eye-Fi compatible
Connectivity	USB 2.0, AV output (NTSC/PAL), HDMI type D
Shutter Speed	1/2000 s to 4 s (max. 30 s in manual mode)
ISO Sensitivity	Auto, 100-3200
Video Recording	HD 1920x1080 (30 fps), HD 1280x720 (60/30 fps), DVD 640x480 (30/120 fps); max duration 25 min per clip (except 120 fps: 30 s)
Maintenance and Cleaning	Dust off the lens with a brush; do not use solvents; store in a ventilated place, away from moisture and shocks
Safety	Do not disassemble the device; use only the supplied adapter and battery; avoid contact with water or sand; remove the battery if smoke or suspicious odor occurs
Spare Parts and Repairability	12-month warranty; repairs only by an authorized center; specific battery and AC adapter (LB-060, GAC-03)
General Information	Brand: Pentax; Model: X6-1; Included accessories: battery, adapter, USB cable, strap, lens cap, manual on CD, quick guide

Frequently Asked Questions - X6-1 PENTAX

How to charge the battery of the Pentax X6-1?

Turn off the camera, insert the battery, connect the AC adapter via the USB cable, then plug into a wall outlet. The red indicator blinks during charging and turns off when complete. Full charging takes about 360 minutes.

What type of memory card to use?

Use an SD or SDHC memory card (Class 4 or higher for HD videos). The camera also has about 15.4 MB of internal memory.

How to activate image stabilization (OIS)?

In photo mode, press the Menu button, select the photo tab, then the OIS option. Choose Enable to reduce motion blur.

What to do if the LCD screen turns black?

The screen may turn off in electronic viewfinder (EVF) mode. Press the EVF button to switch between the LCD screen and the viewfinder. If the problem persists, check the power saving settings.

How to take a photo in burst mode?

Press the Burst button, then select the desired mode: Burst (9 fps), High Speed (60 fps in VGA), or Fast (30 fps in 4M). Press the shutter button fully to start the burst.

Why are my photos blurry?

This may be due to camera shake or a moving subject. Enable OIS, use a tripod for high zoom, or increase shutter speed in Shutter Priority mode.

How to delete photos?

In playback mode, use the left/right keys to select a photo, then press the Down button (Delete). Choose Delete One to confirm. You can also delete all photos via the Delete menu.

What does the message 'Lens obstruction' mean?

The lens is blocked or a foreign object prevents its operation. Turn off the camera, remove the battery, then restart. If the problem persists, contact an authorized repair center.

How to set the date and time?

Turn on the camera, press Menu, go to Setup (key icon), select Date/Time, then use the keys to adjust YYYY:MM:DD HH:mm. Confirm with OK.

Can I use a non-supplied AC adapter?

No, use only the specific AC adapter (GAC-03) provided. Using an incompatible adapter may cause fire or electric shock.

USER MANUAL X6-1 PENTAX

Batterie lithium-ion rechargeable LB-060

Mode: AUTO TV AvM SCN

• Désactive
  1 sec
  2 sec
  3 sec

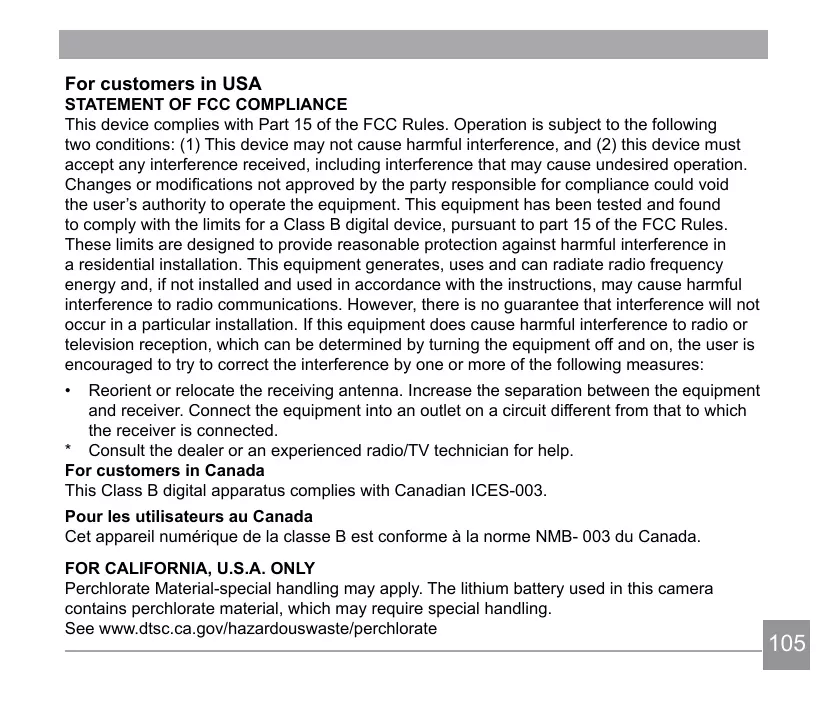

For customers in USA STATEMENT OF FCC COMPLIANCE

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

For customers in Canada

This Class B digital apparatus complies with Canadian ICES-003.

Perchlorate Material-special handling may apply. The lithium battery used in this camera contains perchlorate material, which may require special handling.

See www.dtsc.ca.gov/hazardouswaste/perchlorate

Declaration of Conformity

According to 47CFR, Parts 2 and 15 for

Class B Personal Computers and Peripherals

We: RICOH IMAGING AMERICAS CORPORATION

Located at: 633 17 Street, Suite 2600, Denver, Colorado 80202, U.S.A.

Phone: [phone] Fax: [phone]

Declare under sole responsibility that the product identified herein complies with 47CFR Parts 2 and 15 of the FCC rules as a Class B digital device. Each product marketed is identical to the representative unit tested and found to be compliant with the standards. Records maintained continue to reflect the equipment being produced can be expected to be within the variation accepted, due to quantity production and testing on the statistical basis as required by 47CFR §2.909. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. The above named party is responsible for ensuring that the equipment complies with the standards of 47CFR §15.101 to §15.109.

Product Name: Digital Camera

Model Number: PENTAX XG-1

Contact person: Customer Service Manager

Date and Place: August, 2014, Colorado
