Product Type	Bluetooth Car Stereo (Digital Media Receiver)
Brand	ALPINE
Model	UTE 72BT / UTE-72BT
Dimensions (front panel)	Width 170 mm, Height 46 mm, Depth 25 mm
Dimensions (chassis)	Height 50 mm, Depth 161 mm
Power Supply	14.4 V DC (11-16 V allowed), negative ground 12 V
Maximum Output Power	50 W × 4
Pre-amp Output Voltage	2 V / 10 kΩ max
Bluetooth	Version 3.0, profiles HFP, HSP, A2DP, AVRCP
FM Radio	Range 87.5-108.0 MHz, RDS, AF, TA, PTY
MW/LW Radio	MW and LW with sensitivity 31.6 μV/30 dB
USB Player	USB 1.1/2.0, 1000 mA max, FAT 12/16/32, MP3/WMA/AAC files
Front AUX Input	3.5 mm mini-jack
Equalizer	10 presets (FACTORY EQ), 3-band parametric (3BAND EQ)
Filters	Adjustable high-pass (HPF) and low-pass (SUBW LPF)
Subwoofer	Enable/disable, level +0 to +15, adjustable phase
Front Panel	Detachable for security
Display	Scrolling text, radio text, CD text, ID3 tags
Maintenance and Cleaning	Soft dry cloth, avoid solvents
Safety	Use only on 12 V negative ground vehicles, 10 A fuse, do not block ventilation
Operating Temperature	+60°C to -10°C
Weight	Approx. 1.0 kg (main unit)
Spare Parts and Repairability	Contact an authorized Alpine dealer for repair; parts: power cable, microphone, USB cable, mounting sleeve, support keys

Frequently Asked Questions - UTE 72BT, UTE-72BT ALPINE

How to connect my phone via Bluetooth?

Enable Bluetooth on your phone, then select the device 'Alpine Digital Media Receiver' on your phone. Enter the PIN code '0000' if prompted. On the car stereo, turn the rotary knob to confirm pairing with 'PAIR YES'.

Can I listen to the radio without an antenna?

No, an FM/MW/LW antenna is required. Connect it to the antenna socket on the back of the unit.

How to adjust the subwoofer volume?

Press AUDIO/SETUP repeatedly until 'SUBWOOFER' is displayed. Turn the rotary knob to adjust the level from +0 to +15. Make sure the subwoofer is enabled in the AUDIO SETUP menu (SUBWOOFER ON).

Why does the display show 'ERROR' when inserting a CD?

This may be due to a dirty, scratched, or upside-down disc. Ensure the printed side is facing up. If the error persists, clean the disc or try another one. An irregularly shaped disc or an unfinalized CD-R can also cause this error.

How to store a radio station?

Tune to the desired station, then press and hold one of the preset buttons (1 to 6) for at least 2 seconds. The station is stored on that button. You can store up to 6 stations per band (FM1, FM2, FM3, MW, LW).

The sound is low on Bluetooth, what to do?

Check the volume of your phone and the car stereo. In the SETUP > BLUETOOTH menu, adjust 'VOL LV ADJ' to increase the level of the BT AUDIO source (from -14 dB to +14 dB).

How to connect a USB flash drive?

Open the USB port cover on the front (UTE-72BT model) and insert the USB flash drive directly or via an extension cable. The car stereo automatically switches to USB AUDIO mode. To remove the drive, first switch to another source.

Can I use an iPod/iPhone with this car stereo?

Yes, connect your iPod/iPhone via the front USB port using an iPod interface cable (not included). The car stereo supports playback, alphabetical search, and charging of the device.

How to reset the unit?

Turn off the unit, remove the front panel, then press the 'RESET' button with a ballpoint pen or a pointed object. This restores factory settings.

Why does the hands-free microphone not pick up my voice well?

Ensure the microphone is installed near the driver, without obstruction. In the SETUP > BLUETOOTH menu, adjust 'MIC GAIN' to increase sensitivity. Avoid placing the microphone facing air vents.

USER MANUAL UTE 72BT, UTE-72BT ALPINE

DIGITAL MEDIA RECEIVER WITH ADVANCED BLUETOOTH UTE-72BT

Made for

iPod iPhone

Works with NOKIA

Bluetooth

• OWNER'S MANUAL

Please read before using this equipment.

BEDIENUNGSANLEITUNG

777 Supertest Road, Toronto,

Ontario M3J 2M9, Canada

Phone 1-800-ALPINE-1 (1-800-257-4631)

ALPINE ELECTRONICS OF AUSTRALIA PTY. LTD.

161-165 Princes Highway, Hallam

Victoria 3803, Australia

Phone [phone]

ALPINE ELECTRONICS GmbH

Wilhelm-Wagenfeld-Str. 1-3, 80807 München, Germany

Phone [phone]

ALPINE ELECTRONICS OF U.K. LTD.

Alpine House

Fletchamstead Highway, Coventry CV4 9TW, U.K.

Phone [phone]

ALPINE ELECTRONICS FRANCE S.A.R.L.

(RCS PONTOISE B 338 101 280)

98, Rue de la Belle Etoile, Z.l. Paris Nord II

B.P. 50016, 95945 Roissy Charles de Gaulle

Cedex, France

Phone [phone]

CD (CDE-174BT/CDE-173BT

uniquement) 35

MP3/WMA/AAC 36

Audio 36

iPod 36

Indications relatives au mode CD (CDE-174BT/CDE-173BT uniquement) ......... 36

Installation et raccordements

AVERTISSEMENT 39

ATTENTION 39

PRECAUTIONS 39

Installation 40

Retrait 40

CD/CMPM/USB/iPod/BT AUDIO/AUX

Commanded extinction progressive

HU MODE (HEAD UNIT):

Impossible de receivevoir les stations.

Specification BLUETOOTH

Puisance de sortie

Profil

LENTILLE

Poids 1,194 kg (2 lbs. 10 oz)

UTE-72BT:

Poids 0,854kg (1lbs. 14 oz)

DIMENSIONS DU CHASSIS

Largeur 178mm(7^ )

Installation et raccordements

23 Microphone (fourni)

About the Rules of Bluetooth Electromagnetic Radiation Regulation

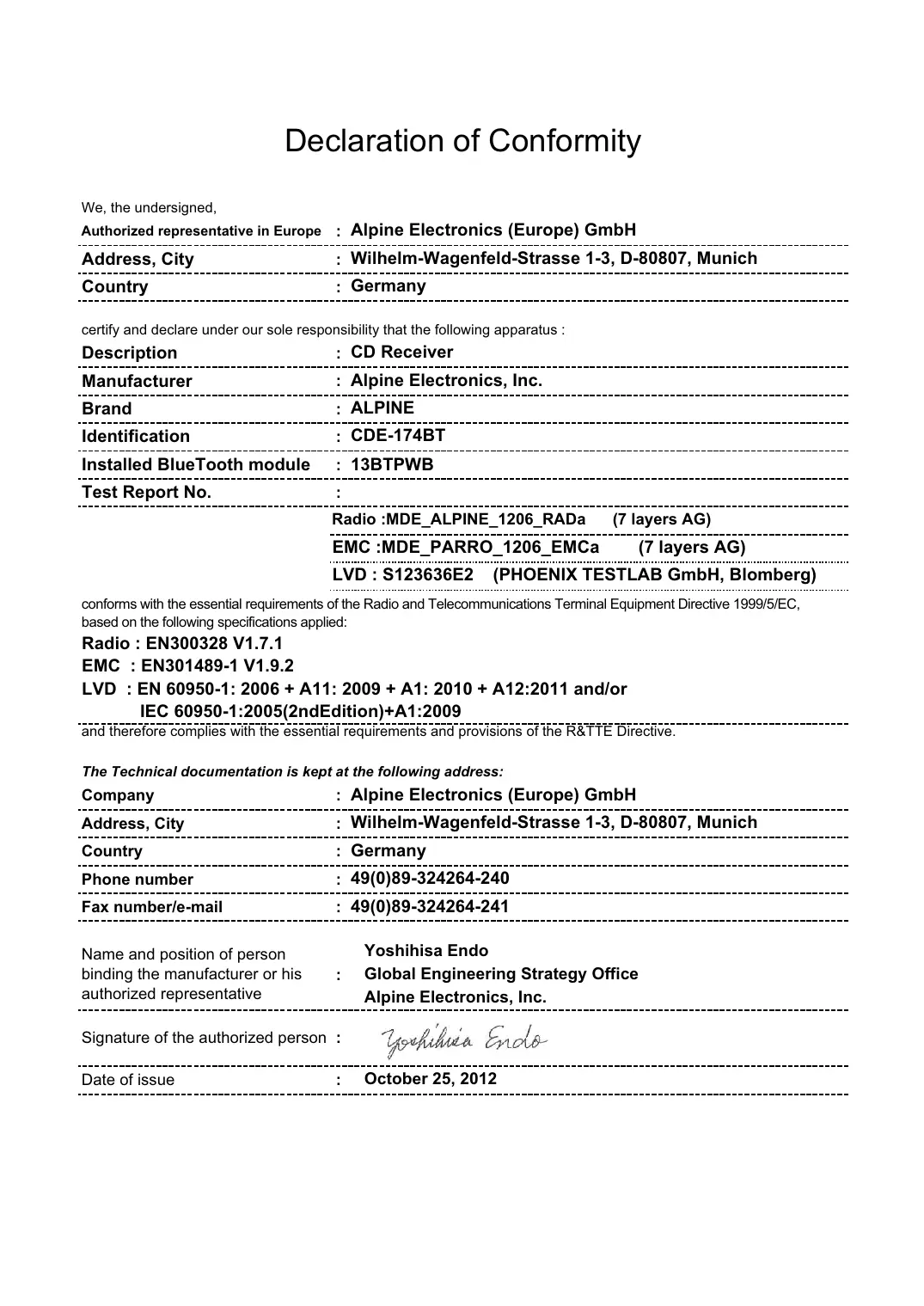

Declaration of Conformity
