USER MANUAL RF318BSFO TCL

Two-Door Household Refrigerator Operating Instructions

RF318BSF0

Contents

EN

Thank you for buying TCL refrigerator. We hereby express our thanks. Welcome to use TCL refrigerator. We will do our best to provide you with quality service.

Safety instructions P2

Product introduction P5

Handling and placement P6

Preparations prior to use P7

Operation notes P8

Illustration and operation of display panel P8

Food storage P9

Ice-making P9

Disassembly and assembly method of accessory P10

Maintenance P10

Failure analysis P11

Non-failure P11

Technical parameter P12

Packing list P12

Safe recovery instructions P13

Description of climate types P13

1. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
   2.If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
2. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
3. WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
4. WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
5. WARNING: Do not damage the refrigerant circuit.
6. WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
7. Do not store explosive substances such as aerosol cans with a flammable propellant in thisappliance.
8. This appliance is intended to be used in household and similar applications such as
   Staff kitchen areas in shops, offices and other working environments;
   — Farm houses and by clients in hotels, motels and other residential type environments;
   Bed and breakfast type environments;
9. Catering and similar non-retail applications.
10. This product contains a light source of energy efficiency class F for light source ERP, test with(without) light cover.

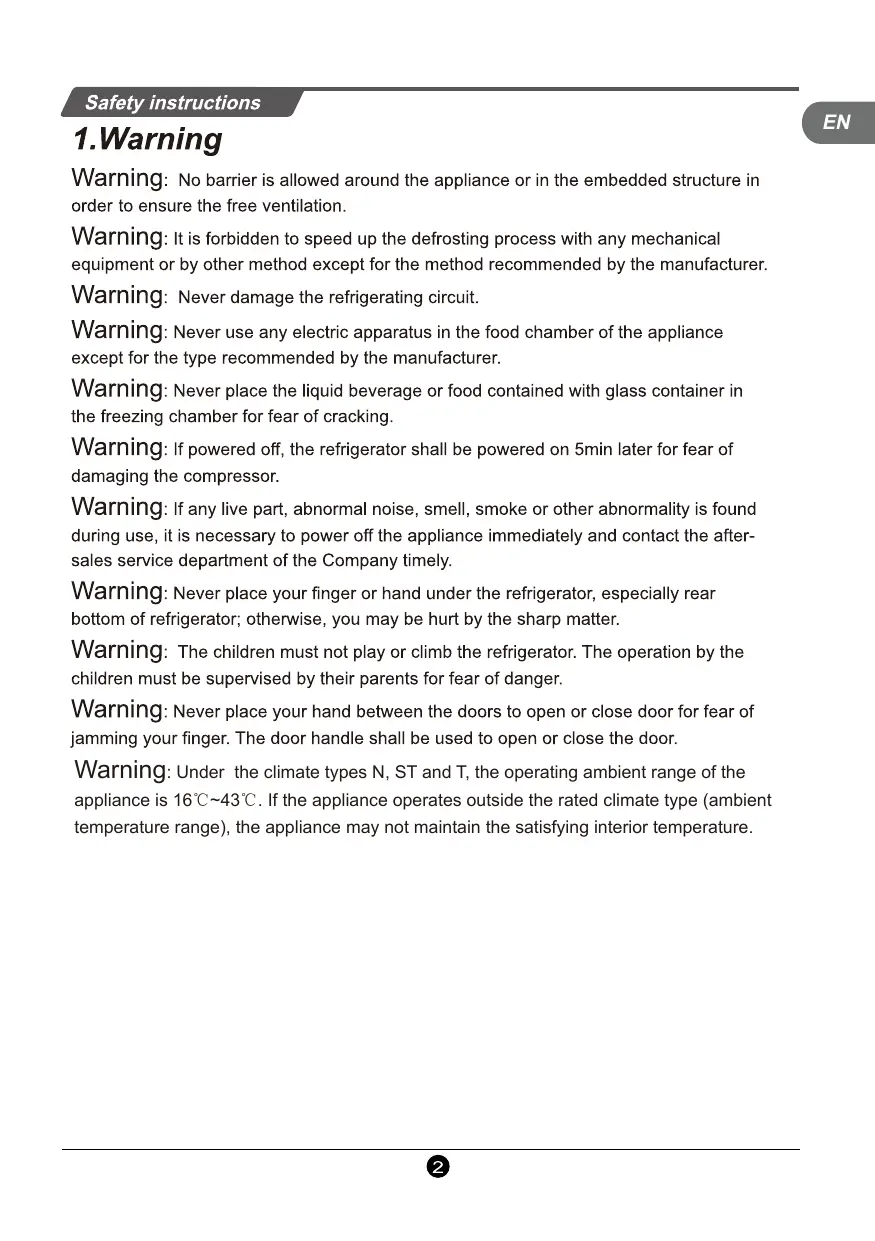

1. Warning

Warning: No barrier is allowed around the appliance or in the embedded structure in order to ensure the free ventilation.

Warning: It is forbidden to speed up the defrosting process with any mechanical equipment or by other method except for the method recommended by the manufacturer.

Warning: Never damage the refrigerating circuit.

Warning: Never use any electric apparatus in the food chamber of the appliance except for the type recommended by the manufacturer.

Warning: Never place the liquid beverage or food contained with glass container in the freezing chamber for fear of cracking.

Warning: If powered off, the refrigerator shall be powered on 5min later for fear of damaging the compressor.

Warning: If any live part, abnormal noise, smell, smoke or other abnormality is found during use, it is necessary to power off the appliance immediately and contact the after-sales service department of the Company timely.

Warning: Never place your finger or hand under the refrigerator, especially rear bottom of refrigerator; otherwise, you may be hurt by the sharp matter.

Warning: The children must not play or climb the refrigerator. The operation by the children must be supervised by their parents for fear of danger.

Warning: Never place your hand between the doors to open or close door for fear of jamming your finger. The door handle shall be used to open or close the door.

Warning: Under the climate types N, ST and T, the operating ambient range of the appliance is 16^ 43^ . If the appliance operates outside the rated climate type (ambient temperature range), the appliance may not maintain the satisfying interior temperature.

Warning: Risk of fire / flammable materials

Warning: When positioning the appliance, ensure the supply cord is not trapped or damaged.

Warning: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.

Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances

Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.

Clean regularly surfaces that can come in contact with food and accessible drainage systems.

Clean water tanks if they have not been used for 48h ; flush the water system connected to a water supply if water has not been drawn for 5 days.

Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.

Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making ice-cream and making ice cubes.

One-, two- and three-star compartments are not suitable for the freezing of fresh food. If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

2. Cautions

Cautions: The power supply of this product must be uniform with the power supply mentioned on the nameplate, and the standard independent 3-hole socket shall be used (above 10A, and reliably grounded). One socket must not be shared by more than one appliance; otherwise, fire may be caused due to overheat.

Cautions: Never pull the power wire by hand. It is necessary to hold and unplug the power connector from the socket to disconnect the power supply. The power wire or connector must not be touched by the wet hand for fear of electric shock.

Cautions: The power wire must not be squeezed by the refrigerator or any heavy load, and the power wire shall not be bent extremely. The damage or peeling of power wire may result in fire or electric shock. If the power wire is broken or cut, please contact the after-sales service department immediately.

Cautions: No flammable or explosive matter or corrosive acid or alkaline matter is allowed in the refrigerator.

Cautions: The refrigerator must not be used in the rain or under the sunshine.

Cautions: It is forbidden to place the container with fluid on the refrigerator because the breakage or turnover of the container may affect the electrical insulation of refrigerator and result in electric shock or fire.

Cautions: The refrigerator must not be disassembled or modified without permission. The repair of refrigerator must be performed by the specialist.

Cautions: In case of leakage of any flammable gas such as coal gas, it is necessary to close the leaking valve first and then open the window for ventilation, and forbidden to unplug the refrigerator connector immediately for fear of fire or explosion due to electric spark.

Cautions: Refrigerating appliances – in particular a refrigerator-freezer Type I – might not operate consistently (possibility of defrosting of contents or temperature becoming too warm in the frozen food compartment) when sited for an extended period of time below the cold end of the range of temperatures for which the refrigerating appliance is designed;

Cautions: The fact that effervescent drinks should not be stored in food freezer compartments or cabinets or in low-temperature compartments or cabinets, and that some products such as water ices should not be consumed too cold.

Cautions: The need to not exceed the storage time(s) recommended by the food manufacturers for any kind of food.

Cautions: The precautions necessary to prevent an undue rise in the temperature of the frozen food while defrosting the refrigerating appliance, such as wrapping the frozen food in several layers of newspaper.

Cautions: The fact that a rise in temperature of the frozen food during manual defrosting, maintenance or cleaning could shorten the storage life.

Cautions: The care required with regard to frozen food in storage in the event of an extended non-running of the refrigerating appliance (interruption of power supply or failure of the refrigerating system).

Cautions: The action to be taken when the refrigerating appliance is switched off and taken out of service temporarily or for an extended period (e.g. emptied, cleaned and dried, and the door(s) or lid(s) propped ajar).

EN

The pictures are for reference only. Please refer to the object

Features

--Computer intelligent temperature control; air cooling and frost free.
--Environmental-friendly refrigerant,It applies materials without CFC, R600a environmentalfriendly materials. 80% of the main materials can be recycled;
--Transparent drawers with novel appearances and their internal foods can be clear at a glance;
--The tempered glass refrigeration shelves are height adjustable, wear proof, heat-proof and practical;
--The concealed condenser applies flat back design. It has perfect and coordinated style which is simple, easy to clean and high utility rate of space;
--This product adopts the efficient mute compressor of international brand and special case foaming technology, and features low noise, low energy consumption, and is more suitable for family and commercial purposes.

Warm prompt:

If your product is improved product, it may not be totally same as that in the instructions. But it will not change the performance and method of application. Please feel relieved about usage.

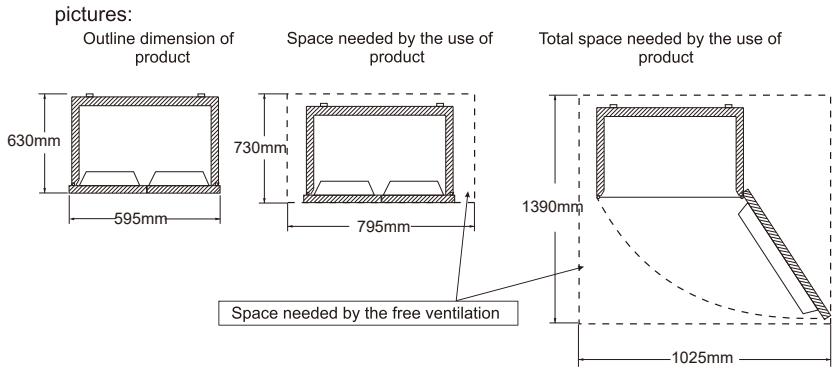

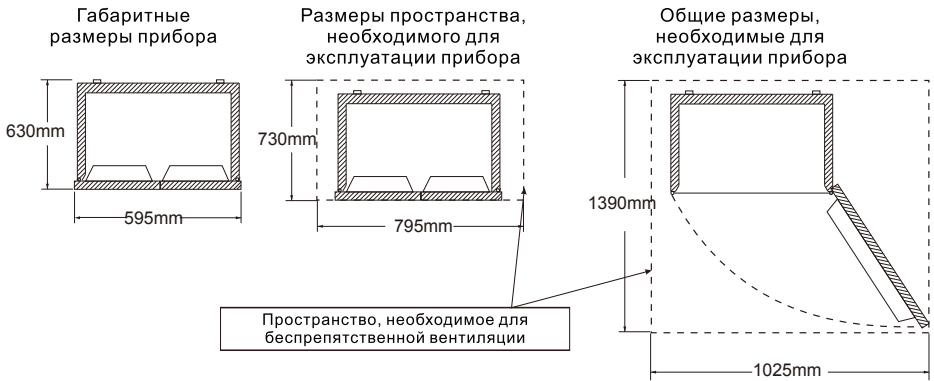

Certain space shall be left around the refrigerator, shown in the figure.

During handling, the door side of the refrigerator shall not contact with the handling tools

The refrigerator shall be placed in an environment which is dry, has good ventilation, far from direct sunshine and heat source.

The refrigerator shall be placed on the flat and firm surface. If the ground is not flat, adjust the adjusting leg to keep it level.

Never place the refrigerator into a too cold environment that may get frozen.

Removing the foam base is beneficial for bottom heat dissipation and can avoid fire.

Warm prompt:

--When handling the refrigerator, at least two persons are required - one lifts the top of rear part, the other one handles the bottom (if one part is clamped, it is quite dangerous and may cause accident).
--When moving the refrigerator, the lower runner may damage and scratch the floor. If you need to move the refrigerator for a long distance, the internal accessories shall be fixed using adhesive tape. Otherwise, the accessories may get damaged due to crashing each other.
--Please place the refrigerator in the position with small vibration or little exposed to vibration. For users in the area where earthquake often occurs, please fix the refrigerator against the wall or pole. Otherwise, the falling of refrigerator will cause accident.
--Sufficient clearance shall be left around. If the clearance is too small or place goods on the top or close to the side, or paste on the sides, the heat dissipation of refrigerator will be affected, and thus to cause unnecessary electric energy waste as well as burn out of the wall and other goods; the contact between the back and wall will cause vibration and noise;
--Adjust the front part and adjusting leg of the refrigerator to level it. Unlevel of the refrigerator will cause vibration and noise.

This refrigerating appliance is not intended to be used as a built-in appliance. The outline dimension of the product and the space needed by the use of product are shown in the following.

Preparations prior to use

1. Remove all packing assemblies such as case fixing tape etc., especially the foam base.
2. Use warm wet cloth to clean both interior and exterior of the refrigerator, (neutral detergent can be added in warm water).
3. After leveling and cleaning the refrigerator, stand it for about 5 hours before plugging the power plug for powering on, and cool the refrigerator for 2 to 3 hours before storing foods.

The appliance should be located in the coolest area of the room, away from heat producing appliances or heating ducts, and out of the direct sunlight.

Let hot foods cool to room temperature before placing in the appliance. Overloading the appliance forces the compressor to run longer. Foods that freeze too slowly may lose quality, or spoil.

Be sure to wrap foods properly, and wipe containers dry before placing them in the appliance. This cuts down on frost build-up inside the appliance.

Appliance storage bin should not be lined with aluminum foil, wax paper, or paper toweling. Liners interfere with cold air circulation, making the appliance less efficient.

Organize and label food to reduce door openings and extended searches. Remove as many items as needed at one time, and close the door as soon as possible.

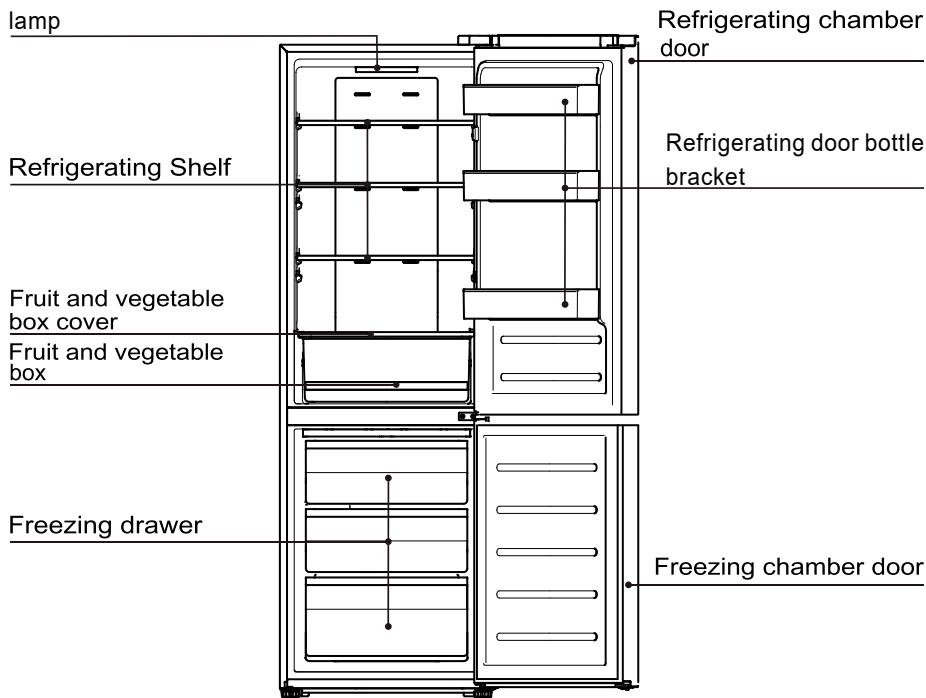

Please refer to the product introduction picture on page 5 for the placement of accessories.

ELECTRONIC CONTROL

The above is the computer control board of the product

Power on for the first time

The first time the power is turned on, the refrigerator runs under 5^ .

Gear adjustment

Repeatedly pressing the "" key, the refrigerator position will cycle between "02" "04" "05" "06" "08" "02", select the appropriate position to stop the operation and Wait for 5 seconds and the gear is confirmed.

Power-off memory

When the power is cut off, the instantaneous state of the power cut is locked. After the incoming call, it still works according to the settings before the power cut.

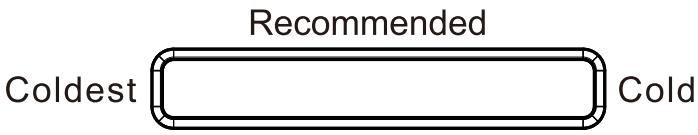

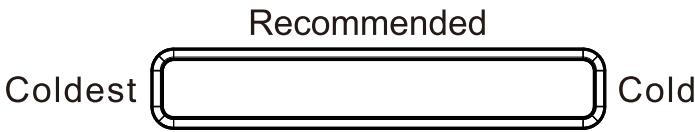

Damper adjustment paddle

damper adjustment dial adjustment principle behind the refrigerating drawer: Usually we recommend using it in the mid-range.

When the temperature in the box varies with the opening and closing of the refrigerator, the ambient temperature, and the place where it is placed, etc.

Refrigerator temperature adjustment

When the damper adjustment blade is adjusted to the "cold" side, the amount of cold air blowing to the refrigerating compartment can be increased to achieve a better refrigerating compartment cooling effect.

Freezer temperature adjustment

When the damper blade adjustment is adjusted to the "coldest" side, the amount of air blowing to the refrigerating compartment is reduced, which will extend the compressor operating time and enhance the refrigeration effect of the freezing compartment.

Foods storage

Refrigerating chamber (2^ 8^)

--The refrigerating chamber is mainly used for storing short-term foods, like milk, eggs and bottled drink.
--Vegetables, melons and fruits shall be put into the fruit and vegetable box to prevent water loss.
--The cooked foods shall be put into the refrigerator after packaging with the preservative bags, to prevent the back from frosting and the power from increasing.

Freezing chamber (-24^ -15^)

--The freezing chamber is used for the foods to be stored for long-term.
--Fish and meat to be frozen shall be cut into small pieces, packaged with preservative bags separately and then put into the frozen drawer.
--The glass container or the sealed container filled with liquid shall not be stored in the freezing chamber, to prevent the risk of burst due to freezing.
--The fresh foods shall not be stored together with the frozen foods.
--Do not place food close to inside wall in freezer lest food and wall should be frozen together.

Warm tips:

The stored food, if any, shall not block the air duct outlet and return port for fear of affecting the refrigerating effect.

Before being stored in the refrigerator, the overheated water and food shall be cooled to the room temperature.

Ice-making (If the appliance has it)

Fill the ice-making box with 4/5 water and put the box into the freezing chamber. After the water in the box turns into ice, twist the box slightly to separate the ice from the box. However, don't bend the box. When separating the ice, wrap the box with dry box to avoid finger frostbite.

Operation notes

Disassembly and assembly method of accessory

--Glass shelf in the refrigerating chamber: the height of the shelf is adjustable, which facilitates the storage of articles with different volumes. Pull the shelf outwardly and upwardly in a slight way to take out.
--Fruit and vegetable box: for storing vegetables and fruits. It can be taken out by pulling outwardly.
--Drawer in the freezing chamber: storing foods to be preserved for long-term, such as meat and fish. It can be taken out by pulling outwardly and lifting upwardly.

Kindly tips: It is recommended to put into the large piece of meat after being cut into small pieces, to avoid difficult cutting after being frozen. The quick-freezing foods shall be distributed uniformly and stored together after being frozen.

--Bottle pedestal at the refrigerating door: storing eggs, various bottled drinks and other sundries. It can be taken out by being lifted up slightly.

Note: Don't pull out the bottle pedestal at the refrigerating door forcibly during disassembly, to avoid damaging the refrigerator.

Changing the Light

Any replacement or maintenance of the LED lamps is intended to be made by the manufacturer, its service agent or similar qualified person.

Take out by pulling upwardly and outwardly in a slight way
Take out by pulling outwardly and upwardly in a slight way

Maintenance

It is suggested to maintain the refrigerator once per month;

--Unplug the power plug to prevent from electric shock;
--Use wet cloth or neutral detergent (cleanser essence) to wipe off the oil contamination and other dirt. Then completely wipe off the detergent.
--Do not use alkaline detergent, soap powder, gasoline and alcohol, talcum powder etc.; otherwise the coats or plastics may be damaged;
- Regularly clean the refrigerator body and clear the ground dusts to keep the refrigerator clean.

Inspections after maintenance:

1. Whether there are damages to the power line and plug; 2.

Whether there are dusts on the power plug; 3. Whether there is abnormal heat on the plug; 4. Whether the socket is loose; 5.

Whether the plug is totally inserted.

Note:

If the power line and plug is damaged and there exist dusts, electric shock or fire may occur;

After unplugging the plug, 5 minutes must pass before re-plugging it;

Do not put your hands under the refrigerator to avoid getting hurt.

Unplug the refrigerator plug before cleaning

Please use neutral detergent

The following items shall be inspected before occurring failures which require maintenance:

Failures: Refrigerator does not work, The refrigeration effect is poor

Causes:1. Check the connection of power supply. 2. Check whether the refrigerator is exposed to direct sunlight or whether there is heat source nearby. 3. Check whether there is heat dissipation space around refrigerator.

Remedies:1. Connect the power supply. 2. Move the refrigerator to a place without direct sunlight and heat source. 3. Leave sufficient space between refrigerator and wall.

Failures:Foods in refrigerating chamber are frozen

Causes:1. Check whether the setting temperature is too low. 2. Check whether foods with too much water are too close to the rear wall.

Remedies:1. Adequately increase the temperature. 2. Move the foods with too much water to the door side of glass shelf

Failures:There is abnormal sound in refrigerator

Causes:1. Check whether the bottom of refrigerator is stable. 2. Check whether the refrigerator is too close to the wall. 3. Check whether the refrigerator touches other objects.

Remedies:1. Adjust the bottom adjusting leg to stabilize the refrigerator. 2. Leave sufficient space around refrigerator. 3. Remove the obstacles.

Failures:There is abnormal odor in refrigerator

Causes:1. Check whether the foods are sealed for storage. 2. Check whether the refrigerator is clean. 3. Check whether the foods are stored for too long time.

Remedies:1. Sealed foods for storage. 2. Regularly clean the refrigerator. 3.Do not store foods for too long time.

Non-failures

Phenomenon:Fever or hot on two sides and spacing part surface between refrigerating chamber and freezing chamber.

Cause: Refrigerator pipes (condenser, anti-fog pipes) are on two sides and front part of refrigerator for heat dissipation and to prevent from condensation.

Phenomenon:The door is too tight and not easy to open

Cause: Reopening of the door immediately after closing it is hard because hot air enters the refrigerator and contracts to produce pressure difference. It is easy to open the door after a while.

Phenomenon:There is water ripple in refrigerator

Cause: When starting or stopping the compressor, the refrigerant will make such sound; Water produced after defrosting will also make such sound.

Phenomenon:There is "Click" sound or tick sound in refrigerator

Cause:Shrinkage and swelling of case will make such sound;When the case is cold or the door is opened, this sound will occur; Phenomenon:There is hum sound in refrigerator

Cause: Running of compressor will make such sound (if the refrigerator is not leveled, this sound will be louder)

Phenomenon:There is condensation or frosting freezing chamber door surface or food surface

Cause: Temperature or humidity around the refrigerator is high; The door is opened for too long time; The foods with too much water are not sealed or tightly wrapped

Phenomenon:There is condensation on the built-in light surface

Cause: Light will produce heat after being lit, and the door is opened for too long time. So there is temperature difference, and thus the light case will have condensation.

Phenomenon:There is condensation and water mist on body

Cause: Humidity around refrigerator is high, and the moisture in the air will gather in the case to form condensation

Model	RF318BSF0
Climate type	N/ST/T
Electric shock resistance	I
Star sign	X C++
Total Volume	318L
Fresh food compartment	219L
Volume of Freezer	99L
Power type	220-240V~750Hz
Rated current	0.8A
Power consumption	309kW·h/y
Lamp power	2W
Weight	60kg
Dimension	595x630x1850mm
Refrigerant and charge amount	R600a,52g
Noise Volume	40dB (A)
Energy consumption E16	0.562 kWh/24h
Energy consumption E32	1.131kWh/24h

Packing list

Annex\Model	RF318BSF0
Refrigerating shelf	3
Fruit and vegetable box cover	1
Fruit and vegetable box	1
Ice-making box	1
Egg box	1
Refrigerating door bottle bracket	3
Freezing drawer	3
Operating instruction	1

Disposal

Old appliances still have some surplus value. An environmentally friendly approach will ensure that valuable raw materials are recycled.

The refrigerants used in your equipment and insulation materials require special handling procedures. Make sure there is no pipe damage on the back of the equipment before handling. Up-to-date information on the options for disposing of old equipment and packaging from old equipment can be obtained from the local municipal office.

Correct Disposal of this product.

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and ollection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

Description of climate types

Table 1 Climate classes

Class	Symbol	Ambient temperature ranges°C
Extended temperate	SN	+ 10 to + 32
Temperate	N	+ 16 to + 32
Subtropical	ST	+ 16 to + 38
Tropical	T	+ 16 to + 43

Extended temperate: 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 10^ to 32^ ;

temperate: 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16^ to 32^ ';

Subtropical: 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16^ C to 38^ C';

Tropical: 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16^ C to 43^ C';

Dear customer

if you need customer service, please check warranty card for further information.

FR

TCL

The Creative Life

XpaHHeI npOyKToB nHTaHn

P9

P360ka ncbopka BnytpenHHx 3JeMeHTOB P10

Uxo3a o6opudobAHnem P10

YcTpaHHe HnOJaDok P11

He yBnEeTcH enoJaKoI P11

Cneunphiacn P12

Komnnektacna P12

Komanda 6e3oNaCHO BOCCTaHOBnEHH P13

Oncanhe Tnpa KImata P13

1. 3TOT npi6bop He npedha3nueH dIJI nCnOlb3OBaHnI liuamn (BkIIOyA deTei) 6e3 DOCTAOUHOrO OnbIa I 3HaHnI IIN C ORPAHnEHHbIMn F3N3UeCKHM, CcHcOPbIMn IINI yMCTBeHHbIMn CnOC6bOCTaMn, 3a NcKlNoHcHemE TcxNyuaeB, KOrDa OHnCnOlb3YIO T3OT npi6bOp ND KOHTPOM E NII, OTBeTCTBEHHbIX 3a INx 6e3oNaChOCTb. He nO3BOJnTteJeTAMIrpaTb C 3TtMnpi6bOpm INoJIb3OBaTBcR IM 6e3 npICMOTpa CO tOPOHb B3PoCbIx!
2. Ecnn shyp 3nektpoNTaHnI NOBpexDeH, erO cneJyET 3aMeHNt b, HO B cIeJX 6e3OnaCHOCTN deNaTb 3TO pa3peWaeTcra TOnbKO pOnu3BODntEnIO, cnyK6pe pmoHTa NIN INHbIM IInzam, ObnadaOpunm Heo6xoDmOu KBAInΦkaUeN 3HaHnA M.
   3.ДeТЯн He mIaJaWe 8 leT n IInuam C orgaHnueHHbIMn ΦиЗИчecKIMn, ceHCOPhIMn IIN yMCTBeHbIMn CnOCO6HOCTaMn IIN C OTCyTcTBmE ONbTa n 3HaHn pa3pe7aaeTcR NOJIb3OBaTcBcTIm npIbOpom npri ycNoBm, YTO IM O6bIChNII, KAK 3TO DeNATb 6e3OpaCHO, n OHn IOHIMaOT, Yero cTOnI ONacatbcr npri nCpONb3OBaHm npIbOpa.ДeTЯm 3anpe7aetc rIrpTa b cAnHHbIM npIbOpom.DeTЯm 3anpe7aetc npIbOpa B3POcNbIX.
3. BHIMAHNE: He nepekpblaite BeHTnlaZIOHbIe OTBepCTna Ha Kopnyce npnbopa nBHytpn Hero! B cnyae, ecn oHn nepekpbl, HezameJInTeJbHO yctpaHnTe npnuHny nepekpbltn.
4. BHIMAHIE: 3anpeecho nCnoIb3oBaTb mexaHnueckne npncnoc6leHn nnpyrne cpeCTBa dIy yckopeHn npouceca pa3MopaxKuBaHn, 3a nCKIIOyeHem peKOMeHNDoBaHHbIX npOn3BOUnteHm.
5. BHIMAHNE: 3anpeuetaetcnaHpyuatab cenocctnoctb ciCTembln Knyauun XoNoDnIbHor aentHa.
6. BHIMAHIE: 3anpeaetaCnOJIb3OBaTbIIO6bIe 3JIeKTPnuEckne npin6Opbl BHyTpni XoIoJNbHnka, KpOME peKOMeHNoBaHaHbIX npOn3BOiNTeMeM.
7. 3anpeaetcXpaHnTb B3tOM npBope B3pbIBOOnaChbIe BeIecTbA, TAKHe KaK aApO30JIbHbIe 6aIIIOHUnKICOrHeONaChbIM npOenPEnToM.
8. 3TOT np60p npednonaraetc nCnoB3OBaTb B 6bTy u dny aHanoHybIX ueNei, HapnmeR,
   -Bkyxohhbyx yrolkax dIycoTpydHnKOB B mara3nHaX, oOpncax n Ha dpyrnx pa6oynx Mectax.
9. Ha cepmaxиВ homepax roctinu, MoteJIeи npOuyx MeCTax npOxnbHnЯ nOdei;
   -BxocTeJax;
10. Ha 6aHKeTaX i TOMy IIOO6HbIX MePONpNraTnax, He CB83aHHbIX C pO3HNUHOI TOPROBJe.
    10.3TOT pnydk cOepxmtIOCTHMHc BcTe C klaacOM 3Hepeo3ΦeKTHBHOCTN F.ДЯ IctOHTHmka CBETA ERP NO TcETnpyETcC OCBETOB KpbIshKo (6e3).

1. BhimaHne

BhImaHne: He 3aIpOmoJdaIte npocTpaHcTBo BOKpy npnbopa nII uKaΦa, B KOTOpbI OH BCtpoEh, YTObI He HapUshaTb BeHTnJIaIIO.
BnMaHHe: 3aIpeaetcIy yckopeHnI pOcecca pa3MopaxNbAHn IcNoIb3OBaTb IIO6bIe MexaHnueckne npncnocO6JIeHnI INn INhIe MeToDbl, 3a NCKIIuOeHnEM peKOMeHNDoBaHHbIX POnI3BOdnteMeM.
BHHMaHHe: He hapuShaTe ueNoctHOCTb KoHTypa uKpyAunxlaIaIeHTa.
BnMaHne: He nCnoIb3yIe BHyTpIxOJIoIbHOrO mOpO3IbHOrO OTdJeHn 3JIekTpoobopyoBaHne, 3a IckNIOUeHHeM peKOMeHDoBaHOrO npOn3BOiTeIeM.
BHHMaHHe: He NOMEuAte B MOpO3nIbHoe OTDeJeHne XnIDKoCTn I NnIy B CTeKJIaHHbIX EMKOCTx, BO Ia6ExaHne pUcKa paCTpeCKNbAHnE 3Tnx EMKOCTeN.
Bнманe: Ecnn XoIodnIbHnK 6bl OTKIOUChE O T aJIeKTPocetN, NOBTOpHoe noDKIIOUeHne K HeM MoXHO pOOn3BOdNTb, BbIXDaB He MeHee 5 MInHyT, BO n36eJahne noBpeJdeHn KOMPpeccopa.
BnMaHHe: EcIn B npocece 3KcPnyatauBn Bbl o6hapyXte orOleHHb npoBod noD HanpIeHem, ycblIHTe Heo6bIHybI shM, NoCyBCTByeTe Heo6bUHybI 3aIax, yBnDITe Dblm nIIN cTOnkHeTecb C dpyHMn HETUNHbIMn IJN HopMaJIbHOJ paBOtBJ npi6opa YBHeHnMyn, Heo6xOIMO HeMeIJIeHNO ObecToUHb npi6Op IN B cPoUHOM nporAdke CB8aTbc So cnKy60I pOdEpxKn KomnaHnn.
BHHMaHHe:He nooCobbAaTe JaDoHn noXoOnuNbHnK, BocObeHnOCTn, noJ erO TBJIbHyU qaTb, YTObI He noOpapaTaBcra 06 octPbIe nobepxHOCTn.
BhMaHHe: DeTAM 3aPepaetcra nIpaTb c XoIoNJIbHnKOM N B36papTaTcRa H Hero. Bo n36eKaHHe onaChbIX CNTyaCNI NCNoJIb3OBAHHe XoIoNJIbHnKA DeTbMn DoJXHO ocUeCTBnPaTcR pO npICMOrpoDnteJe.
BhImaHnHe: OTkpbIbA n 3akpbIbA JBeprn XoJOnIbHnKa, He depKInTeCb 3a ux Kpa, yTo6bl He npNtMeMTb PnJIbCuI. IJaO TkPbITnR n 3akpItnra DBepeR XoJOnIbHnKa, noJIb3yItecb pyKoRTkAmn DBepei.
BnHMaHHe: Ecn npnbop ceptnfncuropoBaH dIe 3KcPnyaTaun B KInMaTnuecknx ycNoBnX kIaccob N, ST n T, Tempepatya Bo3dyxa B nOmeueHn, rDe OH 3KcPnyaTnpyETc, doJNka 6bITb B npdeJax 16^ 43^ . Ecn npnepepatya OkpykaUoJero Bo3dyxa 3a npedeJaMn yka3aahnbx 3naueHni, npnbop He cmoxet oBecepeHt Tpe6yeMyo Tempepatyp BHyTpIn XoNoiNbHO H MOp03JIbHO KaMep.

BhimaHne: Pooaoonacho! JERKOBocnnaMeHnouuecmaTepeNaIb!

BHHMaHHe: Pn yctaHOBKe npnbopa He donyckaTe cnytbBaHne n nobpejdeHne shHpya 3neKtpoNTaHnY.

BHHMaHHe: He pa3MeaIte 3eKtpoCeTeBbIe yDINHHTeN-pa3BcTBnTeN nI npOraTINBHIE NCTOCHNK 3eKtpo3HePrrn No3aDn pRn6opa.

IeTAM B Bo3pacte O T 3 Do 8 Iet 3aPpeuaeTcay KlaDbBaTb npOyKtB MOpO3nJbHoe OTdJeHne N DoCTaBaTb IN OTTuJa.

He depknte DBeprnpbopa otKpbItbIMn dInTeIbHoe BpeM - 3TO npBODNT K cyueCTBeHHOMy pocty tempepatpyb BHyTpnr OTdeJeHNI.

Pergyraho ouhau Te NobepxHocTn, KOtOpbIe MOrTyBCTynaTb B COnpNKoCHOBHeNc C NIIueBbIMn npOdykTaMn, HJIemEnTbI dpeHaxHNo CnCTEmbl, HaxOJaUncEe B IprMOM DoCTyne.

Ouetae Mkocn Dla B0bl,ecn OHa He 6blna NcnoNb3oBaHa B TeueHme 48 cacob, nporoHae Tbe Yo NOBHO CnCTMe, noKnIOUeHHo K CnCTe Me BoOnch6KeHnE,ecn B0y H na pOraNa npoTaeHnen 5 dHei.

XpaHnTe cIbpe MroCoN pIb6y B IOnxOJaUxN EMcKoT8X B XOnOJInhNKe, YTO6bI OHN He COnpNKacAnaBc C DpyrIMN npOyKTAMn NITaHnN U YTO6bI KPOBc MraC a NpOaDanaHa dpyrNe npOyKbTI NITaHnN.

OTcekn IJIЯ 3aMopoxeHHbIX npOdyKTOB, OTMeueHbIe IByMRA 3B3IOUcKaIMN, npEHa3NaUaTcra IJIЯ XpaHeHnI npEBaPntbHO 3aMopoxeHHbIX npOdyKTOB NITaHnI, pNtroTOBNeHnI MOpoxeHOro IJIu NbJa.

Otcekn,OTmeueHbIe OndHou,IByMnITpeM3Be3doUcAMn，He npedHa3NaueHbI nla 3amopaxuBaHnCBexNX pOdyKTOB nHTaHn.

Ecnn xonoanlbohoe o6opuyobahne dnoTOnO octaTeCn He3aONHHeHbIM,OTKnIOUHTeero, pa3MOPo3bTaBe, bMoInoe, npocuSyte N OCTaBt cToTb C OTKpblbIM nDbepaAMn, TTo6bl npedOBtpaNTb No8BnHeNe NpeSeHH BHyTp nPi6oba.

2.Пре dioctepexeHЯ

IpeoctepexeHn: NCTOuHnK nHTaHn 3TOro np6opa DoJxHe COOTBeTCTBOBaTb ONcAnHIO nCTOuHnKa nTahnHa NaCnOpTHO TaBnUke np6opa.CneJeY TcNoJIb3OBaTb CTAndapTHyO He3aBnCmHyO po3Ely C TpeM OTBepCTnMI (HaedXHO 3a3EmNeHHU, C cInOn ToKa Bblse 10 A). K ONDHO pO3eTKe DOJNxo 6bITb NOkKnUoyHo He 6Oone OJHO rCTpOiCTBa. B IpoTINBOM cnUyae, MoKeT PPOIN3OHTu BO3ropAHne B CB3n C neperpeBOM.

IpeoctepexeHn: He TAHne shypr 3NeKTPoNTaHny pyKaMn. OToCoeHnra shypr 3NeKTPoNTaHnO oT p03eTKN, depxnte erO ToJIbKO 3a wTeNCeBHyU BnIKy. 3a shypr 3NeKTPoNTaHnN i WTeNCeBHyU BnIKy MoXHO 6paTbcra ToJIbKO cyXHMn pyKaMn BO n36ekaHne ydapa TOkOM.

IpeOoctepeKeHn: HnB3a nepexKmTa b hNyp 3neKtpoNTaHnXoNoiNbHnKOM nI npyTm TaeJbIM oBekTom, a TaKke cnIbHo u3rmbaT. NobpEgeHne uHypa 3neKtpoNTaHn Iu npaySeHne erO u3oJaun MoKet 6bItb npuHnoj NOKapa IuN yDapa TOkOM. Ecnn uHpy 3neKtpoNTaHn cOnomah IuN nope3aH, HeMeJeHHo CBxntecb co cLuyxbo TeHNueckoN OndepxKn.

IpeOCTepexHnB:BxOJIOuNbHKe 3aIpeuaetcXpaHnTb IeKOBocPnAmHeNIOUeCnIIN B3pblBOOnaChbEBeueCTBa,arpeccNBbIe KNCJNTbI INI NJI eNoH.

MepbI npEIOCTOpOxHocTn

IpeoctepexeHn: XoJIoJIbHnK 3aIpeSeHo nCNoJIb3OBaTb IOd DOxJem nnIOI prMyBIM COJIHeuHbIMn Lyuam.
IpeoctepexeHn: 3aPeeaaetcSTaBntb Ha XOJOnJIbHnK EMKoCTn C KnIKocTbIO: B cnyae NOBpeJdeHn IJN ONpOKuDbIBaHn EMKoCTn MOxET bbl T HapyeHa 3JeKtpOn3OJaCnXoJOnJIbHnKa, YTO MOxET CTaTB npUHHo Noxkapa nn ydapa TOkOM.
IpeoctepeKeHn: 3anpeaetc6e3 pa3peeHnpa3bnpaTb xoNoiNbHnK IIN BHOCTb NMeHeHn Bero KOHcTpyKcNIO.PeMOHT XoNoiNbHnKa DOJXeH BbINOJIHrTcB TOJbKO CneuaJIncTOM.
IpeOCTepeKHeHnBcnyae yTeuKn IIO6oR oropUeRo ra3a, HAnpIMep yOrbHorO ra3a, HeobxOdImo cHaayana nepeKpbItb KpaH, OTKyda npOn3oUNa yTeUka, 3aTeM OTkpItb OkHO dJa npOBeTpNBaHnI H E OTcoEduHraTb XoJOniNbHnK OT po3eTkN BnuDy pncKa BO3rOpAHn IIN B3PbIBa, KOToPbIe MoXeT CnpBOuPiPoBaTb 3JeKtpuecka nCKpa.
Преторгеля:В работхлолиьоговоборудовая,В частнхолдьнka C морозильные OTдением Тпа I,Могут Нашидаься начшени (Вероглесь разморжиманя соржимою Или недостаочно НИЗКО Т EMпepаТурыВ морозильnomOTдении),ecиь В пошени,гд оно Экплuyaатируетс,В точеньдпелб HorO Врemeни Temпера Кра ДИпалэзна Temпера typ,при КOTоры Даднhoe obорудоваяdoлжно3KСПУАТИРОВАТСВ;
IpeoctepeKeHnra: Ra3npoBaHHbIe HAnNTKHeh3a XpaHnTb B MOpO3NlBHom OTJeHnI MOpO3NlBhIX OTceKaX IJIi B Hn3KOTemPepaTyphIX OTceKaX XoNoDInBHorO OTJeHnI. HeKOTopBle npOyktbl, HanpImep neI, He cNe dyet ynoTpe6nTb B NiuCy, Noka OHn CInuKOM XoNoDHbIe.
IpeoctepeKeHn: Heo6xoImo co6JIoTaB cPOKx pAnHeHn npOyKTOB nITaHn, peKOMeHNoBaHHbIe IN pON3BOIDTeJIaMn.
IpeoctepeKHe: Heo6xoIMOp npHnMaTb Mebp, TTo6bl He oOnyCTtB n3nHnn nporpeB 3amopOKeHHbIX npOdyKTob nITaHnnp pa3mopaxmbAHn xOJIOINbHO O6OpYDoBaHn. K npimepy, 3amopOKeHHbI npOdyKTb MOxHO o6epHyb B HeckoJIbKO cNoE Ra3EtHO bymarN.
IpeoctepexHn: BaXHo NOMHtB, YTo CpOK XpaHeHn 3aMopoxeHHbIX npOyKTOB nHTAHn MOxET COkPaNTbCn 13-3a NOBbIeHn IN TempeaTpybl pni pa3MopaxuBaHnn, o6cLyXuBaHnn nn qNCTKe xOJOniNbHOrO o6OpyDoBaHn
IpeoctepeKeHn: ydeNte oc6oe BHNMaHne XpaHeHHIO 3aMOpOKeHHbIX npOyKTOB, ecnn xonoDnblNa TeXnHa He pa6ToJana dNITeNbHoe BpEma (u3-3a HapyuEHHa3neProchA6KeHnna nn HeNCnPabHOctn CnCTeMb OxJaKDeHH).
IpeoctepexHn: Heo6xOIMOp npednpnHaTb COOTBeTCTByuune MepeBv Cnyae BpeMeHHoro nnn npdoJXKeTebHOrO OTKnIOUeHn XoJOnJIbHnKa (HaNPmep, KOrTa OH CTont NcSTo, BO BpeM qNcTKn, B Cnyae OTKpbToi (-blx) DBeR(-en) nn KpbIkn(-ek)).

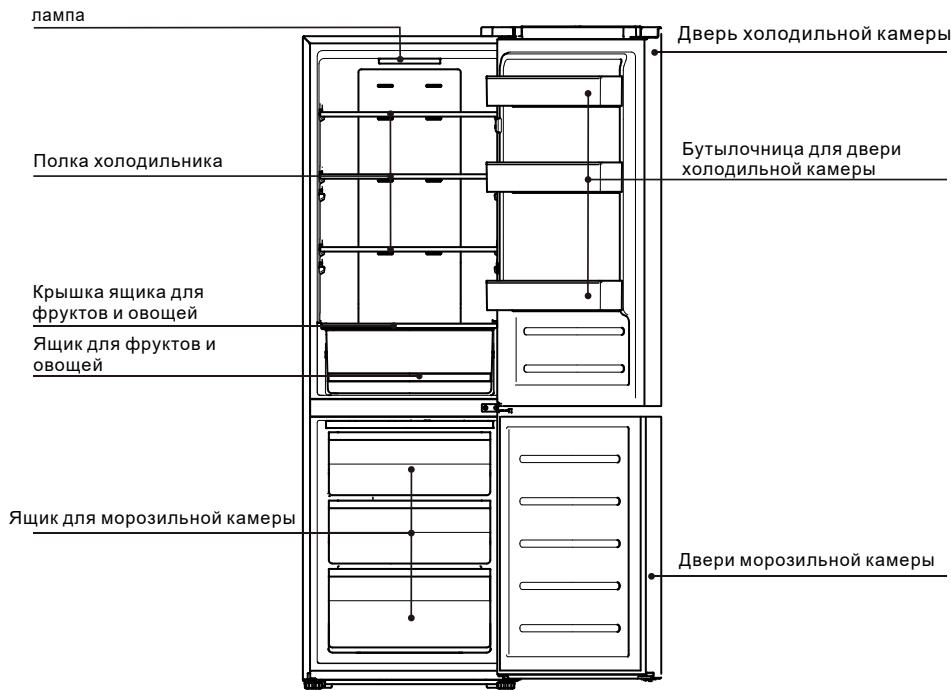

I3o6paXeHnHa HocrT cnpaBoUhbl XapakTeP. B nepByu OuepeDb CbeprTecb C npnbOpom, a He c I3o6paXeHnMa

XapakTepeNCTKn

-- KomlbótepHoe ynpaBHeHne TempeaTypoC nHTeTKeKtyaNbHbIM pexMOM; Bo3yHoe oxnaJdeHne n cStema No Frost.
--3KoJIoNtUHbI XJaIaReHT, IIpPImeHHe MATEpnaIOB 6e3 CFC, R600a 3KoJIoRnueckn YnCTble MaTepnaJIbI. 80% ochOBhIX MaTEpnaIOB nOIIeXaT nepepa6oTke;
--PpO3paHbIe IuNkC HOBbIM dN3aHOM: PPOdYKtB B HNX BCerDa Ha BVNDy;
--IOnKnI3aKaJIeHHOCTeKJa I BO3MOJXHOCTbIOpeRyIINPOBKn IO BbICOTe,I3HOcoCToKNe, TepMocToKne I npaKTuHhBe;
- Kochendocatop paccononoxen BHTnpK npcyca,6nlaopapymy3aHraCTENKa rnaKa. PpekpaHbI, npOymaHHbI naOHuHbI dHa3n, oBeceNuBaUoui paunohAhnBnOCTb oprahn3auin pOcSTpAChTBA nPPOCTOT OCHCTKN XOLOINBnHnka;
--B3tOMToBaPeIcNoJIb3YeTcra3ΦΦeKTHBnBbI6ecUWMHbI KOMPpeccopMexdYnapoDHorO 6peHdaNTEXHOIOrA CneUaNbHOrO 3aneHbANHcKoprnyCa.ToBaXapakTePm3yeHTn3KnY ypoBeHbShyMa,HN3Koe3HeprOnOTpe6bIeHne,N60JIbe NpOxDoNTIJa cEBnI KOMMepecknx 1eJeB.

BaxHo 3HaTb:

EcIn BbI nCnoJb3yeTe ynyuweHHbI npOdyKT, OH MoKet OTnUaTbcraOT OnncanHoro B INCTpyKcun. Ho fynKcUnOHnpOBaHne i CnocO6bl IcNoJIb3OBAHnI ocTaHyTcR HeN3MeHHbIMn. He 6ecnOKoITecb Ob 3Tom BO BpeMg 3KcPiyyatauinn.

BOKyrr xOLOndnBnHnKa donJNHO
6bTb NOCTaTOHO MHORO
cBO6dHorO MecTa. CM.
pCNYOHK.

B xode tpaHcnpTPOBKNIJIeBBACTOPOHAxONODINbHnka He DOnJXHKAOKHTaKTOPbAToB Co cpeCTBaMITpTaHcnpTPOBKN

XoJIoJIbIbN cNeJeyT peaMeUb b CyXOM, XOPOIO npOBETpBaEMOM NOMEJIeHNB bAONI tPnIMBXcOLJIHbNbNyuei nIctOCHNIKOB TENNA.

XoJNOIbHnK DnOJHK CToRb H naNPOOHNoNOBepHOCTNo NOBePHxOcHb He nIOcka, Heo6xoDMOpOeTpyERnPoBaBt pyERnPoBOuHy NOKxy XoJNOIbHnKa, TTObl OH CToR BepTHKnAbHo.

XOJOnINbHNK HenB3r CTABNTb CnIshKom XoONHbIe MeCTa, rIe OH MOKTepeoxNAdITCB.

YdaeneHne neonnactobov
ndoJIOKHNbIaRpIHTHO
cKa3bBaetcHaOTBodeTennla
no3BoJrert npedotBpatntb
BO3Poghanee.

Baxho 3HaTb:

-- Переньockу xолдиьнka Heobxodnmo OcyusectBbBBOeM -ОДИн ПОДнmaeТ 3a 3aHIOU BepXHOU YacTb, BTOPOI - 3a 3aHIOU HIXHIOU YacTb. ПОДьem xOLODINbHnKa 3a ONDy YacTb DOBOJbHO OnaceH MOKet CTaTb ПИЧИНО HEcuaCTHOrO cIvya.
-- PnpeBnKehnn XoNoDnIbHnka HxNkHna NOCTaBka MoKeT NOBpeDntb I noQapanaTb non. Ecnn Tpe6yeTc nepeBe3t XoNoDnIbHnK Ha 6oBbwoe pacctOAHnE, BHyTpeHHne 3JeMeNTbI DOnXhbl 6bIt 3aΦNkCnpOBaHbI C NMOUHO KneKoJI nENTb. B npotuBHom cnyae, ectb pick, qTo OHI 6byd7 bntcbra dpyr o6 dpyra n nobpeTaTc.
-- Iopkanycta,paMeCTNeXoONdbHnK TaK,HTO6bI OH KaMoxHO MeHbWe Bn6pnpOBan.B paOnHax,IgePOnxCODT3eMnETPcEHNy,XoONdbHnK Heo6xOIMO npKpePNJIbK CTne Hnn KPOhTuHny.Ecn3TOrO He cDelaTb,OH MOKeT yNaCTb NcTaB pNCHIOHeCactHOrO cnUay.
-- Bokpyr xoIOniNbHnka DoJnxHo 6bItb DoCTaTOUHO CBO6OHDoro npocTpaHCTBa.
13-3a HeIOCTaTOUHO pOcTpaHCTBa IINI NOCTOPOHNX IpEIMeTOB, JEXaIINX Ha
xOLOINbHnke INI BVIoTHyO K HEmY, MoKet 6bItb HapUweH OTBoD TeINa O T
xOLOINbHnka. 3To MOKet pInBeCTN K Heo6OCHOBAHOMy POCTy Ntpe6BHeHH
3NeKtPO3HePrrn, a TAKKe BO3rOpAHNo. EcIn NocTabuBt XoIOniNbHnK TblbHoN
ctOPoHOB BnIOHTHyO K CTHe, 3To pInBeTe K Bn6paunm M uWMy;
-- CyTo6bI BbIOBnArybXoIOniNbHnK, OTperyIpyuTe IInueByo CTOpOHy n
peryInpoBOUYHOxKg. PIn hepOBHO yCTaHOBKe XoIOniNbHnKa Bo3HNkaOT
Bn6paunn N uWM.

TpaHcnpTnpoBka n yctaHOBka

3TOTXOJOnHbNkHeJIb3aIcNoJIb30BaTbKaK BcTpANBaEmbl np6op.

Pa3mepbI nOcStpaHCTBa, Heo6XoDMoro IdIa 3KcnIpyataunn npIbopa, Iero ra6apuNTbIe pa3mepbI ppeIctabNeHbHa cneJeUOxNpIcNcyHkax:

IoproTOBkaK3KcPnyatauN

1. Ydanihe BCE 3IeMeHbIy nAynakOBuN -ynakOBuHy npNeHKy npOoeHe. He 3a6ydbTe ydaanitb neHnonlactBOy NOnNOxKY u3-NOJ DNHua XoONOINbHnKAI?
2. Tēnpo Bnajkno TpIaikno npOtpnTe xOJIoNbHnK kaN3HyTpri, TaK n Chapykn (B Te npjyo Bovy moJHO do6abntb HearpeccNBHOe MOUe e CpeDCTBO).
3. Nocne Toro, KAK xoIOniNbHnK NoCTaBHePOBHO NOMbIT, Na IpoTjaKeHn DByx Yacob He oNkIouaTe erO KpO3eTke JNeKTPOcTeH. Nocne BKNIOUeHn B TeueHme 5-3 Yacob HnBa NOMEuATB XoIOniNbHn KpOdyKtBi: XoIOniNbHn M MoP03NbHn KaMepbl DoJXhbl OxnaIHTbcrdo pa6OOny Tempepatyp.

1.YdaIneKpeKEnxHyo nnEHKy

JAKKEMI TOMPTEBYER 24 caza
darnnoHOTMOAMOPKBAHHM
pnpkYyNtANHNA. HbToPOBdHb
pnpkYbT,amOPOXbHbN
npoDykbT.

2.ПодклioчиTeКэл ektpocetTu

3.ПоуктьМохно
NOMECTNB
xOJIoNJIbHnK Yepe3 2-3
yaca nocne ero
BKNIOUCHEN

3anaxnactmaccusnpnoedamcnaamc6e6e 3anaxnacnpnoebkopotopoeapennpo3a07a.

Pnp60c np3mpeuB a Camo npoxaHOn 03e KOMhaTb, BdAnl O np60pob, BbypaTaBbAouIOx TENNO, INI ONITNEbHbKANAOB, A TOAKE BdAnl O pRMAbX CONHEyHbX YueN.

JaTeO rOpAaMnPOyKTAM OcTbTb DO KOMHaTHOH TEMnepaTpyb, IpexJe HEM NOMeuaBt b X B pInbOp. IpeRpyka YcToPCTBa 3actaBnEeKoNpEeCCOP paOtaTb DOnIbSe. CnIIuKOM MeIeHNO 3amopaknBaembe npOdykTbMOryt NotepaTb KaeeCTBO ININ MCNPOTITbCra.

O63aTeBnHO pAraBnHb 3aBeHPnti NpOyKtBu bYbTnE KOHTeHepb hacyXo, npExk Yem NOMeuaBx B nnp6Op. T0 yMeHbAaET oBaP3aOBHaME INHe BHYtn PnIb6OpA.

EMKoCTbIg xpaHEHn6bITOBxTeHXmN He OIOXHa 6bITb NOKpTaIa IANIOMHHeB0 FOJIbFO, BOUeHO BymarO uINu bymaxhbl mnoToHcE M. BklaDbIuM MeauHOT cnpkyIaun XOIOHOrO Bo3yxa, CNKka 3ΦΦeKTHBocTb paObtby npi6Opa.

OprAHn3yIe eNy mApKnpyTe ee, yTo6bl yMeHbUnTb KOJIInueCTBO OTKpbIBaHm I DBepe n dIITeNbBbIX NOnCKOB.

Y6epnte cToIbKO npedMeTOB, CkOJIbKO HxKHO, IN KaK MoXHO cKOpoe 3aKpOte DBePcU.

IoxaanyiCTa, o6paTntecb K 306paXeHIO npOdyKTA ha CTpaHnue 5 dJa pa3MeUeHra akceccyapOB.

ELECTRONIC CONTROL

The above is the computer control board of the product

Power on for the first time

The first time the power is turned on, the refrigerator runs under 5^ .

Gear adjustment

Repeatedly pressing the "<" key or">" key, the refrigerator position will cycle between "02" "04" "05" "06" "08" "02", select the appropriate position to stop the operation and Wait for 5 seconds and the gear is confirmed.

Power-off memory

When the power is cut off, the instantaneous state of the power cut is locked. After the incoming call, it still works according to the settings before the power cut.

Damper adjustment paddle

damper adjustment dial adjustment principle behind the refrigerating drawer: Usually we recommend using it in the mid-range.

When the temperature in the box varies with the opening and closing of the refrigerator, the ambient temperature, and the place where it is placed, etc.

Refrigerator temperature adjustment

When the damper adjustment blade is adjusted to the "cold" side, the amount of cold air blowing to the refrigerating compartment can be increased to achieve a better refrigerating compartment cooling effect.

Freezer temperature adjustment

When the damper blade adjustment is adjusted to the "coldest" side, the amount of air blowing to the refrigerating compartment is reduced, which will extend the compressor operating time and enhance the refrigeration effect of the freezing compartment.

XpaHeHne npOdyKTOB nHTaHHa

XoIOnIbHaKaMepa (2^ 8^)

--XoIounIbHnaKaMepa npedHa3NaueHa B OCHOBHom IJRA xpaHEny CkOpONpTuaNXcra npOdyKToB, TaKnx KaK MoIko, RaCa, ByTuNIpOBaHHbIe HAnITKn.
-- Obou, 6aXyBeBle KynbTypbl n pkykTbI cneJeYeT NOMEaTb B ruiNK dJIa pkyKTOB IN OBOUeJ, TToBb OHn He TepeJIIN Bnary.
-- PnroTOBnHbIe npOyKtB cneDyET xpaHNTB XoNODJIbHKe yNAKObaHHbIM B NaKetbl, YTOB3a3dHaYcTeHka XoNODJIbHOrO OTDeENHe H neKpbBaJacb HHeem H He Bo3pAcTaI0 3hepronTope6bnHe np6oba.

Mop03nIbHna kamepa (-24^ -15^)

-- Mop03nIbHaKaMepa IcNoJIb3yeTcA JIaIaJIteJIbHOxpaHeHna IpoDyKTOB.
--Pb6y mrcpe3aMOp03Ko cneJyTe Hape3aTb Ha MeKNe KycOuKn, pa3NoXHTb no NaKeTaM OTdIeNbHO npYr O nocne 3TOrO NmecCTnB B MOp03NbHyU KaMepy.
-- CTeKJIaHHIe eMKOCTn I eMKOCTc XJNkOcTMy HeJIb3r XpaHHTb B MOp0JIbHOJ KaMepe, TAK KAc OHN MOrTy InpOeP3HyTb I NOnHyTb.
-- Cbexne npoodykTbI HeJIb3x xpaHnTB BmecTe c 3aMOpOKeHHbIMn npoDyKTamN.
-- He KnaIaIte npOdyKtbl BnIOTHyO K cTeHkAm MOpO3nIbHoN KaMepbl, YTO6bl OHI KHe Hne npImep3nn.

★★Полесные COBEТы:

XpaHnIeNcR npOyKtbl,ecNI OHn HmEHTCRe,He DOnJHbI 6NoKnpoBaT bBxOHOe OTBepCTne B03dYxOBOa I oBpAthOE OTBepCTNe,HTObI He NOBnIbT Ha 3ΦΦeK T OXJaXeHn.IpeEd xPaHneHem B XoJOnIbHnke HarpetaBoa n npOyKtbl DoONJHbI OXJaNTcTdo KOMHaTHOH TeMnepaTypbl.

PnroTOBHeHne Ibda (ecnn B npnbope npedymotpeHa TaKaA yHKun)

3anonHnTe BODoemKocTbIy npiroToBHeHnBaHa 4/5 ee
obbemaN NOMeCTNe B MOpOzHbHyu KaMepy. KOrDa BOa B
EMKocTn 3aMep3HeT, CnErKa CkpyTHe EMKocTb, YTObI Ky6Kn
lbDa BBaJIINcB N3 Hee, Ondako He crn6aIte. Ppi
n3BneueHn lbDa HAKPoTe EMKocTb cyXo KpbIshKo, YTObI
He o6mOp03ntb NaIbCuI.

3aMeTKnNo 3KcPnIyatauNN

Pa36opka n c6opka BnytpenHHnx 3JeMeHToB

-- CTeKJIaHHa nOJa B xOJIoNJIbHOJ KaMepe: BbICota nOJKN perynipyETc IaI yUO6CTBa XpaHEnHa npEIMeTOB pa3HOro o6bema. YTo6bl mBnYeB nONky, NotAHnte ee OJHOBpeMeHHo H a Ce6n HabePx.

-- JIaIK IJIa FpyKTOB N OBOUeE Ero MoXHO N3BLeu, NOYHb Ha ce6J.

--ЯикьМурозиьнКаме:прдHa3HaueHДЯДиTeьНOrO xpaHeHnIpoDyKToB，HanpIMep，Mca n pbl6bl.уБы erO n3BNeUb，notaHnte erO oDhoBpeMeHNo ha c6bЯ Habepx.

POne3HbI coBET:Pa3peXbTe 60nbWou Kycok Mca Ha MeKnke KycOuKn Do TOrO, KAK NIOJoxNte ERO B MOpO3NJKy, TAK KaNocNe 3aMopO3KN pa3pe3aTb erO 6yDet 3NaHTenBHO TpydHe. PpOdykTb, KOtOpBe 6blCTpo 3aMopaxKaBaOTc, CneDeYet pa3MeUaTb paBHOmePHo NocNe 3aMopO3KN XpaHnTb pRdOM dpyrC dpyrom.

-- BytblouOuHua Na DBeRn XoJIoNbBHO KAmepbI: xpaHenHe niu, pa3nnuHbX 6BytnIOpOBaHHbHaNHTKOB u pa3hBx MeNoeJe. Ee MoXHo N3BNeUc, cneRka npInONoHB.

PnmuemueaHHe npuIarayte yucInn npu n3bIeueHN 6byIIOChNtBu H aDeBpN xOJOniNbHoN KaMepb, UTo6bHe noBpeDnTb XOJOniNbHKn.

3MeHeHue cEema

IIO6a 3aMeHa IINI TEXMHcCKOe OBCNYKbBAHBe CBEToDIOqDbX LaAMN DOnJXHO pIONBOBNTbCER pIONBOBNTeMe, eTO cepBNCbHbIM aRETHOM IINI COOTBETCTBYOUIIM TEXHcHECKHM CNEUMAJIACNTOM.

Длгнлбпсьн нотнгпсьн наверкх на сбев.

Дагиэвочець notarhite cneRka ha ce6ha nHabepx.

yXo3a o6opyuObaHnEm

PekomeHdyetcyaXaXnBaTb3aXoIoNlBnKOMpa3BMecu.

--I3BnEKeITe ITeNcJIbHyIO BnIky n3 po3etKn, YTO6bI Bac He ydApNILO TOKOM.
Вларно Tряпков Иин HeITpaIbIbIM MoIoum CpeIcTBOM ydaJIHne noTeKn pactIteNbHOro Macna I npOuHne 3aqrI3HeHn. PIoIIHOCTbU yctpaHIne moIooee cpeIcTBo c nobepxHocTey xOJOnIbIbHnka.
-- He nconNojbyTe IeOnoNbHe MoUOuHe cpeCTBa, CTnpaIbHbIy nopOoK, 6eH3nH, aNkoRtB, TaJIbK IN p.. YTO6bI He nobPeDHT bnnactMaccobBeNopeBxHOCT;
-- Perynpno Ounuai Te XoNoDnJIbHnK ChapyN n NODepXnBaIte YnCTOTy NoA, YTO6bI XoNoDnJIbHnK He NaYkAnCra.

Ocmotp nocne xoJIoUdbHnka nocJeMbItb:

1.Ocmotpnte shnyp 3neKtponHtAnn H uTencBHyu BUNKy Ha npedMet nOBpeXdeHn; 2.Y6eDInTeCb, YTO Ha uTencBnHO BUNKe HET nbIi; 3. PnOpeBpTe, He neperpeBaetcnn TnTncBnHa BUNKa; 4. PnOpeBpTe, NnOTHO IIN OAH CnIT B PO3ETke; 5. PnOpeBpTe, NOHOCbIO IIN OHA BCTaBnAeTcR BPO3ETky.

Приимechanical:

ПовжданшнураэлкторианииштencьновВики, aТаЖke nbIb MOrYt cTaNtpuHnOуdapa TOKOM;

Tocne toro, kak Bbl oToCoeHInHe wTeNCeBHyIO BuNkOy O p03ETKn, noCoEOHNrTa ee o6paTHo MOXHO cnyCTa 5 MnHT.

He npocobBaIe pyKn noJ xOIOJIbHnK, YTo6bI He npaHnTbcR.

IpeepMbItbEm XONoDnJIbHnKa OTKJIOUHTe oEOT 3NeKtPocetN.
NcnoIb3yIteTOnbKO HeITpaJIbHbIeMOUJIne cpeCTBa

yctpaHHe HenoJaDOK

OyucpanenHHeNoIaOK Heo6xOIMnPoBepntb CneDyuOuNe 3JeMeHTbl:

Henonana:XoJIoNbHnK He pa6oTaet,3ΦΦeKTHBHOCTb OxJaXeHn Hn3Ka

PnunHb: 1. PnpOBpTe NOkKnUohne K NcToOHNky NtAHn.2. Y6eNTecb, TcO Ha XoJIoNlbHnK He nanaaTO pIrpMaBc OOnHeHbIe NyuH cTPO prdOM c Hm HET NcToOHNka TeIIa.3. PnpOBpTe, eCT b I MeCTo PACCeeBAHHa TennA BOKpyr XOnOJIbHnKa.

VcTpaHHe HENoJaKn: I. OndKlOuHte XoNoDInbNk K NCTOChNky NtAnHJ. 2. IpectaBbTe XoNoDInbNk Tya, du Ha He bdyT n aadTa n daatb MclBoe cOnHeuHbe lyuH n dE HcTOchNKOB TeIIa. 3. ObecneYbTe DoctatoHoe npocTpaHCTBO MeXdY XoNoDInbNbHKmC t CTHeOJ.

HenonadaKa:PpOdykTBbB XoJIoDnIbHoN Kamepe 3aMOpoxeHbI

IpuHbI: 1. IpoBepbTe, He yctahOBnHeHa LN cNIuKOM Hn3Ka TEmNepatypa. 2. IpoBepbTe, He cNIuKoM li6bn30 K 3adHe nCTHe XoNoDInbHO KaMepb JLeXaT npOdykTb C BbcOKm CopejAHHem BnAa.

YcTpaHene HeNoIaKn: 1. B pa3ymhblx IppeIeIax YbeIINuIbTe TeMpeIatpy B xOJIoIbHoN kAmpe.2.

Ipeenoxkhtpe npOktb C bCOKHM cOpEphAnm BnAar 6BepKc XoIoNblHOB KAMEbpb HenonlaKa:XoIoNblHKn H3aet Heo6bHnhB 3yBu

IpnHbI: 1. IpoBepTe, He kaAaeTc HxONoDInbHnK. 2. IpoBepTe, He cNtHsKOM N6bn3o XoNoDInbHnPacnoNoJek CteHe. 3. IpoBepTe, He npscNoHbI N K XoNoDInbHnky NoctopoHHne npedMetbI

He yBnIOTcHEnOJaKamN

CnTuay:BoKoBbIe XoNoDInbHnka N NobepxHocTb MeJy XoNoDInbHoN MOpO3nblHoN KamepaMn ropue.
