Product type	Air humidifier
Brand	ALPATEC
Model	HU 20
Supply voltage	220-240 V ~50 Hz
Maximum power	21 W
Autonomy	10 hours
Tank capacity	Approximately 2 L
Technology	Ultrasonic
Steam flow adjustment	Continuous, by rotary knob
Operating indicator light	Yes
Automatic shut-off when water runs out	Yes
Power adapter	Included
Adjustable nozzle	Yes
Removable tank	Yes
Carrying handle	Integrated in tank
Tank opening	Screw cap
Transducer cleaning	With descaling product
Operating temperature	5°C to 40°C
Maximum ambient humidity	80% RH
Use	Indoor only, on a flat and stable surface

Frequently Asked Questions - HU 20 ALPATEC

How to fill the water tank?

Unplug the device, remove the lid and the tank. Unscrew the cap, fill with clean water at a temperature below 40°C, screw the cap on tightly, put the tank back in place, then the lid. Plug in and turn on.

The humidifier does not diffuse water, what to do?

Check that the adapter is properly plugged in and that the power supply works. Make sure the tank contains enough water and is correctly positioned on the base.

The device gives off a bad smell, why?

If the device is new, leave the tank open and empty in a cool, dark place for 12 hours. If the water is dirty, clean the tank and refill with clean water.

The amount of water diffused is low, how to improve?

The transducer may be dirty. Clean it with a descaler as indicated in the manual. Also check that the water is clean and changed regularly.

Is there abnormal noise, what to check?

Make sure the tank is properly seated on the base. If the water level is too low, add water.

How to clean the humidifier?

Unplug the device, empty the water. Clean the tank with a mild detergent and rinse. For the transducer, pour 10 ml of descaler directly onto it, wait 2 to 5 minutes, brush and rinse thoroughly.

What water to use?

Use only clean and clear water, at room temperature below 40°C. Avoid hot or dirty water.

The device turns off by itself, is it normal?

Yes, the device is equipped with an automatic shut-off system when water runs out. Fill the tank to restart it.

Can I use the device continuously?

Yes, but the autonomy is about 10 hours with a full tank. Remember to check the water level regularly and refill if necessary.

How to descale the transducer?

Remove the tank, empty the base. Pour 10 ml of descaling product onto the transducer (see diagram), let it sit for 2 to 5 minutes, brush gently, then rinse thoroughly with clean water.

USER MANUAL HU 20 ALPATEC

For your comfort and safety, ALPATEC has checked all the steps of manufacturing. The products have been made for you to enjoy their design and easiness to use.

ALPATEC, a complete range of air conditioners, coolers, fans and heaters for your complete satisfaction.

CAUTION

PLEASE READ ALL THESE INSTRUCTIONS CAREFULLY BEFORE USING THIS APPLIANCE

• Make sure that the voltage rating on the type plate corresponds to your main voltage. Any error in connecting the appliance invalidates the guarantee.
• This appliance is not intended to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
• Never leave the appliance unsupervised when in use.
• Keep out of reach of children.
• Only use this appliance for domestic purposes and in the way indicated in these instructions. Never use for any other purposes.
• Never immerse the product in water or any other liquid for any reasons. Respect the instructions for cleaning.
• Do not use the appliance outside and always place it in a dry environment.
• Do not use if you have wet hands.
• Keep the appliance far from hot or electric sources. Never place the appliance into direct sunlight.
• Never pull the cord to unplug or move the appliance.
• Unplug the appliance before cleaning, changing any parts of the appliance, when you fill it or when it's not in use.
  Always switch off the appliance before unplugging it.
• Do introduce neither sharp metallic objects, nor fingers inside the appliance.
• From time to time, check the cord. Never use the cord, the plug or the appliance when they show any sign of damage. Make sure the cord never comes into contact with the hot parts of the appliance. Do not wind the cord around the appliance and do not bend it.
• The cord length of this product has been selected to reduce the possibility of being injured. If more cord length is needed, an extension cord may be used. Ensure not to let it hang down the working area where someone could accidentally pull or trip over it.
• Ensure that the power supply cable does not hang down from the work surface as it could be easily pulled, particularly by small children, thereby causing serious accidents.
• If the cord or the plug is getting more and more hot, contact a qualified electrician.
• Never repair the appliance yourself. All interventions made by a non-qualified person can be dangerous; in this case guarantee conditions would cancel. As well as the change of the cord has to be done by a competent electrician.

SPECIAL RECOMMENDATIONS:

• When operating, do not touch the water or parts containing water.
• Do not let power on when waterless.
• In case of strange noise or smell, turn off and unplug the appliance.
  Install the appliance on a flat and steady surface.

• The mist spraying from the humidifier should not face furniture.

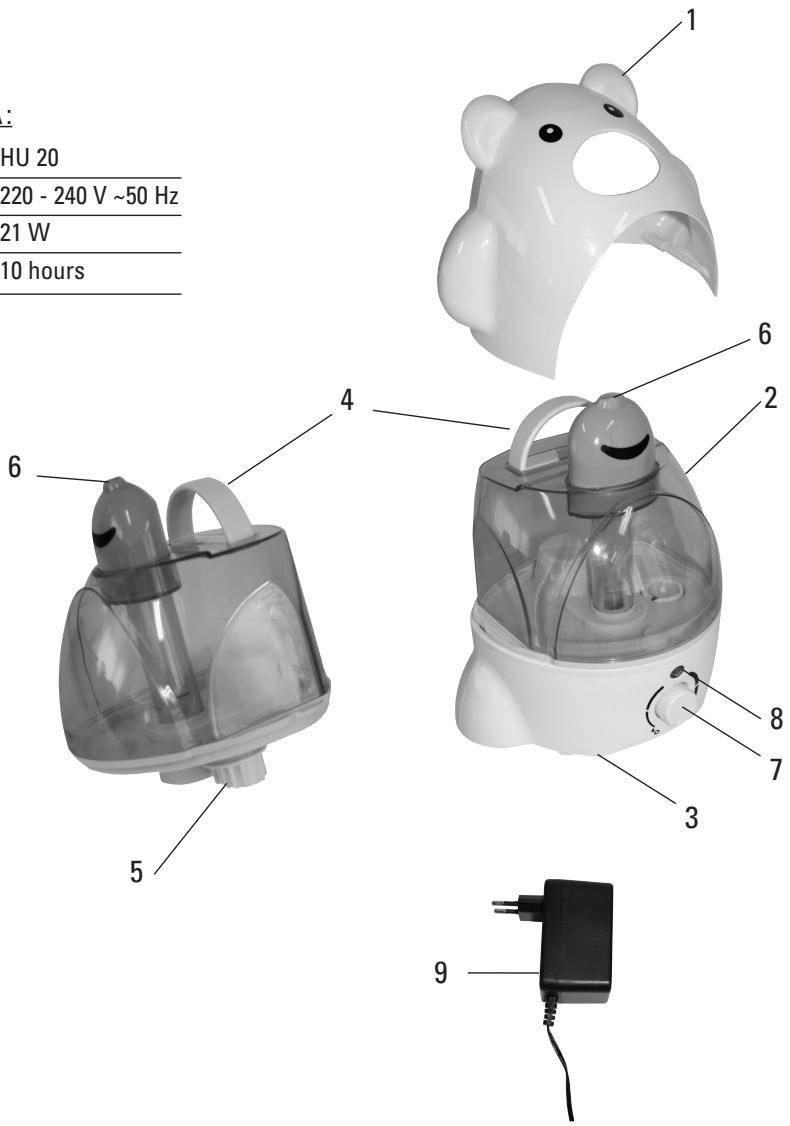

• Cover

• Water tank
• Base
• Water tank handle
• Water tank cap
• Mist spray mouth
• Adjustable air flow button
• Power light indicator
• Adapter

TECHNICAL DATA:

Model	HU 20
Voltage	220 - 240 V ~50 Hz
Maximum power	21 W
Autonomy	10 hours

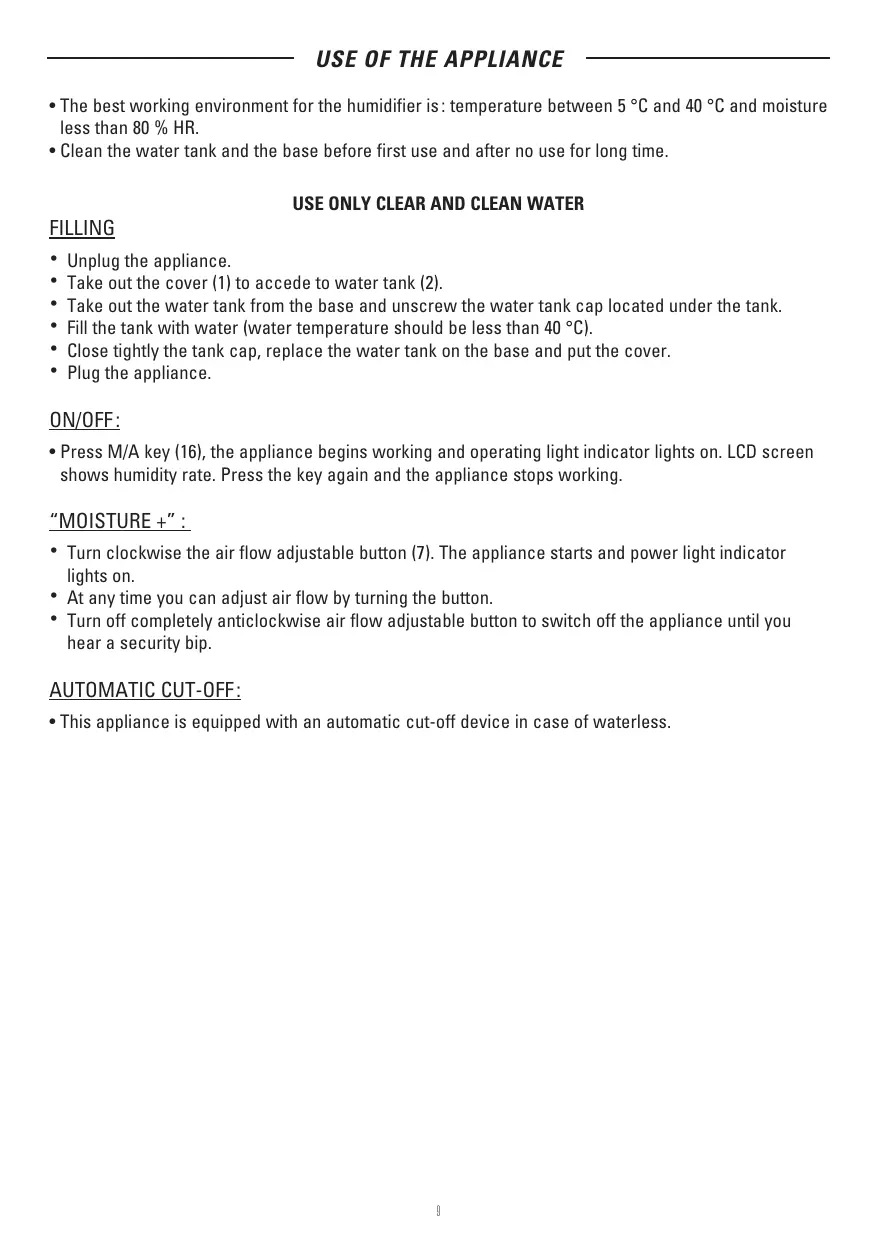

• The best working environment for the humidifier is: temperature between 5^ and 40^ and moisture less than 80% HR.
• Clean the water tank and the base before first use and after no use for long time.

USE ONLY CLEAR AND CLEAN WATER

FILLING

• Unplug the appliance.
• Take out the cover (1) to accede to water tank (2).
• Take out the water tank from the base and unscrew the water tank cap located under the tank.
• Fill the tank with water (water temperature should be less than 40^ ).
• Close tightly the tank cap, replace the water tank on the base and put the cover.
• Plug the appliance.

ON/OFF:

• Press M/A key (16), the appliance begins working and operating light indicator lights on. LCD screen shows humidity rate. Press the key again and the appliance stops working.

"MOISTURE +":

• Turn clockwise the air flow adjustable button (7). The appliance starts and power light indicator lights on.
• At any time you can adjust air flow by turning the button.
• Turn off completely anticlockwise air flow adjustable button to switch off the appliance until you hear a security bip.

AUTOMATIC CUT-OFF:

• This appliance is equipped with an automatic cut-off device in case of waterless.

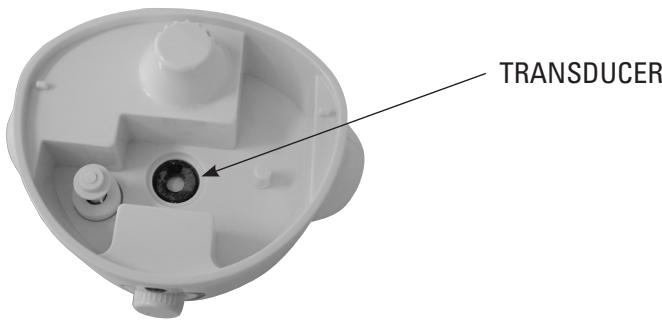

• Clean the transducer with descending detergent. Take out the water tank from the base, empty the base and drop 10ml of descending detergent on the transducer. (See picture below)

• Wait about 2 to 5 minutes then wash with a brush and rinse plentifully with clear water.
• To clean the water tank, file it half and add soft detergent. Screw the tank cap and shake it up and down several times, and then use water to rinse.
• If there is waste left in water flume, clean it with a damp cloth and detergent, then rinse with water.
• If the humidifier has not been working for a long time, clean it as described above.

Trouble	Possible problem	Treatment
There is no mist	- Is there a problem with power supply?	- The adapter is not connected to the socket.
The mist spray has an unpleasant smelling.	- The appliance is new. - The water is dirty or has been too much time in the water tank.	- Open the water tank, lay it for 12 hours in a stady and cool place. - Clean the water tank and add clean water.
Mist volume is low	- The transducer is dirty. - Water is dirty or has been too much time in the water tank.	- Clean the transducer as described in cleaning instructions. - Clean the water tank and add clean water.
There is a strange noise	- Water tank is not properly placed on the base. - Water level in the tank is too low. - Add water.	- Set the water tank properly.

Instructions on environment protection

Do not dispose of this product in the usual household garbage at the end of its life cycle; hand it over a collection point for the recycling of electrical and electronic appliances. The symbol on the product, the instructions for use or the packing will inform about the methods of disposal. The materials are recyclable as mentioned in its marking. By recycling or others forms of re-utilization of old appliances, you are making an important contribution to protect our environment. Please inquire at the community administration for the authorized disposal location.
