PK180G - Kettle PROLINE - Free user manual and instructions

Product type	Electric kettle
Brand	PROLINE
Model	PK180G
Capacity	1.7 L (maximum) / 0.5 L (minimum)
Power	1850 - 2200 W
Voltage	220-240 V
Frequency	50-60 Hz
Base type	360° rotating base
Dimensions (L x W x H)	Approx. 22 x 15 x 25 cm
Weight	Approx. 1.2 kg
Automatic shut-off	Yes, once boiling is reached
Dry boil protection	Yes, automatic shut-off if operated without water
Power indicator light	Yes
Anti-limescale filter	Yes, removable in the lid
Lid opening	By unlocking button
Cleaning	Wipe with a damp cloth; regular descaling necessary
Descaling	Use a specific descaling product
Warranty	2 years
After-sales service	See Darty/Fnac/Vanden Borre hotline

Frequently Asked Questions - PK180G PROLINE

How to use the kettle for the first time?

Before first use, boil water 2 to 3 times and discard to remove manufacturing residues. Fill the kettle with cold water up to the maximum level, turn it on, then empty after boiling.

What are the maximum and minimum capacities?

The maximum capacity is 1.7 liters and the minimum is 0.5 liters. Never fill above the maximum mark.

Can I heat milk or other liquids?

No, this kettle is designed only to heat water. Do not use for other liquids.

What to do if the kettle stops before boiling?

Check the water level: it must be between the min and max marks. If the problem persists, descale the appliance as limescale can disrupt temperature detection. See the CLEANING AND DESCALING section.

How to clean the anti-limescale filter?

Remove the filter from the lid by unclipping it, wash it under the tap with a soft brush, then replace it. Perform this operation regularly.

How to descale the kettle?

Use a specific descaling product for kettles. Follow the product instructions, then rinse thoroughly with clean water. Descale regularly to prevent limescale buildup.

What to do if the kettle does not turn on?

Make sure the kettle is correctly placed on its base and the base is plugged in. Check that the lid is properly closed. If the problem persists, contact after-sales service.

Can I open the lid during operation?

No, do not open the lid while the water is heating. Steam is very hot and can cause burns. Wait for automatic shut-off or turn off the appliance before opening.

Can the kettle operate without the lid?

No, the kettle must not be used without the lid closed and the filter in place. This could cause overflow and damage.

How to recycle the kettle at the end of its life?

Do not dispose of the appliance with household waste. Take it to a collection point (store, recycling center) for recycling. Consult www.quefaideresmedeschefs.fr to find a point near you.

USER MANUAL PK180G PROLINE

Portuguese PT25 - PT30

EN

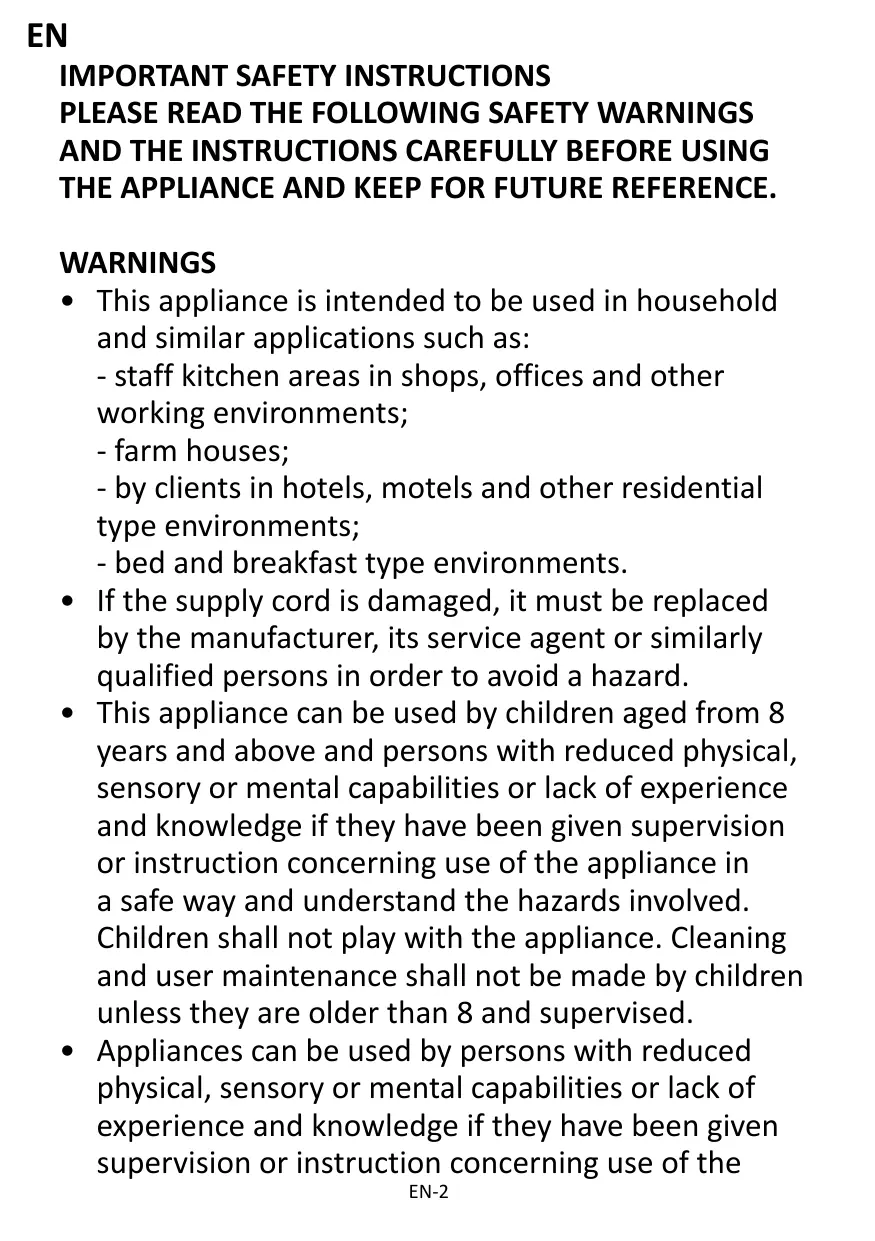

IMPORTANT SAFETY INSTRUCTIONS PLEASE READ THE FOLLOWING SAFETY WARNINGS AND THE INSTRUCTIONS CAREFULLY BEFORE USING THE APPLIANCE AND KEEP FOR FUTURE REFERENCE.

WARNING

• This appliance is intended to be used in household and similar applications such as:

• staff kitchen areas in shops, offices and other working environments;

-farm houses;

• by clients in hotels, motels and other residential type environments;

• bed and breakfast type environments.

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
• Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the

appliance in a safe way and understand the hazards involved.

• Children shall not play with the appliance.
• If the kettle is overfilled, boiling water may be ejected.
• WARNING: Position the lid so that steam is directed away from the handle.
  WARNING: Do not remove the lid while the water is boiling.
• The kettle is only to be used with the stand provided.
• The appliance must not be immersed.
• CAUTION: Insure that the kettle is switched off before removing it from its stand.
• Regarding the instructions for cleaning surfaces in contact with food, refer to the section "CLEANING AND DESCALING" in page EN-5.
  WARNING: Risks of injuries if you don't use this appliance correctly.
• The heating element surface is subject to residual heat after use.
• A warning to avoid spillage on the connector.
  WARNING: Avoid spillage on the connector.
• The coffee maker shall not be placed in a cabinet when in use.
• The temperature of accessible surfaces may be high when the appliance is operating.

IMPORTANT SAFETY INSTRUCTIONS

• Place the appliance on a stable flat surface before use.

EN

• Be careful when opening the lid immediately after the water has boiled, the steam coming out of the kettle is very hot constituting a risk of scalding.
• Do not use the kettle to heat anything other than water. Never fill the kettle beyond the maximum level indication.
• Make sure the bottom of the kettle and the power base are dry before placing the kettle onto the power base.

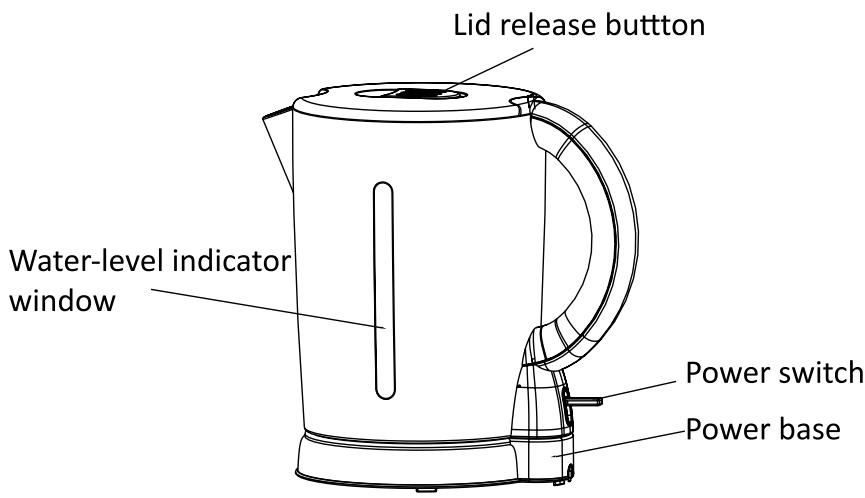

PARTS

OPERATION

Before first use, it is recommended to operate the kettle for 2 to 3 times following the instructions below. This will remove any dust or residues remaining from the manufacturing process.

1. Remove ke le from power base.
2. Fill kettle with desired amount of water through the spout or the open lid.

Press and hold the lid release button to open the lid.

The water amount ranges from the minimum amount 0.5L to the maximum amount 1.7L.

1. Close the lid by pressing it down until it clicks into place.
2. Place the kettle on the power base and insert the plug into the mains socket.

3. Press the power switch. The water is being heated.

4. The power indicator light will illuminate.

5. The kettle will switch off automatically when the water boils.

6. The power indicator light will go out.

7. You can stop the boiling process by setting the power switch to "0".

NOTE: Use the kettle only when the lid is closed and the filter is in place. Cut-out for boil-dry protection

If you operate the kettle without water, the kettle will stop heating and automatically switch off.

If this occurs, allow the kettle to cool before filling with cold water and re-boiling.

SPECIFICATIONS

Ratings: 220V-240V~50-60Hz

1850-2200W

CLEANING AND DESCALING

• Always unplug the appliance from the mains socket and allow it to cool down before cleaning.
• Do not use chemical, steel wool or abrasive cleaner to clean the appliance.
• Clean the outside of the ke le and the power base using a slightly damp cloth.
• Remove the filter on the lid. Clean it under running water and then replace it.
• Regularly descale the kettle using a specific descaler.
• Wipe the inside of the kettle with a clean cloth.

DISPOSAL

As a responsible retailer we care about the environment.

As such we urge you to follow the correct disposal procedure for the appliance and packaging materials. This will help conserve natural resources and ensure that it is recycled in a manner that protects health and the environment.

You must dispose of this appliance and its packaging according to local laws and regulations.

Because this appliance contains electronic components, the appliance and its accessories must be disposed of separately from household waste when the appliance reaches its end of life.

Contact your local authority to learn about disposal and recycling.

The appliance should be taken to your local collection point for recycling. Some collection points accept appliance free of charge.

We apologise for any inconvenience caused by minor inconsistencies in these instructions, which may occur as a result of product improvement and development.

Hotline Darty France

Low Voltage Directive (LVD)

Eco design requirements for energy-related products (ErP)

RoHS

EMC:

ENIEC55014-1:2021

EN IEC 61000-3-2:2019+A1

EN 61000-3-3:2013+A1+A2

ENIEC55014-2:2021

LVD:

EN 60335-1:2012+A11+A13+A1+A14+A2+A15

EN 60335-2-15:2016+A11+A2+A1+A12

EN 62233:2008

ErP:

(EC) No 1275/2008

(EU) No 801/2013

EN 50564:2011

This declaration of conformity is drawn up under the sole responsibility of the manufacturer.

The person responsible for this declaration is:

Place, Date / Lieu :

Ivry-sur-Seine, novembre 1, 2023
