USER MANUAL PSBS94IX PROLINE

© DESCRIPTION DU PRODUIT... 7

© DESCRIPTION DU PRODUIT

@ RESOLUCÂO DE PROBLEMAS

© PRODUCT OVERVIEW mm 89

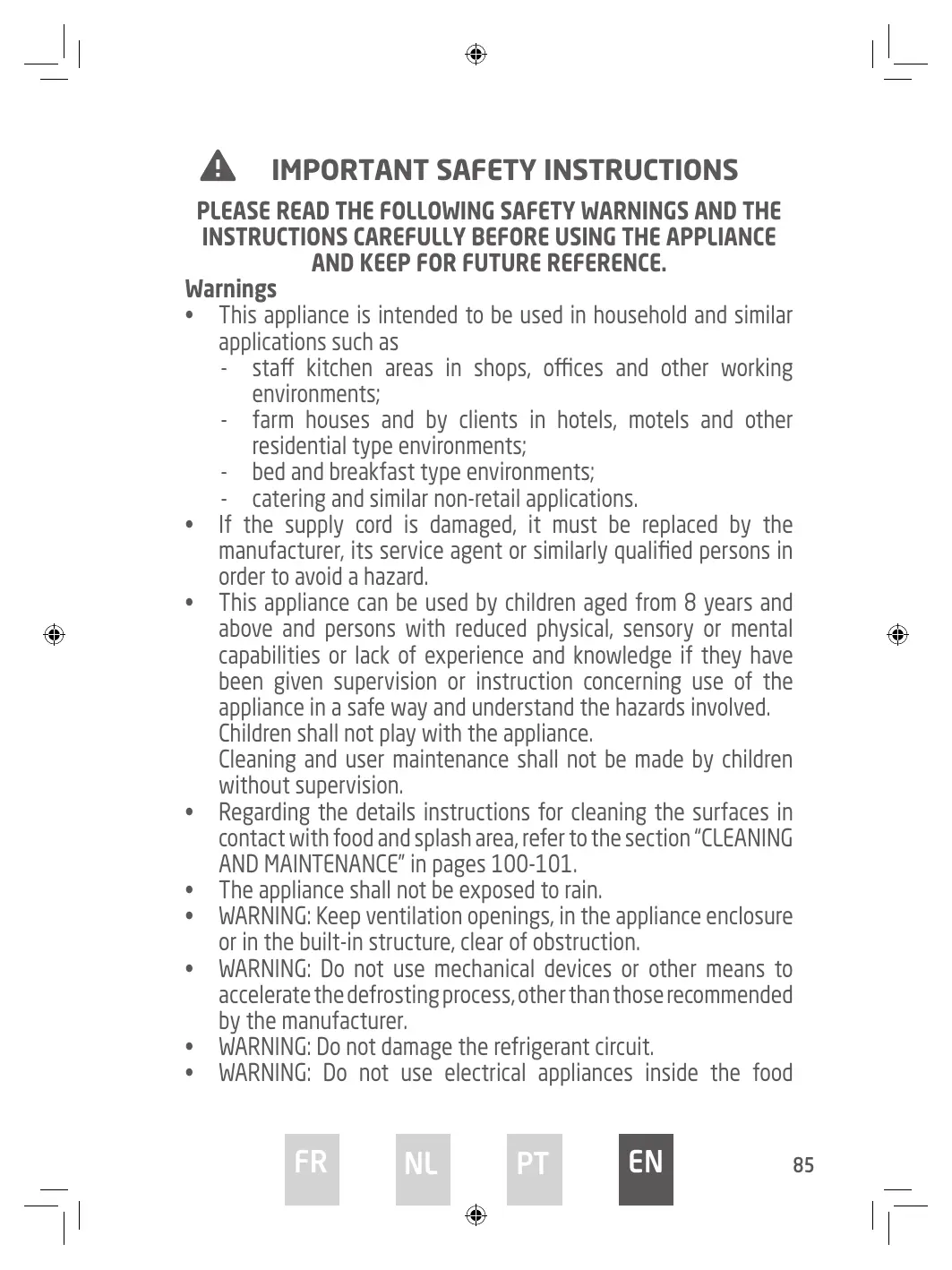

AND KEEP FOR FUTURE REFERENCE. Warnings This appliance is intended to be used in household and similar applications such as staff kitchen areas in shops, offices and other working environments, - farm houses and by clients in hotels, motels and other residential type environments; -__ bed and breakfast type environments; catering and similar non-retail applications. 0 f the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard, °__ This appliance can be used by children aged from 8 vears and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. °__ Regarding the details instructions for cleaning the surfaces in contact with food and splash area, refer to the section"CLEANING AND MAINTENANCE" in pages 100-101. °__The appliance shall not be exposed to rain. + WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction. ° WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other thanthoserecommended by the manufacturer. + WARNING: Do not damage the refrigerant circuit. °__ WARNING: Do not use electrical appliances inside the food

storage compartments of the appliance, unless they are of the type recommended by the manufacturer. Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance. CAUTION: The cooling system is under high pressure, Do not touch it. Contact qualified maintenance services before disposal. INSTALLATION: DO NOT INSTALL THIS APPLIANCE IN AREAS THAT ARE TOO HUMID OR TOO COLD, SUCH AS THE OUTBUILDINGS, GARAGES OR WINE CELLARS. For disposal of the appliance: Topreventpossibleharmtotheenvironmentorhumanhealth from uncontrolled waste disposal, recycle the appliance responsibly to promote the sustainable reuse of material resources, the refrigerants and the flammable insulation blowing gases. The disposal should only be done through public collection points; contact the waste treatment centre nearest vour home for more details on the correct procedures for disposal. For handling: Appliance should be placed on a horizontal surface and keep the ventilation freely. Don't try to replace or repair any components by yourself, ask the service agency for help if necessary. For handling: Always handle the appliance to avoid any damage.

WARNING: For making ice (ice cubes), use potable water only.

Never freeze defrosted food except if they have been cooked before, in order to eliminate harmful bacteria. Never refreeze seafood that has been defrosted. AN Warning; Risk of fire / flammable materials

WARNING: When positioning the appliance, ensure the supply

cord is not trapped or damaged.

WARNING: Do not locate multiple portable socket-outlets or

portable power supplies at the rear of the appliance.

Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances. To avoid contamination of food, please respect the following instructions: -_ Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance. - Clean regularly surfaces that can come in contact with food and accessible drainage systems. -_ Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food. -__ Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making ice cream and making ice cubes. -_ One, two- and three-star compartments are not suitable for the freezing of fresh food. -__Ifthe refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance. Safety Precautions Keep all packaging away from children as there is risk of suffocation. The plug must be accessible when the refrigerator freezer is in position. Unplug the refrigerator freezer from the mains socket when not in operation and before cleaning. Remove food before cleaning the appliance. Never unplug the refrigerator freezer by pulling the cord. Grip the plug firmly and pull it out. Place the refrigerator freezer in a dry place - avoid areas of high moisture or humidity.

Keep the refrigerator freezer out of direct sunlight. Do not place the refrigerator freezer near stoves, fires or heaters. Do not use electrical appliances in the refrigerator freezer. Keep burning candles, lamps and other items with naked flames away from the appliance so that do not set the appliance on fire. Do not insert oversized food as this could cause incorrect operation. Extreme caution must be used when moving the appliance. Do not use pointed or sharp-edged tools to remove frost or layers or ice. Use a plastic scraper. Never use the base, doors etc. to stand on or as supports. Do not give children ice-cream and water ices direct from the freezer compartment as the low temperature may cause ‘freezer burns’ on the lips. Effervescent drinks should not be stored in the freezer compartment. The refrigerant isobutene (R600a) is contained within the refrigerant circuit of the appliance, a natural gas with a high level of environmental compatibility, which is nevertheless flammable. During transportation and installation of the appliance, ensure that none of the components of the refrigerant circuit becomes damaged. The refrigerant (R6OOa) is flammable. WARNING — Refrigerators and freezers contain refrigerant and gases in the insulation. Refrigerant and gases must be disposed of professionally. Ensure that tubing of the refrigerant circuit is not damage prior to proper disposal.

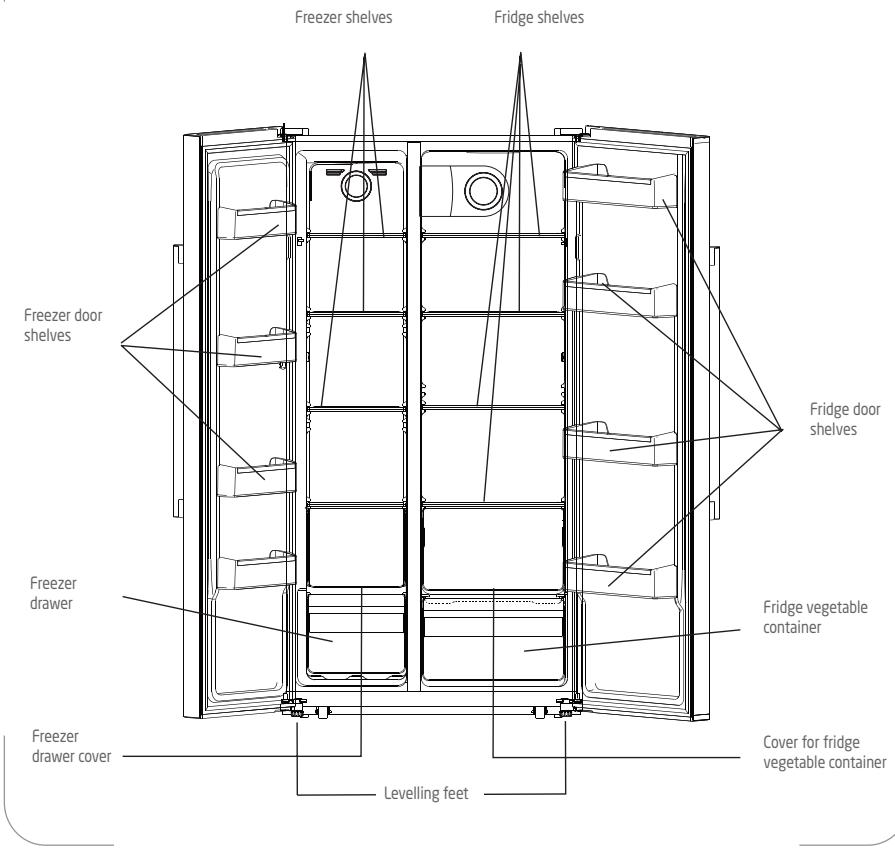

© PRODUCT OVERVIEW Freezer compartment Refrigerator compartment Freezer shelves Fridge shelves

idge door sheives Freezer | dar —| Fridge vegetable L_ container r fridge getable container Recommended food arrangement Refrigerator compartment (4°C): Cold air sinks so the bottom part is the coldest. Store your food in the optimal space to enjoy the fresh taste. Top section canned food, bread, cake... Middle section: dairy products, readymade food, desserts... Bottom section: meat, meat products, delicatessen … Container: fresh fruit, vegetables, salads...

Refrigerator door shelves (2°C - 8°C): Top/middle section: eggs, butter, cheese... Bottom section: beverages, cans, bottles... Freezer compartment (-18°C): Top/middle section: Cakes and pastries Dairy products such as cheese and butter Bottom drawer : Cooked meat and fish

4 BEFORE INSTALLING THE APPLIANCE

Before connecting your appliance to the power supply, check that the voltage stated on the rating label of Vour appliance corresponds to the voltage in your home. À different voltage could damage the appliance. The plug is the only way to unplug the appliance and should therefore be accessible at all times. To turn off main power to the appliance, turn it off and then detach the plug from the outlet. The appliance must be grounded. The manufacturer is not responsible for damages that may occur as a result of usage without grounding.

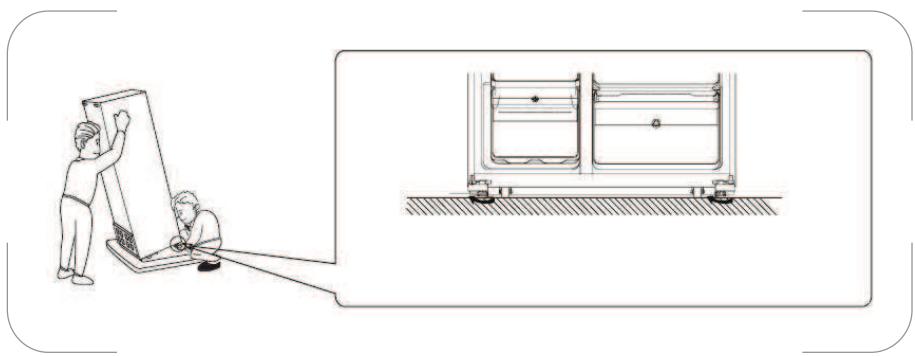

#* INSTALLATION Install the appliance in a dry, well-ventilated room. The installation location should neither be exposed to direct sunlight nor near a heat source, e.g. a cooker, radiator, etc. To ensure adequate ventilation for the appliance, allow à minimum of 10 cm of airspace on each side of the cabinet. For uneven surfaces, front feet can be aligned. Adjust the front feet until the appliance is level and stable. To achieve this result, the front feet shall be adjusted to be higher than the rollers on the bottom of the appliance). FL EH 7

El AMBIENT TEMPERATUE This appliance is designed to operate in ambient temperature between 10°C and 38°C. If these temperatures are exceeded, ie. colder or warmer, the appliance will not operate correctly. lf the ambient temperatures are exceeded for long periods, the temperature in the freezer compartment will rise above -18°C and food spoilage may occur.

UE USING YOUR REFRIGERATOR FREEZER

Before placing food in the appliance + Remove all packaging. + Allow the appliance to run empty for 2 - 3 hours so the compartment can cool to the appropriate temperature. + Clean the inside of the appliance with warm water and a little liquid detergent to remove manufacturing and transportation dust. Hints for fresh food refrigeration + Good temperature setting that ensures preservation of fresh food is a temperature less than or equal to +4°C. + Higher temperature setting inside the appliance may lead to shorter shelf life of food. + Cover the food with packaging to preserve its freshness and aroma. + Always use closed containers for liquids and for food, to avoid flavours or odours in the compartment. + To avoid the cross-contamination between cooked and raw food, cover the cooked food and separate it from the raw one. +__Itis recommended to defrost the food inside the fridge. + Do not place hot food inside the appliance. Make sure it has cooled down at room temperature before placing it inside the appliance. Hints for refrigeration + Meat (all types): wrap in a suitable packaging and place it in the refrigerator. Store meat for at most 1-2 days. + Fruit and vegetables: clean thoroughly (eliminate the soil) and place them

in the refrigerator. + __Itis advisable not to keep the exotic fruits like bananas, mangos, papayas etc. in the refrigerator. + Vegetables like tomatoes, potatoes, onions, and garlic should not be kept in the refrigerator. + Butter and cheese: place in an airtight container or wrap in an aluminium foil or a polythene bag to exclude as much air as possible. + Bottles: close them with a cap and place them on the door bottle shelf. + Always refer to the expiry date of the products to know how long to keep them. Adjusting the temperatures and functions Control Panel and display NO FROST DUREE PB moce A Lockss

Freezer compartment temperature adjustment To set the freezer compartment temperature, repeatedly press ELUR to select the desired temperature from -14°C to -22°C. The temperature will be confirmed after flashing for 5 seconds. Fridge compartment temperature adjustment To set the fridge compartment temperature, repeatedly press «to select the desired temperature from 2°C to 8°C. The temperature will be confirmed after flashing for 5 seconds. Fridge compartment switch off Repeatedly press ,[B, until the indicators "OFF" and “--" flash on the display. When the indicators stops flashing, it indicates the fridge compartment is switched off and the fridge compartment will stop cooling. To cancel the function, repeatedly press 4 to select the required temperature. The temperature will be confirmed after flashing for 5 seconds. Four modes selection The appliance features four modes including smart mode, ECO mode, super cooling mode and super freezing mode. Repeatedly press Le] to select the desired mode. The corresponding indicator light will flash and then stabilise, indicating that the mode is activated. To deactivate the mode, repeatediy press Æ until the mode indicator light goes out. The temperature display for fridge and freezer compartments will return to the previous setting.

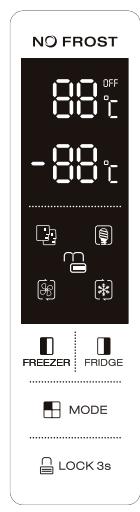

Freezer temperature Fridge temperature D mé | Indicator light display display The temperature display for freezer and fridge Smart +} will change based on ambient temperature (see the table below).

Super cooling No change +2°C Super freezing F3) -25°C No change NOTES: Smart mode: This mode allows your appliance to operate within the ideal temperature range. ECO mode: Select this mode when you want to save power. Super cooling mode: This mode allows you to cool foods quickly and will be automatically deactivated after 2,5 hours of operation. Super freezing mode: This mode allows vou to freeze foods quickly and will be automatically deactivated after 50 hours of operation. Child safety lock This function is designed to prevent children from operating the appliance. + To activate the function, press and hold @ Lockss for about 3 seconds. The lock indicator light will illuminate indicating the safety lock function is activated. + To deactivate the function, press and hold æ LOCK 8s for about 3 seconds. The unlock indicator light EM will illuminate.

Power failure If there is a power failure, do not open the door. Frozen food should not be affected if the power failure lasts for less than 9 hours. Do not refreeze frozen foods that have thawed completely. The food may be dangerous to eat. Freezing and storing food in the freezer compartment Using the freezer compartment + Tostore deep-frozen food + Tomakeice cubes + To freeze food Note: Ensure that the freezer compartment door has been closed properly. Purchasing frozen food + Packaging must not be damaged. + Use by the ‘use by/best before/best by/ date. + fpossible, transport deep-frozen food in an insulated bag and place quickly in the freezer compartment. Storing frozen food Store at -18°C or colder. Avoid opening the freezer compartment door unnecessarily. Freezing fresh food Freeze fresh and undamaged food only. To retain the best possible nutritional value, flavour and colour, vegetables should be blanched before freezing. Aubergines, peppers, zucchini and asparagus do not require blanching. Note: Keep food to be frozen away from food which is already frozen. + The following foods are suitable for freezing: Cakes and pastries, fish and seafood, meat, game, poultry, vegetables, fruit,

herbs, eggs without shells, dairy products such as cheese and butter, ready meals and leftovers such as soups, stews, cooked meat and fish, potato dishes, soufflés and desserts. + The following foods are not suitable for freezing: Types of vegetables, which are usually consumed raw, such as lettuce or radishes, eggs in shells, grapes, whole apples, pears and peaches, hard-boiled eggs, voghurt, soured milk, sour cream, and mayonnaise. Packing frozen food To prevent food from losing its flavour or drying out, place food in airtight packaging.

1. Place food in packaging.

4. Label packaging with contents and dates of freezing.

Suitable packaging: Plastic film, tubular film made of polyethylene, aluminium foil. These products are available from specialist outlets. Recommended storage times of frozen food in the freezer compartment These times vary depending on the type of food. The food that vou freeze can be preserved from 1 to 12 months (minimum at -18°C). Storage time Bacon, casseroles, milk 1 month Bread, ice cream, sausages, pies, prepared shellfish, oily fish 2 months Non-oily fish, shellfish, pizza, scones and muffins 3 months Ham, cakes, biscuits, beef and lamb chops, poultry pieces 4 months Butter, vegetables (blanched), eggs whole and yolks, cooked : à 6 months crayfish, minced meat (raw), pork (raw) Fruit (dry or in syrup), egg whites, beef (raw), whole chicken, 12 months lamb (raw), fruit cakes

Never forget: + When you freeze fresh foods with a ‘use by/best before/best by/' date, vou must freeze them before this date expires. + Check that the food was not already frozen. Indeed, frozen food that has thawed completely must not be refrozen. + Once defrosted, food should be consumed quickly. Making ice cubes Fill the ice cube tray (not supplied) with 3/4 full of drinking water and place in the freezer compartment. If the ice cube tray is stuck to the compartment, loosen with a blunt tool only. To loosen the ice cubes, twist the ice cube tray slightly or hold briefly under flowing water. Door opening alarm When any door is left open or not closed completely for about 60 seconds, the appliance will sound an alarm. Close the door then the alarm will stop. Operating noises Normal noises + Motors are running. + Refrigerantis flowing through the tubing. Moving your refrigerator freezer + Unplug the refrigerator freezer. + Remove all the food. + Securely tape down all loose items inside your refrigerator freezer. + Tape the door shut. + Be sure the refrigerator freezer stays in the upright position during transportation. +__Ifthe appliance is turned off for any reason, wait for 10 minutes before turning it back on. This will allow the refrigeration system pressures to equalise before restarting.

Energy saving tips For the most energy efficient use of vour appliance: Ensure your refrigerator freezer has adequate ventilation as recommended in the installation instructions. Allow warm food and drinks to cool down before placing in the appliance. Thaw frozen food in the refrigerator compartment and use the low temperature of the frozen food to cool refrigerated food Keep door openings to a minimum. Open the appliance as briefly as possible. Regularly defrost the refrigerator freezer to remove the layer of frost. Ensure that the fridge and freezer doors are always closed properly..

UB DEFROSTING This appliance is equipped with a frost free system. This system enables the freezer compartment to remain permanently ice-free, however, the food stored in the freezer drawers will not defrost.

< CLEANING AND MAINTENANCE

À Always unplug the appliance before cleaning.

1. Take out the food and store in a cool location.

2. Remove all removable parts, such as shelves, vegetables

containers, drawers etc.

3. Use à soft damp cloth or paper towel to clean the interior

and exterior including all different drainage area and water evacuation port.

4. Wipe up spills in the fridge and freezer compartment with a

damp cloth immediately. + Use a mild cleanser such as dish detergent or use either some baking soda or vinegar to clean the splash area. +. Place a small amount of detergent, vinegar, or baking soda in a bowl and add warm water to it. Dip a towel or cloth into the cleaning solution and wash the inside of your appliance.

5. Clean the removable parts using a clean sponge or soft cloth in

warm soapy water, Rinse and dry thoroughly before replacing them. *_ Do not use abrasive or chemical cleaning agents.

6. Clean the door liners and gaskets using a clean sponge or soft

cloth and a mild detergent in warm water. ° Do not use cleaning waxes, concentrated detergents, bleaches, or cleaners containing petroleum on plastic refrigerator parts.

7. Dryall surfaces thoroughly and then plug in the appliance. Adjust

8. Put the food back in the appliance.

The LED light in the fridge/freezer compartment cannot be replaced by the user. If the LED light stops working, please contact the local authorised service agent.

@ TROUBLESHOOTING If vou experience a problem with your appliance or are concerned that the appliance is not functioning correctly, Vou can carry out some easy checks according to below table before calling for service. Warning ! Do not try to repair the appliance yourself. If the problem persists after vou have made the checks mentioned below, contact a qualified electrician, authorized service engineer or the store where you purchased the product. Appliance does not operate. Check that the appliance is plugged into the mains socket properly and that the outlet is suitched on Check the fuse is not bloun. Check the circuit breaker is not tripped. Unusual noises Re-adjust the feet to ensure the appliance is level Check that the appliance is not touching the wall or other objects. Move the appliance slightiy. Check that a component, eg. a pipe, on the rear of the appliance is not touching another part of the appliance or the wall If necessary, carefully bend the component out of the way. Inadequate refrigeration

Set the temperature control to a lower temperature and allow several hours for the temperature to stabilize. Door is kept open too long or is opened too frequentiy, Warm air enters the refrigerator every time the door is opened. Open the door less often. Check that the door is closed completely. Ensure that the door gasket does not seal properiy. A large amount of warm or hot food might have been stored recently. ait until the refrigerator has reached its set temperature.

Door seal fais to be tight Remove foreign matters on the door seal Heat the door seal and then cool it for restoration. (or blowr it with an electrical drier or use a hot towel for heating)

PRODUCT INFORMATION SHEET

O:star or ice-making mo - - - - star no = = = E 2sstar no = = = E 3sstar no = = = - astar yes 1850 18 140 À 2-starsection no = = = = Variable temperature nm _ _ _ _ compartment For tar compartments Fast freeze facity For wine storage appliances Number of standard wine bottes Light source parameters (a) Type oflight source UD Energy efficiency class 6 um duration of the guarantee offered by the manufacturer : 24 months Additional information: bin to the suppliers website, here the information in paint 4 of Annex of Commision Regulation (EU)2019/2019 is found: ven darty com (a) as determined in accordance with Commission Delegated Regulation (EU) 2019/2015. Climate class: + Extended temperate: ‘this refrigerating appliance is intended to be used at ambient temperatures ranging from 10 °C to 32 °C. + Temperate: ‘this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 32 °C. + Subtropical: ‘this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 38 °C. This refrigerating appliance is not intended to be used as a built-in appliance. To find the model information in the product database: Click the link https://eprel.ec.europa.eu/screen/product/refrigeratingappliances2019/1529137

Rated voltage and frequency 220240 50H Refrgerent/Amount R6O0 75g Insultion bloning gas CGriopentane Rated curent LA Rated input pouer 150w Electric shock protection class ass Rated defrostng poner 240W Temperature rise time Pour ut safe Sh Netueight 8Lkg Replaceable (LED only) light source by a profes- sional This product contains a light source of energy efficiency class G.

Do not disassemble or repair the appliance by yourself. Failure to do so may result in an electric shock or personal injury. To access to professional repair and order spare parts, please get the support from FNAC DARTY after-sales service. Spare parts for vour appliances will be delivered within 15 working days after having received the order. Availability of spare parts: a minimum period of 10 vears Please Note ! All appliances have a 2-vear warranty. Warranty does not cover damages caused due to improper installation, unauthorized modification, self-repair or non-professional repair. Contact us at: & QE:

Às à responsible retailer we care about the environment. As such we urge vou to follow the correct disposal procedure for the appliance and packaging materials. This will help conserve natural resources and ensure that it is recycled in a manner that protects health and the environment. You must dispose of this appliance and its packaging according to local laws and regulations. Because this appliance contains electronic components, the appliance and its accessories must be disposed of separately from household waste when the appliance reaches its end of life. Contact vour local authority to learn about disposal and recycling. The appliance should be taken to your local collection point for recycling. Some collection points accept appliance free of charge. We apologise for any inconvenience caused by minor inconsistencies in these instructions, which may occur as a result of product improvement and development. Etablissements Darty & fils ©, 9 Rue des Bateaux-Lavoirs, 94200 Ivry-sur-Seine, France 23/01/2025

RL THE COLDEST PART OF THE REFRIGERATOR The symbol indicates the location of the coldest part of your refrigerator. This area is in between the vegetable compartment at the bottom and the symbol at the top, or the shelf at the same height. In order to maintain the temperature in this area, make sure not to change the position of this shelf. In forced air refrigerators (equipped with a fan or No Frost models), the coldest area symbol is not shown because the temperature is uniform throughout the interior.

INSTALLING THE TEMPERATURE INDICATOR

To help you adjust your refrigerator correctly, it is equipped with a temperature indicator that you can use to control the average temperature in the coldest area.

WARNING : This indicator is only intended for use in your refrigerator. Do not

use it in another refrigerator (as the coldest area will not be the same) or for any other purpose. TEMPERATURE INDICATOR : THE COLDEST PART OF YOUR REFRIGERATOR

CHECKING THE TEMPERATURE IN THE COLDEST AREA Using the temperature indicator, vou should regularly check that the temperature is correct in the coldest part of your refrigerator. The temperature inside your refrigerator depends on a number of factors, such as the outside room temperature, how full your refrigerator is, and how often you open the door. Take these factors into consideration when adjusting your appliance. When the indicator shows "OK", it means your thermostat is set properly and the temperature inside your refrigerator is correct. If the indicator is white it means the temperature is too high, so vou should increase the thermostat setting and wait for 12 hours before checking the indicator again. After loading the refrigerator or opening the door, the indicator may turn white for a few seconds. Correct setting Temperature too high, adjust the thermostat
