PDX-1282 WB - DVD player SIGMATEK - Free user manual and instructions

Product Type	Portable DVD Player with LCD Screen
Brand	SIGMATEK
Model	PDX-1282 WB
Dimensions (L x W x H)	206 x 158 x 41 mm
Weight	0.753 kg
Screen Size	7 inches (17.78 cm)
Screen Resolution	480 x 234 pixels (RGB)
Compatible Disc Formats	DVD±R/RW, DVD-R/RW, VCD, CD-DA, CD-R/RW, MPEG4, XviD, JPEG
Power Supply	AC/DC power adapter 9-12 V, car cigarette lighter adapter (9-12 V)
Battery Type	Rechargeable lithium polymer
Charging Time	Approximately 6 hours (device off)
Battery Life	Approximately 2 hours
Connections	DC IN 9-12 V jack, USB 1.1 port, SD/MMC card reader, headphone output (x2), AV output (audio/video)
Main Functions	Playback, fast forward/rewind (x2, x4, x8, x16, x32), pause, repeat (chapter/title/disc, A-B), zoom, multi-angle, subtitles, audio language change, OSD display
Safety	Do not expose to water, do not open, disconnect during thunderstorms, refer repairs to qualified technician
Maintenance and Cleaning	Disconnect device, clean with a damp cloth (no liquid detergents or aerosols)
Spare Parts and Repairability	Remote control, power adapter, car lighter adapter, AV cable, earphones, manual; repair by a qualified technician
Operating Temperature	5 to 40 °C
General Information	PAL/NTSC compatibility, multilingual interface, memory-free battery

Frequently Asked Questions - PDX-1282 WB SIGMATEK

What types of discs can I play with this DVD player?

This player is compatible with the following formats: DVD±R/RW, DVD-R/RW, VCD, CD-DA, CD-R/RW, MPEG4, XviD and JPEG.

How to recharge the player's battery?

The battery only charges when the device is off (OFF) and connected to a power source (AC adapter or car lighter). The red light indicates charging is in progress. Charging time is approximately 6 hours.

What is the battery life?

A fully charged battery allows about 2 hours of use.

Can I connect this player to a TV?

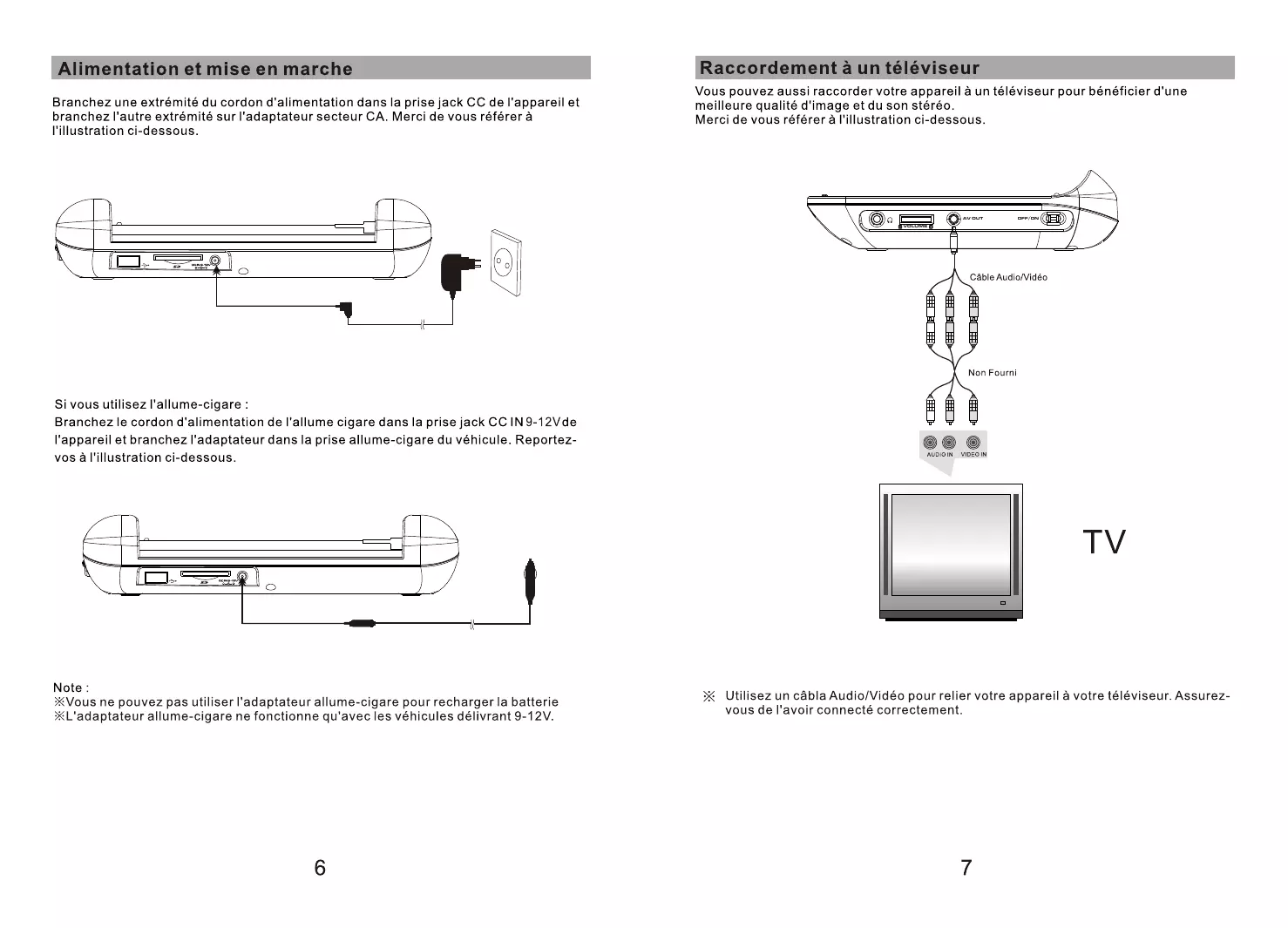

Yes, use the included audio/video cable to connect the player's AV output to the corresponding input on your TV. Make sure to select the correct source on the TV.

How to play JPEG files on this player?

Insert a disc or USB drive containing JPEG files. Playback starts automatically. Use the MENU button to navigate, and the directional keys to choose an image. Press OK or ▶ to display the selected image.

How to use the A-B repeat function?

During playback, press the A-B button at the beginning of the section to repeat, then again at the end. Playback will then repeat the defined section. Press a third time to cancel the repeat.

What to do if the player shows no image or distorted image?

Check that the disc is not scratched or damaged. Try another disc. If the image is distorted during fast forward or rewind, this is normal. Make sure the video connections are correct.

How to set the subtitle language on a DVD?

During DVD playback, press the SUBTITLE button on the remote to display and select the subtitle language. Use the numeric keys to choose the desired option.

The player does not detect my USB drive or SD card, what should I do?

Make sure the USB drive or SD card is properly inserted. Check that it is formatted as FAT32. In the menu, select the MEDIA source with the directional keys and confirm with OK.

Can I use non-standard shaped discs (heart, star)?

No, use only standard round discs. Non-standard shaped discs may damage the player.

USER MANUAL PDX-1282 WB SIGMATEK

(Normal/PS, Normal/LB, Large)

Alimentation: CC 9-12V

Consommation electrique 10 W
