USER MANUAL THSBS100BLIX THOMSON

Waterreservoir Water dispenser

INSTALLATION 5 AMBIENT TEMPERATUE 7 USING YOUR REFRIGERATOR FREEZER 7 DEFROSTING 13 CLEANING AND MAINTENANCE 14 TROUBLESHOOTING 15 PRODUCT INFORMATION SHEET 16 REPAIR AND SPARE PARTS SERVICE 19 DISPOSAL 20

This product has been manufactured and sold under the responsibility of Etablissements Darty et Fils (S.A.S). THOMSON, and the THOMSON logo are trademarks used under license by Etablissements Darty et Fils (S.A.S) – further information at www.thomson-brand.com. All other products, services, companies, trademarks, trade or product names and logos referenced herein are the property of their respective owners.

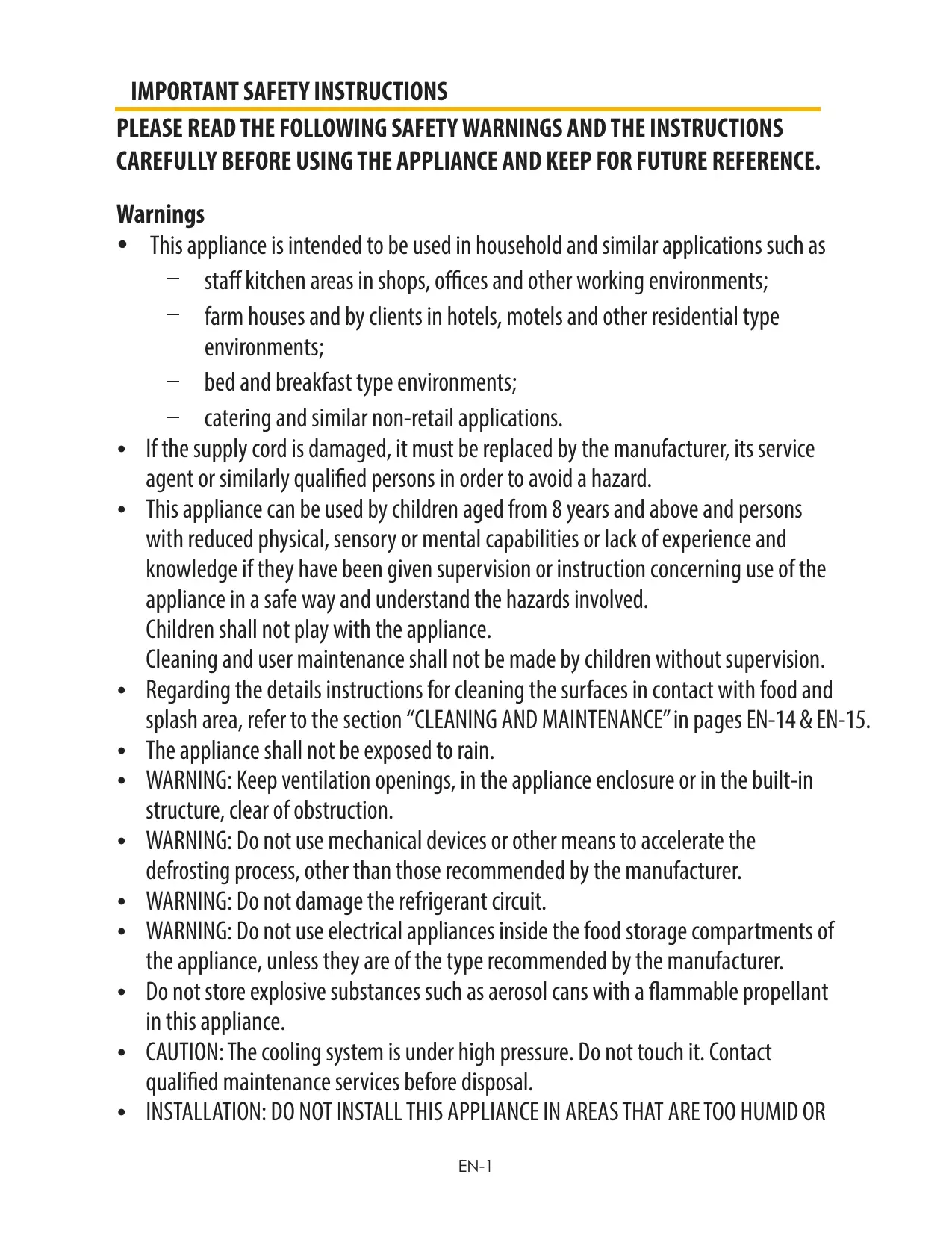

IMPORTANT SAFETY INSTRUCTIONS PLEASE READ THE FOLLOWING SAFETY WARNINGS AND THE INSTRUCTIONS CAREFULLY BEFORE USING THE APPLIANCE AND KEEP FOR FUTURE REFERENCE. Warnings y This appliance is intended to be used in household and similar applications such as staff kitchen areas in shops, offices and other working environments; farm houses and by clients in hotels, motels and other residential type environments; bed and breakfast type environments; catering and similar non-retail applications. y If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. y This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. y Regarding the details instructions for cleaning the surfaces in contact with food and splash area, refer to the section “CLEANING AND MAINTENANCE” in pages EN-14 & EN-15. y The appliance shall not be exposed to rain. y WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction. y WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer. y WARNING: Do not damage the refrigerant circuit. y WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer. y Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance. y CAUTION: The cooling system is under high pressure. Do not touch it. Contact qualified maintenance services before disposal. y INSTALLATION: DO NOT INSTALL THIS APPLIANCE IN AREAS THAT ARE TOO HUMID OR EN-1

TOO COLD, SUCH AS THE OUTBUILDINGS, GARAGES OR WINE CELLARS. For disposal of the appliance: To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle the appliance responsibly to promote the sustainable reuse of material resources, the refrigerants and the flammable insulation blowing gases. The disposal should only be done through public collection points; contact the waste treatment centre nearest your home for more details on the correct procedures for disposal. For installation, servicing: Appliance should be placed on a horizontal surface and keep the ventilation freely. Don’t try to replace or repair any components by yourself, ask the service agency for help if necessary. For handling: Always handle the appliance to avoid any damage. WARNING: For making ice (ice cubes), use potable water only. Never freeze defrosted food except if they have been cooked before, in order to eliminate harmful bacteria. Never refreeze seafood that has been defrosted.

y Warning; Risk of fire / flammable materials y WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged. y WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance. y Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances. y To avoid contamination of food, please respect the following instructions: ࢼ Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance. ࢼ Clean regularly surfaces that can come in contact with food and accessible drainage systems. ࢼ Clean water tanks if they have not been used for 48 h; flush the water system connected to a water supply if water has not been drawn for 5 days. (1

Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food. Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making ice cream and making ice cubes. One-, two- and three-star compartments are not suitable for the freezing of fresh food. If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

Safety Precautions y Keep all packaging away from children as there is risk of suffocation. y The plug must be accessible when the refrigerator freezer is in position. y Unplug the refrigerator freezer from the mains socket when not in operation and before cleaning. Remove food before cleaning the appliance. y Never unplug the refrigerator freezer by pulling the cord. Grip the plug firmly and pull it out. y Place the refrigerator freezer in a dry place – avoid areas of high moisture or humidity. y Keep the refrigerator freezer out of direct sunlight. y Do not place the refrigerator freezer near stoves, fires or heaters. y Do not use electrical appliances in the refrigerator freezer. y Keep burning candles, lamps and other items with naked flames away from the appliance so that do not set the appliance on fire. y Do not insert oversized food as this could cause incorrect operation. y Extreme caution must be used when moving the appliance. y Do not use pointed or sharp-edged tools to remove frost or layers or ice. Use a plastic scraper. y Never use the base, doors etc. to stand on or as supports. y Do not give children ice-cream and water ices direct from the freezer compartment as the low temperature may cause 'freezer burns' on the lips. y Effervescent drinks should not be stored in the freezer compartment. y The refrigerant isobutene (R600a) is contained within the refrigerant circuit of the (1

appliance, a natural gas with a high level of environmental compatibility, which is nevertheless flammable. During transportation and installation of the appliance, ensure that none of the components of the refrigerant circuit becomes damaged. The refrigerant (R600a) is flammable. y WARNING — Refrigerators and freezers contain refrigerant and gases in the insulation. Refrigerant and gases must be disposed of professionally. Ensure that tubing of the refrigerant circuit is not damage prior to proper disposal.

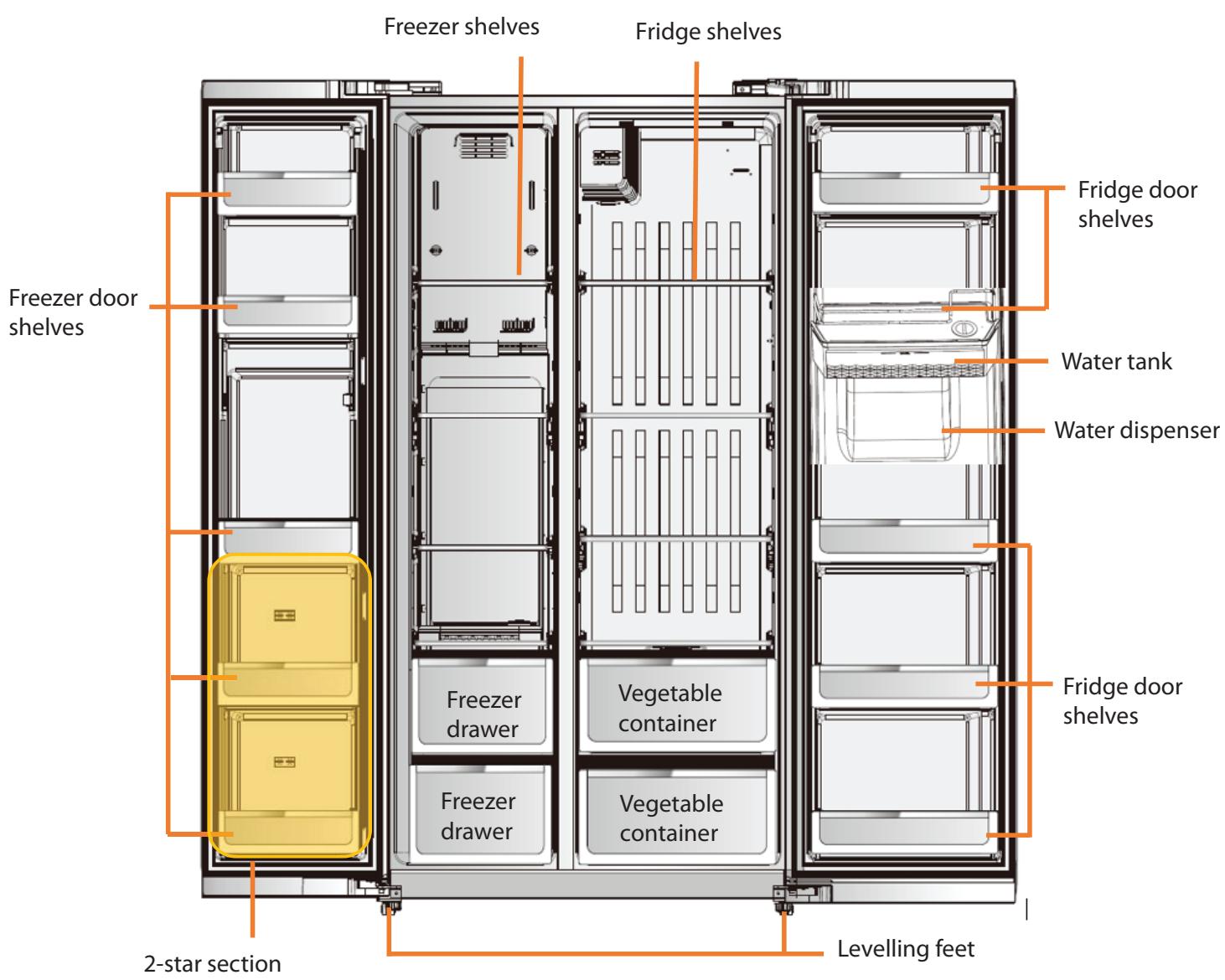

PRODUCT OVERVIEW Freezer compartment

Refrigerator compartment Freezer shelves

Fridge door shelves Freezer door shelves Water tank Water dispenser

Recommended food arrangement Refrigerator compartment (4°C): Cold air sinks so the bottom part is the coldest. Store your food in the optimal space to enjoy the fresh taste. Top section: Middle section: Bottom section: Container:

canned food, bread, cake… dairy products, readymade food, desserts… meat, meat products, delicatessen … fresh fruit, vegetables, salads…

Refrigerator door shelves (2°C ~ 8°C): Top section: Bottom section:

eggs, butter, cheese… beverages, cans, bottles…

Freezer compartment (-18°C): Top/middle section: Bottom drawer : Freezer door shelves : 2-star section :

Cakes and pastries Dairy products such as cheese and butter Cooked meat and fish Preserve small packaged frozen food With temperature not higher than -12°C suitable for storing ice cream and so on

BEFORE INSTALLING THE APPLIANCE Before connecting your appliance to the power supply, check that the voltage stated on the rating label of your appliance corresponds to the voltage in your home. A different voltage could damage the appliance. The plug is the only way to unplug the appliance and should therefore be accessible at all times. To turn off main power to the appliance, turn it off and then detach the plug from the outlet. The appliance must be grounded. The manufacturer is not responsible for damages that may occur as a result of usage without grounding.

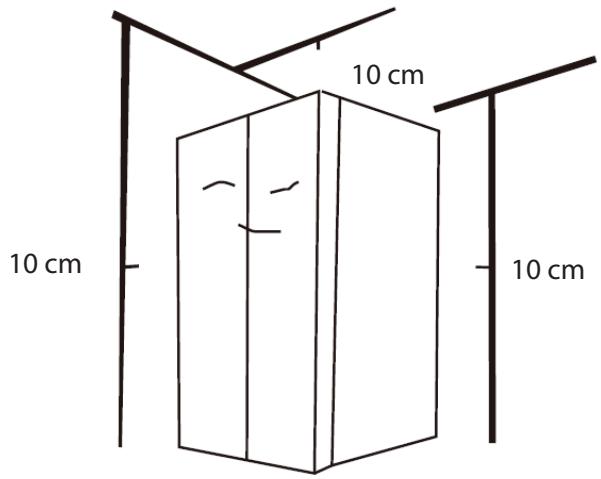

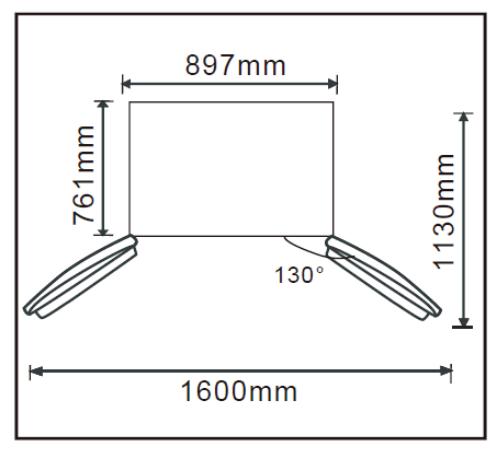

INSTALLATION Install the appliance in a dry, well-ventilated room. The installation location should neither be exposed to direct sunlight nor near a heat source, e.g. a cooker, radiator, etc. To ensure adequate ventilation for the appliance, allow a minimum of 10 cm of airspace on each side of the cabinet. Adjust the feet to keep the refrigerator freezer level.

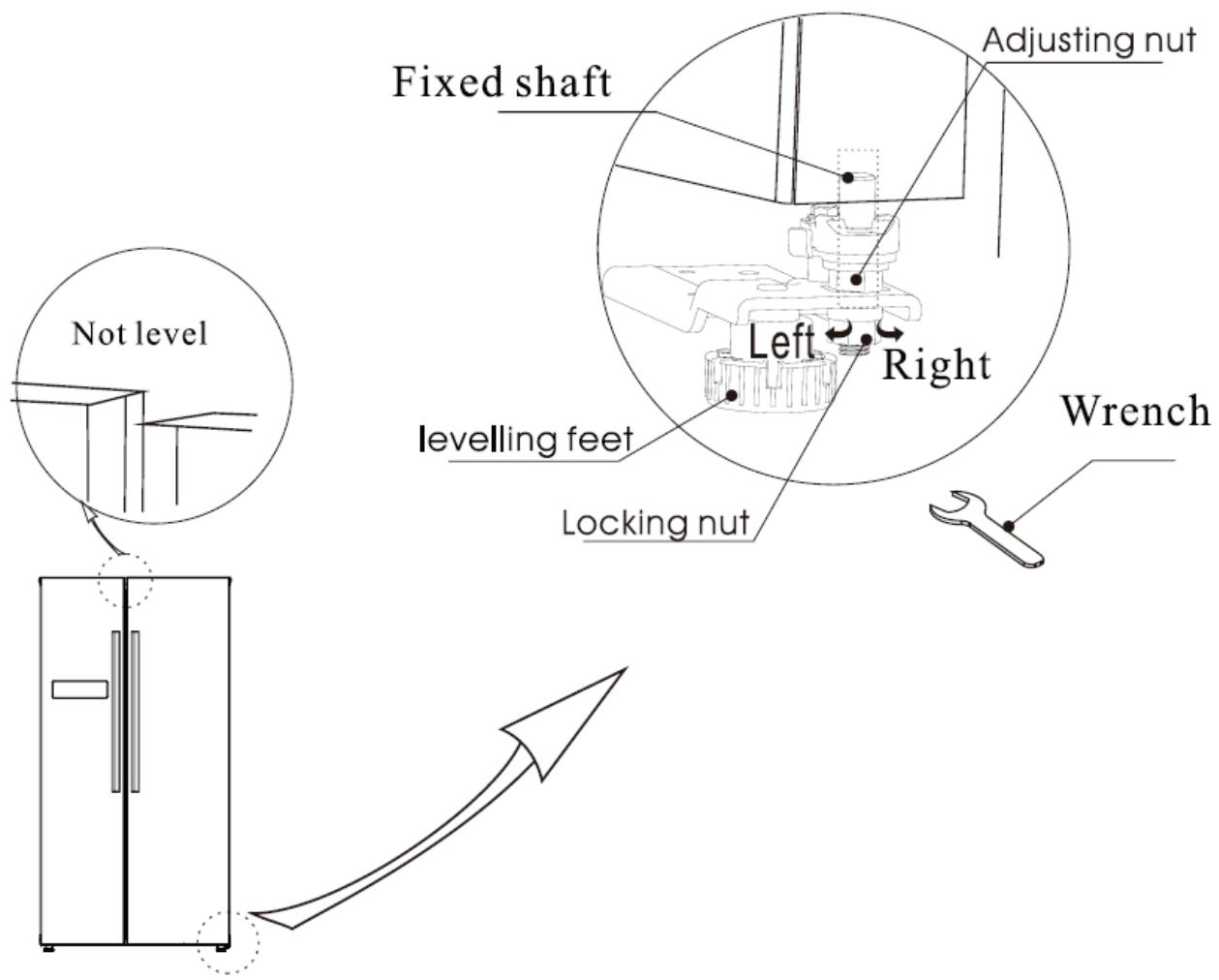

If the doors of the appliance are not aligned then the height of right door can be adjusted, please follow the below steps. 1. Rotate the locking nut clockwise with a wrench for 2 full rotations to loosen it. 2. You can now rotate the adjusting nut to adjust the height of the right door. 3. Once the door is set to your desired position, then tighten the locking nut by rotating it anticlockwise.

AMBIENT TEMPERATUE This appliance is designed to operate in ambient temperature between 10°C and 43°C. If these temperatures are exceeded, i.e. colder or warmer, the appliance will not operate correctly. If the ambient temperatures are exceeded for long periods, the temperature in the freezer compartment will rise above -18°C and food spoilage may occur.

Before placing food in the appliance Remove all packaging. Allow the appliance to run empty for 2 – 3 hours so the compartment can cool to the appropriate temperature. Clean the inside of the appliance with warm water and a little liquid detergent to remove manufacturing and transportation dust.

Hints for fresh food refrigeration Good temperature setting that ensures preservation of fresh food is a temperature less than or equal to +4°C. Higher temperature setting inside the appliance may lead to shorter shelf life of food. Cover the food with packaging to preserve its freshness and aroma. Always use closed containers for liquids and for food, to avoid flavours or odours in the compartment. To avoid the cross-contamination between cooked and raw food, cover the cooked food and separate it from the raw one. It is recommended to defrost the food inside the fridge. Do not place hot food inside the appliance. Make sure it has cooled down at room temperature before placing it inside the appliance.

Hints for refrigeration Meat (all types): wrap in a suitable packaging and place it in the refrigerator. Store meat for at most 1-2 days. Fruit and vegetables: clean thoroughly (eliminate the soil) and place them in the refrigerator. It is advisable not to keep the exotic fruits like bananas, mangos, papayas etc. in the refrigerator. Vegetables like tomatoes, potatoes, onions, and garlic should not be kept in the refrigerator. Butter and cheese: place in an airtight container or wrap in an aluminium foil or a polythene bag to exclude as much air as possible. Bottles: close them with a cap and place them on the door bottle shelf. Always refer to the expiry date of the products to know how long to keep them.

Adjusting the temperatures and functions

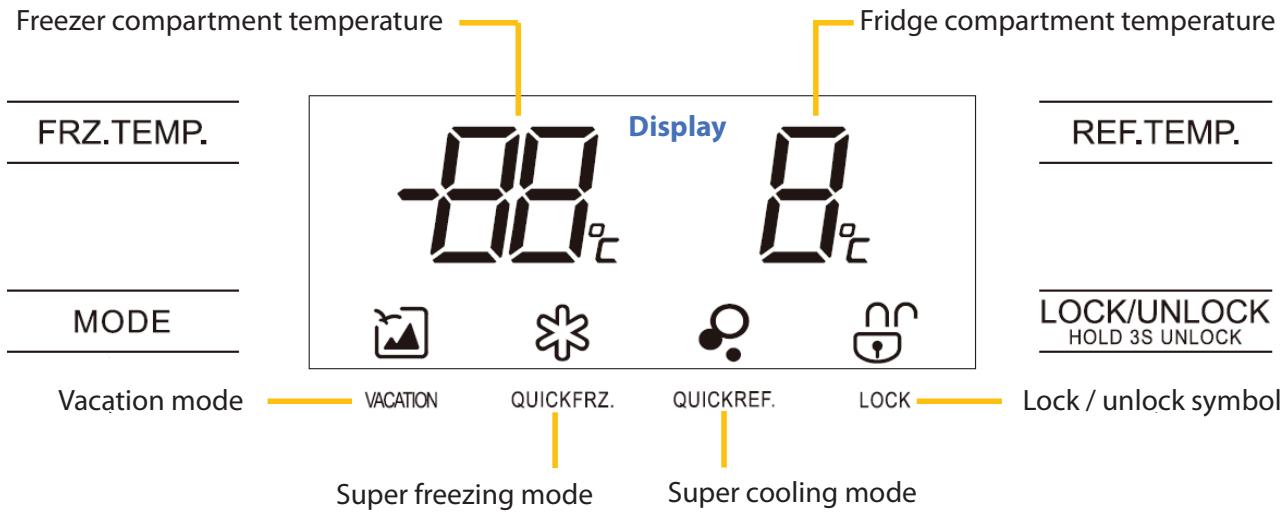

Control Panel and display Freezer compartment temperature

Fridge compartment temperature

Lock / unlock symbol Super freezing mode

Buttons : Freezer compartment temperature setting Fridge compartment temperature setting Mode setting Lock / Unlock Door opening prompt tone When opening the door, you will hear the door opening melody. To turn off / on the door opening melody, you can press and hold

for about 2 seconds.

Setting the Fridge Compartment Temperature The fridge compartment temperature can be set between 2°C and 8°C. Repeatedly press to set the desired temperature. The fridge temperature symbol will appear on the display. The temperature will be confirmed after flashing for 5 seconds.

Setting the Freezer Compartment Temperature The temperature of the freezer compartment can be set between -24°C and -16°C. to set the desired temperature. Repeatedly press The freezer temperature symbol will appear on the display. The temperature will be confirmed after flashing for 5 seconds.

Setting a mode You can select different modes by repeatedly pressing the corresponding mode symbol will be displayed.

. When a certain mode is selected,

Error Codes When an error occurs in the appliance, the display will show the corresponding error code as shown in the list below. Please contact the local authorised service centre. E1 E2 E3 E5 E6 E7

Temperature sensor failure inside the fridge compartment Temperature sensor failure inside the freezer compartment Temperature sensor failure inside the chill compartment Failure of freezing and defrosting sensors Communication failure Ambient temperature sensor failure

Using the water dispenser

The water dispenser allows you to get chilled water without opening the fridge compartment door. Before first use Before using the water dispenser for the first time, remove and clean the water tank located inside the fridge compartment. 1.

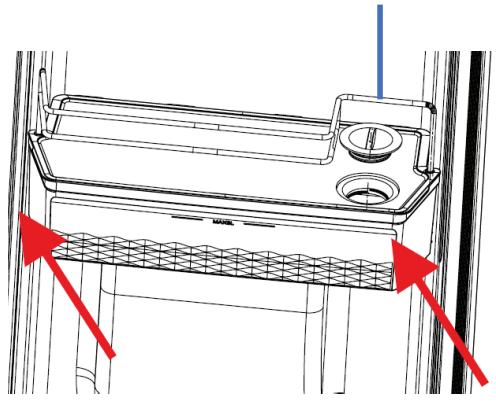

Lift the water tank out of the fridge compartment. Open the water tank cover and then clean the water tank and cover in warm soapy water. Rinse thoroughly. Firstly, remove the steel wire from the water tank cover.

After cleaning, attach the cover to the water tank and then replace the water tank back on the fridge door. Attach the steell wire back to the water tank cover. Clean the dispenser pad outside the fridge door.

Filling the water tank with water 1. Open the small lid.

Fill the water tank with drinkable water up to 3 L line. Close the small lid.

Caution ! Do not fill water tank with any liquid other than drinking water. Beverages such as fruit juice, carbonated fizzy soda drinks, alcoholic drinks are not suitable for use with water dispenser. If such liquids are filled, the water dispenser may be malfunction and may be damaged. Only use clean purified drinking water. Capacity of the tank is 3 L, do not overfill.

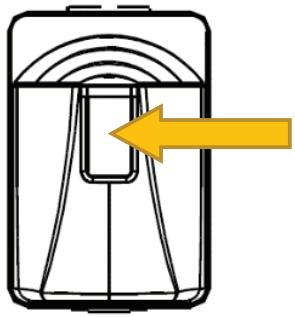

Dispensing To dispense water, push the dispenser pad gently, using a glass or container. To stop the flow of water, pull your glass away from the dispenser pad.

If there is a power failure, do not open the door. Frozen food should not be affected if the power failure lasts for less than 7 hours. Do not refreeze frozen foods that have thawed completely. The food may be dangerous to eat.

Freezing and storing food in the freezer compartment

Using the freezer compartment x x x

To store deep-frozen food To make ice cubes To freeze food

Note: Ensure that the freezer compartment door has been closed properly.

Purchasing frozen food x x x

Packaging must not be damaged. Use by the ‘use by/best before/best by/’ date. If possible, transport deep-frozen food in an insulated bag and place quickly in the freezer compartment.

Storing frozen food Store at -18°C or colder. Avoid opening the freezer compartment door unnecessarily.

Freezing fresh food Freeze fresh and undamaged food only. To retain the best possible nutritional value, flavour and colour, vegetables should be blanched before freezing. Aubergines, peppers, zucchini and asparagus do not require blanching. Note: Keep food to be frozen away from food which is already frozen. x The following foods are suitable for freezing: Cakes and pastries, fish and seafood, meat, game, poultry, vegetables, fruit, herbs, eggs without shells, dairy products such as cheese and butter, ready meals and leftovers such as soups, stews, cooked meat and fish, potato dishes, soufflés and desserts. x The following foods are not suitable for freezing: Types of vegetables, which are usually consumed raw, such as lettuce or radishes, eggs in shells, grapes, whole apples, pears and peaches, hard-boiled eggs, yoghurt, soured milk, sour cream, and mayonnaise.

Packing frozen food To prevent food from losing its flavour or drying out, place food in airtight packaging. 1. Place food in packaging. 2. Remove air. 3. Seal the wrapping. 4. Label packaging with contents and dates of freezing. Suitable packaging: Plastic film, tubular film made of polyethylene, aluminium foil. These products are available from specialist outlets.

Recommended storage times of frozen food in the freezer compartment These times vary depending on the type of food. The food that you freeze can be preserved from 1 to 12 months (minimum at -18°C). Food Bacon, casseroles, milk Bread, ice cream, sausages, pies, prepared shellfish, oily fish Non-oily fish, shellfish, pizza, scones and muffins Ham, cakes, biscuits, beef and lamb chops, poultry pieces Butter, vegetables (blanched), eggs whole and yolks, cooked crayfish, minced meat (raw), pork (raw) Fruit (dry or in syrup), egg whites, beef (raw), whole chicken, lamb (raw), fruit cakes

Storage time 1 month 2 months 3 months 4 months 6 months 12 months

Never forget: x When you freeze fresh foods with a ‘use by/best before/best by/’ date, you must freeze them before this date expires. x Check that the food was not already frozen. Indeed, frozen food that has thawed completely must not be refrozen. x Once defrosted, food should be consumed quickly.

Fill the ice cube tray (not supplied) with 3/4 full of drinking water and place in the freezer compartment. If the ice cube tray is stuck to the compartment, loosen with a blunt tool only. To loosen the ice cubes, twist the ice cube tray slightly or hold briefly under flowing water.

If the door is left open for approximately 120 seconds, the alarm will sound. To turn off the alarm, you can close the door or press any button.

Normal noises y Motors are running. y Refrigerant is flowing through the tubing.

Moving your refrigerator freezer Unplug the refrigerator freezer. Remove all the food. Securely tape down all loose items inside your refrigerator freezer. Tape the door shut. Be sure the refrigerator freezer stays in the upright position during transportation. If the appliance is turned off for any reason, wait for 10 minutes before turning it back on. This will allow the refrigeration system pressures to equalise before restarting.

For the most energy efficient use of your appliance: y Ensure your refrigerator freezer has adequate ventilation as recommended in the installation instructions. y Allow warm food and drinks to cool down before placing in the appliance. y Thaw frozen food in the refrigerator compartment and use the low temperature of the frozen food to cool refrigerated food y Keep door openings to a minimum. y Open the appliance as briefly as possible. y Regularly defrost the refrigerator freezer to remove the layer of frost. y Ensure that the fridge and freezer doors are always closed properly..

DEFROSTING This appliance is equipped with a frost free system. This system enables the freezer compartment to remain permanently ice-free, however, the food stored in the freezer compartment will not defrost.

CLEANING AND MAINTENANCE Always unplug the appliance before cleaning. 1. Take out the food and store in a cool location. 2. Remove all removable parts, such as shelves, vegetables containers, drawers etc. The shelves have tabs that help keep the shelves in place.

Remove the shelves from the appliance by slightly lifting up while sliding them out.

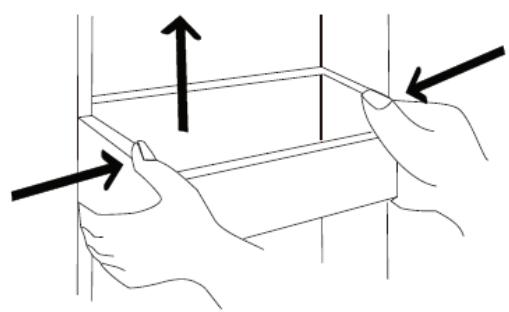

Use both hands to squeeze the door shelves, and then pull them out.

3. Use a soft damp cloth or paper towel to clean the interior and exterior including all different drainage area and water evacuation port. 4. Wipe up spills in the fridge and freezer compartment with a damp cloth immediately. y Use a mild cleanser such as dish detergent or use either some baking soda or vinegar to clean the splash area. y Place a small amount of detergent, vinegar, or baking soda in a bowl and add warm water to it. Dip a towel or cloth into the cleaning solution and wash the inside of your appliance. 5. Clean the removable parts using a clean sponge or soft cloth in warm soapy water. Rinse and dry thoroughly before replacing them. y Do not use abrasive or chemical cleaning agents. 6. Clean the door liners and gaskets using a clean sponge or soft cloth and a mild (1

detergent in warm water. y Do not use cleaning waxes, concentrated detergents, bleaches, or cleaners containing petroleum on plastic refrigerator parts. 7. Dry all surfaces thoroughly and then plug in the appliance. Adjust the temperature. 8. Put the food back in the appliance. The LED light in the fridge/freezer compartment cannot be replaced by the user. If the LED light stops working, please contact the local authorised service agent.

TROUBLESHOOTING If you experience a problem with your appliance or are concerned that the appliance is not functioning correctly, you can carry out some easy checks according to below table before calling for service. Warning ! Do not try to repair the appliance yourself. If the problem persists after you have made the checks mentioned below, contact a qualified electrician, authorized service engineer or the store where you purchased the product.

Possible Causes & Solution x

Appliance does not operate.

Inadequate refrigeration

Check that the appliance is plugged into the mains socket properly and that the outlet is switched on. Check the fuse is not blown. Check the circuit breaker is not tripped. Re-adjust the feet to ensure the appliance is level. Check that the appliance is not touching the wall or other objects. Move the appliance slightly. Buzz: The compressor may produce buzzes during operation, and the buzzes are loud particularly upon start or stop. This is normal. Creak: Refrigerant flowing inside the appliance may produce creak, which is normal. Set the temperature control to a lower temperature and allow several hours for the temperature to stabilize.

Door is kept open too long or is opened too frequently. Warm air enters the refrigerator every time the door is opened. Open the door less often.

Check that the door is closed completely.

Ensure that the door gasket does not seal properly.

A large amount of warm or hot food might have been stored recently. Wait until the refrigerator has reached its set temperature.

Bad smell in the appliance

Long-time operation of the compressor

Doors cannot be properly closed. Door seal fails to be tight.

Water pan overflows.

Surface condensation

Food with strong odour should be packed tightly before being put inside the appliance. Please check whether there is any deteriorated itemor whether the door seals are left dirty for a long time. Long operation of the refrigerator is normal in summer when the ambient temperature is high. It is not recommended to place too much food in the appliance and at the same time, food shall get cool before being put into the appliance. The doors are opened too frequently. The door is stuck by food packages. Too much food is placed. The refrigerator is tilted. Remove foreign matters on the door seal. Heat the door seal and then cool it for restoration. (or blow it with an electrical drier or use a hot towel for heating) There is too much food in the chamber or food stored contains Too much water,resulting in heavy defrosting. The doors are not closed properly, resulting in frosting due to entry of air and increased water due to defrosting. Heat dissipation of the built-in condenser via the housing, which is normal. When housing becomes hot due to high ambient temperature and storage of toomuch food, it recommended to provide good ventilation to facilitate heat dissipation. Condensation on the exterior surface and door seals of the refrigerator is normal when the ambient humidity is too high. Just wipe the condensate with a clean towel.

Product Information Sheet COMMISSION DELEGATED REGULATION (EU) 2019/2016 with regard to energy labelling of refrigerating appliances Supplier’s name or trade mark: Etablissements Darty & fils © | THOMSON Supplier’s address: 9 Rue des Bateaux-Lavoirs, 94200 Ivry-sur-Seine, France Model identifier: THSBS100IX THSBS100BLIX Type of refrigerating appliance: Low-noise appliance: Wine storage appliance:

Design type: Other refrigerating appliance:

Energy efficiency class Airborne acoustical noise emission class

B Annual energy consumption (kWh/a) Minimum ambient temperature (°C), for which the refrigerating appliance is suitable Winter setting

Maximum ambient temperature (°C), for which the refrigerating appliance is suitable

Compartment Parameters:

Pantry Wine storage Cellar Fresh food Chill 0-star or ice-making 1-star 2-star 3-star 4-star 2-star section Variable temperature compartment

Compartment Volume (dm3 or l)

Compartment parameters and values Recommended Freezing Defrosting type temperature setting for capacity (auto-defrost = A, optimised food (kg/24 h) manual defrost = M) storage (°C) — — — — — — — — — 4 — A — — —

For 4-star compartments Fast freeze facility

For wine storage appliances Number of standard wine bottles

LED G Minimum duration of the guarantee offered by the manufacturer : 24 months Additional information: Weblink to the supplier’s website, where the information in point 4 of Annex II of Commission Regulation (EU)2019/2019 is found : www.darty.com (a) as determined in accordance with Commission Delegated Regulation (EU) 2019/2015. Climate class: ࢼ Extended temperate: ‘this refrigerating appliance is intended to be used at ambient temperatures ranging from 10 °C to 32 °C’. ࢼ Temperate: ‘this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 32 °C’.

Subtropical: ‘this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 38 °C’. Tropical: ‘this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 43 °C’. This refrigerating appliance is not intended to be used as a built-in appliance. To find the model information in the product database: Click the link https://eprel.ec.europa.eu/screen/product/refrigeratingappliances2019/1562799 https://eprel.ec.europa.eu/screen/product/refrigeratingappliances2019/1562808 Rated voltage and frequency Refrigerant/Amount Insulation blowing gas Rated current Electric shock protection class Rated defrosting power Temperature rise time Net weight

220-240V~ 50Hz R600a / 74g Cyclopentane 1,55A Class Ⅰ 240W Power cut safe 7 h 82kg

Replaceable (LED only) light source by a professional

This product contains a light source of energy efficiency class G.

REPAIR AND SPARE PARTS SERVICE Do not disassemble or repair the appliance by yourself. Failure to do so may result in an electric shock or personal injury. To access to professional repair and order spare parts, please get the support from FNAC DARTY after-sales service. Spare parts for your appliances will be delivered within 15 working days after having received the order. Please Note ! All appliances have a 2-year warranty. Warranty does not cover damages caused due to improper installation, unauthorized modification, self-repair or non-professional repair. Contact us at :

02 334 00 00 8 AM – 6 PM Mon to Sat

Slesbroekstraat 101 1600 Sint-Pieters-Leeuw Belgium

DISPOSAL As a responsible retailer we care about the environment. As such we urge you to follow the correct disposal procedure for the appliance and packaging materials. This will help conserve natural resources and ensure that it is recycled in a manner that protects health and the environment. You must dispose of this appliance and its packaging according to local laws and regulations. Because this appliance contains electronic components, the appliance and its accessories must be disposed of separately from household waste when the appliance reaches its end of life. Contact your local authority to learn about disposal and recycling. The appliance should be taken to your local collection point for recycling. Some collection points accept appliance free of charge.

We apologise for any inconvenience caused by minor inconsistencies in these instructions, which may occur as a result of product improvement and development.

Etablissements Darty & fils ©, 9 Rue des Bateaux-Lavoirs, 94200 Ivry-sur-Seine, France 29/05/2023

THE COLDEST PART OF THE REFRIGERATOR The symbol indicates the location of the coldest part of your refrigerator. This area is in between the vegetable compartment at the bottom and the symbol at the top, or the shelf at the same height. In order to maintain the temperature in this area, make sure not to change the position of this shelf. In forced air refrigerators (equipped with a fan or No Frost models), the coldest area symbol is not shown because the temperature is uniform throughout the interior.

INSTALLING THE TEMPERATURE INDICATOR To help you adjust your refrigerator correctly, it is equipped with a temperature indicator that you can use to control the average temperature in the coldest area. WARNING : This indicator is only intended for use in your refrigerator. Do not use it in another refrigerator (as the coldest area will not be the same) or for any other purpose.

TEMPERATURE INDICATOR : THE COLDEST PART OF YOUR REFRIGERATOR CHECKING THE TEMPERATURE IN THE COLDEST AREA Using the temperature indicator, you should regularly check that the temperature is correct in the coldest part of your refrigerator. The temperature inside your refrigerator depends on a number of factors, such as the outside room temperature, how full your refrigerator is, and how often you open the door. Take these factors into consideration when adjusting your appliance. When the indicator shows “OK”, it means your thermostat is set properly and the temperature inside your refrigerator is correct. If the indicator is white it means the temperature is too high, so you should increase the thermostat setting and wait for 12 hours before checking the indicator again. After loading the refrigerator or opening the door, the indicator may turn white for a few seconds.

Temperature too high, adjust the thermostat

Title EMC Directive (EMC) Low Voltage Directive (LVD) Eco design requirements for energy-related products (ErP)
