MISES EN GARDE IMPORTANTES

MERCI DE BIEN VOULOIR LIRE LES CONSIGNES DE SECURITE ATTENTIVEMENT AVANT D'UTILISER L'APPAREIL ET CONSERVER POUR RÉFERENCE ULTRÉIREURE.

Avertissements

INFORMATION SUR LE PRODUIT

IMPORTANT SAFETY INSTRUCTIONS 2

PRODUCT OVERVIEW 6

BEFORE INSTALLING YOUR DISHWASHER 7

INSTALLATION INSTRUCTIONS 7

BEFORE LOADING THE BASKETS 14

LOADING THE DISHWASHER 15

ADJUSTING THE UPPER BASKET 17

FOLDING THE CUP RACK. 17

FOLDING SPIKES 17

USING THE WATER SOFTENER. 17

USING THE RINSE AND DETERGENT DISPENSERS 19

WASHING PROGRAMS 21

STARTING A WASH CYCLE 23

CLEANING AND MAINTENANCE 24

TROUBLESHOOTING 27

PRODUCT FICHE 29

PRODUCT INFORMATION SHEET 30

REPAIR AND SPARE PARTS SERVICE 31

DISPOSAL 32

PLEASE READ THE FOLLOWING SAFETY WARNINGS AND THE INSTRUCTIONS CAREFULLY BEFORE USING THE APPLIANCE AND KEEP FOR FUTURE REFERENCE.

Warnings

• This appliance is intended to be used in household and similar applications such as:

• staff kitchen areas in shops, offices and other working environments;

• farm houses;
• by clients in hotels, motels and other residential type environments;

• bed and breakfast type environments.

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children shall not play with the appliance.

Cleaning and user maintenance shall not be made by children without supervision.

• Regarding the instructions for the method and frequency of

cleaning, refer to the section "Cleaning and Maintenance" in pages 24-26.

• The openings must not be obstructed by a carpet.
• The new hose-sets supplied with the appliance are to be used; old hose-sets should not be reused.
• The maximum number of place settings to be washed by this dishwasher is 15 place settings.
• The door should not be left in the open position since this could present a tripping hazard.
• Regarding the detailed instructions on how to load the dishwasher, refer to the section "Loading the baskets" in pages 15-16.
• WARNING: Knives and other utensils with sharp points must be loaded in the basket with their points down or placed in a horizontal position.
• The minimum permissible inlet water pressure is 1 MPa . The maximum permissible inlet water pressure is 0.04 MPa .
• The plug must be remained easily accessible after installation of the appliance.
• Regarding the instructions for the method of fixing and how the appliance is to be fixed to its support, refer to the section "INSTALLATION" in pages 7-14.

Safety Precautions

• Installation and repair can only be carried out by a qualified technician.

• This appliance is for indoor household use only.

• To protect against the risk of electrical shock, do not immerse the appliance, cord or plug in water or any other liquid.

• Turn off and unplug the appliance before cleaning and performing maintenance.
• Do not sit on, or stand on the door or dish rack of the dishwasher.
• Do not operate your dishwasher unless all enclosure panels are properly in place.
• Carefully open the door when the dishwasher is operating because there might be a risk of water squirting out.
• Do not place any heavy object on or stand on the door when it is open. The appliance could tip forward.
• Some dishwasher detergents are strongly alkaline. They can be extremely dangerous if swallowed. Avoid contact with the skin and eyes and keep children away from the dishwasher when the door is open.
• Do not wash plastic items unless they are marked "dishwasher safe" or the equivalent.
• Use only detergent and rinse agents recommended for use in an automatic dishwasher.
• Never use soap, laundry detergent, or hand washing detergent in your dishwasher.
• The door should not be left open, since this could increase the risk of tripping.
• Do not tamper with controls.

• Earthing Instructions:

• This appliance must be earthed. In the event of a malfunction or breakdown, earthing will reduce the risk of an electric shock by providing a path of least resistance of electric current. This appliance is equipped with an earthing conductor plug.

• The plug must be plugged into an appropriate outlet that is installed and earthed in accordance with all local codes and ordinances.
• Improper connection of the equipment-earthing conductor can result in the risk of an electric shock.
• Check with a qualified electrician or service representative if you are in doubt whether the appliance is properly grounded.
• Do not modify the plug provided with the appliance. If it does not fit the outlet, have a proper outlet installed by a qualified electrician.

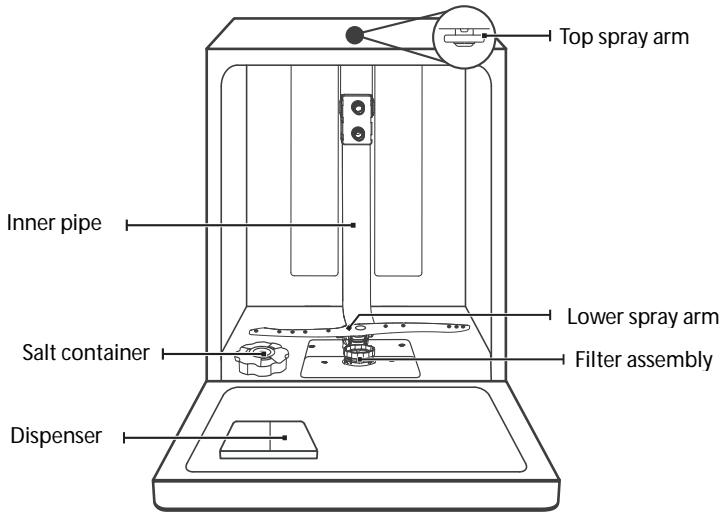

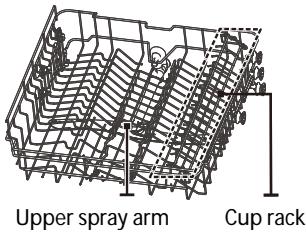

Cutlery rack
Upper basket

Lower basket

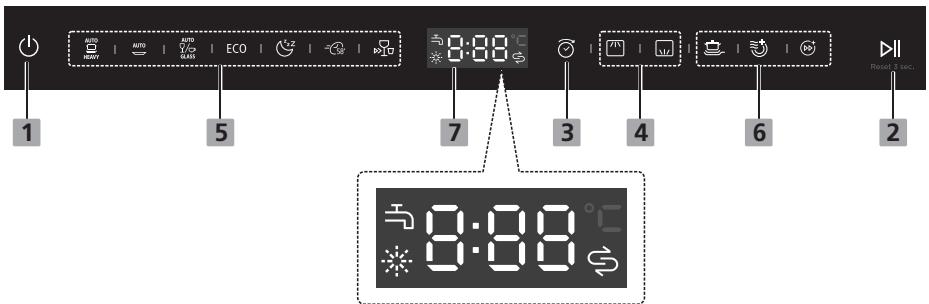

Control Panel

Buttons:

1	Power
2	Start/Pause
3	Delayed start
4	Upper/Lower zone wash
5	Washing program buttons
	AUTO HEAVY	Auto Heavy Auto-sensing wash for heavily soiled crockery with or without dried-on food
	AUTO GLASS	Auto Auto-sensing wash for daily normally soiled crockery
	AUTO GLASS	Auto Glass Auto-sensing wash for glass or china crockery
	ECO	ECO Standard cycle for normally soiled such as pots, glasses and lightly soiled pans.
	ECO	Whisper Lower noise wash for lightly soiled crockery, used for washing in the evening.
	z̅z̅z	Wash & dry 58' For normally soiled loads that need quick wash
	58'	Rapid A shorter wash for lightly soiled loads that do not need drying
6	Functions
		Power wash To wash very dirty, hard to clean dishes (It can only be used with ECO, Whisper, Wash&Dry 58' programs.)
		Extra drying To dry dishes more completely (It can only be used with ECO, Wash&Dry 58' programs.)
		Turbo Speed + Reduce the program time. It can only be use with ECO, Whisper wash&Dry 58' Programs

Display:

7	8:88	To show the washing time, delay time, main wash temperature and error codes
	7	Water Faucet: If this indicator light illuminates, it means the water faucet is closed.
	7	Refill rinse aid
	7	Refill salt

BEFORE INSTALLING YOUR DISHWASHER

Before connecting your dishwasher to the power supply, check that the voltage stated on the rating label of your appliance corresponds to the voltage in your home. The appliance must be grounded. The manufacturer is not responsible for damages that may occur as a result of usage without grounding. WARNING: Disconnect electrical power before installing your dishwasher.

INSTALLATION INSTRUCTIONS

Your dishwasher can be installed in various locations in your kitchen as long as there is space and accessibility to connect your dishwasher to the water/drainage and electrical supply.

Do not connect an extension lead to the appliance to avoid potential safety hazards.

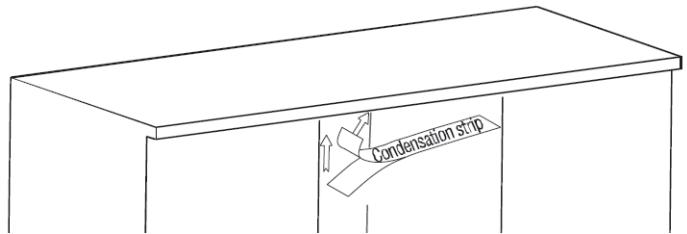

Applying the Condensation Strip

The condensation strip must be fitted to the underside of the worktop to protect it against the ingress of moisture.

1. Ensure that the underneath of the worktop is clean.
2. Separate the backing paper away from the strip.
3. Stick the condensation strip to the underneath of the worktop.

Cold Water Connection

The installation of the hose should be done by professionals.

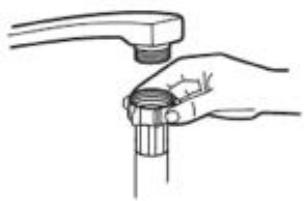

Connect the supplied water supply hose to a threaded 3 / 4'' connector and make sure that it is fastened tightly in place.

If the water pipes are new or have not been used for an extended period of time, let the water run to make sure that the water is clear. This precaution is needed to avoid the risk of the water inlet to be blocked and damage the appliance.

Connection of the Drain Hose

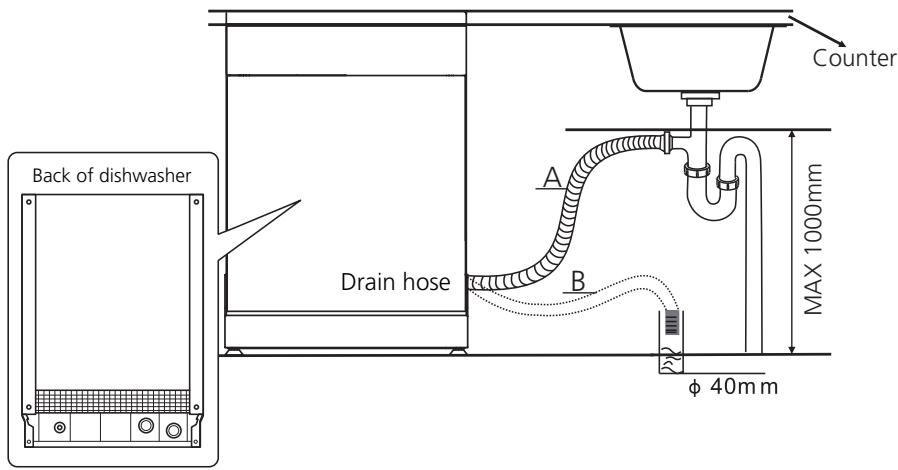

Insert the drain hose into a drain pipe with a minimum diameter of 4cm , or let it run into the sink, making sure to avoid bending or crimping it. The height of drain pipe must be less than 1000mm . The free end of the hose must not be immersed in water to avoid the back flow of it.

Please securely fix the drain hose in either position A or position B. The installation of the hose should be done by professionals.

If leaks are detected, immediately shut the water supply and check the hose connections fully. Re-tighten the connections if necessary.

If for any reason you are unable to stop the leak yourself, please seek advice from a qualified plumber.

Electrical Connection

The installation of electrical equipment should be done by professionals.

• Do not use an extension cord or an adapter plug with this appliance.
• Do not, under any circumstances, cut or remove the earthing connection from the power cord.

Ensure the voltage and frequency of the dishwasher correspond to those indicated on the rating plate. Only insert the plug into an electrical socket which is earthed properly. If the electrical socket to which the appliance must be connected is not appropriate for the plug, replace the socket, rather than using a adaptors or the like as they could cause overheating and burns.

Ensure that proper earthing exists before use.

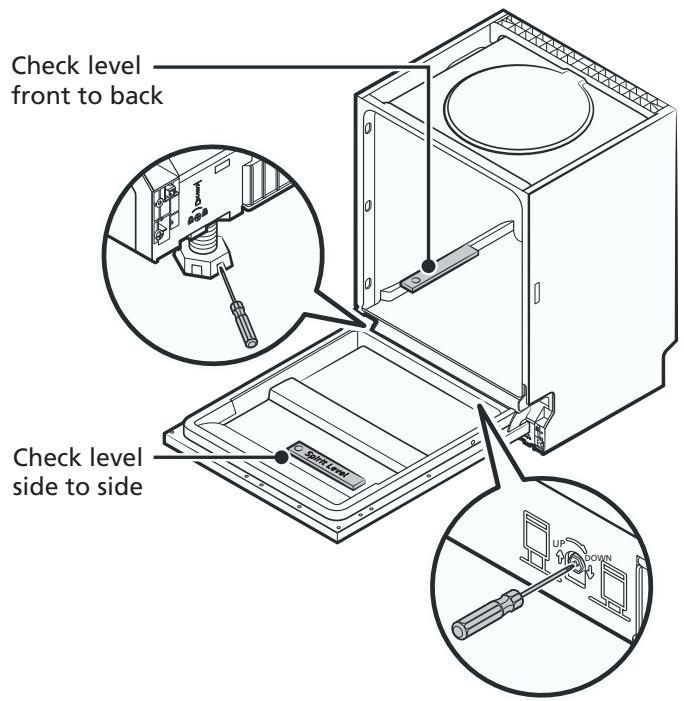

Levelling Your Dishwasher

Dishwasher must be level for proper dish rack operation and wash performance.

1. Place a spirit level on door and rack track inside the tub as shown to check that the dishwasher is level.
2. Level the dishwasher by adjusting the three levelling legs individually.
3. When level the dishwasher, please pay attention not to let the dishwasher tip over. The maximum adjustment height of the feet is 50~mm .

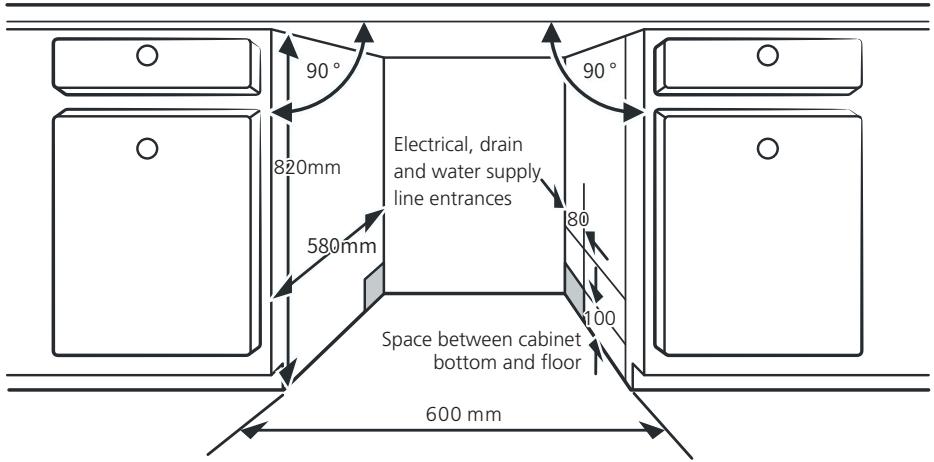

Cabinet Opening Requirements

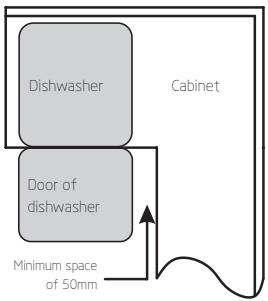

There should be at least a 50 mm gap between the side of the dishwasher door and the wall or cabinet next to it.

Preparing and Assembling the Aesthetic Panel (not supplied)

(Unit: mm)

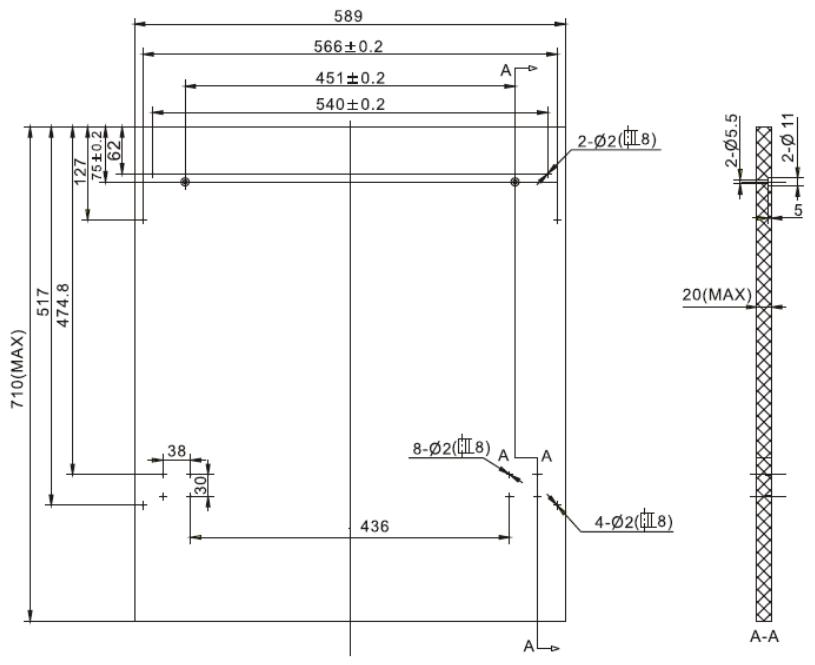

1. The aesthetic panel could be processed according to the above illustrated dimensions.

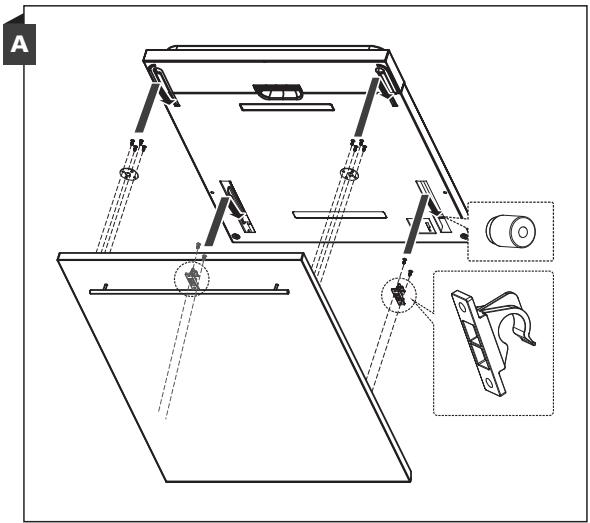

2. Install the hook on the aesthetic panel (see figure A).

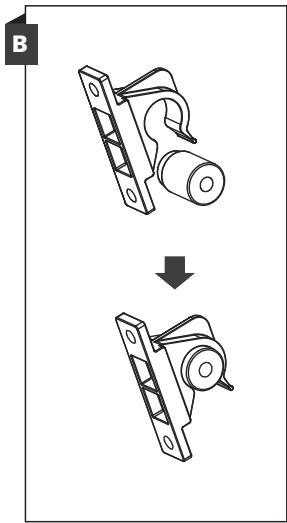

3. Put the hook into the slot of the door of the dishwasher (see figure B).
4. After positioning of the panel, press the top of the aesthetic panel to make sure the hooks are fastened.

Securing the Dishwasher in Place

There are two ways to do this:

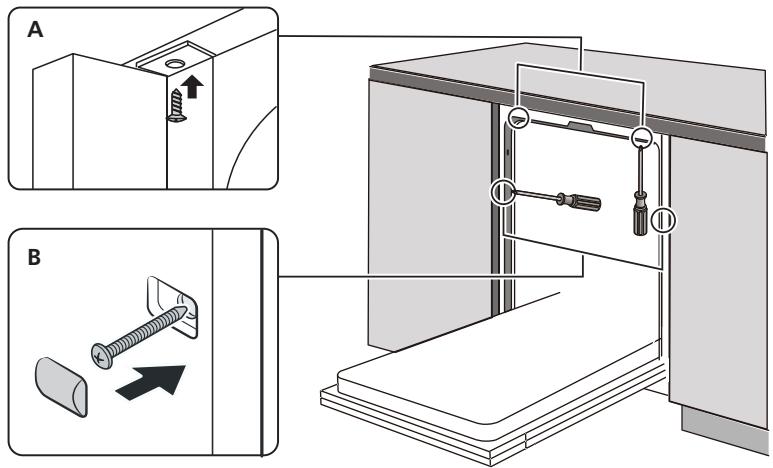

A. Normal work surface: Put the installation hook into the slot of the side plane and secure it to the work surface with the screws.
B. Marble or granite work top: Fix the side with Screw.

BEFORE LOADING THE BASKETS

• Remove coarse food remains, e.g. bones, which may clog the filter or damage the wash pump.
• Soak any pots or pans with burnt-on food remains on the bottom then load them into the basket.

WARNING:

• Make sure that the dishes are securely in place so that they cannot tip over or obstruct the rotation of the spray arms during the washing cycle.
• Containers such as cups, bowls, glasses and pots should always be loaded with the opening facing downwards and with any cavities at an angle, to allow the water to drain out.
• Do not stack dishes.
• Do not place glasses too close together because they may knock against each other and break.
• Load large items which are most difficult to clean into the lower basket.
• Make sure that the items being washed are dishwasher-safe.

Items which are not dishwasher-safe:

Wooden dishes, pots or pans
- Handcrafted items
- Plastic dishes (except when marked dishwasher-safe)
- Dishes and objects in copper, tin, zinc or brass
Aluminium dishes
Silverware
Glass and crystal
- Decorated items

Loading the Upper and Lower Baskets

• The upper basket is designed to hold delicate and light items such as glasses, cups, saucers, serving bowls and shallow pans.
• The lower basket is designed to take saucepans, lids, plates, salad bowls, cutlery etc.
• Serving dishes and large lids should be arranged around the edge of the basket, ensuring that the upper spray arm can turn freely.
• Arrange items so that water can reach all surfaces.

Upper basket

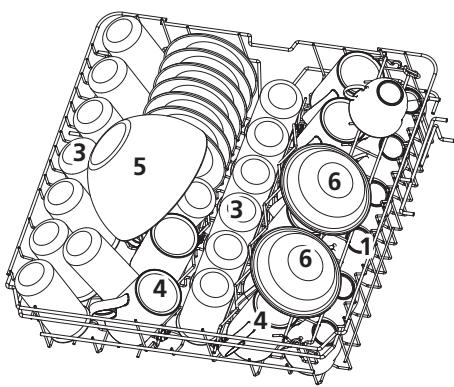

1 Cups
2 Saucers
3 Glasses
4 Mugs
5 Glass bowl
6 Dessert bowls
7 Oven pot

Loading the Cutlery Rack

Arrange the cutlery in the rack.

The top spray arm must not be blocked by items.

Take care during loading to avoid injury from the knife blades.

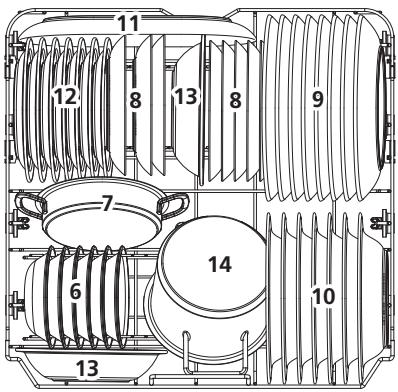

Lower basket

8 Dessert plates
9 Dinner plates
10 Soup plates
11 Oval platter
12 Melamine dessert plates
13 Melamine bowls
14 Small pot

.

1
2
3
4
5
（
]
7
8

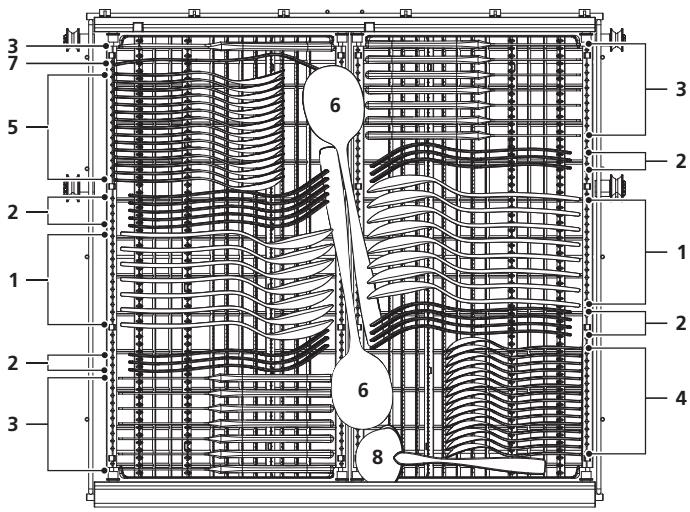

1. Soup spoons
2. Forks
3. Knives

4. Teaspoons

5. Dessert spoons

6. Serving spoons
7. Serving forks
8. Gravy ladles

Do not let any item extend through the bottom.

Always load sharp utensils with the sharp point down!

↓
Right part is tilted.

Both parts are flat.

↓

Both parts are overlapped.

↓
Right part is removed.

1

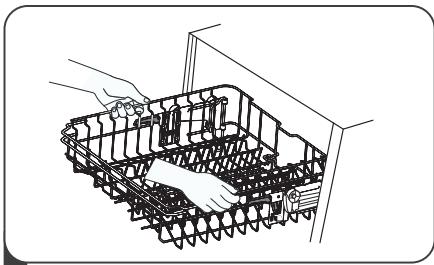

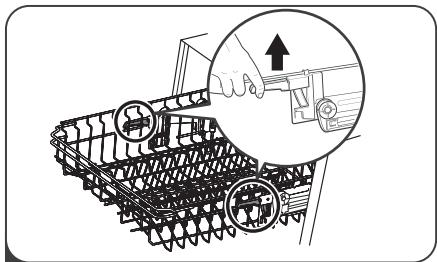

To raise the upper basket, just lift the upper basket at the center of each side until the basket locks into place in the upper position. It is not necessary to lift the adjuster handle.

2

To lower the upper basket, lift the adjuster handles on each side to release the basket and lower it to the lower position.

FOLDING THE CUP RACK

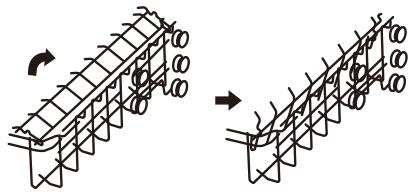

To make room for taller items in the upper basket, raise the cup rack upwards. You can then lean the tall glasses against it. You can also remove it when it is not required for use.

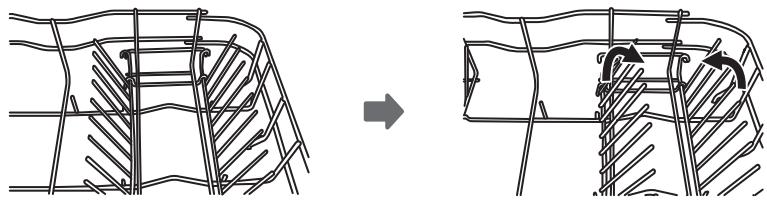

FOLDING SPIKES

The spikes of the lower basket are used to hold plates and a platter. They can be folded down to make more room for large items.

USING THE WATER SOFTENER

The hardness of the water varies from place to place. If hard water is used in the dishwasher, deposits will be formed on the utensils. This appliance is equipped with a water softener which uses a salt specifically designed to eliminate the minerals from the water.

CAUTION:

• Only use salt specially formulated for domestic dishwashers.

• Do not use table salt as it contains insoluble substances which may damage the water softening system.

• Fill the salt container before starting the washing program. In this way, the excess saline solution will be immediately removed by the water; the prolonged presence of salt water inside the tank may lead to corrosion.

Adjusting the salt consumption

1. After the diswasher is switched on, enter the status of adjusting the salt consumption by pressing and holding until the display shows H3.
2. Repeatedly press to adjust the setting to suit the water hardness.
3. Press to validate settings.

WATER HARDNESS				Display	Salt consumption (gram / cycle)
°dH	°FH	°Clarke	Mmol/l
0-5	0-9	0-6	0-0.94	H1	0
6-11	10-20	7-14	1.0-2.0	H2	9
12-17	21-30	15-21	2.1-3.0	H3	12
18-22	31-40	22-28	3.1-4.0	H4	20
23-34	41-60	29-42	4.1-6.0	H5	30
35-55	61-98	43-69	6.1-9.8	H6	60

Factory setting: H3

NOTE:

1°dH=1.25°Clarke=1.78°F=0.178 mmol/l

°dH: German degree °fH: French degree °Clarke: British degree

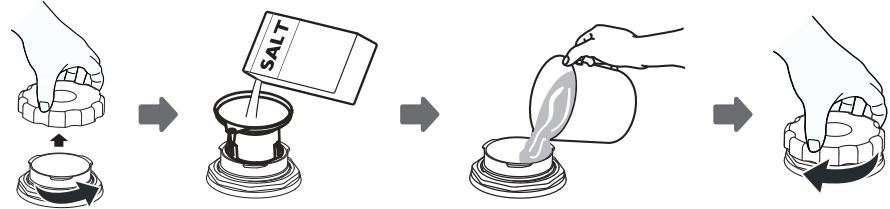

Filling with salt

The salt container must be refilled when the salt warning light illuminates.

1. Remove the lower basket and unscrew the cap from the salt container.
2. Place the end of the funnel (supplied) into the hole and pour in about 1.5kg dishwasher salt.
3. Fill the salt container to its maximum limit with water.

It is normal for small amount of water to come out of the salt container.

1. Screw back the cap tightly.

NOTE: Depending on how well the salt dissolves, the salt warning light may still be on even though the salt container is filled.

Function of the rinse aid

The rinse aid is released during the final rinse to prevent water from forming droplets on your dishes, which can leave spots and streaks. It also improves drying by allowing water to roll off the dishes.

WARNING! Only use branded rinse aid for dishwasher. Never fill the rinse aid dispenser with any other substances (e.g. Dishwasher cleaning agent, liquid detergent). This would damage the appliance.

Function of the detergent

The chemical ingredients that compose the detergent are necessary to remove, crush and dispense all dirt out of the dishwasher.

WARNING!

• Proper use of detergent
• Use only detergent specifically made for dishwasher use. Keep your detergent fresh and dry.
• Do not put powdered detergent into the dispenser until you are ready to wash dishes.
• Dishwasher detergent is corrosive! Keep it out of the reach of children.

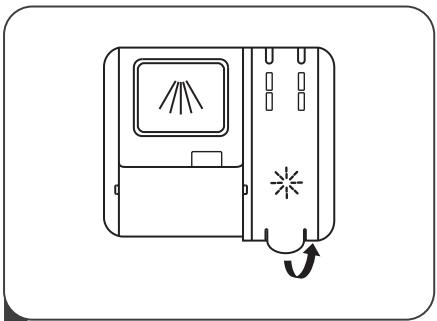

Filling the rinse aid dispenser

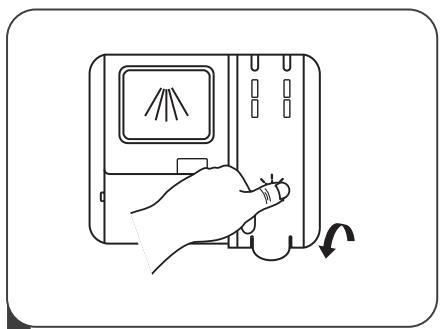

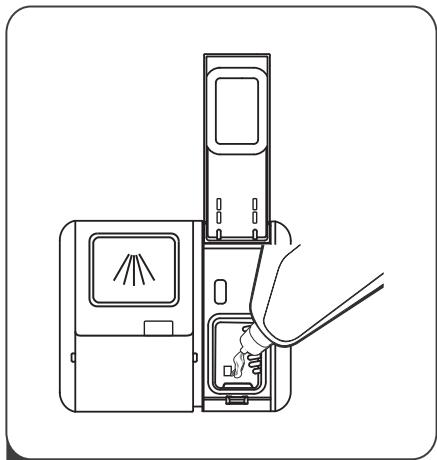

1 Remove the rinse aid dispenser cap by lifting up the tab.

3 Close the cap.

Pour the rinse aid into the dispenser, being careful not to overfill.

Refilling the rinse aid dispenser

Unless the rinse-aid warning light on the control panel is on, you can always estimate the amount from the color of the rinse-aid indicator. When the rinse-aid container is full, the indicator will be fully dark. The size of the dark dot decreases as the rinse-aid diminishes. You should never let the rinse aid level be less than 1/4 full.

As the rinse aid diminishes, the size of the black dot on the rinse aid indicator changes, as illustrated below.

Full

3/4 Full

1/2 Full

1/4 Full

Empty

Adjusting the rinse aid dispenser

To achieve a better drying performance with limited rinse aid, the dishwasher is designed to adjust the consumption by user. Follow the below steps:

1. Power on the dishwasher.
2. Within 60 seconds after powering on the dishwasher, press and hold for about 5 seconds and then

press to enter the setting mode. Y The display will show d3.

1. Repeatedly press to select the proper setting.
2. The setting will be confirmed if there is no operation in about 5 seconds.

Display	Amount of rinse aid (mL)
d1	1.2
d2	2.4
d3	3.6
d4	4.8
d5	6.0

Filling the detergent dispenser

1. Slide the control to the right to open the detergent cap.

1. Add the detergent into the compartment.

1. Close the cap by sliding it to the front and pressing it down.

Program	Type of Dishes	Cycle Description	Detergent Pre/Main	Running time (min)	Energy (kWh)	Water (L)	Rinse aid needed?
AUTO HEAVY	Auto-sensing wash for heavily soiled crockery with or without dried-on food	Pre-wash(50°C) Wash(50-60°C) Rinse Rinse(65°C) Drying	5/32.5g (1 or 2 pieces)	175-210	1.250-1.450	10.5-15.0	Yes
AUTO	Auto-sensing wash for daily normally soiled crockery	Pre-wash(50°C) Wash(50-60°C) Rinse Rinse(60°C) Drying	5/32.5g (1 or 2 pieces)	150-185	1.050-1.100	10.3-13.5	Yes
AUTO/GLASS	Auto-sensing wash for glass or china crockery	Pre-wash(40°C) Wash(45-55°C) Rinse Rinse(60°C) Drying	5/32.5g (1 or 2 pieces)	110-145	0.600-0,750	10.3-13.5	Yes
ECO (*EN 50242)	Standard cycle for normally soiled loads such as pots, plates, glasses and lightly soiled pans	Pre-wash Wash(50°C) Rinse Rinse(55°C) Drying	5/32.5g (1 or 2 pieces)	198	0.776	9.8	Yes
ẑẑZ Whisper	Lower noise wash for lightly soiled crockery, used for washing in the evening	Pre-wash(30°C) Wash(60°C) Rinse Rinse(55°C) Drying	5/32.5g (1 piece)	270	1.250	13.0	Yes
=58' Wash&Dry	For normally soiled loads that need quick wash	Pre-wash (30°C) Wash(60°C) Rinse(55°C) Rinse(50°C) Drying	5/32.5g (1 piece)	58	1.050	15.0	Yes
Rapid	A shorter wash for lightly soiled loads that do not need drying	Wash(45°C) Rinse(45°C)	20g (1 piece)	30	0.820	11.2	No

NOTE:
(*EN 50242): This program is the test cycle. The information for comparability test is in accordance with EN50242.

Program	Type of Dishes	Cycle Description	Detergent Pre/Main	Running time (min)	Energy (kWh)	Water (L)	Rinse aid needed?
AUTO HEAVY	Auto-sensing wash for heavily soiled crockery with or without dried-on food	Pre-wash(50°C) Wash(50-60°C) Rinse Rinse(65°C) Drying	4/19g (1 or 2 pieces)	175-210	1.250-1.450	10.5-15.0	Yes
AUTO	Auto-sensing wash for daily normally soiled crockery	Pre-wash(50°C) Wash(50-60°C) Rinse Rinse(60°C) Drying	4/19g (1 or 2 pieces)	150-185	1.050-1.100	10.3-13.5	Yes
AUTO/GLASS	Auto-sensing wash for glass or china crockery	Pre-wash(40°C) Wash(45-55°C) Rinse Rinse(60°C) Drying	4/19g (1 or 2 pieces)	110-145	0.600-0,750	10.3-13.5	Yes
ECO (*EN 60436)	Standard cycle for normally soiled loads such as pots, plates, glasses and lightly soiled pans	Pre-wash Wash(50°C) Rinse Rinse(55°C) Drying	4/19g (1 or 2 pieces)	198	0.758	9.8	Yes
Whisper	Lower noise wash for lightly soiled crockery, used for washing in the evening	Pre-wash(30°C) Wash(60°C) Rinse Rinse(55°C) Drying	4/19g (1 piece)	270	1.250	13.0	Yes
=58' Wash&Dry	For normally soiled loads that need quick wash	Pre-wash (30°C) Wash(60°C) Rinse(55°C) Rinse(50°C) Drying	4/19g (1 piece)	58	1.050	15.0	Yes
Rapid	A shorter wash for lightly soiled loads that do not need drying	Wash(45°C) Rinse(45°C)	12g	30	0.820	11.2	No

NOTE:

(*EN 60436): This program is the test cycle. The information for comparability test is in accordance with EN 60436.

• The eco programme is suitable to clean normally soiled tableware, that for this use, it is the most efficient programme in terms of its combined energy and water consumption, and that it is used to assess compliance with the EU ecodesign legislation.
• Loading the household dishwasher up to the capacity indicated by the manufacturer will contribute to energy and water savings.
• Manual pre-rinsing of tableware items leads to increased water and energy consumption and is not recommended.

• Washing tableware in a household dishwasher usually consumes less energy and water in the use phase than hand dishwashing when the household dishwasher is used according to the manufacturer's instructions.
  The values given for programmes other than the eco programme are indicative only. GB-22

• Turn the water tap on.

• Open the dishwasher door.

• Check the filters.

• Ensure that they are clean and properly positioned. See the section Cleaning and Maintenance.

• Check that there is rinse aid and salt.

• Load the dishes.

• Ensure that the spray arms can rotate freely.

• Add the required amount of detergent into the dispenser according to the Washing Program chart.

• Press to switch on the dishwasher.

• Press the desired program button to select the desired washing program.

• The corresponding indicator light on the selected button will illuminate.

AUTO HEAVY

AUTO GLASS

ECO

zZ 58°

• Delay Timer: The delay timer allows you to delay the start of a washing program from 1 hour up to 24 hours.

Repeatedly press until the desired delayed start time is shown on the display.

1. If you want to activate other functions, press the desired function button.

2. Press or to select the upper or lower basket to be sprayed during a washing cycle.

3. Press and close the door. The dishwasher will start a cycle.
4. After the program has ended, the diswasher will buzz and stop.
5. Wait for 15 minutes before you open the dishwasher door in order to avoid burns.
6. Unload the dishes.

WARNING!

• The washing cycle will not start if the dishwasher door is left open or not properly closed.
• Do not open the door when the dishwasher is working since hot water may be ejected, which could cause scalding.

Adding extra dish

A forgotten dish can be added any time before the detergent dispenser opens. If this is the case, follow the instructions below:

1. Open the door a little to stop the washing.
2. After the spray arms stop working, you can open the door completely.
3. Add the forgotten dishes.
4. Close the door. The cycle will start from the point at which it was interrupted.

Changing the program in progress

A wash cycle can only be changed if it has been running for a short time otherwise, the detergent may have already been released and the dishwasher may have already drained the wash water. If this is the case, the dishwasher needs to be reset and the detergent dispenser must be refilled. To reset the dishwasher, follow the instructions below:

1. Open the door a little to stop the washing. After the spray arms stop working, you can open the door completely.

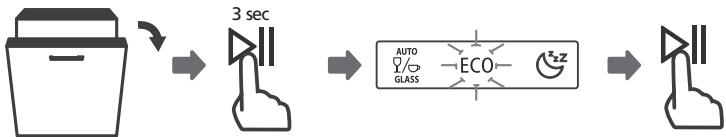

2. Press and hold for about 3 seconds and the dishwasher will be in standby state.

3. You can change the program by pressing the desired program button.
4. Press and close the door to start the new program.

CLEANING AND MAINTENANCE

• Always switch off and unplug the appliance before cleaning.
• To avoid penetration of water into the door lock and electrical components, do not use a spray cleaner of any kind.
• Never use abrasive cleaners or scouring pads on the outer surfaces because they may scratch the finish.

Your dishwasher cleans by spraying a mixture of clean water and detergent (under pressure) against the soiled surface of dishes. The water is pumped through a rotating spray arm, drained through a filter removing food and soiled particles and pumped back through the spray arm.

Soiled water is pumped out and replaced with clean water at the end of each cycle (the number of times depends on the cycle being used).

NOTE:

Hard water conditions will adversely affect washability performance of your dishwasher. Hard water conditions will also contribute to "Lime" (white film substance) deposits and/or "Scaling" on the stainless steel surface of the dishwasher tub and heater element located in the sump underneath the removable filter screen.

To minimise these conditions, it is recommended to periodically operate/rinse the inside of the dishwasher (empty) using 1 cup of white vinegar (at least once a week).

Cleaning the door and the door seal

Clean the door seals regularly with a soft damp cloth to remove food deposits.

When the dishwasher is being loaded, food and drink residues may drip onto the sides of the dishwasher door. These surfaces are outside the wash cabinet and are not accessed by water from the spray arms.

Any deposits should be wiped off before the door is closed.

Cleaning the control panel

If cleaning is required, the control panel should be wiped with a soft damp cloth only.

Cleaning the filtering system

The filtering system in the base of the wash cabinet retains coarse debris from the washing cycle. The collected coarse debris may cause the filters to clog. Check the condition of the filters regularly and clean them if necessary under running water.

Follow the steps below to clean the filters in the wash cabinet.

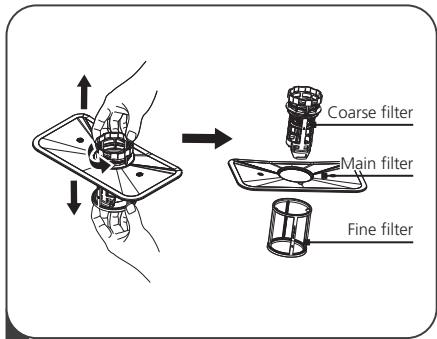

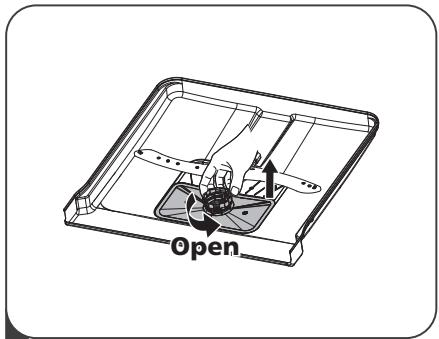

Hold the coarse filter and rotate it anticlockwise to unlock the filter. Lift the filter upwards and out of the dishwasher.

Pull the fine filter off the filter assembly. Detach the coarse filter from the main filter by gently squeezing the tabs at the top and pulling it away.

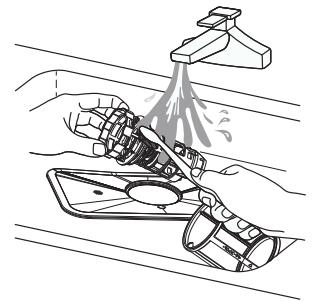

3 Rinse the filters under running water. For a more thorough clean, use a soft cleaning brush.

4 Reassemble the filters, replace the filter insert, and rotate clockwise to the close arrow.

WARNING!

• Do not over tighten the filters. Put the filters back in sequence securely, otherwise coarse debris could get into the system and cause a blockage.
• Never use the dishwasher without filters in place. Improper replacement of the filters may reduce the performance level of the appliance and damage dishes and utensils.

Cleaning the spray arms

It is necessary to clean the spray arms regularly, otherwise hard water chemicals will clog the spray arm jets and bearings.

To clean the spray arms, follow the instructions below:

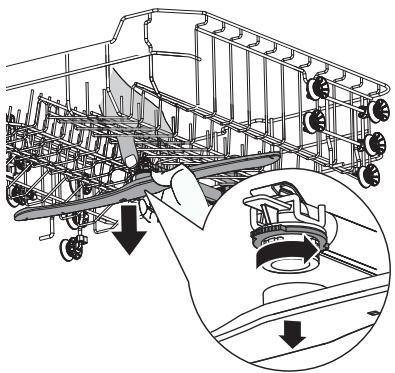

1 To remove the upper spray arm, hold the nut in the centre still and rotate the spray arm anticlockwise to remove it.

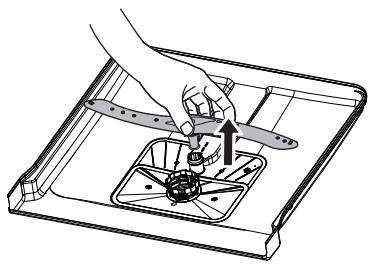

To remove the lower spray arm, pull out the spray arm upward.

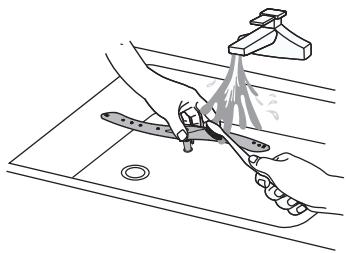

3

Wash the arms in warm soapy

Water using a soft brush.

Replace them after rinsing

them thoroughly.

Frost precaution

Please take frost protection measures on the dishwasher in winter. Every time after washing cycles, please operate as follows:

1. Cut off the electrical power to the dishwasher at the supply source.
2. Turn off the water supply and disconnect the water inlet pipe from the water valve.
3. Drain the water from the inlet pipe and water valve (Use a pan to gather the water).
4. Reconnect the water inlet pipe to the water valve.
5. Remove the filter at the bottom of the tub and use a sponge to soak up water in the sump.

After every wash

After every wash, turn off the water supply to the appliance and leave the door slightly open so that moisture and odors are not trapped inside.

No solvents or abrasive cleaning

To clean the exterior and rubber parts of the dishwasher, do not use solvents or abrasive cleaning products. Only use a cloth with warm soapy water.

To remove spots or stains from the surface of the interior, use a cloth dampened with water an a little vinegar, or a cleaning product made specifically for dishwashers.

When not in use for a long time

It is recommend that you run a wash cycle with the dishwasher empty and then remove the plug from the mains socket, turn off the water supply and leave the door of the appliance slightly open. This will help the door seals to last longer and prevent odors from forming within the appliance.

Moving the appliance

If the appliance must be moved, try to keep it in the vertical position. If absolutely necessary, it can be positioned on its back.

Cleaning the seals

One of the factors that cause odours to form in the dishwasher is food that remains trapped in the seals.

Periodic cleaning with a damp sponge will prevent this from occurring.

Reviewing the charts on the following pages may save you from calling for service.

Before Calling For Service

Problem	Possible Causes	Possible Solution
Dishwasher will not start.	Fuse blown, or the ircuit breaker tripped	Replace fuse or reset circuit breaker. Remove any other appliance sharing the same circuit with the dishwasher.
	Power supply is not turned on.	Make sure the dishwasher is turned on and the door is closed securely. Make sure the power cord is properly plugged into the wall socket.
	The door has not been properly closed.	Close the door securely.
Water not pumped from dishwasher	Kink in drain hose	Check drain hose.
	Filter clogged	Check the filters (see “Cleaning the Filtering System”).
	Kitchen sink clogged	Check kitchen sink to make sure it is draining well. If kitchen sink is not draining, you may ask a plumber to check it.
Suds in the tub	Improper detergent	Use only the detergent special for dishwasher to avoid suds. If this occurs, open the door and let the suds evaporate. Add 1 gallon of cold water to the bottom of the dishwasher. Close the dishwasher door, then select any cycle. Initially, the dishwasher will drain out the water. Open the door after draining stage is complete and check if the suds have disappeared. Repeat if necessary.
	Spilled rinse aid	Always wipe up rinse aid spills immediately.
Stained tub interior	Detergent with colourant may be used.	Make sure that the detergent has no colourant.
White film on inside surface	Hard water minerals.	To clean the interior, use a damp sponge with dishwasher detergent and wear rubber gloves. Never use any other cleaner than dishwasher detergent otherwise it may cause foaming or suds.
There are rust stains on cutlery.	The affected items are not corrosion resistant.	Avoid washing items that are not corrosion resistant in the dishwasher.
	A program is not run after adding dishwasher salt. Traces of salt have gotten into the wash cycle.	Always run a wash program without any crockery after adding salt.
	The cap of the salt container is loose.	Check the cap is secure.
The dishwasher is noisy.	Dishes are rattling against each other. The spray arms are knocking against the dishes.	Refer to “Loading the Dishwasher” to rearrange the dishes.
The dishes are not clean.	The dishes have not been arranged properly.	Refer to “Loading the Dishwasher”.
	The washing program	Select a more intensive program.
	selected is too gentle.	Refer to "Washing Programs".
	Not enough detergent has been used or it is unsuitable.	Use more detergent or change the detergent.
	The spray arms are clogged.	Rearrange the items so that the spray arms can rotate freely.
	The filters are not clean or not in the correct position.	Clean and/or position the filters correctly.
Cloudiness on glassware	Combination of soft water and too much detergent	Use less detergent if you have soft water and select a shorter cycle to wash the glassware and to get them clean.
White spots appear on dishes and glasses	Hard water area can cause limescale deposits.	Add more detergent.
The dishes are not quite dry.	Improper loading	Refer to "Loading the Dishwasher".
	The rinse aid has run out or too little is being used.	Increase or refill the amount of rinse aid.
	Wrong program has been selected.	Choose a program with long washing time.

Error codes

Codes	Meanings	Possible Causes	Possible Solution
E1	Longer inlet time.	Tap is not opened, or water inlet is restricted, or water pressure is too low.	Turn on the water tap. Check the water inlet hose is not blocked. Increase inlet water pressure.
E3	Not reaching required temperature	Malfunction of heating element	Contact the after-sales service to replace the heating element.
E4	Overflow	Some dishwasher parts are leaking.	Contact the after-sales service to repair and replace parts.

WARNING! If overflow occurs, turn off the main water supply before calling service.

This dishwasher's product fiche has been setup in conformity with EU Regulation No 1059/2010.

Brand	Thomson
Model	TWBI4215CFULLSLID
Rated capacity (standard place settings)	15
Energy efficiency class From A*** (most efficient) to D (least efficient)	A***
Annual energy consumption (AEc) u	221 kWh/annum
Energy consumption (Et) of the standard cleaning cycle	0.759 kWh/cycle
Power consumption in off mode (P0)	0.45 W
Power consumption in left-on mode (P1)	0.49 W
Annual water consumption (AWc) v	2744 litres
Drying efficiency class on a scale from G (least efficiency) to A (most efficiency)	A
Standard program w	ECO 50°C
Program time for the standard cleaning cycle	198minutes
Duration of the left-on mode (T1)	15 minutes
Sound power level	42 dB(A) re 1 pW
Built-in appliance Y/N	Yes
Product dimension (W x D x H mm)	598 x 550 x 815 mm
Rated voltage / frequency	220-240V~ 50Hz
Rated power	1760-2100 W
Water pressure	0.04 –1 MPa

U Energy consumption 221 kWh per year, based on 280 standard cleaning cycles using cold water fill and the consumption of the low power modes. Actual energy consumption will depend on how the appliance is used.
V Water consumption 2744 litres per year, based on 280 standard cleaning cycles. Actual water consumption will depend on how the appliance is used.
W The 'standard program' is the standard cleaning cycle to which the information in the label and the fiche relates, that this program is suitable to clean normally soiled tableware, and that it is the most efficient program in terms of combined energy and water consumption.

PRODUCT INFORMATION SHEET

Supplier's name or trade mark: Etablissements Darty & fils © THOMSON
Supplier's address: 129 Avenue Gallieni, 93140 Bondy, France
Model identifier: TWBI4215CFULLSLID
General product parameters:
Parameter	Value	Parameter	Value
Rated capacity (1) (ps)	15	Dimensions in cm	Height	81.5
			Width	59.8
			Depth	55.0
EEI (1)	43,9	Energy efficiency class (1)		C
Cleaning performance index (1)	1,13	Drying performance index (1)		1,07
Energy consumption in kWh [per cycle], based on the eco programme using cold water fill. Actual energy consumption will depend on how the appliance is used.	0,758	Water consumption in litres [per cycle], based on the eco programme. Actual water consumption will depend on how the appliance is used and on the hardness of the water.		9.8L
Programme duration (1) (h:min)	3:18	Type		built-in
Airborne acoustical noise emissions (1) (dB(A) re 1 pW)	42	Airborne acoustical noise emission class (1)		B
Off-mode (W)	0,49	Standby mode (W)		N/A
Delay start (W) (if applicable)	1,00	Networked standby (W) (if applicable)		N/A
Minimum duration of the guarantee offered by the supplier: 2 years
Additional information:
Weblink to the supplier's website, where the information in point 6 of Annex II to Commission Regulation (EU) 2019/2022 is found: www.darty.com

(1) for the eco programme.

Thomson and the Thomson logo are trademarks of Technicolor (S.A.) or its affiliates and are used under license by Fnac Darty (S.A.).

REPAIR AND SPARE PARTS SERVICE

Do not disassemble or repair the appliance by yourself. Failure to do so may result in an electric shock or personal injury.

To access to professional repair and order spare parts, please get the support from FNAC DARTY after-sales service.

Spare parts for your appliances will be delivered within 15 working days after having received the order.

Please Note!

All appliances have a 2-year warranty.

Warranty does not cover damages caused due to improper installation, unauthorized modification, self-repair or non-professional repair.

Contact us at :

DARTY www.darty.com	Vanden Borre in alle vertrouwen	BCC www.bcc.nl
0978 970 970 24 Hours 7 Days a week	www.vandenborre.be	020 334 88 88 8 AM – 6 PM Mon to Fri 9 AM – 5 PM on Sat
129 Avenue Gallieni, 93140 Bondy, France	Slesbroekstraat 101 1600 Sint-Pieters-Leeuw Belgium	Bellsigngel, 61 1119 NT SCHIPHOL Netherlands

As a responsible retailer we care about the environment. As such we urge you to follow the correct disposal procedure for the appliance and packaging materials. This will help conserve natural resources and ensure that it is recycled in a manner that protects health and the environment.

You must dispose of this appliance and its packaging according to local laws and regulations. Because this appliance contains electronic components, the appliance and its accessories must be disposed of separately from household waste when the appliance reaches its end of life.

Contact your local authority to learn about disposal and recycling. The appliance should be taken to your local collection point for recycling. Some collection points accept appliance free of charge.

We apologise for any inconvenience caused by minor inconsistencies in these instructions, which may occur as a result of product improvement and development.

Low Voltage Directive (LVD)

Eco design requirements for energy-related products (ErP)

RoHS

EMC:

EN 55014-1:2017

EN 55014-2:2015

EN IEC 61000-3-2:2019

EN 61000-3-3:2013+A1:2019

LVD:

EN 60335-2-5:2015

EN 60335-1:2012+A11:2014+A13:2017+A1:2019+A14:2019+A2:2019

EN 62233:2008

ErP:

(EC) No 1275/2008 (EU) 2016-2282

(EU) No 10591/2010 (EU) No 1016/2010

EN 50242:2016 EN 50564:2011

(EU) 2019/2017 (EU) 2019/2022

EN 60436:2020 EN 50564:2011

The person responsible for this declaration is:

Position - Poste: General Manager Direct Sourcing

Signature - Signature:

Place, Date / Lieu :

Bondy, September 16, 2020
