Product type	Ceramic induction hob
Brand	DaRryTHOMSON
Model	THV6400
Total power	6400 W
Electrical supply	230 V ~ 1P+N or 400 V ~ 2P+N, 50/60 Hz
Number of cooking zones	4
Left front cooking zone (dual zone)	∅ 220 / 145 mm, 2200 / 1000 W
Left rear cooking zone	∅ 155 mm, 1200 W
Right rear cooking zone	∅ 190 mm, 1800 W
Right front cooking zone	∅ 155 mm, 1200 W

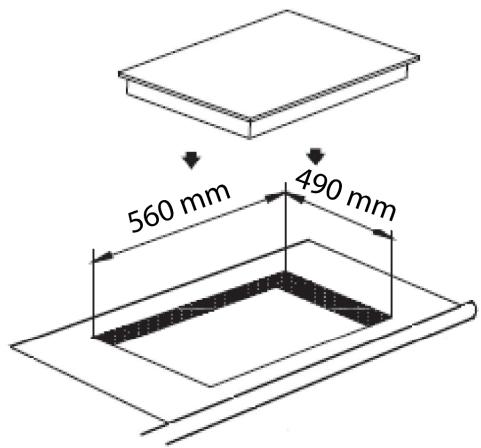

Cut-out dimensions (W x D)	560 x 490 mm
Minimum worktop thickness	30 mm
Minimum distance to wall	50 mm

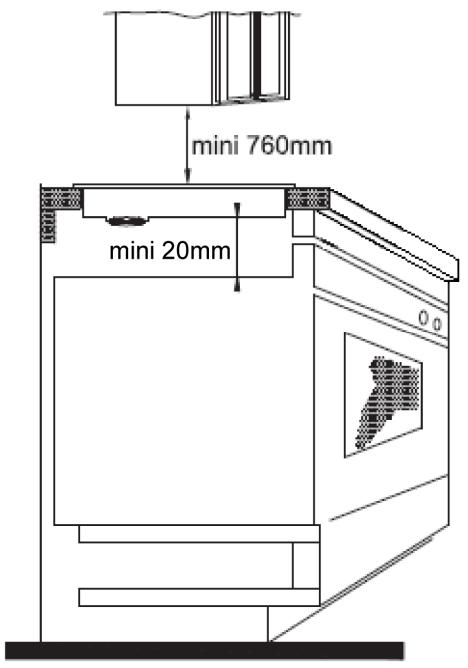

Minimum distance to extractor hood	760 mm
Control type	Touch controls
Functions	Dual concentric zone, automatic cooking, control lock, residual heat indicator
Safety	Automatic safety shut-off, child lock, overheating detection
Care and cleaning	Clean with a damp cloth and dish soap or specific ceramic hob cleaner. Do not use abrasive pads.
Spare parts and repairability	FNAC DARTY after-sales service. Parts available within 15 working days. 2-year warranty.
Energy consumption (EC_hob)	177.5 Wh/kg
Country of origin	France

Frequently Asked Questions - THV6400 DARRYTHOMSON

How to turn on the THV6400 hob ?

Press the On/Off button [①]. The displays show [0]. Then select a cooking zone with the [+] button, then adjust the power with [+] or [-].

How to lock the control panel for cleaning ?

Simultaneously press the [-] and [+] keys of the left front zone, then immediately press [+]. The display shows [L] on all four zones. To unlock, turn the hob back on and press [-] and [+] of the left front zone, then [-].

What does the symbol [E] on the display mean ?

The symbol [E] indicates an electronic error. Unplug the appliance and contact FNAC DARTY after-sales service. Do not attempt to repair it yourself.

Why does the [L] indicator stay on ?

The [L] indicator means the control lock is activated. Refer to the question on locking to deactivate it.

How to use the automatic cooking function ?

Select a zone with [+], then press [+] several times until [A] flashes. Use [-] to select the final cooking level (e.g. 7). The zone operates at full power then automatically reduces to the chosen level.

What to do in case of a crack in the ceramic glass ?

Immediately cut off the power supply and contact after-sales service. Do not use the appliance anymore. A cracked glass may cause an electric shock.

How to clean the hob without damaging it ?

Wait for the hob to cool down. Use a soft cloth with water and dish soap, or a specific ceramic cleaner. Never use abrasive pads, scouring powder, or sharp objects.

What types of pans are compatible ?

Use pans with a flat and magnetic base (enamelled steel, cast iron, induction-compatible stainless steel). Avoid aluminium, copper, or glass containers. The diameter must match the cooking zone.

How to properly install the hob ?

Installation must be carried out by a qualified professional. The worktop cut-out must be 560 x 490 mm, with a minimum thickness of 30 mm. Maintain a distance of 50 mm from the wall and 760 mm from the hood. The supplied sealing gasket must be glued 2 mm from the edge.

What does error code [Er03] mean ?

[Er03] indicates that an object or liquid is covering the touch keys. Clean or remove the object. If the message persists, contact after-sales service.

USER MANUAL THV6400 DARRYTHOMSON

Pure electrical circuit lines without any symbols

Pure electrical circuit lines without any symbols

Thank you for having chosen our ceramic hob.

In order to make the best use of your appliance, we would advise you to read carefully the following notes and to keep them for future reference.

SUMMARY

SAFETY 19

PRECAUTIONS BEFORE USING....19

USING THE APPLIANCE 19

PRECAUTIONS NOT TO DAMAGE THE APPLIANCE 20

PRECAUTIONS IN CASE OF APPLIANCE FAILURE....21

OTHER PROTECTIONS 21

DESCRIPTION OF THE APPLIANCE....22

TECHNICAL DATA 22

CONTROL PANEL 22

USE....23

SENSITIVE TOUCHES 23

DISPLAY 23

RESIDUAL HEAT INDICATION....23

STARTING UP THE APPLIANCE....23

BEFORE USING YOUR NEW HOB....23

STARTING-UP 23

EXTENSION ZONE 24

AUTOMATIC COOKING....24

CONTROL PANEL LOCKING 24

COOKING ADVICES....25

EXAMPLES OF POWER SETTING: 25

MAINTENANCE AND CLEANING 25

WHAT TO DO IN CASE OF A PROBLEM 26

ENVIRONMENT PROTECTION 26

INSTALLATION INSTRUCTIONS....27

ADVICE FOR THE INSTALLER....27

INSTALLATION....27

ELECTRICAL CONNECTION 28

DISPOSAL....30

Precautions before using

• Unpack all the materials.
• The installation and connecting of the appliance have to be done by approved specialists. The manufacturer cannot be responsible for damage caused by building-in or connecting errors.
• To be used, the appliance must be well-equipped and installed in a kitchen unit and an adapted and approved work surface.
• This domestic appliance is exclusively for the cooking of food, to the exclusion of any other domestic, commercial or industrial use.
• Remove all labels and self-adhesives from the ceramic glass.
• Do not change or alter the appliance.
• The cooking plate cannot be used as freestanding or as working surface.
• The appliance must be grounded and connected conforming to local standards.
• Do not use any extension cable to connect it.
• The appliance cannot be used above a dishwasher or a tumble-dryer: steam may damage the electronic appliances.
• The appliance is not intended to be operated by means of external timer or separate remote-control system.
• CAUTION: The cooking process has to be supervised. A short-term cooking process has to be supervised continuously.

Using the appliance

• Switch the heating zones off after using.
• Keep an eye on the cooking using grease or oils: that may quickly ignite.
• Be careful not to burn yourself while or after using the appliance.
• Make sure no cable of any fixed or moving appliance contacts with the glass or the hot saucepan.
• Magnetically objects (credit cards, floppy disks, calculators) should not be placed near to the engaged appliance.

• Metallic objects such as knives, forks, spoons and lids should not be placed on the hob surface since they can get hot.

• In general, do not place any metallic object except heating containers on the glass surface. In case of untimely engaging or residual heat, this one may heat, melt, or even burn.

• Never cover the appliance with a cloth or a protection sheet. This is supposed to become very hot and catch fire.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  • Children shall not play with the appliance.
• Cleaning and user maintenance shall not be made by children without supervision.

Precautions not to damage the appliance

• Raw pan bottoms or damaged saucepans (not enamelled cast iron pots,) may damage the ceramic glass.
• Sand or other abrasive materials may damage ceramic glass.
• Avoid dropping objects, even little ones, on the vitroceramic.
• Do not hit the edges of the glass with saucepans.
• Make sure that the ventilation of the appliance works according to the manufacturer's instructions.
• Do not put or leave empty saucepans on the vitroceramic hobs.
• Sugar, synthetic materials or aluminium sheets must not contact with the heating zones. These may cause breaks or other alterations of the vitroceramic glass by cooling: switch on the appliance and take them immediately out of the hot heating zone (be careful: do not burn yourself).
• WARNING: Danger of fire: do not store items on the cooking surface.
• Never place any hot container over the control panel.
• If a drawer is situated under the embedded appliance, make sure the space between the content of the drawer and the inferior part of the appliance is large enough (2 cm). This is essential to guaranty a correct ventilation.
• Never put any inflammable object (ex. sprays) into the drawer situated under the vitroceramic hob. The eventual cutlery drawers must be resistant to heat.

Precautions in case of appliance failure

• If a defect is noticed, switch off the appliance and turn off the electrical supplying.
• If the ceramic glass is cracked or fissured, you must unplug the appliance and contact the after sales service.
• Repairing has to be done by specialists. Do not open the appliance by yourself.
• WARNING: If the surface is cracked, switch off the appliance to avoid the possibility of electric shock.

Other protections

• Note sure that the container pan is always centred on the cooking zone. The bottom of the pan must have to cover as much as possible the cooking zone.
• For the users of pacemaker, the magnetic field could influence its operating. We recommend getting information to the retailer or of the doctor.
• Do not to use aluminium or synthetic material containers: they could melt on still hot cooking zones.
• WARNING: Unattended cooking on a hob with fat or oil can be dangerous and may result in fire. NEVER try to extinguish a fire with water, but switch off the appliance and then cover flame e.g. with a lid or a fire blanket.

Technical data

Type	THV6400
Total power	6400 W
Energy consumption for the hob EC_hob *	177.5 Wh/kg
Front left heating zone	220 / 145 mm
Nominal power	2200 / 1000 W
Standardised cookware category*	C
Energy consumption EC_cw *	171.1 Wh/kg
Rear left heating zone	155 mm
Nominal power	1200 W
Standardised cookware category*	A
Energy consumption EC_cw *	173.8 Wh/kg
Rear right heating zone	190 mm
Nominal power	1800 W
Standardised cookware category*	B
Energy consumption EC_cw *	191.3 Wh/kg
Front right heating zone	155 mm
Nominal power	1200 W
Standardised cookware category*	A
Energy consumption EC_cw *	173.8 Wh/kg

* calculated according to the method of measuring performance (EN 60350-2).

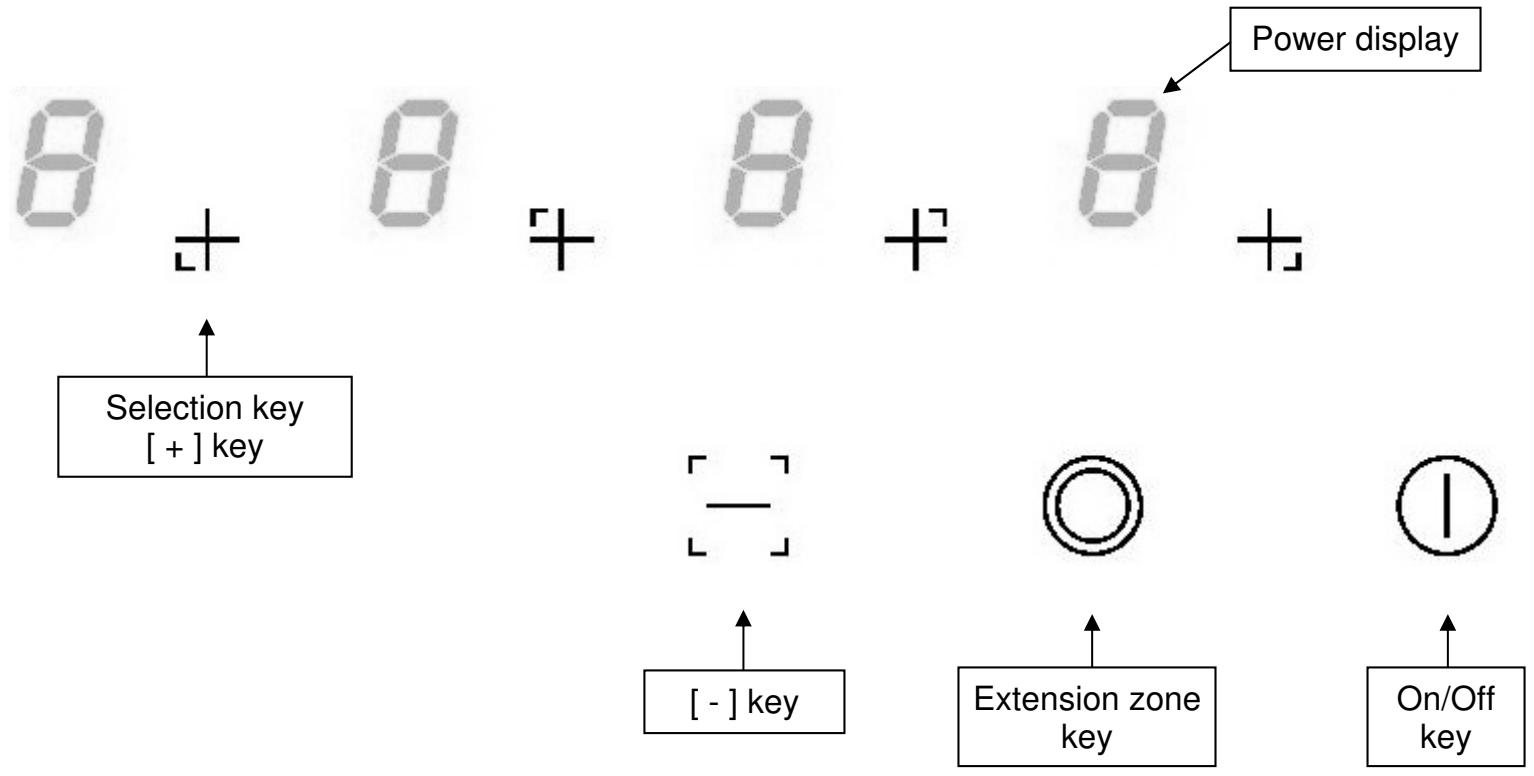

Control panel

8 + 8 + 8 + 8 + Selection key [+] key Power display [-] key Extension zone key On/Off key

Sensitive touches

Your ceramic hob is equipped with electronic controls with sensitive touch keys. When your finger touches the key, the corresponding command is activated. This activation is validated by a control light, a letter or a number in the display and/or a “beep” sound.

Touch only one key on the same time.

Display

Display	Designation	Function
0	Zero	The heating zone is activated
1...9	Power level	Selection of the cooking level
A	Heat accelerator	Automatic cooking
E	Error message	Electronic failure
H	Residual heat	The heating zone is hot
L	Locking	The control panel is locked

Residual heat indication

After the switch-off of the hob, the heating zone is still hot and indicates [H] on the display.

The symbol [ H ] disappears when the heating zone may be touched safely.

When the residual heat indicator light is on, don't touch the heating zone and don't put any heat sensitive object on them. There are risks of burn and fire.

STARTING UP THE APPLIANCE

Before using your new hob

Clean your hob with a damp cloth, and then dry the surface thoroughly. Do not use detergent which risks causing blue-tinted colour on the glass surface.

Starting-up

• Start-up/ switch off the hob

Action	Control panel	Display
To start	Press key [ 1 ]	[0]
To stop	Press key [ 1 ]	Nothing or [H]

• Start-up/ switch off a heating zone

Action	Control panel	Display
Increase power	Press key [ + ]	[ 1 ] to [ 9 ]
Decrease power	Press key [ - ]	[ 9 ] to [ 1 ]
Stop	Press simultaneous [ + ] and [ - ]	[ 0 ] or [ H ]
	or press key [ - ]	[ 0 ] or [ H ]

If no action is made within 20 seconds, the electronics returns in waiting position.

Extension zone

• Switch off/on the extension zone

Action	Control panel	Display
Select zone	Press key [ + ]	[ 0 ]
Increase power	Press key [ + ]	[ 0 ] to [ 9 ]
Switch off	Touch key [ ⭕ ]	Extension zone light is off
Switch on	Touch key [ ⭕ ]	Extension zone light is on

Automatic cooking

All the cooking zones are equipped with an automatic “go and stop” cooking device. The cooking zone starts at full power during a certain time, then automatically reduces its power on the preselected level.

• Start-up:

Action	Control panel	Display
Zone selection	Press key [ + ] from the zone	[ 0 ]
Full power setting	Repress key [ + ]	[ 1 ] to [ 9 ]
Automatic cooking	Repress key [ + ]	[ 9 ] is blinking with [A]
Power level selection (for example « 7 »)	Press key [ - ]	[ 9 ] went to [ 8 ] [ 7 ]
		[ 7 ] is blinking with [A]

• Switching off the automatic cooking:

Action	Control panel	Display
Zone selection(for example « 7 »)	Press key [ + ] from the zone	[ 7 ] is blinking with [A]
Power level selection	Press key [ - ] or [ + ]	Level selected

Control panel locking

To avoid modifying a setting of cooking zones, in particular with within the framework of cleaning the control panel can be locked (with exception to the On/Off key [ ① ]).

• Locking:

Action	Control panel	Display
Start	Press key [ 1 ]	[0] or [H] on 4 displays
Hob locking	Press simultaneously [- ] and [+] at left	No modification
	Press key [+]	[L] on 4 displays

• Unlocking:

Action	Control panel	Display
Start	Press key [ 1 ]	[L] on 4 displays
In the 5 seconds after start:
Unlocking the hob	Press simultaneously [- ] and [ + ] at left	[0] or [H] on 4 displays
	Press key [- ]	No light on the displays

Examples of power setting:

(The values below are indicative)

1 to 2	Melting, Reheating	Sauces, butter, chocolate, gelatineDishes prepared beforehand
2 to 3	Simmering, Defrosting	Rice, pudding, sugar syrupDried vegetables, fish, frozen products
3 to 4	Steam	Vegetables, fish, meat
4 to 5	Water	Steamed potatoes, soups, pasta, fresh vegetables
6 to 7	Medium cooking, Simmering	Meat, liver, eggs, sausages,
7 to 8	Cooking	Potatoes, fritters, waffles
9	Frying, roasting, Boiling water	Steaks, omelettes, fried dishes, water

MAINTENANCE AND CLEANING

Switch-off the appliance before cleaning.

Do not clean the hob if the glass is too hot because they are risk of burn.

• Remove light marks with a damp cloth with washing up liquid diluted in a little water. Then rinse with cold water and dry the surface thoroughly.
• Highly corrosive or abrasive detergents and cleaning equipment likely to cause scratches must be absolutely avoided.
• Do not ever use any steam-cleaner or pressure washer.
• Do not use any object that may scratch the ceramic glass.
• Ensure that the pan is dry and clean. Ensure that there are no grains of dust on your ceramic hob or on the pan. Sliding rough saucepans will scratch the surface.
• Spillages of sugar, jam, jelly, etc. must be removed immediately. You will thus prevent the surface being damaged.

The hob or the cooking zone doesn't start-up:

• The hob is badly connected to the electrical system.
  • The protection fuse has blown.
  • The locking function is activated.
• The sensitive keys are covered by grease or water.
• An object is covering the control panel.

The symbol [ E ] displays :

- Call the After-sales Service.

One or all cooking zones cut-off:

• The safety system has engaged.
- You forgot to cut-off the cooking zone for a long time.
• One or more sensitive keys are covered.
- The pan is empty and has overheated.

The automatic cooking system « go and stop » doesn't start-up:

• The cooking zone is still hot [ H ].
• The highest power level is set [9].
- The cooking level was engaged with [ - ].

The symbol [ L ] displays :

• Refer to the chapter control panel locking page.

The control panel displays [Er03] :

- An object or liquid covers the control keys. The symbol disappears as soon as the key is released or cleaned.

The control panel displays [ER21]:

- The hob is overheated, let it cool and then turn it on again.

The control panel displays [ U400 ], [ Er25 ]or [ U4 ] :

- The hob is not connected to the network. Check the connection and reconnect the hob.

If one of the symbols above persists, call the After Sales-Services.

ENVIRONMENT PROTECTION

• The packaging material is ecological and can be recycled.

• The worn appliances contain certain noble metals. Apply to the local government about the possibilities of recycling.

• Don't dispose of your appliance with general household waste

• Get in touch with the waste collection centre of your local council that control the recycling of household appliances.

Pure electrical circuit lines without any symbols

Advice for the installer

IMPORTANT

The installation and the maintenance come under the exclusive responsibility of specialists. The installer is held to respect the legislation and the safety standards enforce in his home country. Failure to respect these conditions results in loss of warranty.

Installation

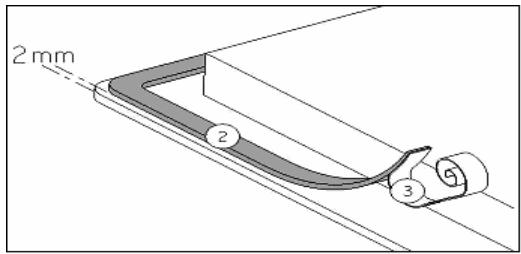

How to stick the gasket:

The gasket supplied with the hob avoids all infiltration of liquids in the cabinet. Its installation has to be done carefully, in conformity with the following drawing.

2 mm 2 3

Stick the gasket (2) two millimeters from the external edge of the glass, after removing the protection sheet (3).

Built-in:

- Refer to the diagram below for cut out sizes from work plan. Ensure that there is a distance of 50 mm minimum between the hob and the wall or sides. The work plan must have a minimum thickness of 30mm and must be heat resistant.

560 mm 490 mm

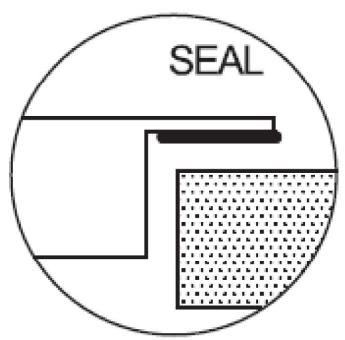

SEAL

- The hobs are classified as “Y” class for heat protection. Ideally during the built-in step, the hob should be installed with plenty of space on either side. There may be a wall at the rear and tall units or a wall at one side. On the other side, however, no unit or appliance must stand higher than the hob.

• The piece of furniture or the support in which the hob has to be fitted, as well as the edges of furniture, the laminate coatings and the glue used to fix them, must be able to resist temperatures of up to 100 °C.
• The mural rods of edge must be heat-resisting.
• Do not install the hob to the top of a non-ventilated oven or a dishwasher.
• If a drawer is below the hob, to guarantee a good air circulation and good cooling system of the appliance, maintain a gap of 20 mm minimum between the bottom of the drawer and the inferior part of the hob.

• WARNING: The safety gap between the hob and the cooker hood placed above must respect the indications of the hood manufacturer. In case of absence of instructions respect a distance minimum of 760 mm.
• If a drawer is placed under the work, avoid putting into this drawer flammable objects (for example: sprays) or not heat-resistant objects.
• The connection cord should be subjected, after built-in step, to no mechanical constraint, such for example of the fact of the drawer. Materials which are often used to make worktops can expand on contact with water. To protect the cut-out edge, apply a coat of varnish or special sealant.
• WARNING: Use only hob guards designed by the manufacturer of the cooking appliance or indicated by the manufacturer of the appliance in the instructions for use as suitable or hob guards incorporated in the appliance. The use of inappropriate guards can cause accidents.

ELECTRICAL CONNECTION

• The installation of this appliance and the connection to the electrical network should be entrusted only to an electrician perfectly to the fact of the normative regulations and which respects them scrupulously.
• Protection against the parts under tension must be ensured after the building-in.
• The data of connection necessary are on the stickers place on the hob casing near the connection box.
• The connection to the main must be made using an earthed plug or via an omnipolar circuit breaking device with a contact opening of at least 3 mm.

• The electrical circuit must be separated from the network by adapted devices, for example: circuit breakers, fuses or contactors.

• If the appliance is not fitted with an accessible plug, disconnecting means must be incorporated in the fixed installation, in accordance with the installation regulations.

• The inlet hose must be positioned so that it does not touch any of the hot parts of the hob or oven.

Caution!

This appliance has only to be connected to a network 230 V\~ 50/60 Hz.

Connect always the earth wire.

Respect the connection diagram.

The connection box is located underneath at the back of the hob casing. To open the cover use a medium screwdriver. Place it in the slits and open the cover.

Mains	Connection	Cable diameter	Cable	Protection calibre
230V~ 50/60Hz	1 Phase + N	3 × 2.5 mm^2	H 05 VV - FH 05 RR - F	25 A *
400V~ 50/60Hz	2 Phases + N	4 × 1.5 mm^2	H 05 VV - FH 05 RR - F	16 A *

calculated with the simultaneous factor following the standard EN 60 335-2-6

This device is pre-fitted with a 1.5m long cable of the 3 x 2.5mm² H05VV-F type.

①—② L1 ③ N L2 230 - 240 V ④ 1N~ 2~

① L1 ② L2 ③ 230V 230V N ④ 2N~ ⊥

Connection of the hob

Setting up the configurations:

For the various kinds of connection, use the brass bridges which are in the box next the terminal

Monophase 230V\~1P+N

Put a bridge between terminal 1 and 2.

Attach the earth to the terminal “earth”, the neutral N to terminal 4, the Phase L to one of the terminals 1 or 2.

Biphase 400V\~2P+N

Attach the earth to the terminal “earth”, the neutral N to terminal 4, the Phase L1 to the terminals 1 and the Phase L2 to the terminal 2.

Caution! Be careful that the cables are correctly engaged and tightened.

We cannot be held responsible for any incident resulting from incorrect connection or which could arise from the use of an appliance which has not been earthed or has been equipped with a faulty earth connection.

CE

REPAIR AND SPARE PARTS SERVICE

Do not disassemble or repair the appliance by yourself. Failure to do so may result in an electric shock or personal injury.

To access to professional repair and order spare parts, please get the support from FNAC DARTY after-sales service.

Spare parts for your appliances will be delivered within 15 working days after having received the order.

Please Note!

All appliances have a 2-year warranty.

Warranty does not cover damages caused due to improper installation, unauthorized modification, self-repair or non-professional repair.

Contact us at :

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

As such we urge you to follow the correct disposal procedure for the appliance and packaging materials. This will help conserve natural resources and ensure that it is recycled in a manner that protects health and the environment.

You must dispose of this appliance and its packaging according to local laws and regulations.

Because this appliance contains electronic components, the appliance and its accessories must be disposed of separately from household waste when the appliance reaches its end of life.

Contact your local authority to learn about disposal and recycling.

The appliance should be taken to your local collection point for recycling. Some collection points accept appliance free of charge.

We apologise for any inconvenience caused by minor inconsistencies in these instructions, which may occur as a result of product improvement and development.

ETABLISSEMENTS DARTY ET FILS ©

9 RUE DES BATEAUX LAVOIRS,

94200 IVRY-SUR-SEINE FRANCE

Beste klant!

BESCHRIJVING VAN HET APPARAAT....36

WERKING VAN DE SENSORSCHAKELVELDEN 37
DISPLAY 37
RESTWARMTEWEERGAVE....37

INGEBRUIKNAME VAN DE KOOKPLAAT 37

VOOR HET EERSTE OPWARMEN....37
KOOKPLAAT IN- EN UITSCHAKELEN 37
KOOKZONE MET DUBBELE KRING....38
AANKOOKAUTOMAAT 38
KOOKPLAAT VERGRENDELEN 38

KOOKADVIES....39

VOORBEELDEN VAN VERMOGENSREGELING 39

REINIGING EN ONDERHOUD....39

KLEINE STORINGEN VERHELPEN....40

MILIEUBESCHERMING 40

Simple line drawing of a trash bin with crossed diagonal lines indicating no text or symbols

Symbol of a trash bin with crossed lines indicating no waste or discharge (no text or labels)

EU Declaration of Conformity

Product Description:

Black background with four white circular outlines and a ruler at the bottom (no text or symbols)

Marque –

Brand /Merk /Marca:

THOMSON

The object of the declaration described above is in conformity with the relevant Union harmonisation legislation:

Low Voltage Directive (LVD)

Eco design requirements for energy-related products (ErP)

RoHS

EMC:

EN 55014-1:2017+A11:2020

EN 55014-2:2015

EN 61000-3-2:2014

EN 61000-3-2:2019

EN 61000-3-3:2013+A1:2019

LVD :

EN 60335-1:2012+A11:2014+A13:2017+A1:2019+A14:2019+A2:2019+A15:2021

EN 60335-2-6:2015+A1:2020+A11:2020

EN 62233:2008

ErP :

(EU) No 66/2014

EN 60350-2:2018

(EC) No 1275/2008

EN 50564:2011

This declaration of conformity is drawn up under the sole responsibility of the manufacturer.

The person responsible for this declaration is:

Place, Date / Lieu :

Ivry-sur-Seine, Octobre 21, 2022

CE

ASSURANCE QUALITY SERVICE FNAC DARTY
