USER MANUAL 860 QVO SAMSUNG

January 2018 www.samsung.com/ssd www.samsungssd.com Design and contents of this manual are subject to change without notice. © 2018 Samsung Electronics,Co.,Ltd. All rights reserved.

LEGAL DISCLAIMER SAMSUNG ELECTRONICS RESERVES THE RIGHT TO CHANGE PRODUCTS, INFORMATION AND SPECIFICATIONS WITHOUT NOTICE. Products and specifications discussed herein are for reference purposes only. All information discussed herein may change without notice and is provided on an “AS IS” basis, without warranties of any kind. This document and all information discussed herein remain the sole and exclusive property of Samsung Electronics. No license of any patent, copyright, mask work, trademark or any other intellectual property right is granted by one party to the other party under this document, by implication, estoppels or otherwise. Samsung products are not intended for use in life support, critical care, medical, safety equipment, or similar applications where product failure could result in loss of life or personal or physical harm, or any military or defense application, or any governmental procurement to which special terms or provisions may apply. For updates or additional information about Samsung products, contact your nearest Samsung office. All brand names, trademarks and registered trademarks belong to their respective owners. Copyright, 2018 Samsung Electronics Co., Ltd. All rights reserved. COPYRIGHT © 2018 This material is copyrighted by Samsung Electronics. Any unauthorized reproductions, use or disclosure of this material, or any part thereof, is strictly prohibited and is a violation under copyright law.

TRADEMARKS & SERVICE MARKS

The Samsung Logo is the trademark of Samsung Electronics. Adobe is a trademark and Adobe Acrobat is a registered trademark of Adobe Systems Incorporated. All other company and product names may be trademarks of the respective companies with which they are associated. Revision2.6

Installation Guide SAMSUNG PROPRIETARY Introduction New Samsung Magician Samsung Magician software, up until the version 4.9.7, has been an end-user application with a collection of features to help manage Samsung branded SSDs. With New Samsung Magician, it is aimed at providing a better user experience with a new GUI, feature-level update schemes. Samsung Magician software is developed and distributed exclusively for owners of Samsung Solid Sate Drives (SSDs). New Features New Samsung Magician features a number of improvements over version 5.2:

1) Magician does not require Internet access to run. However, to get updates for

the latest Firmware, Feature modules or application, internet connection is required.

2) If you delete some files of Magician without internet connection, some

features like certification or configuration may not work properly and cause limitations in use of Magician.

3) The SSD should not be removed or disconnected while FW Update,

Performance Optimization, Benchmarking, Secure Erase, Over Provisioning, Data Security or RAPID features are in progress. Doing so could result in data corruption.

4) All parallel operations should be terminated before executing the Performance

Optimization or Benchmarking features.

5) Data corruption may result if the user terminates the Magician application

abnormally while Benchmarking, FW Update, Secure Erase, Performance Optimization, Over Provisioning, Data Security or RAPID features are in progress.

6) There is always the risk of data loss when updating SSD firmware. It is imperative that

the user backs up any important data before performing a firmware update.

7) Coach-mark is shown after module installation or update, but once the function

performed, coach-mark will be removed and not shown.

8) If there are some system issues for Magician to perform functions, System

Compatibility will provide guide to fix the issues.

9) If Samsung Magician is under a proxy network environment, it may not provide the

full functionality such as firmware update. 10)In order for Samsung Magician to function properly, the time of the PC needs to be correctly set. Revision2.6

Installation Guide SAMSUNG PROPRIETARY General Limitations Overall

1) Magician Shows only supported features for the connected SSD. Appearing

features may vary as (different) SSDs connected.

2) Magician does not work with SSDs connected via the SCSI controller interface.

3) Only MBR and GPT partition types are supported. Magician may not work with

other partition types.

4) Magician shows only volumes mounted with letter.

5) Magician will not work on SSDs that are locked with a user password.

6) The user may need to manually refresh for Magician to accurately reflect all

connected/removed disks.

7) RAID on mode in SATA configuration is not supported by Samsung Magician

and USB bootable solution.

8) If you are using any custom storage driver, then Magician may not work

properly. Please always use the latest storage driver or Microsoft driver.

9) In Windows 7, the Samsung NVMe Driver is required for Magician to fully

support Samsung’s NVMe device. 10)Some features which may be able to cause compatibility issue can be hidden or prohibited. Please check notices in System Compatibility.

11) Users in European(GDPR) country can find Personal information for GDPR notice in

Magician Information (Click (i) Button – right upper of Magician UI). However, if user installed Magician with selection of non-GDPR country member, GDPR notice can’t be shown. In this case, try reinstall Magician. Performance Benchmark

1) Benchmarking results are for a Queue Depth of 32.

2) The numbers of threads used for performance benchmark are: 1 for

Sequential and 4 for Random for NVMe device; 1 for Sequential and 1 for Random for SATA device.

3) Benchmarking may not work with some removable storage devices.

4) Performance Benchmark may get timed-out on ASMedia controllers if the

driver does not handle multi thread operations (IOs) Revision2.6

Installation Guide SAMSUNG PROPRIETARY General Limitations Performance Optimization

1) Performance Optimization supports only the NTFS file system.

2) Advanced Performance Optimization will take more time to complete.

Performance improvement may depend on the user system environment, thus this process is recommended for the user who essentially needs performance optimization. Advanced Performance Optimization is only supported in Samsung SSD 840 EVO (2.5”, mSATA) and 840 Series model.

3) Magician does not support TRIM operation for Standard Performance

Optimization on Windows 8 and above, as they support native TRIM. Instead, Magician provide a link to Microsoft Drive Optimizer.

4) Windows may experience slow response while Advanced Performance

Optimization is in progress, on ASUS Sabertooth 990FX system with AMD

Secure Erase & Linux Bootable Solution

1) While making a bootable solution for Secure Erase, please make sure the

Device Manager window is closed.

2) In some of the PCs, Bootable Solution may not work properly as expected

because of compatibility issue.

3) The Bootable solution is not compatible with pure SCSI or SATA

NVIDIA/LSI/AMD chipset drivers.

4) AHCI or ATA mode must be enabled in the BIOS during PC boot up.

5) The Bootable solution may hang if the SSD is removed on PCs that do not

support the hot plug feature (e.g. ICH5/6 chipsets).

6) The Bootable solution will not work with devices attached via SATA 6Gbps

(SATA III) operating in IDE mode.

Erase may not work on systems where SECURITY FREEZE LOCK is issued by the BIOS. Revision2.6

Installation Guide SAMSUNG PROPRIETARY General Limitations Data Security

1) Class 0, TCG Opal and Encrypted Drive cannot be enabled simultaneously.

Only one mode can be enabled at a time and all other modes must be disabled.

2) Security mode (Class 0, TCG/Opal or Encrypted Drive) must be disabled

(unlocked) before removing and installing onto another PC. Over Provisioning

1) Over Provisioning only supports NTFS and raw (Unformatted) partitions.

2) Over Provisioning does not support dynamic disks or disks that require

3) Magician cannot guarantee that Over Provisioning scans disk’s partition

layout properly, if partition information had been changed during scanning.

4) Over Provisioning may fail, even though enough free space is available, if your

system suffers from cluster misalignment.

5) If user cannot span or shrink volume size through disk management of OS

administration tool, it is possible not to work dynamic over-provisioning properly.

6) Windows ‘Disk Partition Service’ and ‘Virtual disk Service’ should not be

disabled in order to perform Over Provisioning.

7) Over Provisioning can only be performed on the last accessible partition

(NTFS or raw) Firmware Update

1) PC will be shut down automatically after firmware update (Magician counts

down 20 seconds before shutdown).

2) Firmware Update may fail on Samsung brand SSDs connected to AMD

Controller. Please retry using default SATA AHCI controller (Microsoft drivers). Revision2.6

1) RAPID mode accelerates only one SSD even though user has several Samsung

SSDs (860 QVO, 860 EVO, 860 PRO, 850 PRO, 850 EVO, 850, 750 EVO, 840 EVO, and 840 PRO regardless of form factor).

2) If there are two identical SSDs connected, RAPID mode may accelerate the

3) RAID Mode sets is not supported as an accelerated drive.

4) After uninstalling RAPID mode, if the system is restored to a prior state in

which RAPID mode was installed, RAPID mode will be started in a disabled state.

5) NVIDIA Storage controller is not supported.

6) During RAPID mode Enable/Disable operation: Do not disconnect the target

SSD, Do not kill the application.

7) If fast startup is enabled on windows 8, 8.1 and 10 machines, RAPID mode

enable/disable requires system restart. Shutdown followed by turning-on the power will not activate RAPID mode enable/disable. By default fast startup is enabled.

8) Flush command of operating system and/or application may cause variation

in performance when RAPID mode is enabled.

9) Sometimes on AMD PC with AMD and ASMedia storage controllers it was

found that the IOs takes a longer time to complete. In such cases if Rapid was enabled, it may get automatically disabled due to such IO errors. It may display "Rapid is in inactive state". User has to reboot the PC to enable the Rapid back. 10)If multiple iterations of Read and Write are performed, RAPID mode may become inactive due to system internal errors on some of the AMD / ASMedia Controller or Driver.

11) RAPID mode can't be guaranteed on the target SSD with non-NTFS file

12) If user delete some files on RAPID folder, RAPID may not be uninstalled

properly. Revision2.6

with the error message “The Windows Installer service failed to start. Start the Windows Installer service manually, upgrade the Windows Installer service, and check if the last updated or installed program in Windows was successful. If the problem persists, contact the A/S center.” The issue can be fixed by:

Updating Windows Installer If your Windows Installer is not the latest version, corrupted or msiexec is missing, please install the latest version of Windows Installer, then try enabling RAPID mode again. If none of the above procedures work, we recommend reinstalling Windows.

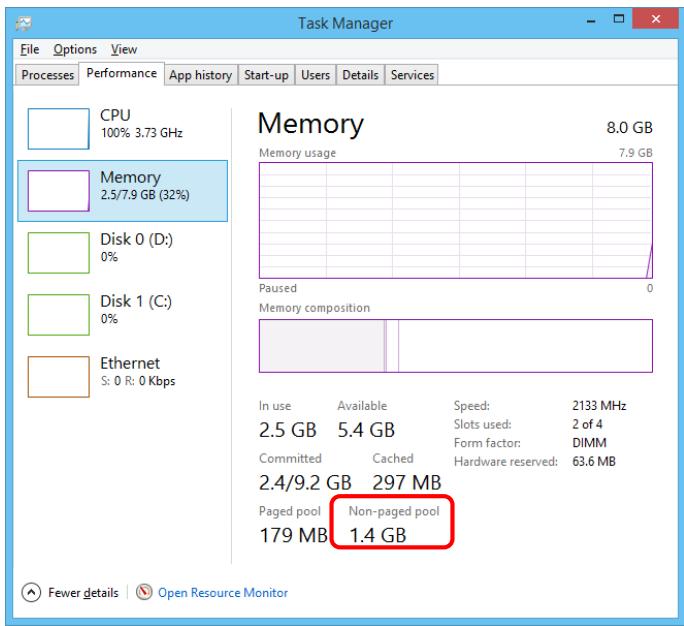

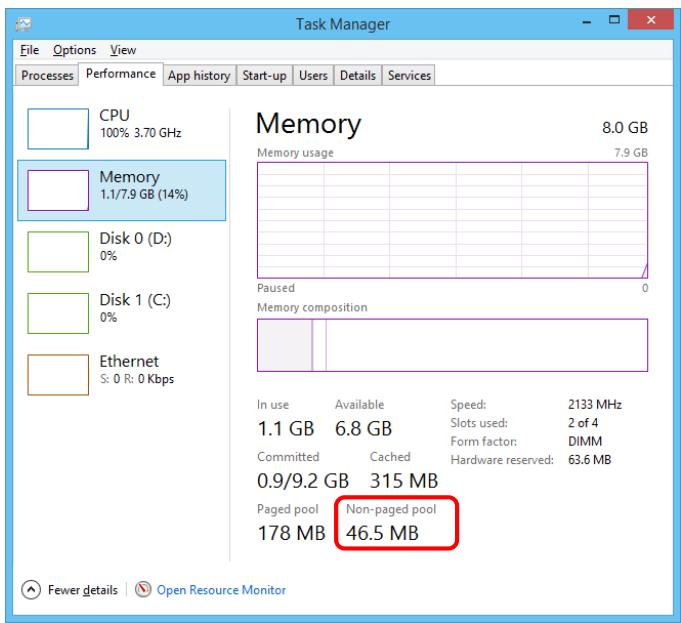

Installation Guide SAMSUNG PROPRIETARY Operational Check of RAPID mode RAPID mode starts its operation 45 seconds after OS booting. Please make sure the increased size of non-paged pool using “task manager → performance → memory tab” to ensure it is fully operational.
