Product Type	Cordless stick vacuum
Brand	Hoover
Model	HF1P10HX
Power Supply	Rechargeable lithium-ion battery
Charger	Charger included, charging time approx. 5 hours
Usage Modes	Standard and Turbo
Operating Modes	Stick, high reach, handheld vacuum
Brush Technology	ANTI-TWIST with anti-tangle comb
Lighting	Front LED light on the brush
Dustbin Capacity	0.5 L (approx)
Filters	Foam filter, micro filter, air outlet filter (washable)
Filter Maintenance	Wash after 5 emptyings, replace after 5 washes
Included Accessories	Crevice tool, mini pet turbo brush, flexible hose, wall mount
Weight	Approx 2.5 kg (approx)
Warranty	According to retailer terms, battery warranty 1 year
Spare Parts	Use original Hoover parts

Frequently Asked Questions - HF1P10HX HOOVER

How to empty the dustbin?

Make sure the appliance is turned off. Hold the handheld vacuum over a trash can, press the flap release button to open the flap and empty debris. Close the flap until it clicks.

How to clean the filters?

Remove the dustbin, then take out the micro filter and foam filter. Wash them with lukewarm water (no hot water or detergent). Let dry for 24 hours before reassembling. Replace filters after 5 washes with Hoover parts.

What to do if the vacuum does not turn on?

Check that the battery is charged and properly inserted. If the problem persists, contact Hoover customer service.

How to use Turbo mode?

In Standard mode, press the Turbo button to increase power. The Turbo icon lights up on the LED screen. Press again to return to Standard mode. Note: Turbo mode reduces runtime.

How to clean the main brush?

Turn off the appliance. Slide the release slider, remove the roller, remove debris, and replace it until it clicks. Check for obstructions in the comb.

How to detach the handheld vacuum?

Press the handheld vacuum release button (located on the tube) and pull to separate the handheld vacuum from the tube.

How to charge the battery?

The battery can be charged in three ways: on the appliance in stick mode, in handheld mode, or removed from the appliance. Use only the supplied charger. Charging time is about 5 hours.

What to do if the brush does not rotate?

Check if a solid red light appears on the charge indicator. This indicates a blockage. Turn off the appliance, remove debris from the roller and comb. If the problem persists, contact customer service.

How to use flexible mode?

Press the flexible tube release button to tilt the tube to a lower angle, making it easy to reach areas under furniture.

How to replace the battery?

Press the battery release buttons and pull the battery outward. Insert a new compatible Hoover battery. Do not attempt to open the battery. Dispose of the old battery at a recycling point.

USER MANUAL HF1P10HX HOOVER

A. On/Off Button
B.ModeButton
C. Mode Led

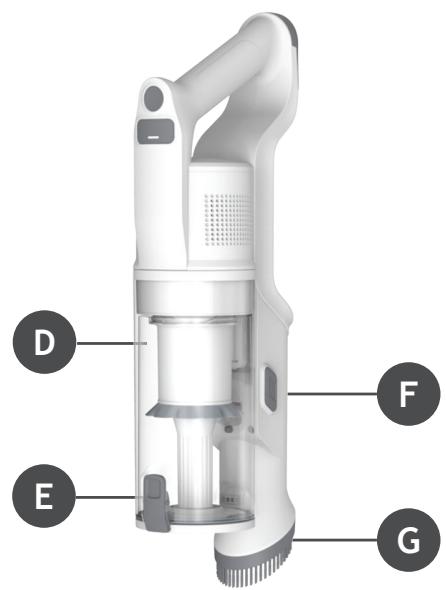

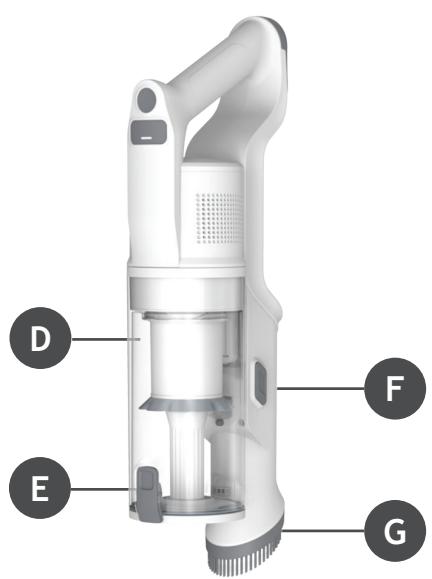

D. Dust Cup
E. Dust Cup Flap Release Button
F. Dust Cup Release Button
G. Dusting Brush

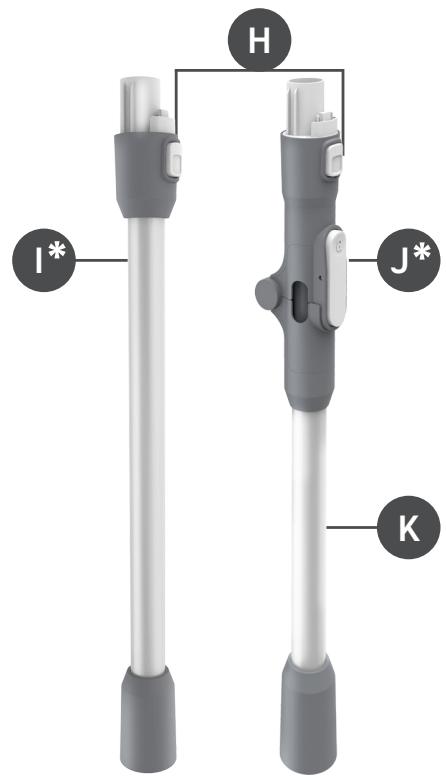

H. Handheld Release Button
I. Tube
J. Flexi Tube Release Button
K. Flexi Tube

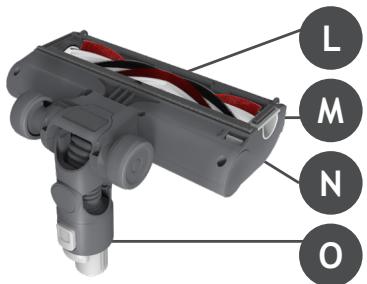

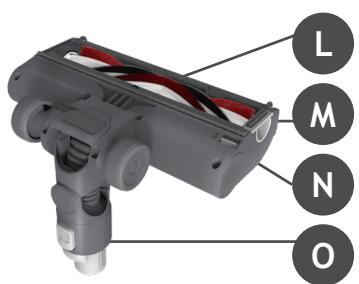

L. Nozzle Brushbar

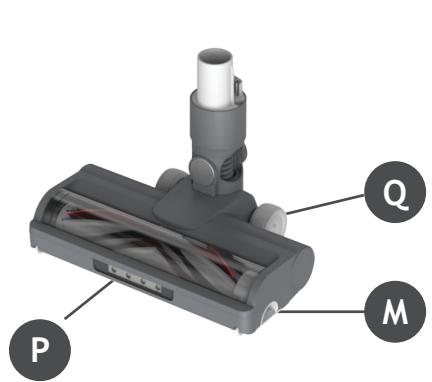

M. Nozzle Brushbar Cover
N. Nozzle Brushbar Release Slider
O. Nozzle Release Button

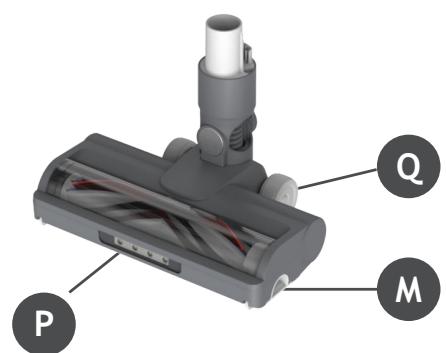

P. Nozzle Front Led Light
Q. Nozzle

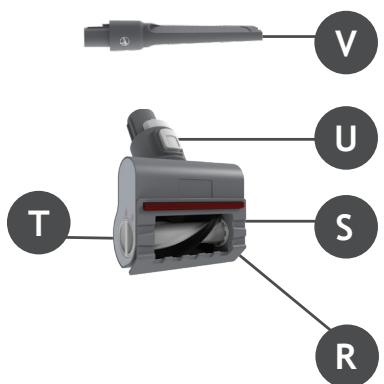

R. Mini Power Nozzle brushbar
S. Fluffy stripe
T. Mini Power Nozzle Brushbar Release Button
U. Mini Power Nozzle Release Button
V. Crevice Tool
W. Wall Mount Screws
X. Charger
Y. Wall Mount
Z. Battery Charging Socket
AA. Battery Release Button
AB. Battery Charging indicator
AC.Lithium-ion battery
AD.Exhaust Filter
AE. Foam Filter
AF. Micro Filter

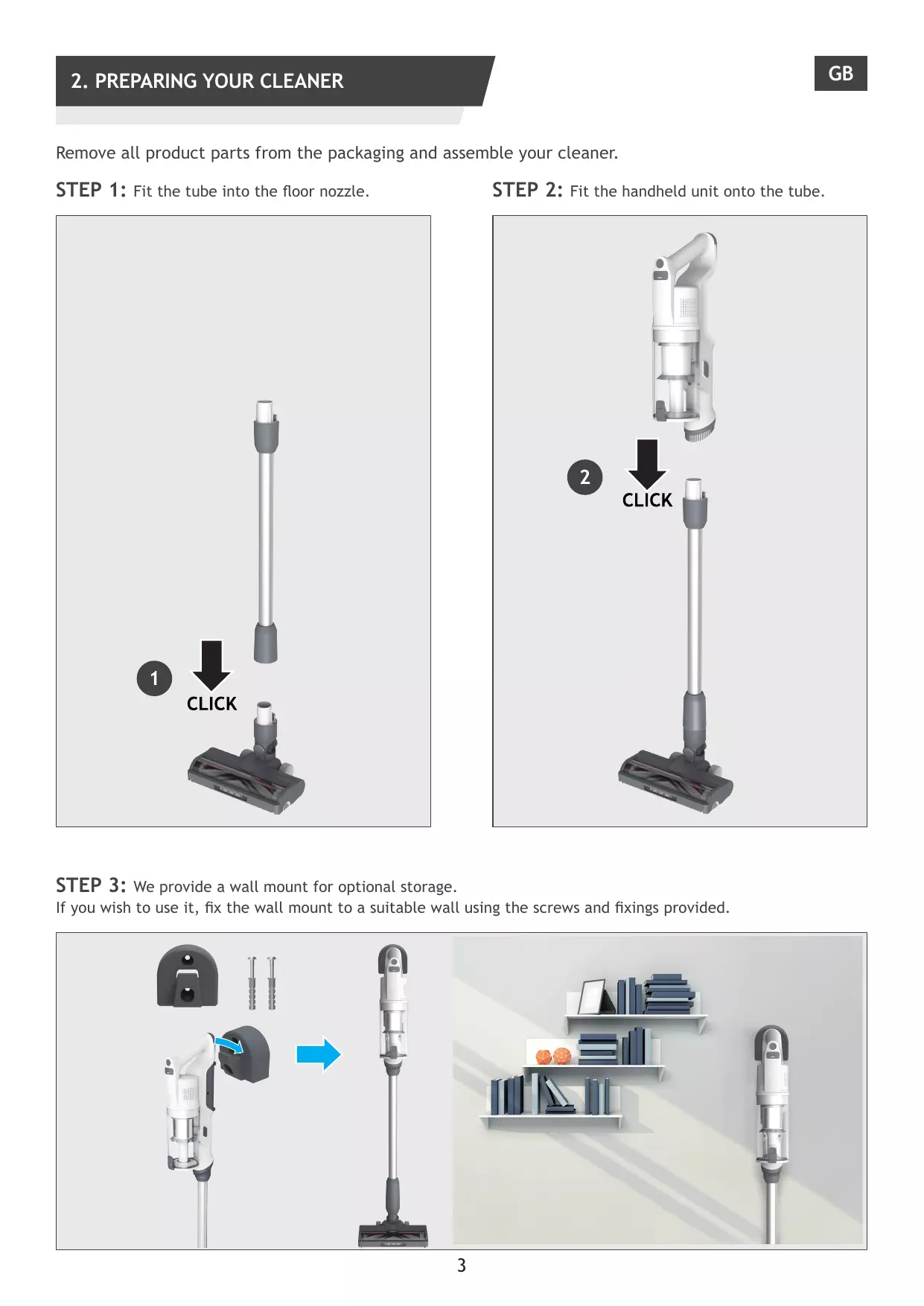

Remove all product parts from the packaging and assemble your cleaner.

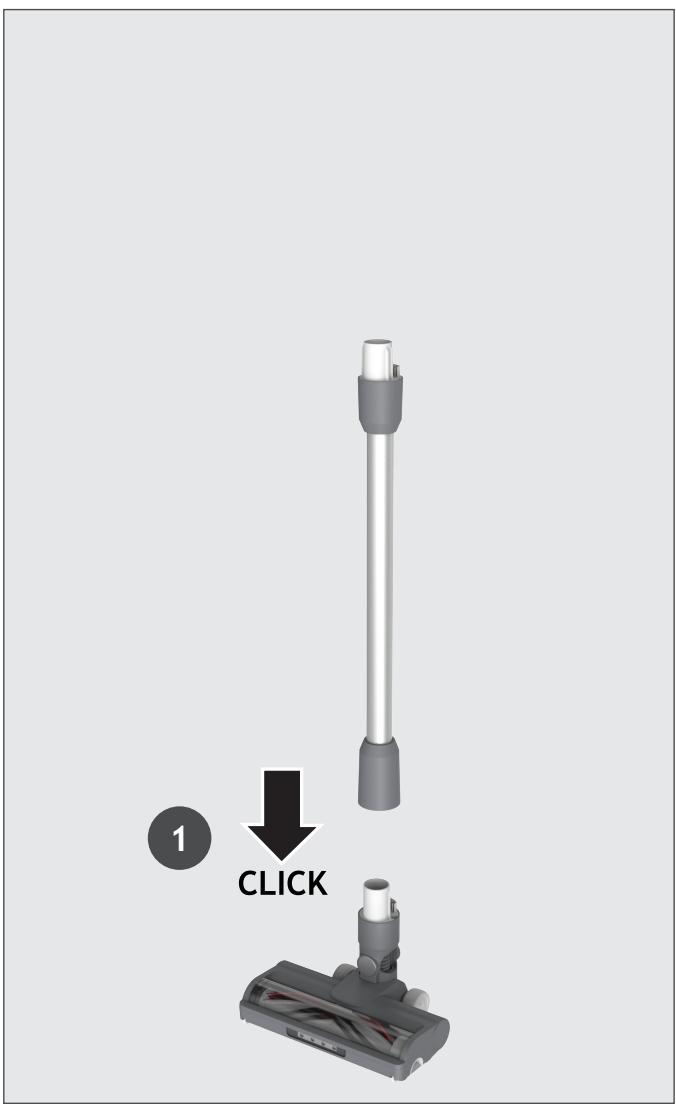

STEP 1: Fit the tube into the floor nozzle.

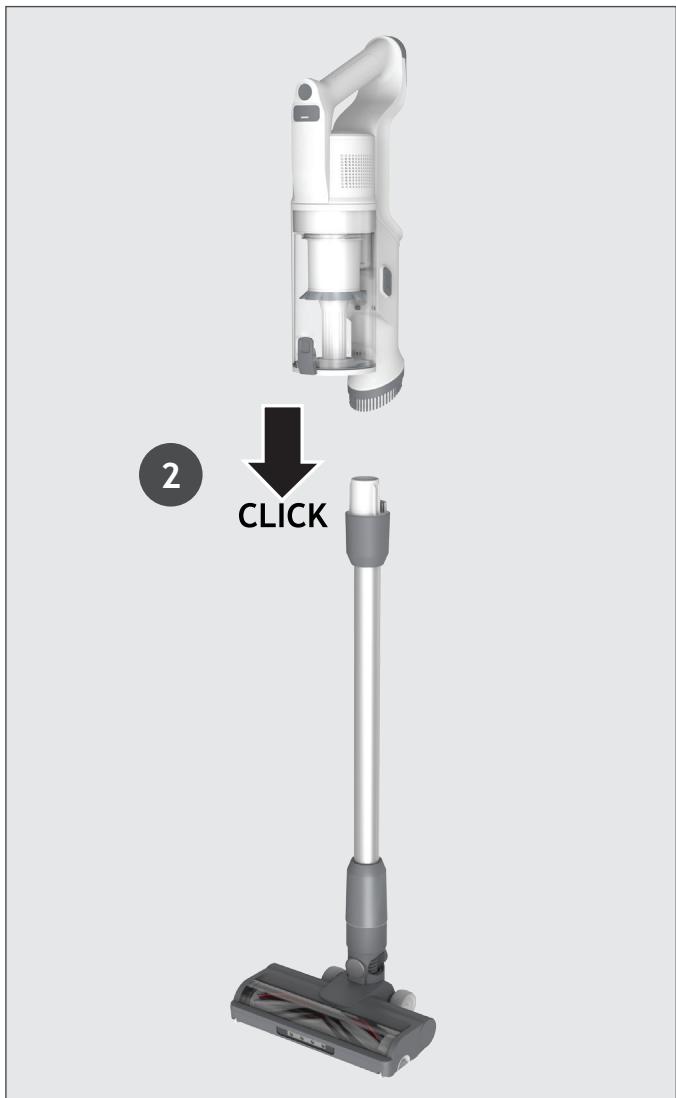

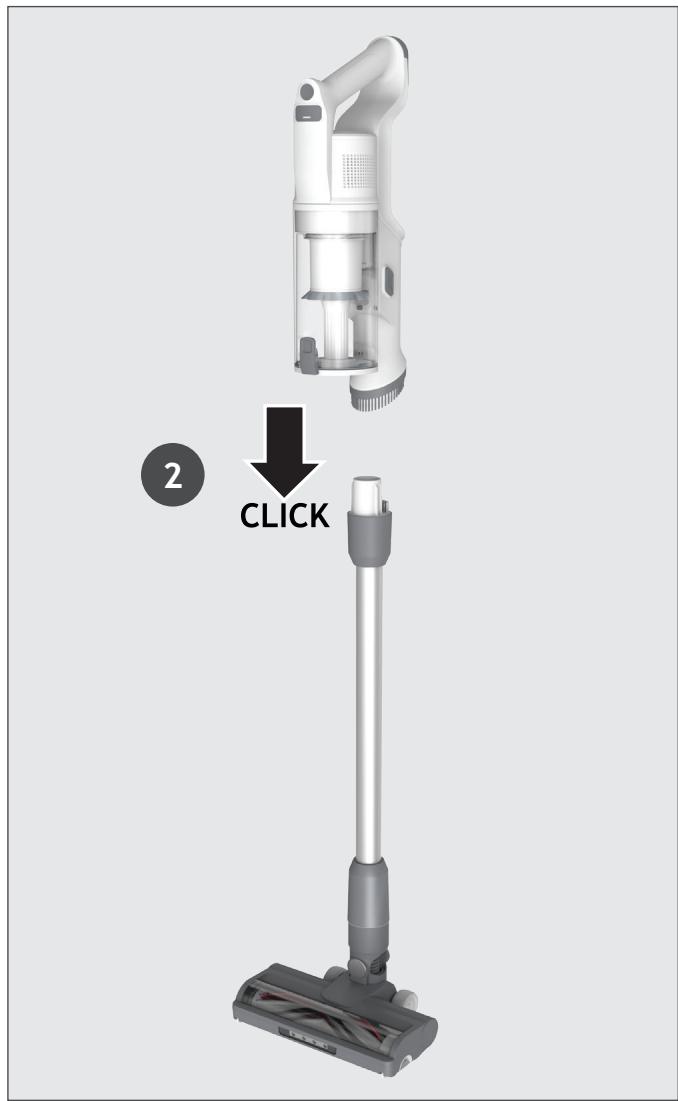

STEP 2: Fit the handheld unit onto the tube.

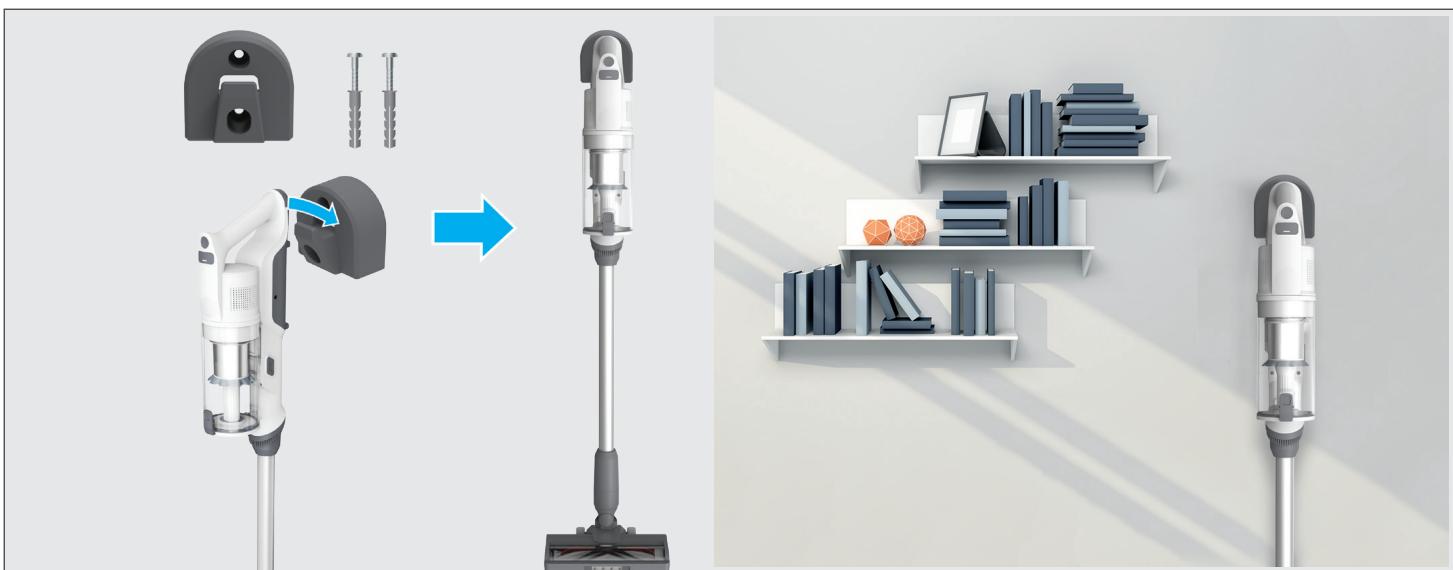

STEP 3: We provide a wall mount for optional storage.

If you wish to use it, fix the wall mount to a suitable wall using the screws and fixings provided.

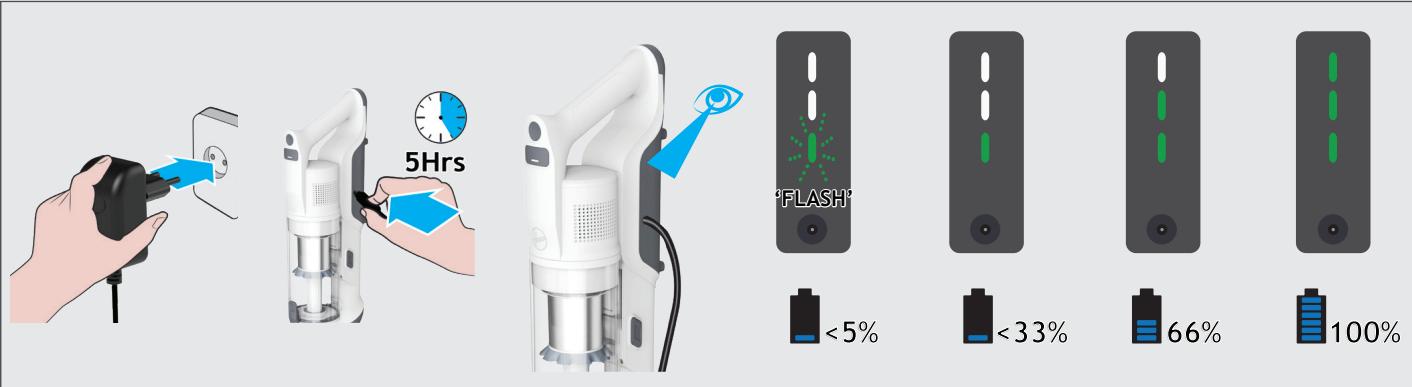

The battery of your product does not come fully charged. Before first use, please charge your product completely. It takes around 5 hours.

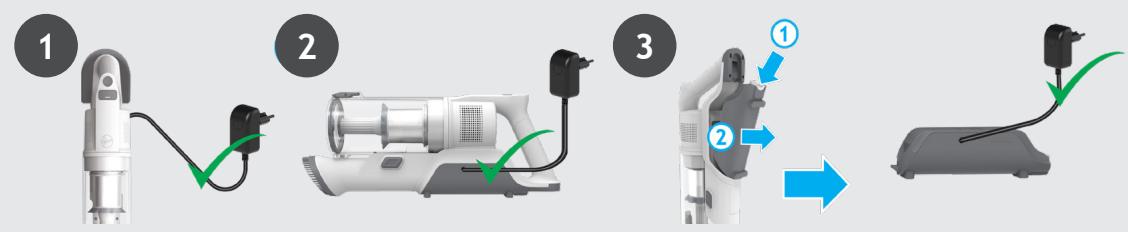

For your convenience, the battery can be charged in 3 different conditions.

1. With the product fully assembled in stick mode or located in the wall mount.
2. With the product in the handheld mode.
3. With the battery removed from the product.

When using your product, the real time charge level of your battery is indicated on the battery pack. When the remaining run time is reduced to 2 mins, the LED display icons will begin to blink. It is recommended you switch off your product and recharge the battery.

NOTE: It is normal for the charger to become warm to touch when charging. Use only the charger supplied with your product.

4. USING YOUR CLEANER

There are 3 different working modes for your cleaner:

1. Stick mode.
2. Above Floor mode.
3. Handheld mode.

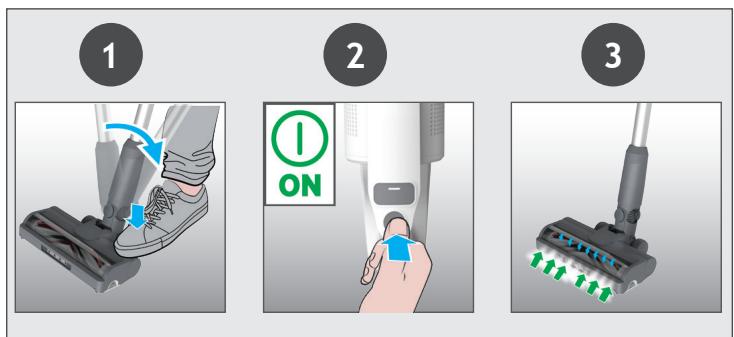

To use your product in Stick mode:

1. Place your foot on the nozzle and pull back to recline the tube.
2. Press the On/Off power button to begin cleaning.

NOTE: The nozzle LED lights are always on and the brushbar is always rotating.

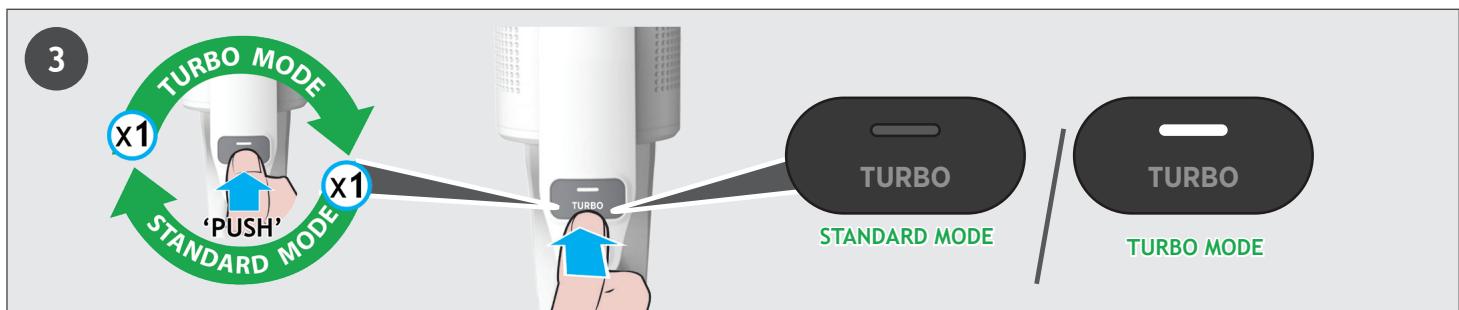

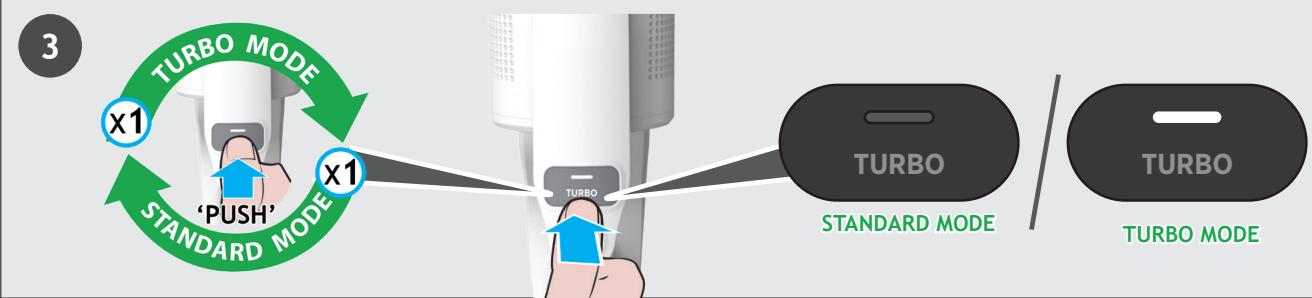

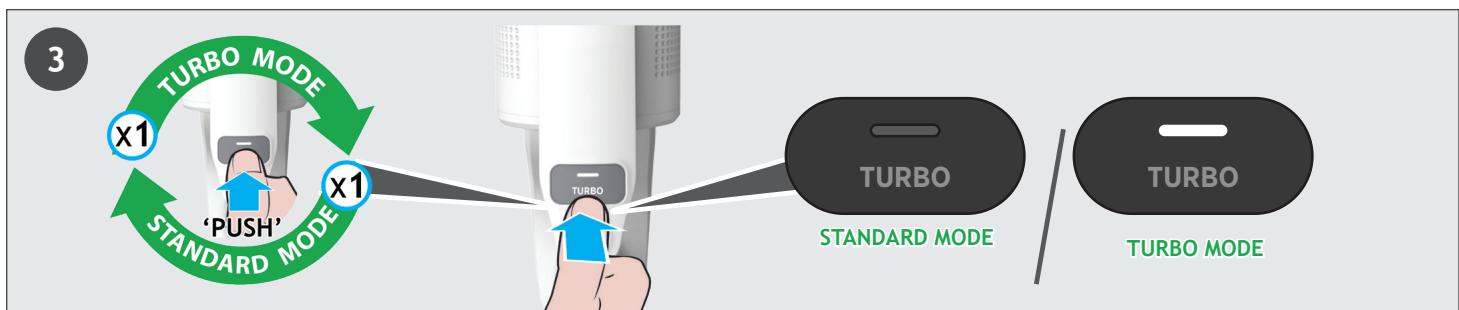

If you require a deeper clean when using your product in Stick mode, press the Turbo button to increase the power.

The turbo icon will illuminate on the LED display to confirm your selection.

Please note this will reduce your battery runtime.

To return to standard mode, press the Turbo button, the icon on the display will turn off.

4.3 ABOVE FLOOR / HANDHELD MODE

To use your product in Above Floor mode:

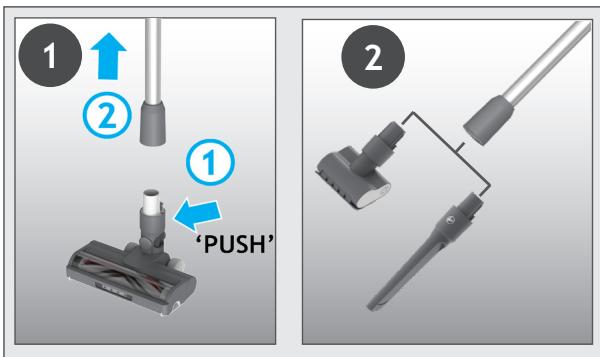

1. Remove the tube from the nozzle by pressing the nozzle release button and pull the tube from the floor nozzle.
2. Fit your desired accessory to the end of the tube. All of your available accessories will fit onto the end of the tube.
3. Press the On/Off power button to begin cleaning.

To use your product in Handheld mode:

1. Remove the Handheld unit from the tube by pressing the handheld release button and pulling apart.
2. Fit your desired accessory to the end of the handheld unit.

The floor nozzle and all of your available accessories will fit onto the end of the handheld unit.

1. Press the On/Off power button to begin cleaning.

5. CLEANER MAINTENANCE

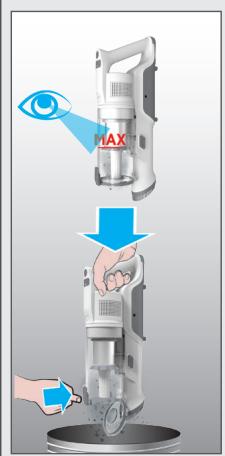

5.1 EMPTYING THE DUST BIN

NOTE: It is recommended to empty the dust cup after each use or when dust is up to the max fill line.

1. Ensure your product is switched off.

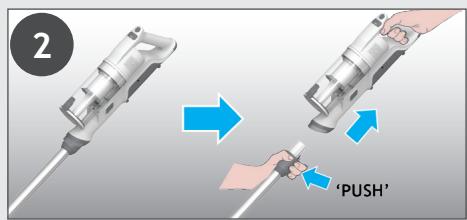

2. Press the Handheld release button and disconnect the handheld unit from the tube or Flexi tube.
3. Hold the handheld over a Dust Bin and press the Dust Bin Empty Release Button to open the flap and release the debris into the trash.
4. Close the dust cup flap, you will hear a click when fully locked.
5. Check that the Dust Bin is back into its original position.

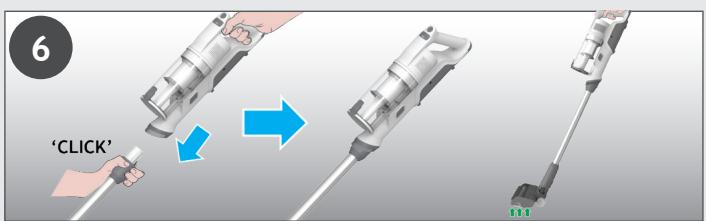

6. Re-Assemble your product.

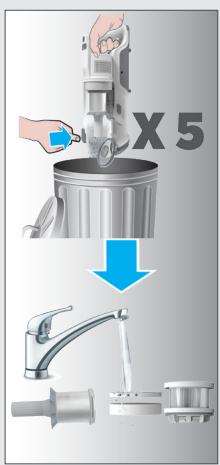

IMPORTANT: for optimum performance, we recommend to wash the filters after every 5 bin empties.

1. Ensure your product is switched off.
2. Hold the handheld over a Dust Bin and press the Dust Bin Empty Release Button to open the flap and release the debris into the trash.
3. Press the dust cup release button and disconnect the dust cup from the unit.
4. Pull out the Micro and foam filter from the dust cup.
5. Remove the Metal filter from the Dust Bin by turning it Anti-clockwise and clean.
6. Pull out the exhaust filter from the handheld.
7. Wash the filters and the bin using lukewarm water.
8. Leave them to dry for 24hrs before refitting to your product.
9. Refit the micro and foam filters back in the the dust cup ensuring they are in the correct positions.
10. Re-assemble the Metal filter back into the Dust bin, insert into position and rotate it clockwise until you hear a "click" sound.
11. Close the bin flap.
12. Reinsert the exhaust filter from the handheld.
13. Reinsert the dust cup onto the handheld until you hear a "click" sound.

NOTE: Do not use hot water or detergents when cleaning the Micro and foam filter. In the unlikely event of the micro and foam filter becoming damaged, fit a genuine Hoover replacement.

IMPORTANT: For optimum performance, we recommend that the filters are replaced after 5 washes, with genuine Hoover parts.

Thanks to ANTI-TWIST, your Hoover vacuum features an integrated comb which radially reduces hair wrapping around the brushbar. However, if your cleaner is not picking up efficiently your brushbar may need to be cleaned or there is large debris needing to be removed from inside the nozzle.

1. Ensure your product is switched off.
2. Slide the Nozzle Brushbar Release Slider on the nozzle and rotate Nozzle Brushbar Release Latch.
3. Remove Nozzle Brushbar from the Floor Nozzle.
4. Remove any excess debris from the brushbar. Check for and remove any large debris from inside the nozzle.
5. Re-insert the brushbar into the nozzle ensuring it is in the correct position and push down at the end of the brushbar until you hear it "CLICK " to lock in position.
6. Turn the Nozzle Brushbar Release Latch to the correct position to lock it.

5. CLEANER MAINTENANCE

5.4 MINI POWER NOZZLE *

1. Ensure your product is switched off, detach the mini power nozzle from your product.
2. To remove the brushbar, unlock the release latch and using scissors, remove any tangled fibres or debris from the Brushbar.
3. Re-fit the brushbar, push and lock the release latch. Look inside the nozzle and remove any debris.

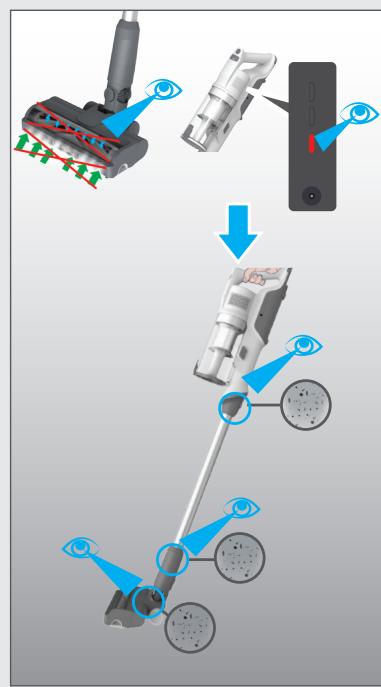

If your product is operating but has poor pick up this may be due to a blockage in the nozzle or the tube or your brushbar is not rotating. If this is the case a solid red light will appear on the Battery charging indicator. Carry out all maintenance instructions as detailed in sections, 5.1,5.2,5.3,5.4. Along with the additional areas listed below.

1. Ensure your product is switched off.

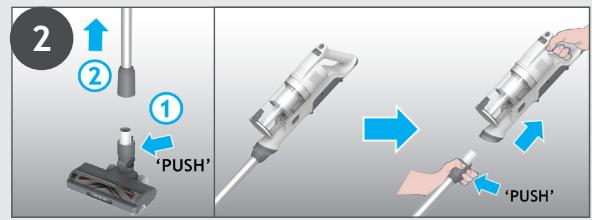

2. Detach the nozzle, tube and handheld unit as per previous instructions.
3. Visually check the handheld inlets for any debris or obstructions and clean it.
4. Visually inspect the nozzle joints area for any debris or obstructions and clean it.
5. Remove the brushbar and check the nozzle inlet area for any debris or obstructions and clean it.
6. Visually check both ends of the tube and remove any debris or obstructions.

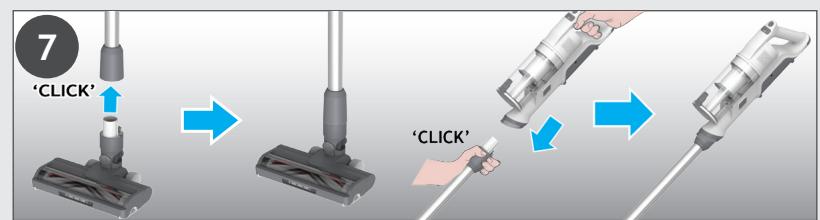

7. Re-Assemble your product.

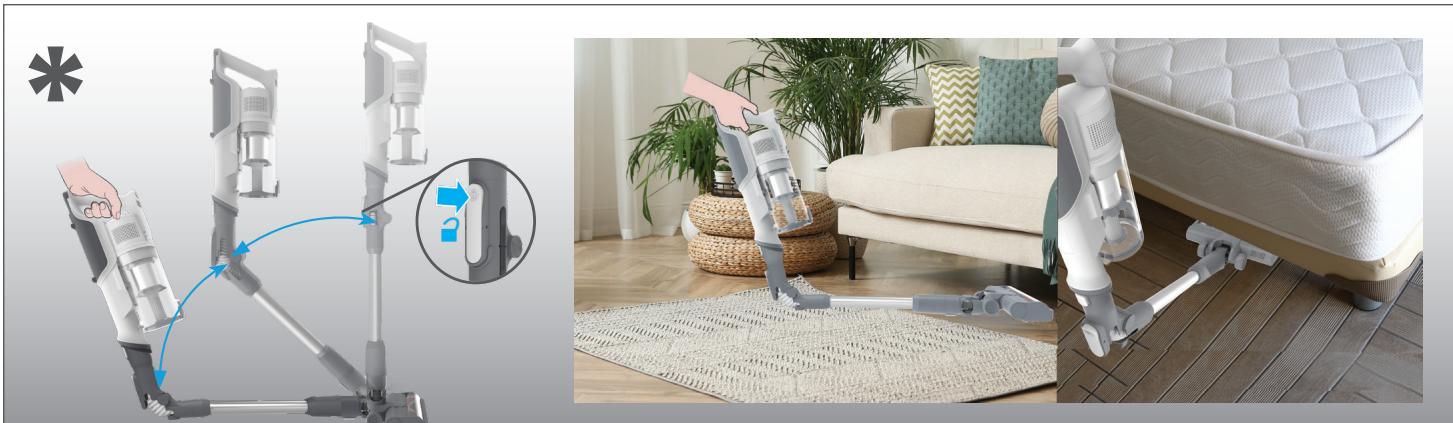

6. FLEXIBLE MODE*

If you want to easily access hard-to-reach areas under furniture, press the flexible tube release button to position the tube to a lower angle.

Should you have any problem with you cleaner, follow this simple check list before calling the Hoover Customer Service Centre.

A. Cleaner does not switch on.

Check if the cleaner is charged.

Check if the battery pack is assembled in place.

B. If a solid red light appears the battery charging indicator.

Check if the nozzle stop working and remove any excess debris from the brush bar and any tangled debris from the comb.

C. Cleaner stop working.

Check if there is an obstruction in air inlet or in the tube, clear it and ensure the product is OFF.

Once this is done simply press the on/off button, the product will start working again.

D. The All Floor Nozzle status LED light goes off and the warning symbol on battery pack is RED.

There is a blockage in the nozzle or an obstruction to the brush bar. Ensure your product is switched OFF and remove any debris or obstruction and following cleaner maintenance 5.

E. Batteries cannot be charged.

This may be a result of very long storage periods (over half year).

Contact Hoover customer service to arrange battery replacement.

If the problem persists, contact the Hoover customer service center.

Disposal of the packing material

The Packaging is designed to protect the appliance from damage during transportation. The packaging materials used are selected from materials which are environmentally friendly for disposal and should be recycled.

Recycling the packaging reduces the use of raw materials in the manufacturing process and also reduces the amount of waste in landfill sites.

Replacing and disposing the Batteries

This cleaner is fitted with a rechargeable lithium-ion battery pack which is replaceable.

WARNING: Only use approved replacement parts for your cleaner. Using parts not validated by hoover are dangerous and will invalidate your guarantee.

WARNING: Do not try to open the battery pack and repair it by yourself.

1. Press the battery release buttons and pull the battery outside.
2. Removed the old battery pack and replace with the new battery pack.
3. Dispose of the batteries safely. Used batteries should be taken to a recycling station and not disposed of with household waste.

HOOVER SPARES AND CONSUMABLES

Always replace parts with genuine Hoover spares. These are available from your local Hoover dealer or direct from Hoover.

When ordering parts always quote your model number.

YOUR GUARANTEE

The guarantee conditions for this appliance are as defined by our representative in the country in which it is sold. Details regarding these conditions can be obtained from the dealer from whom the appliance was purchased. The bill of sale or receipt must be produced when making any claim under the terms of this guarantee.

IMPORTANT: the battery in this cleaner is guaranteed for 1 year from the date of purchase.

After 1 year the customer is liable for the cost of a new battery.
