YY4889 - Coffee maker KRUPS - Free user manual and instructions

Product type	Automatic capsule coffee machine
Brand	KRUPS
Model	YY4889 (Vertuo Next)
Power supply	220-240 V, 50-60 Hz
Power	1300-1500 W
Weight	4 kg
Water tank capacity	1.1 L
Capsule system	Nespresso Vertuo (barcode reading)
Connectivity	Built-in Bluetooth and Wi-Fi
Main functions	Automatic preparation, pre-wetting, automatic shut-off after 2 minutes of inactivity
Maintenance and cleaning	Automatic descaling, rinsing and cleaning programs with alerts
Safety	Handle locking, automatic shut-off in case of malfunction
Warranty	2 years (parts and labor)
Materials	Recyclable plastic

Frequently Asked Questions - YY4889 KRUPS

What to do if the machine does not turn on?

Check that the machine is plugged in and the outlet works. Press the on/off button. If the indicator light does not come on, unplug for 10 seconds then plug back in.

Why is the coffee not flowing?

Make sure the water tank is full, a Nespresso Vertuo capsule is correctly inserted, and the handle is locked. If necessary, run a descaling cycle.

How to descale the machine?

Use the Nespresso descaling solution. Fill the tank, insert the bottle into the designated compartment, then follow the on-screen instructions or the automatic program.

Why is the indicator light flashing?

A flashing indicator light indicates a problem. Refer to the troubleshooting section: slow flashing = empty tank or unlocked handle; fast flashing = need for descaling or electronic error.

How to connect the machine via Bluetooth?

Enable Bluetooth on your smartphone. Open the Nespresso app and follow the pairing instructions. The machine must be on and in standby mode.

What does a fast flash 3 times then a steady light mean?

This is the mandatory descaling alert. You can still prepare a few coffees, but it is recommended to descale as soon as possible.

How to clean the machine?

Use the automatic cleaning program after each use. For deep cleaning, follow the steps described in the manual: rinsing the tank, cleaning cycle without a capsule.

Why is the coffee lukewarm?

Preheat your cup with hot water. If the problem persists, run a descaling cycle as limescale can reduce the temperature.

How to adjust the cup length?

Insert a capsule, lock the handle, then press and hold the button until the desired amount. Release to memorize.

Where to find compatible capsules?

Use exclusively Nespresso Vertuo capsules, available on the Nespresso website, in stores, or from authorized retailers.

USER MANUAL YY4889 KRUPS

PACKAGING CONTENTS

PACKAGE CONTENTS

PACKAGE CONTENTS

AR 9

OPEN/CLOSE

FR OPEN/CLOSE DE ÖFFNEN/SCHLIESSEN 1APRI/CHIUDI E5 ABRIR/

CLOSE OPEN/CLOSE PL OTWORZ/ZAMKNIJ RU OTKRYVAT'/ZAKRYVAT'

NL OPENEN/SLUITEN DA ÅBEN/LUK NO ÅPNE/LUKKE SY ÖPPNA/STÄNG F AVAA/SULJE

CS OPEN/CLOSED SK OPENING/CLOSING HU OPEN/CLOSE EL OPEN/CLOSE

OPEN/CLOSE

CONNECTIVITY (VERTUO NEXT / VERTUO POP)

CONNECTIVITY (VERTUO NEXT / VERTUO POP)

CONNECTIVITY (VERTUO NEXT / VERTUO POP)

CONNECTIVITY (VERTUO NEXT / VERTUO POP)

CONNECTIVITY (VERTUO NEXT / VERTUO POP) - NOT SUPPORTED

CONNECTIVITY (VERTUO NEXT/VERTUO POP) CHARGING (VERTUO

NEXT/VERTUO POP) CONNECTION (VERTUO NEXT/VERTUO POP) CONNECTION

(VERTUO NEXT / VERTUO POP) CONNECTIVITY (VERTUO NEXT / VERTUO POP)

CONNECTIVITY (VERTUO NEXT / VERTUO POP) CONNECTIVITY (VERTUO NEXT /

VERTUO POP) CONNECTIVITY (VERTUO NEXT / VERTUO POP) CONNECTIVITY

(VERTUO NEXT / VERTUO POP) CONNECTIVITY (VERTUO NEXT / VERTUO POP)

/ / 15

THE VERTUO SYSTEM

FR LE SYSTÈME VERTUO DE DAS VERTUO SYSTEM IT IL SISTEMA VERTUO ES EL SISTEMA

VERTUO PT O SISTEMA VERTUO PL SYSTEM VERTUO RU СИСТЕМА VERTUO NL HET

VERTUO SYSTEEM DA VERTUO-SYSTEMET NO VERTUO-SYSTEMET SY VERTUO KAFFESYSTEM

FI VERTUO-JÄRJESTELMÄ CS VERTUO SYSTEM SK VERTUO SYSTEM HU A VERTUO

RENDSZER EL ΤΟ ΣΥΣΤΗΜΑ VERTUO RO SISTEMUL VERTUO 20

FIRST STEPS

FR PREMIERS PAS DE ERSTE SCHRITTE IT PRIMO UTILIZZO ES PRIMEROS PASOS PT PRIMEIROS PASSOS PL PIERWSZE KROKI RU ПЕРВЫЕ ШАГИ NL EERSTE STAPPEN DA FØRSTE TRIN NO DE FØRSTE STEGENE SV FÖRSTA STEGEN FI ENSIMMÄINEN KÄYTTÖKERTA CS ZAČÍNÁME SK ZAČÍNAME HU ELSŐ LÉPÉSEK EL ΠΡΩΤΑ ΒΗΜΑΤΑ RO PRIMII PAȘI 22

7 COFFEE PREPARATION

FR PREPARATION DU CAFÉ DE KAFFEEZUBEREITUNG IT PREPARAZIONE DEL CAFFE ES PREPARACION DEL CAFÉ PT PREPARACAO DE CAFÉ PL PRZYGOTOWANIE KAWY RU IPNIOTOBJIEHNE KOΦE NL KOFFIE BEREIDEN DA KAFFETILBEREDNING NO KAFFETILBEREDNING SV KAFFEFORBEREDELSF KAHVIN VALMISTUS CS PRIPRAVA KAVY SK PRIPRAVA KAVY HU KAVEKESZITES EL NAPAZKEYH KADE RO PREGATIREACAFELEI 25

CLEANING

FR NETTOYAGE DE REINIGUNG IT PULIZIA ES LIMPIEZA PT LIMPEZA PL CZYSZCZENIE RU OYHCTKA NL SCHOONMAKEN DA RENGØRING NO RENGJØRING SY RENGÖRING F1 PUHDISTAMINEN CS CISTENI SK CISTENIE HU TISZTITAS EL KAΘAPIΣMO RO CURATARE aiJcIJI JIJIAR 28

DESCALING

FR DÉTARTRAGE DE ENTKALKUNG IT DECALCIFICAZIONE ES DESCALCIFICACION PT DESCALCIFICAÇÃO PL ODKAMIENIANE RU OYHCTKA OT HAKINN NL ONTKALKEN DA AFKALKNING NO AVKALKING SV AVKALKNING FI KALKINPOINTO CS ODVAPNENI SK ODVAPNENIE HU VIZKOMENTESITES EL AΦΑΛATΩΗ RODECALCIFIERE 31

10 BLINKING SUMMARY

FR RÉSUMÉ DES CLIGNOTEMENTS DE BEDEUTUNG DER BLINKENDEN LED IT PANORAMICA DELLE SPIE LUMINOSE ES RESUMEN DE LUCES PT SUMARIO DE ALERTAS LUMINOSOS PL OBJASNIEP ODSWIETLANIA PRZYCISKU RU LBETOBbie CnHajbl N OVERZICT VAN HET KNIPPEREN DA KORT BESKRIVEALSE AF KNAPPERNE NO BESKRIVEALSE AV KNAPPENE SY SAMMANFATTNING BLINKNINGAR F1 MERKKIVALOJEN YHTEENVETO CS VYZNAM SVETELNYCH SIGNALU SK VYZNAM SVETELNYCH SIGNALOV HU ALLAPOTJELZESEK EL SYNOVPH ΦΩTEINΩN ENΔEIEEΩN RO PREZENTAREA ALERTOR JJ DAR 39

11 TROUBLESHOOTING

FR PANNES DE FEHLERBEHEBUNG IT RISOLUZIONE PROBLEMI ES RESOLUCION DE PROBLEMAS PT RESOLUÇÃO DE PROBLEMAS PL ROZWIAZYWANIE PROBLEMOW RU YCTPAHEHNE HENCINPABHOCTEN PROBLEMEN OPLOSSEN DA FEJLFINDING NO FEILSØKING SV FELSÖKNING FI VIANMAÄRITYS CS RESENI PROBLEMU SK RIESENIE PROBLEMOV HU HIBAELHARITAS EL ANTIMETΩΠIΩ ΠPOBAHMATΩN RO DEPANARE 46

12 SPECIFICATIONS

FR SPECIFICATIONS DE SPEZIFIKATIONEN IT SPECIFICHE TECNICHE ES SPECIFICACIONES PT ESPECIFCAOES PL SPECYFIKACJE RU TEXHNUECKHE XAPAKTEPHCTIKN NL SPECIFICATIES DA SPECIFICATIONER NO SPESIFIKASJONER

13 DISPOSAL AND ENVIRONMENTAL PROTECTION

RECYCLAGE ET PROTECTION DE L'ENVIRONNEMENT DE ENTORSORGUNG UNDMWELTSCHUTZ SMALTIMENTO E PROTEZIONE AMBIENTALE ELIMINACIONY PROTECCIONMEDIAOMBIENTAL ELIMINACAOE PROTECAOMBIENTALDLUTYLIZACJAIOCHRONASRODOWISKA RU YTHIN3AUH IN OXPAHA OKPYKAAOLIECECPEDJI RECYLCING EN BESCHERMING VAN HET MILIEU DA BORTSKAFFELSE OGBESKYTTELSE AF MILJNO NO AVFALLSHANDTERING OG MILJHOHENSYNSVAVFALLSHANTERING OCH MILJOSKYDD FHAVITTAMINENJA YMPPARISTONSUOJELUCSLIKVIDACEA OCHRANA ZIVOTNIHOPROSTREDI SKLIKVIDACIA OCHRANAZIVOTNEHO PROSTREDAI HUMEGSEMMSITES ES KORNYEZETVEDELEMEAIAOEZHANIOPPMMATONKAI IPOSTAIA TOY IEPIBAAANTO2 RGLIMITINARE SI PROTECTIAMEDIULUI ailllll aiaa

1 ENERGY SAVING MODE

ENERGY SAVING MODE

15 PERSONALIZE YOUR COFFEE SIZE

PERSONALIZE THE SIZE OF YOUR COFFEE

16 RESET TO FACTORY SETTINGS

RESTORE FACTORY SETTINGS 35 VOLVER A LOS AJUSTES DE FABRICA 21 REPORT AS DEFINIÇÉS DE ORIGEM 4 PRZYWRACANIE USTAWIEN FABRYCZNYCH 30 BO3BPAT K 3ABODCKHM HACTPOJKAM NL FABRIEKSINSTELLINGEN HERSTELLEN DA NULSTIL TIL FABRIKSINDSTALLINGER NO GJENOPPRTT FABRIKKINNSTILLINGEN 5V ATERSTÄLL FABRIKSINSTALLNINGAR TEHDASASETUSTEN PALAUTTAMINEN 53 NAVRAT DO TOVARNIHO NASTAVEN 5K NÁRVAT DO VYROBNEH NASTAVENIA 10 GYÁRÍ ERTEKEK VISSZAÁLLITASA 11 ENIANAFOPA EPROTZAIAKON PYOMIIZON 90 REVENIRELA LA SETÁRILE DIN FABRICA 85

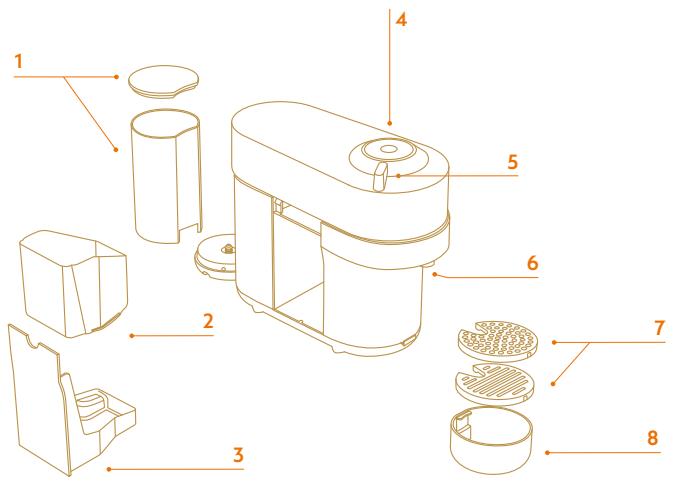

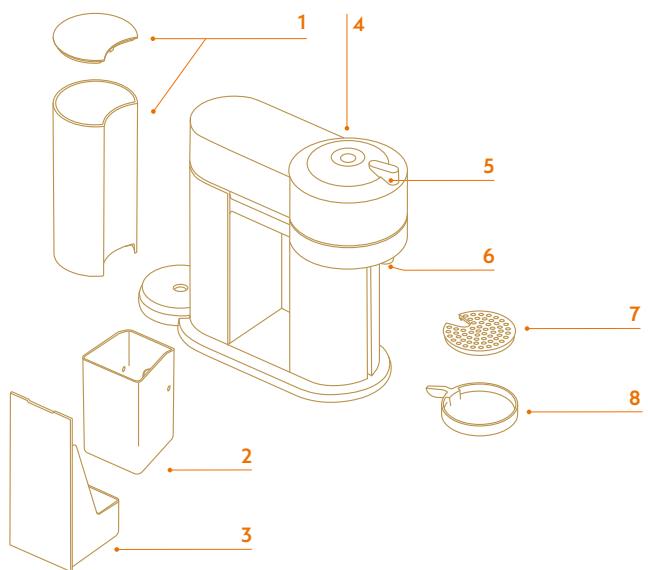

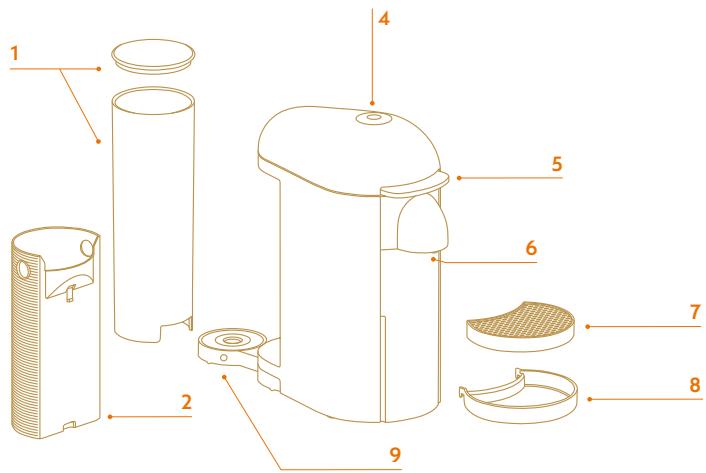

1 Water tank and lid

EN Water tank and lid

ES Water tank and lid PT Water tank and lid PL Water tank and lid RU Water tank with lid NL Water reservoir and lid DA Water tank and lid NO Water tank and lid

4 ON/OFF and coffee button

FR ON/OFF and Coffee button DE AN/AUS and coffee button IT ON/OFF button and coffee buttons ES ON/OFF button and coffee button PT ON/OFF button and coffee button PL ON/OFF and coffee brewing button RU ON/OFF and coffee brewing button NL ON/OFF and coffee button DA ON/OFF and coffee button NO ON/OFF and coffee button SV ON/OFF and coffee button FI ON/OFF and coffee button CS ON/OFF button and for coffee brewing SK ON/OFF button and for coffee brewing HU ON/OFF and coffee button EL Power on/off and coffee button RO ON/OFF button and coffee

5 Locking/Unlocking lever

Locking/unlocking lever

DA Lase/lase händtag NO Lase/lase opp håndtak SV Lasa/lasa upp spak FI Lukitus- ja avausvipu

CS Páka k zamknuti/odemknuti SK Páka na zamknutie/odomknutie HU Záro/Nyitó kar EL Moxlós oφáliοπ/ciαoφálioNc RO Maner blocare/deblcare

6 Coffee outlet

FR Embout de sortie du café DE Kaffee-Auslauf IT Erogatore di caffè ES Salida del café PT Saída de café PL Wylot kawy RU Отверстие выхода кофе NL Koffie uitloop DA Kaffeudløb NO Kaffeutløp

SV Kaffeutlopp FI Kahvisuutin CS Výpust kávy SK Výpust kávy HU Kávékiömlő EL Τούμιο Εκροής Καφέ

RO Unitate de extracție a cafelei ogall AR

7 Drip grid

FR Grille d'égouttage DE Abtropfgitter IT Griglia raccogligocce ES Rejilla antigoteo PT Grelha da bandeja de gotas PL Kratka ociekowa RU Решетка поддона для капель NL Lekrooster DA Rist NO Drypprist SV Droppgaller FI Tipparitilis CS Odkapávací mřížka SK Mriežka na odkvapkávanie HU Csepptálca EL Χαρα αποστράγγισης RO Tavă de picurare hnilll AAR

8 Cup support

FR Support de tasse DE Tassenabstellfläche IT Supporto per la tazza ES Soporte para tazas PT Bandeja de gotas PL Podstawka ociekowa RU Подставка по чашку NL Kophouder DA Kopstotte NO Koppstotte SV Koppstöd FI Kuppiteline CS Podstavec pod šálek SK Podstavec na šálku HU Csészetartó EL Υποστήριξη κούπας RO Suport pentru ceașcă ∪ AR

9 Adjustable water tank arm

FR Bras du réservoir d'eau réglable DE Verstellbarer Wassertank IT Braccio regolabile per serbatoio dell'acqua ES Brazo ajustable del depósito de agua PT Suporte ajustável do depósito de água PL Obrotowa podstawa zbiornika wody RU Регулируемая подставка резервуара для воды NL Verstelbare arm waterreservoir DA Justerbar holder til vandtanken NO Justerbar vanntank SV Justerbar vattentankbas FI Säädettävä vesisäiliön varsi CS Nastavitelný držák na nádobu na vodu SK Nastaviteľný držiak na nádržku na vodu HU Állítható víztartály tartó EL Ρυθμιζόμενος βραχίονας δοχείου νερού RO Braț ajustabil rezervor de apă ādīlāa lal al alj gj AR

VERTUO NEXT

VERTUO POP

VERTUO PLUS C

VERTUO PLUS D

Unboxing: some dust may be present on the surface of the machine due to the recycled materials used in the packaging. This is not dangerous, simply clean with a soft tissue.

DA PAKKENS INDHOLD NO PAKKENS INNHOLD SV FÖRPACKNINGENS

INNEHÅLL FI PAKKAUKSEN SISÄLTÖ CS OBSAH BALENÍ SK

OBSAH BALENIA HU A CSOMAG TARTALMA EL ΠΕΡΙΕΧΟΜΕΝΑ

CONTINUTUL AMBALAJULUI AR

1 Coffee machine

4 Safety instructions

FR Instructions de sécurité DE Sicherheitshinweise IT Istruzioni per la sicurezza ES Instrucciones de

seguridad PT Instruções de segurança PL Instrukcje dotyczące bezpieczeństwa RU Инструкции по

безопасности NL Veiligheidsinstructies DA Sikkerhedsanvisninger

www.nespresso.com/help

THANK YOU FOR CHOOSING NESPRESSO.

NESPRESSO VERTUO IS AN EXCLUSIVE SYSTEM CREATING A PERFECT COFFEE, TIME AFTER TIME. FOLLOW THESE INSTRUCTIONS OR GO ONLINE FOR THE FULL USER MANUAL AT WWW.NESPRESSO.COM/HELP

FR MERCI D'AVOIR CHOISI NESPRESSO. Nespresso Vertuo est un système unique permettant de préparer un café parfait, tasse après tasse. Suivez ces instructions ou téléchargez l'intégralité du guide de l'utilisateur sur www.nespresso.com/help DE DANKE, DASS SIE SICH FÜR NESPRESSO ENTSCHIEDEN HABEN. Nespresso Vertuo ist ein exklusives System, das zu jeder Zeit den perfekten Kaffee zubereitet. Befolgen Sie diese Anweisungen oder schauen Sie sich die vollständige Bedienungsanleitung unter www.nespresso.com/help an. IT GRAZIE PER AVER SCELTO NESPRESSO. Nespresso Vertuo è un sistema esclusivo per la preparazione di un caffè eccezionale, tazzina dopo tazzina. Segui queste istruzioni o visita il sito per il manuale completo https://www.nespresso.com/it/it/assistenza-macchina#! ES GRACIAS POR ELEGIR NESPRESSO. Nespresso Vertuo es un sistema exclusivo que crea un café perfecto, una y otra vez. Sigue estas instrucciones o entra en www.nespresso.com/help para consultar el manual de usuario completo. PT OBRIGADA POR ESCOLHER NESPRESSO. Nespresso Vertuo é um sistema exclusivo que cria o café perfeito, a cada utilização. Siga estas instruções ou verifique o manual completo em www.nespresso.com/help PL DZIĘKUJEMY ZA WYBÓR NESPRESSO. Nespresso Vertuo to ekskluzywny system parzenia doskonałej kawy za każdym razem. Postępuj zgodnie z tymi instrukcjami lub zapoznaj się z pełną instrukcją obsługi na stronie www.nespresso.com/help

THANK YOU FOR CHOOSING NESPRESSO. Nespresso Vertuo is an exclusive system that creates the perfect coffee, cup after cup. Follow these instructions or visit the website for the complete user guide at www.nespresso.com/ru/services. NL BEDANKT DAT JE VOOR NESPRESSO KIEST. Nespresso Vertuo is een exclusief systeem dat de perfecte koffie bereidt, kopje na kopje. Volg deze instructies of bezoek onze website voor de volledige gebruikershandleiding op www.nespresso.com. DA TAK FOR, AT DU VAELGER NESPRESSO. Nespresso Vertuo er et eksklusivt system, som laver en perfekt kop kaffe, gang på gang. Følg disse instruktioner eller se den fulde brugermanual online på www.nespresso.com/help. NO TAKK FOR AT DU VALGTE NESPRESSO. Nespresso Vertuo er et eksklusivt system for perfekt tilberedning av kaffe, gang etter gang. Følg disse instruksjonene eller gå online for å se den fullstendige brukermanualen på www.nespresso.com/no. SV TACK FÖR ATT DU VALDE NESPRESSO. Nespresso Vertuo är ett exklusivt system som skapar en perfekt kaffe, gång på gång. Följ dessa anvisningar eller gå online för hela instruktionsmanualen på www.nespresso.com/help. KIITOS ETTÄ VALITSIT NESPRESSON. Nespresso Vertuo on ainutlaatuinen kahvikone, joka valmistaa täydellistä kahvia joka kerta. Seuraa näitä ohjeita tai mene osoitteeseen www.nespresso.com/help nähdäksesi täydet käyttöohjeet.

CS DEKUJEME, ŽE JSTE SI VYBRALI NESPRESSO. Nespresso Vertuo je jedinečný systém na přípravu dokonalé kávy v každém šálku. Řiďte se pokyny v této příručce nebo využijte rozsáhlejší manuál na www.nespresso.com. SK ĎAKUJEME, ŽE STE SI VYBRALI NESPRESSO. Nespresso Vertuo je jedinečný systém na prípravu dokonalej kávy v každej šálke. Riaďte sa pokynmi v tejto príručke alebo využite rozsiahlejší manuál na www.nespresso.com. HU KÖSZÖNJÜK, HOGY A NESPRESSOT VÁLASZTOTTA. A Nespresso Vertuo exkluzív rendszerével nap mint nap tökéletes kávét készíthet. Kövesse ezeket az utasításokat, vagy keresse online a teljes használati utasítást a www.nespresso.com/help oldalon. EL ΕΥΧΑΡΙΣΤΟΥΜΕ ΠΟΥ ΕΠΙΛΕΞΑΤΕ ΤΗ NESPRESSO. Η μηχανή Nespresso Vertuo δημιουργεί ένα αποκλειστικό σύστημα που θα φτιάξει το τέλειο αποτέλεσμα κάθε φορά και για κάθε είδος καφέ. Ακολουθήστε αυτές τις οδηγίες ή ανατρέξτε στο πλήρες εγχειρίδιο χρήσης που διατίθεται στον ιστότοπο www.nespresso.com/help. RO VĂ MULȚUMIM CĂ AȚI ALES NESPRESSO. Nespresso Vertuo este un sistem exclusiv care creează cafeaua perfectă, de fiecare dată. Urmați aceste instrucțiuni sau accesați website-ul pentru manualul utilizatorului complet la adresa www.nespresso.com/help

gssnnni jlll AR plbi g gag gnnnni aullio oog gauail gaa oai gil glilia nglc ualgl caleill iagaojui jzimaiuall jgiell nugiiill www.nespresso.com/help

3

OPEN/CLOSE

FR OPENING/CLOSING DE ÖFFNEN/SCHLIESSEN IT APRI/CHIUDI ES ABRIR/CERRAR PT ABRIR/FECHAR PL OTWÓRZ/ZAMKNIJ RU ОТКРЫВАНИЕ/ЗАКРЫВАНИЕ NL OPENEN/SLUITEN DA ÅBEN/LUK NO ÅPNE/LUKKE SV ÖPPNA/STÄNG FI AVAA/SULJE CS OTEVŘENÍ/ZAVŘENÍ SK OTVORENIE/ZATVORENIE HU NYIT/ZÁR EL ΑΝΟΙΓΜΑ/ΚΛΕΙΣΙΜΟ RO PORNIRE/OPRIRE Ⓞl/á AR

VERTUO NEXT

VERTUO POP

VERTUO PLUS

4 CONNECTIVITY (VERTUO NEXT/VERTUO POP)

FR CONNECTIVITÉ (VERTUO NEXT / VERTUO POP) DE KONNEKTIVITÄT (VERTUO NEXT / VERTUO POP) IT CONNETTIVITÀ (VERTUO NEXT / VERTUO POP) ES CONECTIVIDAD (VERTUO NEXT / VERTUO POP) PT CONETIVIDADE (VERTUO NEXT / VERTUO POP) PL ŁĄCZNOŚĆ (VERTUO NEXT / VERTUO POP) RU СОЕДИНЕНИЕ (данная функция не поддерживается в России) NL CONNECTIVITEIT (VERTUO NEXT / VERTUO POP) DA OPKOBLING (VERTUO NEXT / VERTUO POP) NO TILKOBLING (VERTUO NEXT / VERTUO POP) SV ANSLUTNING (VERTUO NEXT / VERTUO POP) FI YHDISTETTÄVYYS (VERTUO NEXT / VERTUO POP) CS KONEKTIVITA (VERTUO NEXT / VERTUO POP) SK KONEKTIVITA (VERTUO NEXT / VERTUO POP) HU E-FUNKCIÓK (VERTUO NEXT / VERTUO POP) EL ΣΥΝΔΕΣΙΜΟΤΗΤΑ (VERTUO NEXT / VERTUO POP) RO CONECTIVITATE (VERTUO NEXT / VERTUO POP)

WHY SHOULD YOU PAIR YOUR VERTUO NEXT / VERTUO POP MACHINE:

Push notifications & on-screen troubleshooting for machine errors; Easy maintenance thanks to step-by-step guidance for descaling, rinsing & cleaning of your machine; Machine tutorials; Machine always up to date

2. Launch the App on your smartphone or tablet

3. Click on the Machine icon

FR Cliquez sur l'icône de la machine DE Klicken Sie auf das Maschinen-Icon IT Toccare l'icona della macchina ES Haz clic en el icono de la máquina PT Carregue no ícone da máquina PL Naciśnij ikonę ekspresu RU Коснитесь знака кофемашины NL Klik op het machinesymbool DA Klik på maskine-ikonet NO Trykk på Maskin-ikonet SV Klicka på maskinikonen FI Paina kahvikone-kuvaketta CS Klikněte na ikonu kávovaru SK Kliknite na ikonu kávovaru HU Kattintson a készülékikonra EL Κάντε κλικ στο εικονίδιο της μηχανής RO Faceți clic pe pictograma Aparat

4. Follow the instructions via the App

FR Suivre les instructions fournies par l'application DE Folgen Sie den Anweisungen in der App IT Seguire le istruzioni sull'App ES Sigue las instrucciones de la aplicación PT Siga as instruções via App PL Postępuj zgodnie z instrukcjami w aplikacji RU Следуйте инструкциям приложения NL Volg de instructies op de App DA Følg instruktionerne via appen NO Følg instruksjonene via appen SV Följ instruktionerna i appen FI Seuraa sovelluksen ohjeita CS Postupujte podle pokynů v aplikaci SK Postupujte podľa pokynov v aplikácii HU Kövesse az alkalmazásban megjelenő utasításokat EL Ακολουθήστε τις οδηγίες, όπως εμφανίζονται Ro Urmați instrucțiunile din aplicație

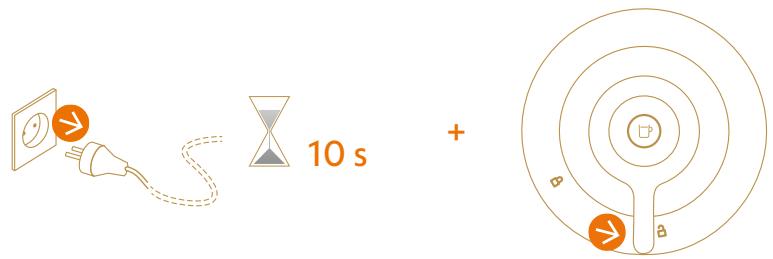

TURN ON/OFF BLUETOOTH & WI-FI

EN ACTIVATION/DEACTIVATION OF BLUETOOTH AND WI-FI MODES

1. Unplug the machine.

FR Unplug the machine DE Ziehen Sie den Stecker der Maschine IT Scollegare la macchina ES Desconecta la máquina PT Desligue a máquina da tomada PL Odłącz ekspres od zasilania RU Отсоедините машину от сети NL Haal de stekker uit het stopcontact DA Træk maskinens stik ud af stikkontakten NO Koble fra maskinen SV Koppla ur maskinen FI Irrota virtajohto pistorasiasta CS Vypojte přístroj ze zásuvky SK Vypojte prístroj zo zásuvky HU Húzza ki a gépet EL Αποσυνδέστε τη μηχανή από την πρίζα RO Scoateți aparatul din priză

2. Press and hold the button while plugging in the machine.

Press and hold the button while plugging in the machine.

3. Operation completed.

FR Operation completed DE Vorgang abgeschlossen IT Operazione completata PT Operação concluída PL Operacja zakończona RU Процесс завершен NL Proces voltooid DA Du er nu færdig NO Prosess fullført SV Process slutförd FI Toiminto suoritettu CS Hotovo SK Hotovo HU Funkció kész EL Η διαδικασία ολοκληρώθηκε RO Operațiunea este finalizată AR

5

THE VERTUO SYSTEM

	VERTUO NEXT	VERTUO POP	VERTUO PLUS
S	✓	✓	✓
M	✓	✓	✓
L	✓	✓	✓
XL	✓	✓	X

	VERTUO NEXT	VERTUO POP	VERTUO PLUS
P1	✓	✓	✓
P2	✓	✓	✓
P3	✓	✓	✓
P4	✓	✓	✓
5	✓	X	X

Availability may vary from one market to another.

Availability may vary from one market to another.

1. Espresso (40 ml / 1.35 fl oz.)

Espresso (40 ml)

Espresso (40 ml)

Espresso (40 ml)

2. Double Espresso (80 ml / 2.7 fl oz.)

1. Rinse the water tank

3. Turn on your machine

EN Turn on your machine DE Schalten Sie Ihre Maschine ein IT Accendere la macchina ES Enciende la máquina PT Ligue a sua máquina PL Włącz ekspres RU Включите кофемашину NL Zet de machine aan DA Tænd maskinen NO Skru på maskinen SV Starta din maskin FI Käynnistä laite CS Zapněte přístroj SK Zapnite prístroj HU Kapcsolja be a készüléket EL Θέστε σε λειτουργία τη μηχανή RO Porniți aparatul

4. Press the button 3 times within 2 seconds

Press the button 3 times within 2 seconds.

5. The machine will start rinsing. This procedure may take up to 7 minutes.

The machine starts the rinsing process. This process can take up to 7 minutes.

The machine will start rinsing. This procedure can take up to 7 minutes.

6. Your machine is now ready to use.

Your machine is now operational

7 COFFEE PREPARATION

1. Turn on your machine

EN Turn on your machine

DA Turn on the machine NO Screw on the machine SV Start your machine FI Start the device CS Turn on the device

SK Switch on the device HU Turn on the device EL Start the machine RO Turn on the device

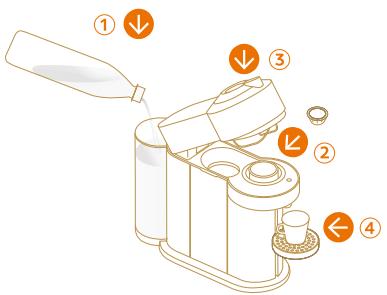

2. Fill the water tank with fresh potable water

FR Fill the water tank with fresh drinking water DE Fill the water tank with fresh drinking water IT Fill the water tank with fresh drinking water ES Fill the water tank with fresh drinking water PT Fill the water tank with fresh drinking water PL Fill the water tank with fresh drinking water RU Fill the water tank with fresh drinking water NL Fill the water tank with fresh drinking water DA Fill the water tank with fresh drinking water NO Fill the water tank with fresh drinking water SV Fill the water tank with fresh drinking water FI Fill the water tank with fresh drinking water CS Fill the water tank with fresh drinking water SK Fill the water tank with fresh drinking water HU Fill the water tank with fresh drinking water

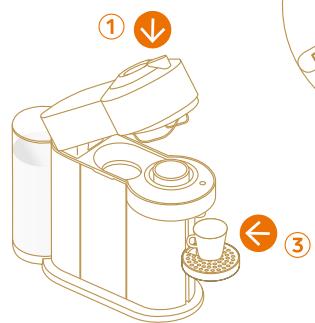

3. Insert a capsule

FR Insert the capsule DE Legen Sie eine Kapsel ein IT Inserire una capsula ES Inserta una cápsula PT Insira uma cápsula PL Włóż kapsułkę RU Вставьте капсулу NL Plaats een capsule DA Indsæt en kaffekapsel NO Sett inn en kapsel SV Sätt i en kapsel FI Lisää kapseli CS Vložte kapsli SK Vložte kapsulu HU Helyezzen be egy kapszulát EL Τοποθετήστε μια κάψουλα RO Introduceți o capsă

4. Place a cup

Place a cup under the coffee outlet

5. Start brewing

FR Commencer l'extraction DE Starten Sie die Zubereitung IT Avviare l'erogazione ES Activa la preparación PT Inicia a extração PL Rozpocznij parzenie RU Начните приготовление NL Start de bereiding DA Start din brygning NO Start bryggingen SV Starta brygning FI Aloita kahvin uuttaminen CS Spusťte přípravu kávy SK Spusťte prípravu kávy HU Indítsa el a főzést EL Εκκινήστε την παρασκευή του καφέ RO Începeți prepararea cafelei AR ابدأ التحضير

NOTE: water may accumulate inside the machine's head, please dry visible parts with a clean dry cloth.

FR À NOTER : de l'eau peut s'accumuler à l'intérieur de la tête de la machine. Si c'est le cas, veillez à sécher les parties visibles avec un linge propre et sec. DE HINWEIS: Innerhalb des Maschinenkopfes kann sich Wasser ansammeln. Bitte trocknen Sie alle sichtbaren Teile regelmäßig mit einem trockenen Tuch. IT Nota: durante il risciacquo può accumularsi dell'acqua all'interno della testa, nel caso dovesse accadere si consiglia di asciugare le parti visibili con un panno morbido pulito e asciutto. ES NOTA: Es posible que el agua se acumule en el interior del cabezal de la máquina. Por favor, seque las partes visibles con un paño limpio y seco. PT NOTA: É possível que a água se acumule no interior da unidade de extração. Por favor, seque as partes visíveis com um pano limpo e seco. PL UWAGA: Woda może zbierać się wewnątrz głowicy urządzenia. W takim przypadku należy osuszyć widoczne części czystą, suchą tkaniną. RU ВНИМАНИЕ: Внутри головки может собираться некоторое количество воды. Для ее удаления протрите внутренние части сухой салфеткой. NL OPMERKING: Water kan zich ophopen in de kop van de machine. Als dit gebeurt, droog de zichtbare onderdelen dan af met een schone, droge doek. DA BEMÆRK: Vand kan samle sig inde i maskinens hoved. Tør venligst synlige dele af maskinen af med en ren og tør klud. NO MERK: Vann kan samle seg opp i maskinens hode. Vennligst tørk utsiden/synlige deler av maskinen med en ren og tørr klut. SV NOTERA: vatten kan samlas i maskinhuvudet, torka av synliga delar med en ren, torr trasa. FI HUOMAUTUS: koneen kannen sisään voi kerääntyä vettä, kuivaa näkyvät osat puhtaalla ja kuivalla liinalla. CS UPOZORNĚNÍ: Uvnitř vrchní části kávovaru se může objevit voda - viditelné části prosím otírejte čistým, suchým hadříkem. SK UPOZORNENIE: Vo vnútri vrchnej časti kávovaru sa môže objaviť voda - viditeľné časti prosím utierajte čistou, suchou handričkou. HU MEGJEGYZÉS: A készülék fejében víz gyűlhet össze. Szárítsa meg a látható részeket egy tiszta, száraz ruhával. EL ΣΗΜΕΙΩΣΗ: Ενδέχεται να συσσωρευτεί νερό στο επάνω τμήμα της μηχανής. Σκουπίστε τα εμφανή μέρη με ένα καθαρό, στεγνό πανί. RO NOTĂ: se poate acumula apă în capătul aparatului, vă rugăm să curățați părțile vizibile cu o cârpă curată și uscată.

FR NETTOYAGE DE REINIGUNG IT PULIZIA ES LIMPIEZA PT LIMPEZA PL CZYSZCZENIE RU ОЧИСТКА NL SCHOONMAKEN DA RENGØRING NO RENGJØRING SV RENGÖRING FI PUHDISTAMINEN CS ČIŠTĚNÍ SK ČISTENIE HU TISZTÍTÁS EL ΚΑΘΑΡΙΣΜΟΣ RO CURĂȚARE AR تنظيف

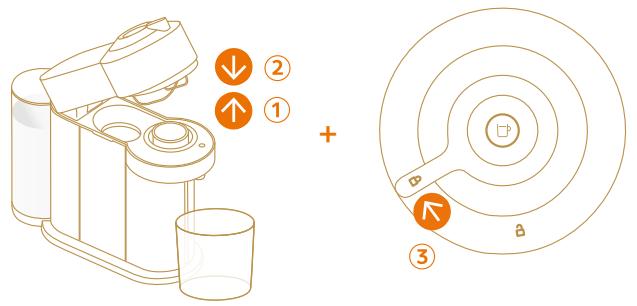

1. Fill the water tank with fresh potable water.

FR Remplir le réservoir d'eau potable. DE Füllen Sie den Wassertank mit frischem Trinkwasser. IT Riempire il serbatoio dell'acqua con acqua potabile corrente. ES Llena el depósito de agua potable. PT Encha o depósito de água com água potável. PL Napełnij zbiornik na wodę świeżą wodą pitną. RU Наполните резервуар для воды свежей питьевой водой. NL Vul het waterreservoir met vers drinkwater. DA Fyld vandtanken med friskt vand. NO Fyll vanntanken med rent vann. SV Fyll vattentanken med färskt drickbart vatten. FI Täytä vesisäiliö raikkaalla vedellä. CS Naplňte nádrž čistou pitnou vodou. SK Naplňte nádržku čistou pitnou vodou. HU Töltse meg a víztartályt friss ivóvízzel. EL Γεμίστε το δοχείο νερού με φρέσκο πόσιμο νερό. RO Umpleți rezervorul de apă doar cu apă potabilă proaspătă. AR املأ خزان الماء بماء صالح للشرب.

2. Open, close and lock.

FR Ouvrir, fermer et verrouiller. DE Öffnen, schließen und verriegeln. IT Aprire, chiudere e bloccare. ES Abre, cierra y bloquea. PT Abra, feche e bloqueie. PL Otwórz, zamknij i zablokuj. RU Откройте, закройте и заблокируйте. NL Open, sluit en vergrendel. DA Åbn, luk og lås. NO Åpne, lukke og låse. SV Öppna, stäng och lås. FI Avaa, sulje ja lukitse. CS Otevřete, zavřete a zamkněte. SK Otvorte, zatvorte a zamknite. HU Nyissa ki, csukja be és zárja le. EL Ανοίξτε, κλείστε και κλειδώστε. RO Deschideți, închideți și blocați. AR افتح، أغلق، وأقفل.

3. Press the button 3 times within 2 seconds.

FR Appuyer sur le bouton à 3 reprises dans un intervalle de 2 secondes. DE Drücken Sie den Knopf innerhalb von 2 Sekunden 3 Mal. IT Premere il pulsante 3 volte entro 2 secondi. ES Pulsa el botón 3 veces durante 2 segundos. PT Pressione o botão 3 vezes em 2 segundos. PL Naciśnij przycisk 3 razy w ciągu 2 sekund. RU Нажмите кнопку 3 раза в течение 2 секунд. NL Druk 3 keer binnen 2 seconden op de knop. DA Tryk 3 gange på knappen inden for 2 sekunder. NO Trykk på knappen raskt 3 ganger innen 2 sekunder. SV Tryck på knappen 3 gånger inom 2 sekunder. FI Paina kahvipainiketta kolme kertaa kahden sekunnin sisällä. CS Stiskněte tlačítko třikrát během dvou vteřin. SK Stlačte tlačidlo trikrát počas dvoch sekúnd. HU 2 másodpercen belül 3-szor nyomja meg a gombot. EL Πατήστε το κουμπί 3 φορές μέσα σε 2 δευτερόλεπτα. RO Apăsați butonul de 3 ori în 2 secunde. AR اضغط الزر 3 مرات خلال ثانيتين.

NOTE: the procedure can be stopped at any time by pressing the button.

NOTE: You can interrupt the process at any time by pressing the button.

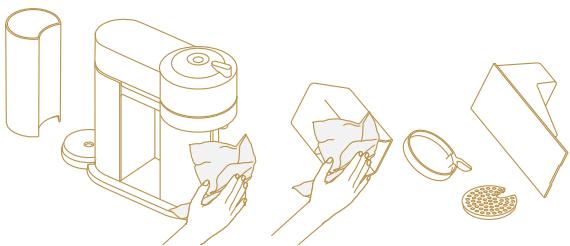

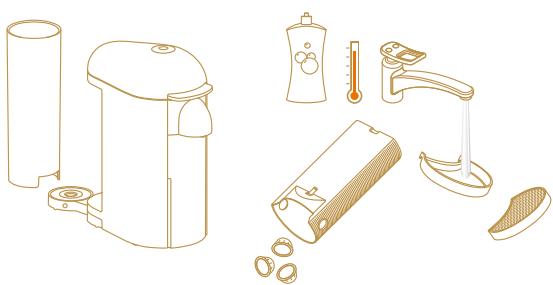

4. Wash with hot water + mild odourless detergent

Wash with hot water and a mild, odorless detergent.

PT Lave com água quente + detergente suave e inodoro PL Umyj gorącą wodą z łagodnym, bezwonnym detergentem RU Очистите теплой водой + мягким моющим средством без запаха XL Schoonmaken met warm water en mild geurloos schoonmaakmiddel DA Vask med varmt vand + mild parfumfri sæbe NO Vask med varmt vann + mildt og luktfritt vaskemiddel SV Rengör med varmt vatten + milt doftfritt rengöringsmedel FI Puhdista osat kuumalla vedellä ja hajuttomalla pesuaineella CS Opláchněte horkou vodou a jemným čisticím prostředkem bez vůně SK Opláchnite horúcou vodou a jemným čistiacim prostriedkom bez vône HU Mossa el meleg vízzel és lágy, szagmentes tisztítószerrel EL Πλύνετε με ζεστό νερό και ήπιο, άοσμο καθαριστικό RO Spală cu apă fierbinte + detergent fără miros

5. Dry with a clean and fresh towel

Dry with a clean, soft cloth.

DESCALING

1. Eject capsule

Remove the capsule.

2. Empty capsules and liquid

Remove the capsules and liquid from the container.

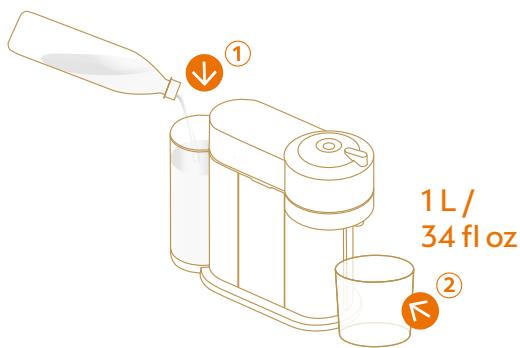

3. Add water + Nespresso descaling agent

Add water and the Nespresso descaling solution.

4. Place a container

Place a container under the coffee outlet.

VERTUO NEXT / VERTUO POP

7s

5. Press and hold the button for 7 seconds

Press and hold the button for 7 seconds.

+

+

7s

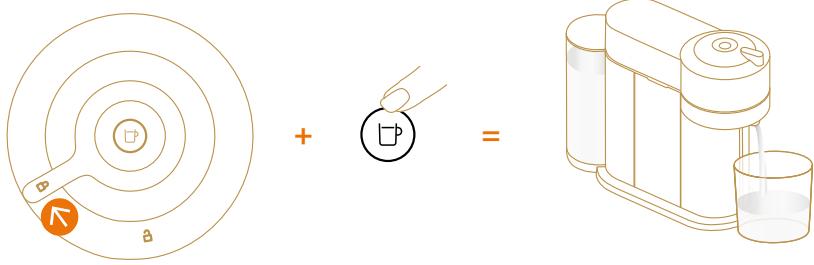

6. Lock, unlock and hold the button for 7 seconds

Lock, unlock and hold the button pressed for 7 seconds

7. Lock and press the button

Lock and press the button.

8. Rinse water tank, fill with fresh potable water.

Rinse the water tank, then fill it with fresh drinking water.

9. Press the button.

Press the button

10. When the button stops blinking rapidly, descending is completed.

When the button stops flashing quickly, descaling is complete.

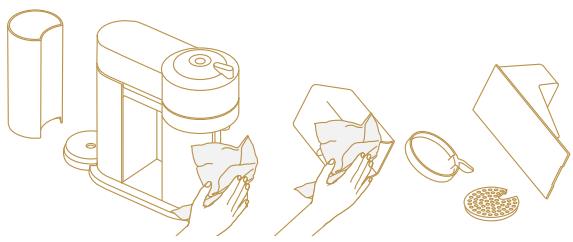

11. Wash with hot water + mild odourless detergent

Wash with hot water and a mild, unscented detergent.

12. Dry with a clean and fresh towel

Dry with a clean, soft cloth

5. Push the lever down

Push the lever down and hold for 3 seconds.

6. Push the lever down and press the button at the same time

EN Lower the lever and press the button at the same time.

7. Push the lever down and press the button to start descending

Lower the lever and press the button to start descaling.

8. Rinse water tank, fill with fresh potable water

Rinse the water tank, then fill it with fresh drinking water.

9. Press the button

EN Press the button

10. Exit descending mode

FR Exit descaling mode DE Beenden Sie den Entkalkungsmodus IT Uscire dalla modalità di decalcificazione ES Sal del modo de descalcificacion PT Saia do modo de descalcificacao PL Wyjdz z trybu odkamieniania RU BbIneu n3 pexmma ounchkn NL Verlaat de ontkalkingsstand DA Gå ud af alkalkningstilstand NO Avslutt avkalkingsmodus SY Ga ur avkalkningslaget FI Poistu kalkinpoistotilasta CS Opustte mod odvapnéni SK Opustte mod odvapnenia HU Kilepes a vizkomentesito módbol EL TepaioTe t λειουργia αφαλατωης RO lesi din modul de decalcifiere AILL allj a a a a a a a AR

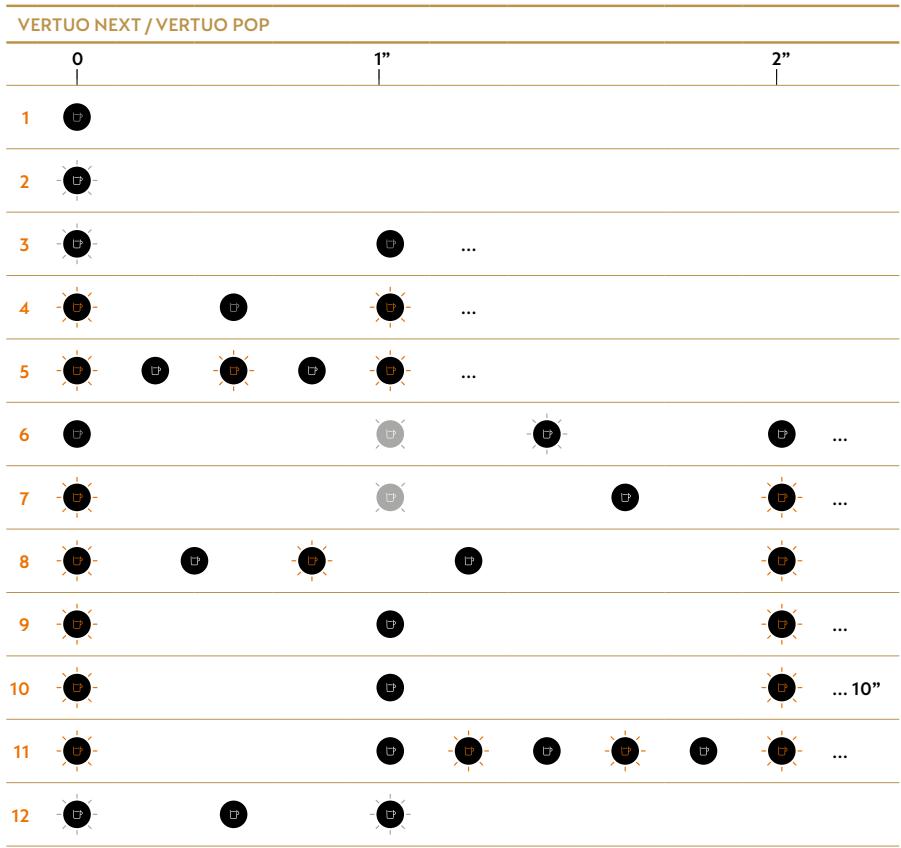

FR RÉSUMÉ DES CLIGNOTEMENTS DE BEDEUTUNG DER BLINKENDEN LED IT PANORAMICA DELLE SPIE LUMINOSE ES RESUMEN DE LUCES PT SUMÁRIO DE ALERTAS LUMINOSOS PL OBJÁSNIENIE PODSWIETLANIA PRZYCISKU RU LβETOBbIE CŋHAJblI NL OVERZICTV VAN HET KNIPPEREN DA KORT BESKRIVELSE AF KNAPPERNE NO BESKRIVELSE AV KNAPPENE SV SAMMANFATTNING BLINKINGAR F MERKKIVALOJEN YHTEENVETO CS VYZNAM SVETELNYCH SIGNALÁLU SK VYZNAM SVETELNYCH SIGNALÁLOV HU ÁLLAPOTJELZESEK EL ΣYNOψH ΦΩTEINΩN ENΔEIEEΩN RO PREZENTAREA ALERTELOR DILJ JJ TSSJUL

1 No light on the button: Machine OFF

FR Aucun voyant allumé sur le bouton: machine éteinte DE Knopf ist nicht beleuchtet: Maschine ist AUS IT Nessuna luce sul pulsante: macchina spenta ES El botón no está iluminado: La máquina está apagada PT Botão sem luz: Máquina desligada PL Brak podświetlenia przycisku: Ekspres jest WYŁĄCZONY RU Индикатор не горит: Кофемашина выключена NL Het lampje op de knop brandt niet: Machine is uitgeschakeld DA Ingen lys i knappen: Maskinen er slukket NO Knappen lyser ikke: Maskinen er AVSLÅTT SV Inget ljus runt knappen: Maskin AV FI Kahvipainikkeessa ei ole valoa: kahvikone on OFF-tilassa CS Tlačítko nesvítí: přístroj je vypnutý SK Tlačidlo nesvieti: prístroj je vypnutý HU A gomb nem világít: Gép kikapcsolva EL Η φωτεινή ένδειξη είναι σβηστή: Μηχανή είναι Απενεργοποιημένη RO Butonul nu este luminat: Aparatul este OPRIT àbdo aieslall : ləbdo jll σs AR

2 Steady white illuminated button: Ready mode

FR Voyant blanc allumé fixe : machine prête DE Knopf leuchtet konstant weiß: Maschine ist bereit IT Pulsante illuminato con luce bianca fissa: modalità Macchina Pronta ES El botón está iluminado con una luz blanca fija: La máquina está lista PT Botão com luz branca fixa: Máquina preparada PL Stałe, białe podświetlenie przycisku: Tryb gotowości RU Индикатор горит белым светом: Кофемашина готова к использованию NL Constant wit verlichte knop: Klaar voor gebruik DA Konstant hvidt lys i knappen: Maskinen er klar NO Knappen lyser hvitt og stabilt: Klar modus SV Stabil vit upplyst knapp: Klarläge FI Tasaisesti palava valkoinen valo: valmiustila CS Tlačítko podsvícené stálým bílým světlem: přístroj připraven k použití SK Tlačidlo podsvietené stálym bielym svetlom: prístroj je pripravený na použitie HU Folyamatosan fehéren világító gomb: Készlenét mód EL Η φωτεινή ένδειξη ανάβει σταθερά με λευκό χρώμα: Λειτουργία ετοιμότητας RO Butonul iluminează alb: gata de folosire àsèssssg: JwJjJjJjJjAR

3 White regular blinking: once/second: Coffee preparation > see point 6

FR White light blinking regularly: once/second: Coffee preparation > see point 6 DE Regular white blinking: once/second: Coffee preparation > see point 6 IT White light flashing regularly: once per second: coffee preparation > see point 6 ES White light flashing at a regular rate (once per second): Coffee preparation > see point 6 PT Regular white flashing: once per second: coffee preparation > see point 6 PL Regular white blinking: once per second: Coffee preparation > see point 6 RU The indicator blinks white (1 time per second): Coffee preparation > see point 6 NL White light blinks regularly: 1 time/second: Coffee preparation > see point 6 DA White light blinks: one blink per second: Coffee preparation > see point 6 NO White regular blinking: once/second: Coffee preparation > see point 6 SV White regular blinking light: once/second: Coffee preparation > see point 6 FI White indicator light blinks regularly once per second: coffee preparation is in progress > see point 6 CS The button blinks white regularly: once per second - preparing coffee > see point 6 SK The button blinks white regularly: once per second - preparing coffee > see point 6 HU White, regular flashing once per second...Coffee preparation > see point 6 EL The indicator flashes white; once/second: Coffee preparation > see point 6 RO The button blinks white: once per second: Coffee is being prepared > see point 6 AR The button blinks white: once per second: Coffee preparation > see point 6

4 Orange light blinking quickly: twice/second: Cleaning mode > see point 6

FR Orange light flashing rapidly: twice per second: cleaning mode > see point 6 DE Rapid orange flashing: twice per second: cleaning mode > see point 6 IT Orange light flashing rapidly: twice per second: cleaning mode > see point 6 ES Rapid orange flashing light (twice per second): Cleaning mode > see point 6 PT Rapid orange flashing light: twice per second: coffee preparation > see point 6 PL Rapidly flashing orange light: twice per second: Cleaning mode > see point 6 RU Orange indicator flashing rapidly (2 times per second): Cleaning mode > see item 6 NL Orange light flashing twice per second: Cleaning mode > see point 6 DA Orange light flashing rapidly: two flashes per second: Cleaning > see point 6 NO Orange light flashing rapidly: twice per second: Cleaning mode > see point 6 SV Orange light flashing rapidly: twice per second: Cleaning mode > see point 6 FI Orange indicator flashing rapidly twice per second: cleaning mode > see section 6 CS Button flashing orange: twice per second - the appliance is cleaning > see point 6 SK Button flashing orange: twice per second - the appliance is cleaning > see point 6 HU Orange, rapid flashing twice per second... Cleaning mode > see point 6 EL The orange indicator flashes rapidly: twice per second: Cleaning mode > see point 6 RO Orange light flashing rapidly: twice per second: Cleaning mode > read point 6 AR Orange light flashing rapidly: twice per second: Cleaning mode > see point 6

5 Orange light flashing rapidly: three times/second: Descaling/Emptying > see point 6

FR Orange light flashing rapidly: three times per second: descaling/draining > see point 6 DE Very rapid orange flashing: three times per second: Descaling/draining > see point 6 IT Orange light flashing rapidly: three times per second: descaling/draining mode > see point 6 ES Orange light flashing at a faster rate (three times per second): Descaling/draining > see point 6 PT Very rapid orange flashing light: three times per

Second: descaling/draining of systems > see point 6* PL Rapidly flashing orange light: three times per second: Descaling/Draining > see point 6* RU The indicator flashes orange rapidly (3 times per second): Descaling/Draining > see point 6* NL Orange lamp flashes rapidly: three times per second: Descaling/Draining > see point 6* DA Orange light flashes very rapidly: three flashes per second: Descaling/draining of water > see point 6* NO Orange light flashes rapidly: three times per second: Descaling/Draining > see point 6* SV Orange rapidly flashing light: three times per second: Descaling/Draining > see point 6* FI Orange indicator light flashes rapidly three times per second: descaling/draining > see point 6* CS The button flashes orange rapidly: three times per second - descaling/draining > see point 6* SK The button flashes orange rapidly: three times per second - descaling/draining > see point 6* HU Orange rapid flashing three times per second...Descaling / Draining mode > see point 6. EL The orange light flashes very rapidly: three times per second: Descaling/Draining > see point 6* RO Orange light flashing rapidly: three times per second: Descaling/Draining > see point 6*

6 White light pulsing up: lighting up to steady ON, then OFF... : Heating up > see point 7*

EN White light pulsing up: lights up slowly, stays on for a moment, then goes off...: preheating > see point 7 DE Pulsating white light: lights up to constant ON, then OFF: heating > see point 7 IT White light pulsing: gradual illumination up to fixed and complete light, then fading...: heating > see point 7 ES White light flashing at an increasingly rapid rate until it becomes steady and then goes off: heating > see point 7 PT White light flashing: turns on and then off... > see point 7 PL White light gradually brightening: slowly increases in intensity, then quickly goes out: heating > see point 7 RU Indicator lights up with a steady light: constant, then turns off: heating > see item 7 NL White light pulses: slowly lights up from ON to OFF: preheating > see point 7 DA White light lights up: lights up to constant ON, then OFF....: heating > see point 7 NO White light pulsing increases: lights up to steady ON, then OFF....: cooling after overheating > see point 7 SV White light pulses up: lights up to steady ON, then OFF: heating > see point 7 FI White indicator light gradually turns ON, then turns OFF...: coffee machine heats up > see point 7 CS Gradually brightening white light: gradually turns ON, then OFF: device heats up > see point 7 SK Gradually brightening white light: gradually turns ON, then OFF: device heats up > see point 7 HU Brightening white light pulsing: flashing until standby indication, then off indication...: heating up > see point 7. EL White light pulses, turning on steadily and turning off...: preheating > see point 7 RO White light flashing: lights up for ON, then OFF....: heating > read point 7 V abillg < cla] ...: ...

EN Orange light pulsing down: fading to OFF, then ON...: Cooling down after overheating > see point 7

FR Orange light with descending pulse: the light slowly turns off, then turns on again...: cooling after overheating > see point 7 DE Pulsating orange light: fades to OFF, then ON.... cooling after overheating > see point 7 IT Orange light pulsing: gradual dimming of the light, then turning on.... cooling after overheating > see point 7 ES Orange light blinking at a progressively slower rate until it turns off and then turns on: cooling after overheating > see point 7 PT Orange light blinking: decreases light intensity and then turns on... cooling after overheating > see point 7 PL Orange light dimming: slowly goes out, then turns on: cooling after overheating > see point 7 RU Orange indicator with blinking light: gradually goes out, then turns on: cooling after overheating > see point 7 NL Orange light pulsing: goes from OFF to ON: cooling after overheating > see point 7 DA Orange light fades: goes from OFF to ON.... cooling after overheating > see point 7 NO Orange light pulsing decreases: fades to OFF, then ON.... cooling after overheating > see point 7 SV Orange light pulsing down: fades to OFF, then ON: cooling after overheating > see point 7 FI White indicator light dims to OFF, then turns ON... coffee machine cools after overheating > see point 7 CS Orange light fading: gradually dims to OFF, then turns ON: device cools, overheated > see point 7 SK Orange light fading: gradually dims to OFF, then turns ON: device cools, overheated > see point 7 HU Dimming orange pulse: fades to off indication, then on indication... cooling after overheating > see point 7 EL Orange light pulses, gradually dimming and turning on again... cooling after overheating > see point 7 RO Orange light blinking: to OFF, then ON.... cooling after overheating > see point 7

8 Orange light blinking rapidly twice, then long OFF....: Error > see points 7 & 8*

FR Orange light with double rapid blink, then long off: error > see points 7 and 8 DE Orange light blinks twice very quickly, then long OFF... error > see points 7 & 8 IT Orange light flashing twice rapidly, then turns off .... error > see points 7 and 8 ES Orange light blinking rapidly twice and then turning off for a longer period: Error > see points 7 and 8 PT Rapid blinking of orange light, twice, then long off...error > see point 7 & 8 PL Orange light flashes rapidly twice, then goes out for a long time: Error > see points 7 and

8 ORANGE INDICATOR FLASHES TWICE QUICKLY, THEN GOES OUT: Error > see points 7 & 8 NL Orange lampje knippert twee keer en gaat dan uit: Fout > Zie punten 7 & 8 DA Orange lys blinker hurtigt to gange, slukker derefter... Fej > se punkt 7 & 8 NO Oranje lys blinker raskt to ganger, deretter langvarig AV ... Fei > se punkt 7 og 8 SV Orange Ius blinkar snabbt två gänger, sedan lang AV: Felmeddelande > se punkt 7 & 8 ORanssi merkkivalo vilkkuu tiehään kahdesti, siirtyen pitkään OFF-tilaan...: virhe > katso kohdat 7 & 8 CS Tlačitko dvakrát rychle zablíka oranzové, potem so zobražIFF: chyba > viz body 7 a 8 SK Tlačidlo dvakrát rychlo zablíka na oranzovo, potem sa zobražIFF: chyba > pozri body 7 a 8 HU Gyrs villogás kétser narancs szinnel, utána hosszú szünet...: Hiba > lásd a 7. és 8. pontokban. EL H ϕωτενή ενδειην αναβοαβηνει γρήγορa με Πποτokaλi χρμα και Μετά παραμένει σβηθή γίαρκετή ωρα...Σφλμα > Δείτε τα Ασημεία 7 και 8 RLO Lumină portocalie ce clippeste rapid de douà ori, apoi OPRIRE lunga... Eroare > cititi punctele 7 s i 8*

9 Orange button ON for 1.5 second, then OFF for 0.5 second...: Water tank is empty > see point 5^*

FR Orange light on for 1.5 seconds, then off for 0.5 seconds...: water tank empty > see point 5 DE Knopf leuchtet für 1,5 Sekunden orange, geht danach für 0,5 Sekunden aus... Wassertank ist leer > siehe Punkt 5 IT Tasto illuminato di luce arancione per 1,5 secondi, quindi spento per 0,5 secondi... il serbatoio dell'acqua è vuoto > vedere il punto 5 ES El botón naranja se enciende durante 1,5 segundos y después se apaga durante 0,5 segundos: El depósito de agua está vacío > ver punto 5 PT Botão laranja ligado por 1,5 segundos, depois desliga por 0,5 segundos. Depósito de água vazio > veja o ponto 5 PL Pomarańczowy przycisk podświetla się na 1,5 sekundy, a następnie gaśnie na 0,5 sekundy: Zbiornik na wodę jest pusty > patrz punkt 5 RU Индикатор горит оранжевым светом 1.5 секунды, затем гаснет на 0.5 секунды: Резервуар для воды пуст > см. п. 5 NL Oranje lampje is 1,5 seconde aan en vervolgens 0,5 seconde uit: Waterreservoir is leeg > zie punt 5 DA Orange knap er ON i 1,5 sekunder, derefter OFF i 0,5 sekunder... Vandtanken er tom > se punkt 5 NO Oransje knapp PÅ i 1,5 sekunder, deretter AV i 0,5 sekunder ... Vanntanken er tom > se punkt 5 SV Orange knapp PÅ i 1,5 sekund, sedan AV i 0,5 sekund: Vattentank är tom > se punkt 5 FI Oranssi merkkivalo ON-tilassa 1,5 sekuntia, sitten OFF-tilassa 0,5 sekuntia... vesisäiliö on tyhjä > katso kohta 5 CS Na tlačítku se na 1,5 vteřiny oranžově rozsvítí ON, potom na 0,5 vteřiny OFF: nádoba na vodu je prázdná > viz bod 5 SK Na tlačidle na 1,5 sekundy oranžovo rozsvieti ON, potom na 0,5 sekundy OFF: nádržka na vodu je prázdná > pozri bod 5 HU A gomb 1,5 másodpercig narancssárgán világít, majd 0,5 másodpercig nem.... Üres a víztartály > lásd az 5. pontban. EL Η φωτεινή ένδειξη ανάβει πορτοκαλί για 1,5 δευτ. και έπειτα σβήνει για 0,5 δευτ... Το δοχείο νερού είναι άδειο > δείτε το σημείο 5 RO Buton portocaliu PORNIT timp de 1,5 secunde, apoi OPRIT timp de 0,5 secunde... Rezervorul de apă este gol > citiți punctul 5 *O abillg <lallll jld ... aii li ... odo bai yai i I odo yai yai yai yai AR

10 Orange light blinking 5 times in 10 seconds: Reset to factory settings

Orange light blinking 5 times within 10 seconds: reset to factory settings

11 Orange and white light alternately blinking 3 times and then steady on: Descaling alert > see point 11^*

FR Orange and white light blinking alternately 3 times, then steady on: descaling alert > see point 11 DE Orange and white light blinking alternately 3 times, then steady on: descaling alarm > see point 11 IT Orange and white light blinking alternately 3 times, then steady on: descaling alert > see point 11 ES Orange and white lights blink alternately 3 times and then stay on: descaling alert > see point 11 PL Orange and white light blink alternately 3 times, then stay on: descaling notification > see point 11 RU Indicator blinks alternately orange and white 3 times, then stays on: descaling required > see point 11 NL Light blinks 3 times orange and white, then burns continuously: descaling notification > see point 11 DA Orange and white light blinks alternately 3 times and then burns constantly: descaling alarm > see point 11 NO Orange and white light blinks alternately 3 times and then constantly on: descaling warning > see point 11 SV Orange

and white light blinks alternately 3 times and then steadily on: descaling warning > see point 11 Orange and white indicator light blinks alternately three times and then burns steadily: descaling notification > see point 11 CS Three times alternately blinks orange and white light and then shines ON: appliance needs descaling > see point 11 SK Three times alternately blinks orange and white light then shines ON: appliance needs descaling > see point 11 HU Orange and white light flashes alternately 3 times, then continuous on signal: descaling notification > see point 11 EL The indicator light flashes alternately orange and white 3 times and then remains steadily on: descaling notification > see point 11 RO Orange and white lights blink alternately 3 times and then fix: descaling alert > see point 11 *I I abaillgaj < tawlll allj y i i i j i i i j i i j i i j i i j i i j i i j i i j i i j i i j i i j i i j i i j i i j i i j i i j i i j i i j i i j i i j i i j i i j

12 White light blinking twice/second: Software update

FR White light flashing twice per second: software update. DE White light flashes twice per second: software update. IT White light flashing twice per second: software update. ES White light flashing twice per second: software update. PT White light flashing twice per second: software update. PL White light flashing twice per second: software update. RU Indicator flashes white (2 times per second): software update. NL White light flashes twice per second: software update. DA White light flashes twice per second: software update. NO White light flashes twice per second: software update. SV White light flashes twice per second: software update. FI White indicator flashes twice per second: software update. CS White light flashes twice per second: software update. SK White light flashes twice per second: software update. HU White light flashes twice per second: software update. EL White light flashes twice per second: software update. RO White light flashes twice per second: software update. AR White light flashes twice per second: software update.

VERTUO PLUS
0	1"	2"
1
2
3
4
5
6
7
8

1 No light on the button: Machine OFF > see point 1*

FR No light on the button: machine off > see point 1. DE Button is unlit: machine is OFF > see point 1. IT No light on the button: machine off > see point 1. ES Button is not illuminated: machine is off > see point 1. PT Button without light: machine off > see point 1. PL No button illumination: machine is OFF > see point 1. RU Indicator is off: coffee machine is off > see point 1. NL Button is not lit: machine is off > see point 1. DA No light in button: machine is OFF > see point 1. NO Button does not light: machine is OFF > see point 1. SV No light around button: machine OFF > see point 1.

FI No light on button: coffee machine is off > see point 1. CS Button does not light: device is off > see point 1. SK Button does not light: device is off > see point 1. HU Button does not light: machine is off > see point 1. EL Light indicator is off: machine is off > see point 1. RO Button is not lit: device is OFF > read point 1*. AR Button is not lit: device is off.

2 Steady light GREEN: Ready mode

FR Steady GREEN light: machine ready DE Konstantes grünes Licht: Maschine ist bereit IT Luce fissa VERDE: modalità Macchina Pronta ES Luz fija VERDE: Máquina lista PT Luz verde fixa: máquina pronta PL ZIELONE światło stałe: Tryb gotowości RU Индикатор горит ЗЕЛЕНЫМ: Кофемашина готова к использованию NL Onafgebroken GROEN lampje: Klaar voor gebruik DA Konstant grønt lys: Klar NO Jevnt GRØNT lys: Klarmodus SV Stadigt GRÖNT ljus: Klarläge FI Tasaisesti palava VIHREÄ valo: valmiustila CS Trvale svítí ZELENĚ: přístroj připravený k použití SK Trvalo svieti na ZELENO: prístroj je pripravený na použitie HU Folyamatos zöld fény: Készenléti állapot EL Η φωτεινή ένδειξη είναι σταθερά αναμμένη με ΠΡΑΣΙΝΟ χρώμα: Λειτουργία ετοιμότητας RO Lumină fixă VERDE: Mod de pregătire

3 Regular blinking GREEN: Once/second: Heating up

FR Voyant VERT avec clignotement régulier : une fois/seconde : préchauffage DE Regelmäßiges grünes Blinken: Ein Mal/Sekunde: Aufheizen IT Luce VERDE che lampeggia regolarmente: 1 volta al secondo: riscaldamento ES Luz VERDE intermitente a ritmo regular (una vez por segundo): Calentamiento PT Piscar regular a verde: uma vez por segundo: aquecimento PL ZIELONE światło regularnie migające: Raz na sekundę: Podgrzewanie RU Индикатор мигает ЗЕЛЕНЫМ (1р. в ск.). Кофемашина разогревается NL GROEN lampje knippert regelmatig: 1 keer/seconde: Voorverwarming DA Grønt lys blinker: En gang pr. sekund: Varmer op NO Jevn GRØNN blinking: Varmer opp SV Regelbundet GRÖNT blinkande: 1 gång/sekund: Uppvärmning FI VIHREÄ merkkivalo vilkkuu säännöllisesti kerran sekunnissa: kahvikone lämpenee CS Tlačítko pravidelně bliká ZELENĚ: Jednou za vteřinu - přístroj se zahřívá SK Tlačidlo pravidelne bliká na ZELENO: raz za sekundu - prístroj sa zahrieva HU Egyenletes zöld villogás, másodpercenként egyszer: Felfűtés EL Η φωτεινή ένδειξη Αναβοσβήνει σταθερά με ΠΡΑΣΙΝΟ χρώμα: Μία φορά/δευτ.: Προθέρμανση RO Clipire regulată VERDE: O dată pe secundă: Încălzire

4 Fast rotation GREEN: Coffee preparation

FR Voyant vert avec rotation: préparation du café DE Schnell rotierendes Grün: Kaffeezubereitung IT Luce VERDE con rotazione rapida: preparazione del caffè ES Luz VERDE que gira rápidamente: Preparación del café PT Rotação rápida da luz verde: preparação de café PL Szybko zmieniające się Zielone: Przygotowanie kawy RU Индикатор быстро вращается ЗЕЛЕНЫМ: Приготовление кофе NL GROEN lampje knippert snel: Koffiebereiding DA Hurtig roterende grøn: Kaffebrygning NO Raskt grønt roterende lys: Kaffetilberedelse SV Snabbt grönt roterande ljus: Kaffeförberedelse FI VIHREÄ merkkivalo palaa nopeasti kiertäen CS Kolem tlačítka krouží ZELENÉ světlo: připravuje se káva SK Okolo tlačidla krúži ZELENÉ svetlo: pripravuje sa káva HU Gyorsan körbefutó zöld fény: kávékészítés EL Η φωτεινή ένδειξη αναβοσβήνει πράσινο χρώμα: Παρασκευή καφέ RO Rotatie rapidă Verde: Pregătirea cafelei

5 Blink two times and then back to steady GREEN: Water tank is empty or capsule missing

FR Flashing twice, then steady GREEN: water tank empty or capsule missing. DE Blinks twice and then steady green: water tank is empty or no capsule inserted. IT Green light flashes twice and then becomes steady: water tank empty or capsule missing. ES The green light flashes twice and then stays on: water tank empty or no capsule inserted. PT Blinks twice and then stays with steady green light: water tank empty or capsule missing. PL Blinks twice, then steady green light: water tank empty or capsule missing. RU The indicator blinks 2 times and then glows green: water tank empty or capsule missing. NL Blinks twice and then steady green: water reservoir empty or no capsule in the machine. DA Blinks twice and then steady green: water tank empty or missing coffee capsule. NO Blinks twice and then back to steady green light: water tank empty or capsule missing. SV Blinks twice and then back to steady green light: water tank empty or capsule missing. FI The indicator light blinks twice and then changes to steady green: water tank empty or coffee capsule missing. CS The indicator blinks twice and then glows green: either the water tank is empty or no capsule is inserted. SK The indicator blinks twice and then glows green: either the water tank is empty or no capsule is inserted. HU Blinks twice, then steady green light: water tank empty or no capsule inside. EL The indicator light flashes twice and then remains steady green: the water tank is empty or there is no capsule. RO Blinks twice and then returns to steady green: water tank empty or capsule missing.

6 Steady light ORANGE: Entering Special Functions menu

FR Fixed ORANGE light: access to the Special Functions menu DE Konstant oranges Licht: Menü "Spezialfunktionen" IT Luce fissa ARANCIONE: accesso al menu Funzioni speciali ES Luz fija NARANJA: Acceso al menú de funciones especiales PT Luz laranja fixa: entrar no menu de Funções Especiais PL POMARAŃCZOWE światło stałe: Wejście do menu funkcji specjalnych RU ИНДИКАТОР горит ОРАНЖЕВЫМ: Вход в дополнительное меню NL Onafgebroken ORANJE lampje: Toegang tot het menu 'Speciale Functies' DA Konstant orange lys: Gå ind på menuen for specielle funktioner NO Knappen lyser ORANSJE og stabilt: Åpner menyen for spesielle funksjoner SV Stadigt ORANGE ljus: Öppnar menyn för specialfunktioner FI Tasaisesti palava ORANSSI valo: erityistoimintoihin siirtyminen CS Tlačítko svítí ORANŽOVĚ: nabíhá menu speciálních funkcí SK Tlačidlo svieta na ORANŽOVO: nabieha menu špeciálnych funkcií HU Folyamatos narancs fény: Belépés a speciális funkciók menübe EL Η φωτεινή ένδειξη είναι σταθερά αναμμένη με ΠΟΡΤΟΚΑΛΙ χρώμα: Είσοδος στο μενού ειδικών λειτουργιών RO Lumină fixă PORTOCALIE: Intrare în meniul de funcții speciale

7 Regular blinking ORANGE: Once/second: Special Function is running

FR Voyant ORANGE avec clignotement régulier : une fois/seconde : menu Fonctions spéciales activé DE Regelmäßiges oranges Blinken: Ein Mal/Sekunde: Spezialfunktion wird ausgeführt IT Luce ARANCIONE che lampeggia regolarmente: 1 volta al secondo: la funzione speciale è in esecuzione ES Luz NARANJA intermitente a ritmo regular (una vez por segundo): La función especial que está ejecutando PT Picar a luz laranja regular: uma vez por segundo: Funções Especiais em execução PL POMARAŃCZOWE światło regularnie migające: Raz na sekundę: Funkcja specjalna jest uruchomiona RU ИНДИКАТОР МИГАЕТ ОРАНЖЕВЫМ (1р. в сек.): Режим СПЕЦИАЛЬНЫХ НАСТРОЕК АКТИВИРОВАН NL ORANJE lampje knippert regelmatig: 1 keer/seconde: Speciale Functie is ingeschakeld DA Orange blink: En gang pr. sekund: specialfunktionen er i gang NO Jevnlig ORANSJE blinking: en/sekund: Spesialfunksjon kjører SV Regelbundet ORANGE blinkande ljus: 1 gång/sekund: Specialfunktionen körs FI ORANSSI merkkivalo vilkkuu säännöllisesti kerran sekunnissa: erityistoiminto on käynnissä CS Tlačítko pravidelně bliká ORANŽOVĚ: Jednou za vteřinu - jste v menu speciálních funkcí SK Tlačidlo pravidelne bliká na ORANŽOVO: raz za sekundu: ste v menu špeciálnych funkcií HU Egyenletes narancs villogás, másodpercenként egyszer: Speciális funkció fut EL Η φωτεινή ένδειξη αναβοσβήνει σταθερά με ΠΟΡΤΟΚΑΛΙ χρώμα: Μία φορά/δευτ.: Εκτέλεση ειδικής λειτουργίας RO Clipire regulată PORTOCALIE: O dată pe secundă: O funcție specială este în curs

8 Blink three times ORANGE within 3 seconds and then back to steady GREEN: Reset to factory settings has been completed

FR: Orange light flashing three times within 3 seconds, then steady green light: reset to factory settings complete. DE: Dreimaliges oranges Blinken innerhalb von 3 Sekunden, dann konstant Grün: Werkseinstellungen wurden wiederhergestellt. IT: Luce arancione che lampeggia tre volte in 3 secondi, quindi diventa verde fissa: il ripristino delle impostazioni di fabbrica è stato completato. ES: La luz parpadea tres veces en naranja durante 3 segundos y luego se enciende en verde: se ha completado el restablecimiento de los ajustes de fábrica. PT: Piscar a luz laranja três vezes em 3 segundos e depois voltar para a luz verde fixa: definições de fábrica repostas. PL: Trzykrotne mignięcie pomarańczowego światła w ciągu 3 sekund, a następnie powrót do stałego światła zielonego: przywrócenie ustawień fabrycznych zostało zakończone. RU: Мигание оранжевым 3 раза в течение 3 секунд, затем горит зелёным: восстановление заводских настроек завершено. NL: Oranje lampje knippert drie keer binnen 3 seconden en dan weer onafgebroken groen: de fabrieksinstellingen zijn hersteld. DA: Blinker orange 3 gange inden for 3 sekunder, herefter går det tilbage til at være konstant grøn: gendannelse af fabriksindstillinger er færdig. NO: Oransje lys blinker tre ganger innen 3 sekunder og tilbake til konstant grønt lys: tilbakestilling til fabrikkinnstillinger er fullført. SV: Blinkar orange 3 gånger inom 3 sekunder och sedan tillbaka till stadigt grönt ljus: fabriksåterställning har slutförts. FI: Oranssi merkkivalo vilkkuu kolmesti kolmessa sekunnissa ja vaihtuu sitten tasaisesti palavaksi vihreäksi valoksi: tehdasasetusten palauttaminen on suoritettu. CS: Tlačítko třikrát během tří sekund zabliká oranžově, pak svítí zeleně: návrat do továrního nastavení dokončen. SK: Tlačidlo trikrát počas troch sekúnd zabliká na oranžovo a potom svieti na zeleno: návrat do výrobného nastavenia dokončený. EL: Η ένδειξη αναβοσβήνει τρεις φορές σε 3 δευτερόλεπτα με πορτοκαλί χρώμα και μετά παραμένει σταθερά αναμμένη με πράσινο χρώμα: η επαναφορά των εργοστασιακών ρυθμίσεων έχει ολοκληρωθεί. RO: Clipește de trei ori portocaliu în 3 secunde și apoi revine la verde fix: resetarea la setările din fabrică a fost finalizată.

FR: Pannes. DE: Fehlerbehebung. IT: Risoluzione problemi. ES: Resolución de problemas. PT: Resolução de problemas. CS: Řešení problému. PL: Rozwiązywanie problemów. RU: Устранение неисправностей. NL: Problemen oplossen. DA: Fejlfinding. NO: Feilsøking. SV: Felsökning. FI: Vianmääritys. CS: Řešení problému. SK: Riešenie problémov. HU: Hibaelhárítás. EL: Αντιμετώπιση προβλημάτων. RO: Depanare.

EN

VERTUO NEXT/VERTUO POP/VERTUO PLUS

1	No light on the button.	·The machine has turned OFF automatically; push the button or “UNLOCK” the machine. ·Check the mains, plug, voltage, and fuse.
2	No coffee, no water.	·Check that the water tank is filled. ·Check that a fresh capsule is inserted in correct position, that the handle is properly locked and push the button to start. ·Descale if necessary. ·Open the machine head and let the capsule be ejected. Then perform a cleaning as per cleaning section.
3	Coffee is not hot enough.	·Preheat cup with hot drinking water from the tap. ·Descale if necessary.
4	Leakage or unusual coffee flow.	·Check that the water tank is well positioned.
5	Machine turns to “OFF mode”.	·To save energy the machine will turn off after 2 minutes of non-use. ·See paragraph on “Energy Saving Concept”.
6	Coffee grounds in the cup.	·Perform the cleaning procedure twice. ·See paragraph on “Cleaning”.

VERTUO NEXT/VERTUO POP

7 The machine doesn't start and has light steady on. If blinking, see next points.	·Check that handle is properly locked. ·If you want to brew a Coffee or Espresso, check that a fresh capsule is inserted in correct position, that the handle is properly locked and push the button to start. ·If you are cleaning, descending or emptying the system, check that no capsule is inserted then close, lock the machine and push the button to start one of these operations.
8 The machine doesn't start and light blinks alternately; 1 blink and 1 pause.	·Fill the water tank and push button to start. ·Check that handle is properly locked.

9 Light blinks while machine is running.	·If coffee is flowing normally, this indicates the machine is working properly. ·If only water is flowing, the machine is executing a user request for either cleaning, descaling or emptying the system. Refer to the corresponding paragraph in this user manual. ·Turn the machine to “OFF mode” by pushing the button for 3 seconds and then push it again to turn the machine ON. Now wait approximately 20 minutes to allow the machine to cool down after extensive use.
10 Light blinks and machine is not running.	·It will take some time before the coffee flow comes out (due to barcode reading and pre-wetting the coffee). ·Check that a fresh capsule is inserted in correct position, that the handle is properly locked and push the button to start. ·Fill the water tank and push button to start. ·Turn the machine to “OFF mode” by pushing the button for 3 seconds and then push it again to turn the machine ON. Now wait approximately 20 minutes to allow the machine to cool down after extensive use.
11 Light blinks alternately 2 blinks and 1 pause continuously. Machine is not running.	·During regular Coffee/Espresso preparation: 1) Unlock the handle and open the machine head to check that a fresh undamaged capsule is inserted in the correct position. 2) Check that the handle is in “LOCKED” position. 3) Check that the water tank is filled. ·During Descaling, Emptying and Cleaning: 1) Check that capsule is ejected. 2) Check that the handle is in “LOCKED” position. ·During Programming Volume: 1) Check if a capsule has been well inserted. 2) Please refer to the corresponding chapter. ·If problem persists: 1. Unlock the handle and open machine head. 2. Replace capsule (if needed). 3. Disconnect powercord from the outlet and plug the machine back into outlet after 10 seconds. 4. Close the head and press the button to turn ON and press again to start brewing. If problem persists, call Nespresso.
12 Light alternately blinking 3 times and then steady on.	·Descending needed: machine can be operated when alert appears only a few times after this alert before descaling becomes necessary.

VERTUO PLUS

7b Coffee leakage.

• Open the machine head and let the capsule be ejected. Then perform a cleaning.
• Empty and clean the cup support.
• Descale if necessary.
• If problem persists, call the Nespresso Club.

VERTUO NEXT / VERTUO POP / VERTUO PLUS

This appliance complies with the EU Directive 2012/19/EC. Packaging materials and the appliance contain recyclable materials. Your appliance contains valuable materials that can be recovered or recycled. Separation of the remaining waste materials into different types facilitates the recycling of valuable raw materials. Leave the appliance at a collection point. You can obtain information on disposal from your local authorities. To know more about Nespresso sustainability strategy, go to www.nespresso.com/positive

The machine can be turned off at any time by holding the button for 3 seconds

FR To turn off the machine at any time, press the button for 3 seconds. DE The machine can be turned off at any time by holding the button for 3 seconds. IT The machine can be turned off at any time by holding the button for 3 seconds. ES The machine can be turned off at any time by holding the button for 3 seconds. PT The machine can be turned off at any time by holding the button for 3 seconds. PL The machine can be turned off at any time by holding the button for 3 seconds. RU The machine can be turned off at any time by holding the button for 3 seconds. NL The machine can be turned off at any time by holding the button for 3 seconds. DA The machine can be turned off at any time by holding the button for 3 seconds. NO The machine can be turned off at any time by holding the button for 3 seconds. SV The machine can be turned off at any time by holding the button for 3 seconds. FI The coffee machine can be turned off at any time by holding the coffee button for three seconds. CS The appliance can be turned off at any time by holding the button for 3 seconds. SK The appliance can be turned off at any time by holding the button for 3 seconds. HU The appliance can be turned off at any time by holding the button for 3 seconds. EL You can turn off the appliance at any time by holding the button for 3 seconds. RO The appliance can be turned off at any time by pressing the button for 3 seconds. AR The machine can be turned off at any time by holding the button for 3 seconds.

VERTUO PLUS

The machine can be turned off at any time by pushing the lever down for 3 seconds

To turn off the machine at any time, press and hold the lever down for 3 seconds.

15 PERSONALIZE YOUR COFFEE SIZE

EN CUSTOMIZING THE SIZE OF YOUR COFFEE DE PERSONNALISER LA TAILLE DE VOTRE CAFÉ IT PERSONALIZZARE LA LUNGHEZZA DEL CAFFE ES PERSONALIZA EL TAMANO DE TU CAFÉ PT PERSONALIZE O TAMANHO DO SEU CAFÉ PL SPERSONALIZUJ SWOJA ILOSC KAWY RU IPOPPAMMPOBAHNE OsbEMA HAPNTKA NL PERSONALISEER JE KOPGROOTTE DA PERSONLIGGÖR DIN KOPSTÖRRELSE NO TILPASS KOPPSTÖRRELSEN SV PERSONIFIERA DIN KAFFESTORLEK FI KAHVIN KOON OHJELMOINTI CS NAPROGRAMOVÁNÍ MNOZSTVI KÁVY SK NAPROGRAMOVANIE MNOZSTVA KÁVY HU SZABJA SZEMÉLYRE A KAVÉMENNYISEGET EL EATOMIKEYSH IIOZOTHTAÇ KAΦE RO PERR SONALIZATI-VA DIMENSIUNECAFELEI öggölll àdājAR

The programming is specific to each capsule type: Carafe, Mug, Gran Lungo, Double Espresso, or Espresso. Cup sizes may be programmed from 20 ml / 0.68 fl oz to 535 ml / 18 fl oz.

Programming is specific to each capsule type: Carafe, Mug, Gran Lungo, Double Espresso, or Espresso. The cup size can be reprogrammed from 20 ml to 535 ml.

1. Fill with fresh potable water, insert a capsule and place a cup

FR Fill the water tank with fresh drinking water, insert a capsule and place a cup under the coffee outlet. DE Fill with fresh drinking water, insert a capsule and place a cup under the coffee outlet. IT Fill the tank with fresh drinking water, insert a capsule and place a cup under the coffee outlet. ES Fill with fresh drinking water, insert a capsule and place a cup under the coffee outlet. PT Fill the water tank with fresh drinking water, insert a capsule and place a cup under the coffee outlet. PL Fill with fresh drinking water, insert a capsule and place a cup under the coffee outlet. RU Fill the reservoir with fresh drinking water, insert a capsule and place a cup under the coffee outlet. NL Fill the water reservoir with fresh drinking water, place a capsule and place a cup. DA Fill the water tank with fresh water, insert a capsule and place a cup under the coffee outlet. NO Fill the water tank with fresh drinking water, insert a Nespresso capsule and place a cup under the coffee outlet. SV Fill the water tank with fresh water, insert a coffee capsule and place a cup under the coffee outlet. FI Fill the water tank with fresh water, insert a capsule and place a cup under the coffee outlet. CS Fill the tank with fresh drinking water, insert a capsule and place a cup.

SK Fill the tank with fresh drinking water, insert a capsule and place a cup. HU Fill with fresh drinking water, insert a capsule, and place a cup underneath. EL Fill the container with fresh drinking water, insert a capsule and place a cup. RO Fill with fresh drinking water, insert a capsule and place a cup. AR Fill the water tank with fresh drinking water, insert a capsule and place a cup under the coffee outlet.

2. Press and hold the button until desired quantity is reached

FR Press and hold the button until the desired quantity is reached. DE Press and hold the button until the desired quantity is reached. IT Press and hold the button until the desired quantity is reached. ES Press and hold the button until the desired quantity is reached. PT Press and hold the button until the desired quantity is reached.

PL Press and hold the button until the desired quantity is reached. RU Press and hold the button until the desired quantity is reached. NL Hold the button until the desired amount of coffee is in the cup. DA Press and hold the button until the desired quantity is reached. NO Press and hold the button until the desired quantity is reached. SV Press and hold the button until the desired quantity is reached. FI Press and hold the coffee button until the desired amount of coffee is in the cup. CS Press and hold the button until the desired volume is reached.

SK Press and hold the button until the desired volume is reached. HU Press and hold the button until the desired quantity is reached. EL Press and hold the button until the desired quantity is reached. RO Press and hold the button until the desired quantity is reached.

3. New water volume now programmed

The new water volume is now programmed.

EN RESTORE THE FACTORY SETTINGS OF WERKSEINN STELLUNGEN IT RIPRISTINO DELLE IMPOSTAZIONI DI FABBRICA

2. Press the button 5 times within 3 seconds.

2. Push the lever and press the button at the same time.

Lower the lever and press the button at the same time.

3. Reset to factory settings.

EN Reset to factory settings

BEFORE A PERIOD OF NON-USE AND FOR FROST PROTECTION, OR BEFORE A REPAIR

DRAINING THE SYSTEM BEFORE A PERIOD OF NON-USE, TO PROTECT IT FROM FREEZING OR BEFORE A REPAIR

1. Empty water tank

FR Empty the water tank DE Empty the water tank IT Empty the water tank

Empty the water tank

RU Drain the water reservoir NL Empty the water reservoir DA Drain the water tank NO Drain the water tank

Water tank SY Drain the water tank FI Drain the water tank CS Empty the water container SK Empty the water container HU Empty the water tank

6. Press and hold while plugging

FR: Press and hold while plugging in. DE: Press and hold the button while plugging in the power cord. IT: Press and hold while connecting. ES: Keep the button pressed while connecting. PT: Press and hold when plugging the machine into the outlet. PL: Press and hold while connecting. RU: Press and hold while connecting. NL: Hold the button pressed while plugging in the plug. DA: Press and hold while plugging in. NO: Press and hold while connecting. SV: Hold pressed while connecting. FI: Press the coffee button and connect the power cord while holding the coffee button down. CS: Press the button and hold it while plugging the device into the outlet. SK: Press the button and hold it while plugging the device into the outlet. HU: Press the button while plugging the machine back in. EL: Press and hold while connecting. RO: Press and hold the button while plugging the device into the outlet. AR: (unclear)

VERTUO PLUS

3. Turn the machine off

FR: Turn off the machine. DE: Turn off the machine. IT: Turn off the machine. ES: Turn off the machine. PT: Turn off the machine. PL: Turn off the machine. RU: Turn off the coffee machine. NL: Turn off the machine. DA: Turn off the machine. NO: Turn off the machine. SV: Turn off the machine. FI: Turn off the coffee machine. CS: Turn off the device. SK: Turn off the device. HU: Turn off the machine. EL: Turn off the machine. RO: Turn off the device. AR: (unclear)

4. Empty and clean

FR: Empty and clean. DE: Empty and clean. IT: Empty and clean. ES: Empty and clean. PT: Empty and clean. PL: Empty and clean. RU: Empty and clean. NL: Empty and clean. DA: Empty and clean. NO: Empty and clean. SV: Empty and clean. FI: Empty and clean. CS: Empty the containers and clean the individual parts. HU: Empty and clean. EL: Empty and clean the machine. RO: Empty and clean. AR: (unclear)

5. Start emptying the system

FR: Start emptying the system. DE: Start the emptying process. IT: Start emptying the system. ES: Start emptying the system. PT: Start emptying the system. PL: Start emptying the system. RU: Start emptying the system. NL: Begin emptying the system. DA: Start emptying the system of water. NO: Start the emptying system. SV: Begin emptying the system. FI: Start emptying the system. CS: Perform emptying of the device. SK: Perform emptying of the device. HU: Begin emptying the system. EL: Start the emptying procedure of the system. RO: Start emptying the system.
