USER MANUAL RA-F11B JVC

Hotline Darty France

This product is manufactured, distributed, serviced and warranted exclusively by Etablissements DARTY et Fils. "JVC" is the trademark of JVCKENWOOD Corporation, used by Etablissements DARTY et Fils under license.

IMPORTANT SAFETY INSTRUCTIONS

PLEASE READ THE FOLLOWING INSTRUCTIONS CAREFULLY BEFORE USING THE APPLIANCE AND KEEP FOR FUTURE REFERENCE.

• Ventilation
• Allow at least a 10~cm gap all around the product.
• The ventilation should not be impeded by covering the ventilation openings with items, such as newspapers, table-cloths, curtains, etc.
• No naked flame sources, such as lighted candles, should be placed on the apparatus.
• This apparatus is not suitable for use in a tropical climate.
• The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.
• Attention should be drawn to the environmental aspects of battery disposal. Don't throw used batteries in dustbin. Please contact your retailer in order to protect the environment.
• To protect the environment, use local recycling facilities for battery disposal.
• Batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like.
• CAUTION: Risk of fire or explosion if the battery is replaced by an incorrect type.
• Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery or expose to excessive heat such as sunshine, fire or

the like that can result in an explosion.

• Leaving a battery in an extremely high temperature surrounding environment that can result in an explosion or the leakage of flammable liquid or gas.
• A battery subjected in extremely low air pressure that may result in an explosion or the leakage of flammable liquid or gas.
• Different types of batteries or new and used batteries are not to be mixed.
• Batteries are to be inserted with the correct polarity.
• Exhausted batteries are to be removed from the appliance.

• The supply terminals are not to be short-circuited.

• To prevent possible high sound pressure and hearing damage risk, do not listen at high volume levels for long periods.

IMPORTANT SAFETY INSTRUCTIONS

• Do not block or cover slots, holes or openings on the product by placing on soft furnishings such as carpets, rugs or beds as these are provided for functionality and/or ventilation to ensure safe operation of the product.
• Do not attempt to open the product. This product does not contain any user serviceable parts.
• Do not use your radio near emergency/intensive

or If you have a pacemaker fitted or during the electrical storm.

• The marking plate is located on the back of the apparatus.

CE This mark is applied to show the equipment conforms to European radio equipment directive.

Battery handling and usage

Only adults should handle the batteries (not included). Do not allow a child to use this unit unless the battery cover is securely attached to the unit. The battery type used in the unit is 2 AAA size batteries which are accessible and can be replaced. Remove the battery cover from the back of the unit and then remove the batteries.

PRODUCT OVERVIEW

1. Telescopic antenna
2. Headphone jack
3. TUNING knob
4. AM/FM band selector
5. VOLUME control knob with ON/OFF switch
6. Battery cover

INSTALLING THE BATTERIES

1. Remove the battery cover.
2. Insert 2 x AAA size batteries, observing the proper polarity markings in the battery compartment.
3. Replace the battery cover, making sure that a click is heard.

NOTE: Remove the batteries from the radio if they will not be used for an extended period of time.

1. Turn the volume control knob to turn on the radio.

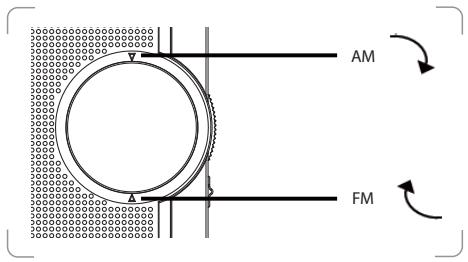

2. Select the desired band by setting the band selector to AM or FM position.
3. Adjust the volume using the volume control knob.
4. Turn the tuning control to tune to the desired frequency and station.

1. To turn off the radio, turn the volume control knob fully anticlockwise to the OFF position until a click is heard.

Radio Reception

FM reception Extend the telescopic antenna and adjust the direction and angle.

AM reception Retract the telescopic antenna and rotate the unit.

USING HEADPHONES

You can connect headphones (not included) to the.
headphone jack on the side of your radio..
When you have headphones connected, the radio
speakers will be switched off and all sound is via the
headphones.

SPECIFICATIONS

Power source: DC 3V
( represents Direct Current)
Batteries: 2x 1.5V SIZE "AAA" (not included)
Frequency : FM : 88 - 108 MHz AM : 530 - 1600 kHz

DISPOSAL

As a responsible retailer we care about the environment. As such we urge you to follow the correct disposal procedure for the product, packaging materials and if applicable, accessories and batteries. This will help conserve natural resources and ensure that the materials are recycled in a manner that protects health and the environment.

You must follow laws and regulations about disposal. Waste electrical products and batteries must be disposed of separately from household waste when the product reaches the end of its life.

Contact the store where you bought the product and your local authority to learn about disposal and recycling.

The batteries must be disposed of at your local recycling point.

We apologise for any inconvenience caused by minor inconsistencies in these instructions, which may occur as a result of product improvement and development.

EU Declaration of Conformity

The object of the declaration described above is in conformity with the relevant Union harmonisation legislation:

The person responsible for this declaration is:

Place, Date / Lieu :
