USER MANUAL PTL75120 DARTY

= dosering vereist / Voor was Hoofd was Wasver zachter = optioneel

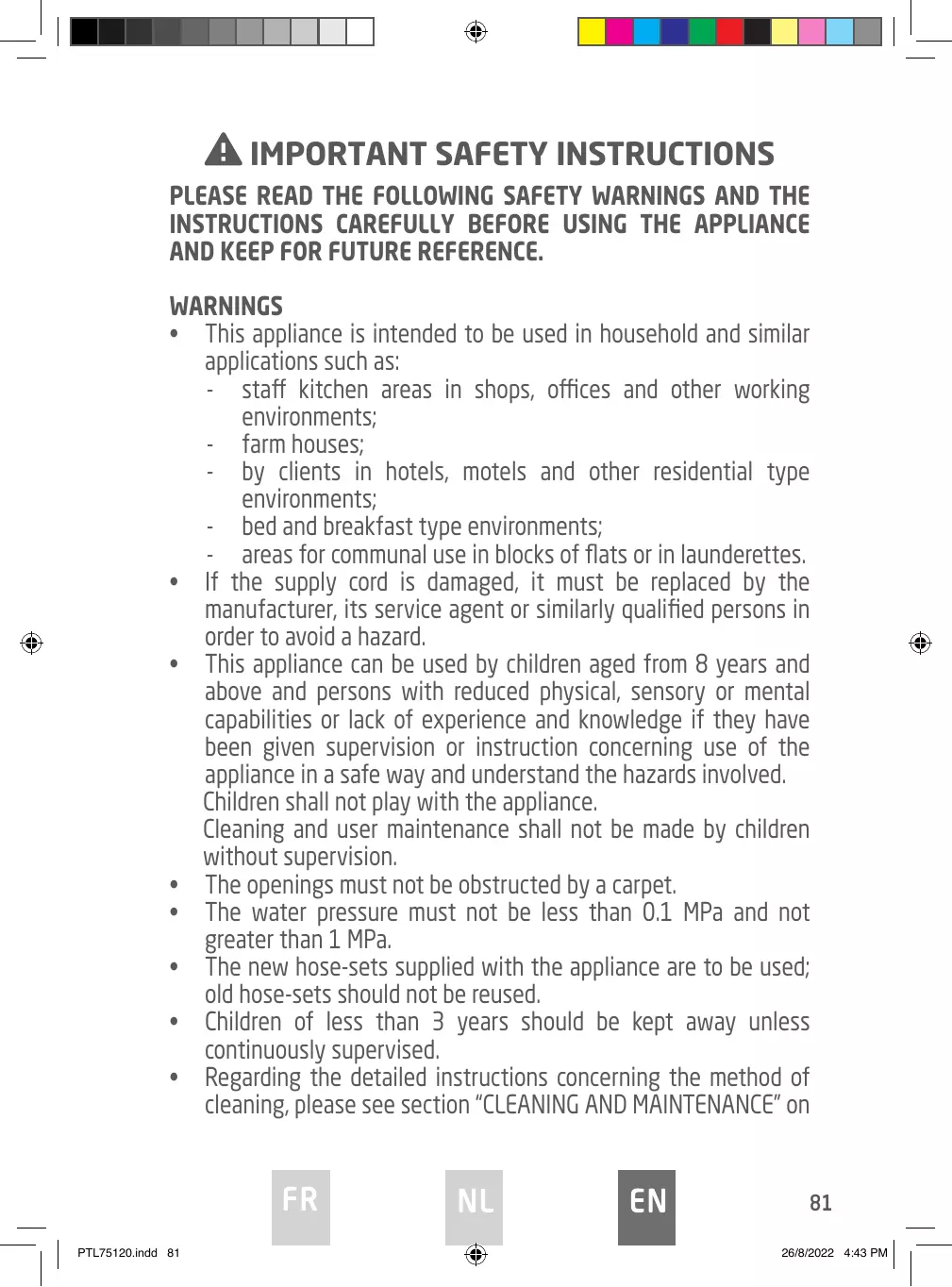

INSTRUCTIONS CAREFULLY BEFORE USING THE APPLIANCE

AND KEEP FOR FUTURE REFERENCE. WARNINGS

• This appliance is intended to be used in household and similar applications such as: - staff kitchen areas in shops, offices and other working environments; - farm houses; - by clients in hotels, motels and other residential type environments; - bed and breakfast type environments; - areas for communal use in blocks of flats or in launderettes.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• The openings must not be obstructed by a carpet.
• The water pressure must not be less than 0.1 MPa and not greater than 1 MPa.
• The new hose-sets supplied with the appliance are to be used; old hose-sets should not be reused.
• Children of less than 3 years should be kept away unless continuously supervised.
• Regarding the detailed instructions concerning the method of cleaning, please see section “CLEANING AND MAINTENANCE” on

page 103-106 The maximum mass of dry textile material that to be used in this appliance is 7,5 kg. Safety Precautions

• The appliance is for indoor use only.
• Keep the packing materials of the appliance away from children to avoid hazards.
• Do not plug the appliance to the power supply with wet hands.
• Never touch the appliance with wet hands or feet.
• In the event of any failure, first unplug the appliance and close the water tap. Do not attempt to repair by yourself. Please contact your authorised service agent.
• Do not exceed the maximum loading capacity.
• Never force the door to open when the appliance is running. The door will unlock shortly after the end of a cycle.
• Do not close the door with excessive force. If it is found difficult to close the door, please check if the clothes are properly inserted and distributed.
• Do not leave children unattended near the appliance since they might lock themselves up into it.
• Always unplug the appliance and turn off the water supply after use.
• Animals and children may climb into the machine. Check the machine before every operation.
• The plug must be remained easily accessible after installation of the appliance.
• Do not wash articles that have been cleaned in, washed in, soaked in, or dabbed with combustible or explosive substances (such as wax, oil, paint, gasoline, degreasers, dry-cleaning solvents, kerosene, etc.). This may result in fire or explosion.
• The appliance shall not be installed in bath room or very wet rooms as well in the rooms with explosive or caustic gases.
• Do not operate the appliance at temperatures below 5°C.

Before Transport : - Bolts shall be reinstalled to the machine by a specialized person. - Accumulated water shall be drained out of the machine. This appliance is heavy. Transport with care. Never hold any protruding part of the machine when lifting. The machine door cannot be used as a handle. Do not install the machine on a carpet floor. The obstruction of the openings by a carpet can damage the machine. Do not use the appliance in humid environments or rooms containing explosive or caustic gas. In case of water leakage or water splashes let the appliance dry in the open air. The appliance must not be installed behind a lockable door, a sliding door or a door with a hinge on the opposite side to that of the washer.

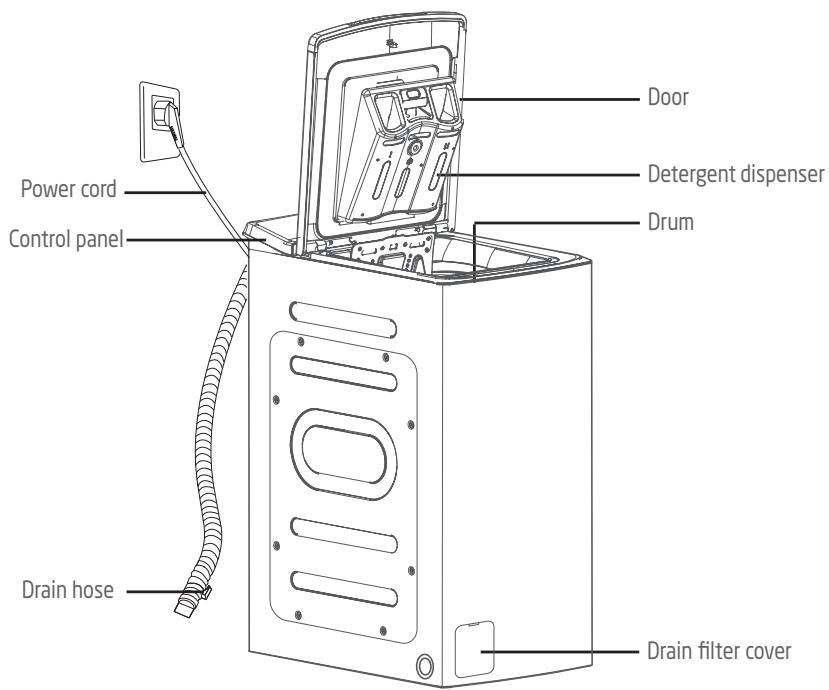

PTL75120.indd 83 26/8/2022 4:43 PM PRODUCT OVERVIEW Door Detergent dispenser Power cord Drum Control panel Drain hose Drain filter cover Accessories Cover caps x 4 Water supply hose (cold water) U-bend

PTL75120.indd 84 26/8/2022 4:43 PM INSTALLATION Removing packing

1. Remove the cardboard box and styrofoam packing.

2. Lift the washing machine and remove the base packing. This will require 2

Make sure the small triangle foam is removed with the bottom packaging together. If not, lay the unit down on the side surface and remove it manually.

3. Remove the tape securing the power supply cord and drain hose.

4. Remove the inlet hose from the drum.

Packaging material (e.g. Films, Styrofoam) can be dangerous for children. There is a risk of suffocation ! Keep all packaging away from children. Removing transit bolts To prevent internal damage during transport, the 4 special bolts are locked. Before operating the washing machine, remove the bolts along with the rubber bungs. If they are not removed, it may cause heavy vibration, noise and malfunction.

Unscrew the bolts with a spanner.

Take out the bolts along 3. with the rubber bungs by slightly twisting the bung. Keep the transit bolts for future use. Close the holes with the caps supplied.

PTL75120.indd 85 26/8/2022 4:43 PM Positioning Install the appliance on a flat hard floor. Make sure that air circulation around the appliance is not impeded by carpets, rugs, etc. Allow at least 2 cm of clearance at each side of the appliance. Make sure that the appliance does not stand onto the power cord.

W > 20mm Installation location requirements Before installing the appliance, the location characterised as follows shall be selected: - Rigid, dry, and level surface - Avoid direct sunlight - Sufficient ventilation - Room temperature is above 0°C. - Keep far away from heat resources such as coal or gas burning appliances. The ambient temperature of the washer should be 5-40°C. If used under 0°C, the inlet valve and draining system may be damaged. If the machine is installed under freezing conditions, it should be transferred to normal ambient temperature to ensure the water supply hose and drain hose can unfreeze before use. Levelling the appliance Levelling the washing machine properly prevents excessive noise and vibration. Install the appliance on a solid and level floor surface. If the floor is uneven, turn the adjustable feet as required.

• Never put cartons, wooden blocks or similar materials under the feet.

PTL75120.indd 86 26/8/2022 4:43 PM

1. Loosen the lock nuts with a spanner.

2. Turn the adjustable feet to adjust the height.

• Make sure that all four feet are stable and resting on the floor and then check that the appliance is perfectly level using a spirit level.

3. Tighten the lock nuts.

Electrical connection Your washing machine works with 220-240V and 50Hz. Electrical connections must be carried out by a qualified technician in compliance with the local safety regulations. Your washing machine must be properly earthed. We will not be held responsible for any damage that may occur as a result of usage without correct earth connection. Do not use extension leads or multi-sockets. The appliance must not have an external switching device such as a timer or connected to a circuit that is regularly switched on and off. Do not pull the plug out of the mains outlet if there is flammable gas around. Connecting the hoses Connecting the water supply hose

1. Attach one end of the hose

to the water inlet on the appliance and tighten by hand.

2. Attach the other end of the

hose to the tap and tighten by hand.

PTL75120.indd 87 26/8/2022 4:43 PM NOTE : After completing connection, turn on the tap slowly and make sure there are no leak. Do not twist, squash, modify or cut the hose. Connecting the drain hose To connect the drain hose, please use one of the following methods. Make sure that the drain hose is not bent, crushed or extended. Drain hole

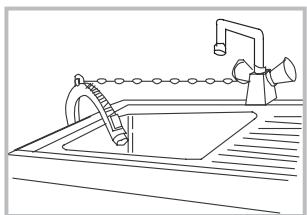

Connect the drain hose onto a The drain hose sink outlet spigot securely. should not be placed higher than 100 cm above the floor. Max.100cm Put the hose into a drain hole. When installing the drain hose to a sink, secure it tightly with a string. Water the appliance does not drain or drains slowly if above this height. Min.60cm

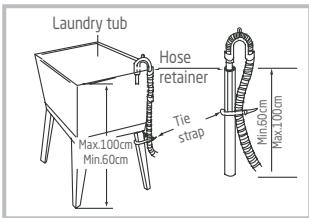

When installing the drain hose to the laundry tub, proper securing of the drain hose will protect the floor from damage due to water leakage. Laundry tub Max.100cm Min.60cm Tie strap Min.60cm Max.100cm Hose retainer

Please check your laundry care labels and the detergent use instructions before wash. Use non-foaming or less-foaming detergent suitable for machine washing properly.

1. Read the care label of clothes.

This will tell you about the fabric content of your garment and how it should be washed.

2. Sort laundry according to colour, textile type,

soiling and washing temperature. Always sort dark colours from pale colours and whites. Separate white fabrics from coloured fabrics. Separate clothes according to amount of soil.

3. Check all pockets to make sure that they are

empty. Items such as nails, hair clip, matches, coins and keys can damage both your clothes and washing machine.

Close zippers, hooks and strings to make sure that these items don’t snag on other clothes..

5. Put small size clothes such as bras, nylon

stockings and lace items in a laundry bag.

6. Turn easy-pilling and long-pile fabric inside

out. NOTE : Combine large and small items in a load. Load large items first. Large items should not be more than half the total wash load. Do not wash single items. This may cause an out-of-balance load. Add one or two similar items.

PTL75120.indd 90 26/8/2022 4:43 PM Detergent Read instructions on the packet of detergent or other agent, for correct quantity depending on the amount of laundry, degree of soiling, and water hardness. Fabric softener Detergent for pre-wash Detergent for main wash Caution ! Detergent only need to be added in “case I “ after selecting pre-washing for machines with this function. Do not exceed the “MAX” level mark when filling in detergent, additives or softener. Detergent recommendation Recommended washing detergent Wash cycles Washing temp. Type of laundry and textile Heavy-duty detergent with bleaching agents and optical brighteners Cotton, ECO 40-60, Mix 20°C / 40°C/ 60°C White laundry made from boilproof cotton or linen Colour detergent without bleaching agent and optical brighteners Cotton, ECO 40-60, Mix Cold/ 20°C / 40°C Coloured laundry made from cotton or linen Color or mild detergent without optical brighteners Synthetic Cold/ 20°C / 40°C Coloured laundry made from easy care fibres or synthetic materials Mild washing detergent Synthetic 20°C / 40°C Delicate textiles, silk, viscose Special wool detergent Wool 20°C / 40°C Wool

Agglomerating or ropy detergent or additive can be diluted in some water before pouring it into the detergent dispenser, to avoid its inlet to get blocked and thus cause a water overflow. Please choose the suitable type of detergent to get a maximum of washing performance and a minimum of water and energy consumption. To achieve the best cleaning result a proper detergent dosing is important. If too many suds occur, please reduce the detergent amount. Always adjust the amount of detergent according to the water hardness, if your tap water is soft, use less detergent. Dose according to how dirty your laundry is, less dirty clothes require less detergent. Highly concentrated (compact detergent) requires particularly accurate dosing. Following symptoms are a sign of detergent overdosing: - heavy foam formation - poor washing and rinsing result Following symptoms are a sign of detergent underdosing: - laundry turns grey - built-up of limescale deposits on the drum, the heating element and/or the laundry

Before washing, please make sure the washing machine is installed properly. Your appliance is thoroughly checked before it leaves the factory. To remove any residual water and to neutralize potential odors, it is recommended to clean your appliance before first use. For this reason, start the Cotton program at 60°C without laundry and detergent. Control Panel PTL75120 Program selection knob

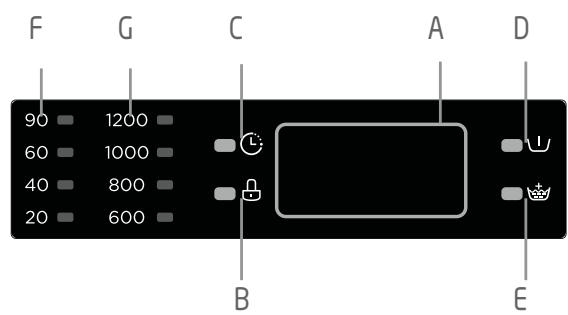

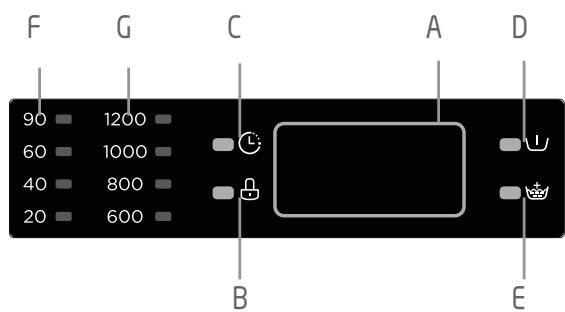

A. Displaying washing time, delayed start time, error code Indicator lights

Door lock Delayed start Pre-wash Extra rinse Temperature Spin speed

Speed / Mute Delayed start Extra functions Combination Child lock On/Off button Start/Pause button Washing Your Laundry.

2. Plug in the appliance.

PTL75120.indd 94 26/8/2022 4:43 PM

3. Sort the laundry and put it into the drum.

Do not put too much laundry into the drum. It can cause excessive vibration or damage to the appliance. Perwash Softener Mainwash

4. Add the detergent according to the amount

of laundry, degree of soiling, water hardness and manufacturer’s instructions.

6. Close machine door.

Make sure that the drum flaps are properly locked. All metal hooks must be properly hooked inside the rear door flap. Check the roller before each laundry ,it must roll smoothly.

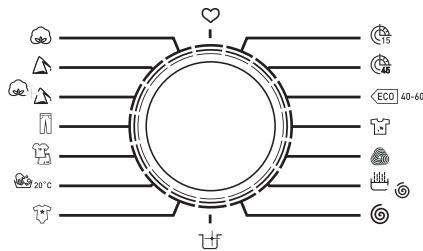

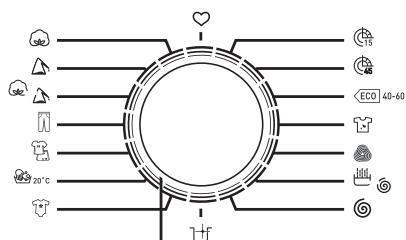

. Select a programme by turning the programme selector. The required time will be displayed. It can be rotated in either direction. For detailed overview of programmes, see Programme Chart.

8. Temperature and spin speed can be selected individually.

The selected temperature and spin speed will be displayed. Repeatedly press this button to select the temperature. ( Cold, 20°C, 40°C, 60°C, 90°C ) Repeatedly press this button to select the spin speed. ( 0-600-800-1000-1200 rpm )

PTL75120.indd 96 26/8/2022 4:43 PM

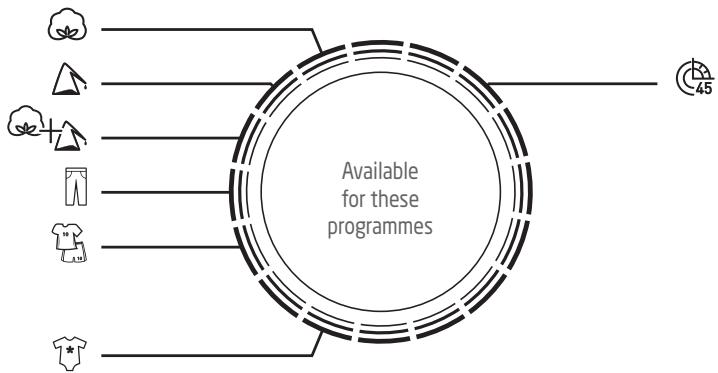

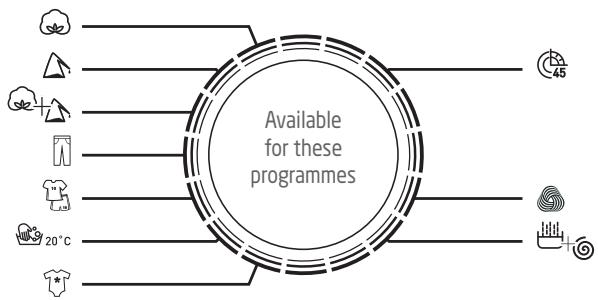

9. After selecting a programme, you can add the following optional functions.

Press this button to select the optional functions. The corresponding function indicator light will illuminate. Prewash You can use this function to wash laundry twice before main wash and it is suitable for heavily soiled, hard-wearing washing, e.g. made of cotton or linen. When selecting this function, put detergent in the detergent compartment . Available for these programmes

PTL75120.indd 97 26/8/2022 4:43 PM Press this button to select the optional functions. The corresponding function indicator light will illuminate. Extra rinse If you can concerned that some detergent may remain in your laundry, you can add an extra rinse process. Available for these programmes

10. You can use the delay start function to set the machine to start a cycle at a

set time. Repeatedly press this button to set the desired delay start time up to 24 hours ( in increments of 1 hour). The set time will be displayed. To cancel the setting, repeatedly press this button until the display shows “0H”. It should be pressed before starting the program. If the program is already started, turn off the appliance to reset a new one.

11. Start a programme.

Press this button to start operation.

• If you set the delay start function, this function will be activated. When the set time has elapsed, the machine will automatcially start running a cycle. Change a programme If you have mistakenly selected a wrong programme, please follow steps below to reselect a programme.

1. Press to turn off the machine and press

again to turn it on.

2. Turn the programme selector to select a programme.

12. At the end of a programme, the machine will beep and the display will show

indicator light goes out, you can open the machine door and remove laundry.

PTL75120.indd 100 26/8/2022 4:44 PM Programme Description Cotton Hard-wearing textiles, heat-resistant textiles made of cotton or linen. Intensive When washing heavily soiled laundry, you can select this programme to increase the washing effectiveness, and the washing time is increased. Synthetic Wash synthetic articles, for example: shirts, coats, blending. When washing the knitting textiles, detergent quantity shall be reduced due to its loose string construction and easily forming bubbles. Mix ECO 40-60 Mixed load consisting of textiles made of cotton and synthetics Default 40°C, not selectable, suitabale for laundry washing at 40°C – 60°C. When washing brightly colored clothes, you can select this programme to protect colours from running. Spin Only Rinse & Spin Sport Wear Jeans Extra spin with selectable spin speed Extra rinse with spin Select this programme when washing the activewear. Select this programme when washing jeans. Baby care When washing the baby’s clothes, you can select this programme. This programme helps make the baby’s clothing cleaner and make the rinse performance better to protect the baby skin. Wool This programme is specially for washing hand or machine-washable wool or rich-wool textiles. You can select this particularly gentle wash programme to prevent laundry from shrinking, with longer pauses in the programme (during which the items rest in the water). Quick 15’ Select this programme when washing lightly soiled clothes for a short period of time. Rapid 45’ Select this programme when quickly washing few clothes which are not very dirty. Drum clean For removing traces of detergent, mold and dirt from the inside of the drum or tub to prevent dirt from accumulating inside the drum

PTL75120.indd 101 26/8/2022 4:44 PM ADDITIONAL FUNCTIONS Child Lock You can lock the buttons and programme selector to prevent children from tampering the washing cycle settings. Activating this function Press and hold the two buttons simultaneously for 3 seconds. Beeps will sound. NOTE : When the child lock is activated, no button can work except the on/off button

Deactivating this function Press and hold the two buttons simultaneously for 3 seconds. Buzzer Press this button for 3 seconds. Beeps will sound and the buzzer is cancelled. To activate the buzzer, press this button for 3 seconds again. Beeps will sound and the buzzer is activated. Program Memory Function

1. Turn the knob to select a program to be memorized.

for about 3 seconds to memorize the program.

3. Turn the knob to the

position and the memorised program will be selected. The default factory memory program is . Power-off Memory Function Your washing machine has a memory function to ensure the smooth running of the washing programme by automaitcally resuming the last wash cycle when power is restored after a power-cut.

PTL75120.indd 102 26/8/2022 4:44 PM

CLEANING AND MAINTENANCE

Always unplug the appliance and turn off the water tap before cleaning and maintenance. Cleaning the Machine Housing Wipe with a soft, damp cloth. Do not use chemical or abrasive cleaning agents. Immediately remove washing and cleaning agent residue. Cleaning the Drum Any rust stains left inside the drum by metal articles must be removed immediately using chlorine-free detergents. Never use steel wool for cleaning the drum ! To descale the drum, run the Drum Clean cycle with the descaling agent according to the manufacturer’s instructions for correct detergent dosage. Cleaning the Inlet Filter NOTE : Clean the inlet filter if water is not supplied properly. If water is very hard or contains traces of lime deposit, the water inlet filter may become clogged. It is recommended to clean the inlet filter from time to time.

PTL75120.indd 103 26/8/2022 4:44 PM

1. Turn off the water 2. Clean the filter 3. Unscrew

the tap. Remove the using a brush. water supply hose from the hose. tap.

4. Pull out the filter with long

nose pliers. Clean the filter using a brush. Reinstall the filter to the water inlet and reconnect the water supply hose. Reconnect the hose onto the tap. Cleaning the Detergent Dispenser NOTE : It is recommended to clean the detergent dispenser from time to time. Never use chemical or abrasive cleaning agents.

1. Press down the arrow location on softener cover inside the

2. Lift the clip up and take out softener cover and wash all grooves

3. Restore the softener cover and push the drawer onto position.

1. Pull out the dispenser drawer

2. Clean the dispenser drawer

Cleaning the Drain Pump Filter The drain pump filter collects threads and small objects left in the laundry. Check regularly that the filter is clean to ensure smooth running of your machine.

Be careful when draining if the water is hot. Allow the water to cool down before cleaning the drain pump filter. Risk of scalding ! Clean the filter periodically every 3 months to ensure the normal operation of the appliance.

1. Press the tab on the cover to

2. Remove the filter by turning

3. Remove any extraneous

matter from the filter.

4. After cleaning, replace the

filter by turning it clockwise until it is in place. Close the cover until a click is heard.

PTL75120.indd 106 26/8/2022 4:44 PM TROUBLESHOOTING Problem Possible Cause Solution Door is not closed properly. Close the door properly and restart. Clothes are stuck. Check the laundry. Door cannot be opened. Safety protection is activated. Disconnect the power and restart. Water leakage Connections are not tight enough. Check and fasten the water inlet hose. Check and clean the outlet hose. Detergent residues in the detergent drawer Detergent is damp and/or clotted.. Clean and wipe the detergent drawer dry. Indicator or display does not work. PC board or harness have connection problems. Switch off the power and check if the mains plug is connected properly. Transit bolts are still in place. Check if the transit bolts have been removed. Floor is not solid or level. Make sure the appliance is installed on a solid and level floor. Appliance does not start. Abnormal noise

PTL75120.indd 107 26/8/2022 4:44 PM Error codes Display Possible Cause Solution Door is not closed properly. Close the door properly and restart. Water injecting during wash cycle. Check if the water pressure is high enough. Straighten the water pipe. Clean the inlet valve filter. problem Overtime water draining Check the drain hose for blockage. Water overflow Restart the appliance. Others Restart the appliance. If problem persists, please contact the customer service.

PTL75120.indd 108 26/8/2022 4:44 PM

PRODUCT INFORMATION SHEET

Product Information Sheet COMMISSION DELEGATED REGULATION (EU) 2019/2014 with regard to energy labelling of household washing machines and household washer-dryers Supplier’s name or trade mark: Etablissements Darty & fils © | Proline Supplier’s address: 9 Rue des Bateaux-Lavoirs, 94200 Ivry-sur-Seine, France Model identifier: PTL75120 General product parameters: Parameter Value Rated capacity (a) (kg) Dimensions in cm 7,5 Energy Efficiency Index(a) (EEIw) Washing efficiency index(a) Energy consumption in kWh per cycle, based on the eco 40-60 programme at a combination of full and partial loads. Actual energy consumption will depend on how the appliance is used. Maximum temperature inside the treated textile(a) (°C) Parameter Value Height

69,0 Energy efficiency class (a)

1,031 Rinsing effectiveness (g/ kg) (a) 5,0 0,611 Water consumption in litre per cycle, based on the eco 4060 programme at a combination of full and partial loads. Actual water consumption will depend on how the appliance is used and on the hardness of the water.

Weighted remaining moisture content (a) (%) 53,9 Rated capacity

Rated capacity 3:31 Half 2:45 Quarter 2:45 Spin speed ( )(rpm)

Spin-drying efficiency class (a)

Type freestanding Airborne acoustical noise emission class (a) (spinning phase)

Off-mode (W) (if applicable) 0,50 Standby mode (W) (if applicable) N/A Delay start (W) (if applicable) 4,00 Networked standby (W) (if applicable) N/A Minimum duration of the guarantee offered by the supplier: 24 months This product has been designed to release silver ions during the washing cycle

Additional information: Weblink to the supplier’s website, where the information in point 9 of Annex II to Commission Regulation (EU) 2019/2023 is found: www.darty.com (a) for the eco 40-60 programme. To find the model information in the product database : Click the link https://eprel.ec.europa.eu/screen/product/washingmachines2019/1304915

PTL75120.indd 110 26/8/2022 4:44 PM Values for the following programmes: The eco 40-60 programme at the rated capacity

rated capacity in kg: 7,5 kg

programme duration, expressed in hours and minutes: 3:31

energy consumption, expressed in kWh/cycle: 0,992 kWh/cycle

water consumption, expressed in litres/cycle: 56,4 L/cycle

maximum temperature reached for minimum 5 minutes inside the laundry being treated in the washing cycle, expressed in degrees centigrade: 41°C

remaining moisture content after the washing cycle, expressed in percentage of water content, and spinning speed at which this was achieved: 51% 1200 rpm The eco 40-60 programme at half of the rated capacity

rated capacity in kg: 3,75 kg

programme duration, expressed in hours and minutes: 2:45

energy consumption, expressed in kWh/cycle: 0,491 kWh/cycle

water consumption, expressed in litres/cycle: 45,6 L/cycle

maximum temperature reached for minimum 5 minutes inside the laundry being treated in the washing cycle, expressed in degrees centigrade: 29°C

remaining moisture content after the washing cycle, expressed in percentage of water content, and spinning speed at which this was achieved: 53% 1200 rpm

PTL75120.indd 111 26/8/2022 4:44 PM The eco 40-60 programme at a quarter of the rated capacity

rated capacity in kg: 2,0 kg

programme duration, expressed in hours and minutes: 2:45

energy consumption, expressed in kWh/cycle: 0,245 kWh/cycle

water consumption, expressed in litres/cycle: 38,1 L/cycle

maximum temperature reached for minimum 5 minutes inside the laundry being treated in the washing cycle, expressed in degrees centigrade: 23°C

remaining moisture content after the washing cycle, expressed in percentage of water content, and spinning speed at which this was achieved: 56% 1200 rpm The 20 °C programme at the rated capacity for this programme

rated capacity in kg: 3,8 kg

programme duration, expressed in hours and minutes: 1:01

energy consumption, expressed in kWh/cycle: 0,180 kWh/cycle

water consumption, expressed in litres/cycle: 45 L/cycle

maximum temperature reached for minimum 5 minutes inside the laundry being treated in the washing cycle, expressed in degrees centigrade: 20°C

remaining moisture content after the washing cycle, expressed in percentage of water content, and spinning speed at which this was achieved: 65 % 1000 rpm

PTL75120.indd 112 26/8/2022 4:44 PM One cotton programme at nominal temperature higher than or equal to 60 °C (if present) at the rated capacity for this programme

rated capacity in kg: 7,5 kg

programme duration, expressed in hours and minutes: 3:44

energy consumption, expressed in kWh/cycle: 1,445 kWh/cycle

water consumption, expressed in litres/cycle: 68 L/cycle

maximum temperature reached for minimum 5 minutes inside the laundry being treated in the washing cycle, expressed in degrees centigrade: 60°C

remaining moisture content after the washing cycle, expressed in percentage of water content, and spinning speed at which this was achieved: 60% 1200 rpm One programme for other textiles than cotton or a mix of textiles (if present) at the rated capacity for this programme

rated capacity in kg: 7,5 kg

programme duration, expressed in hours and minutes: 1:37

energy consumption, expressed in kWh/cycle: 0,755 kWh/cycle

water consumption, expressed in litres/cycle: 68 L/cycle

maximum temperature reached for minimum 5 minutes inside the laundry being treated in the washing cycle, expressed in degrees centigrade: 40°C

remaining moisture content after the washing cycle, expressed in percentage of water content, and spinning speed at which this was achieved: 70% 800 rpm

PTL75120.indd 113 26/8/2022 4:44 PM One programme for the quick washing of lightly soiled laundry (if present) at the rated capacity for this programme

rated capacity in kg: 2 kg

programme duration, expressed in hours and minutes: 0:15

energy consumption, expressed in kWh/cycle: 0,026 kWh/cycle

water consumption, expressed in litres/cycle: 33 L/cycle

maximum temperature reached for minimum 5 minutes inside the laundry being treated in the washing cycle, expressed in degrees centigrade: Cold

remaining moisture content after the washing cycle, expressed in percentage of water content, and spinning speed at which this was achieved: 70% 800 rpm One programme for heavily soiled textiles (if present) at the rated capacity for this programme

rated capacity in kg: 7,5 kg

programme duration, expressed in hours and minutes: 3:48

energy consumption, expressed in kWh/cycle: 0,984 kWh/cycle

water consumption, expressed in litres/cycle: 68 L/cycle

maximum temperature reached for minimum 5 minutes inside the laundry being treated in the washing cycle, expressed in degrees centigrade: 40°C

remaining moisture content after the washing cycle, expressed in percentage of water content, and spinning speed at which this was achieved: 70% 800 rpm

PTL75120.indd 114 26/8/2022 4:44 PM NOTES :

The eco 40-60 programme is able to clean normally soiled cotton laundry declared to be washable at 40 °C or 60 °C, together in the same cycle. This programme is used to assess the compliance with the EU ecodesign legislation. The most efficient programmes in terms of energy consumption are generally those that perform at lower temperatures and longer duration. Loading the household washing machine up to the capacity indicated by the manufacturer for the respective programmes will contribute to energy and water savings. Noise and remaining moisture content are influenced by the spinning speed: the higher the spinning speed in the spinning phase, the higher the noise and the lower the remaining moisture content. The values given for programmes other than the eco 40-60 programme and the wash cycle are indicative only.

Do not disassemble or repair the appliance by yourself. Failure to do so may result in an electric shock or personal injury. To access to professional repair and order spare parts, please get the support from FNAC DARTY after-sales service. Spare parts for your appliances will be delivered within 15 working days after having received the order. Please Note ! All appliances have a 2-year warranty. Warranty does not cover damages caused due to improper installation, unauthorized modification, self-repair or non-professional repair. Contact us at : www.darty.com 24 Hours 7 Days a week 9 Rue des Bateaux-Lavoirs, 94200 Ivry-sur-Seine, France www.vandenborre.be 8 AM – 6 PM Mon to Sat Slesbroekstraat 101 1600 Sint-Pieters-Leeuw Belgium

PTL75120.indd 116 26/8/2022 4:44 PM DISPOSAL As a responsible retailer we care about the environment. As such we urge you to follow the correct disposal procedure for the appliance and packaging materials. This will help conserve natural resources and ensure that it is recycled in a manner that protects health and the environment. You must dispose of this appliance and its packaging according to local laws and regulations. Because this appliance contains electronic components, the appliance and its accessories must be disposed of separately from household waste when the appliance reaches its end of life. Contact your local authority to learn about disposal and recycling. The appliance should be taken to your local collection point for recycling. Some collection points accept appliance free of charge. We apologise for any inconvenience caused by minor inconsistencies in these instructions, which may occur as a result of product improvement and development. Etablissements Darty & fils ©, 9 Rue des Bateaux-Lavoirs, 94200 Ivry-sur-Seine, France 30/09/2022
