Product type	Plasma screen (monitor/TV)
Brand	HITACHI
Model	55 PD 5200
Screen size	55 inches (approximate diagonal)
Resolution	1024 x 1024 pixels (42-inch version) or similar
Dimensions (W x H x D)	Approx. 1030 x 636 x 91 mm (without stand)
Net weight	Approx. 34.9 kg (without stand or speakers)
Power supply	AC 100-240 V, 50/60 Hz
Power consumption	365 W (active mode), < 3 W (standby)
Audio output	12 W + 12 W (6 Ω)
Video inputs	AV1-4 composite, S-Video, component, RGB, DVI-D, VGA
Main functions	Multi-image display, power saving, image and audio settings, remote control
Screen cleaning	Soft cloth slightly dampened (warm water), avoid abrasive products
Frame cleaning	Soft cloth, diluted neutral detergent if necessary
Safety	Minimum ventilation 10 cm around, stable installation, do not block vents
Operating temperature	5°C to 35°C
Operating humidity	20% to 80% (without condensation)
Warranty	12 months (provided installation and use are in accordance)

Frequently Asked Questions - 55 PD 5200 HITACHI

How to clean the plasma screen?

Before cleaning, turn off the screen and unplug it. Use a soft cloth slightly dampened with warm water. Then wipe with a dry soft cloth. For stubborn stains, a diluted neutral detergent can be used. Avoid any abrasive products or solvents.

What to do if the screen shows no image but the indicator is on?

Check that the power cord is properly connected and the main switch is ON. If the light is orange, the screen is in power saving mode. Make sure the input source (computer, player) is turned on and correctly connected. Press the power button on the remote control or the screen.

How to reduce image retention (ghost image)?

Image retention is due to partial degradation of the phosphor. To reduce it, decrease the contrast and brightness. Use the 'Screen wipe' or 'Inverse' functions in the Function menu. Avoid displaying fixed images for too long and alternate with moving images.

What does the message 'No Sync Signal' mean?

This message indicates that no synchronization signal is detected. Check the cable connections between the screen and the computer or video source. Make sure the source is turned on and that power saving mode is not activated. Select the correct input (RGB1 or RGB2) via the remote control.

How to automatically adjust the image position?

Press the AUTO button on the remote control. The screen will automatically adjust the horizontal position, vertical position, clock, and phase for the PC signal. If the result is not satisfactory, perform manual adjustment via the Initial setting menu.

Can I use a wall mount for this TV?

Yes, but only use the wall mount specified by the manufacturer (CMPAD23/25). Installation must be carried out by a qualified installer. Maintain a 10 cm clearance around the screen for ventilation.

What to do if the remote control does not work?

Check that the batteries are correctly inserted (observe polarity) and are not depleted. Replace them if necessary. Use the remote control within 5 m of the sensor and at an angle of less than 30°. Avoid direct bright light on the sensor.

How to connect a computer to the screen?

Use a DVI-D cable (for RGB1) or VGA cable (for RGB2). Connect the cable to the corresponding terminals on the back of the screen. Select the appropriate input (RGB1 or RGB2) with the remote control. Make sure the computer resolution is compatible (see list of recommended signals in the manual).

Is it normal for the screen to get hot?

Yes, it is normal. The plasma screen generates heat through internal discharge. The surface temperature may become high after prolonged use. Ensure adequate ventilation and do not block the vents.

How to activate power saving mode?

Power saving mode activates automatically when no signal is detected (VESA DPMS compliant). The indicator turns orange. To exit, use the computer or press an input button. You can also set the Panel life function to Extension 1 or 2 in the Function menu to reduce consumption.

USER MANUAL 55 PD 5200 HITACHI

CHARACTERISTIQUES DU PRODUIT 27

CHARACTERISTIQUES DU PRODUIT

CHARACTERISTIQUES DU PRODUIT (suite)

INSTRUCTIONS D'OPÉRATION (suite)

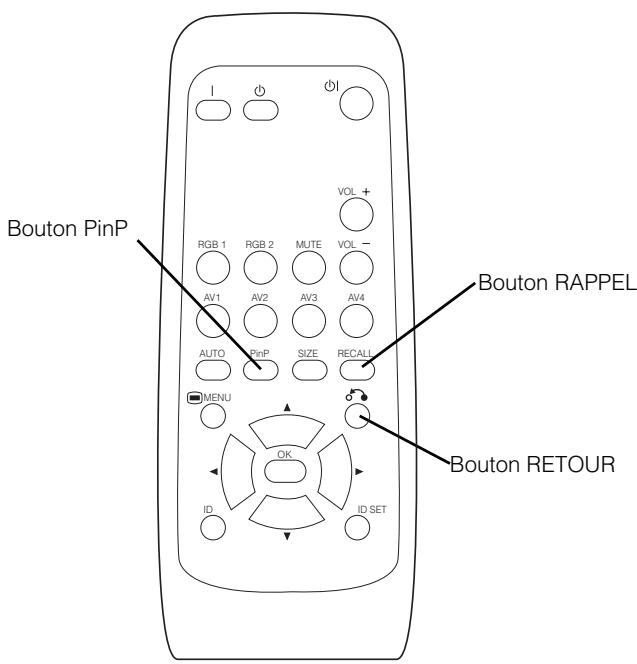

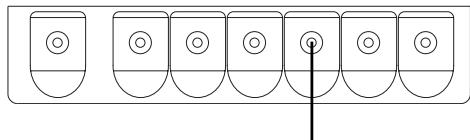

Bouton RAPPEL

Affichage de MULTI PICTURE (MULTI IMAGE)

<\bigtriangleup>
Principal	Secondaire

REMARQUES

INSTRUCTIONS D'OPÉRATION (suite)

MENU IMAGE (suite)

INSTRUCTIONS D'OPÉRATION (suite)

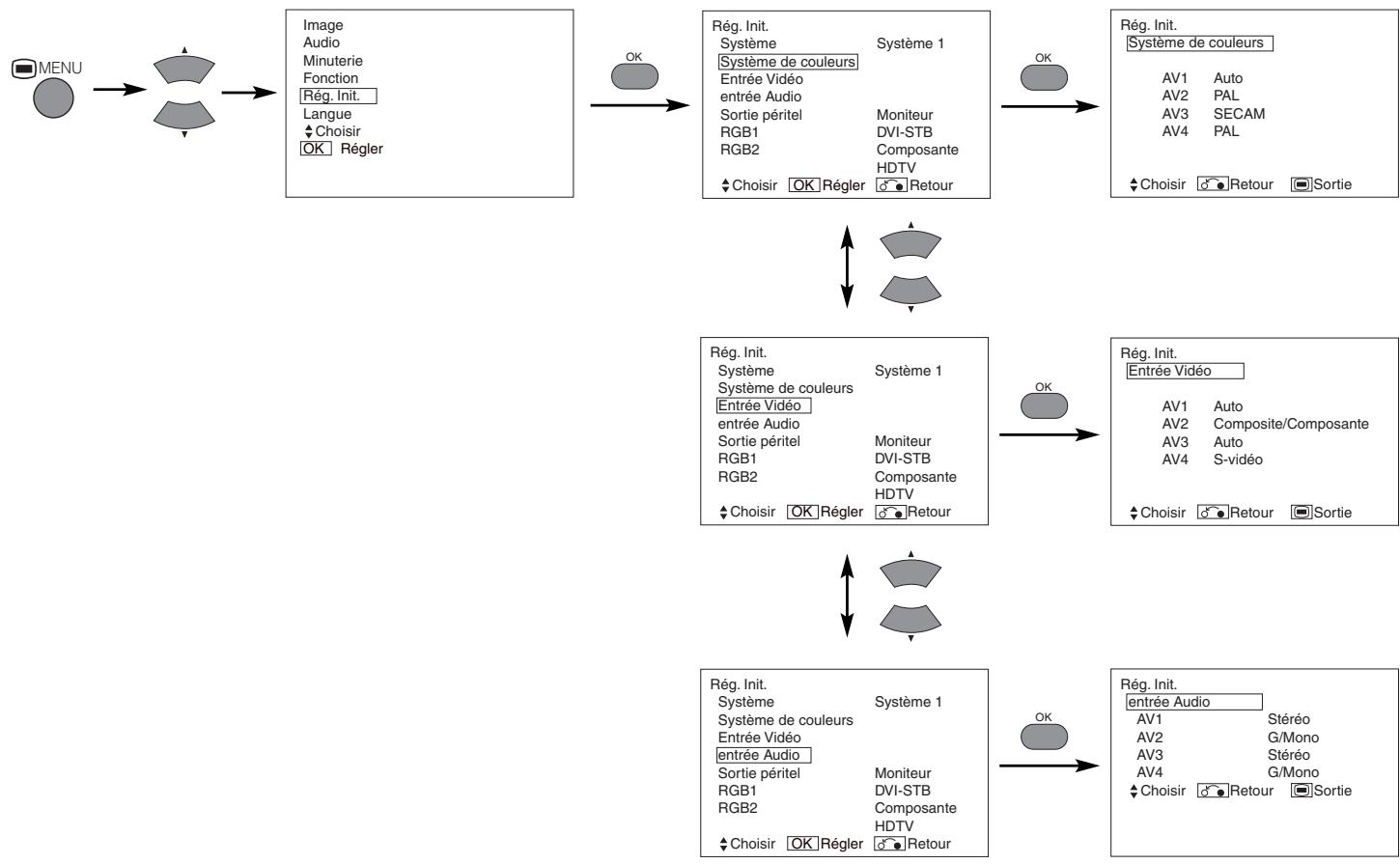

MENURÉGLAGE INITIAL

CHARACTERISTIQUES DU PRODUIT

CHARACTERISTIQUES DU PRODUIT (suite)

Principal

Secondaire

4 Quatre Images

Entrée terminal		AV1~AV4		AV1, AV2					RGB1	RGB2	TELETEXTE
	SecondairePrincipal	PAL SECAM	NTSC3,58 NTSC4,43	576i 576p	480i 480p	1080i/50	1080i/60	720p/60	STB	Composante
AV1~AV4	PAL, SECAM	○	○
	NTSC3,58/4,43	○	○
AV1AV2	576i, 576p	○	○
	480i, 480p	○	○
	1080i/50	○	○
	1080i/60	○	○
	720p/60	○	○
RGB1	STB
RGB2	Composante	○	○

Principal	Secondaire 1
	Secondaire 2
	Secondaire 3

（ ：disponible)

INSTRUCTIONS D'OPÉRATION (suite)

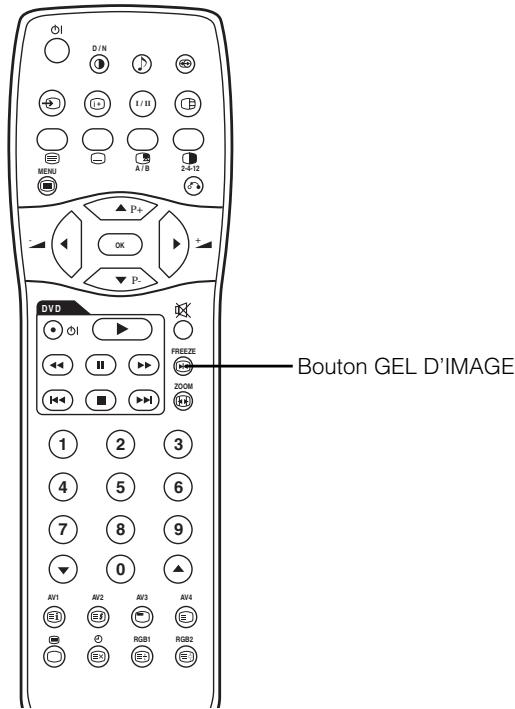

Gel D'images

INSTRUCTIONS D'OPÉRATION (suite)

MENURÉGLAGE INITIAL (Suite)

INSTRUCTIONS D'OPÉRATION (suite)

AUTRES FONCTIONS (Suite)

CHARACTERISTIQUES DU PRODUIT

Hitachi Plasma TV Horizontal Wall-mount Unit

Model

PWT001

Installation Instructions

Thank you for purchasing the Hitachi Plasma TV Wall-mount Unit.

To ensure correct usage, please read this instruction manual thoroughly. After reading, please store this manual in a safe place for future reference.

This plasma TV wall-mount unit is for use with the following models:

HITACHI Plasma TV CL32-PD2100, CL37-PD2100, CL42-PD2100, 32PD5100, 42PD5100, 42PMA500

32PD5000, 32PD5200, 32PD5300, 37PD5200, 42PD5000, 42PD5200, 42PD5300, CMP4211/2, CMP4213/4

Special techniques are necessary for installation of the plasma TV.

Do not attempt to perform this work by yourself.
Request an installation specialist to install this unit.
This company assumes absolutely no responsibility for injuries and damages that may occur due to improper installation and handling.
Please remember that if you remove the plasma TV set from the wall later, you will find the screw holes and anchor bolts for the mounting unit left on the wall. Also note that a long use of the plasma TV set may discolor the wall around it due to its heat and air flow.

To dealers and shops

• To ensure customer safety, be sure to design the installation location so that the strength is sufficient to withstand the weight of both the plasma TV and the wall-mount unit.
  Always use at least two persons for all installations.
• Fully tighten all of the mounting screws as specified in the installation instructions.

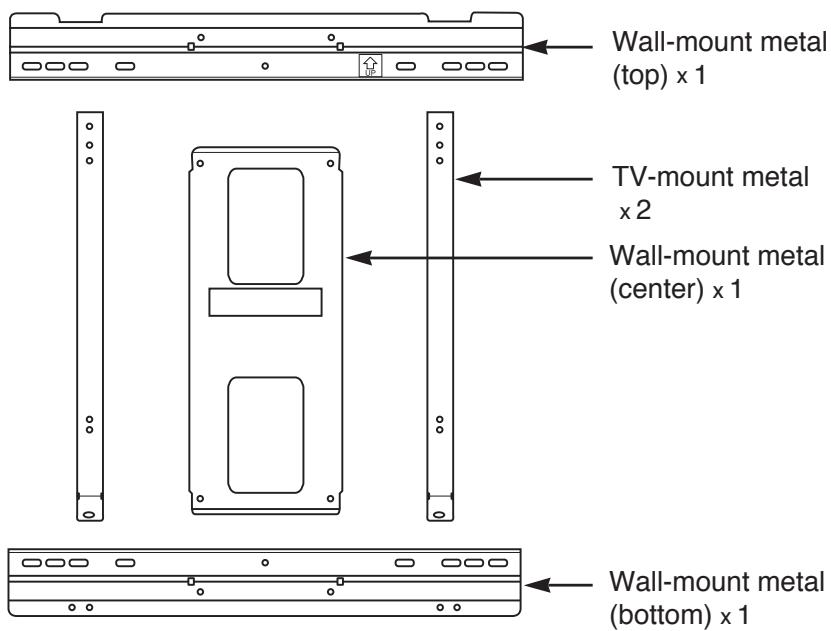

Parts Configuration Chart

In the parts packing

M6 x 18 screw x 10

M5 - 6 flat washer × 8

Wire clamp x2

Parts for CL37-PD2100 only

Bracket (R),(L) x1 each

M6 x 18 screw x4

Usage cautions to ensure correct usage

Symbols

The following symbols are used to ensure safe usage of the product, to prevent danger to yourself and other parties and to prevent damage to property.

WARNING

This symbol indicates that incorrect handling due to ignoring this symbol can result in the possibility of personal injury or even death.

CAUTION

This symbol indicates that incorrect handling due to ignoring this symbol can result in the possibility of personal injury and physical damage.

This symbol indicates additional cautions (including warnings).

Caution (general)

This symbol indicates forbidden actions.

Forbidden (general)

Disassembly prohibited

This symbol indicates required actions.

Required (general)

Indicates that the power plug is to be disconnected from the power outlet.

Safety Cautions

WARNING

Disconnect the power plug from the power outlet.

Contact your local dealer.

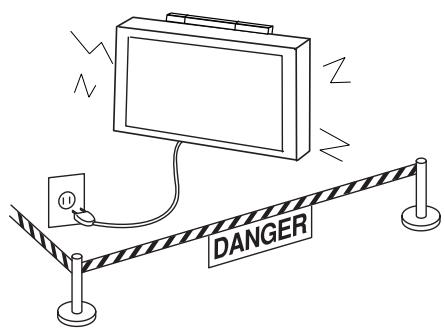

■ When a malfunction occurs, disconnect the power plug from the power outlet and take measures to prevent other people coming near the plasma TV.

In the cases such as

• The plasma TV is loose and vibrates to an extreme degree,
• Mounting screws or parts are loose or missing,

failure to take appropriate actions can result in injury.

Perform the following actions immediately whenever a malfunction occurs.

①Turn off the plasma TV power switch.
② Disconnect the power plug from the power outlet.
③ Surround the area with rope, etc., to prevent other people coming near.
④ Contact your local dealer.

Handling by other than professional contractors is prohibited.

■ Ask your dealer to install, move or adjust the angle of the wall-mount unit.

Incorrect installation or adjustment can cause the plasma TV to fall.

WARNING

The wall where the wall-mount unit is to be installed must be capable of long-term support of the total load of the plasma TV and wall-mount unit. Measures should also be taken to ensure sufficient strength to withstand the force of earthquakes, vibration and other external forces.

Incorrect installation can cause the plasma TV to fall and cause injury.

Total load of the (plasma TV + wall-mount unit)

= 26kg CL32 - PD2100

34kg...CL37-PD2100

37kg...CL42-PD2100

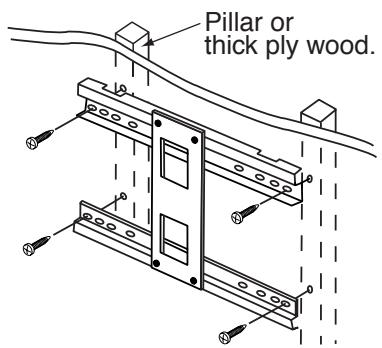

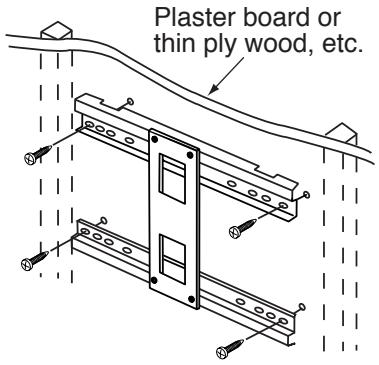

• Installation on a wooden wall

Always install so that the load is supported by a pillar. If the strength of the pillar is insufficient, add reinforcement. Do not install on decorative posts or plaster board.

• Installation on a concrete wall

Use commercially available anchors that are capable of fully supporting the load of the plasma TV.

CAUTION

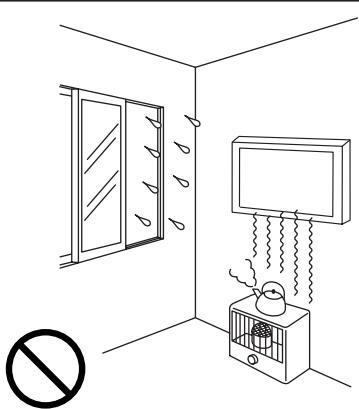

Avoid installing in locations where the temperature and humidity are excessively high, and where contact with water is possible.

These can result in fire or electrical shock.

• Do not block the ventilation holes.

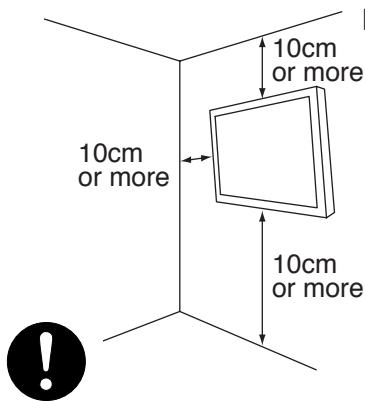

• Also provide sufficient clearance in regard to the surroundings to avoid blocking the ventilation.

The internal temperature could elevate and possibly result in fire.

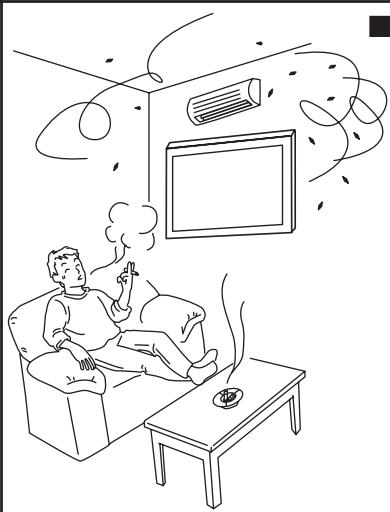

Do not install close to an air-conditioner intake or outlet.

Do not install in locations where there is excessive amounts of dust, oily smoke or tobacco smoke.

Fire could result.

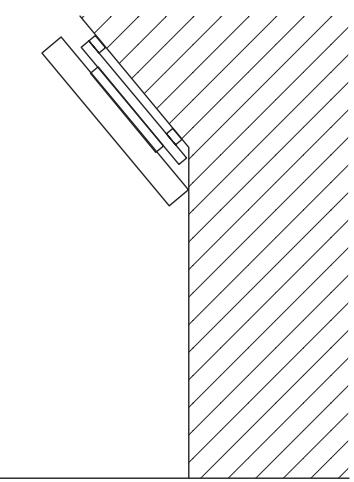

Install only on a vertical surface. Avoid sloped surface. Also, do not install facing upward.

The internal temperature could elevate and possibly result in fire. Injury or damage could also result from falling.

CAUTION
■ Do not install in locations where there is excessive vibration or impact. Injury and damage could result from falling.	■ Do not install where there is direct sunlight and other strong light. Strong light could result in eye fatigue during usage.

Installing

WARNING
■ Use the specified bolts and screws in the specified places and tighten firmly. Failure to do this could cause injury if the plasma TV falls.	■ Make sure the TV-mount metals and wall-mount metals are firmly engaged. Failure to do so could cause the plasma TV to fall.
■ Do not alter any of the parts. And do not use broken parts. This could result in injury due to the plasma TV falling.	■ Always use at least two people to perform the installation work. Injury could result from dropping heavy objects.
	■ Use care to prevent the fingers being caught.

Installation Method

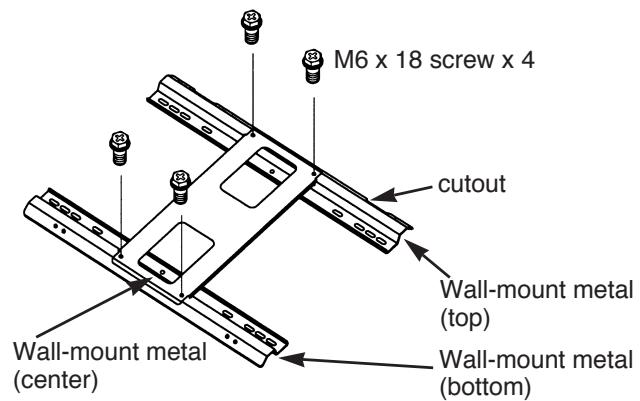

Assembling the wall-mount metals

■ Assemble the wall-mount metal (Top), (Center) and (Bottom) with 4 M6 x 18 screws.

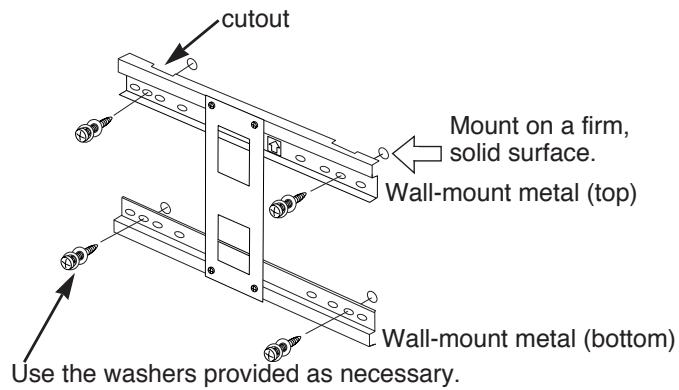

Mounting the wall-mount unit on the wall

1. Prepare at least four sets of commercially available anchors and screws, etc., for various types of walls.
2. Carefully read the safety cautions concerning installation locations as described in this instruction manual and then select a suitable location for installation.

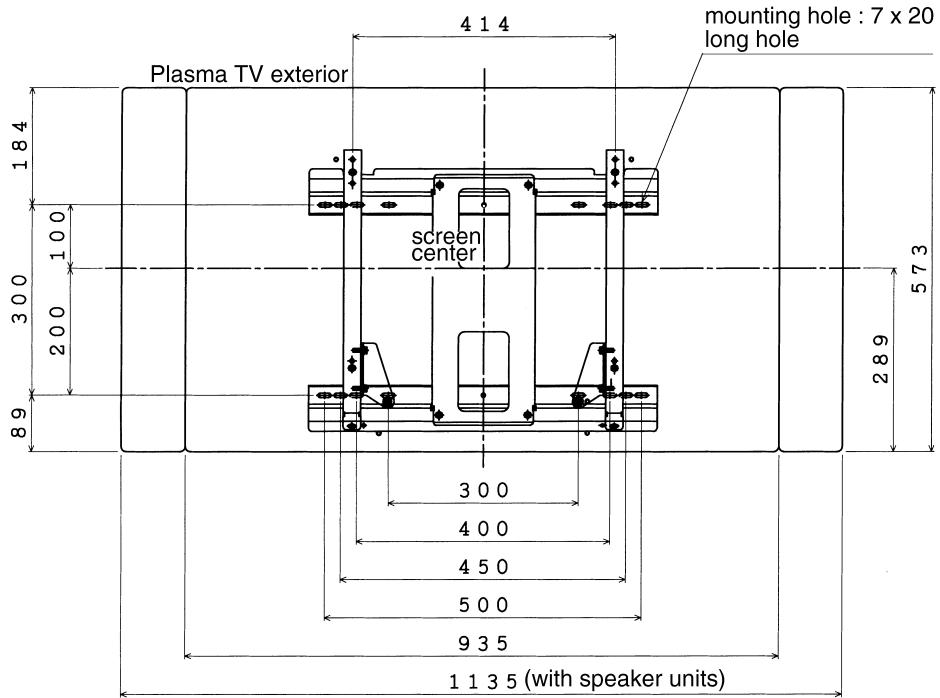

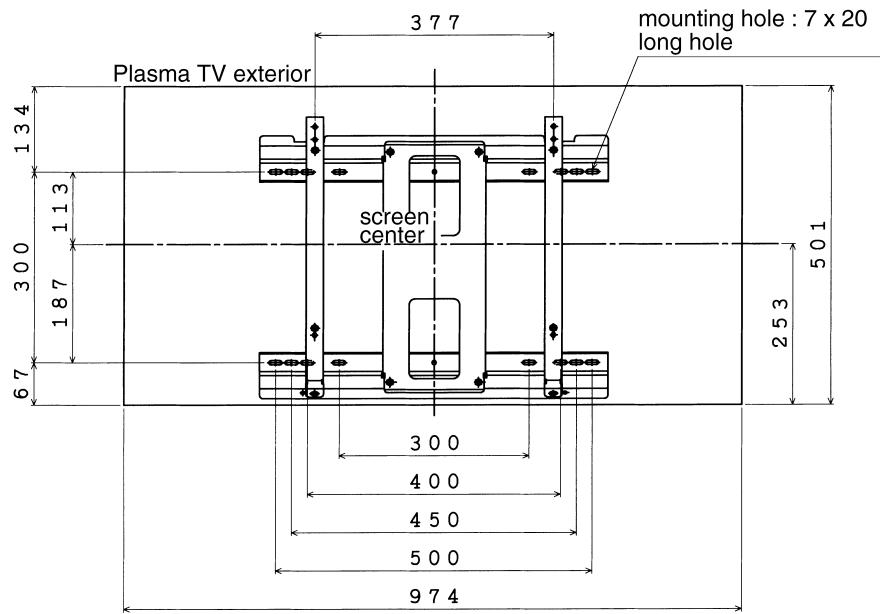

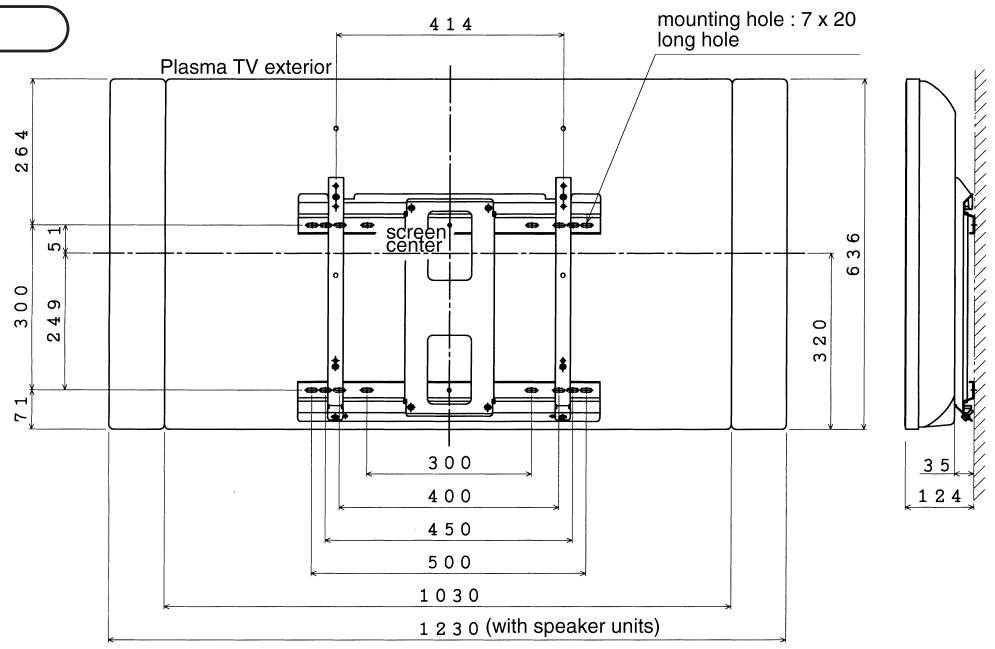

3. The relationship between the plasma TV exterior and center, and the positions of the wall-mount unit mounting holes is shown in the diagram for the various models. Install the anchors in the wall as shown in the diagram and process the holes as necessary.

4. Make sure that the strengths of the wall and the screws are fully sufficient.

32 inch

37 inch

1. Fasten the wall-mount unit securely to the wall.
2. Clamp to two or more of the long slotted holes in the upper and lower parts of each wall-mounting metal in a well-balanced manner.

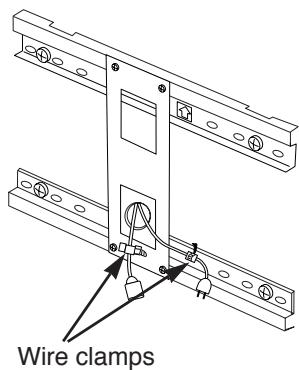

1. Dressing the cables

2. When passing the plasma TV power cord and signal cables behind the plasma TV, use wire clamps, etc., to prevent cable damage.

Mounting the TV-mount metals on the plasma TV

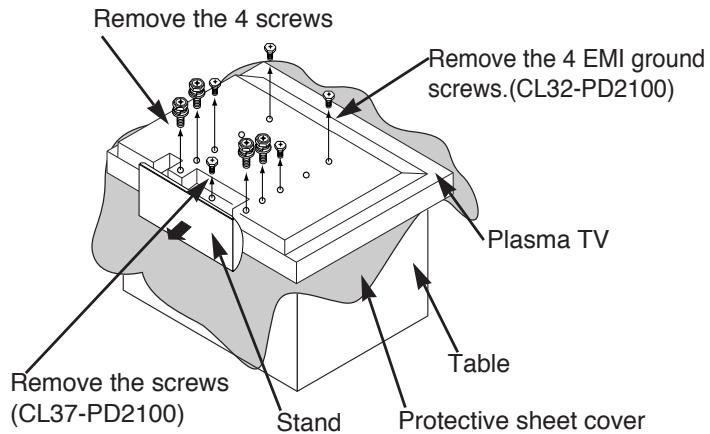

1. Remove the stand.

(1) Place a protective sheet cover on the top of a table and place the plasma TV on the cover with the back side upward.
② Remove the 4 EMI ground screws. (for CL32-PD2100 only.)
③ Remove the 4 or 5 (CL37-PD2100) screws fastening the stand and remove the stand in the direction indicated by the arrow mark.

2. Installing the TV-mount metals

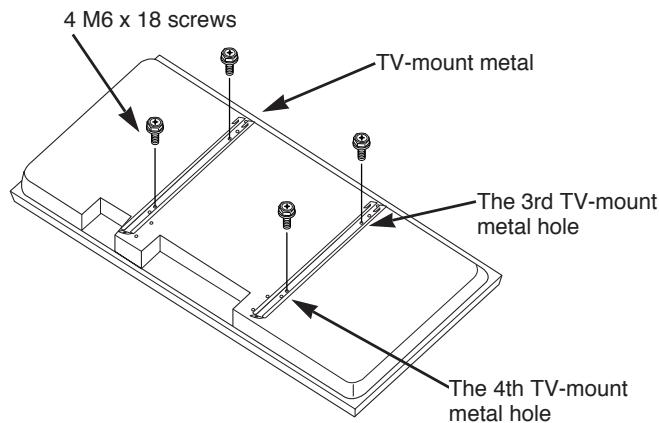

CL32-PD2100

■Fasten the two TV-mount metals to the back of the plasma TV with 4 M6 x 18 screws.

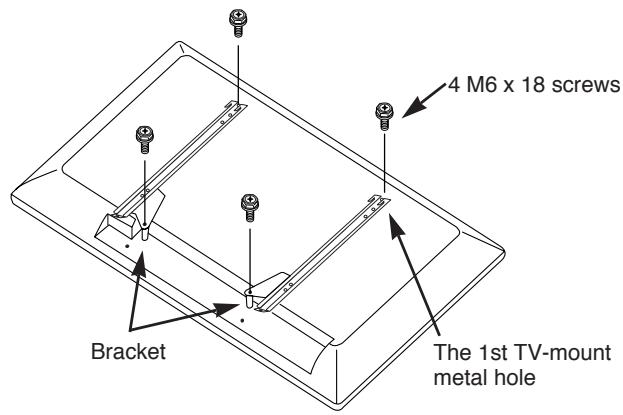

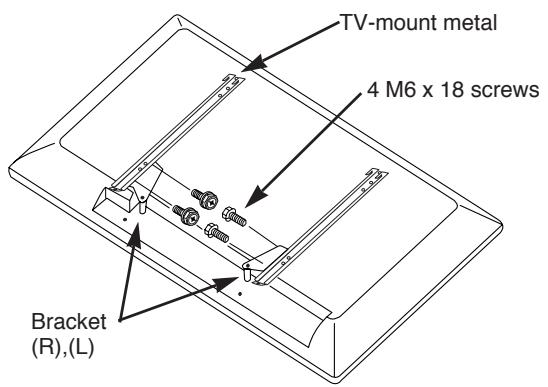

CL37-PD2100

① Fasten the bracket (R), (L) to the TV mount metal with 4 M6 x 18 screws.

② Fasten the two TV-mount metals to the back of the plasma TV with 4 M 6 × 18 screws.

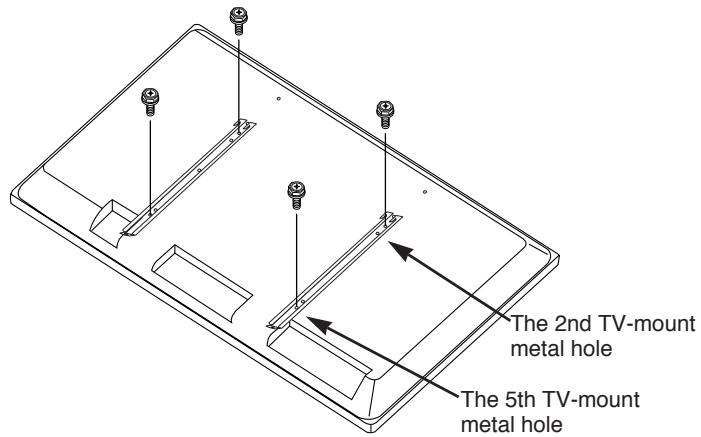

CL42-PD2100

■Fasten the two TV-mount metals to the back of the plasma TV with 4 M6 x 18 screws.

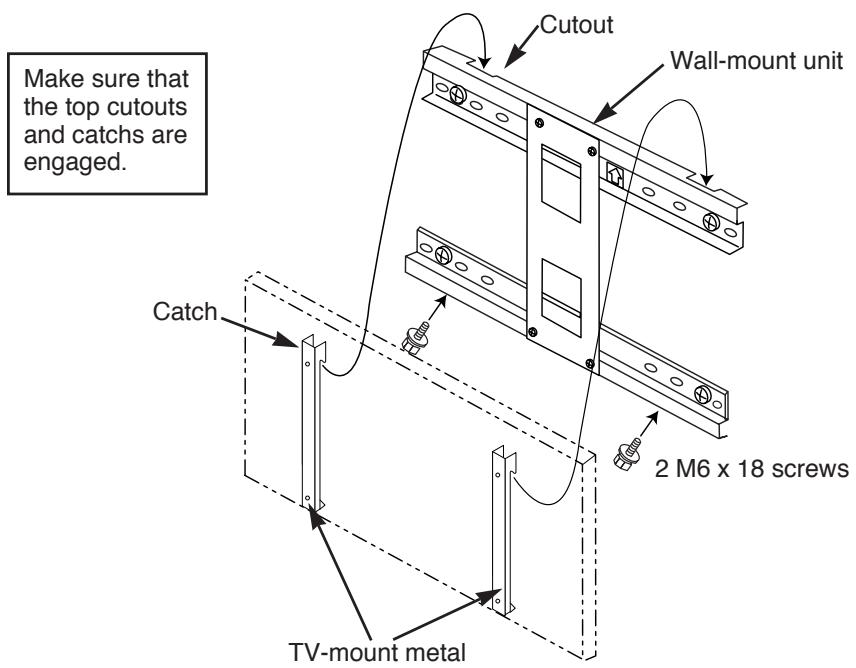

Installing the plasma TV on the wall mount

① Hang the TV-mount metal catches on the wall-mount unit cutouts.
② Fasten with 2 M 6 × 18 screws from the bottom.
③ After make sure all mouting works are completely done, connect power cord and signal cables.

The plasma TV should always be carried by at least two people.
- Disconnect the plasma TV power cord and all cables.

Product Specifications

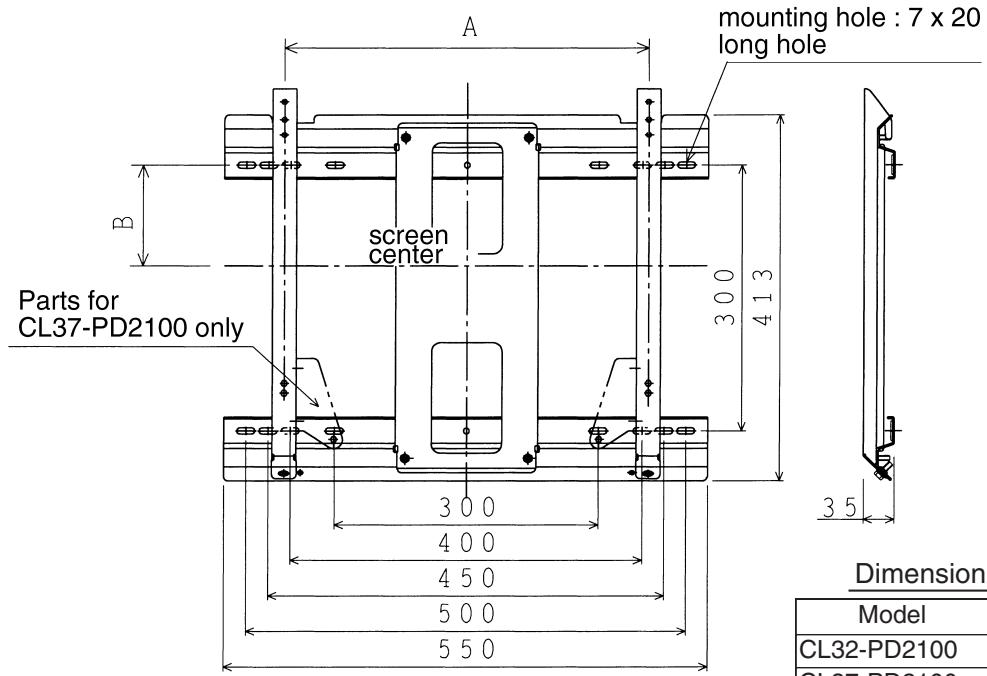

External Dimensions

Dimension (A),(B)

Model	A	B
CL32-PD2100	377	113
CL37-PD2100	414	100
CL42-PD2100	414	51

Mass	2.6kg
Main material	Steel sheet
Surface treatment	Black electrodeposited baked paint
Angle adjustment	Vertical fix
Products mounted	Hitachi Plasma TV CL32-PD2100 , CL37-PD2100 , CL42-PD2100
