USER MANUAL NC HISENSE

DISPOSAL OF THE APPLIANCE 26

Before You Throw Away Your Old Refrigerator or Freezer: + % % ! ! ! "

WARNING Suffocation Hazard Remove doors from your old refrigerator. Failure to do so can result in death or brain damage. !

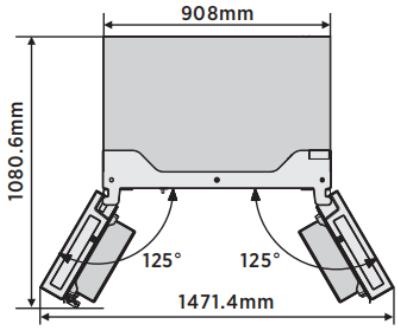

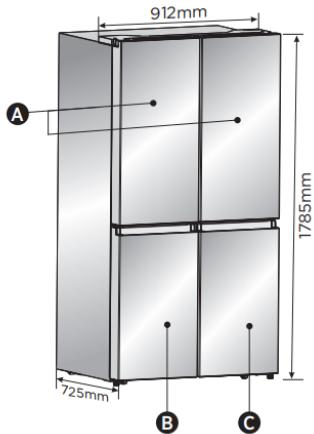

: Recommended Clearances

Location Requirements

WARNING Explosion and Fire Hazard Keep flammable materials and vapors, such as gasoline, away from appliance. Failure to do so can result in death, explosion or fire.

Electrical Shock Hazard Plug into a grounded 3 prong outlet. Do not remove the ground prong from the power cord plug. Do not use an adapter. Do not use an extension cord. Failure to do so can result in death, fire or electrical shock. .

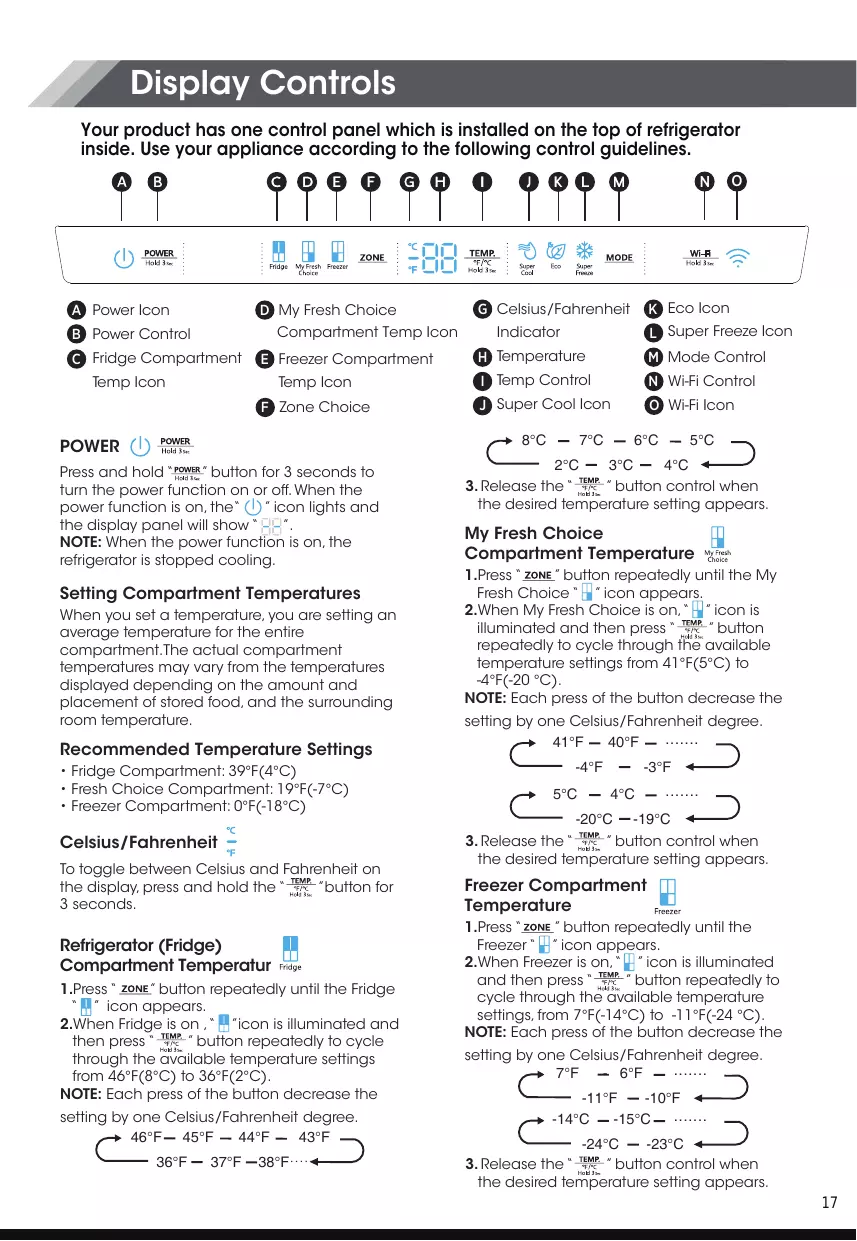

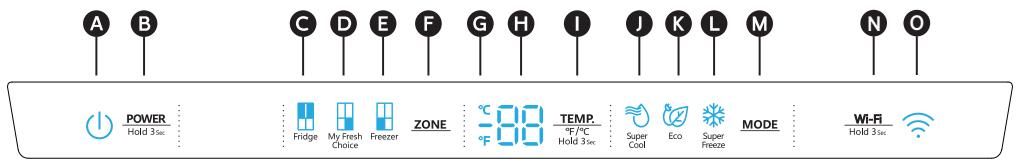

Display Controls Your product has one control panel which is installed on the top of refrigerator inside. Use your appliance according to the following control guidelines.

D My Fresh Choice Compartment Temp Icon

B Power Control C Fridge Compartment

E Freezer Compartment

Temp Icon F Zone Choice

Press and hold “ ” button for 3 seconds to turn the power function on or off. When the power function is on, the“ ” icon lights and the display panel will show “ ”. NOTE: When the power function is on, the refrigerator is stopped cooling.

Setting Compartment Temperatures When you set a temperature, you are setting an average temperature for the entire compartment.The actual compartment temperatures may vary from the temperatures displayed depending on the amount and placement of stored food, and the surrounding room temperature.

Recommended Temperature Settings • Fridge Compartment: 39°F(4°C) • Fresh Choice Compartment: 19°F(-7°C) • Freezer Compartment: 0°F(-18°C)

Celsius/Fahrenheit To toggle between Celsius and Fahrenheit on the display, press and hold the “ ”button for 3 seconds.

Refrigerator (Fridge) Compartment Temperatur ” button repeatedly until the Fridge 1.Press “ “ ” icon appears. 2.When Fridge is on , “ ”icon is illuminated and then press “ ” button repeatedly to cycle through the available temperature settings from 46°F(8°C) to 36°F(2°C). NOTE: Each press of the button decrease the setting by one Celsius/Fahrenheit degree. 46°F 45°F 44°F 43°F 36°F

2°C 3°C 4°C 3. Release the “ ” button control when the desired temperature setting appears.

My Fresh Choice Compartment Temperature 1.Press “ ” button repeatedly until the My Fresh Choice “ ” icon appears. 2.When My Fresh Choice is on, “ ” icon is illuminated and then press “ ” button repeatedly to cycle through the available temperature settings from 41°F(5°C) to -4°F(-20 °C). NOTE: Each press of the button decrease the setting by one Celsius/Fahrenheit degree.

3. Release the “ ” button control when the desired temperature setting appears.

Freezer Compartment Temperature 1.Press “ ” button repeatedly until the Freezer “ ” icon appears. 2.When Freezer is on, “ ” icon is illuminated and then press “ ” button repeatedly to cycle through the available temperature settings, from 7°F(-14°C) to -11°F(-24 °C). NOTE: Each press of the button decrease the setting by one Celsius/Fahrenheit degree.

7°F - 6°F -11°F -10°F

-14°C -15°C -24°C -23°C 3. Release the “ ” button control when the desired temperature setting appears.

The Super Cool feature helps to keep food stored in the refrigerator at the set temperature during periods of high usage, large grocery loads, or temporarily warm room temperatures. The Super Cool feature lowers the temperature in the fridge compartment. 1.Press the “ ” button to activate this function. The “ ” icon will be illuminated and the fridge temperature indicator will display 36°F(2°C). 2.Super cool will automatically turn off after 3 hours. 3.When super cool function is on you can turn it off by pressing the “ ” button or setting fridge temperature. To manually turn off the Super Cool function, the fridge temperature setting will revert back to the previous setting.

If a door is open for longer than 2 minutes, an alarm will sound to alert you and the control panel will display “ ”. The alarm will sound 3 times every minute for 8 minutes. • To turn off the alarm, close all doors completely.

Super Freeze Super Freeze will quickly lower the temperature within the freezer so food will freeze faster than usual. This feature also helps to keep vitamins and nutrition of fresh food fresh for longer period. 1.Press “ ” button repeatedly until the Super Freeze icon appears. Press the “ ” button to activate this function. The “ ” icon will be illuminated and the temperature for the freezer is set to -11°F(-24°C). 2.Super freeze will automatically turn off after 52 hours. 3.When Super Freeze function is on you can turn it off by pressing the “ ” button or setting freezer temperature. To manually turn off the Super freeze function, the freezer temperature setting will revert back to the previous setting. NOTE: When you selecting the Super Freeze function, ensure there are no bottled or canned drinks (especially carbonated drinks) in the freezer compartment. Bottles and cans may explode.

Demo mode is for store display, and it prevents the refrigerator from generating cool air. In this of Cooling off Mode, the refrigerator may seem like it is working but it will not make cool air. The display panel will show special segments as follow.

To switch off demo mode, press and hold “ ” and “ ” buttons at same time for 3 seconds and the buzzer gave a long sound.

Wi-Fi function This appliance may be controlled remotely with a smart phone or a tablet computer. If the appliance is not connected to the home network, it will function like a regular appliance.

What do you need to connect the appliance? • Signal from the local wireless network (Wi-Fi) should be sufficiently strong in the spot where the appliance is installed. • Home network router has to be connected to the internet, and the Wi-Fi function on the appliance should be activated. • The smart phone/tablet computer has to be connected to the internet. • Operating system on your smart phone/tablet computer should be compatible with the ConnectLife app.

$POOFDU-JGF"QQ The ConnectLife App is available to download free of charge from the Apple App Store or from the Google Play Store.

Eco ” button to turn on the Eco Press the “ function, the “ ” icon will be illuminated. When the Eco function is on, the temperature of fridge is automatically switched to 43°F(6°C) and the temperature of freezer is automatically switched to 1°F(-17°C), the temperature of My Fresh Choices is compartment is immovability. When Eco function is on, you can switch it by pressing the “ ” button or adjusting the fridge/freezer temperature, the refrigerator temperature setting will revert back to the previous setting.

*OTUBMMJOHUIF$POOFDU-JGFBQQ

1.Go to the App Store (on Apple devices), AppGallery (on Huawei devices) or Google Play Store (on Android devices) on your phone/tablet computer. 2.Search for “ConnectLife”.

3.Choose the ConnectLife app and install it on your smart phone/tablet computer.

Unbind all PAIR appliance

We recommend downloading and installing the mobile app and creating a ConnectLife account before attempting to set up the connection with your appliance.

By activating this function, the appliance will be removed from all paired app user accounts. Step 1: Set the appliance to normal operation. Touch the “ ” key for approximately 3 seconds. You entered network connection menu when “ ” appears in the display. Step 2: Touch the “ ” key to select “ ” within 60 seconds. Step 3: Touch the “ ” key to confirm the selection mode to realize unbinding. Step 4: After the device is unbound, it will automatically enter the distribution network state, the “ ” icon flashes, and the distribution network time is up to 5 minutes.

Connect appliance to Wi-Fi After activating the Wi-Fi function, connect your device to your home router in order to connect your appliance with the ConnectLife mobile app. Step 1: Set the appliance to normal operation. Touch the “ ” key for approximately 3 seconds. You entered network connection menu when “ ” appears in the display. Step 2: Touch the “ ” key to select “ ” within 60 seconds. Step 3: Touch the “ ” key to confirm the selection mode. The Wi-Fi symbol starts blinking and the network of this appliance is now open to connect to,for 5 minutes. Step 4: When the Wi-Fi symbol is on, it means that the Wi-Fi connection is successful. The display will return to normal.

PAIR Appliance The appliance can be paired with your mobile device. Simply pair another user to your appliance. This requires, that your appliance was already set up before and is connected to your home network. If not, go back and select CONNECTION SETUP. Step 1: Set the appliance to normal operation. Touch the “ ” key for approximately 3 seconds. You entered network connection menu when “ ” appears in the display. Step 2: Touch the “ ” key to select “ ” within 60 seconds. Step 3: Touch the “ ” key to confirm the selection mode. The PAIR network of this appliance is now open to connect to, for 5 minutes. Step 4: When the display returns to normal, it means the PAIR connection is successful.

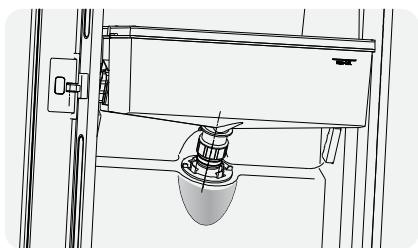

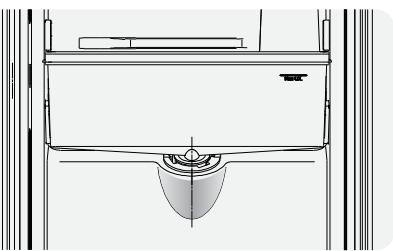

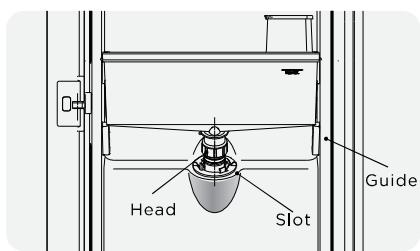

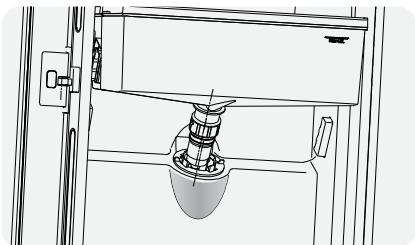

Water dispenser cleaning(special for water dispenser products): B & % " ●

This product contains a light source of energy ●

refrigerating chamber. ●

Before disposal of the appliance ! &

Correct Disposal of this product +
