USER MANUAL IH234P DARTY

Chere cliente, cher client,

Thank you for having chosen our induction ceramic hob.

In order to make the best use of your appliance, we would advise you to read carefully the following notes and to keep them for a later consulting.

SUMMARY

IMPORTANT SAFETY INSTRUCTIONS 26

WARNING 26
GENERAL SAFETY INSTRUCTIONS 27

SPECIFICATIONS & CONTROL PANEL 29

TECHNICAL CHARACTERISTICS 29
CONTROL PANEL 29

APPLIANCE DESCRIPTION 30

DISPLAY 30
VENTILATION 30

USING THE HOB 30

BEFORE FIRST USE 30
INDUCTION PRINCIPLE 30
SENSITIVE TOUCH 30
STARTING-UP 31
PAN DETECTION 31
RESIDUAL HEAT INDICATION 31
BOOSTER FUNCTION 31
TIMER 32
CONTROL PANEL LOCKING 32

COOKING ADVICES 33

PAN QUALITY 33
PAN DIMENSION 33
EXAMPLES OF COOKING POWER SETTING 34

MAINTENANCE AND CLEANING 34

TROUBLESHOOTER 35

ENVIRONMENT PRESERVATION 36

INSTALLATION INSTRUCTIONS 37

ADVICE FOR THE INSTALLER 37
INSTALLATION 37

ELECTRICAL CONNECTION 39

CAUTIONS 39
CONNECTION TO POWER SUPPLY 40

DISPOSAL 42

Warnings

• This appliance is intended for domestic household use only and should not be used for any other purpose or in any other application, such as for non-domestic use or in a commercial environment.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised.
• Children shall not play with the appliance.
• Cleaning and user maintenance shall not be made by children without supervision.
• WARNING: Unattended cooking on a hob with fat or oil can be dangerous and may result in fire. NEVER try to extinguish a fire with water, but switch off the appliance and then cover flame e.g. with a lid or a fire blanket.
• WARNING: Danger of fire: do not store items on the cooking surfaces.
• WARNING: If the surface is cracked, switch off the appliance to avoid the possibility of electric shock.
• Do not use a steam cleaner.
• The appliance is not intended to be operated by means of an external timer or separate remote-control system.

General safety instructions

• Unpack all the materials.
• The installation and connecting of the appliance have to be done by approved specialists. The manufacturer can not be responsible for damage caused by building-in or connecting the appliance incorrectly.
• To be used, the appliance must be well-equipped and installed in a kitchen unit and an adapted and approved work surface.
• Remove all labels and self-adhesives from the ceramic glass.
• Do not change or alter the appliance.
• The cooking plate can not be used as freestanding or as working surface.
• The appliance must be grounded and connected conforming to local standards.
• Do not use any extension cable to connect it.
• The appliance can not be used above a dishwasher or a tumble-dryer: steam may damage the electronic appliances.
• The appliance is not intended to be operated by means of external timer or separate remote control system.
• Switch the heating zones off after use.
• Be careful not to burn yourself while or after using the appliance.
• Make sure no cable of any fixed or moving appliance contacts with the glass or the hot saucepan.
• Objects such as credit cards, floppy disks, calculators should not be placed near to the appliance.
• Never cover the appliance with a cloth or a protection sheet. This could catch fire.
• Rough pan bottoms or damaged saucepans (not enamelled cast iron pots,) may damage the ceramic glass.
• Sand or other abrasive materials may damage ceramic glass.
• Avoid dropping objects, even little ones, on the vitroceramic surface.
• Do not hit the edges of the glass with saucepans.

• Make sure that the ventilation of the appliance complies with to the manufacturer's instructions.

• Do not put or leave empty saucepans on the vitroceramic hobs.

• Sugar, synthetic materials or aluminium sheets must not contact with the heating zones. These may cause breaks or other alterations of the vitroceramic glass by cooling: switch on the appliance and take them immediately out of the hot heating zone (be careful: do not burn yourself).

• WARNING: Danger of fire: do not store items on the cooking surface.

• Never place any hot container over the control panel.

• If a drawer is situated under the built in appliance, make sure the space between the content of the drawer and the inferior part of the appliance is large enough (2 cm). This is essential to ensure a correct ventilation.

• Never put any inflammable object (e.g. sprays) into the drawer situated under the vitroceramic hob. The eventual cutlery drawers must be resistant to heat.

• If a defect is noticed, switch off the appliance and turn off the electrical supply.

• Repairs must be done by specialists. Do not open the appliance yourself.

• Make sure that the saucepan always centred on the cooking zone. The bottom of the pan must cover as much as possible of the cooking zone.

• For the users of pacemaker, the magnetic field could interfere with its operating. We recommend getting information from the retailer or from the doctor.

• Do not use aluminium or synthetic material containers: they could melt on hot cooking zones.

• NEVER try to extinguish a fire with water, but switch off the appliance and then cover flame e.g. with a lid or a fire blanket.

THE USE OF EITHER POOR QUALITY POT OR ANY INDUCTION ADAPTOR PLATE FOR NON-MAGNETIC COOKWARE RESULTS IN A WARRANTY BREACH. IN THIS CASE, THE MANUFACTURER CANNOT BE HELD RESPONSIBLE FOR ANY DAMAGE CAUSED TO THE HOB AND/OR ITS ENVIRONMENT.

Technical characteristics

Type	IH234P
Total power	3400 W
Energy consumption for the hob EChob**	183.8 Wh/kg
Front heating zone	Ø 160 mm
Minimum detection	Ø 100 mm
Nominal power*	1400 W
Booster power*	-
Energy consumption ECw**	186.5 Wh/kg
Rear heating zone	Ø 200 mm
Minimum detection	Ø 110 mm
Nominal power*	1400 W
Booster power*	2000 W
Energy consumption ECw**	181 Wh/kg

• The given power may change according to the dimensions and material of the pan.
  ** calculated according to the method of measuring performance (EN 60350-2).

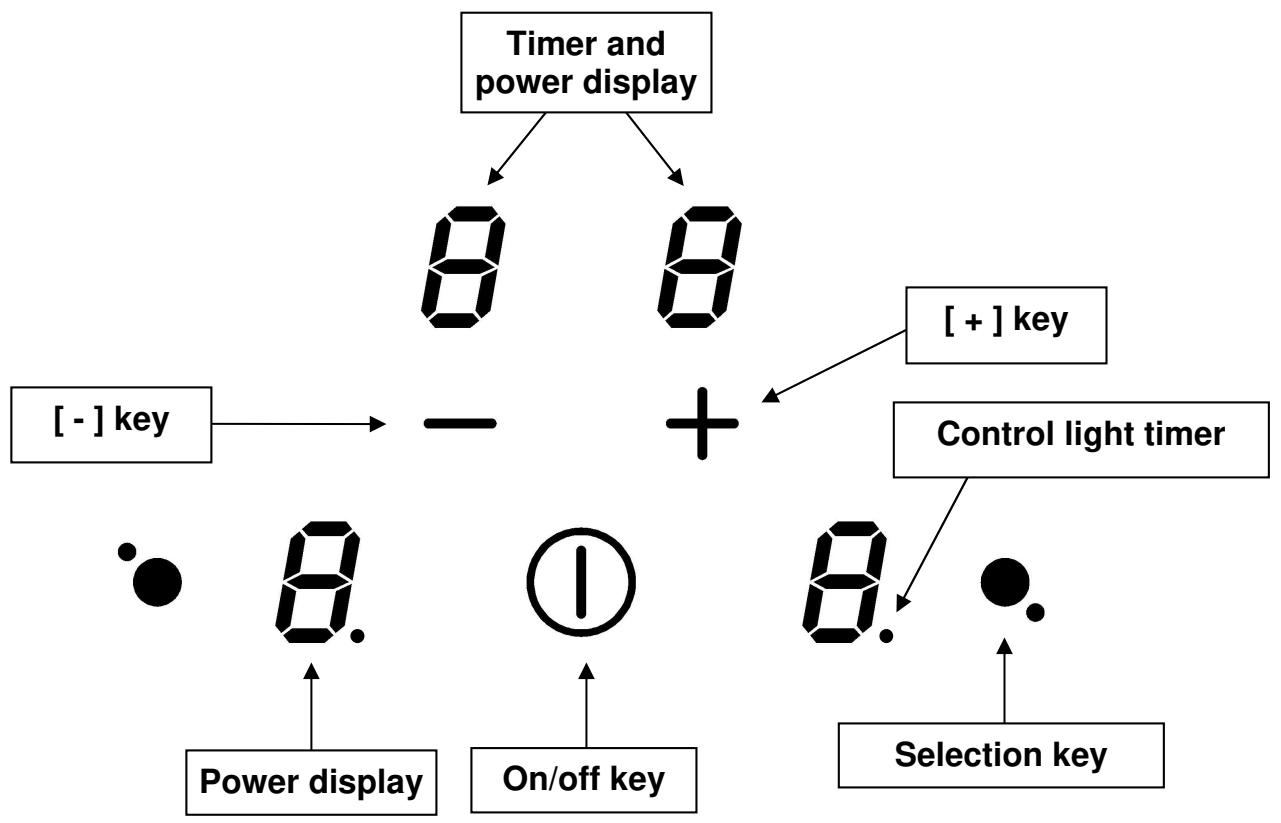

Control panel

Display

Display	Designation
0	Zero
1...9	Power level
U	Pan detectic
E	Error messa
H	Residual he
P	Booster
L	Locking

Function

The heating zone is activated.

Selection of the cooking level.

No pan or wrong type of pan.

Electronic failure.

The heating zone is hot.

The boosted power is activated.

Control panel locking.

Ventilation

The cooling system is fully automatic, the cooling fan starts at a slow speed and increases when the hob is used intensively or for long periods of time.

The cooling fan reduces its speed and stops automatically as the hob cools down.

USING THE HOB

Before first use

Clean your hob with a damp cloth, and then dry the surface thoroughly. Do not use detergent as this causes blue tinting on the glass surface.

Induction principle

An induction coil is located under each heating zone. When it is engaged, it produces a variable electromagnetic field which produces inductive currents in the ferromagnetic bottom plate of the pan. The result is a heating-up of the pan located on the heating zone.

Of course, the pan has to be magnetic:

• All ferromagnetic pans are recommended (please verify with a magnet): cast iron and steel pans, enamelled pans, stainless-steel pans with ferromagnetic bottoms.
• Excluded pans are copper, pure stainless-steel, aluminium, glass, wood, ceramic, stoneware.

The induction heating zone adapts automatically to the size of the pan. If the diameter is too small the pan does not work. If the pan is not suitable for the induction hob the display will show [] .

Sensitive touch

Your ceramic hob is equipped with electronic controls with sensitive touch keys. When your finger presses the key, the corresponding command is activated. This activation is confirmed by a control light, a letter or a number in the display and/or a "beep" sound.

For normal use, press only one key at a time.

Starting-up

You must first switch on the hob, then the heating zone:

• Start-up/ switch off the hob :

Action	Control panel	Display
To start	Press key [①]	2 x [0]
Touch the key	Press key [①]	Nothing or [H]
• Start-up/ switch off a heating zone :
Action	Control panel	Display
Zone selection	Press selection key from the zone	[0]
Increase power	Press key [+]	[1] to [9]
Decrease power	Press key [-]	[9] to [1]
Stop	Press key [-]	[0] or [H]

If no action is made within 20 seconds, the hob returns to waiting state.

Pan detection

The pan detection ensures perfect safety.

The induction doesn't work:

• If there is no pan on the heating zone or if this pan is not suited to induction cooking it is impossible to increase the power and the display shows [] . This symbol disappears when a suitable pan is placed on the heating zone.
• If the pan is removed from the heating zone the operation is stopped. The display shows [ ] . The symbol [ ] disappears when the pan is put back onto the heating zone. The cooking continues with the power level initially set.

After use, switch the heat element off: don't let the pan detection [ ] active.

Residual heat indication

After switching off the hob, the heating zones are still hot and indicates [H] on the display. The symbol [H] disappears when the heating zones may be touched without danger.

While the residual heat indicators are lit, do not touch the heating zones and don't put any heat sensitive object on them. There are risks of burns and fire.

Booster function

The booster function [ P ] grants a boost of power to the selected heating zone. If this function is activated the heating zones works for 5 minutes with an ultra-high power. To start the boost function, repeatedly press the + button until [ P ] appears in the display.

• Start-up / Stop the booster function:

Action	Control panel	Display
Zone selection	Press selection key from the zone	[0]
Increase power	Press key [+]	[1] to [9]
Start up the booster	Press key [+]	[P] during 5 min
Stop the booster	Press key [-]	[9]

Timer

The timer is able to be used simultaneously with both heating zones and with different time settings (from 0 to 99 minutes) for each heating zone.

• Setting and modification of the cooking time:

Action	Control panel	Display
Zone selection	Press selection key from the zone	[0]
Increase power	Press key [+]	[1] ... [9] [P]
To select « Timer »	Press simultaneously [−] and [+]	[00]
Decrease the time	Press key [−]	[00] went to 30,29....
Increase the time	Press key [+]	time increase

After a few seconds the control light stops blinking.

The time is confirmed and the cooking starts until the time reaches [ 00 ].

• To stop the cooking time:

Action	Control panel	Display
Zone selection	Press selection key from the zone	[0]
To select « Timer »	Press simultaneously [ - ] and [ + ]	The remaining time
To stop the « Timer »	Press key [ - ]	[00] then stops

If several timers are activated repeat the process.

Automatic stop at the end of the cooking time:

As soon as the selected cooking time is finished the timer displays blinking [ 00 ] and a sound rings. To stop the sound and the blinking press any key.

• Egg timer function:

Action	Control panel	Display
Activate the hob	Press key [①]	[0] or [H]
Select« Timer »	Press simultaneously [ - ] and [ + ]	[00]
Decrease the time	Press key [ - ]	[00] went to 30,29....
Increase the time	Press key [ + ]	time increase

After a few seconds the control light stops blinking.

As soon as the selected cooking time is finished the timer displays blinking [ 00 ] and a sound rings. To stop the sound and the blinking press any key.

Control panel locking

To avoid modifying a setting of cooking zones when cleaning, the control panel can be locked (excluding the On/Off key [ ① ]).

Locking:

Action	Control panel	Display
Start	Press key [ ① ]	[ 0 ] or [ H ]
Hob locking	Press simultaneously [ - ] and selection key from the front zone	[ 0 ] or [ H ]
	Repress selection key from the front zone	2 x [ L ]

Unlocking:

Action	Control panel	Display
Start	Press key [ ① ]	2 x [ L ]
In the 5 seconds after start:
Unlocking the hob	Press simultaneously [ - ] and selection key from the front zone	2 x [ L ]
	Repress key [ - ]	No light on the displays

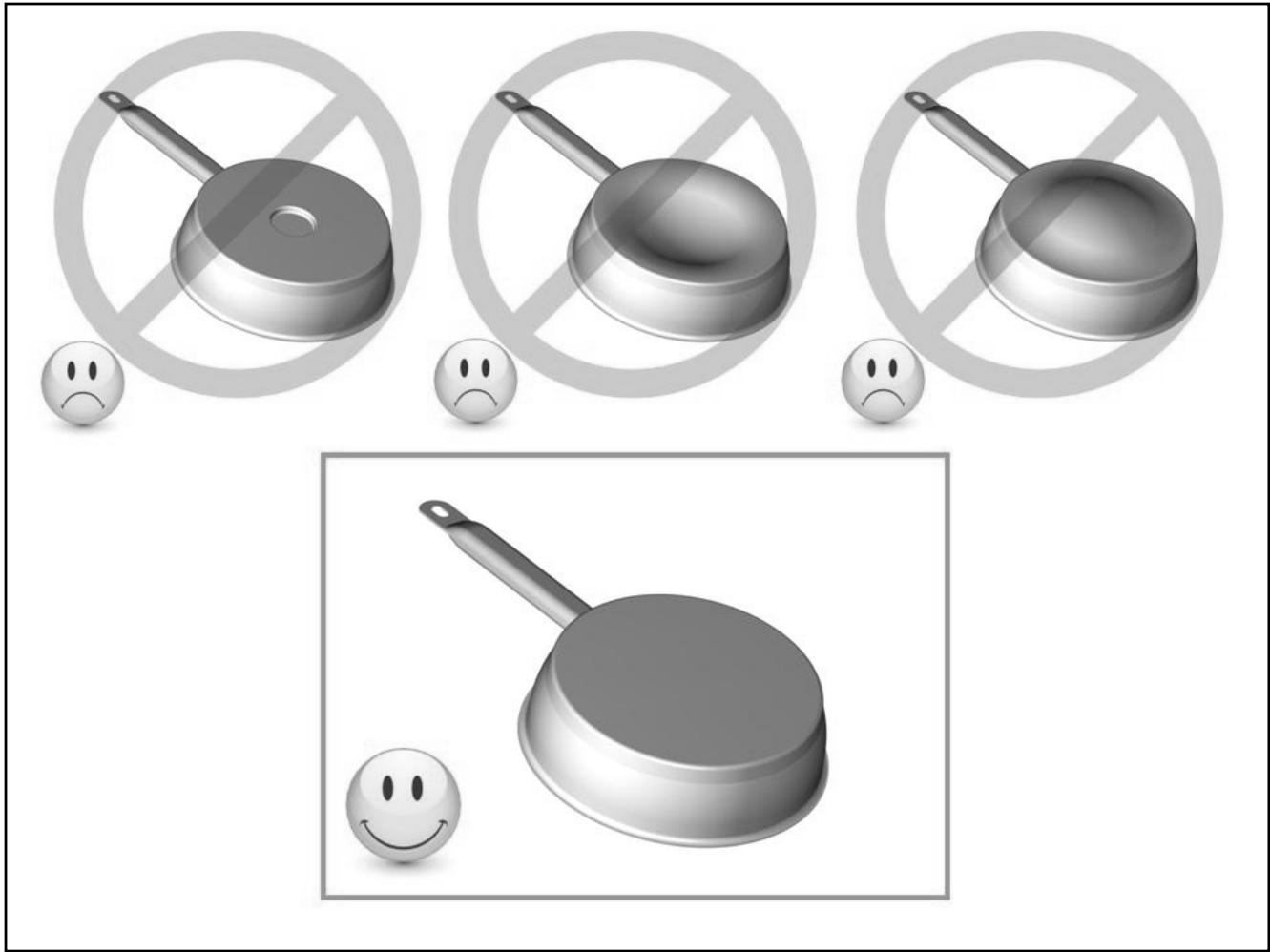

Pan quality

Compatible materials: steel, enamelled steel, cast iron, ferromagnetic stainless-steel, aluminium with ferromagnetic bottom.

Non compatible materials: aluminium and stainless-steel without ferromagnetic bottom, cupper, brass, glass, ceramic, porcelain.

The manufacturers specify if their products are compatible with induction appliances.

To check if pans are compatible:

• Put a little water in a pan placed on an induction heating zone set at level [ 9 ] . This water must heat in a few seconds.
• A magnet sticks on the bottom of the pan.

Certain pans can make noise when they are placed on an induction cooking zone. This noise doesn't mean any failure on the appliance and doesn't influence the cooking operating.

Pan dimension

The cooking zones are, up to a limit, automatically adapted to the diameter of the pan. However, the bottom of this pan must have a minimum of diameter according to the corresponding cooking zone.

To obtain the best efficiency of your hob, please place the pan in the centre of the cooking zone.

Examples of cooking power setting

1 to 2	Melting Reheating	Sauces, butter, chocolate, gelatine Dishes prepared beforehand
2 to 3	Simmering Defrosting	Rice, pudding, sugar syrup Dried vegetables, fish, frozen products
3 to 4	Steam	Vegetables, fish, meat
4 to 5	Water	Steamed potatoes, soups, pasta, fresh vegetables
6 to 7	Medium cooking Simmering	Meat, liver, eggs, sausages Goulash, roulade, tripe
7 to 8	Cooking	Potatoes, fritters, wafers
9	Frying, roosting, boiling water	Steaks, omelettes, fried dishes, water
P	Frying, roosting Boiling water	scallops, steaks Boiling significant quantities of water

MAINTENANCE AND CLEANING

Switch-off the appliance before cleaning.

Do not clean the hob if the glass is too hot risk of burns.

• Remove light marks with a damp cloth.
• Highly corrosive or abrasive detergents and cleaning equipment likely to cause scratches must be avoided.
• Do not ever use a steam cleaner.
• Do not use any object that may scratch the ceramic glass.
• Ensure that the pan is dry and clean. Ensure that there are no grains of dust on your ceramic hob or on the pan. Sliding rough saucepans will scratch the surface.
• Spillages of sugar, jam, jelly, etc. must be removed immediately to prevent the surface being damaged.

When the symbol [E 4 ] appears:

I) The hob must be reconfigured. Please implement the following steps:

Important: before you start:

make sure there is no pans on the hob
- take a pan with a ferromagnetic bottom and a minimum diameter of 16 ~cm
- disconnect the appliance from the mains by removing the fuse or turning the circuit breaker off
- start the procedure within 2 minutes after reconnecting the hob to the mains
- reconnect the hob to the mains
- don't use the [ 0/1 ] button

II) First step: cancel the existing configuration

1) Press [-] and hold down
2) With your other hand, press successively and quickly (less than 2s) on each [O] key.

Press 2 times each key in the following order

(a -> a -> b -> b). [ - ] appears on displays.

A double "beep" means an error occurred.

If so, start again from step 1).

3) Remove your fingers from the touch control, press simultaneously [ + ] and [-] during few seconds, until blinking [E] symbols appear.
4) Wait until [E] symbols stop blinking.
5) After few seconds, [E] are automatically transformed to [C]. The existing setup has been cancelled.

III) Second step: new setup

1) Take a ferromagnetical pot with a minimum diameter of 16 cm
2) Select a cooking zone by pushing on the corresponding [O] key
3) Place the pot on the area to be set
4) Wait until the [ C ] display becomes a [- ]. The selected zone is now configured.
5) Follow the same procedure for each cooking zone with a [C] display.
6) All the cooking zones are configured once all the displays are turned off.

Please use the same pot for the whole procedure.

Never put several pots together on the zones during the setup-process.

• If [ E 4 ] displaying remains, please call a qualified service engineer.

The hob or the cooking zone doesn't start-up:

• The hob is badly connected to the electrical supply.
• The protection circuit tripped.
• The locking function is activated.
• The sensitive keys are covered with grease or water.
  An object is put on a key.

The control panel displays [U]:

There is no pan on the cooking zone.
- The pan is not compatible with induction appliances.
- The diameter of the pan is too small.

The control panel displays or [E]:

• Disconnect and replug the hob.
• Call the After-sales Service.

One or all cooking zone cut-off:

• The safety system triggered.
• You forgot to cut-off the cooking zone for a long time.
  One or more touch keys are covered.
• The pan is empty and its bottom overheated.
• The hob also has an automatic reduction of power level when the hob experiences overheating

Continuous ventilation after cutting off the hob:

• This is not a failure; the fan continues to protect the electronic device.
• The fan cooling stops automatically.

The control panel displays [L]:

Refer to the chapter control panel locking page.

The control panel displays [ ] or [ Er03 ] :

• An object or liquid covers the control keys. The symbol disappears as soon as the key is released or cleaned.

The control panel displays [E2] or [EH]:

The hob is overheated, let it cool and then turn it on again.

The control panel displays [E3]:

• The pan is not adapted, change the pan.

The control panel displays [E6]:

Defective network. Control the frequency and voltage of the electrical network.

The control panel displays [E8]:

• The air inlet of the ventilator is obstructed, release it.

The control panel displays [EC]:

• Configuration error. Set the table again, referring to the chapter "The [E 4] appears."

If one of the symbols above persists, call the After Sales Services.

ENVIRONMENT PRESERVATION

• The materials of packing are ecological and recyclable.

• The electronic appliances are composed of recyclable, and sometimes harmful materials for the environment, but necessary to the good running and the safety of the appliance.

• Don't throw your appliance with the household refuses

• Get in touch with the waste collection centre of your commune that is adapted to the recycling of the household appliances.

Advice for the installer

IMPORTANT

Appliance installation and maintenance must only be carried out by QUALIFIED TECHNICIANS and in compliance with the local safety standards.

Failure to observe this rule will invalidate the warranty

Installation

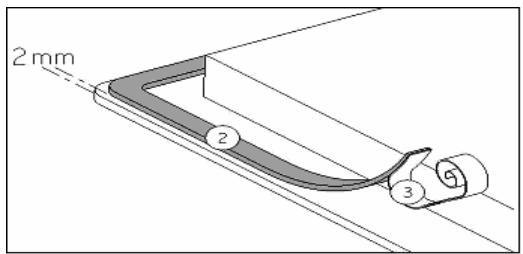

How to fit the gasket:

The gasket supplied with the hob avoids all infiltration of liquids in the cabinet. His installation has to be done carefully, in conformity of the following drawing.

Stick the gasket (2) two millimeters from the external edge of the glass, after removing the protection sheet (3).

Fitting - installing:

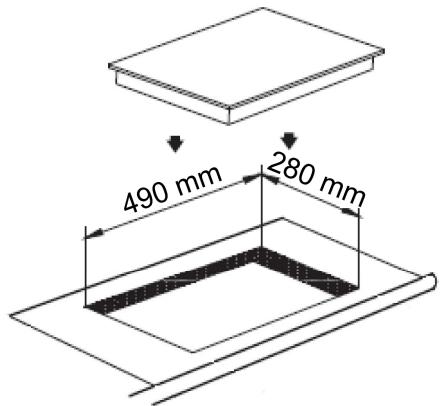

• Cut a hole in the worktop of the dimension shown in the diagram below. Ensure that there is a distance of 50~mm between the hob and the wall or sides. The worktop should be at least 30~mm thick and of heat-resistant material.

• The hobs are classified as "Y" class for heat protection. Ideally the hob should be installed with plenty of space on either side. There may be a wall at the rear and tall units or a wall at one side. On the other side, however, no unit or divider must stand higher than the hob.
• The piece of furniture or the support in which the hob is to be fitted, as well as the edges of furniture, the laminate coatings and the glue used to fix them, must be able to resist temperatures of up to 100^ .
• The mural rods of edge must be heat-resisting.
• Not to install the hob to the top of a not ventilated oven or a dishwasher.

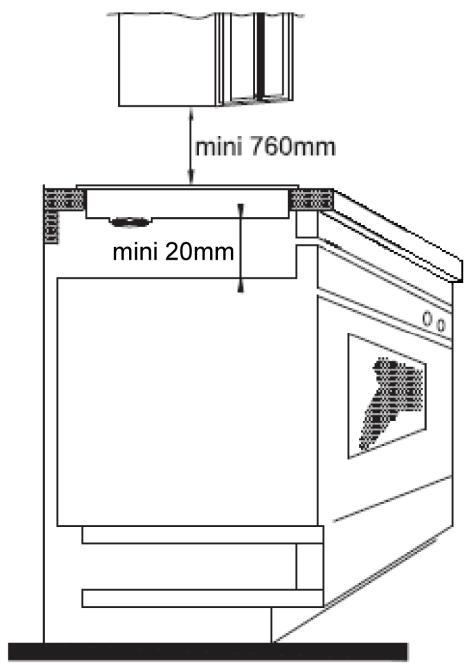

• To guarantee under the bottom of the hob casing a space of 20 ~mm to ensure a good air circulation of the electronic device.

• Warning: The safety gap between the hob and the cooker hood placed above must respect the indications of the hood manufacturer. In case of absence of instructions respect a distance minimum of 760~mm .
• If a drawer is placed under the work, avoid to put into this drawer flammable objects (for example: sprays) or not heat-resistant objects.

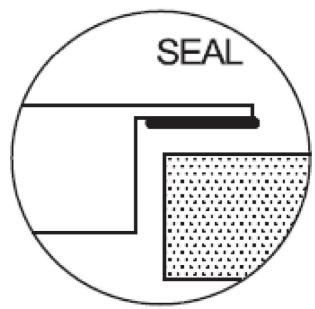

• Materials which are often used to make worktops expand on contact with water. To protect the cut-out edge, apply a coat of varnish or special sealant. Particular care must be given to applying the adhesive joint supplied with the hob to prevent any leakage into the supporting furniture. This gasket guaranties a correct seal when used in conjunction with smooth work top surfaces.
• The connection cord should be subjected, after building, with no mechanical constraint, such for example of the fact of the drawer.
• WARNING: Do not use inappropriate children protections or railings. These devices may lead to accidents.

Installation must be carried out according to the manufacturer's instructions. Incorrect installation may cause harm and damage to people, animals or property, for which the manufacturer accepts no responsibility.

Before carrying out any work on the electrical section of the appliance, it must be disconnected from the mains.

Connection to a good earth wiring system is absolutely essential.

The manufacturer accepts no responsibility for any inconvenience caused by failure to comply with this rule.

The hob must be installed by a qualified electrician in line with all electrical and installation requirements published by the Institute of Electrical Engineers. We recommend that the appliance is connected by a qualified electrician, who is a member of the N.I.C.E I C. and who will comply with the I.E.E. and local regulations.

Before carrying out the connection to the power supply, the voltage rating of the appliance (stamped on the appliance identification plate) must be checked for correspondence to the available mains supply voltage, and the mains electric wiring should be capable of handling the appliance's power rating (also indicated on the identification plate).

This appliance must be connected by a competent person, using fixed wiring via a DOUBLE POLE SWITCHED FUSED SPUR OUTLET (with 3 mm minimum distance between the contacts).

A double pole switch must be provided no further than 2 metres from the appliance to the electrical supply. All supply current and earth conductors must be able to withstand an ambient temperature of 75^ .

After having installed the appliance, the power switch must always be in a accessible position. Use a 35 AMP fuse

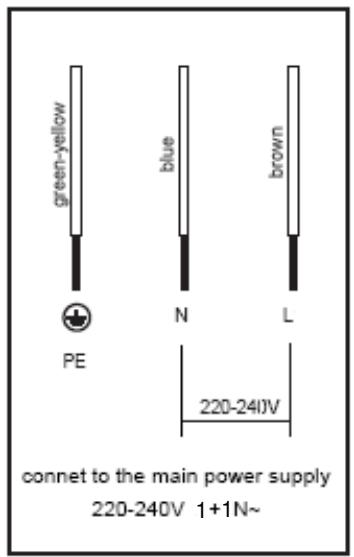

The wires in the mains lead are coloured in accordance with the following code:

Green & Yellow = Earth

Blue = Neutral

Brown = Live

As the colours of the wires in the mains lead for the appliance, may not correspond with the coloured markings identifying the terminals in your spur box, proceed as follows:

1) The wire which is coloured green and yellow must be connected to the terminal marked E (Earth) or Green coloured.
2) The wire which is coloured blue must be connected to the terminal marked N (Neutral), or coloured Grey.
3) The wire which is coloured brown must be connected to the terminal marked L (Live), or coloured Black.

Cautions

• The induction hob must be installed by a properly qualified person. Never try to install the appliance yourself.
• The induction hob must not be installed above refrigerators, freezers, dishwashers or tumble dryers. Install the induction hob away from heat sources such as ovens or direct sunlight.
• The induction hob should be installed so that optimum radiation of heat is possible.
• The wall and the area above the hob should be able to withstand heat.
• To avoid any damage, the sandwich layer and adhesive should be heat-resistant.

Connection to power supply

The socket should be connected in compliance with the relevant standard, to a dedicated omnipolar circuit breaker. 30 A minimum supply.

Mains	Connection	Cable diameter	Cable	Protection calibre
220-240V~ 50/60Hz	1 Phase + N	3 x 1,5 mm²	H 05 VV - F H 05 RR - F	16 A *

• calculated with the simultaneous factor following standard EN 60 335-2-6

Caution! Ensure that you correctly attach the wires and the bridges and tighten the screws properly.

We cannot be held responsible for any incident resulting from incorrect connection or which could arise from the use of an appliance which has not been earthed or has been equipped with a faulty earth connection.

We apologise for any inconvenience caused by minor inconsistencies in these instructions, which may occur as a result of product improvement and development.

To access to professional repair and order spare parts, please get the support from FNAC DARTY after-sales service.

Spare parts for your appliances will be delivered within 15 working days after having received the order.

Please Note!

All appliances have a 2-year warranty.

Warranty does not cover damages caused due to improper installation, unauthorized modification, self-repair or non-professional repair.

Contact us at :

www.darty.com

0978 970 970

24 Hours 7 Days a week

8 AM - 6 PM Mon to Sat

As such we urge you to follow the correct disposal procedure for the appliance and packaging materials. This will help conserve natural resources and ensure that it is recycled in a manner that protects health and the environment.

You must dispose of this appliance and its packaging according to local laws and regulations. Because this appliance contains electronic components, the appliance and its accessories must be disposed of separately from household waste when the appliance reaches its end of life.

Contact your local authority to learn about disposal and recycling.

The appliance should be taken to your local collection point for recycling. Some collection points accept appliance free of charge.

We apologise for any inconvenience caused by minor inconsistencies in these instructions, which may occur as a result of product improvement and development.

ETABLISSEMENTS DARTY ET FILS © 9 RUE DES BATEAUX LavoIRS, 94200 IVRY-SUR-SEINE FRANCE

FNAC DARTY

EU Declaration of Conformity

Product Description:

The object of the declaration described above is in conformity with the relevant Union harmonisation legislation:

Low Voltage Directive (LVD)

Eco design requirements for energy-related products (ErP)

RoHS

EMC:

EN 55014-1:2017+A11:2020

EN 55014-2:2015

EN 61000-3-2:2014

EN 61000-3-2:2019

EN 61000-3-3:2013+A1:2019

LVD:

EN 60335-1:2012+A11:2014+A13:2017+A1:2019+A14:2019+A2:2019+A15:2021

EN 60335-2-6:2015+A1:2020+A11:2020

EN 62233:2008

ErP :

(EU) No 66/2014

EN 60350-2:2018

(EC) No 1275/2008

EN 50564:2011

This declaration of conformity is drawn up under the sole responsibility of the manufacturer.

The person responsible for this declaration is:

Place, Date / Lieu :

Ivry-sur-Seine, Octobre 21, 2022
