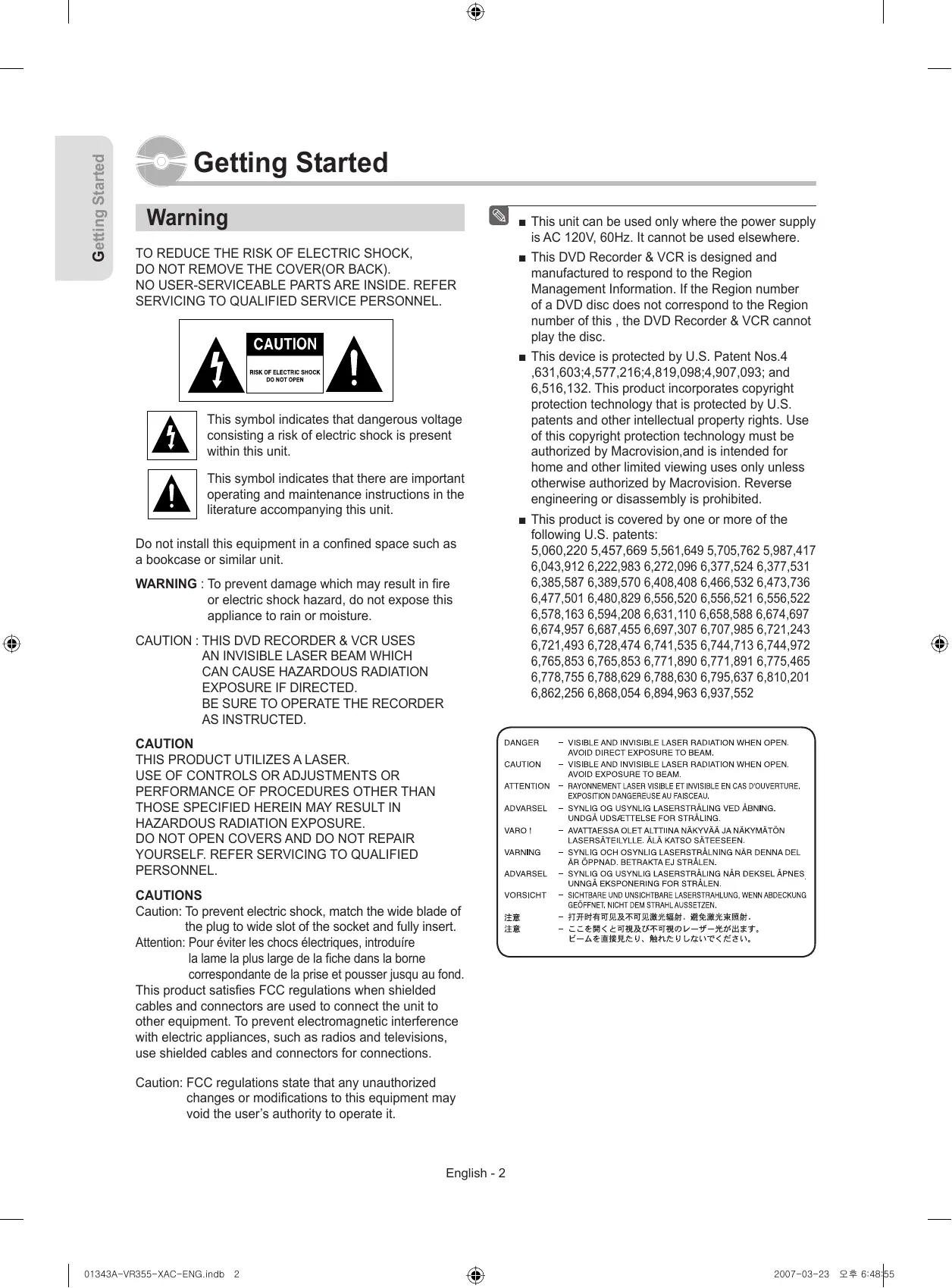

USER MANUAL DVD-VR355 SAMSUNG

This symbol indicates that dangerous voltage consisting a risk of electric shock is present within this unit.

This symbol indicates that there are important operating and maintenance instructions in the literature accompanying this unit.

Do not install this equipment in a confined space such as a bookcase or similar unit.

WARNING : To prevent damage which may result in fire or electric shock hazard, do not expose this appliance to rain or moisture.

CAUTION : THIS DVD RECORDER & VCR USES AN INVISIBLE LASER BEAM WHICH CAN CAUSE HAZARDOUS RADIATION EXPOSURE IF DIRECTED. BE SURE TO OPERATE THE RECORDER AS INSTRUCTED.

CAUTION

THIS PRODUCT UTILIZES A LASER. USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. DO NOT OPEN COVERS AND DO NOT REPAIR YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL.

CAUTIONS

Caution: To prevent electric shock, match the wide blade of the plug to wide slot of the socket and fully insert.

This product satisfies FCC regulations when shielded cables and connectors are used to connect the unit to other equipment. To prevent electromagnetic interference with electric appliances, such as radios and televisions, use shielded cables and connectors for connections.

Caution: FCC regulations state that any unauthorized changes or modifications to this equipment may void the user's authority to operate it.

■ This unit can be used only where the power supply is AC 120V, 60Hz. It cannot be used elsewhere.

■ This DVD Recorder & VCR is designed and manufactured to respond to the Region Management Information. If the Region number of a DVD disc does not correspond to the Region number of this, the DVD Recorder & VCR cannot play the disc.

■ This device is protected by U.S. Patent Nos.4,631,603;4,577,216;4,819,098;4,907,093; and 6,516,132. This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision,and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited.

■ This product is covered by one or more of the following U.S. patents: 5,060,220 5,457,669 5,561,649 5,705,762 5,987,417 6,043,912 6,222,983 6,272,096 6,377,524 6,377,531 6,385,587 6,389,570 6,408,408 6,466,532 6,473,736 6,477,501 6,480,829 6,556,520 6,556,521 6,556,522 6,578,163 6,594,208 6,631,110 6,658,588 6,674,697 6,674,957 6,687,455 6,697,307 6,707,985 6,721,243 6,721,493 6,728,474 6,741,535 6,744,713 6,744,972 6,765,853 6,765,853 6,771,890 6,771,891 6,775,465 6,778,755 6,788,629 6,788,630 6,795,637 6,810,201 6,862,256 6,868,054 6,894,963 6,937,552

DANGER	- VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN. AVOID DIRECT EXPOSURE TO BEAM.
CAUTION	- VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN. AVOID EXPOSURE TO BEAM.
ATTENTION	- RAYONNEMENT LASER VISIBLE ET INVISIBLE EN CAS D'OUVERTURE. EXPOSITION DANGEREUSE AU FAISCEAU.
ADVARSEL	- SYN LIG OG USYN LIG LASERSTRÅLING VED ÅBNING. UNDGÅ UDSÄTTELSE FOR STRÅLING.
VARO!	- AVATTAESSA OLET ALTTIINA NÄKYVÄÄ JA NÄKYMÄTÖN LASERSÄTEILYLLE. ÄLÄ KATSO SÄTEESEEN.
VARNING	- SYN LIG OCH OSYN LIG LASERSTRÅLNING NÄR DENNA DEL ÄR ÖPPNAD. BETRAKTA EJ STRÅLEN.
ADVARSEL	- SYN LIG OG USYN LIG LASERSTRÅLING NÄR DEKSEL ÅPNES. UNNGÅ EKSPONERING FOR STRÅLEN.
VORSICHT	- SICHTBARE UND UNSICHTBARE LASERSTRAHLUNG, WENN ABDECKUNG GEÖFFNET. NICHT DEM STRAHL AUSSETZEN.
注意	- 打开时有可见及不可见激光辐射。避免激光束照射。
注意	- ここを開くと可視及び不可視のレーザー光が出ます。ビームを直接見たり、触れたりしないでください。

Precaution

Important Safety Instructions

Read these operating instructions carefully before using the unit. Follow all the safety instructions listed below. Keep these operating instructions handy for future reference.

1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with a dry cloth.
7) Do not block any ventilation openings, Install in accordance with the manufacturer's instructions.
8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A groundingtype plug has two blades and a third grounding prong. The wide blade or the third prong is provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
11) Only use attachments/accessories specified by the manufacturer.
12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/ apparatus combination to avoid injury from tip-over.
13) Unplug this apparatus during lightning storms or when unused for long periods of time.
14) Refer all servicing to qualified service personnel. Service is required when the apparatus has been damaged in any way, such as the power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus. Service is also required if the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
- Before connecting other components to this recorder, be sure to turn them all off.
- Do not move the recorder while a disc is being played, or the disc may be scratched or broken, and the recorder's internal parts may be damaged.
- Do not put a flower vase filled with water or any small metal objects on the recorder.
- Be careful not to put your hand into the disc tray.
- Do not place anything other than the disc in the disc tray.

Handling Cautions

• Exterior interference such as lightning and static electricity can affect normal operation of this recorder. If this occurs, turn the DVD Recorder & VCR off and on again with the POWER button, or disconnect and then reconnect the AC power cord to the AC power outlet. The recorder will operate normally.
• Be sure to remove the disc and turn off the recorder after use.
• Disconnect the AC power cord from the AC outlet when you don't intend to use the recorder for long periods of time.
• Clean the disc by wiping in a straight line from the inside to the outside of the disc.
• Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus.
• The Mains plug is used as a disconnect device and shall stay readily operable at any time.

Maintenance of Cabinet

For safety reasons, be sure to disconnect the AC power cord from the AC outlet.

• Do not use benzene, thinner, or other solvents for cleaning.
• Wipe the cabinet with a soft cloth.

Disc Handling

- Use discs with regular shapes. If an irregular disc (a disc with a special shape) is used, this DVD Recorder & VCR may be damaged.

Holding discs

- Avoid touching the surface of a disc where recording is performed.

DVD-RAM, DVD±RW and DVD±R

- Clean with an optional DVD-RAM/PD disc cleaner. Do not use cleaners or cloths for CDs to clean DVD-RAM/DVD±RW/DVD±R discs.

DVD-Video, Audio CD

- Wipe off dirt or contamination on the disc with a soft cloth.

Cautions on handling discs

• Do not write on the printed side with a ball-point pen or pencil.
• Do not use record cleaning sprays or antistatic. Also, do not use volatile chemicals, such as benzene or thinner.
• Do not apply labels or stickers to discs. (Do not use discs fixed with exposed tape adhesive or leftover peeled-off stickers.)
• Do not use scratch-proof protectors or covers.
• Do not use discs printed with label printers available on the market.
• Do not load warped or cracked discs.

Disc Storage

Be careful not to damage the disc because the data on these discs are highly vulnerable to the environment.

• Do not keep under direct sunlight.
• Keep in a cool ventilated area.
• Store vertically.
• Keep in a clean protection jacket.
• If you move your DVD Recorder & VCR suddenly from a cold place to a warm place, condensation may generate on the operating parts, including the lens, and cause abnormal disc playback. In this case, do not connect the plug to the power outlet and wait for two hours. Then insert the disc and try to play back again. It will work properly when condensation has evaporated.

Disc Specifications

DVD-Video

• A digital versatile disc (DVD) can contain up to 135-minutes of images, 8 audio languages and 32 subtitle languages. It is equipped with MPEG-2 picture compression and Dolby 3D surround, allowing you to enjoy vivid and clear theater quality images in the comfort of your own home.
• When switching from the first layer to the second layer of a double-layered DVD Video disc, there may be momentary distortion in the image and sound. This is not a malfunction of the unit.
• Once a DVD±R/DVD-RW(V) recorded is finalized, it is playable in a standard DVD player.

Audio CD

• An audio disc on which 44.1kHz PCM Audio is recorded.
• Plays CD-DA format audio CD-R and CD-RW discs. This unit may not be able to play some CD-R or CD-RW discs due to the condition of the recording.

CD-R/-RW

◆ MP3 CD-R/-RW

• Only CD-R discs with MP3 files recorded with ISO9660 or JOLIET format can be played back
• Only MP3 files with the "mp3" or "MP3" extension can be used.
• For MP3 files recorded with a VBR(Variable Bit Rates), from 80 Kbps to 320 Kbps, the sound may cut in and out.
• Playable bitrate range is from 56Kbps to 320Kbps.
• The unit can handle a maximum of 1000 files and folders.
• DVD-RAM/±RW/±R discs that contain MP3 files can be played back.

◆ JPEG CD-R/-RW

• Only JPEG files with the ".jpg", ".JPG" extension can be used.
• The unit can handle a maximum of 1000 files and folders.
  • Maximum size of progressive JPEG is 3M pixels.
  • MOTION JPEG is not supported.
• DVD-RAM/±RW/±R discs that contain JPEG files can be played back.

◆ Using MPEG4 disc

• Disc : CD-R/-RW, DVD-RAM, DVD±R/ DVD±RW,
• MPEG4 File with following extensions can be played. : .avi, .divx, .AVI, .DIVX
• MPEG4 Codec format : DivX 3.11 DivX 4.x DivX 5.x
  • Available Audio Format : “MP3”, “MPEG”, “PCM”, “AC3”, “DTS”
• Supported subtitle file formats: .smi, .srt, .sub, .psb,.txt

◆ Using CD-R/-RW

• Use a 700MB(80 minutes) CD-R/-RW disc. If possible, do not use a 800MB(90 minutes) or above disc, as the disc may not play back.
• If the CD-R/-RW disc was not recorded as a closed session, you may experience a delay in the early play-back time, and all recorded files may not play.
• Some CD-R/-RW discs may not be playable with this unit, depending on the device which was used to burn them. For contents recorded on CD-R/-RW media from CDs for your personal use, playability may vary depending on contents and discs.
• When recording from CDs for your personal use to CD-R/-RW discs, playability may vary depending on the contents and discs.

DVD±R Disc Playback and Recording

• Once a DVD±R is recorded and finalized, it is playable in a standard DVD player.
• You can record onto the available space on the disc and perform editing functions such as giving titles to discs and programs and erasing programs before finalizing.
• When programming is erased from a DVD±R, that space does not become available. Once an area on a DVD ±R is recorded on, that area is no longer available for recording, whether the recording is erased or not.
• It takes about 30 seconds for the unit to update the recorded information after recording finishes.
• This product optimizes the DVD±R for each recording. Optimizing is excuted when you start recording after inserting the disc or turning on the unit. Recording onto the disc may become impossible if optimizing is performed too many times.
• Playback may be impossible in some cases due to the condition of recording.
• This unit can play back DVD±R discs recorded and finalized with a Samsung DVD video recorder. It may not be able to play some DVD±R discs depending on the disc and the condition of the recording.

DVD-RW Disc Playback and Recording

• Recording and playback can be performed on DVD-RW discs in both Video and VR Modes.
• Once a DVD-RW is recorded in VR or Video mode and finalized, you cannot perform additional recordings.
• Once a DVD-RW is recorded in Video Mode and finalized, it becomes a DVD-Video.
• In both modes, playback can be performed before and after finalization, but additional recording, deleting and editing can not be performed after finalization.
• If you want to record the disc in VR Mode and then record in V Mode, be sure to execute format. Be careful when executing Format because all the recorded data may be lost.

- When inserting an unused disc, a message will appear asking whether to initialize the disc or not. If you select "YES", the disc will be formatted in VR mode.

- DVD-RW (VR mode)

- This is a format that is used for recording data on DVD-RW disc. You can record multiple titles, edit, delete, partial delete, create a playlist, etc.

- A disc that is recorded in this mode may not be played by existing DVD players.

• DVD-RW (Video mode)

- This is a format that is used for recording data on a DVD-RW or DVD-R disc. The disc can be played by an existing DVD player once it has been finalized.

- If a disc that has been recorded in Video mode by a different manufacturer's recorder but has not been finalized it cannot be played or recorded by this recorder.

DVD+RW Disc Playback and Recording

- With DVD+RW discs, there is no difference between DVD-Video format (Video mode) and DVD-Video Recording format (VR mode).

- You can make your own chapters on DVD+RWs and edit them using the Chapter Edit menu.

- Finalizing is generally unnecessary when using a DVD+RW disc.

DVD-RAM Disc Playback and Recording

- For cartridge type DVD-RAM discs, remove the cartridge and use only the disc.

- Ensure that the recording mode is set to VR mode. Otherwise, this product will not be able to play the recording.

- You cannot play a DVD-RAM in most DVD players due to compatibility issues.

- Only DVD-RAM standard Version 2.0 discs can be played in this unit.

- DVD-RAM discs recorded on this unit may not work with other DVD Players. To determine compatibility with these DVD-RAM discs, refer to the user's manual for the player.

COPY PROTECTION

- Many DVD discs are encoded with copy protection. Because of this, you should only connect your DVD Recorder & VCR directly to your TV, not to a VCR. Connecting your recorder to a VCR results in a distorted picture from copy-protected DVD discs.

- This product incorporates copyright protection technology that is protected by methods claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

Protection

- Program-protection: See page 71 "Locking a Title"

- Disc-protection: See page 80 "Disc Protection"

※DVD-RAM/DVD±RW/DVD±R discs that are incompatible with the DVD-VIDEO format cannot be played with this product.

*For more information on DVD recording compatibility, consult your DVD-RAM/DVD±RW/DVD±R manufacturer.

※ Use of poor quality DVD-RAM/DVD±RW/DVD±R discs may cause the following unexpected problems including, recording failure, loss of recorded or edited materials, or damage to the recorder.

Do not use the following discs!

- LD, CD-G, CD-I, CD-ROM and DVD-ROM discs should not be used in this product. [Note]

- Some commercial discs and DVD discs purchased outside your region may not be playable with this product. When these discs are played, either “No Disc” or “The disc cannot be played. Please check the regional code of the disc.” will be displayed.

- If your DVD-RAM/DVD±RW/DVD±R disc is an illegal copy or is not in DVD video format, it may also not be playable.

◆ Disc Compatibility

- A 8X speed DVD+RW or greater disc can be played, but maximum recording speed is 4x.

- Not all brands of discs will be compatible with this unit.

- The latest firmware upgrade to improve recording & playback quality can be downloaded from our web site. (Download Center at www.samsung.com/ca)

- If disc compatibility problems continue, or there is an issue upgrading your recorder, contact the Call Center at 1-800-SAMSUNG.

Contents

Getting Started

■ Warning ...... 2

■ Precaution .... 3

Important Safety Instructions .... 3

Handling Cautions....3

Maintenance of Cabinet 3

Disc Handling....3

Disc Storage....4

Disc Specifications 4

■ General Features ....8

■ Before Reading the User's Manual ...... 9

■ How to use the DVD Recorder & VCR......9

■ Unpacking .... 10

Accessories....10

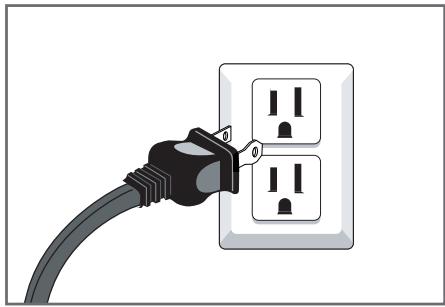

Connecting the Power Cord....10

Preparing the Remote Control 11

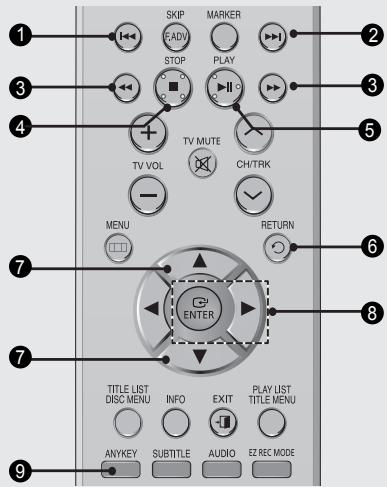

Tour of the Remote Control 12

■ Description .... 13

Front Panel....13

Front Panel Display....13

Rear Panel 14

Connecting & Setting Up

■ Connecting the Antenna Cable....15

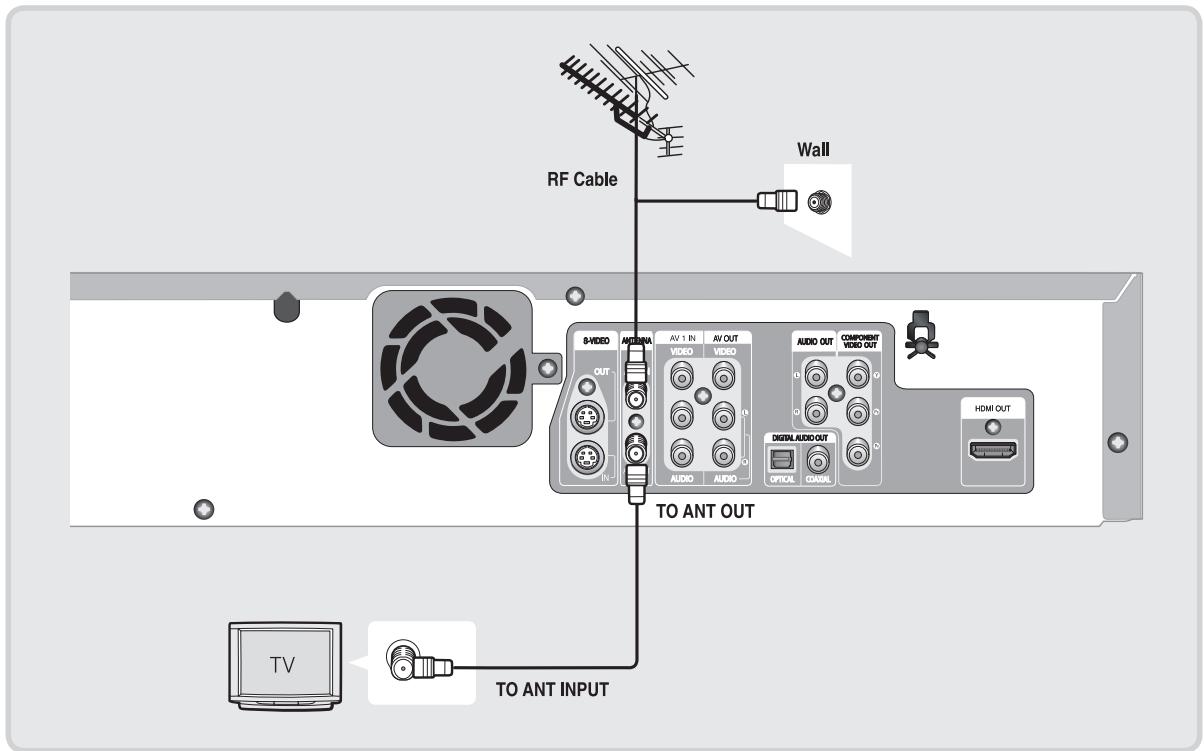

Antenna + DVD Recorder & VCR + TV :

No Cable box 15

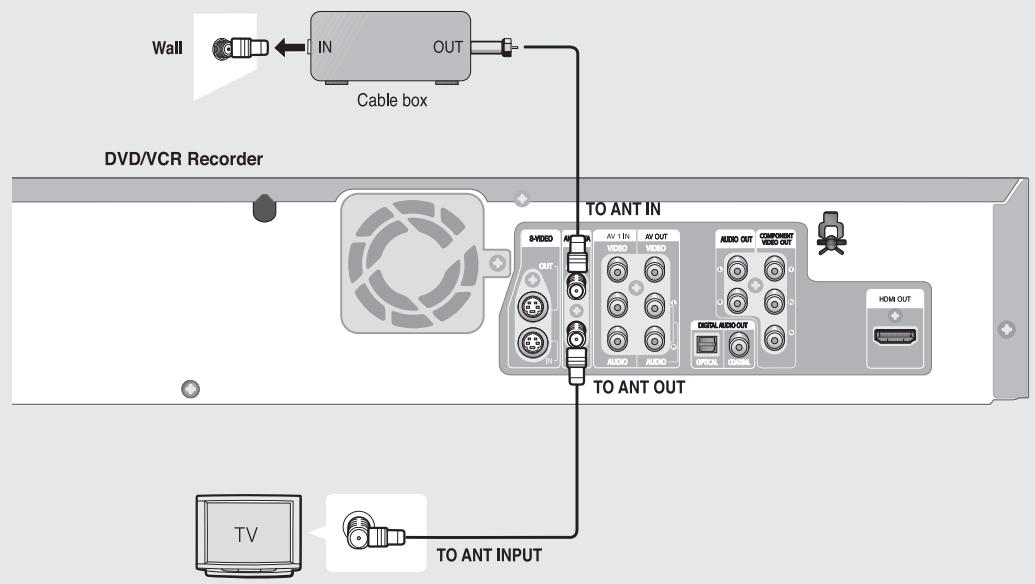

Antenna + Cable box + DVD Recorder & VCR + TV :

Cable box with many scrambled channels.... 16

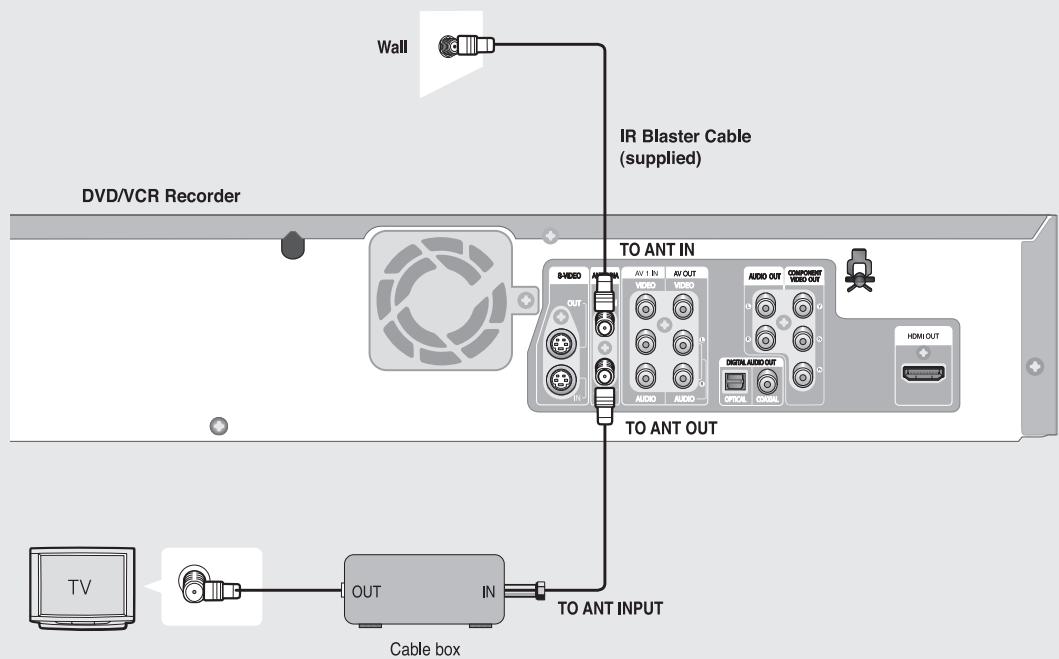

Antenna + DVD Recorder & VCR + Cable box + TV :

Cable box with a few scrambled channels....17

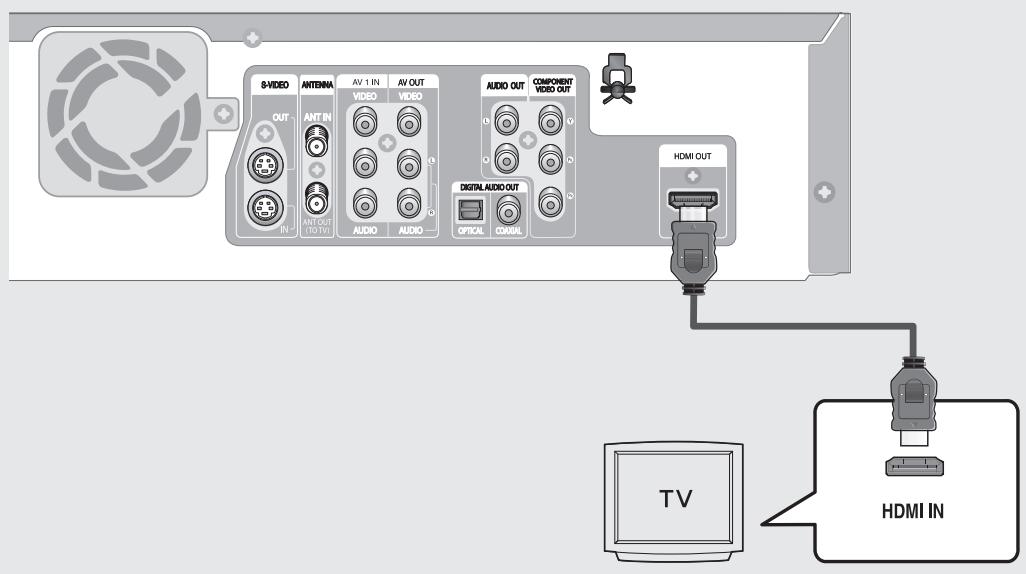

■ Connecting HDMI/DVI to a TV 18

Connecting to a TV with an HDMI Jack 18

Connecting to a TV with a DVI Jack....19

■ Connecting the Video Cable....20

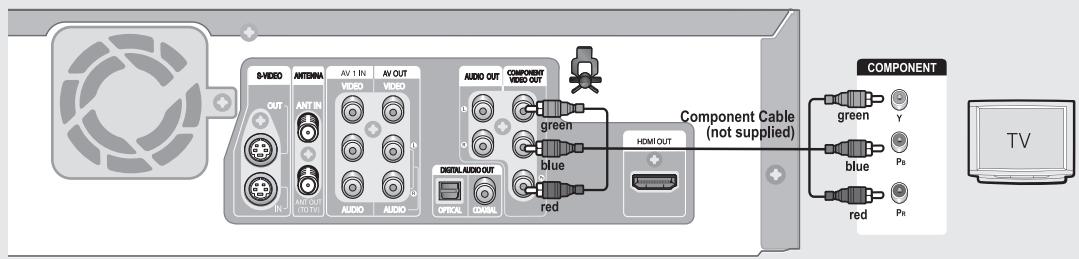

Connecting to Component Video Input Jacks (Y, P_B , P_R ) ..20

Connecting to an S-Video Input Jacks 21

Connecting to a Video Input Jacks....22

■ Connecting the Audio Cable....23

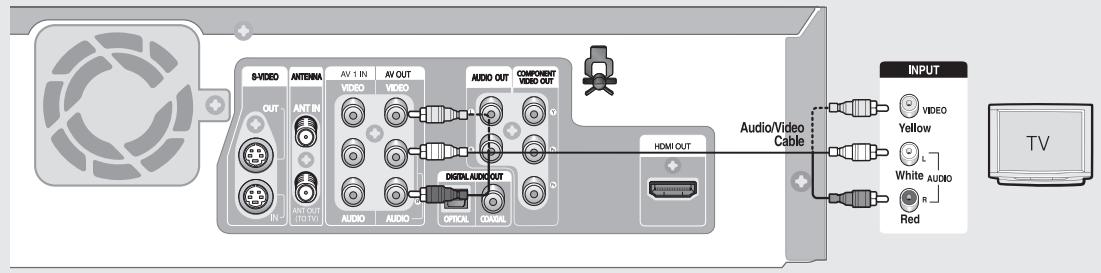

Connecting to your TV 23

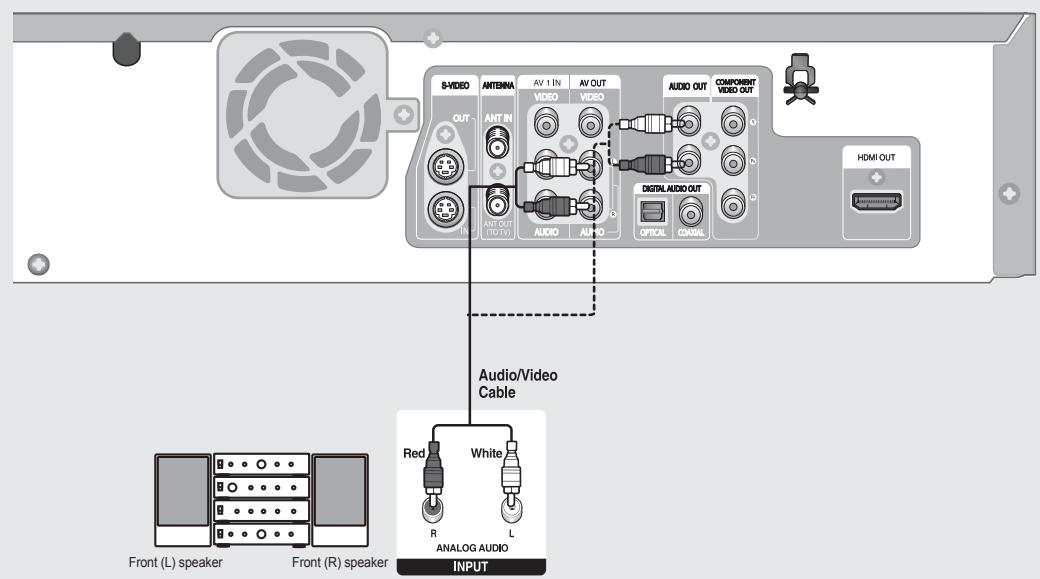

Connecting to a Stereo Amplifier with Analog Input Jacks 24

Connecting to an AV Amplifier with a Digital Input Jack....25

■ Connecting External Devices 26

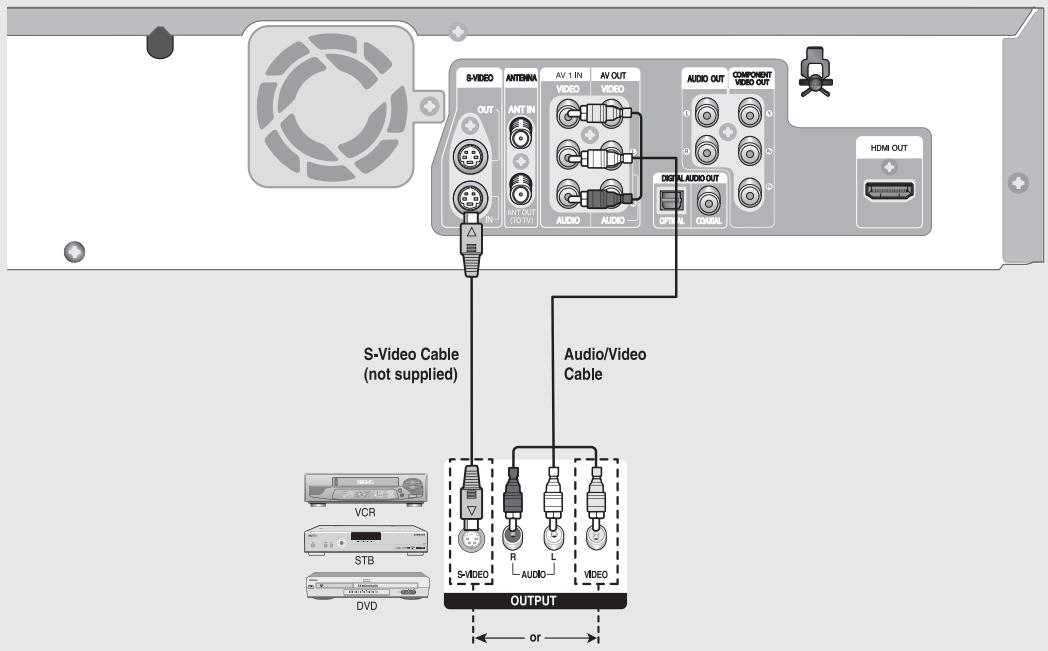

Connecting a VCR, cable box/satellite receiver (Set top box) or DVD player to the AV 1 IN or S-VIDEO IN Jacks....26

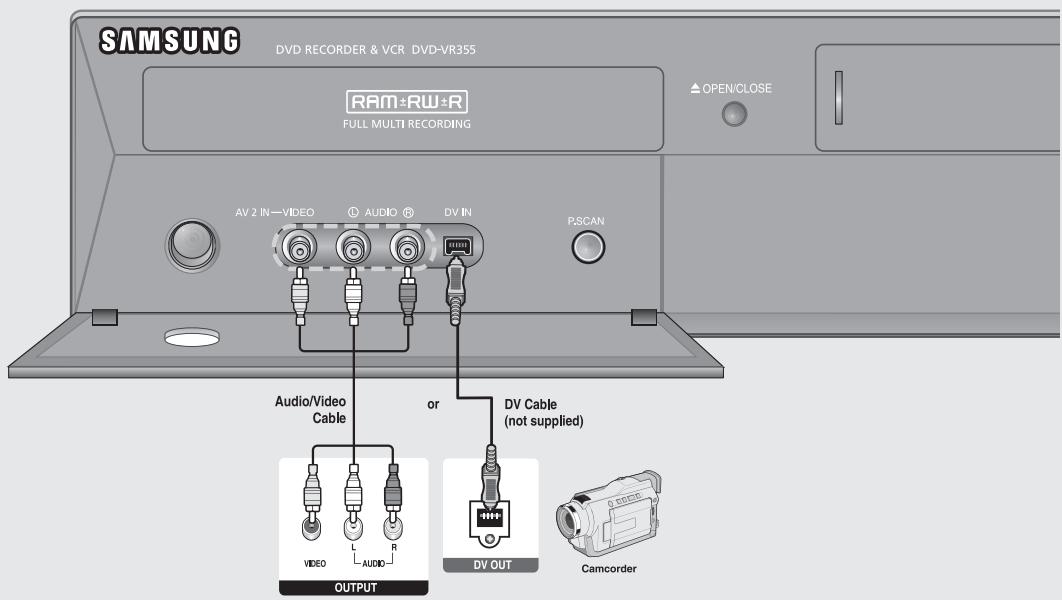

Connecting a Camcorder 27

System Setup

■ On-Screen Menu Navigation....28

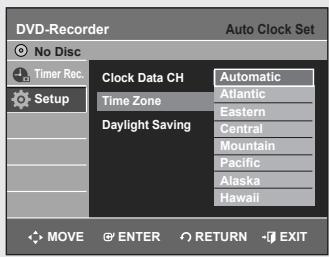

■ Auto Clock Set....28

■ Manual Clock Set 29

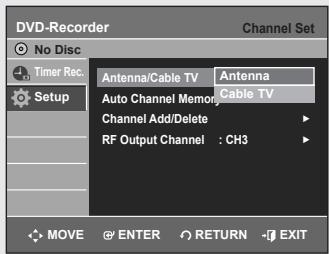

■ Channel Set....30

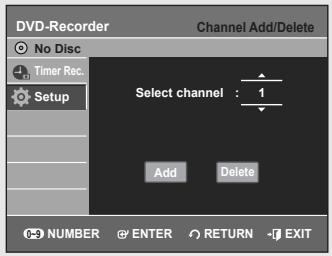

■ Auto Channel Memory....30

■ Channel Add/Delete 31

■ RF Output Channel 31

■ Setting Up the Language Options .... 32

■ Setting Up the Audio Options 32

■ Setting Up the Video(Display) Options....33

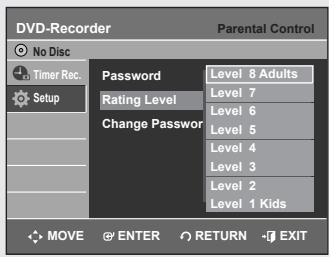

■ Setting Up the Parental Control....35

■ VCR Setting....36

Tape Length 36

Auto Play....36

Auto Repeat 36

■ Video Input 37

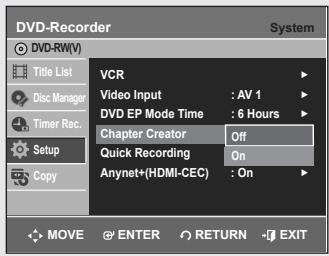

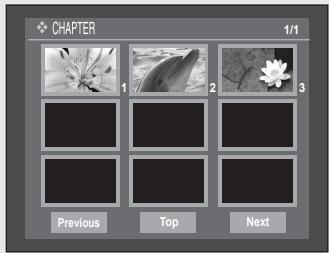

■ Automatic Chapter Creator....38

■ Quick Recording....39

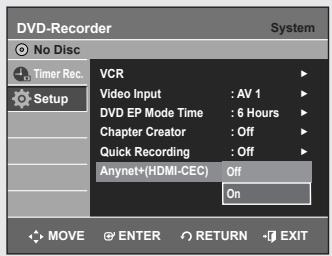

■ Anynet+(HDMI-CEC)....39

Playback

◆ DVD Playback
■ Region code (DVD-Video only) 40
■ Logos of Discs that can be played ....40
■ Disc types that can be played ....40 Discs That Cannot be Played....41

■ Playing a Disc....41

■ Using the Disc Menu and Title Menu......42

■ Using the Search & Skip Functions......42

■ Slow Motion Play/Step Motion Play....43

■ Using the ANYKEY button....44

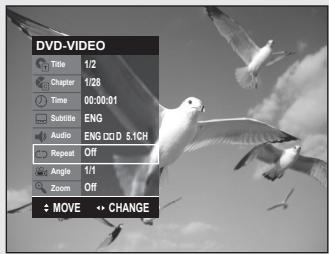

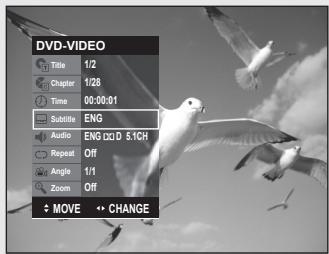

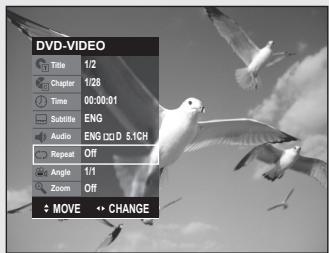

■ Repeat Playback ....44 Playing Repeatedly ....44 Playing a Certain Section Repeatedly....45

■ Selecting the Subtitle Language......45

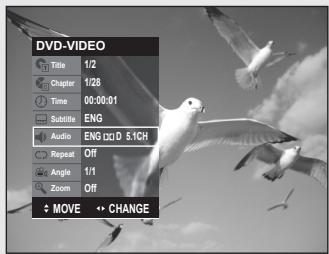

■ Selecting the Audio language....46

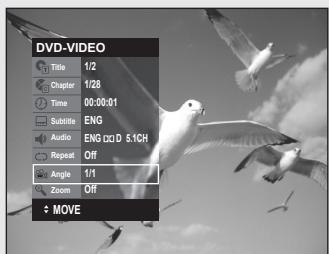

■ Changing the Camera Angle .... 46

■ Zooming-In ....47

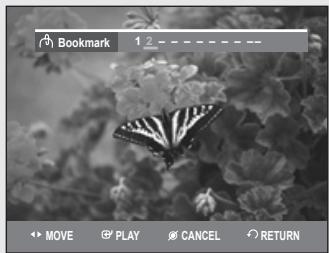

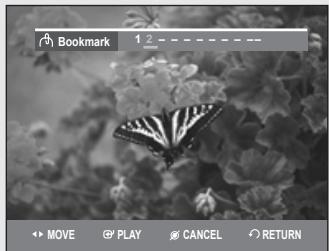

■ Using the Bookmarks 47

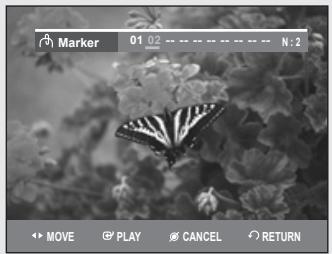

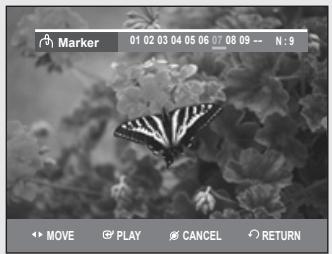

■ Using the Markers ...... 48

■ Playing Back an Audio CD (CD-DA)/MP3 ...... 49

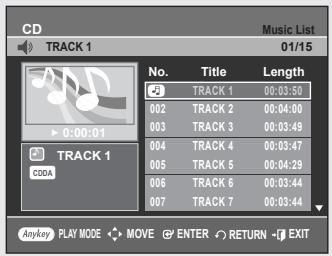

Buttons on the Remote Control Used for Audio CD (CD-DA)/MP3 Playback 49

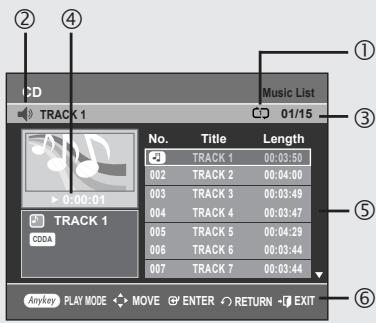

Playing an Audio CD (CD-DA) 49

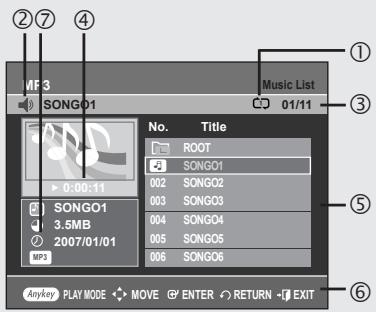

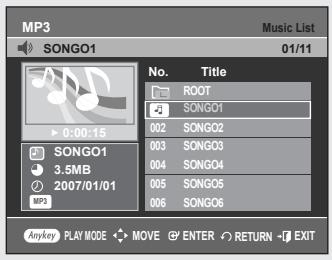

Playing an MP3 Disc....50

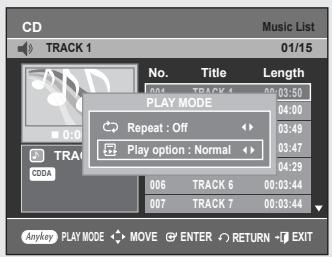

Repeat Playback of an Audio/MP3 Disc....50

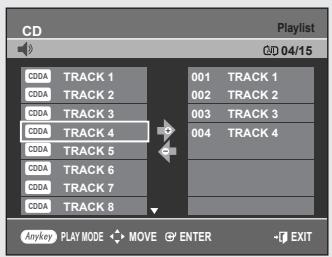

■ Play Option Mode....51
To Program Tracks 51

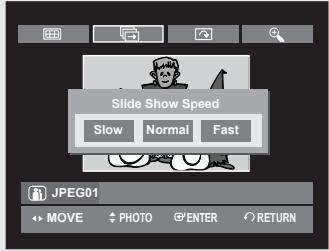

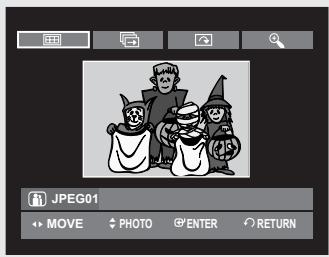

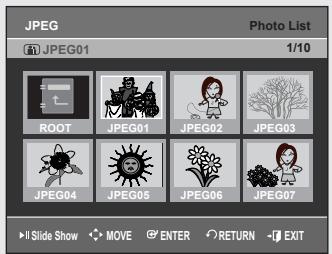

■ Playing a Picture Disc .... 51

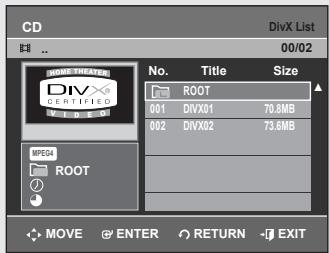

■ Playing an MPEG4 Disc....52
◆ VCR Playback
■ Playing the VCR....53
Tracking....53
Special VCR Playback Features 53
S-VHS Playback....54
Variable Search System....54

Recording

◆ DVD Recording
■ Recordable discs....55
Recording Formats....56
■ Recording Mode....56
■ Unrecordable Video....57
■ Recording the Current Channel you are watching ..58
■ Recording from External Equipment you are Watching.. 59
■ Recording Through the DV Input Jack 60
■ Making a One Touch Recording (OTR)......61

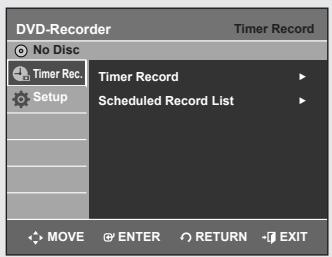

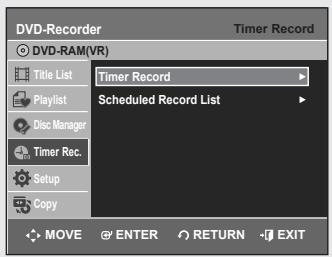

■ Making a Timer Recording 62

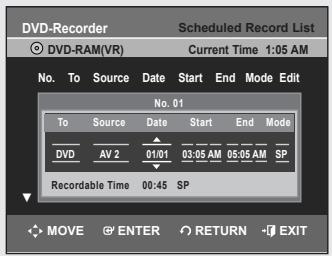

■ Editing the Scheduled Record List ...... 63

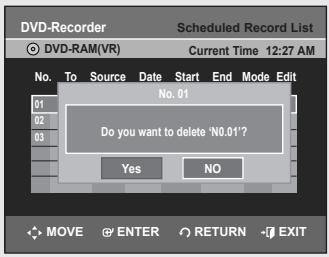

■ Deleting the Scheduled Record List....64
■ EZ REC MODE 64
◆ VCR Recording
■ Basic VCR Recording....65
■ Check Remaining Time ...... 66
■ Special Recording Features....66

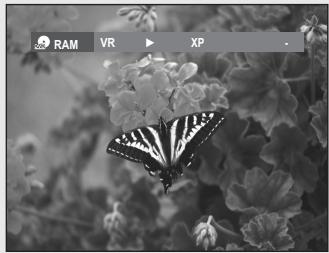

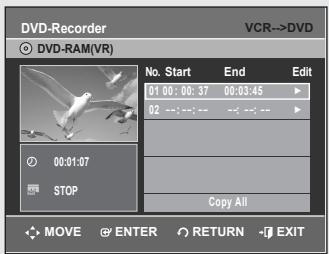

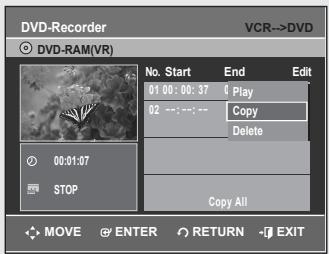

■ Copy to DVD or VCR....67

Editing

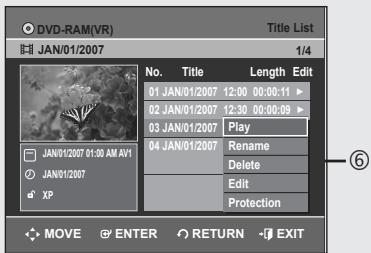

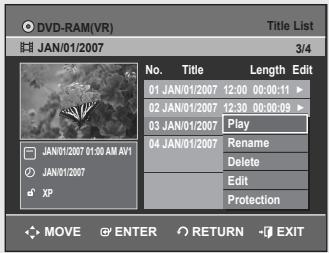

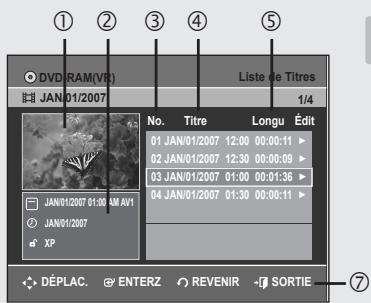

■ Playing the Title List 69
■ Basic Editing (Title List)....70

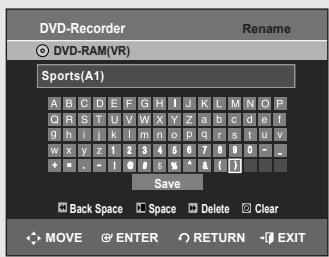

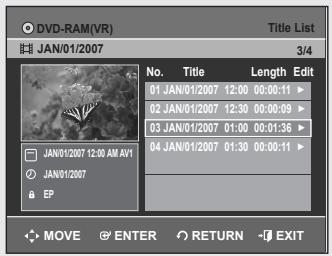

Renaming(Labeling) a Title 70

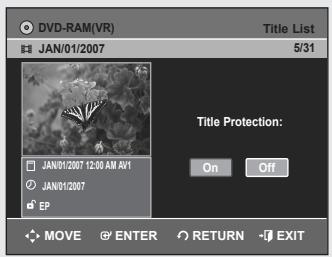

Locking(Protecting) a Title....71

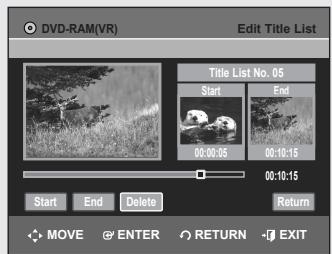

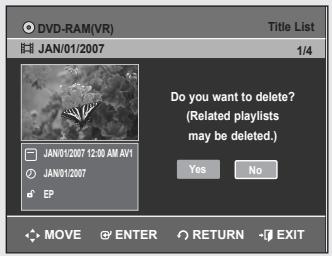

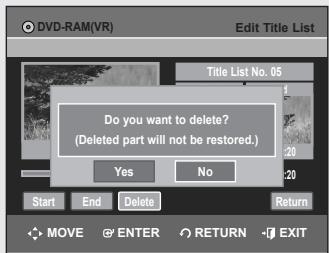

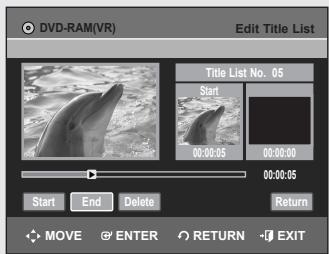

Deleting a Title 71
Deleting a Section of a Title 72

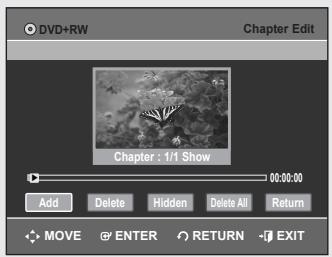

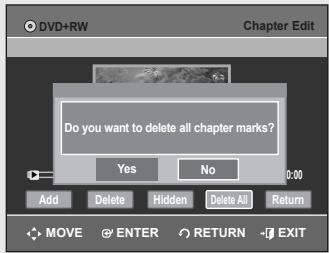

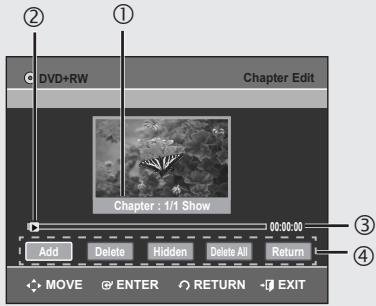

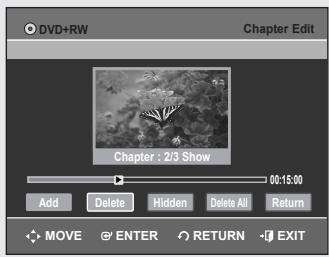

Editing a Chapter 73

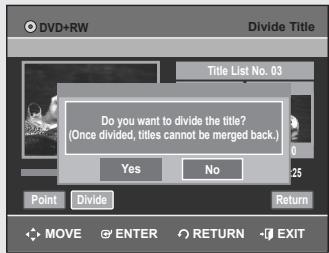

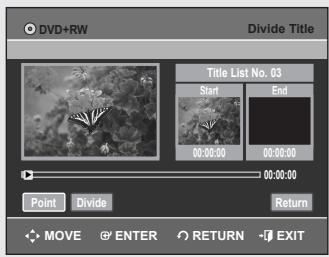

Dividing a Title....74

■ Advanced Editing (Playlist)....75

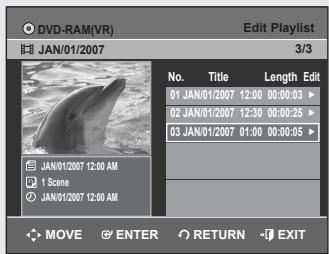

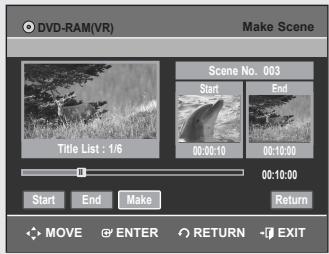

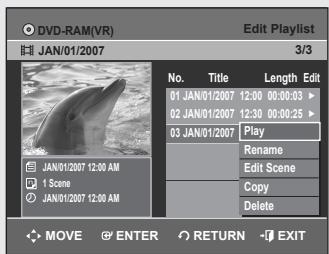

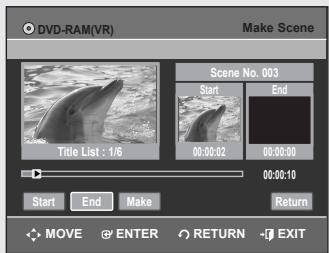

Creating a Playlist 75
Playing Titles in the Playlist....75

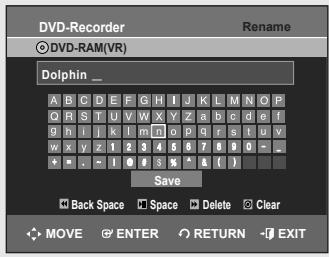

Renaming a Playlist Title....76

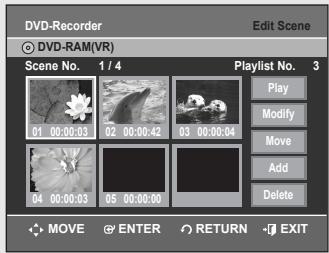

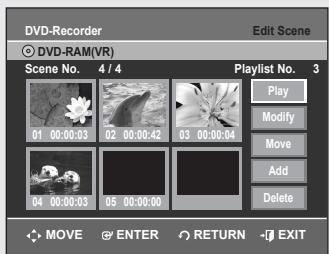

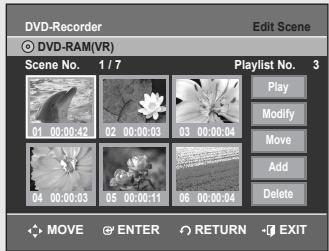

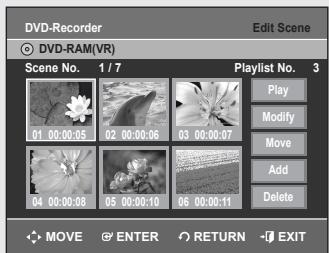

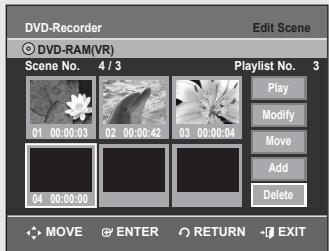

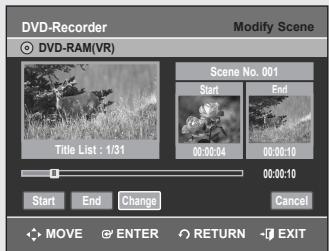

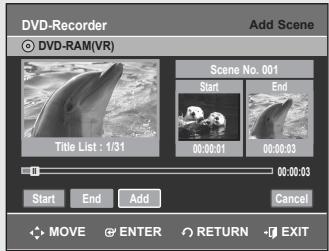

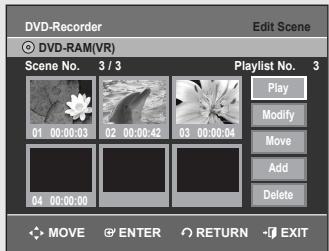

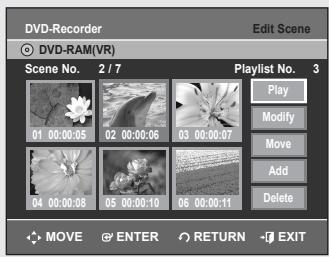

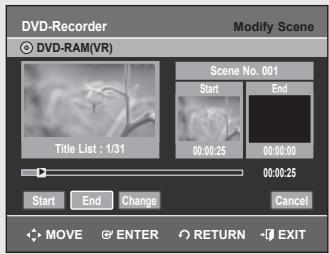

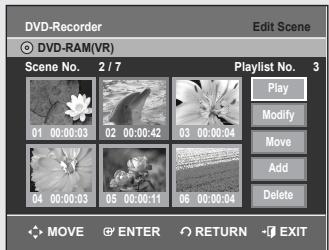

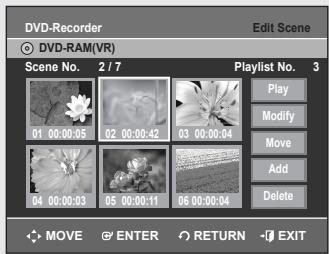

Editing a Scene for the Playlist 76

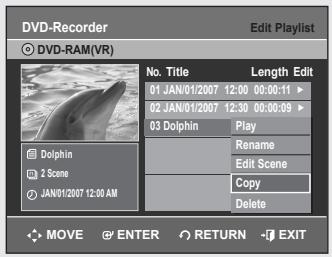

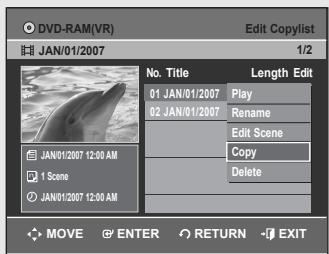

Copying a Playlist Title to the VCR 79

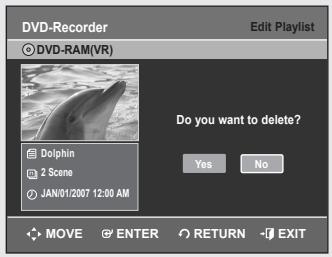

Deleting a Playlist Title from the Playlist .... 79

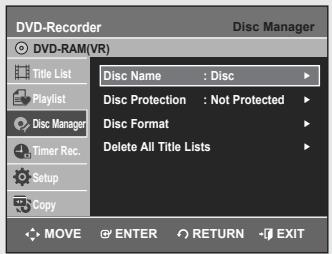

■ Disc Manager 79

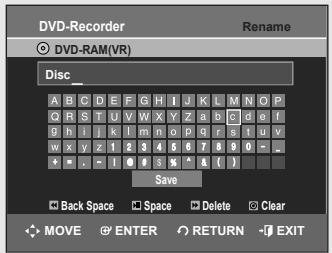

Editing the Disc Name....79

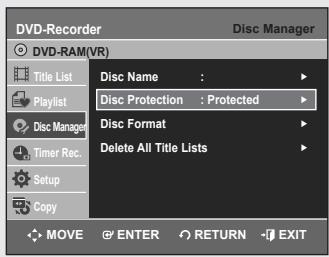

Disc Protection....80

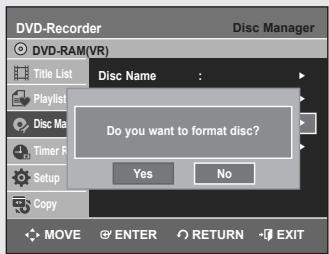

Formatting a Disc 80
Finalizing a disc....81

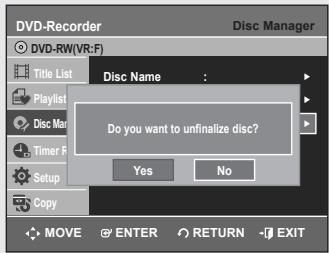

Unfinalizing a disc (V/VR mode) 81

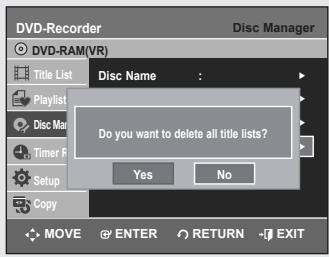

Delete All Title Lists 82

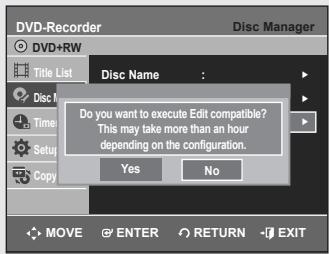

Edit Compatible....82

Reference

■ Troubleshooting (DVD-VIDEO/DVD-RAM/DVD±RW/DVD±R)......83
■ Troubleshooting (DVD)......84
■ Troubleshooting (VCR)......85
■ Problems and Solutions (Display error Message)... 86
■ Specifications 88
■ Warranty....89

General Features

The DVD-VR355 allows you to record and play high quality digital video on DVD-RAM/DVD±RW/DVD±R discs. You can record and edit digital video on DVD-RAM/DVD±RW/DVD±R discs as if they were VCR tapes.

High quality digital audio and video recording and playback

You can record up to approximately 16-hours of video on a double side 9.4 GB DVD-RAM disc, up to 15-hours on a dual-layer 8.5GB DVD±R disc, and up to 8-hours on a 4.7 GB DVD-RAM/DVD±RW/DVD±R disc, depending on the recording mode.

Creating DVD video titles using DVD±RW/DVD±R discs

With the DVD-VR355, you can create your own DVD video titles on 4.7 GB DVD±RW/DVD±R or 8.5GB DVD±R discs.

A Variety of Recording Options

Select an appropriate recording mode between XP, SP, LP and EP to meet your recording needs. (See page 56.)

• XP mode - High quality, about 1 hour
• SP mode - Standard quality, about 2 hours
• LP mode - Low quality, about 4 hours

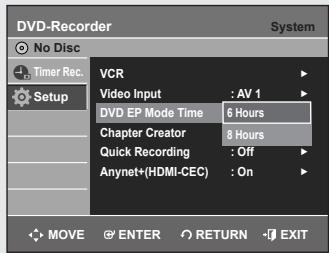

• EP mode - Lower quality, about 6 or 8 hours
• The dual layer DVD±Rs have approximately double the capacity of single layer DVD±Rs. (See page 40.)

Copying digital camcorder content using DV input jack

Record digital camcorder images onto DVD-RAM/DVD±RW/DVD±R discs or video tape using the DV input jack (IEEE 1394-4pin). (See page 60.)

High quality progressive scan

Progressive scanning provides high resolution and flicker free video. The 10-bit 54-MHz DAC, 2D Y/C Separating circuitry and Time Base Corrector processor technology provide you with the highest image playback and recording quality. (See page 20.)

Component progressive scan output video is available in both DVD and VCR modes.

A variety of functions with an easy-to-use user interface

The Integrated menu systems and messaging functionality allow you to perform the desired operations easily and conveniently. With a DVD-RAM/DVD-RW(VR mode) disc, you can edit recorded images, create playlist, and edit videos in a specific sequence according to your needs.

MPEG4 playback

This DVD Recorder & VCR can play MPEG4 formats within an avi file.

DivX Trademark

DivX, DivX Certified, and associated logos are trademarks of DivXNetworks, Inc and are used under license.

HDMI (High Definition Multimedia Interface)

HDMI reduces picture noise by allowing a pure digital video/audio signal path from the DVD Recorder & VCR to your TV.

EZ REC MODE

This function allows you Initialize and Finalize a disc automatically. (See page 64.)

Before Reading the User's Manual

Make sure to check the following terms before reading the user's manual.

Icons that will be used in manual

Icon	Term	Definition
	DVD	This involves a function available with DVD or DVD-R/DVD-RW(V)/+R discs that have been recorded and finalized.
	RAM	This involves a function available with DVD-RAM discs.
DVD-RW	-RW	This involves a function available with DVD-RW discs.
	-R	This involves a function available with DVD-R discs.
DVD-RW	+RW	This involves a function available with DVD+RW discs.
	+R	This involves a function available with DVD+R discs.
CD	CD	This involves a function available with a data CD (CD-R or CD-RW).
	JPEG	This involves a JPEG function available with CD-R/-RW or DVD±R/±RW/-RAM discs.
	MP3	This involves an MP3 function available with CD-R/-RW or DVD±R/±RW/-RAM discs.
MPEG4	MPEG4	This involves an MPEG4 function available with DVD±R/±RW/-RAM discs.
	Caution	This involves a case where a function does not operate or settings may be cancelled.
	NOTE	This involves tips or instructions on the page that help each function operate.
	One-Touch button	A function that can be operated by using only one button.
	ANYKEY button	A function that can be operated by using ANYKEY button.

About the use of this user's manual

1) Be sure to be familiarize yourself with the Safety Instructions before using this product. (See pages 2\~5)
2) If a problem occurs, check the Troubleshooting section. (See pages 83\~85)

Copyright

©2007 Samsung Electronics Co.

All rights reserved; No part or whole of this user's manual may be reproduced or copied without the prior written permission of Samsung Electronics Co.

How to use the DVD Recorder & VCR

Step 1 : Select the disc type

This unit can record on the following types of discs. If you want to repeatedly record on the same disc or you want to edit the disc after recording, select a rewritable DVD±RW or DVD-RAM type disc. If you want to save a recording without making any changes, choose a non-rewritable DVD±R.

RAM

R W

R

DVD+ReWritable

DVD+R

Step 2 : Format the disc to start recording

Unlike a VCR, the recorder automatically starts formatting when an unused disc is inserted. This is required for the preparation of recording on a disc.

Using a DVD-RAM

This type of disc can be formatted in DVD-Video Recording format (VR mode). You can edit recorded images and create a playlist in a specific sequence according to your requirements.

Using a DVD±RW/+R

• When an unused DVD±RW/+R disc is first inserted, the message "Uninitialized Disc. Do you want to initialize this disc?" will be displayed.
  If you select Yes, initializing will be begin. DVD-RW discs can be formatted in either DVD-Video format (Video mode) or DVD-Video Recording format (VR mode)
• There are no differences between DVD-Video format (Video mode) and DVD-Video Recording format (VR mode) with DVD+R discs.

Using a DVD-R

When using a DVD-R disc, only V mode recording is possible and no initialization is needed to play it on this recorder. However, finalization is necessary to play this disc on other DVD players.

■ You can only use either the VR or Video mode on a DVD-RW, but not both at the same time.

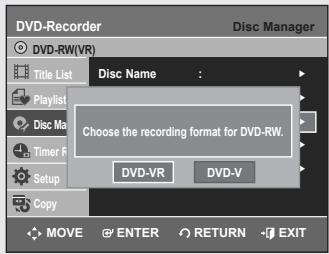

- You can format a DVD-RW to V or VR mode using disc manager. It should be noted that the disc's data will be lost when changing formats.

Step 3 : Recording

There are two different recording methods: Direct Recording and Timer Recording. Timer recording is determined as a date and recording can be done once, daily or weekly. There are 4 recording modes: XP (high quality mode), SP (standard quality mode), LP (long recording mode), and EP (extended mode).

Step 4 : Playing

To start playback, select the title you want to play from the title list.

A DVD consists of sections called titles, and sub sections called chapters.

During recording, a title is created between two points where you start and stop recording. Chapters will be created automatically when you finalize recording on DVD-R/DVD-RW discs in Video mode.

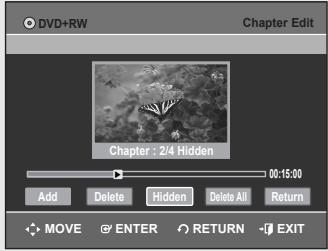

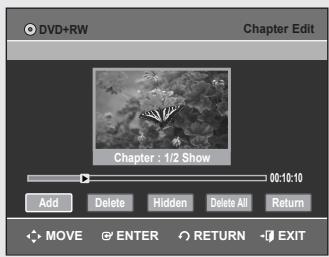

You can make your own chapters on DVD+RWs and edit them using the Chapter Edit menu.

The chapter's length (interval between chapters) varies according to the recording mode.

Step 5 : Editing a recorded disc

Editing on discs is easier than conventional video tapes. The recorder supports many different edit functions, possible only with DVDs.

With a simple and easy edit menu, you can operate various edit functions, such as delete, copy, rename, lock, etc., on a recorded title.

Creating a playlist (DVD-RAM/-RW in VR mode)

With this recorder, you can create/edit a new playlist on the same disc without changing the original recording.

Step 6 : Finalizing & Playing on other DVD components

To play your DVD on other DVD players, finalizing may be necessary. First, finish all editing and recording operations, then finalize the disc.

When using a DVD-RW disc in VR Mode

Although finalizing is generally unnecessary when playing the disc on a VR Mode compatible component, a finalized disc should be used for playback.

When using a DVD-RW disc in Video Mode

The disc should be finalized first to enable playback on anything other than this recorder. No more editing or recording can be made on the disc once it has been finalized.

When using a DVD±R disc

You should finalize the disc to play it on other DVD players. No more editing or recording can be made on the disc once it has been finalized.

■ You can finalize automatically using the EZ REC MODE. (See page 64)

Unpacking

Accessories

Check for the supplied accessories below.

Video/Audio Cable (AC39-00073A)

RF Cable for TV (AC39-42001J)

Remote Control (AK59-00062G)

Batteries for Remote Control (AAA Size) (AC43-12002H)

Instruction Manual (AK68-01343A)

Quick Guide (AK68-01347A)

Connecting the Power Cord

After all connections are complete, plug the power cord into a wall outlet.

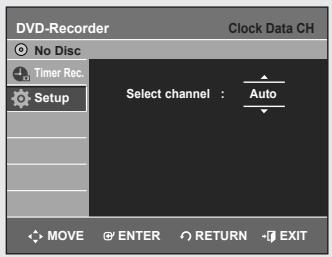

"Auto" appears in the front panel display. This means that the current time is being set automatically through the antenna under connection(Auto Program). The setup may take several minutes.

When the DVD Recorder & VCR operates normally, the current time is automatically set and displayed in the front panel display.

Illustration of a black plug inserted into a white electrical outlet with two socket slots (no text or symbols)

Preparing the Remote Control

Install Batteries in the Remote Control

• Open the battery cover on the back of the remote control.
• Insert two AAA batteries. Make sure that the polarities (+ and -) are aligned correctly.
• Replace the battery cover.

If the remote control does not operate properly:

• Check the polarity +/- of the batteries.
• Check if the batteries are drained.
• Check if the remote sensor is blocked by obstacles.
• Check if there is any fluorescent lighting nearby.

Dispose of batteries according to local environmental regulations.

Do not put them in the household trash.

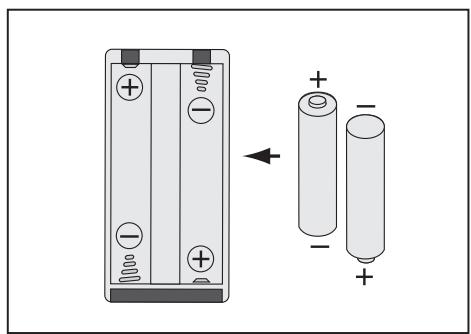

Diagram showing two batteries with positive and negative charge indicators, one with an arrow indicating transformation (no text or symbols present)

To determine whether your television is compatible, follow the instructions below.

1. Switch your television on.
2. Point the remote control towards the television.
3. Press and hold the TV button and enter the two-figure code simultaneously corresponding to the brand of your television by pressing the appropriate number buttons.

Brand	Codes	Brand	Codes
SAMSUNG	01,14,15,23,31	NEWSAN	27
DAEWOO	19	NOBLEX	25
EMERSON	21	PANASONIC	12,24
GRADIENTE	30	RCA	07,29
HITACHI	10	SANYO	05,20
JVC	11	SHARP	02,16,22
LG	06,08,18	SONY	03
LOEWE	28	TELEFUNKEN	26
MAGNAVOX	04	TOSHIBA	09
MITSUBISHI	13	ZENITH	17

Result: If your television is compatible with the remote control, it will switch off. It is now programmed to operate with the remote control.

If several codes are indicated for your television brand, try each one in turn until you find one that works. If you replace the remote control's batteries, you must set the brand code again.

You can then control the television using the following buttons.

Button	Function
TV POWER	Used to switch the television on and off.
INPUT SEL.	Used to select an external source.
TV VOL +/-	Used to adjust the volume of the television.
CH/TRK (^/∨)	Used to select the desired channel.
TV MUTE	Used to toggle the sound on and off.
0~9	Used to input number directly.
100+	Used to select channels over 100.

■ The various functions may not be able to be controlled on all televisions. If you encounter problems, operate the television directly.

You can control part of another manufacturer's TV functions with this remote control.

- Buttons that can be controlled on your TV : TV POWER, INPUT SEL., TV VOL +/-, CH/TRK (^^), TV MUTE, 0\~9, 100+ Button.

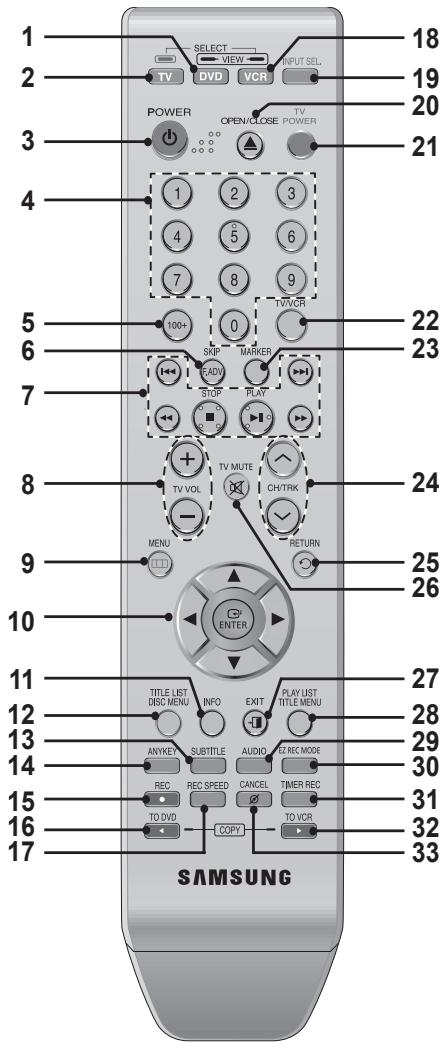

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 SELECT VIEW INPUT SEL TV DVD VCR POWER OPEN/CLOSE TV POWER 1 2 3 4 5 6 7 8 9 TV/VCR 100+ 0 SKIP MARKER FADV PLAY STOP + TV MUTE CH/TRK TV VOL - MENU RETURN ENTER TITLE LIST DISCMENU INFO EXIT PLAY LIST TITLE MENU ANYKEY SUBTITLE AUDIO EZ REC MODE REC REC SPEED CANCEL TIMER REC TO DVD COPY TO VCR SAMSUNG

1. DVD Button

Press this when you use a DVD.

2. TV Button

Press this to operate your TV.

3. POWER Button

Press to power the DVD Recorder & VCR on and off.

4. NUMBER Button

5. 100+ Button

Press this to select channel 100 or higher.

6. F.ADV/SKIP Button

Press to skip a disc backwards or forwards.

7. Playback-related Buttons

Forward/Rewind, Search, Skip, Stop, Play/Still

8. TV VOL (Volume) Button

TV volume adjustment

9. MENU Button

Press this to bring up the DVD Recorder & VCR's setup menu.

10. ENTER/DIRECTION Buttons

(UP/DOWN or LEFT/RIGHT Buttons)

This button functions as a toggle switch.

11. INFO Button

Press this to display current setting or disc status.

12. TITLE LIST/DISC MENU Button

Press this to enter the TITLE LIST/Disc menu.

13. SUBTITLE Button

Press this to switch the DVD's subtitle language.

14. ANYKEY Button

Press this to set the status of the disc that is being played.

15. REC Button

Press this to make a recording on VCR, DVD-RAM/±RW/±R discs.

16. TO DVD COPY Button

Press this when you copy from the VCR to the DVD.

17. REC SPEED Button

Press this to set the desired recording time and picture quality.

18. VCR Button

Press this when you use a VCR.

19. INPUT SEL. Button

Press this to select AV input signal in external input mode. (Tuner, AV input, DV input)

20. OPEN/CLOSE Button

Press this to open and close the disc tray.

21. TV POWER Button

Press to power your TV on and off.

22. TV/VCR Button

23. MARKER Button

Press this to bookmark or mark a position while playing a disc.

24. CH/TRK Button

Use this to select a TV channel.

Press this to adjust the tape tracking.

25. RETURN Button

Returns to a previous menu.

26. TV MUTE Button

This also operates as sound mute. (TV mode)

27. EXIT Button

Exit the current menu.

28. PLAY LIST/TITLE MENU Button

Press this to enter the Edit playlist/Title menu.

29. AUDIO Button

Press this to access various audio functions.

30. EZ REC MODE Button (See page 64)

Use this to set the EZ REC MODE.

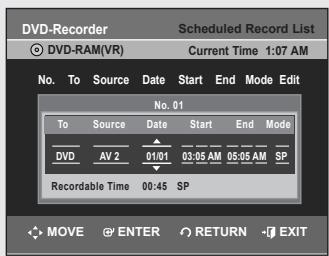

31. TIMER REC Button

Press this when you use Timer Recording.

32. TO VCR COPY Button

Press this when you copy from the DVD to the VCR.

33. CANCEL Button

* This is a special remote control for the visually impaired, and has Braille points on the POWER( ), STOP( ) and PLAY( ) buttons.

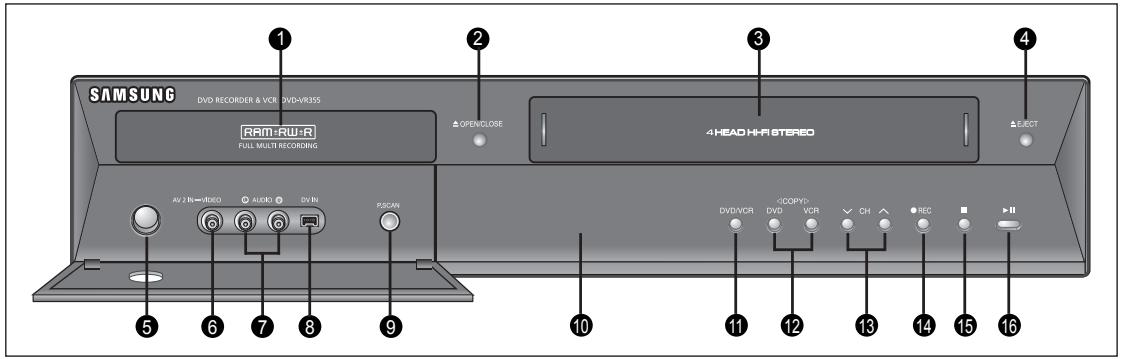

SAMSUNG DVD RECORDER & VCR DVD/VR355 RAM-RW-R FULL MULTI RECOORDING AV 2 IN→VIDEO AUDIO DV IN FUSCAN 1 2 3 4 AHEAD HI-FI STEREO ΔOPEN CLOSE ΔELECT 10 11 12 13 14 15 16 VCR CH REC ||

1. DVD DECK
2. DVD OPEN/CLOSE BUTTON
3. VCR DECK
4. VCR EJECT BUTTON
5. POWER BUTTON
6. VIDEO INPUT JACK (AV 2 IN)
7. AUDIO L, R INPUT JACKS (AV 2 IN)

8. DV INPUT JACK

9. P.SCAN BUTTON

10. FRONT PANEL DISPLAY
11. DVD/VCR SELECT BUTTON
12. COPY BUTTON
13. CH (∧/∨) BUTTON
14. RECORD BUTTON
15. STOP BUTTON
16. PLAY/ STILL BUTTON

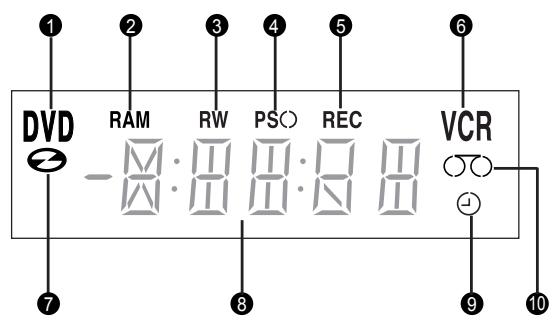

Front Panel Display

DVD RAM RW PS REC VCR - 1: 1 1: 1 1 7 8 9 10

1. DVD is activated.
2. DVD-RAM is activated.
3. DVD(±)R or DVD(±)RW is activated.
4. Progressive Scan mode is activated.
5. Record function is activated.

6. VCR is activated.

7. DVD or CD media is loaded.

8. The time, counter position or current deck status is indicated.
9. When you set a Timer recording, this indicator appears.
10. VHS video tape is loaded.

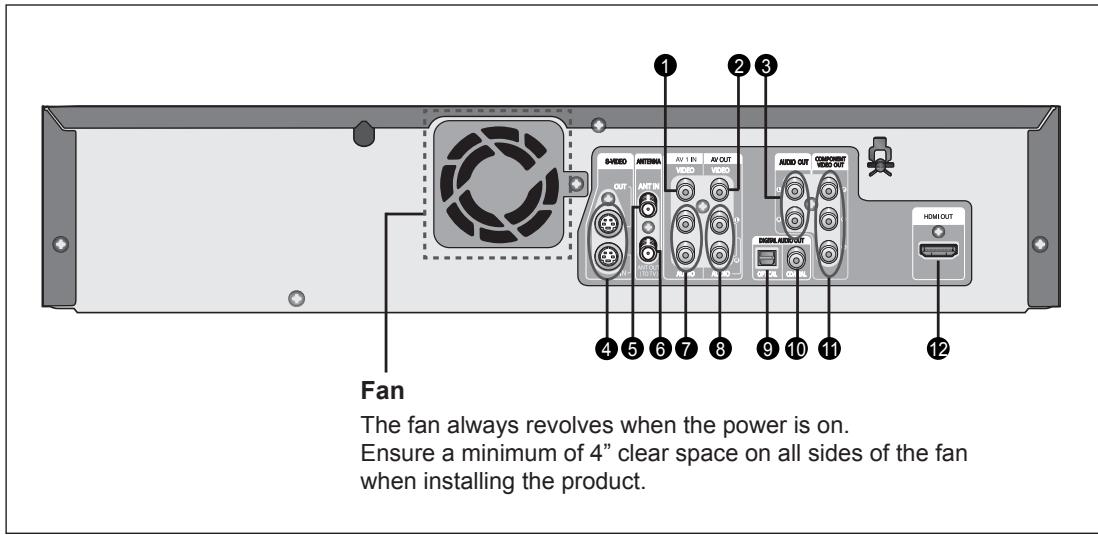

Fan The fan always revolves when the power is on. Ensure a minimum of 4" clear space on all sides of the fan when installing the product.

1. VIDEO INPUT JACK (AV 1 IN)
2. VIDEO OUT JACK (AV OUT)
3. AUDIO OUT JACKS (COMPONENT OUT)
4. S-VIDEO IN/OUT JACKS
5. ANT IN JACK
6. ANT OUT (TO TV) JACK

7. AUDIO INPUT JACKS (AV 1 IN)

8. AUDIO OUT JACKS (AV OUT)

9. DIGITAL AUDIO OUT JACK (OPTICAL)
10. DIGITAL AUDIO OUT JACK (COAXIAL)
11. VIDEO OUT JACKS (COMPONENT OUT)
12. HDMI OUT
    Connects the input of external equipment using an HDMI cable.

Connecting the Antenna Cable

There are several ways to connect your DVD Recorder & VCR. Select the antenna connection that best suits you below.

Antenna + DVD Recorder & VCR + TV : No Cable box

You can record non-scrambled channels by selecting the channel on the DVD Recorder & VCR. Also use this method if you watch channels without a cable box.

RF Cable Wall 8-VIDEO AV 1 IN AV OUT COMPONENT VIDEO OUT AUDIO AUDIO DIGITAL AUDIO OUT OPTICAL COASTAL HDMI OUT TO ANT OUT TV TO ANT INPUT

■ If you are using an off-air antenna that has 300-ohm twin flat leads, use an external antenna connector (300-75 ohm adaptor: not supplied) to connect the antenna to the DVD Recorder & VCR.

■ If you have two separate antennas (one VHF and the other UHF), use a UHF/VHF combineradaptor (available at most electronics shops) to connect the antenna to the DVD Recorder & VCR.

Diagram showing signal transmission from a fiber to an output with VHF and UHF components, including directional arrows.

Antenna + Cable box + DVD Recorder & VCR + TV : Cable box with many scrambled channels

You can record channels by selecting the channel on the cable box. You cannot record one channel while watching another channel. Be sure that the cable box is turned on.

Antenna + DVD Recorder & VCR + Cable box + TV : Cable box with a few scrambled channels

You can record non-scrambled channels by selecting the channel on the cable box. You cannot record scrambled channels that require a cable box.

Connecting to a TV with an HDMI Jack

HDMI (High Definition Multimedia Interface)

HDMI enables you to make a digital video and audio connection with a single cable. Using HDMI, the DVD player transmits a digital video and audio signal and displays a vivid picture on a TV having an HDMI input jack."

Using an HDMI- HDMI cable(not included) connect the HDMI OUT jack on the rear of the DVD Recorder & VCR to the HDMI IN jack of your TV.

Press the input selector on your TV remote control until the HDMI signal from the DVD Recorder & VCR appears on your TV screen.

!

■ To hear audio on your TV when using HDMI, set the digital audio output to PCM (2 channel). (See page 32)
■ Depending on the HDMI device (TV/HDMI Receiver) you use, audio may not be supported. If your TV does not support Dolby digital/DTS, Audio output is not available when you set the Digital output as Bitstream or select DTS On in the Audio setup menu. In this case, set the digital audio output to PCM or DTS Off.
■ If you use an HDMI cable to connect a Samsung TV to the DVD recorder & VCR, you can operate the recorder using the TV remote control. (This is only available with SAMSUNG TVs that support Anynet+(HDMI-CEC).) (See page 39)

■ HDMI (High Definition Multimedia Interface) HDMI enables you to make a digital video and audio connection with a single cable. Using HDMI, the DVD and VCR player transmits a digital video and audio signal and displays a vivid picture on a TV having an HDMI input jack.
■ When HDMI is connected, you can still record TV via Video or S-Video on the VCR, but you cannot copy from the DVD player to the VCR.
■ Please check the A_nynet^+ logo (If your TV has an A_nynet^+ logo, then it supports Anynet+ function.)

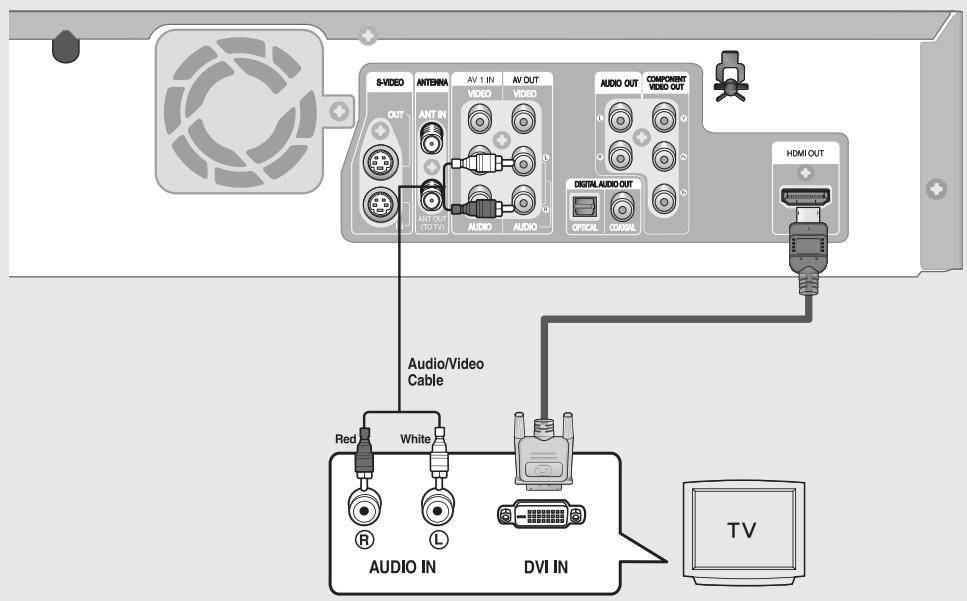

Using an HDMI-DVI cable (not included), connect the HDMI OUT terminal on the rear of the DVD Recorder & VCR to the DVI IN terminal of your TV.

An HDMI to DVI connection requires a separate audio connection, using the audio cables, connect the AUDIO (red and white) OUT (AV OUT) terminals on the rear of the DVD Recorder & VCR to the AUDIO (red and white) IN terminals of your TV. Turn on the DVD Recorder & VCR and TV.

Press the input selector on your TV remote control until the DVI signal from the DVD Recorder & VCR appears on your TV screen.


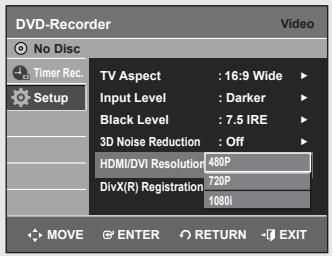

■ To set the HDMI output resolution (480p/720p/1080i), see page 34.
■ HDMI (High Definition Multimedia Interface)
HDMI enables you to make a digital video and audio connection with a single cable.
Using HDMI, the DVD and VCR player transmits a digital video and audio signal and displays a vivid picture on a TV having an HDMI input jack.
■ HDMI is completely compatible with DVI.
The only difference between HDMI and DVI is that HDMI supports multi-channel audio.
■ HDMI connection description
HDMI connector - Both uncompressed video data and digital audio data (LPCM or Bit Stream data).
- Even though the DVD Recorder & VCR records analog audio and video, with HDMI the analog signal is converted to digital signal and is sent to the TV.
- If your TV does not support HDCP (High-bandwidth Digital Content Protection), snow noise appears on the screen.

■ Why does Samsung use HDMI?

Analog TVs require an analog video/audio signal. However, when playing a DVD, the data transmitted to a TV is digital. Therefore either a digital-to-analog converter (in the DVD Recorder & VCR) or an analog-to-digital converter (in the TV) is required. During this conversion, the picture quality is degraded due to noise and signal loss. HDMI technology is superior because it requires no digital-to-analog conversion and is a pure digital signal from the DVD Recorder & VCR to your TV.

■ What is the HDCP?

HDCP (High-bandwidth Digital Content Protection) is a system for protecting DVD content output via HDMI from being copied. It provides a secure digital link between a video source (PC, DVD. etc) and a display device (TV, projector. etc). Content is encrypted at the source device to prevent unauthorized copies from being made.

Connecting the Video Cable

There are several ways to connect your DVD Recorder & VCR. Select one of the video connections on the following pages.

You must use one of the following audio/video connections on this unit.

Connecting to Component Video Input Jacks (Y, P_B , P_R )

Connect Component video cables (not supplied) between the COMPONENT OUT (Y,P_B,P_R) jacks on DVD Recorder & VCR and COMPONENT IN (Y,P_B,P_R) jacks on your TV.

SAMSUNG DVD RECORDER & VCR DVD+PRESS RPM-RWR FULL MULTICELORING OPENCLOSE 4HEAD H-R STEREO AV/20+ VIDEO AUDIO DVD SCAN DVD+VCR COPYD DVD VCR VCR

• You will enjoy high quality images. Component video separates the picture element into black and White(Y), blue(P_B), red(P_R) signals to present clear and clean images.
• Connect the audio cables(white and red) between the Component AUDIO OUT jacks on the DVD Recorder & VCR and Component AUDIO IN jacks on your TV(or AV amplifier). (See pages 21\~23)

- Progressive scan

- If your TV supports Progressive Scan, you can enjoy higher quality video by pressing the P.SCAN button. (The component cable has to be connected.)

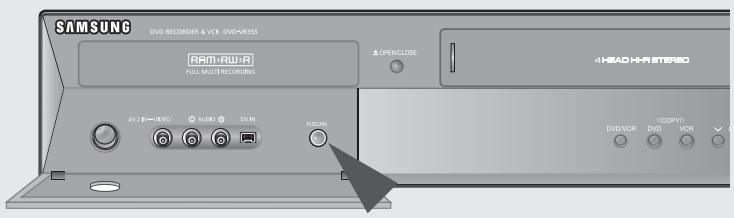

1. With the unit in Stop mode, press the P.SCAN button on the front of the DVD Recorder & VCR.
2. The message "Press "Yes" to confirm Progressive scan mode. Otherwise press "No" will appear. Press the ◀▶ buttons to select Yes, and then press the ENTER button.

■ Compared to standard interlaced video, progressive scan doubles the amount of video lines fed to your TV, resulting in a clearer, more stable, and flicker free image than interlaced video. The component output jack of the DVD player can be used for progressive output mode, which is only available with TVs that support progressive scan.
■ Progressive Scan Output (480p) Consumers should note that not all high definition television sets are fully compatible with this product and may cause artifacts to be displayed in the picture. If you experience 480p progressive scan picture problems, it is recommended that you switch the connection to the ‘standard definition’ output. If there are questions regarding TV set compatibility with this model, please contact our customer service center at 1-800-SAMSUNG.
■ The Component jacks will not output video resolutions above 480p. To view 720p and 1080i, connect the DVD-VR355 to your TV with an HDMI-HDMI cable. With HDMI connected, press the P.SCAN button to alternate between all available resolutions. (See page 34)

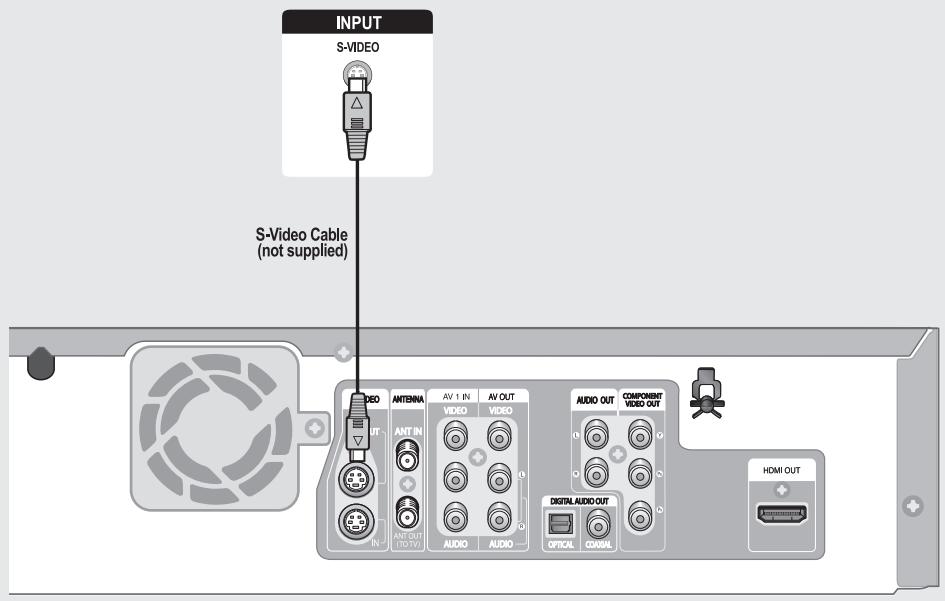

Connecting to an S-Video Input Jacks

Connect an S-Video cable(not supplied) between the S-VIDEO OUT jack on DVD Recorder & VCR and S-VIDEO IN jack on your TV.

INPUT S-VIDEO S-Video Cable (not supplied) VIDEO ANTENNA AV 1 IN AV OUT VIDEO VIDEO VIDEO AUDIO AUDIO AUDIO OUT COMPONENT VIDEO OUT DIGITAL AUDIO OUT OPTICAL COAVIAL HDMI OUT

• You will enjoy high quality images. S-Video separates the picture element into black and white (Y) and color (C) signals to present clearer images than regular video input mode. This connection outputs the 480i resolution to your TV.
• Connect the audio cables(white and red) between the AUDIO OUT jacks on the DVD Recorder & VCR and AUDIO IN jacks on your TV(or AV amplifier). (See pages 23\~25)

■ S-Video and Component video output are available only if your TV supports S-Video input or Component video input, respectively. If S-Video or Component video output does not work, check your TV connections and the TV input selection settings.

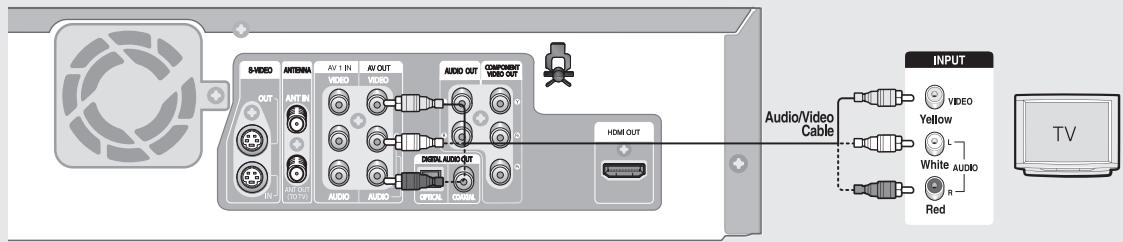

Connecting to a Video Input Jacks

Connect a video(yellow) cable between the VIDEO(yellow) OUT jack on DVD Recorder & VCR and VIDEO(yellow) IN jack on the TV.

• You will enjoy regular quality images. This connection outputs the 480i resolution to your TV.
• Connect the audio cables(white and red) between the AUDIO OUT jacks on the DVD Recorder & VCR and AUDIO IN jacks on your TV(or AV amplifier). (See pages 23\~25)

Connecting the Audio Cable

Select one of the Audio connections on the following pages.

Connecting to your TV

This connection will use your TV's speakers.

Connecting to a Stereo Amplifier with Analog Input Jacks

If your stereo amplifier only has AUDIO INPUT jacks(L and R), use the AUDIO OUT (AV OUT) jacks.


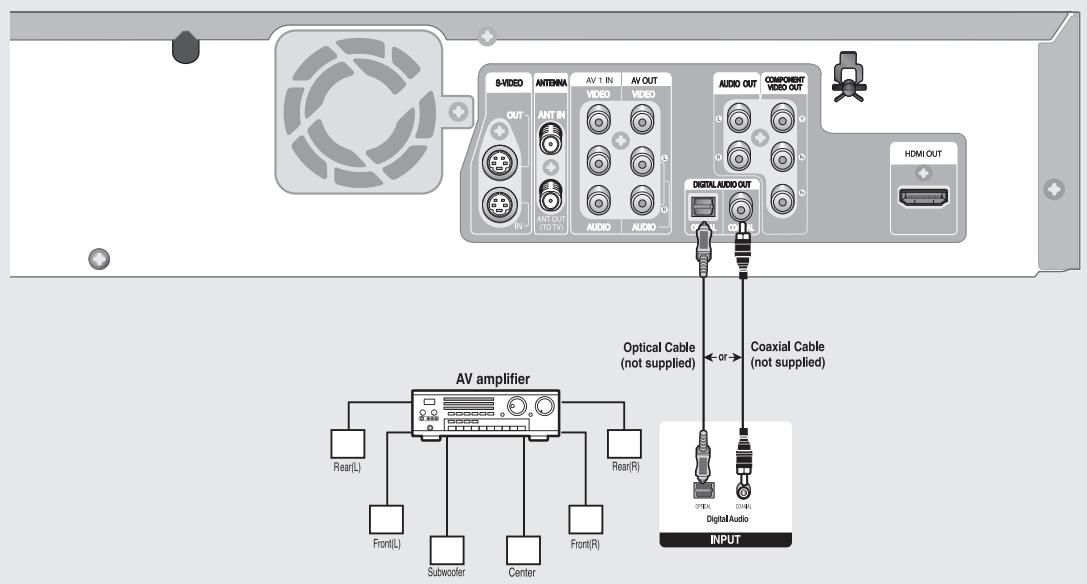

Connecting to an AV Amplifier with a Digital Input Jack

If your AV amplifier has a Dolby Digital or DTS decoder and a digital input jack, use this connection. To enjoy Dolby Digital or DTS sound, you will need to set up the audio settings. (See page 32)

Manufactured under license from Dolby Laboratories. "Dolby" and the double-D symbol are trademarks of Dolby Laboratories.

“DTS” and “DTS Digital Out” are trademarks of DTS, Inc.

Connecting External Devices

This allows you to connect your DVD Recorder & VCR to other external devices and view or record their outputs.

Connecting a VCR, cable box/satellite receiver (Set top box) or DVD player to the AV 1 IN or S-VIDEO IN Jacks

Connecting a VCR or external device to AV 1 IN jacks of the DVD Recorder & VCR. If desired, you can connect an S-Video cable to the S-Video In jack instead of connecting the Video (yellow) cable. You can record from connected equipment (VCR, cable box/satellite receiver (Set top box) or DVD).

■ You can also use the AV 2 IN jacks on the front panel of the DVD Recorder & VCR.

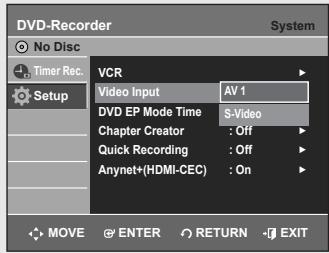

■ Press the INPUT SEL. button to select the AV1 or S-Video input.
■ Copy protected content cannot be recorded.
■ Depending on your input connection, you must choose AV 1 (Composite) or S-video. (See page 37)

Connecting a Camcorder

You can record from connected equipment, such as a camcorder by using the AV2 IN or DV IN jacks on front of the DVD Recorder & VCR.

SAMSUNG DVD RECORDER & VCR DVD-VR355 RAM±RW±R FULL MULTI RECORDING ▲ OPEN/CLOSE AV 2 IN—VIDEO AUDIO ® DV IN P.SCAN Audio/Video Cable or DV Cable (not supplied) VIDEO L AUDIO R OUTPUT DV OUT Camcorder

(See page 60)

■ If the Input is not selected automatically, press the INPUT SEL. button on the remote control to select desired input.
■ Check your camcorder's owner's manual to see how to use the camcorder in this mode.

DVD-Recorder Timer Record No Disc Timer Rec. Setup Timer Record Scheduled Record List MOVE ENTER RETURN EXIT

DVD-Recorder Clock Set No Disc Timer Rec. Setup Auto Clock Set Manual Clock Set MOVE ENTER RETURN EXIT

DVD-Recorder Auto Clock Set No Disc Timer Rec. Setup Clock Data CH : Automatic Time Zone : Automatic Daylight Saving : Automatic MOVE ENTER RETURN EXIT

On-Screen Menu Navigation

The on-screen menus allow you to enable or disable various functions on your DVD Recorder & VCR. Press the MENU button to open the on-screen menu and then use the following buttons to navigate through the on screen menus.

1. ▲▼, ◀► Buttons

Press these buttons on the remote control to move the selection bar ▲▼, ◀▶ to cycle through the menu options.

1. ENTER Button

Press this button on the remote control to confirm any new settings.

1. RETURN Button

Press this button on the remote control to return to the previous menu screen displayed or to exit the on-screen menu.

1. EXIT Button

Press this button to exit the on-screen menu.

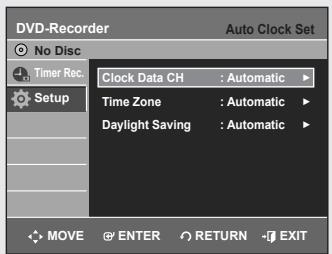

Auto Clock Set

This menu is used to set the current time. You need to set the time to use timer recording.

■ You must have the antenna connected to set the Auto Clock. See pages 15\~17 for Antenna Connections.
■ The Clock will be automatically set when you turn off the recorder.

1. With the unit in Stop mode/No Disc mode, press the MENU button.
2. Press the ▲▼ buttons to select Setup, then press the ENTER or ▶ button.

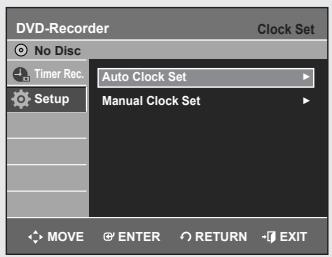

3. Press the ▲▼ buttons to select Clock Set, then press the ENTER or ▶ button.
4. Press the ▲▼ buttons to select Auto Clock Set, then press the ENTER or ▶ button.

■ If your clock is set to the wrong time zone or daylight saving, you can adjust these settings without turning off the Auto Clock Set function.

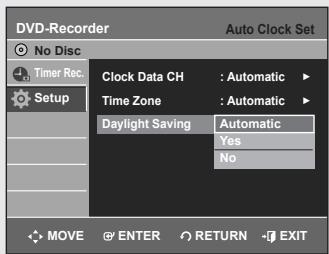

1. Press the ▲▼ buttons to select the sub menu (Clock Data CH, Time Zone or Daylight Saving), then press the ENTER or ▶ button.

DVD-Recorder Clock Data CH No Disc Timer Rec. Setup Select channel : Auto MOVE ENTER RETURN EXIT

DVD-Recorder Auto Clock Set No Disc Timer Rec Setup Clock Data CH Time Zone Daylight Saving Automatic Atlantic Eastern Central Mountain Pacific Alaska Hawaii MOVE ENTER RETURN EXIT

DVD-Recorder Auto Clock Set No Disc Timer Rec Setup Clock Data CH : Automatic Time Zone : Automatic Daylight Saving: Automatic Yes No MOVE ENTER RETURN EXIT

DVD-Recorder No Disc Timer Rec. Setup Month Day Year Hour Minute AM/PM 01 01 2007 12 00 AM MON Press numeric keys or ▲▼ keys. MOVE ENTER RETURN EXIT

Clock Data CH

Press the ▲▼ buttons to select a channel that carries a time signal, then press the ENTER button. Select Auto to set the channel automatically.

Time Zone

Press the ▲▼ buttons to select the time zone of your area, then press the ENTER or ▶ button. Select Automatic to set the time zone automatically.

Daylight Saving

Press the ▲▼ buttons to select Yes or No, then press the ENTER or ▶ button. Select Automatic to set the daylight saving automatically.

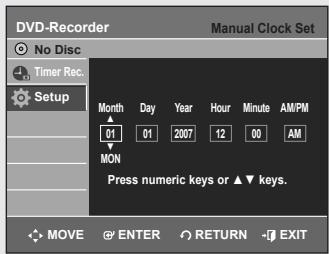

Manual Clock Set

If Auto Setup fails to set the DVD Recorder & VCR's internal clock by locating a local TV station, follow these steps to set the date and time manually.

■ For accurate Timer Recording, your DVD Recorder & VCR's internal clock must be set correctly.

1. With the unit in Stop mode/No Disc mode, press the MENU button.
2. Press the ▲▼ buttons to select Setup, then press the ENTER or ▶ button.
3. Press the ▲▼ buttons to select Clock Set, then press the ENTER or ▶ button.
4. Press the ▲▼ buttons to select Manual Clock Set, then press the ENTER or ▶ button.
5. Press the ▲▼◀▶ buttons to select the Current Date and Time, then press the ENTER button. When the current time is stored in memory and then the set is powered off, the current time will appear in the front panel display.
   ▲▼ : Sets the value
   You can set the value using the number (0\~9) buttons.
   ◀▶ : Moves to items

DVD-Recorder Channel Set No Disc Timer Rec Setup Antenna/Cable TV Antenna Auto Channel Memory Cable TV Channel Add/Delete RF Output Channel : CH3 MOVE ENTER RETURN EXIT

Channel Set

This feature allows you to manually set the DVD Recorder & VCR's tuner band to Antenna or Cable, whichever you connected to the Antenna In jack during initial setup.

• Use this setting only if Auto Setup detected the incorrect tuner band, i.e. channels are coming in on the wrong channel numbers.
• With the unit in Stop mode/No Disc mode, press the MENU button.
• Press the ▲▼ buttons to select Setup, then press the ENTER or ▶ button.
• Press the ▲▼ buttons to select Channel Set, then press ENTER or ▶ button.
• Press the ▲▼ buttons to select Antenna/Cable TV, then press the ENTER or ▶ button.

Select the Antenna or Cable TV(Signal Source) that matches the antenna connection you selected on pages 15\~17.

• Antenna : Select this if the DVD Recorder & VCR is connected to an indoor or outdoor VHF/UHF antenna. (See pages 15, 17)
• Cable TV : Select this if the DVD Recorder & VCR is connected to a cable TV. (See page 16)

Auto Channel Memory

Auto Channel Memory will automatically seek and store all active channels in your area.

1. With the unit in Stop mode/No Disc mode, press the MENU button.
2. Press the ▲▼ buttons to select Setup, then press the ENTER or ▶ button.
3. Press the ▲▼ buttons to select Channel Set, then press the ENTER or ▶ button.

4. Press the ▲▼ buttons to select Auto Channel Memory, then press the ENTER or ▶ button.

5. The DVD Recorder & VCR will automatically search for all available channels in the selected tuner band. This procedure may take a few minutes to complete.

6. When finished, the lowest channel will be displayed.
7. If you want to stop or cancel scanning, press the ENTER button. Then select 'YES'.

DVD-Recorder Channel Add/Delete No Disc Timer Rec. Setup Select channel : 1 Add Delete NUMBER ENTER RETURN EXIT

DVD-Recorder Channel Add/Delete No Disc Timer Rec. Setup Select channel : 11 Channel is added. Add Delete NUMBER ENTER RETURN -J EXIT

DVD-Recorder Channel Set No Disc Timer Rec Setup Antenna/Cable TV :Antenna Auto Channel Memory Channel Add/Delete RF Output Channel CH3 CH4 MOVE ENTER RETURN EXIT

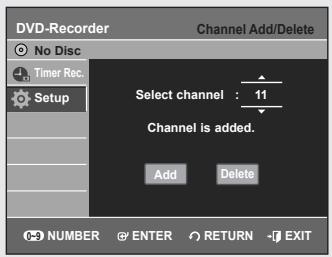

Channel Add/Delete

Use this feature if Auto Channel Memory missed a channel that you would like to add or if you wish to remove a channel.

1. With the unit in Stop mode/No Disc mode, press the MENU button.
2. Press the ▲▼ buttons to select Setup, then press the ENTER or ▶ button.
3. Press the ▲▼ buttons to select Channel Set, then press the ENTER or ▶ button.
4. Press the ▲▼ buttons to select Channel Add/Delete, then press the ENTER or ▶ button.
5. Press the ▲▼ or number buttons to select the channels you want to add or delete on the Select channel screen. Then, press the ENTER button.
6. Using CH/TRK ( /V ) buttons for channel selection allows the user to add/delete one channel at a time.
7. Using ▲▼ buttons for channel selection jumps to the next channel memorized in Auto Channel Memory.
8. Press the ◀▶ buttons to select Add or Delete, then press the ENTER button.

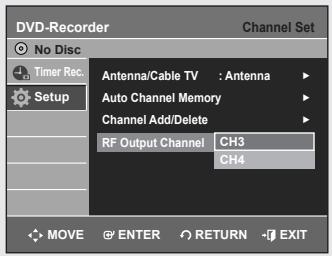

RF Output Channel

When you connect the DVD Recorder & VCR to your TV with the RF Antenna Cable, follow the steps below to set the RF Output Channel.

1. With the unit in Stop mode/No Disc mode, press the MENU button.
2. Press the ▲▼ buttons to select Setup, then press the ENTER or ▶ button.
3. Press the ▲▼ buttons to select Channel Set, then press ENTER or ▶ button.
4. Press the ▲▼ buttons to select RF Output Channel, then press the ENTER or ▶ button.
5. Press the ▲▼ buttons to select CH3 or CH4, then press the ENTER or ▶ button.

The message "Please tune your TV to channel 3 (4)" will appear on the screen. Change your TV channel to CH3 or CH4 to match the RF Output Channel of the DVD Recorder & VCR.

DVD-Recorder Language No Disc Timer Rec. Setup Audio Original Subtitle English Disc Menu Français Deutsch On-Screen Menu Español Italiano Nederlands Korean MOVE ENTER RETURN EXIT

DVD-Recorder Audio No Disc Timer Rec Setup Digital Output PCM DTS Bitstream Dynamic Compression : On MOVE ENTER RETURN EXIT

DVD-Recorder Audio No Disc Timer Rec Setup Digital Output : PCM DTS Off Dynamic Compression On MOVE ENTER RETURN EXIT

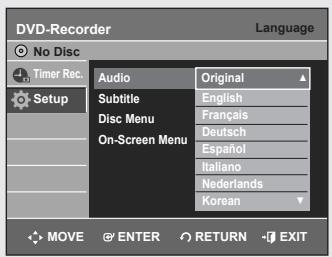

Setting Up the Language Options

If you set the language options in advance, they will come up automatically every time you watch a movie.

1. With the unit in Stop mode/No Disc mode, press the MENU button.
2. Press the ▲▼ buttons to select Setup, then press the ENTER or ▶ button.
3. Press the ▲▼ buttons to select Language, then press the ENTER or ▶ button. The Language setup menu will be displayed.
4. Press the ▲▼ buttons to select the desired language option, press the ENTER or ▶ button.

• Audio : For the disc audio language.
- Subtitle : For the disc subtitles.
- Disc Menu : For the disc menu contained on the disc.
- On-Screen Menu : For the on-screen menu of your DVD Recorder & VCR.

1. Press the ▲▼ buttons to select the desired language, then press the ENTER or ▶ button.

■ If the selected language is not recorded on the disc, the original pre-recorded language is selected.
■ The selected language will only appear if it is supported on the disc.

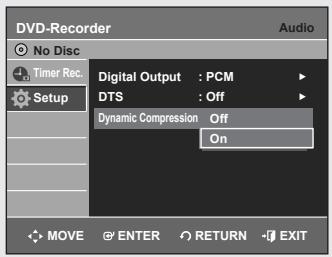

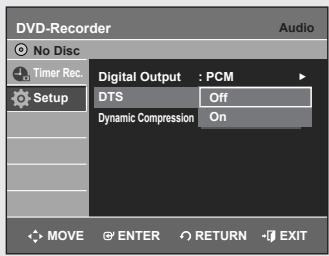

Setting Up the Audio Options

Allows you to setup the audio device and sound status settings depending on the audio system in use.

1. With the unit in Stop mode/No Disc mode, press the MENU button.
2. Press the ▲▼ buttons to select Setup, then press the ENTER or ▶ button.
3. Press the ▲▼ buttons to select Audio, then press the ENTER or ▶ button. The Audio setup menu will be displayed.
4. Press the ▲▼ buttons to select the desired audio option, then press the ENTER or ▶ button.
5. Press the ▲▼ buttons to select the desired item, then press the ENTER or ▶ button.

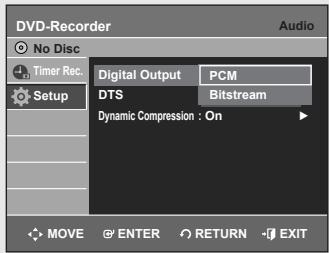

Digital Output

• PCM : Converts to PCM(2CH) 48kHz audio.
  Select PCM when using the Analog Audio Outputs.
• Bitstream : Converts to Dolby Digital Bitstream.
  Select Bitstream when using the Digital Audio Outputs.

■ Be sure to select the correct Digital Output or no audio will be heard.

DTS

• Off: Doesn't output digital signal.
• On : Outputs DTS bitstream. (via Digital Audio Output) Select DTS when connecting to a digital amp with a DTS decoder.

■ When a DTS soundtrack is played, sound is not output from the Analog Audio Output (AV OUT).

DVD-Recorder Audio No Disc Timer Rec Setup Digital Output : PCM DTS : Off Dynamic Compression Off On MOVE ENTER RETURN EXIT

DVD-Recorder Video No Disc Timer Rec Setup TV Aspect 4:3 Letter Box Input Level 4:3 Pan & Scan Black Level 16:9 Wide 3D Noise Reduction : Off HDMI/DVI Resolution : 480P DivX(R) Registration MOVE ENTER RETURN EXIT

DVD-Recorder Video No Disc Timer Rec Setup TV Aspect : 16:9 Wide Input Level Darker Black Level Lighter 3D Noise Reduction : Off HDMI/DVI Resolution : 480P DivX(R) Registration MOVE ENTER RETURN EXIT

DVD-Recorder Video No Disc Timer Rec Setup TV Aspect : 16:9 Wide Input Level : Darker Black Level 0 IRE 3D Noise Reduction 7.5 IRE HDMI/DVI Resolution : 480P DivX(R) Registration MOVE ENTER RETURN EXIT

Dynamic Compression

This is only active when a Dolby Digital signal is detected.

• On: When the Movie soundtracks are played at low volume or from small speakers, the system can apply appropriate compression to make low-level content more intelligible and prevent dramatic passages from getting too loud.
• Off: You can enjoy the movie with the standard Dynamic Range.

Setting Up the Video(Display) Options

This function allows you to setup the TV screen settings.

1. With the unit in Stop mode/No Disc mode, press the MENU button.
2. Press the ▲▼ buttons to select Setup, then press the ENTER or ▶ button.
3. Press the ▲▼ buttons to select Video, then press the ENTER or ▶ button. Video option menu will be displayed.
4. Press the ▲▼ buttons to select the desired video option, then press the ENTER or ▶ button.
5. Press the ▲▼ buttons to select the desired item, then press the ENTER or ▶ button.

■ Press the RETURN or ◀ button to return to the previous menu. Press the EXIT button to exit the menu.

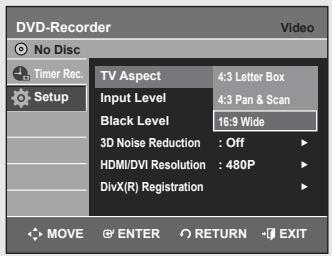

TV Aspect

Depending on the type of television you have, you may want to adjust the screen setting. (aspect ratio)

• 4:3 Letter Box : Select when you want to see the total 16:9 ratio screen that a DVD supplies. Even though you have a TV with a 4:3 ratio screen, black bars will appear at the top and bottom of the screen.
• 4:3 Pan & Scan : Select this for a conventional size TV when you want to see the central portion of the 16:9 screen. (Extreme left and right side of movie picture will be cut off.)
  • 16:9 Wide : You can view the full 16:9 picture on your wide-screen TV.

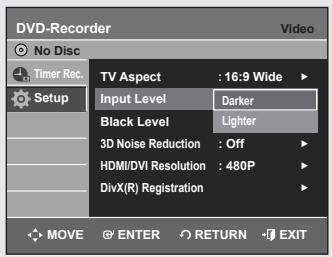

Input Level

Adjusts the level of the input signal.

• Darker : If you feel the screen is too light and you want to make the screen darker.
• Lighter : If you feel the screen is too dark and you want to make the screen lighter.

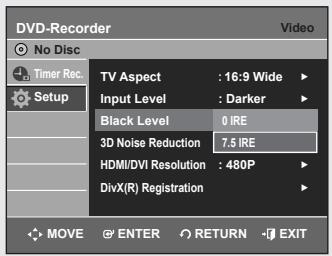

Black Level

Adjusts the black level of the screen.

• 0 IRE : This is the standard NTSC reference black level for consistent brightness/contrast across all sources. Select this when you want to make the screen darker.
• 7.5 IRE : This will enhance the black level for increased brightness/contrast when viewing DVDs. Select this when you want to make the screen lighter.

DVD-Recorder Video No Disc Timer Rec Setup TV Aspect : 16:9 Wide Input Level : Darker Black Level : 7.5 IRE 3D Noise Reduction Off HDMI/DVI Resolution On DivX(R) Registration MOVE ENTER RETURN EXIT

DVD-Recorder No Disc Timer Rec Setup TV Aspect : 16:9 Wide Input Level : Darker Black Level : 7.5 IRE 3D Noise Reduction : Off HDMI/DVI Resolution 480P DivX(R) Registration 720P 1080I MOVE ENTER RETURN EXIT

DVD-Recorder Video No Disc Timer Rec. TV Aspect : 16:9 Wide Setu DivX(R) Video On Demand Your registration code is : XXXXXXXXX To learn more, visit www.divx.com/vod OK MOVE ENTER RETURN EXIT

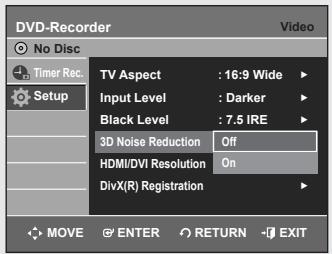

3D Noise Reduction

• Off : Normal
• On : Select to remove noise from the screen.

■ This function depends on disc type. It may not work for some disc types.
■ IRE: Short for the Institute of Radio Engineers. An IRE unit is a relative unit of measure equaling 1/140th of the peak-to peak (p-p) video amplitude.
■ Black level function is not available in the progressive scan mode.

HDMI/DVI Resolution

This setting is used when the unit is connected by HDMI or DVI to Display devices (TV, Monitor, etc).

• 480p : 720 x 480
• 720p : 1280 x 720
  • 1080i : 1920 x 1080
• Connect the DVD-VR355 to your TV via HDMI or DVI. Set your TV's input to HDMI or DVI.
• Press the P.SCAN button while the unit is in stop mode to select the output resolution.
• If your TV is connected the HDMI or DVI cable, the output resolution mode changes in the following sequence each time you press the P.SCAN button:

- If the DVD Recorder is connected to your TV with Component cables (no HDMI/DVI cable connected), the output resolution mode toggles between 480p/480i.

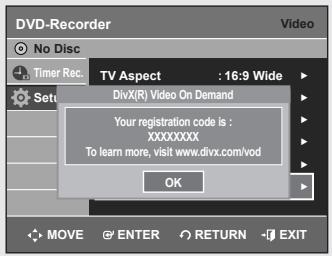

DivX(R) Registration

Please use the Registration code to register your DVD Recorder & VCR with the DivX(R) Video On Demand format.

To learn more, visit www.divx.com/vod

DVD-Recorder No Disc Timer Rec. Setup Password Off On MOVE ENTER RETURN EXIT

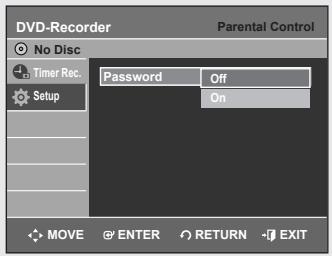

Setting Up the Parental Control

The Parental Control function works in conjunction with DVDs that have been assigned a rating - which helps you control the types of DVDs that your family watches. There are up to 8 rating levels on a disc.

1. With the unit in Stop mode/No Disc mode, press the MENU button on the remote control.
2. Press the ▲▼ buttons to select Setup, then press the ENTER or ▶ button.
3. Press the ▲▼ buttons to select Parental Control, then press the ENTER or ▶ button.
4. Create a 4-digit password using the 0 to 9 buttons on the remote control.
5. The Re-enter Password screen appears to confirm the password. Enter your password again, and then press the ENTER or ▶ button.
6. Press the ▲▼ buttons to select On, then press the ENTER or ▶ button. The Parental Control screen appears.

■ Refer to Troubleshooting if you forget your password. (See page 83)

DVD-Recorder No Disc Timer Rec. Setup Password Rating Level Change Password Level 8 Adults Level 7 Level 6 Level 5 Level 4 Level 3 Level 2 Level 1 Kids MOVE ENTER RETURN EXIT

Changing the Rating Level

1. Press the ▲▼ buttons to select Rating Level, then press the ENTER or ▶ button.
2. Press the ▲▼ buttons to select the rating level you want, then press the ENTER or ▶ button.
   For example, if you select up to Level 6, discs that contain Level 7, 8 will not play. A larger number indicates that the program is intended for adult use only.

DVD-Recorder No Disc Timer Rec. Setup Password : On Rating Level : Level 1 Kids Change Password MOVE ENTER RETURN EXIT

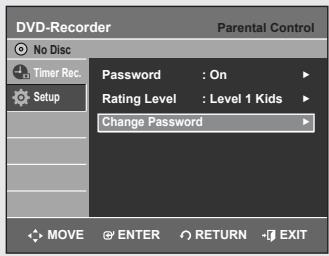

Changing the Password

1. Press the ▲▼ buttons to select Change Password, then press the ENTER or ▶ button.
2. Enter the 4-digit password using the number buttons on the remote control.
   The ‘Confirm the password’ message will be displayed.
3. Enter your password again.

■ Press the RETURN or ◀ button to return to the previous menu. Press the EXIT button to exit the menu.

VCR Setting

This function allows you to set up the VCR.

1. With the unit in Stop mode/No Disc mode, press the MENU button.
2. Press the ▲▼ buttons to select Setup, then press the ENTER or ▶ button.
3. Press the ▲▼ buttons to select System, then press the ENTER or ▶ button.
4. Press the ▲▼ buttons to select VCR, then press the ENTER or ▶ button.
5. Press the ▲▼ buttons to select the desired VCR option, then press the ENTER or ▶ button.
6. Press the ▲▼ buttons to select the desired item, then press the ENTER or ▶ button.

DVD-Recorder VCR No Disc Timer Rec. Setup Tape Length T120 Auto Play T160 Auto Repeat T180 MOVE ENTER RETURN EXIT

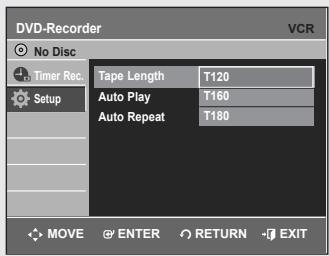

Tape Length

This information is usually printed on the tape box.

The menu cycles through: T-120, T-160 or T-180.

Once the type of cassette is set, the VCR can display the amount of time remaining on the tape when you press the INFO button.

DVD-Recorder VCR No Disc Timer Rec. Setup Tape Length : T120 Auto Play Off Auto Repeat On MOVE ENTER RETURN EXIT

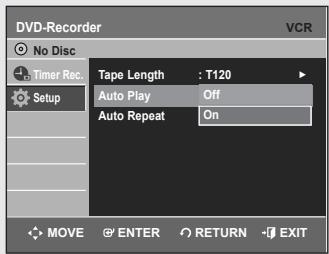

Auto Play

If you want your videotapes to play automatically when you insert them, turn on Auto Play.

• Off : Auto play is disabled.
• On: The VCR will automatically begin playing a video tape when it is inserted, as long as the safety tab of the cassette has been removed.

DVD-Recorder VCR No Disc Timer Rec. Setup Tape Length : T120 Auto Play : On Auto Repeat Off On MOVE ENTER RETURN EXIT

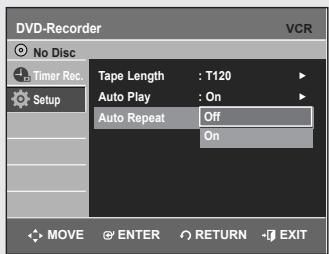

Auto Repeat

It sets the VCR to play a tape repeatedly (unless a tape control is activated :Stop, Fast Forward or Rewind).

DVD-Recorder System No Disc Timer Rec. Setup VCR Video Input AV 1 DVD EP Mode Time S-Video Chapter Creator : Off Quick Recording : Off Anynet+(HDMI-CEC) : On MOVE ENTER RETURN EXIT

DVD-Recorder System No Disc Timer Rec. Setup VCR Video Input : AV 1 DVD EP Mode Time 6 Hours Chapter Creator 8 Hours Quick Recording : Off Anynet+(HDMI-CEC) : On MOVE ENTER RETURN EXIT

Video Input

You can watch video from an external component through the AV 1(Composite) or S-video input jacks.

1. With the unit in Stop mode/No Disc mode, press the MENU button.
2. Press the ▲▼ buttons to select Setup, then press the ENTER or ▶ button.
3. Press the ▲▼ buttons to select System, then press the ENTER or ▶ button.
4. Press the ▲▼ buttons to select Video Input, then press the ENTER or ▶ button.
5. Press the ▲▼ buttons to select AV 1 or S-Video, then press the ENTER or ▶ button.

DVD EP Mode Time

You can set the EP(Extended Play)mode's time setting to 6 or 8 hours.

1. With the unit in Stop mode/No Disc mode, press the MENU button.
2. Press the ▲▼ buttons to select Setup, then press the ENTER or ▶ button.
3. Press the ▲▼ buttons to select System, then press the ENTER or ▶ button.
4. Press the ▲▼ buttons to select DVD EP Mode Time, then press the ENTER or ▶ button.
5. Press the ▲▼ buttons to select 6 Hours or 8 Hours, then press the ENTER or ▶ button.

Automatic Chapter Creator

DVD-Recorder System DVD-RW(V) Title List Disc Manager Timer Rec. Setup Copy VCR Video Input : AV 1 DVD EP Mode Time : 6 Hours Chapter Creator Off Quick Recording On Anynet+(HDMI-CEC) : On MOVE ENTER RETURN EXIT

(V mode)

Do you want to create the chapter menu after this recording? Yes No

JAN/01/2007 12:00 AM AV JAN/01/2007 12:30 AM AV JAN/01/2007 01:00 AM AV JAN/01/2007 01:30 AM AV Previous Top Next

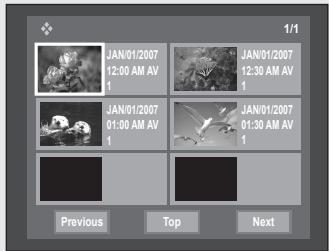

CHAPTER 1/1 Previous Top Next

A DVD-Video consists of 'Titles' and 'Chapters'.

When you record one program, it makes one Title.

If you use this function, the Title will be divided into Chapters.

1. With the unit in Stop mode/No Disc mode, press the MENU button.
2. Press the ▲▼ buttons to select Setup, then press the ENTER or ▶ button.
3. Press the ▲▼ buttons to select System, then press the ENTER or ▶ button.
4. Press the ▲▼ buttons to select Chapter Creator, then press the ENTER or ▶ button.
5. Press the ▲▼ buttons to select On, then press the ENTER or ▶ button. Press the EXIT button to exit the menu.
6. Set the recording speed by pressing the REC SPEED button on the remote (see page 56 for more information on recording speeds).
7. Press the REC button to start recording. The message "Do you want to create the chapter menu after this recording?" is displayed.
8. Press the ◀▶ buttons to select Yes and press the ENTER button and recording begins. In XP and SP mode, you must record at least 5 minutes to create a chapter. In LP and EP mode, 15 minutes.
9. Press the STOP button to stop recording.
10. To display the created titles, finalize the disc (see page 81) and then press the TITLE MENU button. The title menu will be displayed.
11. To display the created chapters, select the desired Title and then press the DISC MENU button. The chapter menu for the selected Title will be displayed.

■ On DVD-RW discs, additional chapters and titles can be added to a finalized disc by unfinalizing and recording again. On DVD-R discs, once finalized, no additional chapters or titles can be recorded.

■ The Automatic Chapter Creator function does not work during Timer Recording or when you turn the power off.
■ DVD-R discs cannot be unfinalized.

DVD-Recorder No Disc Timer Rec. Setup VCR Video Input : AV 1 DVD EP Mode Time : 6 Hours Chapter Creator : Off Quick Recording Off Anynet+(HDMI-CEC) On MOVE ENTER RETURN EXIT

DVD-Recorder No Disc Timer Rec. Setup VCR Video Input : AV 1 DVD EP Mode Time : 6 Hours Chapter Creator : Off Quick Recording : Off Anynet+(HDMI-CEC) Off On MOVE ENTER RETURN EXIT

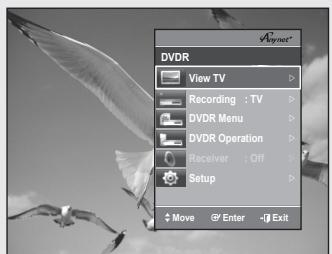

DVDR View TV Recording : TV DVDR Menu DVDR Operation Receiver : Off Setup Move Enter Exit

TV Menu

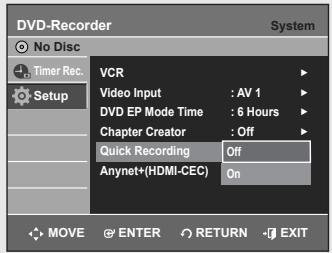

Quick Recording

It takes about 10 seconds for a disc to load (initialize) every time you turn on the unit. To bypass this initialization process, you can set the Quick Recording feature to On. This enables you to record immediately without having to wait for the disc to load.

1. With the unit in Stop mode/No Disc mode, press the MENU button.
2. Press the ▲▼ buttons to select Setup, then press the ENTER or ▶ button.
3. Press the ▲▼ buttons to select System, then press the ENTER or ▶ button.
4. Press the ▲▼ buttons to select Quick Recording, then press the ENTER or ▶ button.
5. Press the ▲▼ buttons to select On, then press the ENTER or ▶ button.

■ The Quick Recording is set to Off as default.
■ If this function is set to on, power consumption Note will be increased when the unit is powered off.

Anynet+(HDMI-CEC)

Anynet+ is a function that can be used to operate the recorder using a Samsung TV remote control, by connecting the DVD Recorder & VCR to a SAMSUNG TV using an HDMI Cable. (see page 18) (This is only available with SAMSUNG TVs that support Anynet+.)

1. With the unit in Stop mode/No Disc mode, press the MENU button on the remote control.
2. Select Setup using the ▲▼ buttons, then press the ENTER or ▶ button.
3. Select System using the ▲▼ buttons, then press the ENTER or ▶ button. The system menu will be displayed.
4. Select Anynet+(HDMI-CEC) using the ▲▼ buttons, then press the ENTER or ▶ button.

Anynet+(HDMI-CEC) items will be displayed.

1. Select On using the ▲▼ buttons, then press the ENTER or ▶ button.

For using Anynet+(HDMI-CEC)

1. Connect the recorder to a Samsung TV with an HDMI cable. (See page 18)
2. Set the Ânynet+(HDMI-CEC) to "On" on your DVD Recorder & VCR. (see above)
3. Set the Anynet+ function on your TV. (See the TV instruction manual for more information.)

- You can operate the DVD Recorder & VCR by using TV remote control.

(TV buttons that can be used to control the DVD Recorder & VCR : ⏻,

☑, ☑, ➕, ◇ and (◀) buttons, ⑩ \~ ⑨ button)

- When you press Anynet+ button on the TV's remote control, the OSD to the left will appear.

• DVDR Menu : Same as MENU button ( ☑ ) on the DVD Recorder & VCR remote control.
• DVDR Operation : Same as ANYKEY button (☐) on the DVD Recorder & VCR remote control.

■ By pressing the PLAY button of the recorder while watching TV, the TV screen will change to the play screen.
■ If you play a DVD when the TV power is off, the TV will power On.
If you turn the TV off, the DVD Recorder & VCR will power off automatically. (When the DVD Recorder & VCR is recording, it can't be powered off.)
■ If you change HDMI to other sources (Composite, Component, RF... etc) on your TV while playing a DVD disc, the DVD Recorder & VCR will stop playing. The DVD Recorder & VCR may keep playing certain discs based on their content.

This section introduces basic functions of playback by disc type.

Read the following information before playing a disc.

Region code (DVD-Video only)

Both the DVD Recorder & VCR and the discs are coded by region. These regional codes must match in order for the disc to play. If the codes do not match, the disc will not play. The Region Number for this DVD Recorder & VCR is described on the rear panel of the DVD Recorder & VCR.

Logos of Discs that can be played

Dolby Digital

DTS

Digital Audio

DivX

Stereo

NTSC broadcast system in U.S.A, Canada, Korea, Japan, etc.

MP3

Disc types that can be played

Disc Types	Disc Logo	Recorded content	Disc Shape or minute	Max. Playing Time or minute
DVD-VIDEO	VIDEO	VIDEO AUDIO	Single sided(5")	240
			Double sided(5")	480
			Single sided(3.5")	80
			Double sided(3.5")	160
AUDIO-CD		AUDIO	Single sided(5")	74
			Single sided(3.5")	20
JPEG			Single sided(5")	-
			Single sided(3.5")	-
MP3			Single sided(5")	-
			Single sided(3.5")	-
MPEG4	RAM	MPFG4	Single sided(5")	-
			Single sided(3.5")	-
DVD-RAM		VIDEO AUDIO	Single sided(5") (4.7GB)	1hr (XP: Excellent Quality)
				2hrs (SP: Standard Quality)
				4hrs (LP: Long Playback)
				6 or 8hrs (EP:Extended)
			Double sided(5") (9.4GB)	2hr (XP: Excellent Quality)
				4hrs (SP: Standard Quality)
				8hrs (LP: Long Playback)
				12 or 16hrs (EP:Extended)
DVD-RW	RW	VIDEO AUDIO	5" (4.7GB)	1hr (XP: Excellent Quality)
				2hrs (SP: Standard Quality)
				4hrs (LP: Long Playback)
				6 or 8hrs (EP:Extended)
DVD-R	R	VIDEO AUDIO	Single Layer(5") (4.7GB)	1hr (XP: Excellent Quality)
				2hrs (SP: Standard Quality)
				4hrs (LP: Long Playback)
				6 or 8hrs (EP:Extended)
			Double Layer(5") (8.5GB)	2hr (XP: Excellent Quality)
				4hrs (SP: Standard Quality)
				8hrs (LP: Long Playback)
				11 or 15hrs (EP:Extended)
DVD+RW		VIDEO AUDIO	5" (4.7GB)	1hr (XP: Excellent Quality)
				2hrs (SP: Standard Quality)
				4hrs (LP: Long Playback)
				6 or 8hrs (EP:Extended)
DVD+R	DVD+R	VIDEO AUDIO	Single Layer(5") (4.7GB)	1hr (XP: Excellent Quality)
				2hrs (SP: Standard Quality)
				4hrs (LP: Long Playback)
				6 or 8hrs (EP:Extended)
			Double Layer(5") (8.5GB)	2hr (XP: Excellent Quality)

Discs That Cannot be Played

• DVD-Video with a region number other than "1" or "ALL"
  • 3.9 GB DVD-R Disc for Authoring.

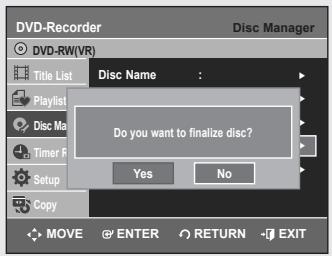

• A DVD±R/DVD-RW(V) disc which has been recorded and not finalized in a different manufacturer's recorder.
• PAL discs
  • DVD-ROM/PD/MV-Disc, etc.
  • Video CD/CVD/SVCD/CD-ROM/CDV/CD-G/CD-I

■ This DVD Recorder & VCR can only operate with discs that are compatible with DVD-RAM Standard Version 2.0.
■ Playback and/or recording may not work for some types of discs or when specific operations, such as angle change and aspect ratio adjustment, are being performed. Information about the disc is written in detail on the box. Please refer to this if necessary.
■ Do not allow the disc to become dirty or scratched. Fingerprints, dirt, dust, scratches and deposits of cigarette smoke on the recording surface may make it impossible to use the disc for recording.
■ DVD-RAM/±RW/±R discs may not be able to play on some DVD players, depending on the player, disc and the condition of the recording.
■ Discs with PAL programs recorded on them cannot be played using this product.

Playing a Disc

1. Press the OPEN/CLOSE button.
2. Place a disc gently into the tray with the disc's label facing up.
3. Press OPEN/CLOSE button to close the disc tray.

- Your DVD Recorder & VCR closes the disc tray and plays the disc automatically.

- The recorder does not play discs automatically after initially being powered on initially.

- When the recorder is powered on and a disc is in the tray, the unit will be activated and wait in stop mode. Press the PLAY button to start playback.

- Power on the unit with the PLAY button if you wish to automatically play a disc in the recorder while it is powered off.

1. Press the STOP button to stop playback.

■ When you stop playing the disc, the DVD Recorder & VCR remembers where you stopped. When you press the PLAY button again, it will pick up where you left off. (unless the disc is removed, the DVD Recorder & VCR is unplugged, or if you press the STOP button twice.) This function is only applicable to DVD-VIDEO, DVD-RAM, DVD±RW, DVD±R or Audio CDs (CD-DA).

■ Do not move your DVD Recorder & VCR while playing, as this may cause damage to the disc.
■ Make sure to press the OPEN/CLOSE button to open or close the disc tray.
■ Do not push the disc tray while it is being opened or closed, as this may cause a product malfunction.
■ Do not place foreign materials on or in the disc tray.
■ Some functions may perform differently or be disabled depending on the disc type. If this occurs, refer to the instructions written on the disc case.
■ Be especially careful that children's fingers are not caught between the disc tray and the tray chassis when it closes.
■ After turning the power on, it will take a few seconds until the DVD Recorder & VCR operates.

Using the Disc Menu and Title Menu

Some discs contain a dedicated menu system that allows you to select special functions for title, chapters, audio track, subtitles, film previews, information on characters, etc.

For DVD-VIDEO Discs

Disc Menu : Press the DISC MENU button to enter the disc menu of the disc.

• Move to the setup menu related to playback operation.
• You can select audio language and subtitle etc., provided by the disc.

Title Menu : Press the TITLE MENU button to move to the title menu of the disc.

- Use this button if the disc contains more than one title. Some discs may not support the title menu functionality.

For DVD-RAM/DVD±RW/DVD±R Discs

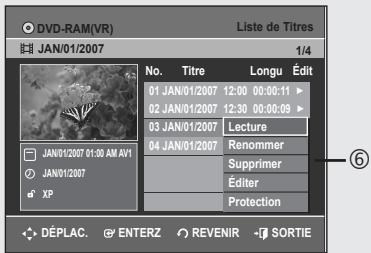

Title List : Press the TITLE LIST button. The Title List is simply a list of titles on a disc. If a title is deleted, that title cannot be played again.

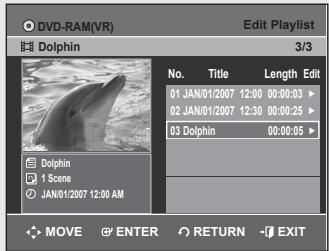

Playlist (DVD-RAM/-RW(VR)): Press the PLAY LIST button. A playlist is a custom-made list of titles. When one playlist is played, only the titles within the playlist will play and then stop. Even if that playlist is deleted, the original recording will not be deleted.

Using the Search & Skip Functions

Searching Through a Chapter or Track

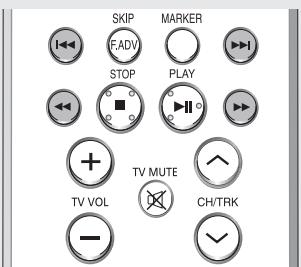

SKIP MARKER F,ADV STOP PLAY TV VOL TV MUTE CH/TRK

During playback, press the SEARCH ◀◀ or ▶▶ button on the remote control. Each time you press the SEARCH button, the playback speed will change as follows.

DVD-VIDEO/DVD-RAM/DVD±RW/DVD±R	▶ Fast 1/◀ Fast 1 → ▶ Fast 2/◀ Fast 2 → ▶ Fast 3/◀ Fast 3 → ▶ Fast 4/◀ Fast 4 → ▶ Fast 5/◀ Fast 5 → ▶ Fast 6/◀ Fast 6
MPEG4	Fast 1 → Fast 2 → Fast 3
AUDIO CD (CD-DA)	→ X2 → X4 → X8

- You can scan the program in reverse order.

To return to normal speed playback, press the ▶ll button.

■ No sound is heard during Scan(Search) mode, except on CDs (CD-DA). (You can hear the sound during forward search (Fast 1).) No sound is heard during scanning in all MPEG4 modes. Depending on the disc type, the sound quality may lower during Fast 1 mode.

Skipping Chapters or Tracks

During playback, press the ◀◀◀ or ▶▶◀ button on the remote control.
- If you press the ◀◀ button

If you press the ◀◀ button, it moves to the beginning of the chapter, track or marker(DVD-RAM, DVD-RW(VR mode)). Pressing the button once again within 3 seconds returns to the beginning of the previous chapter, track or marker(DVD-RAM, DVD-RW(VR mode)).

- If you press the ▶▶I button

If you press the ▶▶I button, it moves to the next chapter, track or marker(DVD-RAM,DVD-RW (VR mode))

Skipping Ahead 30 Seconds

During the playback, press F.ADV/SKIP button to skip ahead exactly 30 seconds.

Slow Motion Play/Step Motion Play

Slow Motion Play

During Still mode, press the SEARCH ◀◀ or ▶▶ button on the remote control for more than 1 second.

• Each time you press the ▶▶ button :

I▶ Slow 1 → I▶ Slow 2 → I▶ Slow 3

• Each time you press the ◀◀ button :

◀I Slow 1 → ◀I Slow 2 → ◀I Slow 3

To return to normal speed playback, press the ▶ll button.

■ Slow motion operates only in the forward direction on MPEG 4 discs.

Step Motion Play

During Still mode, press the F.ADV/SKIP button on the remote control.

• Each time the button is pressed, a new frame will appear.

To return to normal speed playback, press the ▶ll button.

■ No sound is heard during Step or Slow mode.
■ Step motion operates only in the forward direction on MPEG 4 discs.

Using the ANYKEY button

The ANYKEY functions allows you to easily search for a desired scene by accessing title, chapter or time.

You can also change the subtitle and audio settings and set some features including Repeat, Angle and Zoom.

DVD-VIDEO Title 1/2 Chapter 1/28 Time 00:00:01 Subtitle ENG Audio ENB CD/D 5.1CH Repeat Off Angle 1/1 Zoom Off + MOVE ↔ CHANGE

Moving to a Desired Scene Directly

If you want to move to a certain title, chapter or time use this function.

1. Press the ANYKEY button during playback.
2. Press the ▲▼ buttons to select a Title a Chapter or a Time.
3. Press the ◀▶ buttons or number (0\~9) buttons to select the desired scene. In case of searching a time, enter the time in sequence of hours, minutes, seconds using the number buttons. Then, press the ENTER button.

■ This may not work for some discs. When an Audio CD(CD-DA) or an MP3 disc is inserted, depending on the disc type, the information display may not be appear.
■ To make the sub-menu disappear, press the ANYKEY or RETURN button.

Repeat Playback

Playing Repeatedly

DVD-VIDEO Title 1/2 Chapter 1/28 Time 00:00:01 Subtitle ENG Audio ENG CD 5.1CH Repeat Off Angle 1/1 Zoom Off + MOVE ↔ CHANGE

1. Press the ANYKEY button during playback.
2. Press the ▲▼ buttons to select Repeat.
3. Select repeat mode using ◀▶ button. Press the ENTER button.

■ DVD-RAM/DVD-RW(VR mode), unfinalized DVD±R and unfinalized DVD-RW (Video mode) do not repeat a chapter.
■ To make the sub-menu disappear, press the ANYKEY or RETURN button.

Playing a Certain Section Repeatedly

DVD-VIDEO Title 1/2 Chapter 1/28 Time 00:00:01 Subtitle ENG Audio ENB CCDD 5.1CH Repeat Off Angle 1/1 Zoom Off MOVE CHANGE

Black-and-white photo of seagulls in flight against a cloudy sky (no text or symbols visible)

DVD-VIDEO Title 1/2 Chapter 1/28 Time 00:00:01 Subtitle ENG Audio ENG DDD 5.1CH Repeat Off Angle 1/1 Zoom Off MOVE CHANGE

1. Press the ANYKEY button during playback.
2. Press the ▲▼ buttons to select Repeat.
3. Press the ◀▶ button to select A-B, then press the ENTER button.
4. Press the ENTER button at the point where you want repeat play to start (A) and press it again at the point where you want the repeat play to stop (B). Repeat playback of the A-B section starts.

- To return to normal playback -

1. Press the CANCEL button to return to normal playback.

■ If you set point (B) before five seconds has lapsed, the prohibition mark ( ) will appear.
■ Audio CDs(CD-DA), MP3 and MPEG4 discs do not support the Repeat A-B function.

Selecting the Subtitle Language

Subtitle languages may not work depending on the disc type. This is only available during playback.

You can also operate this function by pressing the SUBTITLE button on the remote control.

1. Press the ANYKEY button during playback.
2. Press the ▲▼ buttons to select Subtitle, then press the ◀▶ buttons to select the desired subtitle language.

■ The subtitle display may be different depending on the disc type.
■ If the subtitles overlap, disable the caption function on your TV.
■ Some discs allow you to select the language for the disc menu only.
■ To make the sub-menu disappear, press the ANYKEY or RETURN button.

Selecting the Audio language

DVD-VIDEO Title 1/2 Chapter 1/28 Time 00:00:01 Subtitle ENG Audio ENB CD/D 5.1CH Repeat Off Angle 1/1 Zoom Off MOVE ↔ CHANGE

Audio languages may not work depending on the disc type. This is only available during playback.

You can also operate this function by pressing the AUDIO button on the remote control.

1. Press the ANYKEY button during playback.
2. Press the ▲▼ buttons to select Audio, then press the ◀▶ buttons to select the desired audio language.

■ Audio languages may be different because they are disc-specific.
■ Some discs allow you to select the audio language from the disc menu only.
■ To make the sub-menu disappear, press the ANYKEY or RETURN button.

Changing the Camera Angle

DVD-VIDEO Title 1/2 Chapter 1/28 Time 00:00:01 Subtitle ENG Audio ENG CDD D 5.1CH Repeat Off Angle 1/1 Zoom Off MOVE

If a DVD-VIDEO contains multiple angles of a particular scene, you can use the Angle function. If the disc contains multiple angles, ANGLE appears on the screen.

You can also operate this function by pressing the ANGLE button on the remote control.

1. Press the ANYKEY button during playback.
2. Press the ▲▼ buttons to select Angle, then press the ◀▶ buttons or number (0\~9) buttons to select the desired angle scene.

■ This function is disc-dependent, and may not work all DVDs.
■ This function does not work when a DVD has not been recorded with a multi-camera angle system.
■ To make the sub-menu disappear, press the ANYKEY or RETURN button.

Black-and-white photo of seagulls in flight with one bird marked by a plus sign (no text or symbols on the birds)

Zooming-In

1. Press the ANYKEY button during playback.
2. Press the ▲▼ buttons to select Zoom, then press the ENTER button. (⊗) will be displayed.
3. Press ▲▼◀▶ buttons to move to the area you want to enlarge.
4. Press the ENTER button.

Each time the ENTER button is pressed, the picture is enlarged up to 4X (four times the normal size).

DVD-VIDEO/DVD-RAM/DVD±RW/DVD±R

normal size → 2X → 4X → 2X → normal size

Using the Bookmarks

(V mode)

Black and white photo of a butterfly perched on flower petals, no text or symbols visible

Setting Bookmarks

Set marks at scenes you want to see again so that you can start playback from the marked position.

1. Press the MARKER button during playback.
2. Press the ENTER button when the desired scene appears. • The number 1 is displayed and the scene is memorized.
3. Press the ◀▶ button to move to the next position.
4. Press the ENTER button again when the desired scene appears. • The number 2 is displayed and the scene is memorized. Repeat the steps above to bookmark other positions. You can bookmark up to 10 scenes.

Black and white photo of a butterfly perched on flower petals, no text or symbols visible

Playing Back a Bookmark

1. Press the MARKER button.
2. Press the ◀▶ buttons to select a bookmarked scene.
3. Press the ENTER or ▶II button to start playing from the selected scene.

Black-and-white photo of seagulls in flight against a cloudy sky, no text or symbols visible

Clearing a Bookmark

1. Press the MARKER button.
2. Press the ◀▶ buttons to select a bookmarked scene.
3. Press the CANCEL button to delete the selected bookmark.

■ When the disc tray is opened and then closed, bookmarks will disappear.

Using the Markers

(VR mode)

Black and white photo of a butterfly perched on flower petals, no text or symbols visible

Setting Markers

1. Press the MARKER button during playback.
2. Press the ENTER button when the desired scene appears.

- The number 01 is displayed and the scene is memorized.

1. Press the ◀▶ button to move to the next position.
2. Press the ENTER button again when the desired scene appears.

- The number 02 is displayed and the scene is memorized.

- DVD-RAM or DVD-RW (VR Mode) discs have the Marker function instead of the Bookmark function. The Marker function allows you to mark up to 99 scenes. Since the scenes may be displayed as many different pages, numbering is necessary. If a disc in use is encoded with Disc Protect, Markers cannot be set or deleted. Only playback is available.

Marker 01 02 N:2 MOVE PLAY CANCEL RETURN

Playing Back a Marker

1. Press the MARKER button during playback.
2. Press the ◀▶ buttons to select a marked scene.
3. Press the ENTER or ▶II button to start playing from the selected scene.

- If you press the NEXT SKIP(▶▶I) button or the PREVIOUS SKIP(I◀◀) button in marker mode, and the next or current marked point plays for shorter than three seconds, playback starts from the previous marked point.

Marker 01 02 03 04 05 06 07 08 09 10 ▶ N : 10

Clearing a Marker

1. Press the MARKER button during playback.
2. Press the ◀▶ buttons to select a marked scene. Press the CANCEL button to delete the selected mark.

- When a marker is cleared while a DVD-RAM/DVD-RW(VR mode) is playing, marker numbers will change. For example, if the 7th marker is cleared after ten markers are registered, the marker numbers after the eighth will automatically move ahead by one and the 8th marker becomes the 7th.

Black-and-white photo of a butterfly perched on flower petals, no visible text or symbols

Playing Back an Audio CD (CD-DA)/MP3

SKIP EADV MARKER STOP PLAY TV MUTE CH/TRK TV VOL MENU RETURN ENTER TITLE LIST DISC MENU INFO EXIT PLAY LIST TITLE MENU ANYKEY SUBTITLE AUDIO EZ REC MODE

Buttons on the Remote Control Used for Audio CD(CD-DA)/MP3 Playback

1. I◄◄ button : Returns to the beginning of the current track when pressed during playback. If pressed again, your DVD Recorder & VCR moves to and plays the previous track. If you press this button within three seconds after playback starts, the previous track will be played. If you press this button after three seconds, the current track will be replayed from the beginning.

2. ▶▶▶I button : Plays the next track.

3. Press the (◀◀ /▶▶) buttons : Fast Play (X2, X4, X8) (Audio CD only)
4. ■ : Stops a track (song).
5. ▶II : Plays a track(song) or pauses playback.
6. RETURN button : Moves to the folder to which the current song belongs.
7. ▲▼ : Selects a track (song).
8. ▶, ENTER button : Plays the selected track (song).
9. ANYKEY : To display the play mode window. (Repeat or Play Option).

CD TRACK 1 Music List 01/15 No. Title Length 02 TRACK 1 00:03:50 002 TRACK 2 00:04:00 003 TRACK 3 00:03:49 004 TRACK 4 00:03:47 005 TRACK 5 00:04:29 006 TRACK 6 00:03:44 007 TRACK 7 00:03:44 Track 1 CDDA Anyway PLAY MODE ▶→MOVE ENTER RETURN EXIT

Playing an Audio CD (CD-DA)

1. Insert an Audio CD (CD-DA) into the disc tray.
2. The Audio CD menu appears and the tracks (songs) are played automatically.
3. Press the ▲▼ buttons to select the track (song) to start playback from, and then press the ENTER button.

CD TRACK 1 Music List 01/15 ① ② ③ Track 1 No. Title Length + TRACK 1 00:03:50 002 TRACK 2 00:04:00 003 TRACK 3 00:03:49 004 TRACK 4 00:03:47 005 TRACK 5 00:04:29 006 TRACK 6 00:03:44 007 TRACK 7 00:03:44 AnyKey PLAY MODE MOVE ENTER RETURN EXIT

◆ Audio CD(CD-DA) Screen Elements

1. Play mode icon.
2. Current track (song) : Displays the number of the track currently being played.
3. Displays the current play index and total track number.
4. This shows the operating state of a disc and a playback time corresponding to a portion that is currently played.
5. Displays the track list (song list) and the playing time of each track.
6. Button display

MP3 SONGO1 01/11 No. Title ROOT SONGO1 002 SONGO2 SONGO3 004 SONGO4 SONGO5 006 SONGO6 Anykey PLAY MODE MOVE ENTER RETURN EXIT

MF 3 SONGO1 0:00:11 SONGO1 3.5MB 2007/01/01 MP3 No. Title ROOT SONGO1 002 SONGO2 003 SONGO3 004 SONGO4 005 SONGO5 006 SONGO6 Music List ① ③ ⑤ ⑥ Anyway PLAY MODE MOVE ENTER RETURN EXIT

CD TRACK 1 01/15 No. Title Length 001 TRACK 1 00:03:50 PLAY MODE Repeat : Off Play option : Normal 006 TRACK 6 00:03:44 007 TRACK 7 00:03:44 Anykey PLAY MODE MOV ENTER RETURN EXIT

Playing an MP3 Disc

1. Insert an MP3 disc into the disc tray.
2. Press the ▲▼ buttons to select the Disc Navigation, and then press the ENTER or ▶ button.
3. Press the ▲▼ buttons to select the Music, and then press the ENTER or ▶ button.
4. Press the ▲▼ buttons to select the track (song) you want to hear, and then press the ENTER button.

◆ MP3 Screen Elements

1. Play mode icon.
2. Current track (song) : Displays the name of the track being played.
3. Displays the current play index and total file number.
4. This shows the operating state of a disc and a playback time corresponding to a portion that is currently played.
5. Displays the mp3 file and folder list (song list).
6. Button display.
7. MP3 file information

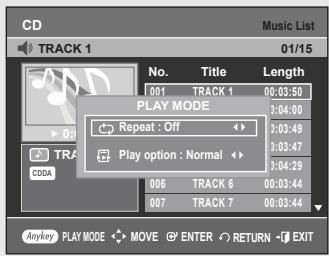

Repeat Playback of an Audio/MP3 Disc

1. During playback, press the ANYKEY button. The Repeat mode will be highlighted.
2. Press the ◀▶ buttons to select the desired repeat mode you want to play repeatedly, then press the ENTER button.
3. Repeat Track (CD (CD-DA)/MP3)
4. Repeat Folder (MP3)
   • All Repeat Disc (CD (CD-DA)/MP3)

- To return to normal playback -

1. Press the CANCEL button to return to normal playback.

CD TRACK 1 Music List 01/15 No. Title Length 041 TRACK 1 03:50 PLAY MODE Repeat : Off 04:00 Play option : Normal 03:49 068 TRACK 6 00:03:44 007 TRACK 7 00:03:44 AnyKey PLAY MODE MOV ENTER RETURN EXIT

Play Option Mode

1. During Stop, Press the ANYKEY button. The Play option will be highlighted.

2. Press the ◀▶ buttons to select a desired Play Option, then press the ENTER button.

3. Normal : Tracks on a disc are played in the order in which they were recorded on the disc.

4. Playlist : The Playlist playback option allows you to select the order in which you want tracks to play.
5. Intro[ I ] : The first 10 seconds of each track will be played. If you want to listen to the music that you have selected, press the ENTER button or ▶II button. The play option will be changed to Normal Play. When Intro Play is completed, Normal Play is performed.
6. Random[R] : The Random option plays a disc's tracks in random order. After a random list is generated and played completely, another random list is generated and played. Random Play is continued until the play option is changed.

CD CD0A TRACK 1 CD0A TRACK 2 CD0A TRACK 3 CD0A TRACK 4 CD0A TRACK 5 CD0A TRACK 6 CD0A TRACK 7 CD0A TRACK 8 001 TRACK 1 002 TRACK 2 003 TRACK 3 004 TRACK 4 AnyKey PLAY MODE ✦ MOVE ENTER -# EXIT

To Program Tracks

You can register a maximum 30 tracks in the playlist.

1. In still mode, press the ANYKEY button. The Play option will be highlighted.
2. Press the ◀▶ buttons to select Playlist, then press the ENTER button. Playlist screen is displayed.
3. Press the ▲▼ buttons to select tracks in the order in which you want them to play, then press the ENTER button. If there is a track on your playlist you wish to remove. Press the ▶ button, then press the ▲▼ buttons to select the track you wish to remove, then press the CANCEL button. The selected track will be removed.
4. Press the PLAY button to play the playlist.

JPEG Photo List JPEG01 1/10 ROOT JPEG01 JPEG02 JPEG03 JPEG04 JPEG05 JPEG06 JPEG07 Slide Show MOV ENTER RETURN EXIT

Playing a Picture Disc

1. Insert a JPEG into the disc tray.
2. Press the ▲▼ buttons to select Disc Navigation, and then press the ENTER or ▶ button.
3. Press the ▲▼ buttons to select Photo, and then press the ENTER or ▶button.
4. Press the ▲▼◀▶ buttons to select a picture.

- To see the next 8 pictures, press the ▶▶I button.

- To see the previous 8 pictures, press the ◀◀ button.

Slide Show Speed Slow Normal Fast JPEG01 MOVE PHOTO ENTER RETURN

JPEG01 MOVE PHOTO ENTER RETURN

CD 00/02 NO. Title Size HOMETHEATER DIVX CERTIFIED MPEG4 ROOT 001 DIVX01 70.8MB 002 DIVX02 73.6MB MOVE ENTER RETURN EXIT

5-1. If you press the ▶II button, the Slide Show Speed screen will appear. Press the ◀▶ buttons to set the slide show speed, then press the ENTER button.
5-2. Press the ENTER button with a picture selected in the Album screen and select a display mode (Album screen (☑), Slide show (☑), Rotation (☑) or Zoom (☑)) using the ◀▶ buttons, then press the ENTER button.

: Returns to the Album screen.

☐ : The unit enters slide show mode. Before the slide show can begin, the picture interval (Slide show speed) must be set.
☐ : Each time the ENTER button is pressed, the picture rotates 90 degrees clockwise.
: Each time the ENTER button is pressed, the picture is enlarged up to 4X(four times the normal size).

• Press the ANYKEY button to display menu bar.
• Press the RETURN button to clear the menu bar.

Playing an MPEG4 Disc

An MPEG4 File is used to contain audio and video data.

An MPEG4 File with the following extensions can be played.

- .AVI, .DIVX, .avi, .divx

1. Insert a MPEG4 Disc into the disc tray.
2. Press the ▲▼ buttons to select the Disc Navigation, and then press the ENTER or ▶ button.
3. Press the ▲▼ buttons to select the DivX, and then press the ENTER or ▶ button.
4. Press the ▲▼ buttons to select the avi file (DivX), then press the ENTER, ▶ or PLAY button.
5. When an MPEG4 file is played, you can use following functions. Pressing the STOP button once during playback will display the file list, pressing the button again will exit the menu screen.

◆ MPEG4 Function Description

Function	Description
Skip Scene	During playback, press the SKIP (💡 or 😊) button, it moves forward or backward 5 minutes.
Search Scene	During playback, press the SEARCH (💡 or 😊) button and press again to search at a faster speed. (Fast 1 → Fast 2 → Fast 3)
Slow Motion	In Still or step mode, press the SEARCH (💡) button on the remote control. (Slow 1 → Slow 2 → Slow 3)
Step Motion	In the still or play mode, press the F.ADV/SKIP button on the remote control.

Record safety Tab

■ This DVD Recorder & VCR can play the following video compression formats.

- MPEG4 Codec format : DivX 3.11 DivX 4.x DivX 5.x

- Audio format : .MP3, .MPEG, .PCM, .AC3, .DTS.

■ Supported subtitle file formats: .smi, .srt, .sub, .psb, .txt (The subtitle file should have exactly the same name to corresponding MPEG4 file name)
■ Some MPEG4 files that were created on a personal computer may not be able to play back. That is why Codec Type, Version and Higher resolution over specification is not supported.

Playing the VCR

1. Insert a standard VHS tape into the VCR deck.
2. When a tape is inserted, the power will turn on automatically.
3. Press the ▶II (PLAY/STILL) button on the remote control or on the front panel of the unit. The videotape will begin to play automatically if the Record Safety Tab is removed and Auto Play is turned on.
4. Press the ■ (STOP) button on the remote control or on the front panel of the unit.
5. Playback through the VCR is possible when HDMI is connected.

Tracking

The Tracking adjustment removes the white lines that sometimes appear during playback because of slight differences in recording decks.

Adjust Tracking Manually During playback, press the CH/TRK (∧/∨) buttons to remove white lines from the picture.

Special VCR Playback Features

While a videotape is playing, you can enjoy a variety of special playback features, including Still, Frame Advance, Skip, Slow motion, and more.

STILL

In Play mode, press the ▶II (PLAY/ STILL) button to still a single frame.

Frame Advance

In Still mode, press the F.ADV/SKIP button to advance to the next frame.

Fps/Review

In Play mode, press the Forward (▶▶) button or Rewind (◀◀) button to Fps/review at two speeds:

• Picture Search - Press and release repeatedly to advance the tape forward or backward at 2,3,5,7 times normal speed.
• Jet Search - Press and hold to advance the tape forward or backward at 7 times normal speed.

Skip

In Play mode, press F.ADV/SKIP button to cue ahead exactly 30 seconds. Press F.ADV/SKIP button repeatedly up to 4 times to cue ahead 2 minutes.

Slow motion

In Still mode, press ▶▶ button for slow motion. Press the ▶▶ button repeatedly to play slow motion speed at 1/10, 1/7, 1/5 times. Press the PLAY button twice to resume normal viewing.

S-VHS Playback

The DVD Recorder & VCR allows you to playback high quality S-VHS tapes.

1. Insert an S-VHS tape into the VCR deck.
2. Press ▶II (PLAY/STILL) button on the remote control or on the front panel to play an S-VHS tape.

Variable Search System

Each time you record a cassette on this DVD Recorder & VCR, an "index" is automatically marked on the tape when recording is started. The Search function allows you to fast-forward or rewind to a specific index and start playback from that point. Depending on the direction selected, the indexes are numbered as follows

- This DVD Recorder & VCR uses a standard indexing system (VISS). As a result, it will recognize any indexes marked by other VCRs using the same system and vice versa.

Go To Zero 00:00:49

Go To Zero

Use this feature when you want to search for the 0:00:00 counter position on a cassette.

1. During playback, press the CANCEL button at the point on the tape where you want to set the counter to 0:00:00.
2. While a cassette is stopped, press the ANYKEY button.
3. Press the ▲▼ buttons to select Go To Zero, then press the ENTER button. The VCR will rewind or fast forward, searching for the 0:00:00 counter position, and then automatically stop at that position.

End Search 00:00:13

End Search

Use this feature when you want to search for a blank position to record a program on a cassette.

1. While a cassette is stopped, press the ANYKEY button.
2. Press the ▲▼ buttons to select End Search, then press the ENTER button. The VCR will fast forward, searching for a blank position, and then automatically stop at that position. If the VCR reaches the end of the tape during end search, the tape will be ejected.

Scan and Play 00:01:49

Forward/Reverse Intro Scan

Use scan and play when you don't know exactly where a program is located on a cassette tape.

1. While a cassette is stopped, press the ANYKEY button.
2. Press the ▲▼ buttons to select Forward Intro Scan or Reverse Intro Scan, then press the ENTER button. When an Index mark is found, the DVD Recorder & VCR will playback the tape for 5 seconds, after which it will continue searching for the next Index mark.

This section explains various DVD recording methods.

This unit can record on various types of discs. Before recording, read the following instructions and select the disc type according to your preference.

Recordable discs

This recorder can record on the following discs.

DVD-RAM	DVD-RW	DVD-R	DVD+RW	DVD+R
RAM	RW	R	DVD+ReWritable	DVD+R

• DVD±RWs and DVD-RAMs are rewritable.
• DVD±Rs are non-rewritable.

Compatibility between Samsung and other manufacturer's Recorders.

Disc Types	Recording format	Recording Device	Finalizing	Additional Recording in Samsung Recorder
DVD-RAM	VR Mode	Samsung	X	Recordable
		Other Company	X	Recordable
DVD-RW	VR Mode	Samsung	finalized	Not recordable
			not finalized	Recordable
		Other Company	finalized	Not recordable
			not finalized	Recordable
	V Mode	Samsung	finalized	Not recordable
			not finalized	Recordable
		Other Company	finalized	Not recordable
			not finalized	Not recordable
DVD-R	V Mode	Samsung	finalized	Not recordable
			not finalized	Recordable
		Other Company	finalized	Not recordable
			not finalized	Not recordable
DVD+RW	-	Samsung	X	Not recordable in some cases
		Other Company	X	Not recordable in some cases
DVD+R	-	Samsung	finalized	Not recordable
			not finalized	Not recordable in some cases
		Other Company	finalized	Not recordable
			not finalized	Not recordable in some cases

■ Finalize

- This closes the DVD-RW/±R so no additional recording can be done.

■ Unfinalize

• This allows additional recording on a DVD-RW disc originally recorded on the DVD-VR355.
• A DVD-RW disc that has been recorded by DAO(Disc At Once) in a PC cannot be unfinalized.
• A DVD-RW disc that has been recorded in Video Mode of a different manufacturer's recorder cannot be unfinalized.
• A DVD±R disc cannot be unfinalized.

DVD-RAM

Unformatted Disc Do you want to format this disc? Yes NO

DVD±RW/+R

Uninitialized Disc Do you want to initialize this disc? Yes NO

Recording Formats

Since available functions differ depending on the disc type, select a disc that best fits your preference. When you insert an unused disc, the following message appears.

• DVD-RAM : Use after formatting the disc.
- DVD±RW/+R : Use after initializing the disc.
When using a DVD-RW disc, you can change the V or VR mode. Refer to Formatting a Disc on page 80.
- DVD-R : Initializing the disc is unnecessary.

DVD-RAM/-RW(VR mode)

• This mode involves multiple editing functions (such as deletion of the whole title, partial deletion of a title, etc.).
• Various editing options using a created Playlist.

DVD-RW(Video mode)/-R

• Chapters will be created automatically when you finalize recording on DVD-R/DVD-RW discs in Video mode.
• Simple editing (erasing titles/changing title name).

DVD+RW

- You can also make your own chapters on DVD+RWs and edit them using the Chapter Edit menu. (see pages 73\~74)

■ You can initialize discs automatically using EZ REC MODE. (See page 64)

Recording Mode

With the unit in Stop mode, select one of four recording modes by pressing the REC SPEED button repeatedly for the desired recording time and picture quality.

In general, picture quality improves as the recording time decreases. In AUTO mode, the most suitable record mode is adjusted automatically, according to remaining time on the disc and length of the timer recording. You can select only one mode from XP, SP, LP and EP for timer recording.

Mode	Characteristic	Recording Times Data Rates
XP(high quality mode)	Select when the video quality is important.	Approx. 1 hour about 8 Mbps
SP(standard quality mode)	Select to record in standard quality.	Approx. 2 hours about 4 Mbps
LP(long recording mode)	Select when a long recording time is required.	Approx. 4 hours about 2 Mbps
EP(extended mode)	Select when a long recording time is required.	Approx. 6 hours/about 1.2 Mbps Approx. 8 hours/about 0.8 Mbps
AUTO	For timer recording only see pages 62~63.	Approx 1 to 8 hours Approx 0.8 to 8Mbps

- The dual layer DVD±Rs have approximately double the capacity of single layer DVD±Rs. (See page 40.)

You cannot record copy protected movie.

Unrecordable Video

Pictures with copy protection cannot be recorded on this DVD Recorder & VCR.

When the DVD Recorder & VCR receives a copy guard signal while recording, recording stops and the following message (to the left) appears on the screen.

Concerning Copy Control Signals

TV broadcasts that contain copy control signals may have one of the following three signal types, Copy-Free, Copy-Once and Copy-Never. If you want to record a copy-once type program, use a DVD-RW with CPRM in VR Mode or DVD-RAM discs.

('O': Supported, '-' : Not Supported)

	Copy-Free	Copy-Once	Copy-Never
DVD-RW (Ver.1.1)	O	-	-
DVD-RW (Ver.1.1) with CPRM VR mode	O	O*	-
DVD-R	O	-	-
DVD-RAM (Ver.2.0)	O	O*	-
DVD+R	O	-	-
DVD+RW	O	-	-

Once “Copy Once” has been recorded, additional recordings cannot be performed.

* compatible with CPRM.

◆ Content Protection for Recordable Media (CPRM)

CPRM is a mechanism that ties a recording to the media on which it is recorded. It is supported by some DVD Recorder & VCR, but not by many DVD players. Each blank recordable DVD has a unique 64-bit media ID etched in the BCA(Burst Cutting Area). When protected content is recorded onto the disc, it can be encrypted with a 56-bit C2 (Cryptomeria) cipher derived from the media ID. During playback, the ID is read from the BCA and used to generate a key to decrypt the contents of the disc. If the contents of the disc are copied to other media, the ID will be absent or wrong and the data will not be decryptable.

Recording the Current Channel you are watching

Before you start

1. Check to make sure the antenna cable is connected.
2. Check the remaining time on the disc. DVD-RAM/DVD±RW/+R discs should be formatted or initialized in advance before beginning recording. (See page 56.)

3. Press the OPEN/CLOSE button to close the disc tray. Wait until "LOAD" disappears from the front panel display.

4. Press the OPEN/CLOSE button and place a recordable disc on the disc tray.

5. Press the OPEN/CLOSE button to close the disc tray. Wait until "LOAD" disappears from the front panel display.
6. Press the CH/TRK ( / ) buttons or number buttons to select the channel you want to record.
7. Press the REC SPEED button repeatedly, to select the recording speed (quality).

- XP(High, approx. 1 hour) → SP(Standard, approx. 2 hours) → LP(Low, approx. 4 hours) → EP(Extended Play, approx. 6 hours/8hours)

1. Press the REC button.
2. “●” is displayed on the screen and recording begins.
3. Press the STOP button to stop or finish a recording in progress.
4. The message “Updating the information of disc. Please wait for a moment” is displayed.

Pausing / Resuming

• Press the REC PAUSE button to pause a recording in progress.
• Press the REC PAUSE button again during pause to resume recording.
• You can switch channels by pressing the CH/TRK ( / ) buttons while recording pauses.

■ Recording will stop automatically if there is no free space left for recording.
■ Up to 99 titles can be recorded onto a DVD-RAM/-RW/-R disc, and up to 48 titles onto a DVD+RW/+R disc.
■ If the power is interrupted due to power failure or other reasons, the title being recorded will not be saved onto the disc.
■ Recording will stop automatically if a copy protected image is selected.
■ Do not use DVD-R authoring discs with this unit.

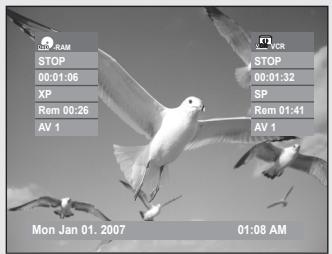

Black-and-white photo of seagulls in flight against a cloudy sky, no text or symbols visible

Recording from External Equipment you are Watching

1. Power on your DVD Recorder & VCR and switch to AV In mode by pressing the INPUT SEL. button on the remote control. The front panel display changes in the following sequence depending on the Video input setting in the menu.

AV1: → Channel Number → AV1 → AV2 → DV

S-Video: → Channel Number → S-Video → AV2 → DV

1. Press the DVD or VCR button on the remote, or DVD/VCR on the front panel to select the DVD or VCR mode.

2. Press the REC SPEED button repeatedly to select the recording speed(quality).

DVD: SP LP EP XP

VCR: SP SLP

1. When your DVD Recorder & VCR is in Stop mode, start playback on your external device.

2. Press the REC button on your DVD Recorder & VCR to start recording, when the desired video is displayed from the external device.

Pausing / Resuming

- Press the PLAY/ STILL(💡) button to pause a recording in progress.

- Press the PLAY/ STILL(💡) button again during pause to resume recording.

To stop recording

Press the STOP (■) button to stop or finish the recording in progress.

- When using DVD-RAM/DVD±RW/ DVD±R discs, the message 'Updating the information of disc. Please wait for a moment.' is displayed.

■ Also refer to the user manual for your External Devices when recording through AV In jacks on the DVD/VCR using Audio/Video cable.
■ You can also record an external source through S-Video cable. (see page 26).
■ For more information on changing the Video Input from AV1 to S-Video, see page 37 (Video Input).

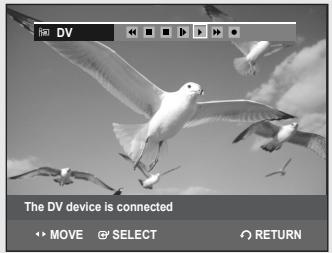

Recording Through the DV Input Jack

DV The DV device is connected MOVE ⬆ SELECT ○ RETURN

You may control your Camcorder using the IEEE1394 (DV) interface. Follow these directions to record onto a disc or tape from a camcorder that has a DV output jack.

1. Connect the DV output jack of your camcorder to the DV input jack on the front of your DVD Recorder & VCR using a DV cable.
2. Power on your DVD Recorder & VCR and switch to DV mode by pressing the INPUT SEL. on the remote control.
3. Press the DVD or VCR button on the remote, or DVD/VCR on the front panel to select the DVD or VCR mode.
4. Press the REC SPEED button repeatedly to select the recording speed(quality).

1. If the input is set to DV, a playback/record menu that enables camcorder control appears on the top of the screen.

2. Select the Play icon on the upper part of the screen to playback the camcorder and find the starting position to copy.

3. To start recording, Press the ◀▶ button to select the Rec(●) icon in the top side of the screen, then press the ENTER button. You can press the REC button on the remote control to start recording. To display playback related icons on the screen.

4. Press the STOP button on your DVD Recorder & VCR when the recording is finished.

■ Some camcorders may not work with your DVD Recorder & VCR even if they have a DV output jack.
■ Also refer to the user manual for your camcorder when recording through the DV jack.

Making a One Touch Recording (OTR)

One-Touch Recording (OTR) allows you to add recording time in preset increments up to 4 hours by pressing the REC button repeatedly.

1. Press the CH/TRK ( / ) buttons or number buttons to select the channel to record.
   If you want to record through a connected external component, press the INPUT SEL. button to select an appropriate external input(AV1, AV2 or DV).
   • CATV channel: 1 to 125
   • TV channel: 2 to 69
2. Press the DVD or VCR button on the remote, or DVD/VCR on the front panel to select the DVD or VCR mode.
3. Press the REC button to start recording.
4. While in Record mode, press the REC button again to activate the One-Touch Recording (OTR).
5. Record length 0:30 appears on the On-Screen Display and the DVD Recorder & VCR will record for exactly 30 minutes.
6. Continue pressing REC button to add recording time in preset increments up to 4 hours.

$$ \boxed {\rightarrow 0: 3 0 \rightarrow 1: 0 0 \rightarrow 1: 3 0 \rightarrow 2: 0 0 \rightarrow 3: 0 0 \rightarrow 4: 0 0 \rightarrow \text { Off }} $$

- The DVD Recorder & VCR stops recording automatically when the time has elapsed.

To stop recording

1. Press the STOP (■) button.
   The message "Press STOP button once more to cancel Timer Record." is displayed.
2. Press the STOP (■) button again.
   The message "Updating the Information of disc.
   Please wait for a moment." is displayed.

■ The timer counter decreases by the minute from 4:00 to 0:00, then the DVD Recorder & VCR stops recording.

DVD-Recorder Timer Record DVD-RAM(VR) Title List Timer Record Scheduled Record List Playlist Disc Manager Timer Rec. Setup Copy MOVE ENTER RETURN EXIT

DVD-Recorder Scheduled Record List DVD-RAM(VR) Current Time 1:05 AM No. To Source Date Start End Mode Edit No. 01 To Source Date Start End Mode DVD AV 2 01/01 03:05 AM 05:05 AM SP Recordable Time 00:45 SP MOVE ENTER RETURN EXIT

No. 01 To Source Data Start End Mode DVD AV 2 01/01 03:05 AM 05:05 AM SP Recordable Time 00:45 SP

No. 01 To Source Date Start End Mode DVD AV 2 Mon-Fri 03:05 AM 05:05 AM SP Recordable Time 00:45 SP

No. 01 To Source Date Start End Mode DVD AV 2 Sun's 03:05 AM 05:05 AM SP Recordable Time 00:45 SP

Making a Timer Recording

The clock (Setup – Clock Set) must be set before proceeding with a timer recording. (See page 29)

1. Press the OPEN/CLOSE button, and place a recordable disc on the disc tray (or load a tape into the VCR).
2. Press the OPEN/CLOSE button to close the disc tray. Wait until "LOAD" disappears from the front panel display.
3. With the unit in Stop mode, press the MENU button.
4. Press the ▲▼ buttons to select Timer Rec., then press the ENTER or ▶ button.
5. Press the ▲▼ buttons to select Timer Record, then press the ENTER or ▶ button.

You can go to the Timer recording screen directly by pressing the TIMER REC button.

The Timer Recording screen is displayed.

1. Fill in the items using the ▲▼◀▶ buttons.

◀▶ : Moves to the previous/next item,
▲▼ or 0\~9 : To set or change items in the Scheduled Record List Menu.
- To : Select the media to record (DVD or VCR).
- Source : The video input source (AV1 or AV2) or the broadcasting channel you want to make a timer recording from.
- Date : Date that the timer recording starts

- There are three options when setting the date. see below:

① To make a recording on a specific date, press the ▲▼ or number buttons until the date you want appears.
② To make a recording at the same time every day (Mon-Fri), press the ▲▼ buttons until Mon-Fri appears:
③ To make a recording on a specific day of the week(Sun's-Sat's), press the ▲▼ buttons until Sun's....Sat's appears:
- Start/End Time: Start and end time of the timer recording.

◆ Recording mode (DVD)

AUTO : Select when you want the video quality adjusted automatically. In AUTO mode, the most suitable record mode is chosen according to the remaining time on the disc and length of the timer recording. You can select only one mode from XP, SP, LP and EP for timer recording.
XP (high quality) : Select when audio and video qualities are important. (Approx. 1 hour)
SP (standard quality): Select to record in standard quality. (Approx. 2 hours)
LP (low quality) : Select when a long recording time is required. (Approx. 4 hours)
EP (extended mode) : Select when a longer recording time is required. (Approx.6 hours at 1.2 Mbps or Approx.8 hours at 0.8 Mbps)

■ When you are recording in EP mode on a DVD-RW(V)/-R disc, it may not record for the full 6 or 8 hours because the unit uses the VBR(Variable Bit Rate) ENCODING system.

For example, if you record a program with a lot of action, it uses a higher bit rate which in turn consumes more disc memory.

DVD-Recorder Scheduled Record List DVD-RAM(VR) Current Time 1:07 AM No. To Source Date Start End Mode Edit No. 01 To Source Date Start End Mode DVD AV 2 01/01 03:05 AM 05:05 AM SP Recordable Time 00:45 SP MOVE ENTER RETURN EXIT

◆ Recording mode (VCR)

AUTO : Select when you want to set video quality automatically. The auto quality depends on remaining time of VCR tape.

SP : Standard Play, for best picture quality.

SLP : Super Long Play, for maximum recording time (3 times SP).

7. Press the ENTER button.

- 📋 will appear on the front panel. It means that a timer recording is registered.

If the timer settings overlap

The first program has priority. After recording of the first program is complete, the second program starts being recorded.

8. Turn the power off to finish the timer recording.

- will blink if a disc or tape is not inserted.

■ When the scheduled recording is operating, the program being recorded will not display on the TV.

■ The timer recording time may differ from the set time depending on disc status and overall timer recording status (for example, recording times overlapping, or when the previous recording ends within 3 minutes before the start time of the next recording.)

Editing the Scheduled Record List

Follow these directions to edit the timer record list.

1. Press the MENU button.

2. Press the ▲▼ button to select Timer Rec., then press the ENTER or ▶ button.

3. Press the ▲▼ button to select Scheduled Record List, then press the ENTER or ▶ button.

4. Press the ▲▼ button to select the number of the scheduled record list you want to edit, then press the ENTER or ▶ button.

- The Edit and Delete items are displayed.

1. Press the ▲▼ button to select Edit, then press the ENTER button.

- The Timer Recording screen is displayed. Edit the items you want to modify. See the Timer Recording section for more information on Timer Recording Input items. (See pages 62\~63)

1. Press the ENTER button to confirm the edited setting.

Deleting the Scheduled Record List

DVD-Recorder Scheduled Record List DVD-RAM(VR) Current Time 12:27 AM No. To Source Date Start End Mode Edit 01 02 03 No. 01 Do you want to delete 'NO.01'? Yes NO MOVE ENTER RETURN EXIT

Follow these directions to delete a title from the timer record list.

1. Press the MENU button.
2. Press the ▲▼ button to select Timer Rec., then press the ENTER or ▶ button.
3. Press the ▲▼ button to select Scheduled Record List, then press the ENTER or ▶ button.
4. Press the ▲▼ button to select the number of the scheduled record list you want to delete, and then press the ENTER button.

- The Edit and Delete items are displayed.

1. Press the ▲▼ button to select Delete, then press the ENTER or ▶ button.

- You will be prompted with a delete confirm message such as “Do you want to delete ‘No.01’?”.

1. Press the ◀▶ buttons to select Yes, then press the ENTER button.

- The selected title will be deleted from the list.

■ You can not delete programs that are currently being recorded.

EZ REC MODE

Press "On" to confirm EZ REC mode. Otherwise press "Off" On Off

Disc Initialize (DVD-V) Now, initializing.. 50%

This function allows you Initialize and Finalize a disc automatically.

1. With the unit in Stop/No Disc mode, press the EZ REC MODE button on the remote control.
2. Press the ◀▶ buttons to select On, and then press the ENTER button.

The EZ REC MODE is set up.

1. Insert a disc.

If the disc is new, it will initialize automatically.

1. Press the REC button.

2. EZ REC MODE will Automatically Finalize the disc under the following conditions.

3. When you press the OPEN/CLOSE button on your DVD Recorder & VCR after recording on at least 30% of the disc. The tray will open after the disc has been finalized.

4. When the disc is full, it will finalize automatically and the Recorder will remain in stop mode.
5. When you make a timer recording and it occupies at least 30% of the disc, the disc will finalize automatically and the Recorder will power off. Please note that auto finalization will not work if the Recorder has more than one Timer Recording set in the Scheduled Record List.

■ If you insert a new DVD-RW disc, it will be formatted in V mode after auto initializing.
■ If you select off, you must initialize (see page 56) and finalize the disc manually in the Disc Manager menu.(see page 81)
■ The length of Recording is different according to recording mode. (see page 56)

Basic VCR Recording

Before starting

1. Check TV channel and Antenna connections.
2. Check the remaining time on the tape.

You can record a TV show in progress by inserting a blank tape and pressing the ●(REC) button. You can even add time in preset increments up to 4 hours by pressing the ●(REC) button repeatedly.

■ Be sure your videotape has a Record Safety Tab. If the tab is missing, you can cover the opening with a small piece of tape.

■ Warning: Do not cover this opening unless you are sure you want to record over the tape.

1. Insert a blank VHS tape into the VCR deck.

- Make sure the tape is long enough to record the entire program.

1. Press the Number buttons or the CH/TRK ( / ) buttons to select the desired channel.

Press the INPUT SEL. button to select AV 1, AV 2 or DV if recording from an external device connected to the input jacks of the recorder.

1. Press the REC SPEED button on the remote control to set the Record Speed to one of the following options:

2. SP – Standard Play, for best picture quality.

3. SLP – Super Long Play, for maximum recording time (3 times SP).

■ The selected Record Speed will appear on the front panel and have on-screen displays.

Maximum Recording Time - SP vs. SLP

Tape Length	SP (Standard Play)	SLP (Super Long Play)
T-120	Approx. 2 hrs	Approx. 6 hrs
T-160	Approx. 2hrs 40 mins	Approx. 8 hrs
T-180	Approx. 3 hrs	Approx.9 hrs

■ When you watch or record on the VCR during DVD Recording, some function buttons may not operate.

The message “This function is not available.” will be displayed.

1. Press the ●(REC) button on the remote control or front panel.

For options while recording is in progress, see “Special Recording Features”.

1. Press the STOP button to stop or finish a recording in progress.

Check Remaining Time

STOP 00:01:06 XP Rem 00:26 AV 1 Mon Jan 01. 2007 01:08 AM

1. Press the INFO button on the remote control.

The following information will be displayed.

(Current deck status, recording speed, remaining time, input channel, current time.)

Special Recording Features

While a recording is in progress, you can watch a different media, or add recording time in preset increments.

(for example, you can watch VCR playback while recording from a DVD and vice-versa)

1. To watch a different a Different Channel from the One being Recorded

When you watching through the Antenna input during recording, Press the TV/VCR button on the remote control. Change the channel you want to watch with the TV's remote.

1. Watch a different media during recording

You can watch a DVD during VCR recording or watch a Video tape during DVD recording.

- During VCR recording, insert a DVD in the DVD deck. The output will automatically change to the DVD and start playback.

- During DVD recording, insert a Video tape in the VCR deck. The output will automatically change to the VCR and start playback. (Only if the tape is missing the safety tab)

1. To Add Recording Time

Refer to the One-Touch Recording (OTR). (See page 61)

1. Recording on the DVD and VCR at the same time

You can record on the DVD and VCR at the same time, but both modes must be set up to record separately.

- Press the DVD/VCR button to set the unit to DVD or VCR mode.

- Choose AV input mode (CH, AV1, AV2 or DV). for DVD or VCR.

- Choose REC mode for DVD or VCR.

- Press REC button for DVD or VCR.

■ When the DVD Recorder & VCR is connected to your TV using an S-Video or component video cable, the video tape's playback screen will not be displayed during DVD recording.
■ You cannot record different channels at the same time.
■ The DVD and VCR cannot start recording at the exact same time. You must set one mode to start recording, then the other.

Copy to DVD or VCR

You can copy from the DVD to VCR or VCR to DVD.

Check the remaining time on the tape and Disc.

To Copy from DVD to VCR

(V mode)

DVD-RAM(VR) Edit Copylist JAN/01/2007 1/2 No. Title Length Edit 01 JAN/01/2007 Play 02 JAN/01/2007 Rename Edit Scene Copy Delete JAN/01/2007 12:00 AM T Scene JAN/01/2007 12:00 AM MOVE ENTER RETURN EXIT

1. With the unit in Stop mode, press the MENU button.
2. Press the ▲▼ buttons to select Copy, then press the ENTER or ▶ button.
3. Press the ▲▼ buttons to select DVD --> VCR, then press the ENTER or ▶ button.
4. Press the ▲▼ buttons to select Edit Copylist, then press the ENTER or ▶ button.

To copy from "Edit Copylist", you need to make a copylist in advance. Select "New Copylist" at step 4 and create the new copylist. If you want to copy directly, choose "Direct Copy".

On a DVD-RW(V)/DVD+RW/±R disc, you can only use Direct copy function.

1. Press the ▲▼ buttons to select the desired copylist, then press the ENTER or ▶ button.
2. Press the ▲▼ buttons to select Copy, then press the ENTER or ▶ button.

Direct Copy: DVD to VCR

• Insert a DVD disc you want to copy.
• Insert a VHS tape.
• Press the VCR copy button on front panel or remote control (TO VCR).
• To stop recording, press the STOP button.
• You can also copy from DivX to VCR when the desired DivX is played back. If the DivX disc has various files, only the selected file will be played back

■ The copy function is not allowed in progressive scan mode.

To Copy from VCR to DVD

DVD-Recorder VCR-->DVD DVD-RAM(VR) No. Start End Edit 01 00:00:37 Play 02 --:--- Copy Delete 00:01:07 STOP Copy All MOVE ENTER RETURN EXIT

DVD-Recorder VCR->DVD DVD-RAM(VR) No. Start End Edit 01 00: 00: 37 00:03:45 02 --: --- --: --- -- 00:31:07 STOP Copy All MOVE ENTER RETURN EXIT

1. With the unit in Stop mode, press the MENU button in stop mode.
2. Press the ▲▼ buttons to select Copy, then press the ENTER or ▶ button.
3. Press the ▲▼ buttons to select VCR --> DVD, then press the ENTER or ▶ button.
4. You can use the ▶II, I◀◀ or ▶▶I, ◀◀ or ▶▶ buttons to search for the Start position.

Press the ENTER button at the start point.

1. You can use the ▶II, I◀◀ or ▶▶I, ◀◀ or ▶▶ buttons to search for the end position.

Press the ENTER button at the end point.

• A copylist will be generated. Repeat the above steps to create the copylist.

• In VCR mode, the copylist cannot be saved.

• Press the ▲▼ buttons to select desired copylist, then press the ENTER or ▶ button.

• Press the ▲▼ buttons to select Copy, then press the ENTER or ▶ button.

• The VCR will fast forward, searching for a start position and then automatically start a copy.

• The Start and End points may not match up exactly.
• If you want to copy all content, select Copy All.

Direct Copy: VCR to DVD

• Insert the VHS tape you want to copy.
• Insert a recordable DVD disc.
• Press DVD copy button on front panel or remote control(TO DVD).
• To stop recording press the STOP button.

This section introduces basic functions of DVD editing and explains both, edit functions for recording on a disc and edit functions for the entire disc.

DVD-RAM(VR) JAN/01/2007 3/4 No. Title Length Edit 01 JAN/01/2007 12:00 00:00:11 ▶ 02 JAN/01/2007 12:30 00:00:09 ▶ 03 JAN/01/2007 Play 04 JAN/01/2007 Rename Delete Edit Protection JAN/01/2007 01:00 AM AV1 JAN/01/2007 XP MOVE ENTER RETURN EXIT

Black and white photo of a butterfly perched on flower petals, no text or symbols visible

① ② ③ ④ ⑤ DVD RAM(VR) JAN 01/2007 Title List 1/4 No. Title Length Edit 01 JAN/01/2007 12:00 00:00:11 ▶ 02 JAN/01/2007 12:30 00:00:09 ▶ 03 JAN/01/2007 01:00 00:01:36 ▶ 04 JAN/01/2007 01:30 00:00:11 ▶ JAN/01/2007 01:30 AM AV1 JAN/01/2007 XP MOVE ENTER RETURN EXIT ⑦

DVD-RAM(VR) JAN/01/2007 Title List 1/4 No. Title Length Edit 01 JAN/01/2007 12:00 00:00:11 ▶ 02 JAN/01/2007 12:30 00:00:09 ▶ 03 JAN/01/2007 Play 04 JAN/01/2007 Rename Delete Edit Protection JAN/01/2007 01:00 AM AV1 JAN/01/2007 XP MOVE ENTER RETURN EXIT

Playing the Title List

Follow these instructions to play back a scene from the Title List.

1. Press the TITLE LIST button. The Title List screen is displayed.
2. Press the ▲▼ buttons to select a Title, then press the ENTER or ▶ button.

The Edit menu is displayed: Play, Rename, Delete, Edit, Protection (See pages 70\~74)

1. Press the ▲▼ buttons to select Play to play the title list, then press the ENTER button.

The selected title will be played back.

1. Press the STOP button to stop playing.

To return the title list screen, press the TITLE LIST button.

Title List Screen Elements

① Playback screen for recorded titles.
② Information window for the selected title: Title name, recording date, lock status, recording mode
③ Recorded title No.
④ Recorded title name
⑤ Recording Length (i.e., the playing time)
⑥ Edit menu

Play: Plays the selected title.

Rename: Changes the name of a selected title.

Delete: Deletes the selected title from the list.

Edit: Deletes a section of title.

Protection: Locks or unlocks the selected title.

⑦ Button display.

■ By pressing the ANYKEY button, you can play the desired title. (see page 44)
■ This may depend on the disc type.
■ DVD-RW(V)/DVD+RW/±R discs have limited editing function.

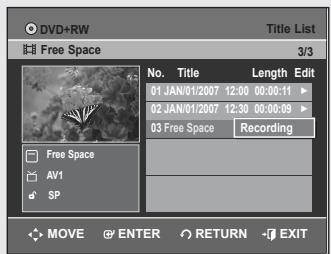

Recording on Free Space

DVD+RW Title List Free Space 3/3 No. Title Length Edit 01 JAN/01/2007 12:00 00:00:11 02 JAN/01/2007 12:30 00:00:09 03 Free Space Recording Free Space AV1 SP MOVE ENTER RETURN EXIT

This function is only available with DVD+RW discs. If existing titles are deleted, new free space will be created. When you operate the free space function, on-air TV images will appear on the left side of the title list.

1. Press the TITLE LIST button while in Stop mode.

The Title List screen is displayed.

1. Press the ▲▼ button to select Free Space, then press the ENTER or ▶button.

On-air TV images will appear on the left side of the title list.

1. Press the ENTER button.

Basic Editing (Title List)

DVD-Recorder Rename DVD-RAM(VR) Sports(A1) A B C D E F G H I J K L M N O P C R S T U V W X Y Z a b c d e f 9 h i j k l m n o p q r s t u v w x y z 1 2 3 4 5 6 7 8 9 0 - _ + - - 1 0 # s % ^ & [ ] Save Back Space Space Delete Clear MOVE ENTER RETURN EXIT

Renaming(Labeling) a Title

Follow these instructions to rename a title list name, i.e., to edit the title of a recorded program.

1. Press the TITLE LIST button. The Title List screen is displayed.
2. Press the ▲▼ buttons to select a title you want to rename from the Title List, then press the ENTER or ▶ button.
3. Press the ▲▼ buttons to select Rename, then press the ENTER or ▶ button. The Rename screen is displayed.

4. Select the desired characters using the ▲▼◀▶ buttons, press the ENTER button.

5. Back Space : Moves the cursor one position backwards.

6. Space : Enters a blank and moves the cursor one forward (to the right).
7. Delete : Deletes the character at the cursor position.
8. Clear : Deletes all the character inputs.

9. Save : Registers the character inputs.

10. Press the ▲▼◀▶ buttons to select Save, and then press the ENTER button.

The changed title name is displayed in the title field of the selected title.

DVD-RAM(VR) JAN/01/2007 5/31 Title Protection: On Off JAN/01/2007 12:00 AM AV1 JAN/01/2007 EP MOVE ENTER RETURN EXIT

DVD-RAM(VR) JAN/01/2007 3/4 No. Title Length Edit 01 JAN/01/2007 12:00 00:00:11 ▶ 02 JAN/01/2007 12:30 00:00:09 ▶ 03 JAN/01/2007 01:00 00:01:36 ▶ 04 JAN/01/2007 01:30 00:00:11 ▶ JAN/01/2007 12:00 AM AV1 JAN/01/2007 EP MOVE ENTER RETURN EXIT

DVD-RAM(VR) JAN/01/2007 Title List 1/4 Do you want to delete? (Related playlists may be deleted.) Yes No JAN/01/2007 12:00 AM AV1 JAN/01/2007 EP MOVE ENTER RETURN EXIT

Locking(Protecting) a Title

Follow these instructions to lock a title to protect it from accidental deletion.

1. Press the TITLE LIST button. The Title List screen is displayed.
2. Press the ▲▼ buttons to select a title you want to protect in the Title List, then press the ENTER or ▶ button.
3. Press the ▲▼ buttons to select Protection, then press the ENTER or ▶ button.
4. Press the ◀▶ buttons to select On, then press the ENTER button. The lock icon on the information window for the selected title changes to the locked status. ( Ⓞ → Ⓗ )

Deleting a Title

Follow these instructions to delete a title from the Title List.

1. Press the TITLE LIST button. The Title List screen is displayed.

2. Press the ▲▼ buttons to select a title you want to delete in the Title List, then press the ENTER or ▶ button.

3. Press the ▲▼ buttons to select Delete, then press the ENTER or ▶ button.

You will be prompted with a confirmation message.

DVD-RAM(VR), DVD-RW(VR mode) : Since a Playlist is present, the message 'Do you want to delete? (Related playlists may be deleted).' is displayed.

DVD-RW(Video mode), DVD+RW, DVD±R : Since a Playlist is not present, the message 'Do you want to delete?' is displayed.

- The message may depend on the type of disc.

1. Press the ◀▶ buttons to select Yes, then press the ENTER button.

■ You cannot delete a protected title. If you want to delete a protected title, select Off in the Title Protection menu.
■ Once a title is deleted from the Title List it cannot be recovered.
■ Once a DVD±R, DVD-RW is finalized, it cannot be deleted.
■ With DVD±R discs, titles are only deleted from the menu, however, the Title remains physically on the disc.

(VR mode)

DVD-RAM(VR) Edit Title List Title List No. 05 Start 00:00:05 00:00:00 00:00:05 Start End Delete Return MOVE ENTER RETURN EXIT

DVD-RAM(VR) Edit Title List Title List No. 05 Start End 00:00:05 00:10:15 00:10:15 Start End Delete Return MOVE ENTER RETURN EXIT

DVD-RAM(VR) Edit Title List Title List No. 05 Do you want to delete? (Deleted part will not be restored.) Yes No Start End Delete Return MOVE ENTER RETURN EXIT

DVD-RAI (VR) Edit Title List Tist List No. 05 Start End 00:00:05 00:00:00 00:00:02 Start End Delete Return MOVE ENTER RETURN EXIT

Follow these instructions to delete a section of a Title List title.

1. Press the TITLE LIST button. The Title List screen is displayed.
2. Press the ▲▼ buttons to select a title you want to delete from the Title List, then press the ENTER or ▶ button.
3. Press the ▲▼ buttons to select Edit, then press the ENTER or ▶ button. The Edit Title List screen is displayed.
4. Press the ENTER button at the starting point. The image and starting point time are displayed in the section deletion starting point window.
5. Press the ENTER button at the end point. The image and end point time are displayed in the Section deletion ending point window.
6. Press the ◀▶ buttons to select Delete, then press the ENTER button.
7. Press the ◀▶ buttons to select Yes, then press the ENTER button. The selected section has been deleted. To return to the Title List screen, press the ◀▶ buttons to select Return.

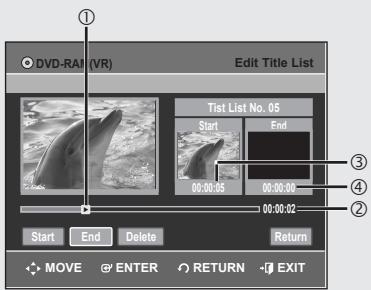

◆ Edit Title List Screen Elements

1 Playback bar
2 Playtime
3 Section deletion starting point window and time
4 Section deletion end point window and time

• Select the start and end points of the section you want to delete using the playback related buttons.
• Playback related buttons: (▶II, ◀◀◀, ◀◀◀, ▶▶).

■ The length of the section to be deleted must be at least 5 seconds long.
■ End point cannot be marked earlier than start point.
■ The section cannot be deleted when it includes a still picture.

DVD+RW Chapter Edit Chapter : 1/1 Show 00:00:00 Add Delete Hidden Delete All Return MOVE ENTER RETURN EXIT

② ① DVD+RW Chapter Edit Chapter : 1/1 Show 00:00:00 Add Delete Hidden Delete All Return MOVE ENTER RETURN EXIT

DVD+RW Chapter Edit Chapter : 1/2 Show 00:10:10 Add Delete Hidden Delete All Return MOVE ENTER RETURN EXIT

DVD+RW Chapter Edit Chapter : 2/3 Show 00:15:00 Add Delete Hidden Delete All Return MOVE ENTER RETURN EXIT

Editing a Chapter

You can make your own chapters on DVD+RWs and edit them using the Chapter Edit menu.

1. Press the TITLE LIST button. The Title List screen is displayed.
2. Press the ▲▼ buttons to select a title containing a chapter you want to edit, then press the ENTER or ▶ button.
3. Press the ▲▼ buttons to select Chapter Edit, then press the ENTER or ▶ button.

The Chapter Edit screen is displayed.

◆ Chapter Edit Screen Elements

1. Current chapter number and status
2. Playback bar
3. Playtime
4. Chapter Edit menu

Adding a Chapter

1. Select the point where you want to add a chapter using the playback related buttons, then press the ENTER button at that point.

Each time you press the ENTER button, a new chapter will be added.

- Playback related buttons: (▶II, I◀◀, ▶▶I, ◀◀, ▶▶).

1. Press the ◀▶ buttons to select Return, and then press the ENTER button.

The edited title will now have the chapter you added.

■ You can make up to 99 chapters in a title and 254 chapters in a disc.
■ The edited chapters are shown on existing DVD players only after performing the Edit Compatible function. (See page 82)
■ If you add a chapter, the title is divided at that point; If you add a chapter onto a title that has only one chapter, it creates another chapter.

Deleting a Chapter

Follow steps 1 to 3

1. Select a chapter you want to delete using the playback related buttons.

- Playback related buttons: (▶II, I◀◀, ▶▶I, ◀◀, ▶▶).

1. Press the ◀▶ buttons to select Delete, and then press the ENTER button.

The selected chapter will be deleted.

- To finish the operation, select Return using the ◀▶ buttons then press the ENTER button.

■ The edited title has chapters as you deleted.
■ The first chapter can't be deleted.
■ The Delete menu is not available if there is one chapter in the selected title.
■ When deleting a chapter, only the chapter marker is actually deleted, not the recorded video.
■ Deleting a chapter can't be canceled.

DVD+RW Chapter Edit Chapter : 2/4 Hidden 00:15:00 Add Delete Hidden Delete All Return MOVE ENTER RETURN EXIT

Hiding a Chapter

Follow steps 1 to 3 on page 73

1. Select a chapter you want to hide using the playback related buttons.

- Playback related buttons: (▶II, I◀◀, ▶▶I, ◀◀, ▶▶).

1. Press the ◀▶ buttons to select Hidden, and then press the ENTER button.

The selected chapter is hidden.

- To finish the operation, select Return using the ◀▶ buttons then press the ENTER button.

• If there is only one chapter, it can't be hidden.
  ■ Hidden/Show menu is not available if there is only one chapter in the selected title.
  ■ The hidden chapters are not shown on the existing DVD players.
  ■ Hidden chapters will be played when playing back the entire title. You can make the hidden chapter appear by pressing the ENTER button in the Show menu.

DVD+RW Chapter Edit Do you want to delete all chapter marks? Yes No Add Delete Hidden Delete All_Return MOVE ENTER RETURN EXIT

Deleting all Chapters

Follow steps 1 to 3 on page 73

1. Press the ◀▶ buttons to select Delete All, and then press the ENTER button.
2. Press the ◀▶ buttons to select Yes, and then press the ENTER button.

■ When deleting a chapter, only the chapter marker is actually deleted, not the recorded video.
■ The Delete All menu is not available if there is only one chapter in the selected title.

DVD+RW Divide Title Title List No. 03 Start End 00:00:00 00:00:00 00:00:00 Point Divide Return MOVE ENTER RETURN EXIT

Dividing a Title

Follow these instructions to divide a long title into several titles.

1. Press the TITLE LIST button. The Title List screen is displayed.
2. Press the ▲▼ buttons to select a title you want to divide from the Title List, then press the ENTER or ▶ button.

3. Press the ▲▼ buttons to select Divide Title, then press the ENTER or ▶ button. The Divide Title List screen is displayed.

4. Select the point you want to divide using the playback related buttons, then press the ENTER button.

- Playback related buttons: (▶II, I◀◀, ◀◀, ▶▶).

1. Press the ◀▶ buttons to select Divide, then press the ENTER button.

2. Press the ◀▶ buttons to select Yes, then press the ENTER button. The selected title has been divided into two titles.

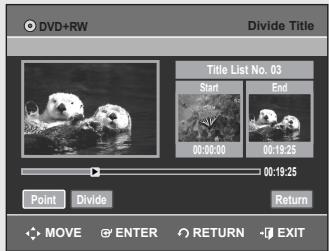

DVD+RW Divide Title Title List No. 03 Start End 00:00:00 00:19:25 00:19:25 Point Divide Return MOVE ENTER RETURN EXIT

■ If the section to be divided is less than 5 seconds, you will be prompted with the message “The range is too short.”

DVD+RW Divide Title Title List No. 03 Do you want to divide the title? (Once divided, titles cannot be merged back.) Yes No 25 Point Divide Return MOVE ENTER RETURN EXIT

Advanced Editing (Playlist)

Creating a Playlist

DVD-RAM(VR) Make Scene Scene No. 003 Start End 00:00:02 00:00:00 00:00:10 Start End Make Return MOVE ENTER RETURN EXIT

(VR mode)

DVD-RAM(VR) Make Scene Scene No. 003 Start End 00:00:10 00:10:00 00:10:00 Start End Make Return MOVE ENTER RETURN EXIT

DVD-RAM(VR) Edit Playlist JAN/01/2007 3/3 No. Title Length Edit 01 JAN/01/2007 12:00 00:00:03 ▶ 02 JAN/01/2007 12:30 00:00:25 ▶ 03 JAN/01/2007 01:00 00:00:05 ▶ JAN/01/2007 12:00 AM 1 Scene JAN/01/2007 12:00 AM MOVE ENTER RETURN EXIT

DVD-RAM(VR) Edit Playlist JAN/01/2007 3/3 No. Title Length Edit 01 JAN/01/2007 12:00 00:00:03 ▶ 02 JAN/01/2007 12:30 00:00:25 ▶ 03 JAN/01/2007 Play Rename Edit Scene Copy Delete JAN/01/2007 12:00 AM 1 Scene JAN/01/2007 12:00 AM MOVE ENTER RETURN EXIT

Follow these instructions to create a new playlist title from a recorded title.

1. With the unit in Stop mode, press the MENU button.
2. Press the ▲▼ buttons to select Playlist, then press the ENTER or ▶ button.
3. Press the ▲▼ buttons to select New Playlist, then press the ENTER or ▶ button.

The Make Scene screen is displayed.

1. Press the ENTER button at the start point.

2. The image and time at the start point are displayed on the Start window.

3. The yellow-colored selection bar moves to the End item.

4. Select the starting point of the section from which you want to create a new scene using the playback related buttons (▶II, I◀◀, ▶▶I, ◀◀, ▶▶).

5. Press the ENTER button at the end point.

6. The image and end point time are displayed in the End window.

7. The yellow-colored selection bar moves to the Make icon.

- To make a new playlist -

1. Press the ◀▶ buttons to select Make, then press the ENTER button.

A new Scene will be added to the current Playlist.

A new Make Scene screen is displayed.

■ You can check and see all the scenes on the Edit Playlist screen.
■ Repeat steps 1\~6 if you want to make a new playlist.
■ Repeat steps 4\~6 if you want to add scenes to the playlist.

- To return to Edit Playlist menu -

1. Press the ▲▼ buttons to select Return, then press the ENTER button.

The Edit Playlist screen is displayed.

■ You can create up to 99 playlist titles.
■ Depending on the kind of disc, the displayed screen may have a slight difference.
■ A disc that is recorded on this unit will not display the playlist menu if EZ REC MODE is set to 'On'.

Playing Titles in the Playlist

(VR mode)

Follow these instructions to play the playlist titles.

1. Press the PLAY LIST button with the disc stopped.

The Edit Playlist screen is displayed.

1. Press the ▲▼ buttons to select the title you want to play from the

Playlist, then press the ENTER or ▶ button.

1. Press the ▲▼ buttons to select Play, then press the ENTER or ▶ button.

The playlist titles will be played back.

1. Press the STOP button to stop playing.

The screen returns to the Edit Playlist screen.

Renaming a Playlist Title

DVD-Recorder © DVD-RAM(VR) Dolphin _ A B C D E F G H I J K L M N O P C R S T U V W X Y Z a b c d e f g h i k l m n o p q r s t u v w x y z 1 2 3 4 5 6 7 8 9 0 - _ + - - 1 0 6 5 % ^ & ( ) Save Back Space Space Delete Clear MOVE ENTER RETURN EXIT

(VR mode)

Follow these instructions to rename a playlist title, i.e. to edit the title of a playlist title.

1. Press the PLAY LIST button with the disc stopped. The Edit Playlist screen is displayed.
2. Press the ▲▼ buttons to select the title you want to rename from the Playlist, then press the ENTER or ▶ button.
3. Press the ▲▼ buttons to select Rename, then press the ENTER or ▶ button.

The Rename screen is displayed.

1. Enter the desired characters using the ▲▼◀▶ buttons.

2. Back Space : Moves the cursor one position backwards.

3. Space : Enters a blank and moves the cursor one forward (to the right).
4. Delete : Deletes the character at the cursor position.
5. Clear : Deletes all the character inputs.

6. Save : Registers the character inputs.

7. Press the ▲▼◀▶ buttons to select Save, then press the ENTER button.

The changed title is displayed in the title field of the selected title.

DVD-RAM(VR) Edit Playlist Dolphin 3/3 No. Title Length Edit 01 JAN/01/2007 12:00 00:00:03 ▶ 02 JAN/01/2007 12:30 00:00:25 ▶ 03 Dolphin 00:00:05 ▶ Dolphin 1 Scene JAN/01/2007 12:00 AM MOVE ENTER RETURN EXIT

DVD-Recorder Edit Scene DVD-RAM(VR) Scene No. 1 / 7 Playlist No. 3 01 00:00:05 02 00:00:06 03 00:00:07 04 00:00:08 05 00:00:10 06 00:00:11 MOVE ENTER RETURN EXIT

DVD-Recorder Edit Scene DVD-RAM(VR) Scene No. 2 / 7 Playlist No. 3 01 00:00:05 02 00:00:06 03 00:00:07 04 00:00:08 05 00:00:10 06 00:00:11 PLAY Modify Move Add Delete MOVE ENTER RETURN EXIT

Editing a Scene for the Playlist

(VR mode)

Follow these instructions to edit scenes for a playlist.

1. Press the PLAY LIST button with the disc stopped. The Edit Playlist screen is displayed.
2. Press the ▲▼ buttons to select the title you want to edit from the Playlist, and then press the ENTER or ▶ button.
3. Press the ▲▼ buttons to select Edit Scene, then press the ENTER or ▶ button. The Edit Scene screen is displayed.

Playing a Selected Scene

1. Press the ▲▼◀▶ buttons to select the scene you want to play, then press the ENTER button.

The playlist title to be played is selected.

1. Press the ENTER button.

The selected scene will be played back.

- To stop playback of a selected scene, press the STOP button.

DVD-Recorder Edit Scene DVD-RAM(VR) Scene No. 2/7 Playlist No. 3 Play Modify Move Add Delete MOVE ENTER RETURN EXIT

DVD-Recorder Modify Scene DVD-RAM(VR) Scene No. 001 Start End 00:00:25 00:00:00 00:00:25 Start End Change Cancel MOVE ENTER RETURN EXIT

DVD-Recorder Modify Scene DVD-RAM(VR) Scene No. 001 Start End 00:00:04 00:00:10 00:00:10 Title List : 1/31 Start End Change Cancel MOVE ENTER RETURN EXIT

DVD-Recorder Edit Scene DVD-RAM(VR) Scene No. 2 / 7 Playlist No. 3 01 00:00:05 02 00:00:42 03 00:00:04 04 00:00:03 05 00:00:11 06 00:00:04 PLAY Modify Move Add Delete MOVE ENTER RETURN EXIT

DVD-Recorder Edit Scene DVD-RAM(VR) Scene No. 2/7 Playlist No. 3 Play Modify Move Add Delete MOVE ENTER RETURN EXIT

DVD-Recorder ○ DVD-RAM(VR) Edit Scene Scene No. 1 / 7 Playlist No. 3 01 00:00:42 02 00:00:03 03 00:00:04 04 00:00:03 05 00:00:11 06 00:00:04 Play Modify Move Add Delete MOVE ENTER RETURN EXIT

Modifying a Scene (Replacing a Scene)

Follow steps 1 to 3 on page 76.

1. Press the ▲▼◀▶ buttons to select the scene you want to modify, then press the ENTER button.
2. Press the ▲▼ buttons to select Modify, then press the ENTER button. The Modify Scene screen is displayed.
3. Press the ENTER button at the start point of the scene.

- The image and starting point time are displayed on the Start window.

- Select the starting or ending point of the section you want to modify using the playback related buttons (▶II, I◀◀, ▶▶I, ◀◀, ▶▶).

1. Press the ENTER button at the end point of the scene.
2. The image and ending point time are displayed in the End window.
3. Press the ◀▶ buttons to select Change, then press the ENTER button.
4. The scene you want to modify is changed with the selected section.

Moving a Scene (Changing the Position of a Scene)

Follow steps 1 to 3 on page 76.

1. Press the ▲▼◀▶ buttons to select the scene you want to move (change the position), then press the ENTER button.
2. Press the ▲▼ buttons to select Move, then press the ENTER button.

- A yellow selection window is displayed on the scene to be moved.

1. Press the ▲▼◀▶ buttons to select the position to which you want to move the selected scene, then select the ENTER button.

- The selected scene is moved to the selected position.

■ Depending on the kind of disc, the displayed screen may be different.

DVD-Recorder Edit Scene DVD-RAM(VR) Scene No. 3 / 3 Playlist No. 3 01 00:00:03 02 00:00:42 03 00:00:04 Play Modify Move Add Delete 04 00:00:00 MOVE ENTER RETURN EXIT

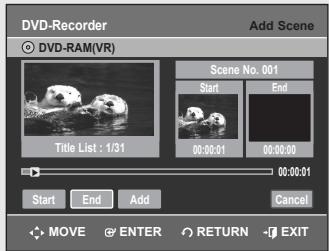

DVD-Recorder Add Scene DVD-RAM(VR) Scene No. 001 Start End 00:00:01 00:00:00 00:00:01 Start End Add Cancel MOVE ENTER RETURN EXIT

DVD-Recorder Add Scene DVD-RAM(VR) Scene No. 001 Start End Title List : 1/31 00:00:01 00:00:03 00:00:03 Start End Add Cancel MOVE ENTER RETURN EXIT

DVD-Recorder Edit Scene DVD-RAM(VR) Scene No. 1 / 4 Playlist No. 3 01 00:00:03 02 00:00:42 03 00:00:04 Play Modify Move Add Delete MOVE ENTER RETURN EXIT

DVD-Recorder Edit Scene DVD-RAM(VR) Scene No. 4 / 4 Playlist No. 3 01 00:00:03 02 00:00:42 03 00:00:04 Play Modify Move Add Delete MOVE ENTER RETURN EXIT

DVD-Recorder Edit Scene DVD-RAM(VR) Scene No. 4 / 3 Playlist No. 3 01 00:00:03 02 00:00:42 03 00:00:04 Play Modify Move Add Delete MOVE ENTER RETURN EXIT

Adding a Scene

Follow steps 1 to 3 on page 76.

1. Press the ▲▼◀▶ buttons to select the scene that will have a new scene inserted before it, then press the ENTER button. A yellow selection window is displayed on the scene to be added as the new scene.
2. Press the ▲▼ buttons to select Add, then press the ENTER button. The Add Scene screen is displayed.
3. Press the ENTER button at the starting point of the scene.

- The image and starting point time are displayed in the Start window.

- Select the end point of the section where you want to add the new scene using the playback related buttons (▶II, I◀◀, ▶▶I, ◀◀, ▶▶).

1. Press the ENTER button at the end point of the scene.
2. The image and time of the end point are displayed in the End window.
3. To cancel, press the ◀▶ buttons to select cancel and then press the ENTER button.
4. Press the ▲▼ buttons to select Add, then press the ENTER button.
5. The section you want to add is inserted prior to the scene selected in step 4.

Deleting a Scene

Follow steps 1 to 3 on page 76.

1. Press the ▲▼◀▶ buttons to select the scene you want to delete, and then press the ENTER button.
2. Press the ▲▼ buttons to select Delete, then press the ENTER button.

DVD-Recorder Edit Playlist DVD-RAM(VR) No. Title Length Edit 01 JAN/01/2007 12:00 00:00:11 02 JAN/01/2007 12:30 00:00:09 03 Dolphin Play Rename Edit Scene Copy Delete MOVE ENTER RETURN EXIT

DVD-Recorder Edit Playlist DVD-RAM(VR) Dolphin 2 Scene JAN/01/2007 12:00 AM Do you want to delete? Yes No MOVE ENTER RETURN EXIT

DVD-Recorder ○ DVD-RAM(VR) Disc_ A B C D E F G H I J K L M N O P Q R S T U V W X Y Z a b c d e l 9 g i j k l m n o p q r s t u v w x y z 1 2 3 4 5 6 7 8 9 0 ≈ . + = . - = 1 0 6 5 % ^ & ( ) Save Back Space Space Delete Clear MOVE ENTER RETURN EXIT

DVD-Recorder Disc Manager DVD-RAM(VR) Title List Disc Name : Disc Disc Protection : Not Protected Disc Format Delete All Title Lists Playlist Disc Manager Timer Rec. Setup Copy MOVE ENTER RETURN EXIT

Copying a Playlist Title to the VCR

1. Press the PLAY LIST button with the disc stopped. The Edit Playlist screen is displayed.
2. Press the ▲▼ buttons to select the title you want to copy to the VCR, and then press the ENTER or ▶ button.
3. Press the ▲▼ buttons to select Copy, then press the ENTER button. • The title you choose is played and copied to VCR tape.
4. Press the EXIT button after the operation has finished. The menu screen will disappear.

■ The playlist can contain up to 99 playlist titles.

Deleting a Playlist Title from the Playlist

1. Press the PLAY LIST button with the disc stopped. The Edit Playlist screen is displayed.
2. Press the ▲▼ buttons to select the title you want to delete from the Playlist, then press the ENTER or ▶ button.
3. Press the ▲▼ buttons to select Delete, then press the ENTER button.
4. Press the ◀▶ buttons to select Yes, then press the ENTER button. After the delete operation is complete, it will automatically return to the Edit Playlist screen.

Disc Manager

Editing the Disc Name

Follow these instructions to give a name to a disc.

1. With the unit in Stop mode, press the MENU button.
2. Press the ▲▼ buttons to select Disc Manager, then press the ENTER or ▶ button.

3. Press the ▲▼ buttons to select Disc Name, then press the ENTER or ▶ button. The Edit Name screen is displayed.

4. Enter the desired characters using the ▲▼◀▶ buttons.

5. Back Space : Moves the cursor one position backwards.

6. Space : Enters a blank and moves the cursor one forward (to the right).
7. Delete : Deletes the character at the cursor position.
8. Clear : Deletes all the character inputs.

9. Save : Registers the character inputs.

10. Press the ▲▼◀▶ buttons to select Save, then press the ENTER button. A disc name is given to the disc.

■ You may need to clear disc protection before editing.
■ Depending on the kind of disc, the displayed screen may be different.

DVD-Recorder Disc Manager DVD-RAM(VR) Title List Disc Name : Disc Protection : Protected Playlist Disc Manager Disc Format Timer Rec. Setup Copy Delete All Title Lists MOVE ENTER RETURN EXIT

DVD-Recorder Disc Manager DVD-RAM(VR) Title List Disc Name : Playlist Disc Ma Timer F Setup Copy Do you want to format disc? Yes No MOVE ENTER RETURN EXIT

DVD-Recorder Disc Manager DVD-RW(VR) Title List Disc Name : Playlist Disc Ma Timer F Setup Copy Choose the recording format for DVD-RW. DVD-VR DVD-V MOVE ENTER RETURN EXIT

Disc Protection

Disc Protect allows you to protect your discs from being formatted or deleted due to unintended operations.

1. With the unit in Stop mode, press the MENU button.
2. Press the ▲▼ buttons to select Disc Manager, then press the ENTER or ▶ button.
3. Press the ▲▼ buttons to select Disc Protection, then press the ENTER or ▶ button.
4. Press the ▲▼ button to select Protected, then press the ENTER or ▶ button.

Formatting a Disc

Use these instructions to format a disc. Disable disc protection before formatting.

1. With the unit in Stop mode, press the MENU button.
2. Press the ▲▼ buttons to select Disc Manager, then press the ENTER or ▶ button.
3. Press the ▲▼ buttons to select Disc Format, then press the ENTER or ▶ button.

DVD-RAM/+RW

• You will be prompted with the confirmation message 'Do you want to format disc?'.
• You will be prompted with the confirmation message 'All data will be deleted. Do you want to continue?'.

DVD-RW

- You will be prompted with the confirmation message 'Choose the recording format for DVD-RW.' You will be prompted with the confirmation message 'All data will be deleted. Do you want to continue?'.

1. Press the ◀▶ buttons to select Yes, then press the ENTER button. The disc is formatted.

DVD-VR and DVD-V modes are compatible with the following disc types.

	DVD-VR	DVD-V
DISC	DVD-RAMDVD-RW	DVD-RWDVD-R

DVD-Recorder Disc Manager DVD-RW(VR) Title List Disc Name : Playlist Disc Ma Timer F Setup Copy Do you want to finalize disc? Yes No MOVE ENTER RETURN EXIT

DVD-Recorder Disc Manager DVD-RW(VR:F) Title List Disc Name : Playlist Disc Mar Timer F Setup Copy Do you want to unfinalize disc? Yes No MOVE ENTER RETURN EXIT

Finalizing a disc

After you record titles onto a DVD-RW/DVD±R disc with your DVD Recorder & VCR, it needs to be finalized before it can be played back on external devices.

1. With the unit in Stop mode, press the MENU button.
2. Press the ▲▼ buttons to select Disc Manager, then press the ENTER or ▶ button.
3. Press the ▲▼ button to select Disc Finalize, then press the ENTER or ▶ button.

You will be prompted with the message 'Do you want to finalize disc?'.

1. Press the ◀▶ buttons to select Yes, then press the ENTER button. You will be prompted again with the message "Disc will be finalized. Do you want to continue?".
2. Press the ◀▶ buttons to select Yes, then press the ENTER button. The disc is finalized.

■ Once a disc is finalized, you cannot delete titles from the record list.
■ Once a DVD±R/DVD-RW (video mode)disc is finalized, it is playable in a standard DVD player.
■ Depending on the disc type, the displayed screen may be different.
■ Finalizing time may be different depending on the amount of data recorded on the disc.
■ Data on the disc will be damaged if the recorder is powered off during the finalization process.
■ You can automatically finalize a disc using EZ REC MODE. (See page 64)

Unfinalizing a disc (V/VR mode)

1. With the unit in Stop mode, press the MENU button.
2. Press the ▲▼ buttons to select Disc Manager, then press the ENTER or ▶ button.
3. Press the ▲▼ button to select Disc Unfinalize, then press the ENTER or ▶ button.

You will be prompted with the message 'Do you want to unfinalize disc?'.

1. Press the ◀▶ buttons to select Yes, then press the ENTER button.
   You will be prompted again with the message "Disc will be unfinalized. Do you want to continue?".
2. Press the ◀▶ buttons to select Yes, then press the ENTER button.

The disc is unfinalized.

■ A DVD-RW can be finalized or unfinalized in Video mode.

	Finalize	Unfinalize
Mark	DVD-Video(RW)	DVD-RW(V)
Operation	Same as DVD-Video	Additional recording, protection and deletion are possible.

■ A DVD-RW can be finalized or unfinalized in VR mode.

	Finalize	Unfinalize
Mark	DVD-RW(VR:F)	DVD-RW(VR)
Operation	Additional recording, deletion, editing, and protection are impossible.	Additional recording, deletion, editing, and protection are possible.

DVD-Recorder DVD-RAM(VR) Title List Disc Name : Playlist Disc Man Timer F Setup Copy Do you want to delete all title lists? Yes No MOVE ENTER RETURN EXIT

Delete All Title Lists

1. With the unit in Stop mode, press the MENU button.
2. Press the ▲▼ buttons to select Disc Manager, then press the ENTER or ▶ button.
3. Press the ▲▼ button to select Delete All Title Lists, then press the ENTER or ▶ button.
4. You will be prompted with the confirmation message 'Do you want to delete all title lists?'.
5. When Protected Title exists: The Delete All Title List function will not operate. If there is a title containing a still picture, however, that function will not operate.
   If you want to delete a protected title, disable Protect for it on the Lock item.
6. Press the ◀▶ buttons to select Yes, then press the ENTER button. All title lists are deleted.

DVD-Recorder Disc Manager DVD+RW Title List Disc Name : Do you want to execute Edit compatible? This may take more than an hour depending on the configuration. Yes No MOVE ENTER RETURN EXIT

Edit Compatible

For DVD+RW discs, this function needs to be performed in order to view edited chapters or titles on a standard DVD player.

1. With the unit in Stop mode, press the MENU button.
2. Press the ▲▼ buttons to select Disc Manager, then press the ENTER or ▶ button.
3. Press the ▲▼ buttons to select Edit Compatible, then press the ENTER or ▶ button.
4. Press the ◀▶ buttons to select Yes, then press the ENTER button to execute the edit compatible.
   After performing this function, you can go to TITLE MENU screen directly by pressing the TITLE MENU button.

Troubleshooting

(DVD-VIDEO/DVD-RAM/DVD±RW/DVD±R)

If your product malfunctions, go through the check points below before contacting a Samsung authorized service center,

Problem	Explanation/Solution
No power.	·Check whether the power cord is securely plugged into the power outlet.·Did you press the power button of your DVD Recorder & VCR.
The input is displayed for a while when the power turns on.	·The DVD Recorder & VCR requires some time to initialize after it is turned on.If Quick recording function is set to on, the DVD Recorder & VCR will power on quickly, which enables you to immediately record a desired channel. (See page 39.)
Cannot record TV programs.	·Check whether the power cord is securely plugged into the power outlet.·Did you set the DVD Recorder & VCR channel settings correctly?·Check the free space on your DVD-RAM/DVD±RW/DVD±R disc.·Check if the antenna cable is connected properly.
Timer recording does not work properly.	·Check the recording time, end time and current time settings again.·Recording will be cancelled if the power is interrupted due to a power failure or other reason during recording.
Cannot record.	·Check whether the disc is formatted. This product can record on formatted discs only. (See pages 56, 80.)·Check whether your DVD-RAM/DVD±RW/DVD±R disc has a sufficient free space.
I pressed the REC button but there is no response.	·Recording is available on DVD-RAM/DVD±RW/DVD±R discs only.·If a program is copy protected, you cannot record it.
I forgot the parental control password.	·Press and hold the CH(∧/∨)button on the front panel of your unit for more than 5 seconds with no disc, and then press the POWER OFF/ONbutton. All settings including password will revert to factory settings. Do not use it if not absolutely required.(Note that this function is available only when there is no disc inserted.)
Cannot play the disc.	·Check whether the disc is inserted correctly with the label facing up.·Check the regional code of your DVD disc.·This DVD Recorder & VCR cannot playback some types of disc. (See pages 5, 41.)
No sound.	·Are you watching a program in slow or skip mode?If you are playing a program at a speed other than normal speed, sound is not output. (Except for forward search Playback (Fast1))·No sound will be heard when scanning an MPEG4 disc.·Check the connections and initial settings.·Check whether the disc is damaged.·Clean the disc, if necessary.·Check whether the disc is inserted correctly with the label facing up.

Troubleshooting (DVD)

Problem	Explanation/Solution
icon appears on the screen.	You cannot use the operation or function due to one of the following reasons:(1) Your DVD disc does not support the feature (for example, angles)(2) You've requested a title, chapter, or scan time that is out of the correct range.
Play mode settings are different from the settings configured with the Setting menu.	The disc does not support all the selected functions.In this case, some settings you configure on the Setting menu may not work properly.
Cannot change the aspect ratio.	Aspect ratio is fixed on DVD disc.
No audio output.	Check whether you selected the correct digital output options in the Audio Output Options menu.
No video or audio output.The disc tray is ejected after 2 to 5 seconds.	Did you move your DVD Recorder & VCR suddenly from a cold place to a warm place?In this case, do not connect the plug to the power outlet and wait for two hours.Then insert the disc and try to play back again. It will work properly when condensation has evaporated.
Angle operation does not work during playback of a DVD disc.	Angle operation is available only when the disc contains images captured at different angles.
The disc revolves, but no image or bad quality images are output.	· Check whether there is damage or foreign materials on your disc.· Some discs with bad manufacturing quality may not be played back.· If the scene changes from dark to bright suddenly, the screen may jitter temporarily, but it is not defective.
Desired sound language and subtitle language are not played.	Sound languages and subtitle languages are disc-specific.Only the sound and subtitle languages contained on a DVD disc are available and displayed on the disc menu.
No progressive output.	· Check whether PS() is displayed on front panel.· Make sure to change the component video output using the Progressive button when the disc is stopped.
The remote control doesn't work.	· Point the remote control at the remote control sensor on your DVD Recorder & VCR.Operate within distance. (15ft)Remove obstacles between your DVD Recorder & VCR and remote control.· Check whether the batteries are depleted.
Other problems	· Read the table of contents and then find and read the sections describing your problem, and follow the directions given.· Turn the unit off and on.· If your problem still persists, contact your nearest Samsung service center.
No HDMI output.	· Check that the Video output is HDMI enabled.· Check the connection between the TV and the HDMI jack of the DVD Recorder &VCR.· See if your TV supports this 480p/720p/1080i DVD Recorder &VCR.
Abnormal HDMI output screen.	· If snow noise appears on the screen,it means that the TV does not support HDCP (High-bandwidth Digital Content Protection).
HDMI output Jitter	· Check if your TV system is setup correctly.· Screen Jitter may occur when the frame rate is converted from 50Hz to 60Hz for 720p/1080i HDMI (High Definition Multimedia Interface)Output.· Please refer to the user's manual of your TV.

Troubleshooting (VCR)

Before contacting a Samsung authorized service center, perform the following simple checks.

Problem	Explanation/Solution
No power	·Check that the power plug is connected to a wall outlet.·Have you pressed the POWER button?
You cannot insert a video cassette	·A video cassette can only be inserted with the window side up and the safety tab facing you.
The television program was not recorded	·Check the DVD Recorder & VCR antenna connections.·Is the DVD Recorder & VCR tuner properly set?·Check if the safety tab is intact on the cassette.
Timer recording was unsuccessful	·Re-check the recording start/stop time settings and the current time·Check whether you insert a tape which has enough time record
No playback picture or the picture is distorted	·Check to see if you are using a prerecorded tape.
You cannot see normal broadcasts	·Check the tuner/external setting. It should be on tuner.·Check the TV antenna connections.·Press the CH/TRK (∧∨) buttons to minimize this effect.
Noise bars or streaks on playback
When the ▶II button is pressed during playback, the still picture has severe “noise bar” streaks	·A still picture may have “noise bars”, depending on the condition of the tape. Press the CH/TRK (∧∨) buttons during slow motion to minimize this effect.
Video Head Cleaning	·If poor pictures appear on a variety of cassettes, the video heads may need cleaning. This is not a common problem and unless it appears, the heads should not be cleaned.When cleaning the video heads, read all instructions provided with the head cleaning cassette. Incorrect head cleaning can permanently damage the video heads.

If you are unable to solve the problem after reading the above instructions, note:

• The model and serial number on the rear of your DVD Recorder & VCR
  • The warranty information
  • A clear description of the problem

Then contact your nearest SAMSUNG authorized service center.

Problems and Solutions (Display error Message)

Before contacting a Samsung authorized service center, perform the following simple checks.

Problem	Explanation / Solution
You cannot record a copy protected movie.	·You can't record the video since it is protected by copyright.
You cannot record. This disc is protected.	·The disc you are using is protected. To record on this disc or use this function, cancel the disc protection function. Refer to page 80.
This disc cannot be formatted (the disc is protected).
This disc cannot be renamed (the disc is protected).
This disc cannot be finalized (the disc is protected).
This [Menu] is not available (the disc is protected).
The disc cannot be played, Please check the regional code of the disc.	·The disc does not match the regional code for your area and cannot be played on this device.
This disc cannot be formatted. Please check the disc.	·Make sure there are no scratches or dirt on the disc.
You could not format the disc because of error detection.
You could not finalize the disc because of error detection.
You could not unfinalize the disc because of error detection.
The disc cannot be played, Please check the TV system.	·The disc is PAL format and cannot be played on this unit.
The disc can be neither played nor recorded.	·Make sure there are no scratches or dirt on the disc.
The disc cannot be played, Please check the disc.
If the disc has invalid information, no more titles can be recorded. Please format the disc beforehand.	·You can't use the disc because it contains errors from previous recordings. Use the disc after formatting.

Problems and Solutions (Display error Message)

Problem	Explanation / Solution
Error is detected on the disc.	You can't use the disc because it contains errors from previous recordings.Use the disc after formatting.
System error is found.Please try it again after turning off the power.	When operating, errors happen. Turn off the device.(To turn off, press and hold the power button on the front of the device for 10 seconds.)After turning off, press the Open button and remove the disc from the device.
The DV device is not connected.	Make sure the DV device is connected properly to the DV connection Jack.If it is connected properly, turn it off and on once again.

If you are unable to solve the problem after reading the above instructions, note:

• The model and serial number on the rear of your DVD Recorder & VCR
  • The warranty information
  • A clear description of the problem

Then contact your nearest SAMSUNG authorized service center. Call 1-800-SAMSUNG for a center near you.

Specifications

General	Power requirements	120V AC, 60Hz
	Power consumption	28 Watts
	Weight	8.75 lb
	Dimensions	16.9 in(W) x 10.6 in(D) x 3.1 in(H)
	Operating temp.	+41°F to +95°F
	Other conditions	Keep level when operating. Operate in less than 75% humidity
Input	Video	1.0 V p-p at 75Ω load, sync negativeS-Video input (Y: 1.0Vp-p, C: 0.286Vp-p at 75Ω load)
	Max. Audio Input Level	2Vrms
	DV Input	IEEE 1394(4p) compatible jack
	Receivable Channels	Regular TV broadcasting: VHF (2~13), UHF (14~69)Cable TV broadcasting: 1~125
Output	Audio	Audio output jacks 1, 2Optical/Coaxial digital audio output supportMin. 100 dB signal-to-noise ratioMax. 0.005% total harmonic distortion (T.H.D)at average 1 KHz
	Video	Video output jacksS-Video output (Y:1.0Vp-p, C:0.286Vp-p at 75Ω load)Component output(Y: 1.0Vp-p, Pb: 0.70Vp-p, Pr: 0.70Vp-p at 75Ω load)HDMI output (480p, 720p, 1080i)
DVD	Picture Compression format	MPEG-II
	Audio Compression format	Dolby AC-3 256kbps
	Recording Quality	XP (about 8 Mbps), SP (about 4 Mbps), LP (about 2 Mbps),EP (about 1.2 Mbps)
	Video S/N Ratio	Min. 50dB at standard recording
	Audio S/N Ratio	Min. 75dB
	Audio frequency characteristics	20 Hz ~ 20 KHz

Audio Output

For DVD discs, audio signals recorded at 96kHz sampling frequency are converted into and output at 48kHz.

Disc Type	DVD	AUDIO CD(CD-DA)
Analog Audio Output	48 / 96KHz	44.1KHz
Digital Audio Output	48KHz	44.1KHz

LIMITED WARRANTY TO ORIGINAL PURCHASER

Samsung Electronics Canada Inc.(SECA), warrants that this product is free from defective material and workmanship.

SECA further warrants that if this product falls to operate properly within the specified warranty period and the failure is due to improper workmanship or defective materials, SECA will repair or replace the product at its option.

All warranty repairs must be performed by a SECA Authorized Service Center. (The name and address of the location nearest you can be obtained by calling toll free: 1-800-SAMSUNG)

LABOR

One year (Carry-in)

PARTS

One year

On carry-in models, transportation to and from the service center is the customer's responsibility.

The original dated sales receipt must be retained by the customer and is the only acceptable proof of purchase. It must be presented to the authorized service center at the time service is requested.

EXCLUSIONS (WHAT IS NOT COVERED)

This warranty does not cover damage due to accident, fire, flood and/or other acts of God; misuse, incorrect line voltage, improper installation, improper or unauthorized repairs, commercial use or damage that occurs in shipping. Exterior and interior finish, lamps, glass are not covered under this warranty. Customer adjustments which are explained in the instruction manual are not covered under the terms of this warranty. This warranty will automatically be voided for any unit found with a missing or altered serial number. This warranty is valid only on products purchased and used in Canada.

HEADQUARTERS

SAMSUNG ELECTRONICS CANADA INC.,

CUSTOMER SERVICE

55 STANDISH COURT MISSISSAUGA, ONTARIO L5R 4B2 CANADA

FABRIQUE EN CORÉE

If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care center.

Connecting to a TV with a DVI Jack....19

©2007 Samsung Electronics Co.

Illustration of a black plug inserted into a white electrical outlet with three socket slots (no text or symbols)

Diagram showing two batteries with positive and negative charge indicators, one with an arrow indicating the change.

Diagram showing a device with labeled components including VHF, UHF, and directional arrows indicating signal flow or measurement.
▶ Lent 1 → ▶ Lent 2 → ▶ Lent 3

Black-and-white photo of seagulls in flight against a cloudy sky, no text or symbols visible

Black-and-white photo of seagulls in flight with one marked by a plus sign (no text or symbols on the birds)

Zoom avant

Black and white photo of a butterfly perched on flower petals, no visible text or symbols

Réglage des signets

Black and white photo of a butterfly perched on flower petals, no visible text or symbols

Black-and-white photo of seagulls in flight against a cloudy sky, no text or symbols visible

Black-and-white photo of a butterfly perched on flower petals, no visible text or symbols

Black and white photo of a butterfly perched on flower petals, no visible text or symbols

Black-and-white photo of a butterfly perched on flower petals, no visible text or symbols

Lecture d'un CD audio (CD-DA)/MP3

SKIP EADV MARKER STOP PLAY TV MUTE CH/TRK MENU RETURN ENTER TITLE LIST DISC MENU INFO EXIT PLAY LIST TITLE MENU ANYKEY SUBTITLE AUDIO EZ REC MODE

Black and white photo of a butterfly perched on flower petals, no text or symbols visible

① ② ③ ④ ⑤ DVD RAM(VR) JAN/01/2007 Liste de Titres 1/4 No. Titre Longu Édit 01 JAN/01/2007 12:00 00:00:11 ▶ 02 JAN/01/2007 12:30 00:00:09 ▶ 03 JAN/01/2007 01:00 00:01:36 ▶ 04 JAN/01/2007 01:30 00:00:11 ▶ JAN/01/2007 01:00 AM AV1 JAN/01/2007 XP DÉPLAC. ENTERZ REVENIR SORTIE

DVD-RAM(VR) LISTe de Titres JAN/01/2007 1/4 No. Titre Longu Édit 01 JAN/01/2007 12:00 00:00:11 02 JAN/01/2007 12:30 00:00:09 03 JAN/01/2007 Lecture 04 JAN/01/2007 Renommer Supprimer Éditer Protection JAN/01/2007 JAN/01/2007 XP DÉPLAC ENTERZ REVENIR SORTIE

If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care center.
