USER MANUAL DVD-HR773A SAMSUNG

Thanks you for purchasing this Samsung product.

To receive more complete service, please register

your product at

www.samsung.com/register

WARNING

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER (OR BACK).

NO USER-SERVICEABLE PARTS ARE INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

	CAUTIONRISK OF ELECTRIC SHOCKDO NOT OPEN
This symbol indicates “dangerous voltage” inside the product that presents a risk of electric shock or personal injury.	CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.	This symbol indicates important instructions accompanying the product.

CAUTION

Do not install this equipment in a confined space such as a bookcase or similar unit.

WARNING : To prevent damage which may result in fire or electric shock hazard, do not expose this appliance to rain or moisture.

CAUTION : HDD & DVD RECORDER USES AN INVISIBLE LASER BEAM WHICH CAN CAUSE HAZARDOUS RADIATION EXPOSURE IF DIRECTED. BE SURE TO OPERATE HDD & DVD RECORDER CORRECTLY AS INSTRUCTED.

CAUTION

THIS PRODUCT UTILIZES A LASER.

USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

DO NOT OPEN COVERS AND DO NOT REPAIR YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL.

This product satisfies CE regulations when shielded cables and connectors are used to connect the unit to other equipment. To prevent electromagnetic interference with electric appliances, such as radios and televisions, use shielded cables and connectors for connections.

IMPORTANT NOTE

The mains lead on this equipment is supplied with a moulded plug incorporating a fuse. The value of the fuse is indicated on the pin face of the plug. If it requires replacing, a fuse approved to BS1362 of the same rating must be used.

Never use the plug with the fuse cover omitted if the cover is detachable. If a replacement fuse cover is required, it must be of the same colour as the pin face of the plug. Replacement covers are available from your dealer.

If the fitted plug is not suitable for the power points in your house or the cable is not long enough to reach a power point, you should obtain a suitable safety approved extension lead or consult your dealer for assistance.

However, if there is no alternative to cutting off the plug, remove the fuse and then safely dispose of the plug. Do not connect the plug to a mains jack, as there is a risk of shock hazard from the bared flexible cord.

To disconnect the apparatus from the mains, the plug must be pulled out from the mains socket, therefore the mains plug shall be readily operable.

The product unit accompanying this user manual is licenced under certain intellectual property rights of certain third parties. This licence is limited to private non-commercial use by end-user consumers for licenced contents.

No rights are granted for commercial use.

The licence does not cover any product unit other than this product unit and the licence does not extend to any unlicensed product unit or process conforming to ISO/IEC 11172-3 or ISO/IEC 13818-3 used or sold in combination with this product unit. The licence only covers the use of this product unit to encode and/or decode audio files conforming to the ISO/IEC 11172-3 or ISO/IEC 13818-3. No rights are granted under this licence for product features or functions that do not conform to the ISO/IEC 11172-3 or ISO/IEC 13818-3.

Important Safety Instructions

Read these operating instructions carefully before using the unit. Follow all the safety instructions listed below. Keep these operating instructions handy for future reference.

1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
7) Do not block any ventilation openings, Install in accordance with the manufacturer's instructions.

8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding-type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, the point where they exit from the apparatus.

11) Only use attachments/accessories specified by the manufacturer.

12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13) Unplug this apparatus during lightning storms or when unused for long periods of time.

14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

Handling Cautions

• Before connecting other components to this HDD & DVD RECORDER, be sure to turn them all off.
• Do not move the HDD & DVD RECORDER while a disc is being played, or the disc may be scratched or broken, the HDD & DVD RECORDER internal parts may be damaged.
• Do not put a flower vase filled with water or any small metal objects on the HDD & DVD RECORDER.
• Be careful not to put your hand into the disc tray.
• Do not place anything other than the disc in the disc tray.
• Exterior interference such as lightning and static electricity can affect normal operation of this HDD & DVD RECORDER. If this occurs, turn the HDD & DVD RECORDER off and on again with the STANDBY/ON button, or disconnect and then reconnect the AC power cord to the AC power outlet. The HDD & DVD RECORDER will operate normally.
• Be sure to remove the disc and turn off the HDD & DVD RECORDER after use.
• Disconnect the AC power cord from the AC outlet when you don't intend to use the HDD & DVD RECORDER for long periods of time.
• Clean the disc by wiping in a straight line from the inside to the outside of the disc.
• Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus.
• The Mains plug is used as a disconnect device and shall stay readily operable at any time.

Maintenance of Cabinet

For safety reasons, be sure to disconnect the AC power cord from the AC outlet.

• Do not use benzene, thinner, or other solvents for cleaning.
• Wipe the cabinet with a soft cloth.

HDD (Hard Disk Drive)

The hard disk has a high storage density, which enables long recording durations and quick access to written data. However, it can easily be damaged by shock, vibration or dust and should be kept away from magnets. To avoid losing important data, observe the following precautions.

• Do not use the HDD & DVD RECORDER in a place subject to extreme changes in temperature.
• Do not apply a strong shock to the HDD & DVD RECORDER.
• Do not place the HDD & DVD RECORDER in a location subject to mechanical vibrations or in an unstable location.
• Do not place the HDD & DVD RECORDER on top of a heat source.
• Do not disconnect the AC power cord while the power is on.
• Do not attempt to change the hard disk. This may result in a malfunction.

Should the hard disk be damaged, you cannot recover lost data. The hard disk is only a temporary storage space.

Disc Handling

- Use discs with regular shapes. If an irregular disc (a disc with a special shape) is used, this HDD & DVD RECORDER may be damaged.

Simple line drawing of a hand holding a magnifying glass over a hexagon, with a cross mark and a red X symbol (no text or labels)

Holding discs

- Avoid touching the surface of a disc where recording is performed.

DVD-RAM, DVD±RW and DVD±R

- Clean with an optional DVD-RAM/PD disc cleaner (LF-K200DCA1 where available). Do not use cleaners or cloths for CDs to clean DVD-RAM/±RW/±R discs.

DVD-Video, Audio-CD

- Wipe off dirt or contamination on the disc with a soft cloth.

Cautions on handling discs

• Do not write on the printed side with a ball-point pen or pencil.
• Do not use record cleaning sprays or antistatic. Also, do not use volatile chemicals, such as benzene or thinner.
• Do not apply labels or stickers to discs. (Do not use discs fixed with exposed tape adhesive or leftover peeled-off stickers.)
• Do not use scratch-proof protectors or covers.
• Do not use discs printed with label printers available on the market.
• Do not load warped or cracked discs.

Disc Storage

Be careful not to harm the disc because the data on these discs is highly vulnerable to the environment.

• Do not keep under direct sunlight.
• Keep in a cool ventilated area.

• Store vertically.

• Keep in a clean protection jacket.

• If you move your HDD & DVD RECORDER suddenly from a cold place to a warm place, condensation may generate on the operating parts and lens and cause abnormal disc playback. If this occurs, do not connect the plug to the power outlet and wait for two hours. Then insert the disc and try to play back again.

Disc Specifications

This unit allows you to record and playback high quality digital video on DVD-RAM/±RW/±R discs or on the HDD.

You can also edit digital images on DVD-RAM/±RW discs or HDD.

Disc Type

DVD-Video

• A digital versatile disc (DVD) can contain up to 135-minutes of images, 8 audio languages and 32 subtitle languages. It is equipped with MPEG-2 picture compression and Dolby digital surrounding, allowing you to enjoy vivid and clear theatre quality images in the comfort of your own home.
• When switching from the first layer to the second layer of a dual-layered DVD Video disc, there may be momentary distortion in the image and sound. This is not a malfunction of the unit.
• Once a DVD-RW/±R recorded in Video Mode is finalised, it becomes DVD-Video.

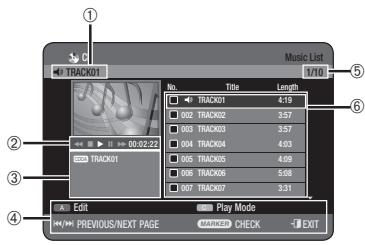

Audio CD

• An audio disc on which 44.1 kHz PCM Audio is recorded.
• Plays CD-DA format audio CD-R and CD-RW discs.
• The unit may not be able to play some CD-R or CD-RW discs due to the condition of the recording.

◆ CD-R/-RW

• Use a 700MB (80 minutes) CD-R/-RW disc. If possible, do not use a 800MB (90 minutes) or above disc, as the disc may not play back.
• If the CD-R/-RW disc was not recorded as a closed session, you may experience a delay in the early playback time, all recorded files may not play.
• Some CD-R/-RW discs may not be playable with this unit, depending on the device which was used to burn them. For contents recorded on CD-R/-RW media from CDs for your personal use, playability may vary depending on contents and discs.

◆ DVD±R Disc Playback and Recording

• Once a DVD±R recorded in Video Mode is finalised, it becomes DVD-Video.
• You can record onto the available space on the disc and perform editing functions such as giving titles to discs and programmes and erasing programmes before finalising.
• When programming is erased from a DVD±R, that space does not become available. Once an area on a DVD±R is recorded on, that area is no longer available for recording, whether the recording is erased or not.
• It takes about 30 seconds for the unit to complete recording management information after recording finishes.
• This product optimizes the DVD±R for each recording. Optimizing is carried out when you start recording after inserting the disc or turning on the unit. Recording onto the disc may become impossible if optimizing is carried out too many times.
• Playback may be impossible in some cases due to the condition of recording.
• This unit can play back DVD±R discs recorded and finalised with a Samsung DVD video recorder. It may not be able to play some DVD±R discs depending on the disc and the condition of the recording.

◆ DVD-RW Disc Playback and Recording

• Recording and playback can be performed on DVD-RW discs in both the Video and VR Modes.
• Once a DVD-RW recorded in both the Video and VR Modes is finalised, you cannot perform additional recording.

• Once a DVD-RW recorded in Video Mode is finalised, it becomes DVD-Video.

• In both modes, playback can be performed before and after finalisation, but additional recording, deleting and editing can not be performed after finalisation.

• If you want to record the disc in VR Mode and then record in V Mode, be sure to execute Format. Be careful when executing Format because all the recorded data may be lost.
• A DVD-RW blank disc is initialized to VR Mode when first initialized.

◆ DVD+RW Disc Playback and Recording

• With DVD+RW discs, there is no difference between DVD-Video format(Video mode) and DVD-Video Recording format(VR mode).
• Finalising is generally unnecessary when using a DVD+RW disc.

◆ DVD-RAM Disc Playback and Recording

• Ensure that the recording mode is set to VR mode. Otherwise, this product will not be able to play the recording.
• You cannot play a DVD-RAM in most DVD components due to compatibility issues.
• Only DVD-RAM standard Version 2.0. discs can be played in this unit.
• DVD-RAM recorded on this unit may not work with other DVD components. To determine compatibility with these DVD-RAM discs, refer to the user's manual for the player.
• For cartridge type DVD-RAM discs, remove the cartridge and use the disc only.

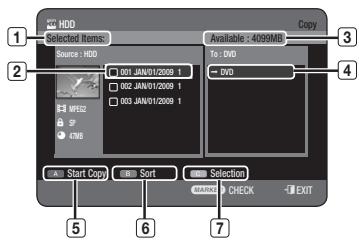

Disc Copy

Contents Copy Specifications

Contents	HDD → DVD	DVD → HDD
Recorded Video Title	Supported	Supported
Copy Protected Title	Not supported	Not supported
Copy Once Title	Move(Deletes the Title in the HDD after copying)	Not supported

Once “Copy Once programme” has been recorded on the DVD disc, this title cannot be copied to HDD anymore.

But “Copy Once programme” has been recorded on the HDD, this title can be copied to DVD-RW (VR mode) or DVD-RAM.

Contents Copy Specifications

Contents	HDD → DVD or USB	DVD → HDD or USB	USB → HDD or DVD
MP3	Supported	Supported	Supported
JPEG(photo)	Supported	Supported	Supported
DivX	Supported	Supported	Supported
CD-DA	Not supported	Supported	Not supported

• Disc(CD-R/CD-DA/CD-RW/DVD-RAM, DVD±R(Finalise)/DVD+RW/DVD-RW(Finalise)) → HDD or USB
  • HDD → DVD-R, DVD-RW(V) or USB
• USB → HDD or DVD-R, DVD-RW(V)
• PTP USB is not available when you copy to USB.
• If the disc is finalised through Disc Manager, it can be compatible with PC as a disc with a UDF file system.

COPY PROTECTION

• Many DVD discs are encoded with copy protection. Because of this, you should only connect your HDD & DVD RECORDER directly to your TV, not to a VCR. Connecting to a VCR results in a distorted picture from copy-protected DVD discs.
• This product incorporates copyright protection technology that is protected by methods claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorised by Macrovision Corporation, is intended for home and other limited viewing uses only unless otherwise authorised by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

Protection

This HDD & DVD RECORDER can allow you to protect the contents of your discs, as described below.

- Programme-protected: See page 82 "Locking (Protecting) a Title"

- Disc-protected: See page 96 "Disc Protection"

- Programme-protected: See page 82 “Locking (Protecting) a Title” - Disc-protected: See page 96 “Disc Protection”

* DVD-RAM/±RW/±R discs that are incompatible with the DVD-VIDEO format cannot be played with this product.

* For more information on DVD recording compatibility, consult your DVD-RAM/±RW/±R manufacturer.

* Use of poor quality DVD-RAM/±RW/±R discs may cause following unexpected problems including, without limitation, recording failure, loss of recorded or edited materials or damage to the HDD & DVD RECORDER.

Disc Format

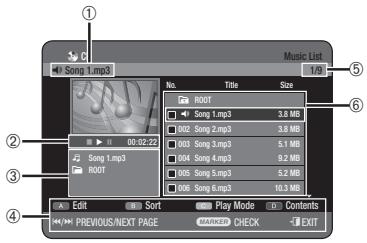

◆ Using MP3 disc

• CD-R/-RW, DVD-RAM/±RW/±R, HDD, USB with MP3 files recorded with UDF, ISO9660 or JOLIET format can be playbacked.
• Only MP3 files with the “.mp3” or “.MP3” extension can be played.
• For MP3 files recorded with a VBR(Variable Bit Rates), from 32 Kbps to 320 Kbps, the sound may cut in and out.
• Playable bit-rate range is from 56 Kbps to 320 Kbps.
  • Each folder can have up to 500 items including files and sub folders.

◆ Using JPEG disc

• CD-R/-RW, DVD-RAM/±RW/±R, HDD, USB recorded with UDF, ISO9660 or JOLIET format can be playbacked.
• Only JPEG files with the “.jpg” or “.JPG” extension can be displayed.
  • Each folder can have up to 500 items including files and sub folders.
• MOTION JPEG and progressive JPEG are not supported.

Using DivX disc

• Disc : CD-R/-RW, DVD-RAM/±RW/±R, HDD, USB
- Video File with following extensions can be played. : .avi, .divx, .AVI, .DIVX
- DivX Video (Codec) Format : DivX 3.11 DivX 4.x DivX 5.x (without QPEL and GMC)
• DivX Audio (Codec) Format : MP3, MPEG1 Audio Layer 2, LPCM, AC3, DTS
- Supported subtitle file formats: .smi, .srt, .sub, .psb, .txt, .ass
• Each folder can have up to 500 items including files and sub folders.
- You cannot play back the disc that is larger than a 720 x 576 pixel resolution.

Do not use the following discs!

- LD, CD-G, CD-I, CD-ROM and DVD-ROM discs should not be used in this product.

[Note]

Disc types that can be played : CD/CD-R/-RW/MP3/JPEG/DVD-Video/DVD-RAM/±RW/±R.

For a DVD-RW/ ± R disc, which has been recorded in Video Mode on another component, it can play only when finalised.

• Some commercial discs and DVD discs purchased outside your region may not be playable with this product. When these discs are played, either “No disc.” or “Please check the regional code of the disc.” will be displayed.
• If your DVD-RAM/±RW/±R discs is an illegal copy or is not in DVD video format, it may also not be playable.

◆ Disc compatibility

- Not all brands of discs will be compatible with this unit.

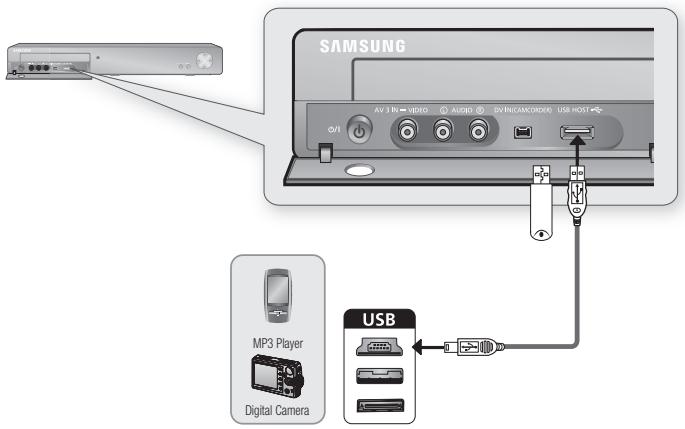

◆ Compatible USB Devices at host port

- The USB host port acts as the one of desktop or laptop computer.

* This product is compatible with mass storage devices(removable storage devices) and PTP devices (such as digital still cameras)

• The USB host port provides USB2.0 connectivity and also backward compatibility with USB1.1 (USB1.0) devices.
  • Supported devices at host port

* Mass Storage Devices

• Digital Still Camera
• MP3 Player
• Memory stick
• Card Reader (One or Multi-slot Card Reader)
• External Hard disk drive : Only supports FAT32 formatted HDD.
• Others removable storage devices.

* PTP (Picture Transfer Protocol) devices

- Digital Still Camera (in PTP mode among USB connection modes)

• This product only supports FAT16/32 file system
• This product supports up to maximum 4 partitions
• Notice (Caution)

* If you happen to use a bad quality USB cable, the USB device might not be recognized.

* The compatibility with MP3 players is somewhat restricted.

• This product can playback only mp3 format contents.
• This product does not support the audio contents encrypted by DRM (Digital Right Management)

* Either USB hub device or hub extension connectivity is not supported.

* There are lots of different kinds of USB devices.

Some of the USB devices mentioned above might not be compatible with this product.

In other words, the USB host function of this product does not guarantee the compatibility with all of USB devices.

• TPL (Target Peripheral List)

Since this product is not a Windows XP but a embedded USB host system, naturally the supported USB devices cannot help being limited.

The USB host functionality and compatibility of this product have been proved with following items. (Except these items, we expect lots of other USB devices will work well with this product)

* DSC (Digital Still Camera)

Vendor	Brand
Samsung	VP-MS11, S800, Pro815, V20, V10, D60, UCA5
Sony	DSC-W50, DSC-R1, DSC-P200, DSC-P150
Olympus	C-70 zoom, SP-700, FE5500, C-470Z
Nikon	Coolpix 7900, Coolpix-p3, Coolpix S2
Panasonic	DMC-FX01, DMC-LX1S, DMC-FZ5
Canon	IXUS 60, IXUS 600, PowerShot A700, IXUS 700, A620, S80
Fuji	Finepix-F700

* MP3

Vendor	Brand
i-river	N11, T30, T10, Mplayer
Samsung	YP-T8, YP-U2, YP-T9, YP-P2

* Others

Product	Vendor	Brand
PMP	COWON	A2
External HDD	DATAgram	DHC-350
Card Reader	Unicon	UC-601R

Among MP3 players in the list above, those that do not use Mass Storage Class are not supported.

GETTING STARTED

2

2 Warning
3 Precaution
12 General Features
13 Before reading the user's manual
14 How to use the HDD & DVD RECORDER
16 Unpacking
18 Description

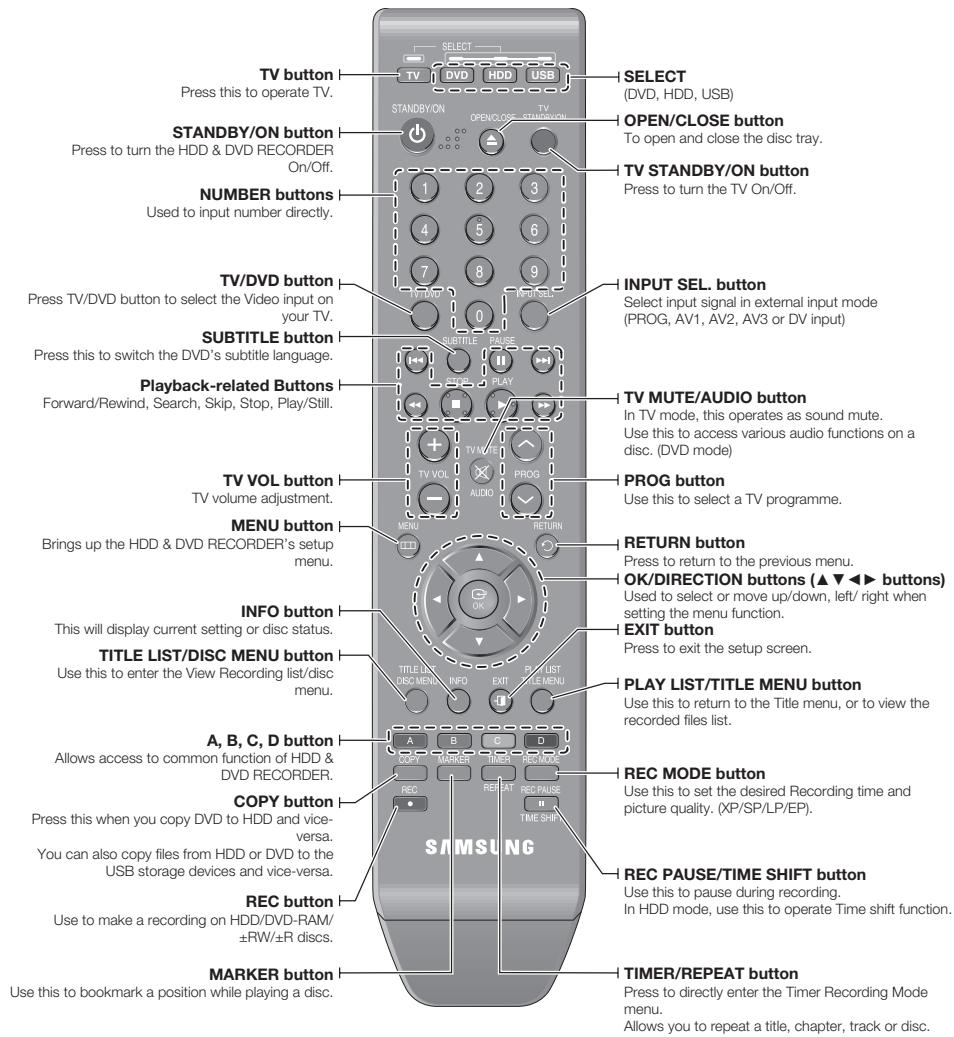

21 Tour of the Remote Control

CONNECTING & SETTING UP

22

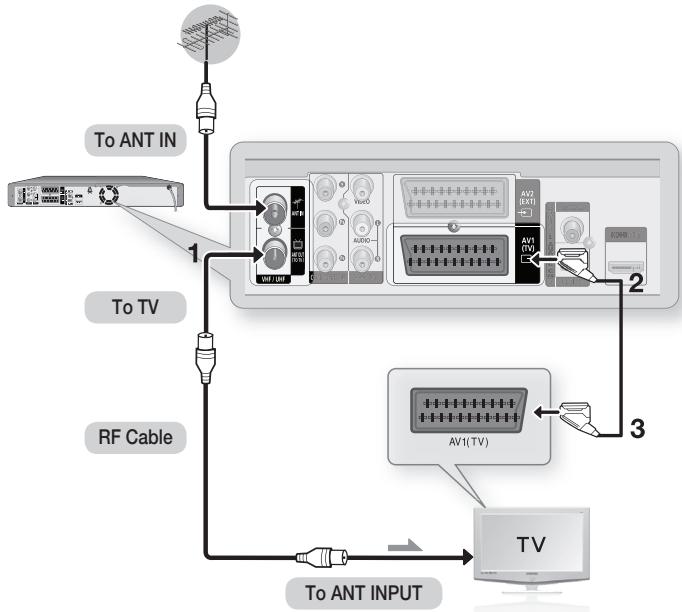

22 Connecting the HDD & DVD RECORDER

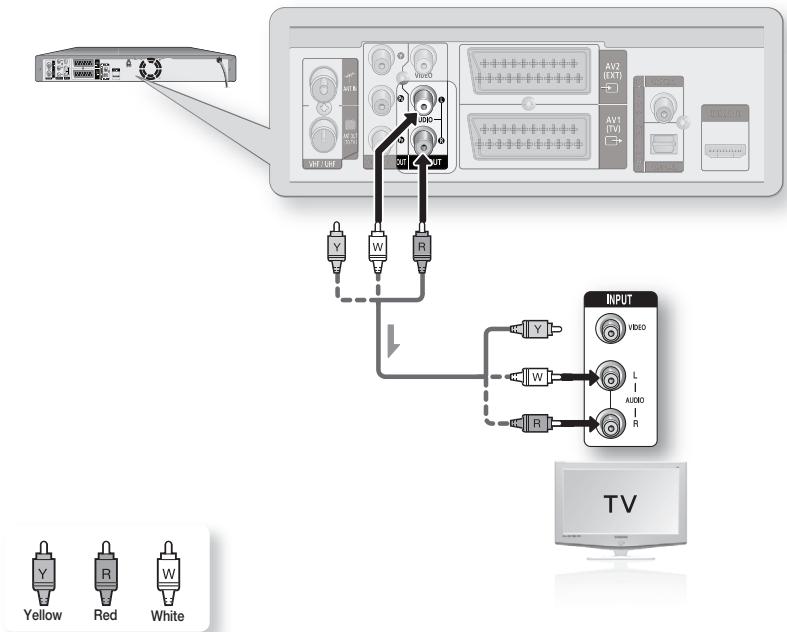

23 Additional connections

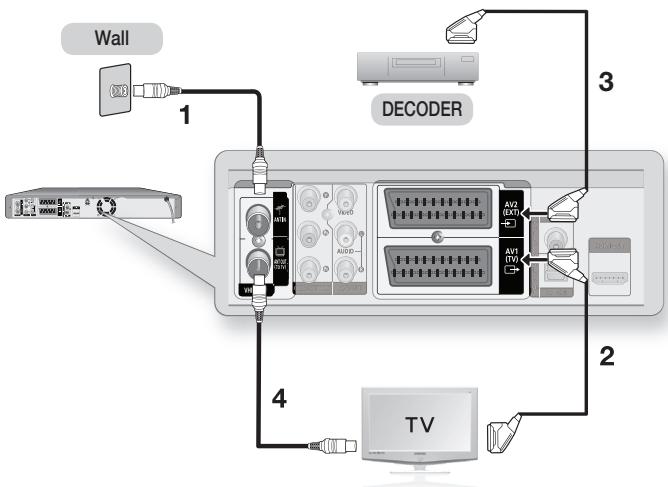

24 Antenna + HDD & DVD RECORDER + External decoder box + TV

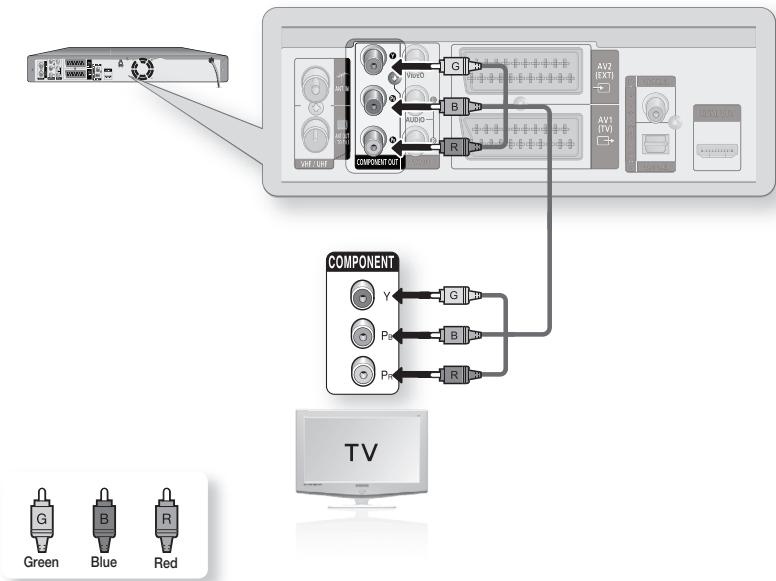

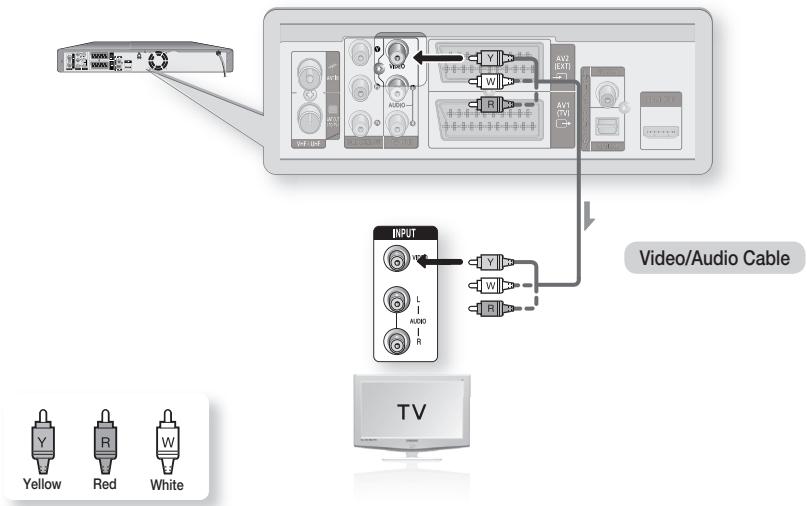

25 Other type of connecting the Video output cable

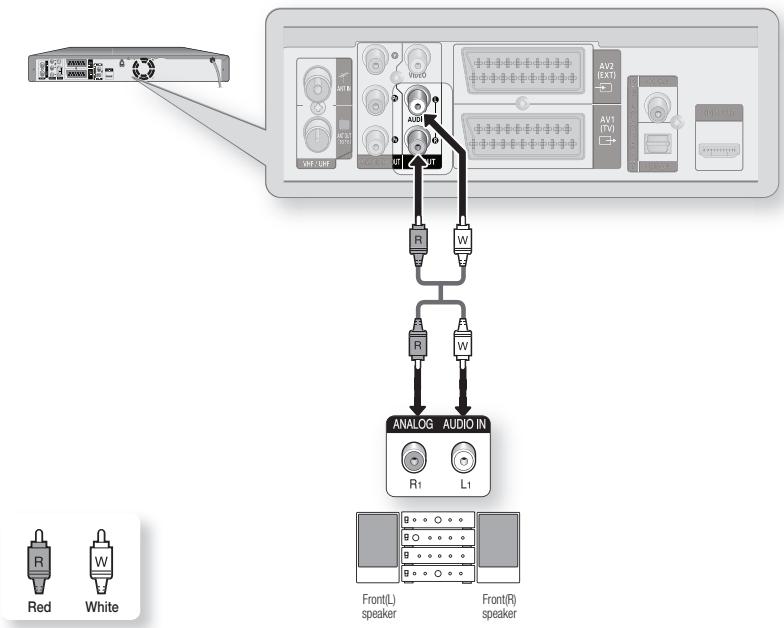

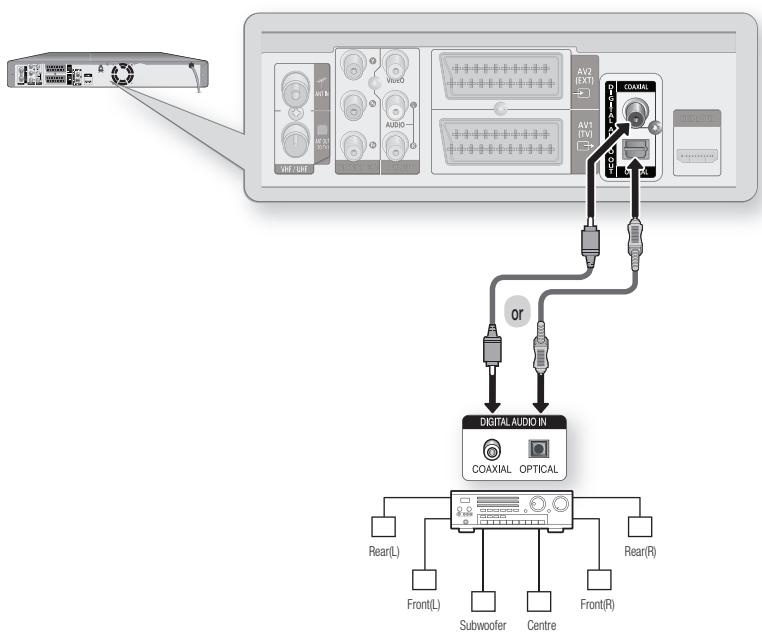

27 Other type of connecting the Audio output cable

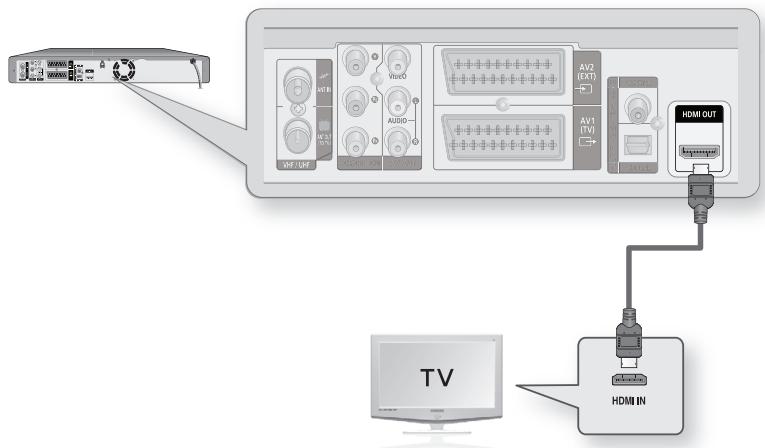

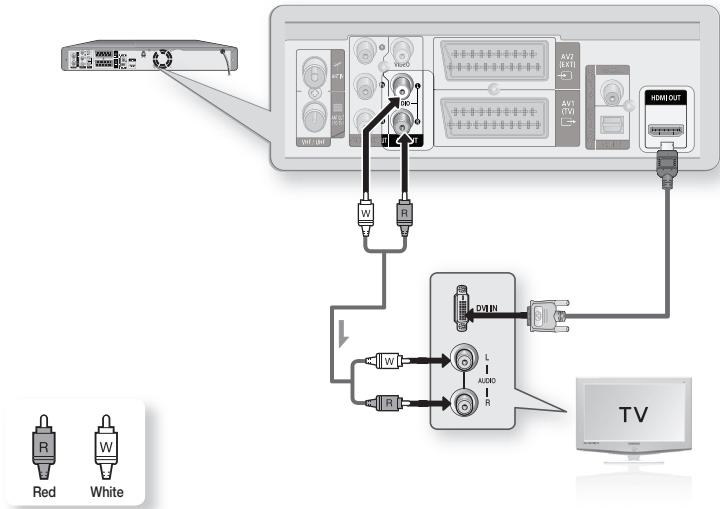

30 Connecting HDMI/DVI to a TV

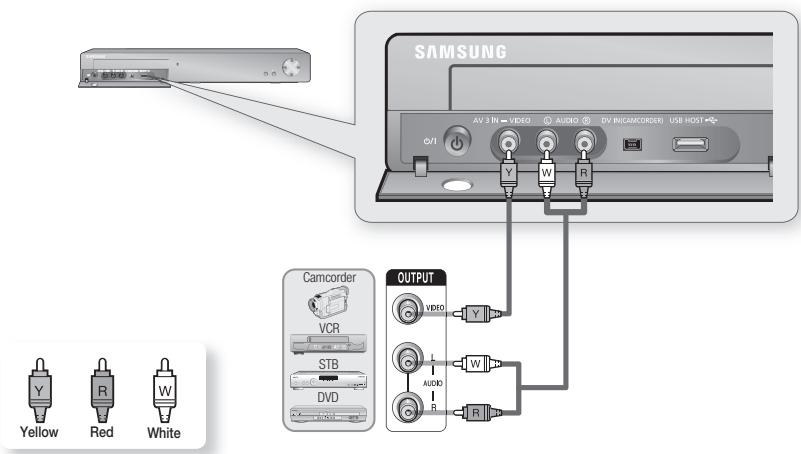

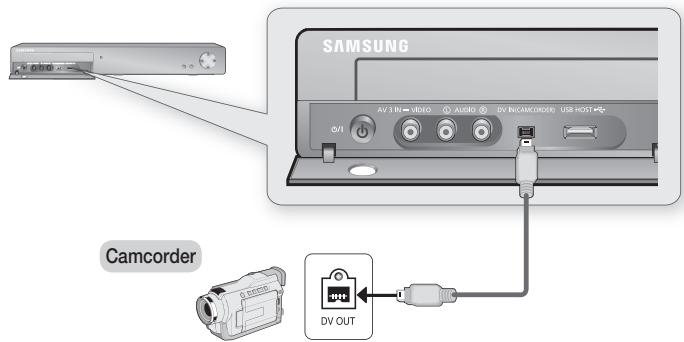

32 Connecting to AV 3 IN, DV input jack
33 Connecting to USB Devices

SYSTEM SETUP

34

34 On-Screen Menu Navigation
34 Plug & Play Setup
36 Setting the Clock
36 Channel Set
38 Setting up the Language Options
38 Setting up the System Options
41 Setting up the Audio Options
42 Setting up the Video Options
46 Setting up the Parental Lock
47 Setting up the Recording Options

PLAYBACK

49

49 Region code (DVD-Video only)
49 Logos of Discs that can be played
49 Disc types that can be played
51 Playing a Disc
52 Using the Disc Menu & Title Menu
52 Using the playback related buttons
54 Using the INFO button
54 Selecting the Subtitle Language
55 Selecting the Soundtracks & Audio Channels
55 Changing the Camera Angle
55 Repeat Play
56 Zooming-In
57 Using Markers
58 Using the Bookmarks

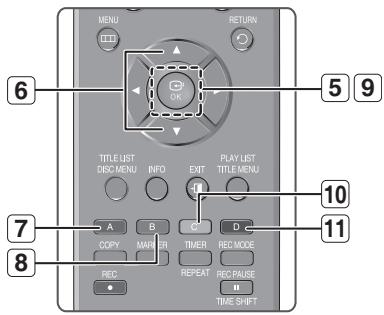

59 Playing an Audio CD/MP3
64 Viewing a Picture
66 Playing a DivX

RECORDING

68 Recordable Discs
69 Recording Formats
70 Recording Mode
71 Unrecordable pictures
72 Recording immediately
73 Copying from a Camcorder
74 Making a One Touch Recording (OTR)
75 Simultaneous Recording and Playback
76 Time Shift function as a live signal
77 Making a Timer Recording
79 Go To Recorded List

EDITING

81 Basic Editing (Title List)
85 Using the Sort function (Title List)
86 Navigation Menu
87 Select Contents
87 Advanced Editing (Playlist)
92 Copying from HDD to DVD or VICE-VERSA
93 Copying MP3, JPEG or DivX
95 Changing the name of Music/Photo/DivX file
96 Disc Manager

REFERENCE

100 Troubleshooting

APPENDIX

102 Specifications

GENERAL FEATURES

This unit allows you to record and playback high quality digital video on DVD-RAM/±RW/±R discs or on the HDD. You can also edit digital images on DVD-RAM/±RW discs or HDD.

HDD Recording

• DVD-HR773
  You can record up to Approx. 264 hours of video (in EP mode (8 Hours)) on the internal 160GB (gigabyte) hard disk (HDD).
• DVD-HR775 You can record up to Approx. 421 hours of video (in EP mode (8 Hours)) on the internal 250GB (gigabyte) hard disk (HDD).
• DVD-HR777 You can record up to Approx. 534 hours of video (in EP mode (8 Hours)) on the internal 320GB (gigabyte) hard disk (HDD).

With both recordable DVD and a high-capacity HDD in the same recorder, you have the flexibility to keep recordings on the HDD for quick access anytime, or record to DVD for archiving or playing on other DVD players.

Copy between HDD and DVD

You can copy recordings from the HDD to recordable DVD, or from DVD to the HDD.

You can only copy in the same record mode as the source title.

Simultaneous Recording and Playback

Playback and recording for both the DVD and the built-in hard disk drive (HDD) are completely independent. For example you can record a broadcast programme to either a recordable DVD or the HDD, while watching another recording you already made on the same DVD or on the HDD.

Automated Quality Adjustment for Timer Recording

If FR mode is selected, the video quality is adjusted automatically so that all video for the scheduled time can be recorded onto the free disc space. (See page 77)

Copying data from a digital camcorder using a DV input jack

Record DV Device video onto HDD and DVD-RAM/ ±RW/±R discs using the DV input jack (IEEE 1394-4pin/4pin). (See page 73)

High quality progressive scan

Progressive scanning provides high resolution and flicker free video. The 10-bit 54-MHz DAC and 2D Y/C Separating Circuitry provides the highest image playback and recording quality. (See page 44)

DivX Certification

DivX® is a digital video format created by DivX, Inc. This is an official DivX Certified or DivX Ultra Certified device that plays DivX video.

HDMI (High Definition Multimedia Interface)

HDMI reduces picture noise by allowing a pure digital video/audio signal path from the HDD & DVD RECORDER to your TV.

This HDD & DVD RECORDER supports 576P, 720P, 1080i and 1080P.

Anynet+(HDMI CEC)

Anynet+ is a function that can be used to operate the recorder using a Samsung TV remote control, by connecting the HDD & DVD RECORDER to a SAMSUNG TV using an HDMI Cable. (This is only available with SAMSUNG TVs that support Anynet+.)

EZ Record Mode

This function allows you Initialise and Finalise a disc automatically. (See page 48)

USB Interface for Data Transfer

You can transfer JPEG, MP3 and DivX file of the MP3 player, USB memory or digital camera to a HDD & DVD RECORDER using the USB interface. You can also copy JPEG, MP3 and DivX file of the HDD & DVD RECORDER to MP3 player, USB memory or digital camera using the USB interface.

Make sure to check the following terms before reading the user manual.

Icons that will be used in manual

Icon	Term	Definition
[40YW]	HDD	This involves a function available on the HDD.
[87WK]	DVD	This involves a function available on DVD or DVD ± R/-RW(V) discs that have been finalised.
	RAM	This involves a function available on DVD-RAM.
	-RW	This involves a function available on DVD-RW.
[20Z4]	-R	This involves a function available on DVD-R.
[V8GA]	+RW	This involves a function available on DVD+RW.
[SWXY]	+R	This involves a function available on DVD+R.
[KHHB]	CD-DA	This involves a function available on a data CD (CD-R or CD-RW).
	JPEG	This involves a function available on CD-R/-RW, DVD ± R/± RW/-RAM discs or HDD.
[STH8]	MP3	This involves a function available on CD-R/-RW, DVD ± R/± RW/-RAM discs or HDD.
[ODHW]	DivX	This involves a function available on CD-R/-RW, DVD ± R/± RW/-RAM discs or HDD.
[A5S7]	Caution	This involves a case where a function does not operate or settings may be cancelled.
[C4HT]	NOTE	This involves tips or instructions on the page that help each function operate.
[24TH]	One-Touch button	A function that can be operated by using only one button.
[T2OH]	USB	This involves a function available on USB.

About the use of this user's manual

1) Be sure to be familiar with Safety Instructions before using this product. (See pages 2\~9)
2) If a problem occurs, check the Troubleshooting. (See pages 100\~101)

Copyright

©2009 Samsung Electronics Co.

All rights reserved; No part or whole of this user's manual may be reproduced or copied without the prior written permission of Samsung Electronics Co.

Step 1: Select the disc type or HDD

Please check available disc type before recording.

If you want to repeatedly record on the same disc or you want to edit the disc after recording, select a rewritable DVD±RW or DVD-RAM type disc. If you want to save a recording without any changes, choose a non-rewritable DVD±R. You can record files directly to the built-in HDD or edit a recorded file.

Step 2: Format the disc to start recording

Unlike a VCR, the HDD & DVD RECORDER automatically starts formatting when an unused disc is inserted. This is required for the preparation of recording on a disc.

Using the HDD

Formatting unnecessary.

Using a DVD-RAM

This type of disc can be formatted in DVD-Video Recording format (VR mode). You can edit recorded images and create a playlist in a specific sequence according to your requirements.

Using a DVD-RW

This type of disc can be formatted in either DVD-Video format (V mode) or DVD-Video Recording format (VR mode). For an unused disc, a message that asks whether to initialize a disc or not. If you select "DVD-VR" or "DVD-V", initialising will be started.

You can play a Video mode disc on various DVD components. A VR mode disc allows more varied editing.

Using a DVD-R

Formatting disc is unnecessary and only V Mode Recording is supported. You can play these types of discs on various DVD components only when they have been finalised.

Using a DVD+RW

For an unused DVD+RW disc, a message that asks whether to format a disc or not. If you select “DVD+RW”, formatting will be started.

Using a DVD+R

This type of disc will be formatted automatically.

Step 3 : Recording

There are two different recording methods, Direct Recording and Timer Recording. Timer recording is classified as follows:

Recording mode : XP (high quality mode), SP (standard quality mode), LP (long recording mode), and EP (extended mode) according to the recording mode. When recording is set in the FR mode, the best quality picture is recorded with regards to the remaining time on the disc.

Step 4 : Playing

You can select the title you want to play in a displayed menu and then immediately start playback.

A DVD consists of sections, called titles, and sub-sections, called chapters.

Step 5: Editing a recorded disc

Editing on discs is easier than conventional video tapes. The HDD & DVD RECORDER supports many different edit functions, possible only with DVDs and HDD.

With a simple and easy edit menu, you can operate various edit functions, such as delete, copy, rename, lock, etc., on a recorded title.

Creating a playlist (DVD-RAM/-RW in VR mode, HDD)

With this HDD & DVD RECORDER, you can create a new playlist on a disc and edit it without the original, pre-existing recording.

Step 6 : Finalising & Playing on other DVD components

To play your DVD on other DVD components, finalising may be necessary. First, finish all editing and recording operations, then finalise the disc.

When using a DVD-RW disc in VR Mode

DVD discs recorded in VR mode can only be played back in DVD recorders, not players.

When using a DVD-RW disc in Video Mode

The disc should be finalised first to enable playback on anything other than this HDD & DVD RECORDER. No more editing or recording can be made on the disc once it has been finalised.

To enable recording on the disc again, the disc must be unfinalised.

When using a DVD±R disc

You should finalise the disc to play it on a component other than this HDD & DVD RECORDER. You cannot edit or record on the disc once it has been finalised.

- You can finalise the disc automatically using EZ Record function. (See page 48)

Accessories

Check for the supplied accessories below.

Video/Audio Cable Batteries for Remote Control (AAA Size)

RF Cable for TV Instruction Manual

Remote Control Quick Guide

Preparing the Remote Control

Install Batteries in the Remote Control

• Open the battery cover on the back of the remote control.
• Insert two AAA batteries. Make sure that the polarities (+ and -) are aligned correctly.
• Replace the battery cover.

If the remote does not operate properly:

• Check the polarity + / - of the batteries (Dry-Cell)
• Check if the batteries are drained.
• Check if remote sensor is blocked by obstacles.
• Check if there is any fluorescent lighting nearby.

Dispose of batteries according to local environmental regulations. Do not put them in the household trash.

Diagram showing two battery cells with positive and negative charges, one with an arrow indicating transformation.

To determine whether your television is compatible, follow the instructions below.

1. Switch your television on.
2. Point the remote control towards the television.
3. Press and hold the TV STANDBY/ON button and enter the two-figure code corresponding to the brand of your television, by pressing the appropriate number buttons.

Controllable TV Codes

BRAND	BUTTON
SAMSUNG	01, 02, 03, 04, 05, 06, 07, 08, 09
AIWA	82
ANAM	10, 11, 12, 13, 14, 15, 16, 17, 18
BANG & OLUFSEN	57
BLAUPUNKT	71
BRANDT	73
BRIONVEGA	57
CGE	52
CONTINENTAL EDISON	75
DAEWOO	19, 20, 23, 24, 25, 26, 27, 28, 29, 30, 31, 32, 33, 34
EMERSON	64
FERGUSON	73
FINLUX	06, 49, 57
FORMENTI	57
FUJITSU	84
GRADIENTE	70
GRUNDIG	49, 52, 71
HITACHI	60, 72, 73, 75
IMPERIAL	52
JVC	61, 79
LG	06, 19, 20, 21, 22, 78
LOEWE	06, 69
LOEWE OPTA	06, 57
MAGNAVOX	40
METZ	57
MITSUBISHI	06, 48, 62, 65
MIVAR	52, 77
NEC	83
NEWSAN	68

BRAND	BUTTON
NOBLEX	66
NOKIA	74
NORDMENDE	72, 73, 75
PANASONIC	53, 54, 74, 75
PHILIPS	06, 55, 56, 57
PHONOLA	06, 56, 57
PIONEER	58, 59, 73, 74
RADIOLA	06, 56
RADIOMARELLI	57
RCA	45, 46
REX	74
SABA	57, 72, 73, 74, 75
SALORA	74
SANYO	41, 42, 43, 44, 48
SCHNEIDER	06
SELECO	74
SHARP	36, 37, 38, 39, 48
SIEMENS	71
SINGER	57
SINUDYNE	57
SONY	35, 48
TELEAVA	73
TELEFUNKEN	67, 73, 75, 76
THOMSON	72, 73, 75
THOMSON ASIA	80, 81
TOSHIBA	47, 48, 49, 50, 51, 52
WEGA	57
YOKO	06
ZENITH	63

Result: If your television is compatible with the remote control, it will switch off. It is now programmed to operate with the remote control.

If several codes are indicated for your television brand, try each one in turn until you find one that works.
If you replace the remote control's batteries, you must set the brand code again.

Then you can control the television using the following buttons after pressing the TV button.

Button	Function
TV STANDBY/ON	Used to switch the television on and off.
INPUT SEL.	Used to select an external source.
TV VOL (+ / -)	Used to adjust the volume of the television.
PROG (∧ / ∨)	Used to select the desired channel.
TV MUTE	Used to toggle the sound on and off.
Number	Used to input number directly.

- The functions listed above does not necessarily work on all televisions. If you encounter problems, operate the television directly.

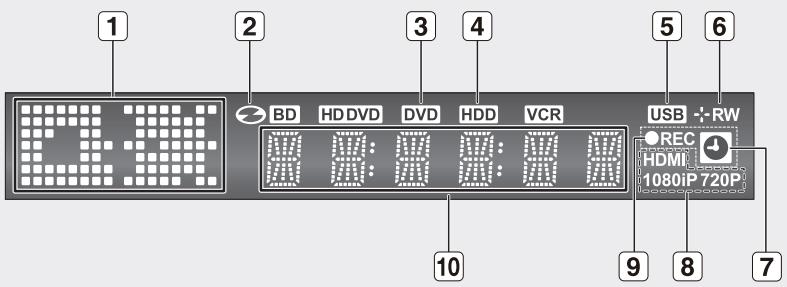

DESCRIPTION

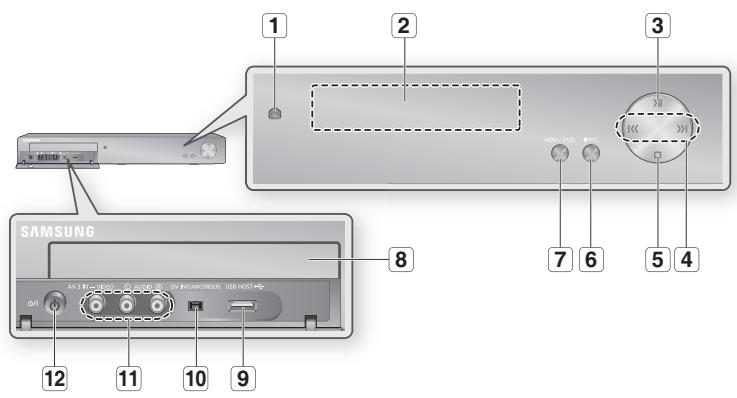

Front Panel

1 2 3 SAMSUNG 8 7 6 5 4 12 11 10 9

1	OPEN/CLOSE button	Opens and closes the disc tray.
2	DISPLAY	Displays the playing status, time, etc.
3	PLAY/PAUSE button	Plays a disc or pauses playback.
4	SEARCH/SKIP buttons	Goes to the next title/chapter/track or goes back to the previous title/chapter/track.(Playback mode)Select TV preset Channels. (Stop mode)
5	STOP button	Stops disc playback.
6	REC button	Starts recording.
7	HDD/DVD button	Selects HDD/DVD mode.
8	DISC TRAY	Opens to accept a disc.
9	USB HOST	Connects to digital still camera, MP3 player, memory stick, Card reader, external HDD or other removable storage devices
10	DV-INPUT	Connects to external digital equipment with a DV jack. (such as a camcorder)
11	AV 3 INPUT	Connects to external equipment.
12	STANDBY/ON button	Turns the HDD & DVD Recorder on and off .

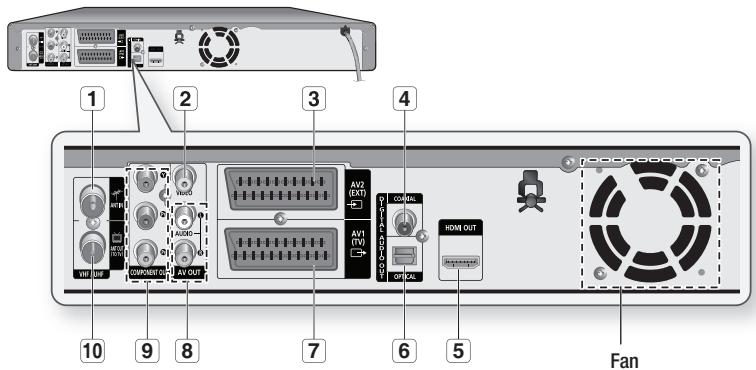

1 2 3 4 10 9 8 7 6 5 Fan

The fan always revolves when the power is on. Ensure a minimum of 10 cm clear space on all sides of the fan when installing the product.

1 In from aerial connector	Connects RF cable from antenna.
2 VIDEO OUT	Connects the input of external equipment using a Video cable.
3 AV2(EXT) INPUT SCART connector	Connects to equipment having SCART output jack.
4 DIGITAL AUDIO OUT(COAXIAL)	Connects to an amplifier having a digital coaxial audio input jack.
5 HDMI OUT	Connects to equipment having HDMI input.
6 DIGITAL AUDIO OUT(OPTICAL)	Connects to an amplifier having a digital optical audio input jack.
7 AV1(TV) OUTPUT SCART connector	Connects to equipment having SCART input jack.
8 AUDIO OUT	Connects to the audio input of external equipment using audio cables.
9 COMPONENT VIDEO OUT	Connects to equipment having Component video input.
10 Out to TV connector	Connects RF cable to TV antenna input.

Front Panel Display

1 2 3 4 5 6 BD HDDVD DVD HDD VCR USB RW REC HDM 1080iP 720P 10 9 8 7

1	Playback-related, Open/Close indicator	Lights when playback-related and open/close buttons are selected.
2	In Disc Indicator	Lights status icon.
3	DVD VIEW Indicator	Lights when DVD mode is selected.
4	HDD VIEW Indicator	Lights when HDD mode is selected.
5	USB VIEW Indicator	Lights when USB mode is selected.
6	Disc Media Indicator	Lights when a DVD ± RW/± R disc is loaded.
7	TIMER Indicator	Lights to indicate the timer record mode.
8	HDMI Indicator	Lights to indicate when HDMI is connected.
9	REC Indicator	Lights in the record mode.
10	STATUS Indicator	Playing time/clock/current status indicator.

Your HDD & DVD RECORDER remote control will work with Samsung televisions and compatible brands.

Installing batteries in the Remote Control

1. Lift the cover at the back of the remote control upward as shown.
2. Install two AAA size batteries. Make sure to match the “+” and “-” ends of the batteries with the diagram inside the compartment.
3. Replace the cover. Assuming typical TV usage, the batteries last for about one year.

TV button Press this to operate TV. STANDBY/ON button Press to turn the HDD & DVD RECORDER On/Off. NUMBER buttons Used to input number directly. TV/DVD button Press TV/DVD button to select the Video input on your TV. SUBTITLE button Press this to switch the DVD's subtitle language. Playback-related Buttons Forward/Rewind, Search, Skip, Stop, Play/Stil. TV VOL button TV volume adjustment. MENU button Brings up the HDD & DVD RECORDER's setup menu. INFO button This will display current setting or disc status. TITLE LIST/DISC MENU button Use this to enter the View Recording list/disc menu. A, B, C, D button Allows access to common function of HDD & DVD RECORDER. COPY button Press this when you copy DVD to HDD and vice-versa. You can also copy files from HDD or DVD to the USB storage devices and vice-versa. REC button Use to make a recording on HDD/DVD-RAM/±RW/±R discs. MARKER button Use this to bookmark a position while playing a disc. SELECT (DVD, HDD, USB) OPEN/CLOSE button To open and close the disc tray. TV STANDBY/ON button Press to turn the TV On/Off. INPUT SEL. button Select input signal in external input mode (PROG, AV1, AV2, AV3 or DV input) TV MUTE/AUDIO button In TV mode, this operates as sound mute. Use this to access various audio functions on a disc. (DVD mode) PROG button Use this to select a TV programme. RETURN button Press to return to the previous menu. OK/DIRECTION buttons (▲▼▲▼ buttons) Used to select or move up/down, left/ right when setting the menu function. EXIT button Press to exit the setup screen. PLAY LIST/TITLE MENU button Use this to return to the Title menu, or to view the recorded files list. REC MODE button Use this to set the desired Recording time and picture quality. (XP/SP/LP/EP). REC PAUSE/TIME SHIFT button Use this to pause during recording. In HDD mode, use this to operate Time shift function. TIMER/REPEAT button Press to directly enter the Timer Recording Mode menu. Allows you to repeat a title, chapter, track or disc.

This section involves various methods of connecting the HDD & DVD RECORDER to other external components and required initial setting modes.

You can connect your HDD & DVD RECORDER to the television using the SCART cable if the appropriate input is available on the television.

1. Connect the RF cable as shown.
2. Connect one end of the SCART cable to the AV1 socket on the rear of the HDD & DVD RECORDER.
3. Plug the other end into the appropriate connector on the television.
4. Plug in the HDD & DVD RECORDER and TV
5. Turn on the HDD & DVD RECORDER and TV.
6. Press the INPUT SEL. button on your TV remote control until the Video signal from the HDD & DVD RECORDER appears on the TV screen.

The RF cable connection of this product sends only signals of TV. You must connect SCART cable or Audio/Video cables to watch a DVD from your HDD & DVD RECORDER.
TV mode : Press the TV/DVD button on the remote control, then “TV” will appear on the Front display (or turn off HDD & DVD RECORDER).

Then you can watch programmes received through TV.

If you set “Power save mode” on and power off Recorder, TV channel signal from ANT OUT of DVD-Recorder may be a little noisy.

So, in this case, set "Power save mode" off, then you see the clean channel in TV.

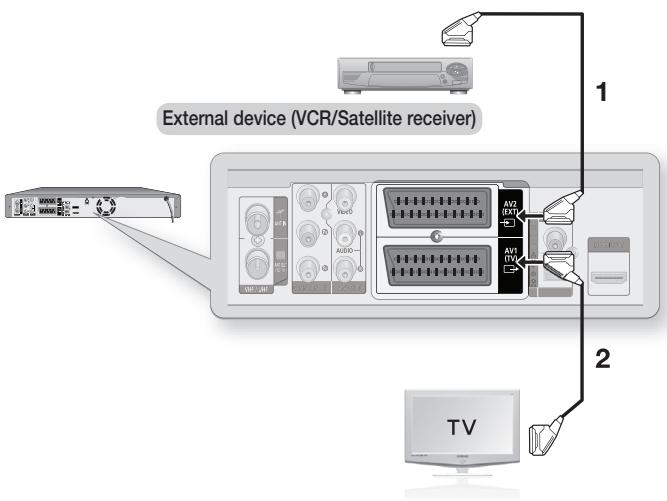

You can connect your HDD & DVD RECORDER to a satellite or digital tuner.

External device (VCR/Satellite receiver) 1 2 TV

- DVD mode

1. Connect the AV2 connector of HDD & DVD RECORDER and VCR/Satellite receiver or digital tuner using a SCART cable.
2. Connect the AV1 connector to the SCART AV connector on TV.
3. Turn on the HDD & DVD RECORDER, VCR/Satellite receiver or digital tuner and TV.
4. Set Input mode on AV2.

- TV mode

1. Press the TV/DVD button on the remote control, then "TV" will appear on Front display. (or turn off HDD & DVD RECORDER.)
2. You can watch programmes from a satellite or digital tuner connected to this HDD & DVD RECORDER, even when the HDD & DVD RECORDER is turned off. You can not use this connection when setting "power save mode" on.

connecting & setting up

ANTENNA + HDD & DVD RECORDER + EXTERNAL DECODER BOX + TV

If you connect external decoder box to HDD & DVD RECORDER, you can record scrambled channels (CANAL+ or Premiere broadcasts) received through the built-in TV tuner in HDD & DVD RECORDER.

1. Connect RF antenna cables as shown.
2. Connect the AV1 connector on this recorder to the SCART AV connector on TV using a SCART cable.
3. Connect the AV2 connector to a SCART AV connector on decoder box.
4. To watch or record PAY-TV Canal Plus programmes, set your HDD & DVD RECORDER to receive the channels using the on-screen display. (Refer to pages 36\~37)

There are several ways to output a video signal not using scart cables. Select one of the following video connections that best suits.

• Case 1: Connecting to a Video (Composite) output jack
  • Case 2 : Component Video output jacks

Component video and Progressive Output Modes

• Component video output is available only if your TV supports Component video input, respectively. If Component video output does not work, check the TV connections and the TV input selection settings.
• Compared to standard interlaced video, progressive scan doubles the amount of video lines fed to your TV, resulting in a more stable, flicker-free, clear image than interlaced video. This is only available with TVs that support progressive scan.
  • Progressive Scan Output (576P)

Consumers should note that not all high definition television sets are fully compatible with this product and may cause artifacts to be displayed in the picture, in case of 576 progressive scan picture problems, It is recommended that the user switch the connection to the 'standard definition' output. If there are questions regarding our TV set compatibility with this model 576P HDD & DVD RECORDER, please contact our customer service centre.

Case 1 : Connecting to a Video (Composite) output jack

1. Connect a video (Yellow) cable between the VIDEO (yellow) OUT jack on HDD & DVD RECORDER and VIDEO (yellow) INPUT jack on your TV (or AV amplifier).
2. You will enjoy regular quality images.
3. Connect audio cables (white and red) between the AUDIO OUT jacks on the HDD & DVD RECORDER and AUDIO IN jacks on TV (or AV amplifier). (See pages 27\~29)

connecting & setting up

Case 2 : Component Video output jacks

1. Connect Component video cables (not supplied) between the COMPONENT OUT(Y, PB, PR) jacks on HDD & DVD RECORDER and COMPONENT IN(Y, PB, PR) jacks on your TV.
2. You will enjoy high quality and accurate colour reproduction images.
3. Connect audio cables (white and red) between the AUDIO OUT jacks on the HDD & DVD RECORDER and AUDIO IN jacks on TV (or AV amplifier). (See pages 27\~29).
4. After connecting, refer to the page 44.

■ Make sure that the colour coded connections match. The Y, P_B , P_R component output jacks of your HDD & DVD RECORDER must be connected to the exact corresponding component input jacks on your TV.
■ Progressive setting is only available when the Video Out is set to Component. (See page 44)

OTHER TYPE OF CONNECTING THE AUDIO OUTPUT CABLE

There are several ways to output audio signal not using scart cables. Select the audio connection that best suits you below.

• Case 1 : Connecting to your TV
- Case 2: Connecting to a stereo amplifier with AV output jacks
- Case 3: Connecting to an AV amplifier with a digital output jack

Manufactured under license under U.S. Patent #: 5,451,942 & other U.S. and worldwide patents issued & pending. DTS and DTS Digital Out are registered trademarks and the DTS logos and Symbol are trademarks of DTS, Inc. © 1996-2009 DTS, Inc. All Rights Reserved.

Manufactured under licence from Dolby Laboratories. "Dolby" and the double-D symbol are trademarks of Dolby Laboratories.

Case 1 : Connecting to your TV

If your TV has audio input jacks, use this connection.

connecting & setting up

Case 2 : Connecting to a stereo amplifier with AV output jacks

If your stereo amplifier only has AUDIO INPUT jacks (L and R), use the AUDIO OUT jacks

Case 3: Connecting to an AV amplifier with a digital output jack

If your AV amplifier has a Dolby Digital, MPEG2 or DTS decoder and a digital input jack, use this connection. To enjoy Dolby Digital, MPEG2 or DTS sound, you will need to set up the audio settings. According to your amplifier, connect to an optical cable or a coaxial cable. (See pages 41\~42)

connecting & setting up

CONNECTING HDMI/DVI TO A TV

If your TV has a HDMI/DVI input, connect HDMI/DVI Adapter cable to a TV. You will enjoy the best quality images and sounds.

• Case 1 : Connecting to a TV with HDMI Jack
- Case 2: Connecting to a TV with DVI Jack

Case 1 : Connecting to a TV with HDMI Jack

• Using the HDMI cable (not supplied) connect the HDMI OUT jack on the rear of the HDD & DVD RECORDER to the HDMI IN jack of your TV.
• Press the input selector on your TV remote control until the HDMI signal from the HDD & DVD RECORDER appears on your TV screen.

If the HDD & DVD RECORDER is connected to your TV in HDMI 1080p output mode, you must use High speed(category2) HDMI cable.

Case 2 : Connecting to a TV with DVI Jack

• Using a DVI Adapter cable (not supplied), connect the HDMI OUT jack on the rear of the HDD & DVD RECORDER to the DVI IN jack of your TV.
• Using the audio cables, connect the AUDIO (red and white) OUT jacks on the rear of the HDD & DVD RECORDER to the AUDIO (red and white) IN jacks of your TV. Turn on the HDD & DVD RECORDER and TV.
• Press the input selector on your TV remote control until the DVI signal from the HDD & DVD RECORDER appears on your TV screen.

!

To use an HDMI cable (not supplied), make the Audio/Video connection before plugging in the power cord or after finishing the “Plug & Play Setup.” Do not connect the HDMI cable while the “Plug & Play Setup” is progressing.
■ Progressive scan automatically activates when HDMI is connected.
If TV/HDMI Receiver does not support DTS, Audio output is not available when you play disc in DTS format.
- You can switch from the HDMI output to other output only in stop mode.
If you use an HDMI cable to connect a Samsung TV to the HDD & DVD RECORDER, you can operate the recorder using the TV remote control. (This is only available with SAMSUNG TVs that support Anynet+(HDMI-CEC).) (See page 39)
- Please check the ynet^+ logo (If your TV has an ynet^+ logo, then it supports Anynet+ function.)

#

■ HDMI (High Definition Multimedia Interface)

HDMI is an interface to enable the digital transmission of video and audio data with just a single connector. Since HDMI is based on DVI, it is completely compatible with DVI. The only difference between HDMI and DVI is that HDMI supports multi-channel audio. Using HDMI, the HDD & DVD RECORDER transmits a digital video and audio signal and displays a vivid picture on a TV having an HDMI input jack.

■ HDMI connection description

HDMI connector - Both uncompressed video data and digital audio data (LPCM or Bit Stream data).

• Though the HDD & DVD RECORDER uses a HDMI cable (not supplied), the HDD & DVD RECORDER outputs only a pure digital signal to the TV.
• If TV does not support HDCP (High -bandwidth Digital Content Protection), snow noise appears on the screen.

■ Why does Samsung use HDMI?

Analog TVs require an analog video/audio signal. However, when playing a DVD, the data transmitted to a TV is digital. Therefore either a digital-to-analog converter (in the HDD & DVD RECORDER) or an analog-to-digital converter (in the TV) is required. During this conversion, the picture quality is degraded due to noise and signal loss. HDMI technology is superior because it requires no D/A conversion and is a pure digital signal from the HDD & DVD RECORDER to your TV.

What is the HDCP?

HDCP (High-bandwidth Digital Content Protection) is a system for protecting DVD content outputted via HDMI from being copied. It provides a secure digital link between a video source (PC, DVD. etc) and a display device (TV, projector. etc). Content is encrypted at the source device to prevent unauthorized copies from being made.

connecting & setting up

CONNECTING TO AV 3 IN, DV INPUT JACK

This allows you to connect your HDD & DVD RECORDER to other external devices and view or record their outputs.

• Case 1 : Connecting a VCR, Set-Top Box(STB), DVD player or Camcorder to the AV 3 IN jacks
• Case 2: Connecting a DV Device to the DV IN jack

Case 1 : Connecting a VCR, Set-Top Box(STB), DVD player or Cam-corder to the AV 3 IN jacks

Connecting a VCR or external device to AV 3 IN jacks of the HDD & DVD RECORDER. You can record from connected equipment (VCR, STB, DVD player or Camcorder).

SAMSUNG AV 3 IN→ VIDEO © AUDIO ® DV INCAMCORDER USB HOST ©/I Y W R Camcorder VCR STB DVD OUTPUT Y L AUDIO R Yellow Red White

■ AV 3 in selection will be automatically done.
If the input is not selected automatically, use INPUT SEL. button to select proper input.
■ Copy protected content cannot be recorded.

Case 2 : Connecting a Camcorder to the DV IN jack

If your digital camcorder has a DV output jack, connect it to the DV input jack of your HDD & DVD RECORDER.

SAMSUNG AV 3 RU - VIDEO Audio DV (CAMCORDER) USB HOST O/U Camcorder DV OUT

If the input is not selected automatically, use INPUT SEL. button to select proper input.

CONNECTING TO USB DEVICES

This allows you to connect your HDD & DVD RECORDER to USB devices.

Connecting a USB memory, MP3 player, Digital Camera to the USB HOST.

SAMSUNG AV 1 IN VIDEO AUDIO DV/NCAMORDER USB HOST MP3 Player Digital Camera USB

• Disconnecting the USB cable during the data transfer will stop the communication and may damage data stored in the memory.
• When data communication is disrupted due to static electricity, magnetic field or other reason, restart the programme or try to disconnect / connect the USB Cable again.

ON-SCREEN MENU NAVIGATION

The on-screen menus allow you to enable or disable various functions on your HDD & DVD RECORDER.

Press the MENU button to open the on-screen menu and then use the following buttons to navigate through the on screen menus.

1. ▲▼, ◀▶ buttons

Press these buttons on the remote control to move the selection bar ▲▼, ◀▶ to cycle through the menu options.

1. OK button

Press this button on the remote control to confirm any new settings.

1. RETURN button

Press this button on the remote control to return to the Previous menu screen displayed or to exit the on-screen menu.

1. EXIT button

Press this button to exit the on-screen MENU.

HDD & DVD RECORDER HDD Library Timer Record Disc Manager Setup Title DivX Music Photo MOVE SELECT RETURN EXIT

PLUG & PLAY SETUP

Your HDD & DVD RECORDER will automatically set itself up when it is plugged in for the first time. TV stations and clock will be stored in memory. The process takes a few minutes. Your HDD & DVD RECORDER will then be ready for use.

1. Connect the RF cable as indicated on page 22.
   (Connecting Your HDD & DVD RECORDER to the TV Using the RF Cable and scart cable.)
   To use an HDMI cable (not supplied), make the Audio/Video connection before plugging in the power cord or after finishing the “Plug & Play Setup” Do not connect the HDMI cable while the “Plug & Play Setup” is progressing.

2. Plug the HDD & DVD RECORDER into the mains. "AUTO" in the front panel display flickers.

3. Press a number button to select the language.
4. Press the OK button to start the auto setup.

5. Select "Country" using the ▲▼, ◀▶ buttons to select your country.

6. Refer to following abbreviation table when selecting “Country”.

A(Austria)	NL(Netherlands)	S(Sweden)	PL(Poland)
B(Belgium)	I(Italy)	CH(Swiss)	CZ (Czech)
DK(Denmark)	N(Norway)	TR(Turkey)	Others
FIN(Finland)	P(Portugal)	GR(Greece)
D(Deutschland)	E(Spain)	HU(Hungary)

- The HDD & DVD RECORDER searches for the stations according to a preset preference list corresponding to the country that you have selected.

-AUTO-

Press 1 English Touche 2 Français Drücken Sie 3 Deutsch Pulse 4 Español Premere 5 Italiano Druk op 6 Nederlands Tryck 7 Svensk Tryk 8 Dansk Paina 9 Suomi Trykk 0 Norsk MACROVISION MP52H

Auto setup will be started. Yes No

Country Selection A NL S PL B I CH CZ DK N TR Others FIN P GR D E HU

1. Auto channel scan will be started.

- The number of stations automatically stored by the HDD & DVD RECORDER depends on the number of stations that it has found.

1. After auto channel scan is completed, auto clock setting will be started automatically in 10 seconds. If you want to start auto clock setting immediately, press OK button.
2. Wait until current date and time are displayed automatically. If you want to exit auto clock setting, press MENU button.

Now, your HDD & DVD RECORDER is ready for use. "Plug & Play Setup" is complete. If you want to change it, you can by Presetting the Stations manually "Channel Set – Manual Setup" menu. (See page 37)
- Auto setup function can be performed by pressing STOP (☐) on the unit continuously for 10 seconds or more during power off with no disc inserted.

1. Check the date and time.

2. If it is Correct, press OK button then the date and time will be saved. If you don't press the OK button, the date and time will be saved automatically after 5 seconds.

3. If it is Incorrect, input correct Month, Day, Year, Hour or Minute using ▲▼, ◀▶ buttons or number buttons. Press OK button then the date and time will be saved. When you need to change clock setting, you can set it up manually.

Auto channel scan completed successfully. Press the [OK] button to auto clock set. OK

Please wait. Now setting the clock. If you want to exit clock setting, press the [MENU] button.

Clock Set mo. da. yr. hr. min. Auto JAN 01 2009 12 00 On Tuesday

SETTING THE CLOCK

This menu is used to set the current time.

You need to set the time to use timer recording.

1. With the unit in Stop mode, press the MENU button.
2. Press the ▲▼ buttons to select Setup, then press the OK or ▶ button.
3. Press the ▲▼ buttons to select System, then press the OK or ▶ button.
4. Press the ▲▼ buttons to select Clock Set, then press the OK or ▶ button.

Press the ▲▼◀▶ buttons to input Month, Day, Year, Hour or Minute. Press the number buttons to input clock data directly. The day of the week is displayed automatically.

1. Press the OK button, then the date and time will be saved. If you don't press the OK button, it will not be saved.

- You must have the RF cable connected to set the Auto Clock. (See page 22)

- The HDD & DVD RECORDER automatically sets the clock according to the time signal broadcast between the channels PR1 to PR5. If you do not need the Auto Clock Set function, select Off.

HDD & DVD RECORDER HDD Library Timer Record Disc Manager Setup System Channel Set Language Audio Video Parental Lock Recording MOVE SELECT RETURN EXIT

HDD & DVD RECORDER System HDD Library Timer Record Disc Manager Setup Clock Set Auto Power Off : Off Power save : Off Anynet+ (HDMI CEC) : On DivX(R) Registration MOVE SELECT RETURN EXIT

HDD & DVD RECORDER HDD Library Timer Record Disc Manager Setup mo, da, yr, hr, min, Auto JAN 01 2009 12 00 On Tuesday MOVE SELECT RETURN EXIT

CHANNEL SET

Auto Scanning

This feature allows you to manually set the HDD & DVD RECORDER tuner band to Antenna or Cable, whichever you connected to the Antenna In jack during initial setup.

1. With the unit in Stop mode, press the MENU button.
2. Press the ▲▼ buttons to select Setup, then press the OK or ▶ button.
3. Press the ▲▼ buttons to select Channel Set, then press the OK or ▶ button.

HDD & DVD RECORDER HDD Library Timer Record Disc Manager Setup Auto Scanning Manual Setup MOVE SELECT RETURN EXIT

1. Press the ▲▼ buttons to select Auto Scanning, then press the OK or ▶ button.

The message "Your data will be lost. Press [OK] to continue, [RETURN] to exit." is displayed.

1. Press the OK button, then press the ▲▼◀▶ buttons to select your Country.

- The HDD & DVD RECORDER searches for the stations according to a preset preference list corresponding to the country that you have selected. (See page 34)

1. Press the OK button. Channel scan will be started.

2. The first frequency band is scanned and the first station found is displayed and stored. And the HDD & DVD RECORDER searches for the second station and so on.

3. The number of stations automatically stored by the HDD & DVD RECORDER depends on the number of stations that it has found.

■ Press the OK button to stop the Auto Scanning

Manual Setup

You can add preset channel that Auto Channel Search missed. And you can delete a channel you wish to remove. You can programme the order of channels.

To setup, follow steps 1 to 3 in "Auto Setup" on page 36.

1. Press the ▲▼ buttons to select Manual Setup, then press the OK or ▶ button.
2. Press the ▲▼ buttons to select a PR (programme) you wish to edit, delete, or swap, then press the COLOUR button.

Select Edit, Delete or Swap.

- In case of Edit (RED(A) button) : You can add or edit PR (programme) information. After change PR informations (CH., Name, Decoder, MFT, System), select Save, then press the OK button.

• CH : Tune the channel using ◀▶ buttons.
• Name : Display station name automatically detected in broadcasting signal. If not detected, you can edit name by using ▲▼◀▶ buttons.
• Decoder : If you set on, you can record scrambled channels using external decoder box. Before setting on, refer to connecting external decoder box in the page 24.

- MFT (Manual Frequency Tunning) : You can tune up the channel frequency better using ◀▶ buttons.

Manual Setup PR CH Name Decoder System 01 002 ---- Off L/L' 02 004 ---- Off L/L' 03 --- --- -- -/- 04 --- --- -- -/- 05 --- --- -- -/- 06 --- --- -- -/- 07 --- --- -- -/-

Manual Setup PR 01 CH 002 Name Decoder Off MFT System L / L* Save MOVE SELECT

- System : You can select broadcasting system of the receivable channel(B/G or L/L').

• In case of Delete (GREEN(B) button) : the channel information of selected PR(programme) will be removed.
• In case of Swap (YELLOW(C) button) : You can swap the channel information of two PR(programme). For example, if you wish to swap PR2 and PR5, select swap at PR2, then press the OK button at PR5.

SETTING UP THE LANGUAGE OPTIONS

If you set the language options, in advance, they will come up automatically every time you watch a movie.

1. With the unit in Stop mode, press the MENU button.
2. Press the ▲▼ buttons to select Setup, then press the OK or ▶ button.

3. Press the ▲▼ buttons to select Language, then press the OK or ▶ button.
   Language setup menu will be displayed.

4. Press the ▲▼ buttons to select the desired language option, press the OK or ▶ button.

• Audio : For the disc audio language.
- Subtitle : For the disc subtitles.
- Disc Menu : For the disc menu contained on the disc
- Menu : For the on-screen menu of your HDD & DVD RECORDER.

HDD & DVD RECORDER Language HDD Library Timer Record Disc Manager Setup Audio : Original Subtitle : Automatic Disc Menu : English Menu : English MOVE SELECT RETURN EXIT

1. Press the ▲▼ buttons to select the desired language, then press the OK or ▶ button.

If the selected language is not recorded on the disc, the original pre-recorded language is selected.
■ The selected language will only appear if it is supported on the disc.

SETTING UP THE SYSTEM OPTIONS

This function allows you to setup the system setting.

1. With the unit in Stop mode, press the MENU button.
2. Press the ▲▼ buttons to select Setup, then press the OK or ▶ button.
3. Press the ▲▼ buttons to select System, then press the OK or ▶ button.
4. Press the ▲▼ buttons to select the desired system option, then press the OK or ▶ button.
5. Press the ▲▼ buttons to select the desired item, then press the OK or ▶ button.

HDD & DVD RECORDER System HDD Library Timer Record Disc Manager Setup Clock Set Auto Power Off : Off Power save : Off Anynet+ (HDMI CEC) : On DivX(R) Registration MOVE SELECT RETURN EXIT

Auto Power Off Setting

This feature automatically turns off your HDD & DVD RECORDER, if you do not press any button for the selected time.

1. Press the ▲▼ buttons to select Auto Power Off, then press the OK or ▶ button.

2. Press the ▲▼ buttons to select the desired item, then press the OK or ▶ button.

3. Off: Auto power off is disabled.

4. 2 Hours : HDD & DVD RECORDER will automatically turn off for 2 hours after the last button is pressed.
5. 6 Hours : HDD & DVD RECORDER will automatically turn off for 6 hours after the last button is pressed.

- If the turn off time set with the Auto Power off function is reached during playback or recording, the device will operate until the playback or recording is finished.

HDD & DVD RECORDER HDD Library Timer Record Disc Manager Setup Clock Set Auto Power Off Power save Anynet+ (HDMI C) DivX(R) Registration System OFF 2 Hours 6 Hours DO MOVE SELECT RETURN EXIT

Power Save Setting

• On: If it is set to On and you turn off the HDD & DVD recorder, the recorder enters the Power Save and the front panel display goes off.
• Off : Does not set to Power Save. Normally select OFF mode.

In standby mode with "Power save mode" on, Some function is not available.

Signal from ANT OUT of Recorder to ANT IN of TV will be noisy.

Signal from AV2(EXT) can not be transferred to AV1(TV). If you want to use, set "Power save mode" off Refer to page 22 and 23.

HDD & DVD RECORDER System Library Timer Record Disc Manager Setup Clock Set Auto Power Off Power save Off Anynet+ (HDMI CI) On DivX(R) Registration MOVE SELECT RETURN EXIT

Anynet+ (HDMI CEC)

Anynet+ is a function that can be used to operate the recorder using a Samsung TV remote control, by connecting the HDD & DVD RECORDER to a SAMSUNG TV using an HDMI Cable. (See pages 30\~31)

(This is only available with SAMSUNG TVs that support Anynet+.)

1. Press the ▲▼ buttons to select Anynet+ (HDMI CEC), then press the OK or ▶ button. Anynet+ (HDMI CEC) items will be displayed.
2. Press the ▲▼ buttons to select On, then press the OK or ▶ button.

HDD & DVD RECORDER System HDD Library Clock Set Auto Power Off : Off Timer Record Power save : Off Disc Manager Anynete+ HDMI CF Off Setup DivX(R) Registrati On MOVE SELECT RETURN EXIT

For using Anynet+ (HDMI CEC)

1. Connect the HDD & DVD RECORDER to a Samsung TV with an HDMI cable. (See pages 30\~31)
2. Set the Anynet+ (HDMI CEC) to "On" on your HDD & DVD RECORDER. (see above)
3. Set the Anynet+ function on your TV. (See the TV instruction manual for more information.)

- You can operate the HDD & DVD RECORDER by using TV remote control.

(TV buttons that can be used to control the HDD & DVD RECORDER :

- When you press Anynet+ button on the TV remote control, the OSD to the left will appear.

• Select Device : Use this option to select device.
• Record : Use this option to start recording or stop recording.
• Menu on Device : Same as MENU button (☐) on the HDD & DVD RECORDER remote control.
• Device Operation : Same as INFO button (INFO) on the HDD & DVD RECORDER remote control.

DVDR View TV Select Device Record Menu on Device Device Operation Receiver - Off Setup More Enter Exit

• By pressing the STANDBY/ON button of the recorder while watching TV, the TV screen will change to the play screen.
  If you power on a DVD recorder when the TV power is off, the TV will power On.
  If you turn the TV off, the HDD & DVD Recorder will power off automatically. (When the HDD & DVD Recorder is recording, it can't be powered off.)
  If you change the HDMI to other sources (Composite, Component, RF... etc) in TV while playing the DVD disc, the HDD & DVD Recorder will stop playing. But the HDD & DVD Recorder may keep the DVD disc Recording.

DivX(R) Registration

Please use the Registration code to register this HDD & DVD RECORDER with the DivX(R) Video On Demand format. For more information, visit www.divx.com/vod

HDD & DVD RECORDER System Library Clock Set DivX(R) Video On Demand Your registration code is: XXXXXXXXX To learn more visit www.divx.com/vod OK SELECT RETURN EXIT

SETTING UP THE AUDIO OPTIONS

You can connect the HDD & DVD RECORDER to an external amp or Home theatre.

Allows you to setup the Audio device and sound status depending on the audio system in use.

You can also set NICAM mode.

HDD & DVD RECORDER HDD Library Timer Record Disc Manager Setup System Channel Set Language Audio Video Parental Lock Recording MOVE SELECT RETURN EXIT

1. With the unit in Stop mode, press the MENU button.
2. Press the ▲▼ buttons to select Setup, then press the OK or ▶ button.
3. Press the ▲▼ buttons to select Audio, then press the OK or ▶ button.
4. Press the ▲▼ buttons to select the desired audio option, then press the OK or ▶ button.
5. Press the ▲▼ buttons to select the desired item, then press the OK or ▶ button.

Digital Output

• PCM : Select this when your equipment does not decode Dolby Digital (or MPEG-2) compatible.
• Bit stream: Outputs Dolby Digital (or MPEG-2) audio as bitstream. Select this when your AV receiver or AV amplifier has a Dolby Digital (or MPEG-2) Decoder.

• Digital output setting is equally applied to both Dolby Digital and MPEG-2 audio. LPCM sound track is always outputted as PCM. It has no relation with Digital Output setting.
• Be sure to select the correct Digital Output or you will hear no sound or a loud noise.

HDD & DVD RECORDER HDD Library Timer Record Disc Manager Setup Digital Output PCM DTS Bitstream DRC : On NICAM : On MOVE SELECT RETURN EXIT

DTS

• Off: Doesn't output DTS signal. Select this when your AV receiver (or AV amplifier) does not have a DTS decoder.
• On : Outputs DTS bit streamvia digital output when you play DTS track. Select this only when your AV receiver (or AV amplifier) has a DTS decoder.

- When DTS soundtrack is played, sound does not output from AV Audio Output.

HDD & DVD RECORDER HDD Library Timer Record Disc Manager Setup Digital Output : PCM DTS Off ✓ DRC On NICAM : On MOVE ⬆ SELECT RETURN -EXIT

DRC

This is only active when a Dolby Digital signal is detected.

• On : When Movie soundtracks are played at low volume or from smaller speakers, the system can apply appropriate compression to make low-level content more intelligible and prevent dramatic passages from getting too loud.
• Off: You can enjoy the movie with the standard Dynamic Range.

HDD & DVD RECORDER Audio Library Digital Output : PCM Timer Record DTS : Off Disc Manager CRC Off NICAM On Setup MOVE SELECT RETURN EXIT

NICAM

NICAM programmes are divided into 3 types. NICAM Stereo, NICAM Mono and Bilingual (transmission in another language). NICAM programmes are always accompanied by a standard mono sound broadcast and you can select the desired sound by setting NICAM on or off.

• On : NICAM mode
• Off : Only set at this position to record the standard mono sound during a NICAM broadcast if the stereo sound is distorted due to inferior reception conditions.

HDD & DVD RECORDER Audio HDD Library Digital Output : PCM Timer Record DTS : Off Disc Manager DRC : On NICAM Off Setup On MOVE SELECT RETURN EXIT

This function allows you to setup the video setting.

This function depends on disc type. It may not work for some disc types.

1. With the unit in Stop mode, press the MENU button.
2. Press the ▲▼ buttons to select Setup, then press the OK or ▶ button.
3. Press the ▲▼ buttons to select Video, then press the OK or ▶ button. Video setup menu will be displayed.
4. Press the ▲▼ buttons to select the desired video option, then press the OK or ▶ button.
5. Press the ▲▼ buttons to select the desired item, then press the OK or ▶ button.

HDD & DVD RECORDER HDD Library Timer Record Disc Manager Setup System Channel Set Language Audio Video Parental Lock Recording MOVE SELECT RETURN EXIT

TV Aspect

You may want to adjust the screen setting Depending on the type of television you have. (aspect ratio)

• 4:3 Letter Box : Select when you want to see the total 16:9 ratio screen DVD supplies, even though you have a TV with a 4:3 ratio screen. Black bars will appear at the top and bottom of the screen.
• 4:3 Pan-Scan : Select this for conventional size TV when you want to see the central portion of the 16:9 screen. (Extreme left and right side of movie picture will be cut off.)
• 16:9 Wide : You can view the full 16:9 picture on your wide screen TV.

HDD & DVD RECORDER HDD Library Timer Record Disc Manager Setup TV Aspect 4:3 Letter Box 3D Noise Reduction Video Output 4:3 Pan-Scan 16:9 Wide Component Output : Interface BD Wise : Off HDMI Resolution : 576P MOVE ⬆ SELECT RETURN EXIT

3D Noise Reduction (motion adaptive noise reduction)

• Off : Normal
• On : Provides a clear picture through noise reduction (for recording).

HDD & DVD RECORDER HDD Library Timer Record Disc Manager Setup TV Aspect : 16.9 Wide 3D Noise Reduction Off Video Output On Component Output : Interface BD Wise : Off HDMI Resolution : 576P MOVE SELECT RETURN EXIT

Video Output

You can enjoy high quality image through RGB or Component video connections. RGB video output is available connecting scart jack(AV1) and component video output is available connecting component(Y, P_B , P_R ) jack. Only one of these signals can be selected at one time.

• Component
• RGB

In Component mode, you can set video output to Progressive or Interlace.

HDD & DVD RECORDER HDD Library Timer Record Disc Manager Setup TV Aspect : 169 Wide 3D Noise Reduction : Off Video Output Component ✓ Component Output RGB BD Wise : Off HDMI Resolution : 576P MOVE SELECT RETURN EXIT

When the HDMI cable (not supplied) is not connected, available video output jacks are as follow.

Available Video Output Jack

Setting modeOutput jack		Component mode	RGB Mode
Component Output(Y, PB, PR)		○	×
AV1 Scart	R, G, B	×	○
	Composite	○	×
Composite Video out		○	○

- When the HDMI cable(not supplied) is connected, RGB output does not operate. Video output is set to Component.

Component Output (Progressive Scan)

This function is available when video output is component. This setting enables you to select progressive mode. To view 'Progressive scan mode', first connect the component cable. (See page 26) Be sure the Component cables are connected properly.

- Progressive

The message “Do you want to maintain progressive mode? Reverting in 10 seconds.” will be displayed. Select “Yes” to revert progressive mode.

- Interlace

The message “Do you want to maintain interlace mode? Reverting in 10 seconds.” will be displayed. Select “Yes” to revert interlace mode.

HDD & DVD RECORDER HDD Library Timer Record Disc Manager Setup TV Aspect : 169 Wide 3D Noise Reduction : Off Video Output : Component Component Output Interface BD Wise Progressive HDMI Resolution : 576P MOVE SELECT RETURN EXIT

- When the HDMI cable (not supplied) is connected, this screen is not displayed.

BD Wise (Only Samsung products)

BD Wise is Samsung's latest inter-connectivity feature.

When you connect Samsung products with BD-Wise to each other via HDMI, the optimum resolution will be set automatically.

• On: The original resolution of the DVD disc will be output to the TV directly.
• Off: The output resolution will be fixed according to the Resolution previously set, regardless of the resolution of the disc.

HDD & DVD RECORDER HDD Library Timer Record Disc Manager Setup TV Aspect : 16.9 Wide 3D Noise Reduction : Off Video Output : Component Component Output : Interface BD Wise Off HDMI Resolution On MOVE SELECT RETURN EXIT

If you want to change the resolution in BD Wise, you must set BD Wise to Off in advance.
If you set off the BD Wise, the resolution of the connected TV will be adjusted to its maximum resolution automatically.
If the HDD & DVD Recorder is connected to a device that does not support BD Wise, you can not use BD Wise function.
For a proper operation of BD Wise, set each BD Wise menu of the player and the TV to On respectively.

HDMI Resolution

This setting is used when the unit is connected by HDMI with Display devices (TV, projector, etc).

- BD Wise : Automatically selects the optimal resolution according to the TV that supports BD Wise. (The BD Wise menu item appears only if BD Wise is set to On.)

- Connect the HDD & DVD RECORDER to your TV via HDMI. Set your TV's input to HDMI.

• The BD Wise menu item appears only if BD Wise is set to On. BD wise function is enabled only if BD Wise-compliant Samsung Products are connected with each other using the HDMI cable.
  ■ Progressive scan automatically activates when HDMI is connected. (Please make sure HDMI is indicated on the front panel of the HDD & DVD RECORDER.)
• Consult your TV User's Manual to find out if your TV supports Progressive Scan. If Progressive Scan is supported, follow the TV User's Manual regarding Progressive Scan settings in the TV's menu system.
  This HDMI resolution menus support only TV resolutions which are possible come to become the display.
• The resolutions available for HDMI output depend on the connected TV or projector. For details, see the user's manual of your TV or projector.
• When the resolution is changed it may take a few seconds for a normal image to appear.

SETTING UP THE PARENTAL LOCK

The Parental Lock function works in conjunction with DVDs that have been assigned a rating which helps you control the types of DVDs that your family watches. There are up to 8 rating levels on a disc.

1. With the unit in Stop mode, press the MENU button.
2. Press the ▲▼ buttons to select Setup, then press the OK or ▶ button.
3. Press the ▲▼ buttons to select Parental Lock, then press the OK or ▶ button.
   When you operate your HDD & DVD RECORDER for the first time, the “Create the Password” message will be displayed.
4. Enter the 4-digit password using the number buttons on the remote control.

HDD & DVD RECORDER HDD Library Timer Record Disc Manager Setup System Channel Set Language Audio Video Parental Lock Recording MOVE SELECT RETURN EXIT

The “Confirm the password” message will be displayed. Enter your password again.

If you forgot your password

1. Remove the disc.
2. Press and hold the PLAY/PAUSE (▶II) button on the front panel for 10 seconds or more.

Setting the Rating Level

1. Press the ▲▼ buttons to select Rating Level, then press the OK or ▶ button.
2. Press the ▲▼ buttons to select the rating level you want, then press the OK or ▶ button.
   For example, if you select up to Level 6, discs that contain Level 7, 8 will not play. A larger number indicates that the programme is intended for adult use only.

HDD & DVD RECORDER HDD Library Timer Record Disc Manager Setup Rating Level Change Password Off Level8 - Adults Level7 Level6 Level5 Level4 Level3 Level2 MOVE SELECT RETURN EXIT Parental Lock

Changing the Password

1. Press the ▲▼ buttons to select Change Password, then press the OK or ▶ button.
2. Enter the 4-digit password using the number buttons on the remote control. The "Confirm the password" message will be displayed.
3. Enter your password again using the number buttons on the remote control.

HDD & DVD RECORDER HDD Library Timer Record Disc Manager Setup Rating Level : Level7 Change Password MOVE SELECT RETURN EXIT Parental Lock

■ After Rating Level has been set, you can change the password.

Automatic Chapter Creator

(V-mode)

A DVD-Video consists of ‘Titles’ and ‘Chapters’. When you record one programme, it makes one Title. If you use this function, the Title will be divided into Chapters.

1. Press the ▲▼ buttons to select Setup, then press the OK or ▶ button.
2. Press the ▲▼ buttons to select Recording, then press the OK or ▶ button.
3. Press the ▲▼ buttons to select Chapter Creator, then press the OK or ▶ button.

4. Press the ▲▼ buttons to select Off or On, then press the OK or ▶ button.

5. Off : Select if you do not want use Automatic Chapter Creator.

6. On : Select this option to use the Automatic Chapter Creator feature.

Press the EXIT (☐) button exit the menu.

HDD & DVD RECORDER DVD-RW(V) Library Timer Record Disc Manager Setup Chapter Creator Off EP Mode Time On EZ Record : Off V-Mode Compatibility : Off MOVE SELECT RETURN - EXIT

1. Press the REC button to start recording.

(See page 72 about how to set recording speed)

The message “Do you want to create the chapter menu after this recording?” is displayed.

1. Press the ◀▶ buttons to select OK, then press the OK button.
2. A new chapter is created according to the selected recording mode. A chapter will be about 5 minutes long in XP and SP, and about 15 minutes long in LP and EP mode.
3. Press the STOP (☐) button to stop recording.
4. To display the created titles, finalise the disc (See page 98) and then press the TITLE MENU button.

The title menu will be displayed.

- Finalising is generally unnecessary when using a DVD+RW disc.

1. To display the created chapters, select the desired Title and then press the DISC MENU button.

The chapter menu for the selected Title will be displayed.

The Automatic Chapter Creator function does not work during Timer Recording or when you turn the power off.

EP Mode Time Setting

You can select one of four recording modes by pressing the REC MODE button repeatedly.

In EP(Extended Play) mode, you can set recording time to 6 or 8 hours with this setting.

• 6 Hours
• 8 Hours

HDD & DVD RECORDER HDD Library Timer Record Disc Manager Setup Chapter Creator : Off EP Mode Time 6 Hours ✓ EZ Record 8 Hours V-Mode Compatibility : Off MOVE SELECT RETURN EXIT

EZ Record

(V-mode)

This function allows you to Initialise and Finalise a disc automatically.

1. Press the ▲▼ buttons to select EZ Record, then press the OK or ▶ button.
2. Press the ▲▼ buttons to select On, then press the OK or ▶ button.
   Press the EXIT (☐) button to exit the menu.
3. Insert a disc.
   If the disc is new, it will initialise automatically.
4. Press the REC button.
5. EZ Record function will automatically Finalise the disc under the following conditions.

- When you press the OPEN/CLOSE button on your HDD & DVD RECORDER after recording on at least 70% of the disc. The tray will open after the disc has been finalised.

- The above feature is available only when a DVD-RW(V), DVD+R or DVD-R disc is inserted.

If you insert a new DVD-RW disc, it will be formatted in V mode after auto initialising.
If you insert a new DVD+RW disc, it will be formatted automatically.
If you select off, you must initialise (See page 69) and finalise the disc manually in the Disc Manager menu. (See page 98)
The length of Recording is different according to recording mode. (See pages 49\~50)

V-Mode Compatibility

This feature is about the setup for selecting audios when recording the NICAM STEREO (Multi-audio) broadcasting on HDD. It does not directly affect DVD recording of a programme.

• Off: Both "Dual L" and "Dual R" of the multi-audio broadcasting are recorded on HDD. Titles recorded on HDD under such setup status cannot be copied to DVD-R or DVD-RW (V mode).
• On : Either “Dual L” or “Dual R” of the multi-audio broadcasting is recorded on HDD. Titles recorded on HDD under such setup status can be copied to DVD-R or DVD-RW (V mode). “Dual L” and “Dual R” options can be selected from “Audio Selection.”

HDD & DVD RECORDER HDD Library Timer Record Disc Manager Setup Chapter Creator : Off EP Mode Time : 6 Hours EZ Record : Off V-Mode Compatible Off On MOVE SELECT RETURN EXIT

HDD & DVD RECORDER HDD Library Timer Record Disc Manager Setup Chapter Creator : Off EP Mode Time : 6 Hours EZ Record : Off V-Mode Compatibility : On Audio Selection: Dual L Dual R MOVE ⬆ SELECT RETURN EXIT

This section introduces basic functions of playback and playback by disc type.

Read the following information before playing a disc.

Both the HDD & DVD RECORDER and the discs are coded by region. These regional codes must match in order for the disc to play. If the codes do not match, the disc will not play. The Region Number for this HDD & DVD RECORDER is described on the rear panel of the HDD & DVD RECORDER.

LOGOS OF DISCS THAT CAN BE PLAYED

DC DOLBY DIGITAL STEREO CREATOR dts Digital Out DIGITAL SOUND Dolby Digital DTS Digital Audio STEREO PAL DIVX ITP Stereo PAL broadcast system in U.K, France, Germany, etc. DivX MP3

DISC TYPES THAT CAN BE PLAYED

Disc Types	Disc Logo content	Recorded content	Disc Shape	Max. Playing Time
DVD-VIDEO		VIDEO AUDIO	Single sided(12cm)	240 min.
			Double sided(12cm)	480 min.
			Single sided(8cm)	80 min.
			Double sided(8cm)	160 min.
AUDIO-CD		AUDIO	Single sided(12cm)	74 min.
			Single sided(8cm)	20 min.
JPEG		JPEG Image	Single sided(12cm)	-
			Single sided(8cm)	-
MP3		MP3 Audio	Single sided(12cm)	-
			Single sided(8cm)	-
DivX		DivX Movie	Single sided(12cm)	-
			Single sided(8cm)	-
DVD-RAM		AUDIOVIDEO	Single Layer(12cm)(4.7GB)	1 hr. (XP: Excellent Quality)
				2 hrs. (SP: Standard Quality)
				4 hrs. (LP: Long Playback)
				6 or 8 hrs. (EP: Extended)
			Dual Layer(12cm)(9.4GB)	2 hr. (XP: Excellent Quality)
				4 hrs. (SP: Standard Quality)
				8 hrs. (LP: Long Playback)
				12 or 16 hrs. (EP: Extended)
DVD-RW		AUDIOVIDEO	12cm (4.7GB)	1 hr. (XP: Excellent Quality)
				2 hrs. (SP: Standard Quality)
				4 hrs. (LP: Long Playback)
				6 or 8 hrs. (EP: Extended)
DVD-R		AUDIOVIDEO	Single Layer(12cm)(4.7GB)	1 hr. (XP: Excellent Quality)
				2 hrs. (SP: Standard Quality)
				4 hrs. (LP: Long Playback)
				6 or 8 hrs. (EP: Extended)
			Dual Layer(12cm)(8.5GB)	1 hr. 50 min (XP: Excellent Quality)
				3 hrs. 40 min (SP: Standard Quality)
				7 hrs. 20 min (LP: Long Playback)
				11 or 14 hrs. 40 min (EP: Extended)
DVD+RW		AUDIOVIDEO	12cm (4.7GB)	1 hr. (XP: Excellent Quality)
				2 hrs. (SP: Standard Quality)
				4 hrs. (LP: Long Playback)
				6 or 8 hrs. (EP: Extended)
DVD+R		AUDIOVIDEO	Single Layer(12cm)(4.7GB)	1 hr. (XP: Excellent Quality)
				2 hrs. (SP: Standard Quality)
				4 hrs. (LP: Long Playback)
				6 or 8 hrs. (EP: Extended)
			Dual Layer(12cm)(8.5GB)	1 hr.50 min (XP: Excellent Quality)
				3 hrs. 40 min (SP: Standard Quality)
				7 hrs. 20 min (LP: Long Playback)
				11 or 14 hrs. 40 min (EP: Extended)
CD-R/-RWDVD-RAM/-RW/-R		JPEGMP3DivX	-	-

Discs that cannot be played

• DVD-Video with a region number other than "2" or "ALL"
  • 3.9 GB DVD-R Disc for Authoring.
• DVD-RAM/-RW(VR mode) not recorded following the Video Recording Standard
• A DVD±R/DVD-RW(V) disc which has been recorded and not finalised in a different manufacturer's recorder.
  • DVD-ROM/PD/MV-Disc, etc
  • CVD/CD-ROM/CDV/CD-G/CD-I

This HDD & DVD RECORDER can only operate with discs that are compatible with DVD-RAM Standard Version 2.0.
- Playback and/or recording may not work for some types of discs, or when specific operations, such as angle change and aspect ratio adjustment, are being performed. Information about the discs is written in detail on the box. Please refer to this if necessary.
- Do not allow the disc to become dirty or scratched, finger prints, dirt, dust, scratches or deposits of cigarette smoke on the recording surface may make it impossible to use the disc for recording.
DVD-RAM/±RW/±R discs may not be able to play on some DVD players, depending on the player, disc and the condition of the recording.
- Discs with NTSC programmes recorded on them cannot be played and recorded using this product.

PLAYING A DISC

1. Press the OPEN/CLOSE button.

2. Place a disc gently into the tray with the disc's label facing up.

3. Press the OPEN/CLOSE button to close the disc tray.

4. Your HDD & DVD RECORDER closes the disc tray and plays the disc automatically.

5. The HDD & DVD RECORDER does not play discs automatically after being powered on initially.
6. When the HDD & DVD RECORDER is powered on and a disc is in the tray, the unit will be activated and wait in stop status.
7. Press the PLAY (▶) button to start playback.

8. If you want the unit to play automatically when it is powered on with a disc in the unit, power on with the PLAY (▶) button.

9. Press the STOP (☐) button to stop playback.

- When you stop playing back a disc, the HDD & DVD RECORDER remembers where you stopped, so when you press PLAY (💡) button again, it will pick up where you left off. (Unless the disc is removed or the HDD & DVD RECORDER is unplugged, or if you press the STOP (💡) button twice.)

• Do not move your HDD & DVD RECORDER while playing, as this may cause damage to the disc.
  ■ Make sure to press the OPEN/CLOSE button to open or close the disc tray.
• Do not push the disc tray while it is being opened or closed, as this may cause a product malfunction.
• Do not place foreign materials on or in the disc tray.
• Some functions may perform differently or be disabled depending on the disc type. If this occurs, refer to the instructions written on the disc case.
• Be especially careful that children's fingers are not caught between the disc tray and the tray chassis when it closes.
• You must only insert one DVD disc at a time. Inserting two or more discs will not allow playback and may cause damage to the HDD & DVD RECORDER.

USING THE DISC MENU & TITLE MENU

Some type of discs contain a dedicated menu system that allows you to select special functions for title, chapter, audio track, subtitle, film preview, information on characters, etc.

For DVD-VIDEO Disc

- Disc Menu : Press the DISC MENU button to enter the disc menu of the disc.

• Move to the setup menu related to playback operation.
• You can select audio language and subtitle etc. provided by the disc.

- Title Menu : Press the TITLE MENU button to move to the title menu of the disc.

- Press this button if the disc contains more than one title. Some discs may not support the title menu functionality.

For HDD/DVD-RAM/±RW/±R Disc

- Title List

Press the TITLE LIST button. Title List is a list of previously recorded programmes. If a title is deleted, that title cannot be played again.

- Play List (HDD/DVD-RAM/-RW(VR))

Press the PLAY LIST button. This refers to a list of user-selected titles. When one playlist is played, only the scene selected by the user will play and then stop. Since only the information necessary for playing a desired scene is included in a playlist, even if that playlist is deleted, the original recording will not be deleted. (only VR mode)

USING THE PLAYBACK RELATED BUTTONS

Searching through a Chapter or Track

During play, press the SEARCH (◀) buttons on the remote control.

HDD/DVD-VIDEO/DVD-RAM/±RW/±R	X 2 X 4 X 8 X 16 X 32 X 128
DivX	X 2 X 4 X 8
AUDIO CD (CD-DA)	X 2 X 4 X 8

• You can scan the programme in reverse.
• When you press and hold the SEARCH (💡) buttons, playback is done at the default speed of X 4. If you release the SEARCH (💡) buttons, playback is performed at a normal speed.
• To return to normal speed playback, press the PLAY (▶) button.

• You can hear sound during forward search(X 2) in HDD/DVD-VIDEO/DVD-RAM/±RW/±R disc. (No sound is heard during Scan(Search) mode in DivX disc.)
  The speed marked in this function may be different from the actual playback speed.

During play, press the SKIP (◀◀) buttons on the remote control.

- If you press the SKIP (播放) button,

it moves to the beginning of the chapter or Title or marker (HDD/DVD-RAM/-RW(VR mode)).

Pressing the button once again within 3 seconds returns to the beginning of the previous chapter or Title or marker (HDD/DVD-RAM/-RW(VR mode)).

- If you press the SKIP (播放) button,

it moves to the next chapter or track or marker (HDD/DVD-RAM/-RW(VR mode)).

Slow Motion Play

In pause mode, press the SEARCH (◀) buttons on the remote control.

- If you press the SEARCH (→) button,

1/2 → 1/4 → 1/8

- If you press the SEARCH (◀) button,

◀1/2 → ◀1/4 → ◀1/8

- To return to normal speed playback, press the PLAY (播放) button.

Press and hold the SEARCH (◀) buttons during pause, the disc will play slowly at 1/4 speed.

If the button is released, the pause operation will resume.

The speed marked in this function may be different from the actual playback speed.
■ Slow motion operates only in the forward direction on DivX discs.

Step Motion Play

Press the SKIP(◀, ▶) buttons on the remote control in the pause mode.

• Each time the button is pressed, a new frame will appear.

When the SKIP(◀) button is pressed, the previous frame will be activated.

When the SKIP(▶) button is pressed, the next frame will be activated.

- To return to normal speed playback, press the PLAY (播放) button.

■ Step motion operates only in the forward direction on DivX discs.

USING THE INFO BUTTON

The INFO function allows you to easily search for a desired scene by accessing title, chapter, or time.

You can also change the subtitle and audio settings and set some features including Angle, Repeat, and Zoom.

Moving to a scene directly using the INFO

If you want to move to a certain title, chapter or time, use this function.

1. Press the INFO button during playback.

2. Press the ▲▼ buttons to select Search, then press the OK or ▶ button.

3. Press the ▲▼ buttons to select Title, Chapter or Time.

4. Press the ◀▶ buttons or number buttons to select the desired scene, then press the OK button. In case of searching a time, enter the time in the sequence of hours, minutes, and seconds using the number buttons. Then press the OK button.

This may not work for some discs. When an audio CD(CD-DA) or an MP3/JPEG disc is inserted, depending on the disc type, the information display may not appear.

■ The Time Search function does not operate on some discs.
■ To make the screen disappear, press the RETURN button.

DVD-VIDEO Search Subtitle Audio Angle Repeat Zoom MOVE Off 1/1 Off Select

Search Info Title 1/3 Chapter 1/40 Time 00:00:37 CHANGE SELECT

SELECTING THE SUBTITLE LANGUAGE

Selects one of the subtitle languages recorded on the disc.

You can also operate this function by pressing the SUBTITLE button on the remote control.

1. Press the INFO button during playback.
2. Press the ▲▼ buttons to select Subtitle.
3. Press the ◀▶ buttons to select the desired subtitle language.

■ The subtitle display may be different depending on the disc type.
■ Some discs allow you to select the language from the disc menu only.

Selects one of the soundtracks recorded on the disc. Also selects the audio channels from recorded TV programmes.

You can also operate this function by pressing the AUDIO button on the remote control.

1. Press the INFO button during playback.
2. Press the ▲▼ buttons to select Audio.
3. Press the ◀▶ buttons to select the desired soundtracks or audio channel.

■ Soundtracks or Audio channel may be different because they are disc-specific.
■ Some discs allow you to select the audio language from the disc menu only.

CHANGING THE CAMERA ANGLE

When a DVD VIDEO contains multiple angles of a particular scene, you can select the Angle function.

1. Press the INFO button during playback.
2. Press the ▲▼ buttons to select Angle.
3. Press the ◀▶ buttons to select the desired angle.

This function is disc-dependent, and may not work on all DVDs.
This function does not work when a DVD has not been recorded with a multi-camera angle system.
■ Displays the current angle and the total angle number.

REPEAT PLAY

Playing Repeatedly (Repeat Playback)

You can also operate this function by pressing the REPEAT button on the remote control.

1. Press the INFO button during playback.
2. Press the ▲▼ buttons to select the Repeat.
3. Press the ◀▶ buttons to select Off, A-B or Title or Chapter you want to play repeatedly, then press the OK button.

■ HDD/DVD-RAM/-RW(VR mode), unfinalised DVD±R and unfinalised DVD-RW (V mode) discs will do not repeat a chapter.
- You can also activate Normal Playback by pressing the EXIT (💡) button.

Repeat A-B

1. Press the INFO button during playback.
2. Press the ▲▼ buttons to select Repeat.
3. Press the ◀▶ buttons to select A-B, then press the OK button.
4. Press the OK button at the point where you want the repeat play to start (A) and press it again at the point where you want the repeat play to stop (B). Repeat playback of the A-B section starts.

Black-and-white photo of seagulls in flight with wings spread, no visible text or symbols

If you set point (B) before five seconds of playback has lapsed, the prohibition mark (∅) will appear.
- You can also activate Normal Playback by pressing the EXIT (☐) button.
■ Audio CDs(CD-DA), MP3 discs and DivX discs do not support the Repeat A-B function.

ZOOMING-IN

1. Press the INFO button during playback.
2. Press the ▲▼ buttons to select Zoom, then press the OK or ▶ button. (◀) will be displayed.
3. Press ▲▼◀▶ buttons to move to the area you want to enlarge.
4. Press the OK button.
   The screen will be enlarged to twice the normal size. Pressing the OK button again to enlarge the screen size to four times the normal size.

Black-and-white photo of seagulls in flight with one bird marked by a plus sign (no text or symbols on the birds themselves)

HDD/DVD-VIDEO/DVD-RAM/±RW/±R

normal size → X2 → X4 → X2 → normal size

- When the recording is done in EP mode, the zoom function is not supported except when the recording has been in V mode.

Set marks at scenes you want to see again so that you can start playback from the marked position.

Setting Markers

1. Press the MARKER button during playback.
2. Press the OK button when the desired scene appears.

- The number 01 is displayed and the scene is memorized.

1. Press the ▶ button to move to the next position.

2. Press the OK button again when the desired scene appears.

3. The number 02 is displayed and the scene is memorized.

4. HDD, DVD-RAM or DVD-RW (VR Mode) discs have the Marker function instead of the Bookmark function. Since the scenes may be displayed as many different pages, numbering is necessary.

If a disc in use is encoded with Disc Protection, Markers cannot be set or deleted, only playback is available.

Black and white photo of a butterfly perched on a flower, no visible text or symbols

Playing back a marker

1. Press the MARKER button during playback.
2. Press the ◀▶ buttons to select a marked scene.

3. Press the OK or PLAY (▶) button to start playing from the selected scene.

4. If you press the SKIP (💡) button, it moves to the beginning of the marker. Pressing the button once again within 3 seconds returns to the beginning of the previous marker.

5. If you press the SKIP (→) button, it moves to the next marker.

Clearing a marker

1. Press the MARKER button during playback.
2. Press the ◀▶ buttons to select a marked scene.
3. Press the RED(A) button to delete the selected mark.

- When a marker is cleared while HDD/DVD-RAM/-RW (VR mode) is playing, marker numbers will change. For example, if the 7th marker is cleared after ten markers are registered, the marker numbers after the eighth will automatically move back by one and the 8th marker becomes the 7th.

(V mode)

Setting Bookmarks

1. Press the MARKER button during playback.
2. Press the OK button when the desired scene appears.
3. The number 1 is displayed and the scene is memorized.
4. Press the ▶ button to move to the next position.
5. Press the OK button again when the desired scene appears.
   The number 2 is displayed and the scene is memorized.
6. Repeat above to bookmark other positions.
7. You can bookmark up to 10 scenes.

Black and white photo of a butterfly perched on a flower (no text or symbols visible)

- When the disc tray is opened and then closed, bookmarks will disappear.

Playing back a bookmark

1. Press the MARKER button during playback.
2. Press the ◀▶ buttons to select a bookmarked scene.
3. Press the OK or PLAY (▶) button to start playing from the selected scene.

Clearing a bookmark

1. Press the MARKER button during playback.
2. Press the ◀▶ buttons to select a bookmarked scene.
3. Press the RED(A) button to delete the selected bookmark.

Buttons on the Remote Control used for Audio CD(CD-DA)/MP3 playback

1 2 3 SUBTITLE PAUSE STOP PLAY TV MUTE TV VOL PROG 4 1 2 5

MENU RETURN OK TITLE LIST DISC MENU INFO EXIT PLAY LIST TITLE MENU A B C D COPY MARKER TIMER REC MODE REC REPEAT REC PAUSE TIME SHIFT 5 9 10 11 6 7 8

1 SKIP (播放) button : Moves to the previous or next page.
2 Press the SEARCH (◀) buttons : Fast Play (X 2, X 4, X 8) (Audio CD only)
3 STOP (☐) button : Stops a track(song).
4 PAUSE (☐) button : Pauses playback.
5 PLAY (▶), OK button : Plays a track (song).
6 ▲▼ : Selects a track (song).

RED(A) button :

• Creates a playlist or go to playlist.
• Select All : MP3, CD-DA
• Copy: MP3
• CD Import : Audio CD

8 GREEN(B) button : Selects the sort order. (MP3 disc only)
9 OK button : Plays the selected track (song).
10 YELLOW(C) button : Selects the play mode. (REPEAT)
11 BLUE(D) button : Selects a contents. (MP3 disc only)

Playing an Audio CD(CD-DA)

1. Insert an audio CD (CD-DA) into the disc tray.
2. The audio CD menu appears and the tracks (songs) are played automatically.
3. Press the ▲▼ buttons to select the track (song) you want to hear, and then press the OK button.

Audio CD(CD-DA) Screen Elements

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100

1 Current track (song) : Displays the number of the track currently being played.
2 Displays available buttons and a playback time corresponding to a portion that is currently played.
3 Displays the current file type and file name.
4 Display available buttons.
5 Displays the current play index, total track number.
6 Displays the track list (song list).

Playing an MP3 Disc

1. Insert an MP3 disc into the disc tray.

- The menu is displayed

1. Press the ▲▼ buttons to select Library, then press the OK or ▶ button.
2. Press the ▲▼ buttons to select Music, then press the OK or ▶ button.
3. Press the ▲▼ buttons to select the track you want to hear, and then press the OK button.

MP3 Screen Elements

Music List 1 /9 Song 1.mp3 No. Title Size ROOT 3.8 MB Song 1.mp3 002 Song 2.mp3 003 Song 3.mp3 004 Song 4.mp3 005 Song 5.mp3 006 Song 6.mp3 10.3 MB Edit Sort Play Mode Contents PREVIOUS/NEXT PAGE MARKET CHECK -EXIT

1	Current track (song) : Displays the name of the track being played.
2	Displays available buttons and a playback time corresponding to a portion that is currently played.
3	Displays the current file type, file name and folder name.
4	Displays available buttons.
5	Displays the current play index, total track number.
6	Displays the track list (song list).

Repeat CD (CD-DA) & MP3

You can also operate this function by pressing the REPEAT button on the remote control. During playback, press the REPEAT button repeatedly to select the repeat mode you want.

1. Press the YELLOW(C) button during the Music List playback.

2. Press the ▲▼ buttons to select desired play mode, then press the OK or ▶ button.

3. Normal (CD (CD-DA)/MP3) : Tracks on a disc are played in the order in which they were recorded on the disc.

4. Repeat Track (CD (CD-DA)/MP3)
5. Repeat Folder (MP3)
   • All Repeat All (CD (CD-DA)/MP3)
6. Random (CD (CD-DA)/MP3): The random option plays a disc's tracks in random order.

CD TRACK:01 Track:01 No. Title Length 4:19 002 TRACK02 3.57 003 TRACK03 3.57 004 T Normal 4.93 006 T Repeat Track 4.99 006 T Repeat All 5.08 007 T Random 3.31 Edit Play Mode PREVIOUS/NEXT PAGE MARRIED CHECK - EXIT

1. Press the RED(A) button during the Music List playback.
2. Press the ▲▼ buttons to select CD Import, then press the OK or ▶ button.
3. Press the ▲▼ buttons to select file you want to copy, then press the MARKER button until a checkmark appears.

- If you don't want to copy a certain one of the checked entries, simply select that entry and press MARKER button to deselect it until a checkmark disappears.

1. Press the ▶▲▼ buttons to select the target media, then press the OK button.
2. You can create a new folder by pressing the GREEN(B) button.
3. Press the RED(A) button to select Start Copy. The message "Number of file : x" is displayed.
4. Press the ◀▶ buttons to select Start, then press the OK button. File copy begins.

- To cancel the copying in progress, press the EXIT (💡) button.

■ The format of a mp3 file after imported is as follows: Bitrate 128kbps Channel 2(stereo) Sampling Rate 44KHz
■ DTS CDDA and copy protected discs can not be imported.

CD TRACK01 1/10 No. Title Length 00 TRACK01 4.19 002 TRACK02 3.57 003 TRACK03 3.57 004 TRACK04 4.03 005 TRACK05 4.09 006 TRACK06 5.06 007 TRACK07 3.31 Edit Play Mode H:\m PREVIOUS\NEXT PAGE CHECK EXIT

CD Selected Items: Available: Source: DVD 001 TRACK001 002 TRACK002 003 TRACK003 004 TRACK004 005 TRACK005 006 TRACK006 To: HDD HDD Start Copy Sort Select All Unselect All http://www.PREVIOUS/NEXT.PAGE EARNED CHECK EXIT

CD Selected items: 9.68MB (2) Available: 236724MB Copying... Free space : 236623 MB Number of file : 1 / 2 File Name : Song 1.CDA 33% 005 TRACK06 Start Copy New Folder EXIT

New Playlist

You can register a maximum 30 tracks in the playlist.

1. Press the RED(A) button during the Music List playback.
2. Press the ▲▼ buttons to select New Playlist, then press the OK or ▶ button.
3. Press the ▲▼ buttons to select tracks in the order in which you want them to play, then press the OK button.

- If you playlisted a wrong track, press the ▶▲▼ buttons to select the wrong track, then press the OK button.

1. To store the Playlist, press the RED(A) button. A new Playlist will be created.

CD Make Playlist No. Title No. Playlist 001 TRACK01 001 TRACK10 002 TRACK02 002 TRACK08 003 TRACK03 003 TRACK04 004 TRACK04 004 TRACK07 005 TRACK05 006 TRACK06 007 TRACK07 Save Music List MOVE ADD RETURN EXIT

CD Playlist No. Title Length PLAYLIST PLAYLIST01 PLAYLIST MOVE SELECT MARKDOWN CHECK EXIT

Go To Playlist

1. Press the RED(A) button during the Music List playback.
2. Press the ▲▼ buttons to select Go To Playlist, then press the OK or ▶ button.
3. Press the ▲▼ buttons to select the desired playlist folder, then press the OK button.
   The selected tracks are played automatically.

CD Playlist No. Title Length PLAYLIST PLAYLIST01 PLAYLIST MOVE SELECT MARKER CHECK -DOT

Delete the Playlist

1. Press the RED(A) button during the Music List playback.
2. Press the ▲▼ buttons to select Go To Playlist, then press the OK or ▶ button.
3. Press the ▲▼ buttons to select the Playlist you want to delete.
4. Press the RED(A) button.
5. Press the ◀▶ buttons to select Yes, then press the OK button. The selected Playlist is deleted.

Do you want to delete? Yes No Delete Edit Playlist New Playlist D Music List MOVE SELECT RETURN

- When the player turns off or opens a file/disconnects, any playlists in the disc or USB memory will be deleted.

Go To Edit Playlist

1. Press the RED(A) button during the Music List playback.
2. Press the ▲▼ buttons to select Go To Playlist, then press the OK or ▶ button.
3. Press the ▲▼ buttons to select the Playlist you want to edit.
4. Press the GREEN(B) button in playlist mode.
5. Press the ▲▼ buttons to select tracks in the order in which you want them to play, then press the OK button.
6. If you playlisted a wrong track, press the ▶▲▼ buttons to select the wrong track, then press the OK button.
7. To store the Playlist, press the RED(A) button. Playlist will be edited.

CD Edit Playlist No. Title No. Playlist 001 TRACKX01 001 TRACK10 002 TRACKX02 002 TRACK04 003 TRACKX03 003 TRACK06 004 TRACKX04 004 TRACK07 005 TRACKX05 006 TRACKX06 007 TRACKX07 Save Music List MOVE GP ADD RETURN EXIT

1. Press the BLUE(D) button during the Playlist playback. The Music List will be displayed.

CD TRACK04 1/4 No. Title Length PLAYLIST01 TRACK04 002 TRACK02 3.57 003 TRACK06 5.08 004 TRACK01 4.19 Edit Playlist New Playlist Music List EXIT

Using the Sort

When you need to change the Sort order of Music List, you can change it simply.

1. While the list menu is displayed, press the GREEN(B) button to select Sort.
2. Press the ▲▼ buttons to select the desired item, then press the OK or ▶ button.
   • Name : In alphabetical order
3. Size : In order of audio file size.

CD Song 10.mp3 1/10 No. Title Size ROOT Song 10.mp3 3.8MB 002 Song 1.mp3 5.8MB 003 Song 2.mp3 5.1MB 004 Song 3.mp3 9.2MB Song 10.mp3 Name 5.2MB ROOT Size Song 5.mp3 10.3MB Edit Sort Play Mode Contents PREVIOUS/NEXT PAGE MARGIN CHECK EXIT

■ Audio CD(CD-DA) is not available.
- You can sort by Name, Length. Sorted list will be resorted in copied order upon reentering Music List.

Select Contents

1. Press the BLUE(D) button to select Contents.
2. Press the ▲▼ buttons to select the contents you want to move, then Press the OK or ▶ button.

This function is possible only when the disc contains the selected contents.
■ Audio CD(CD-DA) is not available.

CD Music List 1/10 Song 10.mp3 No. Title Size ROOT Song 10.mp3 3.8MB 002 Song 1.mp3 5.8MB 003 Song 2.mp3 Title 004 Song 3.mp3 DivX 005 Song 4.mp3 Music ✓ 006 Song 5.mp3 Prob(With Music) Edit Sort Play Mode Contents PREVIOUS/NEXT PAGE MARKDOWN CHECK EXIT

Music/Photo Simultaneous Playback

You can listen to the music while watching the photo.

1. Press the BLUE(D) button to select Contents.
2. Press the ▲▼ buttons to select the Photo(With Music), then Press the OK or ▶ button.
   The photo List will be displayed. (See page 64)

CD Music List 1/10 Song 10.mp3 No. Title Size ROOT Song 10.mp3 3.8MB 002 Song 1.mp3 5.8MB 003 Song 2.mp3 Title 004 Song 3.mp3 DivX 005 Song 4.mp3 Music 006 Song 5.mp3 PhotoWith Music Edit Sort Play Mode Contents PREVIOUS/NEXT PAGE MARKDOWN CHECK EXIT

- To operate this function, you have to select the disc containing both music files and photo file.

VIEWING A PICTURE

1. Insert a JPEG disc into the disc tray.

- The menu is displayed

1. Press the ▲▼ buttons to select Library, then press the OK or ▶ button.

2. Press the ▲▼ buttons to select Photo, then press the OK or ▶ button.

3. To see the next 8 pictures, press the SKIP (▶) button.

4. To see the previous 8 pictures, press the SKIP(○) button.

Photo List 1/17 Image 1.jpg ROOT Image 1.jpg Image 10.jpg Image 11.jpg Image 13.jpg Image 14.jpg Image 15.jpg Image 16.jpg Edit Sort Slideshow D Contents H/M PREVIOUS/NEXT PAGE MARKDOWN CHECK EXIT

1. Press the ▲▼◀▶ buttons to select a desired picture, then press the OK button.

Slide Show

To setup, follow steps 1 and 4 above.

1. Press the PLAY (▶) button.
2. Once in the Photo List, you can also operate slideshow in by pressing the YELLOW(C) button.
3. Press the RED(A) button to select Speed.
4. Press the ▲▼ buttons to select the slideshow speed, then press the OK or ▶ button.

The slideshow starts and plays at the selected speed.

- You can go to Photo List by pressing YELLOW(C) button.

◆ To stop the Slide Show

Press the GREEN(B), STOP (☐) or RETURN button.

image 1.jpg 1/17 Rotate Zoom PHOTO SLIDESHOWN RETURN EXIT

image 1.jpg 1/17 Fast Normal Slow Speed Slide Show Off Photo List PHOTO SLUDESHOW RETURN EXIT

Rotate

To setup, follow steps 1 and 4 above.

5 ^-1 . Press the GREEN(B) button to select Rotate.
6. Press the ▲▼ buttons to select the rotate angle, then press the OK or ▶ button.

• Once you select a rotate angle, you can change it by pressing the RED(A) button.
• You can go to Photo List by pressing YELLOW(C) button.

◆ To stop the Rotate

Press the GREEN(B), STOP (☐) or RETURN button.

Image 1.jpg 1/17 Off Rotate 90 Rotate 180 Rotate 270 Rotate Zoom PHOTO SLIDESHOWN RETURN EXIT

Illustration of a white flower with leaves and two flowers, displayed within a software interface panel (no text or symbols on the flower itself)

Zoom

To setup, follow steps 1 to 4 in page 64.

5 ^-1 . Press the YELLOW(C) button to select Zoom.
6. Each time the OK button is pressed, the picture is enlarged up to 4x (four times the normal size).

- You can go to Photo List by pressing YELLOW(C) button.

Simple illustration of a flower with leaves and blossoms on a gray background (no text or symbols)

To stop the Zoom

Press the GREEN(B), STOP (☐) or RETURN button.

Go To Photo List

To setup, follow steps 1 to 4 in page 64.

5 ^-1 . Press the RETURN button to go to Photo List.

Using the Sort

When you need to change the Sort order of Photo List, you can change it simply.

1. While the list menu is displayed, press the GREEN(B) button to select Sort.
2. Press the ▲▼ buttons to select the desired item, then press the OK or ▶ button.

• Name : In alphabetical order
- Size : In order of photo file size.

CD Photo List 1/17 Image 1.jpg ROOT Image 1.jpg Image 10.jpg Image 11.jpg Name Image 13.jpg Size Image 15.jpg Image 16.jpg Edit Sort Slideshow Contents PREVIOUS/NEXT PAGE MARKED CHECK - EXIT

- You can sort by Name and Size. Sorted list will be resorted in copied order upon re-entering Photo List.

Select Contents

To setup, follow steps 1 to 3 in page 64.

1. Press the BLUE(D) button to select Contents.
2. Press the ▲▼ buttons to select the contents you want to move, then Press the OK or ▶ button.

- This function is possible only when the disc contains the selected contents.

CD Photo List 1/17 Image 1.jpg ROOT Image 1.jpg Image 10.jpg Image 11.jpg Title DivX Music Photo Edit Sort Slideshow Contents M/M PREVIOUS/NEXT PAGE MARKET CHECK EXIT

PLAYING A DIVX

Using the MENU button

1. Insert a DivX disc into the disc tray.
2. The menu is displayed
3. Press the ▲▼ buttons to select Library, then press the OK or ▶ button.
4. Press the ▲▼ buttons to select DivX, then press the OK or ▶ button.

5. Press the ▲▼ buttons to select the avi file (DivX), then press the OK or PLAY (▶) button.

6. When DivX file is played, you can use following functions. Pressing the STOP (☐) button once during playback will display the file list, pressing the button again will exit the menu screen.

CD Movie_01.avi DivX List 1/1 No. Title Size R00T 001 Movie_01.avi 162.8MS DivX ROOT Edit Sort Subtitle Enc. Contents MARKER CHECK -EXIT

DivX Function Description

Function	Description
Skip Scene	During play, press the SKIP (↔) buttons, it moves forward or backward 5 minutes.
Search	During play, press the SEARCH (↔) buttons and press again to search at a faster speed. (X 2, X 4, X 8)
Slow Motion Play	In pause mode(1), press the SEARCH (↔) button on the remote control. (1/2, 1/4, 1/8)Reverse Slow Motion Play is not available.
Step Motion Play	In pause mode(1), press the SKIP (↔) button on the remote control in the still mode. Reverse Step Motion Play is not available.

- Some DivX files created on a personal computer may not be play back. That is why Codec Type, Version and Higher resolution over specification are not supported.

DivX Subtitle Encoding

1. Press the YELLOW(C) button in the file list.
2. Press the ▲▼ buttons to select a supported DivX subtitle language by region, then press the OK button.

CD Movie_01.avi DivX List 1/1 No. Title Size ROOT 001 Movie_01.avi 162.8MB Western(Windows) Central(Windows) Greek(Windows) Cynitic(Windows) Edit Sort Subtitle Enc. Contents MARKDOWN CHECK - DOUT

Western	Afrikaans, Basque, Catalan, Danish, Dutch, English, Faeroese, Finnish, French, German, Icelandic, Indonesian, Italian, Malay, Norwegian, Portuguese, Spanish, Swahili, Swedish
Central	English, Albanian, Croatian, Czech, Hungarian, Polish, Romanian, Serbian(Latin), Slovak, Slovenian
Greek	English, Greek
Cyrillic	English, Azeri, Belarusian, Bulgarian, Kazakh, Macedonian, Russian, Serbian, Tatar, Ukrainian, Uzbek

If the subtitle language is displayed in broken fonts, change DivX Subtitle to the appropriate region. If is still does not work, the format is not supported.

Using the Sort

When you need to change the Sort order of DivX List, you can change it simply.

1. While the list menu is displayed, press the GREEN(B) button to select Sort.
2. Press the ▲▼ buttons to select the desired item, then press the OK or ▶ button.

• Name : In alphabetical order
- Size : In order of DivX file size.

CD Movie_01.avi DivX List 1/3 No. Title Size ROOT 001 Movie_01.avi 162.8MB 002 Movie_02.avi 238.2MB 003 Movie_03.avi 118.4MB Name Size Edit Sort Subtitle Enc. Contents MARKDOWN CHECK -EXIT

- You can sort by Name, Size. Sorted list will be resorted in copied order upon reentering DivX List.

Select Contents

1. Press the BLUE(D) button to select Contents.
2. Press the ▲▼ buttons to select the contents you want to move, then Press the OK or ▶ button.

CD Movie_01.avi DVX List 1/1 No. Title Size ROOT 001 Movie_01.avi 162.8MB Title DivX Music Photo Edit Sort Subtitle Enc. Contents MARKER CHECK - EXIT

This function is possible only when the disc contains the selected contents.

This section shows various HDD & DVD Recording methods.

This unit can record on various types of discs. Before recording, read the following instructions and select the disc type according to your preference.

RECORDABLE DISCS

This HDD & DVD RECORDER can record on the following discs.

HDD	DVD-RAM	DVD-RW	DVD-R	DVD+RW	DVD+R
	RAM	RW	R	DVD+ReWritable	DVD-R

• DVD-RAMs and DVD±RWs are rewritable.
• DVD±Rs are non-rewritable.

Compatibility between Samsung and Other Company's Recorder

Disc Types	Recording format	Recording Device	Finalising	Additional Recording in Samsung Recorder
DVD-RAM	VR Mode	Samsung	X	Recordable
		Other Company	X	Recordable
DVD-RW	VR Mode	Samsung	finalised	Not recordable
			not finalised	Recordable
		Other Company	finalised	Not recordable
			not finalised	Recordable
	V Mode	Samsung	finalised	Not recordable
			not finalised	Recordable
		Other Company	finalised	Not recordable
			not finalised	Not recordable
DVD-R	V Mode	Samsung	finalised	Not recordable
			not finalised	Recordable
		Other Company	finalised	Not recordable
			not finalised	Not recordable
DVD+RW	-	Samsung	X	Not recordable in some cases
		Other Company	X	Not recordable in some cases
DVD+R	-	Samsung	finalised	Not recordable
			not finalised	Not recordable in some cases
		Other Company	finalised	Not recordable
			not finalised	Not recordable in some cases

Finalise

- This closes the DVD-RW/±R so no additional recording can be done.

Unfinalise

• This allows additional recording on a DVD-RW disc originally recorded on the HDD & DVD RECORDER.
• A DVD-RW disc that has been recorded by DAO(Disc At Once) in a PC cannot be unfinalised.
• A DVD-RW disc that has been recorded in Video Mode of a different maker's recorder cannot be unfinalised.
• A DVD±R disc cannot be unfinalised.

RECORDING FORMATS

When you insert an unused disc, the following message appears. Since available functions differ depending on the disc type, select a disc that best fits your preferences.

DVD-RAM/+R : Formatting will be started automatically.

DVD+RW : Use after formatting the disc.

DVD-RW : Use after initializing the disc.

If you want to change the VR or V mode, refer to Formatting a Disc on page 98.

DVD-R : Formatting disc is unnecessary and only V Mode Recording is supported.

DVD-RAM/-RW(VR mode)

• This mode allows multiple editing functions (such as deletion of the whole title, partial deletion of a title, etc.).
• Various editing options using a created Playlist.

DVD-RW(V mode)/-R

• Chapters will be created automatically when you finalise recording on DVD-RW/-R discs in V mode. The chapter's length (interval between chapters) varies according to the recording mode.
• Simple editing (erasing titles/changing title name).

DVD+RW

- With DVD+RW discs, there is no difference between DVD-Video format(Video mode) or DVD-Video Recording format(VR mode).

RECORDING MODE

Select one of four recording modes by pressing the REC MODE button repeatedly while the unit is in Stop mode for the desired recording time and picture quality. In general, picture quality improves as the recording time decreases. In FR mode, the most suitable record mode is adjusted automatically, according to remaining time on the disc and length of the timer recording. This function is selected only one mode in XP, SP, LP and EP modes and you can use this mode for timer recording.

• DVD-HR773

Recording Mode	Recording Times
	HDD (160GB)	DVD-RAM/±RW/±R
XP(high quality mode)	Approx. 33 hours	Approx. 1 hour about 8.5 Mbps
SP(standard quality mode)	Approx. 67 hours	Approx. 2 hours about 4.5 Mbps
LP(long recording mode)	Approx. 133 hours	Approx. 4 hours about 2 Mbps
EP(extended mode)	Approx. 199 hoursApprox. 264 hours	Approx. 6 hours/ about 1.6 MbpsApprox. 8 hours/ about 1.2 Mbps
FR(Flexible Recording)	Approx. 33 hours ~ 264 hours	Approx. 1~8 hours

• DVD-HR775

Recording Mode	Recording Times
	HDD (250GB)	DVD-RAM/±RW/±R
XP(high quality mode)	Approx. 53 hours	Approx. 1 hour about 8.5 Mbps
SP(standard quality mode)	Approx. 106 hours	Approx. 2 hours about 4.5 Mbps
LP(long recording mode)	Approx. 211 hours	Approx. 4 hours about 2 Mbps
EP(extended mode)	Approx. 316 hoursApprox. 421 hours	Approx. 6 hours/ about 1.6 MbpsApprox. 8 hours/ about 1.2 Mbps
FR(Flexible Recording)	Approx. 53 hours ~ 421 hours	Approx. 1~8 hours
HDD (320GB)	DVD-RAM/±RW/±R
XP(high quality mode)	Approx. 68 hours	Approx. 1 hour about 8.5 Mbps
SP(standard quality mode)	Approx. 135 hours	Approx. 2 hours about 4.5 Mbps
LP(long recording mode)	Approx. 270 hours	Approx. 4 hours about 2 Mbps
EP(extended mode)	Approx. 405 hoursApprox. 534 hours	Approx. 6 hours/ about 1.6 MbpsApprox. 8 hours/ about 1.2 Mbps
FR(Flexible Recording)	Approx. 68 hours ~ 534 hours	Approx. 1~8 hours

■ Recording time may vary according to specific conditions.
- 1GB = 1,000,000,000 bytes; actual formatted capacity may be less as the internal firmware uses a portion of the memory.
■ The dual layer DVD±Rs have approximately double the capacity of single layer DVD±Rs. (See page 50)

UNRECORDABLE PICTURES

Video with copy protection cannot be recorded on this HDD & DVD RECORDER.

When the HDD & DVD RECORDER receives a copy- guard signal while recording, recording stops and the following message appears on the screen.

Concerning Copy Control Signals

TV broadcasts that contain copy control signals may have one of the following three signal types, Copy-Free, Copy-Once and Copy-Never. If you want to record a copy-once type programme, use DVD-RW with CPRM in VR Mode, DVD-RAM, HDD.

Media\Signal type	Copy-Free	Copy-Once	Copy-Never
DVD-RW (Ver.1.1)	0	-	-
DVD-RW(Ver.1.1)with CPRM
VR mode	0	0^*	-
V mode	0		-
DVD-R	0		-
DVD-RAM (Ver.2.0)	0	0^*	-
DVD+RW	0	-	-
DVD+R	0	-	-
HDD	0	0^*	-

Once “Copy Once” has been recorded, recording cannot be done anymore.

◆ Content Protection for Recordable Media (CPRM)

CPRM is a mechanism that ties a recording to the media on which it is recorded. It is supported by some HDD & DVD RECORDERs, but not by many DVD players. Each blank recordable DVD has a unique 64-bit media ID etched in the BCA. When protected content is recorded onto the disc, it can be encrypted with a 56-bit C2 (Cryptomeria) cipher derived from the media ID.

During playback, the ID is read from the BCA and used to generate a key to decrypt the contents of the disc. If the contents of the disc are copied to other media, the ID will be absent or wrong and the data will not be decryptable.

Before you start

1. Check that the disc has enough available space for the recording.
2. Press the HDD or DVD button.

If you select DVD, Press the OPEN/CLOSE button and place a recordable disc on the disc tray.

Press the OPEN/CLOSE button to close the disc tray.

Wait until LOAD disappears from the front panel display.

Recording the current TV programme you are watching

1. Press the PROG (√) or number buttons to select the current programme you want to record.
2. Press the REC MODE button repeatedly, (or press the REC MODE button and then press the ▲▼ buttons) to select the recording speed(quality).

Record Mode SP(35:12)

1. Press the REC button.

Information concerning the channel is displayed on the screen, then recording begins.

Icon(●REC) is displayed on the front panel.

HDD ● Recording: PR 1 [SP]

Recording from external equipment you are watching

1. Press the INPUT SEL. button to select the input source according to the connection you made. The front panel display changes in the following sequence:

If you connect a digital camcorder, press the INPUT SEL. button to select DV. (See page 73)

1. Press the REC MODE button repeatedly, (or press the REC MODE button, then press the ▲▼ buttons) to select the recording speed (quality).
2. Press the REC button.

Information concerning the external input mode is displayed on the screen, then recording begins. Icon(●REC) is displayed on the front panel.

To pause recording

• Press the REC PAUSE button to pause a recording in progress.
• Press the REC PAUSE button again during pause to resume recording.
• You can switch channels by pressing the PROG (√) buttons while recording pauses.
• If you select DV mode during rec pause, recording will be stopped. If you change the input source during rec pause in DV mode, recording will be stopped.

To stop recording

Press the STOP (☐) button to stop or finish a recording in progress.

- When using DVD-RAM/±RW/±R discs, the message “Updating the information of disc. Please wait for a moment” is displayed.

• You can not change the recording mode while recording.
• Recording will stop automatically if there is no free space left for recording.
  ■ Up to 99 titles can be recorded onto a DVD-RAM/-RW/-R disc, and up to 48 titles onto a DVD+RW/+R disc.
  ■ Up to 999 titles can be registered on the HDD.
  ■ HDD recording is available for up to 24 hours, and when recording for 24 hours, 3 titles will be recorded with each being 8 hours in length.
• Recording will stop automatically if a copy protected image is selected.
  ■ DVD-RAM/±RW discs must be formatted before starting to record. Most new discs are sold unformatted.
• Do not use DVD-R authoring discs with this unit.

You may control the Camcorder using the IEEE1394 (DV) interface.

1. Connect the DV output jack of your camcorder to the DV input jack on the front of your HDD & DVD RECORDER using a DV cable.
2. Press the HDD or DVD button. If you select DVD, press the OPEN/CLOSE button and place a recordable disc on the disc tray. Press the OPEN/CLOSE button to close the disc tray. Wait until LOAD disappears from the front panel display.
3. Press the REC MODE button repeatedly to select the recording speed(quality).
4. Press the INPUT SEL. button to select DV. If the input is set to DV, a playback/record menu that enables camcorder control appears on the top of the screen.
5. Select the Play (▶) icon on the upper part of the screen to playback the camcorder and find the starting position to copy.
6. To start recording, use the ◀▶ buttons to select Record ( ● ) icon in the top side of the screen, then press the OK button. You can press the REC button of the remote control to start recording.

Record Mode SP(35:12)

DV The DV device is connected ←→ MOVE RETURN

To stop recording

Press the STOP (☐) button to stop or finish a recording in progress.

- When using DVD-RAM/±RW/±R discs, the message “Updating the information of disc. Please wait for a moment” is displayed.

- To display playback related icons on the screen, press any direction button on the remote control.

You can set the HDD & DVD RECORDER to record in 30-minute increments up to 8 hours by pressing the REC button.

1. Press the HDD or DVD button.
   If you select DVD, press the OPEN/CLOSE button and place a recordable disc on the disc tray. Press the OPEN/CLOSE button to close the disc tray. Wait until LOAD disappears from the front panel display.
2. Press the PROG (√) or number buttons to select the programme to record.
3. Press the REC button to start recording.
4. Press the REC button repeatedly to adjust the desired recording time.

HDD ● Recording: PR 1 [SP]

- The timer counter decreases by the minute from 8:00 to 0:00, then the HDD & DVD RECORDER stops recording.

Black-and-white photo of seagulls in flight with a digital overlay showing OTR mode at 0:30 (no text on birds or background)

To stop recording

Press the STOP (☐) button. The message "Do you want to stop recording?" is displayed.

• Press the ◀▶ buttons to select Yes, then press the OK button.
• Or press the STOP (☐) button again.

You can play back from the beginning of the programme you are currently recording. You can watch the previous title list while recording a programme.

Using the PLAY (▶) button

1. With the unit in recording mode, press the PLAY (💡) button. It plays back the title that you are currently recording from the beginning. Playback is not available for 10 seconds from the start of recording. You can use the SKIP (💡 😊) and other playback-related buttons to view the previous recorded list.

Black-and-white photo of multiple seagulls in flight against a cloudy sky, with a play button labeled 'HDD Play' in the corner (no other text or symbols)

Stopping Playback / Recording

1. Press the STOP (☐) button. Playback screen disappears and the recording in progress screen appears.
2. Pressing the STOP (☐) button once more will stop the recording.

Using the TITLE LIST button

1. With the unit in recording mode, press the TITLE LIST button. The above operation is possible from approx. 10 seconds or more after recording starts. Press the ▲▼/SKIP ( clockwise) buttons to select the recording title list.
2. Press the OK or PLAY (💡) button. It plays back the title that you are currently recording from the beginning.

HDD RECORDING... No. Title Length 001 JAN/01/2009 17:30 PM 01:00:00 002 JAN/01/2009 21:00 PM 01:00:00 003 JAN/01/2009 23:15 PM 00:30:00 004 RECORDING... 00:00:00 MPEG2 JAN/02/2009 00:00 XP EXIT

Using the MENU button

1. With the unit in recording mode, press the MENU button.
2. Press the ▲▼ buttons to select Title, then press the OK button. Title List screen is displayed.
3. Press the ▲▼/SKIP (◀◀ ◎◀) buttons to select the recording title list, then press the OK or ▶ button. It plays back the title that you are currently recording from the beginning.

Stopping Playback / Recording

1. Press the STOP (☐) button once, playback screen disappears and the Title List screen appears.
2. Pressing the MENU (☐) button again, the recording in progress screen appears.
3. Pressing the STOP (☐) button once more will stop the recording.

■ No sound is heard during search mode.
DVD disc or HDD playback is available during HDD recording. However, JPEG, MP3, and DivX files in the disc cannot be played back.
■ HDD playback is available during DVD recording. However, JPEG and MP3 files in the HDD cannot be played back.

TIME SHIFT FUNCTION AS A LIVE SIGNAL

This function replays recordings as a live signal.

If you are interrupted while watching a TV programme, simply press the TIME SHIFT button, and the HDD & DVD RECORDER immediately starts recording the programme.

Time Shift On CHANGE Select

Using the Time Shift function

1. Press the TIME SHIFT button on the remote control. The Time Shift menu is displayed.
2. Press the ▲▼ button to select On, then press the OK button.
3. While watching the currently broadcasting programme, press the PAUSE ( ⑪ ) button. The programme on TV is set in pause mode and the Time Shift Bar is displayed.
4. Press the PLAY (▶) button to resume watching the programme.

Time Shift Screen Elements

1 2 3 4 5 6 Play 13:25:04 14:02:28 7

1 Informs you that the timeshift is currently working.
2 Displays the current status.
3 Watching Point.
4 Current play time.
5 Live Point.
6 Live Time.
7 Time Shift Time Bar

Buttons on the Remote Control used for Time Shift function

1. PLAY (▶) button : Playback.
2. PAUSE (☐) button : Pause live TV.
3. SEARCH (◀) buttons : Fast play (X 2, X 4, X 8, X 16, X 32, X 128)
4. SKIP (▶) button, STOP (■) button : Moves to Live point.
5. STOP (☐) button : If you press this button in the Live point, a dialog box appears where you can stop Time Shift.
6. SKIP (◀) button : Returns to the point where Time Shift begins.
7. EXIT (☐) or RETURN button : Hides the Time Shift icon or the time bar.
8. ◀▶ : Display Time shift Progressive Bar.

■ The Time Shift is available only when HDD mode is selected.
- You can use this function for up to maximum two hours.
- You can only play the contents by using the menu when the Time Shift is set to On.
■ Press TIME SHIFT button to cancel the Time shift function.

1. Check if the antenna cable is connected.
2. Check the remaining time of the disc.
3. Check if the date and time are correct.

Make sure the Clock (Setup-Clock Set) is set before you proceed with a timer recording. (See page 36)

Using the TIMER button

1. With the unit in Stop mode, press the TIMER button.
2. Press the ▲▼ buttons to select the Scheduled List, then press the OK or ▶ button.
3. Press the OK button to select Add a list.
4. Set timer recording option.

- Fill the input items using the ▲▼◀▶ buttons and number buttons.

◀ ▶ : Moves to the previous/next item.

▲▼, 0\~9 : Sets a value.

• To : Select the media to record HDD or DVD.
• Source : The video input source (AV1, AV2 or AV3), or the broadcasting channel you want to make a timer recording from.
• Date : Timer Recording allows setting the recording time within one month period. Set the recording day. (month/day)

HDD & DVD RECORDER HDD Library Timer Record Disc Manager Setup Scheduled List Recorded List MOVE SELECT RETURN EXIT

HDD Scheduled List Current Time 10:54 No. To Source Date Start End Mode VPS/PDC Add a list Recordable Time HDD 108:14 SP Recorded List MOVE SELECT RETURN EXIT

HDD Scheduled List Current Time 10:54 No. To Source Date Start End Mode VPS/PC No. 01 No Title To Source Date Start End Mode VPS/PC HDD PR 01 JAN 01 10:54 12:54 SP On Recordable Time HDD 108:14 SP Recordable Time HDD 108:14 SP Recorded List MOVE SELECT RETURN EXIT

• Start/End Time : Start and end time of the timer recording.
• Mode (Recording Mode) :

- FR (Flexible Recording) : Select when you want to set video quality automatically. In FR mode, the most suitable record mode is adjusted automatically, according to remaining time on the disc and length of the timer recording. This function is selected only one mode in XP, SP, LP and EP modes.

• XP (high quality) : Select when video quality is important.
• SP (standard quality) : Select to record in standard quality.
• LP (low quality) : Select when a long recording time is required.
• EP (extended) : Select when a longer recording time is required.

- VPS/PDC : VPS(Video Programme System) or PDC(Programme Delivery Control) function.

• If you set this function on, you can control the starting and ending time of recording by special signal included in the broadcasting signal. If a TV programme is shortened or starts earlier or later than scheduled, this function synchronizes the starting and ending time of recording with the actual broadcasting time automatically.
• Set up the start-time EXACTLY according to the published TV schedule. Otherwise the timer recording will not operate.
• Do not select PDC or VPS unless you are sure the programme you wish to record is broadcast with PDC or VPS.

- TITLE: To label the title name, press the RED(A) button.

Title renaming screen appears.

Follow steps 4 and 5 of “Renaming (Labelling) a Title” on pages 81\~82.

1. After selecting the set up value for each mode, press the OK button to select Save.

- will appear on the front panel. It means that a timer recording is registered.

If the timer settings overlap;

The programmes are recorded in order of priority. After recording of the first programme is complete, the second programme starts being recorded.

To exit without saving the current setting

Press the EXIT (☐) button.

To return to the previous menu

Press the RETURN button if you don't want to set a timer recording.

1. Turn the power off to finish the Timer Recording setting.

Timer Recording will not work when the power is on.

• The timer recording time may differ from the set time depending on disc status and overall timer recording status (for example, recording times overlapping, or when the previous recording ends within 2 minutes before the start time of the next recording.)
  ■ You can make up to 12 Timer Recordings.
  If HDD disk has no available recording space, blinks. It means that HDD disk has no space to record.
  If you have set the Timer Recording using VPS/PDC, the fan can still operate and make a noise when the power is off.

Editing the Scheduled List

Follow these directions to edit the Scheduled List.

To setup, follow steps 1 to 2 in "Making a Timer Recording" on page 77.

1. Press the ▲▼ buttons to select the number of the Scheduled List you want to edit, then press the OK button.

- Edit the items you want to modify. See the “Making a Timer Recording” section for more information on Timer Recording Input items. (See pages 77\~78)

1. Press the OK button to confirm the edited setting.
2. Press the EXIT (①) button after finishing the operation. The Scheduled List screen will disappear.

HDD Scheduled List Current Time 10:54 No. To Source Date Start End Mode VPS/PDC 01 HDD PR 01 JAN 01 17:30 18:30 SP On 02 HDD PR 01 JAN 01 21:00 22:00 SP On 03 HDD PR 01 JAN 01 23:15 23:45 SP On Recordable Time HDD 108:14 SP Add Delete Recorded List MOVE SELECT RETURN EXIT

Adding a Scheduled List

Follow these directions to add an entry from the Scheduled List

To setup, follow steps 1 to 2 in "Making a Timer Recording" on page 77.

1. Press the ▲▼ buttons to select the number of the Scheduled List, then press the RED(A) button.
2. Set the items you want to add. See the “Making a Timer Recording” section for more information on Timer Recording Input items.(See pages 77\~78)
3. Press the OK button to confirm the added setting.
4. Press the EXIT (☐) button after finishing the operation. The Scheduled List screen will disappear.

Follow these directions to delete an entry from the Scheduled List.

To setup, follow steps 1 to 2 in "Making a Timer Recording" on page 77.

1. Press the ▲▼ buttons to select the number of the Scheduled List you want to delete, and then press the GREEN(B) button.

- You will be prompted with the delete confirm message such as "Do you want to delete?".

1. Press the ◀▶ buttons to select Yes, then press the OK button.

- The selected entry will be deleted from the list.

1. Press the EXIT (☐) button after finishing the operation. The Scheduled List screen will disappear.

GO TO RECORDED LIST

You can view a list of the programmes that have been recorded.

Using the TIMER button

1. With the unit in Stop mode, press the TIMER button.
2. Press the ▲▼ buttons to select Recorded List, then press the OK or ▶ button.
3. Press the EXIT (☐) button after finishing the operation. The Recorded List screen will disappear.

HDD Recorded List No. To Source Date Start End Mode VIP Status 01 HDD PR 01 JAN 01 17:30 18:30 SP On OK 02 HDD PR 01 JAN 01 21:00 22:00 SP On OK 03 HDD PR 01 JAN 01 23:15 23:45 SP On OK Delete Delete All Scheduled List MOVE SELECT RETURN EXIT

Information about Recorded List

Informs whether the selected Recorded List performed a Timer Recording successfully.

3 ^-1 . Press the ▲▼ buttons to select the number of the Recorded List, then press the OK button.

HDD Recorded List No. To Source Date Start End Mode VIP Status 01 02 03 Timer rec was finished successfully OK Delete Delete All Scheduled List SELECT RETURN EXIT

Delete Recorded List

Deletes a Recorded List individually.

3-1. Press the ▲▼ buttons to select the number of the Recorded List you want to delete, and then press the RED(A) button.
4. Press the ◀▶ buttons to select Yes, then press the OK button.

Recorded List No. To Source Date Start End Mode VIP Status 01 No. 01 Do you want to delete? Yes No Delete Delete All Scheduled List MOVE SELECT RETURN EXIT

Clear Recorded List

Clears all Recorded List at once.

3 ^-1 . Press the GREEN(B) button.
4. Press the ◀▶ buttons to select Yes, then press the OK button.

Go to Scheduled List

Switches directly from the Recorded List to the Scheduled List.

3 ^-1 . Press the YELLOW(C) button.

Recorded List No. To Source Date Start End Mode VIP Status Do you want to delete a recorded list? Yes No Delete Delete All Scheduled List MOVE SELECT RETURN DOT

HDD Scheduled List Current Time 10:54 No. To Source Date Start End Mode VPS/POC Add a list Recordable Time HDD 105:44 SP Recorded List MOVE SELECT RETURN EXIT

This section introduces basic functions of editing and explains both edit functions for the recording on a disc and edit functions for the entire disc.

Recording or editing might not be completed if an error, such as a sudden power failure occurs.

Please be aware that material that has been damaged is unable to be reverted back to its original state.

BASIC EDITING (TITLE LIST)

Playing the Title

Follow these instructions to play back a scene from the Title List.

Using the TITLE LIST button

1. With the unit in Stop mode/Playback mode, press the TITLE LIST button.
2. Press the ▲▼ buttons to select an entry you want to play from Title List, then press the OK or PLAY (💡) button. The selected entry (title) will be played back.
3. To stop title play, press the STOP (☐) button. The screen returns to the Title List screen.

HDD JAN/01/2009 17:30 PR1 Title List 1/3 No. Title Length 001 JAN/01/2009 17:30 PR 01:00:00 002 JAN/02/2009 21:00 PR 01:00:00 003 JAN/03/2009 23:15 PR 06:30:00 MPEG2 JAN/01/2009 17:30 SP V-Mode Compatibility Edit Sort Go to Contents MARKDOWN CHECK EXIT

Renaming (Labelling) a Title

Follow these instructions to rename a title list entry, i.e., to edit the title of a recorded programme.

Using the TITLE LIST button

1. With the unit in Stop mode/Playback mode, press the TITLE LIST button.
2. Press the ▲▼ buttons to select an entry you want to rename from the Title List, then press the RED(A) button.

3. Press the ▲▼ buttons to select Rename, then press the OK or ▶ button. The Rename screen is displayed.

4. Select the desired characters using the ▲▼◀▶ buttons, press the OK button.

5. Back Space (RED(A) button): Deletes and moves the cursor backwards by one position.

6. Space (GREEN(B) button): Enters a blank and moves the cursor one forward (to the right).
7. Clear (YELLOW(C) button): Deletes all the character inputs.
8. Save (BLUE(D) button) : Registers the character inputs.

HDD JAN/01/2009 17:30 PR1 Title List 1/3 No. Title Length 001 JAN/01/2009 17:30 PR 01:00:00 002 JAN/02/2009 21:00 PR 01:00:00 003 JAN/03/2009 23:15 PR 06:30:00 MPEG2 JAN/01/2009 17:30 SP V-Mode Compatibility Edit Sort Go to Contents MARKED CHECK -EXIT

HDD Title List PR1 Delete Copy Rename Protection Partial Delete Split New Playlist Select All ability No. Title Length 001 JAN/01/2009 17:30 PR 01:00:00 002 JAN/02/2009 21:00 PR 01:00:00 003 JAN/03/2009 23:15 PR 00:30:00 Edit Sort Go to Contents MARKED CHECK -EXIT

1. Press the BLUE(D) button to select Save.

The changed title name is displayed on the title item of the selected entry.

A B C D E F G H I J K L M N O P Q R S T U V W X Y Z a b c d e f g h l j k l m n o p q r s t u v w x y z 1 2 3 4 5 6 7 8 9 0 - + - - 1 0 # $ % & [ ] Back Space Space Clear Save MOVE SELECT RETURN -DOT

Locking (Protecting) a Title

Follow these instructions to lock an entry to protect it from accidental editing.

Using the TITLE LIST button

1. With the unit in Stop mode/Playback mode, press the TITLE LIST button.
2. Press the ▲▼ buttons to select an entry you want to protect from the Title List, then press the MARKER button until a checkmark appears. Repeat this step to select an additional title you want to protect.

- If you don't want to protect a certain one of the checked entries, simply select that entry and press MARKER to deselect it until the checkmark disappears.

1. Press the RED(A) button to select Edit.

Edit menu is displayed.

1. Press the ▲▼ buttons to select Protection, then press the OK or ▶ button.
2. Press the ◀▶ buttons to select On, then press the OK button. The key icon on the information window for the selected entry changes to the locked status. (☐→☐)
3. If you want to cancel the Protection, select Off in step 5 and press the OK button. The key icon changes to the unlocked status.

(∅ → ∅)

JN02/2009 21:00 PR1 Delete Copy Protection New Playlist Select All Unselect All Sort No. Title Length 001 JAN/01/2009 17:30 PR 01:00:00 002 JAN/02/2009 21:00 PR 01:00:00 003 JAN/03/2009 23:15 PR 00:30:00 Edit Sort Go to Contents MARKDOWN CHECK - EXIT

HDD JAN/02 2009 21:00 PR1 Title List 2/3 Protection 2 items are selected Set title Protection mode: On Off SP V-Mode Compatibility Edit Sort Go to Contents MOVE SELECT RETURN EXIT

If you select "Select All" in the Edit menu, all title will be checked.

Follow these instructions to delete an entry from the Title List.

Using the TITLE LIST button

1. With the unit in Stop mode/Playback mode, press the TITLE LIST button.
2. Press the ▲▼ buttons to select an entry you want to delete in the Title List, then press the MARKER button until a checkmark appears. Repeat this step to select an additional title you want to delete.

- If you don't want to delete a certain one of the checked entries, simply select that entry and press MARKER to deselect it until the checkmark disappears.

1. Press the RED(A) button to select Edit.

Edit menu is displayed.

1. Press the ▲▼ buttons to select Delete, then press the OK or ▶ button.

- The message may be different depending on the type of disc. You will be prompted with the confirmation message.

HDD, DVD-RAM(VR mode), DVD-RW(VR mode): If a Playlist is present, the message "Do you want to delete? (Related playlists may be deleted.)" is displayed.

HDD JAN/02 2009 21:00 PR1 Title List 2/3 Delete Copy Protection New Playlist 21:00 Select All Unselect All No. Title Length 001 JAN/02/2009 17:30 PR 01:00:00 002 JAN/02/2009 21:00 PR 01:00:00 003 JAN/03/2009 23:15 PR 00:30:00 Edit Sort Go to Contents MARKDOWN CHECK -EXIT

HDD JAN/02 2009 21:00 PR1 Title List 2/3 2 Items are selected Do you want to delete? (Related playlists may be deleted.) Yes No SP V-Mode Compatibility Edit Sort Go to Contents MOVE SELECT RETURN EXIT

DVD-RW(V mode)/+RW/±R: If a Playlist is not present, the message “Do you want to delete?” is displayed.

1. Press the ◀▶ buttons to select Yes, then press the OK button.

• You cannot delete a protected entry. If you want to delete a protected entry, select "Off" in the Title Protection menu. (See page 82)
• When the Disc Protection has been set to Protected, you cannot delete titles. (See page 96)
  ■ Once an entry is deleted from the Title List it cannot be recovered.
  ■ Once DVD-RW/±R is finalised, it cannot be deleted.
• With DVD±R, titles are only deleted from the menu, however, the Title remains physically on the disc.
  If you select "Select All" in the Edit menu, all title will be checked.

Splitting a Section of a Title (Split)

Follow these instructions to split a section of a Title List entry into two titles.

Using the TITLE LIST button

1. With the unit in Stop mode/Playback mode, press the TITLE LIST button.
2. Press the ▲▼ buttons to select an entry you want to Split from the Title List, then press the RED(A) button. The Edit menu is displayed.
3. Press the ▲▼ buttons to select Split, then press the OK or ▶ button.
4. Using the playback-related buttons (PLAY ⬇), SEARCH ⬇), move to a point for splitting and press the OK button. If it is not the point where you want to split, press the RETURN button to cancel the selection. Using the playback-related buttons, move to a point to split and press the OK button.
5. Press the OK button to select Split.
6. Press the ◀▶ buttons to select Yes, then press the OK button. The split title is divided into two, and the following titles will be shifted down by one.

HDD JAN/01 2009 17:30 PR1 Split Title List No. 001 Split 1 Split 2 00:00:00 00:00:20 00:00:20 Select Split Return Play Pause SCAN MOVE SELECT RETURN EXIT

HDD Title List 1/3 PR1 Delete Copy Rename Protection Partial Delete Split New Playlist Select All No. Title Length 001 JAN/01/2009 17:30 PR 01:00:00 002 JAN/02/2009 21:00 PR 01:00:00 003 JAN/03/2009 23:15 PR 00:30:00 8:17:30 Edit Sort Go to Contents MARKDOWN CHECK - EXIT

RDD JAN/01.2009 17:30 PR1 Split Title List No. 001 Split 1 Split 2 00:00:00 00:00:00 00:00:01 Select Split Return Play Pause SCAN +MOVE SELECT RETURN -DOT

This title cannot be recovered after splitting. Do you want to split? Yes No Select Split Return Play Pause SCAN MOVE SELECT RETURN EXIT

Deleting a Section of a Title (Partial Delete)

(VR mode)

Follow these instructions to delete a section of a Title List entry.

Using the TITLE LIST button

1. With the unit in Stop mode/Playback mode, press the TITLE LIST button.
2. Press the ▲▼ buttons to select an entry you want to edit from the Title List, then press the RED(A) button. The Edit menu is displayed.
3. Press the ▲▼ buttons to select Partial Delete, then press the OK or ▶ button.

RDD Title List 1/3 PR1 Delete Copy Rename Protection Partial Delete Split New Playlist Select All No. Title Length 001 JAN/01/2009 17:30 PR 002 JAN/02/2009 23:50 PR 003 JAN/03/2009 23:15 PR Edit Sort Go to Contents SARCKED CHECK -O XDT

1. Press the OK button at the starting point.

The image and starting point time is displayed in the section deletion starting point window.

• Select the start and end points of the section you want to delete using the playback related buttons.

• Playback related buttons : (PLAY (播放), PAUSE (播放)), SEARCH (播放)).

• Press the OK button at the end point.

The image and end point time is displayed in the Section deletion ending point window.

1. Press the ◀▶ buttons to select Delete, then Press the OK button.
2. Press the ◀▶ buttons to select Yes, then press the OK button. The selected section has been deleted.
3. Press the ◀▶ buttons to select Return, then press the OK button to finish the operation.

• The length of the section to be deleted must be at least 5 seconds long.
  ■ End point cannot be marked earlier than start point
  ■ The section cannot be deleted when it includes a still picture.
• Press the EXIT (💡) button after the operation has finished. The Title List screen will disappear.

HDD JAN/01/2009 17:30 PR1 Partial Delete Title List No. 001 Start End 00:19:10 00:41:20 00:41:20 Start End Delete Return Play Pause SCAN MOVE SELECT RETURN EXIT

HDD JAN/01 2009 17:30 PR1 Partial Delete Do you want to delete? (Deleted part will not be restored.) Yes No Start End Delete Return Play Pause SCAN MOVE SELECT RETURN EXIT

USING THE SORT FUNCTION (TITLE LIST)

When you need to change the Sort order of Title List.

1. While the list menu is displayed, press the GREEN(B) button to select Sort.

2. Press the ▲▼ buttons to select the desired item, then press the OK or ▶ button.

3. Date : In order of when the titles were recorded
   • Name : In alphabetical order
   • Length : In order of recorded title length.

4. Channel Info : In order of Channel information.

HDD JAN/01/2009 17:30 PR1 Title List 1/3 No. Title Length 001 JAN/01/2009 17:30 PR 01:00:00 002 JAN/02/2009 21:00 PR 01:00:00 003 JAN/03/2009 23:15 PR 00:30:00 MPEG2 Date JAN/01/6 Name SP Length V-Mode Com Channel Info Edit Sort Go to Contents MARKED CHECK - EXIT

- You can sort by Date, Name, Length, Channel info. Sorted list will be resorted in copied order upon reentering Title List.

Time Navigation

Using this function, you can search scene minute-by-minute from the recorded title list.

Using the TITLE LIST button

1. With the unit in Stop mode/Playback mode, press the TITLE LIST button.
2. Press the ▲▼ buttons to select an entry you want to play from Title List, then press the YELLOW(C) button.
3. Press the ▲▼ buttons to select Time Navigation, then press the OK or ▶ button.
4. Press the ◀▶ buttons to skip one minute at a time and search the desired scene, then press the OK or PLAY (播放) button.

• Cursor does not move if the selected recorded title is shorter than 1 minute.
• The Navigation function may not work on a disc that has not been recorded by this device.
  ■ An edited title may not display the exact search time.

RDD JAN/01/2009 17:30 PR1 Title List 1/3 No. Title Length 001 JAN/01/2009 17:30 PR1 01:00:00 002 JAN/02/2009 21:00 PR1 01:00:00 003 JAN/03/2009 23:15 PR1 00:30:00 MPEG2 JAN/01/2009 17:30 SP V-Mode Compatibility Playlist Time Navigation Score Navigation Edit Sort Go to Contents MARKDOWN CHECK EXIT

RDO JAN/01/2009 17:30 PR1 Time Navigation 1/3 00:00 17:30 18:30 MOVE SELECT RETURN EXIT

Scene Navigation

If there is a title composed of markers (See page 57), you can search the desired scene using the Scene Navigation.

Using the TITLE LIST button

1. With the unit in Stop mode/Playback mode, press the TITLE LIST button.
2. Press the ▲▼ buttons to select an entry you want to play from Title List, then press the YELLOW(C) button.
3. Press the ▲▼ buttons to select Scene Navigation, then press the OK or ▶ button.
4. Press the ▲▼◀▶ buttons to select desired scene, then press the OK or PLAY (播放) button.

■ Scene Navigation will not operate if a selected title does not have Markers.

RDD JAN/01/2009 17:30 PR1 Title List 1/3 No. Title Length 001 JAN/01/2009 17:30 PR1 01:00:00 002 JAN/02/2009 23:00 PR1 01:00:00 003 JAN/03/2009 23:15 PR1 00:30:00 MPEG2 JAN/01/2009 17:30 SP V-Mode Compatibility Playlist Time Navigation Scene Navigation Edit Sort Go to Contents SARINGS CHECK - OUT

RDD JAN/01/2009 17:30 PR1 Scene Navigation Scene No. 1/3 01 00:00:35 02 00:00:35 03 00:01:35 PLAY -DOT

1. Press the BLUE(D) button to select Contents.
2. Press the ▲▼ buttons to select the contents you want to move, then Press the OK or ▶ button.

This function is possible only when the disc contains the selected contents.

HDD JAN/01/2009 17:30 PR1 Title List 1/3 No. Title Length 001 JAN/01/2009 17:30 PR1 01:00:00 002 JAN/02/2009 21:00 PR1 01:00:00 003 JAN/03/2009 23:15 PR1 02:30:00 MPEG2 Title JAN/01/2009 17:30 DVX SP Music V-Mode Compatibility Photo Edit Sort Go to Contents MARKDOWN CHECK -EXIT

ADVANCED EDITING (PLAYLIST)

Creating a Playlist

Follow these instructions to create a new playlist entry from a recorded title.

Using the TITLE LIST button

1. With the unit in Stop mode/Playback mode, press the TITLE LIST button.
2. Press the RED(A) button. The Edit menu is displayed.
3. Press the ▲▼ buttons to select New Playlist, then press the OK or ▶ button. The Make Playlist screen is displayed.

4. Press the OK button at the start point.

5. The image and time at the start point is displayed on the Start window.

6. The yellow-coloured selection bar moves to the End item.

7. Select the starting point of the section from which you want to create a new scene using the playback related buttons (PLAY (▶), SEARCH (◀◀), SKIP (◀◀)).

8. Press the OK button at the end point.

9. The image and end point time is displayed in the End window.

10. The yellow-coloured selection bar moves to the Make item.

11. Press the ◀▶ buttons to select Make, then press the OK button.

• To make a scene for the playlist.

A new Make scene screen is displayed. Repeat steps 4\~6 to make a new scene for the playlist.

A new scene will be added to the current playlist.

You can check and see all the scenes on the Edit playlist screen. (See page 89)

• To make a new playlist.

Repeat steps 1\~6 if you want to make a new playlist.

R0D Title List PR1 Delete Copy Rename Protection Partial Delete Split New Playlist Select All Utility No. Title Length 001 JAN/01/2009 17:30 PR 01:00:00 002 JAN/02/2009 21:00 PR 01:00:00 003 JAN/03/2009 23:15 PR 00:30:00 Edit Sort Go to Contents MARKDOWN CHECK EXIT

HDD New Playlist Make Playlist Scene No. 001 Start End 00:06:38 00:00:00 00:09:38 Start End Make Return Play Pause SCAN SKIP MOVE SELECT RETURN EXIT

HDD New Playlist Make Playlist Scene No. 001 Start End 00:06:38 00:11:03 Title List - 1/3 00:11:09 Start End Make Return Play II Pause SCAN SKIP MOVE SELECT RETURN EXIT

1. Press the ◀▶ buttons to select Return, then press the OK button to finish the operation.

■ You can create up to 99 playlist entries.
■ Depending on the kind of disc, the displayed screen may have a slight difference.

Playing Entries in the Playlist

Follow these instructions to play the playlist entries.

Using the PLAY LIST button

1. With the unit in Stop mode/Playback mode, press the PLAY LIST button.
2. Press the ▲▼ buttons to select the playlist you want to play, then press the OK or PLAY (▶) button.
3. Press the STOP (☐) button to stop playing. The screen returns to the Playlist screen.

RDD JAN/02/2009 13:47 Playlist 1/3 No. Title Length 001 JAN/02/2009 13:47 00:06:09 002 JAN/02/2009 13:51 00:03:33 003 JAN/02/2009 14:08 00:01:54 PLAYLIST JAN/02/2009 13:47 6 Scenes Edit Sort Title List MARKDOWN CHECK - DOT

Renaming a Playlist Entry

Follow these instructions to rename a playlist entry, i.e. to edit the title of a playlist entry.

Using the PLAY LIST button

1. With the unit in Stop mode/Playback mode, press the PLAY LIST button.
2. Press the ▲▼ buttons to select the title you want to Rename from the Playlist, then press the RED(A) button. The Edit menu is displayed.

3. Press the ▲▼ buttons to select Rename, then press the OK or ▶ button. The Rename screen is displayed.

4. Select the desired characters using the ▲▼◀▶ buttons, then press the OK button.

5. Back Space (RED(A) button): Deletes and moves the cursor backwards by one position.

6. Space (GREEN(B) button): Enters a blank and moves the cursor one forward (to the right).
7. Clear (YELLOW(C) button): Deletes all the character inputs.

8. Save (BLUE(D) button) : Registers the character inputs.

9. Press the BLUE(D) button to select Save. The changed title is displayed in the title field of the selected playlist entry.

RDD JAN/02/2009 13:47 Playlist 1/3 No. Title Length 001 JAN/02/2009 13:47 00:06:09 002 JAN/02/2009 13:51 00:03:33 003 JAN/02/2009 14:08 00:01:54 PLAYLIST JAN/02/2009 13:47 6 Scenes Edit Sort Title List MARKDOWN CHECK EXIT

NDD JAN/02/2009 13:47 Delete Copy Rename Edit Playlist New Playlist Select All Edit Sort Title List No. Title Length 001 JAN/02/2009 13:47 00:06:09 002 JAN/02/2009 13:51 00:03:33 003 JAN/02/2009 14:08 00:01:54 MARKDOWN CHECK - EXIT

DOLPHIN_ A B C D E F G H I J K L M N O P Q R S T U V W X Y Z a b c d e f g h i j k l m n o p q r s t u v w x y z 1 2 3 4 5 6 7 8 9 0 - _ t = - - - - - - - - - - - - - - - Back Space Space Clear Save MOVE SELECT RETURN EXIT

Follow these instructions to edit scenes for a playlist.

Using the PLAY LIST button

1. With the unit in Stop mode/Playback mode, press the PLAY LIST button.
2. Press the ▲▼ buttons to select the title you want to edit from the Playlist, then press the RED(A) button. The Edit menu is displayed.
3. Press the ▲▼ buttons to select Edit Playlist, then press the OK or ▶ button.

The Edit Playlist screen is displayed.

HDD JAN/02/2009 13:47 Playlist 1/3 No. Title Length 001 JAN/02/2009 13:47 00:06:09 002 JAN/02/2009 13:51 00:03:33 003 JAN/02/2009 14:08 00:01:54 Edit Playlist 13:47 New Playlist Select All Edit Sort Title List MARKDOWN CHECK -EXIT

HDD JAN/02 2009 13:47 Edit Playlist Scene No. 1/6 01 00:02:24 02 0:00:34 03 00:00:31 04 0:01:22 05 00:09 06 00:01:06 07 00:00:00 A Modify Move Add Delete GP PLAY EXIT

Playing a Selected Scene

1. Press the ▲▼◀▶ buttons to select the scene you want to play, then press the OK or PLAY (▶) button. The selected scene is played.

- To stop scene play, press the STOP (☐) button.

Modifying a Scene (Replacing a Scene)

To setup, follow steps 1 to 3.

4-1. Press the ▲▼◀▶ buttons to select the scene you want to Modify, then press the RED(A) button. The Modify Scene screen is displayed.
5. Press the OK button at the start point of the scene.

• The image and starting point time is displayed on the Start window.

• Select the starting or ending point of the section you want to modify using the playback related buttons (PLAY (播放)), SEARCH (播放), SKIP (播放)).

• Press the OK button at the end point of the scene.

- The image and ending point time is displayed in the End window.

1. Press the ◀▶ buttons to select Change, then press the OK button.

- The scene you want to modify is changed with the selected section.

HDD JAN/02 2009 1:347 Modify Scene Scene No. 001 Start End 00:04:54 00:00:00 00:05:27 Start End Change Return Play II Pause SCAN EXIT MOVE SELECT RETURN EXIT

HDD JAN/02 2009 3:47 Modify Scene Scene No. 001 Start End 00:04:54 00:06:25 00:06:25 Start End Change Return Play II Pause SCAN SKIP MOVE © SELECT RETURN EXIT

Moving a Scene (Changing the Position of a Scene)

To setup, follow steps 1 to 3 on page 89.

4 ^-1 . Press the ▲▼◀▶ buttons to select the scene you want to move (change the position), then press the GREEN(B) button.

- A yellow selection window is displayed on the scene to be moved.

1. Press the ▲▼◀▶ buttons to select the position to which you want to move the selected scene, then select the OK button.

• You cannot move the selected scene to the position of the next scene, because the selected scene should be inserted before that position, which requires no action.
  ■ Depending on the kind of disc, the displayed screen may have a slight difference.

HDD JAN/02/2009 13:47 Edit Playlist Scene No. 1/6 00:00:34 02 00:34 03 00:31 04 0:01:22 05 00:09 06 00:01:06 07 00:00:00 SAVE EXIT

Adding a Scene

To setup, follow steps 1 to 3 on page 89.

4-1. Press the ▲▼◀▶ buttons to select the scene that will have a new scene inserted before it, then press the YELLOW(C) button. The Add Scene screen is displayed.
5. Press the OK button at the starting point of the scene.

• The image and starting point time is displayed on the Start window.

• Select the starting or ending point of the section you want to modify using the playback related buttons (PLAY (播放), SEARCH (播放), SKIP (播放)).

• Press the OK button at the end point of the scene.

• The image and end point time are displayed in the End window.

• To cancel, press the ◀▶ buttons to select Return, then press the OK button.

• Press the ◀▶ buttons to select Add, then press the OK button.

- The section you want to add is inserted prior to the scene selected in step 4^-1 of Adding a Scene.

HDD JAN/02/2009 13:47 Add Scene Scene No. 001 Start End Title List: 1/4 00:01:51 00:00:00 00:01:51 00:01:51 Start End Add Return Play Pause SCAN SKIP MOVE SELECT RETURN EXIT

RDD JAN/02 2009 13:47 Add Scene Scene No. 001 Start End 00:01:51 00:07:28 00:07:28 Start End Add Return Play Pause SCAN SKIP MOVE SELECT RETURN -XDT

Deleting a Scene

To setup, follow steps 1 to 3 on page 89.

4 ^-1 . Press the ▲▼◀▶ buttons to select the scene you want to delete, then press the BLUE(D) button.

- The message “Do you want to delete the scene?” is displayed.

1. Press the ◀▶ buttons to select Yes, then press the OK to delete the selected scene.

HDD JAN/02/2009 13:47 Edit Playlist Scene No. 1/6 Do you want to delete the scene? Yes No Modify Move Add Delete MOVE SELECT RETURN EXIT

Using the PLAY LIST button

1. With the unit in Stop mode/Playback mode, press the PLAY LIST button.
2. Press the ▲▼ buttons to select an entry you want to delete in the Playlist, then press the MARKER button until a checkmark appears. Repeat this step to select an additional title you want to delete.

- If you don't want to delete a certain one of the checked entries, simply select that entry and press the MARKER button to deselect it until a checkmark disappears.

1. Press the RED(A) button to select Edit.
   Edit menu is displayed.
2. Press the ▲▼ buttons to select Delete, then press the OK or ▶ button.
3. You will be prompted with the delete confirmation message "Do you want to delete?".
4. Press the ◀▶ buttons to select Yes, then press the OK button. You will be automatically returned to the Playlist screen after the delete operation has finished.

If you select "Select All" in the Edit menu, all title will be checked.

HDD JAN/02/2009 13:47 Playlist 1/3 No. Title Length 001 JAN/02/2009 13:47 00:06:08 002 JAN/02/2009 13:51 00:03:33 003 JAN/02/2009 14:08 00:01:54 PLAYLIST JAN/02/2009 13:47 6 Scenes Edit Sort Title List MARKDOWN CHECK EXIT

JAN/02/2000 13:51 Delete Copy New Playlist Select All Unselect All Edit Sort No. Title Length 001_JAN/02/2000 13:47 002_JAN/02/2000 13:51 003_JAN/02/2000 14:06 00:01:54 Title List MARKED CHECK EXIT

2 items are selected Do you want to delete? Yes No

Using the Sort (Playlist)

When you need to change the Sort order of Playlist, you can change it simply.

1. While the list menu is displayed, press the GREEN(B) button to select Sort.

2. Press the ▲▼ buttons to select the desired item, then press the OK or ▶ button.

3. Date : In order of when the playlists were created
   • Name : In alphabetical order

- You can sort by Date, Name. Sorted list will be resorted in copied order upon reentering Playlist.

HDD JAN/02/2009 13:47 No. Title Length 001 JAN/02/2009 13:47 00:06:09 002 JAN/02/2009 13:51 00:03:33 003 JAN/02/2009 14:08 00:01:54 PLANLIST JAN/02/2009 13:47 6 Scenes Date Name Edit Sort Title List MARKED CHECK EXIT

COPYING FROM HDD TO DVD OR VICE-VERSA

About the Copy Screen

HDD Selected Items: Source: HDD 001 JAN/01/2009 1 002 JAN/01/2009 1 003 JAN/01/2009 1 TNS Available : 4099MB To : DVD → DVD Start Copy Sort Selection CHECK EXIT ① ② ③ ④ ⑤ ⑥ ⑦

1	Total size and number of selected titles for copying
2	Title to be copied
3	This shows available disc space
4	The location where the copied files are stored
5	Copy start button
6	Sort button (Date, Name, Length, Channel Info)
7	Selection button-Select All: All entries in the current folder will be checked.-Unselect All: All checked entries will be unchecked.

Contents Copy Specifications

Contents	HDD → DVD	DVD → HDD
Recorded Video Title	Supported	Supported
Copy Protected Title	Not supported	Not supported
Copy Once Title	Move(Deletes the Title in the HDD after copying)	Not supported

The Copy is possible only with CPRM-Compatible disc.

Once “Copy Once programme” has been recorded on the DVD disc, this title cannot be copied to HDD anymore.

But “Copy Once programme” has been recorded on the HDD, this title can be copied to DVD-RW(VR mode) or DVD-RAM.

Using the TITLE LIST button

1. Press the OPEN/CLOSE button and place a recordable disc on the disc tray.
2. Press the OPEN/CLOSE button to close the disc tray. Wait until LOAD disappears from the front panel display. Check that the disc has enough available space for the recording.
3. Select a desired mode by pressing the HDD or DVD button on the remote control.

You can also select a desired mode by pressing the HDD/DVD button on the front panel.

1. With the unit in Stop mode/Playback mode, press the TITLE LIST button.
2. Press the COPY button. Copy screen is displayed.

- During Playback, you can also copy the title by pressing the COPY button.

1. Press the ▲▼ buttons to select the title you want to copy, then press the MARKER button until a checkmark appears.

Repeat this step to select an additional title you want to copy.

RDD JAN/01/2009 17:30 PR1 Title List 1/3 No. Title Length 001 JAN/01/2009 17:30 PR 01:00:00 002 JAN/02/2009 21:00 PR 01:00:00 003 JAN/03/2009 23:15 PR 00:30:00 MPEG2 JAN/01/2009 17:30 SP V-Mode Compatibility Edit Sort Go to Contents MARKDOWN CHECK EXIT

HDD Selected Items: Source : HDD 001 JAN/01/2009 1 002 JAN/01/2009 1 003 JAN/01/2009 1 To: DVD → DVD SP CMB Start Copy Sort Selection MARKDOWN CHECK EXIT

- If you don't want to copy a certain one of the checked entries, simply select that entry and press MARKER button to deselect it until the checkmark disappears.

1. Press the RED(A) button to select Start Copy.

2. The title to be copied is not displayed on the screen, and copying begins while the currently broadcasting programme is displayed on the screen.

3. Press the INFO button to view the copy processing bar. If you press INFO button again, copy processing bar will disappear.

4. To cancel the copying in progress, press the RED(A) button.

5. After a successful copy, "The title is successfully copied" message is displayed.

Black and white photo of a dolphin swimming near water, captured with no visible text or symbols.

DVD-Video Copy

1. Press the OPEN/CLOSE button and place a DVD-Video disc on the disc tray.
2. Press the OPEN/CLOSE button to close the disc tray.
3. During the playback, press the COPY button. Copy will be started.

Black-and-white photo of seagulls in flight with a 'DVD → HDD' label overlay (no other text or symbols)

■ The Copy function will be disabled in the following cases :

• If you try to copy in the section of a menu.
• NTSC disc or copy-protected disc
• Titles that are different in the broadcasting system.
• The audio title that is copied to the HDD will be recorded in the 2ch AC3 format.
• For the audio output in DTS mode, the audio source will not be copied.

COPYING MP3, JPEG OR DIVX

Contents Copy Specifications

Contents	HDD → DVD or USB	DVD → HDD or USB	USB → HDD or DVD
MP3	Supported	Supported	Supported
JPEG(photo)	Supported	Supported	Supported
DivX	Supported	Supported	Supported
CD-DA	Not supported	Supported	Not supported

• Disc(CD-R/ CD-DA/ CD-RW/ DVD-RAM/ DVD±R(Finalise)/ DVD+RW/ DVD-RW(Finalise)) → HDD or USB
  • HDD → DVD-R, DVD-RW(V) or USB
• USB → HDD or DVD-R, DVD-RW(V)
• PTP USB is not available when you copy to USB.
• If the disc is finalised through Disc Manager, it can be compatible with PC as a disc with a UDF file system.

File Copy

1. Insert a JPEG disc, MP3 disc or DivX disc into the disc tray.
2. Press the OPEN/CLOSE button to close the disc tray. Wait until LOAD disappears from the front panel display. Check that the disc has enough available space for the recording.
3. Press the ▲▼ buttons to select Library, then press the OK or ▶ button.
4. Press the ▲▼ buttons to select Music, Photo or DivX, then press the OK or ▶ button.
5. Press the COPY button. Copy screen is displayed.

CD Selected Items: 5.85MB (1) Available : Source: DVD ROOT 001 Song 10.mp3 002 Song 1.mp3 003 Song 2.mp3 004 Song 3.mp3 005 Song 4.mp3 To: HDD USB MP3 5.85MB Start Copy Sort Select All Unselect All MARKDOWN CHECK EXIT

1. Press the ▲▼ buttons to select the MP3, Photo or DivX file you want to copy, then press the MARKER button until a checkmark appears.

- If you don't want to copy a certain one of the checked entries, simply select that entry and press the MARKER button to deselect it until the checkmark disappears.

1. Press the ▶▲▼ buttons to select the target media, then press the OK button.

- You can create a new folder by pressing the GREEN(B) button.

1. Press the RED(A) button to select Start Copy.

The message "Number of file : x" is displayed.

1. Press the ◀▶ buttons to select Start, then press the OK button. File copy begins.

- To cancel the copying in progress, press the EXIT (💡) button.

CD Copy Items: 9.68MB (2) Available : 236724MB Source : DVD ROOT 001 Song 10.mp3 003 Song 2.mp3 004 Song 3.mp3 005 Song 4.mp3 To : HDD → ROOT MP3 15MB Start Copy New Folder -EXIT

CD Selected Items: 9.68MB (2) Available : 236724MB Number of file : 2 Start EXIT 005 Song 4.mp3 Start Copy New Folder Rename -EXIT

CD Selected items: 9.68MB (2) Available : 236724MB Copy Copying... Free space : 236623 MB Number of file : 1 / 2 File Name : Song 1.mp3 33% 005 Song 4.mp3 Start Copy New Folder Rename -EXIT

Folder Copy

1. Insert a Disc (JPEG, MP3 or DivX) into the tray.
2. Press the ▲▼ buttons to select Library, then press the OK or ▶ button.
3. Press the ▲▼ buttons to select Music, Photo or DivX then press the OK or ▶ button.

MP3, JPEG or DivX folder is displayed.

1. Press the COPY button. Copy screen is displayed.
2. Press the ▲▼ buttons to select the folder you want to copy, then press MARKER button until a checkmark appears.

- If you don't want to copy a certain one of the checked folders, simply select that entry and press MARKER button to deselect it until the checkmark disappears.

1. Press the ▶▲▼ buttons to select the target media, then press the OK button.

- You can create a new folder by pressing the GREEN(B) button.

1. Press the RED(A) button to select Start Copy.

The message "Number of file : x" is displayed.

1. Press the ◀▶ buttons to select Start, then press the OK button. Folder copy begins.

Subfolders and files in the selected folder are copied.

- To cancel the copying in progress, press the EXIT (☐) button.

CD Selected Items: 76.8MB (2) Source : DVD ROOT MP3 (1) MP3 (2) MP3 (3) Available : 236715MB To: HDD USB A Start Copy Sort Select All Unselect All MARKDOWN CHECK -O XDT

CD Selected Items: 76.8MB (2) Source : DVD MP3 36.8MB Copy Available : 236715MB To : HDD → ROOT Start Copy New Folder -< - >XOT

CD Selected Items: 76.8MB (2) Available : 236715MB Number of file : 24 Start EXIT Start Copy New Folder -< - >X0T

• Pressing the EXIT (☐) button during folder copying will cancel the folder copying after the current file is copied.
• You can copy up to 500 files or 500 sub folders to one folder. [MP3, JPEG, DivX]
  If you want to copy a file, you should create a new folder before starting a copy.

You cannot copy to top-level(ROOT) folder directly without creating a new folder.

If the top-level (ROOT) folder has had already 500 folders, you should delete one or more items before you can create a new folder.
- File size on a disc and the copied file in the HDD may be slightly different due to the file system.
If you check some entries in the current folder and move to open a different folder, those entries are automatically unchecked and excluded from the selection list.

CD Selected Items: 76.8MB (2) Available : 236715MB Copying... Free space : 236615 MB Number of file : 1 / 24 File Name : 01.### ## 1.mp3 33% Start Copy New Folder - EXIT

CHANGING THE NAME OF MUSIC/PHOTO/DIVX FILE

You can rename a Music, Photo or DivX file copied to HDD.

1. Press the ▲▼ buttons to select the entry you want to rename, then press the RED(A) button.
2. Press the ▲▼ buttons to select Rename, then press the OK or ▶ button.

Rename Screen is displayed.

1. Select the desired characters using the ▲▼◀▶ buttons, then press the OK button.

2. Back Space (RED(A) button): Deletes and moves the cursor backwards by one position.

3. Space (GREEN(B) button): Enters a blank and moves the cursor one forward (to the right).
4. Clear (YELLOW(C) button): Deletes all the character inputs.

5. Save (BLUE(D) button): Registers the character inputs.

6. Press the BLUE(D) button to select Save.

The changed file name is displayed on the selected entry.

HDD Song 1.mp3 Music List Copy New Playlist Go To Playlist Select All Delete Rename No. Title Size RDOT 001 Song 1.mp3 3.8 MB 002 Song 2.mp3 3.8 MB 003 Song 3.mp3 5.1 MB 004 Song 4.mp3 9.2 MB 005 Song 5.mp3 5.2 MB 006 Song 6.mp3 10.3 MB Edit Sort Play Mode D Comets M/M PREVIOUS/NEXT PAGE MARKDOWN CHECK -EXIT

DREAM A B C D E F G H I J K L M N O P Q R S T U V W X Y Z a b c d e f g h i J k l m n o p q r s t u v w x y z 1 2 3 4 5 6 7 8 9 0 ... + - . ~ ! @ $ % & ( ) Back Space Space Clear Save MOVE SELECT RETURN EXIT

RDD Dream.mp3 1/9 No. Title Size ROOT Dream.mp3 3.8 MB 002 Song 2.mp3 3.8 MB 003 Song 3.mp3 5.1 MB 004 Song 4.mp3 9.2 MB 005 Song 5.mp3 5.2 MB 006 Song 6.mp3 10.3 MB Edit Sort Play Mode Contents http://www.PREVIOUS/NEXT PAGE MARKET CHECK EXIT

Editing the Disc Name

Follow these instructions to give a name to a disc.

1. With the unit in Stop mode, press the MENU button.
2. Press the ▲▼ buttons to select Disc Manager, then press the OK or ▶ button.
3. Press the ◀▶ buttons to select Rename, then press the OK button. The Rename screen is displayed.
4. Select the desired characters using the ▲▼◀▶ buttons, then press the OK button.
5. Press the BLUE(D) button to select Save. A disc name is given to the disc.

■ You may need to clear Disc Protection beginning editing.
■ Depending on the kind of disc, the displayed screen may be different.

DVD-RAM(VIR) Disc Manager Disc Name: DVD-VR Used Space: 00.17 ( 0.52 GB ) Available Space: 01.54 SP ( 3.85 GB ) Disc Protection Info Not Protected Current Rec. Mode: VR-Mode Rename Protection Delete All Format MOVE SELECT RETURN < OUT>

DVD-RAM(VR) DISC-1 _ A B C D E F G H I J K L M N O P Q R S T U V W X Y Z a b c d e f g h i j k l m n o p q r s t u v w x y z 1 2 3 4 5 6 7 8 9 0 + - - 1 @ # $ % & ( ) Back Space Space Clear Save MOVE SELECT RETURN -DOT

Disc Protection

Disc Protection allows you to protect your discs from being formatted or deleted due to unintended operations.

1. With the unit in Stop mode, press the MENU button.
2. Press the ▲▼ buttons to select Disc Manager, then press the OK or ▶ button.
3. Press the ◀▶ buttons to select Protection, then press the OK button.
4. Press the ◀▶ buttons to select On, then press the OK button.

DVD-RAM(VR) Disc Manager Disc Name: DVD-VR Used Space: 08.17 ( 0.52 GB ) Available Space: $1.54 SP ( 3.85 GB ) Disc Protection Info Current Rec. Mode: Not Protected VR-Mode Rename Protection Delete All Format MOVE SELECT RETURN EXIT

DVD-RAM(VR) Disc Manager Disc Name: DVD-VR Disc Protection: On Off Rename Protection Delete All Format MOVE SELECT RETURN -EXIT

1. With the unit in Stop mode, press the MENU button.
2. Press the ▲▼ buttons to select Disc Manager, then press the OK or ▶ button.

3. Press the ▲▼◀▶ buttons to select Delete All, then press the OK button.

4. You will be prompted with the confirmation message "Do you want to delete all title lists?".

5. When Protected Entry exists: The Delete All Title List function will not operate. If there is a title containing a still picture, however, that function will not operate.

If you want to delete a protected entry, disable Protect for it on the Lock item.

• When protected a DVD-RAM/-RW is used, data cannot be deleted from a disc.

• If you select Yes, you will be prompted with the confirmation message "All playlists will also be deleted. Do you want to continue?".

• Press the ◀▶ buttons to select Yes, then press the OK button. All title lists are deleted.

DVD-RAM(VR) Disc Manager Disc Name: DVD-VI Used Space: 60.17 ( 0.52 (8)) Available Space: $1.54 SP ( 3.85 (8)) Disc Protection Info Not Protected Current Rec. Mode: VII-Mode Rename Protection Delete All Format +→ MOVE SELECT RETURN EXIT

DVD-RAM(VR) Disc Manager Disc Name DVD-VR Do you want to delete all title lists? Yes No Rename Protection Delete All Format MOVE SELECT RETURN EXIT

Delete All Title Lists/DivX Lists /Music Lists/Photo Lists

1. With the unit in Stop mode, press the MENU button.
2. Press the ▲▼ buttons to select Disc Manager, then press the OK or ▶ button.
3. Press the ◀▶ buttons to select Delete, then press the OK button.

- When Protected Entry exists: The Delete All Title List function will not operate. If there is a title containing a still picture, however, that function will not operate. If you want to delete a protected entry, disable Protect for it on the Lock item.

1. Press the ◀▶ buttons to select the Title, DivX, Music or Photo, then press the OK button.
2. Press the ◀▶ buttons to select Yes, then press the OK button. All title lists, DivX lists, music lists or photo lists are deleted.

HDD Disc Manager Used Space 920.10 (-1.68 GB) Available Space 925.10 XP (231.61 GB) Delete Format MOVE SELECT RETURN -EXIT

Select contents to delete all Title DivX Music Photo Delete Format MOVE SELECT RETURN EXIT
