PS50C490B3W - TV SAMSUNG - Free user manual and instructions

Product Type	Plasma TV
Brand	Samsung
Model	PS50C490B3W
Screen Size	50 inches (127 cm)
Display Resolution	1360 x 768 pixels
Dimensions (without stand)	1202.5 x 69.5 x 720.5 mm
Dimensions (with stand)	1202.5 x 302.8 x 720.2 mm
Weight (without stand)	23.5 kg
Weight (with stand)	25.5 kg
Connectivity	HDMI (x3), Component, Scart, PC (D-Sub), USB, Peritel, Optical Audio Output
TV System	Analog PAL/SECAM/NTSC, Digital DVB-T/DVB-C
Sound	2 x 10W, SRS TruSurround HD, SRS TruDialog
Main Features	Media Play (USB), 3D, Anynet+ (HDMI-CEC), PIP, Timer, Parental Lock
Eco-Energy	Eco Mode, Eco Sensor, Auto Power Off if no signal
Care and Cleaning	Clean with a soft, dry cloth. Do not use chemical products.
Safety	Wall mount recommended, avoid falls, do not touch hot surface
Spare Parts and Repairability	Contact Samsung customer service for original parts. Use VESA M8 screws for wall mounting.
General Information	Manufactured under Dolby license. Free software included. Operating temperature 10°C to 40°C.

Frequently Asked Questions - PS50C490B3W SAMSUNG

How to prevent burn-in (image retention) on my Samsung plasma TV?

Avoid displaying static images (games, logos) for more than two hours. Reduce contrast and brightness. Use the Burn-in Protection function in the Picture menu. If retention occurs, activate Scrolling in the same menu for about an hour.

The remote control doesn't work, what should I do?

Check the battery polarity (AAA). Point the remote at the sensor from 1.5 to 1.8 meters. Clean the lens. Avoid intense fluorescent lights. If the problem persists, test with the TV buttons.

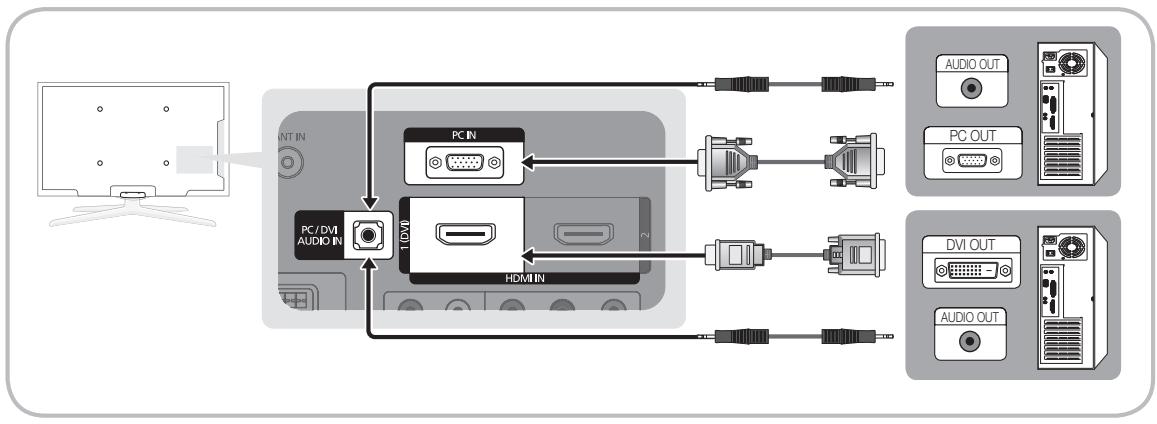

How to connect a computer to the PS50C490B3W TV?

Use an HDMI cable (HDMI IN 1(DVI) port) or a D-Sub cable (PC IN) with a separate audio cable (PC/DVI AUDIO IN). The optimal resolution is 1360 x 768 at 60 Hz. Set the source to PC in the Input menu.

Why do I have no sound with my HDMI connection?

Ensure the source device is HDMI 1.3 or higher compatible. Check that the HDMI cable is certified. If using a DVI-HDMI adapter, sound does not pass through HDMI; use the PC/DVI AUDIO IN jack.

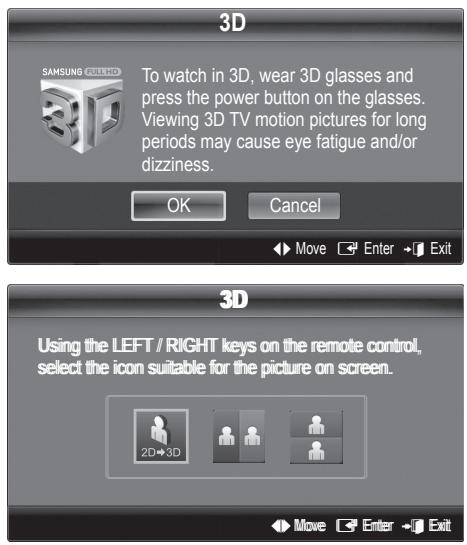

How to watch 3D television?

You need to purchase Samsung active 3D glasses (models SSG-2100AB, SSG-2200AR or SSG-2200KR). Turn on the glasses, then press the 3D button on the remote. Select the 3D mode suitable for the source (e.g., Side-by-side). Viewing distance: at least 3 times the screen height.

The TV makes a buzzing sound, is this normal?

Yes, a slight buzz is normal for plasma screens. It is caused by electrical charges. If the noise is loud, reduce brightness or move the TV away from the wall. Also check the connection cables.

How to reset the PIN code if I forgot it?

Turn off the TV with the POWER button. Press on the remote in order: MUTE → 8 → 2 → 4 → POWER (turn on). The PIN code is reset to 0-0-0-0.

Can I use an external USB hard drive with Media Play?

Yes, as long as it is formatted FAT16, FAT32 or NTFS. Connect it to the USB port. Media Play plays photos, music and videos. Note: drives requiring more than 500 mA may not be recognized. Back up your data before use.

How to perform a software update?

You can update via a USB stick: download the file from www.samsung.com, place it on a stick, insert it into the USB port, go to Support → Software Update → USB. You can also use the broadcast (Channel) if available.

The TV turns off by itself after a few minutes, why?

Check the sleep timer (Setup → Time → Sleep Timer) and set it to Off. If the problem persists, check the Auto Power Off when no signal function in the Picture menu. Ensure the power cord is properly plugged in.

USER MANUAL PS50C490B3W SAMSUNG

If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care centre.

Country	Customer Care Centre	Web Site
AUSTRIA	0810 - SAMSUNG (7267864, € 0.07/min)	www.samsung.com/at
BELGIUM	02-201-24-18	www.samsung.com/be (Dutch)www.samsung.com/be_fr (French)
CZECH	800 - SAMSUNG (800-726786)	www.samsung.com/cz
	Samsung Zrt., česká organizační složka, Oasis Florenc, Sokolovská394/17, 180 00, Praha 8
DENMARK	70 70 19 70	www.samsung.com/dk
FINLAND	030 - 6227 515	www.samsung.com/fi
FRANCE	01 48 63 00 00	www.samsung.com/fr
GERMANY	01805 - SAMSUNG (726-7864 € 0,14/Min)	www.samsung.de
HUNGARY	06-80-SAMSUNG (726-7864)	www.samsung.com/hu
ITALIA	800-SAMSUNG (726-7864)	www.samsung.com/it
LUXEMBURG	261 03 710	www.samsung.com/lu
NETHERLANDS	0900-SAMSUNG (0900-7267864) (€ 0,10/Min)	www.samsung.com/nl
NORWAY	815-56 480	www.samsung.com/no
POLAND	0 801 1SAMSUNG (172678)022-607-93-33	www.samsung.com/pl
PORTUGAL	80820-SAMSUNG (726-7864)	www.samsung.com/pt
SLOVAKIA	0800-SAMSUNG (726-7864)	www.samsung.com/sk
SPAIN	902 - 1 - SAMSUNG (902 172 678)	www.samsung.com/es
SWEDEN	0771 726 7864 (SAMSUNG)	www.samsung.com/se
TURKEY	444 77 11	www.samsung.com/tr
U.K	0845 SAMSUNG (7267864)	www.samsung.com/uk
EIRE	0818 717100	www.samsung.com/ie
SWITZERLAND	0848 - SAMSUNG (7267864, CHF 0.08/min)	www.samsung.com/chwww.samsung.com/ch_fr/(French)
LITHUANIA	8-800-77777	www.samsung.com/lt
LATVIA	8000-7267	www.samsung.com/lv
ESTONIA	800-7267	www.samsung.com/ee

imagine the possibilities

Thank you for purchasing this Samsung product.

To receive more complete service, please register your product at

www.samsung.com/register

Model ____ Serial No. ____

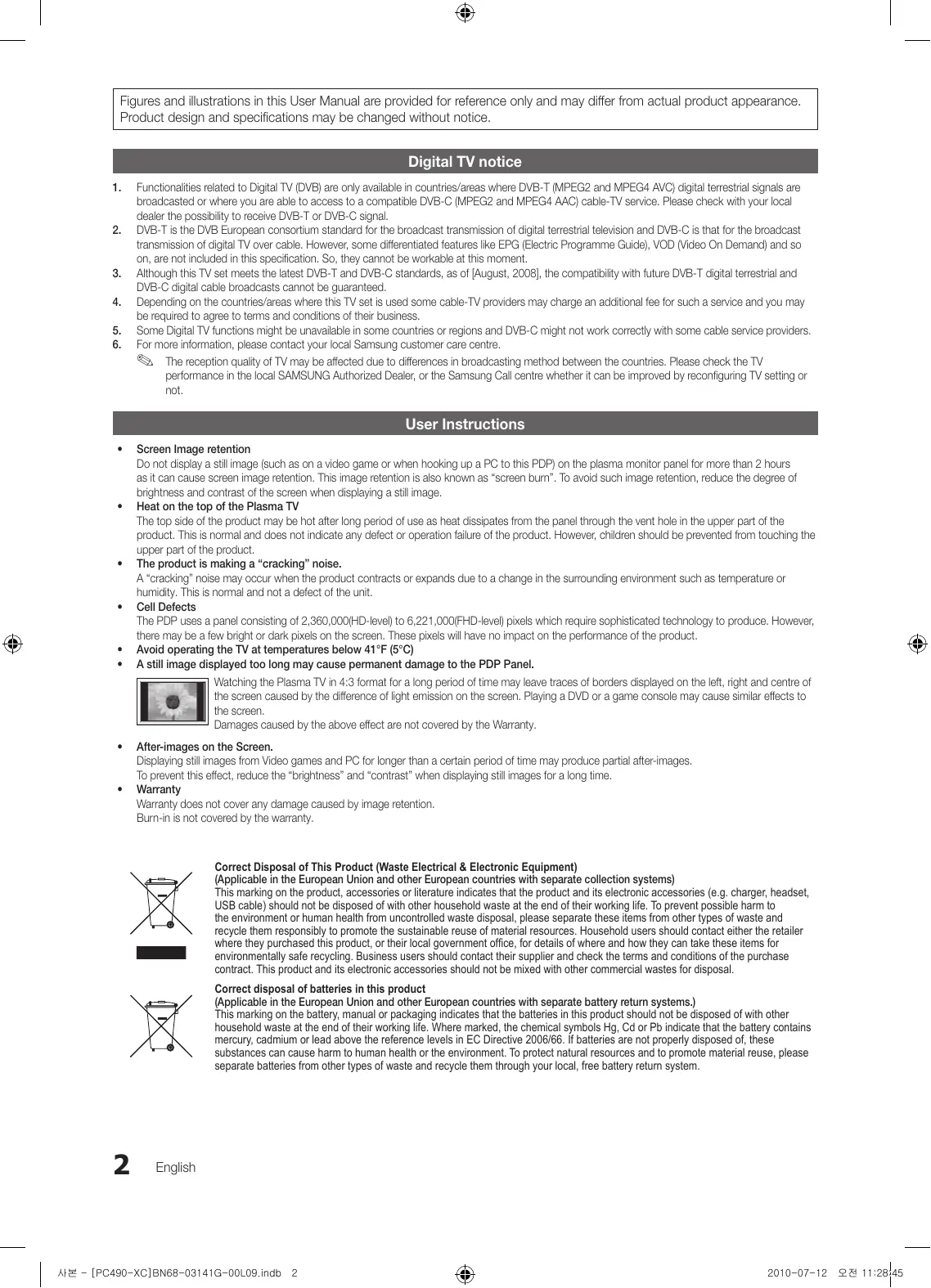

Figures and illustrations in this User Manual are provided for reference only and may differ from actual product appearance. Product design and specifications may be changed without notice.

Digital TV notice

1. Functionalities related to Digital TV (DVB) are only available in countries/areas where DVB-T (MPEG2 and MPEG4 AVC) digital terrestrial signals are broadcasted or where you are able to access to a compatible DVB-C (MPEG2 and MPEG4 AAC) cable-TV service. Please check with your local dealer the possibility to receive DVB-T or DVB-C signal.
2. DVB-T is the DVB European consortium standard for the broadcast transmission of digital terrestrial television and DVB-C is that for the broadcast transmission of digital TV over cable. However, some differentiated features like EPG (Electric Programme Guide), VOD (Video On Demand) and so on, are not included in this specification. So, they cannot be workable at this moment.
3. Although this TV set meets the latest DVB-T and DVB-C standards, as of [August, 2008], the compatibility with future DVB-T digital terrestrial and DVB-C digital cable broadcasts cannot be guaranteed.
4. Depending on the countries/areas where this TV set is used some cable-TV providers may charge an additional fee for such a service and you may be required to agree to terms and conditions of their business.
5. Some Digital TV functions might be unavailable in some countries or regions and DVB-C might not work correctly with some cable service providers.
6. For more information, please contact your local Samsung customer care centre.
   The reception quality of TV may be affected due to differences in broadcasting method between the countries. Please check the TV performance in the local SAMSUNG Authorized Dealer, or the Samsung Call centre whether it can be improved by reconfiguring TV setting or not.

User Instructions

• Screen Image retention
Do not display a still image (such as on a video game or when hooking up a PC to this PDP) on the plasma monitor panel for more than 2 hours as it can cause screen image retention. This image retention is also known as “screen burn”. To avoid such image retention, reduce the degree of brightness and contrast of the screen when displaying a still image.
• Heat on the top of the Plasma TV
The top side of the product may be hot after long period of use as heat dissipates from the panel through the vent hole in the upper part of the product. This is normal and does not indicate any defect or operation failure of the product. However, children should be prevented from touching the upper part of the product.
- The product is making a “cracking” noise.
A “cracking” noise may occur when the product contracts or expands due to a change in the surrounding environment such as temperature or humidity. This is normal and not a defect of the unit.
- Cell Defects
The PDP uses a panel consisting of 2,360,000(HD-level) to 6,221,000(FHD-level) pixels which require sophisticated technology to produce. However, there may be a few bright or dark pixels on the screen. These pixels will have no impact on the performance of the product.
- Avoid operating the TV at temperatures below 41°F (5°C)
- A still image displayed too long may cause permanent damage to the PDP Panel.

Watching the Plasma TV in 4:3 format for a long period of time may leave traces of borders displayed on the left, right and centre of the screen caused by the difference of light emission on the screen. Playing a DVD or a game console may cause similar effects to the screen.

Damages caused by the above effect are not covered by the Warranty.

• After-images on the Screen.

Displaying still images from Video games and PC for longer than a certain period of time may produce partial after-images.

To prevent this effect, reduce the “brightness” and “contrast” when displaying still images for a long time.

- Warranty

Warranty does not cover any damage caused by image retention.

Burn-in is not covered by the warranty.

Correct Disposal of This Product (Waste Electrical & Electronic Equipment)

(Applicable in the European Union and other European countries with separate collection systems)

This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take these items for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal.

Correct disposal of batteries in this product

(Applicable in the European Union and other European countries with separate battery return systems.)

This marking on the battery, manual or packaging indicates that the batteries in this product should not be disposed of with other household waste at the end of their working life. Where marked, the chemical symbols Hg, Cd or Pb indicate that the battery contains mercury, cadmium or lead above the reference levels in EC Directive 2006/66. If batteries are not properly disposed of, these substances can cause harm to human health or the environment. To protect natural resources and to promote material reuse, please separate batteries from other types of waste and recycle them through your local, free battery return system.

Contents

Getting Started

4

4 Accessories

5 Viewing the Control Panel

6 Viewing the Remote Control

7 Connecting to an Antenna

7 Plug & Play (Initial Setup)

8 Connecting to an AV Device

9 Connecting to an Audio Device

10 Changing the Input Source

Connections

8

10 How to Navigate Menus

11 Using the INFO button (Now & Next guide)

11 Planning Your Viewing

12 Channel Menu

14 Picture Menu

19 Sound Menu

21 Setup Menu

23 Support Menu

Basic Features

10

25 Connecting to a PC

26 Media Play

32 Anynet+

Advanced Features

25

Other Information

35

35 Analogue Channel Teletext Feature

36 Installing the Wall Mount

37 Securing the TV to the wall

38 Troubleshooting

41 Specifications

42 Securing the Installation Space

43 Index

Check the Symbol!

TOOLS

This function can be used by pressing the TOOLS button on the remote control.

Note

Indicates additional information.

One -Touch Button

Check here for instructions on how to open the relevant submenu within the OSD (on screen display).

Accessories

Please make sure the following items are included with your PDP TV. If any items are missing, contact your dealer.
The items' colours and shapes may vary depending on the models.
Cables not included in the package contents can be purchased separately.
⚠️ Do not insert your fingers into the stand base slot of the TV when installing the stand base.

• Remote Control & Batteries (AAA x 2)
- Owner's Instructions
- Warranty Card / Safety Guide (Not available in some locations)
ons)

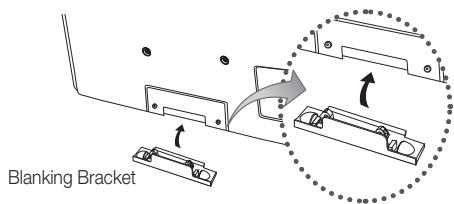

- Blanking Bracket

• Cleaning Cloth
• Power Cord

- Ferrite Core (1EA)
(depending on the country)

See separate guide for installing the stand.

Technical line drawing of a four-blade fan or propeller with a central hub (no text or symbols)

• Stand (1EA)

• Guide Stand (1EA)

4EA (M4 X L10)

4EA (M4 X L12)
- Screws (8EA)

Ferrite Core: The ferrite cores are used to shield the cables from interference. When connecting a cable, open the ferrite core and clip it around the cable near the plug as shown in the figure.

- Distance between the ferrite core and one end of the cord put into the TV set

- A: below 50 mm

• B : 100 \~ 150 mm (Switzerland only)

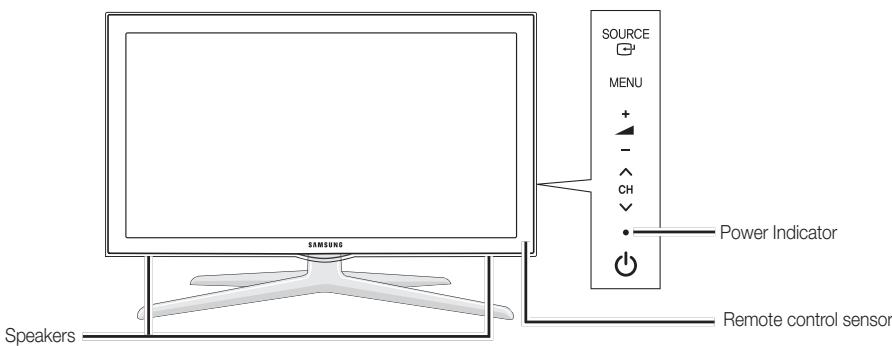

Viewing the Control Panel

The product colour and shape may vary depending on the model.

SOURCE	Toggles between all the available input sources. In the on-screen menu, use this button as you would use the ENTER button on the remote control.
MENU	Displays an on-screen menu, the OSD (on screen display) of your TV's features.
-▲+	Adjusts the volume. In the OSD, use the -▲+ buttons as you would use the◀ and ▶ buttons on the remote control.
∨CH^	Changes the channels. In the OSD, use the ∨CH^ buttons as you would use the▼ and ▲ buttons on the remote control.
Power Indicator	Blinks and turns off when the power is on and lights up in standby mode.
○(Power)	Turns the TV on or off.
Remote control sensor	Aim the remote control towards this spot on the TV.

Standby mode

Do not leave your TV in standby mode for long periods of time (when you are away on a holiday, for example). A small amount of electric power is still consumed even when the power button is turned off. It is best to unplug the power cord.

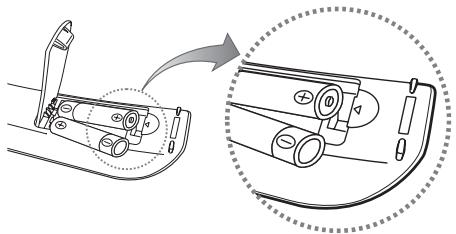

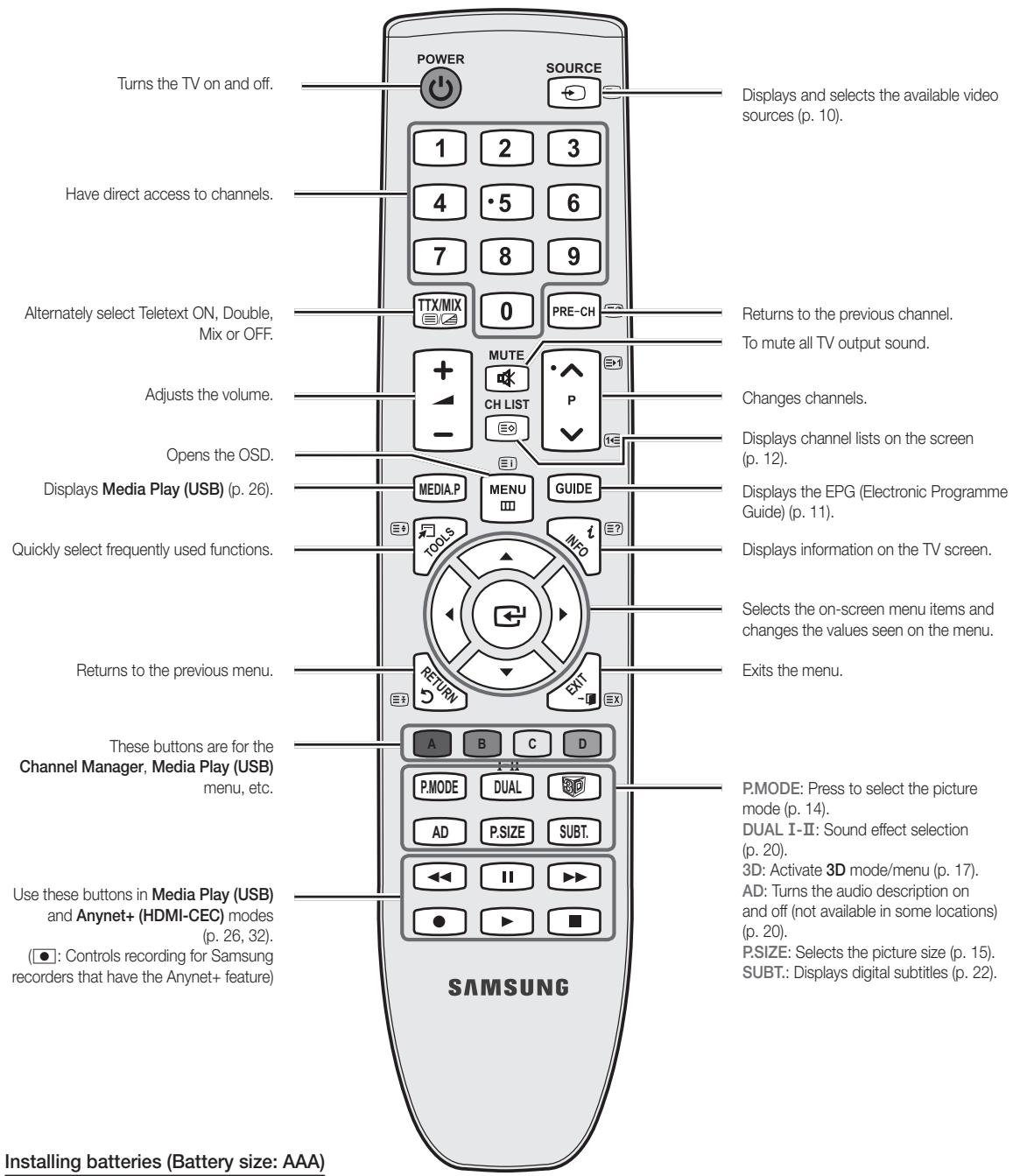

Viewing the Remote Control

Technical illustration of a mechanical assembly with a magnified inset showing internal components (no text or symbols)

NOTE

• Use the remote control within 23 feet from TV.
• Bright light may affect the performance of the remote control. Avoid using nearby special fluorescent light or neon sign.
• The colour and shape may vary depending on the model.

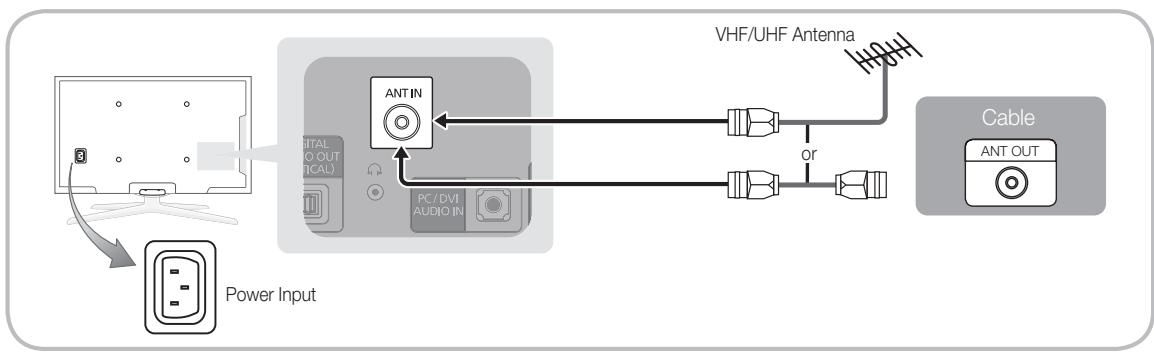

Connecting to an Antenna

When the TV is initially powered on, basic settings proceed automatically.

Preset: Connecting the power cord and antenna.
The PDP device may interfere with an amateur radio or AM radio.

Plug & Play (Initial Setup)

When the TV is initially powered on, a sequence of on-screen prompts will assist in configuring basic settings. Press the POWER ⏻ button. Plug & Play is available only when the Input source is set to TV.

To return to the previous step, press the Red button.

1	Selecting a language	Press the ▲ or ▼ button, then press the ENTER button.Select the desired OSD (On Screen Display) language.
2	Selecting Store Demo or Home Use	Press the ◀ or ▶ button, then press the ENTER button.Select the Home Use mode. Store Demo mode is for retail environments.To return the unit's settings from Store Demo to Home Use(standard): Press the volume button on the TV. When you see the volume OSD, press and hold MENU for 5 sec.
3	Selecting a country	Press the ▲ or ▼ button, then press the ENTER button.Select the appropriate country. If the desired country does not exist on the menu, select Others.After selecting the country in the Country menu, some models may proceed with an additional option to setup the pin number.When you input the PIN number, "0-0-0-0" is not available.
4	Selecting an antenna	Press the ▲ or ▼ button, then press the ENTER button.Select Air or Cable.
5	Selecting a channel	Press the ▲ or ▼ button, then press the ENTER button.Select the channel source to memorise. When setting the antenna source to Cable, a step appears allowing you to assign numerical values (channel frequencies) to the channels. For more information, refer to Channel → Auto Store (p. 12).Press the ENTER button at any time to interrupt the memorisation process.
6	Setting the Clock Mode	Set the Clock Mode automatically or manually.Press the ▲ or ▼ button to select Auto, then press the ENTER button.
7	Time Zone	Press the ▲ or ▼ button to select the your time zone, then press the ENTER button (depending on the country).
8	Viewing the HD Connection Guide.	The connection method for the best HD screen quality is displayed.
9	Enjoy your TV.	Press the ENTER button.

If You Want to Reset This Feature...

Select Setup - Plug & Play (Initial Setup). Enter your 4 digit PIN number. The default PIN number is "0-0-0-0." If you want to change the PIN number, use the Change PIN function.

Connecting to an AV Device

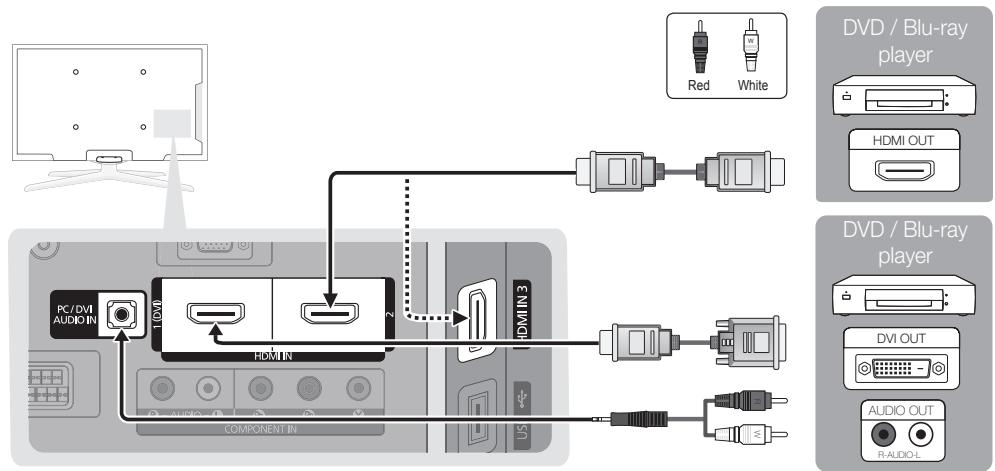

Using an HDMI or HDMI/DVI cable: HD connection (up to 720p/1080i)

Available devices: DVD, Blu-ray player, HD cable box, HD STB (Set-Top-Box) satellite receiver, cable box, STB satellite receiver

    style A fill:#f9f,stroke:#333
    style B fill:#ccf,stroke:#333
    style C fill:#cfc,stroke:#333
    style D fill:#fcc,stroke:#333
    style E fill:#cff,stroke:#333
    style F fill:#ffc,stroke:#333
    style G fill:#cfc,stroke:#333
    style H fill:#fcc,stroke:#333
    style I fill:#cfc,stroke:#333
    style J fill:#fcc,stroke:#333

    subgraph "DVD / Blu-ray player"
        K1["DVI OUT"]
        K2["DVI OUT"]
        K3["AUDIO OUT"]
    end

    subgraph "DVD / Blu-ray player"
        L1["DVI OUT"]
        M1["AUDIO OUT"]
    end

HDMI IN 1(DVI), 2, 3, PC/DVI AUDIO IN

• When using an HDMI/DVI cable connection, you must use the HDMI IN 1(DVI) jack. For the DVI cable connection, use a DVI to HDMI cable or DVI-HDMI (DVI to HDMI) adapter for video connection and the PC/DVI AUDIO IN jacks for audio.
• If an external device such as a DVD / Blu-ray player / cable box / STB satellite receiver supporting a HDMI versions older than 1.3 is connected, the TV may operate abnormally (e.g. no screen display / no sound / annoying flicker / abnormal colour).
• If there is no sound after connecting an HDMI cable, check the HDMI version of the external device. If you suspect the version is older than 1.3, contact the provider of the device to confirm the HDMI version and request an upgrade.
• It is recommended you purchase an HDMI-certified cable. Otherwise, the screen may appear blank or a connection error may occur.

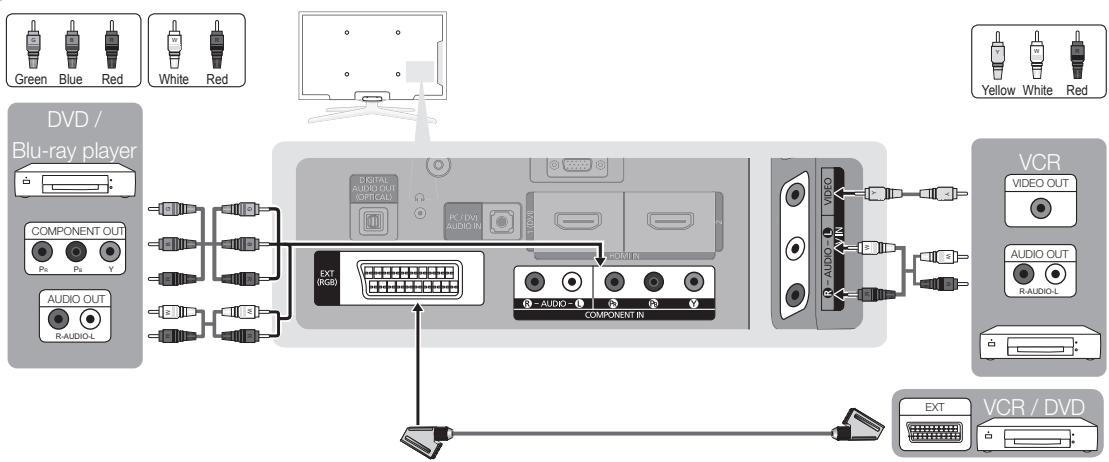

Using a Component (up to 720p/1080i) or Audio/Video (480i only) and Scart Cable

Available devices: DVD, Blu-ray player, cable box, STB satellite receiver, VCR

In Ext. mode, DTV Out supports MPEG SD Video and Audio only.

To obtain the best picture quality, the Component connection is recommended over the A/V connection.

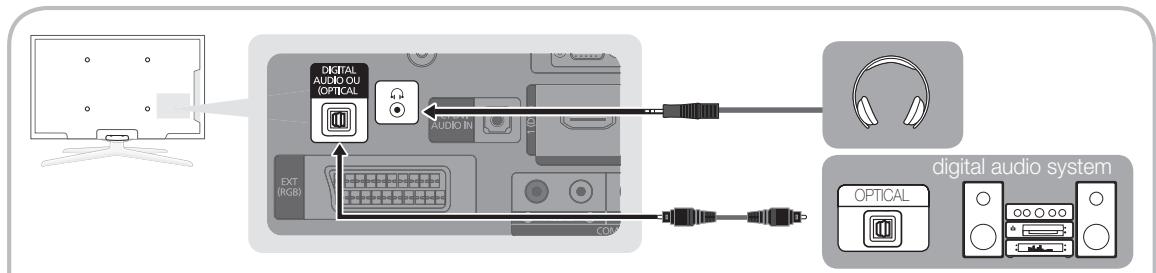

Using an Optical (Digital) or Headphone Connection

Available devices: digital audio system, amplifier, DVD home theatre

DIGITAL AUDIO OUT (OPTICAL)

• When a Digital Audio System is connected to the DIGITAL AUDIO OUT (OPTICAL) jack, decrease the volume of both the TV and the system.
• 5.1 CH (channel) audio is available when the TV is connected to an external device supporting 5.1 CH.
• When the receiver (amplifier or DVD home theatre) is set to on, you can hear sound output from the TV's optical jack. When the TV is receiving a DTV signal, the TV will send 5.1 CH sound to the amplifier or DVD home theatre. When the source is a digital component such as a DVD / Blu-ray player / cable box / STB (Set-Top-Box) satellite receiver and is connected to the TV via HDMI, only 2 CH audio will be heard from the amplifier or DVD home theatre. If you want to hear 5.1 CH audio, connect the digital audio out jack from your DVD / Blu-ray player / cable box / STB satellite receiver directly to an amplifier or home theatre.

Headphones Ⓜ: You can connect your headphones to the headphones output on your set. While the headphones are connected, the sound from the built-in speakers will be disabled.

• Sound function may be restricted when connecting headphones to the TV.
  • Headphone volume and TV volume are adjusted separately.

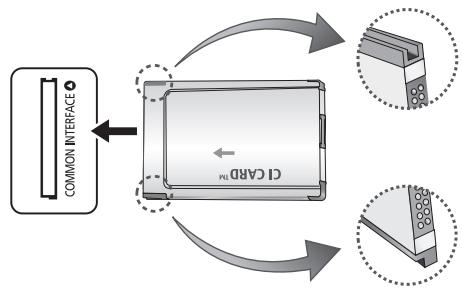

CONNECTIONS COMMON INTERFACE Slot

To watch paid channels, the "CI or CI+ CARD" must be inserted.

• If you don't insert the "CI or CI+ CARD", some channels will display the message "Scrambled Signal".
• The pairing information containing a telephone number, the “CI or CI+ CARD” ID the Host ID and other information will be displayed in about 2\~3 minutes. If an error message is displayed, please contact your service provider.
• When the configuration of channel information has finished, the message “Updating Completed” is displayed, indicating the channel list is updated.

NOTE

• You must obtain a "CI or CI+ CARD" from a local cable service provider.
• When removing the “CI or CI+ CARD”, carefully pull it out with your hands since dropping the “CI (CI+) CARD” may cause damage to it.
• Insert the "CI or CI+ CARD" in the direction marked on the card.
• The location of the COMMON INTERFACE slot may be different depending on the model.
• “CI or CI+ CARD” is not supported in some countries and regions; check with your authorized dealer.
• If you have any problems, please contact a service provider.
• Insert the “CI or CI+ CARD” that supports the current antenna settings. The screen will be distorted or will not be seen.

Changing the Input Source

Source List

Use to select TV or an external input sources such as a DVD / Blu-ray player / cable box / STB satellite receiver.

■ TV / Ext. / AV / Component / PC / HDMI1/DVI / HDMI2 / HDMI3 / USB

In the Source List, connected inputs will be highlighted.

Ext. and PC always stay activated.

Basic Features

How to Navigate Menus

Before using the TV, follow the steps below to learn how to navigate the menu and select and adjust different functions.


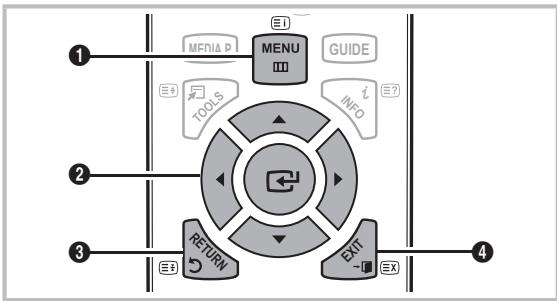

① MENU button: Displays the main on-screen menu.
2 ENTER / Direction button: Move the cursor and select an item. Confirm the setting.
3 RETURN button: Returns to the previous menu.
4 EXIT button: Exits the on-screen menu.

Edit Name

VCR / DVD / Cable STB / Satellite STB / PVR STB / AV Receiver / Game / Camcorder / PC / DVI PC / DVI Devices / TV / IPTV / Blu-ray / HD DVD / DMA: Name the device connected to the input jacks to make your input source selection easier.

When connecting an HDMI/DVI cable to the HDMI IN 1(DVI) port, you should set to DVI PC or DVI Devices mode under Edit Name.
If an HDMI cable is connected to the HDMI IN 1(DVI) port, the audio may not work. In this case, connect to the PC/DVI AUDIO IN port.

How to Operate the OSD (On Screen Display)

The access step may differ depending on the selected menu.

1	MENU	The main menu options appear on the screen:Picture, Sound, Channel, Setup, Input, Application, Support.
2	▲ / ▼	Select an icon with the ▲ or ▼ button.
3	ENTER	Press ENTER to access the sub-menu.
4	▲ / ▼	Select the desired submenu with the ▲ or ▼ button.
5	◀ / ▶	Adjust the value of an item with the ◀ or ▶ button. The adjustment in the OSD may differ depending on the selected menu.
6	ENTER	Press ENTER to complete the configuration.
7	EXIT →	Press EXIT.

Using the INFO button (Now & Next guide)

The display identifies the current channel and the status of certain audio-video settings.

The Now & Next guide shows daily TV programme information for each channel according to the broadcasting time.

• Scroll ◀, ▶ to view information for a desired programme while watching the current channel.
• Scroll ▲, ▼ to view information for other channels. If you want to move to the currently selected channel, press the ENTER button.

Planning Your Viewing

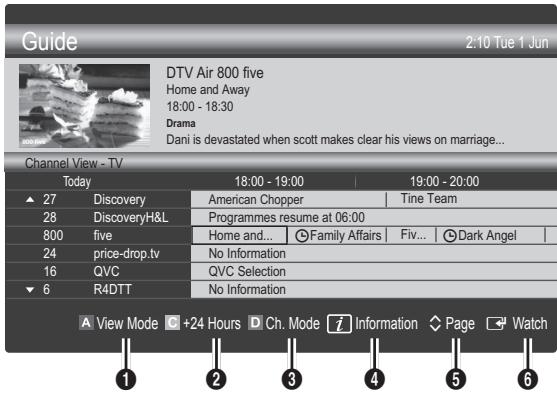

Guide

The EPG (Electronic Programme Guide) information is provided by broadcasters. Using programme schedules provided by broadcasters, you can specify programmes you want to watch in advance so that the channel automatically changes to the selected programme channel at the specified time.

Programme entries may appear blank or out of date depending on a channel status.

Using Channel View

Using Scheduled View

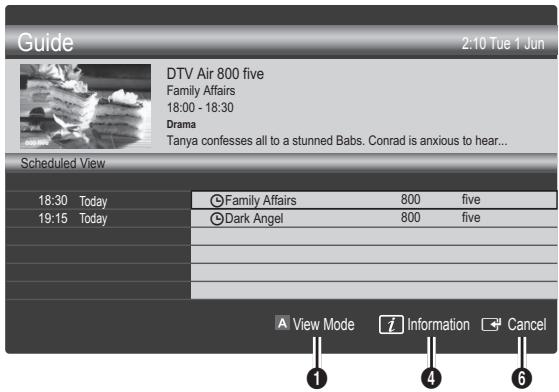

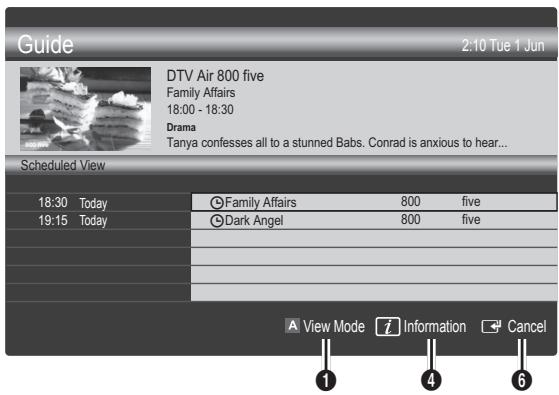

1 A Red (View Mode): View the list of programmes that are playing now or coming up.
2 C Yellow (+24 Hours): Viewing the list of programmes to be broadcasted after 24 hours.
3 Blue (Ch. Mode): Select the type of channels you want to display on the Channel View window. (All, TV, Radio, Data/Other, My Channel 1\~4)
4 Information: Displays details of the selected programme.
⑤ ◇ (Page): Move to next or previous page.
6 ENTER button

• When selecting the current programme, you can watch the selected programme.
• When selecting the future programme, you can reserve to watch the selected programme. To cancel the schedule, press the ENTER button again and select Cancel Schedules.

Seeing Channels

Channel Manager

Delete or set favourite channels and use the programme guide for digital broadcasts. Select a channel in the Channels, My Channels or Scheduled screen.

Basic Features

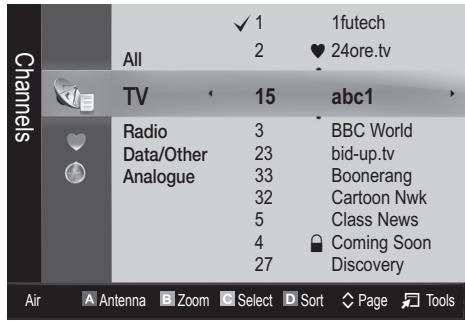

■ Channels: Shows the channel list according to channel type.
My Channels: Shows the group of the channel.
Scheduled: Shows all the currently reserved programmes.

Using the colour buttons with the Channel Manager

• A Red (Antenna): Toggle among Air or Cable.
- Green (Zoom): Enlarges or shrinks a channel number.
- C Yellow (Select): Selects multiple channel lists. Select desired channels and press the Yellow button to set all the selected channels at the same time. The √ mark appears to the left of the selected channels.
- Blue (Sort): Change the list ordered by channel name or channel number.
- ✈ (Page): Move to next or previous page.
- Tools: Displays the Channel Manager option menu. (The options menus may differ depending on the situation.)

Channel Status Display Icons

Icons	Operations
A	An analogue channel.
√	A channel selected.
♥	A channel set as a Favourite.
	A programme currently being broadcast.
	A locked channel.
	A reserved programme.

Using Favourite Channels

My Channels

(in Channel Manager)

Shows all favourite channels.

■ Edit My Channels TOOLS: You can set the selected channels to desired my channels group.

The “♥” symbol will be displayed and the channel will be set as a My Channels.

1. Select a channel and press the TOOLS button.

2. Add or delete a channel in the my channel groups you want among 1, 2, 3 and 4.
   • One or more groups can be selected.

3. After you have changed the settings, the channel list for each group can be viewed in my channels.

Channel List

You can see all the channels searched.

Channel Menu

Returning Channels

Antenna (Air / Cable) TOOLS

Before your television can begin memorizing the available channels, you must specify the type of signal source that is connected to the TV (i.e. an Air or a Cable system).

Country

The PIN input screen appears. Enter your 4 digit PIN number.

■ Digital Channel: Change the country for digital channels.
■ Analogue Channel: Change the country for analogue channels.

Auto Store

Scans for a channel automatically and stores in the TV.

Automatically allocated programme numbers may not correspond to actual or desired programme numbers. If a channel is locked using the Child Lock function, the PIN input window appears.
■ Antenna Source (Air / Cable): Select the antenna source to memorise.

■ Channel Source (Digital & Analogue / Digital / Analogue): Select the channel source to memorise. When selecting Cable → Digital & Analogue or Digital: Provide a value to scan for cable channels.

Search Mode (Full / Network / Quick): Scans for all channels with active broadcast stations and stores them in the TV.

If you select Quick, you can set up the Network, Network ID, Frequency, Modulation and Symbol Rate manually by pressing the button on the remote control.

Network (Auto / Manual): Selects the Network ID setting mode among Auto or Manual.

Network ID: When Network is Manual, you can set up Network ID using the numeric buttons.

Frequency: Displays the frequency for the channel (differs in each country).

Modulation: Displays available modulation values.

Symbol Rate: Displays available symbol rates.

Manual Store

Scans for a channel manually and stores in the TV.

■ Digital Channel: When scanning has finished, channels are updated in the channel list.

When selecting Antenna → Air: Channel, Frequency, Bandwidth

When selecting Antenna → Cable: Frequency, Modulation, Symbol Rate

■ Analogue Channel (Programme, Colour System, Sound System, Channel, Search): If there is abnormal sound or no sound, reselect the sound standard required.

Channel mode

- P (programme mode): When tuning is complete, the broadcasting stations in your area have been assigned to position numbers from P0 to P99. You can select a channel by entering the position number in this mode.

- C (aerial channel mode) / S (cable channel mode): These two modes allow you to select a channel by entering the assigned number for each aerial broadcasting station or cable channel.

Editing Channels

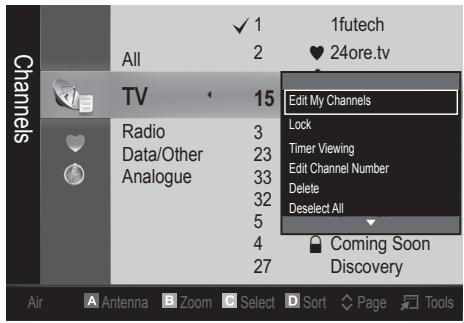

Channel Manager Option Menu

(in Channel Manager)

1. Select a channel and press the TOOLS button.

2. Edit the channel name or number using the Edit Channel Name or Edit Channel Number menu.

■ Edit Channel Name (analogue channels only): Assign your own channel name.

■ Edit Channel Number (digital channels only): Edit the number by pressing the number buttons desired.

Other Features

Cable Search Option

(depending on the country)

Sets additional search options such as the frequency and symbol rate for a cable network search.

Freq.Start / Freq.Stop: Set the start or stop frequency (differs in each country)

■ Symbol Rate: Displays available symbol rates.

■ Modulation: Displays available modulation values.

Channel Manager

Channel Manager Option Menu

Set each channel using the Channel Manager menu options (Lock / Unlock, Timer Viewing, Sort, Delete, Select All / Deselect All). Option menu items may differ depending on the channel status.

1. Select a channel and press the TOOLS button.

2. Select a function and change its settings.

■ Lock / Unlock: Lock a channel so that the channel cannot be selected and viewed.

NOTE

- This function is available only when the Child Lock is set to On. - The PIN input screen appears. Enter your 4-digit PIN, the default of which is "0-0-0-0." Change the PIN using the Change PIN option.

Timer Viewing: You can set a desired channel to be displayed automatically at the reserved time. Set the current time first to use this function.

When a digital channel is selected, press the ▶ button to view the digital Programme.

■ Sort (analogue channels only): This operation allows you to change the programme numbers of the stored channels. This operation may be necessary after using the auto store.

- Delete: You can delete a channel to display the channels you want.

■ Select All / Deselect All: Select all the channels or deselect all the selected channels in the channel manager.

Scheduled

(in Channel Manager)

You can view, modify or delete a show you have reserved to watch.

■ Change Info: Change a show you have reserved to watch.

■ Cancel Schedules: Cancel a show you have reserved to watch.

Basic Features

Information: Display a show you have reserved to watch. (You can also change the reservation information.)
■ Select All / Deselect All: Select or deselect all reserved programmes.

Channel List Transfer

The PIN input screen appears. Enter your 4 digit PIN number. Imports or exports the channel map. You should connect a USB storage to use this function.

■ Import from USB: Import channel list from USB.
■ Export to USB: Export channel list to USB. this function is available when USB is connected.

Fine Tune

(analogue channels only)

If the signal is weak or distorted, fine tune the channel manually.

Fine tuned channels are marked with an asterisk “*.”

To reset the fine-tuning, select Reset.

Picture Menu

Changing the Preset Picture Mode

Mode

Select your preferred picture type.

■ Dynamic: Suitable for a bright room.

■ Standard: Suitable for a normal environment.

■ Movie: Suitable for watching movies in a dark room.

Adjusting Picture Settings

Cell Light / Contrast / Brightness / Sharpness / Colour / Tint (G/R)

Your television has several setting options for picture quality control.

NOTE

• In analogue TV, Ext., AV modes of the PAL system, the Tint (G/R) function is not available.
• In PC mode, you can only make changes to Cell Light, Contrast and Brightness.
• Settings can be adjusted and stored for each external device connected to the TV.

Economical Solutions

Eco Solution

■ Energy Saving (Off / Low / Medium / High / Picture Off) TOOLS: This adjusts the brightness of the TV in order to reduce power consumption. If you select Picture Off the screen is turned off, but the sound remains on. Press any button except volume button to turn on the screen. Until the screen turns on again, a distorted picture will be displayed for about 4 seconds.
■ Eco Sensor (Off / On): To enhance your power savings; the picture settings will automatically adapt to the light in the room.

If you adjust the Cell Light, the Eco Sensor will be set to Off.

Min Cell Light: When Eco sensor is On, the minimum screen brightness can be adjusted manually.

If Eco Sensor is On, the display brightness may change (become slightly darker or brighter) depending on the surrounding light intensity.

No-Signal Power Off (Off / 15 min / 30 min / 60 min): To avoid unnecessary energy consumption, set how long you want the TV to remain on if it's not receiving a signal.

Disabled when the PC is in power saving mode.

Changing the Picture Options

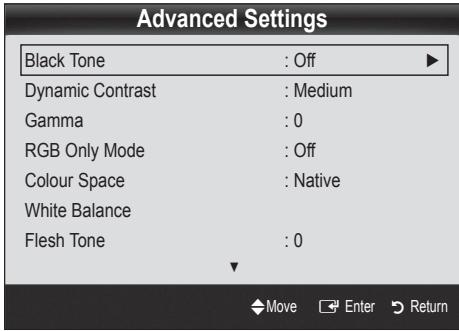

Advanced Settings

(available in Standard / Movie mode)

You can adjust the detailed setting for the screen including colour and contrast.

In PC mode, you can only make changes to Dynamic Contrast, Gamma and White Balance.

■ Black Tone (Off / Dark / Darker / Darkest): Select the black level to adjust the screen depth.
■ Dynamic Contrast (Off / Low / Medium / High): Adjust the screen contrast.
■ Gamma: Adjust the primary colour intensity.
RGB Only Mode (Off / Red / Green / Blue): You can adjust Colour or Tint (G/R) of Red, Green or Blue for the picture from an external device (DVD player, home theatre, etc.).
Colour Space (Auto / Native): Adjust the range of colours available to create the image.
■ White Balance: Adjust the colour temperature for a more natural picture.
R-Offset / G-Offset / B-Offset: Adjust each colour's (red, green, blue) darkness.
R-Gain / G-Gain / B-Gain : Adjust each colour's (red, green, blue) brightness.
Reset: Resets the White Balance to its default settings.
■ Flesh Tone: Emphasize pink "Flesh Tone."
■ Edge Enhancement (Off / On): Emphasize object boundaries.

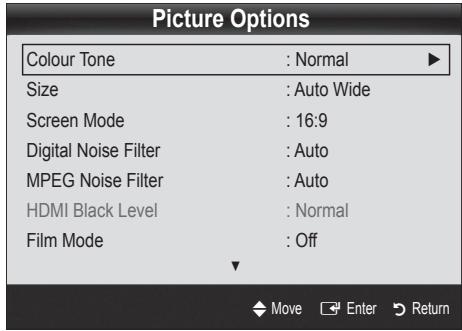

Picture Options

In PC mode, you can only make changes to the Colour Tone, Size and Screen Burn Protection.

■ Colour Tone (Cool / Normal / Warm1 / Warm2)

Warm1 or Warm2 will be deactivated when the picture mode is Dynamic.

Settings can be adjusted and stored for each external device connected to an input on the TV.

■ Size: Your cable box/satellite receiver may have its own set of screen sizes as well. However, we highly recommend you use 16:9 mode most of the time.

Auto Wide: Automatically adjusts the picture size to the 16:9 aspect ratio.

16:9 : Adjusts the picture size to 16:9 for DVDs or wide broadcasting.

Wide Zoom: Magnifies the picture size more than 4:3.
Adjusts the Position by using ▲, ▼ buttons.

Zoom: Magnifies the 16:9 wide pictures vertically to fit the screen size.

Adjusts the Position or Size by using ▲, ▼ button.

4:3 : The default setting for a movie or normal broadcasting.

Do not watch in 4:3 format for a long time. Traces of borders displayed on the left, right and centre of the screen may cause image retention(screen burn) which are not covered by the warranty.

Screen Fit: Displays the full image without any cut-off when HDMI (720p / 1080i / 1080p) or Component (1080i / 1080p) signals are inputted.

NOTE

• Depending on the input source, the picture size options may vary.
• The available items may differ depending on the selected mode.
• In PC mode, only 16:9 and 4:3 modes can be adjusted.
• Settings can be adjusted and stored for each external device connected to an input on the TV.
• After selecting Screen Fit in HDMI (1080i / 1080p) or Component (1080i / 1080p) mode: Adjusts the Position or Size by using ▲, ▼, ◀, ► button.
• If you use the Screen Fit function with HDMI 720p input, 1 line will be cut at the top, bottom, left and right as in the overscan function.

Basic Features

Screen Mode (16:9 / Wide Zoom / Zoom / 4:3): Available only when picture size is set to Auto Wide. You can determine the desired picture size at the 4:3 WSS (Wide Screen Service) size or the original size. Each European country requires different picture size.

Not available in PC, Component or HDMI mode.

Digital Noise Filter (Off / Low / Medium / High / Auto / Auto Visualisation): When the broadcast signal is weak, some static and ghosting may appear. Select one of the options until the best picture is displayed.

Auto Visualisation: When changing analogue channels, displays the intensity of the current signal and defines the screen noise filter.

Only available for analogue channels.

■ MPEG Noise Filter (Off / Low / Medium / High / Auto): Reduces MPEG noise to provide improved picture quality.

■ HDMI Black Level (Normal / Low): Selects the black level on the screen to adjust the screen depth.

Available only in HDMI mode (RGB signals).

■ Film Mode (Off / Auto1 / Auto2): Sets the TV to automatically sense and process film signals from all sources and adjust the picture for optimum quality.

Available in TV, AV, COMPONENT (480i / 1080i) and HDMI (480i / 1080i).

Screen Burn Protection: To reduce the possibility of screen burn, this unit is equipped with screen burn prevention technology. The Time setting allows you to programme the time between movement of the picture in minutes.

Pixel Shift (Off / On): Using this function, you can minutely move pixels on the PDP in horizontal or vertical direction to minimize after image on the screen.

Optimum condition for pixel shift

	Item	TV/AV/Component/HDMI/PC
Horizontal	0~4	4
Vertical	0~4	4
Time (minute)	1~4 min	4 min

The Pixel Shift value may differ depending on the monitor size (inches) and mode.

This function is not available in the Screen Fit mode.

Auto Protection Time (10 min / 20 min / 40 min / 1 hour / Off): If the screen remains idle with a still image for a certain period of time defined by the user, the screen saver is activated to prevent the formation of ghost images on the screen.

Scrolling: This function removes after-images on the screen by moving all the pixels on the PDP according to a pattern. Use this function when there are remaining after images or symbols on the screen, especially when you displayed a still image on the screen for a long time.

The after-image removal function has to be executed for a long time (approximately 1 hour) to effectively remove after-images on the screen. If the after-image is not removed after performing the function, repeat the function again.

Press any key on the remote control to cancel this feature.

Side Grey (Light / Dark): When you watch TV with the screen ratio set to 4:3, the screen is prevented from any damage by adjusting the white balance on both extreme left and right sides.

Viewing TV using the 3D function

IMPORTANT HEALTH AND SAFETY INFORMATION FOR 3D PICTURES.

Read and understand the following safety information before using the TV's 3D function.

WARNING

• Some viewers may experience discomfort while viewing 3D TV such as dizziness, nausea and headaches. If you experience any such symptom, stop viewing 3D TV, remove 3D Active Glasses and rest.
• Watching 3D images for an extended period of time may cause eye strain. If you feel eye strain, stop viewing 3D TV, remove your 3D Active Glasses and rest.
• A responsible adult should frequently check on children who are using the 3D function. If there are any reports of tired eyes, headaches, dizziness, or nausea, have the child stop viewing 3D TV and rest.
• Do not use the 3D Active Glasses for other purposes (such as general eyeglasses, sunglasses, protective goggles, etc.)
• Do not use the 3D function or 3D Active Glasses while walking or moving around. Using the 3D function or 3D Active Glasses while moving around may result in injuries due to running into objects, tripping, and/or falling.

3D

This exciting new feature enables you to view 3D content. In order to fully enjoy this feature, you must purchase a pair of Samsung 3D Active Glasses (SSG-2100AB, SSG-2200AR, SSG-2200KR) to view 3D video.

Samsung 3D Active Glasses are sold separately. For more detailed purchasing information, contact the retailer where you purchased this TV.

■ 3D Mode: Select the 3D input format.

If you want to feel the 3D effect fully, please wear the 3D Active Glasses first, and then select 3D Mode from the list below that provides the best 3D viewing experience.
When watching 3D images, turn on 3D Active Glasses.

3D Mode		Operation
Off		Turns the 3D function off.
	2D → 3D	Changes a 2D image to 3D.
	Side by Side	Displays two images next to each other.
	Top & Bottom	Displays one image above another.
	Line by Line	Displays the images for the left and right eye alternately in rows.
	Vertical Stripe	Displays the images for the left and right eye alternately in columns.
	Checker Board	Displays the images for the left and right eye alternately in pixels.
	Frequency	Displays the images for the left and right eye alternately in frames.

"Side by Side" and "Top & Bottom" are available when the resolution is 720p, 1080i and 1080p in DTV, HDMI and USB mode or set to PC connecting through HDMI/DVI cable.
“Vertical Strip”, “Line by Line” and “Checker Board” are available when the resolution is set to PC connecting through HDMI/DVI cable.
“Frequency” displays the frequency (60Hz only) when the resolution is set to PC.

■ 3D → 2D (Off / On): Displays the image for the left eye only.

This function is deactivated when 3D Mode set to "2D → 3D" or Off.
■ 3D View Point: The overall adjustment of 3D perspective.
This function is deactivated when 3D Mode set to "2D → 3D" or Off.

■ Depth: Adjusts focus / depth in “2D → 3D” mode.

This function is only activated when the 3D Mode is “2D → 3D”.
■ Picture Correction: Adjusts the images for the left and right eye.

Basic Features

3D Auto View (Off / On): If 3D Auto View is set to On, a “Side by Side” format HDMI signal with one of the resolutions below is automatically switched to 3D. Here, correct 3D information must be sent from the Standard HDMI 3D Format.

If a 3D failure occurs due to a 3D information error, set 3D Auto View to Off and manually select a 3D Mode using the 3D button or corresponding menu.

Support resolution (16:9 only)

Resolution	Frequency (Hz)
1280 x 720p	50 / 60 Hz
1920 x 1080i	50 / 60 Hz
1920 x 1080p	24 / 30 / 50 / 60 Hz

Resolution supported for HDMI PC mode

The resolution for HDMI PC mode is optimized to 1920 x 1080 input.

An input resolution other than 1920 x 1080 may not be displayed properly in 3D display or full screen mode.

How to watch the 3D image

1. Press the 3D button.

To watch in 3D, wear 3D Active Glasses and press the power button on the glasses.

1. Select OK, then press the ENTER button.

2. Using the ◀ or ▶ buttons on your remote control, selects the 3D Mode of the image you want to view.

Some 3D modes may not be available depending on the format of the image source.

Supported formats and operating specifications for Standard HDMI 3D

The 3D formats indicated below are recommended by the HDMI association and must be supported.

Source signal format	Standard HDMI 1.4 3D
1920x1080p@24Hz x 2	1920x2205p@24Hz
1280x720p@60Hz x 2	1280x1470p@60Hz
1280x720p@50Hz x 2	1280x1470p@50Hz

The mode is automatically switched to 3D mode for the 3D video input in one of the formats above.

Before using 3D function...

NOTE

- You may notice a small amount of screen flickering when watching 3D images in poor light conditions (from a strobe light, etc.), or under a fluorescent lamp (50Hz \~ 60Hz) or 3 wavelength lamp. If so, dim the light or turn the lamp off.

- 3D mode is automatically disabled in following cases: when changing a channel or the input source, or accessing Media Play or Internet@TV.

- Some Picture functions are disabled in 3D mode.

- PIP and Data broadcasts (MHEG / MHP) are not supported in 3D mode.

- 3D Active Glasses from other manufacturers may not be supported.

- When the TV is initially powered on, may take some time until the 3D display is optimized.

- The 3D Active Glasses may not work properly if there is any other 3D product or electronic devices turned on near the glasses or TV. If there is a problem, keep other electronic devices as far away as possible from the 3D Active Glasses.

- When watching pictures from a 50Hz 3D source with its Game mode On, visually-sensitive viewers may see some flicker on bright images.

- Photos of Media Play are shown in “2D → 3D” mode only.

- If you lie on your side while watching TV with 3D active glasses, the picture may look dark or may not be visible.

- Be sure to stay within the viewing angle and optimum TV viewing distance when watching 3D pictures.

- Otherwise, you may not be able to enjoy proper 3D effects.

- The ideal viewing distance should be three times or more the height of the screen. We recommend sitting with viewer's eyes on a level with the screen.

Picture Reset (OK / Cancel)

Resets your current picture mode to its default settings.

Setting up the TV with Your PC

Set the input source to PC.

Auto Adjustment TOOLS

Adjust frequency values/positions and fine tune the settings automatically.

Not available when connecting with an HDMI/DVI cable.

Screen

Coarse / Fine: Removes or reduces picture noise. If the noise is not removed by Fine-tuning alone, then adjust the frequency as best as possible (Coarse) and Fine-tune again. After the noise has been reduced, readjust the picture so that it is aligned to the centre of screen.
■ Position: Adjust the PC screen position with direction button (▲ / ▼ / ◀ / ▶).
■ Image Reset: Resets the image to default settings.

Using Your TV as a Computer (PC) Display

Setting Up Your PC Software (Based on Windows XP) Depending on the version of Windows and the video card, the actual screens on your PC may differ in which case the same basic set-up information will almost always be applied. (If not, contact your computer manufacturer or Samsung Dealer.)

1. Click on "Control Panel" on the Windows start menu.
2. Click on "Appearance and Themes" in the "Control Panel" window and a display dialog-box will appear.
3. Click on "Display" and a display dialog box will appear.
4. Navigate to the "Settings" tab on the display dialog-box.
5. The correct size setting (resolution) [Optimum: PS50C490: 1360 X 768 pixels]
6. If a vertical-frequency option exists on your display settings dialog box, the correct value is "60" or "60 Hz." Otherwise, just click "OK" and exit the dialog box.

Sound Menu

Changing the Preset Sound Mode

SRS TheaterSound TOOLS

■ Standard: Selects the normal sound mode.
■ Music: Emphasizes music over voices.
■ Movie: Provides the best sound for movies.
■ Clear Voice: Emphasizes voices over other sounds.
■ Amplify: Increase the intensity of high-frequency sound to allow a better listening experience for the hearing impaired.

Adjusting Sound Settings

Equalizer

Adjusts the sound mode (standard sound mode only).

■ Balance L/R: Adjusts the balance between the right and left speaker.
100Hz / 300Hz / 1kHz / 3kHz / 10kHz (Bandwidth Adjustment): Adjusts the level of specific bandwidth frequencies.
■ Reset: Resets the equalizer to its default settings.

Sound Systems, Etc.

SRS TruSurround HD (Off / On) TOOLS

(standard sound mode only)

This function provides a virtual 5.1 channel surround sound experience through a pair of speakers using HRTF (Head Related Transfer Function) technology.

SRS TruDialog (Off / On)

(standard sound mode only)

This function allows you to increase the intensity of a voice over background music or sound effects so that dialog can be heard more clearly.

Audio Language

(digital channels only)

Change the default value for audio languages.

The available language may differ depending on the broadcast.

Basic Features

Audio Format

(digital channels only)

When sound is emitted from both the main speaker and the audio receiver, a sound echo may occur due to the decoding speed difference between the main speaker and the audio receiver. In this case, use the TV Speaker function.

Audio Format option may differ depending on the broadcast. 5.1ch Dolby digital sound is only available when connecting an external speaker through an optical cable.

Audio Description

(not available in all locations)

(digital channels only)

This function handles the Audio Stream for the AD (Audio Description) which is sent along with the Main audio from the broadcaster.

■ Audio Description (Off / On): Turn the audio description function on or off.
■ Volume: Adjust the audio description volume.

Auto Volume (Off / Normal / Night)

To equalize the volume level on each channel, set to Normal.

■ Night: This mode provides an improved sound experience compared to Normal mode, making almost no noise. It is useful at night.

Speaker Select (External Speaker / TV Speaker)

A sound echo may occur due to a difference in decoding speed between the main speaker and the audio receiver. In this case, set the TV to External Speaker.

When Speaker Select is set to External Speaker, the volume and MUTE buttons will not operate and the sound settings will be limited.

When Speaker Select is set to External Speaker

• TV Speaker: Off, External Speaker: On

When Speaker Select is set to TV Speaker

• TV Speaker: On, External Speaker: On

If there is no video signal, both speakers will be mute.

Additional Setting

(digital channels only)

■ DTV Audio Level (MPEG / HE-AAC): This function allows you to reduce the disparity of a voice signal (which is one of the signals received during a digital TV broadcast) to a desired level.

According to the type of broadcast signal, MPEG / HE-AAC can be adjusted between -10dB and 0dB.

To increase or decrease the volume, adjust between the range 0 and -10 respectively.

■ SPDIF Output: SPDIF (Sony Philips Digital InterFace) is used to provide digital sound, reducing interference going to speakers and various digital devices such as a DVD player.

Audio Format: During the reception of a digital TV broadcast, you can select the Digital Audio output (SPDIF) format from the options PCM or Dolby Digital.

Audio Delay: Correct audio-video sync problems, when watching TV or video, and when listening to digital audio output using an external device such as an AV receiver (0ms \~ 250ms).

■ Dolby Digital Comp (Line / RF): This function minimizes signal disparity between a dolby digital signal and a voice signal (i.e. MPEG Audio, HE-AAC, ATV Sound).

Select Line to obtain dynamic sound, and RF to reduce the difference between loud and soft sounds at night time.

Line: Set the output level for signals greater or less than -31dB (reference) to either -20dB or -31dB.

RF: Set the output level for signals greater or less than -20dB (reference) to either -10dB or -20dB.

Sound Reset (OK / Cancel)

Reset all sound settings to the factory defaults.

Selecting the Sound Mode

When you set to Dual I-II, the current sound mode is displayed on the screen.

	Audio Type	Dual I-II	Default
A2 Stereo	Mono	Mono	Automatic change
	Stereo	Stereo ⇔ Mono
	Dual	Dual I ⇔ Dual II	Dual I
NICAM Stereo	Mono	Mono	Automatic change
	Stereo	Mono ⇔ Stereo
	Dual	Mono ⇔ Dual I ↘ Dual II ↙	Dual I

If the stereo signal is weak and an automatic switching occurs, then switch to the mono.
Only activated in stereo sound signal.
Only available when the Input source is set to TV.

Setup Menu

Setting the Time

Time

■ Clock: Setting the clock is for using various timer features of the TV.

The current time will appear every time you press the INFO button.

If you disconnect the power cord, you have to set the clock again.

Clock Mode (Auto / Manual)

Depending on the broadcast station and signal, the auto time set up may not be correct. In this case, set the time manually.
The antenna must be connected in order to set the time automatically.

Clock Set: Set the Day, Month, Year, Hour and Minute manually.

Available only when Clock Mode is set to Manual.

Time Zone (depending on the country): Select your time zone.

When Country is set to Others, you can use this function.
This function is only available when the Clock Mode is set to Auto.

Using the Sleep Timer

Sleep Timer TOOLS: Automatically shuts down the TV after a preset period of time. (Off, 30, 60, 90, 120, 150 and 180 minutes).
To cancel Sleep Timer, select Off.

Setting the On / Off Timer

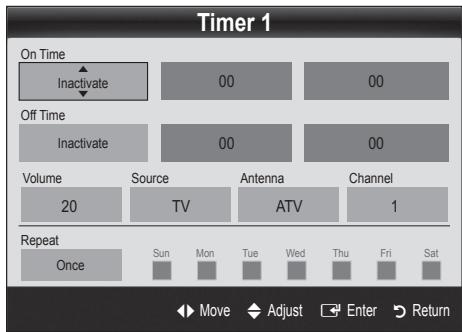

■ Timer 1 / Timer 2 / Timer 3: Three different on / off timer settings can be made. You must set the clock first.

On Time / Off Time: Set the hour, minute, and activate / inactivate. (To activate timer with the setting you've chosen, set to Activate.)

Volume: Set the desired volume level.

Source: Select TV or USB content to be played when the TV is turned on automatically. (USB can be selected only when a USB device is connected to the TV)

Antenna (when the Source is set to TV): Select ATV or DTV.

Channel (when the Source is set to TV): Select the desired channel.

Contents (when the Source is set to USB): Select a folder in the USB device containing music or photo files to be played when the TV is turned on automatically.

NOTE

• If there is no music file on the USB device or the folder containing a music file is not selected, the Timer function does not operate correctly.
• When there is only one photo file in the USB device, the Slide Show will not play.
• If a folder name is too long, the folder cannot be selected.
  • Each USB you use is assigned its own folder. When using more than one of the same type of USB, make sure the folders assigned to each USB have different names.

Repeat: Select Once, Everyday, Mon\~Fri, Mon\~Sat, Sat\~Sun or Manual to set at you convenience. If you select Manual, you can set up the day you want to activate the timer.

The √ mark indicates the day is selected.

Auto Power Off (available only when the TV is turned on by Timer): The TV will be automatically turned off after 3 hours of being left idle to prevent overheating.

Locking Programmes

Security

The PIN input screen appears before the setup screen.

Enter your 4-digit PIN, the default of which is "0-0-0-0." Change the PIN using the Change PIN option.

■ Child Lock (Off / On): Lock channels in Channel Manager, to prevent unauthorized users, such as children, from watching unsuitable programme.

Available only when the Input source is set to TV.

■ Parental Lock (depending on the country): Prevent unauthorized users, such as children, from watching unsuitable programme with a user-defined 4-digit PIN code. If selected channel is locked, the “☐” symbol will be displayed.

Allow All: Unlock All TV ratings (Not supported in France).

When Parental Lock is set to 18, the PIN input screen appears before changing the channels (France only).

You can block TV programs by set up rating in Parental Lock as the I (children), T (All public), SC (Unclassified) and X (X rated). When Parental Lock is set to X, the PIN input screen always before changing the channels (Spain only).

■ Change PIN: Change your personal ID number required to set up the TV.

If you forget the PIN code, press the remote control buttons in the following sequence, which resets the PIN to "0-0-0-0": POWER (off) → MUTE → 8 → 2 → 4 → POWER (on).

Other Features

Language

■ Menu Language: Set the menu language.
■ Teletext Language: Set a desired language for teletext.
English is the default in cases where the selected language is unavailable in the broadcast.
■ Preference (Primary Audio Language / Secondary Audio Language / Primary Subtitle Language / Secondary Subtitle Language): Select a language, which will be the default language when a channel is selected.

Subtitle

Use this menu to set the Subtitle mode.

■ Subtitle (Off / On): Switches subtitles on or off.
■ Mode (Normal / Hearing Impaired): Sets the subtitle mode.
■ Subtitle Language: Sets the subtitle language.

If the programme you are watching does not support the Hearing Impaired function, Normal automatically activates even if the Hearing Impaired mode is selected.

English is the default in cases where the selected language is unavailable in the broadcast.

If the programme broadcasts with digital text, this feature is enabled.

General

■ Game Mode (Off / On): When connecting to a game console such as PlayStation™ or Xbox™, you can enjoy a more realistic gaming experience by selecting game mode.

NOTE

• Precautions and limitations for game mode
• To disconnect the game console and connect another external device, set Game Mode to Off in the setup menu.
• If you display the TV menu in Game Mode, the screen shakes slightly.

- Game Mode is not available when the input source is set to TV or PC.

- After connecting the game console, set Game Mode to On. Unfortunately, you may notice reduced picture quality.

• If Game Mode is On:

- Picture mode is set to Standard and Sound mode is set to Movie.

- Equalizer is not available.

■ BD Wise (Off / On): Provides the optimal picture quality for Samsung DVD, Blu-ray and Home Theatre products which support BD Wise. When BD Wise is turned On, the picture mode is automatically changed to the optimal resolution.

Available when connecting Samsung products that support BD Wise through a HDMI cable.

■ Menu Transparency (Bright / Dark): Set the Transparency of the menu.
■ Melody (Off / Low / Medium / High): Set so that a melody plays when the TV is turned on or off.

Common Interface

CI Menu: This enables the user to select from the CAM-provided menu. Select the CI Menu based on the menu PC Card.
■ Application Info: View information on the CAM inserted into the CI slot and on the “CI (CI+) CARD” which is inserted into the CAM. You can install the CAM anytime whether the TV is on or off.
1. Purchase a CI CAM module at your nearest dealer or by phone.
2. Firmly insert the “CI (CI+) CARD” into the CAM in the direction of the arrow.
3. Insert the CAM with the "CI (CI+) CARD" into the common interface slot, in the direction of the arrow so that it aligns parallel with the slot.
4. Check if you can see a picture on a scrambled signal channel.

Picture In Picture (PIP)

PIP

You can watch the TV tuner and one external video source simultaneously. PIP (Picture-in-Picture) does not function in the same mode.

NOTE

• For PIP sound, refer to the Sound Select instructions.
• If you turn the TV off while watching in PIP mode, the PIP window will disappear.
• You may notice that the picture in the PIP window becomes slightly unnatural when you use the main screen to view a game or karaoke.
• PIP settings

Main picture	Sub picture
Component, HDMI1/DVI, HDMI2, HDMI3, PC	TV

■ PIP (Off / On): Activate or deactivate the PIP function.
■ Channel: Select the channel for the sub-screen.
■ Size (☐ / ☐): Select a size for the sub-picture.
■ Position (☐ / ☐ / ☐ / ☐): Select a position for the sub-picture.
■ Sound Select (Main / Sub): You can choose the desired sound (Main / Sub) in PIP mode.

Support Menu

Self Diagnosis

Self Diagnostic might take few seconds, this is part of the normal operation of the TV.
■ Picture Test (Yes / No): Use to check for picture problems.
■ Sound Test (Yes / No): Use the built-in melody sound to check for sound problems.
If you hear no sound from the TV's speakers, before performing the sound test, make sure Speaker Select is set to TV Speaker in the Sound menu.
The melody will be heard during the test even if Speaker Select is set to External Speaker or the sound is muted by pressing the MUTE button.
Signal Information: (digital channels only) HDTV channel's reception quality is either perfect or the channels are unavailable. Adjust your antenna to increase signal strength.
- Troubleshooting: If the TV seems to have a problem, refer to this description.
If none of these troubleshooting tips apply, contact the Samsung customer service centre.

Basic Features

Software Upgrade

Software Upgrade can be performed via a broadcasting signal or downloading the latest firmware from “www.samsung.com,” to a USB memory device.

Current Version the software already installed in the TV.

Software is represented as "Year/Month/Day_Version."

Software Upgrade

Current Version	2010/01/18_000322
By USB
By Channel
Standby Mode Upgrade	: 2 Hours Later
Alternative Software	2010/01/15_00321

Installing the Latest Version

By USB: Insert a USB drive containing the firmware upgrade file, downloaded from "www.samsung.com," into the TV. Please be careful not to disconnect the power or remove the USB drive until upgrades are complete. The TV will be turned off and on automatically after completing the firmware

upgrade. When software is upgraded, video and audio settings you have made will return to their default settings. We advise you to write down your settings so that you can easily reset them after the upgrade.

■ By Channel: Upgrade the software using the broadcasting signal.

If the function is selected during the software transmission period, software will be automatically searched and downloaded.
The time required to download the software is determined by the signal status.

■ Standby Mode Upgrade: A manual upgrade will be automatically performed at selected time. Since the power of the unit is turned on internally, the screen may be turned on slightly for the PDP product. This phenomenon may continue for more than 1 hour until the software upgrade is complete.

■ Alternative Software (backup): If there is an issue with the new firmware and it is affecting operation, you can change the software to the previous version.

If software was changed, existing software is displayed.

HD Connection Guide

Refer to this information when connecting external devices to the TV.

Contact Samsung

View this information when your TV does not work properly or when you want to upgrade the software. You can find information regarding our call centres, and how to download products and software.

Connecting to a PC

Using an HDMI/DVI cable / a D-sub Cable

Display Modes (D-Sub and HDMI/DVI Input)

Optimal resolution: 1360 X 768 @ 60Hz

Mode	Resolution	Horizontal Frequency (KHz)	Vertical Frequency (Hz)	Pixel Clock Frequency (MHz)	Sync Polarity (H / V)
IBM	640 x 350	31.469	70.086	25.175	+/-
	720 x 400	31.469	70.087	28.322	-/+
MAC	640 x 480	35.000	66.667	30.240	-/-
	832 x 624	49.726	74.551	57.284	-/-
VESA CVT	720 x 576	35.910	59.950	32.750	-/+
	1280 x 720	56.456	74.777	95.750	-/+
VESA DMT	640 x 480	31.469	59.940	25.175	-/-
	640 x 480	37.500	75.000	31.500	-/-
	640 x 480	37.861	72.809	31.500	-/-
	800 x 600	37.879	60.317	40.000	+/+
	800 x 600	46.875	75.000	49.500	+/+
	800 x 600	48.077	72.188	50.000	+/+
	1024 x 768	48.363	60.004	65.000	-/-
	1024 x 768	56.476	70.069	75.000	-/-
	1024 x 768	60.023	75.029	78.750	+/+
	1280 x 720	45.000	60.000	74.250	+/+
	1360 x 768	47.712	60.015	85.500	+/+
VESA GTF	1280 x 720	52.500	70.000	89.040	-/+

NOTE

• For HDMI/DVI cable connection, you must use the HDMI IN 1(DVI) jack.
• The interlace mode is not supported.
• The set may operate abnormally if a non-standard video format is selected.
• Separate and Composite modes are supported. SOG(Sync On Green) is not supported.

Media Play

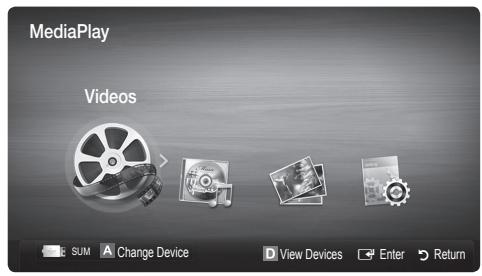

Enjoy photos, music and/or movie files saved on a USB Mass Storage Class (MSC) device.

Connecting a USB Device

1. Turn on your TV.
2. Connect a USB device containing photo, music and/or movie files to the USB port on the back or side panel of the TV.
3. When USB is connected to the TV, popup window appears. Then you can select Media Play.

TV Side Panel

It might not work properly with unlicensed multimedia files.
Need-to-Know List before using Media Play (USB)

- MTP (Media Transfer Protocol) is not supported.

• The file system supports FAT16, FAT32 and NTFS.

- Certain types of USB Digital camera and audio devices may not be compatible with this TV.

- Media Play only supports USB Mass Storage Class (MSC) devices. MSC is a Mass Storage Class Bulk-Only Transport device. Examples of MSC are Thumb drives, Flash Card Readers and USB HDD (USB HUB are not supported). Devices should be connected directly to the TV's USB port.

- Before connecting your device to the TV, please back up your files to prevent them from damage or loss of data. SAMSUNG is not responsible for any data file damage or data loss.

- Connect a USB HDD to the dedicated port, USB port.

- Do not disconnect the USB device while it is loading.

- The higher the resolution of the image, the longer it takes to display on the screen.

- The maximum supported JPEG resolution is 15360X8640 pixels.

- For unsupported or corrupted files, the “Not Supported File Format” message is displayed.

- If the files are sorted by Basic View, up to 1000 files can be displayed in each folder.

- MP3 files with DRM that have been downloaded from a non-free site cannot be played. Digital Rights Management (DRM) is a technology that supports the creation of content, the distribution and management of the content in an integrated and comprehensive way, including the protection of the rights and interests of the content providers, the prevention of the illegal copying of contents, as well as managing billings and settlements.

- If more than 2 PTP devices are connected, you can only use one at a time.

- If more than two MSC devices are connected, some of them may not be recognized. A USB device that requires high power (more than 500mA or 5V) may not be supported.

• If an over-power warning message is displayed while you are connecting or using a USB device, the device may not be recognized or may malfunction.
• If the TV has been no input during time set in Auto Protection Time, the Screensaver will run.
• The power-saving mode of some external hard disk drives may be released automatically when connected to the TV.
• If a USB extension cable is used, the USB device may not be recognized or the files on the device may not be read.
• If a USB device connected to the TV is not recognized, the list of files on the device is corrupted or a file in the list is not played, connect the USB device to the PC, format the device and check the connection.
• If a file deleted from the PC is still found when Media Play is run, use the “Empty the Recycle Bin” function on the PC to permanently delete the file.

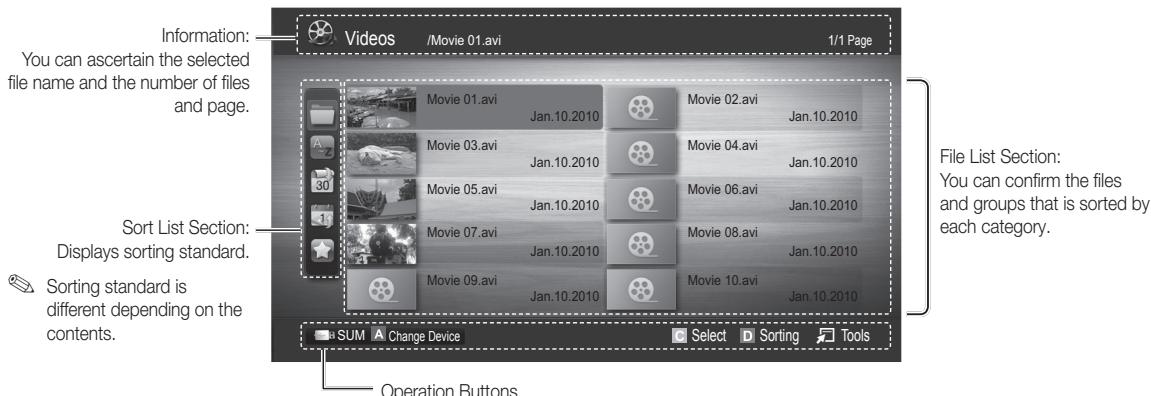

Screen Display

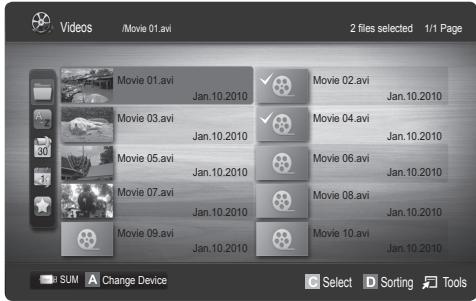

Move to the file you desired using the up/down/right/left buttons and then press the ENTER ☑ or ▶ (Play) button. The file is played.

Supports the View Devices and Home in Media Play homepage.

Operation Buttons

A Red (Change Device): Selects a connected device.

B Green (Preference): Sets the file preference. (not supported in Basic view)

C Yellow (Select): Selects multiple files from file list. Selected files are marked with a symbol.

D Blue (Sorting): Selects the sort list.

Tools: Displays the option menu.

Using the ◀◀ (REW) or ▶▶ (FF) button, file list can move to next or previous page.

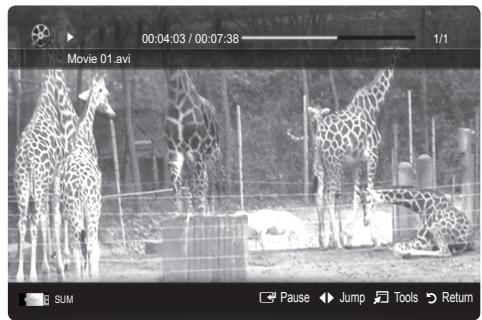

Playing Video

1. Press the ◀ or ▶ button to select Videos, then press the ENTER ▼ button in the Media Play menu.
2. Press the ◀/▶/▲/▼ button to select the desired file in the file list.

3. Press the ENTER button or ▶ (Play) button.

4. The selected file is displayed on the top with its playing time.

5. If video time information is unknown, play time and progress bar are not displayed.
6. During playing the video, you can search using the ◀ and ▶ button.

In this mode, you can enjoy movie clips contained on a Game, but you cannot play the Game itself.

• Supported Subtitle Formats

Name	File extension	Format
MPEG-4 time-based text	.txt	XML
SAMI	.smi	HTML
SubRip	.srt	string-based
SubViewer	.sub	string-based
Micro DVD	.sub or .txt	string-based

Black-and-white photo of giraffes in a enclosure, no visible text or symbols on the animals or background

• Supported Video Formats

File Extension	Container	Video Codec	Resolution	Frame rate (fps)	Bit rate (Mbps)	Audio Codec
*.avi*.mkv	AVI MKV	Divx 3.11 / 4.x / 5.1 / 6.0	1920x1080	6 ~ 30	8	MP3 / AC3 / LPCM / ADPCM / DTS Core
		XviD	1920x1080	6 ~ 30	8
		H.264 BP / MP / HP	1920x1080	6 ~ 30	25
		MPEG4 SP / ASP	1920x1080	6 ~ 30	8
*.asf	ASF	Divx 3.11 / 4.x / 5.1 / 6.0	1920x1080	6 ~ 30	8	MP3 / AC3 / LPCM / ADPCM / WMA
		XviD	1920x1080	6 ~ 30	8
		H.264 BP / MP / HP	1920x1080	6 ~ 30	25
		MPEG4 SP / ASP	1920x1080	6 ~ 30	8
*.wmv	ASF	Window Media Video v9	1920x1080	6 ~ 30	25	WMA
*.mp4	MP4	H.264 BP / MP / HP	1920x1080	6 ~ 30	25	MP3 / ADPCM / AAC
		MPEG4 SP / ASP	1920x1080	6 ~ 30	8
		XVID	1920x1080	6 ~ 30	8
*.3gp	3GPP	H.264 BP / MP / HP	1920x1080	6 ~ 30	25	ADPCM / AAC / HE-AAC
		MPEG4 SP / ASP	1920x1080	6 ~ 30	8
*.vro	VRO VOB	MPEG1	1920x1080	24 / 25 / 30	30	AC3 / MPEG / LPCM
		MPEG2	1920x1080	24 / 25 / 30	30
*.mpg*.mpeg	PS	MPEG1	1920x1080	24 / 25 / 30	30	AC3 / MPEG / LPCM / AAC
		MPEG2	1920x1080	24 / 25 / 30	30
		H.264	1920x1080	6 ~ 30	25
*.ts*.tp*.trp	TS	MPEG2	1920x1080	24 / 25 / 30	30	AC3 / AAC / MP3 / DD+ / HE-AAC
		H.264	1920x1080	6 ~ 30	25
		VC1	1920x1080	6 ~ 30	25

Other Restrictions

NOTE

• If there are problems with the contents of a codec, the codec will not be supported.
• If the information for a Container is incorrect and the file is in error, the Container will not be able to play correctly.
• Sound or video may not work if the contents have a standard bitrate/frame rate above the compatible Frame/sec listed in the table above.
• If the Index Table is in error, the Seek (Jump) function is not supported.

Video Decoder	Audio Decoder
Supports up to H.264, Level 4.1H.264 FMO / ASO / RS, VC1 SP / MP / AP L4 and AVCHD are not supported.GMC is not supported.H.263 is not supported.	Supports up to WMA 7, 8, 9, STDWMA 9 PRO does not support 2 channel excess multi channel or lossless audio.WMA sampling rate 22050Hz mono is not supported.

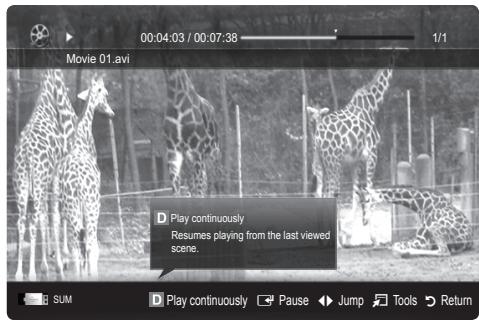

Playing movie file continuously (Resume Play)

If you exit the playing videos function, it can be played later from the point where it was stopped.

1. Select the movie file you want to play continuously by pressing the ◀ or ▶ button to select it from the file list section.
2. Press the ▶ (Play) / ENTER ← button.
3. Select Play Continuously (Resume Play) by pressing the Blue button. The Movie will begin to play from where it was stopped.

The Blue button is available when resuming play.

If the Cont. movie play help function is set to On in the Settings menu, a pop-up message will appear when you resume play a movie file.

Music

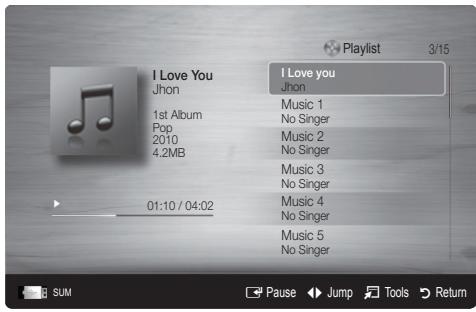

Playing Music

1. Press the ◀ or ▶ button to select Music, then press the ENTER ➕ button in the Media Play menu.
2. Press the ◀/▶/▲/▼ button to select the desired file in the file list.

3. Press the ENTER button or ▶ (Play) button.

4. During playing the music, you can search using the ◀ and ▶ button.

5. (REW) and (FF) buttons do not function during play.

Only displays the files with MP3 and PCM file extension. Other file extensions are not displayed, even if they are saved on the same USB device.

If the sound is strange when playing MP3 files, adjust the Equalizer in the Sound menu. (An over-modulated MP3 file may cause a sound problem.)

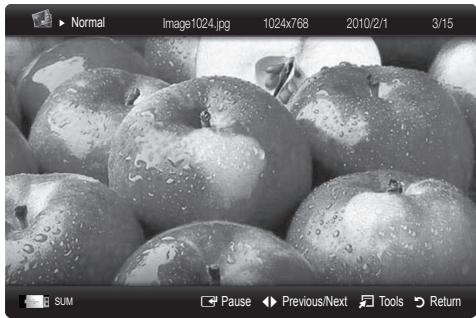

Viewing a Photo (or Slide Show)

1. Press the ◀ or ▶ button to select Photos, then press the ENTER ➕ button in the Media Play menu.
2. Press the ◀/▶/▲/▼ button to select the desired file in the file list.

3. Press the ENTER button or ▶ (Play) button.

4. While a photo list is displayed, press the ▶ (Play) / ENTER ↙ button on the remote control to start slide show.

5. All files in the file list section will be displayed in the slide show.
6. During the slide show, files are displayed in order from currently being shown.

Music files can be automatically played during the Slide Show if the Background Music is set to On.

The BGM Mode cannot be changed until the BGM has finished loading.

Black and white photo of fresh tomatoes with water droplets, no visible text or symbols

Playing the Multiple Files

Playing the selected video/music/photo files

1. Press the Yellow button in the file list to select the desired file.
2. Repeat the above operation to select multiple files.

NOTE

• The √ mark appears to the left of the selected files.
• To cancel a selection, press the Yellow button again.

• To deselect all selected files, press the TOOLS button and select Deselect All.

• Press the TOOLS button and select Play Selected Contents.

Playing the video/music/photo file group

1. While a file list is displayed, move to the any file in desired group.
2. Press the TOOLS button and select Play Current Group.

Media Play Additional Function

Sorting the file list

Press the Blue button in the file list to sort the files.

Category		Operations	Videos	Music	Photos
[14-06]	Basic View	It shows whole folder. You can view the photo by selecting the folder.	√	√	√
[14-07]	Title	It sorts and displays the file title in Symbol/Number/Alphabet/Special order.	√	√	√
[14-08]	Preference	It sorts and displays the file by preference. You can change the file preference in the file list section using the Green button.	√	√	√
[14-09]	Latest Date	It sorts and shows files by latest date.	√		√
[14-10]	Earliest Date	It sorts and shows files by earliest date.	√		√
[14-04]	Artist	It sorts the music file by artist in alphabetical.		√
[15-04]	Album	It sorts the music file by album in alphabetical order.		√
[15-05]	Genre	It sorts music files by the genre.		√
[15-06]	Mood	It sorts music files by the mood. You can change the music mood information.		√
[15-07]	Monthly	It sorts and shows photo files by month. It sorts only by month (from January to December) regardless of year.			√

Videos/Music/Photos Play Option menu

During playing a file, press the TOOLS button.

Category	Operations	Videos	Music	Photos
Title	You can move the other file directly.	√
Repeat Mode	You can play movie and music files repeatedly.	√	√
Picture Size	You can adjust the picture size for preference.	√
Picture Setting	You can adjust the picture setting. (p. 14 ~ 19)	√		√
Sound Setting	You can adjust the sound setting. (p. 19, 20)	√	√	√
Subtitle Setting	You can play the video file with subtitles. This function only works if the subtitles are the same file name as the video file.	√
Stop Slide Show / Start Slide Show	You can start or stop a slide show.			√
Slide Show Speed	You can select the slide show speed during the slide show.			√
Background Music	You can set and select background music when watching a slide show.			√
Zoom	You can zoom into images in full screen mode.			√
Rotate	You can rotate images in full screen mode.			√
Information	You can see detailed information about the played file.	√	√	√

Settings

Using the Setup Menu

■ Cont. movie play help (Resume Play) (On / Off): Select to display the help pop-up message for continuous movie playback.
■ Get the DivX® VOD registration code: Shows the registration code authorized for the TV. If you connect to the DivX web site and register the registration code with a personal account, you can download VOD registration file. If you play the VOD registration using Media Play, the registration is completed.

For more information on DivX® VOD, visit "www.DivX.com."

■ Get the DivX® VOD deactivation code: When DivX® VOD is not registered, the registration deactivation code is displayed. If you execute this function when DivX® VOD is registered, the current DivX® VOD registration is deactivated.
■ Information: Select to view information about the connected device.

Anynet+

What is Anynet+? TOOLS

Anynet+ is a function that enables you to control all connected Samsung devices that support Anynet+ with your Samsung TV's remote. The Anynet+ system can be used only with Samsung devices that have the Anynet+ feature. To be sure your Samsung device has this feature, check if there is an Anynet+ logo on it.

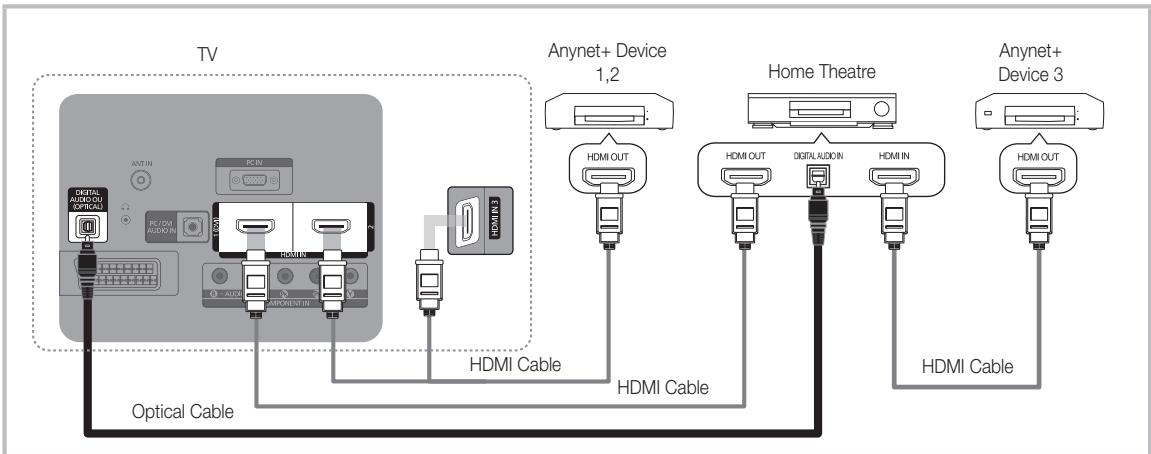

To connect to Home Theatre

1. Connect the HDMI IN (1(DVI), 2 or 3) jack on the TV and the HDMI OUT jack of the corresponding Anynet+ device using an HDMI cable.
2. Connect the HDMI IN jack of the home theatre and the HDMI OUT jack of the corresponding Anynet+ device using an HDMI cable.

NOTE

• Connect the Optical cable between the DIGITAL AUDIO OUT (OPTICAL) jack on your TV and the Digital Audio Input on the Home Theatre.
• When following the connection above, the Optical jack only outputs 2 channel audio. You will only hear sound from the Home Theatre's Front, Left and Right speakers and the subwoofer. If you want to hear 5.1 channel audio, connect the DIGITAL AUDIO OUT (OPTICAL) jack on the DVD / satellite box (i.e. Anynet Device 1 or 2) directly to the Amplifier or Home Theatre, not the TV.
• Connect only one Home Theatre.
• You can connect an Anynet+ device using the HDMI cable. Some HDMI cables may not support Anynet+ functions.
• Anynet+ works when the AV device supporting Anynet+ is in the standby or on status.
• Anynet+ supports up to 12 AV devices in total. Note that you can connect up to 3 devices of the same type.

Anynet+ Menu

The Anynet+ menu changes depending on the type and status of the Anynet+ devices connected to the TV.

Anynet+ Menu	Description
View TV	Changes Anynet+ mode to TV broadcast mode.
Device List	Shows the Anynet+ device list.
(device_name) MENU	Shows the connected device menus. E.g. If a DVD recorder is connected, the disc menu of the DVD recorder will appear.
(device_name) INFO	Shows the play menu of the connected device. E.g. If a DVD recorder is connected, the play menu of the DVD recorder will appear.
Recording: (*recorder)	Starts recording immediately using the recorder. (This is only available for devices that support the recording function.)
Stop Recording: (*recorder)	Stops recording.
Receiver	Sound is played through the receiver.

If more than one recording device is connected, they are displayed as (*recorder) and if only one recording device is connected, it will be represented as (*device_name).

Setting Up Anynet+

Setup

Anynet+ (HDMI-CEC) (Off / On): To use the Anynet+ Function, Anynet+ (HDMI-CEC) must be set to On.

When the Anynet+ (HDMI-CEC) function is disabled, all the Anynet+ related operations are deactivated.

Auto Turn Off (No / Yes): Setting an Anynet+ Device to turn off automatically when the TV is turned off.

If Auto Turn Off is set to Yes, running external devices will turn off at the same time as the TV powers off. However, a device may not turn off if recording is in progress.

May not be enabled depending on the device.

Switching between Anynet+ Devices

1. Anynet+ devices connected to the TV are listed.

If you cannot find a device you want, press the Red button to refresh the list.

1. Select a device and press the ENTER button. You can switch to the selected device.

Only when you set Anynet+ (HDMI-CEC) to On in the Application menu, the Device List menu appears.

• Switching to the selected device may take up to 2 minutes. You cannot cancel the operation during the switching operation.
• If you have selected external input mode by pressing the SOURCE button, you cannot use the Anynet+ function. Make sure to switch to an Anynet+ device by using the Device List.

Recording

You can make a recording of a TV programme using a Samsung recorder.

1. Select Recording.

When there are more than two recording devices.

- When multiple recording devices are connected, the recording devices are listed. Select one recording device in the Device List.

When the recording device is not displayed, select Device List and press the Red button to search devices.

1. Press the EXIT button to exit.

You can record the source streams by selecting Recording: (device_name).

Pressing the ☐ (REC) button will record whatever you are currently watching. If you are watching video from another device, the video from the device is recorded.

Before recording, check whether the antenna jack is properly connected to the recording device. To properly connect an antenna to a recording device, refer to the recording device's users manual.

Listening through a Receiver

You can listen to sound through a receiver (i.e Home Theatre) instead of the TV Speaker.

1. Select Receiver and set to On.

2. Press the EXIT button to exit.

If your receiver supports audio only, it may not appear in the device list.
The receiver will work when you have properly connected the optical in jack of the receiver to the DIGITAL AUDIO OUT (OPTICAL) jack of the TV.
When the receiver (i.e Home Theatre) is set to On, you can hear sound output from the TV's Optical jack. When the TV is displaying a DTV (aerial) signal, the TV will send out 5.1 channel sound to the receiver. When the source is a digital component such as a DVD and is connected to the TV via HDMI, only 2 channel sound will be heard from the receiver.

NOTE

• You can only control Anynet+ devices using the TV remote control, not the buttons on the TV.
• The TV remote control may not work under certain conditions. If this occurs, reselect the Anynet+ device.
• The Anynet+ functions do not operate with other manufacturers' products.

Troubleshooting for Anynet+

Problem	Possible Solution
Anynet+ does not work.	Check if the device is an Anynet+ device. The Anynet+ system supports Anynet+ devices only.Connect only one receiver (home theatre).Check if the Anynet+ device power cord is properly connected.Check the Anynet+ device's Video/Audio/HDMI cable connections.Check whetherAnynet+(HDMI-CEC)is set toOnin the Anynet+ setup menu.Check whether the TV remote control is in TV mode.Check whether it is Anynet+ exclusive remote control.Anynet+ doesn't work in certain situations. (Searching channels, operatingMedia Play (USB) or Plug & Play (Initial setup), etc.)When connecting or removing the HDMI cable, please make sure to search devices again or turn your TV off and on again.Check if the Anynet+ Function of Anynet+ device is set on.
I want to start Anynet+.	Check if the Anynet+ device is properly connected to the TV and check if theAnynet+(HDMI-CEC)is set toOnin the Anynet+ Setup menu.Press the TOOLS button to display the Anynet+ menu and select a menu you want.
I want to exit Anynet+.	SelectViewTVin the Anynet+ menu.Press theSOURCEbutton on the TV remote control and select a device other than Anynet+ devices.Press PV/∧and PRE-CHto change the TV mode. (Note that the channel button operates only when a tuner-embedded Anynet+ device is not connected.)
The message “Connecting to Anynet+ device...” appears on the screen.	You cannot use the remote control when you are configuring Anynet+ or switching to a view mode.Use the remote control when the Anynet+ setting or switching to view mode is complete.
The Anynet+ device does not play.	You cannot use the play function whenPlug & Play(Initial setup) is in progress.
The connected device is not displayed.	Check whether or not the device supports Anynet+ functions.Check whether or not the HDMI cable is properly connected.Check whetherAnynet+(HDMI-CEC)is set toOnin the Anynet+ setup menu.Search Anynet+ devices again.You can connect an Anynet+ device using the HDMI cable only. Some HDMI cables may not support Anynet+ functions.If it is terminated by an abnormal situation such as disconnecting the HDMI cable or power cord or a power failure, please repeat the device scan.
The TV programme cannot be recorded.	Check whether the antenna jack on the recording device is properly connected.
The TV sound is not output through the receiver.	Connect the optical cable between TV and the receiver.

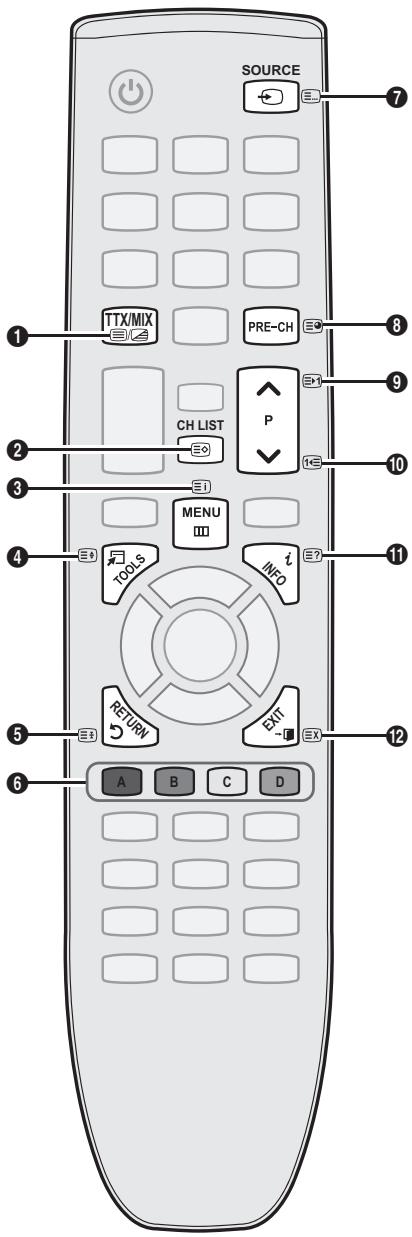

Analogue Channel Teletext Feature

The index page of the Teletext service gives you information on how to use the service. For Teletext information to be displayed correctly, channel reception must be stable. Otherwise, information may be missing or some pages may not be displayed.

You can change Teletext pages by pressing the numeric buttons on the remote control.

1 ☑/☐ (Teletext on/mix/off): Activates the Teletext mode for the current channel. Press the button twice to overlap the Teletext mode with the current broadcasting screen. Press it one more time to exit teletext.
② (store): Store the Teletext pages.
3 i (index): Display the index (contents) page at any time while you are viewing Teletext.
4 (size): Display the double-size letters on the upper half of the screen. For the lower half of the screen, press it again. To display the normal screen, press it once again.
5 (hold): Hold the display on a given page if the selected page is linked with several secondary pages which follow on automatically. To resume, press it again.
6 Colour buttons (red/green/ yellow/blue): If the FASTEXT system is used by a broadcasting company, the different topics covered on a Teletext page are colour-coded and can be selected by pressing the coloured buttons. Press one of them corresponding to the required. The page is displayed with other coloured information that can be selected in the same way. To display the previous or next page, press the corresponding coloured button.
⑦ (mode): Select the Teletext mode (LIST/ FLOF). If you press this button in the LIST mode, the mode is switched into the List save mode. In the List save mode, you can save a Teletext page into list using the ⑨ (store) button.

(8) (sub-page): Display the available sub-page.
≡1 (page up): Display the next Teletext page.
1-≡ (page down): Display the previous Teletext page.
☐? (reveal): Display the hidden text (answers to quiz games, for example). To display the normal screen, press it again.
☑ (cancel): Display the current broadcast when searching for a page.

Typical Teletext page

Part	Contents
A	Selected page number.
B	Broadcasting channel identity.
C	Current page number or search indications.
D	Date and time.
E	Text.
F	Status information.FASTEXT information.

Installing the Wall Mount

Assembling the Blanking Bracket

When installing the TV onto a wall, attach the Blanking Bracket as shown.

Installing the Wall Mount Kit

The wall mount kit (sold separately) allows you to mount the TV on the wall.

For detailed information on installing the wall mount, see the instructions provided with the wall mount. Contact a technician for assistance when installing the wall mount bracket.

Samsung Electronics is not responsible for any damage to the product or injury to yourself or others if you elect to install the TV on your own.

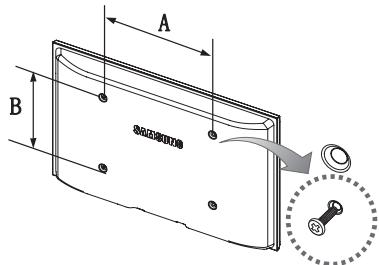

Wall Mount Kit Specifications (VESA)

The wall mount kit is not supplied, but sold separately.

Install your wall mount on a solid wall perpendicular to the floor. When attaching to other building materials, please contact your nearest dealer. If installed on a ceiling or slanted wall, it may fall and result in severe personal injury.

NOTE

• Standard dimensions for wall mount kits are shown in the table below.
• When purchasing our wall mount kit, a detailed installation manual and all parts necessary for assembly are provided.
• Do not use screws that do not comply with the VESA standard screw specifications.
• Do not use screws that are longer than the standard dimension or do not comply with the VESA standard screw specifications. Screws that are too long may cause damage to the inside of the TV set.
• For wall mounts that do not comply with the VESA standard screw specifications, the length of the screws may differ depending on the wall mount specifications.
• Do not fasten the screws too strongly; this may damage the product or cause the product to fall, leading to personal injury. Samsung is not liable for these kinds of accidents.
• Samsung is not liable for product damage or personal injury when a non-VESA or non-specified wall mount is used or the consumer fails to follow the product installation instructions.
• Do not mount the TV at more than a 15 degree tilt.

Product Family	inches	VESA Spec. (A * B)	Standard Screw	Quantity
PDP TV	42~50	400 X 400	M8	4
	58~63	600 X 400
	70~79	800 X 400
	80~	1400 X 800

Unscrew the hole around before installing Wall-Mount on the wall.

Do not install your Wall Mount Kit while your TV is turned on. It may result in personal injury due to electric shock.

Securing the TV to the wall

Caution: Pulling, pushing, or climbing onto the TV may cause the TV to fall. In particular, ensure that your children do not hang over or destabilize the TV; doing so may cause the TV to tip over, resulting in serious injuries or death. Follow all safety precautions provided in the included Safety Flyer. For added stability and safety, install the anti-fall device as follows.

To Avoid the TV from Falling

1. Put the screws into the clamps and firmly fasten them onto the wall. Confirm that the screws have been firmly installed onto the wall.

You may need additional material such as an anchor depending on the type of wall.
Since the necessary clamps, screws, and string are not supplied, please purchase these additionally.

1. Remove the screws from the centre back of the TV, put the screws into the clamps, and then fasten the screws onto the TV again.

Screws may not be supplied with the product. In this case, please purchase the screws of the following specifications.

1. Connect the clamps fixed onto the TV and the clamps fixed onto the wall with a strong string and then tie the string tightly.

NOTE

• Install the TV near to the wall so that it does not fall backwards.
- It is safe to connect the string so that the clamps fixed on the wall are equal to or lower than the clamps fixed on the TV.
- Untie the string before moving the TV.

1. Verify all connections are properly secured. Periodically check connections for any sign of fatigue for failure. If you have any doubt about the security of your connections, contact a professional installer.

Troubleshooting

If you have any questions about the TV, first refer to this list. If none of these troubleshooting tips apply, please visit “www.samsung.com,” then click on Support, or contact the call centre listed on the back-cover of this manual.

Issues	Solutions and Explanations
Picture Quality	First of all, please perform the Picture Test and confirm that your TV is properly displaying test image.(go to MENU - Support - Self Diagnosis - Picture Test) (p. 23)If the test image is properly displayed, the poor picture may caused by the source or signal.
The TV image does not look as good as it did in the store.	If you have an analogue cable/set top box, upgrade to a digital set top box. Use HDMI or Component cables to deliver HD (high definition) picture quality.Cable/Satellite subscribers: Try HD stations from the channel line up.Antenna connection: Try HD stations after performing Auto programme.Many HD channels are up scaled from SD(Standard Definition) contents.Adjust the Cable/Set top box video output resolution to 1080i or 720p.Make sure you are watching the TV at the minimum recommended distance based on the size and definition of the signal.
The picture is distorted: macro block error, small block, dots, pixelization	Compression of video contents may cause picture distortion especially in fast moving pictures such as sports and action movies.Low signal level or bad quality can cause picture distortion. This is not a TV issue.Mobile phones used close to the TV (cca up to 1m) may cause noise in picture on analogue and digital TV.
Colour is wrong or missing.	If you're using a component connection, make sure the component cables are connected to the correct jacks. Incorrect or loose connections may cause colour problems or a blank screen.
There is poor colour or brightness.	Adjust the Picture options in the TV menu. (go to Picture mode / Colour / Brightness / Sharpness)(p. 14)Adjust Energy Saving option in the TV menu. (go to MENU - Picture - Eco Solution - Energy Saving) (p. 14)Try resetting the picture to view the default picture settings. (go to MENU - Picture - Picture Reset)(p. 19)
There is a dotted line on the edge of the screen.	If the picture size is set to Screen Fit, change it to 16:9 (p. 15).Change cable/set top box resolution.
Picture is black and white.	If you are using an AV composite input, connect the video cable (yellow) to the Green jack of component input 1 on the TV.
When changing channels, the picture freezes or is distorted or delayed.	If connected with a cable box, please try to reset the cable box. Reconnect the AC cord and wait until the cable box reboots. It may take up to 20 minutes.Set the output resolution of the cable box to 1080i or 720p.
Sound Quality	First of all, please perform the Sound Test to confirm that your TV audio is properly operating.(go to MENU - Support - Self Diagnosis - Sound Test) (p. 23)If the audio is OK, the sound problem may caused by the source or signal.
There is no sound or the sound is too low at maximum volume.	Please check the volume the of external device connected to your TV.
The picture is good but there is no sound.	Set the Speaker Select option to TV Speaker in the sound menu (p. 20).If you are using an external device, make sure the audio cables are connected to the correct audio input jacks on the TV.If you are using an external device, check the device's audio output option (ex. you may need to change your cable box's audio option to HDMI when you have a HDMI connected to your TV).If you are using a DVI to HDMI cable, a separate audio cable is required.If your TV has a headphone jack, make sure there is nothing plugged into it.
The speakers are making an inappropriate noise.	Check the cable connections. Make sure a video cable is not connected to an audio input.For antenna or Cable connections, check the signal strength. Low signal level may cause sound distortion.
No Picture, No Video
The TV won't turn on.	Make sure the AC power cord is securely plugged in to the wall outlet and the TV.Make sure the wall outlet is working.Try pressing the POWER button on the TV to make sure the problem is not the remote. If the TV turns on, refer to “Remote control does not work” below.
The TV turns off automatically.	Ensure the Sleep Timer is set to Off in the Setup menu (p. 21).If your PC is connected to the TV, check your PC power settings.Make sure the AC power cord is plugged in securely to the wall outlet and the TV.When watching TV from an antenna or cable connection, the TV will turn off after 10 - 15 minutes if there is no signal.
There is no picture/Video.	Check cable connections (remove and reconnect all cables connected to the of TV and external devices).Set your external devices' (Cable/Set top Box, DVD, Blu-ray etc) video outputs to match the connections to the TV input. For example, if an external device's output is HDMI, it should be connected to an HDMI input on the TV.Make sure your connected devices are powered on.Be sure to select the TV's correct source by pressing the SOURCE button on the TV remote.
RF(Cable/Antenna) Connection
The TV is not receiving all channels.	Make sure the Antenna cable is connected securely.Please try Plug & Play (Initial setup) to add available channels to the channel list. Go to MENU - Setup - Plug & Play (Initial setup) and wait for all available channels to be stored (p. 7).Verify the Antenna is positioned correctly.
The picture is distorted: macro block error small block, dots, pixelization	Compression of video contents may cause picture distortion, especially with fast moving pictures such as sports and action movies.A low signal can cause picture distortion. This is not a TV issue.
PC Connection
A “Mode Not Supported” message appears.	Set your PC's output resolution and frequency so they match the resolutions supported by the TV (p. 25).
“PC” is always shown on the source list, even if a PC is not connected.	This is normal; “PC” is always shown on the source list, regardless of whether a PC is connected.
The video is OK but there is no audio.	If you are using a HDMI connection, check the audio output setting on your PC.
Others
The picture won't display in full screen.	HD channels will have black bars on either side of the screen when displaying upscaled SD (4:3) contents.Black bars on the top and bottom will appear during movies that have aspect ratios different from your TV.Adjust the picture size options on your external device or TV to full screen.
The remote control does not work.	Replace the remote control batteries with the poles (+/-) in the right direction.Clean the sensor's transmission window on the remote.Try pointing the remote directly at the TV from 5~6 feet away.
Plasma TV is making humming noise.	Plasma TVs typically make a soft humming sound. This is normal. It's caused by the electrical charges that are used to create the images on the screen.If the humming sound is loud, you may have set the brightness on the TV too high. Try setting the brightness lower.You can also have loud humming if the back of your Plasma TV is too close to a wall or other hard surface. Also try rerouting your connection cables.Improper installation of wall mount can create excessive noise.
Image Retention (Burn In) Issue.	To minimize the possibility of screen burn, this unit is equipped with screen burn reduction technology. Pixel Shift technology enables you to set picture movement up/ down (Vertical Line) and side to side (Horizontal Dot).

Other Information

Issues	Solutions and Explanations
The cable/set top box remote control doesn't turn the TV on or off, or adjust the volume.	Programme the Cable/Set top box remote control to operate the TV. Refer to the Cable/Set user manual for the SAMSUNG TV code.
A “Mode Not Supported” message appears.	Check the supported resolution of the TV, and adjust the external device's output resolution accordingly. Refer to the resolution settings on page 25 of this manual.
There is a plastic smell from the TV.	This smell is normal and will dissipate over time.
The TV Signal Information is unavailable in the Self Diagnostic Test menu.	This function is only available with digital channels from an Antenna / RF/Coax connection (p. 23).
The TV is tilted to the side.	Remove the base stand from the TV and reassemble it.
There are difficulties assembling the stand base.	Make sure the TV is placed on a flat surface. It is necessary to use magnetized screw driver if you cannot remove the screws from the TV.
The channel menu is greyed out.(unavailable)	The Channel menu is only available when the TV source is selected.
Your settings are lost after 30 minutes or every time the TV is turned off.	If the TV is in the Store Demo mode, it will reset audio and picture settings every 30 minutes. Change the settings from Store Demo mode to Home Use mode in the Plug & Play (Initial setup) procedure. Press the SOURCE button to select TV mode, and go to MENU → Setup → Plug & Play (Initial setup) → ENTER (p. 7)
You have intermittent loss of audio or video.	Check the cable connections and reconnect them.Loss of audio or video can be caused by using overly rigid or thick cables. Make sure the cables are flexible enough for long term use. If mounting the TV to the wall, we recommend using cables with 90 degree connectors.
You see small particles when you look closely at the edge of the frame of the TV.	This is part of the product's design and is not a defect.
The PIP menu is not available.	PIP functionality is only available when you are using a HDMI, PC or components source (p. 23).
The message “Scramble signal” or “Weak Signal/No Signal” appears.	If you are using a CAM CARD (CI/CI+), check that it is installed into the common interface slot.If there is still a problem, pull the CAM CARD out of the TV and insert it into the slot again.
You turned the TV off 45 minutes ago, and it turned on again.	It is normal. The TV operates the OTA (Over The Aerial) function itself to upgrade firmware downloaded whilst your watching TV.
There are recurrent picture/sound issues.	Check and change the signal/source.
A reaction may occur between the rubber cushion pads on the base stand and the top finish of some furniture.	To prevent this, use felt pads on any surface of the TV that comes in direct contact with furniture.

Some of above pictures and functions are available at specific models only.

Specifications

Dispaly Resolution	1360 X 768
Environmental Considerations
Operating Temperature	10°C to 40°C (50°F to 104°F)
Operating Humidity	10% to 80%, non-condensing
Storage Temperature	-20°C to 45°C (-4°F to 113°F)
Storage Humidity	5% to 95%, non-condensing
TV System	Analogue: B/G, D/K, L, I (Depending on your country selection)Digital: DVB-T/DVB-C
Colour/video system	Analogue: PAL, SECAM, NTSC-4.43, NTSC-3.58, PAL60Digital: MPEG-2 MP@ML, MPEG-4, H.264/AVC MP@L3, MP@L4.0, HP@L4.0
Sound System	BG. OK NICAM. MPEGI
HDMI IN 1 ~ 3	Video: 1080 24p, 1080p, 1080i, 720p, 576p, 576i, 480p, 480iAudio: 2Ch Linear PCM 32/44.1/48kHz, 16/20/24bits.Analogue audio input (HDMI IN1 only)PC input (HDMI IN1 only)
Stand Swivel (Left / Right)	-20° ~ 20°
Model Name	PS50C490
Screen Size	50 inches
Sound (Output)	10W x 2
Dimensions (WxDxH)
Body	1202.5 x 69.5 x 720.5 mm
With stand	1202.5 x 302.8 x 720.2 mm
Weight
Without Stand	23.5 kg
With Stand	25.5 kg

Design and specifications are subject to change without prior notice.
For information about power supply, and more about power consumption, refer to the label attached to the product.

Licence

TheaterSound, SRS and the Ⓞ symbol are trademarks of SRS Labs, Inc. TheaterSound technology is incorporated under licence from SRS Labs, Inc.

Manufactured under licence from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.

Manufactured under licence under U.S. Patent #'s: 5,451,942; 5,956,674; 5,974,380; 5,978,762; 6,487,535 & other U.S. and worldwide patents issued & pending. DTS and the Symbol are registered trademarks. & DTS 2.0+ Digital Out and the DTS logos are trademarks of DTS, Inc. Product Includes software. © DTS, Inc. All Rights Reserved.

DivX Certified to play DivX video up to HD 1080p, including premium content.

ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, Inc. This is an official DivX Certified device that plays DivX video. Visit www.divx.com for more information and software tools to convert your files into DivX video. ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified® device must be registered in order to play DivX Video-on-Demand (VOD) content. To generate the registration code, locate the DivX VOD section in the device setup menu. Go to vod.divx.com with this code to complete the registration process and learn more about DivX VOD. Pat. 7,295,673; 7,460,688; 7,519,274

Open Source Licence Notice

In the case of using open source software, Open Source Licences are available on the product menu. Open Source Licence Notice is written only English.

Securing the Installation Space

Keep the required distance between the product and other objects (e.g. walls) to ensure proper ventilation.

Failing to do so may result in fire or a problem with the product due to an increase in the internal temperature of the product.

When using a stand or wall-mount, use parts provided by Samsung Electronics only.

- If you use parts provided by another manufacturer, it may result in a problem with the product or an injury due to the product falling.

The appearance may differ depending on the product.

Installation with a stand.

Installation with a wall-mount.

Index

A

Amplify	19
Antenna	12
Anynet+	32
Auto Adjustment	19
Auto Volume	20

B

Background Music	31
Balance L/R	19
Basic View	30
Batteries	6
Black Tone	15
Blanking Bracket	36
Brightness	14

C

Change PIN	22
Channel Manager	11
Channel Menu	12
Clock	21
Colour Tone	15
Component	8
Connecting to a PC	25
Connecting to an Audio Device	9

D

DIGITAL AUDIO OUT	9, 32
DivX® VOD	31
D-sub	25
Dynamic	14
Dynamic Contrast	15

E

Eco Sensor	14
Edit Name	10
Editing Channels	13
Energy Saving	14
EPG
(Electronic Programme Guide)	11
Equalizer	19
External Speaker	20

F

Favourite Channel	12
Film Mode	16
Fine Tune	14
Flesh Tone	15
Frequency	25

H

HDMI	8, 32
Home Theatre	9, 32

|

Installation Space

42

L

Language	22
Licence	42
Lock	13

M

Media Play	26
Melody	22
Menu Transparency	22
Music	29

N

Navigate	10
Now & Next guide	11

O

Optimal resolution

25

P

Photos	30
Picture Size	15, 31
PIP (Picture in Picture)	23
Plug & Play	7
Power Indicator	5

R

Receiver	34
Recording	33
Remote Control	6
Repeat Mode	31
RGB Only Mode	15
Rotate	31

S

Select All	13
Self Diagnosis	23
Sharpness	14
Signal Information	23
Sleep Timer	21
Slide Show	30
Software Upgrade	24
Source List	10
Speaker Select	20
Specifications	41
Standby mode	5
Subtitle	22
Symbol	3

T

Timer	21
Title	30
Tools	3
Troubleshooting	38
TV Speaker	20

U

USB Drive	24, 26
Using Channel View	11
Using the Favourite Channels	12
Using Scheduled View	11

V

VCR	8
Video Formats	28
Videos	28
Volume	5

W

Wall Mount	36
Warm	15
White Balance	15

Technical line drawing of a four-blade fan or propeller with a central hub (no text or symbols)

• Pied (1EA)

• Support de guidage (1EA)

4EA (M4 X L10)

4EA (M4 X L12)
- Vis (8EA)

REMARQUE

DIGITAL AUDIO OUT (OPTICAL)

SRS TheaterSound TOOLS

Black-and-white photo of giraffes in a enclosure, no visible text or symbols on the animals or background

Black and white close-up photo of peaches with water droplets, captured in a video editing interface (no text or symbols on the image itself)

Installation du support mural

Assemblage du cache

TheaterSound, SRS and the Ⓞ symbol are trademarks of SRS Labs, Inc. TheaterSound technology is incorporated under licence from SRS Labs, Inc.

Manufactured under licence under U.S. Patent #'s: 5,451,942; 5,956,674; 5,974,380; 5,978,762; 6,487,535 & other U.S. and worldwide patents issued & pending. DTS and the Symbol are registered trademarks. & DTS 2.0+ Digital Out and the DTS logos are trademarks of DTS, Inc. Product Includes software. © DTS, Inc. All Rights Reserved.

DivX Certified to play DivX video up to HD 1080p, including premium content.

ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, Inc. This is an official DivX Certified device that plays DivX video. Visit www.divx.com for more information and software tools to convert your files into DivX video.

ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified® device must be registered in order to play DivX Video-on-Demand (VOD) content.

To generate the registration code, locate the DivX VOD section in the device setup menu.

Go to vod.divx.com with this code to complete the registration process and learn more about DivX VOD. Pat. 7,295,673; 7,460,688; 7,519,274

Photos	30
Piles	6
PIP (Picture in Picture)	23
Pivoter	31
Plug & Play	7

R

Technical line drawing of a four-blade fan or propeller with a central hub (no text or symbols)

• Standfuß (1 Stk.)

• Leitschiene (1 Stk.)

4Stk. (M4 X L10)

4Stk. (M4 X L12)
• Schrauben (8 Stk.)

Diagram showing a mechanical component being processed into a housing, with no visible text or symbols.

HINWEIS

DIGITAL AUDIO OUT (OPTICAL)

SRS TheaterSound TOOLS

Black-and-white photo of giraffes in a enclosure, no visible text or symbols on the animals or background

Black and white close-up photo of fresh apples with water droplets, no visible text or symbols

Fehlerbehebung

TheaterSound, SRS and the Ⓞ symbol are trademarks of SRS Labs, Inc. TheaterSound technology is incorporated under licence from SRS Labs, Inc.

Manufactured under licence under U.S. Patent #'s: 5,451,942; 5,956,674; 5,974,380; 5,978,762; 6,487,535 & other U.S. and worldwide patents issued & pending. DTS and the Symbol are registered trademarks. & DTS 2.0+ Digital Out and the DTS logos are trademarks of DTS, Inc. Product Includes software. © DTS, Inc. All Rights Reserved.

DivX Certified to play DivX video up to HD 1080p, including premium content.

ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, Inc. This is an official DivX Certified device that plays DivX video. Visit www.divx.com for more information and software tools to convert your files into DivX video. ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified® device must be registered in order to play DivX Video-on-Demand (VOD) content. To generate the registration code, locate the DivX VOD section in the device setup menu. Go to vod.divx.com with this code to complete the registration process and learn more about DivX VOD. Pat. 7,295,673; 7,460,688; 7,519,274

Technical line drawing of a four-blade fan or propeller assembly (no text or symbols)

• Voet (1EA)

OPMERKING

DIGITAL AUDIO OUT (OPTICAL)

SRS TheaterSound TOOLS

Antenne (wanneer Bron is ingesteld op Tv): selecteer ATV of DTV.

Nadat de firmware- upgrade is voltooid, wordt

Black-and-white photo of giraffes in a enclosure, no visible text or symbols on the animals or background

Black and white close-up photo of peaches with water droplets, captured in a video editing interface (no text or symbols on the image itself)

Problemen oplossen

TheaterSound, SRS and the Ⓞ symbol are trademarks of SRS Labs, Inc. TheaterSound technology is incorporated under licence from SRS Labs, Inc.

Manufactured under licence under U.S. Patent #'s: 5,451,942; 5,956,674; 5,974,380; 5,978,762; 6,487,535 & other U.S. and worldwide patents issued & pending. DTS and the Symbol are registered trademarks. & DTS 2.0+ Digital Out and the DTS logos are trademarks of DTS, Inc. Product Includes software. © DTS, Inc. All Rights Reserved.

DivX Certified to play DivX video up to HD 1080p, including premium content.

ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, Inc. This is an official DivX Certified device that plays DivX video. Visit www.divx.com for more information and software tools to convert your files into DivX video.

ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified® device must be registered in order to play DivX Video-on-Demand (VOD) content.

To generate the registration code, locate the DivX VOD section in the device setup menu.

Go to vod.divx.com with this code to complete the registration process and learn more about DivX VOD. Pat. 7,295,673; 7,460,688; 7,519,274

Technical line drawing of a four-blade fan or propeller with a central hub (no text or symbols)

• Piedistallo (1EA)

• Guida piedistallo (1EA)

4EA (M4 X L10)

4EA (M4 X L12)
• Viti (8EA)

Technical illustration of a mechanical assembly with a close-up view showing internal components (no text or symbols)

NOTA

DIGITAL AUDIO OUT (OPTICAL)

PIP (Picture In Picture)

PIP

Nome	Estensione file	Formato
Testo MPEG-4 time-based	.txt	XML
SAMI	.smi	HTML
SubRip	.srt	string-based
SubViewer	.sub	string-based
Micro DVD	.sub o .txt	string-based

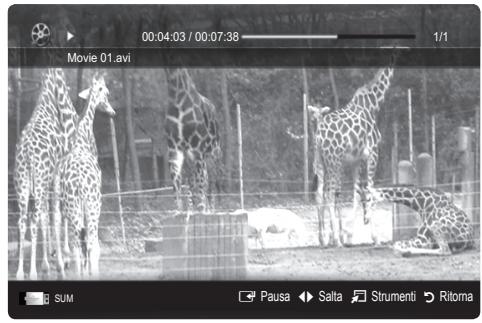

Black-and-white photo of giraffes in a enclosure, no visible text or symbols on the animals or background

Foto

Black and white photo of peaches with water droplets, captured in a video editing interface (no text or symbols on the image itself)

TheaterSound, SRS and the Ⓞ symbol are trademarks of SRS Labs, Inc. TheaterSound technology is incorporated under licence from SRS Labs, Inc.

Manufactured under licence under U.S. Patent #'s: 5,451,942; 5,956,674; 5,974,380; 5,978,762; 6,487,535 & other U.S. and worldwide patents issued & pending. DTS and the Symbol are registered trademarks. & DTS 2.0+ Digital Out and the DTS logos are trademarks of DTS, Inc. Product Includes software. © DTS, Inc. All Rights Reserved.

DivX Certified to play DivX video up to HD 1080p, including premium content.

ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX,Inc. This is an official DivX Certified device that plays DivX video. Visit www.divx.com for more information and software tools to convert your files into DivX video.

ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified® device must be registered in order to play DivX Video-on-Demand (VOD) content.

To generate the registration code, locate the DivX VOD section in the device setup menu.

Go to vod.divx.com with this code to complete the registration process and learn more about DivX VOD. Pat. 7,295,673; 7,460,688; 7,519,274

HDMI	8, 32
Home Theatre	9, 32

This page is intentionally left blank.

Technical line drawing of a four-blade propeller or fan assembly (no text or symbols)

• Soporte (1 unidad)

NOTA

DIGITAL AUDIO OUT (OPTICAL)

SRS TheaterSound TOOLS

Black-and-white photo of giraffes in a enclosure, no visible text or symbols on the animals or background

Black and white close-up photo of peaches with water droplets, captured under microscope (no text or symbols visible)

TheaterSound, SRS and the Ⓞ symbol are trademarks of SRS Labs, Inc.

TheaterSound technology is incorporated under licence from SRS Labs, Inc.

DIGITAL PLUS
PULSE

Manufactured under licence under U.S. Patent #'s: 5,451,942; 5,956,674; 5,974,380; 5,978,762; 6,487,535 & other U.S. and worldwide patents issued & pending. DTS and the Symbol are registered trademarks. & DTS 2.0+ Digital Out and the DTS logos are trademarks of DTS, Inc. Product Includes software. © DTS, Inc. All Rights Reserved.

DivX Certified to play DivX video up to HD 1080p, including premium content.

ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, Inc. This is an official DivX Certified device that plays DivX video. Visit www.divx.com for more information and software tools to convert your files into DivX video.

ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified® device must be registered in order to play DivX Video-on-Demand (VOD) content.

To generate the registration code, locate the DivX VOD section in the device setup menu.

Go to vod.divx.com with this code to complete the registration process and learn more about DivX VOD. Pat. 7,295,673; 7,460,688; 7,519,274

Technical line drawing of a four-blade propeller or fan assembly (no text or symbols)

• Base (1EA)

- Base guia (1EA)

4EA (M4 X L10)

4EA (M4 X L12)
- Parafusos (8EA)

NOTA

DIGITAL AUDIO OUT (OPTICAL)

SRS TheaterSound TOOLS

Black-and-white photo of giraffes in a enclosure, no visible text or symbols on the animals or background

Black and white close-up photo of fresh tomatoes with water droplets (no text or symbols visible)

TheaterSound, SRS and the Ⓞ symbol are trademarks of SRS Labs, Inc. TheaterSound technology is incorporated under licence from SRS Labs, Inc.

DIGITAL PLUS
PULSE

Manufactured under licence under U.S. Patent #'s: 5,451,942; 5,956,674; 5,974,380; 5,978,762; 6,487,535 & other U.S. and worldwide patents issued & pending. DTS and the Symbol are registered trademarks. & DTS 2.0+ Digital Out and the DTS logos are trademarks of DTS, Inc. Product Includes software. © DTS, Inc. All Rights Reserved.

DivX Certified to play DivX video up to HD 1080p, including premium content.

ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX,Inc. This is an official DivX Certified device that plays DivX video. Visit www.divx.com for more information and software tools to convert your files into DivX video.

ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified® device must be registered in order to play DivX Video-on-Demand (VOD) content.

To generate the registration code, locate the DivX VOD section in the device setup menu.

Go to vod.divx.com with this code to complete the registration process and learn more about DivX VOD. Pat. 7,295,673; 7,460,688; 7,519,274

Percorrer	10
PIP (Picture in Picture)	23
Plug & Play	7

R

Technical line drawing of a four-blade fan or propeller with a central hub (no text or symbols)

• Stojalo (1)

• Vodilo stojala (1)

4 (M4 X L10)

4 (M4 X L12)
• Vijaki (8)

Technical illustration of a mechanical assembly with a magnified inset showing internal components (no text or symbols)

OPOMBA

DIGITAL AUDIO OUT (OPTICAL)

Uporaba možnosti Scheduled View

Channel List

Antenna (Air / Cable) TOOLS

Channel List Transfer

Cell Light / Contrast / Brightness / Sharpness / Colour / Tint (G/R)

1. Pritisnite gumb 3D.

Za gledanje 3D-slik si nadenite aktivna 3D-očala in na njih pritisnite gumb za napajanje.

1. Izberite OK in nato pritisnite gumb ENTER ↙.

2. Z gumbom ◀ na ▶ daljinskem upravljalniku izberite način 3D Mode za sliko, ki jo želite gledati.

Nekateri 3D-načini morda niso na voljo, odvisno od oblike zapisa vira slike.

Auto Adjustment TOOLS

SRS TheaterSound TOOLS

SRS TruSurround HD (Off / On) TOOLS

Auto Volume (Off / Normal / Night)

Speaker Select (External Speaker / TV Speaker)

Black-and-white photo of giraffes in a enclosure, no visible text or symbols on the animals or background

Music

Predvajanje glasbe

Black and white close-up photo of fresh apples with water droplets (no text or symbols visible)

1. Izberite Recording.

Odpravljanje težav

TheaterSound, SRS and the Ⓞ symbol are trademarks of SRS Labs, Inc. TheaterSound technology is incorporated under licence from SRS Labs, Inc.

Izdelano pod licenco podjetja Dolby Laboratories. Dolby in simbol DD sta blagovni znamki podjetja Dolby Laboratories.

Manufactured under licence under U.S. Patent #'s: 5,451,942; 5,956,674; 5,974,380; 5,978,762; 6,487,535 & other U.S. and worldwide patents issued & pending. DTS and the Symbol are registered trademarks. & DTS 2.0+ Digital Out and the DTS logos are trademarks of DTS, Inc. Product Includes software. © DTS, Inc. All Rights Reserved.

DivX Certified to play DivX video up to HD 1080p, including premium content.

ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX,Inc. This is an official DivX Certified device that plays DivX video. Visit www.divx.com for more information and software tools to convert your files into DivX video.

ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified® device must be registered in order to play DivX Video-on-Demand (VOD) content.

To generate the registration code, locate the DivX VOD section in the device setup menu.

Go to vod.divx.com with this code to complete the registration process and learn more about DivX VOD. Pat. 7,295,673; 7,460,688; 7,519,274

Amplify 19
Antenna 12
Anynet+ 32
Auto Adjustment 19
Auto Volume 20

B

Background Music 31
Balance L/R 19
Basic View 30
Baterije 6
Black Tone 15
Brightness 14

C

Change PIN 22
Channel Manager 11
Clock 21
Colour Tone 15
Component 8

D

Daljinski upravljalnik 6
DIGITAL AUDIO OUT 9,32
DivX® VOD 31
Domači kino 9,32
D-Sub 25
Dynamic 14
Dynamic Contrast 15

E

Eco Sensor 14
Edit Name 10
Energy Saving 14
EPG
(Electronic Programme Guide) 11
Equalizer 19
External Speaker 20

F

Favourite Channel 12
Film Mode 16
Fine Tune 14
Flesh Tone 15
Frequency 25

H

HDMI 8,32
Indikator napajanja 5

|

K

Krmarjenje 10

L

Language 22
Licenca 42
Lock 13

M

Media Play 26
Melody 22
Meni Channel 12
Menu Transparency 22
Music 29

N

Now & Next guide 11

O

Receiver 34
Recording 33
Repeat Mode 31
RGB Only Mode 15
Rotate 31

S

Select All 13
Self Diagnosis 23
Sharpness 14
Signal Information 23
Simbol 3
Sleep Timer 21
Slide Show 30
Software Upgrade 24
Source List 10
Speaker Select 20
Specifikacije 41
Stanje pripravljenosti 5
Subtitle 22

T

Timer 21
Title 30
Tools 3
TV Speaker 20

U

Technical line drawing of a four-blade propeller or fan assembly (no text or symbols)

• Stand (1EA)

- Kilavuz Stand (1EA)

4EA (M4 X L10)

4EA (M4 X L12)
- Vidalar (8EA)

DIGITAL AUDIO OUT (OPTICAL)

SRS TheaterSound TOOLS

SRS TruSurround HD (Kapalı / Açık)

TOOLS

Black-and-white photo of giraffes in a enclosure, no visible text or symbols on the animals or background

Black and white close-up photo of fresh apples with water droplets (no text or symbols visible)

Sorun Giderme

TheaterSound, SRS and the Ⓞ symbol are trademarks of SRS Labs, Inc. TheaterSound technology is incorporated under licence from SRS Labs, Inc.

Manufactured under licence under U.S. Patent #'s: 5,451,942; 5,956,674; 5,974,380; 5,978,762; 6,487,535 & other U.S. and worldwide patents issued & pending. DTS and the Symbol are registered trademarks. & DTS 2.0+ Digital Out and the DTS logos are trademarks of DTS, Inc. Product Includes software. © DTS, Inc. All Rights Reserved.

DivX Certified to play DivX video up to HD 1080p, including premium content.

ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, Inc. This is an official DivX Certified device that plays DivX video. Visit www.divx.com for more information and software tools to convert your files into DivX video. ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified® device must be registered in order to play DivX Video-on-Demand (VOD) content. To generate the registration code, locate the DivX VOD section in the device setup menu. Go to vod.divx.com with this code to complete the registration process and learn more about DivX VOD. Pat. 7,295,673; 7,460,688; 7,519,274
