USER MANUAL 60PB560V LG

1. Printing Specification

1. Trim size (Format) : 148 mm x 210 mm (A5)
2. Printing colors
• Cover : 1 Color (Black)
• Inside : 1 Color (Black)
3. Stock (Paper)
• Cover : Uncoated, wood-free paper 150 g/m²
• Inside : Uncoated, wood-free paper 60 g/m²
4. Bindery : Perfect binding
5. Language : ENG/GER/FRE/ITA/SPA/POR/DUT/GRE/SLN (9)
6. Number of pages : 224
NOTE	“This part contains Eco-hazardous substances (Pb, Cd, Hg, Cr6+, PBB, PBDE, etc.) within LG standard level, Details should be followed Eco-SCM management standard[LG(56)-A-2524]. Especially, Part should be followed and controlled the following specification. (1) Eco-hazardous substances test report should be submitted when Part certification test and First Mass Production. (2) Especially, Don’t use or contain lead(Pb) and cadmium(Cd) in ink.

1. Origin Notification

LGEAK : Printed in Kazakhstan	LGEKR : Printed in Korea	LGERS : Printed in Mexico
LGEAZ : Printed in Brazil	LGEMA : Printed in Poland	LGESY : Printed in China
LGEEG : Printed in Egypt	LGEMX : Printed in Mexico	LGETH : Printed in Thailand
LGEIL : Printed in India	LGEND : Printed in China	LGEVN : Printed in Vietnam
LGEIN : Printed in Indonesia	LGERA : Printed in Russia	LGEWR : Printed in Poland

1. Changes

10
9
8
7
6
5
4
3
2
1	Feb/21/2014	Jinkyung Kim	EKPE200145	[PDP L14] Update manual (add the regulatory in to the manual)
Rev. Number	MMM/DD/YYYY	Signature	ECO Number	Change Contents

Front (Eng) P/No.	A-2	...	...	...	A-16		blank
Front (Eng)	2	...	...	...	...	21
Front (Ger)	2	...	...	...	...	21	blank
Front (Fre)	2	...	...	...	...	21	blank
Front (Ita)	2	...	...	...	...	23	blank
Front (Spa)	2	...	...	...	...	21	blank
Front (Por)	2	...	...	...	...	21	blank
Front (Dut)	2	...	...	...	...	21	blank
Front (Gre)	2	...	...	...	...	21	blank
Front (Sin)	2	...	...	...	...	21	blank

OWNER'S MANUAL

PLASMA TV

Please read this manual carefully before operating your set and retain it for future reference.

PB56**

TABLE OF CONTENTS

A-3 SETTING UP THE TV

A-3 Attaching the stand

A-4 MAKING CONNECTIONS

A-4 Antenna Connection
A-6 Satellite dish Connection
A-6 Euro Scart Connection
A-9 Other Connections

COMMON

LANGUAGE LIST

English

Deutsch

Français

Italiano

Espanol

Portugues

Nederlandst

Eλληνικα

Slovenscina

LANGUAGE

B-1 SPECIFICATIONS

B-3 REGULATORY

COMMON

SETTING UP THE TV

Image shown may differ from your TV.

Attaching the stand

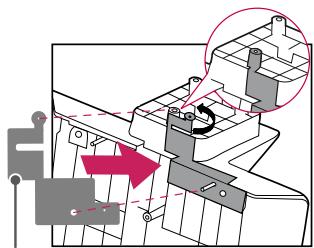

1 Sticker under the Stand Body to reduce the electromagnetic interference as shown below. (Depending on model)

Stand Sticker

CAUTION

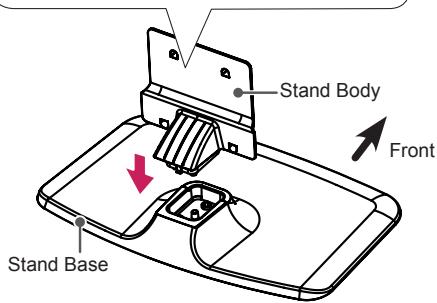

• When assembling the stand base and the stand body, press the stand body until you can hear a clicking sound in the hook.

2

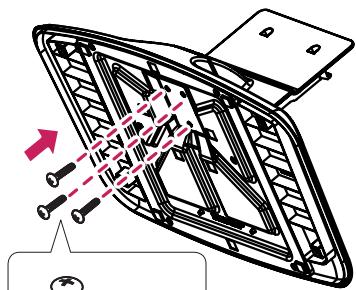

3EA M5xL25

CAUTION

• Tighten the screw fully, otherwise the set may lean or fall.

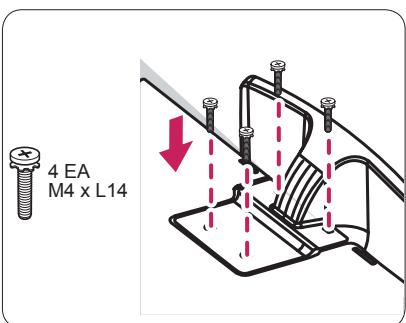

3

CAUTION

• When attaching the stand to the TV set, place the screen facing down on a cushioned table or flat surface to protect the screen from scratches.

MAKING CONNECTIONS

This section on MAKING CONNECTIONS mainly uses diagrams for the PB56** models.

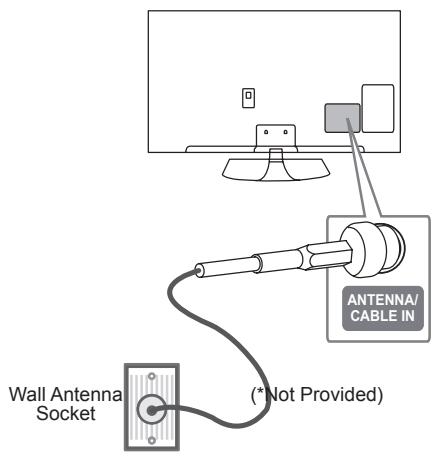

Antenna Connection

English

Connect the TV to a wall antenna socket with an RF cable (75Ω).

NOTE

• Use a signal splitter to use more than 2 TVs.
• If the image quality is poor, install a signal amplifier properly to improve the image quality.
• If the image quality is poor with an antenna connected, try to realign the antenna in the correct direction.
• An antenna cable and converter are not supplied.
  Supported DTV Audio: MPEG, Dolby Digital, Dolby Digital Plus, HE-AAC

Deutsch

Satellite dish Connection

(Only satellite models)

English

Connect the TV to a satellite dish to a satellite socket with a satellite RF cable (75 Ω).

Deutsch

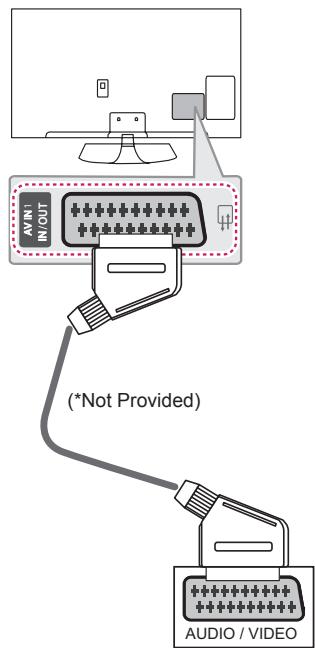

Euro Scart Connection

English

Transmits the video and audio signals from an external device to the TV set. Connect the external device and the TV set with the euro scart cable as shown.

Output Type Current input mode	AV1 (TV Out¹)
Digital TV	Digital TV
Analogue TV, AV	Analogue TV
Component
HDMI

1 TV Out : Outputs Analogue TV or Digital TV signals.

NOTE

• Any Euro scart cable used must be signal shielded.

Deutsch

Connect your TV to external devices. For the best picture and audio quality, Connect the external device and the TV with the HDMI cable as shown. Some separate cable is not provided.

Deutsch

Connect various external devices to the TV and switch input modes to select an external device. For more information of external device's connection, refer to the manual provided with each device.

Available external devices are: HD receivers, DVD players, VCRs, audio systems, USB storage devices, PC, gaming devices, and other external devices.

NOTE

• The external device connection may differ from the model.
• Connect external devices to the TV regardless of the order of the TV port.
• If you record a TV program on a DVD recorder or VCR, make sure to connect the TV signal input cable to the TV through a DVD recorder or VCR. For more information of recording, refer to the manual provided with the connected device.
  Refer to the external equipment's manual for operating instructions.
• If you connect a gaming device to the TV, use the cable supplied with the gaming device.
• In PC mode, there may be noise associated with the resolution, vertical pattern, contrast or brightness. If noise is present, change the PC output to another resolution, change the refresh rate to another rate or adjust the brightness and contrast on the PICTURE menu until the picture is clear.
• In PC mode, some resolution settings may not work properly depending on the graphics card.

Deutsch

Please read this manual carefully before operating your set and retain it for future reference.

LICENSES

Supported licenses may differ by model. For more information about licenses, visit www.lg.com.

DOLBY DIGITAL PLUS

Manufactured under license from Dolby Laboratories. "Dolby" and the double-D symbol are trademarks of Dolby Laboratories.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, LLC, a subsidiary of Rovi Corporation. This is an official DivX Certified device that has passed rigorous testing to verify that it plays DivX video. Visit divx.com for more information and software tools to convert your files into DivX videos.

ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified device must be registered in order to play purchased DivX Video-on-Demand (VOD) movies. To obtain your registration code, locate the DivX VOD section in your device setup menu. Go to vod.divx.com for more information on how to complete your registration.

"DivX Certified® to play DivX® video up to HD 1080p, including premium content."

"DivX®, DivX Certified® and associated logos are trademarks of Rovi Corporation or its subsidiaries and are used under license."

"Covered by one or more of the following U.S. patents : 7,295,673; 7,460,668; 7,515,710; 7,519,274"

OPEN SOURCE SOFTWARE NOTICE

To obtain the source code under GPL, LGPL, MPL and other open source licenses, that is contained in this product, please visit http://opensource.lge.com.

In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are available for download.

LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping and handling) upon email request to [e-mail].

This offer is valid for three (3) years from the date on which you purchased the product.

SAFETY INSTRUCTIONS

Please read these safety precautions carefully before using the product.

WARNING

• Do not place the TV and/or remote control in the following environments:

• A location exposed to direct sunlight

• An area with high humidity such as a bathroom
• Near any heat source such as stoves and other devices that produce heat
• Near kitchen counters or humidifiers where they can easily be exposed to steam or oil
• An area exposed to rain or wind
  Near containers of water such as vases

Otherwise, this may result in fire, electric shock, malfunction or product deformation.

• Do not place the product where it might be exposed to dust.

This may cause a fire hazard.

• Mains Plug is the TV connecting/disconnecting device to AC mains electric supply.

This plug must remain readily attached and operable when TV is in use.

• Do not touch the power plug with wet hands. Additionally, if the cord pin is wet or

covered with dust, dry the power plug completely or wipe dust off.

You may be electrocuted due to excess moisture.

• Make sure to connect Mains cable to compliant AC mains socket with Grounded

earth pin. (Except for devices which are not grounded on earth.)

Otherwise possibility you may be electrocuted or injured.

• Insert power cable plug completely into wall socket otherwise if not secured

completely into socket, fire ignition may break out.

• Ensure the power cord does not come into contact with hot objects such as a heater.

This may cause a fire or an electric shock hazard.

• Do not place a heavy object, or the product itself, on power cables.

Otherwise, this may result in fire or electric shock.

• Bend antenna cable between inside and outside building to prevent rain from flowing in.

This may cause water damaged inside the Product and could give an electric shock.

• Do not plug too many electrical devices into a single multiple electrical outlet. Otherwise, this may result in fire due to over-heating.

• Do not drop the product or let it fall over when connecting external devices. Otherwise, this may result in injury or damage to the product.

• Do not let your children climb or cling onto the TV. Otherwise, the TV may fall over, which may cause serious injury.

• Dispose of used batteries carefully to ensure that a small child does not consume them.

Please seek Doctor- Medical Attention immediately if child consumes batteries.

• Do not insert any metal objects/conductors (like a metal chopstick/cutlery/ screwdriver) between power cable plug and input Wall Socket while it is connected to the input terminal on the wall. Additionally, do not touch the power cable right after plugging into the wall input terminal.

You may be electrocuted. (Depending on model)

• Do not put or store inflammable substances near the product. There is a danger of combustion/explosion or fire due to careless handling of the inflammable substances.

• Do not drop metallic objects such as coins, hair pins, chopsticks or wire into the product, or inflammable objects such as paper and matches. Children must pay particular attention.

Electrical shock, fire or injury can occur. If a foreign object is dropped into the product, unplug the power cord and contact the service centre.

• Do not spray water on the product or scrub with an inflammable substance (thinner or benzene). Fire or electric shock accident can occur.

• Do not allow any impact, shock or any objects to fall into the unit, and do not drop anything onto the screen.

You may be injured or the product can be damaged.

• Never touch this product or antenna during a thunder or lighting storm.

You may be electrocuted.

• Never touch the wall outlet when there is leakage of gas, open the windows and ventilate.

It may cause a fire or a burn by a spark.

• Do not disassemble, repair or modify the product at your own discretion.

Fire or electric shock accident can occur.

Contact the service centre for check, calibration or repair.

• If any of the following occur, unplug the product immediately and contact your local service centre.

• The product has been impacted by shock
  The product has been damaged

• Foreign objects have entered the product
• The product produced smoke or a strange smell

This may result in fire or electric shock.

• Unplug the TV from AC mains wall socket if you do not intend to use the TV for a long period of time.

Accumulated dust can cause fire hazard and insulation deterioration can cause electric leakage/shock/fire.

• Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus.

• Do not install this product on a wall if it could be exposed to oil or oil mist.

This may damage the product and cause it to fall.

CAUTION

Install the product where no radio wave occurs.

• There should be enough distance between an outside antenna and power lines to keep the former from touching the latter even when the antenna falls.

This may cause an electric shock.

• Do not install the product on places such as unstable shelves or inclined surfaces.

Also avoid places where there is vibration or where the product cannot be fully supported.

Otherwise, the product may fall or flip over, which may cause injury or damage to the product.

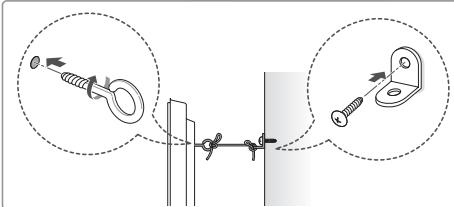

• If you install the TV on a stand, you need to take actions to prevent the product from overturning. Otherwise, the product may fall over, which may cause injury.

• If you intend to mount the product to a wall, attach VESA standard mounting interface (optional parts) to the back of the product. When you install the set to use the wall mounting bracket (optional parts), fix it carefully so as not to drop.

• Only use the attachments / accessories specified by the manufacturer.

• When installing the antenna, consult with a qualified service technician. If not installed by a qualified technician, this may create a fire hazard or an electric shock hazard.

• We recommend that you maintain a distance of at least 2 to 7 times the diagonal screen size when watching TV.

If you watch TV for a long period of time, this may cause blurred vision.

• Only use the specified type of battery.

This could cause damage to the remote control.

• Do not mix new batteries with old batteries.

This may cause the batteries to overheat and leak.

• Batteries should not be exposed to excessive heat. For example, keep away from direct sunlight, open fireplace and electric heaters.
• Do not place non-rechargeable batteries in charging device.

• Make sure there are no objects between the remote control and its sensor.

• Signal from Remote Control can be interrupted due to external/internal lighting eg Sunlight, fluorescent lighting.

If this occurs turn off lighting or darken viewing area.

• When connecting external devices such as video game consoles, make sure the connecting cables are long enough.

Otherwise, the product may fall over, which may cause injury or damage the product.

• Do not turn the product On/Off by plugging-in or unplugging the power plug to the wall outlet. (Do not use the power plug for switch.)

It may cause mechanical failure or could give an electric shock.

• Please follow the installation instructions below to prevent the product from overheating.

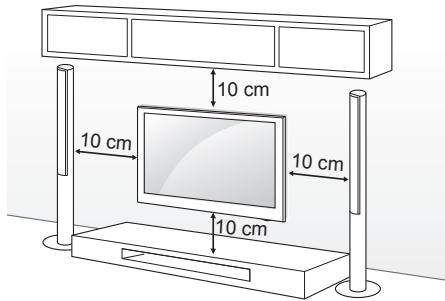

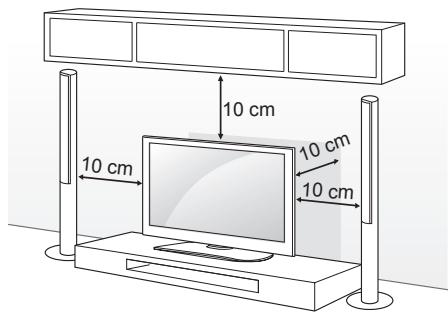

• The distance between the product and the wall should be more than 10cm

• Do not install the product in a place with no ventilation (e.g., on a bookshelf or in a cupboard).

• Do not install the product on a carpet or cushion.

• Make sure the air vent is not blocked by a tablecloth or curtain. Otherwise, this may result in fire.

• Take care not to touch the ventilation openings when watching the TV for long periods as the ventilation openings may become hot. This does not affect the operation or performance of the product.

• Periodically examine the cord of your appliance, and if its appearance indicates damage or deterioration, unplug it, discontinue use of the appliance, and have the cord replaced with an exact replacement part by an authorized servicer.

• Prevent dust collecting on the power plug pins or outlet. This may cause a fire hazard.

• Protect the power cord from physical or mechanical abuse, such as being twisted, kinked, pinched, closed in a door, or walked upon. Pay particular attention to plugs, wall outlets, and the point where the cord exits the appliance.

• Do not press strongly upon the panel with a hand or sharp object such as nail, pencil or pen, or make a scratch on it, as it may cause damage to screen.

• Avoid touching the screen or holding your finger(s) against it for long periods of time. Doing so may produce some temporary or permanent distortion/damage to screen.

• When cleaning the product and its components, unplug the power first and wipe it with a soft cloth. Applying excessive force may cause scratches or discolouration. Do not spray with water or wipe with a wet cloth. Never use glass cleaner, car or industrial shiner, abrasives or wax, benzene, alcohol etc., which can damage the product and its panel. Otherwise, this may result in fire, electric shock or product damage (deformation, corrosion or breakage).

• As long as this unit is connected to the AC wall outlet, it is not disconnected from the AC power source even if you turn off this unit by SWITCH.

• When unplugging the cable, grab the plug and unplug it, by pulling at the plug. Don't pull at the cord to unplug the power cord from the power board, as this could be hazardous.

• When moving the product, make sure you turn the power off first. Then, unplug the power cables, antenna cables and all connecting cables. The TV set or power cord may be damaged, which may create a fire hazard or cause electric shock.

• When moving or unpacking the product, work in pairs because the product is heavy. Otherwise, this may result in injury.

• Contact the service centre once a year to clean the internal parts of the product. Accumulated dust can cause mechanical failure.

• Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

• If the product feels cold to the touch, there may be a small "flicker" when it is turned on. This is normal, there is nothing wrong with product.

• The panel is a high technology display product with resolution of two million to six million pixels. You may see tiny black dots and/or brightly coloured dots (red, blue or green) at a size of 1 ppm on the panel. This does not indicate a malfunction and does not affect the performance and reliability of the product. This phenomenon also occurs in third-party products and is not subject to exchange or refund.

• You may find different brightness and colour of the panel depending on your viewing position(left/right/top/down).
  This phenomenon occurs due to the characteristic of the panel. It is not related with the product performance, and it is not malfunction.

• Displaying a still image (e.g., broadcasting channel logo, on-screen menu, scene from a video game) for a prolonged time may cause damage to the screen, resulting in retention of the image, which is known as image sticking. The warranty does not cover the product for image sticking.
• Avoid displaying a fixed image on your television's screen for a prolonged period (2 or more hours for LCD, 1 or more hours for Plasma).
• Also, if you watch the TV at a ratio of 4:3 for a long time, image sticking may occur on the borders of the panel.
• This phenomenon also occurs in third-party products and is not subject to exchange or refund.

- Generated Sound

"Cracking" noise: A cracking noise that occurs when watching or turning off the TV is generated by plastic thermal contraction due to tempera-ture and humidity. This noise is common for products where thermal deformation is required. Electrical circuit humming-panel buzzing: A low level noise is generated from a high-speed switching circuit, which supplies a large amount of current to operate a product. It varies depending on the product. This generated sound does not affect the performance and reliability of the product.

NOTE

• Image shown may differ from your TV.
• Your TV's OSD (On Screen Display) may differ slightly from that shown in this manual.
  The available menus and options may differ from the input source or product model that you are using.
• New features may be added to this TV in the future.
• The TV can be placed in standby mode in order to reduce the power consumption. And the TV should be turned off if it will not be watched for some time, as this will reduce energy consumption.
• The energy consumed during use can be significantly reduced if the level of brightness of the picture is reduced, and this will reduce the overall running cost.

ASSEMBLING AND PREPARING

Unpacking

Check your product box for the following items. If there are any missing accessories, contact the local dealer where you purchased your product. The illustrations in this manual may differ from the actual product and item.

CAUTION

• Do not use any unapproved items to ensure the safety and product life span.
• Any damage or injuries caused by using unapproved items are not covered by the warranty.
• Some models have a thin film attached on to the screen and this must not be removed.

Remote Control, Batteries (AAA)

Owner's manual

Power Cord

Stand Screws 3 EA, M5 x L25

Stand Screws 4 EA, M4 x L14

Stand Body / Stand Base

Ferrite core (Depending on model)

Stand Sticker (Depending on model)

NOTE

• The items supplied with your product may vary depending on the model.
• Product specifications or contents of this manual may be changed without prior notice due to upgrade of product functions.

How to use the ferrite core

• If there are two ferrite cores, follow as shown in Figures 1.
• If there are three ferrite cores, follow as shown in Figures 1 and 2.

1 Use the ferrite core to reduce the electromagnetic interference in the power cable. Wind the power cable on the ferrite core once.

Place the ferrite core close to the TV and a wall plug.

[Figure 1]

[to the TV]

(Black)

Cross Section of

Ferrite Core]

2 Use the ferrite core to reduce the electromagnetic interference in the cable. Place the ferrite core close to the TV.

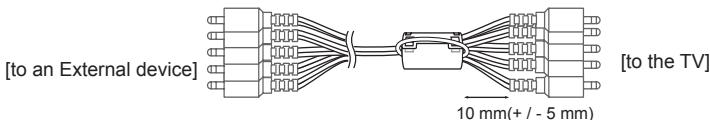

Wind the component Y, Pb, Pr, L, R cable on the ferrite core once.

[Figure 2-1]

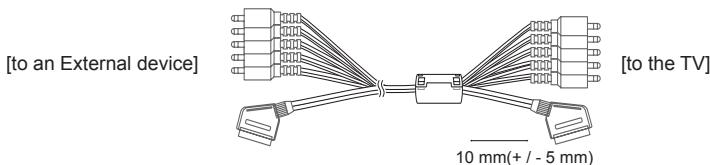

Gather and bind the component Y, Pb, Pr, L, R and scart cable with the ferrite core.

[Figure 2-2]

Wind the PC audio cable on the ferrite core once.

[Figure 2-3]

• For an optimal connection, HDMI cables and USB devices should have bezels less than 10mm thick and 18mm width. Use an extension cable that supports USB 2.0 if the USB cable or USB memory stick does not fit into your TV's USB port.

(Black)

[Cross Section of Ferrite Core]

*A

*B

10

mm

3 mm

Separate purchase

Separate purchase items can be changed or modified for quality improvement without any notification.

Contact your dealer to buy these items.

These devices only work with certain models.

The model name or design may be changed depending on the upgrade of product functions, manufacturer's circumstances or policies.

LG Audio Device

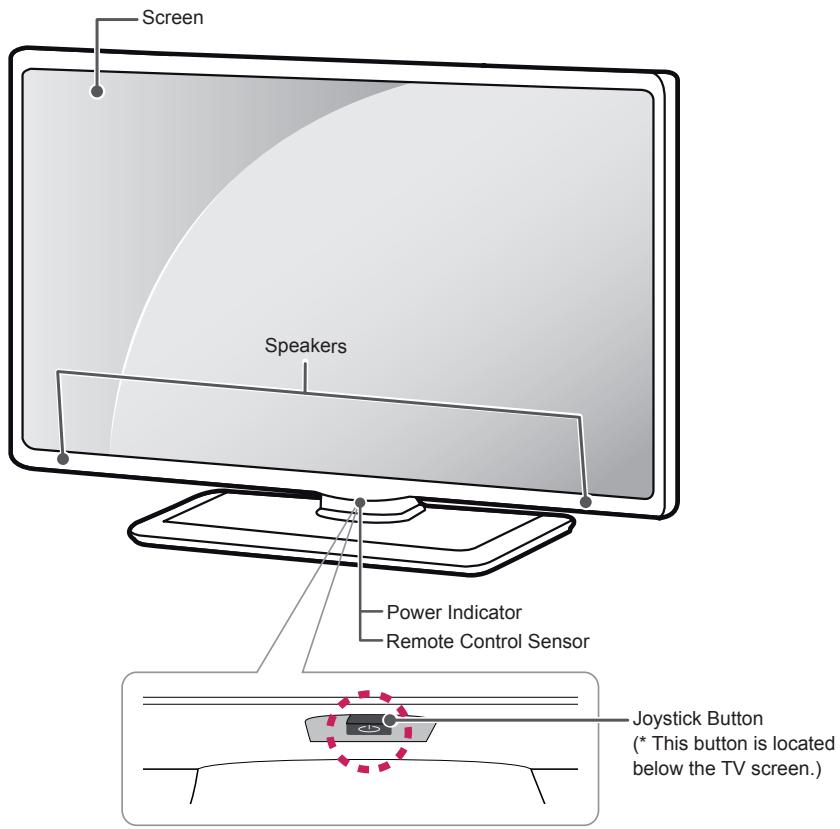

Parts and buttons

Using the joystick button

You can operate the TV by pressing the button or moving the joystick left, right, up, or down.

Basic Functions

Power On	When the TV is turned off, place your finger on the joystick button and press it once and release it.
Power Off	When the TV is turned on, place your finger on the joystick button and press it once for a few seconds and release it. (However, if the Menu button is on the screen, pressing and holding the joystick button will let you exit the Menu.)
Volume Control	If you place your finger over the joystick button and move it left or right, you can adjust the volume level you want.
Programmes Control	If you place your finger over the joystick button and move it up or down, you can scrolls through the saved programmes what you want.

NOTE

• When your finger over the joystick button and push it to the up, down, left or right, be careful not to press the joystick button. If you press the joystick button first, you can not adjust the volume level and saved programmes.

Adjusting the Menu

When the TV is turned on, press the joystick button one time.

You can adjust the Menu items (心, 心, 心, 心) moving the joystick button up, down, left or right.

×	○	TV Off	Turns the power off.
	◎	Settings	Accesses the main menu.
	×	Close	Clears on-screen displays and returns to TV viewing.
	◎	Input List	Changes the input source.

Lifting and moving the TV

Please note the following advice to prevent the TV from being scratched or damaged and for safe transportation regardless of its type and size.

CAUTION

• Avoid touching the screen at all times, as this may result in damage to the screen.

It is recommended to move the TV in the box or packing material that the TV originally came in.
- Before moving or lifting the TV, disconnect the power cord and all cables.
- When holding the TV, the screen should face away from you to avoid damage.

• Hold the top and bottom of the TV frame firmly. Make sure not to hold the transparent part, speaker, or speaker grill area.

• When transporting a large TV, there should be at least 2 people.
• When transporting the TV by hand, hold the TV as shown in the following illustration.

• When transporting the TV, do not expose the TV to jolts or excessive vibration.
• When transporting the TV, keep the TV upright, never turn the TV on its side or tilt towards the left or right.
• Do not apply excessive pressure to cause flexing/bending of frame chassis as it may damage screen.

Mounting on a table

1 Lift and tilt the TV into its upright position on a table.

• Leave a 10cm (minimum) space from the wall for proper ventilation.

2 Connect the power cord to a wall outlet.

CAUTION

• Do not place the TV near or on sources of heat, as this may result in fire or other damage.

Securing the TV to a wall

(This feature is not available for all models.)

1 Insert and tighten the eye-bolts, or TV brackets and bolts on the back of the TV.
- If there are bolts inserted at the eye-bolts position, remove the bolts first.
2 Mount the wall brackets with the bolts to the wall. Match the location of the wall bracket and the eyebolts on the rear of the TV.
3 Connect the eye-bolts and wall brackets tightly with a sturdy rope.

Make sure to keep the rope horizontal with the flat surface.

CAUTION

Make sure that children do not climb on or hang on the TV.

NOTE

• Use a platform or cabinet that is strong and large enough to support the TV securely.
• Brackets, bolts and ropes are not provided. You can obtain additional accessories from your local dealer.

Mounting on a wall

Attach an optional wall mount bracket at the rear of the TV carefully and install the wall mount bracket on a solid wall perpendicular to the floor. When you attach the TV to other building materials, please contact qualified personnel.

LG recommends that wall mounting be performed by a qualified professional installer.

Make sure to use screws and wall mount bracket that meet the VESA standard. Standard dimensions for the wall mount kits are described in the following table.

Separate purchase(Wall Mounting Bracket)

Model	50/60PB56**
VESA (A x B)	400 x 400
Standard screw	M6
Number of screws	4
Wall mount bracket	PSW420BX

CAUTION

• Disconnect the power first, and then move or install the TV. Otherwise electric shock may occur.
• If you install the TV on a ceiling or slanted wall, it may fall and result in severe injury. Use an authorised LG wall mount and contact the local dealer or qualified personnel.
• Do not over tighten the screws as this may cause damage to the TV and void your warranty.
• Use the screws and wall mounts that meet the VESA standard. Any damages or injuries by misuse or using an improper accessory are not covered by the warranty.

NOTE

• Use the screws that are listed on the VESA standard screw specifications.
• The wall mount kit includes an installation manual and necessary parts.
• The wall mount bracket is not provided. You can obtain additional accessories from your local dealer.
• The length of screws may differ depending on the wall mount. Make sure to use the proper length.
• For more information, refer to the manual supplied with the wall mount.

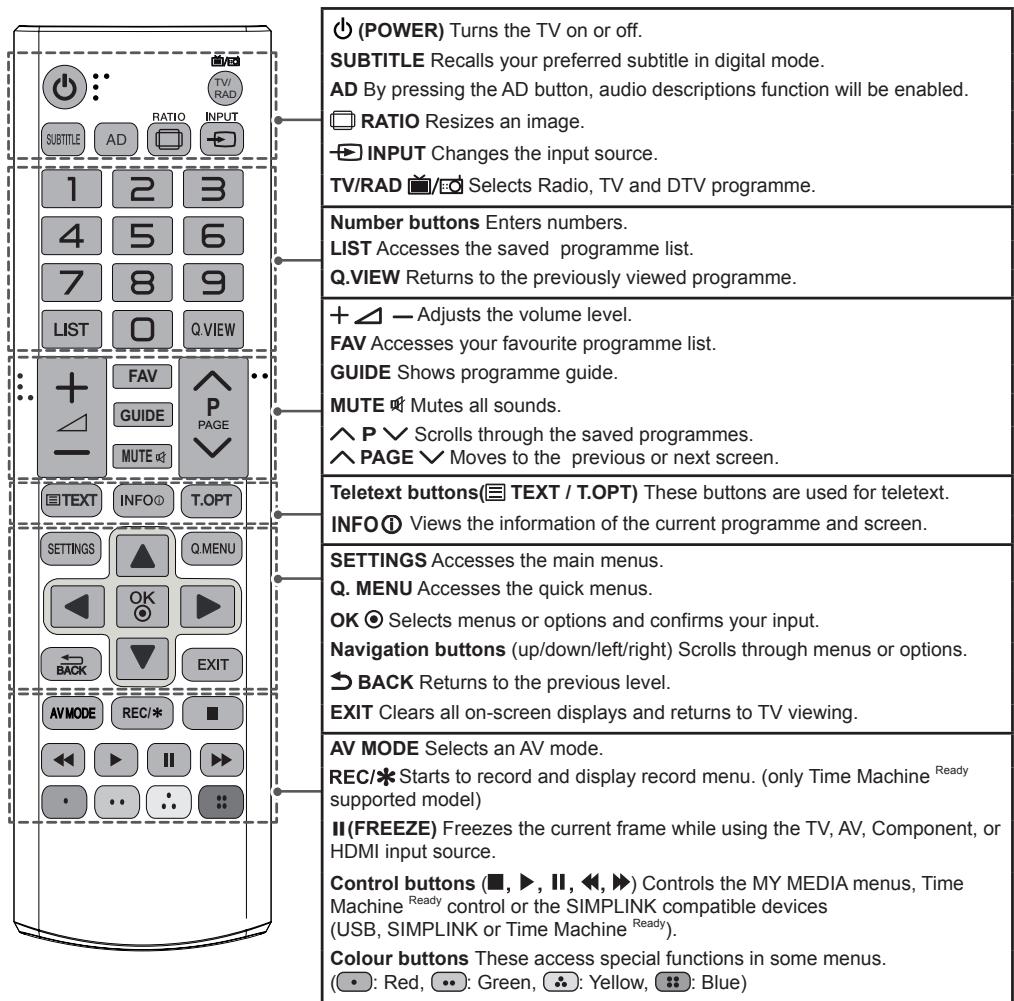

REMOTE CONTROL

The descriptions in this manual are based on the buttons on the remote control.

Please read this manual carefully and use the TV correctly.

To replace batteries, open the battery cover, replace batteries (1.5 V AAA) matching the and

ends to the label inside the compartment, and close the battery cover.

To remove the batteries, perform the installation actions in reverse.

CAUTION

• Do not mix old and new batteries, as this may damage the remote control.

Make sure to point the remote control toward the remote control sensor on the TV.

SETTINGS

Automatically Setting Up Programme

SETTINGS SETUP Auto Tuning

Automatically tunes the programmes.

• If Input Source is not connected properly, programme registration may not work.
• Auto Tuning only finds programmes that are currently broadcasting.
• If Lock System is turned on, a pop-up window will appear asking for password.

To adjust picture with Picture Wizard

SETTINGS PICTURE Picture Wizard III

[Depending on model]

Calibrates and adjusts for optimum picture quality using the remote control and the Picture Wizard without expensive pattern devices or help from a specialist.

To select Picture Mode

SETTINGS PICTURE Picture Mode

Select the picture mode optimized for the viewing environment or the programme.

• Vivid : Heightens contrast, brightness and sharpness to display vivid images.
• Standard : Displays images in standard levels of contrast, brightness and sharpness.
• Eco/APS: [Depending on model]
  The Energy Saver feature changes settings on the TV to reduce power consumption.
• Cinema/Game: Displays the optimum picture for movie, game.
• Sports: Optimizes the video image for high and dynamic actions by emphasizing primary colours such as white, grass, or sky blue.

• ISF Expert 1, 2: Menu for adjusting picture quality that allows experts and amateurs to enjoy the best TV viewing. This is the adjustment menu provided for ISF-certified picture tuning professionals. (ISF logo can only be used on ISF-certified TVs.) ISFcc: Imaging Science Foundation Certified Calibration Control

• Depending on input signal, available range of picture modes may differ.
  Expert mode is for picture tuning professionals to control and fine-tune using a specific image. For normal images, the effects may not be dramatic.

• The ISF function is only available on some models.

To set advanced control

SETTINGS PICTURE Picture Mode

Advanced Control / Expert Control

Calibrates the screen for each picture mode; or adjusts picture settings for a special screen. First select a Picture Mode of your choice.

• Dynamic Contrast : Adjusts the contrast to the optimal level according to the brightness of the image.
• Dynamic Colour : Adjusts colours to make the image appear in more natural colours.
• Skin Colour : Sets Skin colour spectrum separately to implement the skin colour as defined by the user.
• Sky Colour: Sky colour is set separately.
• Grass Colour : Natural colour spectrum (meadows, hills, etc.) can be separately set.
• Gamma: Sets the gradation curve according to the output of picture signal in relation to the input signal.
• Colour Gamut : Selects the range of colours that can be expressed.
• Edge Enhancer : Shows clearer and distinctive yet natural edges of the video.
• Expert Pattern : [Depending on model] Patterns used for expert adjustment.
• Colour Filter : Filters a specific colour spectrum in RGB colours to fine-tune colour saturation and hue accurately.
• Colour Temperature : Adjusts the overall tone of the screen as desired. In Expert mode, detailed fin-tuning can be set via Gamma method, etc.
• Colour Management System : This is a system that experts use when they adjust colour with a test pattern. They can select from six colour areas (Red / Green / Blue / Cyan / Magenta / Yellow) without affecting other colours. For normal images, adjustments may not result in noticeable colour changes.
  Depending on input signal or other picture settings, the range of detailed items for adjustment may differ.

To set additional picture options

SETTINGS PICTURE Picture Mode Picture Option

[Depending on model]

Adjusts detailed setting for images.

• Noise Reduction : Eliminates noise in the picture.
• MPEG Noise Reduction : Eliminates noise generated while creating digital picture signals.
• Black Level : Adjusts the brightness and contrast of the screen to suit the black level of the input picture by using the blackness (black level) of the screen.
  Real Cinema: Optimizes the screen for movie viewing.
• Motion Eye Care / SUPER Energy Saving : [Depending on model]
• Saves power consumption by adjusting the brightness corresponding to the movement of the image on the screen.
  Depending on input signal or other picture settings, the range of detailed items for adjustment may differ.

To use TruMotion

SETTINGS PICTURE TruMotion

[Depending on model]

Corrects images to display smoother motion sequences.

• Smooth: De-judder/De-blur working on higher range in auto mode.
• Clear: De-judder/De-blur working on middle range in auto mode.
• User: De-judder / De-blur can be set manually.
• De-judder: This function adjusts juddering of the screen.

De-blur : This function adjusts and eliminates blurring of the screen.

Auto means Juddering and blurring range that depend on input video status is controlled by TruMotion mode.

To use Energy Saving feature

SETTINGS PICTURE Energy Saving

Reduces power consumption by adjusting screen brightness.

• Auto : [Depending on model]
  The TV sensor detects the ambient lighting and automatically adjusts the screen brightness.
• Off: Turns off the Energy Saving mode.
• Minimum / Medium / Maximum : Applies the preset Energy Saving mode.
• Screen Off : Screen is turned off and only sound is played. Press any button except Power button on the remote control to turn the screen back on.

To use TV speaker

SETTINGS AUDIO Sound Out TV Speaker

[Depending on model]

Sound is output through the TV speaker.

To use External Speaker

SETTINGS AUDIO Sound Out

External Speaker (Optical)

[Depending on model]

Sound is output through the speaker connected to the optical port.

• SimpLink is supported.

To use Digital Sound Out

SETTINGS AUDIO Sound Out

External Speaker (Optical) Digital Sound Out

[Depending on model]

Sets up Digital Sound Out.

Item	Audio Input	Digital Audio Output
Auto	MPEG Dolby Digital Dolby Digital Plus HE-AAC	PCM Dolby Digital Dolby Digital Dolby Digital
PCM	All	PCM

To connect and use LG audio device

SETTINGS AUDIO Sound Out LG Sound Sync (Optical)

[Depending on model] Connect LG audio device with the Sound Syno logo to the optical digital audio output port. LG audio device allows you to enjoy rich powerful sound easily.

To use Headphone

SETTINGS AUDIO Sound Out Headphone

[Depending on model]
Sound is output through the headphone connected to the earphone/headphone port.

To synchronize audio and video

SETTINGS AUDIO AV Sync. Adjust

[Depending on model] Synchronizes video and audio directly when they do not match.

• If you set AV Sync. Adjust to ON, you can adjust the sound output (TV speakers or SPDIF) to the screen image.

To use SIMPLINK

[Depending on model] SIMPLINK is a feature that enables you to control and manage various multimedia devices conveniently via the SIMPLINK menu.

1 Connect the TV's HDMI IN terminal and the SIMPLINK device's HDMI output terminal using an HDMI cable.
- [Depending on model] For home theatre units with a SIMPLINK function, connect HDMI terminals as above, and use an optical cable to connect Optical Digital Audio Out from the TV to Optical Digital Audio In of the SIMPLINK device.
2 Select INPUT(OPTION) SIMPLINK. SIMPLINK menu window appears.
3 In SIMPLINK Setting window, set SIMPLINK function to ON.
4 In SIMPLINK menu window, selects the device you want to control.
- This function is only compatible with devices with the SIMPLINK logo.
- To use the SIMPLINK function, you need to use a high-speed HDMI® cable (with CEC (Consumer Electronics Control) feature added). High-speed HDMI® cables have the No. 13 pin connected for information exchange between devices.
- If you switch to another input, the SIMPLINK device will stop.

• If a third-party device with the HDMI-CEC function is also used, the SIMPLINK device may not work normally.
• [Depending on model] If you select or play media from a device with a home theatre function, the HT Speaker(Speaker) is automatically connected. Be sure to connect with an optical cable (sold separately) to use the HT Speaker(Speaker) function.

SIMPLINK function description

• Direct Play : Plays the multimedia device on the TV instantly.
• Select multimedia device : Selects the desired device via the SIMPLINK menu to control it from the TV screen instantly.
• Disc playback: Manages the multimedia device with the TV remote control.
• Power off all devices: When you power off the TV, all connected devices are turned off.
• Sync Power on: When the equipment with SIMPLINK function connected HDMI terminal starts to play, the TV will automatically turn on.
• Speaker : [Depending on model]
  Select speaker either on the home theatre unit or the TV.

To set password

SETTINGSS LOCK Set Password

Sets or changes the TV password. The initial password is set to '0000'.

When France is selected for Country, password is not '0000' but '1234'.
When France is selected for Country, password cannot be set to '0000'.

To return Factory Reset

SETTINGS OPTION Factory Reset

All stored information is deleted and TV settings are reset.

The TV turns itself off and back on, and all settings are reset.

• When Lock System is in place, a pop-up window appears and asks for password.
• Do not turn off the power during initialization.

To remove the USB device

Q.MENU USB Device

Select a USB storage device that you want to remove. When you see a message that the USB device has been removed, separate the device from the TV.

• Once a USB device has been selected for removal, it can no longer be read. Remove the USB storage device and then re-connect it.

Using a USB storage device - warning

• If the USB storage device has a built-in auto recognition program or uses its own driver, it may not work.
• Some USB storage devices may not work or may work incorrectly.
• Use only USB storage devices formatted with the Windows FAT32 or NTFS File System.
• For external USB HDDs, it is recommended that you use devices with a rated voltage of less than 5 V and a rated current of less than 500mA .
• It is recommended that you use USB memory sticks of 32 GB or less and USB HDDs of 1 TB or less.
• If a USB HDD with power-saving function does not work properly, turn the power off and on. For more information, refer to the user manual of the USB HDD.
• Data in the USB storage device can be damaged, so be sure to back up important files to other devices. Data maintenance is the user's responsibility and the manufacturer is not responsible for data loss.

My Media supporting file

Maximum data transfer rate : 20 Mbps (Mega bit per second)
- External supported subtitle formats: .srt (SubRip), .smi (SAMI), .sub (Subscriber, MicroDVD, DVDsubtitleSystem, SubIdx(Vobsub)),.ass/.ssa (SubStation Alpha), .txt (TMplayer), *.psb (PowerDivX)
- Internal supported subtitle formats: XSUB (Supports internal subtitles generated from DivX6)

Supported Video Formats

Maximum: 1920 x 1080 @ 30p (only Motion JPEG 640 x 480 @ 30p)
.asf, .wmv
[Video] MPEG-2, MPEG-4 Part2, DivX3.11, DivX4, DivX5, DivX6, XViD, H.264/AVC, VC1(WMV3, WVC1), MP43
[Audio] WMA Standard, WMA9(Pro), MP3, AAC, AC3, MP3, 3D WMV Single Stream.
- divx, .avi
[Video] MPEG-2, MPEG-4 Part2, DivX3.11, DivX4, DivX5, DivX6, XVID, H.264/AVC
[Audio] HE-AAC, LPCM, ADPCM, MPEG-1 Layer I, MPEG-1 Layer II, Dolby Digital, MPEG-1 Layer III (MP3), DTS
- .ts, .trp, .tp, .mts, .m2ts
[Video] H.264/AVC, MPEG-2, AVS, VC1
[Audio] MPEG-1 Layer I, MPEG-1 Layer II, MPEG-1 Layer III (MP3), Dolby Digital, Dolby Digital Plus, AAC, HE-AAC, DTS
.vob [Video] MPEG-1, MPEG-2 [Audio] Dolby Digital, MPEG-1 Layer I, MPEG-1 Layer II, DVD-LPCM
- mp4, .m4v, .mov
[Video] MPEG-2, MPEG-4 Part2, DivX3.11, DivX4, DivX5, DivX6, XVID, H.264/AVC
[Audio] AAC, MPEG-1 Layer III (MP3), DTS
[mkv] [Video] MPEG-2, MPEG-4 Part2, DivX3.11, DivX4, DivX5, DivX6, XVID, H.264/AVC [Audio] HE-AAC, Dolby Digital, MPEG-1 Layer III (MP3), DTS, LPCM
- motion JPEG [Video] MJPEG [Audio] LPCM, ADPCM
- .mpg, .mpeg, .mpe
[Video] MPEG-1, MPEG-2
[Audio] MPEG-1 Layer I, MPEG-1 Layer II, Dolby Digital, LPCM
- dat [Video] MPEG-1, MPEG-2 [Audio] MP2
flv [Video] Sorenson H.263, H.264/AVC [Audio] MP3, AAC, HE-AAC
*rm,*rmbv [Video] RV30, RV40 [Audio] Dolby Digital, AAC, HE-AAC, RA6(Cook)
3gp, 3gp2
[Video] H.264/AVC, MPEG-4 Part2
[Audio] AAC, AMR(NB/WB)
- DTS / rm / *rmvb : Depending on model

Supported Audio Formats

• File type:mp3

[Bit rate] 32 Kbps - 320 Kbps

[Sample freq.] 16 kHz - 48 kHz

[Support] MPEG1, MPEG2, Layer2, Layer3

• File Type: AAC

[Bit rate] Free Format

[Sample freq.] 8 kHz ~ 48 kHz

[Support] ADIF, ADTS

• File Type: M4A

[Bit rate] Free Format

[Sample freq.] 8 kHz ~ 48 kHz

[Support] MPEG-4

• File Type:WMA

[Bit rate] 128 Kbps 320 Kbps

[Sample freq.] 8 kHz ~ 48 kHz

[Support] WMA7, WMA8, WMA9 Standard

• File Type:WMA

[Bit rate] ~ 768 Kbps

[Channel / Sample freq.]

M0 : up to 2 Channel @ 48 kHz

(Except LBR mode),

M1: up to 5.1 Channel @ 48 kHz,

M2 : up to 5.1 Channel @ 96 kHz

[Support] WMA 10 Pro

• File Type: OGG

[Bit rate] Free Format

[Sample freq.] 8kHz 48kHz

[Support] OGG Vorvis

Supported Photo Formats

• Category : 2D (jpeg, jpg, jpe)

[Available file type] SOF0: Baseline,

SOF1: Extend Sequential,

SOF2: Progressive

[Photo size] Minimum: 64 x 64

Maximum: Normal Type: 15360 (W) x 8640

(H), Progressive Type: 1920 (W) x 1440 (H)

• Category:BMP

[Photo size] Minimum: 64 x 64,

Maximum: 9600 x 6400

• Category : PNG

[Available file type] Interlace, Non-Interlace

[Photo size] Minimum: 64 x 64, Maximum: Interlace

: 1200 x 800, Non-Interlace : 9600 x 6400

• BMP and PNG format files may be slower to display than JPEG.

TO SEE WEB MANUAL

To obtain detailed User Guide information, please visit www.lg.com.

EXTERNAL CONTROL DEVICE SETUP

To obtain the external control device setup information, please visit www.lg.com.

MAINTENANCE

Cleaning your TV

Clean your TV regularly to keep the best performance and to extend the product lifespan.

CAUTION

• Make sure to turn the power off and disconnect the power cord and all other cables first.
• When the TV is left unattended and unused for a long time, disconnect the power cord from the wall outlet to prevent possible damage from lightning or power surges.

Screen, frame, cabinet and stand

• To remove dust or light dirt, wipe the surface with a dry, clean, and soft cloth.
• To remove major dirt, wipe the surface with a soft cloth dampened in clean water or a diluted mild detergent. Then wipe immediately with a dry cloth.

CAUTION

• Avoid touching the screen at all times, as this may result in damage to the screen.
• Do not push, rub, or hit the screen surface with your fingernail or a sharp object, as this may result in scratches and image distortions.
• Do not use any chemicals as this may damage the product.
• Do not spray liquid onto the surface. If water enters the TV, it may result in fire, electric shock, or malfunction.

Power cord

Remove the accumulated dust or dirt on the power cord regularly.

TROUBLESHOOTING

Problem	Solution
Cannot control the TV with the remote control.	Check the remote control sensor on the product and try again. Check if there is any obstacle between the product and the remote control. Check if the batteries are still working and properly installed (⊕ to⊕, ⊙ to ⊙).
No image display and no sound is produced.	Check if the product is turned on. Check if the power cord is connected to a wall outlet. Check if there is a problem in the wall outlet by connecting other products.
The TV turns off suddenly.	Check the power control settings. The power supply may be interrupted. Check if the Automatic Standby (Depending on model) / Sleep Timer / Off Time feature is activated in the TIME settings. If there is no signal while the TV is on, the TV will turn off automatically after 15 minutes of inactivity.
When connecting to the PC (HDMI/DVI), ‘No signal’ or ‘Invalid Format’ is displayed.	Turn the TV off/on using the remote control. Reconnect the HDMI cable. Restart the PC with the TV on.

BENUTZERHANDBUCH

PLASMA-TV

[Bitrate] 32 kbit/s - 320 kbit/s

[Abtastfrequenz] 16 kHz - 48 kHz

[Bitrate] Freies Format

[Abstastfrequenz] 8 kHz 48 kHz

[Unterstutzung] ADIF, ADTS

• Dateotyp: M4A

[Bitrate] Freies Format

[Abtastfrequenz] 8 kHz 48 kHz

[Bitrate] Free Format

[Abtastfrequenz] 8kHz 48 kHz

SOF1: Extend Sequential,

SOF2: Progressive

(H), Progressive: 1920 (W) x 1440 (H)

• Kategorie: BMP

[Bildgroße] Minimum: 64 x 64, Maximum :

9600×6400

• Kategorie : PNG

Corps du support / Base du support

SETTINGS IMAGE Assistant Image III

[SeIon le modele]

Egoikovoei nAekptipkiN evepyeia TPOOAPoCovTAC Tn

Autuato: [AvaLoya to oovTeo] O aiothnpac TnsTnEopaanC avxveuei Tov qwntioo Tou TpeiaalovtoKai puOuiiea UTOyata T n QWteivotnTa Tns OboVcn.
- ATevpy/vo: ATevepyotoiE iTv Egoikovounon EvpeyiaC.
Eaixotn / Meo / Mviotn: Evpytoei tvnpokaopoievn puoi n Egoikovmng EvpyeiaC.
KLeioio Ooovn: H oovn kLeivei kai akouyetai Movo nOxos. Pntote OTIOoiNTOTE Koumt OTo TnEXeipiotnpio (EtoTto KoumtI Aeitoupyiaq) via va EvpyoToiaqEgava tvN oovn.

Tia xpon Twv nxxiw TV

SETTINGs HXO2 Ee0ooc hou Hxεia TV

7,295,673; 7,460,668; 7,515,710; 7,519,274

OBVESTILO O ODPRTOKODNI PROGRAMSKI OPREMI

ISFccc: Imaging Science Foundation Certified Calibration Control.

Product specifications may be changed without prior notice due to upgrade of product functions.

For the power supply and power consumption, refer to the label attached to the product.

MODELS		50PB56**	60PB56**
		50PB560V-ZA	60PB5600-ZA
		50PB5600-ZA	60PB560V-ZA
		50PB5608-ZA	60PB5608-ZA
		50PB560U-ZA	60PB560U-ZA
		50PB560B-ZA	60PB560B-ZA
		50PB5606-ZA	60PB5606-ZA
Dimensions (W x H x D)	With stand (mm)	1172 x 756.7 x 315	1390.8 x 880.9 x 340
	Without stand (mm)	1172 x 700.9 x 56	1390.8 x 823.7 x 56
Weight	With stand (kg)	24.9	35.7
	Without stand (kg)	23.3	33

CI Module Size (W x H x D)		100.0 mm x 55.0 mm x 5.0 mm
Environment condition	Operating Temperature	0 °C to 40 °C
	Operating Humidity	Less than 80 %
	Storage Temperature	-20 °C to 60 °C
	Storage Humidity	Less than 85 %

	Satellite Digital TV	Digital TV	Analogue TV
Television system	DVB-T/T2 DVB-C DVB-S/S2	DVB-T DVB-C	PAL/SECAM B/G/I/D/K, SECAM L/L'
Programme coverage	VHF, UHF C-Band, Ku-Band	VHF, UHF	VHF: E2 to E12, UHF: E21 to E69, CATV: S1 to S20, HYPER: S21 to S47
Maximum number of storable programmes	6,000	1,500
External antenna impedance	75 Ω

HDMI-DTV supported mode

Resolution	Horizontal Frequency (kHz)	Vertical Frequency (Hz)
720 x 480	31.469	59.94
	31.5	60
720 x 576	31.25	50
1280 x 720	37.5	50
	44.96	59.94
	45	60
1920 x 1080	33.72	59.94
	33.75	60
	28.125	50
	26.97	23.97
	27	24
	33.716	29.976
	33.75	30.00
	56.25	50
	67.43	59.94
	67.5	60

Component port connecting information

Component ports on the TV		Y	PB	PR
Video output ports on DVD player		Y	PB	PR
		Y	B-Y	R-Y
		Y	Cb	Cr
		Y	Pb	Pr
Signal	Component
480i/576i	O
480p/576p	O
720p/1080i	O
1080p	O(50 Hz / 60 Hz only)

HDMI-PC supported mode

Resolution	Horizontal Frequency (kHz)	Vertical Frequency (Hz)
640 x 350	31.468	70.09
720 x 400	31.469	70.08
640 x 480	31.469	59.94
800 x 600	37.879	60.31
1024 x 768	48.363	60.00
1360 x 768	47.712	60.01
1280 x 1024	63.981	60.02
1920 x 1080	67.5	60.02

• (Except for 50PB560B, 50PB5606, 50PB560U)

REGULATORY

LG Recycling Policy (Only EU)

LG Electronics offers a customized e-waste take-back & recycling service that meets local needs and requirements in the countries where e-waste regulations are in place, and also provides product and packaging take-back & recycling service voluntarily in some countries. LG Electronics evaluates products' recyclability at the design step using LG's recyclability evaluation tool, with the goal of improving recyclability where practicable. Through these activities, LG seeks to contribute to conserving natural resources and protecting the environment.

For more information about the LG Recycling Policy, please visit our global site at http://www/lg.com/global/sustainability/environment/take-back-recycling

Energy Saving

Energy efficiency cuts energy consumption and thus saves money by reducing electricity bills. The following indications allow to reduce power consumption when the television is not being watched:

• Turning the television off at its mains supply, or un-plugging it, will cut energy use to zero for all televisions, and is recommended when the television is not being used for a long time, e.g. when on holiday,
• Putting the television into standby mode, will reduce energy consumption, but will still draw some power,
• Reducing the brightness of the screen will reduce energy use.

Disposal of waste batteries (Applicable in the European Union and other European countries with separate collection systems)

Pb

This symbol on the battery or on the packaging indicates that the battery provided with this product shall not be treated as household waste.

By ensuring these batteries are disposed of correctly, you will help prevent potentially negative consequences for the environment and human health which could otherwise be caused by inappropriate waste handling of the battery.

The recycling of the materials will help to conserve natural resources.

In case of products that for safety, performance or data integrity reasons require a permanent connection with an incorporated battery, this battery should be replaced by qualified service staff only.

To ensure that the battery will be treated properly, hand over the product at end-of-life to the applicable collection point for the recycling of electrical and electronic equipment.

For all other batteries, please view the section on how to remove the battery from the product safely. Hand the battery over to the applicable collection point for the recycling of waste batteries.

For more detailed information about recycling of this product or battery, please contact your local authority, your household waste disposal service or the shop where you purchased the product.

EU ecolabel (Only EU ecolabel applied model)

Better for the environment...

High Energy Efficiency
- Reduced CO2 emissions
- Designed to facilitate repair and recycling

... better for you.

EU Ecolabel:PL/22/004

LGE announced the 'LG Declaration for a Cleaner Environment' in 1994, and this ideal has served as a Guiding managerial principle ever since. The Declaration is a foundation that has allowed us to undertake Environmentally friendly activities in careful consideration of economic, environmental, and social aspects. We promote activities for environmental preservation, and we specifically develop our products to embrace the Concept of environment-friendly through whole process from getting raw materials, production, transportation, usage and end-of-life. These environmental characteristics are endorsed by the award of the European Commission as approval of the product environmental status for energy saving. Facilities for recycling and a host of other features.

The full list of criteria and more information on the eco label can be found at the web-site address :

http://www.ecolabel.eu

Restriction of Hazardous Substances (Only Ukraine) Оьм_EXений Украійни на наразови сь несязпechих рechовин

• The equipment complies with requirements of the Technical Regulation, in terms of restrictions for the use of certain dangerous substances in electrical and electronic equipment.
• YcTaTkyBaHHa BiIIOBiae BIMoram TexHrHO perIaMeHTy Udo ObMeXeHHOro BkOpNCTaHH He63neHHx peOBoHn B eNEKTPuHOMy i eNEKTPoHOMy ObnaHaHHi.

Isolator (Only Sweden, Norway)

• "Equipment connected to the protective earthing of the building installation through the mains connection or through other equipment with a connection to protective earthing - and to a cable distribution system using coaxial cable, may in some circumstances create a fire hazard. Connection to a cable distribution system has therefore to be provided through a device providing electrical isolation below a certain frequency range (galvanic isolator, see EN 60728-11)"
• "Ultrustning som ar kopplad till skyddsjord via jordat vaggutag och/eller via annan utrustning och samtidigt ar kopplad till kabel-TV nit kan i vissa fall medfora risk for brand.

Please contact LG First.

If you have any inquiries or comments,

please contact LG customer information centre.

Record the model number and serial number of the TV.

Refer to the label on the back cover and quote this information to your dealer when requiring any service.

MODEL

SERIAL

DVB

Digital Video

Broadcasting

LG Customer Information Centre

Country	LG Service	Country	LG Service
Österreich	0 810 144 131	Nederland	0900 543 5454
Belgienie	015 200 255	Norge	800 187 40
Luxembourg	0032 15 200255	Polska	801 54 54 54
Бulgaria	07001 54 54	Portugal	808 78 54 54
Česká Rep.	810 555 810	Romania	031 228 3542
Danmark	8088 5758	Slovensko	0850 111 154
Suomi	0800 0 54 54	Espana	902 500 234
France	3220 dites LG ou tapez 54	Sverige	0770 54 54 54
Deutschland	01806 11 54 11 (0,20€ pro Anruf aus dem Festnetz der DTAG; Mobilfunk: max. 0,60€ pro Anruf)	Schweiz	0848 543 543
Еλλάδα	801 11 200 900, 210 4800 564	United Kingdom	0844 847 5454
		Rocsnja	8 800 200 7676
Magyarország	06 40 54 54 54	Eesti	800 9990
Éire	0818 27 6955	Уkraine	0 800 303 000
Italia	199600099	Казх CTAN	8 8000 805 805, 2255(GSM)
Беларcsy	8 820 0071 111
Latvija	80200201	Узбекстан	8 800 120 2222
Lietuva	880008081	Кырль CTAN	8 0000 710 005

www.lg.com
