Product type	Compact digital camera
Brand	Samsung
Model	VLUU PL150
Sensor	CCD 1/2.33" (7.79 mm), 12.4 effective megapixels
Lens	Samsung f = 4.9 - 24.5 mm (equiv. 27-135 mm in 35 mm), F3.5 (W) - F5.9 (T)
Main screen	LCD 3.0" QVGA (230,000 pixels)
Front screen	LCD TFT 1.5" (61,000 pixels) for self-portrait
Focus	Auto TTL: multi, center, face detection, tracking, smart recognition
Shutter speed	Auto: 1/8 - 1/2000 s; Program: 1 - 1/2000 s; Night: 8 - 1/2000 s; Fireworks: 2 s
Internal storage	Approximately 30 MB
External storage	microSD™ card (up to 2 GB), microSDHC™ card (up to 8 GB)
Battery	Rechargeable lithium-ion SLB-07, 760 mAh
Battery life	Approximately 100-150 shots depending on conditions
Dimensions (W x H x D)	99.2 x 59 x 19.9 mm
Weight	136.6 g (without battery or card)
Connectivity	USB 2.0, Audio/Video, HDMI
Power supply	AC adapter (included) and rechargeable battery
Box contents	Camera, AC adapter/USB cable, manual CD-ROM, quick guide, wrist strap
Cleaning	Clean with a soft, dry cloth; avoid solvents and liquids
Safety	Do not use near flammable gas; keep out of reach of children; do not use flash within 1 m of eyes
Operating temperature	0°C to 40°C
Operating humidity	5% to 85%

Frequently Asked Questions - VLUU PL150 그녀의다이어리 SAMSUNG

How to turn on the camera?

Press the [POWER] button. On first use, an initial setup screen appears.

How to take a photo in auto mode?

Turn the mode dial to AUTO. Frame your subject, press the shutter button halfway to focus (a green frame appears), then press fully to take the photo.

How to use the front screen for a selfie?

In Shooting mode, press the Front LCD button once. The front screen displays your image. Frame yourself, then press the shutter button.

What type of memory card does the camera use?

It uses microSD™ cards (up to 2 GB) or microSDHC™ cards (up to 8 GB). Insert the card with the chip facing up and the Samsung logo facing up.

How to charge the battery?

Use the included AC adapter and USB cable. Connect the camera to a power outlet. The indicator light turns red during charging and green when complete.

How to transfer photos to a Windows computer?

Connect the camera to the computer with the USB cable. Make sure the PC Software option is set to March in the settings menu. Turn on the camera. The computer recognizes it automatically and you can use the Intelli-studio software to transfer files.

How to view photos on the camera?

Press the Playback button [O]. Use the navigation buttons [4] or [O] to scroll through images. Press and hold for fast scrolling.

How to record a video?

Turn the mode dial to Video (camera icon). Frame the subject and press the shutter button to start. Press [OK] to pause or resume. Press the shutter button again to stop.

What to do if the camera does not turn on?

Check that the battery is charged and correctly inserted. If the problem persists, try resetting the camera by removing the battery and memory card for a few seconds, then reinserting them.

Where to find the full manual?

The full manual is available for free download in PDF format on the site notice-facile.com. You can also request a translation in your language by providing your email address.

USER MANUAL VLUU PL150 그녀의다이어리 SAMSUNG

For more information, refer to the User Manual included on the supplied CD-ROM.

This Quick Start Manual has been specially designed to guide you through the basic functions and features of your device. Please read the Quick Start Manual and User Manual carefully to ensure safe and correct use.

ENG/FRE/T.CHI/IND/ARA/THA/PER

Contents

Health and safety information 2

Camera layout 4

Setting up your camera 5

Unpacking 5

Inserting the battery and memory card 6

Charging the battery 6

Turning on your camera. 7

Selecting options 7

Capturing photos or videos 8

Playing files 9

Transferring files to a PC (Windows) 10

Specifications 11

Health and safety information

Warnings

Do not use your camera near flammable or explosive gases and liquids

Do not use your camera near fuels, combustibles, or flammable chemicals. Do not store or carry flammable liquids, gases, or explosive materials in the same compartment as the camera or its accessories.

Keep your camera away from small children and pets

Keep your camera and all accessories out of the reach of small children and animals. Small parts may cause choking or serious injury if swallowed. Moving parts and accessories may present physical dangers as well.

Prevent damage to subjects' eyesight

Do not use the flash in close proximity (closer than 1m / 3 ft) to people or animals. Using the flash too close to your subject's eyes can cause temporary or permanent damage.

Handle and dispose of batteries and chargers with care

• Use only Samsung-approved batteries and chargers. Incompatible batteries and chargers can cause serious injuries or damage to your camera.
• Never place batteries or cameras on or in heating devices, such as microwave ovens, stoves, or radiators. Batteries may explode when overheated.

Cautions

Handle and store your camera carefully and sensibly

• Do not allow your camera to get wet—liquids can cause serious damage. Do not handle your camera with wet hands. Water damage to your camera can void your manufacturer's warranty.

• Avoid using or storing your camera in dusty, dirty, humid, or poorly-ventilated areas to prevent damage to moving parts and internal components.

• Exercise caution when connecting cables or adapters and installing batteries and memory cards. Forcing the connectors, improperly connecting cables, or improperly installing batteries and memory cards can damage ports, connectors, and accessories.

• Do not insert foreign objects into any of your camera's compartments, slots, or access points. This type of damage may not be covered by your warranty.

Protect batteries, chargers, and memory cards from damage

• Avoid exposing batteries or memory cards to very cold or very hot temperatures (below 0^ / 32^ or above 40^ / 104^ ). Extreme temperatures can reduce the charging capacity of your batteries and can cause memory cards to malfunction.
• Prevent memory cards from making contact with liquids, dirt, or foreign substances. If dirty, wipe the memory card clean with a soft cloth before inserting in your camera.

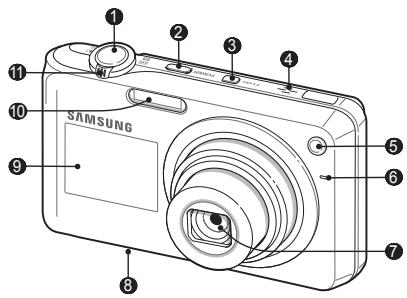

Camera layout

1 Shutter button
2 POWER button
Front LCD button
Speaker
⑤ AF-assist light/timer lamp
6 Microphone
Lens
8 Battery chamber cover
9:Front display
10 Flash
1 Zoom button

12 Status lamp
Mode dial
USB and A/V port (Accepts USB cable or A/V cable)
15 HDMI port (Accepts HDMI cable)
16 Function button
17 Playback button
Navigation button/OK button
19: MENU button
Tripod mount
Main display

Setting up your camera

Unpacking

Camera

AC adapter/USB cable

Rechargeable battery

Strap

User Manual CD-ROM

Quick Start Manual

Optional accessories

Camera case

Memory card (microSD™)

AV cable

Battery charger

HDMI cable

Setting up your camera

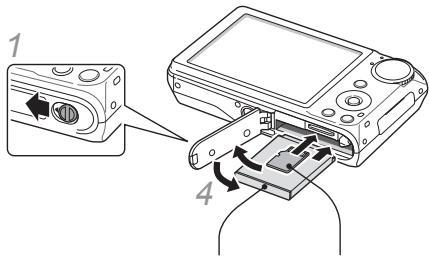

Inserting the battery and memory card

3 With the Samsung logo facing up

2 With the gold-colored contacts facing up

Removing the battery

Removing the memory card

Push gently until the card disengages from the camera and then pull it out of the slot.

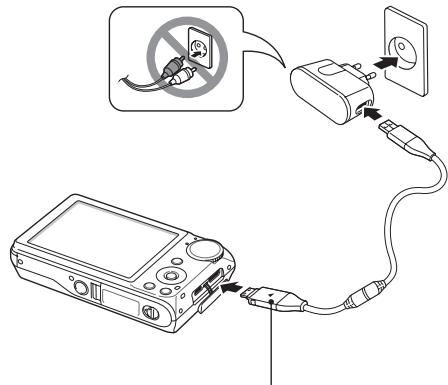

Charging the battery

Before using the camera for the first time, you must charge the battery.

Indicator light

Red:Charging
- Green: Fully charged

Turning on your camera

1 Press [POWER].

• The initial setup screen appears when you turn on your camera for the first time.

2 Select a language, set the date and time, and select a time zone.

Selecting options

1 In Shooting mode, press [MENU].
2 Use the navigation buttons to scroll to an option or menu.

• To move left or right, press [F] or [O].
• To move up or down, press [DISP] or [].

3 Press [OK] to confirm the highlighted option or menu.

• Press [MENU] again to go back to the previous menu.

Capturing photos or videos

Taking a photo

1 Rotate the mode dial to AUTO.
2 Align your subject in the frame.
3 Press [Shutter] halfway down to focus automatically.

• A green frame means the subject in focus.

4 Press [Shutter] all the way down to take the photo.

Taking a photo of yourself using the front display

The front display will help you take self-portraits.

1 In Shooting mode, press [Front LCD] once.

• The front display turns on in the Self-portrait mode.

2 Press [Shutter] halfway down to focus.
3 Press [Shutter] all the way down to take the photo.

Recording a video

1 Rotate the mode dial to
2 Align your subject in the frame.
3 Press [Shutter].

• Press [OK] to pause or resume.

4 Press [Shutter] again to stop the recording.

Note

Number of photos by resolution (for 1 GB microSDTM)

Resolution		Super Fine	Fine	Normal
12M	4000 X 3000	145	281	399
10M	3984 X 2656	166	310	436
3M	3840 X 2160	200	363	522
8M	3264 X 2448	209	370	531
5M	2560 X 1920	335	560	783
3M	2048 X 1536	526	793	1,053
2M	1920 X 1080	860	1,131	1,421
1M	1024 X 768	1,455	1,651	1,851

These figures are measured under Samsung's standard conditions and may vary depending on shooting conditions and camera settings.

Playing files

Viewing photos

1 Press [O].
2 Press [ ] or [ ] to scroll through files. Press and hold to scroll through files quickly.

Viewing videos

1 Press [O].
2 Press [OK].
3 Use the following buttons to control playback.

[4]	Scan backward
[OK]	Pause or resume playback
[Ctrl]	Scan forward
[Zoom] left or right	Adjust the volume level

Transferring files to a PC (Windows)

1 Connect the camera to your computer with the USB cable.

Note

Make sure that the PC Software option is set to On in the settings menu.

2 Turn on the camera.

• The computer recognizes the camera automatically.
• For Windows Vista, select Run iStudio.exe from the AutoPlay window.

3 Select a folder on your computer to save new files.
- If your camera has no new files, the pop-up window for saving new files will not appear.

4 Select Yes.

• New files will be transferred to your computer. You can now use the Intelli-studio program.

Note

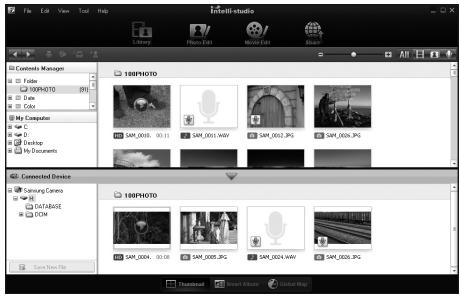

About Intelli-studio

Intelli-studio is a built-in program that allows you to play back and edit files. You can also upload files to websites, such as Flickr or YouTube.

Specifications

Image sensor	• Type: 1/2.33" (approx. 7.79 mm) CCD • Effective pixels: approx. 12.4 mega-pixels • Total pixels: approx. 12.7 mega-pixels
Lens	• Focal length: Samsung lens f = 4.9 - 24.5 mm (35 mm film equivalent: 27 - 135 mm) • F-stop range: F3.5 (W) - F5.9 (T)
Display	• Main Display: 3.0" (approx. 7.6 cm) QVGA (230 K) • Front Display: 1.5" (approx. 3.8 cm) 61 K TFT LCD
Focusing	TTL auto focus (Multi AF, Center AF, Face Detection AF, Tracking AF, Smart Face Recognition AF)
Shutter speed	• Auto: 1/8 - 1/2,000 sec. • Program: 1 - 1/2,000 sec. • Night: 8 - 1/2,000 sec. • Fireworks: 2 sec.
Storage	• Internal memory: approx. 30 MB • External memory (Optional): microSDTM card (up to 2 GB guaranteed), microSDHCTM card (up to 8 GB guaranteed) Internal memory capacity may not match these specifications.
DC power input connector	20 pin
Rechargeable battery	Lithium-ion battery (SLB-07, 760 mAh)
Dimensions (W x H x D)	99.2 x 59 x 19.9 mm
Weight	136.6 g (without battery and memory card)
Operating temperature	0 - 40°C
Operating humidity	5 - 85 %
