USER MANUAL RT600N4DC2 HISENSE

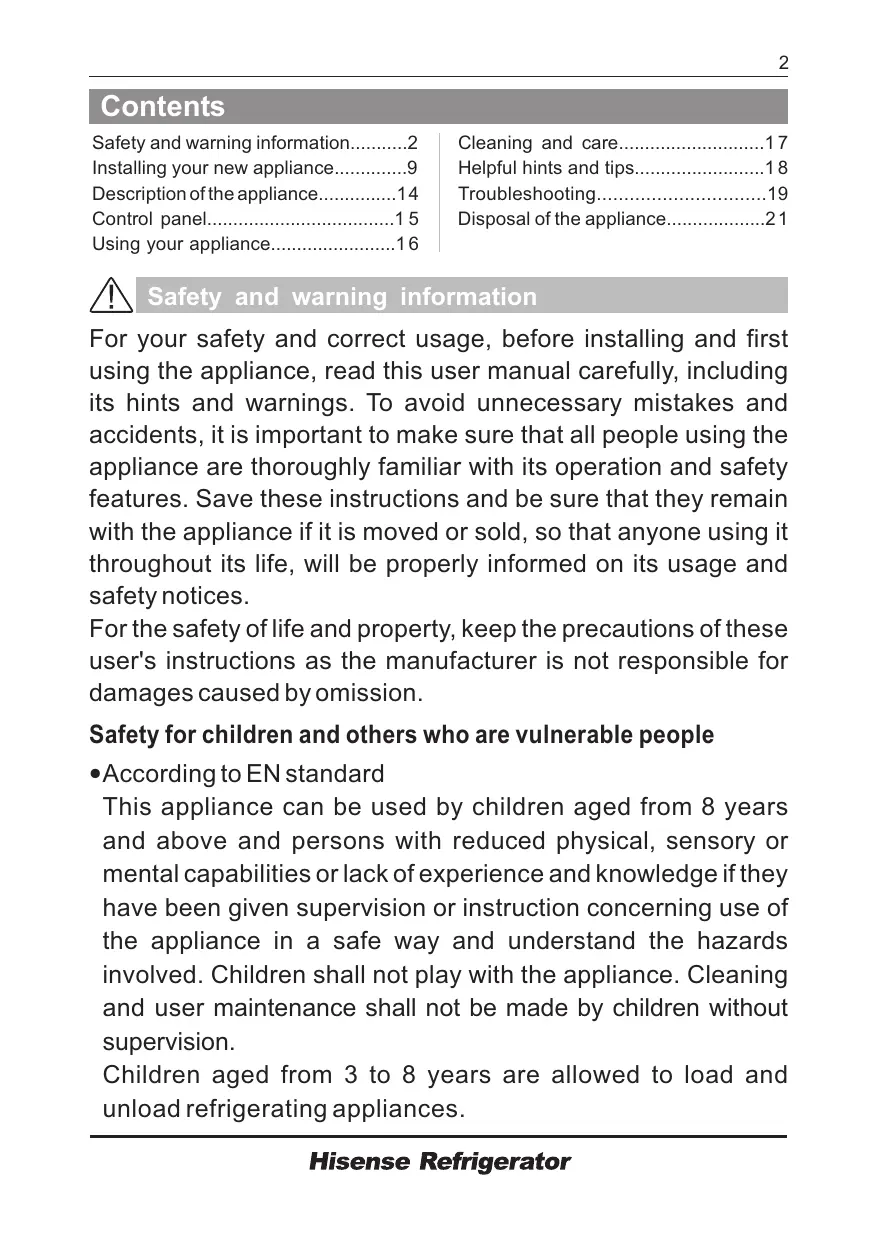

Contents Safety and warning information2 Installing your new appliance9 Description of the appliance14 Control panel1 5 Using your appliance1 6

Cleaning and care1 7

Helpful hints and tips1 8 Troubleshooting19 Disposal of the appliance2 1

Safety and warning information

For your safety and correct usage, before installing and first using the appliance, read this user manual carefully, including its hints and warnings. To avoid unnecessary mistakes and accidents, it is important to make sure that all people using the appliance are thoroughly familiar with its operation and safety features. Save these instructions and be sure that they remain with the appliance if it is moved or sold, so that anyone using it throughout its life, will be properly informed on its usage and safety notices. For the safety of life and property, keep the precautions of these user's instructions as the manufacturer is not responsible for damages caused by omission.

Safety for children and others who are vulnerable people

According to EN standard

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.

According to IEC standard

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person being responsible for their safety. Children should be supervised to ensure that they do not play with the appliance. ● Keep all packaging away from children as there is risk of suffocation. ● If you are discarding the appliance, pull the plug out of the socket, cut the connection cable (as close to the appliance as you can) and remove the door to prevent children playing from suffering an electric shock or from closing themselves inside it. If this appliance, featuring a magnetic door seals, is to replace an older appliance having a spring lock (latch) on the door or lid, be sure to make the spring lock unusable before you discard the old appliance. This will prevent it from becoming a death trap for a child. ●

WARNING —This appliance is intended to be used in household and similar applications such as -staff kitchen areas in shops, offices and other working environments; -farm houses and hotels, motels and other residential type environments; -bed and breakfast type environments; -catering and similar non-retail applications. ● WARNING — Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance. ●

WARNING — If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

●WARNING — Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction. ●WARNING — Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer. ●WARNING — Do not damage the refrigerant circuit. ●WARNING — Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer. ●WARNING — The refrigerant and insulation blowing gas are flammable. When disposing of the appliance, do so only at an authorized waste disposal centre. Do not expose to flame. ●WARNING —When positioning the appliance, ensure the supply cord is not trapped or damaged. ●WARNING —Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance. ●WARNING —Food needs to be packed in bags before putting into the refrigerator, and liquids need to be packed in bottles or containers to avoid the problem that the product design structure is not easy to clean. ●

The symbol is a warning and indicates the refrigerant and insulation blowing gas are flammable.

Warning: Risk of fire / flammable materials Replacing the illuminating lamps ● WARNING—The illuminating lamps must not be replaced by

the user! If the illuminating lamps is damaged, contact the customer helpline for assistance.This warning is only for refrigerators that contain illuminating lamps.

Refrigerant The refrigerant isobutene (R600a) is contained within the refrigerant circuit of the appliance, a natural gas with a high level of environmental compatibility, which is nevertheless flammable. During transportation and installation of the appliance, ensure that none of the components of the refrigerant circuit becomes damaged. The refrigerant (R600a) is flammable. WARNING — Refrigerators contain refrigerant and gases in the insulation. Refrigerant and gases must be disposed of professionally as they may cause eye injuries or ignition. Ensure that tubing of the refrigerant circuit is not damage prior to proper disposal. WARNING: risk of fire If the refrigerant circuit should be damaged: -Avoid opening flames and sources of ignition. -Thoroughly ventilate the room in which the appliance is situated. It is dangerous to alter the specifications or modify this product in any way. Any damage to the cord may cause a short circuit, fire, and/or electric shock. Electrical safety 1.The power cord must not be lengthened. 2. Make sure that the power plug is not crushed or damaged. A crushed or damaged power plug may overheat and cause a fire.

3.Make sure that you can access the main plug of the appliance.

4. Do not pull the main cable. 5. If the power plug socket is loose, do not insert the power plug. There is a risk of electric shock or fire. 6.You must not operate the appliance without the interior lighting lamp cover. 7.The fridge is only applied with power supply of single phase alternating current of 220~240V/50Hz. If fluctuation of voltage in the district of user is so large that the voltage exceeds the above scope, for safety sake, be sure to apply A.C. Automatic voltage regulator of more than 350W to the fridge. The fridge must employ a special power socket instead of common one with other electric appliances. Its plug must match the socket with ground wire. Daily use ● Do not store flammable gas or liquids in the appliance, there is a risk of an explosion. ● Do not operate any electrical appliances in the appliance (e.g. electric ice cream makers, mixers etc.). ● When unplugging always pull the plug from the mains socket, do not pull on the cable. ● Do not place hot items near the plastic components of this appliance. ● Do not place food products directly against the air outlet on the rear wall. ● Store pre-packed frozen food in accordance with the frozen food manufacture’s instructions. ● The appliances manufactures storage recommendations should be strictly adhered to. Refer to relevant instructions for storage.

Do not place carbonated or fizzy drinks in the freezer compartment as it creates pressure on the container, which may cause it to explode, resulting in damage to the appliance.

●Frozen food can cause frost burns if consumed straight from the freezer compartment. ●Do not place the appliance in direct sunlight. ● Keep burning candles, lamps and other items with naked flames away from the appliance so that do not set the appliance on fire. ●The appliance is intended for keeping food stuff and/or beverages in normal household as explained in this instruction booklet . You should take care when move it as the appliance is heavy. ●Do not remove or touch items from the freezer compartment if your hands are damp/wet, as this could cause skin abrasions or frost/freezer burns. ● Never use the base, drawers, doors etc. to stand on or as supports. ●Frozen food must not be refrozen once it has been thawed out. ●Do not consume ice popsicles or ice cubes straight from the freezer as this can cause freezer burn to the mouth and lips. ●To avoid items falling and causing injury or damage to the appliance, do not overload the door racks or put too much food in the crisper drawers. ●

Care and cleaning ●Before maintenance, switch off the appliance and disconnect the mains plug from the mains socket. ●Do not clean the appliance with metal objects, steam cleaner, ethereal oils, organic solvents or abrasive cleansers.

Do use a plastic scraper instead of a sharp objects to remove frost from the appliance.

Installation Important!

●For electrical connection carefully, follow the instructions given in this manual. Unpack the appliance and check if there are damages on it. ●Do not connect the appliance if it is damaged. Report possible damages immediately to the place you bought it. In this case retain packing. ●It is advisable to wait at least four hours before connecting the appliance to allow the oil to flow back in the compressor. ●Adequate air circulation should be around the appliance, lacking this leads to overheating. To achieve sufficient ventilation, follow the instructions relevant to installation. ●Wherever possible the back of the product should not be too close to a wall to avoid touching or catching warm parts (compressor) to prevent the risk of a fire, follow the instructions relevant to installation. ●The appliance must not be locate close to radiators or cookers. ●Make sure that the mains plug is accessible after the installation of the appliance. Service ●Any electrical work required to do the servicing of the appliance should be carried out by qualified electrician or competent person. ●This product must be serviced by an authorized Service Center, and only genuine spare parts must be used. 1)If the appliance is Frost Free. 2)If the appliance contains freezer compartment.

Installing your new appliance

Before using the appliance for the first time, you should be informed of the following tips. Warning! For proper installation, this refrigerator must be placed on a level surface of hard material that is the same height as the rest of the flooring. This surface should be strong enough to support a fully loaded refrigerator. The rollers, which are not castors, should be only used for forward or backward movement. Moving the refrigerator sideways may damage your floor and the rollers.

wall, at least 100mm from its top, at least 100mm from its side to the wall and a clear space in front to allow the doors to open 130°. As shown in follow diagrams.

This appliance performs well within the climate class from N to T showed in the table below. It may not work properly if being left at a temperature above or below the indicated range for a long period. ●

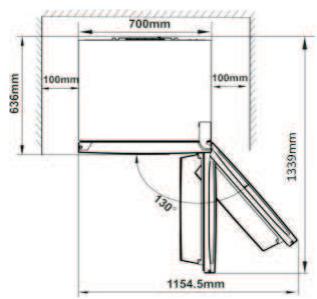

Ventilation of appliance

In order to improve efficiency of the cooling system and save energy, it is necessary to maintain good ventilation around the appliance for the dissipation of heat. For this reason, sufficient clear space should be available around the refrigerator. Suggest: It is advisable for there to be 50-70mm of space from the back to the

Climate class Ambient temperature

N +16°C to +32°C ST +16°C to +38°C T +16°C to +43°C ● Stand your appliance in a dry place to avoid high moisture. ● Keep the appliance out of direct sunlight, rain or frost. Stand the appliance away from heat sources such as stoves, fires or heaters.

Leveling of appliance sufficient leveling and air circulating in the lower rear section of the appliance, the bottom feet may need to be adjusted. You can adjust them manually by hand or by using a suitable spanner. ● To allow the doors to self-close, tilt the top backwards by 10-15mm. ● For

Only under the extreme circumstances, that is opening the door about 90 degree, this refrigerator may take risk of tipping. Then rubber supporting pad should be fastened to the lower base cover to steady this appliance.

1. Tilt appliance to find screw hole on the left of lower base cover.

2. Put screw into the hole of rubber supporting pad. screw

Adjustable Front roller Rear roller bottom feet

rubber supporting pad

Adjustable bottom feet

● If required you may lay the refrigerator on its back in order to gain access to the base, you should rest it on soft foam packaging or similar material to avoid damaging the backboard of the refrigerator. ● There is no need to install these accessories under normal usage.

3. Make screw in alignment with the hole on lower base cover. Fasten rubber supporting pad to the base cover firmly by a cross screwdriver (self-provided).

Note: If required you may lay the refrigerator on its back in order to gain access to the base, you should rest it on soft foam packaging or similar material to avoid damaging the backboard of the refrigerator. To reverse the door, the following steps are generally recommended.

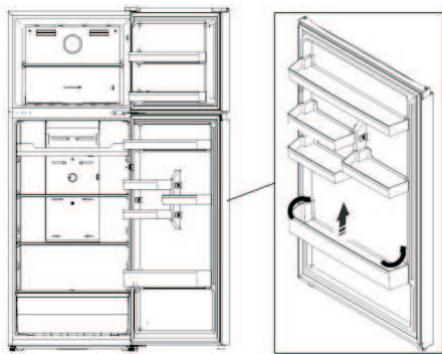

1. Stand the refrigerator upright. Open the door to take out all door racks(to avoid damage) and then close the door.

The side at which the door opens can be changed, from the right side (as supplied) to the left side, if required. Warning! When reversing the door, the appliance must not be connected to the mains. Ensure that the plug is removed from the mains socket. Tools you will need

Caution! Please slightly squeeze the door rack from two sides toward centre and inside of door rack,and then move it upward when taking out.

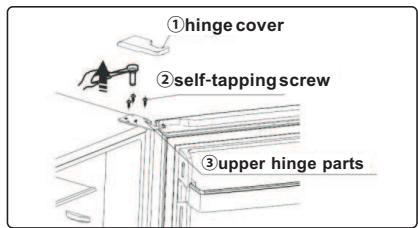

2. Remove right upper hinge cover ①on top of the cabinet. Remove the 3 screws② which are used for fixing the right upper hinge part (see the picture below) and take down the upper hinge parts③ ①hinge cover ②self-tapping screw

Caution! Please hold the upper door in place during step 2 to prevent the door dropping. 3. Remove screw cover from the left-front corner of cabinet with thin-blade screwdriver and install it to the right-front corner.

4. Remove the upper door from the middle hinge by carefully lifting the door straight up.

6. Loosen screws that are used to fix the middle hinge and remove middle hinge.

Then remove the lower door.

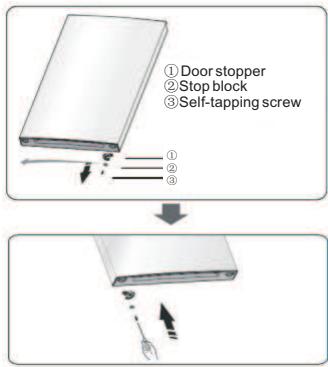

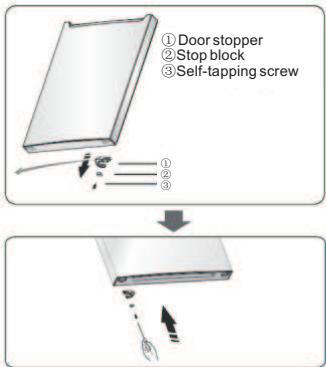

7. Place the lower door on a smooth surface with its panel upwards. Loose screw ③ and take down part ② and part ①, Install replacement door stopper-left ④ and stop block ⑤ provided (in the plastic bag) to the left side with screw ③. Keep part ① with the appliance for future reference.

① Door stopper ②Stop block ③Self-tapping screw

5. Place the upper door on a smooth surface with its panel upwards. Loose screw ③ and take down part ② and part

①, Install replacement door stopperleft ④ and stop block⑤provided (in the plastic bag) to the left side with screw③.

Keep part ① and ② with the appliance for future reference.

②Stop block ③Self-tapping screw

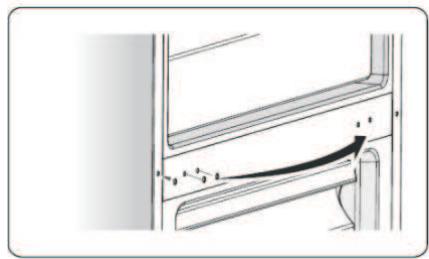

8. Change screw hole covers and screw on middle cover plate from left to right

(as shown in figure below).

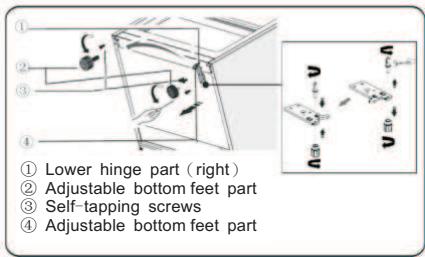

9. Tip the refrigerator back wards, remove part ② and then remove screws ③.

Lower hinge part（right）

Adjustable bottom feet part Self-tapping screws Adjustable bottom feet part

10. Remove part ④ from the lower hinge pin, loose out the lower hinge pin, change it to the reverse hole site, and then tighten into position, then install part ④ on the lower hinge pin.

11. Replace the items remount in step 10, change part ① to left and then fix them

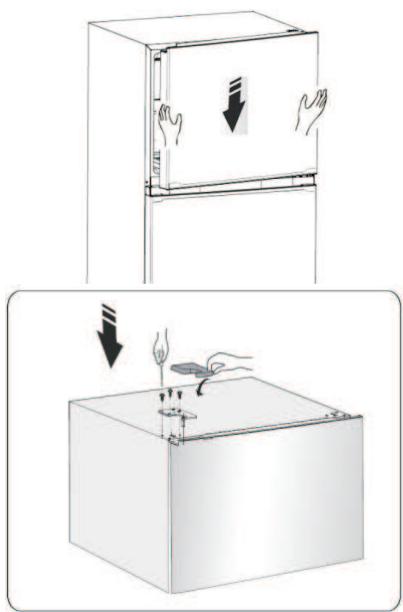

13. Carefully slot the upper door onto the middle hinge pin and hold in position. Move the upper door to an appropriate position. Take out the left upper hinge from the plastic bag, then fit the left upper hinge pin into the left hinge hole at the top of the door to secure the door in place. Adjust upper hinge and upper door, then fix the upper hinge part with screws. Keep the right upper hinge with the appliance for future reference.

(Please carefully hold upper door by hand when installing)

with screws ③. Finally install part ②.

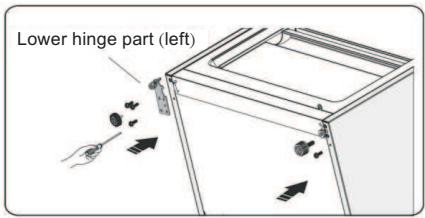

Lower hinge part (left)

12. Stand the refrigerator upright and carefully slot the lower door onto the bottom hinge pin and hold in position.

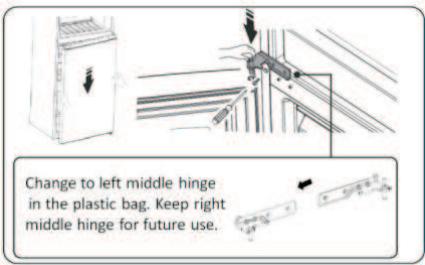

Take out the left middle hinge from the plastic bag, adjust the middle hinge to the appropriate position and then install it ensuring the lower door in secured in place. 14. Assemble the hinge cover-left provided (in the plastic bag) to match the hinge, install the door racks to original position. Keep the hinge cover-right with the appliance for future reference.

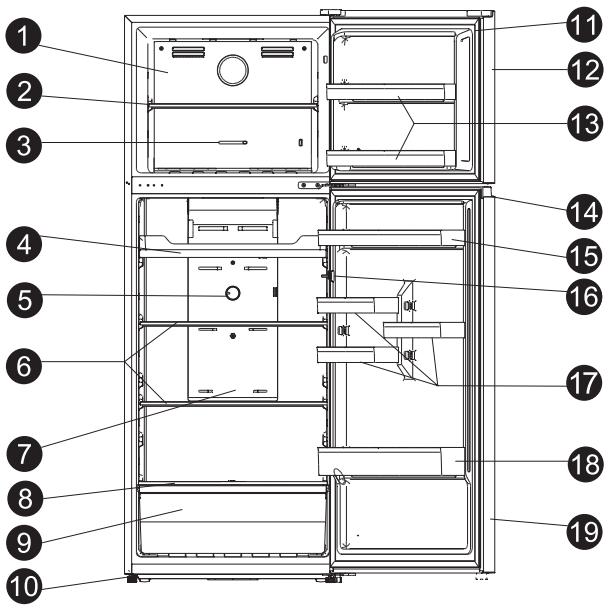

Description of the appliance

1.Freezer wind channal 2.Freezer shelf 3.Freezer temp control 4.Multifunctional tray (Or Fridge shelf) 5.Fridge temp control 6.Fridge shelf 7.Fridge wind channal 8.Crisper cover 9.Crisper 10.Adjustable bottom feet 11.Freezer door gasket 12.Freezer door 13.Freezer door rack 14.Fridge door gasket 15.Upper door rack 16.Door switch 17.Small door rack 18.Lower door rack 19.Fridge door Note！ ● Due to unceasing modification of our products, your refrigerator may be slightly different from this instruction manual, but its functions and using methods remain the same. ● To get the best energy efficiency of this product, please place all shelves, drawers and baskets on their original position as the illustration above.

Use your appliance according to the following regulations, your appliance has the corresponding functions as the control panels showed in the pictures below Temperature regulator in refrigerator chamber ●Insufficient refrigeration in chamber. Set the temperature controller at “COLDER”. ●Using the refrigerator in normal. Set the temperature controller at “MID”. Important！ High ambient temperatures (e.g. on hot summer days) and a colder setting on the temperature regulator can cause the compressor to run continuously or even non-stop! So we do not advise the user set the temperature control knob at “COLDER” or “COLD” in normal. Reason: when the ambient temperatures high, the compressor must run continuously to maintain the low temperature in the appliance

● In case of too much frozen food or ice making in chamber.

Please set the temperature control knob at “COLDER”position. ● In case of using the refrigerator usual condition. Please set the temperature regulator at the middle position. ● In case of a little frozen food in chamber. Please set the temperature controller at“COLD” position. Important! So we do not advise the user set the temperature control knob at “COLDER”or“COLD” in normal. When you turn the knob to "COLD” which can lead to the more energy efficiency .Otherwise, it would result the energyconsuming.

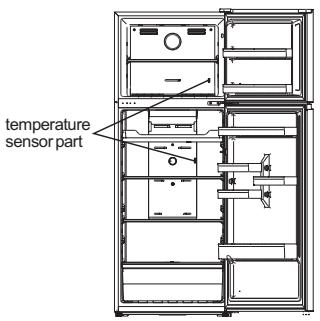

Don't place too much food directly against the air outlet of the temperature sensor part in Wind channel cover of the refrigerator compartment, as it affects that the appliance can't operate correctly.

temperature sensor part

Temperature regulator in freezer chamber

The temperature regulator allows you to regulate the temperature inside the Freezer.

Using your appliance

Your appliance has the accessories as the“Description of the appliance” showed in general, with this part instruction you can have the right way to use them, We recommend that you read through them carefully before using the appliance Door rack is suitable for the storage of eggs, canned liquid, bottled drinks and packed food, etc. Do not place too many heavy things in the racks. ● Small rack on lower door can be placed at different heights according to your requirements. Please take food out of the shelf before lifting vertically to reposition. ● It

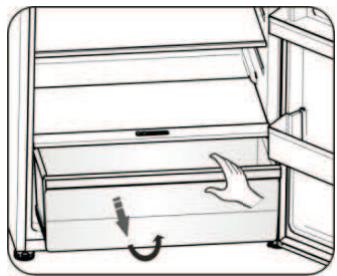

Shelf in Refrigerator chamber

1.There are shelves in refrigerator chamber, and they can be taken out to be cleaned.

humidity in the fruit and vegetable drawer with the humidity adjusting slider on the lid of the fruit and vegetable drawer.

●The sliding block on crisper cover can slide to left or right and the air hole become more or less relatively. More air hole opening means less humidity and less means more humidity. ● Were commend that you store vegetables with more humidity and fruits less humidity. Humidity control sliding block Crisper cover

2.The crisper is suitable for storage of vegetables and fruit, etc.

Crisper and Humidity control

The fruit and vegetable drawer is placed on the inner bladder for storing vegetables and fruits. You can adjust the ●

The freezer chamber is suitable for storage of foods required to be frozen, such as meat, ice. Caution! Do not close refrigerator door when installing deep bracket, It may damage the unit. Ensure that drink bottles are not left in the freezer for a longer time than needed as freezing liquid may cause the bottle to break.

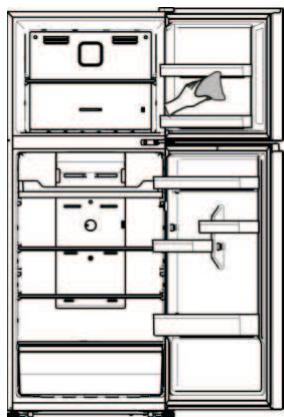

For hygienic reasons the appliance (including exterior and interior accessories) should be cleaned regularly (at least every two months). Warning! The appliance must not be connected to the mains during cleaning as there is a danger of electrical shock! Before cleaning switch the appliance off and remove the plug from the mains socket. Exterior cleaning Wipe the control panel with a clean, soft cloth. ● Spray water onto the cleaning cloth instead of spraying directly on the surface of the appliance. This helps ensure an even distribution of moisture to the surface. ● Clean the doors, handles and cabinet surfaces with a mild detergent and then wiped dry with a soft cloth.

Don't use sharp objects as they are likely to scratch the surface. Don't use Thinner, Car detergent, Clorox, ethereal oil, abrasive cleansers or organic solvent such as Benzene for cleaning. They may damage the surface of the appliance and may cause fire. Interior cleaning You should clean the appliance interior regularly. It will be easier to clean when food stocks are low. Wipe the inside of the fridge freezer with a weak solution of bicarbonate of soda, and then rinse with warm water using a wrung-out sponge or cloth. Wipe completely dry before replacing the shelves and baskets. Thoroughly dry all surfaces and removable parts before putting them back into place.

Although this appliance automatically defrosts, a layer of frost may occur on the freezer compartment’s interior walls if the freezer door is opened frequently or kept open too long. If the frost is too thick, choose a time when the freezer is

18 nearly empty and proceed as follow:

1.Remove existing food and accessories baskets, unplug the appliance from the mains power and leave the doors open. Ventilate the room thoroughly to accelerate the process. 2. When defrosting is completed, clean your freezer as described above. Caution! Do not use sharp objects to remove frost from the freezer compartment. Only after the interior is completely dry should the appliance be switched back on and plugged back into the mains socket. Door seals cleaning Take care to keep door seals clean. Sticky food and drinks can cause seals to stick to the cabinet and tear when you open the door. Wash seal with a mild detergent and warm water. Rinse and dry it thoroughly after cleaning.

completely dry should the appliance be powered on .

Replacing the LED light: Warning: The LED light should be replaced by a competent person. If the LED light is damaged, contact the customer helpline for assistance. To replace the LED light, the below steps can be followed: 1. Unplug your appliance. 2. Remove light cover by pushing up and out. 3. Hold the LED cover with one hand and pull it with the other hand while pressing the connector latch. 4. Replace LED light and snap it correctly in place.

Caution!Only after the door seals are

Helpful hints and tips

We recommend that you follow the tips below to save energy. ● Try to avoid keeping the door open for long periods in order to conserve energy. ● Ensure the appliance is away from any sources of heat (Direct sunlight, electric oven or cooker etc) ● Don't set the temperature colder than necessary. ● Don't store warm food or evaporating liquid in the appliance. ● Place the appliance in a well ventilated, humidity free, room. Please refer to Installing your new appliance

● If the diagram shows the correct combination for the drawers, crisper and shelves, do not adjust the combination as this is designed to be the most energy efficient configuration.

Hints for fresh food refrigeration not place hot food directly into the refrigerator or freezer, the internal temperature will increase resulting in the compressor having to work harder and will consume more energy.

● Do cover or wrap the food,particularly if it has a strong flavor. ● Do

Place food properly so that air can circulate freely around it. ●

Hints for refrigeration

Meat (All Types) Wrap in polythene food: wrap and place on the glass shelf above the vegetable drawer. Always follow food storage times and use by dates suggested by manufacturers. ●Cooked food, cold dishes, etc.: ● They should be covered and may be placed on any shelf. ●Fruit and vegetables: ● They should be stored in the special drawer provided. ●Butter and cheese: ● Should be wrapped in airtight foil or plastic film wrap. ●Milk bottles: ● Should have a lid and be stored in the door racks. ●

● When first starting-up or after a period out of use, let the appliance run at least 2 hours on the higher settings before putting food in the compartment. ● Prepare food in small portions to enable it to be rapidly and completely frozen and to make it possible to subsequently thaw only the quantity required. ● Wrap up the food in aluminum foil or

If you experience a problem with your appliance or are concerned that the appliance is not functioning correctly, you can carry out some easy checks before calling for service, please see below.

polyethylene food wraps which are airtight,

● Do not allow fresh， unfrozen food to touch the food which is already frozen to avoid temperature rise of the latter. ● Iced products，if consumed immediately after removal from the f r e e z e r compartment, will probably cause frost burns to the skin. ● It is recommended to label and date each frozen package in order to keep track of the storage time. Hints for the storage of frozen food Ensure that frozen food has been stored correctly by the food retailer ● Once defrosted，food will deteriorate rapidly and should not be re-frozen. Do not exceed the storage period indicated by the food manufacturer. ●

Switching off your appliance

If the appliance needs to be switched off for an extended period, the following steps should be taken prevent mould on the appliance. 1. Remove all food. 2. Remove the power plug from the mains socket. 3. Clean and dry the interior thoroughly. 4. Ensure that all the doors are wedged open slightly to allow air to circulate.

Warning! Don't try to repair the appliance yourself. If the problem persists after you have made the checks mentioned below, contact a qualified electrician, authorized service engineer or the shop where you purchased the product.

Possible cause & Solution

Check whether the power cord is plugged into the power outlet properly.

Appliance is not working correctly

Check the fuse or circuit of your power supply,replace if necessary.

It is normal that the freezer is not operating during the defrost cycle, or for a short time after the appliance is switched on to protect the compressor.

Odours from the compartments

The interior may need to be cleaned

Some food, containers or wrapping cause odours. The sounds below are quite normal: ●Compressor running noises.

● Air movement noise from the small fan motor in the freezer compartment or other compartments.

●Gurgling sound similar to water boiling. ●Popping noise during automatic defrosting. Noise from the appliance ●Clicking noise before the compressor starts.

Other unusual noises are due to the reasons below and may need you to check and take action:

●The cabinet is not level. ●The back of appliance touches the wall. ●Bottles or containers fallen or rolling.

The motor runs continuously

A layer of frost occurs in the compartment

Temperature inside is too warm

It is normal to frequently hear the sound of the motor, it will need to run more when in following circumstances:

●Temperature setting is set colder than necessary ● Large quantity of warm food has recently been stored within the appliance. ●The temperature outside the appliance is too high. ●Doors are kept open too long or too often. ● After your installing the appliance or it has been switched off for a long time. Check that the air outlets are not blocked by food and ensure food is placed within the appliance to allow sufficient ventilation.Ensure that door is fully closed. To remove the frost, please refer to the“Cleaning and care” chapter. You may have left the doors open too long or too frequently; or the doors are kept open by some obstacle; or the appliance is located with insufficient clearance at the sides, back and top .

Temperature inside is too cold

Increase the temperature by following the “control panel” chapter.

Doors can’t be closed easily

Check whether the top of the refrigerator is tilted back by

10-15mm to allow the doors to self close, or if something inside is preventing the doors from closing.

Disposal of the appliance

It is prohibited to dispose of this appliance as household waste. Packaging materials Packaging materials with the recycle symbol are recyclable. Dispose of the packaging into a suitable waste collection container to recycle it. Before disposal of the appliance 1. Pull out the mains plug from the mains socket. 2. Cut off the power cord and discard with the mains plug Warning! Refrigerators contain refrigerant and gases in the insulation. Refrigerant and gases must be disposed of professionally as they may cause eye injuries or ignition. Ensure that tubing of the refrigerant circuit is not damage prior to proper disposal.

Correct Disposal of this product

This symbol on the product or in its packing indicates that this product may not be treated as household waste. Instead, it should be taken to the appropriate waste collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by the inappropriate waste handling of this product. For more detailed information about the recycling of this product, please contact your local council your household waste disposal service, or the shop where you purchased the product. To avoid contamination of food, please respect the following instructions - Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance. - Clean regularly surfaces that can come in contact with food and accessible drainage systems.

- Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.

- Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making icecream and making ice cubes. - One-, two- and three-star compartments are not suitable for the freezing of fresh food.

Compartments Target storage temp.[℃]

Eggs, cooked food, packaged food, fruits and vegetables, dairy products, cakes, drinks and other foods which are not suitable for freezing.

Seafood (fish,shrimp,shellfish),freshwater aquatic products and meat products

(recommended for 3 months , t he longer the storage time,the worse the taste and nutrition),suitable for frozen fresh food.

Seafood (fish, shrimp, shellfish),freshwater aquatic products and meat products

(recommended for 3 months,the longer the storage time,the worse the taste and nutrition),are not suitable for frozen fresh food.

Seafood (fish, shrimp, shellfish), freshwater aquatic products and meat products

(recommended for 2 months,the longer the storage time,the worse the taste and nutrition), are not suitable for frozen fresh food.

Seafood (fish, shrimp, shellfish), freshwater aquatic products and meat products

(recommended for 1 month,the longer the storage time,the worse the taste and nutrition), are not suitable for frozen fresh food.

Fresh pork, beef, fish, chicken, some packaged processed foods, etc. (Recommended to eat within the same day, preferably no later than

3 days) . Partially encapsulated processed foods (nonfreezable foods) Fresh/frozen pork, beef, chicken, freshwater aquatic products, etc.(7 days below 0 ℃ and above 0 ℃ is recommended for consumption within that day, preferably no more than 2 days). Seafood (less than 0 for 15 days, it is not recommended to store above 0℃) Fresh pork,beef,fish,chicken,cooked food,etc. (Recommended to eat within the same day,preferably no more than 3 days) red wine,white wine,sparkling wine etc.

Note: please store different foods according to the compartments or target storage temperature of your purchased products.

- If the refrigerating appliance is left empty for long periods, switch off, defrost, clean,dry, and leave the door open to prevent mould developing within the appliance. Water dispenser cleaning (special for water dispenser products): - Clean water tanks if they have not been used for 48 h; flush the water system connected to a water supply if water has not been drawn for 5 days.
