USER MANUAL EXPLORE MIX & GO COOL 21352 RUSSELL HOBBS

Three different types of Starbucks juice breakers, one with a mix & go juice, the other with a glass and dark liquid (no text or symbols visible on the devices themselves)

1 600ml 2 3 4

5

400ml 6

7 8 9 10 11 12 13

Diagram of a mechanical component with layered structure and downward arrow, labeled 'A' (no text or symbols on the diagram itself)

B

C

IMPORTANT SAFEGUARDS

Follow basic safety precautions, including:

This appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been supervised/instructed and understand the hazards involved.

Children must not use or play with the appliance. Keep the appliance and cable out of reach of children.

Always disconnect the appliance from the mains supply socket if it is left unattended and before assembling, disassembling or cleaning.

Misuse of the appliance may cause injury.

If the cable is damaged, it must be replaced by the manufacturer, its service agent, or someone similarly qualified, to avoid hazard.

Care must be taken when handling sharp cutting blades during emptying and cleaning.

Never process hot or boiling liquids. Allow them to cool before processing.

Do not use this appliance near bathtubs, showers, basins or other vessels containing water.

• Don’t use accessories or attachments other than those we supply.
• Don’t use this appliance for any purpose other than making smoothies.
• Don't operate the appliance if it's damaged or malfunctions.
• Don't run the motor for more than 1 minute, or it may overheat. After 1 minute, switch off for at least 2 minutes, to let the motor cool.

HOUSEHOLD USE ONLY

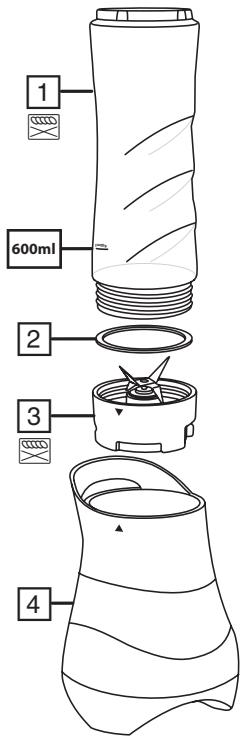

PARTS

1. 600MI bottle
2. Seal
3. Blade unit
4. Motor unit
5. Lid (x 2)
6. 400 MI bottle

7. Storage cover

8. Large reamer

9. Small reamer
10. Pulp collector
11. Juice collector
12. Spout
13. Juicer body

Dishwasher – top rack

BEFORE USING FOR THE FIRST TIME

Clean the unit before use.

USING YOUR MIX & GO

1. Sit the motor unit on a dry, firm, level surface.
2. Put the plug into the power socket.
3. Add the ingredients to the bottle then screw on the blade unit. Don't fill past 600ml.
4. Turn the bottle upside down.

5. Align ▼ on the bottle with ▲ on the motor unit.

6. Lower the blade unit into the motor unit.

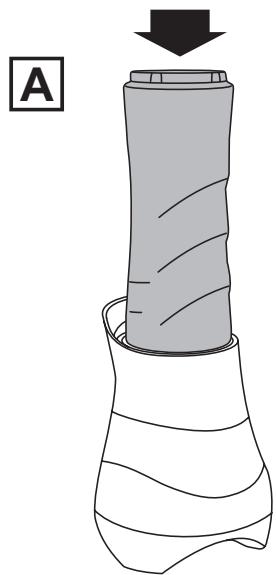

7. Press the bottle down to run the motor (Fig. A). Release it to stop the motor.
8. Once finished, lift the bottle off the motor unit, turn it upright, unscrew the blade unit then screw the lid onto of the bottle.
9. Flip the cap on the lid open to pour, press it closed to store.

USING THE JUICER

• Use good quality, fresh, ripe, citrus fruit.
- Wipe the fruit.
• Turn the fruit on its side and cut in half with a sharp knife to cut through the centres of the segments.
1. Align ▼ on the juicer body with ▲ on the motor unit.
2. Lower the juicer body into the motor unit.
3. Put the juice collector into the juicer body.
4. Put the pulp collector into the juice collector.
5. Fit the reamer onto the drive shaft. The large reamer is for juicing grapefruits, oranges, etc. The small reamer is for juicing lemons, limes, etc. To use the small reamer, pull the large reamer off the small reamer. To refit the large reamer, lower it on top of the small reamer, so the gaps in the bottom of it fit over the wings in the small reamer.
6. Place the 400ml bottle under the spout.
7. Using one half-fruit at a time, place the cut (flesh) side on top of the reamer and press it down (Fig B).
8. The reamer will turn, pressing the juice out of the half-fruit.
9. Move the fruit around, to ensure that the reamer reaches all of the flesh.
10. When you stop pressing, the motor will stop.
11. Do the same with the rest of your fruit.
12. The spout can closed to prevent dripping when you have finished using the appliance (Fig. C).

CARE AND MAINTENANCE

1. Unplug the appliance.
2. Wipe the motor unit with a damp cloth.
3. Remove the seal with something blunt, like the handle of a fork.
4. Hand wash the removable parts.
5. Press the seal back into place with something blunt, like the handle of a fork.

You may wash these parts in the top rack of a dishwasher.

If you use a dishwasher, the harsh environment inside the dishwasher will affect the surface finishes. The damage should be cosmetic only, and should not affect the operation of the appliance.

RECYCLING

To avoid environmental and health problems due to hazardous substances, appliances and rechargeable and non-rechargeable batteries marked with one of these symbols must not be disposed of with unsorted municipal waste. Always dispose of electrical and electronic products and, where applicable, rechargeable and non-rechargeable batteries, at an appropriate official recycling/collection point.

FRUITY SMOOTHIES

Process everything till smooth.

60ml yogurt

200ml milk

30g oatmeal

1 banana

30ml honey

2 apples, cored

170g chocolate ice cream

300g orange juice

150g hazelnut yogurt

1 banana

200ml milk

300ml chocolate milk

2 pears, cored

200ml yogurt

1 mango, stone removed

200ml milk

5ml honey

300ml milk

1 banana

12 strawberries

400ml milk

1 banana

20ml honey

10ml vanilla extract

360ml lemonade

125g vanilla ice cream

70g blueberries

300ml orange juice

300ml cranberry juice

1 banana

4 halves of tinned apricot

80ml apricot juice (from tin)

2 peaches, stone removed

60ml yogurt

200ml milk

10ml honey

600ml apple juice

1 mango, stone removed

300ml apple juice

90g raspberries

12 strawberries

400ml apple juice

1 kiwi fruit, peeled

150g melon

350ml lemonade

125ml chocolate ice cream

100ml cherries, stones removed

150g yogourt aux noisettes

1 banane

200ml lait

150g hazelnootyoghurt

1 banaan

200ml melk

300ml chocolademelk

2 ontpitte peren

200ml yoghurt

1 ontpitte mango

200ml melk

5ml honing

300ml melk

1 banaan

12 aardbeien

400ml melk

1 banaan

20ml honing

10ml vanille-extract

360ml limonade

125g vanille-ijs

70g Bosbessen

300ml sinaasappelsap

300ml cranberrysap

1 banaan
