USER MANUAL SIAA55 INDESIT

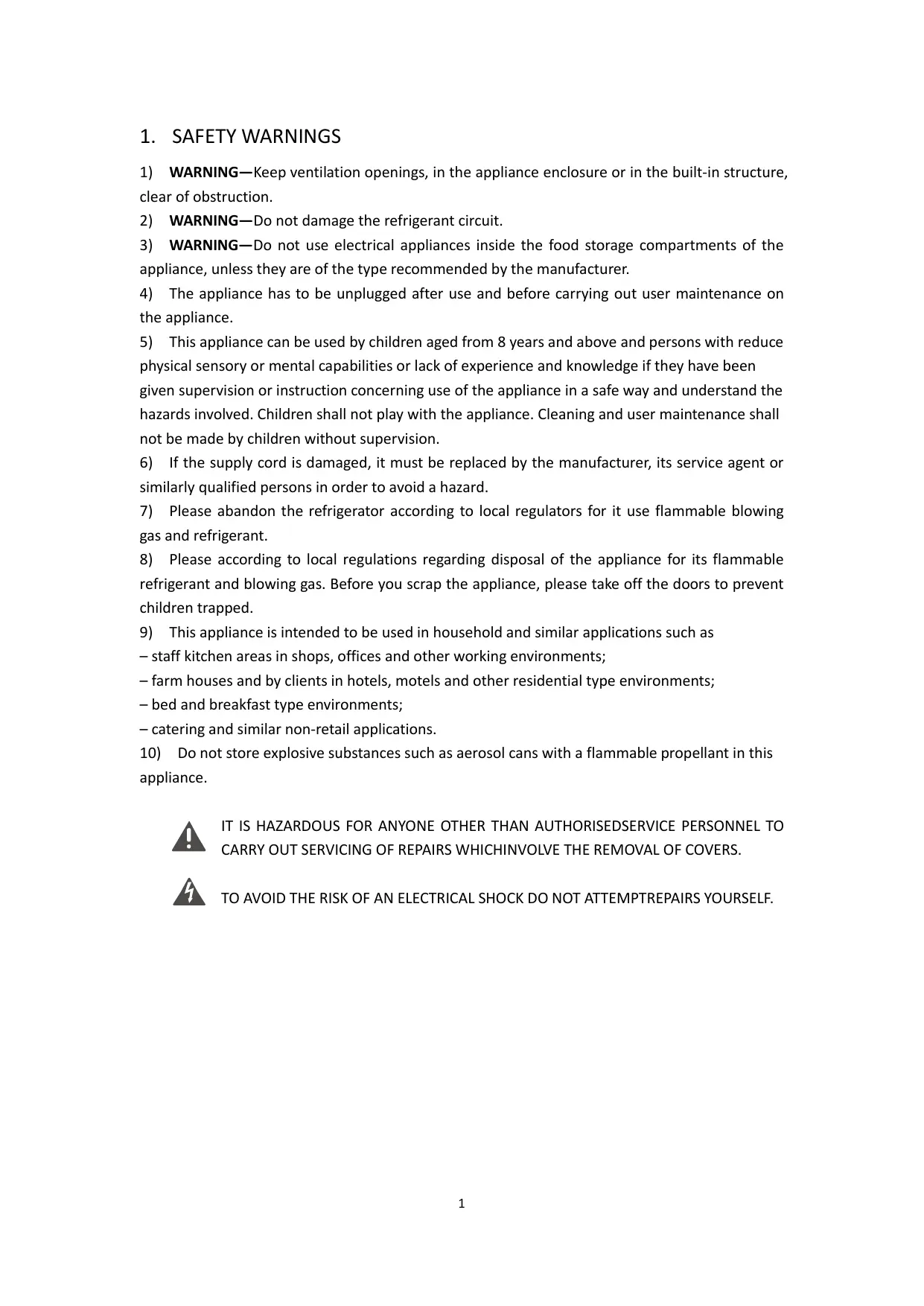

1) WARNING—Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

2) WARNING—Do not damage the refrigerant circuit.

3) WARNING—Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

4) The appliance has to be unplugged after use and before carrying out user maintenance on the appliance.

5) This appliance can be used by children aged from 8 years and above and persons with reduce physical sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

6) If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

7) Please abandon the refrigerator according to local regulators for it use flammable blowing gas and refrigerant.

8) Please according to local regulations regarding disposal of the appliance for its flammable refrigerant and blowing gas. Before you scrap the appliance, please take off the doors to prevent children trapped.

9) This appliance is intended to be used in household and similar applications such as - staff kitchen areas in shops, offices and other working environments;

  • farm houses and by clients in hotels, motels and other residential type environments;
  • bed and breakfast type environments;

  • catering and similar non-retail applications.

10) Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

INDESIT SIAA55 - 1

IT IS HAZARDOUS FOR ANYONE OTHER THAN AUTHORISED SERVICE PERSONNEL TO CARRY OUT SERVICING OF REPAIRS WHICH INVOLVE THE REMOVAL OF COVERS.

INDESIT SIAA55 - 2

TO AVOID THE RISK OF AN ELECTRICAL SHOCK DO NOT ATTEMPTREPAIRS YOURSELF.

2. INSTALLATION

2.1 Location

When selecting a position for your unit you should make sure the floor is flat and firm, and the room is well ventilated. Avoid locating your unit near a heat source, e.g. cooker, boiler or radiator. Also avoid direct sunlight as it may increase the electrical consumption. Extreme cold ambient temperatures may also cause the unit not to perform properly. This unit is not designed for use in a garage or outdoor installation. Do not drape the unit with any covering.

When installing the unit, ensure that 10cm of free space is left at both sides, 10cm at the rear and 30cm at the top of the unit. This will allow cold air to circulate around the wine cooler and improve the efficiency of the cooling process.

2.2 Reversing the Door Swing

Tools Required: Phillips style screwdriver / Flat blated screwdriver / Hexagonal spanner

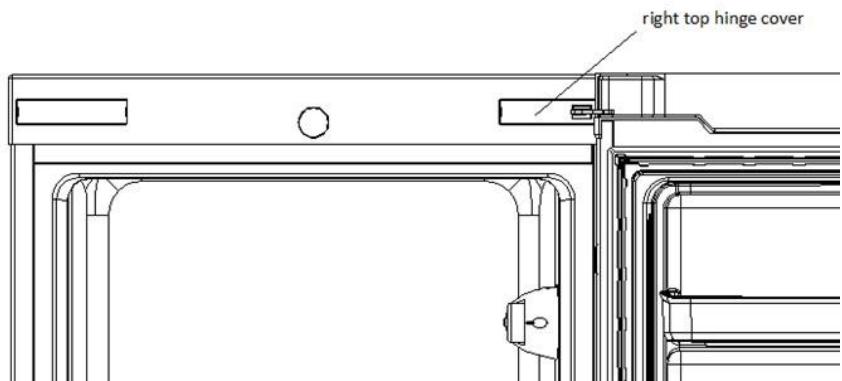

1) Remove the right top hinge cover.

INDESIT SIAA55 - Reversing the Door Swing - 1

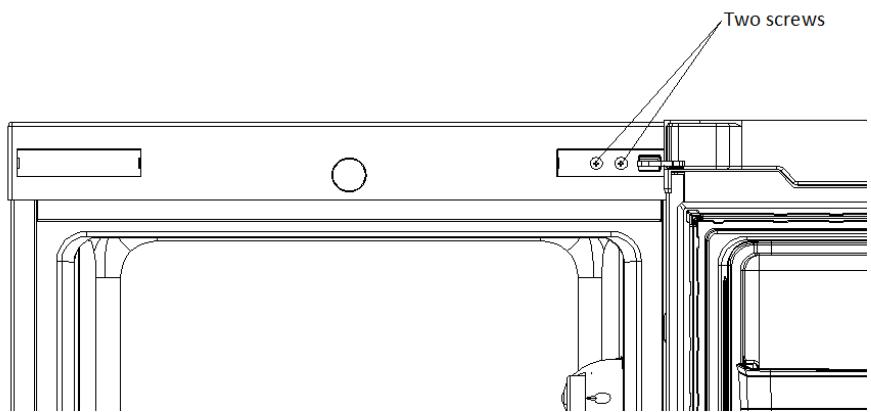

2) Remove the screws fixed the top-hinge with cross-slot screwdriver.

INDESIT SIAA55 - Reversing the Door Swing - 2

3) Remove the hinge shaft sleeve and the door block to the other side.

INDESIT SIAA55 - Reversing the Door Swing - 3

A. Remove the nut with sleeve. Take off the washer then remove the axes to the other side and fixed.

INDESIT SIAA55 - Reversing the Door Swing - 4

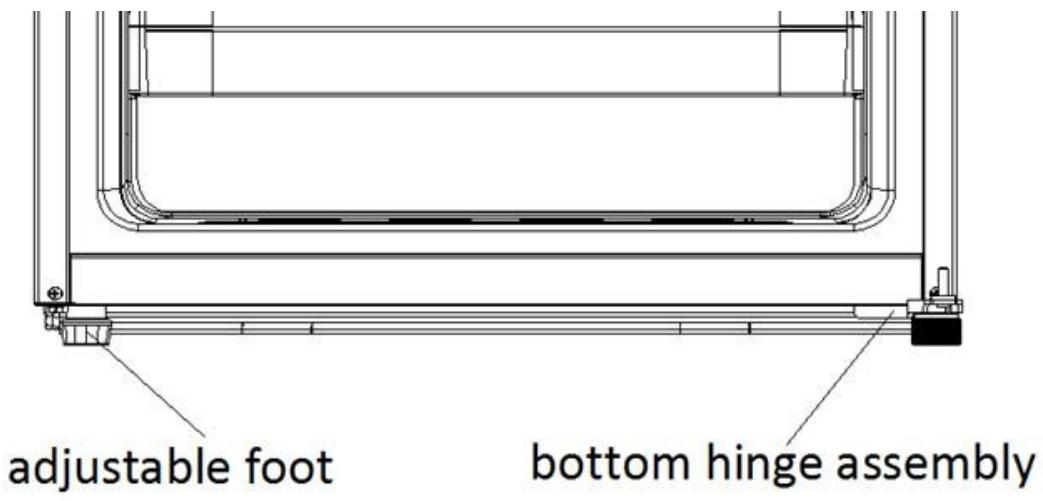

4) Disassemble the screws fixed the bottom hinge assembly with cross slot screwdriver and remove the adjustable foot

INDESIT SIAA55 - Reversing the Door Swing - 5

Note: the refrigerator-freezer incline angle less 45^ .

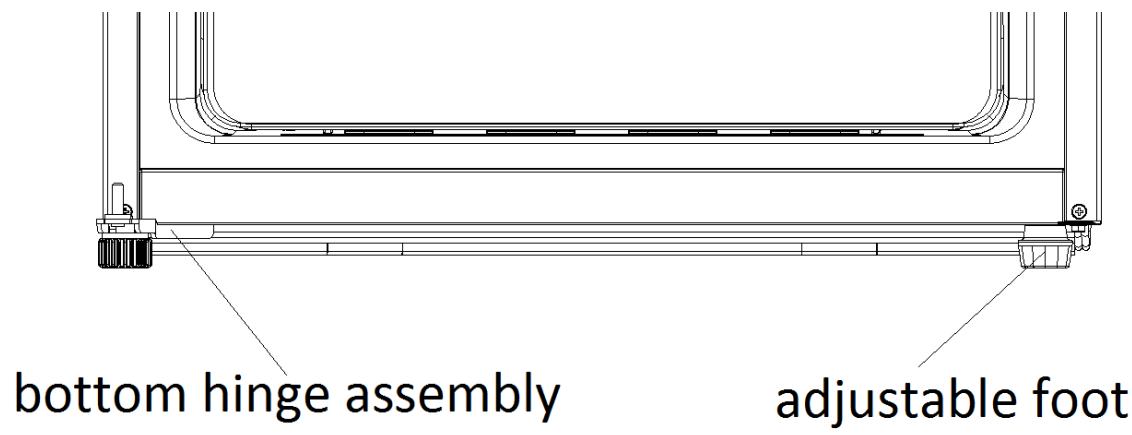

5) Replace the bottom hinge to the other side then fix it with screws.

INDESIT SIAA55 - Reversing the Door Swing - 6

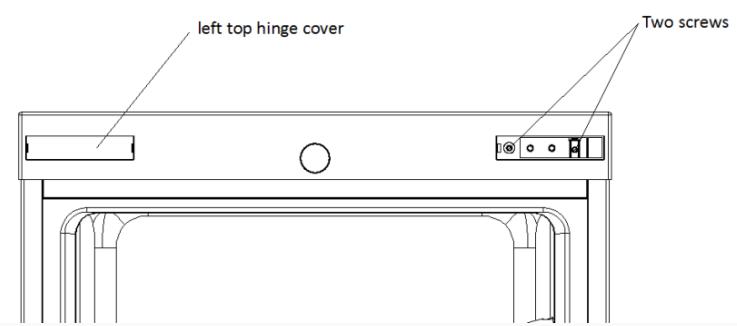

6) Install the two screws on the right and Remove the left top hinge cover

INDESIT SIAA55 - Reversing the Door Swing - 7

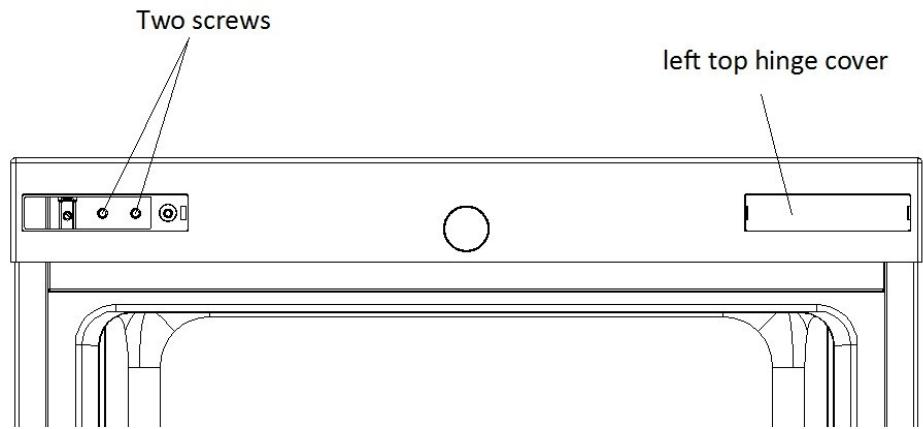

7) Install the left top hinge cover on the right and Remove the two screws

INDESIT SIAA55 - Reversing the Door Swing - 8

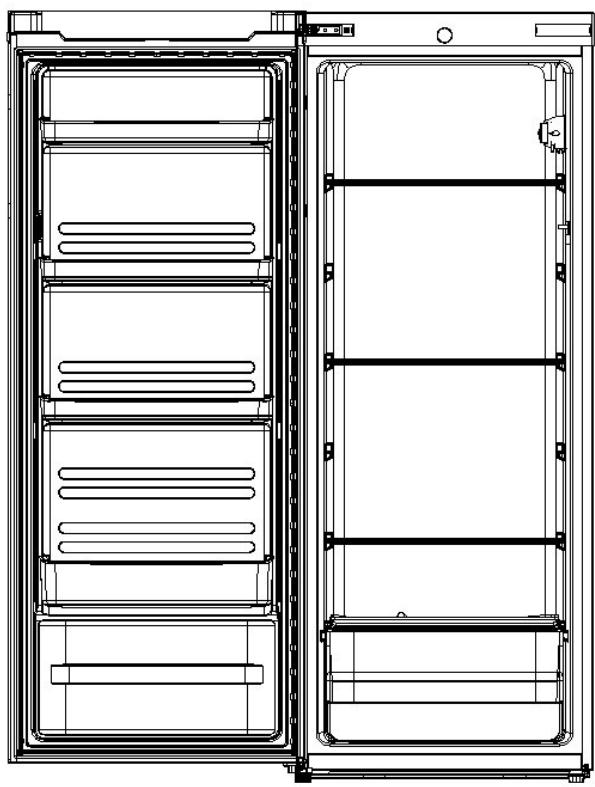

8) Install the top-hinge. set the top door right position, fix the top-hinge and the cover.

INDESIT SIAA55 - Reversing the Door Swing - 9

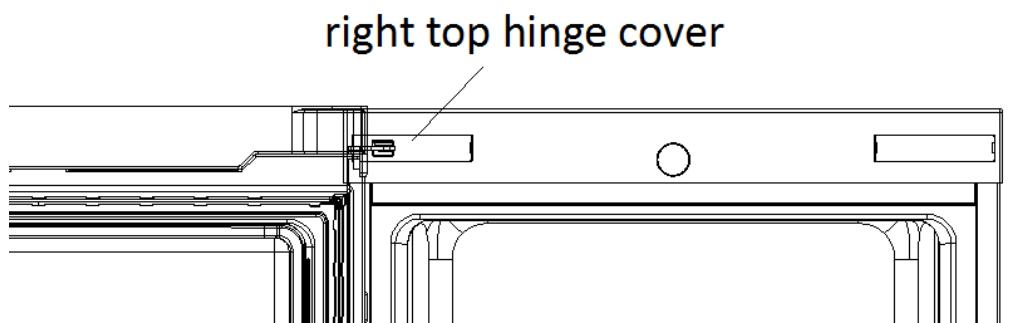

9) Install the left top hinge cover on the left

INDESIT SIAA55 - Reversing the Door Swing - 10

2.3 Door Space Requirements

The unit's door must be able to open fully as shown.

W×D≥902×1052mm

INDESIT SIAA55 - Door Space Requirements - 1

2.4 Levelling the Unit

To do this adjusts the two levelling feet at the front of the unit. If the unit is not level, the door and magnetic seal alignments will not be covered properly.

Make sure that the foot touches the ground before use.

INDESIT SIAA55 - Levelling the Unit - 1

Look down from the top, clockwise and counterclockwise loosening, tightening.

2.5 Cleaning Before Use

Wipe the inside of the unit with a weak solution of bicarbonate soda. Then rinse with warm water using a' Wrung-out' sponge or cloth. Wash the shelves and salad bin in warm soapy water and dry completely before replacing in the unit. Clean the exterior of the unit with a damp cloth. If you require more information refer to the Cleaning section.

2.6 Before Using Your Unit

Do not damage the power cord under any condition so as to ensure safety use, do not use when the power cord is damaged or the plug is worn.

Do not put flammable, explosive, volatile and highly corrosive items in the refrigerator to prevent damages to the product or fire accidents.

Do not place flammable items near the refrigerator to avoid fires.

This product is household refrigerators and shall be only suitable for the storage of foods.

According to national standards, household refrigerators shall not be used for other purposes, such as storage of blood, drugs or biological products.

Do not place items such as bottled or sealed container of fluid such as bottled beers and beverages in the freezer to prevent bursts and other losses.

Before placing any food in your unit, turn it on and wait for 24 hours, to make sure it is working

properly and to allow it time to fall to the correct temperature. Your unit should not be overfilled.

INDESIT SIAA55 - Before Using Your Unit - 1

Before Plugging in

You must check that you have a socket which is compatible with the plug supplied with the unit.

Before Turning On!

Do not turn on until two hours after moving the unit.

2.7 Interior Accessories

Various glass or plastic storage shelves are included with your appliance - different models have different combinations.

You should always slide one of the full size glass storage shelves into the lowest set of guides, above the fruit and vegetable containers, and keep it in this position. To do this, pull the storage shelf forward until it can be swivelled upwards or downwards and removed.

Please do the same in reverse to insert the shelf at a different height.

INDESIT SIAA55 - Interior Accessories - 1

In order to make the most of the volume of the fresh food storage compartment and frozen-food storage compartment, the user can remove one or more shelves, drawers out of the appliance, according to your daily use.

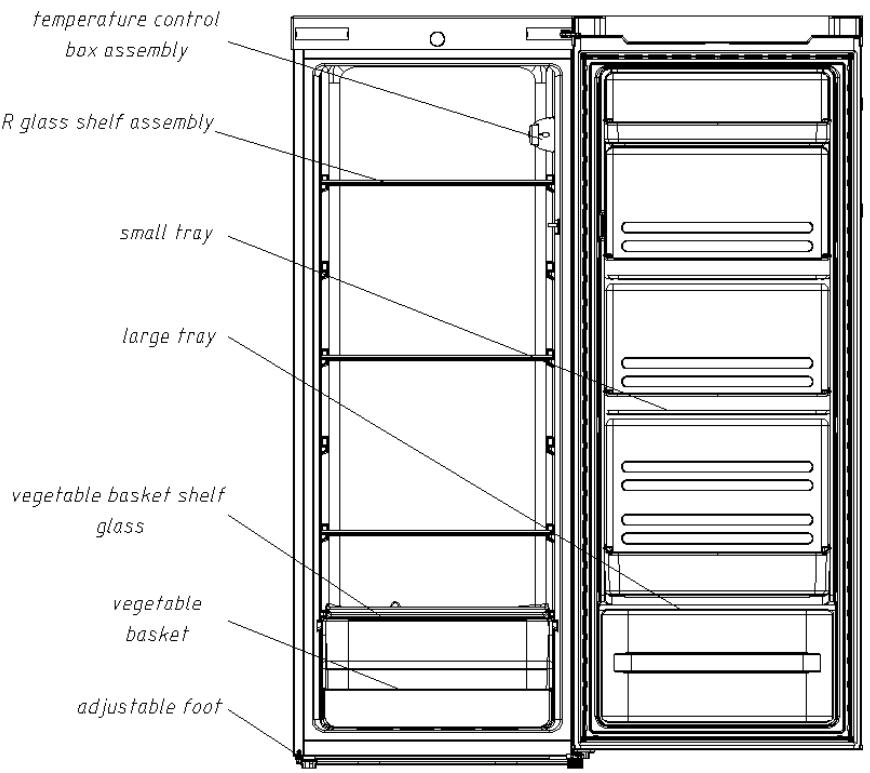

3. PRODUCT OVERVIEW

INDESIT SIAA55 - PRODUCT OVERVIEW - 1
*All images in this instruction manual are for indication only; please refer to your individual unit for details.

4. OPERATION

4.1 Switching On Your Unit

The temperature selector knob is located on the right hand sidewall of the refrigerator interior Setting “Min”: Less Cool Temperature

Setting "Med": Normal Operation (adequate for most situations)

Setting "Max": Coolest Temperature

During high ambient temperatures e.g. on hot summer days. It may be necessary to set the thermostat to the Coolest setting (position“Max”).This may cause the compressor running continuously in order to maintain a low temperature in the cabinet.
For the first time you install your refrigerator, set the thermostat knob at "Med".

Give your refrigerator time to cool down completely before adding food. It is the best to wait

24 hours before adding food. The thermostat knob controls the temperature.

4.2 Noise Inside the Unit!

You may notice that your unit makes some unusual noises. Most of these are perfectly normal, but you should be aware of them!

These noises are caused by the circulation of the refrigerant liquid in the cooling system. It has become more pronounced since the introduction of CFC free gases. This is not a fault and will not affect the performance of your unit. This is the compressor motor working, as it pumps the refrigerant around the system.

4.3 Tips for Keeping Food in the Unit

Cooked meats/fishes should always be stored on a shelf above raw meats/fishes to avoid bacterial transfer. Keep raw meats/fishes in a container which is large enough to collect juices and cover it properly. Place the container on the lowest shelf.
Leave space around your food, to allow air to circulate inside the unit. Ensure all parts of the unit are kept cool.
To prevent transfer of favors and drying out, pack or cover the food separately. Fruit and vegetables do not need to be wrapped.
Always let pre-cooked food cool down before you put in the unit. This will help to maintain the internal temperature of the unit.
To prevent cold air escaping from the unit, try to limit the number of times you open the door. We recommend that you only open the door when you need to put food in or take food out.

5. CLEANING

5.1 Defrosting

NOTE THIS UNIT DOES NOT HAVE AN AUTO DEFROST SYSTEM.

5.2 Cleaning the Interior and the Exterior of the Unit

Remove all the shelves and the salad bin. To remove the salad bin first remove the lower door shelf.
Wipe the inside of the unit with a weak solution of bicarbonate soda and then rinse with

warm water using a “wrung-out” sponge or cloth. Wipe completely dry before replacing the shelves and salad bin.

Use a damp cloth to clean the exterior, and then wipe with a standard furniture polish. Make sure that the door is closed to avoid the polish getting on the magnetic door seal or inside the unit.
The grille of the condenser at the back of the unit and the adjacent components can be vacuumed using a soft brush attachment.

5.3 Cleaning Tips

Condensation may appear on the outside of the unit. This may be due to a change in room temperature. Wipe of any moisture residue. If the problem continues, please contact a qualified technician for assistance.

6. MAINTENANCE

6.1 Care When Handling / Moving Your Unit

Hold the unit around its sides or base when moving it. Under no circumstances should it be lifted by holding the edges of the top surface.

6.2 Servicing

The unit should be serviced by an authorized engineer and only genuine spare parts should be used. Under no circumstances should you attempt to repair the unit yourself. Repairs carried out by inexperienced persons may cause injury or serious malfunction. Contact a qualitative technician.

6.3 Switching Of for Long Periods of Time

When the unit is not in use for a long period of time, disconnect it from the mains supply, empty all food and clean the appliance, leaving the door ajar to prevent unpleasant smells.

6.4 Illuminating lamp and replacement

Lamp replacement by professionals.

7. Trouble shooting

The following simple issues can be handled by the user. Please call the after-sale service department if the issues are not settled.

In operationWhether the freezer is plugged and connected to power; Low voltage; Failure power or tripping circuit
OdorOdorous foods should closely wrapped; Whether foods are rotten; Whether the interior shall be cleaned.
Long-term operation of compressorIt is normal that refrigerator operates for longer time in summer when the ambient temperature is higher; Do not put too much food in the freezer at one time; Do not put foods until they are cooled; Frequent opening of refrigerator door.
Illuminating light does not shineWhether the refrigerator is connected to power, whether the illuminating light is damaged.
The refrigerator door cannot be properly closed.The freezer door is stuck by food packages; Too much food; Tilt refrigerator.
Loud noisesWhether the food is leveled, whether the refrigerator is balanced; Whether the refrigerator parts are properly placed.

7.1 Warm tips:

The refrigerator enclosure may emit heat during operation specially in summer, this is caused by the radiation of the condenser, and it is a normal phenomenon.
Condensation: Condensation phenomenon will be detected on the exterior surface and door seals of the freezer when the ambient humidity is large, this is a normal phenomenon, and the condensation can be wiped away with a dry towel.
Buzz: Buzz will be generated by running compressor specially when starting up or shutting down.

8. TIPS FOR ENERGY SAVING

Try not to open the door too often, especially when the weather is wet and hot. Once you open the door, close it as soon as possible.

Every now and then check if the appliance is sufficiently ventilated (adequate air circulation behind the appliance).

In normal temperature conditions, please arrange the thermostat at the middle setting.

Before loading the appliance with packages of fresh food, make sure they are cooled to ambient temperature.

Ice and frost layer increase energy consumption, so clean the appliance as soon as the layer is 3-5 mm thick.

If it is the outer condenser, the rear wall should be always clean free of dust or any impurities.

The appliance should be located in the coolest area of the room, away from heat producing appliances or heating ducts, and out of the direct sunlight.
Let hot foods cool to room temperature before placing in the appliance. Overloading the appliance forces the compressor to run longer. Foods that freeze too slowly may lose quality, or spoil.
Be sure to wrap foods properly, and wipe containers dry before placing them in the appliance. This cuts down on frost build-up inside the appliance.
Appliance storage bin should not be lined with aluminum foil, wax paper, or paper toweling. Liners interfere with cold air circulation, making the appliance less efficient.
Organize and label food to reduce door openings and extended searches. Remove as many items as needed at one time, and close the door as soon as possible.

9. DISPOSAL

Old units still have some residual value. An environmentally friendly method of disposal will ensure that valuable raw materials can be recovered and used again. The refrigerant used in your unit and insulation materials require special disposal procedures. Ensure that none of the pipes on the back of the unit are damaged prior to disposal. Up to date information concerning options of disposing of your old unit and packaging from the new one can be obtained from your local council office.

When disposing of an old unit break of any old locks or latches and remove the door as a safeguard.

Correct Disposal of this product

INDESIT SIAA55 - Correct Disposal of this product - 1

Correct Disposal of this product

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

For more information, please contact the local authority or your retailer where you purchased the product.

3mict

UA

YkpaIHcbka,3

SIAA 55

  1. ПОПЕДЖЕня садо БEЗЧHOrO КористУВАНь.. 3
    2.BCTAHOBJIENHЯ 4
  2. 3AΓΑЛьНI BIDOMOCTI ПО ВИРБ 10
  3. EKCPJIYATAUJI 11
    5.Чиценна 11
  4. TEXHlUHe OBCJyROBvBAHHa 12
  5. NOUK TA YCYHENHЯ HECnPABHOCTEY 12
    8.ПОРади3EHEPTO3BEPEXEHHЯ 13
  6. YTNJI3AUJ 14

1. ПОПЕДЖЕня собов БЕЗECHО KOPINCTYBAHЯ

1) NOPEDEXEHHa—He 3akpmbaTe DoCTyn nobitpy Do BeHTnlaicnHex OTBopIB BCEpeDnHi Kopnycs npncTropo abo BCEpeDnHi BbUdoBaHOrO KOHcTpyKTHBHO eIeMeHTy.
2) NONEPEIXEHHa—He noiKOJxuTe XoIoJnIbHn KOHTyp.
3) NOPEDEXEHH—He 3actocobyte eJeKtpnHi npnilaBn BCEpeHni KaMep dIy 3bepirAHn npodukTIB xapUyBaHH npicTpOIO, kIo BOHn He HaneXaTb Do TIny, peKOMeHdoBaHOro Bnpo6HnKom.
4) Ппсстрий необхідно вимикати піся використаньі я поразіюведеняm Texthiуного obслуroyываши обладнангі користувачem.
5) LcE npncptpii Do3BOJAEbCBy BnKOpNCTOBvBaTn DiTm Ctapwe 8 pOKIB Ta OCO6am 3I 3HnHexeHMMn φi3nUHMN, CeHCOPHMM Ta MeHTaJIbHMM MoJINBOCTaMn, a6o KOTpIM bpaKyE DocBiNy Ta 3HaHb, kIcO iM 3a6e3neyeHo HaJIaD a6o 3 HMM npOBedeHO iHCTpykTax IooD 6e3neuHoro KOpNCtBuHHra npncTpoEm, i KaIcO BOHN yCBiIDOMIOyMoJINBy He6e3neky. He d03BOJayTe dITram 6abNTnCS 3 npncTPOeM. He Do3BOJayTe diTAM camOCTiHOr YnCTHTn npncTpii Ta DOgIaTn 3a HMM.
6)Дяункеня Hebe3nekn NOsKOJxHn SHypr XnBHeHn CJId 3amInTu, CKOpNCtABuNcB nocnyramn Bnpo6nka, noTo npedCTabHnKa 3 o6cnyroByBaHHa bO KBaIqikOBaHOro qaxiBzra.
7) OckiNbKn B xOIoIbHnky BnKOpNCTOByIObCЯ JERko3aIMnCTi ra3 i xOIoOareHT, Ioro yTnIi3aCiI NOBnHa BID6yBaTnCra BiINoBIDNo Do HOpM i npaBnI MicueBnx peryIHOuOx opraHiB.
8)При утлізацій xолодьніка Heobxdино DoTpIMyBaTncsЯ Miccebux HOpM i npaBnI zOdo ytлізацій писто\'iB, De BHKOPNCTOBvOTbcSЯ leKo3aIMncti xolodaoareHt i ra3. Пер\'d утлізацію писто\'o peKOMeHdyETbcSя 3HrtN DBepcyaTа, zu6 DiTI n He onHHnncsВ naCTci.
9) Lcien npncTpii npn3naeHnn IJy noobyTOBoro i aHaIOniYHoro BVKOpncTaHHa, HapnKNaI

-y KyxohnHex Kytoukax Mara3nHib, ophiicB Ta iHnix po6oynx cepeobnus
- KJIeHTaMn B rOteJx, MOTeJx Ta iHux XKNTIOBnx PpIMiUeHHx;
-yMiCzXHouiBJI3iChiJaHKOM
- y miçux opraɪzauü xapyuBaHn i noi6hnx πiπpncmCTbax, He 3B'3aHx 3 pO3dpi6HoTOTOPrivneio

10) 3a6bopohjctbca 36epiratn B npncTrooi Bv6yxohe6e3neuHi peoBHN, HapnPKaI, aepo30JIbHI 6aJOnHUnK 3 JERKO3aMmCTm PaJINBOM

INDESIT SIAA55 - ПОПЕДЖЕня собов БЕЗECHО KOPINCTYBAHЯ - 1

PEMOHT, ПРЯКOMY ПЕPEDБАСТБСА 3НЯTTТ KPNПОK, ДОЗВЛЯЕТСА ПЮВОДИТВИКЛIOUHNO ПЕPCOHALNY ABTOPN3OBAHOTO CEPBICHOTO UEHTPY.

INDESIT SIAA55 - ПОПЕДЖЕня собов БЕЗECHО KOPINCTYBAHЯ - 2

IIOB YHINKHYTN UPAXKEHHJ EJEKTPUHNCTPYMOM, HE HAMATAECEIPOBOIDNTI PEMOHT CAMOCTIINHO

2. BCTAHOBJIENHЯ

2.1 Bn3NaueHnMaicZaBcTaHOBJIeHHa

Iprn Bv6opi Micza BCTaHOBJeHna IprnCTpoHo Heo6XiIDHO nepeKoHaTnCS, 0o NOBepxHra e pIBHO i TBePOIO, a npimiiEHNr Do6pe npoBITpOeTbC. He po3MiyTe npncTpi Np6JN3y DxepeJI TeIIa, HapnKJaad, 6iJI nnTI, 6oiJIepa abo paiaTopa. KpIM TORO, 0o6 3HN3NTn CnoXnBaHHneEkeTpoEnerPi, BCTaHOBNoIte npnCTpi NODaI BiD DOCTUpy npreamx COHnHnx IpomeHIB. EkTpeMaJIbHI xOJOnHi Tempepatypn HabKOJIuHbOrO cepeOBuHa TaKoK MoKyTB BnKJIInKaTH3HxJENHRe EKnJIyataciHnX JKOcTe npnCTpoIO. IprnCTpi He npn3NaYeHO dIra BnKOpNCtAHnB R rapaxi abo npocTo He6a. He hakPBAeTe npncTpi TkaHnHO.

Iprn BCTaHOBJIeHNi npncTpoH nepekoHaItecra, 0o 3 o6ox cTopin 3aIIuHIOscra 10 cm BiNbHO npocTopy, 10 cm - BiD 3aIbHOi nobepxHi i 30 cm - BiD BepxHbOi nobepxHi npncTpoH. LcE Do3BOINtB XOJODHomy NOBITpO CnpKUHOBaTH NaBKOLO OXONODJyBaHa BIna, 0o 3a6e3neuHTb NiDbNtEHHa eFPeKTINBHOCTI npouecy OXONODJKeHHA

2.2 3MiHa HapryMky BiDkPbHnY DBepIaT

Heo6xidihi iHcTpymeHTn: Xpectonoi6Ha BnKpyTKa/npraMoIiueBa BnKpyTKa/JeCTnrgpAHN KJIIOU

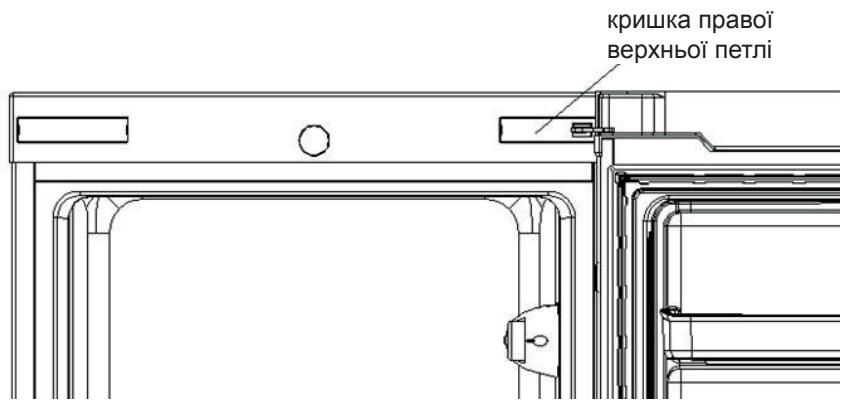

1) 3nimiTb KpniKky npaBoi BepXhboi neTJI

INDESIT SIAA55 - 3MiHa HapryMky BiDkPbHnY DBepIaT - 1

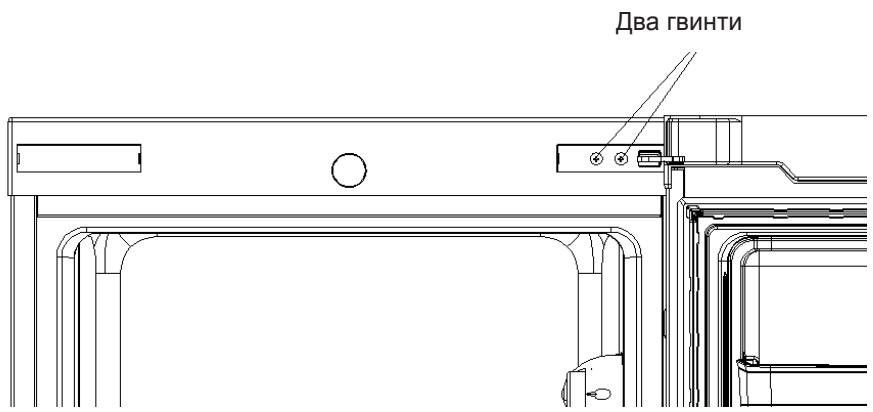

2) 3a donomoro xpectoioi6hoi Bnkytn 3HIMtB rNHTn, 00 fikcyotb BepxHIO neTJIO.

INDESIT SIAA55 - 3MiHa HapryMky BiDkPbHnY DBepIaT - 2

U pa3i, kIIO npicTpiH He BnpiBnaHO, IIOJKeHHa DBepaT i MaHHTHO UyIbHIOBaHa He BiDpeYJbOBAHO HaJeKHM YINHOM.

INDESIT SIAA55 - 3MiHa HapryMky BiDkPbHnY DBepIaT - 3

Ipeed BnKOpNCTaHHm npNCtpoIO nepekoHaTecs, 0o ONopN TOpKaHbCS IOBepxHi BCTaHOBJIeHHra.

Дивлячись Виз, BiDperулioTe onopnШлaxomixобертаннэ 3a i npotruOdHHNKOBOTcTpiJIKN

2.5 Ynctka neped BnKOpncTaHHaM

Протпь Bнутришно NOВерхню писстpoю слабким розуном bikapбогату сди. ПOTIM 3миite TeNTLOBODOIO, BnKOpNCTOBYUOHy BIXKaATy r6ky a60 TkaHNY. BmNITE noIuci i KOHTeHep dJa 36epiraHHa 3eJIeHi B TeNII MInbHI BODi, a notim peTeJbHO npocuyiTB nepeD TUM,ЯK BCTaHOBHTn Ha BiIDNOBIDHe Micse B pincstpo!. OunchTiB 3OBHIshno NOBepxHNo BOIoroIO raHcipKOIO. 3 MeTOIO OTPMaHHa DoDAtKOBoI IHΦopMaцii 3BepHITbcSdo pO3dIpy «UnsceHHA».

5.3 3ayBaJxHnI yODo YnIeHHa

Ha 3OBHIshI IOBepxHi npicTroIO MOKe 3'ABHTncs KOHdeHcT. Lc MoKe 6yTu NOB'3aHO 3i 3MiHO kIMHaTHO TeMnepaTpyn. BntpiTb 6yd-aki 3aIIuKn BOJorN. Kaio npo6neMy He BnpiUeHo, 3BepHITbcra Do KBaJIiΦIKOBaHOrO φaxiBzra 3 TexHciHOrO o6CnyroByBaHHra

6. TEXHlUHe OБсЛуГОВУBAHHЯ

6.1 3anobixhi 3axoDi npri TpaHcnpTyBaHHi/nepeMiueHHi npicctpoI

Ipn nepeMiuueHHi TpMaIte npncpti 3a 6okoi nobepxhi a6o dno. 3a6opohreTbcra nIdHimTu XOIOINbHK, TpMaUOnu Ioro 3a pe6pa BepXhboI nobepxhi

6.2 06cnyroByBaHHa

ObcnyrobyBaHH npncIpoIO NOBHHBO BnKOHyBaTNC yNOBHOBaXeHm faxiBcE, pni cIbOMy DONyCKaETbcB BnKOpNCTAHNa TINbKn opnirHaJIbHnx 3anachnx qactnH. Hi 3a JkNX o6ctabHN He cIiD hAmaraTnC BIDpeMOHTyBaTH npncIpiI camocTIHNO. Pemont, BnKOHaH N HeKOMPeTeHTHO Oco6OIO, MoKe Ipn3BeCTN Do TpaBMn a6o cepNo3HOI HecnpaBHoCTI. 3BeptaIteCra Do KBaJIΦIKOBaHOrO faxiBzra 3 TexHiUHorO obcnyrobyBaHHra.

6.3 BiДКЛЮЧЕНЯ Ha TpИВаПи Нерiod Yacy

Якwo npictrpi He BnKOpncTOByeTbC npOTyrom TpBaIoro nepiody yacy, BiDknUoyiTb NOro BiEneKTpOmepexi, BNTaHITb Bci npOyKTn, NoocTiB npICtpi i 3aIIuSte DBePcraTa npOunHeHmM, 0o6 3aNoobirn HakoOnueHHN He npnEMHOro 3anaxy.

INNEHÄLLSFÖRTECKNING

SE

Svenska,3

SIAA 55

  1. SÄKERHETSVARNINGAR 3
  2. INSTALLATION 4
    3.PRODUKTÖVERSIKT 10
    4.DRIFT 11
  3. RENGÖRING 11
    6.UNDERHALL 12
  4. FELSÖKNING 12
  5. TIPS FÖR ENERGIBESPARING 13
    9.AVYTTRING 14

1. SÄKERHETSVARNINGAR

6. TEXHINUCKOE OBCJNYKINBAHNE

6.1 Bo Bpemn porpy3kn (BbIrpy3kn) xoJOnnIbHnka n erO nepemeueny cJeNyET co6JIIOaTb OCTOpOxHocTb

Bo BpeMnpeMeueHnXoJIoNJIbHnKa yIepKINBaIe erO 3a 6okOBbie YacTn nJIn 3a OCHOBaHne. Hn npn KaKnx oBcToTeJIbCTBax He IOnyckaTeCn IOHNMaTb XoJIOJNbHnK 3a Kpaar BepxHei NOBepxHOCTn

6.2 06cIyXnBaHne

O6cnyxHBaHne XOJIOINJBHnKa D0JXHO IPOIN3BOIDTBCA TOJbKO yNOJHOMOeHHbIMN TexHNueCKMn CNeuJIInCTAm, N DOJXHbI NCIOJb3OBaTbCRA TOJbKO OPIINHAJIbHbIE 3aNaChBie YactN. Hn npi KaKnx 6oToTeJIbCTBax pEMoHT He DoJXeH IPOIN3BOIDTbcra CamocToTaeJIbHO. B clyuae BblOpJHEnr peMOHTa JIuCaMn 6e3 COOTBeTCTByUoJe r ONbTA BO3MOxHpo BO3HNKHOBeHne cepbe3HbIX HeNCnPabHOCTei. O6paauTeCb K KBaJIInΦuIUPOBAHbIM TexHNueCKM CNeuJIInCTAm.

6.3 BbIKJIouHeHne XOJIoIINJIbHNka Ha npOIOJIKHTeJIbHOe BpeMra

Korda MOpO3nIbHnK He 3KcNpyaTnpyetcB TeueHne dIITeNbHbIX nepNooB BpeMeHN, cJeDuET OTKJIIOuTaB erO OT cETn PNTaHnY, n3BNeKaTb N3 Hero npOdyKtbl I npOn3BOdntb OChCTKy n3DeJIIn, OCTaBNB DBePcy OKpbItOn dIra yCTpaHeHn HnprnTHbIX 3anaxOB.

JaMnbldoJXHbI6bITb3aMeHeHbI npOpeCCNOHaJIOB.

7. БыяВленье HeиСпразВнOCTeй

Cneyuouie npocbte npo6lembl moryt 6bItb yctpaHebl nolb3OBaTeIeM camocToaTbHo. B cnyae HeBO3MOxHOCHTyycTpaHEnn npo6lembl camocToaTeBHO o6paauTec b Cnyk6y noclenpoJaxHoro 06cnyxmbAHn

CTapaItecB He OTKpbIBaTb DBepu CnIshKOM YacTo, OCObeHNO pR N BbICOKO BnAxxHOCTN IN BbICOKO TeMnepaType. PocNe OTKpbIBaHnA DBepu CTapaItecB 3akpbITb ee KaK MoXHo 6blCTpee.

BpeM r T BpeMeH npOBepaTe 3oPfKeTnBHOCTb BEHTnInpOBaHn y3JeNna (yBJIeTcJn CInpKuJaCnBa03dyxA 3a XOLOdINbHnKOM DoCTaTOUHOJ).

При Нормально TemпераType yctaHaBnBaIte pyuky TepMoCTaTb CpeДHee NOLOJKeHne.

Ipeed Tem, kak nomeaaB XOJODINbHnK yNaKOBKn CO CBexmN IpOyKTamN, y6eNTecb, YTO OHN OXJaXdHebl Do BHeuHne TEMpepaTpybl.

HaIIuHne cIbJa IIN INHe IIOBbIaet nOTpe6JIeHne 3JIeKTpO3HeprIn, TaKIM o6pa3OM, cJIeDyET npON3BOJNTb OUNCtKy XOJODnJIbHNka, KaK TOJIbKO TOnIuHa cIbOR IOCTnIHET 3,5 MM.

UTo kacaetcBHeIHeRo KOHdeHcTopa, OH Bcerda DoJxeh 6bITb YnCTbIM, He 6bITb 3aRpy3HeHHbIM NblbIO I NOCTOPOHHIMu YactNuCaM.

XOJIOJIbHnK DoJKeH pa3MeaTbcra B Hau6oJee npoxJaHOM MeCTe, BdJIIN OT npi6OpOB, BbIeJIyUx TepNo, IJI IN Tpy6 OTOpJIeHnA, a TaKke B MeCTe, Kya He IOnaJaOT npIe COJIHeuHbIe JIyN.
ПередnomeшенимпрдуктовВхолдильнкдайTe NM OXладиьсяdo KOMhaTHOH Temператypы.ЧрзмернаЗагузkaхолдильнika прдуктампривedeТКболeeДЛNTeьног paбotekomпесcopa.Прдуктbl,КOTOPьеЗamopaxnBaIOTcСЛшКOMMeДлЕнHO,МогутnotepЯТСВОИΚачecTBVENHьсСВОИСТВАИИΝΟPTИТБСЯ.
YbEiTeScb, yTO npOdyKtbl TsiAteJbHO 3aBepHyTbI, n IpOTnpaIte Hacyxo KOHTeHepbl NpeEd NOMEuHHeM Ix B XoJOniNbHnK. 3To p03BOJNT yMeHbSHTb KOJIInueCTBO o6pa3yEmOro BHyTpN XoJOniNbHnKa INHe.
OTCEKNДЯханен He DoJXHbI BbICTNJaTbcra aJIOMHHeBOI FOJbRO, BOSeHOJ bymaRoI nJIH 6yMaJHbIMn PONOTEHcAmN. 3TO MOKeT NOMEuATb CINPKyJauCmN BO3dUxa I OTPuCaTeJbHO cKa3aTbcra Ha npOIN3BOIDNTelbHOCTn N3deJIIN.
Bo n36eXaHne cInIshKOM yactoro OTkpbBaHnra DBePcbl I dInTeIbHOro POnsKa PpOdyKTOB pa3MeaIte nx paunHOJIbHo n npKpePnIeHa Hnx JApBikn N3BNeKaIte MaKcImaJIbHO BO3MOxHoe KOJUecTBO pOdyKTOB 3a OdINH pa3 N 3aKpbBaIte DBePcy KaK MoJHO bIcTpee

9. yTnJIIn3AUciNIA

CtapbIe npi6obpI ImeOT HeKOTOpUO OCTaToCHyU cEHNOCTb. B Cnyuae yTnJIN3aUIN 3KOJIOrHuCeCK
6e30NaChbIMcNOCOBOMueHHbIEcBipBeBbIeMaTePnaJIbICMOrYT6bITbBOcCTaHOBJIeHbINUCNoJIb3OBAHbI
NOBTOPO. XJIDKN XOJOnJIbHbI aReHT, NcNoJIb3YeMbIB INXDeJIIN, IN3OJauONHbIe MaTePnaJIbI
DOJNXbI yTnJIN3InPOBaTbcA C npImeHeHMe CneuaJIbHO INpoZeDpybl. Ipeed yTnJIN3aUnei
y6eDiNTecb, YTO HN ODA Na 3 Tpy6OK Ha 3aJdNeI CTOpOHe N3deJeN He NOBpeXdHa. AkTyaNBJHyIO
IHΦopMaUIO NO BapNaHTam yTnJIN3aUIN CTApBX npi6obOBuX MATEPnaJIOB OT HOBX
npi6obOB MOxHO NOLyHTB MECTbIX OpraHAX UynabHeHNA.

B cIyuae yTuIu3aun CtapbIX npi6opOB B ueJx 6e3OpaCHOCTn CLOMaIte CtapbIe 3aMKN 3anOpbl I CHIMITE DBepu

PpaBnIbHa yTnIu3aun I3denn

INDESIT SIAA55 - PpaBnIbHa yTnIu3aun I3denn - 1

PpabnIbHa yTtnu3aun 13denn

INDESIT SIAA55 - PpaBnIbHa yTnIu3aun I3denn - 2
m = 311

Manual assistant
Powered by Anthropic
Waiting for your message
Product information

Brand : INDESIT

Model : SIAA55

Category : Fridge
