Product Type	Refrigerator-Freezer
Brand	BEKO
Model	RDSA310M30W
Power Supply	220-240 V, 50 Hz
Refrigerant	R600a (flammable under certain conditions)
Climate Class	Ambient temperature from +10 °C to +38 °C
Refrigerator Compartment Capacity	Not specified
Freezer Compartment Capacity	Not specified
Freezing Capacity	Up to 4 kg/24 h (estimate)
Storage Time in Case of Power Failure	Up to 19 hours
Refrigerator Defrosting	Automatic
Freezer Defrosting	Manual (when frost reaches 7 mm)
Interior Lighting	LED (replacement by a professional)
Ice Making	Ice cube trays provided
Shelves	Adjustable, including bottle shelf and door racks
Vegetable Crisper	Yes, with lid
Spare Parts	Available for 10 years after purchase
Recommended Cleaning	Warm water and baking soda
Grounding	Mandatory

Frequently Asked Questions - RDSA310M30W BEKO

How do I adjust the temperature of my refrigerator-freezer?

Use the thermostat knob inside. The positions range from 1 (least cold) to 5 (coldest). Position 0 turns off the appliance. The recommended temperature for the refrigerator is +5 °C.

What to do in case of a power failure?

Do not open the door. Frozen food remains frozen for up to 19 hours. If the outage is longer, inspect the food and consume it quickly or refreeze it after cooking.

How to defrost the freezer?

Unplug the appliance, remove the food (wrap it in newspaper and store in a cool place). Place a container of hot water inside the freezer to speed up defrosting. Never use sharp objects or electrical appliances. Sponge up the defrost water then dry the interior thoroughly before plugging back in.

Why is my refrigerator making noise?

Normal noises may come from the compressor or the circulation of refrigerant. Ensure the appliance is level and the feet are properly adjusted to avoid excessive vibrations. These noises are not a defect.

How do I replace the interior light bulb?

The lighting is LED. Contact authorized after-sales service for replacement. The lamp is not intended for household lighting.

Can I reverse the door opening direction?

Yes, the manual provides instructions for repositioning the door. Follow the numbered steps in Figure 7. Be sure to disconnect the appliance before any intervention.

How to clean the inside of the refrigerator?

Unplug the appliance, remove the food. Use a cloth soaked in a solution of one teaspoon of baking soda in half a liter of warm water. Rinse with clean water and dry thoroughly. Do not use abrasive products.

Why is water accumulating at the bottom of the refrigerator?

The defrost water drain tube may be blocked. Clean it using a pipe cleaner. Check that the tube end is properly placed in the collection tray above the compressor to avoid any contact with electricity.

Is it possible to freeze fresh food?

Yes, the freezer compartment allows freezing of fresh products. Do not exceed the freezing capacity (about 4 kg/24 h). Wrap food tightly and let it cool before placing it in the freezer.

What to do if the appliance does not work at all?

Check that the plug is properly connected and that there is power (test with another appliance). Check the fuse or circuit breaker. Make sure the thermostat is not set to 0. If the problem persists, contact the supplier.

USER MANUAL RDSA310M30W BEKO

Refrigerator-Freezer type I

In order to ensure a normal operation of your refrigerating appliance, which uses a completely environmentally friendly refrigerant the R600a (flammable only under certain conditions) you must observe the following rules:

• Do not hinder the free circulation of the air around the appliance.
• Do not use mechanic devices in order to accelerate the defrosting, others than the ones recommended by the manufacturer.
• Do not destroy the refrigerating circuit.
• Do not use electric appliances inside the food cheating compartment, others than those that might have been recommended by the manufacturer.

AVVERTENZA!

Electrical requirements /2

Transportation instructions /2

Installation instructions /2

Getting to know your appliance /3

Suggested arrangement of food in the appliance /3

Temperature control and adjustment /4

Before operating /4

Storing frozen food /4

Freezing fresh food /4

Making ice cubes /5

Defrosting /5

Replacing the interior light bulb /6

Cleaning and care /6

Repositioning the door /6

Do's and don'ts /7

Trouble - shooting /8

IT Indice

IHCtpyKzj3i BCTaHOBHeHH/17

3aaraIbHI BiIDOMOCTI npo XoIOnIbHnK /18

PekomeHdoBaan cnocio po3mUeHn npOdykTIB

XoJIoAnIbHnIKy /18

PeryIIOBaHHa TEMpepatypn /19

Ipeed noaTkom pobotn /19

36epirahan 3amopoxhenx npdyktiv /19

3amopoxybaHHcBIXnx npOdykTIB /19

3amopokyBaHHaNbOy/20

PozMopoxyBaHHa/20

3amHa nAMnOuKn BCEpeDnHi xoJIoDnIbHnka /20

YHJUENH XOJODINbHnKa iDOrIa 3a Hm/20

PekomeHdyembI cnocob pa3MeueHn npOdyKTOB

B xoIounlbHnke /26

Peryulipobka TemnepaTpyb/26

Ipeed NaaJom pa60tbl/27

XpaHeHne 3amOpOKeHHbIX npOyKToB /27

3amopaxnBaHne CBexnx npOdyKTOB /27

3amopaxnBaHne Ibda /28

Pa3MopaxnBaHne /28

3aMeHa JAmNoUcKn BHyTpN XOLOJbHnka /29

YnCTka XoJIoNJIbHnKa n yXoD 3a Hm /29

IpebeBuaHneDbepn /29

YTo CneJyET uHero HeIb3a DeNaTb /30

UcTpaHHeHne HncnpaBNoCTe /31

ES Indices

Disposition recommended as los

Figures that take place in this instruction manual are schematic and may not correspond exactly with your product. If the subject parts are not included in the product you have purchased, then it is valid for other models.

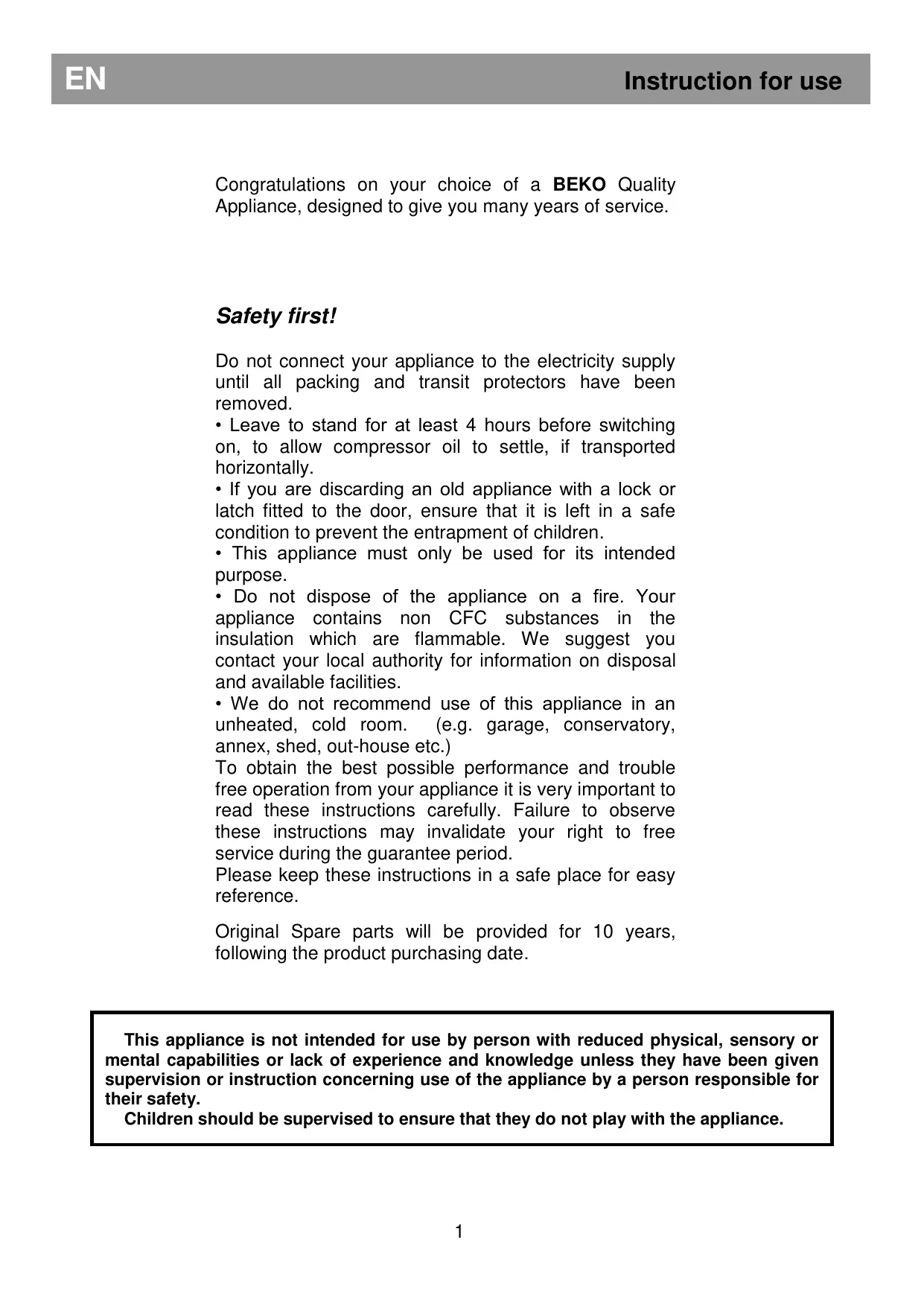

Congratulations on your choice of a BEKO Quality Appliance, designed to give you many years of service.

Safety first!

Do not connect your appliance to the electricity supply until all packing and transit protectors have been removed.

• Leave to stand for at least 4 hours before switching on, to allow compressor oil to settle, if transported horizontally.

• If you are discarding an old appliance with a lock or latch fitted to the door, ensure that it is left in a safe condition to prevent the entrapment of children.

• This appliance must only be used for its intended purpose.

• Do not dispose of the appliance on a fire. Your appliance contains non CFC substances in the insulation which are flammable. We suggest you contact your local authority for information on disposal and available facilities.

• We do not recommend use of this appliance in an unheated, cold room. (e.g. garage, conservatory, annex, shed, out-house etc.)

To obtain the best possible performance and trouble free operation from your appliance it is very important to read these instructions carefully. Failure to observe these instructions may invalidate your right to free service during the guarantee period.

Please keep these instructions in a safe place for easy reference.

Original Spare parts will be provided for 10 years, following the product purchasing date.

This appliance is not intended for use by person with reduced physical, sensory or mental capabilities or lack of experience and knowledge unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

Electrical requirements

Before inserting the plug into the wall socket make sure that the voltage and the frequency shown in the rating plate inside the appliance corresponds to your electricity supply. We recommend that this appliance is connected to the mains supply via a suitably switched and fused socket in a readily accessible position.

Warning! This appliance must be earthed. Repairs to electrical equipment should only be performed by a qualified technician. Incorrect repairs carried out by an unqualified person are carry risks that may have critical consequences for the user of the appliance.

ATTENTION!

This appliance operates with R600a which is an environmental friendly but flammable gas. During the transportation and fixing of the product, care must be taken not to damage the cooling system. If the cooling system is damaged and there is a gas leakage from the system, keep the product away from open flame sources and ventilate the room for a while.

WARNING - Do not use mechanical devices or other means to accelerate the defrosting process, others than those recommended by the manufacturer.

WARNING - Do not damage the refrigerant circuit.

WARNING - Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

WARNING - If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Transportation instructions

1. The appliance should be transported only in an upright position. The packing as supplied must be intact during transportation. 2. If during the transport the appliance, has been positioned horizontally, it must not be operated for at least 4 hours, to allow the system to settle.

2. Failure to comply with the above instructions could result in damage to the appliance, for which the manufacturer will not be held liable.

3. The appliance must be protected against rain, moisture and other atmospheric influences.

Important!

• Care must be taken while cleaning/carrying the appliance not to touch the bottom of the condenser metal wires at the back of the appliance, as this could cause injury to fingers and hands.
• Do not attempt to sit or stand on top of your appliance as it is not designed for such use. You could injure yourself or damage the appliance.
• Make sure that the mains cable is not caught under the appliance during and after moving, as this could damage the cable.
• Do not allow children to play with the appliance or tamper with the controls.

Installation instructions

1. Do not keep your appliance in a room where the temperature is likely to fall below 10 degrees C (50 degrees F) at night and/or especially in winter, as it is designed to operate in ambient temperatures between +10 and +38 degrees C (50 and 100 degrees F). At lower temperatures the appliance may not operate, resulting in a reduction in the storage life of the food.
2. Do not place the appliance near cookers or radiators or in direct sunlight, as this will cause extra strain on the appliance's functions. If installed next to a source of heat or freezer, maintain the following minimum side clearances:

From Cookers 30 mm

From Radiators 300 mm

From Freezers 25 mm

1. Make sure that sufficient room is provided around the appliance to ensure free air circulation (Item 2).

2. Put the back airing lid to the back of your refrigerator to set the distance between the refrigerator and the wall (Item 3).

3. The appliance should be positioned on a smooth surface. The two front feet can be adjusted as required. To ensure that your appliance is standing upright adjust the two front feet by turning clockwise or anticlockwise, until firm contact is secured with the floor. Correct adjustment of feet prevents excessive vibration and noise (Item 4).

4. Refer to "Cleaning and Care" section to prepare your appliance for use.

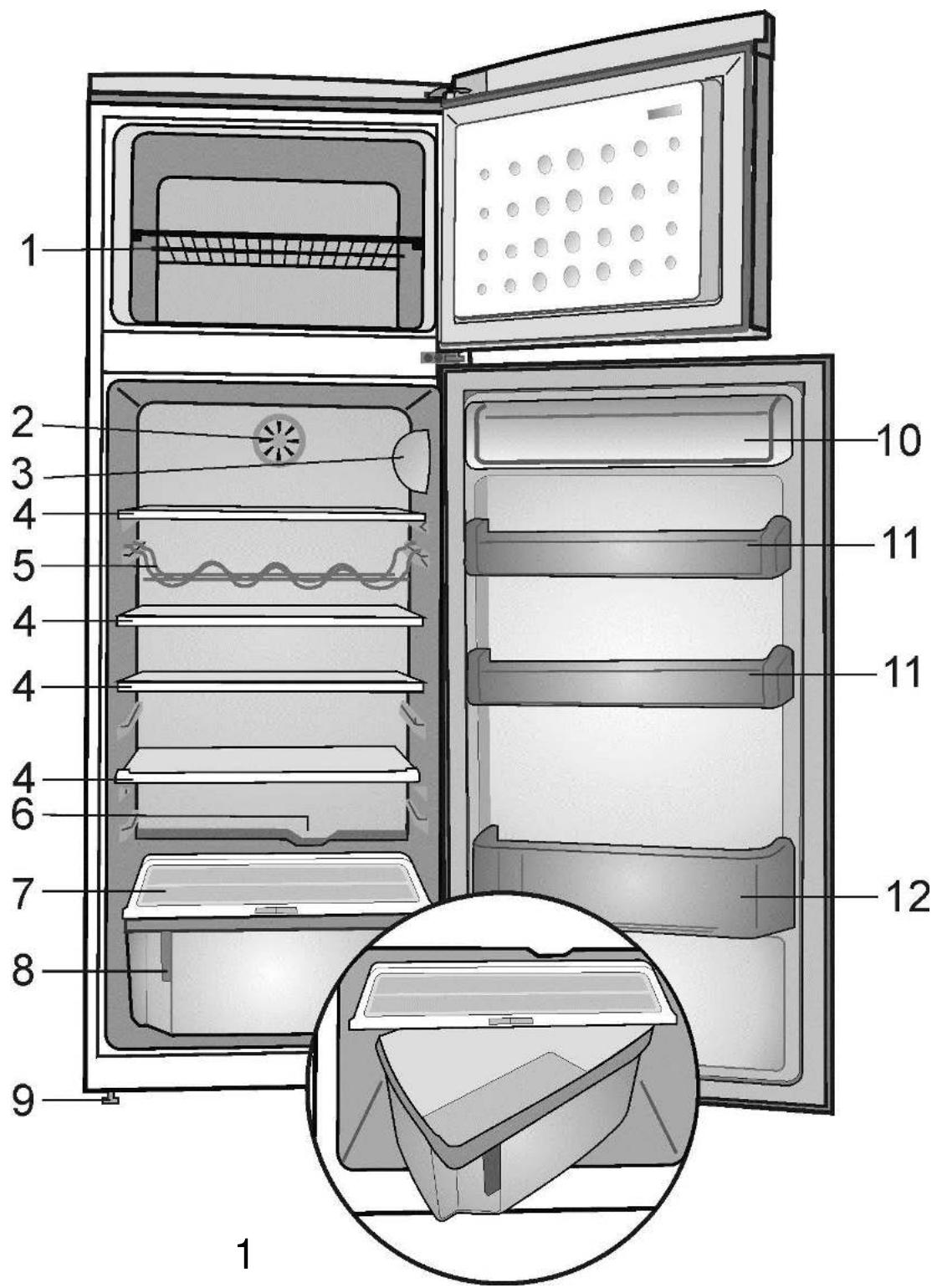

Getting to know your appliance (Item 1)

1 - Freezer shelf
2 - Fan
3 - Thermostat and lamp housing
4 - Adjustable Cabinet shelves
5 - Wine bottles support
6 - Defrost water collection channel - Drain tube
7 - Crisper cover
8 - Crisper
9 - Adjustable front feet
10 - Dairy Compartment
11 - Shelves
12 - Bottle shelf

Suggested arrangement of food in the appliance

Guidelines for obtaining optimum storage and hygiene:

1. The fridge compartment is for the short-term storage of fresh food and drinks.
2. The freezer compartment is rated and suitable for the freezing and storage of pre-frozen food.

The recommendation for storage as stated on the food packaging should be observed at all times.
3. Dairy products should be stored in the special compartment provided in the door liner.
4. Cooked dishes should be stored in airtight containers.

1. Fresh wrapped produce can be kept on the shelf. Fresh fruit and vegetables should be cleaned and stored in the crispers.
2. Bottles can be kept in the door section.
3. To store raw meat, wrap in polythene bags and place on the lowest shelf. Do not allow to come into contact with cooked food, to avoid contamination. For safety, only store raw meat for two to three days.
4. For maximum efficiency, the removable shelves should not be covered with paper or other materials to allow free circulation of cool air.
5. Do not keep vegetable oil on door shelves. Keep the food packed, wrapped or covered. Allow hot food and beverages to cool before refrigerating. Leftover canned food should not be stored in the can.
6. Fizzy drinks should not be frozen and products such as flavoured water ices should not be consumed too cold.
7. Some fruit and vegetables suffer damage if kept at temperatures near 0^ . Therefore wrap pineapples, melons, cucumbers, tomatoes and similar produce in polythene bags.
8. High-proof alcohol must be stored upright in tightly closed containers. Never store products that contain an inflammable propellant gas (e.g. cream dispensers, spray cans, etc.) or explosive substances. These are an explosion hazard.

Temperature control and adjustment

Operating temperatures are controlled by the thermostat knob and may be set at any position between 1 and 5 (the coldest position).

If the thermostat knob is in position "0" the appliance is off. In this case neither the lamp for inside lighting will light.

The average temperature inside the fridge should be around +5^ C ( +41^ F ).

Therefore adjust the thermostat to obtain the desired temperature. Some sections of the fridge may be cooler or warmer (such as salad crisper and top part of the cabinet) which is quite normal. We recommend that you check the temperature periodically with a thermometer to ensure that the cabinet is kept to this temperature. Frequent door openings cause internal temperatures to rise, so it is advisable to close the door as soon as possible after use.

Before operating

Final Check

Before you start using the appliance check that:

1. The feet have been adjusted for perfect levelling.
2. The interior is dry and air can circulate freely at the rear.
3. The interior is clean as recommended under "Cleaning and care."
4. The plug has been inserted into the wall socket and the electricity is switched on. When the door is open the interior light will come on.

And note that:

1. You will hear a noise as the compressor starts up. The liquid and gases sealed within the refrigeration system may also make some (noise), whether the compressor is running or not. This is quite normal.

2. Slight undulation of the top of the cabinet is quite normal due to the manufacturing process used; it is not a defect.

3. We recommend setting the thermostat knob midway and monitor the temperature to ensure the appliance maintains desired storage temperatures (See section Temperature Control and Adjustment).

4. Do not load the appliance immediately it is switched on. Wait until the correct storage temperature has been reached. We recommend checking the temperature with an accurate thermometer (see; Temperature Control and Adjustment).

Storing frozen food

Your freezer is suitable for the long-term storage of commercially frozen foods and also can be used to freeze and store fresh food. If there is a power failure, do not open the door. Frozen food should not be affected if the failure lasts for less than 19 hrs. If the failure is longer, then the food should be checked and either eaten immediately or cooked and then re-frozen.

Freezing fresh food

Please observe the following instructions to obtain the best results.

Do not freeze too large a quantity at any one time. The quality of the food is best preserved when it is frozen right through to the core as quickly as possible.

Do not exceed the freezing capacity of your appliance in 24 h.

Placing warm food into the freezer compartment causes the refrigeration machine to operate continuously until the food is frozen solid. This can temporarily lead to excessive cooling of the refrigeration compartment.

When freezing fresh food, keep the thermostat knob at medium position. Small quantities of food up to 1/2 ~kg . (1 lb) can be frozen without adjusting the temperature control knob.

Take special care not to mix already frozen food and fresh food.

Making ice cubes

Fill the ice - cube tray 3/4 full with water and place it in the freezer. Loosen frozen trays with a spoon handle or a similar implement; never use sharp-edged objects such as knives or forks.

Defrosting

A) Fridge compartment

The fridge compartment defrosts automatically. The defrost water runs to the drain tube via a collection container at the back of the appliance (Item 5).

During defrosting, water droplets may form at the back of the fridge compartment where a concealed evaporator is located. Some droplets may remain on the liner and refreeze when defrosting is completed. Do not use pointed or sharp-edged objects such as knives or forks to remove the droplets which have refrozen.

If, at any time, the defrost water does not drain from the collection channel, check that no food particles have blocked the drain tube. The drain tube can be cleared with a pipe-cleaner or similar implement.

Check that the tube is permanently placed with its end in the collecting tray on the compressor to prevent the water spilling on the electric installation or on the floor (Item 6).

B) Freezer compartment

Defrosting is very straightforward and without mess, thanks to a special defrost collection basin.

Defrost twice a year or when a frost layer of around 7 (1/4") mm has formed. To start the defrosting procedure, switch off the appliance at the socket outlet and pull out the mains plug.

All food should be wrapped in several layers of newspaper and stored in a cool place (e.g. fridge or larder).

Containers of warm water may be placed carefully in the freezer to speed up the defrosting.

Do not use pointed or sharp-edged objects, such as knives or forks to remove the frost. Never use hairdryers, electrical heaters or other such electrical appliances for defrosting. Sponge out the defrost water collected in the bottom of the freezer compartment. After defrosting, dry the interior thoroughly. Insert the plug into the wall socket and switch on the electricity supply.

Replacing the interior light bulb

To change the Bulb/LED used for illumination of your refrigerator, call your AuthorisedService.

The lamp(s) used in this appliance is not suitable for household room illumination. The intended purpose of this lamp is to assist the user to place foodstuffs in the refrigerator/freezer in a safe and comfortable way.

The lamps used in this appliance have to withstand extreme physical conditions such as temperatures below -20^ .

Cleaning and care

1. We recommend that you switch off the appliance at the socket outlet and pull out the mains plug before cleaning.
2. Never use any sharp instruments or abrasive substances, soap, household cleaner, detergent or wax polish for cleaning.
3. Use luke warm water to clean the cabinet of the appliance and wipe it dry.
4. Use a damp cloth wrung out in a solution of one teaspoon of bicarbonate of soda to one pint of water to clean the interior and wipe it dry.
5. Make sure that no water enters the temperature control box.
6. If the appliance is not going to be used for a long period of time, switch it off, remove all food, clean it and leave the door ajar.
7. We recommend that you polish the metal parts of the product (i.e. door exterior, cabinet sides) with a silicone wax (car polish) to protect the high quality paint finish.
8. Any dust that gathers on the condenser, which is located at the back of the appliance, should be removed once a year with a vacuum cleaner.

9. Check door seals regularly to ensure they are clean and free from food particles.

10. Never:

11. Clean the appliance with unsuitable material; eg petroleum based products.

12. Subject it to high temperatures in any way,

13. Scour, rub etc., with abrasive material.

14. Removal of dairy cover and door tray :

15. To remove the dairy cover, first lift the cover up by about an inch and pull it off from the side where there is an opening on the cover.

16. To remove a door tray, remove all the contents and then simply push the door tray upwards from the base.

17. Make sure that the special plastic container at the back of the appliance which collects defrost water is clean at all times. If you want to remove the tray to clean it, follow the instructions below:

18. Switch off at the socket outlet and pull out the mains plug

19. Gently uncrimp the stud on the compressor, using a pair of pliers, so that the tray can be removed

20. Lift it up.

21. Clean and wipe it dry
22. Reassemble, reversing the sequence and operations
23. Large accumulation of ice will impair the performance of the appliance.

Repositioning the door

Proceed in numerical order (Item 7).

Do’s and don’ts

Do- Clean and defrost your appliance regularly (See "Defrosting")
Do- Keep raw meat and poultry below cooked food and dairy products.
Do- Take off any unusable leaves on vegetables and wipe off any soil.
Do- Leave lettuce, cabbage, parsley and cauliflower on the stem.
Do- Wrap cheese firstly in greaseproof paper and then in a polythene bag, excluding as much air as possible. For best results, take out of the fridge compartment an hour before eating.
Do- Wrap raw meat and poultry loosely in polythene or aluminium foil. This prevents drying.
Do- Wrap fish and offal in polythene bags.
Do- Wrap food with a strong odour or which may dry out, in polythene bags, or aluminium foil or place in airtight container.
Do- Wrap bread well to keep it fresh.
Do- Chill white wines, beer, lager and mineral water before serving.
Do- Check contents of the freezer every so often.
Do- Keep food for as short a time as possible and adhere to "Best Before" and "Use by" etc. dates.
Do- Store commercially frozen food in accordance with the instructions given on the packets.
Do- Always choose high quality fresh food and be sure it is thoroughly clean before you freeze it.
Do- Prepare fresh food for freezing in small portions to ensure rapid freezing.
Do- Wrap all food in aluminium foil or freezer quality polythene bags and make sure any air is excluded.
Do- Wrap frozen food immediately after purchasing and put it in to the freezer as soon as possible.
Do- Defrost food in the fridge compartment.

Don't- Store bananas in your fridge compartment.
Don't- Store melon in your fridge. It can be chilled for short periods as long as it is wrapped to prevent it flavouring other food.
Don't- Cover the shelves with any protective materials which may obstruct air circulation.
Don't- Store poisonous or any dangerous substances in your appliance. It has been designed for the storage of edible foodstuffs only.
Don't- Consume food which has been refrigerated for an excessive length of time.
Don't- Store cooked and fresh food together in the same container. They should be packaged and stored separately.
Don't- Let defrosting food or food juices drip onto food.
Don't- Leave the door open for long periods, as this will make the appliance more costly to run and cause excessive ice formation.
Don't- Use sharp edged objects such as knives or forks to remove the ice.
Don't- Put hot food into the appliance. Let it cool down first.
Don't- Put liquid-filled bottles or sealed cans containing carbonated liquids into the freezer, as they may burst.
Don't- Exceed the maximum freezing loads when freezing fresh food.
Don't- Give children ice-cream and water ices direct from the freezer. The low temperature may cause 'freeze burns' on lips.
Don't- Freeze fizzy drinks.
Don't- Try to keep frozen food which has thawed; it should be eaten within 24 hours or cooked and refrozen.
Don't- Remove items from the freezer with wet hands.

Trouble - shooting

If the appliance does not operate when switched on, check;

• That the plug is inserted properly in the socket and that the power supply is on. (To check the power supply to the socket, plug in another appliance).

• Whether the fuse has blown/circuit breaker has tripped/main distribution switch has been turned off.

• That the temperature control has been set correctly.

• That the new plug is wired correctly, if you have changed the fitted, moulded plug. If the appliance is still not operating at all after above checks, contact the dealer from whom you purchased the unit.

Please ensure that above checks have been done, as a charge will be made if no fault is found.

The symbol on the product or on packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be otherwise caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, you household waste disposal service or the shop where you purchased the product.

IHCtpyKzia 3i BCTaHOBJIeHnHa

1. He CTaBTe XOJODINbHnK B npIMiueHHi, De TempepaTpa MoKe Onyckatncs HnXue 10 ^ C BHOUc a6o,OCO6JIbBO,B3IMKU,OCKIbKn XOJODINbHnK pO3paxOBaHn Ha po6Otu 3a TempepaTpN HABKOINHbOro CepeIOBnua B MeJax Bi+10 do +38 ^ C .3a 6Ibsh Hn3bkoI TempepaTpN XOJODINbHnK MoKe He IpaIIOBaTn i TepMIn 36epirAHn npOyKTtB HbOMy MaE 6byTN cKOpOueHn.

2. He BCTaHOBJIIOIte XOJIoDNJIbHnK nO6JIIN3y
   BID KUxOHnX IINT a60 paIaTOpIB ONAJIeHHa
   YH Na IPRMOMY COHJHOMY CBITJI, OCKIbKn
   Ze BIKNue DoaTKOBe HABaHTaXeHHa
   arperatn XOJIoINbHnKa. Jkso BV 3MyuSeHi
   BCTaHOBJIIOBaTn XOJIoINbHnK NOPaI3
   dKepeIOM TeIIa a60 MOpO3InbHnKOM,
   3a6e3neUTe HaCTUHy MiHImaJIbHy BiDCTaHb:
   BID KUxOHnX IINT 30 MM
   BID paIaTOpIB ONAJIeHHa 300 MM
   BID MOpO3InbHnKiB 25 MM

3. HamaraTeCb, 06 HabkoLo XoNoJbHnka 6ylo DoCTaTHbO BiJbHoro Micu i NobITpy BInbHO cNpKuIIOBaIoo (DvB. MaI. 2).

4. BctaHOBIb BeHTnJIaIHy KpNIshky Ha 3aIbOMy 6oCi XOJIoNJIbHnIka IJa TOrO, Iio6 3a6e3peuHTn Heo6xIDHy BiCTaHb MIXX OJOINJIbHNiKOM i CtiHOIO (dNv. MaI. 3).

5. XoJIoNJIbHnK MaE CTOaTn Ha pIBHi nOBepxHi. DBi nepeDiHi HIXKn MaIOb 6yTu BIDNoBIDHM YINOM BiDpeRyIbOBaHi. Uo6 DOcAITn CyBOp BOeTIkaJIbHOrO NIOJoxEHnXoJIoNJIbHnKa, BiDpeRyIbOHTe HIXKn, OBeptaUOuY iX 3a a60 IpOTn rOdUnHnKOBOi CTrpIKN, DOKN BOHn He 6yDuTb CTiIKO CToaTn Ha NiIIO3i.

He cIiD - nepenOBHIOBAtn HaMipy MOpO3nJIbHy KaMepy iId Yac 3amOpOxKeHHa CBIXN X npOdyKTiB.

He cniid -ДаВати ДITям Mopo3ИВо a6o фрукTOву BODу пЯMo 3 МОр3ИьHOI KaМери. BoHи можУть обмОр3ИТи ГБи.

He cπi - 3aMOpoxyBaTu ra3OBaH i HanoI.

He cIiD - TpnbaiN yac 36epiratn pO3MOpOjEHI npOdykTN, iX Tpe6a BnKOpNCtATn BnpOIOBx Do6n a6o npOBapNTn i 3amOPO3NTn 3HOB.

He cnil - icTaBAtn npOdykTn 3 XoIOnIbHnKa MOKpIMn pykAm.

UcyHeHHa HeCnpaBHOCTeH

Якwo xoJIoIbHnK He npaIoc, KOJI NOrOBBIMKHeHO, nepeCbIdYuItbcra:

• Κι ΣΤΕΝCEЛь BCTΑΒΙΝΗΝΙ ο ΕΙΝΕΚΤΡΥΝΗΟΙ ρο₃ΕΤΚ ΠραΒΙΝΗΟι Α ΚΟ ΕΙΝΕΚΤΡΥΝΗ ΚΤΡΜ ἀνμεκημίνης (Для περεΒιρΚ ḤαγΒΗΟύ ΚΤΡΜ Y BΒΙΜΚΗΙΤβ έό Βιέι ρο₃ΕΤΚ ΙΗψη Πρυπαή);
• ΚΟ He 3ropíB 3aπo6iχnK, He BνMκHyBCa ВνMнКач,ЧИ He BνMкHeHи ГоЛOBни ВνMнКач Ha рОзЮдільчОМу ΜιNTКу;
• ξιο Perулайтόр TempepaTyprn BCTaHOBJIeHni BIPHO;
• ΜΟ HOBNI ΜTEπCeJIb, ΜΟ BVKOpNCTOBYeTbcr 3aMICTb 3aBOIDcBKOro, NOCTaBJIeHn BIPHO. JkIoo XOJODnJIbHnK BCE Ie He npaIoe nicJr TOrO, Jk Bn BVkoHaJInepepaxoBaHi BnIe nepeBipOchNi DiI, NopaIbTeCb i3 npoDaUcEm, BV Koro Bn PrnD6aJIu XOJODnJIbHnK.

Будь пасka, поесвidiчitableя, по поpebipniln BCE, lo MOrI, 6o B iHsOMy pa3i MOxe BnABNTUC, lo Bam doBeTeBcra PnAaTtN rpowi, kso noWkoDKeHb He 6yde BnABJeHO.

CnmboHa Bnpo6i Yn ynaKOBci Bka3ye, 00 cei npnaad He cniD ytni3yBaTn 3 nobytobmBixxodamn. Hatomictb Ioro Tpe6a 3dATn y BiIDNOiHN NynKT 3bOpy dIy tynl3aui eNEKtpuHoro Ta eNEKtpoHHoro 6bnADHNN. 3a6e3neuyouHn HaleJHy tynl3aio u boro npnaNy, BN cnpraTMte 3anobirAHNIO NOTENHIM HeratNBHM HacIikam DnA DOBkiJNa Ta 3dOpOB' JIOHN, kI MOxyTB 6yTN CnpunHeHi HnpaBnblHm CTabIeHNM Do ytni3aui ciBO rpo6y. 3a DoklaHIO iHΦopMaicEIO 0do ytni3aui ciBO Rpo6y 3BepHITbcr Do MlcueBOI aDMHICTPaui, cnyXbN ytni3aui nobytobnx BixxOJDABo DO MaRa3HNy, B kOMy BN npnd6aII npnilad.

Виравник: 'S.C. Arctic S.A.', Gaesti, str.13 Desember N210, Romania (Pуmunія)

OphiiHn npedCTaBnK Ha Tepntopii
YkpaHn: TOB «БeKO YkpaHa»,
aDpeca: 01021, M. KniB,
ByI. KnobcBkn y3Bi3,
6yI. 5 TeI/ΦaKc.: 0-800-500-4-3-2

Tepmin clyx6n 10 pokiv

He neperpykaTe MOpO3nIbHyIO kamepy 6oJee, Yem Ha cyTkn.

EcnI NOMeCTnTb B MOpO3nBHyU KaMepy TeNblte npOdyKtbl,TO arpeRaTbXoJOnnBnKa DOJKNbl 6yDyT paOToTaH He npepBIBHO,POKa npOdyKtbl He 3aMopO3rTc. Ha KaKoEt O Bpem ATO pInBeTe K Upe3MePHOMY NOHNKeHIO TempeaTypb I XoJOnnBHom OTDeJIeHIN.

3amopaxnBaCBeJne npOdyKtbl,
yCTaHaBnBaIe Te TepMOCTaT B cpeiHee
noIOxHHe. He6oJIbIe nOpZn IpOdyKTOB (do 0,5Kr) MoXHO 3amopaxnBaTb 6e3 N3MeHEny
noIOxHnA TepMOCTata.

Oco6eHNO TuaTeNbHO CneIte 3a Tem, YTO6bI He XpaHtB BmEcTe 3amOpXeHHbIe I CBexKHe npOdyKtbl.

3amopaxnbHne Ibda

3aNoJIHnTe IOTOK JIJIbJa BODoI Ha 3/4 n NOMeCTInTe eRO B MOpO3NJbHOe OTDeJIeHne.

BbITacknBaIte Ky6nN Jbda pyUKOJ IOxKn IIN dpyrIM NIOO6HbIM INHCTpymeHTOM; HNKoRda He IONlb3yTEcB OCTpbIM NIN peKyuImN IpeDMeTAM BPODe HOKei NIN BNLOK.

Pa3MopaxnBaHne

A) XoIooNJIbHoe OTdeJeHne

XOJIOJIbHoe OTJeIeHne pa3MopaKINBaETcA
ABTomaTnueckn. TaJaA BODa CTeKaet K
dpeHaJHO Tpy6Ke Ypee3 HAKoPITeJIbHbI
KOHTeHep B 3aDHei YaCTN XOJOIJIbHNka (CM.
pnc.5).

He cIeNyET - IcNoJIb3OBA Tb OCTpbIe IpeIMeTbl, TnPa HOKei INN BnIOK,ДЯ ydaJIeHry INHe.

He cneyuET - CTaBnTb B XOJIoNJIbHnK TOpRyNe npOdykTbl. Hano DaTb IM CHaJaIa OCTbITb.

He cIeNyET - NOMEuTaB B MOpO3nIbHyU KAmepy HApONHeHbIe XNkOcTbIO 6BytblKn IJIH HepacNeuTaHbIe BaHKn C Ra3InpOBaHHbIMn HaNTKamN, TaK KaK OHN MOrYT pa3OpBaTbcra.

He cIeJyET - IpepeNoJIHЯTb CBepx BCaKOJ Mepbl MOpO3nJIbHyU KaMepy pni 3aMopaxKbAHN CBexnx IpOdyKTOB.

He cIeNyET -ДaBaTb DeTЯM MOpOxHoe ИЛN 3amOpOxHHyTOФpyKToBvO BODY npraMo n3 MOpO3nIbHOJ KaMepbl. OHN MOryT O6MOpO3nTb ry6bl.

He cIeIyEeT - 3aMOpaxKuBaTb ra3nIpOBAHHbIe HApNTKn.

He cIeJyET -ДОЛгоE ВремЯхpaHNTb pa3MOPOKeHHbIe ПpoДуКТы; ИX Heo6xOДIMO ИСПОЛьЗOBaТБВ TeчЕнe CyTOK,ЛИбО npOBaPHTb I 3amOpO3NtB ChOBA.

He cIeJyET - IOCTaBaTb npOdyKtbl N3 XOIOJIbHnka MOKpbIMn pyKaMn.

YcTpaHHe HEnCnPaBHOCTeI

EcnxXoJIoNJIbHnK He pa6OtaeT, KOrda OH BKJIouHe, y6eIITecb:

• UTO ISTENCEJIb BCTaBJIeH B 3JIeKTPnueCKyU OPO3eTKy IpaBnIbHO I UTO 3JIeKTPnueCTBO He OTKJIIOUeHo. (ДЯ поверки налчь TOKA B PO3eTKe, BКЛIOUHTe B Hee dpyroJ 3JIeKTPoPnp6Op);

• YTO He CROpeJ PJIaBkI INpeOxpaHNTeJIb, He OTKJIIOUHINCS BByIKJIIOUaTeJIb INJN HE OTKJIIOUeH TJIaBHbI BByIKJIIOUaTeJIb Ha paCnpdeJIInTEJbHOM IHTe;
  -чTo peryIyITop TempepaTypbI yCTaHOBJIeH npabNlbHO;

• UTO HOBBI WTeINCeJIb, INCIOJIb3YeEMbI BMeCTO 3aBOIDCKOTO, NOCTaBJIeH npaBNJbHO.

EcInxOIoNbHnK Bce eIe He pa6oTaet nocJe TOrO, KaK BblBbIOJHnIOn OINCAHHbIe BblIe npOBepOuHbIe DeIcTBnI, NOCOBtUyTeCb C npOaBcOM, y KOTOpORo Bbl KynII INXOIOINbHnK.

IoxaJyIcTa, y6eIITecb, yTO npOBepnN Bce, yTO MoTNI, NocKoJIbKY IHaue MOxet NOpUyITbcr TaK, yTO Bam npIeTcHnPacHO nIaTntB DeHbRn, ecNI HnKaKOrO NOBpeXdEHNr He 6yDeT O6hApUxKeHo.

CnMBOJ Ha n3deIIN nJIH ha ynaKOBke yka3bIbaeT, YTO n3deJIne He doJXHO yTNlN3npoBaTcBcA 6bITOBbIMN OTXODAMN. BMeCTO 3TOTO erO cNeDyET cDaTb HA COOTBeTCTByUoIIN nyHKT c6opa OTXODOB NO yTNlN3aIIN 3JeKTPnueckoro n 3JeKTPoHNO OBOpYDoBaHN. ObecneuHBa HndLeKaUHO yTNlN3aIIN DAHHORO n3DeJIIN, Bbl CnOCObCTByEte PpeDTBpaUeHNIO NOTEHuaJIbHbIX HeraTHNBbIX NocJIeDCTBn DnIg OKpykaHOSeI CpeB1 I 3OpOBbI JIODeI, KOTOpBIE B IpOTNbHOM Cnyae MOryT NaCTyNTB BCJIeDCTBnE HnPabNJbHORO OBpaUeHNc Eero OTXODAMN. 3a BoJee NoDPoBHOn INΦOpMaIeN PO yTNlN3aIIN DaHHORO n3deJIIN OBpaTIteCB B MeCTHyO TropoDcKyU OAdMinHnCTpAciH, CnyK6y yTNlN3aIIN 6bITOBbIX OTXODOB ININ B MaRa3IN, B KOTOPOM Bbl PrnoobpeIn n3dJIeNc.
