USER MANUAL KI8523D40 NEFF

(...H P X* ` h )" )* )2* ):

Störungen, was tun? de

3 Störungen, was tun? Bevor Sie den Kundendienst rufen, überprüfen Sie anhand dieser Tabelle, ob Sie die Störung selbst beheben können.

St ör ungen, was t un?

* Getting to know your

W Freezer compartment. . . . . . . . .35 Freezer compartment door. . Maximum freezing capacity . Purchasing frozen food . . . . Note when loading products Freezing fresh food . . . . . . . Thawing frozen food . . . . . . .

en Safety instructions

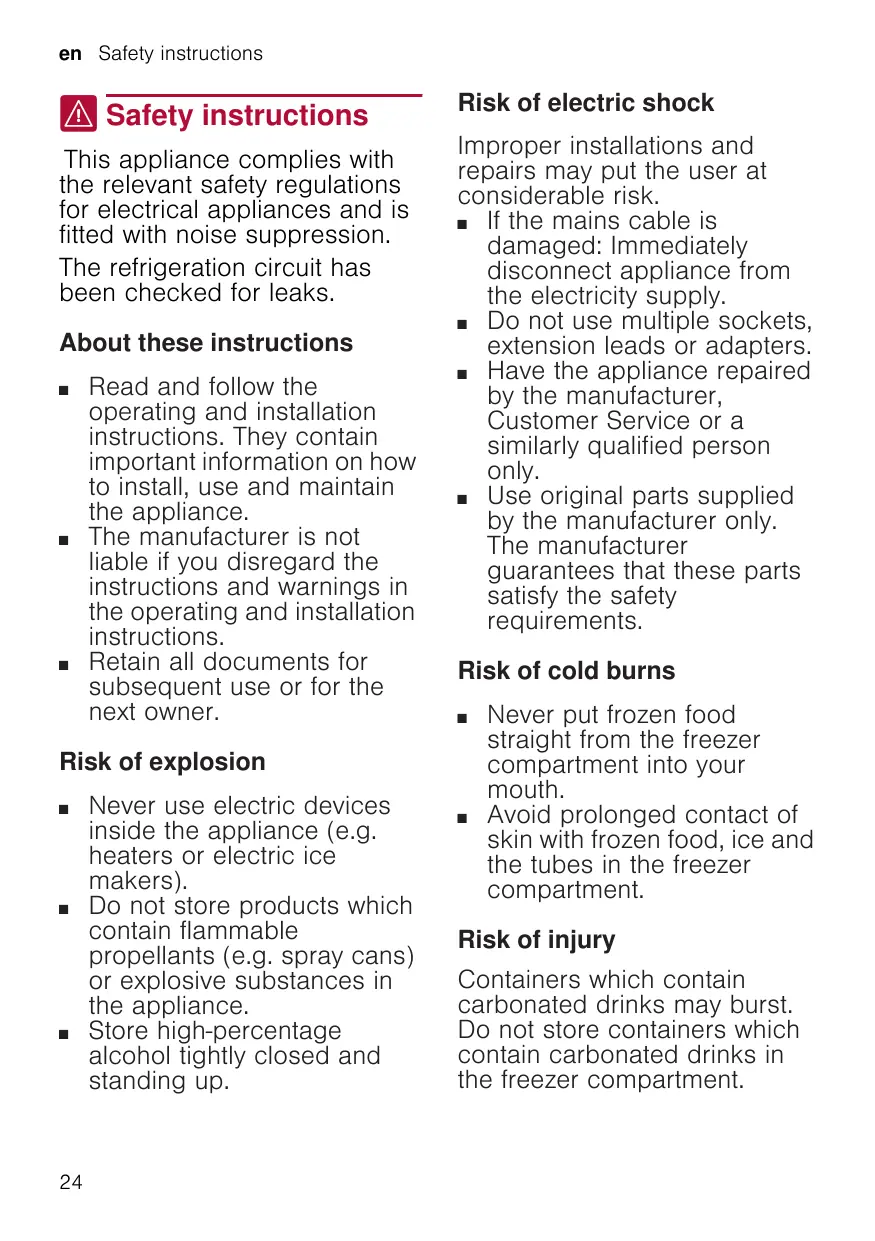

( Safety instructions This appliance complies with the relevant safety regulations for electrical appliances and is fitted with noise suppression. The refrigeration circuit has been checked for leaks. Saf et y i nst r uct i ons

About these instructions ■

Read and follow the operating and installation instructions. They contain important information on how to install, use and maintain the appliance. The manufacturer is not liable if you disregard the instructions and warnings in the operating and installation instructions. Retain all documents for subsequent use or for the next owner.

Risk of electric shock Improper installations and repairs may put the user at considerable risk. ■ If the mains cable is damaged: Immediately disconnect appliance from the electricity supply. ■ Do not use multiple sockets, extension leads or adapters. ■ Have the appliance repaired by the manufacturer, Customer Service or a similarly qualified person only. ■ Use original parts supplied by the manufacturer only. The manufacturer guarantees that these parts satisfy the safety requirements. Risk of cold burns ■

Never use electric devices inside the appliance (e.g. heaters or electric ice makers). Do not store products which contain flammable propellants (e.g. spray cans) or explosive substances in the appliance. Store high-percentage alcohol tightly closed and standing up.

Never put frozen food straight from the freezer compartment into your mouth. Avoid prolonged contact of skin with frozen food, ice and the tubes in the freezer compartment.

Risk of injury Containers which contain carbonated drinks may burst. Do not store containers which contain carbonated drinks in the freezer compartment.

Safety instructions en

Danger due to refrigerants The tubes of the refrigeration circuit convey a small quantity of an environmentally friendly but flammable refrigerant (R600a). It does not damage the ozone layer and does not increase the greenhouse effect. If refrigerant escapes, it may injure your eyes or ignite. ■ Do not damage the tubes. If the tubes are damaged: ■ Keep naked flames and ignition sources away from the appliance. ■ Ventilate the room. ■ Switch off the appliance and pull out the mains plug. ■ Call the after-sales service. Avoiding placing children and vulnerable people at risk At risk are: ■ Children, ■ People who have limited physical, mental or sensory abilities, ■ People who have inadequate knowledge concerning safe operation of the appliance. Measures: ■ Ensure that children and vulnerable people have understood the hazards. ■ Children or vulnerable people must be supervised by a responsible person when using the appliance.

Only children from 8 years and above may use the appliance. Supervise children while the appliance is being cleaned or maintained. Never allow children to play with the appliance.

Risk of suffocation ■

If the appliance features a lock: keep the key out of the reach of children. Keep children away from the packaging and its parts.

Damage To prevent damage: Do not stand or support yourself on the base, runners or doors. ■ Keep plastic parts and door seals free of oil and grease. ■ Pull the mains plug – not the power cord. ■

Weight When installing and transporting the appliance, note that it may be very heavy. ~ "Installation location" on page 27

8 Intended use Use this appliance ■ only for the cooling and freezing of food and for making ice. ■ only in the home and in the home environment. ■ only according to these operating instructions. I nt ended us e

This appliance is intended for use up to a maximum height of 2000 metres above sea level.

7 Environmental protection

Envi r onment al pr ot ect i on

All materials are environmentally safe and recyclable: ■ Dispose of packaging in an environmentally friendly manner. ■ Please ask your dealer or inquire at your local authority about current means of disposal.

Old appliances Valuable raw materials can be reclaimed by recycling old appliances.

Children may become locked in the appliance and suffocate! ■ To prevent children from climbing in, leave shelves and containers in the appliance. ■ Keep children away from the redundant appliance. Caution! Refrigerant and harmful gases may escape. Do not damage the tubes of the refrigerant circuit and insulation. 1. Remove the mains plug. 2. Sever the power cord. 3. Have the appliance disposed of

This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU.

Installation and connection en

5 Installation and connection

I ns t a l a t i o n a n d c o n e c t i o n

After unpacking all parts, check for any damage in transit. If you have any complaints, contact the dealer from whom you purchased the appliance or our after-sales service. ~ "Customer service" on page 41 The delivery consists of the following parts: ■ Built-in appliance ■ Interior fittings (depending on model) ■ Installation material ■ User manual ■ Installation instructions ■ Customer service booklet ■ Warranty enclosure ■ Information on the energy consumption and noises

Technical specifications Refrigerant, cubic capacity and further technical specifications can be found on the rating plate. ~ "Getting to know your appliance" on page 30

Installing the appliance Installation location The more refrigerant an appliance contains, the larger the room must be in which the appliance is situated. Leaking refrigerant can form a flammable gas-air mixture in rooms which are too small.

The room must be at least 1 m³ per 8 g of refrigerant. The amount of refrigerant in your appliance is indicated on the rating plate inside the appliance. ~ "Getting to know your appliance" on page 30 The weight of the appliance may be up to 60 kg depending on the model. Permitted room temperature The permitted room temperature depends on the climatic class of the appliance. Information on the climatic class can be found on the rating plate. ~ "Getting to know your appliance" on page 30 Climatic category

Permitted room temperature

+16 °C ... 43 °C The appliance is fully functional within the permitted room temperature. If an appliance of climatic class SN is operated at colder room temperatures, the appliance will not be damaged up to a room temperature of +5 °C.

Cavity depth A cavity depth of 56 cm is recommended for the appliance. If the cavity depth is smaller – at least 55 cm – the energy consumption increases slightly.

en Installation and connection

Tips for saving energy If you follow the instructions below, your appliance will use less power. Note: The arrangement of the features does not affect the energy consumption of the appliance. Installing the appliance Keep the appliance out of direct sunlight. Install the appliance as far away as possible from heating elements, cooker and other heat sources: 3 cm to electric or gas cookers. 30 cm to an oil or solid-fuel cooker. Note: If this is not possible, attach an insulating plate between the appliance and heat source.

The appliance must cool less frequently at low ambient temperatures and therefore consumes less power.

Select an installation location at a room temperature of approx. 20 °C. Use a cavity depth of 56 cm. The air on the rear panel of the appliance does not warm up so intensely. The appliance consumes less Caution! power if the warm air can escape. Risk of burns! Individual parts of the appliance become hot during operation. Touching these parts may result in burns. Do not cover or block the ventilation openings. Ventilate the room daily. Using the appliance Open the appliance door only briefly. Transport purchased food in a cold bag and place quickly in the appliance.

The air in the appliance does not warm up so intensely. The appliance must cool less frequently and therefore consumes less power.

Allow warm food and drinks to cool down before placing in the appliance. Thaw frozen food in the refrigerator compartment in order to utilise the low temperature of the frozen food. Always leave a space between the food and the back The air can circulate and the humidity will remain wall. constant. The appliance must cool less frequently and therefore consumes less power. Pack food airtight. Vacuum the back of the appliance once a year. Do not cover or block the ventilation openings.

The air on the back wall of the appliance does not warm up so intensely. The appliance consumes less power if the warm air can escape.

Installation and connection en Using the appliance Defrost the freezer compartment regularly.

A layer of hoarfrost or ice in the freezer compartment impairs refrigeration of the frozen food and increases power consumption.

Close the freezer compartment door properly.

The freezer compartment will become covered in thick ice. If greater demands are made of the appliance, the power consumption will increase.

Before using your appliance for the first time 1. Remove information material,

adhesive tape and protective film.

2. Clean the appliance.

~ "Cleaning" on page 38

Electrical connection Caution! Do not connect the appliance to electronic energy saver plugs. Note: You can connect the appliance to mains-controlled and sine-controlled inverters. Mains-controlled inverters are used for photovoltaic systems which are connected directly to the national grid. Sine-controlled inverters must be used for isolated applications. Isolated applications, e.g. on ships or in mountain lodges, which are not connected directly to the national grid.

1. After installing the appliance, wait at

least 1 hour before connecting it to prevent damaging the compressor. 2. Connect the appliance via a correctly installed socket. The socket must comply with the following data: Socket with 220 V ... 240 V Conductor 50 Hz Fuse 10 A ... 16 A Outside Europe: Check whether the indicated current type of the appliance corresponds with the values of your power supply. Appliance specifications are on the rating plate. ~ "Getting to know your appliance" on page 30 3. Connect the appliance to a socket near the appliance. The socket must also be freely accessible following installation of the appliance.

: Warning Risk of electric shock! If the length of the mains cable is inadequate, never use multiple sockets or extension leads.Instead, please contact Customer Service for alternatives.

en Getting to know your appliance

* Getting to know your appliance

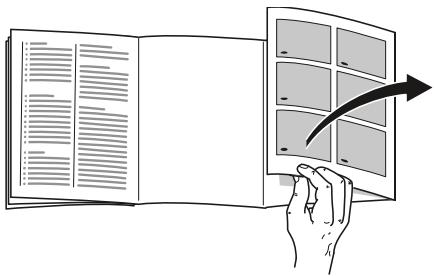

Fold out the last page with the diagrams. The appliance and diagrams may differ according to features.

Get i ng t o know your ap l i ance

Controls ~ Fig. " ( Button # Switches the appliance on or off. 0 Button Super freezer compartment Switches Super freezing on or off. 8 K/J button Sets the temperature. @ Refrigerator compartment temperature display Indicates the set temperature in °C. H Button Alarm Switches the warning signal off.

~ Fig. ! * Not all models. # Freezer compartment + Refrigerator compartment 3 Cool-fresh compartment

(...H P X* ` h )" )* )2* ):

Controls Lighting Extendable shelf Partition with humidity controller Vegetable container Cool-fresh container Rating plate Butter and cheese compartment Tray for large bottles

Shelf ~ Fig. # You can vary the shelf: ■ Pull out and remove the shelf. Vario shelf ~ Fig. $ You can store tall items (e.g. cans or bottles): ■ Take out the front part of the shelf and push under the rear part. Extendable shelf ~ Fig. % You can give yourself a better overview: Pull out a shelf.

You can completely remove the shelf:

1. Press and hold down both buttons

2. Pull out the shelf, lower and swing

Operating the appliance en Container ~ Fig. & You can remove the container: ■ Lift the container at rear and remove. You can insert the container: ■ Place the container on the telescopic rails and push into the appliance. Butter and cheese compartment ~Fig. ' The compartment is easy to open: ■ Lightly press the flap below in the middle. The compartment opens downwards. The flap is pushed under the compartment. Storage compartment ~ Fig. ( You can remove the storage compartment: ■ Lift up storage compartment and remove. Bottle holder ~ Fig. ) When you open and close the door: ■ The bottle holder prevents the bottles from overturning. Ice cube tray You can make ice cubes:

1. Fill the ice cube tray 3/4 full with

water and place in the freezer compartment. Note: If the ice cube tray is stuck to the freezer compartment, loosen with a blunt implement only (e.g. spoon handle). 2. To loosen the ice cubes, twist the ice cube tray slightly or hold briefly under flowing water.

1 Operating the appliance

Oper at i ng t he ap l i ance

Switching on the appliance

1. Press the # button.

The appliance begins to cool.

2. Set the required temperature.

~ "Setting the temperature" on page 32

After the appliance has been switched on, it may take several hours until the set temperature has been reached. Do not put in any food until the selected temperature has been reached. The sides of the housing are partly heated slightly. This prevents condensation in the area of the door seal.

Switching off and disconnecting the appliance Switching off the appliance ■

Press the # button. The appliance no longer cools.

Disconnecting the appliance If you do not use the appliance for a prolonged period: 1. Press the # button. The appliance no longer cools. 2. Pull out the mains plug or switch off the fuse. 3. Clean the appliance. 4. Leave the appliance open.

Setting the temperature

Recommended temperature

Super freezing cools the freezer compartment as cold as possible.

Refrigerator compartment:

+4 °C Refrigerator compartment ■

Keep pressing the button K/J until the display indicates the required temperature.

Cool-fresh compartment The temperature in the cool-fresh compartment is kept at around 0 °C. Note: If frost forms on the food items in the cool-fresh compartment, set a higher temperature. ~ "Faults – what to do?" on page 39 Freezer compartment The temperature in the refrigerator compartment will affect the temperature in the freezer compartment. Change the temperature in the refrigerator compartment in order to change the temperature in the freezer compartment. Temperatures which are set higher in the refrigerator compartment will increase temperatures in the freezer compartment.

Switch on super freezing mode, e.g.: ■ to freeze food solid as quickly as possible ■ 4 ... 6 hours before freezing food weighing 2 kg or more ■ to use the max. freezing capacity ~ "Maximum freezing capacity" on page 35 Note: When super freezing is switched on, increased operating noises may occur. After approx. 1 ^ days, the appliance switches to normal operation. Switching Super freezing on/off: Press the Super button. The button is lit when Super freezing is switched on.

The door alarm (continuous sound) switches on if the appliance door is open for longer than two minutes. ■ Close the door or press the Alarm button. The warning signal is switched off.

Refrigerator compartment en

Note the chill zones in the refrigerator compartment

The refrigerator compartment is suitable for storing dairy products, eggs, cooked meals, pastries, preserves once opened and hard cheese. The temperature can be set from +3 °C ... +8 °C. The refrigerator compartment can also be used to store highly perishable foods in the short to medium term. The lower the selected temperature, the slower the enzymatic and chemical processes and deterioration by microorganisms. A temperature of +4 °C or lower ensures optimum freshness and safety of the stored foods.

The air circulation in the refrigerator compartment creates different chill zones.

Ref r i ger at or compar t ment

Coldest zone The coldest zone is on the partition and in the storage area for large bottles. Warmest zone The warmest zone is at the very top of the door. Notes ■

Store fresh, undamaged food. The quality and freshness will then be retained for longer. In the case of ready products and bottled goods do not exceed the minimum sell-by date or use-by-date indicated by the manufacturer. To retain aroma, colour and freshness, pack or cover food well before placing it in the appliance. This avoids transference of flavours and discolouration of the plastic parts. Leave warm food and drinks to cool down before placing them in the refrigerator compartment.

Store e.g. hard cheese and butter in the warmest zone. Cheese can then continue to release its aroma and the butter will still be easy to spread. Store perishable food such as fish, sausages and meat in the cool-fresh compartment. ~ "Cool-fresh compartment" on page 34

The temperature in the cool-fresh compartment is kept at around 0 °C. The low temperature and the optimum moisture provide ideal storage conditions for fresh food. With cool-fresh storage, you can keep fresh foodstuffs fresh for up to three times longer than in the refrigerator compartment – for even longer freshness, nutrient retention and better flavour. Co l - f r esh compar t ment

Vegetable container ~ Fig. * The vegetable container is the best storage location for fresh fruit and vegetables.You can adjust the humidity in the vegetable container via the humidity controller of the division plate and a special seal. The humidity in the vegetable container can be set according to the type and amount of products to be stored: ■ Mainly fruit as well as for a large load – set lower air humidity ■ Mainly vegetables as well as for a mixed or small load – set higher air humidity

Notes ■ Fruit sensitive to cold (e.g. pineapple, banana, papaya and citrus fruit) and vegetables sensitive to cold (e.g. aubergines, cucumbers, courgettes, peppers, tomatoes and potatoes) should be stored outside the appliance at temperatures of approx. +8 °C ... +12 °C for optimum preservation of quality and flavour. ■ Condensation may form in the vegetable container depending on the food and quantity stored. Remove condensation with a dry cloth and adjust the humidity in the vegetable container with the humidity controller.

Cool-fresh container ~ Fig. !/)" The storage climate in the cool-fresh container offers ideal conditions for the storage of fish, meat and sausage.

Storage times at 0 °C The storage times are dependent on the original quality. Fresh fish, seafood:

Poultry, meat (boiled/fried):

Beef, pork, lamb, sausage products (cold meat):

Smoked fish, broccoli:

Salad greens, fennel, apricots, plums:

Soft cheese, yoghurt, quark, buttermilk, cauliflower:

Freezer compartment en

W Freezer compartment The freezer compartment is suitable for: ■ storing frozen food ■ making ice cubes ■ freezing food Fr e zer compar t ment

The temperature in the freezer compartment depends on the temperature in the refrigerator compartment. The freezer compartment can be used to store perishable foods long-term almost without any noticeable reduction in quality as the low temperatures considerably slow down or stop deterioration. Appearance, flavour and all valuable ingredients are largely retained. The time between putting fresh food in the freezer compartment and it freezing solid depends on the following factors: ■ set temperature ■ type of food ■ amount of food in the freezer compartment ■ quantity and type of storage

Maximum freezing capacity The maximum freezing capacity indicates the quantity of food that can be frozen solid within 24 hours. Information about the maximum freezing capacity can be found on the rating plate. ~ "Getting to know your appliance" on page 30 Prerequisites for max. freezing capacity 1. When inserting fresh produce: switch

on the super freezing function. ~ "Super freezing" on page 32 2. Freeze fresh food as close as possible to the side panels.

Purchasing frozen food ■ ■ ■ ■

Freezer compartment door ~ Fig. + Note the following points: ■ The position of the handle indicates whether or not the freezer compartment is correctly closed. ■ The freezer compartment door engages audibly when closing. ■ When the freezer compartment door is open, the frozen food stored there will thaw. The freezer compartment will become covered in thick ice.

Ensure the packaging is not damaged. Do not exceed the minimum sell-by date. The temperature in the supermarket freezer must be –18 °C or lower. If possible, transport frozen food in a cool bag and place quickly in the freezer compartment.

Note when loading products ■ ■

Spread out the food over a wide area in the freezer compartment. Do not bring food which is to be frozen into contact with frozen food. If necessary, re-stack frozen food in the freezer compartment.

en Freezer compartment

Freezing fresh food Freeze only fresh and undamaged food. Food which is boiled, fried or baked is more suitable for freezing than food which is raw. Before freezing food, make preparations appropriate to the food in order to retain the best possible nutritional value, flavour and colour: ■ Vegetables: wash, chop, blanch. ■ Fruit: wash, pit and perhaps peel, possibly add sugar or ascorbic acid solution. Information on how to do this can be found in the relevant literature. Suitable for freezing ■ ■ ■ ■ ■ ■ ■ ■

Baked goods Fish and seafood Meat Poultry and game Vegetables, fruit and herbs Eggs without shells Dairy products, e.g. cheese, butter and quark Ready meals and leftovers, e.g. soups, stews, cooked meat and fish, potato dishes, soufflés and desserts

Not suitable for freezing ■

Types of vegetables which are usually eaten raw, e.g. lettuce or radishes Unpeeled or hard boiled eggs Grapes Whole apples, pears and peaches Yoghurt, soured milk, sour cream, creme fraiche and mayonnaise

Packing frozen food The correct type of packaging and material selection are decisive factors in the retention of the product quality and prevent the development of freezer burn. 1. Place food in packaging. 2. Remove air. 3. Pack food airtight to prevent it from

losing flavour and drying out.

4. Label packaging with contents and

Suitable packaging: Plastic film ■ Tubular film made of polyethylene (PE) ■ Aluminium foil ■ Freezer containers ■

Suitable locks: Rubber bands ■ Plastic clips ■ Cold-resistant adhesive tape ■

Not suitable packaging: Wrapping paper ■ Greaseproof paper ■ Cellophane ■ Refuse bags and used shopping bags ■

Shelf life of frozen food at –18 °C Fish, sausage, ready meals and cakes and pastries:

Thawing frozen food The thawing method must be adjusted to the food and application in order to retain the best possible product quality. Thawing methods: ■ in the refrigerator compartment (especially suitable for animal-based foods such as fish, meat, cheese, quark) ■ at room temperature (bread) ■ in the microwave (food for immediate consumption or immediate preparation) ■ in the oven/cooker (food for immediate consumption or immediate preparation) Caution! Do not refreeze thawing or thawed food. You can only refreeze the food when it has been used for a ready-to-eat meal (boiled or fried). The frozen food can no longer be stored for the maximum duration.

= Defrosting Def r ost i ng

Refrigerator compartment

The defrost process is performed automatically.

Freezer compartment As the frozen food may not start thawing, the freezer compartment does not defrost automatically. A layer of hoarfrost in the freezer compartment impairs refrigeration of the frozen food and increases power consumption. ■

Remove the layer of frost regularly!

Caution! Avoid any damage to the pipes of the refrigeration circuit. If refrigerant escapes, it may injure your eyes or ignite. ■ Do not scrape off hoarfrost or ice with a knife or pointed object. Proceed as follows: 1. Switch on the super freezing approx. 4 hours before defrosting. This means that the food reaches very low temperatures and it can be stored for longer at room temperature. 2. Remove the frozen food and place temporarily in a cool location. 3. Switch off the appliance. 4. Pull out the mains plug or switch off the fuse. 5. To accelerate the defrosting process: place a pan of hot water on a trivet in the freezer compartment. 6. Wipe up the condensation water with a cloth or sponge. 7. Wipe the freezer compartment dry. 8. Switch on the appliance. 9. Put the frozen food back into the appliance.

Partition and vegetable container cover

Caution! Avoid damaging the appliance and the fittings. ■ Do not use abrasive, chloride or acidic cleaning agents or solvents. ■ Do not use scouring or abrasive sponges. The metallic surfaces may corrode. ■ Never clean the shelves or containers in the dishwasher. The parts may become deformed.

Taking out the partition ~ Fig. ,

Proceed as follows: 1. Switch off the appliance. 2. Pull out the mains plug or switch off the fuse. 3. Take out the food and store in a cool location. If present: place ice pack on the food. 4. If present: wait until the layer of frost has thawed. 5. Clean the appliance with a soft cloth, lukewarm water and a little pH-neutral washing-up liquid. Caution! The rinsing water must not run into the light or through the drainage hole into the evaporation area. 6. Wipe door seal with clear water and dry thoroughly with a cloth. 7. Reconnect and switch on appliance and put in food.

Cleaning the equipment To clean, take the variable parts out of the appliance. ~ "Interior fittings" on page 30

Press levers on the underside on both sides, pull partition forwards, lift and swivel out to the side.

Taking out the vegetable container cover ■

Lift cover, pull forwards and swivel out to the side.

Inserting vegetable container cover and partition ~ Fig. 1. Insert vegetable container cover. 2. Insert partition.

Note: In order to be able to insert the partition, you must set the humidity controller to the lowest air humidity setting.

Telescopic rails ~ Fig. . Removing telescopic rails

1. Pull out telescopic rail. 2. Push lock in the direction of the

3. Detach telescopic rail from the rear

4. Push telescopic rail together, push

backwards above the rear pin and disengage.

Installing telescopic rails

1. Place the extended telescopic rail on

2. Pull the telescopic rail forwards

slightly until it engages.

3. Insert telescopic rail on the rear pin. 4. Push lock backwards.

If you experience unpleasant odours:

1. Switch off the appliance with

the On/Off button #.

2. Take all food out of the appliance. 3. Clean the inside.

~ "Cleaning" on page 38

4. Clean all packages. 5. Seal strong smelling food in order

to avoid odours from forming.

6. Switch the appliance on again. 7. Store food in the appliance. 8. Check whether the formation of

odours is still occurring after 24 hours.

9 Lighting Your appliance features a maintenance-free LED light. Only customer service or authorised technicians may repair the light.

Droning: A motor is running, e.g. refrigerating unit, fan. Bubbling, buzzing or gurgling: Refrigerant is flowing through the tubes. Clicking: Motor, switches or solenoid valves are switching on and off. Cracking: Automatic thawing successful.

Preventing noises Appliance is not level: Align appliance using a spirit level. If required, place a little packing underneath. Containers, shelves or storage compartments wobble or stick: Check the removable fittings and re-insert if required. Bottles or receptacles are touching each other: Move bottles or receptacles away from each other.

3 Faults – what to do? Before you call customer service, use this table to check whether you can rectify the fault yourself. Faul t s – what t o do?

Temperature differs greatly from the set value. Switch off appliance for 5 minutes. ~ "Switching off and disconnecting the appliance" on page 31 If the temperature is too warm, check temperature again after a couple of hours. If the temperature is too cold, check temperature again on the following day.

en Faults – what to do? Displays do not illuminate. The mains plug has not been inserted properly.

Connect the mains plug.

The fuse has tripped.

The power has failed.

Check whether the power is on.

Display indicates “E…”. Electronics have detected a fault.

Call the after-sales service. ~ "Customer service" on page 41

Appliance is not cooling, display and lighting are lit. Showroom mode switched on.

Start the appliance self-test. ~ "Appliance self-test" on page 41 When the programme has ended, the appliance switches over to normal operation.

The cool-fresh compartment is too warm or too cold. The standard setting was set too high or too low (e.g. frost in cool-fresh compartment).

You can set the temperature in the cool-fresh compartment 3 settings warmer or colder. If the temperature in the refrigerator compartment is set to the setting 0, the cool-fresh compartment will have a temperature close to 0 °C. Note: Any change to the standard setting will affect the temperature in the refrigerator compartment and freezer compartment. 1. Press and hold the freezer compartment Super button until the display temperature refrigerator compartment flashes. 2. Press the K/J button to change the setting. Setting –3 corresponds to the coldest setting. Setting +3 corresponds to the warmest setting. The selected setting is saved after one minute.

4 Customer service If you are unable to rectify the fault, please contact our customer service. We will always find an appropriate solution in order to avoid unnecessary visits by engineers. The contact information for your nearest customer service can be found here or on the enclosed customer service list. When calling, please state the product number (E-Nr.) and the production number (FD) which can be found on the rating plate. ~ "Getting to know your appliance" on page 30 Trust the expertise of the manufacturer. You can therefore be sure that the repair is carried out by trained service technicians who carry original spare parts for your domestic appliances.

If 2 audible signals sound after the end of the self-test and the set temperature is displayed, your appliance is OK. If, at the end of the self-test, 5 audible signals sound and the freezer compartment Super button flashes for 10 seconds, inform customer service.

When the programme has ended, the appliance switches over to normal operation.

Repair order and advice on faults Contact information for all countries can be found on the enclosed customer service list. GB 0344 892 8989

Calls charged at local or mobile rate.

0.03 € per minute at peak. Off peak 0.0088 € per minute.

Appliance self-test Your appliance features a self-test programme which displays the fault which your customer service can rectify. 1. Switch off the appliance and wait

5 minutes. 2. Switch on the appliance. 3. Within the first 10 seconds, press and hold the freezer compartment Super button for 3 ... 5 seconds until an audible signal sounds. The self-test programme starts. While the self-test is running, a long audible signal sounds in the meantime.

Guarantee Detailed information on the warranty period and warranty conditions in your country are available from your customer service, your dealer and on our website.
