USER MANUAL KMF40SW20 BOSCH

Activer/désactiver le mode [fresh] m Attention De verlichting is defect. enI stalation instructions and instructions for use Safety and warning information ...................... Information concerning disposal .................... Scope of delivery ............................................... Installing the appliance .................................... Installation dimensions ..................................... Door opening angle .......................................... Aligning the appliance ...................................... Fit the door handle covers .............................. Connecting the appliance ................................ Removing the appliance door ........................ Getting to know your appliance ..................... Switching on the appliance ............................. Setting the temperature .................................... Alarm function .................................................... Special functions ............................................... Usable capacity ................................................. Freezer compartment ....................................... Max. freezing capacity ...................................... Freezing fresh food ........................................... Super freezing .................................................... Thawing frozen food ......................................... Refrigerator compartment ............................... Super cooling ..................................................... Cool-fresh container .......................................... Features of the freezer compartment ............ Variable interior design .................................... Switching off and disconnecting the appliance ..................................................... Defrosting ........................................................... Cleaning the appliance .................................... Light (LED) .......................................................... Tips for saving energy ...................................... Operating noises ............................................... Eliminating minor faults yourself ..................... Appliance self-test ............................................. Customer service ..............................................

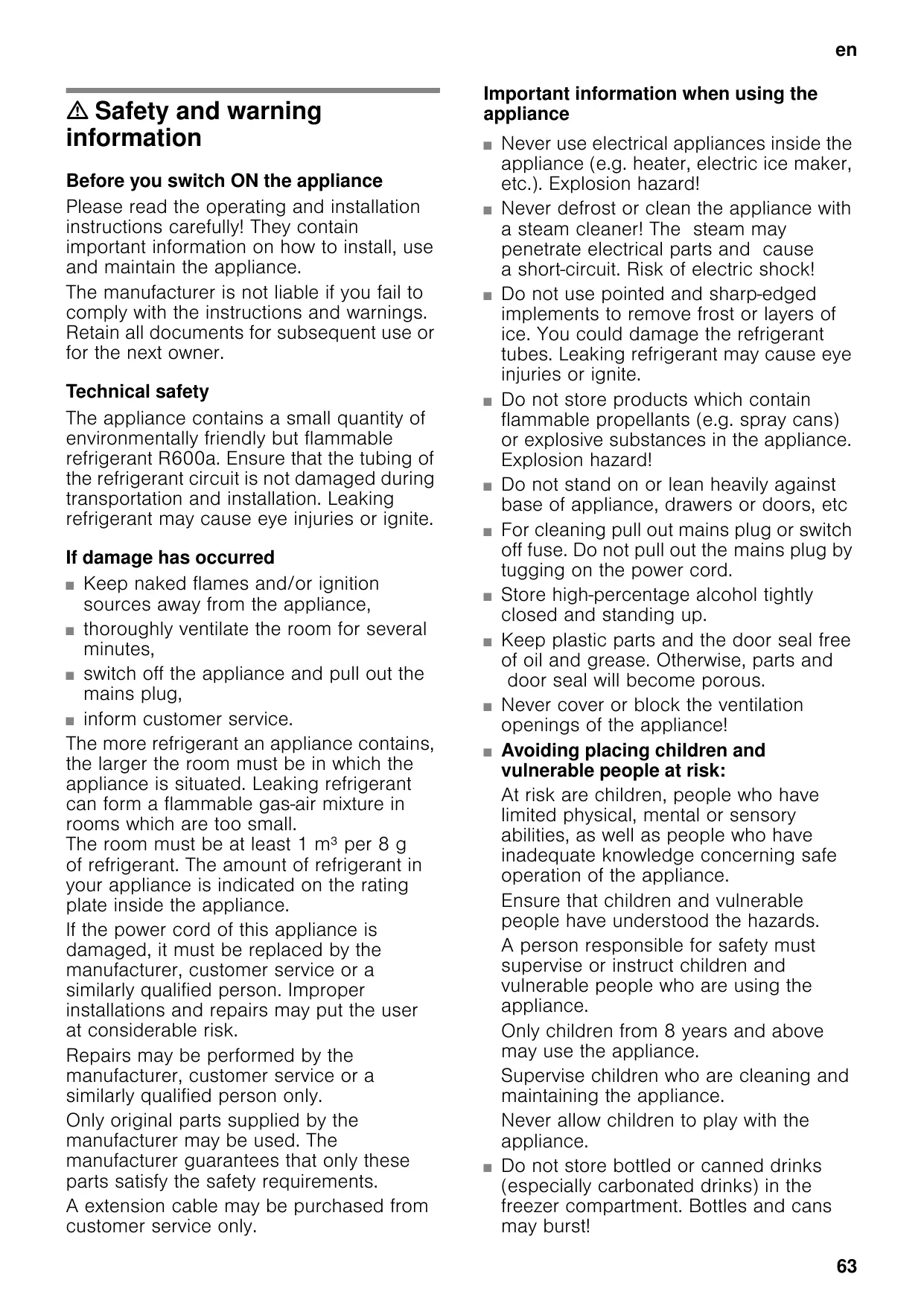

m Safety and warning information Before you switch ON the appliance Please read the operating and installation instructions carefully! They contain important information on how to install, use and maintain the appliance. The manufacturer is not liable if you fail to comply with the instructions and warnings. Retain all documents for subsequent use or for the next owner. Technical safety The appliance contains a small quantity of environmentally friendly but flammable refrigerant R600a. Ensure that the tubing of the refrigerant circuit is not damaged during transportation and installation. Leaking refrigerant may cause eye injuries or ignite. If damage has occurred ■ Keep naked flames and/or ignition sources away from the appliance, ■ thoroughly ventilate the room for several minutes, ■ switch off the appliance and pull out the mains plug, ■ inform customer service. The more refrigerant an appliance contains, the larger the room must be in which the appliance is situated. Leaking refrigerant can form a flammable gas-air mixture in rooms which are too small. The room must be at least 1 m³ per 8 g of refrigerant. The amount of refrigerant in your appliance is indicated on the rating plate inside the appliance. If the power cord of this appliance is damaged, it must be replaced by the manufacturer, customer service or a similarly qualified person. Improper installations and repairs may put the user at considerable risk. Repairs may be performed by the manufacturer, customer service or a similarly qualified person only. Only original parts supplied by the manufacturer may be used. The manufacturer guarantees that only these parts satisfy the safety requirements. A extension cable may be purchased from customer service only. Never use electrical appliances inside the appliance (e.g. heater, electric ice maker, etc.). Explosion hazard! Never defrost or clean the appliance with a steam cleaner! The steam may penetrate electrical parts and cause a short-circuit. Risk of electric shock! Do not use pointed and sharp-edged implements to remove frost or layers of ice. You could damage the refrigerant tubes. Leaking refrigerant may cause eye injuries or ignite. Do not store products which contain flammable propellants (e.g. spray cans) or explosive substances in the appliance. Explosion hazard! Do not stand on or lean heavily against base of appliance, drawers or doors, etc For cleaning pull out mains plug or switch off fuse. Do not pull out the mains plug by tugging on the power cord. Store high-percentage alcohol tightly closed and standing up. Keep plastic parts and the door seal free of oil and grease. Otherwise, parts and door seal will become porous. Never cover or block the ventilation openings of the appliance! Avoiding placing children and vulnerable people at risk: At risk are children, people who have limited physical, mental or sensory abilities, as well as people who have inadequate knowledge concerning safe operation of the appliance. Ensure that children and vulnerable people have understood the hazards. A person responsible for safety must supervise or instruct children and vulnerable people who are using the appliance. Only children from 8 years and above may use the appliance. Supervise children who are cleaning and maintaining the appliance. Never allow children to play with the appliance. Do not store bottled or canned drinks (especially carbonated drinks) in the freezer compartment. Bottles and cans may burst!

Never put frozen food straight from the freezer compartment into your mouth. Risk of low-temperature burns! Avoid prolonged touching of frozen food, ice or the evaporator pipes, etc. Risk of low-temperature burns! Children in the household

Keep children away from packaging and its parts. Danger of suffocation from folding cartons and plastic film! Do not allow children to play with the appliance! If the appliance features a lock: keep the key out of the reach of children! General regulations The appliance is suitable for refrigerating and freezing food, ■ for making ice. This appliance is intended for use in the home and the home environment. The appliance is suppressed according to EU Directive 2004/108/EC. The refrigeration circuit has been checked for leaks. This product complies with the relevant safety regulations for electrical appliances (EN 60335-2-24). This appliance is intended for use up to a maximum height of 2000 metres above sea level.

Information concerning disposal

• Disposal of packaging The packaging protects your appliance from damage during transit. All utilised materials are environmentally safe and recyclable. Please help us by disposing of the packaging in an environmentally friendly manner. Please ask your dealer or inquire at your local authority about current means of disposal.

• Disposal of your old appliance Old appliances are not worthless rubbish! Valuable raw materials can be reclaimed by recycling old appliances. This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU. m Warning Redundant appliances

1. Pull out the mains plug.

2. Cut off the power cord and discard with the mains

3. Do not take out the trays and receptacles: children

are therefore prevented from climbing in!

4. Do not allow children to play with the appliance once

it has spent its useful life. Danger of suffocation! Refrigerators contain refrigerant and gases in the insulation. Refrigerant and gases must be disposed of professionally. Ensure that tubing of the refrigerant circuit is not damaged prior to proper disposal. Scope of delivery After unpacking all parts, check for any damage in transit. If you have any complaints, please contact the dealer from whom you purchased the appliance or our customer service. The delivery consists of the following parts: ■ Free-standing appliance ■ Bag containing installation materials ■ Interior fittings (depending on model) ■ Operating instructions ■ Customer service booklet ■ Warranty enclosure ■ Information on the energy consumption and noises

Installing the appliance Transporting The appliance is heavy. Secure in position during transportation and installation. Due to the weight/dimensions of the appliance and to minimise the risk of injury and damage to the appliance at least two persons are necessary to set-up the appliance safely. Installation location Install the appliance in a dry, well ventilated room. The installation location should neither be exposed to direct sunlight nor near a heat source, e.g. a cooker, radiator, etc. If installation next to a heat source is unavoidable, use a suitable insulating plate or observe the following minimum distances to a heat source: 3 cm to electric or gas cookers. 30 cm to an oil or coal-fired cooker. If installing the appliance next to another refrigerator or freezer, ensure a minimum lateral distance of 25 mm to prevent the formation of condensation. If a panel or cupboard is installed above the appliance, ensure that a gap of 30 mm is left so that the appliance can be pulled out of the recess if required. The air heated on the rear side of the appliance must be allowed to escape unhindered.

Subsurface Observe ambient temperature and ventilation Ambient temperature The climate class can be found on the rating plate. The climate class indicates within which ambient temperatures the appliance can be operated. The rating plate is located in the refrigerator compartment at the bottom right side. Climate class

Permitted ambient temperature +10 °C to 32 °C +16 °C to 32 °C +16 °C to 38 °C +16 °C to 43 °C Note The appliance is fully functional within the room temperature limits of the indicated climatic class. If an appliance of climatic class SN is operated at colder room temperatures, the appliance will not be damaged up to a temperature of +5 °C. Ventilation Never cover the ventilation openings on the rear of the appliance. Conduction of the heated air must not be obstructed. Otherwise, the refrigeration unit must work harder. This increases power consumption. Place the enclosed spacers in the designated holders on the back of the appliance. This ensures that there is a minimum distance between the appliance and the wall. m Caution The appliance is very heavy. Design: 158 kg The floor at the location must not give way; if required, reinforce floor. To ensure that the doors can open all the way, observe lateral minimum distances when installing the appliance in a corner or recess (see "Installation dimensions" section). If the depth of the adjacent kitchen equipment is more than 60 cm, observe lateral minimum distances in order to utilise the full door opening angle (see "Door opening angle" section).

Installation dimensions Door opening angle

Aligning the appliance Place the appliance in the designated location and align. The appliance must be level. If the floor is uneven, use the front height-adjustable feet. Adjust the height-adjustable feet with a wrench. Note To make it easier to turn the screws, the doors should not have any load in them. Lifting the door also facilitates its adjustment. Note The appliance must be upright. Please align it with a spirit level. Fit the door handle covers Aligning the doors The appliance has adjustable door jambs. These can be used to align the doors. Fit the enclosed covers to the edges of the door handles. This will prevent children from injuring themselves on the edges.

1. Open both refrigerator compartment doors and the

uppermost drawer of the freezer compartment.

2. There is a screw under the lower hinge of each

refrigerator compartment door. Use a cross-tip screwdriver to align the doors by adjusting the screws.

3. The corresponding door is raised by 1.5 mm with

each clockwise turn of the screw. The maximum adjustable height is 3 mm.

Connecting the appliance Removing the appliance door Have a technician install and connect the appliance according to the enclosed installation instructions. Do not remove the transportation protection devices from the shelves and storage compartments until the appliance has been installed. In addition to the statutory national regulations, observe the connection conditions of the local power supply companies. After installing the appliance, wait at least 1 hour until the appliance starts up. During transportation the oil in the compressor may have flowed into the refrigeration system. Before switching on the appliance for the first time, clean the interior of the appliance (see chapter “Cleaning the appliance”). If the appliance will not fit through the house door, the appliance doors can be unscrewed. Electrical connection The socket must be near the appliance and also freely accessible following installation of the appliance. The appliance complies with the protection class I. Connect the appliance to 220-240 V/50 Hz alternating current via a correctly installed socket with protective conductor. The socket must be fused with a 10 to 16 A fuse. For appliances operated in non-European countries, check whether the stated voltage and current type on the rating plate match the values of your mains supply. These specifications can be found on the rating plate (see chapter “Customer service”). m Warning Never connect the appliance to electronic energy saver plugs. Our appliances can be used with mains and sinecontrolled inverters. Mains-controlled inverters are used for photovoltaic systems which are connected directly to the national grid. Sine-controlled inverters must be used for isolated applications (e.g. on ships or in mountain lodges) which are not connected directly to the national grid.

m Caution Only customer service may unscrew the appliance doors.

Getting to know your appliance These operating instructions refer to several models. The diagrams may differ. SRZHU9HQWLODWLRQ

Refrigerator compartment Cool-fresh compartment Freezer compartment Main On/Off switch Light switch for refrigerator compartment Butter and cheese compartment Light, refrigerator compartment Shelf for small bottles Door seal flap

Shelf for large bottles “Cool-fresh” container Frozen food container Control and display panel Fan Adjustable (EasyLift) storage compartment Glass shelf in the refrigerator compartment Bottle shelf Snack-Box

Control and display panel The display panel and display panel on the door consists of a touch pad. Touch the keypad to actuate the corresponding function.

Selection button for refrigerator compartment Is used to set the temperature in the refrigerator compartment. Refrigerator compartment display Indicates the current temperature setting in the refrigerator compartment. Selection button cool-fresh compartment Enables temperature setting for the cool-fresh compartment. “Cool-fresh” container display Indicates the current temperature setting in the “cool-fresh” container. Selection button for freezer compartment Is used to set the temperature setting for the freezer compartment. Freezer compartment display Indicates the current temperature setting in the freezer compartment. Mode button For selecting the special functions. See chapter entitled “Special functions”. Special functions display See chapter entitled “Special functions”. “timer” button You can use this function to set a period of time and be reminded by an acoustic signal. See chapter entitled “Special functions”.

Timer display Displays the time sequence when a special function of the timer is activated. Setting buttons +/The buttons are used to set the temperatures in the different chilling zones. ■ change the time setting of the special timer function. “super” button Is used to switch on the super cooling (refrigerator compartment) as well as super freezing (freezer compartment) functions (see chapter Super cooling or chapter Super freezing). Confirmation button This button is used to confirm the selected special functions. Alarm/lock button This button is used to

switch off the warning signal (see "Alarm function" section) switch off the button lock (see the Special Functions section).

Switching on the appliance Switch on the appliance with the On/Off button 1. An warning signal sounds. The temperature display of the freezer compartment 6 and the alarm display light up. Press the alarm button 14. The warning signal switches off and the alarm display stops flashing. The temperature display of the freezer compartment 6 shows the set temperature. The alarm display goes out when the appliance has reached the set temperature. The preset temperatures are reached after several hours. Do not put any food in the appliance beforehand. Setting the temperature How to set your appliance:

1. Using the selection buttons, select the required

refrigerator 1, cool-fresh 3 or freezer compartment 5 area.

2. Press the setting buttons +/- 11 to set the required

temperature. Refrigerator compartment (Adjustable from +2 °C to +10 °C) We recommend a setting of +4 °C. Delicate foods should not be stored above +4 °C. Cool-fresh compartment (Adjustable from 0 °C to +8 °C) We recommend a setting of 0 °C. Note If frost forms on the food items in the cool-fresh compartment, increase the temperature! Freezer compartment (Adjustable from –16 °C to –26 °C) We recommend a setting of –18 °C. Alarm function Press the “alarm” button to switch off the warning signal. In the following cases an alarm may be actuated: Door alarm If the appliance is left open for a longer time, the door alarm (continuous sound) switches on. Close the appliance or press the alarm button 14 to switch the warning signal off again. The acoustic and optical signals may be actuated without risk to the food: When switching on the appliance for initial use. ■ When large quantities of fresh food are placed in the appliance. "Alarm" is indicated on the display panel and there is an warning signal. When the alarm button is pressed, the temperature display indicates for several seconds the warmest temperature reached in the freezer compartment. The set temperature is then displayed again. The “alarm” display goes out as soon as the set temperature has been reached again.

Notes ■ Do not refreeze thawing or thawed food. Only food that has been cooked to make a ready-toeat meal (boiled or fried) may be refrozen. Do not store the frozen produce for the max. storage period. ■ If it becomes too warm in the refrigerator compartment, heat the warmed food items before eating. If in doubt do not use raw food. Special functions [eco] This function switches the appliance to energy-saving mode. The appliance automatically sets the following temperatures: ■ refrigerator compartment: + 6 °C ■ cool-fresh compartment: 0 °C ■ freezer compartment: - 16 °C [eco] switch on/off

1. Press 7 mode button.

2. Keep pressing the 7 mode button until "eco" is

marked with an arrow on the display panel.

3. Confirm the selection by pressing 13.

If a bar appears at the side next to the selection, the function is switched on. [fresh] With the fresh mode [fresh] food remains fresh even longer. The appliance automatically sets the following temperatures: ■ refrigerator compartment: + 4 °C ■ cool-fresh compartment: 0 °C ■ freezer compartment: - 18 °C Temperature alarm The temperature alarm switches on if the appliance is too warm and the food is at risk of thawing.

Setting and starting the timer

1. Press 7 mode button.

2. Keep pressing the 7 mode button until "fresh" is

marked with an arrow on the display panel.

3. Confirm the selection by pressing 13.

If a bar appears at the side next to the selection, the function is switched on.

1. Press 9 to select the timer.

2. Press the setting buttons +/- 11 to set the required

3. Press 13 to confirm the setting and start the timer.

The remaining number of minutes is displayed on the timer 10 display panel. An alarm signal will sound after the number of minutes set has expired.

4. End the alarm signal with the "alarm/lock" button 14.

The timer function has ended. [vacation] If leaving the appliance for a long period of time, you can switch the appliance over to the energy-saving holiday mode. m Caution Do not store any food in the refrigerator compartment during this time! The appliance automatically sets the following temperatures: ■ refrigerator compartment: + 14 °C ■ cool-fresh compartment: + 14 °C The freezer compartment keeps the set temperatures. [vacation] switch on/off

1. Press 7 mode button.

2. Keep pressing the 7 mode button until "vacation" is

marked with an arrow on the display panel.

3. Confirm the selection by pressing 13.

If a bar appears at the side next to the selection, the function is switched on. [lock] The [lock] function can be used to safeguard the appliance from unintentional use. [lock] switch on/off

1. Press 7 mode button.

2. Keep pressing the 7 mode button until "lock" is

marked with an arrow on the display panel.

3. Confirm the selection by pressing 13.

If a bar appears at the side next to the selection, the function is switched on. Settings via the buttons are no longer possible. Press the "alarm/lock" button 14 for three seconds to cancel the function again. timer You can use this function to set a period of time of 1– 99 minutes. A signal reminds you, e.g. when food is to be taken out of the compartment after a certain time. A value of 20 minutes has been preset at the factory. m Caution Drinks bottles may crack if they are stored for longer than 20 minutes in the freezer compartment.

Usable capacity Information on the usable capacity can be found inside your appliance on the rating plate (see diagram at chapter “Customer service”). Freezer compartment Use the freezer compartment

To store frozen food. To make ice cubes. To freeze food. Note Ensure that the freezer compartment is always closed properly! If the appliance is open, the frozen food will thaw and the freezer compartment will ice up. Besides: energy is wasted due to the high power consumption! When closing the freezer compartment, a vacuum is generated, causing a sucking noise. Wait two to three minutes until the vacuum has subsided. We recommend leaving the ice cube container in the appliance. This ensures optimum temperature distribution in the freezer compartment. Purchasing frozen food

Packaging must not be damaged. Use by the “use by” date. Temperature in the supermarket freezer must be -18 °C or lower. If possible, transport deep-frozen food in an insulated bag and place quickly in the freezer compartment. Max. freezing capacity Information about the max. freezing capacity within 24 hours can be found on the rating plate (see diagram at chapter “Customer service”).

Freezing fresh food Super freezing Freeze fresh and undamaged food only. To retain the best possible nutritional value, flavour and colour, vegetables should be blanched before freezing. Aubergines, peppers, zucchini and asparagus do not require blanching. Literature on freezing and blanching can be found in bookshops. Food should be frozen solid as quickly as possible in order to retain vitamins, nutritional value, appearance and flavour. Several hours before placing fresh food in the freezer compartment, switch on super freezing to prevent an unwanted temperature rise. As a rule, 4–6 hours is adequate. This appliance runs constantly and the freezer compartment drops to a very low temperature. If the max. freezing capacity is to be used, super freezing must be switched on for 24 hours before the fresh produce is placed in the freezer compartment. Smaller quantities of food (up to 2 kg) can be frozen without “super freezing”. Note Keep food which is to be frozen away from food which is already frozen.

The following foods are suitable for freezing: Cakes and pastries, fish and seafood, meat, game, poultry, vegetables, fruit, herbs, eggs without shells, dairy products such as cheese, butter and quark, ready meals and leftovers such as soups, stews, cooked meat and fish, potato dishes, soufflés and desserts. The following foods are not suitable for freezing: Types of vegetables, which are usually consumed raw, such as lettuce or radishes, eggs in shells, grapes, whole apples, pears and peaches, hardboiled eggs, yoghurt, soured milk, sour cream, crème fraîche and mayonnaise. Packing frozen food To prevent food from losing its flavour or drying out, place in airtight containers.

1. Place food in packaging.

2. Remove air.

3. Seal the wrapping.

4. Label packaging with contents and date of freezing.

Suitable packaging: Plastic film, tubular film made of polyethylene, aluminium foil, freezer containers. These products are available from specialist outlets. Unsuitable packaging: Wrapping paper, greaseproof paper, cellophane, bin liners and used shopping bags. Items suitable for sealing packaged food: Rubber bands, plastic clips, string, cold-resistant adhesive tape, etc. Bags and tubular film made of polyethylene can be sealed with a film heat sealer. Note When super freezing is switched on, increased operating noises may occur. Switching on and off

1. Press freezer compartment selection button 5.

The freezer compartment display 6 is activated.

2. Press the “super” button 12.

If the freezer compartment display 6 shows "super" and a temperature setting of -30 °C, super freezing has been activated. Super freezing automatically switches off after approx. 2½ days. Thawing frozen food Depending on the type and application, select one of the following options:

at room temperature in the refrigerator in an electric oven, with/without fan assisted hot-air in the microwave m Caution Do not refreeze thawing or thawed food. Only ready meals (boiled or fried) may be refrozen. No longer store the frozen produce for the max. storage period. Shelf life of frozen food Storage duration depends on the type of food. At a temperature of -18 °C: ■ Fish, sausage, ready meals and cakes and pastries: up to 6 months ■ Cheese, poultry and meat: up to 8 months ■ Vegetables and fruit: up to 12 months

Refrigerator compartment Super cooling The refrigerator compartment is the ideal storage location for ready meals, cakes and pastries, preserved food, condensed milk and hard cheese. Super cooling sets the refrigerator temperature to the coldest temperature setting for approx. 6 hours. Then the appliance automatically switches to the temperature set prior to super cooling mode. Switch on super cooling mode, e.g. Storing food

Store fresh, undamaged food. The quality and freshness will then be retained for longer. In the case of ready-made products and bottled goods, observe the best-before date or use-by date specified by the manufacturer. To retain aroma, colour and freshness, pack or cover food well before placing in the appliance. This will prevent the transfer of flavours and the discolouration of plastic parts in the refrigerator compartment. Allow warm food and drinks to cool down before placing in the appliance. Note the chill zones in the refrigerator compartment The air circulation in the refrigerator compartment creates different chill zones. The coldest zone is right at the bottom in the refrigerator compartment and in the flip tray for large bottles. The warmest zone is at the very top of the door. Notes ■ Store e.g. hard cheese and butter in the warmest zone. Cheese can then continue to release its aroma and the butter will still be easy to spread. ■ Store delicate foods, e.g. fish, sausage, meat, in the cool-fresh compartment (see "The cool-fresh compartment" section).

before placing large quantities of food in the refrigerator compartment. for the fast cooling of drinks. Note When super cooling is switched on, increased operating noises may occur. Switching on and off

1. Press the selection button for the refrigerator

compartment 1. The refrigerator compartment display 2 is activated.

2. Press the “super” button 12.

If the refrigerator compartment display 2 shows "super" and a temperature setting of +2 °C, super cooling has been activated. Cool-fresh container The temperature in the cool-fresh container is kept at around 0 °C. The low temperature, which can be adjusted specifically to the particular stored food, ensures ideal storage conditions for fresh food. Food can be stored up to three times longer than in the normal cooling zone without loss of freshness – for even longer freshness, nutrient retention and taste. Opening and closing the refrigerator compartment doors There is a sealing flap on the left refrigerator compartment door. This sealing flap seals the gap between the refrigerator compartment doors. m Caution The sealing flap will get damaged if you close the left refrigerator compartment door while the refrigerator compartment door on the right is already closed. Therefore always close the left refrigerator door first. Temperatures in the cool-fresh container are lower than in the refrigerator compartment. At the 0 °C setting, temperatures may also drop below 0 °C. The temperature must be set according to the stored food:

Fish and meat, 0 °C Milk and yogurt, +2 °C Fruit and vegetables, +4 °C

Humidity container The humidity container on the right side of the coolfresh container is covered with a special filter to optimise retention of the air humidity in the storage compartment. As a result, there is up to 95% air humidity in the humidity container, depending on the amount of products put in. This storage climate offers ideal conditions for fresh fruit, salad greens, vegetables, herbs and mushrooms. Features of the freezer compartment (not all models) Drawer insert The insert can be taken out. Note Condensation may form in the humidity container depending on the type and quantity of products stored. Remove condensation with a dry cloth. Foods suitable for “cool-fresh” container: In principle all foods which are fresh and are to remain fresh for even longer, such as: fish, seafood, meat and sausage, dairy products, and ready meals. Foods not suitable for the “cool-fresh” drawer: Fruit and vegetables sensitive to cold (e.g.: tropical fruit such as pineapples, bananas, papaya, citrus fruits, melons as well as tomatoes, aubergines, zucchini, capsicums, cucumbers, potatoes). The ideal storage location for these foods is the refrigerator compartment. Ice maker When purchasing food, please note: The “purchase freshness” is important for the shelf-life of your food. In principle, the following applies: the fresher you store the food in the appliance, the longer it will remain fresh. Therefore, when buying food, pay attention to the degree of freshness. In the case of ready-made products and bottled goods, observe the best-before date or use-by date specified by the manufacturer. Storage times (at 0 °C) Depending on the initial quality Fresh fish, seafood Poultry, meat (boiled/fried) Beef, pork, lamb, sausage (cold meat) Smoked fish, broccoli Salad greens, fennel, apricots, plums Soft cheese, yoghurt, quark, buttermilk, cauliflower up to 3 days up to 5 days up to 7 days up to 14 days up to 21 days up to 30 days

1. Remove the ice cube tray, fill ¾ full of drinking water

2. When the ice cubes are frozen, rotate the knobs

on the ice cube trays several times to the right and release. The ice cubes loosen and fall into the storage container.

3. Remove ice cubes from the storage container.

Intermediate floor with ice packs Ice packs and small frozen food items can be stored neatly in the intermediate floor between the frozen food containers. If a power failure or malfunction occurs, the ice packs will slow down thawing-out of the frozen food. The longest storage time will be achieved by placing the ice packs on the food in the top compartment. The ice packs can also be used to cool food temporarily, e.g. in a cool bag. Once the top frozen food container has been taken out, the intermediate floor can be removed as well. Variable interior design (not all models) You can vary the flip trays inside the appliance and the containers in the door to suit your requirements.

Pull shelf forwards, lower and swing out to the side.

The height of the door shelves can be adjusted without taking them out. Simultaneously press the buttons on the underside of the door shelves upwards to move the door shelves downwards. They can be moved upwards without pressing the buttons. To remove: Raise the door shelf and remove.

Switching off and disconnecting the appliance Switching the appliance off Press the On/Off button. Refrigeration unit and light switch off. Disconnecting the appliance

If you do not use the appliance for a prolonged period:

1. Switch off the appliance.

2. Pull out mains plug or switch off fuse.

3. Clean the appliance.

4. Leave the appliance door open.

Defrosting Interior fittings Freezer compartment To clean the equipment, all variable parts of the appliance can be taken out (see chapter Variable interior design). The fully automatic NoFrost system ensures that the freezer compartment remains free of ice. Defrosting is no longer required. Note To take out and clean the containers, open the doors fully beyond 90°. Refrigerator compartment Removing the humidity filter Defrosting is actuated automatically. The condensation runs through the drainage hole into an evaporation pan on the rear of the appliance.

1. Take out the cool-fresh container on the right first.

Then, pull out the humidity filter.

2. Lift off the filter cover, take out the filter, clean in

lukewarm water, leave to dry and re-assemble. Cleaning the appliance m Warning Never clean the appliance with a steam cleaner! m Caution Do not use abrasive, chloride or acidic cleaning agents or solvents. m Caution Do not use scouring or abrasive sponges. The metallic surfaces could corrode. m Caution Never clean shelves and containers in the dishwasher. The parts may become deformed! Proceed as follows:

1. Before cleaning: Switch off the appliance.

2. Pull out mains plug or switch off fuse.

3. Take out the frozen food and store in a cool location.

Place the ice pack (if enclosed) on the food.

4. Wait until the layer of frost has thawed.

5. Clean the appliance with a soft cloth, lukewarm water

and a little pH neutral washing-up liquid. The rinsing water must not run into the light.

6. Wipe the door seal with clear water only and then

wipe dry thoroughly.

7. After cleaning reconnect and switch the appliance

8. Put the frozen food back into the appliance.

Light (LED) Your appliance features a maintenance-free LED light. These lights may be repaired by customer service or authorised technicians only.

Tips for saving energy

Install the appliance in a dry, well ventilated room! The appliance should not be installed in direct sunlight or near a heat source (e.g. radiator, cooker). If required, use an insulating plate. Do not block the ventilation openings in the appliance. Allow warm food and drinks to cool down before placing in the appliance. Thaw frozen food in the refrigerator compartment and use the low temperature of the frozen food to cool refrigerated food. Open the appliance as briefly as possible. Ensure that the freezer compartment door is always closed properly. If available: Fit wall spacers to obtain the indicated energy rating of the appliance (see “Installing the appliance”, section “Ventilation”). A reduced wall gap will not restrict the function of the appliance. The energy rating may then increase slightly. The arrangement of the fittings does not affect the energy rating of the appliance. Operating noises Quite normal noises Droning Motors are running (e.g. refrigerating units, fan). Bubbling, humming or gurgling noises Refrigerant is flowing through the tubing. Clicking Motor, switches or solenoid valves are switching on/off. Preventing noises The appliance is not level Please align the appliance with a spirit level. Use the height-adjustable feet or place packing underneath them. The appliance is not free-standing Please move the appliance away from adjacent units or appliances. Containers or storage areas wobble or stick Please check the removable parts and re-insert them correctly if required. Bottles or receptacles are touching each other Move the bottles or receptacles slightly away from each other.

Eliminating minor faults yourself Before you call customer service: Please check whether you can eliminate the fault yourself based on the following information. Run an appliance self-test (see chapter “Appliance self-test”). Customer service will charge you for advice even if the appliance is still under guarantee! Fault Possible cause Temperature differs greatly from the set value. Remedial action In some cases it is adequate to switch off the appliance for 5 minutes. If the temperature is too high wait a few hours and check whether the temperature has approached the set value. If the temperature is too low check the temperature again the next day. Displays do not illuminate. Power failure; the fuse has been switched off; Connect mains plug. Check whether the power is on, check the mains plug has not been inserted properly. the fuses. An warning signal sounds. The alarm button 14 is lit. Fault - the freezer compartment is too warm! Appliance is open. Close the appliance. Ventilation openings have been covered. Ensure that there is adequate ventilation. Too much food was placed in the freezer at once. Do not exceed max. freezing capacity. When the fault has been eliminated, the alarm button goes out shortly afterwards. The light does not work. Floor of the refrigerator compartment is wet. Light switch is jammed. Check whether the light switch can move. The light is defective. (See chapter “Light”.) The condensation channel or drainage hole are blocked. Clean the condensation channel and the drainage hole. See chapter Cleaning the appliance. The side panels of the appliance are Pipes run into the side panels which heat warm. during the cooling process. That is normal behaviour for the appliance and not a fault. Appliance has no refrigeration capacity. The light does not work. The display does not illuminate. Appliance has been switched off. Press the On/Off button. Power failure. Check whether the power is on. The fuse has been switched off. Check the fuse. The refrigerating unit is switching on more frequently and for longer. Appliance opened frequently. Do not open the appliance unnecessarily. The ventilation openings have been covered. Remove obstacles. The mains plug has not been inserted properly. Check whether the mains plug is secure. Large quantities of fresh food are being frozen. Do not exceed max. freezing capacity.

Appliance self-test Customer service Your appliance features an automatic self-test program which shows you sources of faults which may be repaired by customer service only. Your local customer service can be found in the telephone directory or in the customer service index. Please provide customer service with the appliance product number (E-Nr.) and production number (FDNr.). These specifications can be found on the rating plate. Starting the appliance self-test

1. Switch off the appliance and wait 5 minutes.

2. Switch the appliance on again.

3. Press the mode button 7 and the confirmation

button 13 simultaneously for 5 seconds. The self-test programme starts. If “E..” is indicated on the display panel, an error has occurred. If this fault is displayed, inform customer service. Ending the appliance self-test Press the mode button 7 and the confirmation button 13 again simultaneously for 5 seconds. To prevent unnecessary call-outs, please assist customer service by quoting the product and production numbers. This will save you additional costs. Repair order and advice on faults Contact information for all countries can be found on the enclosed customer service list.

Calls charged at local or mobile rate.

0.03 € per minute at peak.

Off peak 0.0088 € per minute. toll-free
