USER MANUAL HATS9DS46BWIFI HAIER

INSTALLATION AND USER’S MANUAL CONTENT INTRODUCTION SAFETY PRECAUTION ELECTRICAL INSTALLATION SPECIFICATION INSTALLATION (VENT OUTSIDE)

INSTALLATION (VENT INSIDE) DESCRIPTION OF COMPONENTS OPERATION MAINTENANCE TROBULESHOOTING CONFORMITY WITH DIRECTIVES ENVIRONMENTAL PROTECTION

02 04 05 06 13 14 14 17 18 19 19

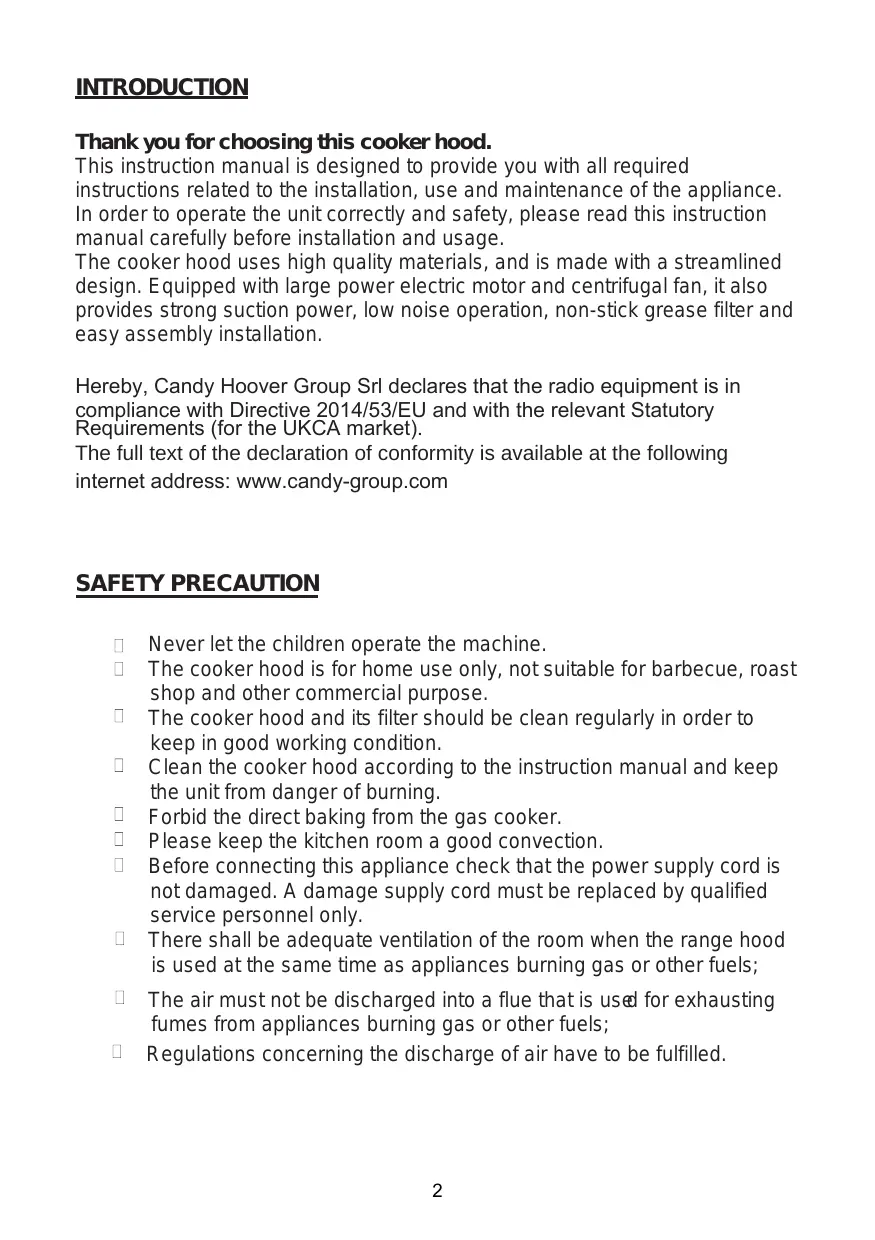

INTRODUCTION Thank you for choosing this cooker hood.

This instruction manual is designed to provide you with all required instructions related to the installation, use and maintenance of the appliance. In order to operate the unit correctly and safety, please read this instruction manual carefully before installation and usage. The cooker hood uses high quality materials, and is made with a streamlined design. Equipped with large power electric motor and centrifugal fan, it also provides strong suction power, low noise operation, non-stick grease filter and easy assembly installation. Hereby, Candy Hoover Group Srl declares that the radio equipment is in compliance with Directive 2014/53/EU and with the relevant Statutory Requirements (for the UKCA market). The full text of the declaration of conformity is available at the following internet address: www.candy-group.com

SAFETY PRECAUTION Never let the children operate the machine.

The cooker hood is for home use only, not suitable for barbecue, roast shop and other commercial purpose. The cooker hood and its filter should be clean regularly in order to keep in good working condition. Clean the cooker hood according to the instruction manual and keep the unit from danger of burning. Forbid the direct baking from the gas cooker. Please keep the kitchen room a good convection. Before connecting this appliance check that the power supply cord is not damaged. A damage supply cord must be replaced by qualified service personnel only. There shall be adequate ventilation of the room when the range hood is used at the same time as appliances burning gas or other fuels; The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels; Regulations concerning the discharge of air have to be fulfilled.

- Children should be supervised to ensure that they do not play with the appliance.

- Do not flambé under the range hood. The range hood is not intended to be installed over a hob having more than four hob elements 5IFTFTIBMMCFBEFRVBUFWFOUJMBUJPOPGUIFSPPNXIFOUIFSBOHF IPPEJTVTFEBUUIFTBNF UJNFBTBQQMJBODFTCVSOJOHHBTPSPUIFS GVFMT OPUBQQMJDBCMFUPBQQMJBODFTUIBUPOMZEJTDIBSHFUIFBJSCBDL JOUPUIFSPPN UIFEFUBJMTDPODFSOJOHUIFNFUIPEBOEGSFRVFODZPGDMFBOJOH UIFSFJTBGJSFSJTLJGDMFBOJOHJTOPUDBSSJFEPVUJOBDDPSEBODFXJUIUIF JOTUSVDUJPOT EPOPUGMBNFVOEFSUIFSBOHFIPPE $"65*0/"DDFTTJCMFQBSUTNBZCFDPNFIPUXIFOVTFEXJUI DPPLJOHBQQMJBODFT

Electrical Shock Hazard

Only plug this unit into a properly earthed outlet. If in doubt seek advice from a suitably qualified engineer. Failure to follow these instructions can result in death, fire, or electrical shock.

The lamp used in this product is not suitable for use in the lighting of a room.

The purpose of this lamp is to provide illumination for using the product.

Electrical Installation

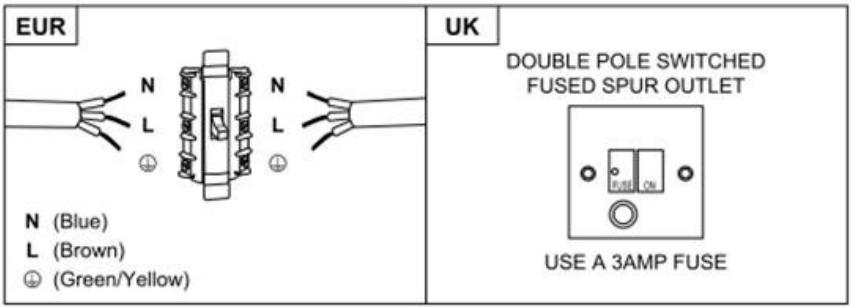

All installation must be carried out by a competent person or qualified electrician. Before connecting the mains supply ensure that the mains voltage corresponds to the voltage on the rating plate. Direct Connection The appliance must be connected directly to the mains using an omnipolar circuit breaker with a minimum opening of 3mm between the contacts. The installer must ensure that the correct electrical connection has been made and that it complies with the wiring diagram. The cable must not be bent or compressed. Regularly check the power plug and power cord for damage. If the supply cord is damaged, it must be replaced by a special cord or assembly available from the manufacturer or its service agent. WARNING: This is a Class I appliance and MUST be earthed This appliance is supplied with a 3 core mains cable coloured as follows: Brown = L or Live Blue = N or Neutral Green and Yellow = E or Earth

The fuse must be rated at 3 Amps.

Standard Installation Accessories List

Illustration Picture

Lower chimney bracket

Upper chimney bracket

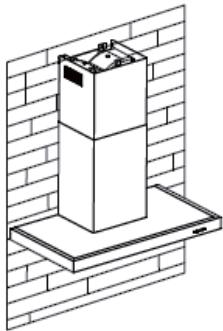

INSTALLATION ˄wall mounting˅

If you have an outlet to the outside, your cooker hood can be connected as below picture by means of an extraction duct (enamel, aluminum, flexible pipe non flammabe with an interior diameter of 150mm)

Before installation, turn the unit off and unplug it from the outlet.

The cooker hood should be placed at a distance of 65~75cm above the cooking plane for best effect.

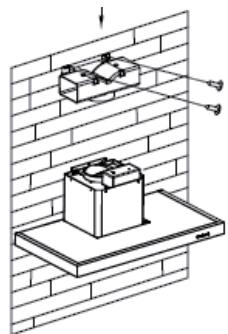

Drill 3 x 8mm holes to accommodate the bracket. Screw and tighten the bracket onto the wall with the screws provided.

Leave up the cooker hood and hang onto the wall bracket hook.

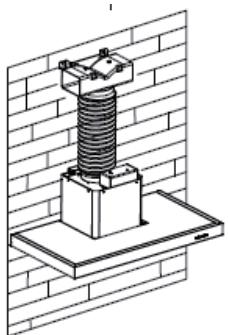

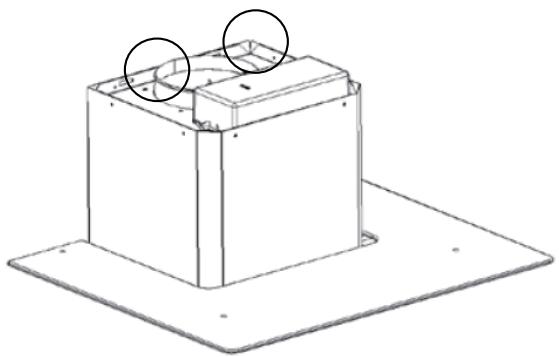

Fix the one-way-valve to the air outlet of the cooker hood. Then, attached the exhaust pipe onto the one-way-valve as shown below.

Place the glass in appropriate position on the top the cooker hood. ii.

Fix with 4 screws and washer. In order to avoid the glass cracking, please do not tighten the screws too strongly. i.

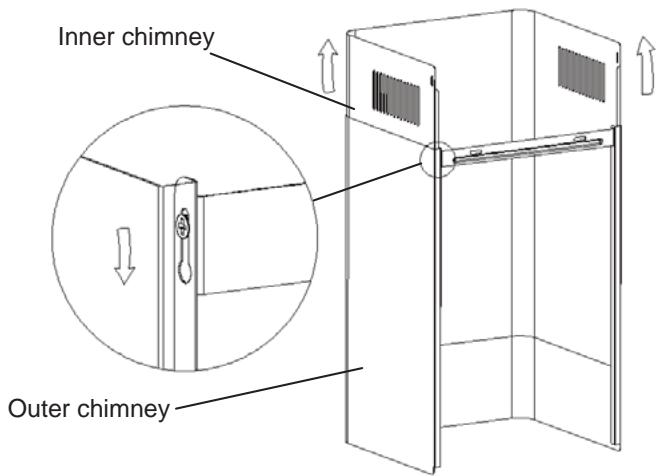

By Put the inner chimney into outer chimney .Then pulling out the inner chimney upwards. Adjust to reach the height required.

Sliding the chimney to adjust the chimney height. When the height you required is reached, then hang the fixing hole to the fixing screws as showed in below pictures. Inner chimney

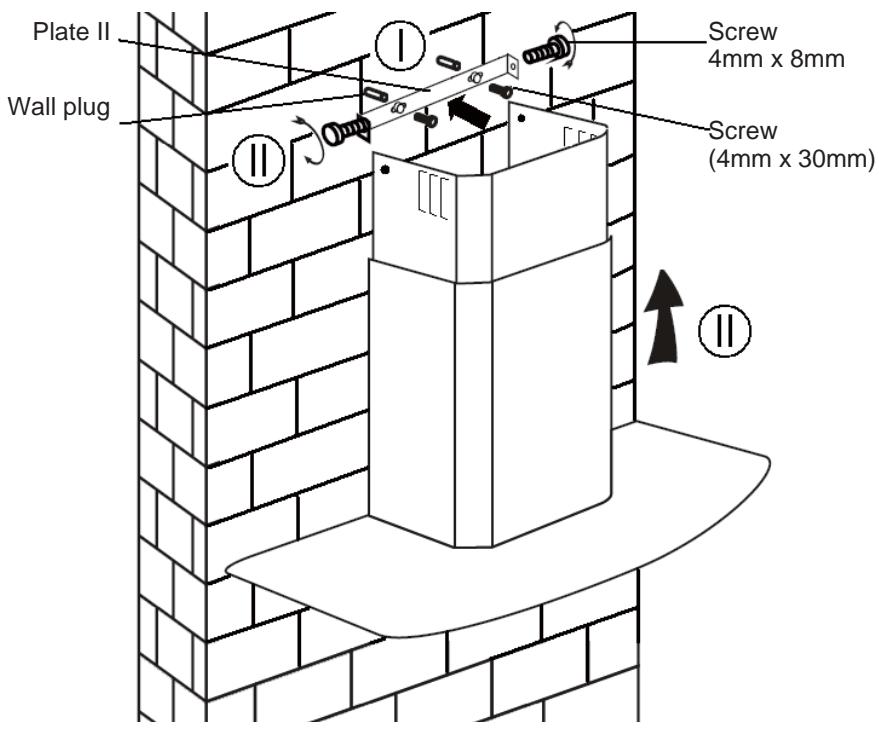

Drill 2 x 8mm holes to accommodate the plate II. Screw and tighten the plate II onto the wall with 2 screws provided. ii.

Assembly the chimney onto the unit and fix it with 2 screws.

2. FixthebrackettotheT-shapedplasticoutletwith2pcsST3.5x12mm screwsprovided.

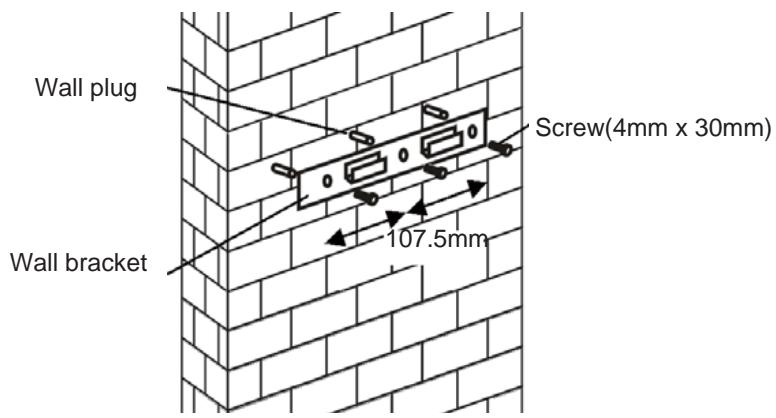

3.Drill2holestoaccommodatethewallplugs,thenscrewandtightenthe bracketontothewallwith2pcsST4x30mmscrewsprovided.

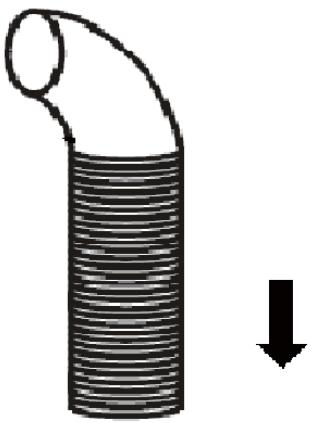

4.Attachtheexhaustpipeontotheairoutletofthecookerhoodasshownbelow:

5.Installthechimneytotheunitandfixit.

INSTALLATION (VENT INSIDE)

If you do not have an outlet to the outside, exhaust pipe is not required and the installation is similar to the one show in section “INSTALLATION (VENT OUTSIDE)”.

Activated carbon filter can be used to trap odors.

In order to install the activated carbon filter, the grease filter should be detached first. Press the lock and pull it downward.

Plug the activated carbon filter into the unit and turn it in clockwise direction.

Repeat the same on the other side.

NOTE: o Make sure the filter is securely locked. Otherwise, it would loosen and cause dangerous. o When activated carbon filter attached, the suction power will be lowere

OPERATION Low Speed button

It’s used for Ventilation on the kitchen. It is suitable for simmering and cooking which do not make much steam. Medium Speed button Airflow speed is ideally for ventilation in standard cooking operation. High Speed button When high density of smoke or steam produced, press high-speed button for high effective ventilation.

Press speed b button 1, the backlit of speed B button is on, and the cooker hood is working at boost mode ;

Press speed b button 2, the backlit of speed B+ button is on, and the cooker hood is working at boost mode ;

Light Short press for lighting on & off Quick timer: Long press the light button hold for 3 seconds, fan speed buttons will flashing & into 5minutes count down, after 5 minutes motor & light will turn off automatic with three Buzzer sound.

Long press WiFi icon and enter into connecting mode: the backlit of WiFi icon keep flashing indicate the connection is under connecting, the backlit of WiFi icon is light on indicate it is connected, same for standby mode; long press

WiFi icon again and the connection will be stopped; 14

After plug in, all lighting, system in STANDBY MODE. Low Speed button It’s used for Ventilation on the kitchen. It is suitable for simmering and cooking which do not make much steam. Medium Speed button Airflow speed is ideally for ventilation in standard cooking operation. High Speed button When high density of smoke or steam produced, press high-speed button for high effective ventilation. Booster function This hood has a booster function. To activate the booster, Press to speed 4, enter into highest speed while the hood is in use and it will increase speed for 5 minutes, before slowing down again. Light Short press for lighting on & off Quick timer: Long press the light button hold for 3 seconds, fan speed buttons will flashing & into 5minutes count down, after 5 minutes motor & light will turn off automatic with three Buzzer sound.

Long press WiFi icon and enter into connecting mode: the backlit of WiFi icon keep flashing indicate the connection is under connecting, the backlit of WiFi icon is light on indicate it is connected, same for standby mode; long press WiFi icon again and the connection will be stopped;

First of all, you should download hOn APP and install to your portable device. Then enroll your hood.

NOTE The image of the hood has the only purpose of presenting it. May not be perfectly representative.

1- Press the WiFi button until the icon starts blinking When the pairing is completed the WiFi icon will be on.

MAINTENANCE Before cleaning switch the unit off and pull out the plug.

I. Regular Cleaning Use a soft cloth moistened with hand-warm mildly soapy water or household cleaning detergent. Never use metal pads, chemical, abrasive material or stiff brush to clean the unit. II. Monthly Cleaning for Grease Filter ESSENTIAL: Clean the filter every month can prevent any risk of fire. The filter collects grease, smoke and dust…... so the filter is directly affecting the efficiency of the cooker hood. If not cleaned, the grease residue (potential flammable) will saturate on the filter. Clean it with household cleaning detergent. III. Annual Cleaning for Activated Carbon Filter Apply SOLELY to unit that installed as a recirculation unit (not vented to the outside). This filter traps odors and must be replaced at least once a year depending on how frequent the cooker hood used.

IV. Changing a light bulb

Remove the screws on the glass, take off the hood glass. Find the bulb that requires replacement, you will find it located in the light fixture which is inside the exposed section of the canopy.

Disconnect the light wiring point and remove the bulb holders and wiring from the hood. Important: It’s not possible to replace the bulbs individually, it will be necessary to obtain the bulbs, bulb holders and wiring as a complete part. (LED light: MAX 1.5W)

Fit the replacement bulbs, bulb holders and wiring in the same manners as the originals. Then reconnect the light wiring point.

Refit the hood glass and fasten the glass screws. Make sure the screws are fully tightened.

TROBULESHOOTING Fault

Light on, but fan does not work Both light and fan do not work

Vibration of the unit Suction performance not good

The fan blade is jammed. The motor is damaged. Halogen light bulb burn. Power cord looses. The fan blade is damaged. The fan motor is not fixed tightly. The unit is not hung properly on the bracket. Too long distance between the unit and the cooking plane

Switch off the unit and repair by qualified service personnel only. Replace the bulb with correct rating. Plug in to the power supply again. Switch of the unit and repair by qualified service personnel only. Switch off the unit and repair by qualified service personnel only. Take down the unit and check whether the bracket is in proper location. Readjust the distance to 65-75cm

Frequency Band(s)[MHz]

2400 MHz - 2483.5 MHz

100 mW Product information for networked equipment power consumption of the product in networked standby if all wired network ports are connected and all wireless network ports are activated:

How to activate wireless network port:

2W If the Hood has been enrolled with the APP, turn on the Hood to activate wireless network port.

If the Hood has been enrolled with the APP, turn

How to deactivate wireless network port: off the Hood to deactivate wireless network port. If the Hood hasn’t been enrolled with the APP, wireless network port will be deactivated even the Hood is on.

CUSTOMER ASSISTANCE SERVICE If you cannot identify the cause of the operating anomaly, switch off the appliance and contact the Assistance Service.

PRODUCT SERIAL NUMBER. Where can I find it? It is important you to inform the Assistance Service of your product code and its serial number (a 16 character code which begins with the number 3); this can be found on the guarantee certificate or on the data plate located on the appliance. It will help to avoid wasted journeys to technicians, thereby (and most significantly) saving the corresponding callout charges. This appliance is marked according to the European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE). WEEE contains both polluting substances (which can cause negative consequences for the environment) and basic components (which can be re-used). It is important to have WEEE subjected to specific treatments, in order to remove and dispose properly all pollutants, and recover and recycle all materials. Individuals can play an important role in ensuring that WEEE does not become an environmental issue; it is essential to follow some basic rules: WEEE should not be treated as household waste; WEEE should be handed over to the relevant collection points managed by the municipality or by registered companies. In many countries, for large WEEE, home collection could be present. In many countries, when you buy a new appliance, the old one may be returned to the retailer who has to collect it free of charge on a one-to-one basis, as long as the equipment is of equivalent type and has the same functions as the supplied equipment.
