CONTENT

1 INSTRUCTIONS FOR SAFETY AND USE 27

2 CONTROLS AND FUNCTIONS 29

2.1 Operating the device 29
2.2 Turning the extraction on and off 29
2.3 Lighting 29

3 CLEANING AND MAINTENANCE 30

3.1 General maintenance 30
3.2 Grease filter 30
3.3 Recirculation filter (optional)) 31
3.4 Change the lighting 31
3.5 Faults 32

4 Quickguide 33

4.1 Settings 33
4.2 Indications 33

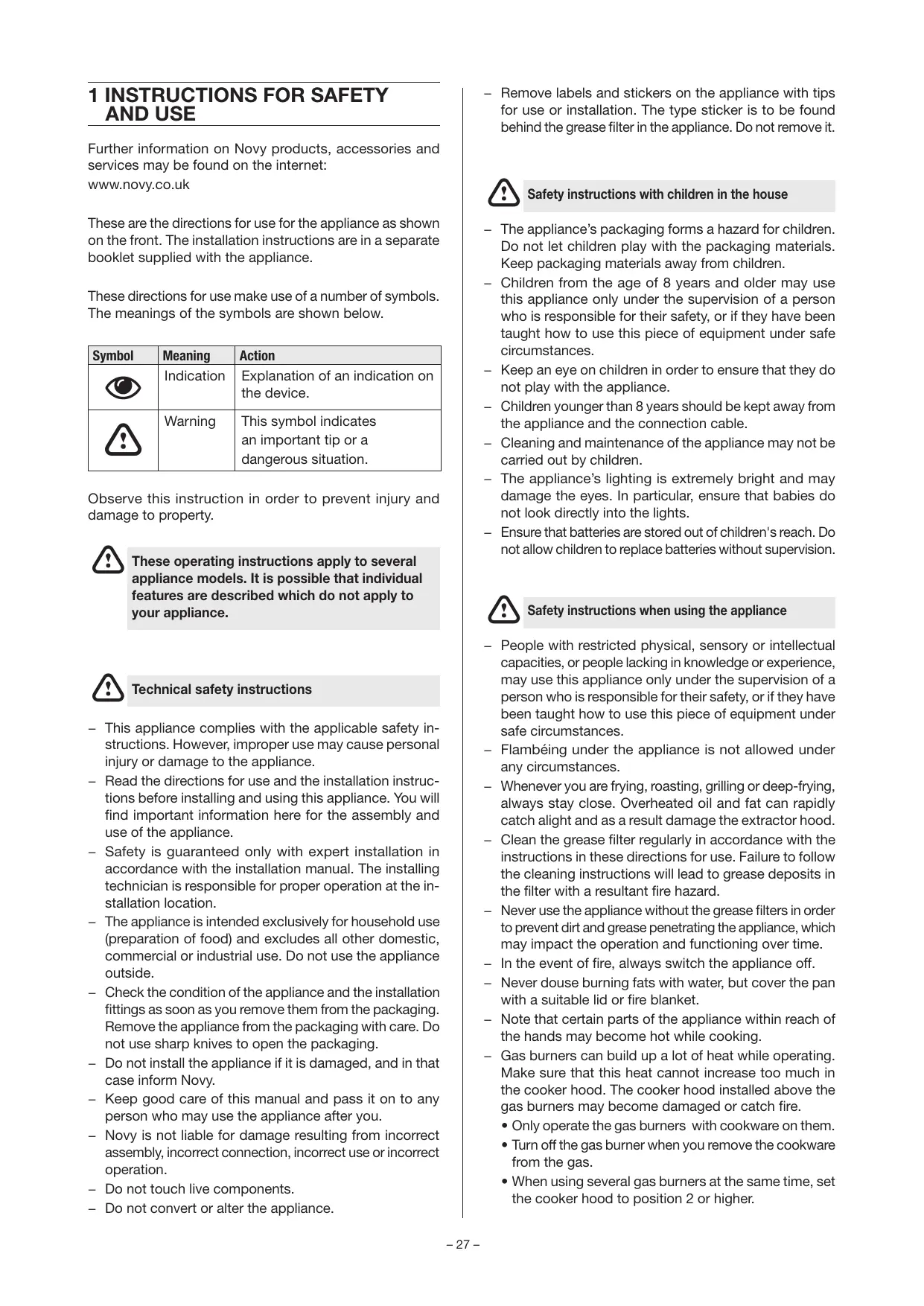

1 INSTRUCTIONS FOR SAFETY AND USE

Further information on Novy products, accessories and services may be found on the internet:

www.novy.co.uk

These are the directions for use for the appliance as shown on the front. The installation instructions are in a separate booklet supplied with the appliance.

These directions for use make use of a number of symbols. The meanings of the symbols are shown below.

Symbol	Meaning	Action
	Indication	Explanation of an indication on the device.
	Warning	This symbol indicates an important tip or a dangerous situation.

Observe this instruction in order to prevent injury and damage to property.

These operating instructions apply to several appliance models. It is possible that individual features are described which do not apply to your appliance.

Technical safety instructions

• This appliance complies with the applicable safety instructions. However, improper use may cause personal injury or damage to the appliance.
• Read the directions for use and the installation instructions before installing and using this appliance. You will find important information here for the assembly and use of the appliance.
• Safety is guaranteed only with expert installation in accordance with the installation manual. The installing technician is responsible for proper operation at the installation location.
• The appliance is intended exclusively for household use (preparation of food) and excludes all other domestic, commercial or industrial use. Do not use the appliance outside.
• Check the condition of the appliance and the installation fittings as soon as you remove them from the packaging. Remove the appliance from the packaging with care. Do not use sharp knives to open the packaging.
• Do not install the appliance if it is damaged, and in that case inform Novy.
• Keep good care of this manual and pass it on to any person who may use the appliance after you.
• Novy is not liable for damage resulting from incorrect assembly, incorrect connection, incorrect use or incorrect operation.
• Do not touch live components.
• Do not convert or alter the appliance.

- Remove labels and stickers on the appliance with tips for use or installation. The type sticker is to be found behind the grease filter in the appliance. Do not remove it.

Safety instructions with children in the house

• The appliance's packaging forms a hazard for children. Do not let children play with the packaging materials. Keep packaging materials away from children.
• Children from the age of 8 years and older may use this appliance only under the supervision of a person who is responsible for their safety, or if they have been taught how to use this piece of equipment under safe circumstances.
• Keep an eye on children in order to ensure that they do not play with the appliance.
• Children younger than 8 years should be kept away from the appliance and the connection cable.
• Cleaning and maintenance of the appliance may not be carried out by children.
• The appliance's lighting is extremely bright and may damage the eyes. In particular, ensure that babies do not look directly into the lights.
• Ensure that batteries are stored out of children's reach. Do not allow children to replace batteries without supervision.

Safety instructions when using the appliance

• People with restricted physical, sensory or intellectual capacities, or people lacking in knowledge or experience, may use this appliance only under the supervision of a person who is responsible for their safety, or if they have been taught how to use this piece of equipment under safe circumstances.
• Flambéing under the appliance is not allowed under any circumstances.
• Whenever you are frying, roasting, grilling or deep-frying, always stay close. Overheated oil and fat can rapidly catch alight and as a result damage the extractor hood.
• Clean the grease filter regularly in accordance with the instructions in these directions for use. Failure to follow the cleaning instructions will lead to grease deposits in the filter with a resultant fire hazard.
• Never use the appliance without the grease filters in order to prevent dirt and grease penetrating the appliance, which may impact the operation and functioning over time.
• In the event of fire, always switch the appliance off.
• Never douse burning fats with water, but cover the pan with a suitable lid or fire blanket.
• Note that certain parts of the appliance within reach of the hands may become hot while cooking.
• Gas burners can build up a lot of heat while operating. Make sure that this heat cannot increase too much in the cooker hood. The cooker hood installed above the gas burners may become damaged or catch fire.
• Only operate the gas burners with cookware on them.
• Turn off the gas burner when you remove the cookware from the gas.
• When using several gas burners at the same time, set the cooker hood to position 2 or higher.

- Never operate large burners of more than 5 kW with the highest flame for longer than 15 minutes, e.g. a wok.

• Switch on the appliance a few minutes before starting to cook for effective extraction of the cooking vapours.
• Make use of the delay position if the appliance has one. The instructions for the delay position are set out in these directions for use.
• Avoid all draughts above the cooking surface.
• Position your cooking utensils in such a way that rising vapour is directed under the extraction surface of the hood.
• Cooking with induction: set the intensity of the appliance and hob as low as possible in order to limit excess vapour.
• If the appliance has an under-plate, ensure that it is always properly closed. Take care that it is properly inserted into the clamps and cannot come free. When opening the under-plate, do not put your hands on the side of the hinges in order to prevent being crushed.
• Do not place objects on top of the appliance, as these may fall and cause a dangerous situation.

Air supply

However large the kitchen or the room with open kitchen is, only so much air can be extracted from the room as is supplied. Too little air supply could result in a yield loss of 50% and more.

[!] If the extraction is used at the same time as a combustion system (for example heaters fired by gas, oil, wood or coal, hot water boilers using gas, gas hobs and gas ovens), combustion gases may be sucked back in and lead to poisoning.

A combustion system uses air from the room as combustion air. Combustion gases arise as a result, which are removed to the outside by an extraction system.

The appliance sucks in air from the kitchen and adjacent rooms. Negative pressure occurs if the air supply is inadequate. The toxic gases are then sucked back from the chimney or extraction duct into the room.

With simultaneous use of the appliance and combustion appliances in the same room, the negative pressure may not exceed 4 Pa (=0.04 mBar). Negative pressure can be prevented by allowing sufficient air into the room through openings that cannot be closed (for example through windows or doors, in combination with a ventilation cabinet in the wall).

Have an expert assess the overall ventilation system in your home for a proposal on suitable measures in the area of air supply.

When using the appliance with an internal or external motor (unit) with air extraction to the outside, there must be adequate air supply in the room where the appliance has been installed / is positioned, so that fresh air can flow in. Fresh air can be provided by tilting a window, opening a door or installing an inlet grille.

With an appliance with recirculation, there must be a minimum of ventilation in the room where the appliance has been installed / is positioned. Ventilation can be provided by the overall ventilation in the home or by tilting a window or opening a door.

Certain appliances are fitted with a connection for a window contact switch (see the technical specifications for your appliance). If the appliance is to operate at the same time as a heating appliance that needs air from the room, and if the required supply can only take place through a single open window, there is the option of connecting the appliance to a window contact switch (not included). This ensures that the appliance operates only when the window is open. If the window is closed, the fan cannot be switched on.

Contact your technician for the correct accessories for your appliance.

Precautionary measures against damage

• The correct installation method is described in the installation instructions. Read these instructions through carefully.
• The installation and electrical connection of the appliance should be left to a recognised expert.
• NOVY cannot accept liability for any damage arising from incorrect installation or connection.
• Check the distance between the hob and the appliance. The minimum and maximum heights are shown in the installation instructions.

Precautionary measures in the event of a fault

• If a fault occurs, switch off the appliance and disconnect the power supply.
• Repairs should be carried out only by specialised personnel. Do not under any circumstances open the equipment yourself. Contact the Novy service department.

ENVIRONMENTAL PROTECTION

Tips for saving energy

The new appliance is exceptionally efficient and economical with energy. Some tips follow below for making your appliance even more energy-efficient.

• Switch the appliance on at the lowest speed when you start cooking to adjust the relative humidity and eliminate cooking odours.
• Only use the highest speed when absolutely necessary.
• Only increase the speed of the appliance when the quantity of vapour so requires.
• Keep the appliance filter/filters clean to optimise grease and odour filtering efficiency.

- Switch to higher power in good time if much vapour is released. This is more efficient than using the appliance for a long time, and catching vapour already spread in the kitchen.

- Do not allow the appliance to unnecessarily ventilate after cooking.

- Switch the lighting off when leaving the kitchen or if the kitchen is already light enough.

- Ensure adequate air supply in the room, so that the appliance can operate efficiently and economically.

- Put lids on the pots to reduce cooking vapours and condensation.

Recycling the transport packaging and the old appliance

This appliance is protected against damage during transport by packaging. The materials used are not harmful to the environment and are suitable for recycling. Ensure environmentally-friendly disposal of the packaging. Your appliance also contains many materials that can be recycled.

For this reason, used appliances should be separated from other waste. Recycling of old appliances arranged by your manufacturer will in this way be carried out under the best circumstances. For recycling your appliance, we refer you to the recent European guidelines in force concerning electrical and electronic waste. Ask your municipality or your salesperson about the closest collection point for your old appliance.

Keep old appliances out of the reach of children.

Recycling batteries

Do not put batteries into the standard household refuse. Ask your municipality or your salesperson about the closest battery collection point. Keep batteries out of the reach of children.

2 CONTROLS AND FUNCTIONS

2.1 Operating the device

Lights
1 Speed level 1
2 Speed level 2
3 Speed level 3
4 Speed level 4

2.2 Turning the extraction on and off

Turning the extraction on off

Press button 1 to turn on the extractor. Only with this button you can start and to stop the extractor.

Image showing a hand pointing at five empty rectangular boxes, likely for instructional or basic instruction.

Extractor power level

• The motor of hood has 4 speed levels.
• With buttons 1 2 3 4 you can choose the speed level.
• The illuminated buttons shows the level in use.
• The motor has a thermal switch that switches the motor off with overheating. After cooling the motor will switch on again.

Determining the cause of overheating is required. This can be caused for example by a pan fire, the impeller motor being blocked or an object getting in the exhaust opening and causing it to be partly or fully blocked.

2.3 Lighting

Turning the lighting on and off

To turn the lighting on or off press L.

The light works independent of the motor.

Image showing a hand pointing at five empty rectangular boxes, with one box above it.

3 CLEANING AND MAINTENANCE

Follow all instructions as described in the Conditions for Safety and Use section.

Follow the cleaning instructions below for a longer working life and optimal operation of the appliance.

3.1 General maintenance

Allow the lighting to cool down sufficiently before you start cleaning the extractor hood.

Never use aggressive, abrasive or chlorinated products.

Do not use a high pressure or steam cleaner.

Stainless steel

Clean with a cleansing tissue with mild cleaning agent then dry with a soft cloth. Maintenance of the stainless steel can be performed with the Novy cleaner (906060).

Coated parts of the extractor hood

The extractor hood can be cleaned with a damp cleansing tissue and a mild cleaning agent.

Glass

Glass parts of the extractor hood can be cleaned with a soft cloth and a glass cleaner.

3.2 Grease filter

If the following instructions are not carried out, serious soiling can cause a fire hazard.

Indication cleaning grease filter

Indication: 4 flashing indicator lights

After 30 hours of running the motor, when the cooker hood is switched off, 4 indication LEDs on the speed buttons will flash for 30 seconds. This indicates that the grease filter(s) must be cleaned.

Reset the cleaning indicator

When you replace the grease filter after cleaning, it is sufficient to press the button for position ④ of the motor for 3 seconds to again set the indicator.

If you ignore this, the 4 indicator lights will continue to flash when the cooker hood is switched off for 30 seconds.

Accessing the grease filter

Type 828 has 1 metal grease filter and type 829 has 2 grease filters.

First protect the hob. You can remove the grease filters from the cooker hood by opening the lock and pulling down the filters. The grease filters then come down from the cooker hood.

Technical line drawing of a mechanical ventilation system with no visible text or symbols

Cleaning the grease filter

The metal grease filter can be cleaned by hand or in a dishwasher. We recommend cleaning the grease filter by hand.

Cleaning the filter by hand:

• Immerse the filter in a solution of boiling water to which a degreasing detergent has been added.
• Use a brush for cleaning
• Then rinse the filters with warm water under a tap and allow them to dry.

Cleaning the filter in a dishwasher:

• Use a customary dishwasher detergent
• Do not put the saturated grease filters together with crockery in the dishwasher
• Select a programme with a low temperature
• After cleaning allow the filter to drain.

When cleaning in a dishwasher the filter may discolour as a result of the salt content. This does not affect its operation.

Replacing the grease filters

• Before replacing the grease filter, clean the edges of the part in the extractor hood in which the filter is placed.
• Grasp the filter with 2 hands.
• Make sure that the lock or the lip on the filter is on the bottom side.
• Insert the back of the filter in the opening, press the filter upwards at the front and make sure it clicks tight.

You can obtain a new grease filter from a dealer or the Novy website. Article number grease filter: 828 : 828.020 829 : 829.020 (2x)

3.3 Recirculation filter (optional))

If recirculation is chosen the active carbon cartridges are turned left and right on the motor of the cooker hood.

Replacement indicator recirculation filter

Indication: 4 indicator lights stays on

After 120 cooking hours, the 4 LEDs remain lit for 30 seconds when they are turned off. This indicates that the carbon filter needs to be changed (if present). It is recommended to clean the grease filter at the same time.

Reset the replacement indicator

When you replace the grease filter after cleaning, it is sufficient to press the button for position 4 of the motor for 3 seconds to again set the indicator.

If you ignore this, the 4 indicator lights will remain on for 30 seconds when the cooker hood is switched off.

Accessing the recirculation filter

Protect the hob. You can take the grease filter from the hood by pulling the handle on the filter. The filter will come down. The carbon filters have been screwed at the left and the right sides on the motor in the hood. Remove the carbon filter from the motor with a turning and pulling movement.

You can obtain a new recirculation filter from a dealer or the Novy website. Article number recirculation filter : 6200.055 (set contains 2 pieces).

3.4 Change the lighting

First, remove the power supply from the hood and allow the lighting to cool down sufficiently.

3.4.1 Remove the grease filter:

Protect the hob. You can remove the filter from the cooker hood by opening the lock and pulling the filter downwards. The filter will then come down from the cooker hood.

Technical line drawing of a mechanical ventilation or ventilation system with no visible text or symbols

3.4.2 Remove the spot holder:

The entire spot holder can be unscrewed by unscrewing one screw on both the left and right. The spot holder can be taken down.

Attention: keep supporting the spot holder. The spot holder is still connected to cables.

Technical line drawing of a mechanical assembly with mounting brackets and a central tool (no text or symbols)

3.4.3 Remove the cover from the spot holder:

You can remove the cover of the spot holder by unscrewing the 4 screws.

After you have removed the cover, you can replace the LED spotlights.

Technical line drawing of a screwdriver inserted into a rectangular electronic device (no text or symbols)

3.4.4 Removing the LED spotlight:

A. First disconnect the cable leading to the LED spotlight to be replaced. Disconnecting is done by releasing the lock by applying a light pressure and pulling it off at the same time.
B. Then remove the LED spotlight to be replaced by making a soft rotating movement counterclockwise.
C. Remove the LED spotlight to be replaced from the bayonet ring.

B A C

3.4.5 Mounting the new LED spotlight:

A. Place the new LED spotlight in the bayonet ring.
B. Make a rotating movement clockwise until the LED spotlight is locked.
C. Connect the power cable.

Connect the power calibration A B C

3.4.6 Reassemble parts:

After this, you can reassemble everything in the reverse order. Check if the grease filter(s) are properly fitted and locked tightly.

Then the electrical power can be put back on the cooker hood.

3.5 Faults

If there is a fault you can contact your (kitchen) supplier and/or Novy Customer Service.

Belgium Tel.: [phone]

France Tel.: [phone]

Germany Tel.: [phone]

The Netherlands Tel.: [phone]

Unite Kingdom Tel.: [phone]

Italy Tel.: [phone]

For all other countries: your local installer or

Novy in Belgium: [phone]

To be able to deal with the fault promptly and efficiently it is necessary that the Repaired Service knows which type of appliance you have.

You can find the type number on a sticker in the inside of the extractor hood. This becomes visible as soon as you take the filter out of the extractor hood.

You can note the type number here:

4 QUICKGUIDE

4.1 Settings

EXPOSED	ACTION	INDICATION	NOTE	PAG.
Switching on the engine	1			p 29
Switching off the motor	1			p 29
Increase engine speed	1 2 3 4			p 29
Decrease engine speed	4 3 2 1			p 29
Lighting on	L			p 29
Reset cleaning indicator grease filters	4for 3 seconds			p 30
Reset replacement indicator recirculation filters	4for 3 seconds			p 31

4.2 Indications

INDICATION	EXPOSED	NOTE	PAGE
Four flashing LEDs	Grease filter must be cleaned	If the cleaning instructions are not followed, excessive contamination, risk of fire and loss of efficiency will result.	p 30
Four Leds stays on	Time to replace the recirculation filter used		p 31

BELGIË

NOVY nv reserves the right at any time and without reservation to change the structure and the prices of its products.
