USER MANUAL VISION 7830 - VISION 7838 - VISION 7840 NOVY

1 INSTRUCTIONS FOR SAFETY AND USE

2.1 Operating the device

2.2 Turning the extraction on and off

3.3 Replacing the led lighting

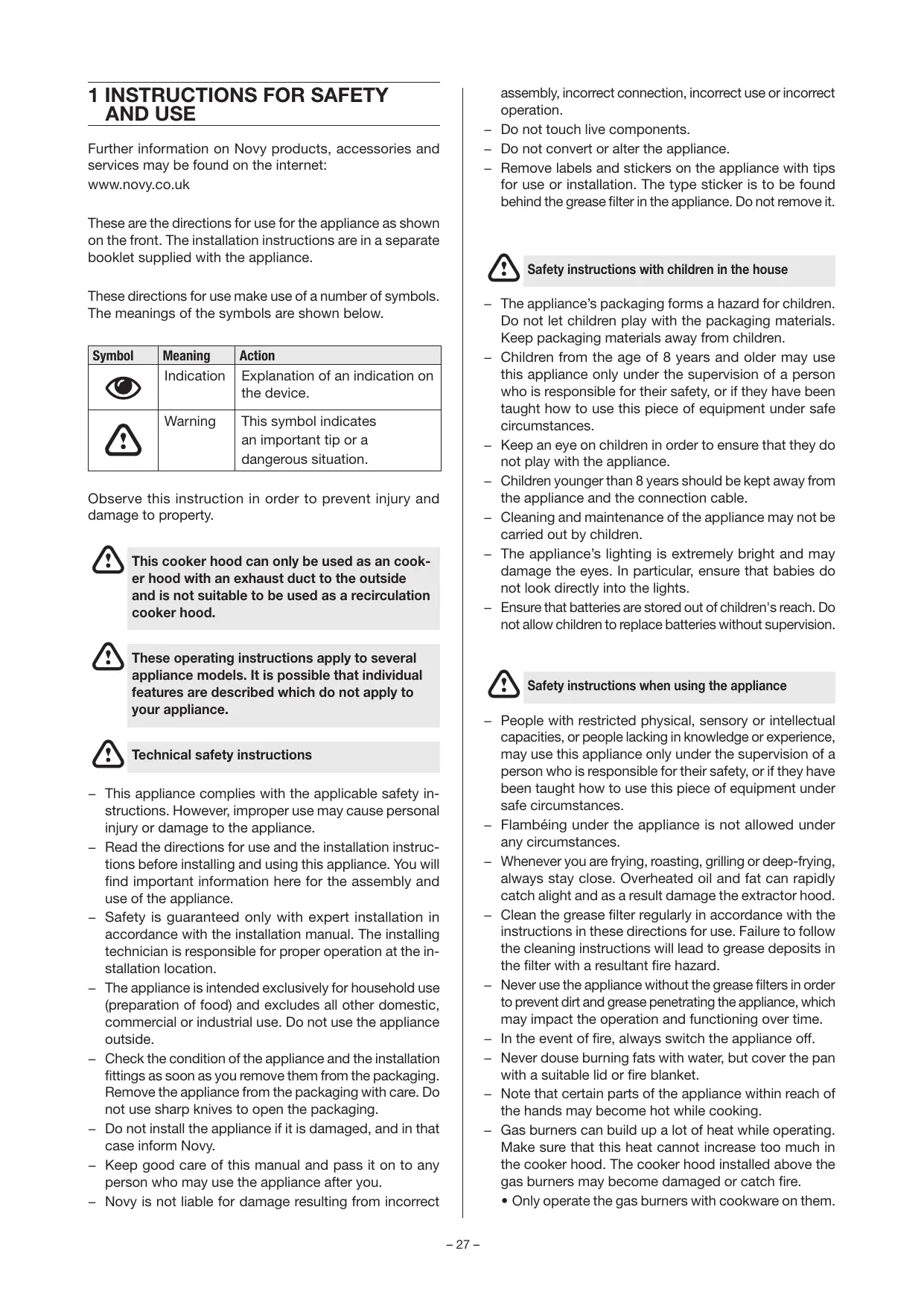

1 INSTRUCTIONS FOR SAFETY

AND USE assembly, incorrect connection, incorrect use or incorrect operation. − Do not touch live components. − Do not convert or alter the appliance. − Remove labels and stickers on the appliance with tips for use or installation. The type sticker is to be found behind the grease filter in the appliance. Do not remove it. Further information on Novy products, accessories and services may be found on the internet: www.novy.co.uk These are the directions for use for the appliance as shown on the front. The installation instructions are in a separate booklet supplied with the appliance. Safety instructions with children in the house These directions for use make use of a number of symbols. The meanings of the symbols are shown below. Symbol Meaning Indication Action Explanation of an indication on the device. Warning This symbol indicates an important tip or a dangerous situation. − The appliance’s packaging forms a hazard for children. Do not let children play with the packaging materials. Keep packaging materials away from children. − Children from the age of 8 years and older may use this appliance only under the supervision of a person who is responsible for their safety, or if they have been taught how to use this piece of equipment under safe circumstances. − Keep an eye on children in order to ensure that they do not play with the appliance. − Children younger than 8 years should be kept away from the appliance and the connection cable. − Cleaning and maintenance of the appliance may not be carried out by children. − The appliance’s lighting is extremely bright and may damage the eyes. In particular, ensure that babies do not look directly into the lights. − Ensure that batteries are stored out of children's reach. Do not allow children to replace batteries without supervision. Observe this instruction in order to prevent injury and damage to property. cooker hood can only be used as an cook This er hood with an exhaust duct to the outside and is not suitable to be used as a recirculation cooker hood. operating instructions apply to several These appliance models. It is possible that individual Safety instructions when using the appliance features are described which do not apply to your appliance. − People with restricted physical, sensory or intellectual capacities, or people lacking in knowledge or experience, may use this appliance only under the supervision of a person who is responsible for their safety, or if they have been taught how to use this piece of equipment under safe circumstances. − Flambéing under the appliance is not allowed under any circumstances. − Whenever you are frying, roasting, grilling or deep-frying, always stay close. Overheated oil and fat can rapidly catch alight and as a result damage the extractor hood. − Clean the grease filter regularly in accordance with the instructions in these directions for use. Failure to follow the cleaning instructions will lead to grease deposits in the filter with a resultant fire hazard. − Never use the appliance without the grease filters in order to prevent dirt and grease penetrating the appliance, which may impact the operation and functioning over time. − In the event of fire, always switch the appliance off. − Never douse burning fats with water, but cover the pan with a suitable lid or fire blanket. − Note that certain parts of the appliance within reach of the hands may become hot while cooking. − Gas burners can build up a lot of heat while operating. Make sure that this heat cannot increase too much in the cooker hood. The cooker hood installed above the gas burners may become damaged or catch fire.

• Only operate the gas burners with cookware on them. Technical safety instructions − This appliance complies with the applicable safety instructions. However, improper use may cause personal injury or damage to the appliance. − Read the directions for use and the installation instructions before installing and using this appliance. You will find important information here for the assembly and use of the appliance. − Safety is guaranteed only with expert installation in accordance with the installation manual. The installing technician is responsible for proper operation at the installation location. − The appliance is intended exclusively for household use (preparation of food) and excludes all other domestic, commercial or industrial use. Do not use the appliance outside. − Check the condition of the appliance and the installation fittings as soon as you remove them from the packaging. Remove the appliance from the packaging with care. Do not use sharp knives to open the packaging. − Do not install the appliance if it is damaged, and in that case inform Novy. − Keep good care of this manual and pass it on to any person who may use the appliance after you. − Novy is not liable for damage resulting from incorrect – 27 –

• Turn off the gas burner when you remove the cookware from the gas.
• When using several gas burners at the same time, set the cooker hood to position 2 or higher.
• Never operate large burners of more than 5 kW with the highest flame for longer than 15 minutes, e.g. a wok. Switch on the appliance a few minutes before starting to cook for effective extraction of the cooking vapours. Make use of the delay position if the appliance has one. The instructions for the delay position are set out in these directions for use. Avoid all draughts above the cooking surface. Position your cooking utensils in such a way that ris­ing vapour is directed under the extraction surface of the hood. Cooking with induction: set the intensity of the ap­pliance and hob as low as possible in order to limit excess vapour. If the appliance has an under-plate, ensure that it is always properly closed. Take care that it is properly inserted into the clamps and cannot come free. When opening the under-plate, do not put your hands on the side of the hinges in order to prevent being crushed. Do not place objects on top of the appliance, as these may fall and cause a dangerous situation. Certain appliances are fitted with a connection for a window contact switch (see the technical specifications for your appliance). If the appliance is to operate at the same time as a heating appliance that needs air from the room, and if the required supply can only take place through a single open window, there is the option of connecting the appliance to a window contact switch (not included). This ensures that the appliance operates only when the window is open. If the window is closed, the fan cannot be switched on. Contact your technician for the correct accessories for your appliance. Precautionary measures against damage − The correct installation method is described in the installation instructions. Read these instructions through carefully. − The installation and electrical connection of the appliance should be left to a recognised expert. − NOVY cannot accept liability for any damage arising from incorrect installation or connection. − Check the distance between the hob and the appliance. The minimum and maximum heights are shown in the installation instructions. Air supply However large the kitchen or the room with open kitchen is, only so much air can be extracted from the room as is supplied. Too little air supply could result in a yield loss of 50% and more. Precautionary measures in the event of a fault − If a fault occurs, switch off the appliance and disconnect the power supply. − Repairs should be carried out only by specialised personnel. Do not under any circumstances open the equipment yourself. Contact the Novy service department. [!] If the extraction is used at the same time as a combustion system (for example heaters fired by gas, oil, wood or coal, hot water boilers using gas, gas hobs and gas ovens), combustion gases may be sucked back in and lead to poisoning. A combustion system uses air from the room as combustion air. Combustion gases arise as a result, which are removed to the outside by an extraction system. The appliance sucks in air from the kitchen and adjacent rooms. Negative pressure occurs if the air supply is inadequate. The toxic gases are then sucked back from the chimney or extraction duct into the room. With simultaneous use of the appliance and combustion appliances in the same room, the negative pressure may not exceed 4 Pa (=0.04 mBar). Negative pressure can be prevented by allowing sufficient air into the room through openings that cannot be closed (for example through windows or doors, in combination with a ventilation cabinet in the wall). Have an expert assess the overall ventilation system in your home for a proposal on suitable measures in the area of air supply. When using the appliance with an internal or external motor (unit) with air extraction to the outside, there must be adequate air supply in the room where the appliance has been installed / is positioned, so that fresh air can flow in. Fresh air can be provided by tilting a window, opening a door or installing an inlet grille. – 28 –

2.1 Operating the device

The new appliance is exceptionally efficient and economical with energy. Some tips follow below for making your appliance even more energy-efficient. − Switch the appliance on at the lowest speed when you start cooking to adjust the relative humidity and eliminate cooking odours. − Only use the highest speed when absolutely necessary. − Only increase the speed of the appliance when the quantity of vapour so requires. − Keep the appliance filter/filters clean to optimise grease and odour filtering efficiency. − Switch to higher power in good time if much vapour is released. This is more efficient than using the appliance for a long time, and catching vapour already spread in the kitchen. − Do not allow the appliance to unnecessarily ventilate after cooking. − Switch the lighting off when leaving the kitchen or if the kitchen is already light enough. − Ensure adequate air supply in the room, so that the appliance can operate efficiently and economically. − Put lids on the pots to reduce cooking vapours and condensation.

2.2 Turning the extraction on and off

Turning the extraction on off Press button 1 to turn on the extractor. The extractor always starts in the function last used (lighting and/or motor). Recycling the transport packaging and the old appliance This appliance is protected against damage during transport by packaging. The materials used are not harmful to the environment and are suitable for recycling. Ensure environmentally-friendly disposal of the packaging. Your appliance also contains many materials that can be recycled. Turning the extraction off with delay mode To set delay mode press key 1 once. The first indicator light flashes, the other indicator lights come on at the last position set. After 10 minutes the motor and lighting automatically switch off. For this reason, used appliances should be separated from other waste. Recycling of old appliances arranged by your manufacturer will in this way be carried out under the best circumstances. For recycling your appliance, we refer you to the recent European guidelines in force concerning electrical and electronic waste. Ask your municipality or your salesperson about the closest collection point for your old appliance. Keep old appliances out of the reach of children. The delay time is set by default to 10 minutes in extraction mode. It is advised to always fully allow this function to work. Switching extraction off without delay mode Press key Recycling batteries

twice. Do not put batteries into the standard household refuse. Ask your municipality or your salesperson about the closest battery collection point. Keep batteries out of the reach of children. Extractor power level To increase the power level press key – 29 –

all instructions as described in the Con Follow ditions for Safety and Use section. the cleaning instructions below for a Follow longer working life and optimal operation of the

− Three green LEDs show positions one to three. − The red LED 6 shows the Power position. The Power position is only used if there are strong odours, or a lot of smoke or vapour. Its use must be kept to a minimum because of the large extraction of air in this position. − The Power position automatically goes back to speed three after 6 minutes. − The motor has a thermal switch that switches the motor off with overheating. After cooling the motor will switch on again. appliance. bottom panel, grease filter and recircula The tion filter can fall out when you are handling them. This can result in damage. Make sure you hold the bottom panel and the filter(s) securely at all times when handling them. Risk of injury! Open and close the WARNING! bottom panel slowly. Use a stable stepladder the cause of overheating is re Determining quired. This can be caused for example by a and pay attention to stability. Do not step on the hob or the worktop surface. pan fire, the impeller motor being blocked or an object getting in the exhaust opening and causing it to be partly or fully blocked.

3.1 General maintenance

the lighting to cool down sufficiently be Allow fore you start cleaning the extractor hood. Auto-Stop To avoid the extractor hood from staying on, the motor is automatically switched off after 3 hours (only if in 3 hours operation has not been changed). The extractor hood lighting stays on. use aggressive, abrasive or chlorinated Never products.

Do not use a high pressure or steam cleaner. Turning the lighting on and off To turn the lighting on or off press 4 . The light works independent of the motor. Stainless steel Clean with a cleansing tissue with mild cleaning agent then dry with a soft cloth. Maintenance of the stainless steel can be performed with the Novy cleaner (906060). Coated parts of the extractor hood The extractor hood can be cleaned with a damp cleansing tissue and a mild cleaning agent. Glass Glass parts of the extractor hood can be cleaned with a soft cloth and a glass cleaner.

the following instructions are not carried out, Ifserious soiling can cause a fire hazard. – 30 – Indication cleaning grease filter Cleaning the filter in a dishwasher: − Use a customary dishwasher detergent − Do not put the saturated grease filters together with crockery in the dishwasher − Select a programme with a low temperature − After cleaning allow the filter to drain. Indication: 4 flashing indicator lights cleaning in a dishwasher the filter may When discolour as a result of the salt content. This After 20 cooking hours 4 flashing indicator LEDs show that the grease filter must be cleaned. does not affect its operation. Reset the cleaning indicator Replacing the grease filters − Before replacing the grease filter, clean the edges of the part in the extractor hood in which the filter is placed. − Grasp the filter with 2 hands. − Make sure that the lock or the lip on the filter is on the bottom side. − Insert the back of the filter in the opening, press the filter upwards at the front and make sure it clicks tight. you replace the grease filter after clean When ing, it is sufficient to press the key for 5

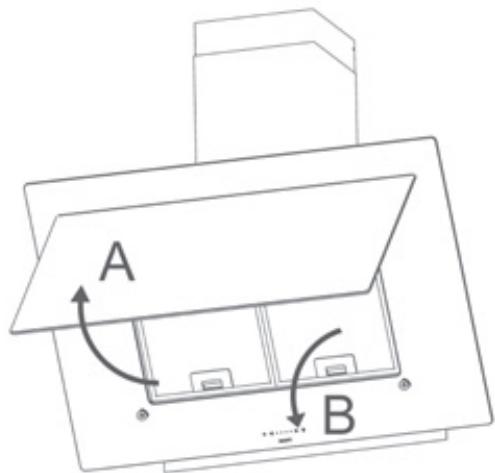

seconds to again set the indicator. can obtain a new grease filter from a dealer You or the Novy website. If you do not do this the indicator light will continue to flash when switching on the extractor hood. Article number grease filter: 7830.020 (2x). Accessing the grease filter Grip the glass plate (A) at the bottom left and right and pull it forward. Open the glass plate so that the grease filter (B) is visible. Protect the hob. Protect the hob. You can take the grease filter (B) from the hood by pulling the handle on the filter. The filter will come down.

3.3 Replacing the led lighting

remove the power supply from the hood First, and allow the lighting to cool down sufficiently. Open the glass plate and remove the grease filters from the hood. You can reach the 2 LED spotlights at the bottom of the hood with your hand.

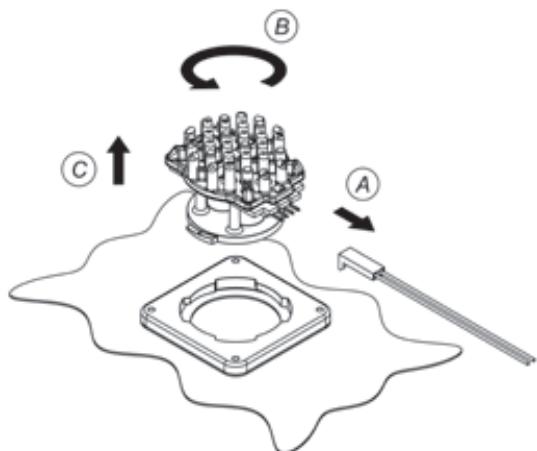

3.3.1 Removing the LED spotlight:

A. First disconnect the cable leading to the LED spotlight to be replaced. Disconnecting is done by releasing the lock by applying a light pressure and pulling it off at the same time. B. Then remove the LED spotlight to be replaced by making a soft rotating movement counterclockwise. C. Remove the LED spotlight to be replaced from the bayonet ring. Cleaning the grease filter The metal grease filter can be cleaned by hand or in a dishwasher. We recommend cleaning the grease filter by hand. Cleaning the filter by hand: − Immerse the filter in a solution of boiling water to which a degreasing detergent has been added. − Use a brush for cleaning − Then rinse the filters with warm water under a tap and allow them to dry. – 31 –

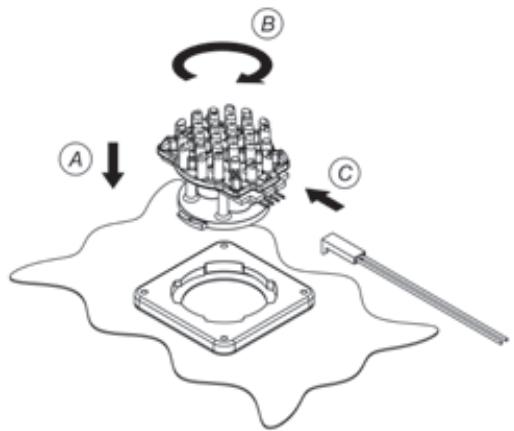

3.3.2 Mounting the new LED spotlight:

A. Place the new LED spotlight in the bayonet ring. B. Make a rotating movement clockwise until the LED spotlight is locked. C. Connect the power cable. If there is a fault you can contact your (kitchen) supplier and/or Novy Customer Service. Belgium Tel.: +32 (0)56 36 51 02 France Tel.: +33 (0)3 20 94 06 62 Tel.: +49 (0)511 54 20 771 Germany The Netherlands Tel.: +31 (0)88 011 91 10 United Kingdom Tel.: +44 (0) 207 866 2493 For all other countries: your local installer or Novy in Belgium: +32 (0)56 36 51 02 To be able to deal with the fault promptly and efficiently it is necessary that the Repaired Service knows which type of appliance you have. can find the type number on a sticker in You the inside of the extractor hood. This becomes visible as soon as you take the filter out of the extractor hood.

3.3.3 Reassemble parts:

After this, you can reassemble everything in the reverse order. Check if the grease filter(s) are properly fitted and locked tightly. Then the electrical power can be put back on the cooker hood. You can note the type number here: – 32 – 4 QUICKGUIDE

EXPOSED ACTION Switching on the engine

Switching off the motor with delay mode

INDICATION NOTE PAG. p 29 Green LED flashes Engine stays on for 10 minutes p 29 Engine goes off immediately p 29 Switching off the motor without delay mode

Increase engine speed

p 29 Decrease engine speed

p 30 Reset cleaning indicator grease filters
