Dear Valued Customer, Thank you for preferring this Beko appliance. We hope that you get the best results from your appliance which has been manufactured with high quality and state-of-theart technology. For this reason, please read this entire user manual and all other accompanying documents carefully before using the appliance and keep it as a reference for future use. If you handover the appliance to someone else, give the user manual as well. Follow the instructions by paying attention to all the information and warnings in the user manual. Remember that this user manual may also apply to other models. Differences between models are explicitly described in the manual.

Meanings of the Symbols

Following symbols are used in various sections of this user manual:

C A Important information and useful hints about usage.

WARNING: Warnings against dangerous situations concerning the security of life and property. Warning for danger of fire.

B Warning for electric shock.

Protection class for electric shock.

This appliance has been manufactured in environmentally friendly modern plants without giving any harm to the nature.

Complies with the WEEE regulation.

It does not contain PCB.

1 Important Safety and Environmental Instructions

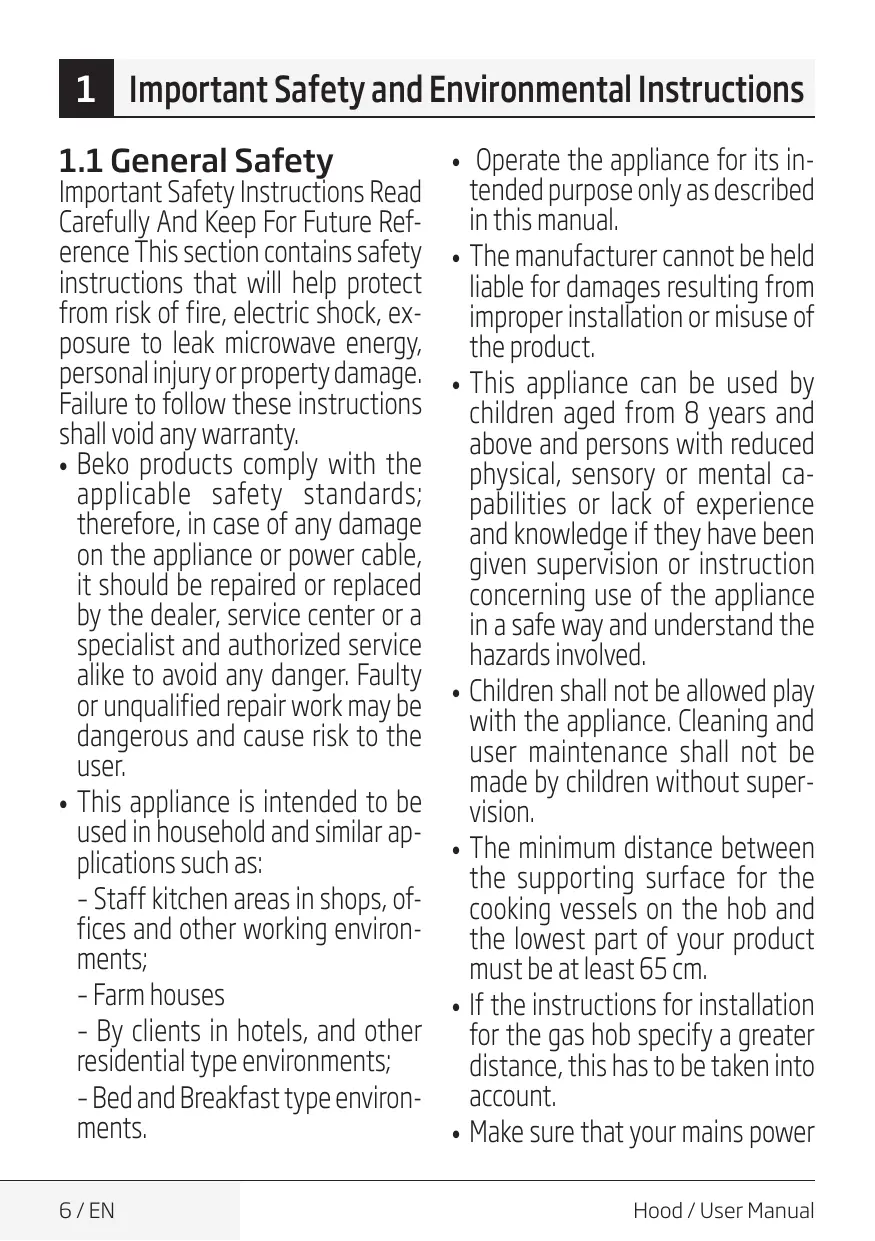

Important Safety Instructions Read

Carefully And Keep For Future Reference This section contains safety instructions that will help protect from risk of fire, electric shock, exposure to leak microwave energy, personal injury or property damage. Failure to follow these instructions shall void any warranty. • Beko products comply with the applicable safety standards; therefore, in case of any damage on the appliance or power cable, it should be repaired or replaced by the dealer, service center or a specialist and authorized service alike to avoid any danger. Faulty or unqualified repair work may be dangerous and cause risk to the user. • This appliance is intended to be used in household and similar applications such as: – Staff kitchen areas in shops, offices and other working environments; – Farm houses – By clients in hotels, and other residential type environments; – Bed and Breakfast type environments. 6 / EN

Operate the appliance for its intended purpose only as described in this manual.

The manufacturer cannot be held liable for damages resulting from improper installation or misuse of the product. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not be allowed play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. The minimum distance between the supporting surface for the cooking vessels on the hob and the lowest part of your product must be at least 65 cm. If the instructions for installation for the gas hob specify a greater distance, this has to be taken into account. Make sure that your mains power Hood / User Manual

1 Important Safety and Environmental Instructions

supply complies with the information supplied on the rating plate of the appliance.

Never use the appliance if the power cable or the appliance itself is damaged. Prevent damage to the power cable by not squeezing, bending, or rubbing it on sharp edges. Keep the power cable away from hot surfaces and naked flame. Use the appliance with a grounded outlet only. WARNING: Do not connect the appliance to the mains until the installation is fully complete. Place the appliance in a way so that the plug is always accessible. Do not touch the lamps if they have operated for a long time. They can burn your hands since they will be hot. Follow the regulations set out by competent authorities on discharge of the exhaust air (this warning is not applicable for use without flue). Operate your appliance after putting a pot, pan etc. on the hob. Otherwise, high heat may cause deformation in some parts of your product.

Turn off the hob before taking the pot, pan etc. from it.

Do not leave hot oil on the hob. Pans with hot oil may cause self combustion. Pay attention to your curtains and covers since oil may catch fire while cooking food such as fries. Grease filter must be replaced at least monthly. Carbon filter must be replaced at least every 3 months. Product shall be cleaned accordance with user manual. If cleaning was not carried out in accordance with user manual, there may be fire risk. Do not use non-fire-resistant filtering materials instead of the current filter. Only use the original parts or parts recommended by the manufacturer. Do not operate the product without the filter and do not remove the filters while the product is running. In the event of be started any flame, de-energize your product and cooking appliances. In the event of be started any flame, cover the flame and never 7 / EN

1 Important Safety and Environmental Instructions

use water to extinguish.

Unplug the appliance before each cleaning and when the appliance is not in use. The negative pressure in the environment should not exceed 4 Pa (4 x 10 bar) while the hood for electric hob and appliances running on another type of energy but electricity operate simultaneously. In the environment where the appliance is being used, the exhaust of devices running on fuel oil or gas, such as room heater must be absolutely isolated or device must be hermetical type. When connecting the flue, use pipes with a diameter of 120 or 150 mm. Pipe connection must be as short as possible and have as few elbows as possible. Danger of choking! Keep all the packaging materials away from children. CAUTION: Accessible parts may become hot when used with cooking appliances. The product outlet must not be connected to air channels that include other smoke. The ventilation in the room may

be insufficient when the hood for electric hob is used simultaneously with the devices operating on gas or other fuels (this may not apply to appliances that only discharge the air back into the room).

Objects placed on the product may fall. Do not place any objects on the product. Do not flambe under the your product. WARNING: Before installing the Hood, remove the protective films. Never leave high naked flames under the hood when it is in operation Deep fat fryers must be continuously monitored during use: overheated oil can burst into flames.

1 Important Safety and Environmental Instructions

1.2 Compliance with the WEEE Directive and Disposing of the Waste Product: This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE). This symbol indicates that this product shall not be disposed with other household wastes at the end of its service life. Used device must be returned to offical collection point for recycling of electrical and electronic devices. To find these collection systems please contact to your local authorities or retailer where the product was puchased. Each household performs important role in recovering and recycling of old appliance. Appropriate disposal of used appliance helps prevent potential negative consequences for the environment and human health. 1.3 Compliance with RoHS Directive The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive. Hood / User Manual

1.4 Package Information

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

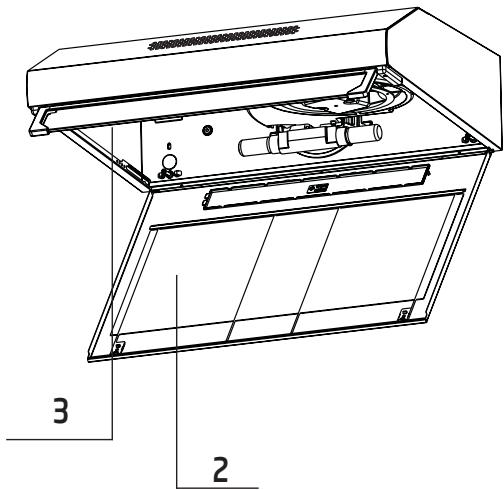

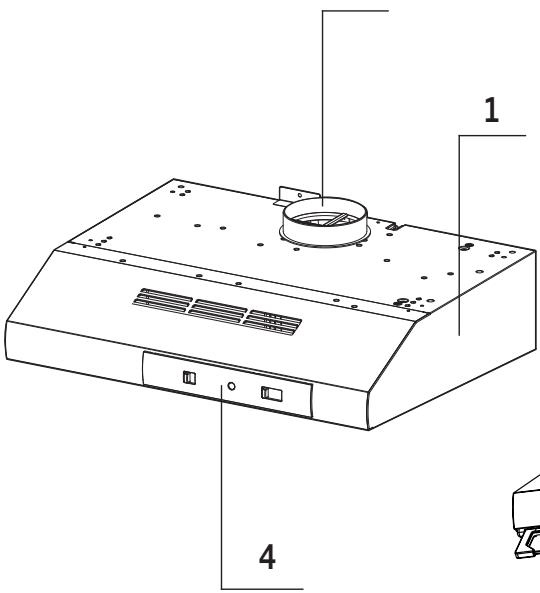

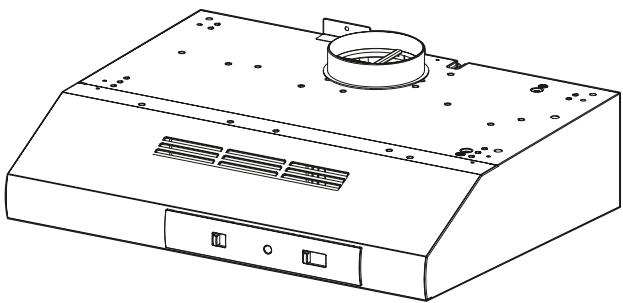

Aliminium Grease filter Lighting Control Panel Chimney

CFB 6437 W / CFB 6432 X / CFB 6432 WH /

CFB 6432XG / CFB 6438 X / CFB 6432 XH-1 /

CFB 5432 W / CFB 6432 W / CFB 6431 W Supply Voltage

Air Flow (m³/h) – 3. Level

CLASS II Using the Appliance

Switches the lighting system on and off

Sets the operating speed of the extractor: 0. Speed Switches the extractor motor off 1. Low speed, used for a continuous and silent air change in the presence of light cooking vapour. 2. Medium speed, suitable for most operating conditions given the optimum treated air flow/noise level ratio. 3. Maximum speed, used for eliminating the highest cooking vapour emission, including long periods.

• The extractor hood has been designed exclusively for domestic use to eliminate kitchen smells.

• Never use the hood for purposes other than for which it has been designed. • Never leave high naked flames under the hood when it is in operation. • Adjust the flame intensity to direct it onto the bottom of the pan only, making sure that it does not engulf the sides. • Deep fat fryers must be continuously monitored during use: overheated oil can burst into flames.

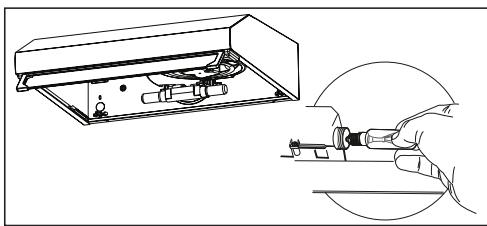

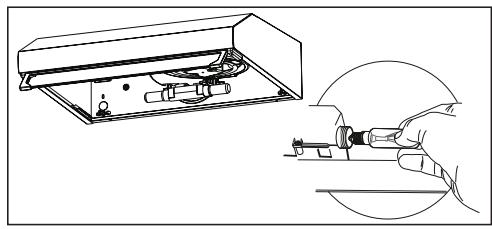

Before replacing the light bulbs, disconnect the power supply of the hood.

Do not touch the light bulbs when they are hot. Be careful not to touch the replaced light bulb directly with hands. You may procure lamps from Authorised Service Agents.

DRBB/F-4-220-240-E14-35/100

• Candle type LED lamp is used in this product

• Max 4 W lamp must be used when the change of lamp

12 / EN Cleaning and maintenance

Prior to cleaning and maintenance, unplug the appliance or turn the main swich off or loosen the fuse that supplies the hood.

A Failure to comply with the provisions relating to cleaning of the device and replacement of filters may cause fire risks. It is therefore recommended to comply with the guidelines given herein. The manufacturer is not liable for any damage to the engine or fires caused by improper use.

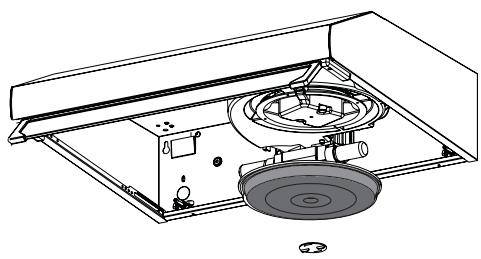

4.2 Changing of Carbon Filter

(Air Circulation Mode)

The hood can be fitted with an active carbon filter.

The carbon filter is applied only in case the hood is not 3 connected to the vent duct. In any case it is necessary to replace the carbon filter at least every three months.

Clean using only a cloth dampened with neutral liquid detergent. Do not clean with tools or instruments. Do not use abrasive products. Do not use alcohol

4.1 Cleaning of Aluminium

A WARNING: The carbon filter is never washed.

A WARNING: Carbon filter is available from Authorized

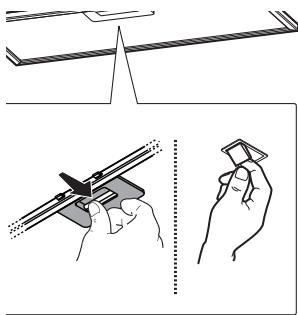

2This filter captures oil particles in the air. You are 4 recommended to clean your filter every month under normal usage conditions. First remove the grease filters for this process. Wash the filters with liquid detergent and rinse them with water and install them back after they get dry. Aluminium grease filters may get discolered as they are washed; this is normal and you don’t need to change your filter.

C You can wash the Aluminium filter in the dishwasher

Setting Up the Device

A WARNING Please read saffety instructions before setting up.

C NOTE Please refer to page 101 for the installation guide

A WARNING Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

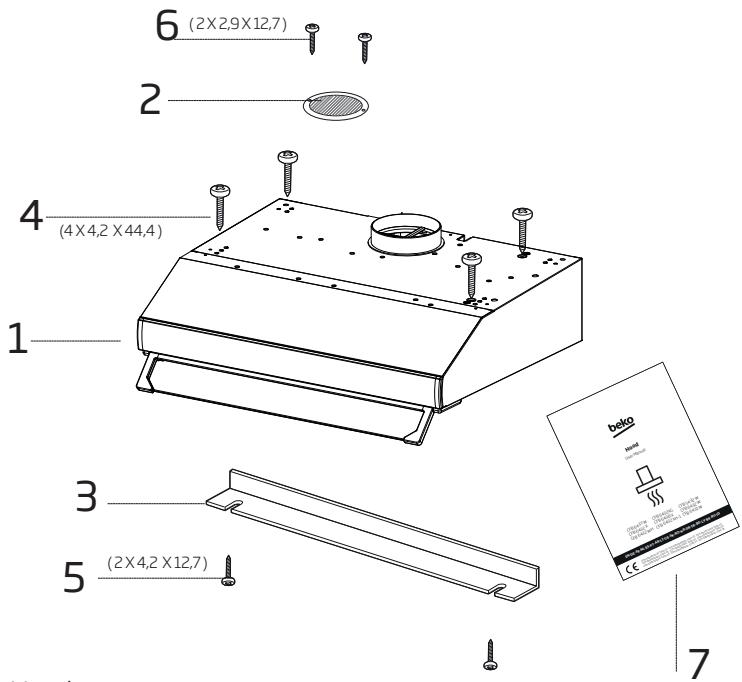

5.1 Installation Accessories

32 W 54 CFB 6432 W CFB 6431 32XGX CFB 64 U-ID CFB 6438 XH-1 -BS-R LV W CFB 6432 5 -BG37 0-0 5 -TR 532 X 64 CFB 20- 5320-0 5 GR 0-0 112 CFB 6432 WH 407 93200- 532 -HR20-89 CFB 6432 01M -89429 302 K-RO 5 01M -89048 0-0 -CS-S CFB

LT 20- 20- 5 01M -53 0-0 802 049 13200 532 20-89 01M -89416 802 5 01M -89048 0-0 532 0-05 01M 5 0-0

402 048 30220- 532 20-89 01M -89065 302 01M -89055 01M

2- Air Outlet Grille

3- Closing Element (Optional) 4- 4 X 4,2 X 44,4 Screws 5- 2 X 4,2 X 12,7 Screws 6- 2 X 2,9 X 12,7 Screws 7- User Manual

14 / EN The product does not work.

Your fuse might be closed, make it work.

The product does not work.

Check the electrical connec- The mains voltage tion. should be between

The product does not work.

Check the electrical connec- Check if the other protion. ducts in your kitchen are working or not.

The lighting lamp does not work.

Check the electrical connec- The mains voltage tion. should be between

The lighting lamp does not work.

Check the lamp switch.

The lighting lamp does not work.

The lamps of the product should not be faulty.

The air intake of the product is poor.

Check the aluminum filter.

The aluminum oil filter should be cleaned at least once a month under normal conditions.

The air intake of the product is poor.

The air vent flue should be in the ''on'' position.

The air intake of the product is poor.

Check the carbon filter.

For products with carbon filters, the filter should normally be changed every 3 months.

The lamp switch should be in the “on” position.

15 / EN HSGSB/C/UB-28-220/240-E14

HSGSB/C/UB-28-220/240-E14 HSGSB/C/UB-28-220/240-E14 HSGSB/C/UB-28-220/240-E14 HSGSB/C/UB-28-220/240-E14 HSGSB/C/UB-28-220/240-E14 104 x 35 104220 x104 35 – 240 x 104 35 x104 35 220 x104 35 –220 E14 240 x 35 – 220 240 –220 240–220 E14 24028 –E14 240 E14 E1428 E1428

HSG/C/UB-20-12-G4 HSG/C/UB-20-12-G4 HSG/C/UB-20-12-G4 HSG/C/UB-20-12-G4 33HSG/C/UB-20-12-G4 x9 33 x 33 912 x 933 x 33 9 x 33 12 9 G4 x 12 9

589,8589,8 x57 26589,8 x 26589,8 x 26 589,8 x57 26 G13 x57 26 57 57 G1357 18 G13 G13 G1318 G1318 FD--18/40/1B--E--G13--26/600 FD--18/40/1B--E--G13--26/600 FD--18/40/1B--E--G13--26/600 FD--18/40/1B--E--G13--26/600 FD--18/40/1B--E--G13--26/600 FD--18/40/1B--E--G13--26/600

) (ﻣﺼﺒﺎح ) ) 60 ( )ﻣﺼﺒﺎح60 (ﻣﺼﺒﺎح 60 (ﻣﺼﺒﺎح 60 60 60) (ﻣﺼﺒﺎح G23 G23 G23 9 G23 G23 9G23 9 FSD-9/27/1B-I-G23 FSD-9/27/1B-I-G23 FSD-9/27/1B-I-G23 FSD-9/27/1B-I-G23 FSD-9/27/1B-I-G23 167FSD-9/27/1B-I-G23 x 28 167 x167 28 x 167 28 x167 28 x167 28 x 28 ) 220-240 )ّﺰ(ﻣﺤﻔ220-240 )(ﻣﺤﻔ220-240 )ﻣﺤﻔ)ّﺰ(ﻣﺤﻔ)ّﺰ(ﻣﺤﻔّﺰ 220-240 (ﻣﺤﻔّﺰ220-240 (ّﺰ220-240

) (ﻣﺼﺒﺎح ) ) 91 ( )ﻣﺼﺒﺎح91 (ﻣﺼﺒﺎح 91 (ﻣﺼﺒﺎح 91 91 91) (ﻣﺼﺒﺎح G23 G2311 G23 G23 G2311 G2311 FSD-11/40/1B-I-G23 FSD-11/40/1B-I-G23 FSD-11/40/1B-I-G23 FSD-11/40/1B-I-G23 FSD-11/40/1B-I-G23 235,8 FSD-11/40/1B-I-G23 x 28 235,8235,8 x 28235,8 x 28235,8 x 28 235,8 x 28 x 28 220-240 (ﻣﺤﻔّﺰ220-240 (ّﺰ220-240 ) 220-240 )ّﺰ(ﻣﺤﻔ220-240 )(ﻣﺤﻔ220-240 )ﻣﺤﻔ)ّﺰ(ﻣﺤﻔ)ّﺰ(ﻣﺤﻔّﺰ
