USER MANUAL TG2000LCB GORENJE

Save these instructions. This product is intended for household use only. Do not immerse this product into water. Main Functions:

1. Detachable non-stick grill/griddle plates ensure effortless food release and quick

2. Detachable grease tray

3. Adjustable temperature control probe with power-on indicator for more precise

cooking Important safeguards

1. This appliance can be used by children aged 8 years and above and persons with

reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.

2. Children shall not play with the appliance.

3. Cleaning and user maintenance shall not be made by children without supervision.

4. Cleaning and user maintenance shall not be made by children unless they are older

than 8 years and supervised.

5. Keep the product and its cord out of the reach of children aged less than 8 years.

: Caution, hot surface When using electrical appliances, basic safety precautions should always be followed, including the following: Read all instructions. Do not touch any hot surface. Use handles or knobs. To protect against electrical shock, do not immerse the cord, plugs or the appliance in water or other liquid. Close supervision is necessary when any appliance is used by or near children. Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning the appliance. Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or if it is damaged in any manner. Return the appliance to the nearest authorized service facility for examination, repair or adjustment. Use of accessory attachments not recommended by the appliance manufacturer may cause injuries. Do not use outdoors. Do not let the cord hang over the edge of a table or counter, or touch a hot surface. Extreme caution must be used when moving an appliance containing hot oil or other hot liquids. To disconnect, remove the plug from the wall outlet. Do not use this appliance for other than intended use. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard. Never connect this appliance to an external timer switch or a remote control system in order to avoid a hazardous situation. The appliance is only to be operated in closed position. Save these instructions. This product is intended for household use only. Do not immerse this product in water.

DO NOT THROW AWAY THESE INSTRUCTIONS.

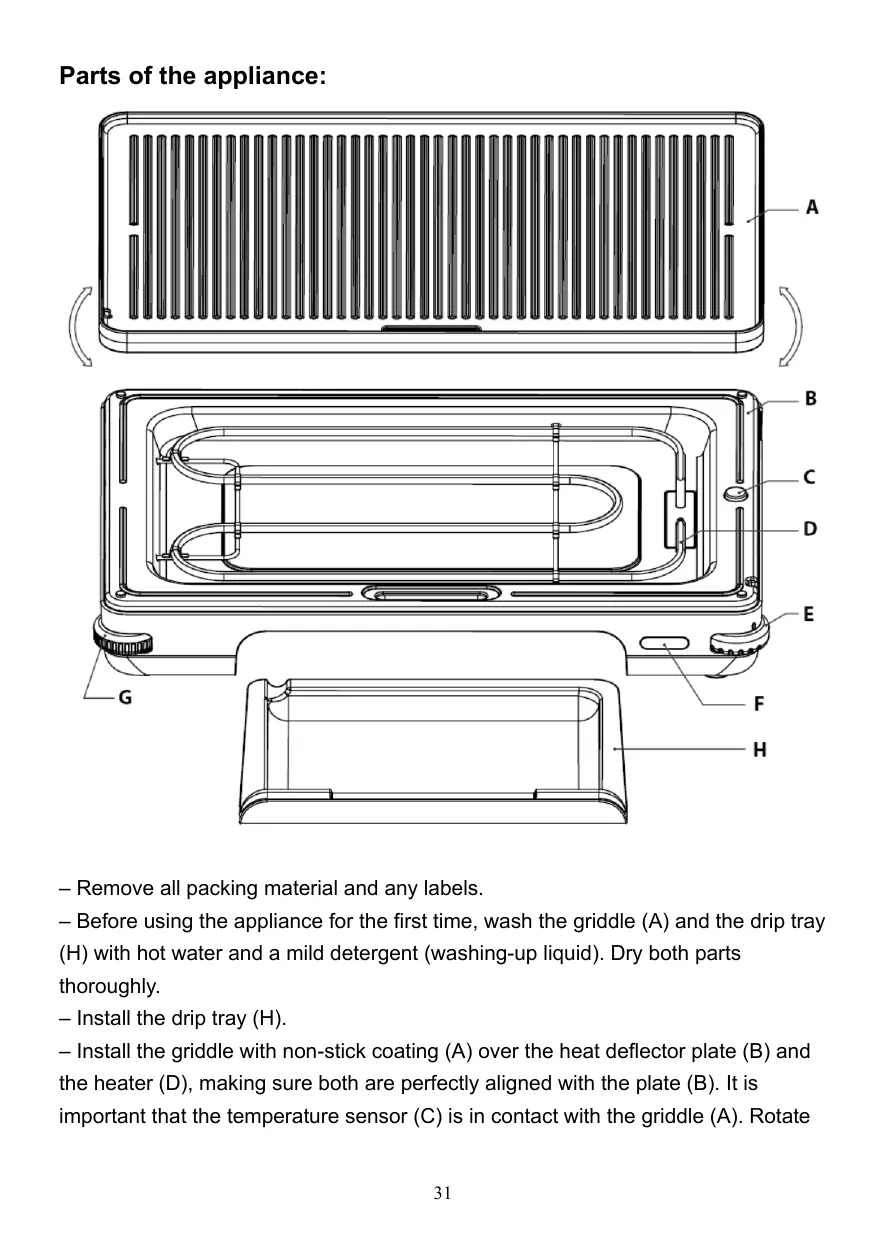

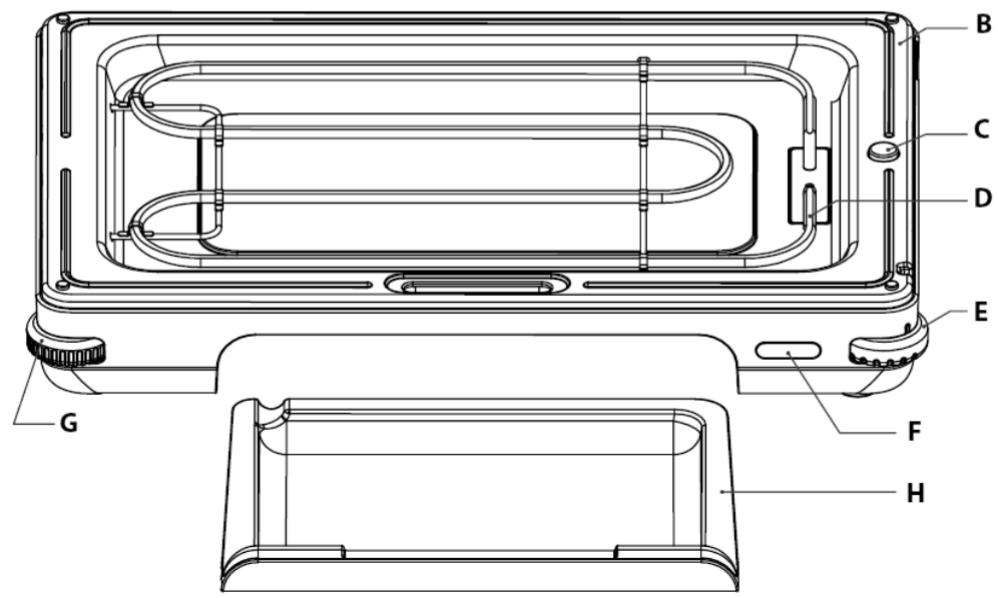

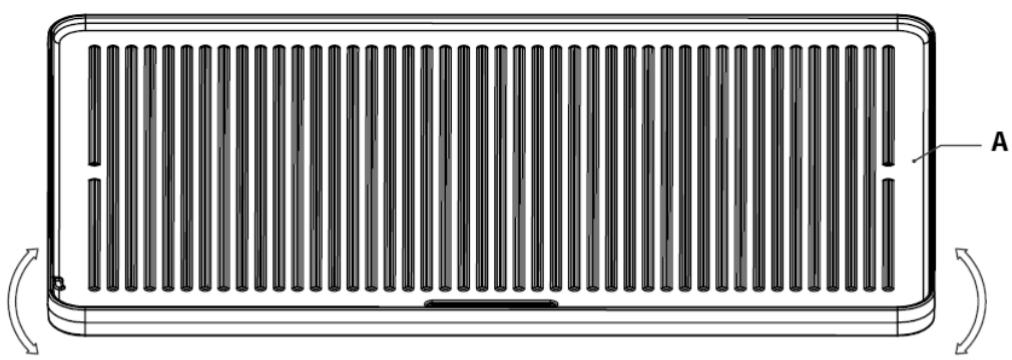

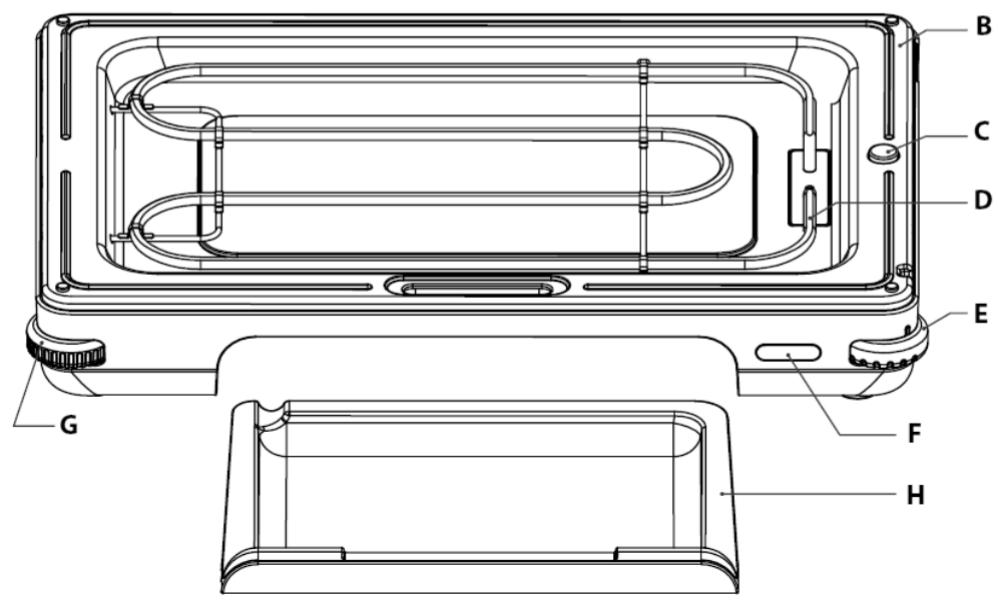

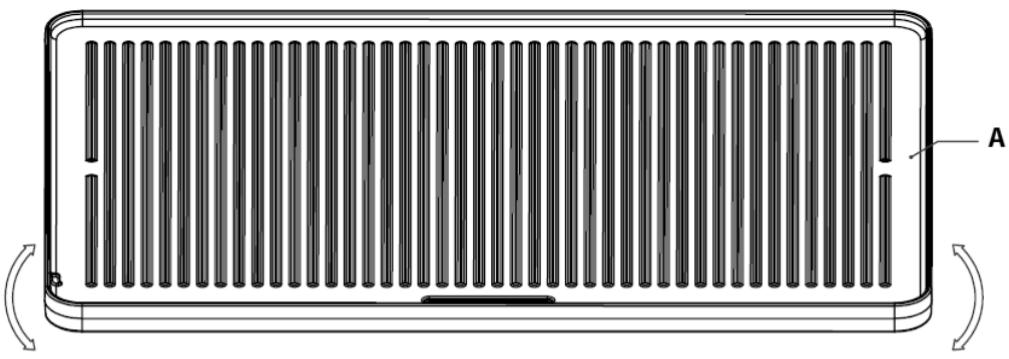

Parts of the appliance: – Remove all packing material and any labels. – Before using the appliance for the first time, wash the griddle (A) and the drip tray (H) with hot water and a mild detergent (washing-up liquid). Dry both parts thoroughly. – Install the drip tray (H). – Install the griddle with non-stick coating (A) over the heat deflector plate (B) and the heater (D), making sure both are perfectly aligned with the plate (B). It is important that the temperature sensor (C) is in contact with the griddle (A). Rotate

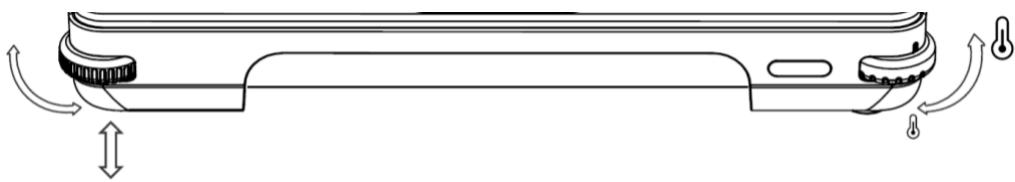

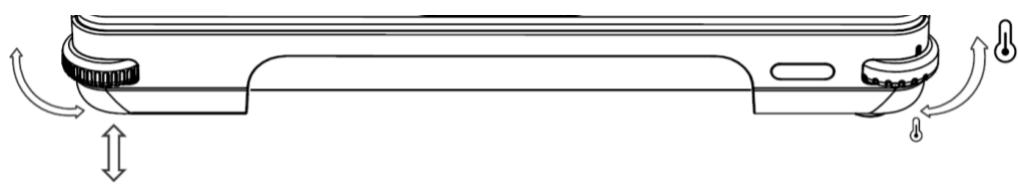

the griddle (A) so that either the ribbed or the smooth part are facing up – depending on the type of food you are grilling. – Note the fat drain opening on the front part of the griddle. The opening allows unimpeded draining of fat onto the drip tray. – Rotate the left knob on the appliance to set the height of the left foot, so that the grill is supported and completely stable on a solid and high-temperature-resistant surface. – Place the food you wish to grill onto the griddle (A). – Insert the plug into the electrical outlet. If the appliance is powered, the white indicator light (F) will be lit. The white indicator light will be on as long as the appliance is connected to the power mains. – Use the dial on the right side of the appliance (E) to set the desired operating power (to increase the temperature, rotate the dial counter-clockwise). When the heater (D) is heating the griddle, the red indicator light (F) will be lit. A variety of settings is provided in the table below for guidance. TEMPERATURE SETTINGS Low temperature – to keep the food warm Medium temperature – for thorough grilling (well-done) High temperature – for quick grilling that keeps the juices in the food Very high temperature – for quick searing – When the red indicator light (F) goes off, this means that the grilling temperature has been reached and that the grill is ready for use. – The red indicator light (F) indicates that the grill is heating up, and it will remain lit until the grill reaches the set temperature. Once the set temperature is reached, the red indicator light will switch on and off periodically, indicating whether the heater maintaining the set temperature is currently operating.

– Pre-heating time depends on the selected temperature setting. The higher the selected temperature, the longer the pre-heating time. When you are done grilling, remove the plug from the outlet. How to use the appliance? This appliance is intended solely for household use. Before using the appliance for the first time

1. Remove all packing material and any labels.

2. Use a damp cloth or sponge to wipe the griddle on both sides (ribbed and smooth),

removing any dust collected on them. Wipe the griddle dry using a soft cloth of a paper towel.

3. Choose the spot where you will use the appliance. Leave enough room between

the back of the appliance and the wall, to make sure the heat radiated by the appliance does not damage the kitchen cupboards or walls.

4. Set the temperature adjustment dial (E) to the off position (rotate it in the

clockwise direction).

5. Connect the appliance to the power mains that complies with the specifications

on the rating plate or label. When power is supplied to the appliance, the white indicator light (F) will light up.

6. Use the temperature adjustment dial (E) to set a low temperature for pre-heating

the griddle. Then, set the appropriate temperature according to the food you wish to grill. 7. Do not use metal utensils to remove fat or food, as these can damage the nonstick coating. Always use a spatula or another heat-resistant accessory made of wood or silicone.

8. During grilling, make sure the juices or other liquids that may be difficult to clean

once the appliance cools down do not enter the slot between the griddle (A) and the heat deflector plate (B).

9. Important: Steam can be released from the griddle (A). Be careful and make sure

your hands or face are not scalded by the steam. 10.After use, rotate the temperature adjustment dial to the off position (rotate it in the clockwise direction), unplug the appliance, and wait for it to cool down to room temperature before you start cleaning it. 11.Carefully remove the removable drip tray (H) and discard the cooled fat before washing the tray.

Care and cleaning Important: never immerse the appliance, the plug, or the power cord in water or any other liquid. Only wipe these parts with a damp cloth. Important: before installing or removing any attachments or before cleaning the appliance, always unplug the appliance and wait for it to cool down completely.

8. Wipe the base and the griddle using a damp cloth and mild dishwashing

detergent (washing-up liquid). Then, wipe them dry with a paper towel.

2. Storing the appliance: Store the clean appliance in a clean and dry place.

3. Important: Never remove the removable drip tray to clean it, if the fat in it is still

4. Important: Never store the appliance if it is still hot or connected to the power

5. Important: Do not wrap the power cord tightly around the appliance. Do not pull

on the power cord or put it under any strain, especially at the point where it enters or attaches to the appliance, as this could damage it. 6. Griddle and drip tray can be washed in warm water with some detergent (washingup liquid). Appliance housing may be wiped with a damp cloth. For personal use only! GORENJE WISHES YOU A LOT OF PLEASURE IN USING YOUR APPLIANCE. We reserve the right to any modifications !
