| Product Type | Electric Scooter |
| Brand | Segway / Ninebot |
| Model | F30D |
| Dimensions (unfolded) | 1143 × 480 × 1160 mm |
| Dimensions (folded) | 1143 × 480 × 495 mm |
| Net Weight | 16.4 kg |
| Maximum Payload | 120 kg |
| Maximum Speed | 20 km/h (Sport and Standard modes) |
| Typical Range | 30 km |
| Maximum Slope | 15% |
| Recommended Terrain | Asphalt, flat pavement, obstacles < 1 cm, holes < 3 cm |
| Operating Temperature | -10 °C to 40 °C |
| Protection Rating | IPX5 |
| Battery | Lithium-ion 36 V, 7.65 Ah (275 Wh) |
| Charging Time | Approximately 5 hours |
| Motor | Rated power 300 W |
| Charger | Input 100-240 V, output 42 V / 1.7 A (70 W) |
| Tires | Tubeless 10 inches, pressure 50-55 psi |
| Front and Rear Lights | LED front and rear lights (always on, cannot be turned off) |
| Brake Light | Not available |
| Speed Modes | Eco (15 km/h), Standard (20 km/h), Sport (20 km/h) |
| Connectivity | Bluetooth 2.4 GHz, mobile app |
| Certifications | UL-2272, UN/DOT 38.3, UL-2271, RoHS, RED |
| Maintenance and Cleaning | Clean with a damp cloth; do not use a water jet |
| Safety | Wear a helmet; do not exceed maximum load; stop if battery temperature is abnormal |
| Spare Parts and Repairability | Available on the Segway website; battery removable by a professional |
Frequently Asked Questions - SEGWAY KICKSCOOTER F30D NINEBOT
User questions about SEGWAY KICKSCOOTER F30D NINEBOT
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Electric scooter in PDF format for free! Find your manual SEGWAY KICKSCOOTER F30D - NINEBOT and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. SEGWAY KICKSCOOTER F30D by NINEBOT.
USER MANUAL SEGWAY KICKSCOOTER F30D NINEBOT

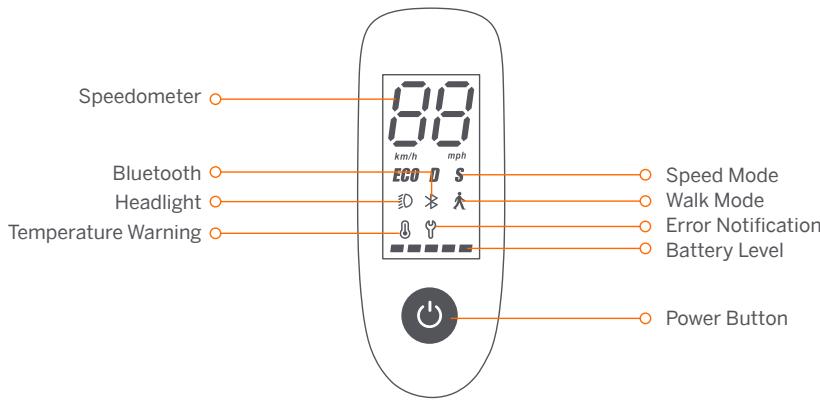

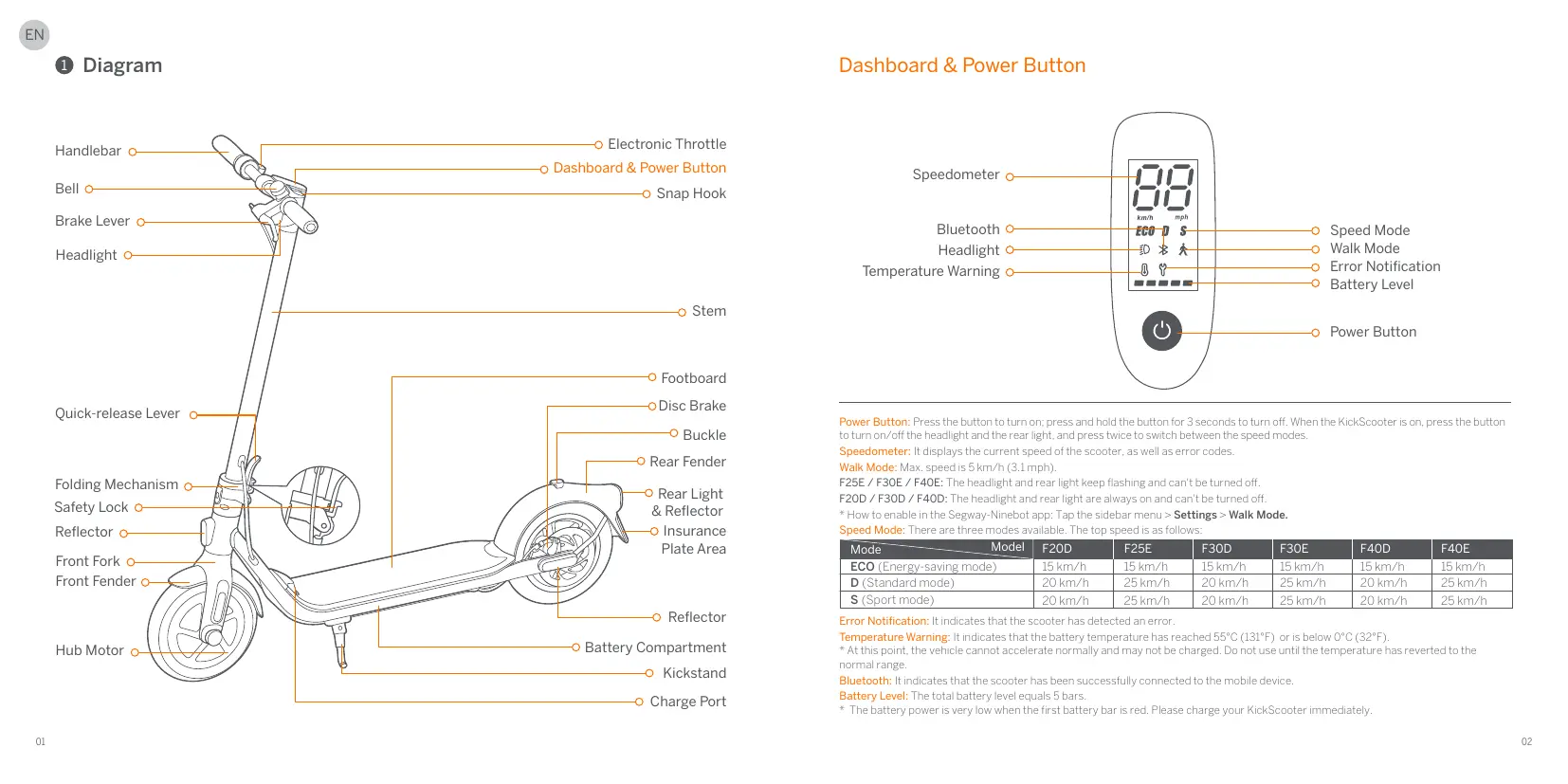

Dashboard & Power Button
Power Button: Press the button to turn on; press and hold the button for 3 seconds to turn off. When the KickScooter is on, press the button to turn on/off the headlight and the rear light, and press twice to switch between the speed modes.
Speedometer: It displays the current speed of the scooter, as well as error codes.
Walk Mode: Max. speed is 5km / h (3.1 mph).
F25E / F30E / F40E: The headlight and rear light keep flashing and can't be turned off.
F20D / F30D / F40D: The headlight and rear light are always on and can't be turned off.
- How to enable in the Segway-Ninebot app: Tap the sidebar menu > Settings > Walk Mode.
Speed Mode: There are three modes available. The top speed is as follows.
| Mode | Model | F20D | F25E | F30D | F30E | F40D | F40E |
| ECO (Energy-saving mode) | 15 km/h | 15 km/h | 15 km/h | 15 km/h | 15 km/h | 15 km/h | |
| D (Standard mode) | 20 km/h | 25 km/h | 20 km/h | 25 km/h | 20 km/h | 25 km/h | |
| S (Sport mode) | 20 km/h | 25 km/h | 20 km/h | 25 km/h | 20 km/h | 25 km/h | |
Error Notification: It indicates that the scooter has detected an error.
Temperature Warning: It indicates that the battery temperature has reached 55^ (131^) or is below 0^ (32^) .
- At this point, the vehicle cannot accelerate normally and may not be charged. Do not use until the temperature has reverted to the normal range.
Bluetooth: It indicates that the scooter has been successfully connected to the mobile device.
Battery Level: The total battery level equals 5 bars.
- The battery power is very low when the first battery bar is red. Please charge your KickScooter immediately.
2 Specifications
| Item | Parameter | ||
| Product | Name | Ninebot KickScooter | |
| Model | F20D | F25E | |
| Length × Width × Height | Approx. 1143 × 480 × 1160 mm (45 × 18.9 × 45.7 in) | ||
| Folded: Length × Width × Height | Approx. 1143 × 480 × 495 mm (45 × 18.9 × 19.5 in) | ||
| Net Weight | Approx. 16 kg (35.3 lbs) | Approx. 15.3 kg (33.7 lbs) | |
| Rider | Payload | 30-100 kg (66-220 lbs) | |
| Recommended Age | 14-60 years | ||
| Required Height | 120-200 cm (3'11"-6'6") | ||
| Machine | Max. Speed | Approx. 20 km/h (12.4 mph) | Approx. 25 km/h (15.5 mph) |
| Typical Range[1] | Approx. 20 km (12.4 miles) | Approx. 25 km (15.5 miles) | |
| Max. Slope | Approx. 10% | ||
| Traversable Terrain | Asphalt/flat pavement; obstacles < 0.4 in (1 cm); gaps < 1.2 in (3 cm) | ||
| Operating Temperature | -10-40°C (14-104°F) | ||
| Storage Temperature | -10-50°C (14-122°F) | ||
| IP Rating | IPX5 | ||
| Duration of Charging | Approx. 3.5 h | Approx. 5 h | |
| Battery | Nominal Voltage | 36 V --- | |
| Max. Charging Voltage | 42 V --- | ||
| Charging Temperature | 0-40°C (32-104°F) | ||
| Nominal Capacity | 5100 mAh | 7650 mAh | |
| Nominal Energy | 183 Wh | 275 Wh | |
| Battery Management System | Over-heating, short circuit, over-current, over-discharge and over-charge protection | ||
| Motor | Nominal Power | 0.25 kW, 250 W | |
| Charger | Output Power | 0.07 kW, 70 W | |
| Input Voltage | 100-240 V~ | ||
| Max. Output Voltage | 42 V --- | ||
| Rated Output | 41 V ---, 1.7 A | ||
| Features | Brake Light | N/A | LED Rear Light |
| Speed Modes | Energy-saving mode, Standard mode and Sport mode | ||
| Tire | Tire Pressure | 50-55 psi | 40-45 psi |
| Tires | 10-inch tubeless tire | 10-inch pneumatic tire | |
[1] Typical Range: tested while riding under full power, 75kg (165 lbs) load, 25^ (77^) 60% of max. speed on average on pavement.
* Some of the factors that affect range include speed, number of starts and stops, ambient temperature, etc.
| Item | Parameter | ||
| Product | Name | Ninebot KickScooter | |
| Model | F30E | F30D | |
| Length × Width × Height | Approx. 1143 × 480 × 1160 mm (45 × 18.9 × 45.7 in) | ||
| Folded: Length × Width × Height | Approx. 1143 × 480 × 495 mm (45 × 18.9 × 19.5 in) | ||
| Net Weight | Approx. 16.9 kg (37.3 lbs) | Approx. 16.4 kg (36.2 lbs) | |
| Rider | Payload | 30-120 kg (66-265 lbs) | |
| Recommended Age | 14-60 years | ||
| Required Height | 120-200 cm (3'11"-6'6") | ||
| Machine | Max. Speed | Approx. 25 km/h (15.5 mph) | Approx. 20 km/h (12.4 mph) |
| Typical Range[1] | Approx. 30 km (18.6 miles) | ||
| Max. Slope | Approx. 15% | ||
| Traversable Terrain | Asphalt/flat pavement; obstacles < 0.4 in (1 cm); gaps < 1.2 in (3 cm) | ||
| Operating Temperature | -10-40°C (14-104°F) | ||
| Storage Temperature | -10-50°C (14-122°F) | ||
| IP Rating | IPX5 | ||
| Duration of Charging | Approx. 6.5 h | Approx. 5 h | |
| Battery | Nominal Voltage | 36 V --- | |
| Max. Charging Voltage | 42 V --- | ||
| Charging Temperature | 0-40°C (32-104°F) | ||
| Nominal Capacity | 10.2 Ah | 7650 mAh | |
| Nominal Energy | 367 Wh | 275 Wh | |
| Battery Management System | Over-heating, short circuit, over-current, over-discharge and over-charge protection | ||
| Motor | Nominal Power | 0.3 kW, 300 W | |
| Charger | Output Power | 0.07 kW, 70 W | |
| Input Voltage | 100-240 V~ | ||
| Max. Output Voltage | 42 V --- | ||
| Rated Output | 41 V ---, 1.7 A | ||
| Features | Brake Light | LED Rear Light | N/A |
| Speed Modes | Energy-saving mode, Standard mode and Sport mode | ||
| Tire | Tire Pressure | 50-55 psi | |
| Tires | 10-inch tubeless tire | ||
[1] Typical Range: tested while riding under full power, 75kg (165 lbs) load, 25^ (77^) 60% of max. speed on average on pavement.
* Some of the factors that affect range include speed, number of starts and stops, ambient temperature, etc.
| Item | Parameter | ||
| Product | Name | Ninebot KickScooter | |
| Model | F40E | F40D | |
| Length × Width × Height | Approx. 1143 × 480 × 1160 mm (45 × 18.9 × 45.7 in) | ||
| Folded: Length × Width × Height | Approx. 1143 × 480 × 495 mm (45 × 18.9 × 19.5 in) | ||
| Net Weight | Approx. 17.1 kg (37.7 lbs) | ||
| Rider | Payload | 30-120 kg (66-265 lbs) | |
| Recommended Age | 14-60 years | ||
| Required Height | 120-200 cm (3'11"-6'6") | ||
| Machine | Max. Speed | Approx. 25 km/h (15.5 mph) | Approx. 20 km/h (12.4 mph) |
| Typical Range[1] | Approx. 40 km (24.9 miles) | ||
| Max. Slope | Approx. 20% | ||
| Traversable Terrain | Asphalt/flat pavement; obstacles < 0.4 in (1 cm); gaps < 1.2 in (3 cm) | ||
| Operating Temperature | -10-40°C (14-104°F) | ||
| Storage Temperature | -10-50°C (14-122°F) | ||
| IP Rating | IPX5 | ||
| Duration of Charging | Approx. 6.5 h | ||
| Battery | Nominal Voltage | 36 V --- | |
| Max. Charging Voltage | 42 V --- | ||
| Charging Temperature | 0-40°C (32-104°F) | ||
| Nominal Capacity | 10.2 Ah | ||
| Nominal Energy | 367 Wh | ||
| Battery Management System | Over-heating, short circuit, over-current, over-discharge and over-charge protection | ||
| Motor | Nominal Power | 0.35 kW, 350 W | |
| Charger | Output Power | 0.07 kW, 70 W | |
| Input Voltage | 100-240 V~ | ||
| Max. Output Voltage | 42 V --- | ||
| Rated Output | 41 V ---, 1.7 A | ||
| Features | Brake Light | LED Rear Light | N/A |
| Speed Modes | Energy-saving mode. Standard mode and Sport mode | ||
| Tire | Tire Pressure | 50-55 psi | |
| Tires | 10-inch tubeless tire | ||
[1] Typical Range: tested while riding under full power, 75kg (165 lbs) load, 25^ (77^) 60% of max. speed on average on pavement.
* Some of the factors that affect range include speed, number of starts and stops, ambient temperature, etc.
Certifications
This product is certified to ANSI/CAN/UL-2272 by TUV Rheinland.
The battery complies with UN/DOT 38.3.
The battery complies with ANSI/CAN/UL-2271.
European Union Compliance Statement
Important WEEE information
WEEE Disposal and Recycling Information Correct Disposal of this product. This marking indicates that this product should not be disposal with other household wastes throughout the EU.
To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsible to promote the sustainable reuse of materials resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.
Battery recycling information for the European Union
Batteries or packaging for batteries are labeled in accordance with European Directive 2006/66/EC and amendment 2013/56/EU concerning batteries and accumulators and waste batteries and accumulators. The Directive determines the framework for the return and recycling of used batteries and accumulators as applicable throughout the European Union. This label is applied to various batteries to indicate that the battery is not to be thrown away, but rather reclaimed upon end of life per this Directive.
In accordance with the European Directive 2006/66/EC and amendment 2013/56/EU, batteries and accumulators are labeled to indicate that they are to be collected separately and recycled at end of life. The label on the battery may also include a chemical symbol for the metal concerned in the battery (Pb for lead, Hg for mercury, and Cd for cadmium). Users of batteries and accumulators must not dispose of batteries and accumulators as unsorted municipal waste, but use the collection framework available to customers for the return, recycling, and treatment of batteries and accumulators. Customer participation is important to minimize any potential effects of batteries and accumulators on the environment and human health due to the potential presence of hazardous substances.
Before placing electrical and electronic equipment (EEE) in the waste collection stream or in waste collection facilities, the end user of equipment containing batteries and/or accumulators must remove those batteries and accumulators for separate collection.
Restriction of Hazardous Substances (RoHS) Directive
This Ninebot (Changzhou) Tech Co., Ltd. product, with included parts (cables, cords, and so on) meets the requirements of Directive 2011/65/EU on the restriction of the use of certain hazardous substances in electrical and electronic equipment ("RoHS recast" or "RoHS 2").
Radio Equipment Directive
Segway-Ninebot EMEA, Dynamostraat 7, 1014 BN Amsterdam, The Netherlands
The company "Ninebot (Changzhou) Tech Co., Ltd." hereby declares that this device complies with the essential requirements and other relevant provisions of the RED directive 2014/53/EU, the machinery directive 2006/42/EC and the RoHS directive 2011/65/EU.
The declaration of conformity can be viewed at the following address: http://eu-en.segway.com/support-instructions
| Bluetooth | Frequency Band(s) | 2.4000-2.4835GHz |
| Max. RF Power | 20mW |

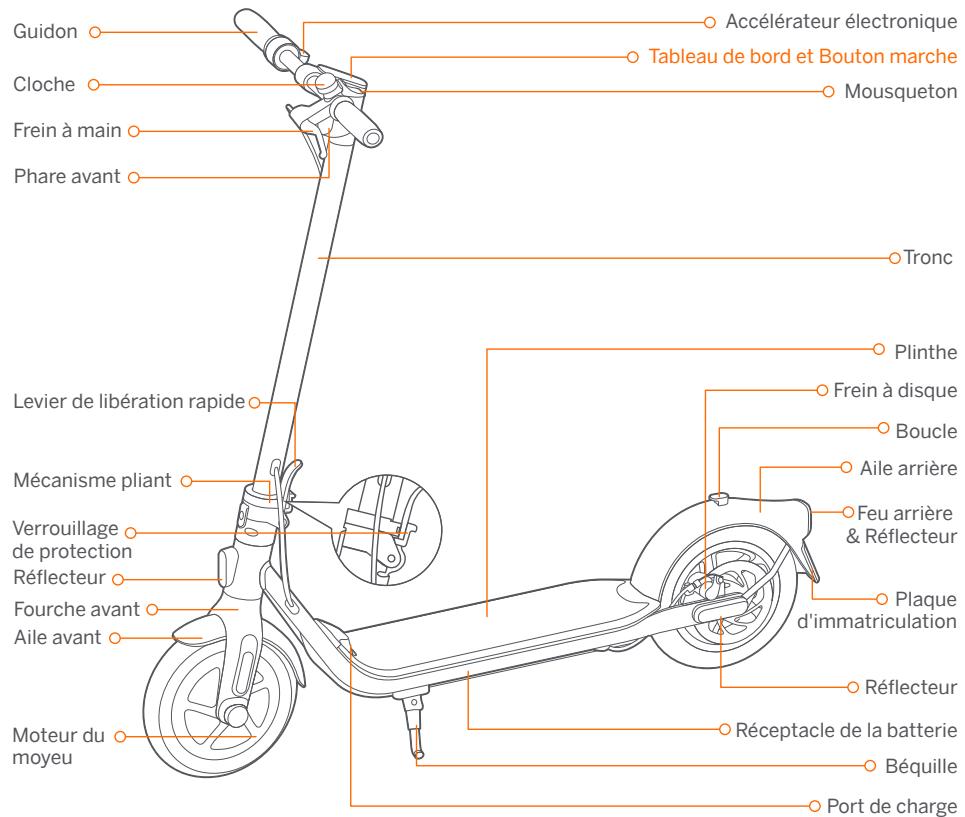

Diagramme
