SYMPHONIE PLUS 56 6839181 - SYMPHONIE PLUS 770 6839174 - Cooker ROBLIN - Free user manual and instructions

Product type	Range hood
Brand	ROBLIN
Model	SYMPHONIE PLUS 56 (6839181) / SYMPHONIE PLUS 770 (6839174)
Suction functions	3 speeds + intensive mode (6 min)
Intensive mode	Activation by long press (2s) on button 3 >>, automatic return after 6 min
Delayed shut-off	Not available
Filter saturation alarm	Not available (activation and deactivation not present)
Lighting	LED, on/off by short press, replacement by customer service
Grease filters	Dishwasher-safe (max 50°C), 10-year lifespan, monthly cleaning
Odor filters	Two types: washable (reactivatable in oven) and non-washable. Replacement every 3 months (non-washable) or cleaning every 2 months (washable)
Clean-air filter	Present on CLEAN-R recirculation models, replacement with UV lamp (6000h or 3 years)
Body cleaning	Damp cloth and mild detergent, avoid abrasive products
Safety instructions	Do not flambé under the hood, monitor deep fryers, do not use steam, do not look at LEDs, disconnect power before maintenance
Spare parts	Odor filter (112.0363.267), grease filter (133.0455.256), LED lighting
Customer service	Phone: [phone] (consumer service), website: www.roblin.fr
Technical data	See rating plate on appliance or www.roblin.fr

Frequently Asked Questions - SYMPHONIE PLUS 56 6839181 - SYMPHONIE PLUS 770 6839174 ROBLIN

How to turn on the hood?

Press briefly on button 1, 2, or 3 >> to start suction at the desired speed. The button lights up steadily.

How to activate intensive mode?

Press and hold (2 seconds) on button 3 >>. Intensive mode activates for 6 minutes, then returns to previous speed. The button flashes.

How often to clean the grease filters?

Grease filters must be cleaned once a month under normal use. They are dishwasher safe up to 50°C.

How to replace the non-washable odor filter?

Open the perimeter suction panel, separate the odor filter from the grease filter, discard the old filter and put the new one in place (the blue one). Close the panel. Replace it every 3 months minimum.

What to do if the filter saturation alarm lights up?

This alarm is not available on your model (non-existent function). Manually check the condition of the filters.

Can I clean the hood with a steam cleaner?

No, do not use pressurized steam to clean the appliance. Use a damp cloth and mild detergent.

How to turn off the lighting?

Press briefly on the lighting on/off button. The LED turns off and the button turns off.

Is the appliance suitable for people with reduced mobility?

This appliance must not be used by persons (including children under 8 years) with reduced capabilities without supervision or appropriate training.

How to contact customer service?

Call consumer service at 04.88.78.59.93 or visit www.roblin.fr for contact details according to your country.

What are the risks if I flambé food under the hood?

Grease captured by the filters can catch fire. Never flambé dishes under the hood and maintain the grease filters regularly.

USER MANUAL SYMPHONIE PLUS 56 6839181 - SYMPHONIE PLUS 770 6839174 ROBLIN

MANUEL D'UTILISATION

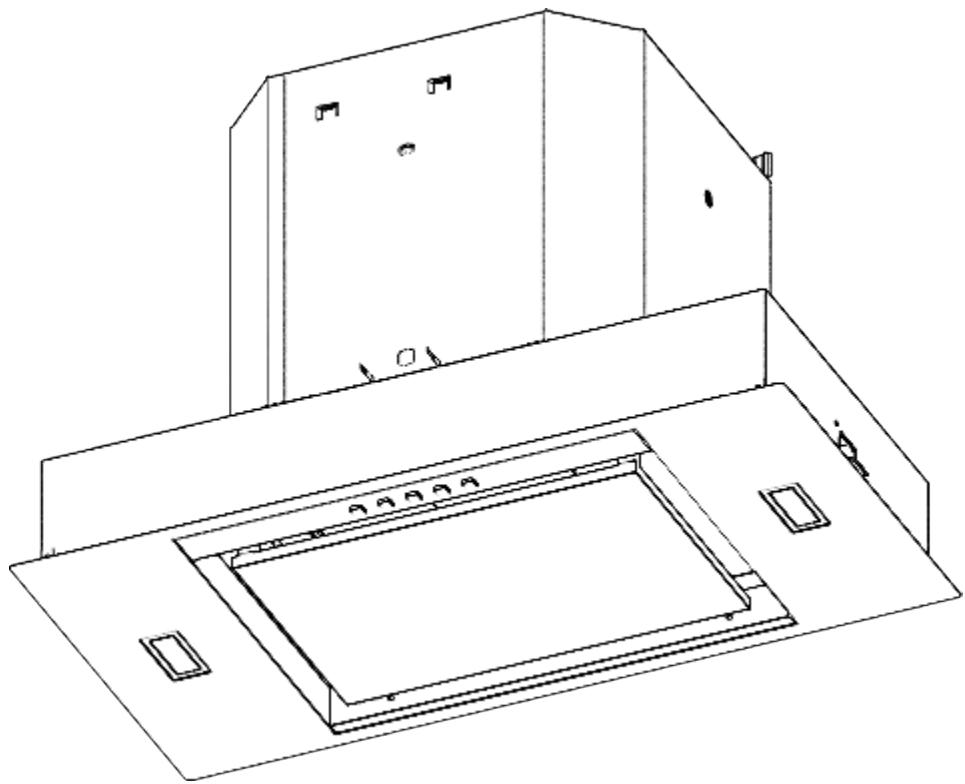

Technical line drawing of a mechanical assembly with mounting bracket and internal components (no text or symbols)

SYMPHONIE PLUS

Kitchen extractor hood

Küchenabzugshaube

Cappa aspirante

Campana extractora

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical illustration showing a blue panel mounted on a wall and a grid-patterned door with a handle, alongside a blue platform (no text or symbols)

Technical line drawing of two views of a solar panel installation (no text or symbols)

Hand inserting a grid into a blue plastic panel (no text or symbols visible)

TABLE OF CONTENTS

About this manual 12

Intended use 12

Safety information 13

Overview 14

Operation 15

Lighting control 15

Extraction control 15

Extraction shutoff 15

Toggling the intensive setting 15

Ventilation mode 24 h 15

Shutoff delay 16

Filter saturation alarm 16

Alarm messages 16

Cleaning and care 17

Odour filter 17

Clean-air filter 17

Grease filter 18

Cleaning the surfaces of the hood 18

Lighting 18

Spare parts and accessories 18

Maintenance and repair 19

Disposal 19

Customer service 19

Technical data 19

ABOUT THIS MANUAL

This user manual applies to several models of the device. Thus it may be possible that some of the described features and functions are not available on your specific model.

▷ Carefully read the user manual before using the device.
▷ Keep the user manual.
▷ Use the device described in this user manual only according to the intended use.

Symbol	Meaning
	Warning symbol. Warning against risks of injury.
▷	Actions in safety and warning notes to avoid injury or damage.
▶	Action step. Specifies an action to be done.
■	Result. Result of one or more action steps.
√	Precondition that has to be fulfilled before performing the following action.

INTENDED USE

The hood was developed exclusively for domestic use to eliminate cooking vapours.

The hood, which is equipped with a grease filter and an odour filter, removes vapours forming over a stove top via an air circulation or an air exhaust system.

SAFETY INFORMATION

The manufacturer can not be made liable for possible damage which may occur due to incorrect installation and incorrect, improper or unreasonable use of the device.

The hood can not support heavy loads.

Do not climb, stand or sit on the hood.
Do not place heavy objects on the hood.

Children and persons with restricted physical, sensory or mental abilities, or with limited experience or knowledge, may not use or clean the device, except they are supervised and instructed by a person responsible for their safety.

Children under 8 years may not use or clean the device even if supervised.

This device is not a toy.

▷ Keep children away from the device and the packaging material.
Do not leave children near the device unattended.
Do not let children play with the device.
▷ When using the hood, observe the manuals of the stove top and of the cooking devices that are used beneath the hood or while the hood is running.

Fire hazard and risk of injury due to open flame!

Deposits in the grease filter may catch fire.

Do not use open flames near the device (e.g. flambéing).
▷ Always clean or change all filters at the specified intervals.

When using deep fat fryers, overheated oil can burst into flames.

▷ Continuously monitor fryers during use.

Risk of eye injury due to LED light!

The LED light is very bright and may damage the eyes.

Do not look directly into the LED light for a prolonged time.

Risk of electric shock due to damaged device!

▷ Do not switch on a damaged device.
▷ Switch off the fuse in the fuse box.
▷ Contact the customer service.

Risk of electric shock due to entering liquid!

The device contains electrical components.

▷ Make sure that no liquid enters the interior of the device.
Do not use pressurised steam to clean the device.
Do not use a wet cloth to clean the operating elements.

Risk of burns due to hot surfaces!

Accessible metallic parts of the hood may become very hot when used with cooking appliances, that emit great amounts of heat (e.g. gas hobs).

▷ Do not touch hot surfaces.
▷ Be careful when opening or closing the fold-out panel.
▷ Wear heat-resistant gloves.

OVERVIEW

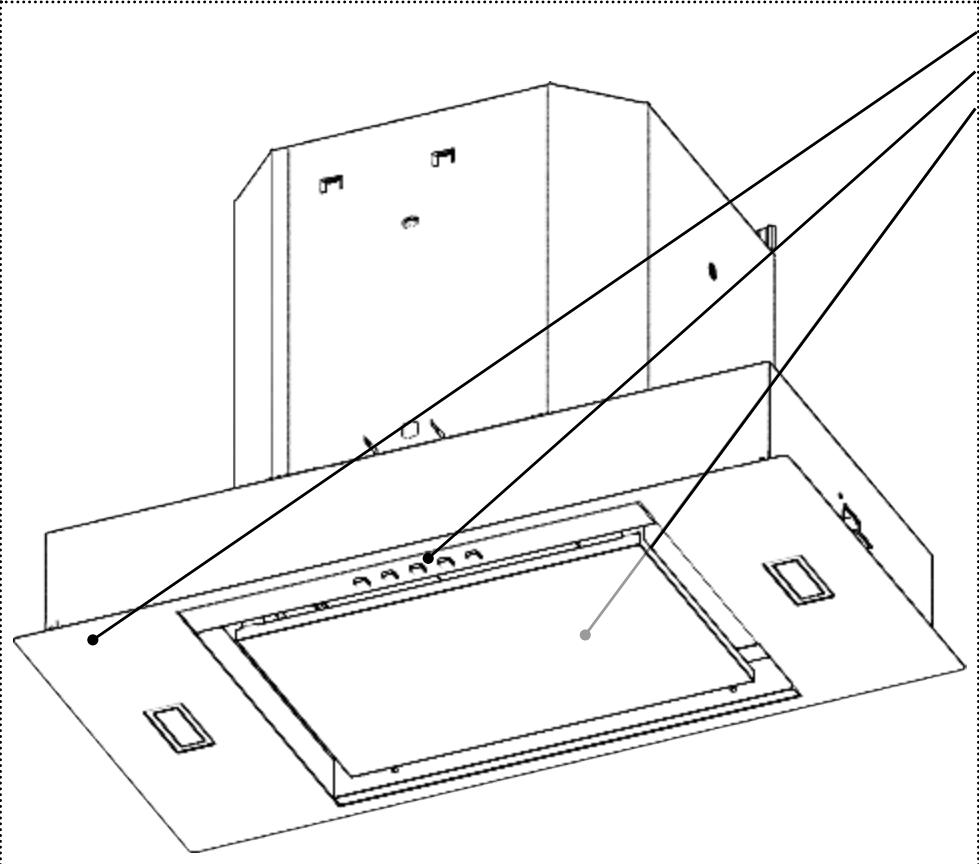

Technical line drawing of a mechanical assembly with no visible text or symbols

1 Facade
2 Control keypad
3 Filter

Keybords Function

0

Off button

1

First speed of extraction

2

Second speed of extraction

3 >>

Third speed and Intensive speed of extraction

Lighting On/Off button

Locking and unlocking the keys of the operating panel

▶ Non-existent function.

Lighting control

Main lighting

▶ Briefly press
■ Turns the lighting on/off used
■ Lighting on = button permanently on.

Secondary lighting

▶ Non-existent function.

Extraction control

Extraction level

Low speeds are recommended for low heat cooking and for sauces, simmering, etc.

Intermediate speeds are recommended for medium to fast cooking, grilling and frying.

High speeds are recommended for cooking that creates a lot fat and vapour.

Extraction start

▶ Briefly press. 1
■ Turn on the vacuum motor at first speed of use.
■ Fixed light button.
▶ Briefly press. 2
■ Turn on the vacuum motor at second speed of use.
■ Fixed light button.
▶ Briefly press. 3 >>
■ Turn on the vacuum motor at third speed of use.
■ Fixed light button.

Extraction shutoff

▶ Briefly press. 0
■ Switches the extraction motor off.

Toggling the intensive setting

The intensive extraction mode is recommended if the vapours and fumes occasionally become excessive.

Switching on

▶ Long press (2s) . 3 »

■ Activates the intensive extraction mode, even with the motor off, for 6 minutes and then return to the speed used previously.
■ Flashing button lit.

Ventilation mode 24 h

This function allows you to remove all the unpleasant and persistent smells in your room by renewing the air.

Switching on

▶ Non-existent function..

Switching off

▶ Non-existent function.

Shutoff delay

This function allows you to temporarily continue filtering and extracting residual smoke after the cooking has stopped.

Switching on

▶ Non-existent function.

Switching off

▶ Non-existent function.

Filter saturation alarm

The alarm tells you when the grease filters and the odour filters need to be cleaned or replaced (for the non-washable odour filters).

Activating the alarm „filter saturation“

Depending on the type of control keyboard, the „Filter saturation“ alarm may need to be activated if your appliance is a recycling or clean-air type.

▶ Non-existent function.

Deactivating the alarm „filter saturation“

▶ Non-existent function.

Resetting the alarm „filter saturation“

▶ Non-existent function.

Alarm messages

▶ Non-existent function.

Before performing any cleaning and maintenance:

▷ Switch off the device.

Les grFire hazard! Risk of injury!

Deposits in the grease filter may catch fire.

Filters that are not cleaned or changed regularly may catch fire if open flames or extensive heat are handled beneath the hood.

▷ Always clean or change all filters at the specified intervals.

Odour filter

There are two types of odour filter: washable and non-washable.

Non-washable odour filter

Do not wash or reuse a non-washable odour filter.
▷ Replace non-washable odour filters at least every 3 months, or more often if the hood is used for more than 3 hours per day.
▷ Grease filters should always be cleaned at the same time as replacing non-washable odour filters.

Washable odour filter

▷ Clean washable odour filters in a dishwasher at high temperature (without other kitchen utensils) every 2 months. Dry odour filters with the dishwasher or in the open air for approximately 30 minutes.
▶ Reactivate the washed and dried washable odour filters by placing them in an oven for 10 minutes at 100^ C maximum. Z Grease filters should always be cleaned at the same time as cleaning washable odour filters.

Clean-air filter

Clean-air filters are fitted to hoods fitted with the

recycling system

CLEAN-R

▷ Only replace a clean-air filter if the associated ultra violet lamp needs to be replaced. The service life of an ultra violet lamp is approximately 6000h or 3years.

Replacing washable odour filters

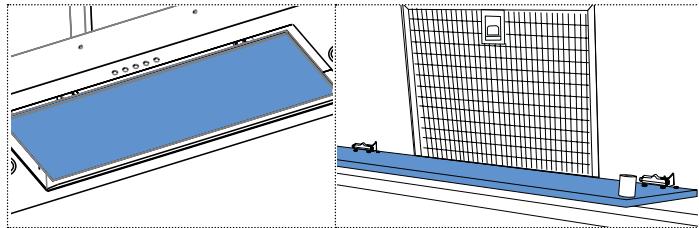

▶ Open the perimetric extraction panel.

Diagram showing a blue panel mounted on a platform next to a grid-patterned wall (no text or symbols)

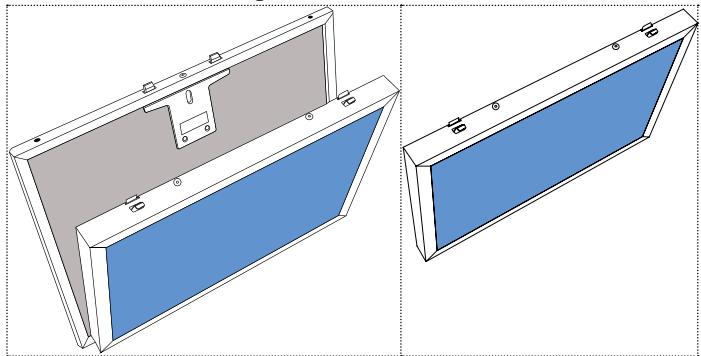

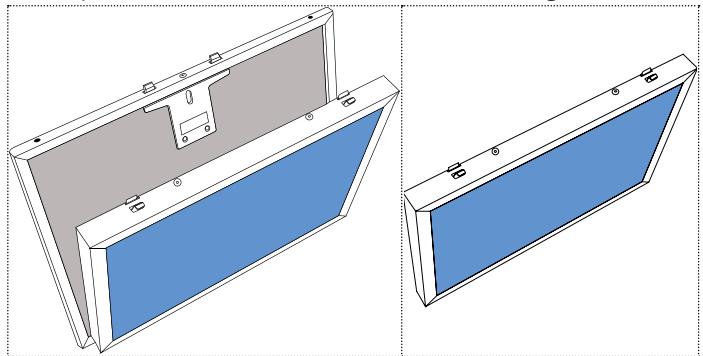

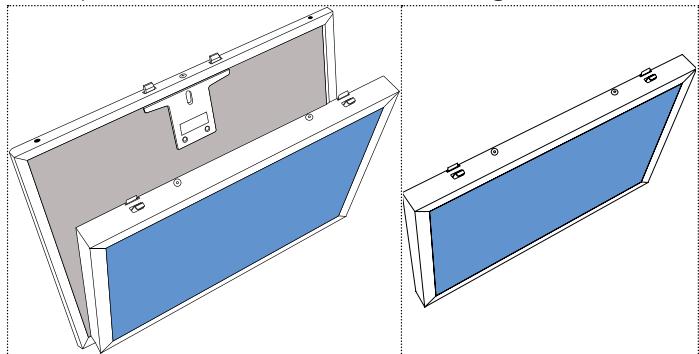

▶ Separate the odour filter from the grease filter.

Technical line drawing of two views of a solar panel installation (no text or symbols)

▶ Repeat the procedure in the reverse order to reposition the odour filter (in blue) on the appliance.
▶ Re-initialize the „filter saturation“ alarm if necessary.

Grease filter

These filters have a service life of 10 years and should be cleaned once a month with normal use.

▷ Clean grease filters in a dishwasher at a maximum temperature of 50^ C.
▷ Let the filters dry in the open air.

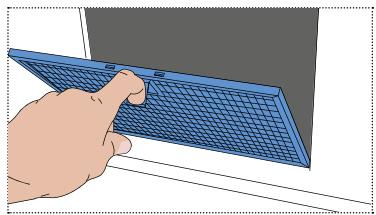

Cleaning the grease filter

▶ Open the perimetric extraction panel.

Illustration of a hand inserting a blue mesh grid into a panel (no text or symbols)

▶ Remove the grease filters.
▶ Clean the grease filter.
▶ Fit the the grease filter.
▶ Close the perimetric extraction panel.
▶ Re-initialize the „filter saturation“ alarm if necessary.

Cleaning the surfaces of the hood

We recommend a damp cloth and a mild detergent.

▶ Do not use any scouring agents or chemical detergents, which could corrode or scratch the surfaces of the device.

Lighting

▷ Make sure that the LED in the spotlights are changed only by the customer service.

SPARE PARTS AND ACCESSORIES

Spare parts (+33 (0)1.30.28.94.00).

Accessories (+33 (0)1.30.28.94.00).

Component	Type, item no.	Remark
Odour filter	112.0363.267	high performance, not washable
Grease filter	133.0455.256	washable

MAINTENANCE AND REPAIR

Repairs if carried out incorrectly may cause serious injury, damage to the device and fittings, as well as affect the functioning of the device.

▷ Make sure that maintenance on electrical components and on the smoke vent is carried out only by the manufacturer or the customer service.
▷ Make sure that damaged cables are changed only by the manufacturer or the customer service.

SCRAPPING

The symbol on the product or on the packaging indicates that the device must not be disposed of in the domestic waste.

By disposing of the device in a proper way you help to avoid harmful consequences to environment and health.

▷ Please find out about the local system of sorting for electrical and electronic waste.
▷ Please act according to the local regulations and do not dispose of your used product with general household waste.
▷ Disposing of your end-of-life product correctly will help prevent potentially negative consequences for the environment and human health.

CUSTOMER SERVICE

▶ Refer to the contact address for your country on the back page or www.roblin.fr

TECHNICAL DATA

▶ Refer to the type plate placed on the product. Further information on technical data is available on www.roblin.fr

www.roblin.fr

INHALTSVERZEICHNIS

Technical line drawing of a mechanical assembly with no visible text or symbols

1 Front
2 Bedientastatur
3 Filter

Taste

0

1

2

3 >>

Funktion

Aus-Taste

Technical line drawing showing a blue panel mounted on a platform next to a grid-patterned wall (no text or symbols)

Technical line drawing of two views of a solar panel installation (no text or symbols)

Illustration of a hand inserting a grid into a device (no text or symbols visible)

INDICE

Technical line drawing of a mechanical assembly with no visible text or symbols

Diagram showing a blue panel mounted on a platform next to a grid-patterned wall-mounted device (no text or symbols present)

Technical line drawing of two views of a solar panel installation (no text or symbols)

Illustration of a hand inserting a blue mesh grid into a laptop (no text or symbols)

ÍNDICE

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical illustration of a solar panel installation with a grid-patterned panel and mounting base (no text or symbols)

▶ Separe el filtro antiolores del filtro antigrasa.

Technical line drawing of two views of a solar panel installation (no text or symbols)

Illustration of a hand inserting a grid into a blue panel (no text or symbols)

INHOUDSOPGAVE

Technical line drawing of a mechanical assembly with no visible text or symbols

met clean-air filters

Technical line drawing of a mechanical assembly with a blue panel and grid-patterned wall (no text or symbols)

▶ Scheidt de anti-geurfilter van de anti-vetfilter

Technical line drawing of two views of a solar panel installation (no text or symbols)

Illustration of a hand inserting a grid into a blue mesh device (no text or symbols)

Franke France S.A.S.

B.P 13 - Avenue Aristide Briand

60230 Chambly (France)
