USER MANUAL LEIHDC 110 SCEU FALCON
LEIHDC120BB-EU LEIHDC120BC-EU LEIHDC120SC-EU FALHDC120BB FALHDC120BC FALHDC90CR/C FALHDC110CR/C FALHDC90CY/C FALHDC110CY/C Downloaded from www.Manualslib.com manuals search engine
2 Downloaded from www.Manualslib.com manuals search engine
3 Downloaded from www.Manualslib.com manuals search engine
IT Downloaded from www.Manualslib.com manuals search engine
CARATTERISTICHE Ingombro
598 - 898 - 1098 - 1198
IT Downloaded from www.Manualslib.com manuals search engine
IT Downloaded from www.Manualslib.com manuals search engine
IT Downloaded from www.Manualslib.com manuals search engine
IT Downloaded from www.Manualslib.com manuals search engine
IT Downloaded from www.Manualslib.com manuals search engine
IT Downloaded from www.Manualslib.com manuals search engine
RECOMMENDATIONS AND SUGGESTIONS The Instructions for Use apply to several versions of this appliance. Accordingly, you may find descriptions of individual features that do not apply to your specific appliance.

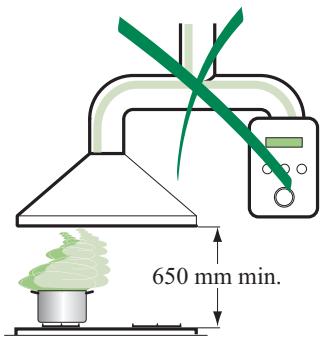

• The manufacturer will not be held liable for any damages resulting from incorrect or improper installation. • The minimum safety distance between the cooker top and the extractor hood is 650 mm (some models can be installed at a lower height, please refer to the paragraphs on working dimensions and installation). • Check that the mains voltage corresponds to that indicated on the rating plate fixed to the inside of the hood. • For Class I appliances, check that the domestic power supply guarantees adequate earthing. Connect the extractor to the exhaust flue through a pipe of minimum diameter 120 mm. The route of the flue must be as short as possible. • Do not connect the extractor hood to exhaust ducts carrying combustion fumes (boilers, fireplaces, etc.). • If the extractor is used in conjunction with non-electrical appliances (e.g. gas burning appliances), a sufficient degree of aeration must be guaranteed in the room in order to prevent the backflow of exhaust gas. The kitchen must have an opening communicating directly with the open air in order to guarantee the entry of clean air.
• The extractor hood has been designed exclusively for domestic use to eliminate kitchen smells. • Never use the hood for purposes other than for which it has been designed. • Never leave high naked flames under the hood when it is in operation. • Adjust the flame intensity to direct it onto the bottom of the pan only, making sure that it does not engulf the sides. • Deep fat fryers must be continuously monitored during use: overheated oil can burst into flames. • Do not flambè under the range hood; risk of fire • This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. • Children should be supervised to ensure that they do not play with the appliance.
• Switch off or unplug the appliance from the mains supply before carrying out any maintenance work. • Clean and/or replace the Filters after the specified time period (Fire hazard). • Clean the hood using a damp cloth and a neutral liquid detergent. The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.
EN Downloaded from www.Manualslib.com manuals search engine

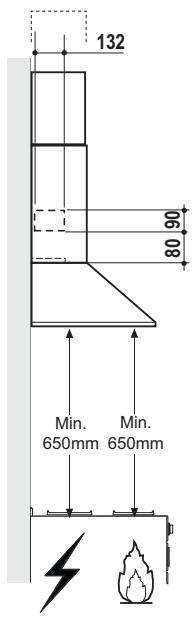

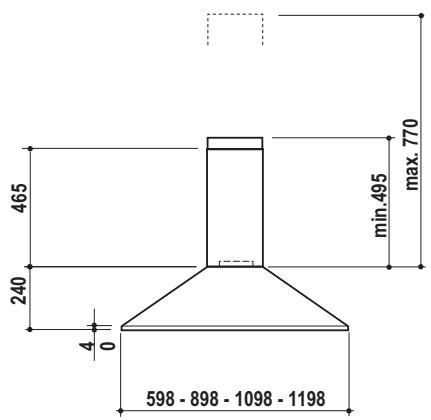

CHARACTERISTICS Dimensions
598 - 898 - 1098 - 1198

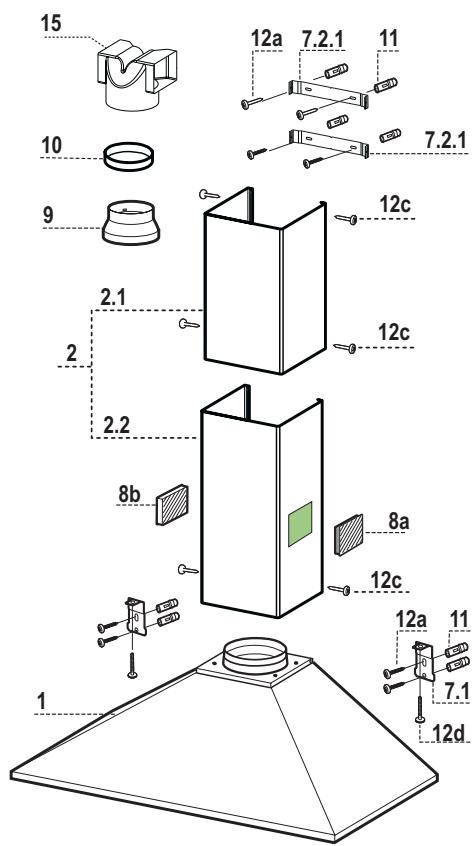

Ref. Q.ty Product Components 1 1 Hood Body, complete with: Controls, Light, Blower, Filters 2 1 Telescopic Chimney comprising: 2.1 1 Upper Section 2.2 1 Lower Section 8a 1 Right Air Outlet Grill 8b 1 Left Air Outlet Grill 9 1 Reducer Flange ø 150-120 mm 10 1 Adapting ring ø 120-125 mm 15 1 Air Outlet Connection Ref. Q.ty Installation Components 7.1 2 Hood Body Fixing Brackets 7.2.1 2 Upper Chimney Section Fixing Brackets 11 8 Wall Plugs 12a 8 Screws 4.2 x 44,4 12c 6 Screws 2.9 x 9.5 12d 2 Screws M4 x 25 Q.ty Documentation 1 Instruction Manual
EN Downloaded from www.Manualslib.com manuals search engine

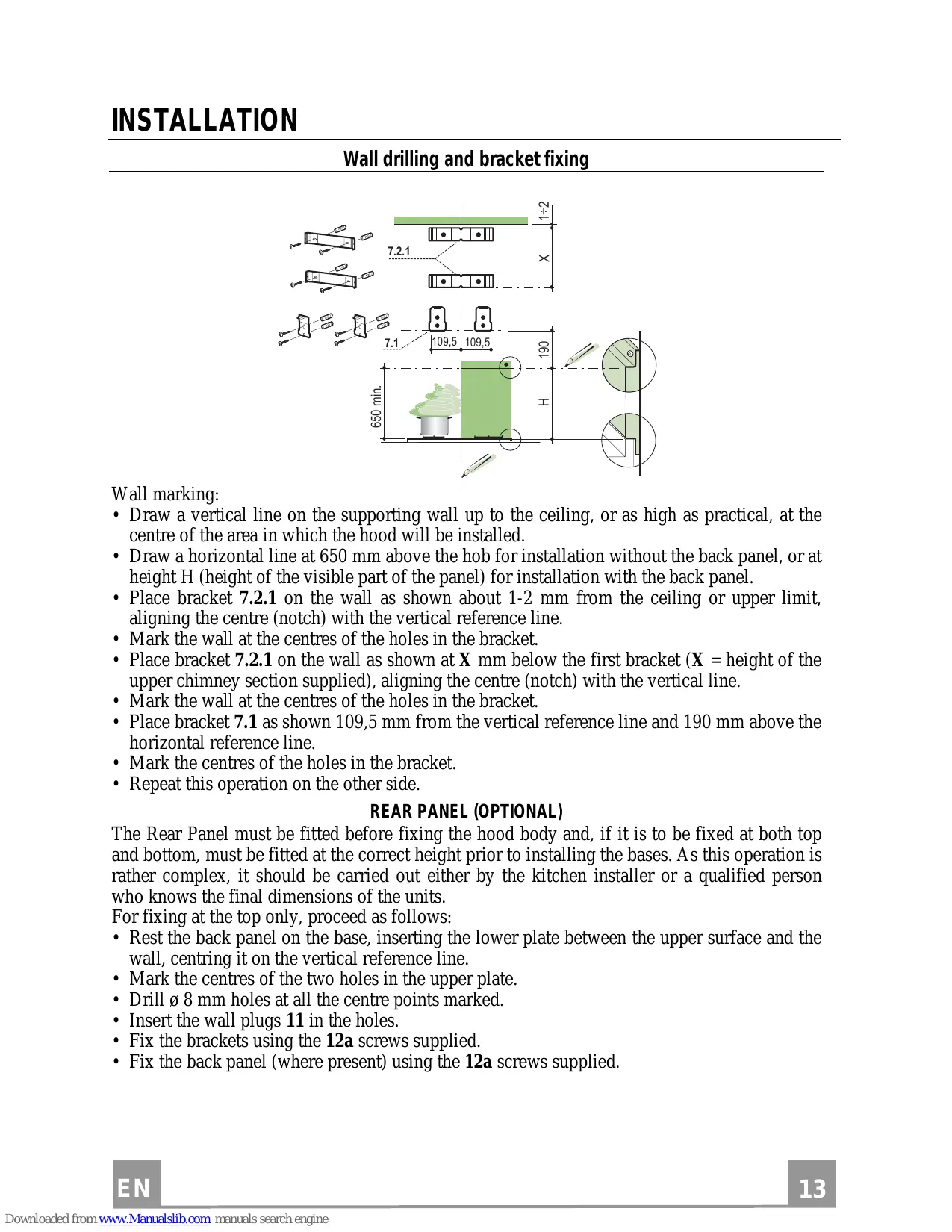

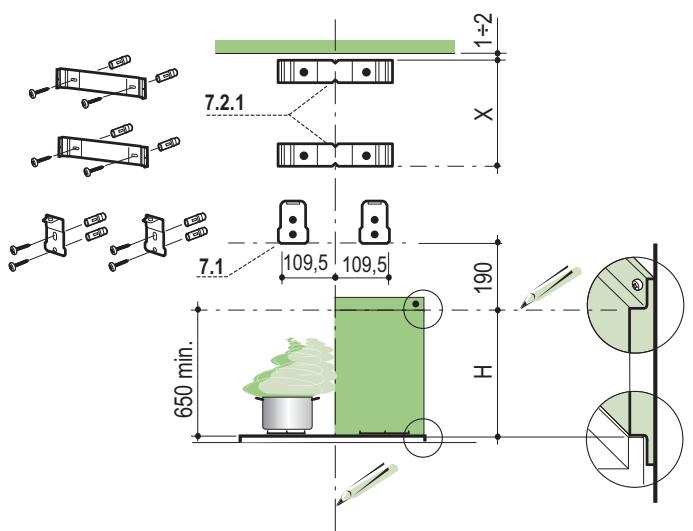

Wall drilling and bracket fixing
• Draw a vertical line on the supporting wall up to the ceiling, or as high as practical, at the centre of the area in which the hood will be installed. • Draw a horizontal line at 650 mm above the hob for installation without the back panel, or at height H (height of the visible part of the panel) for installation with the back panel. • Place bracket 7.2.1 on the wall as shown about 1-2 mm from the ceiling or upper limit, aligning the centre (notch) with the vertical reference line. • Mark the wall at the centres of the holes in the bracket. • Place bracket 7.2.1 on the wall as shown at X mm below the first bracket (X = height of the upper chimney section supplied), aligning the centre (notch) with the vertical line. • Mark the wall at the centres of the holes in the bracket. • Place bracket 7.1 as shown 109,5 mm from the vertical reference line and 190 mm above the horizontal reference line. • Mark the centres of the holes in the bracket. • Repeat this operation on the other side. REAR PANEL (OPTIONAL) The Rear Panel must be fitted before fixing the hood body and, if it is to be fixed at both top and bottom, must be fitted at the correct height prior to installing the bases. As this operation is rather complex, it should be carried out either by the kitchen installer or a qualified person who knows the final dimensions of the units. For fixing at the top only, proceed as follows: • Rest the back panel on the base, inserting the lower plate between the upper surface and the wall, centring it on the vertical reference line. • Mark the centres of the two holes in the upper plate. • Drill ø 8 mm holes at all the centre points marked. • Insert the wall plugs 11 in the holes. • Fix the brackets using the 12a screws supplied. • Fix the back panel (where present) using the 12a screws supplied.
EN Downloaded from www.Manualslib.com manuals search engine

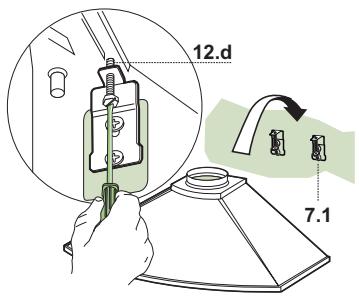

Mounting the hood body
• Screw the two screws 12d supplied onto the brackets 7.1.
• Hook the hood body onto the bracket 7.1, centring it around the vertical line. • Use the adjusting screws 12d underneath the hood to level the hood body.

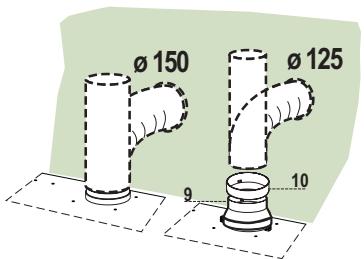

DUCTED VERSION AIR EXHAUST SYSTEM When installing the ducted version, connect the hood to the chimney using either a flexible or rigid pipe ø 150 or 125 mm, the choice of which is left to the installer.
• To install a ø 125 mm air exhaust connection, insert the reducer flange 9 on the hood body air outlet and the adapting ring ø120-125 10 on the reducer flange.
• Fix the pipe in position using sufficient pipe clamps (not supplied). • Remove any activated charcoal filters.

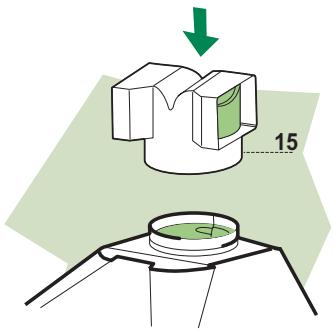

RECIRCULATION VERSION AIR OUTLET
• Push fit the air outlet fitting 15 onto the air outlet of the hood body. 15
• Ensure that the activated charcoal filters have been inserted.
EN Downloaded from www.Manualslib.com manuals search engine
ELECTRICAL CONNECTION
• Connect the hood to the mains through a two-pole switch having a contact gap of at least 3 mm. • Remove the grease filters (see paragraph Maintenance) being sure that the connector of the feeding cable is correctly inserted in the socket placed on the side of the fan.

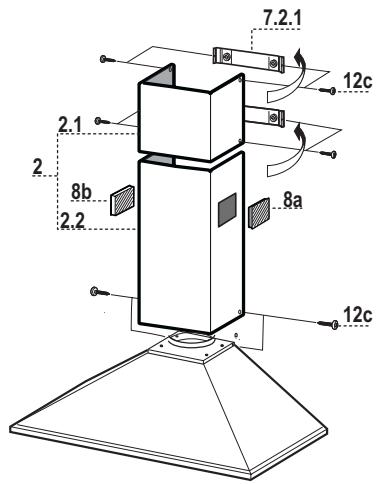

Upper chimney section • Slightly widen the two sides of the upper chimney and hook them behind the brackets 7.2.1, making sure that they are properly housed. • Secure the sides to the brackets using the 4 screws 12c (2,9 x 9,5) supplied. Lower chimney section • Slightly widen the two sides of the section and hook them between the upper section and the wall, making sure that they are properly housed. • Fix the sides of the bottom section to the hood body using the 2 screws 12c (2,9 x 9,5) supplied. • When installing the recirculation version, fit the directional grills 8a – 8b in their housings so that the directional symbols are at the top and towards the front of the hood. Ensure that they are inserted correctly in the outlet connection piece 15.
EN Downloaded from www.Manualslib.com manuals search engine
Switches the lighting system on and off
Switches the extractor motor on and off
Sets the operating speed of the extractor:
1. Low speed, used for a continuous and silent air change in the presence of light cooking vapour. 2. Medium speed, suitable for most operating conditions given the optimum treated air flow/noise level ratio. 3. Maximum speed, used for eliminating the highest cooking vapour emission, including long periods.
EN Downloaded from www.Manualslib.com manuals search engine
MAINTENANCE Grease filters

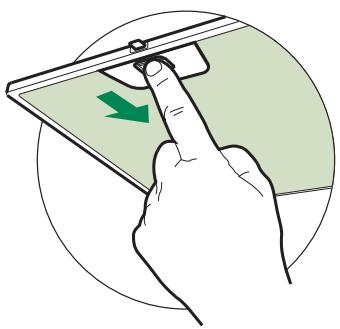

CLEANING METAL SELF- SUPPORTING GREASE FILTERS
• The filters must be cleaned every 2 months of operation, or more frequently for particularly heavy usage, and can be washed in a dishwasher.
• Remove the filters one at a time by pushing them towards the back of the group and pulling down at the same time. • Wash the filters, taking care not to bend them. Allow them to dry before refitting. • When refitting the filters, make sure that the handle is visible on the outside.
Activated charcoal filter (Recirculation version)
These filters are not washable and cannot be regenerated, and must be replaced approximately every 4 months of operation, or more frequently with heavy usage. REPLACING THE ACTIVATED CHARCOAL FILTER • • • •
Remove the metal grease filters

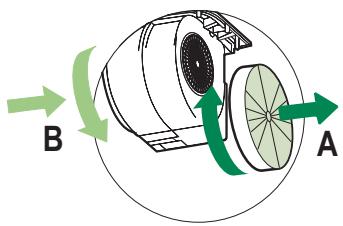

Remove the saturated activated charcoal filter as shown (A). Fit the new filters (B). Replace the metal grease filters.
LIGHT REPLACEMENT 28 W halogen light. • Remove the metal grease filters. • Unscrew the bulbs and replace them with new ones having the same characteristics. • Replace the metal grease filters.
EN Downloaded from www.Manualslib.com manuals search engine
FR Downloaded from www.Manualslib.com manuals search engine
CARACTERISTIQUES Encombrement
598 - 898 - 1098 - 1198
FR Downloaded from www.Manualslib.com manuals search engine
FR Downloaded from www.Manualslib.com manuals search engine
FR Downloaded from www.Manualslib.com manuals search engine
FR Downloaded from www.Manualslib.com manuals search engine
FR Downloaded from www.Manualslib.com manuals search engine
FR Downloaded from www.Manualslib.com manuals search engine
DE Downloaded from www.Manualslib.com manuals search engine
CHARAKTERISTIKEN Platzbedarf
598 - 898 - 1098 - 1198
DE Downloaded from www.Manualslib.com manuals search engine
DE Downloaded from www.Manualslib.com manuals search engine
DE Downloaded from www.Manualslib.com manuals search engine
DE Downloaded from www.Manualslib.com manuals search engine
DE Downloaded from www.Manualslib.com manuals search engine
DE Downloaded from www.Manualslib.com manuals search engine
NL Downloaded from www.Manualslib.com manuals search engine
EIGENSCHAPPEN Buitenafmetingen
598 - 898 - 1098 - 1198
Ref. 1 2 2.1 2.2 8a 8b 9 10 15 Ref. 7.1 7.2.1 11 12a 12c 12d
1 1 1 1 1 1 1 1 2 2 8 8 6 2 1
