USER MANUAL DU 770 G BOMANN

DUNSTABZUGSHAUBE DU 770 G

COOKER HOOD

Modern black kitchen air conditioner with a mounted chimney and control panel (no visible text or symbols)

Special safety Information for this Unit......Page 14

Unpacking the Appliance......Page 16

Appliance Equipment......Page 16

Installation......Page 17

Startup / Operation......Page 19

Cleaning and Maintenance......Page 20

Troubleshooting......Page 21

Technical Data......Page 21

Exploded diagram of a device with numbered parts for identification

Technical diagram illustrating a mechanical process with labeled components and magnified views

Diagram showing a device mounted on a wall with a close-up view of a 10MM component and a separate close-up view.

Technical diagram showing a mechanical assembly with labeled components and a magnified view of a tool or component.

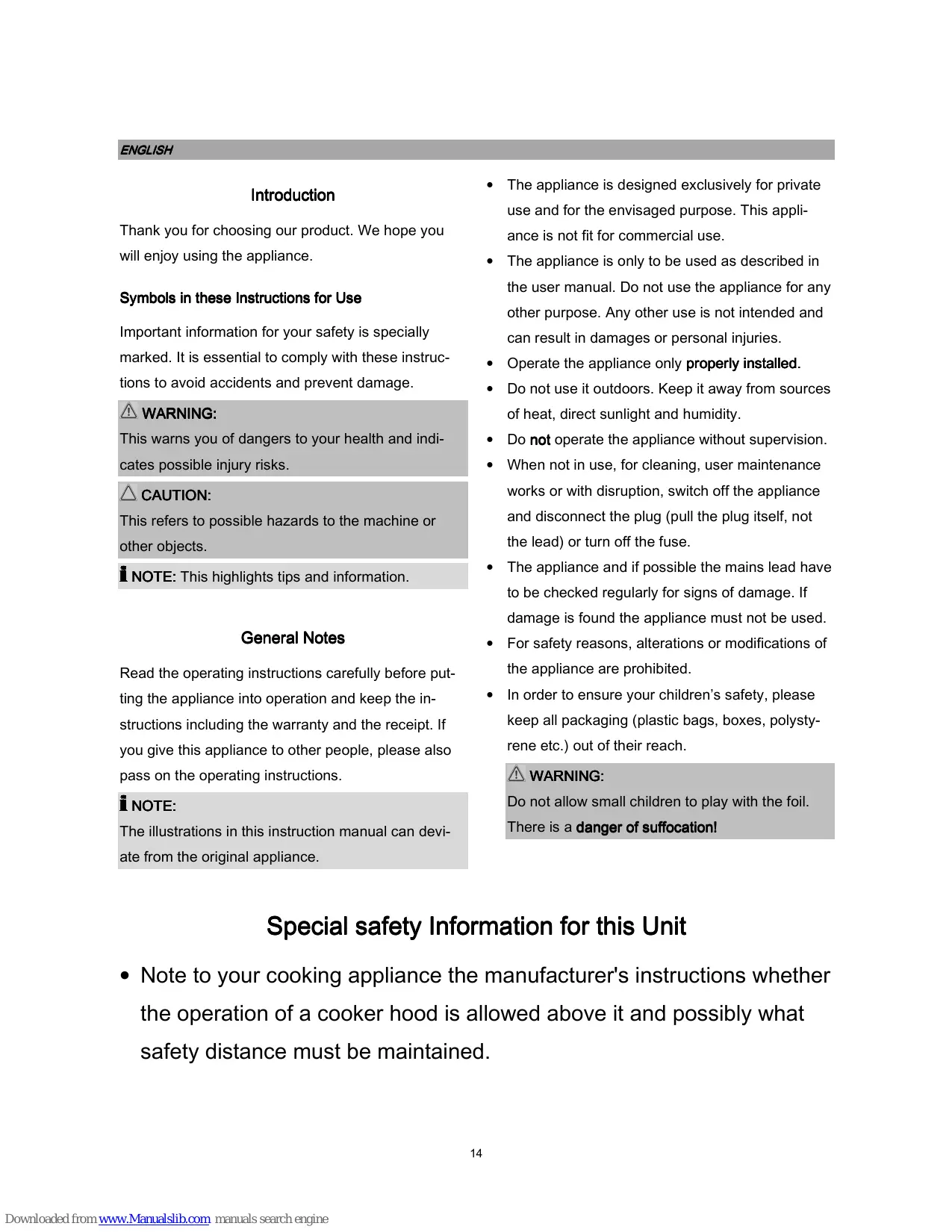

Thank you for choosing our product. We hope you will enjoy using the appliance.

Symbols in these Instructions for Use

Important information for your safety is specially marked. It is essential to comply with these instructions to avoid accidents and prevent damage.

WARNING:

This warns you of dangers to your health and indicates possible injury risks.

CAUTION:

This refers to possible hazards to the machine or other objects.

NOTE: This highlights tips and information.

General Notes

Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty and the receipt. If you give this appliance to other people, please also pass on the operating instructions.

NOTE:

The illustrations in this instruction manual can deviate from the original appliance.

• The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fit for commercial use.
• The appliance is only to be used as described in the user manual. Do not use the appliance for any other purpose. Any other use is not intended and can result in damages or personal injuries.
• Operate the appliance only properly installed.
• Do not use it outdoors. Keep it away from sources of heat, direct sunlight and humidity.
• Do not operate the appliance without supervision.
• When not in use, for cleaning, user maintenance works or with disruption, switch off the appliance and disconnect the plug (pull the plug itself, not the lead) or turn off the fuse.
• The appliance and if possible the mains lead have to be checked regularly for signs of damage. If damage is found the appliance must not be used.
• For safety reasons, alterations or modifications of the appliance are prohibited.
• In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

WARNING:

Do not allow small children to play with the foil.

There is a danger of suffocation!

Special safety Information for this Unit

- Note to your cooking appliance the manufacturer's instructions whether the operation of a cooker hood is allowed above it and possibly what safety distance must be maintained.

For the extraction mode:

• Provision shall be made for adequate ventilation in the room when the cooker hood is operated simultaneously with appliances that burn gas or other fuels.
• If the cooker hood and other devices which are powered other forms of energy as electricity, served together, the pressure in the room should not exceed 4 Pa ( 4 × 10^-5 bar).
• The extracted air may not be vented into a flue which is used for the waste gas from appliances which are powered by gas or other fuels.
• When venting the extracted air, comply with the regulations of the relevant local authorities.

• The requirements of the competent local authorities must be observed.

• Observe and follow further installation instructions that we give you in the chapter "Installation".

• ATTENTION: Accessible parts of the appliance may become hot when used with cooking utensils.
• Do not flambé under the cooker hood! You can fry under the hood due to fire hazard only under constant observation.
• Never allow a gas hotplate burning without cookware. Excess heat can damage the cooker hood.
• Overheated fats and oils can ignite easily. Never walk away from fat and oil when heating them.
• Do not check the filter condition while the hood is in operation.
• NEVER use the appliance without fixed aluminum grease filter.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or

lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Children shall not play with the appliance.
- Cleaning and user maintenance shall not be made by children unless they are older 8 years and supervised.
- The appliance must be cleaned regularly. Follow the instructions that we give you in the chapter “Cleaning and Maintenance”. There is a risk of fire if cleaning is not carried out according to these instructions.
- Do not try to repair the appliance on your own. Always contact an authorized technician. To avoid the exposure to danger, always have faulty cable be replaced only by the manufacturer, by our customer service or by qualified person and with a cable of the same type.

Unpacking the Appliance

• Remove the appliance from its packaging.
• Remove all packaging material, such as foils, filler and cardboard packaging.
• To prevent hazards, check the appliance for any transport damage.
• In case of damage, do not put the appliance into operation. Contact your distributor.

i NOTE:

Production residue or dust may have collected on the appliance. We recommend cleaning the appliance according to chapter “Cleaning and Maintenance”.

Appliance Equipment

Appliance overview

Exploded diagram of a device with numbered parts for identification

1 Telescopic duct, 2-part
2 Main body
3 Motor unit
4 Filter
5 Glass frame

Delivery scope

1 x outer (lower) duct, 1 x inner (upper) duct (with ventilation slots), 1 x connecting piece with non-return valves, incl. Installation material and drilling template

Installation

There must be a safety distance between the hot-plate of the cooking pot on the hob and the bottom part of the cooker hood:

The distance must be between 60 – 80 cm. For gas appliances, the distance must be at least 65 cm. If the installation instructions for the gas cooker specify a greater distance, this distance must be taken into consideration.

Selecting the fume outlet

You can operate the cooker hood in two modes:

Extraction mode

WARNING:

• The extracted air may not be vented into a flue which is used for the waste gas from appliances which are powered by gas or other fuels.
• When venting the extracted air, comply with the regulations of the relevant local authorities.

The hood has an upper air outlet to vent cooking odours to the outside.

The extracted air is normally vented vertically. The extracted air can vented through the wall units and the loft floor to the roof ridge.

If there is a conduit under the wall units, the extraction duct can be routed so that the extracted air can be vented horizontally through the wall.

Recirculation mode

If you do not have a direct extraction vent to the outside; the hood can also work in recirculation mode (i.e. without an extraction vent to the outside; the filtered air is released back into the room). In this case, an activated carbon filter as described under "Installing the activated carbon filter for recirculation mode", must be used.

Activated carbon filter are not supplied. You can order the carbon filter from your dealer or in our online accessories shop, www.bomann.de. To order, use the reference number found under “Technical Data”.

Assembly

WARNING:

• When assembling or inserting the extraction filter as well as the carbon filter, the appliance must not be connected to the mains.
• Failure to use the mounting fixtures may lead to a risk of electric shock.

CAUTION:

• Before mounting, check that the wall has sufficient load capacity to bear the cooker hood.
• When drilling the holes in the wall always make sure that no existing electrical cables or other objects are damaged.
• Make sure that the ventilation slots are clear of obstacles and are not covered.

NOTE: Recommendations for preparation work

• When installing, ask another person to assist.
• Wear protective gloves to prevent injuries from any sharp edges.

- Determine the position of the cooker hood centrally above the hob in conformance with the specified safety distances.

- Align the drilling template horizontally and mark the necessary holes for the wall mounting. Check them with a spirit level.

- Drill mounting holes 4 x ∅8 mm and insert the dowel pins.

Technical diagram illustrating a mechanical or industrial process with labeled components and magnified views

Diagram showing a device mounted on a wall connected to a 10MM component, with a close-up view of the device's internal structure.

• Turn the screws 4 x ST4*35 mm as far as these stick out about 10 mm from the wall.
• Before suspending the hood, the connecting piece with non-return valves must be installed.
• Hang up the hood. Check the secure fitting, the horizontal position and tighten first the upper and then the lower screws through the hood body.
• Remove the protective foil from the telescopic duct.

For the extraction mode:

• Attach a flexible extraction hose (not supplied) with an inner diameter of ∅150 mm onto the connecting piece.
• Slide the inner (upper) duct along the slide fixture into the outer (lower) duct. Make sure that the inner duct is aligned with the vents at the top.
• Determine the extension length of the duct cover by pulling up the inner duct or sliding back into the outer duct.

Technical diagram showing a mechanical assembly with labeled components and a magnified view of a tool or component.

- Attach the mounting rail at the upper duct ending. Drill mounting holes 2 x ∅8 mm and insert the dowel pins. Use the screws 2 x ST4*35 mm to secure the rail.

For the extraction mode:

• Check the correct position of the flexible extraction hose and connect it with the extraction outlet to the outside.
• Pull the inner duct upwards and fasten the duct

cover laterally to the previously mounted rail using the screws 2 x ST4*10 mm.

Installing the activated carbon filter for recirculation mode

Four-panel line drawing showing mechanical components and a hand holding a tool, no text or symbols present.

• Open the cover and remove the aluminum grease filter.
• Place the carbon filter onto the air intake of the extraction duct. Make sure that the mounting pins on the extraction duct engage the mounting slots of the carbon filter. Turn the filter clockwise until it clicks into place.
• Reinstall the aluminum grease filter and close the cover.

Electrical connection

WARNING:

• The installation to the mains supply must conform to the local standards and regulations.
• Improper connection may cause to an electric shock!
• Do not modify the appliance plug. If the plug does not fit properly to the outlet, let install a proper outlet by an authorized specialist.

• The accessibility of the power plug must be ensured to disconnect the appliance from the power supply in case of emergency.

• Ensure that your mains power corresponds with the specifications of the appliance. The specifications are printed on the rating label.

• Connect the mains cable to a properly installed and earthed wall outlet.
• If the plug after installation is not accessible, a corresponding disconnect device must be available to meet the relevant safety regulations.

Startup / Operation

Information to reduce the environmental effect of cooking

(acc. VO (EU) No. 66/2014 appendix I, No. 2)

Cooker hood

The diameter of the pot and pan floors should be according to the size of the cooking zone.

Use pans and pots with flat floors, uneven floors increase the energy consumption.

Ensure that there is sufficient supply air for the operation of the cooker hood.

Adjust the fan step intensity of the damp evolution of the cooking process.

To product the optimal effect of the cooker hood, install it according to the installation instructions.

Keep the distance between the upper edge of the cooker and the lower edge of the cooker hood.

Clean the filter regularly.

Controll the active carbon filter regularly and renew it as required.

Switch off the cooker hood after use.

If your cooker hood has a switch-off delay, activate this function.

Switch off the lighting after the cooking process.

We recommend the use of biological cleaners.

Information to professional users for disassembly (acc. VO (EU) No. 66/2014 appendix I, No. 2)

Cooker hood

Information for non-destructive disassembly for maintenance purposes

Please remove the filter and lamps as described in the manual.

Further steps of disassembly for maintenance are not provided

If you would like to exchange defective components, please contact our customer service.

Accumulators are not included.

Information for disassembly in terms of recycling, recovery and disposal at the end of the life of the appliance

Check that the unit is disconnected from the power supply before removing all filter from the hood.

First remove the chimney.

When disassembling the hood, be sure that you first loosen the lower and then the upper screws.

For the recycling and recovery of resources give the appliance, the lamps and the various filter to:

- a communal collection point of public waste disposal authorities

- a dedicated disposal company, offering a return system

- a resident electric trader, who voluntary withdraws electrical appliances

The cooker hood is operated via pushbuttons.

Power level

0 off

low

medium

high

Lighting

on / off

Settings

Power level: Suitable for cooking on a low flame and for dishes which produce no or little steam, in order to circulate the air around the kitchen.

Power level: Suitable for normal cooking.

Power level: Suitable if large quantities of smoke and steam need to be extracted or filtered (e.g. when frying).

i NOTE:

With very strong vapor emission, the fan should continue running after cooking for a few minutes.

Cleaning and Maintenance

WARNING:

• Always turn off the appliance and disconnect from the power supply before cleaning and user maintenance.
• Allow the appliance cool down sufficiently!
• Do not use steam cleaners for cleaning the appliance; moisture could enter electrical components.
  Risk of electric shock! Hot steam could damage the plastic parts.
• The appliance must be dry before restarting operation.

CAUTION:

• Do not use a wire brush or other sharp, abrasive items.
• Do not use any acidic or abrasive cleaners.

Maintenance of the hood

• To clean the surface of the housing, use a mild detergent and a soft cloth to prevent scratching.
• The appliance can be used again after everything has dried properly.
• If you use your cooker hood in recirculation mode, you must replace the activated carbon filter regularly (see “Replacing the activated carbon filter”).

Cleaning the aluminum grease filter

WARNUNG: Risk of fire!

Grease residue in aluminum grease filter may ignite at intense heat. Therefore, clean the grease filter regularly!

We recommend cleaning the grease filter monthly:

• Remove the aluminum grease filter by sliding back the lock in the handle recess, push the filter down gently and pull out towards the front.
• Rinse the grease filter in a solution of hot water and neutral detergent. Soak the filter in it.
• Then clean with a soft brush, rinse thoroughly with hot water and allow drying.

- Alternatively, the grease filter can also be cleaned in the dishwasher (up to 60^ C). Slight discoloration may occur. This does not affect the function of the grease filter.

Replacing the activated carbon filter

The activated carbon filter prevent odors and must depend on the use, but be changed at least every six months.

Order the carbon filter from your dealer or in our online accessories shop, www.bomann.de. Use the reference number found under “Technical Data”.

• See “Installing the activated carbon filter for recirculation mode”.
• Remove the old carbon filter by turning the filter anti-clockwise.

Replacing the bulb

WARNING:

Allow the lamps to cool down before replacing the bulbs. Risk of burns! The LED lamp must be replaced by a qualified person.

NOTE:

Oder the lamps from your dealer or in our online accessories shop www.bomann.de.

Lamp specification: LED, 2 x 1.5 W

• Remove the aluminum grease filter.
• Open the black protective housing of the plug-in connection with a suitable tool.
• Press out the lamp unit gently from the inside and disconnect it from the connector.
• Connect the new bulb with the connector properly and close the protective housing.
• Reinsert the lamp unit into the lamp socket until it clicks into place.
• Replace the aluminum grease filter.

Troubleshooting

Before you contact an authorized specialist

Problem	Possible Cause / Solution
Appliance is not working or not properly	- Check the power supply. - Check the power level.
Appliance is not working efficiently	- Check the power level. - Is the kitchen properly ventilated? - Clean the grease filter. - At recirculation mode, check the carbon filter. - Check the air outlet.
Light is not working	Check the bulb, see “Replacing the bulb”.
Oil is dripping	Clean the grease filter.

i NOTE:

If you are still having problems after following steps above, contact your trader or an authorized technician.

Technical Data

Electrical connection....

Mains voltage: 220-240 V\~

Mains frequency: 50 Hz

Power consumption: 93 W

Lighting, LED: 2 × 1.5 W

Protection class: ....I

Dimension H x W x D / Weight......

Hood body: 38.0 x 60.0 x 31.0 cm

Telescopic shaft: ....40.0 – 73.0 x 20.0 x 17.8 cm

Net weight: ....approx. 12.0 kg

Available accessory......

Activated carbon filter for recirculation mode: ....

KF 569 (Art.-No. 256 900) not supplied

The right to make technical and design modifications in the course of continuous product development remains reserved.

Product data sheet for household cooker hoods according to regulation (EU) No. 65/2014

Brand	BOMANN
Model	DU 770 G
Annual Energy Consumption (AEC _hood )	33 kWh/a
Energy Efficiency class	B
Fluid Dynamic Efficiency (FDE _hood )	14.42
Fluid Dynamic Efficiency class	D
Lighting Efficiency (LE _hood )	28.6 lx/W
Lighting Efficiency class	A
Grease Filtering Efficiency	51.2 %
Grease Filtering Efficiency class	F
Air flow at minimum speed in normal use	186.0 m ^3 /h
Air flow at maximum speed in normal use	349.2 m ^3 /h
Air flow in use at intensive or boost setting	- m ^3 /h
A-weighted sound power emission in normal use:
- at minimum speed	- dB
- at maximum speed	68 dB
A-weighted sound power emission in use at intensive or boost setting	- dB
Power consumption in off mode (P _o )	0 W
Power consumption in standby mode (P _s )	N/A W

This appliance has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations.

Disposal

Meaning of the "Dustbin" Symbol

Protect our environment; do not dispose of electrical equipment in the domestic waste.

Please return any electrical equipment that you will no longer use to the collection points provided for their disposal.

This helps avoid the potential effects of incorrect disposal on the environment and human health.

This will contribute to the recycling and other forms of reutilization of electrical and electronic equipment.

Information concerning where these can be disposed of can be obtained from your local authority.

WARNING:

Remove or disable any existing snap and bolt locks, if you take the unit out of operation or dispose it.

BOMANN®

C. Bomann GmbH

www.bomann.de

Made in P.R.C.
