ECOSYS P6235CDN - Color laser printer KYOCERA - Free user manual and instructions

Product type	Color laser printer
Brand	KYOCERA
Model	ECOSYS P6235CDN
Print speed	Up to 35 pages per minute (black and color)
Print resolution	1200 x 1200 dpi
Standard paper capacity	600 sheets (tray 1: 500, MP tray: 100)
Maximum paper capacity	2100 sheets with options (additional trays)
Duplex printing	Automatic (built-in)
Main functions	Automatic duplex, Silent mode, EcoPrint, Private print, Custom box, USB memory printing, AirPrint, Google Cloud Print
Connections	USB 2.0, Ethernet 10/100/1000 Base-T, optional wireless network interface
Maintenance and cleaning	Paper path cleaning, toner cartridge replacement, toner recovery container replacement
Security	User authentication, job accounting, SSD encryption, IPSec, SSL, private print
Spare parts and repairability	Original toner cartridges (black, cyan, magenta, yellow), toner recovery container, optional kits (SSD, memory extension, wireless network kit)
Power supply	AC 220-240 V, 50/60 Hz
Power consumption	Approx. 900 W during operation, < 100 W in standby
Dimensions (W x D x H)	468 x 430 x 480 mm (approx.)
Weight	Approx. 29 kg (approx.)
General information	Complete user manual available in PDF. Warranty and support by KYOCERA.

Frequently Asked Questions - ECOSYS P6235CDN KYOCERA

How do I install the print driver on Windows?

Insert the provided Product Library DVD and run setup.exe. Choose Quick Installation or Custom Installation. Follow the on-screen instructions. For a network connection, select your machine from the list. After installation, print a test page to verify.

How to resolve a paper jam?

Open the covers indicated by the screen (rear cover, MP tray, etc.). Gently remove the jammed paper without tearing. Check that no pieces remain. Close all covers. Printing resumes automatically. See the Troubleshooting chapter for more details.

How to replace a toner cartridge?

Open the front cover. Remove the used cartridge by pushing the locking lever. Take the new cartridge out of its packaging, shake it gently to distribute the toner. Insert it until it clicks. Close the cover. The toner empty message disappears.

How to configure automatic duplex printing?

In the print driver, select the Layout or Finishing tab. Choose Duplex (long edge or short edge flip). You can also set this mode as default in the Printer Settings menu of the machine.

How to use private print to secure my documents?

In the print driver, go to Job and select Private Print. Set a password. Send the job. On the printer, go to Job Box > Private/Stored, enter your password and start printing.

How to access Command Center RX to configure the machine remotely?

From a web browser, enter the printer's IP address (found in Print Report > Configuration Page Print). Log in with the username Admin and the default password Admin. You can then modify network, security, etc. settings.

How to enable silent mode?

On the home screen, press Menu > Silent Mode and enable it. You can also configure it in the Common Settings menu to activate at certain times. This mode reduces noise at the expense of speed.

How to configure network settings (fixed IP address)?

Press Menu > Network > TCP/IP. Disable DHCP, then manually enter the IP Address, Subnet Mask, and Gateway. Confirm, then restart the network via Network Restart.

How to empty the toner recovery container?

Open the toner recovery container cover (located at the front, right side). Pull the container outward. Empty its contents into a plastic bag. Reinsert the container until it clicks. Close the cover. Important: do not reuse the recovered toner.

How to clean the inside of the printer for optimal print quality?

Turn off the printer. Open the covers and remove the toner cartridges. Use a soft, lint-free cloth to wipe the rollers and paper path. Avoid any contact with the drums. Replace the cartridges and close the covers. Refer to the Cleaning section in chapter 9.

USER MANUAL ECOSYS P6235CDN KYOCERA

Programme Energy Star (ENERGY STAR®) 1-11

Command Center RX 2-32

Ajuster/Maintenance 7-23

Etat du réseau 7-24

Etat reseau opt. 7-24

Programme Energy Star (ENERGY STAR®) 1-11

Avis

CLASS 3B LASER RADIATION WHEN OPEN.

AVOID DIRECT EXPOSURE TO BEAM.

ATTENTION · CLASE 3B RAYONNEMENT LASER EN CAS D'OUVERTURE.

EXPOSITION DANGEREUSE AU FAISCEAU.

VORSICHT KLASSE 3B LASERSTRAHLUNG, WENN ABDECKUNG GEOFFNET.

CLASS 1 LASER PRODUCT

KLASSE 1 LASER PRODUKT

EN ISO 7779

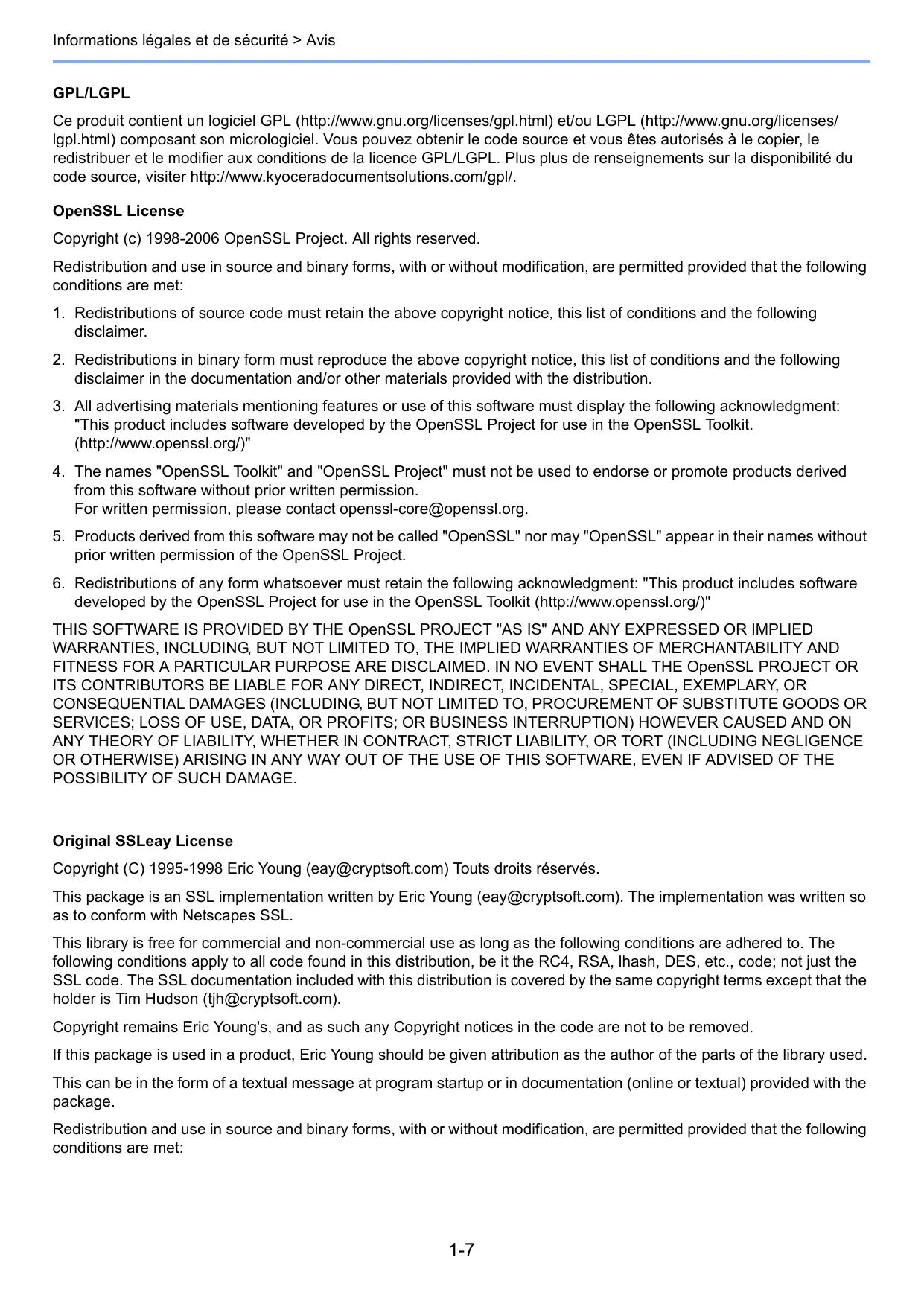

Copyright (c) 1998-2006 OpenSSL Project. All rights reserved.

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

1. Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.
3. All advertising materials mentioning features or use of this software must display the following acknowledgment: "This product includes software developed by the OpensSL Project for use in the OpensSL Toolkit. (http://www.openssl.org/)
4. The names "OpenSSL Toolkit" and "OpenSSL Project" must not be used to endorse or promote products derived from this software without prior written permission. For written permission, please contact [e-mail].
5. Products derived from this software may not be called "OpenSSL" nor may "OpenSSL" appear in their names without prior written permission of the OpenSSL Project.
6. Redistributions of any form whatsoever must retain the following acknowledgment: "This product includes software developed by the OpensSL Project for use in the OpensSL Toolkit (http://www.openssl.org/)

THIS SOFTWARE IS PROVIDED BY THE OpensSL PROJECT "AS IS" AND ANY EXPRESSED OR IMPLIED WARRANTY, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE OpensSL PROJECT OR ITS COUINTRutors BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCEDUREM OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

Original SSLeay License

This package is an SSL implementation written by Eric Young ([e-mail]). The implementation was written so as to conform with Netscapes SSL.

This library is free for commercial and non-commercial use as long as the following conditions are adhered to. The following conditions apply to all code found in this distribution, be it the RC4, RSA, Ihash, DES, etc., code; not just the SSL code. The SSL documentation included with this distribution is covered by the same copyright terms except that the holder is Tim Hudson ([e-mail]).

Copyright remains Eric Young's, and as such any Copyright notices in the code are not to be removed.

If this package is used in a product, Eric Young should be given attribution as the author of the parts of the library used.

This can be in the form of a textual message at program startup or in documentation (online or textual) provided with the package.

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

1. Redistributions of source code must retain the copyright notice, this list of conditions and the following disclaimer.
2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.
3. All advertising materials mentioning features or use of this software must display the following acknowledgement: "This product includes cryptographic software written by Eric Young ([e-mail])" The word 'cryptographic' can be left out if the routines from the library being used are not cryptographic related :-).
4. If you include any Windows specific code (or a derivative thereof) from the apps directory (application code) you must include an acknowledgement: "This product includes software written by Tim Hudson ([e-mail])"

THIS SOFTWARE IS PROVIDED BY ERIC YOUNG "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTY, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE AUTHOR OR COLLECTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCEDURE OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUsION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

The licence and distribution terms for any publically available version or derivative of this code cannot be changed. i.e. this code cannot simply be copied and put under another distribution licence [including the GNU Public Licence.]

Monotype Imaging License Agreement

1 Software shall mean the digitally encoded, machine readable, scalable outline data as encoded in a special format as well as the UFST Software.
2 You agree to accept a non-exclusive license to use the Software to reproduce and display weights, styles and versions of letters, numerals, characters and symbols (Typefaces) solely for your own customary business or personal purposes at the address stated on the registration card you return to Monotype Imaging. Under the terms of this License Agreement, you have the right to use the Fonts on up to three printers. If you need to have access to the fonts on more than three printers, you need to acquire a multiuser license agreement which can be obtained from Monotype Imaging. Monotype Imaging retains all rights, title and interest to the Software and Typefaces and no rights are granted to you other than a License to use the Software on the terms expressly set forth in this Agreement.
3 To protect proprietary rights of Monotype Imaging, you agree to maintain the Software and other proprietary information concerning the Typefaces in strict confidence and to establish reasonable procedures regulating access to and use of the Software and Typefaces.
4 You agree not to duplicate or copy the Software or Typefaces, except that you may make one backup copy. You agree that any such copy shall contain the same proprietary notices as those appearing on the original.
This License shall continue until the last use of the Software and Typefaces, unless sooner terminated. This License may be terminated by Monotype Imaging if you fail to comply with the terms of this License and such failure is not remedied within thirty (30) days after notice from Monotype Imaging. When this License expires or is terminated, you shall either return to Monotype Imaging or destroy all copies of the Software and Typefaces and documentation as requested.
6 You agree that you will not modify, alter, disassemble, decrypt, reverse engineer or decompile the Software.
7 Monotype Imaging warrants that for ninety (90) days after delivery, the Software will perform in accordance with Monotype Imaging-published specifications, and the diskette will be free from defects in material and workmanship. Monotype Imaging does not warrant that the Software is free from all bugs, errors and omissions.

The parties agree that all other warranties, expressed or implied, including warranties of fitness for a particular purpose and merchantability, are excluded.

8 Your exclusive remedy and the sole liability of Monotype Imaging in connection with the Software and Typefaces is repair or replacement of defective parts, upon their return to Monotype Imaging.

In no event will Monotype Imaging be liable for lost profits, lost data, or any other incidental or consequential damages, or any damages caused by abuse or misapplication of the Software and Typefaces.

9 Massachusetts U.S.A. law governs this Agreement.

10 You shall not sublicense, sell, lease, or otherwise transfer the Software and/or Typefaces without the prior written consent of Monotype Imaging.
11 Use, duplication or disclosure by the Government is subject to restrictions as set forth in the Rights in Technical Data and Computer Software clause at FAR 252-227-7013, subdivision (b)(3)(ii) or subparagraph (c)(1)(ii), as appropriate. Further use, duplication or disclosure is subject to restrictions applicable to restricted rights software as set forth in FAR 52.227-19 (c)(2).
12 You acknowledge that you have read this Agreement, understand it, and agree to be bound by its terms and conditions. Neither party shall be bound by any statement or representation not contained in this Agreement. No change in this Agreement is effective unless written and signed by properly authorized representatives of each party. By opening this diskette package, you agree to accept the terms and conditions of this Agreement.

Programme Energy Star (ENERGY STAR®)

ENERGY STAR

Command Center RX 2-32

1 | Onglet [Impression rapide]

Onglet [Publication]

Touches [Menu] > touche [▲] [▼] > [Périp. commun] > touche [▶] > touche [▲] [▼] > [Mode Disque RAM] > touche [OK]

REMARQUE

Touche [Menu] > touche [▲] [▼] > [Ajuster/Maintenance] > touche [▶]

Card Authentication Kit(B) "Card Authentication Kit" (page 10-3)

Card Authentication Kit(B) "Card Authentication Kit" (page 10-3)

1 Afficher l'écran.

Touche [Menu] > touche [▲] [▼] > [Ajuster/Maintenance] > touche [▶]

(1) Card Authentication Kit(B)

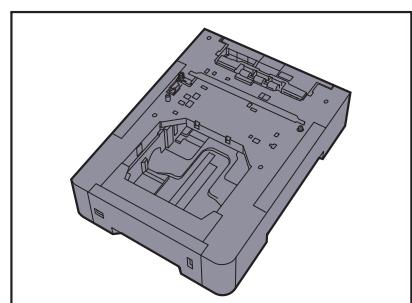

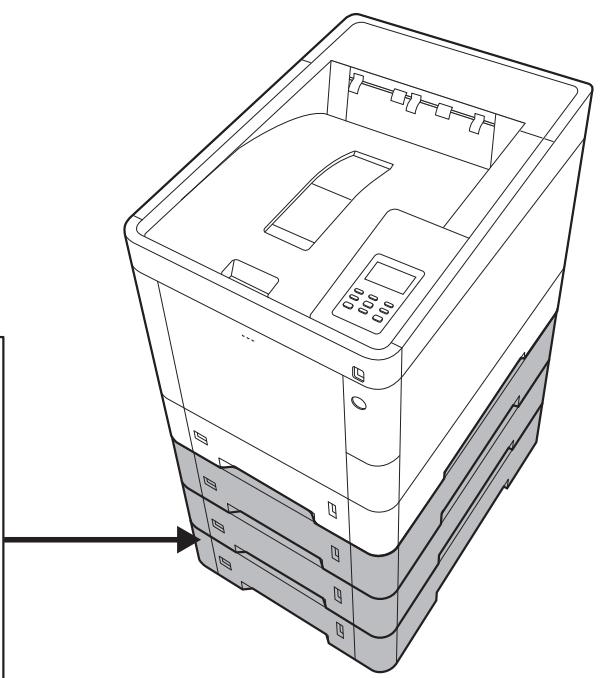

(2) PF-5100

Optionlogicielle

(8) Data Security kit(E)
(9)UG-33

(4) HD-6/HD-7

(5) IB-50

(7) Carte mémoire SD
Carte mémoire
SDHC
(6) IB-51

(1) Card Authentication Kit(B) "Card Authentication Kit"

Card Authentication Kit(B) Operation Guide

(3) "Extension mémoire"

(8) Data Security Kit(E) "Data Security Kit"

DHCP (Dynamic Host Configuration Protocol)

KPDL (Kyocera Page Description Language)

NetBEUI (NetBIOS Extended User Interface)

TWAIN (Technology Without Any Interested Name)

WIA (Windows Imaging Acquisition)

Support stockage 4-19

Card Authentication Kit 10-3

Carte SD 10-5

Formater 7-12

Cartouche de toner (Black) 2-4

Cartouche de toner (Cyan) 2-4

Cartouche de toner (Magenta) 2-4

Cartouche de toner (Yellow) 2-4

Command Center RX 2-32

Details protocole 7-17

Fuseau hora 7-13

G

Gestion 8-1

Monotype Imaging License Agreement 1-8

N

NetBEUI 10-22

Details protocole 7-17

Card Authentication Kit 10-3

Carte SD 10-5

Original SSLeay License 1-7

P

Page d'etat 10-22

Toner coul. vide 7-12

Programme Energy Star (ENERGY STAR®) 1-11

R

RA(Stateless) 10-23

Paramètres 7-16

Raccordement

Câble réseau 2-6

Cable secteur 2-7

Cable USB 2-7

Redémarrer imprimante 7-24

Réglage/Maint. 7-23

Details protocole 7-17

Preparation 2-15

Details protocole 7-17
