Product Type	Electric Scooter
Brand	ARCHOS
Model	BOLT II (Bolt Jr)
Dimensions (L x H x W)	82 x 111.7 x 14.8 cm
Weight	8 kg
Maximum user weight	80 kg
Recommended age	14 years and older
Motor	250 W
Maximum speed	10 - 12 km/h
Range	4 to 5 km
Battery type	Lithium-ion (Li-ion), 2 Ah, 7 cells
Charging time	1 to 2 hours
Charger input voltage	90 - 240 V, 50 - 60 Hz
Max climbing angle	Approximately 15°
Tire size	5 inches
Kickstand	Yes
Frame material	Aluminum alloy
Brake	Rear brake
Charge indicator	Red (charging), Green (charged)
Auto shutdown	After 5 minutes of inactivity
Removable battery	No
Maintenance	Soft damp cloth for cleaning; maintenance-free bearings
Country of manufacture	France (ARCHOS S.A., Igny)
Certifications	CE, compliance with directives 2006/42/EC, 2014/30/EU, etc.
Warranty	Not specified in the manual

Frequently Asked Questions - BOLT II ARCHOS

What is the minimum age to use the ARCHOS Bolt II?

The recommended age is 14 years and older. Parental supervision is essential.

What is the maximum weight supported by the scooter?

The maximum user weight is 80 kg.

How long does it take to charge the battery?

The charging time is about 1 to 2 hours. Do not leave the device plugged in longer than necessary.

How do I know when the battery is fully charged?

While charging, the indicator is red. When it turns green, the battery is fully charged.

What is the range of the scooter?

The range is 4 to 5 km after a full charge, but varies depending on user weight, speed, and incline.

Can I ride in the rain or on wet surfaces?

No, ride only on a flat, clean, dry surface. Avoid roads for automobiles.

What should I do if the scooter does not turn on?

Check that the battery is charged and that the power button is pressed for 3 seconds. If the problem persists, contact customer service.

How should I maintain my Bolt II scooter?

Clean it with a soft cloth dampened with water. The bearings require no maintenance. Regularly check the screws and locking mechanism.

Is there an auto shut-off?

Yes, the scooter turns off automatically after 5 minutes of inactivity. To turn it back on, press the power button again.

Can I replace the wheels myself?

It is recommended to have the wheels replaced by qualified personnel, using certified wheels recommended by the manufacturer.

USER MANUAL BOLT II ARCHOS

Congratulations for the purchase of an ARCHOS device! This quick start guide helps you to start using your device properly. If you have more questions concerning the use of your device, visit us at:

twitter.com/archos

www.facebook.com/archos

Blog

https://blog.archos.com/

http://faq.archos.com/

www.archos.com, click Support > After-sales support

www.archos.com, click Support > Downloads > Declaration of conformity

This notice is a translation of the original version.

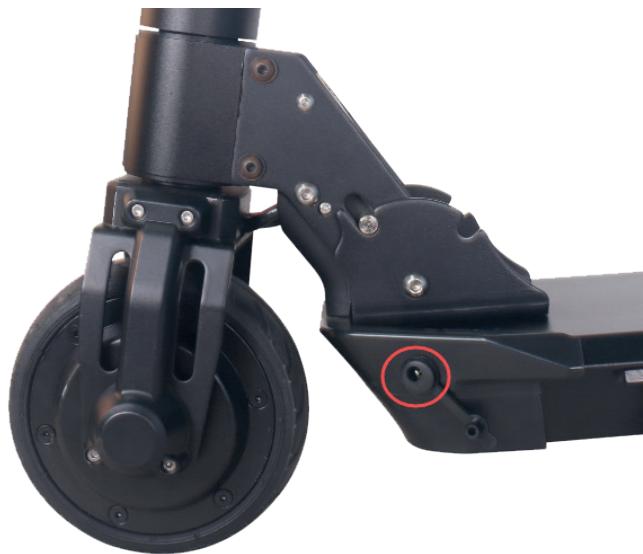

Description of your ARCHOS Bolt Jr

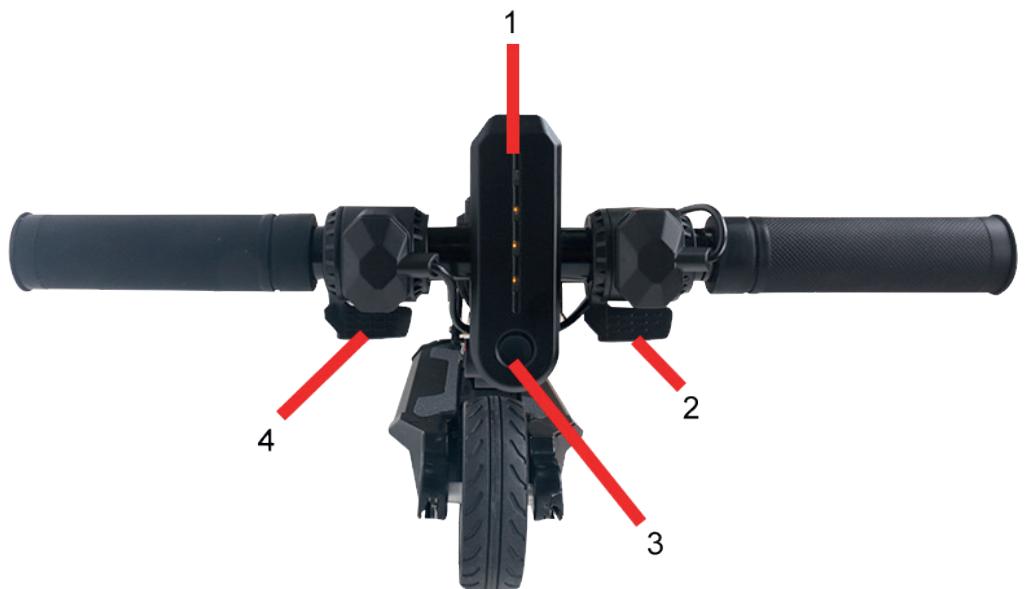

1. Power Indication

2. Speed Control

3. Power button

4. Brake

1. Plug in the power supply to the vehicle charging connector.
2. Plug the power supply into a socket. Charging time is 2 hours.
3. After charging, unplug the power supply.

Using the ARCHOS Bolt Jr

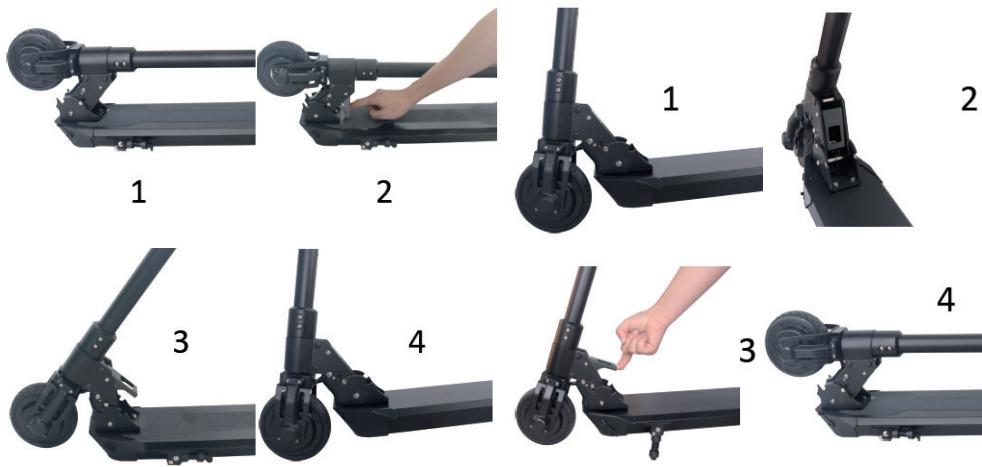

Unfolding

Folding

When unfolding or folding, do not handle it abruptly. Use your finger to pull the unlock key as shown in the pictures above. Don't try to force the opening otherwise you could damage your ARCHOS Bolt Jr. Make sure to push back the lever in order to lock it properly.

Using the ARCHOS Bolt Jr

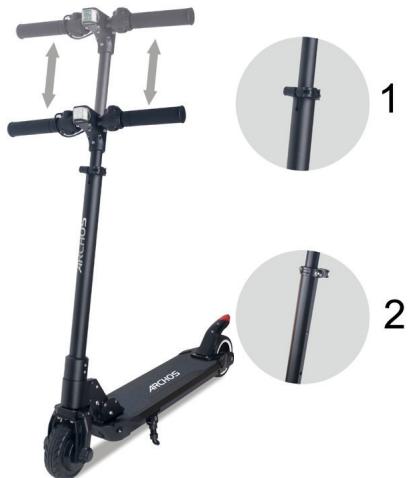

Installing the Handle bar

The handle bar is already assembled. Unlock the latch. Press the pin and adjust the height. You must tighten each wrist in the correct direction (Right and Left).

Turning On
Push the power switch about 3 seconds to start and turn off the vehicle.

Charging & Maintenance

Charging

During the charging process:

• A red light indicates that the battery is charging.

• A green light means the battery is fully charged.

Do not leave the device connected to the power supply for longer than needed for charging. Remember to use only the provided power supply. Before and during the charging the device temperature should be between 10^ and 30^ . This ensures most charging efficiency and battery life.

Auto turn off

The vehicle will turn off automatically and goes into sleep mode, if it has no input about 5 minutes after turning on.

To turn on the vehicle from sleep mode, only need to press the power button again.

Maintenance

Check for abnormalities in the wheels, break, motor and light each time you want to ride in order to prevent any accident.

WARNING

The rider should:

• check the limitation of use according to regulations of road safety;
• ride on flat, clean, dry surfaces and keep away from automobile's road;
• wear at least the following protective equipment: helmet, wrist, knee, head and elbow protections;
• check and ensure the steering system is correctly adjusted and all connection components are firmly secured without any damage before riding.
• put hands on the handlebar, one foot on the deck and the other foot ready to use the rear mechanical break
• avoid any pitching or entrapment. . Must be aware and cautious of the surroundings.
• never ride bare foot. Appropriate shoes are required.
• never ride in the night or on a highway.
• not go downhill or do stunts and jumps.
• have its hands on the handlebar while riding
• step on the wheel cover to brake
• not touch the brake system right after braking as it might get hot
• check the quick-release mechanism and other self-screwed bolts to make sure that they are locked properly. Failure of properly locking can cause accident.
• be at least 14 years old.

• weigh 80kgs or less

• take great caution in order to avoid collisions with another person or object

• ask for help to assemble the product if not an adult.

Range varies greatly depending on the weight of the user, the speed and altitude of the course.

Servicing and Maintenance

If dirt appears on the scooter, use a soft cloth soaked in water.

The bearings are maintenance free. If a bearing fails, it should be replaced completely by qualified personnel.

If it is necessary to change wheels, select certified wheels recommended by the manufacturer or its representative and replace them according to the instructions. Stamp the brake flap with certain force to make it contact the rear wheel and let the rear wheel stop turning to reach brake effect.

No modifications other than to the manufacturer's instructions shall be made, otherwise it can impair safety.

Check the self-locking hinge system and make sure that it is well locked and firmly secured before each use. Riding with a loose self-locking hinge is risky and can alter its effectiveness.
