Product type	Extractor hood
Brand	AIRLUX
Model	AHWE87BK
Minimum safety distance	650 mm between hob and hood
Electrical supply	See rating plate inside the hood (mains voltage)
Appliance class	Class I (earthing required)
Air outlet diameter	120 mm or 150 mm (with reducer supplied)
Motor speeds	4 speeds (including one timed 7 min)
Lighting	Yes, control by key L
Grease filters	Self-supporting metal, dishwasher safe
Cleaning frequency of grease filters	Every 2 months (or more often depending on use)
Activated carbon filter	Replace every 4 months (not washable)
Intended use	Domestic, removal of cooking odours
Safety	Do not leave open flames, supervise deep fryers, avoid flambéing under the hood
Installation	Extraction or recirculation mode (with connector supplied)
Dimensions (chimney)	Adjustable upper and lower chimney sections
Mounting hardware	Screws and brackets supplied
Maintenance	Disconnect before maintenance, clean with damp cloth and mild detergent
Environmental protection	Recycle at waste disposal centre (do not dispose of with household waste)

Frequently Asked Questions - AHWE87BK AIRLUX

What is the minimum distance between the hob and the hood?

The minimum safety distance is 650 mm. However, check the instructions for your gas hob, as they may specify a greater distance.

How to install the hood in extraction mode?

Use a rigid or flexible tube of 150 mm or 120 mm. For 120 mm, insert the reduction flange on the nozzle with flap. Fix the tube with suitable clamps. Remove the activated carbon filters if present.

How to install the hood in recirculation mode?

Mount the connector extensions on the connector, place it in the support bracket and fix it. Connect the connector to the hood outlet with a 150 mm tube. Ensure the activated carbon filters are present.

What is the cleaning frequency of the grease filters?

Wash the self-supporting metal filters in the dishwasher approximately every 2 months, or more frequently with heavy use. Allow them to dry before reassembling.

How to replace the activated carbon filter?

First remove the grease filters. Unclip the used activated carbon filter and replace it with a new one. It is neither washable nor reusable and must be changed every 4 months.

Do the accessible parts of the hood become hot?

Yes, caution: accessible parts may become very hot when used with cooking appliances. Supervise children and do not touch during or after use.

Can I use the hood with a gas hob?

Yes, but ensure sufficient room ventilation. The maximum depression must not exceed 0.04 mbar. Never allow open flames to escape around the sides of pans.

What to do if the power cord is damaged?

Have the cord replaced by the manufacturer or authorized service agent to avoid any hazard.

How to clean the exterior of the hood?

Use a damp cloth with a neutral liquid detergent. Do not use abrasive products. Always disconnect the hood before cleaning.

How does the fourth speed work?

The T5 button activates the fourth speed with a 7 minute timer. After this time, the motor returns to the previous speed. This function is designed for heavy smoke emissions.

USER MANUAL AHWE87BK AIRLUX

RECOMMENDATIONS AND SUGGESTIONS 10

CHARACTERISTICS 11

INSTALLATION 12

USE 15

MAINTENANCE 16

SOMMAIRE

FR

CONSEILS ET SUGGESTIONS 17

CHARACTERISTIQUES 18

INSTALLATION 19

UTILISATION 22

ENTRETIEN 23

CLAUSES DE GARANTIE

24

IL MODULO DI GARANZIA DEVE ESSERE RISPEDITO, BEN COMPILATO, ENTRO 30 GIORNI DALL'INSTALLAZIONE PER ATTIVARE LA GARANZIA AL SEGUIENTE INDIRIZZO.

THIS WARRANTY FORM MUST BE FILLED IN CORRECTLY AND RETURNED WITHIN 30 DAYS AFTER INSTALLATION TO THE FOLLOWING ADDRESS.

LE FORMULAIRE DE GARANTIE DOIT ETRE RETOURNÉ, BIEN REMPLI, DANS LES 30 JOURS APRès L'INSTALLATION POUR ACTIVER LA GARANTIE À L'ADRESSE SUIVANTE.

The Instructions for Use apply to several versions of this appliance. Accordingly, you may find descriptions of individual features that do not apply to your specific appliance.

INSTALLATION

• The manufacturer will not be held liable for any damages resulting from incorrect or improper installation.
• The minimum safety distance between the cooker top and the extractor hood is 650~mm (some models can be installed at a lower height, please refer to the paragraphs on working dimensions and installation).
• Check that the mains voltage corresponds to that indicated on the rating plate fixed to the inside of the hood.
• For Class I appliances, check that the domestic power supply guarantees adequate earthing. Connect the extractor to the exhaust flue through a pipe of minimum diameter 120mm . The route of the flue must be as short as possible.
• Do not connect the extractor hood to exhaust ducts carrying combustion fumes (boilers, fireplaces, etc.).
• If the extractor is used in conjunction with non-electrical appliances (e.g. gas burning appliances), a sufficient degree of aeration must be guaranteed in the room in order to prevent the backflow of exhaust gas. The kitchen must have an opening communicating directly with the open air in order to guarantee the entry of clean air. When the cooker hood is used in conjunction with appliances supplied with energy other than electric, the negative pressure in the room must not exceed 0,04 mbar to prevent fumes being drawn back into the room by the cooker hood.
• In the event of damage to the power cable, it must be replaced by the manufacturer or by the technical service department, in order to prevent any risks.
• If the instructions for installation for the gas hob specify a greater distance specified above, this has to be taken into account. Regulations concerning the discharge of air have to be fulfilled.

USE

• The extractor hood has been designed exclusively for domestic use to eliminate kitchen smells.
• Never use the hood for purposes other than for which it has been designed.
• Never leave high naked flames under the hood when it is in operation.
• Adjust the flame intensity to direct it onto the bottom of the pan only, making sure that it does not engulf the sides.
• Deep fat fryers must be continuously monitored during use: overheated oil can burst into flames.
• Do not flambe under the range hood; risk of fire
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  Children should be supervised to ensure that they do not play with the appliance.
• "CAUTION: Accessible parts may become hot when used with cooking appliances."

MAINTENANCE

• Switch off or unplug the appliance from the mains supply before carrying out any maintenance work.
• Clean and/or replace the Filters after the specified time period (Fire hazard).
  Clean the hood using a damp cloth and a neutral liquid detergent.

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

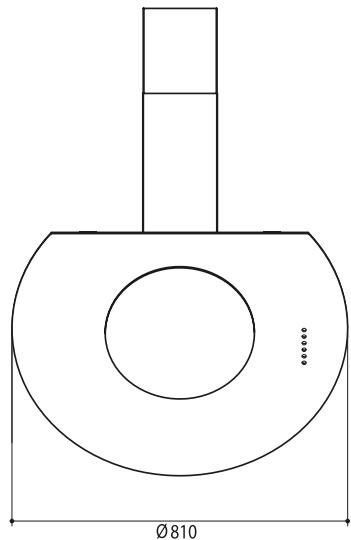

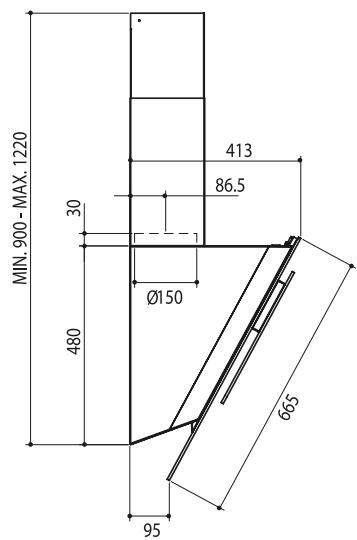

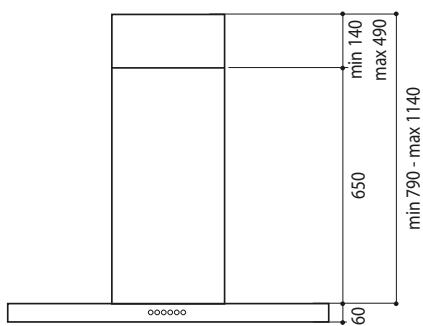

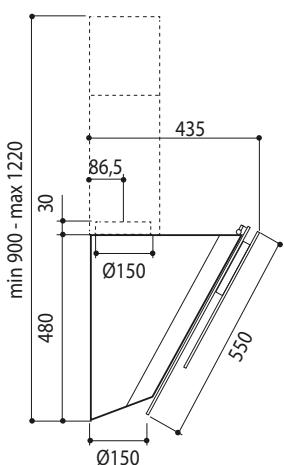

Dimensions

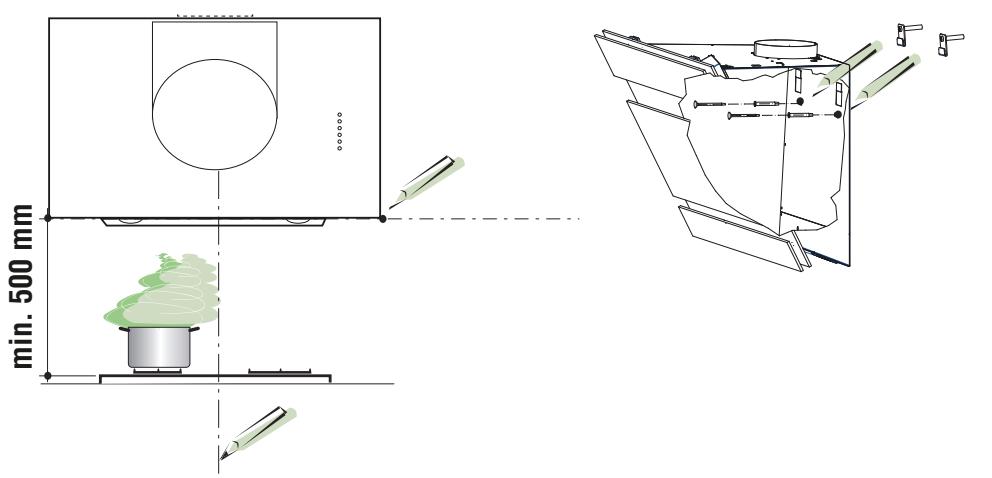

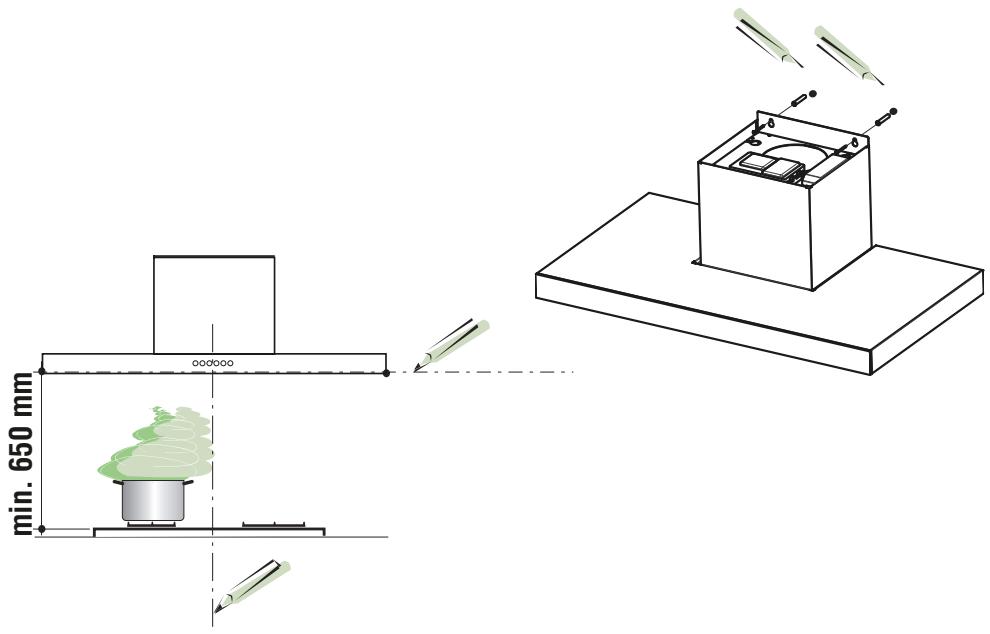

Wall drilling and bracket fixing

• Before attaching the hood body, tighten the two screws Vr located on the hood body mounting points.
• Hook the hood body onto the screws 12a.
• Fully tighten the support screws 12a.
• Adjust the screws Vr to level the hood body.

Connections

DUCTED VERSION AIR EXHAUST SYSTEM

When installing the ducted version, connect the hood to the chimney using either a flexible or rigid pipe 150 or 120mm the choice of which is left to the installer.

To install a 150 pipe

• To install the dumper 10
  Fix the pipe in position using sufficient pipe clamps (not supplied).

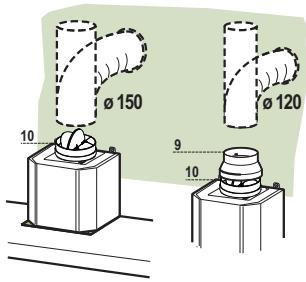

To install a 120 pipe

• To install a 0.120 ~mm air exhaust connection, insert the reducer flange 9 on the dumper 10.
  Fix the pipe in position using sufficient pipe clamps (not supplied).
• Remove any activated charcoal filters.

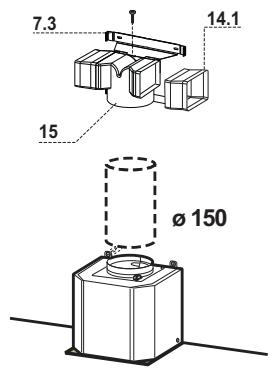

RECIRCULATION VERSION AIR OUTLET

• Insert the connection extension pieces laterally 14.1 in connection 15.
• Insert the Connector 15 into the Support bracket 7.3 and fix it with a screw.
• Make sure that the outlet of the extension pieces 14.1 is horizontally and vertically aligned with the chimney outlets.
• Connect the air outlet connection 15 to the hood body outlet using either a flexible or rigid pipe 150mm , the choice of which is left to the installer.
• Ensure that the activated charcoal filters have been inserted.

ELECTRICAL CONNECTION

• Connect the hood to the mains through a two-pole switch having a contact gap of at least 3mm .
• Remove the grease filters (see paragraph Maintenance) being sure that the connector of the feeding cable is correctly inserted in the socket placed on the side of the fan.

Flue assembly

Upper exhaust flue

• Slightly widen the two sides of the upper flue and hook them behind the brackets 7.2.1, making sure that they are well seated.
• Secure the sides to the brackets by using the 4 screws 12c (2,9 x 9,5) supplied.
• Make sure that the outlet of the extensions pieces is aligned with the chimney outlets.

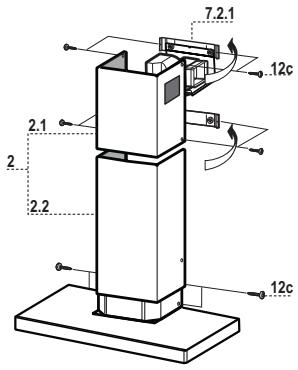

Lower exhaust flue

• Slightly widen the two sides of the flue and hook them between the upper flue and the wall, making sure that they are well seated.
  Fix the lower part laterally to the hood body by using the 2 screws 12c (2,9 x 9,5) supplied.

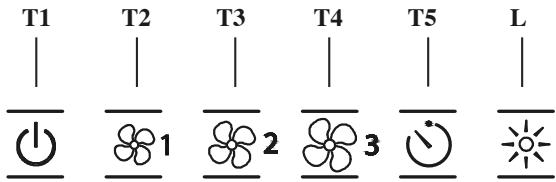

Control panel

BUTTON		FUNCTIONS
T1	Motor	Turns the Motor off.
T2	Speed	Turns the Motor on at Speed one. Button lights up continuously.
T3	Speed	Turns the Motor on at Speed two. Button lights up continuously.
T4	Speed	When pressed briefly, turns the Motor on at Speed three. Button lights up continuously.
T5	Speed	Turns the Motor on at four speed. Button lights flashes. The speed timer set to 7 minutes, after which it returns to the speed that was set previously. Suitable to deal with maximum levels of cooking fumes.
L	Light	Turns the Lighting System on and off. Button lights up continuously.

Grease filters

CLEANING METAL SELF- SUPPORTING GREASE FILTERS

• The filters must be cleaned every 2 months of operation, or more frequently for particularly heavy usage, and can be washed in a dishwasher.
• Remove the filters one at a time by pushing them towards the back of the group and pulling down at the same time.
• Wash the filters, taking care not to bend them. Allow them to dry before refitting.
• When refitting the filters, make sure that the handle is visible on the outside.

Activated charcoal filter (Recirculation version)

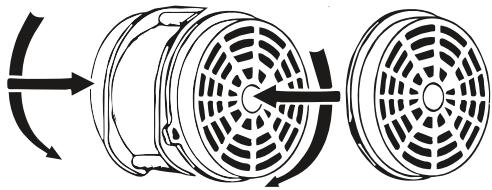

REPLACING THE ACTIVATED CHARCOAL FILTER

• The filter is not washable and cannot be regenerated, and must be replaced approximately every 4 months of operation, or more frequently for particularly heavy usage.
• Remove the metal grease filters.
• Remove the saturated activated carbon filter by releasing the fixing hooks.
• Fit the new filter by hooking it into its seating.
• Refit the metal grease filters.
