USER MANUAL FFI622GR FRANKE

RECOMMENDATIONS AND SUGGESTIONS 11

CHARACTERISTICS 14

INSTALLATION....15

USE 17

MAINTENANCE 18

SOMMAIRE

FR

CONSEILS ET SUGGESTIONS....19

CARACTERISTIQUES....22

INSTALLATION....23

UTILISATION 25

ENTRETIEN 26

INHALTSVERZEICHNIS

DE

Illustration of a chemical experiment setup with a conical flask, thermometer, and smokestack (no text or symbols)

Diagram of a pipe connection with a 2° angle indicator, showing structural components without any text or symbols.

Illustration of a cooking setup with a stove, a steaming pot, and a fire plume (no text or symbols)

Technical illustration of a mechanical device with exploded view and internal components (no text or symbols)

FISSAGGIO AL MURO

Pure technical diagram showing a mechanical assembly with no text, numbers, or symbols

Connessioni

USCITA ARIA VERSIONE ASPIRANTE

Diagram showing a mechanical component with a highlighted section and directional arrow (no text or symbols)

Quadro comandi

1 2 3 4 5

Illustration of a hand holding a smartphone with a green arrow pointing to the screen (no text or symbols)

Diagram of two mechanical components labeled A and B with green directional arrows indicating rotation or movement (no text or symbols beyond labels)

Illuminazione

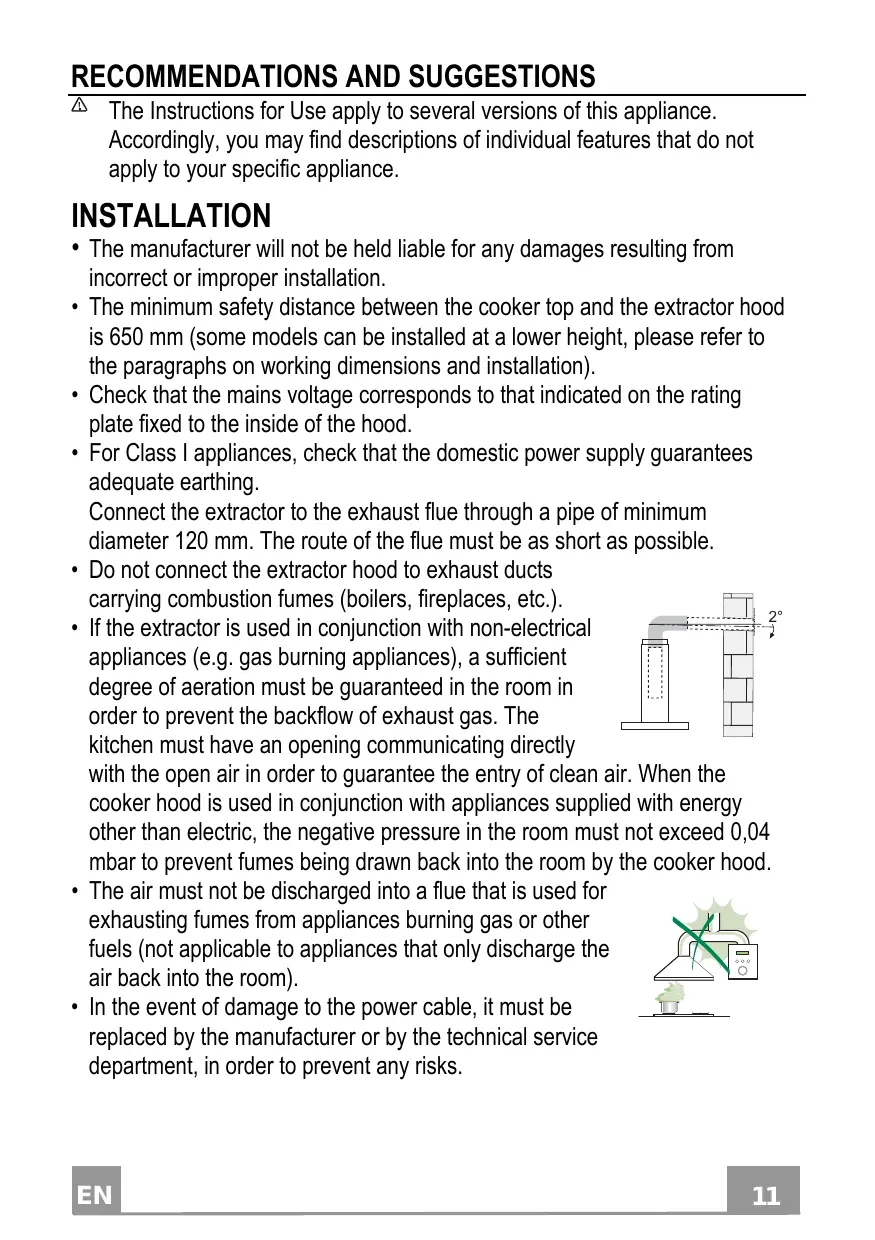

The Instructions for Use apply to several versions of this appliance. Accordingly, you may find descriptions of individual features that do not apply to your specific appliance.

INSTALLATION

• The manufacturer will not be held liable for any damages resulting from incorrect or improper installation.
• The minimum safety distance between the cooker top and the extractor hood is 650 mm (some models can be installed at a lower height, please refer to the paragraphs on working dimensions and installation).
• Check that the mains voltage corresponds to that indicated on the rating plate fixed to the inside of the hood.
• For Class I appliances, check that the domestic power supply guarantees adequate earthing.
  Connect the extractor to the exhaust flue through a pipe of minimum diameter 120 mm. The route of the flue must be as short as possible.

- Do not connect the extractor hood to exhaust ducts carrying combustion fumes (boilers, fireplaces, etc.).

- If the extractor is used in conjunction with non-electrical appliances (e.g. gas burning appliances), a sufficient degree of aeration must be guaranteed in the room in order to prevent the backflow of exhaust gas. The kitchen must have an opening communicating directly

2°

with the open air in order to guarantee the entry of clean air. When the cooker hood is used in conjunction with appliances supplied with energy other than electric, the negative pressure in the room must not exceed 0,04 mbar to prevent fumes being drawn back into the room by the cooker hood.

- The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels (not applicable to appliances that only discharge the air back into the room).

- In the event of damage to the power cable, it must be replaced by the manufacturer or by the technical service department, in order to prevent any risks.

Illustration of a chemical experiment setup with a conical flask, thermometer, and smokestack (no text or symbols)

• If the instructions for installation for the gas hob specify a greater distance specified above, this has to be taken into account. Regulations concerning the discharge of air have to be fulfilled.
• Use only screws and small parts in support of the hood.

Warning: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

- Connect the hood to the mains through a two-pole switch having a contact gap of at least 3 mm.

USE

• The extractor hood has been designed exclusively for domestic use to eliminate kitchen smells.
• Never use the hood for purposes other than for which it has been designed.
• Never leave high naked flames under the hood when it is in operation.
• Adjust the flame intensity to direct it onto the bottom of the pan only, making sure that it does not engulf the sides.
• Deep fat fryers must be continuously monitored during use: overheated oil can burst into flames.
• Do not flambè under the range hood; risk of fire.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of

Illustration of a cooking setup with a pot and stove, featuring a crossed green pan and smoke (no text or symbols)

experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

- “CAUTION: Accessible parts may become hot when used with cooking appliances.”

MAINTENANCE

• Switch off or unplug the appliance from the mains supply before carrying out any maintenance work.
• Clean and/or replace the Filters after the specified time period (Fire hazard).
• The Grease filters must be cleaned every 2 months of operation, or more frequently for particularly heavy usage, and can be washed in a dishwasher.
• The Activated charcoal filter is not washable and cannot be regenerated, and must be replaced approximately every 4 months of operation, or more frequently for particularly heavy usage.
• "Failure to carry out cleaning as indicated will result in a fire hazard".
• Clean the hood using a damp cloth and a neutral liquid detergent.

The symbol ☒ on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

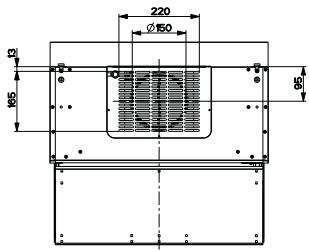

Dimensions

450 28° 500 265 0-90

326 598

220 Ø150 13 165 85

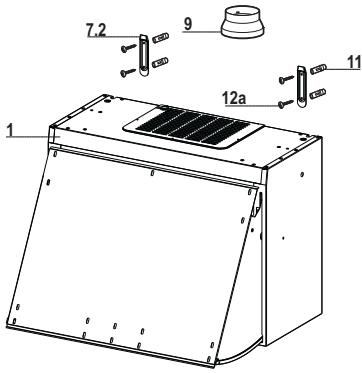

Components

Ref.	Q.ty	Product Components
1	1	Hood Body, complete with :Controls, Light, Blower, Filters
9	1	Reducer Flange ø 150-120 mm

Ref.	Q.ty	Installation Components
7.2	2	Hood Body Fixing Brackets
11	4	Wall Plugs
12a	4	Screws

Q.ty	Documentation
1	Instruction Manual

7.2 9 12a 11

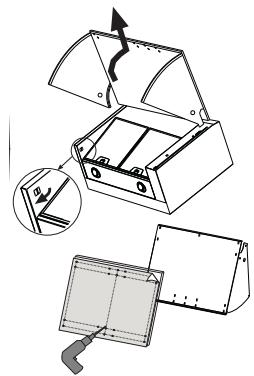

FIXING OF THE FRONTAL PANEL TO THE VISOR

• Pull out the metal visor and, at the same time, unlock the lever on the left side of the hood.
• Use the cardboard template when drilling the front panel. Fix the panel to the visor using the screws supplied.

Technical illustration of a mechanical device with exploded view and internal components (no text or symbols)

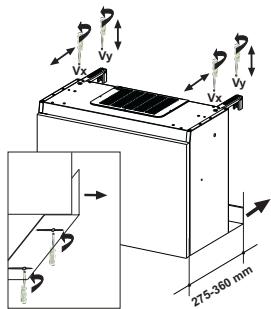

FIXING OF THE HOOD TO THE WALL

• Hood depth can vary from 275 to 360~mm .
• Regulate the Vx screws when adjusting the brackets to the right depth.
• When adjusting the lower part of the hood to the requested depth it is necessary to loose the screws of the metal distance piece and to move it as much as necessary.
• Use the specific cardboard template when drilling the holes into the wall. Put the dowels into the holes and fix the two metal brackets using the four screws supplied together with other accessories.
• Use the specific cardboard template when drillig the side closets.

When the hood is used in ducting version it is necessary to remove the grid from the air outlet.

• Hang the hood on the metal brackets.
• Put back the visor again paying attention that the runners are put correctly into the proper places. Adjust the visor sliding by means of the two screws.
• Regulating the Vy screws it is possible to align the hood height compared to the closets.
• When necessary adjust again the hood depth.

Vx Vy Vx Vy 275-360 mm

Pure technical diagram showing a mechanical assembly with no text, numbers, or symbols

Connections

DUCTED VERSION AIR EXHAUST SYSTEM

When installing the ducted version, connect the hood to the chimney using either a flexible or rigid pipe 150 or 120 mm, the choice of which is left to the installer.

• To install a 120 mm air exhaust connection, insert the reducer flange 9 on the hood body outlet.
• Fix the pipe in position using sufficient pipe clamps (not supplied).
• Remove possible charcoal filters.

Ø 150

Ø 120 9

AIR OUTLET IN RECYCLING VERSION

• Make sure that the hood body has been completely fixed.
• Make sure that hood is equipped with charcoal filters.

ELECTRICAL CONNECTION

• Connect the hood to the mains through a two-pole switch having a contact gap of at least 3 mm.
• Remove the grease filters (see paragraph Maintenance) being sure that the connector of the feeding cable is correctly inserted in the socket placed on the side of the fan.

Diagram showing a mechanical component with a highlighted section and directional arrow (no text or symbols)

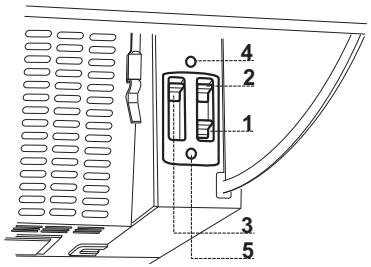

Control board

1 2 3 4 5

1	Lighting	On/off lighting system.
2	Motor	On/off motor.
3	Speed	Speed control:
		1. Minimum speed, particularly silent, continuous air exchange, suitable in presence of only few cooking vapours and odours.
		2. Medium speed, due to an optimum relation between hood extraction capacity and the noise level, it is suitable for most of the cooking conditions.
		3. Maximum speed, suitable for the cooking conditions when vapours and smells are of the utmost emission even for a longer time.

OPTIONAL

4	Microswitch	Microswitch, which is activated by the movement of the visor. It switches on and off the hood basing on the conditions which have been earlier established with the sliders of the control panel.
5	Led	Led indicating when the motor is on.

Grease filters

CLEANING METAL SELF- SUPPORTING GREASE FILTERS

• The filters must be cleaned every 2 months of operation, or more frequently for particularly heavy usage, and can be washed in a dishwasher.
• Remove the filters one at a time by pushing them towards the back of the group and pulling down at the same time.
• Wash the filters, taking care not to bend them. Allow them to dry before refitting.
• When refitting the filters, make sure that the handle is visible on the outside.

Illustration of a hand holding a smartphone with a green arrow pointing to the screen (no text or symbols)

Activated charcoal filter (Recirculation version)

These filters are not washable and cannot be regenerated, and must be replaced approximately every 4 months of operation, or more frequently with heavy usage.

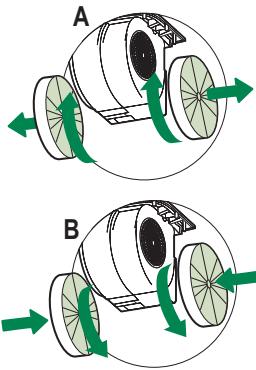

REPLACING THE ACTIVATED CHARCOAL FILTER

• Remove the metal grease filters
• Remove the saturated activated charcoal filter as shown (A).
  • Fit the new filters (B).
• Replace the metal grease filters.

Diagram of two mechanical components labeled A and B with green arrows indicating rotational motion (no text or symbols present)

Lighting unit

- For replacement contact technical support ("To purchase contact technical support").
