USER MANUAL H102K - H102X LEISURE

Users Guide & Installation

EN|FR|NL

H 92 K H 102 X
H 92 X H 102 PK
H 92 PK H 102 PX
H 92 PX H 112 K
H 102 K H 112 X

LEISURE

Please read this user manual first!

Dear Customer,

Thank you for purchasing this Leisure product. We hope that you get the best results from your product which has been manufactured with high quality and state-of-the-art technology. Therefore, please read this entire user manual and all other accompanying documents carefully before using the product and keep it as a reference for future use. If you handover the product to someone else, give the user manual as well. Follow all warnings and information in the user manual.

Remember that this user manual is also applicable for several other models. Differences between models will be identified in the manual.

Explanation of symbols

Throughout this user manual the following symbols are used:

i	Important information and useful hints about usage.
!	CAUTION: Warning for hazardous situations with regard to life and property.
!	DANGER: Warning for hazardous situations with regard to life and property.

This product was manufactured using the latest technology in environmentally friendly conditions.

CONTENTS

ENGLISH 4-21

FRANÇAIS 22-41

NEDERLANDS 42-62

1

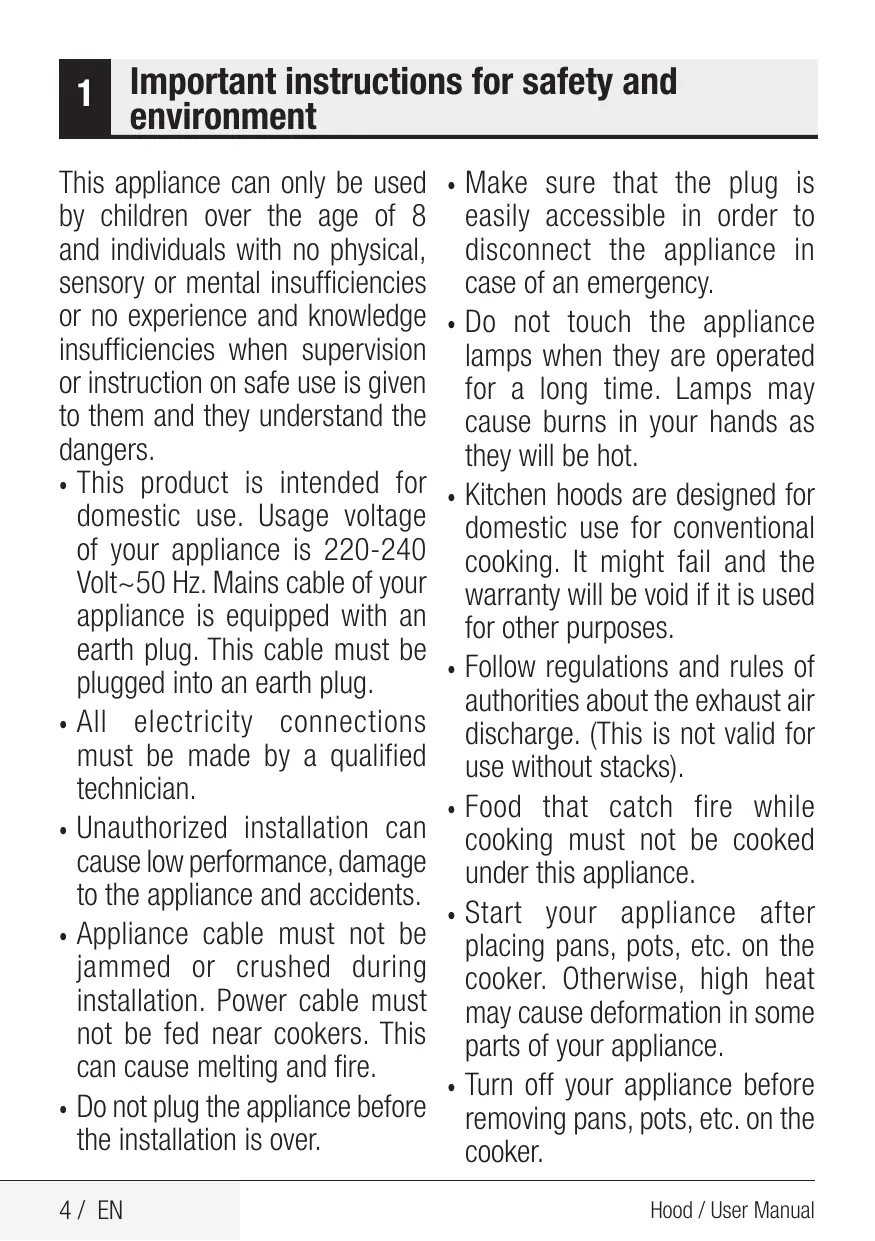

Important instructions for safety and environment

This appliance can only be used by children over the age of 8 and individuals with no physical, sensory or mental insufficiencies or no experience and knowledge insufficiencies when supervision or instruction on safe use is given to them and they understand the dangers.

• This product is intended for domestic use. Usage voltage of your appliance is 220-240 Volt~50 Hz. Mains cable of your appliance is equipped with an earth plug. This cable must be plugged into an earth plug.
• All electricity connections must be made by a qualified technician.
• Unauthorized installation can cause low performance, damage to the appliance and accidents.
• Appliance cable must not be jammed or crushed during installation. Power cable must not be fed near cookers. This can cause melting and fire.

• Do not plug the appliance before the installation is over.

• Make sure that the plug is easily accessible in order to disconnect the appliance in case of an emergency.

• Do not touch the appliance lamps when they are operated for a long time. Lamps may cause burns in your hands as they will be hot.
• Kitchen hoods are designed for domestic use for conventional cooking. It might fail and the warranty will be void if it is used for other purposes.
• Follow regulations and rules of authorities about the exhaust air discharge. (This is not valid for use without stacks).
• Food that catch fire while cooking must not be cooked under this appliance.
• Start your appliance after placing pans, pots, etc. on the cooker. Otherwise, high heat may cause deformation in some parts of your appliance.
• Turn off your appliance before removing pans, pots, etc. on the cooker.

1 Important instructions for safety and environment

• Do not leave hot oil on the cooker. Pans with hot oil may cause self-ignition and fire.
• Oil may catch fire while frying, etc. Be careful with curtains and quilts.
• Ensure that filters are replaced in time. Filters that are not replaced in time pose fire risk due to accumulated oil in them.
• Do not use non-fire-resistant filtering material instead of filters.
• Do not operate your product without a filter.
• Do not remove filters while the product is being used.
• In case of a fire, disconnect the hood and cooker. (Unplug the appliance or switch off the main circuit breaker).
• Your appliance may pose fire risk if not cleaned regularly.

• Disconnect your device before maintenance works. (Unplug the appliance or switch off the main circuit breaker).

• Negative pressure in the room while hoods and devices operating on other sources than electricity are used at the same time must not exceed 4 Pa ( 4 X 10 bar ).

• If there are devices that are used with fuel or gas such as room heaters in the area where your appliance is used, the exhaust of these devices must be completely isolated or the device must be air tight.
• Use pipes with 150 or 120 mm diameter when connecting your appliance's stacks. The connection must be as short as possible with the fewest possible elbows.
  Children must not play with the appliance.
• Use "MAX 6 A" fuse in your appliance for your safety.
• Keep packaging material away from children as they may be dangerous.

1 Important instructions for safety and environment

• If the supply cable is damaged, it must be replaced by the manufacturer or its service agency or any personnel of equivalent qualifications to avoid any dangerous situation.
• In case of a fire, disconnect the hood and cooker and cover the flames. Never use water to extinguish.
• Accessible parts can be hot when cookers are operated.
• This appliance is not intended to be used by individuals with limited physical, sensory and mental abilities (including children) or individuals with limited knowledge or experience unless supervision and administration are provided by a person responsible for appliance safety.

• When hood is installed, there must be at least 65 cm clearance with the product and electricity cookers and with cookers operating on gas or other fuels.

• Hood outlet must not be connected to air channels that include other smoke.

• Care must be taken when appliance is used with devices that use air and fuel (e.g. heaters, water heaters that operate on gas, diesel fuel, coal or wood). This is because it may decrease combustion as hood discharges air in the room atmosphere.
• This is not valid for use without stacks.
• The room must have sufficient ventilation when cooker, hood and devices that operate on gas and other fuels are used at the same time (this may not be applied to devices that circulates air in the room).

1.1 Compliance with the WEEE Directive and Disposing of the Waste Product:

This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE).

This product has been manufactured with high quality parts and materials which can be reused and are suitable for recycling. Do not dispose of the waste product with normal domestic

and other wastes at the end of its service life. Take it to the collection center for the recycling of electrical and electronic equipment. Please consult your local authorities to learn about these collection centers.

Compliance with RoHS Directive

The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

1.2 Package information

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not

dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

2 Risk of death - risk of poisoning

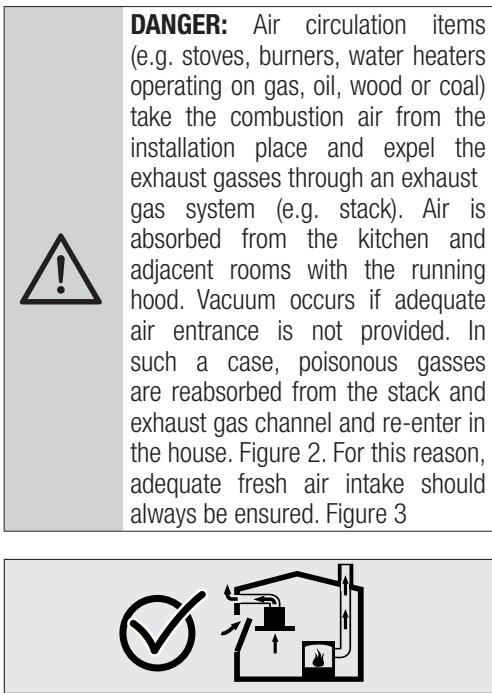

2.1 Risk of Death - Risk of Poisoning

Figure 2: Risk poisoning
Figure 3


DANGER: Risk of burning, risk of electrocution! - Wait until the device cools down prior to cleaning or maintenance work. Disconnect the fuse or unplug from the mains. - There is risk of damage due to humidity seepage to electronic parts. Never clean the control elements with a damp cloth. - Surface can be damaged as a result of incorrect cleaning. Clean stainless steel surfaces only in brushing direction. Do not use stainless steel cleaners for control elements. - Surface can be damaged due to sharp or scrubbing cleaning agents. Never use sharp or scrubbing cleaning agents.

!	DANGER: Risk of fire, risk of injury! Disconnect the fuse or unplug your device from the mains due to exceptional or amiss repairs. Repairs should always be carried out by authorized service or authorized specialist staff only.
i	In case of failure or damage on the device, disconnect the fuse or unplug your device from the mains and call the authorized service.
i	If the supply cable is damaged, it must be replaced by the manufacturer or its service agency or any personnel of equivalent qualifications to avoid any dangerous situation.

i	When the bulbs of the device is damaged, disconnect the fuse or unplug your device from the mains. To avoid overloading the other bulbs, immediately replace the failed bulbs (wait until the bulb cools down).

!	CAUTION: When used together with cookers, accessible parts may heat up.


DANGER: Air outlet pipe of this device should never be connected inside the stack which is used to expel fumes emitting from devices using gas or other fuels.

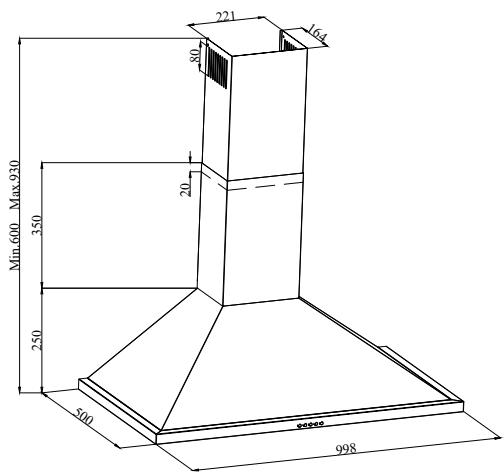

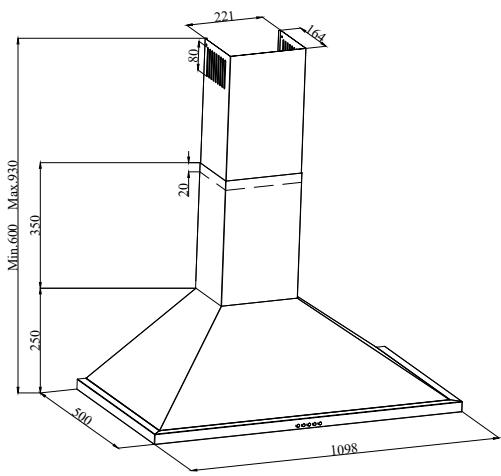

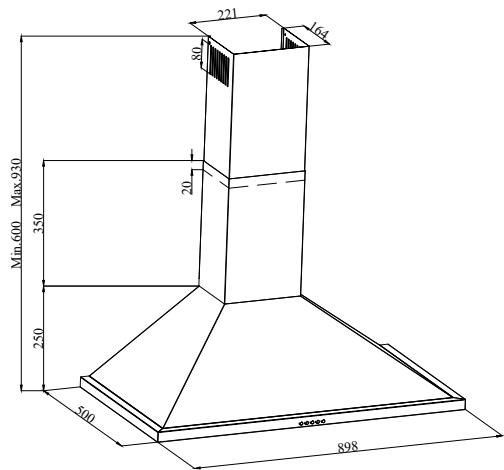

3 Technical specifications of your appliance

Markings on the product or the values stated in other documents supplied with the product are values obtained under laboratory conditions as per relevant standards. These values may vary depending on operational and environmental conditions of the product.

4 Usage with or without carbon filter

4.1 Carbon Filter Replacement

Under circumstances without a stack, active carbon filter should be used to resend the inside air by re-filtering. Active carbon filter should be procured from the service or your dealer. Disconnect the device prior to replacing the carbon filter. Since the carbon filter is used in kitchens without a stack outlet, it should be replaced by a new one every 3 to 5 months subject to usage. Carbon filter should never be washed. In any case the oil filters should be attached to the product regardless of using a carbon filter or not. Do not use the product without oil filter.

4.2 Carbon Filter Replacement

The device you have bought is suitable for AF 90 carbon-filter use.

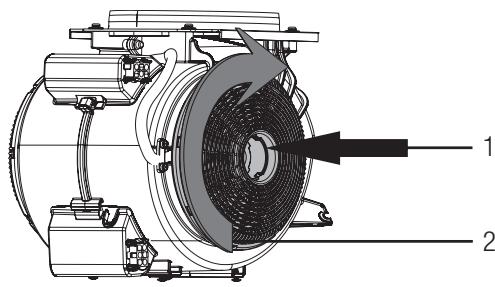

1. Place the carbon filter in its housing. Figure 4
2. Rotate the carbon filter clockwise and make sure that it is seated completely. Figure 4

Figure 4: Carbon Filter

If not seated completely, carbon filter can fall and damage your product.

DANGER: Never wash the carbon filters. Keep carbon filters away from children.

CAUTION:Cleaning and user service should not be made by children who are not under supervision.
- Surface can be damaged due to sharp or scrubbing cleaning agents. Never use sharp or scrubbing cleaning agents. Procure cleaning and protection agents proper for your device from the authorized service. Surface of the device and control units are sensitive against scratching.
Clean the surfaces with a soft, damp cloth, dishwashing detergent or a mild glass cleaning agent. Soften dried and stuck soil with a damp cloth. Do not scrape!
- Using dry clothes, sponges that may scratch, agents that necessitate rubbing, cleaning agents containing sand, soda, acid or chlorine or other strong materials is not appropriate.
- Clean stainless steel surfaces only in the direction of grinding.
- Do not use stainless steel cleansers and wet clothes for control units. Cleaning metallic oil filters Used metallic oil filters trap oily particles contained in the humidity and steam in the kitchen. Under normal usage (1-2 hours daily), clean metallic oil filters approximately every three months.
- Do not use excessively strong, acidic or chlorine-solution cleansers.
- While cleaning the metallic oil filter, clean the trapping arrangements of metallic oil filters in the device with a damp cloth also.
- You can clean metallic oil filters in the dishwasher or by hand wash.

5.1 Washing in the Dishwasher

In case of dishwashing, slight discoloration may be in question. This has no impact in terms of the function of the metallic oil filter.

• Do not wash heavily soiled metallic oil filters together with the dishes.
• Place the metallic oil filters in the dishwasher loosely or freely standing. Metallic oil filters should be placed in the dishwasher without any compression on them.

5.2 Hand Washing

Soften the stains of the metallic oil filters in hot dishwashing detergent water.

• Use a brush for cleaning and let the liquids on the metal oil filters to drain completely.
  Rinse the filters well after cleaning.

You may use a special oil solvent to remove persistent soils. You can get this product via authorized sales center.

6 Installation of the device

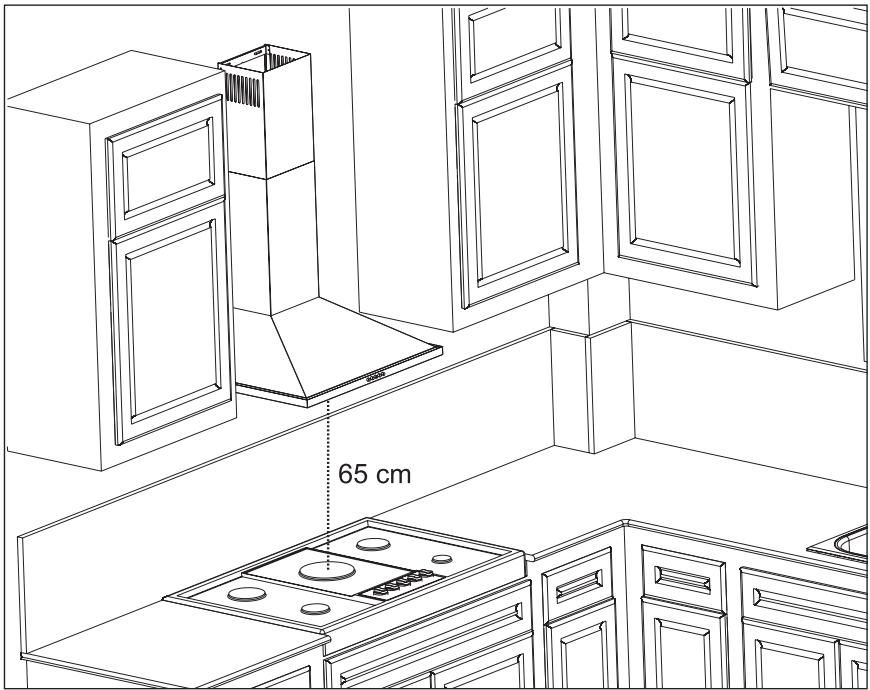

Figure 5: Installation of the device

When hood is installed, the product must have at least 65~cm clearance with the electricity cookers and with cookers operating on gas or other fuels. Figure 5

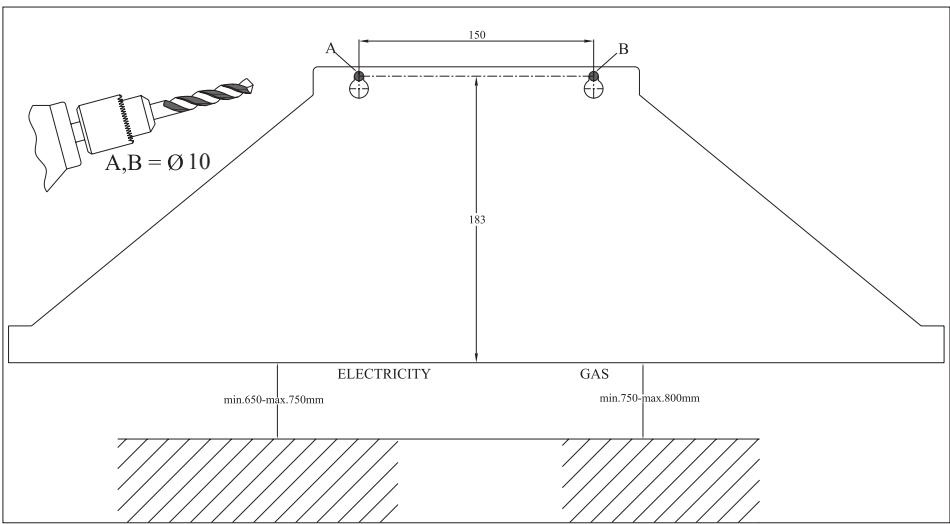

6.1 Installation Scheme

Figure 6: Installation scheme

6.2 Installation and Unpacking

Check if there are any damages on your appliance.

• Shipment damages must be reported to the shipment responsible immediately.
• Visible defects must also be communicated to the seller.
• Do not let children play with packaging material.

Regularly change carbon filters.

• Clean aluminum filters regularly. You might need to operate your appliance in high levels as dirty filter will block air intake.
• Use your appliance levels appropriately.
• Using in high levels will increase your energy consumption.

Figure 7: Package content

1.Product
2. Internal Stack
3. External Stack
4.150/120 mm Plastic Flue Adapter
5. Stack Connection Metallic Sheet
6. Operation Manual
7.06mm Plastic Pin
8.010mm Plastic Pin
9.5.5x60 Wall Mount Screw
10. 3.9 × 22 Stack Connection Sheet Screw
11. 3.5 × 9.5 Stack Connection Screw

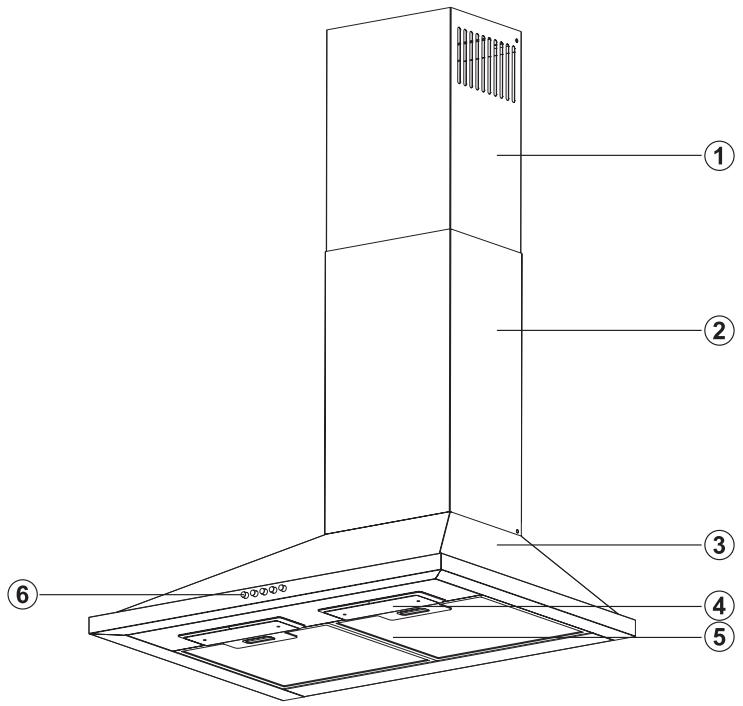

Figure 8: Overview of the hood

1. Internal Stack
2. External Stack
3. Body
4. Cooker Lighting
5. Aluminium Filter
6. Control Panel

9.1 Installation scheme and parts

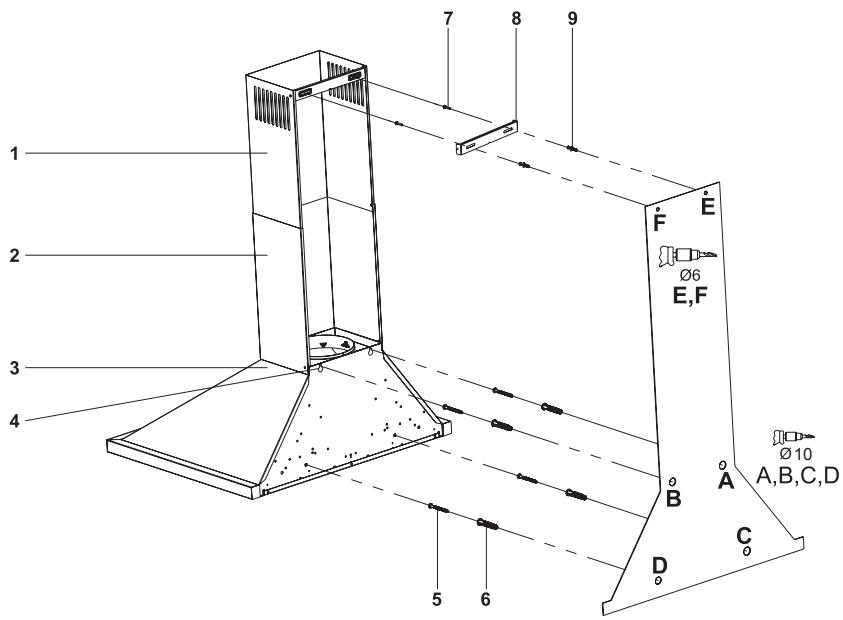

Figure 9: Installation and parts

1. Internal Stack
2. External Stack
3. Body
4. Product Rack Sheet
5. 2x 5.5x60 Wall Rack Screw
6. 2x010mm Plastic Pin
7. 2x 3.9x22 Screw
8. Stack Connection Metallic Sheet
9. 2x 06mm Plastic Pin

Install the hood using the installation scheme.

• Check the minimum and maximum distance according to workbench and drill points A, B. (Figure 9)
• Place 010mm pins in drilled A, B points and screw the screws to A+B points leaving 5 mm gap between screw head and the wall. (Figure 9)
• Hang the hood on the wall using A, B points.

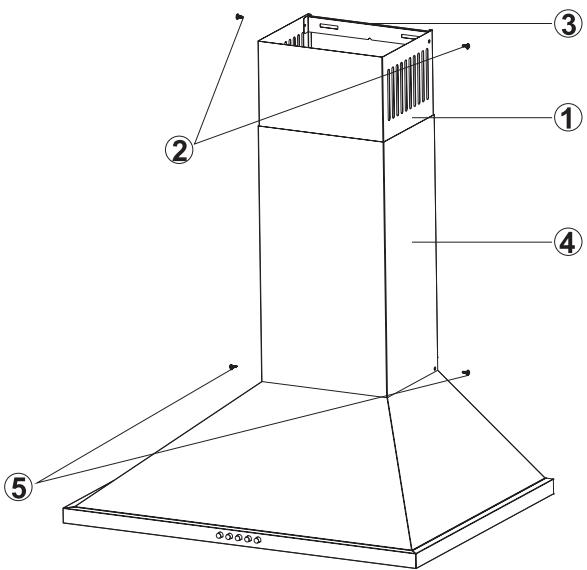

Figure 10: Mounting sheet stacks

1. Internal Stack
2. Internal Stack Connection Sheet Fixing Screws
3. Stack Connection Metallic Sheet
4. External Stack
5. External Stack Fitting Screw

Install air exhaust connection of the appliance. Internal and external sheet stacks are inserted to each other. "Installation Scheme and Parts". Center stack connection sheet (3) on the hood, hold it under the cover or measure and mark C, D points. (Figure 10)

• Drill C, D points with 6mm drill and place 6mm plastic pins. Place stack connection sheet on the surface where 3.9× 22 screws will be installed. (Figure 10)
• Pull out the internal stack (1) using screws (2) and screw it on stack connection sheet on the right and left (3). (Figure 10)
• Mount the external stack (4) on hood body using 2 screws (5). (Figure 10)

11 How to use the product

Figure 11:Push button

1. Press this button to reset your product.
2. Product will run on 1st speed level when this button is pressed.
3. Product will run on 2nd speed level when this button is pressed.
4. Product will run on 3rd speed level when this button is pressed.
5. Press this button to turn on and off the lamp.

12 Lamp replacement

DANGER: Disconnect the hood from mains. Wait for the lamps to cool as you might burn your hands.

12.1 Replacement of LED Lamp

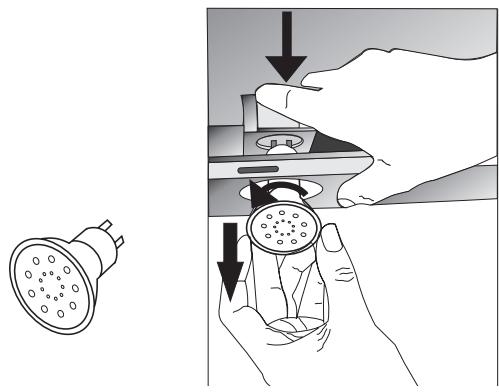

Figure 13: Replacement of LED lamp Remove the aluminium cartridge filter. Remove the faulty bulb and replace with a new one with the same rating.Fig. 13

13 Authorized service

If Lighting is not working:

• Make sure the appliance is plugged and fuses are not faulty.
• Check bulbs. Make sure to unplug the appliance while making this check. Tighten the lamps if they are loose. Replace them if they still do not work.

Possible Failures and Actions You Can Do Without Calling the Service:

• Appliance does not work at all:

• Check if the appliance is plugged or the plug is secured in the socket.

• Check the breaker of the appliance and main breaker of your house.

If the device shows low performance or makes loud noises while working:

• Does the appliance have a sufficient stack diameter? (min.120 mm).
• Are the metallic filters clean? Check.
• If your are using the hood without stack, make sure carbon filters are not older than 6 months.
• Make sure your kitchen is ventilated enough to ensure air flow. If you are still dissatisfied with your appliance's performance, contact the authorized service.

13 Authorized service

13.1 Installation Scheme and Parts

Troubleshooting	Reason	Help
Product does not work	Check electricity connection	Mains voltage must be 220-240V and the product must be connected to an earth socket
Lighting lamp does not work	Check electricity connection	Mains voltage must be 220-240V and the product must be connected to an earth socket
Lighting lamp does not work	Check lamp switch	Lamp switch must be in “on” position
Lighting lamp does not work	Check lamps	Product lamps must not be faulty
Product air suction is weak	Check aluminum filter	Aluminum cartridge filter must be washed at least once a month under normal conditions
Product air suction is weak	Check air exhaust stack	Air exhaust stack must be open
Product air suction is weak	Check Carbon filter	In products that carbon filters are used, carbon filter must be replaced once in 3 months under normal conditions
Does Not Discharge Air (Use without Stack)	Check Aluminum filter	Aluminum cartridge filter must be washed at least once a month under normal conditions
Does Not Discharge Air (Use without Stack)	Check Carbon filter	In products that carbon filters are used, carbon filter must be replaced once in 3 months under normal conditions

13.2 Technical Chart

Feed Voltage	220 - 240 V 50Hz
Motor Insulation Class	F
Insulation Class	CLASS I
