USER MANUAL 28TL520S LG

Dimensions (L x H x P) (mm) Avec support

PAL/SECAM B/G, D/K, I,

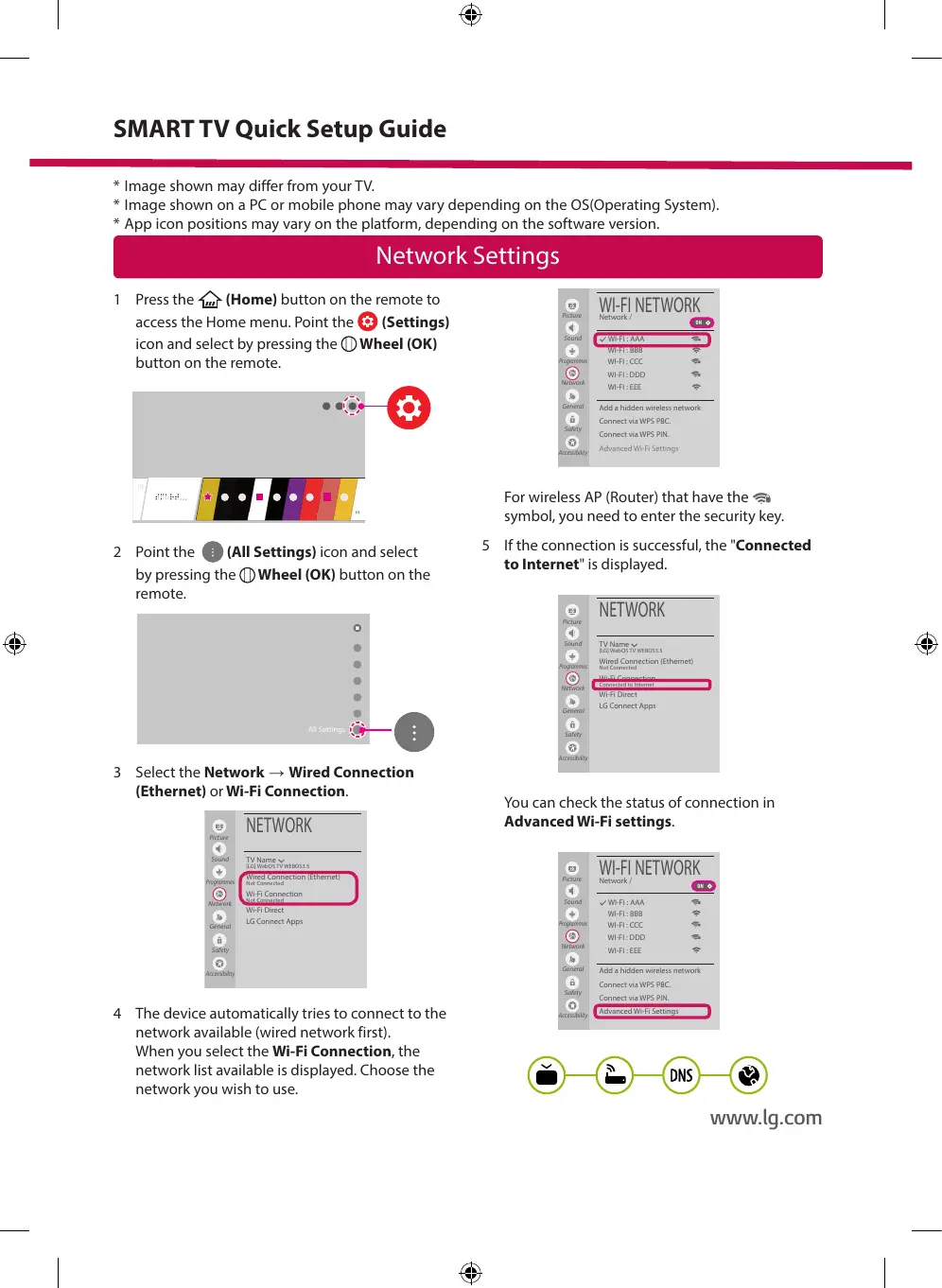

SMART TV Quick Setup Guide

* Image shown may differ from your TV. * Image shown on a PC or mobile phone may vary depending on the OS(Operating System). * App icon positions may vary on the platform, depending on the software version.

1 Press the (Home) button on the remote to access the Home menu. Point the (Settings) icon and select by pressing the Wheel (OK) button on the remote.

Sound Programmes Network General Safety Accessibility

For wireless AP (Router) that have the symbol, you need to enter the security key.

2 Point the (All Settings) icon and select by pressing the Wheel (OK) button on the remote.

5 If the connection is successful, the "Connected to Internet" is displayed.

Wired Connection (Ethernet)

3 Select the Network → Wired Connection

(Ethernet) or Wi-Fi Connection. Picture Sound Programmes

You can check the status of connection in

Advanced Wi-Fi settings.

[LG] WebOS TV WEBOS3.5

Not Connected Not Connected

Sound Programmes Network General Safety

4 The device automatically tries to connect to the network available (wired network first).

When you select the Wi-Fi Connection, the network list available is displayed. Choose the network you wish to use.

Wired Connection (Ethernet)

Connected to Internet

Troubleshooting Network Problems

1 Press the (Home) button on the remote to access the Home menu. Point the (Settings) icon and select by pressing the Wheel (OK) button on the remote.

Check the AP (Router) or consult your Internet service provider.

When X appears next to Gateway:

1 Unplug the power cord of the AP (Router) and try to connect after 5 seconds. 2 Point the (All Settings) icon and select by pressing the Wheel (OK) button on the remote.

3 Select the Network → Wired Connection

(Ethernet) or Wi-Fi Connection → Advanced Wi-Fi settings.

Wired Connection (Ethernet)

3 Contact internet service provider or AP (Router) company.

When X appears next to DNS:

2 Initialize (Reset) the AP (Router).

ON Follow the instructions below that correlate to your network status.

Check the TV or the AP (Router).

When X appears next to TV:

1 Check the connection status of the TV, AP (Router). 2 Power off and power on the TV, AP (Router). 3 If you are using a static IP, enter the IP directly. 4 Contact internet service provider or AP (Router) company.

1 Unplug the power cord of the AP (Router) and try to connect after 5 seconds.

2 Initialize (Reset) the AP (Router). 3 Check that the MAC address of the TV/AP (Router) is registered with your Internet service provider. (The MAC address displayed on the right pane of the network status window should be registered with your Internet service provider.) 4 Check the AP (Router) manufacturer’s website to make sure your router has the latest firmware version installed.

SmartShare PC SW Installing & Setting

1 Install the SmartShare PC SW programme on your PC. 2 Go to www.lg.com. Then, select your region. 3 Select SUPPORT. Then, select Drivers & Software, SOFTWARE UPDATE or Software & Firmware. 4 Search for your model. Then, select SmartShare PC SW. 5 You can run the programme when installation is complete.

NOTE yy SmartShare service is only available if TV and other devices are connected via a single AP (Router).

SmartShare Connection to Smartphone

1 Check that Wi-Fi is enabled on your smartphone. To use SmartShare, both devices must on the same local network. 2 Install/run the app for sharing content on your smartphone (It's called LG TV Plus on LG phones). 3 Enable your smartphone to share content files with other devices. 4 Open Device Connector application. (Home) → Device Connector → Smartphone → CONTENT SHARE. 5 Select the file type you want to play (movie, audio or photo). 6 Select a movie, music or photo file to play on the TV. 7 Play the media file to view and enjoy it on your TV.

Updating the TV Firmware

* If the TV is turned on for the first time after it was shipped from the factory, initialization of the TV may take a few minutes. 1

(Settings) → CHECK FOR UPDATES

General → About This TV →

2 After checking the version of the software, update it.

If you check the "Allow Automatic Updates", you can update the software automatically.

Network General Safety

SIMPLINK (HDMI-CEC) LG Wireless Keyboard Setting Help Screen Saver Reset to Initial Settings

Allow Automatic Updates

CHECK FOR UPDATES TV Information

About This TV Accessibility

Open Source Software Notice

(Settings) → (All Settings) → Network → Wi-Fi Direct If a local network is not available, you can connect a portable device directly to the TV using Wi-Fi Direct. With SmartShare, you can share files or screens of devices connected to Wi-Fi Direct.

1 When you open Wi-Fi Direct menu, a list of available devices appears.

2 When you are prompted to request connection, select Yes. Wi-Fi Direct is now connected to your TV.

Miracast allows a portable device to securely send video and sound to the TV wirelessly. (Home)/

1 Miracast should be set to "ON" on your portable device.

2 When your TV is detected, select the device on your portable device. When connection is completed, the device screen appears on the TV screen. If you turn Listen Mode to ON after launching the Screen Share app, you can connect the device without starting the Screen Share app.

WiDi (Wireless Display) Setting

Intel’s WiDi (Wireless Display) technology enables easy and fast connection without wires or internet network for mirrored and dual monitor display on your TV. You can sit back and experience your favorite movies, videos, photos, online shows and more in full HD on your TV with great image clarity and sound. (Home)/

1 Intel's WiDi is set to On. Your laptop runs the Intel WiDi programme.

2 It detects LG webOS TVs available, which supports WiDi. In the list, select the TV you want and click Connect. Enter the number shown on the screen into the input field ( ) on your laptop and then click Continue.

Notebook Screen 3 The laptop screen appears on the TV screen. The wireless environment may affect the screen display. If the connection is poor, the Intel WiDi connection may be lost. * LG TVs do not need to register. ********

Please call LG Customer Service if you experience any problems.
